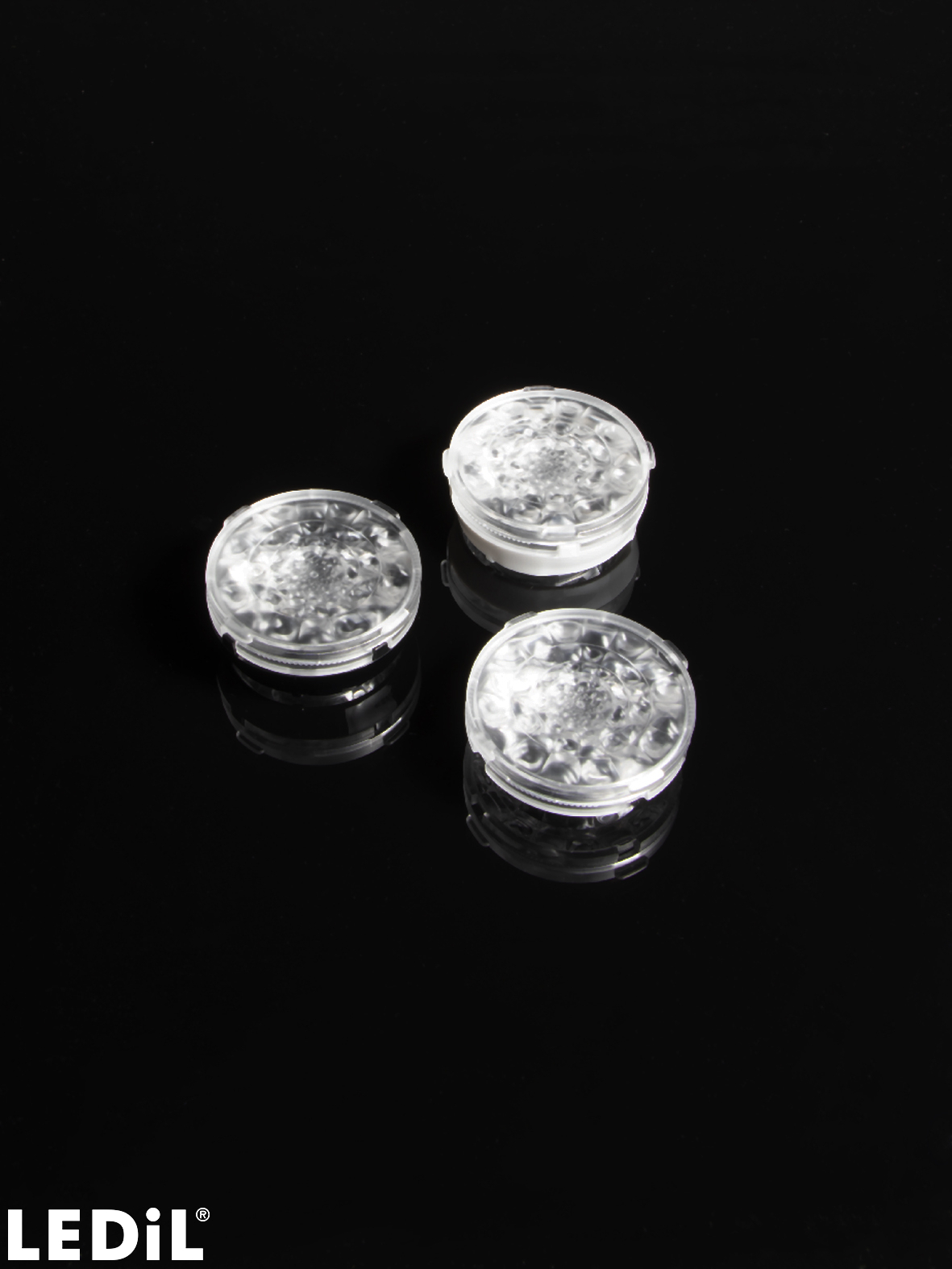

AMY-35-ZOOM
Print
Infinitely adjustable beam from 20 to 50 degrees
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
The sublens is a mandatory component that must be ordered separately. In addition to the sublens, you must choose either a single lens or an assembly.
Component Materials
- AMY-35-ZOOMSingle lensPMMA
- AMY-35-HLD2-B-WHTHolderPC
- AMY-35-HLD2-BHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
- Sublens
- C18165_AMY-35-ZOOM-SUBclearQuantity in box:1320 pcsBox size:480 x 280 x 185 mmBox weight:4.70 kgMPQ:66 pcsMOQ:132 pcsMOQ Size:480 x 280 x 20 mmMOQ Weight:0.60 kg
- Single lens
- C18159_AMY-35-ZOOM
clearQuantity in box:1320 pcsBox size:476 x 273 x 247 mmBox weight:9.00 kgMPQ:66 pcsMOQ:132 pcsMOQ Size:480 x 280 x 50 mmMOQ Weight:1.10 kg- Assembly
(single lens, holder)
- CP19166_AMY-35-ZOOM-B2
black,Holder B- CP19172_AMY-35-ZOOM-B2-WHT
white,Holder BQuantity in box:1320 pcsBox size:480 x 280 x 300 mmBox weight:10.30 kgMPQ:66 pcsMOQ:132 pcsMOQ Size:480 x 280 x 60 mmMOQ Weight:1.30 kg
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

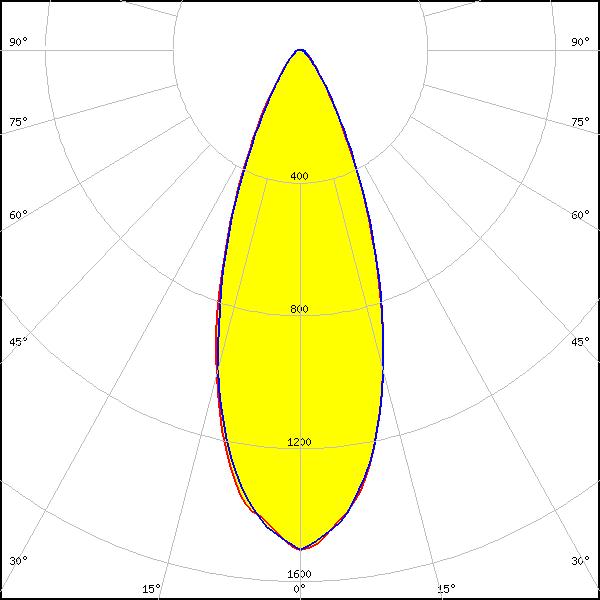

LED:
V8 Gen 8-9
Ordering code: CP19166_AMY-35-ZOOM-B2
LES size: 8.5 mm
Required components:
FWHM:
22° - 50°
FWTM:
49° - 87°
Peak intensity:
3.136 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

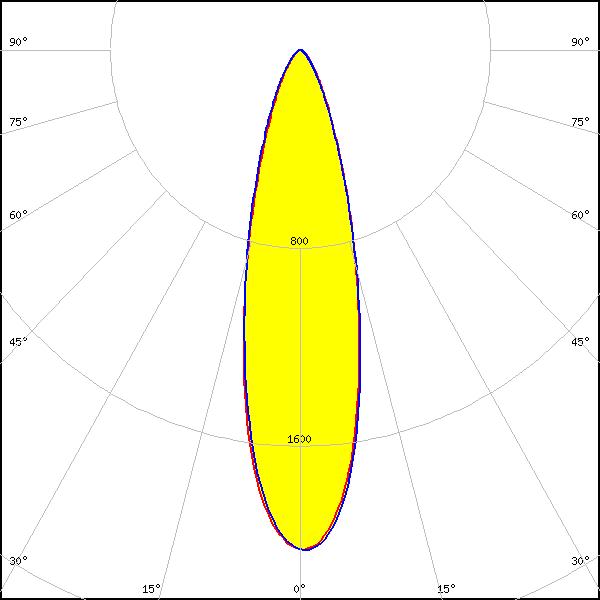

LED:
CLL02x/CLU02x (LES10)
Ordering code: CP18164_AMY-35-ZOOM-B
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
C18165_AMY-35-ZOOM-SUB
C18165_AMY-35-ZOOM-SUB
FWHM:
27° - 49°
FWTM:
59° - 90°
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

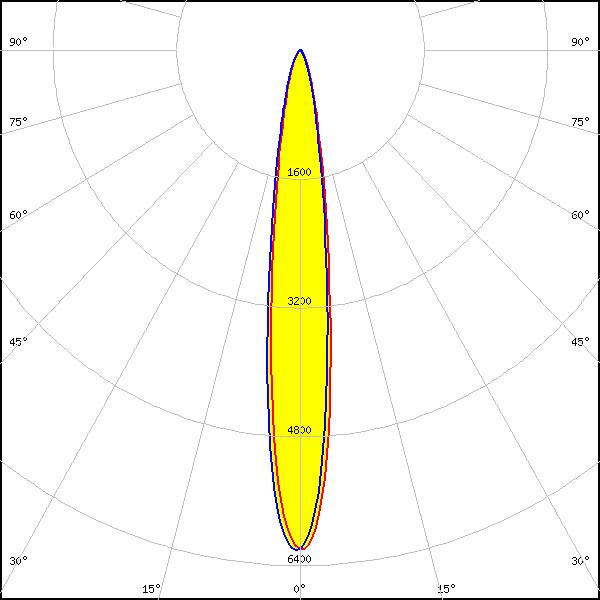

LED:
CLU7L3
Ordering code: CP19166_AMY-35-ZOOM-B2
LES size: 2.4 mm
Required components:
FWHM:
14° - 48°
FWTM:
34° - 83°
Peak intensity:
6.219 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

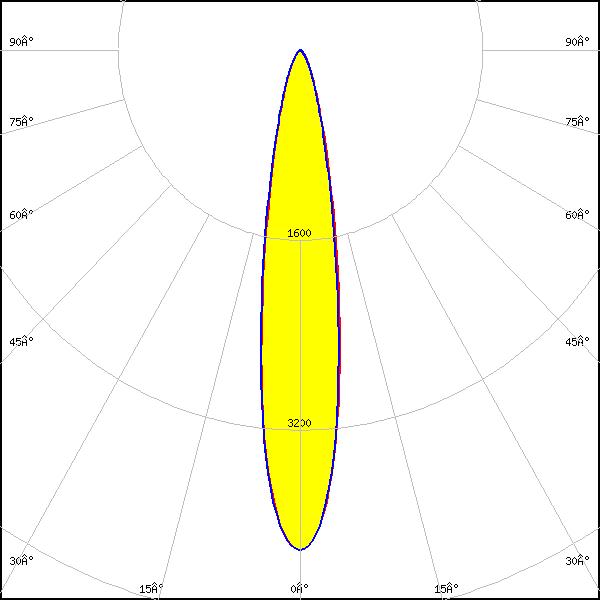

LED:
CLU7R3
Ordering code: CP19166_AMY-35-ZOOM-B2
LES size: 4.2 mm
Required components:
FWHM:
18° - 49°
FWTM:
41° - 85°
Peak intensity:
4.214 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

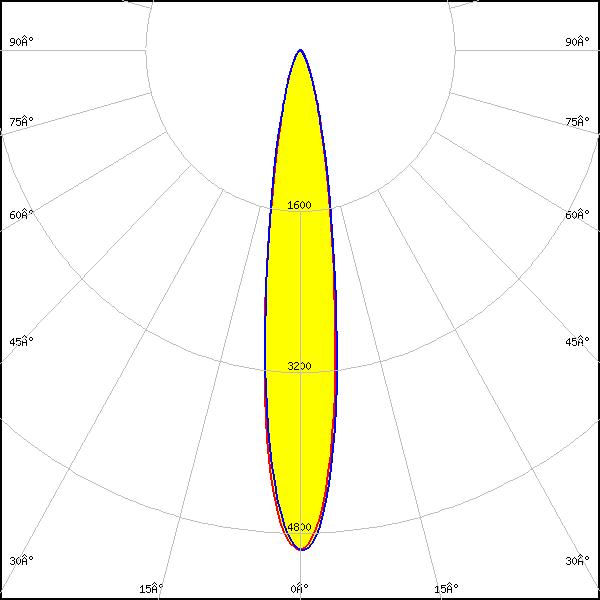

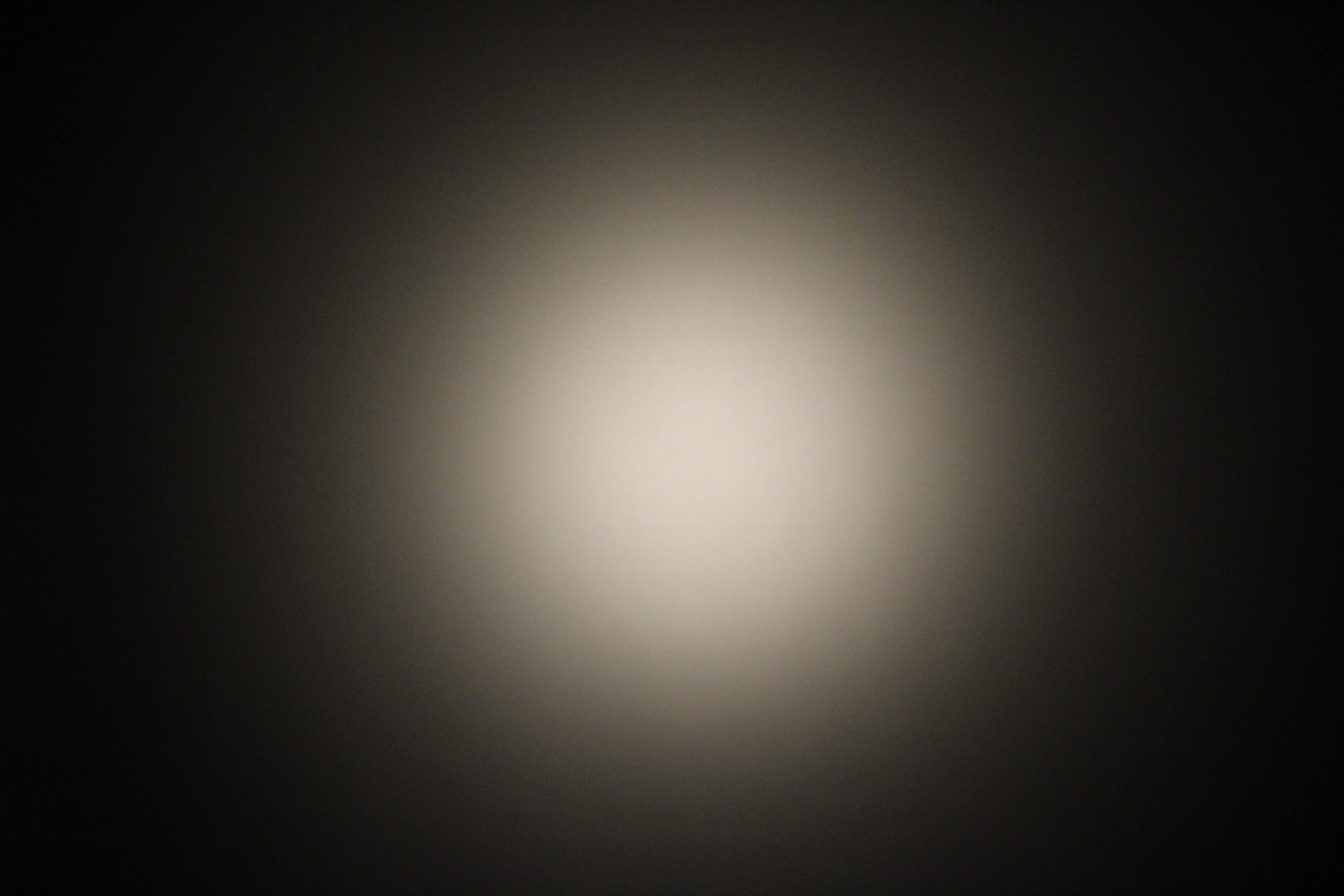

LED:
CLU7S3
LES size: 3.5 mm
Required components:
FWHM:
17° - 51°
FWTM:
38° - 87°
Peak intensity:
4.968 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

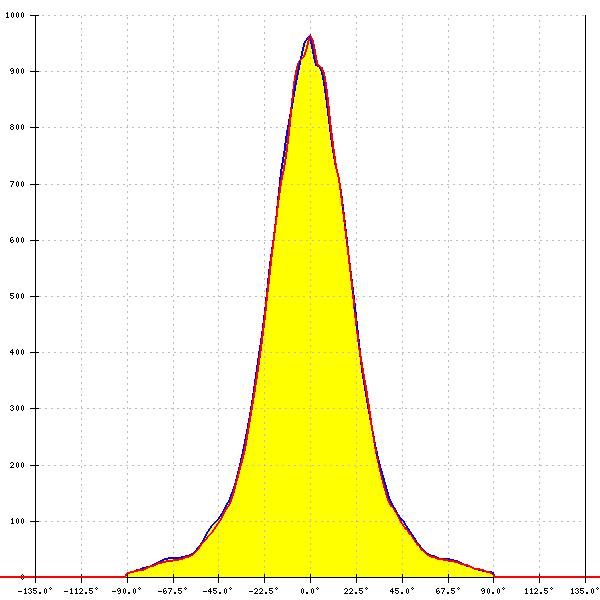

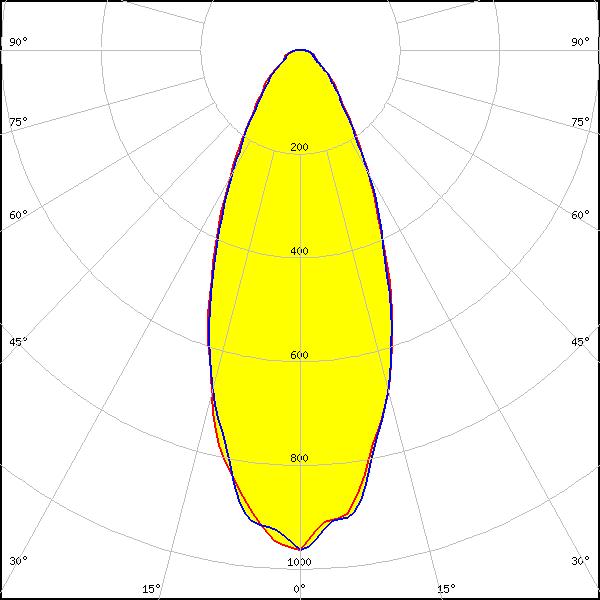

LED:
LUXEON CoB 1202/1203
Ordering code: CP18164_AMY-35-ZOOM-B
LES size: 9.0 mm
Required components:
BJB: 47.360.1110
C18165_AMY-35-ZOOM-SUB
C18165_AMY-35-ZOOM-SUB
FWHM:
33° - 52°
FWTM:
75° - 103°
Peak intensity:
1.340 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

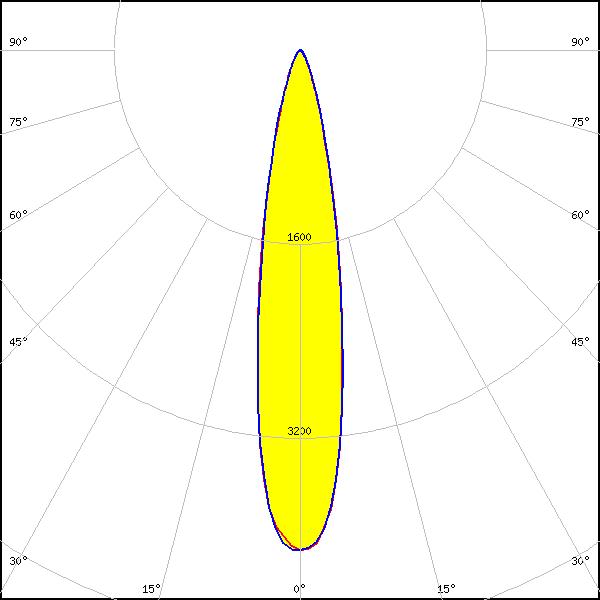

LED:
CxM-6 (13.5x13.5)
Ordering code: CP18164_AMY-35-ZOOM-B
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
C18165_AMY-35-ZOOM-SUB
C18165_AMY-35-ZOOM-SUB
FWHM:
20° - 51°
FWTM:
42° - 84°
Peak intensity:
4.130 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

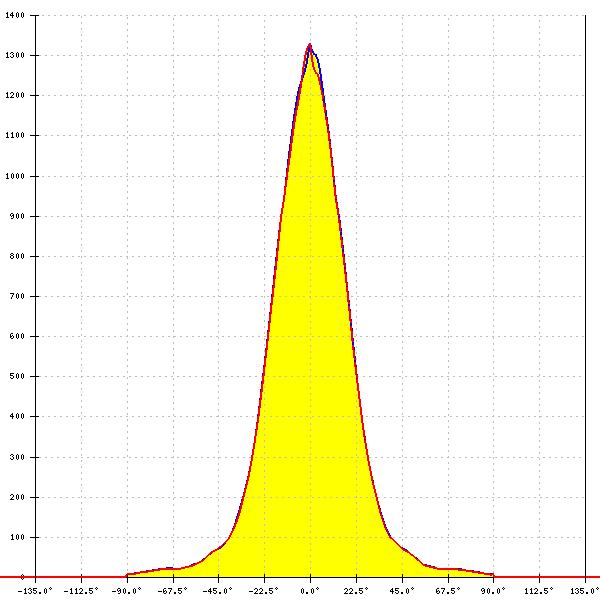

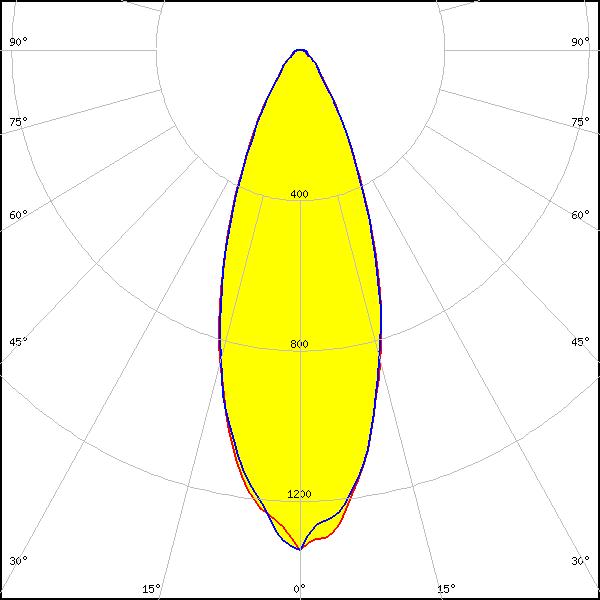

LED:
LC003D / LC006D / LC009D / LC013D
Ordering code: CP19166_AMY-35-ZOOM-B2
LES size: 9.8 mm
Required components:
FWHM:
26° - 49°
FWTM:
56° - 90°
Peak intensity:
2.331 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

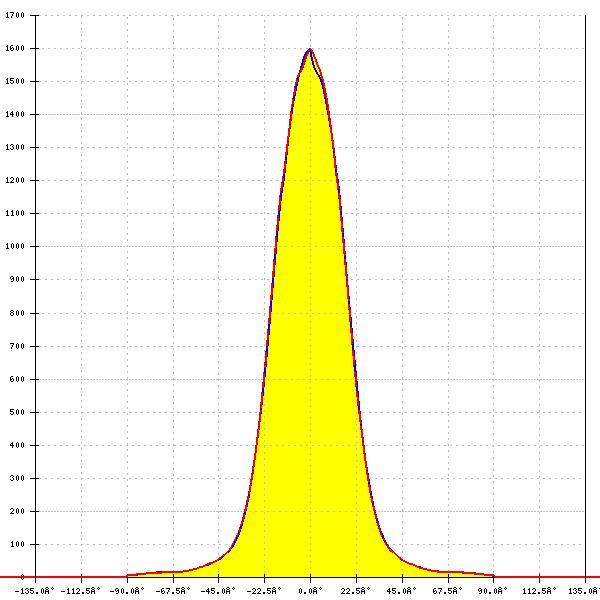

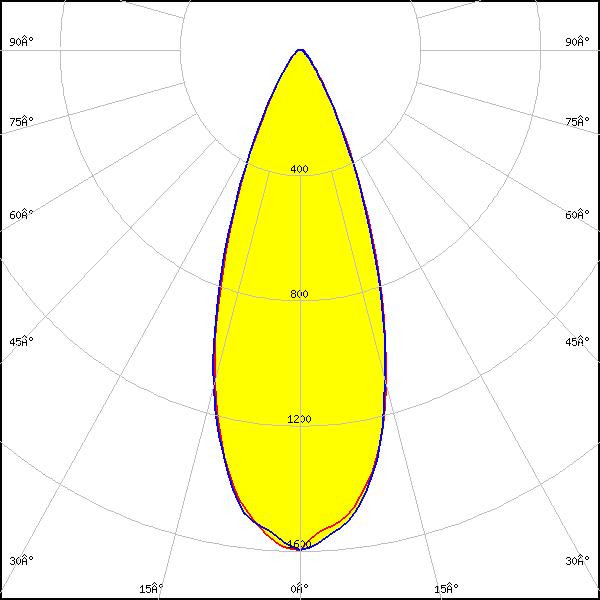

LED:
SLE 06mm 1600lm xxx R ADV8
Ordering code: CP19166_AMY-35-ZOOM-B2
LES size: 6.5 mm
Required components:
FWHM:
20° - 51°
FWTM:
43° - 84°
Peak intensity:
4.069 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
