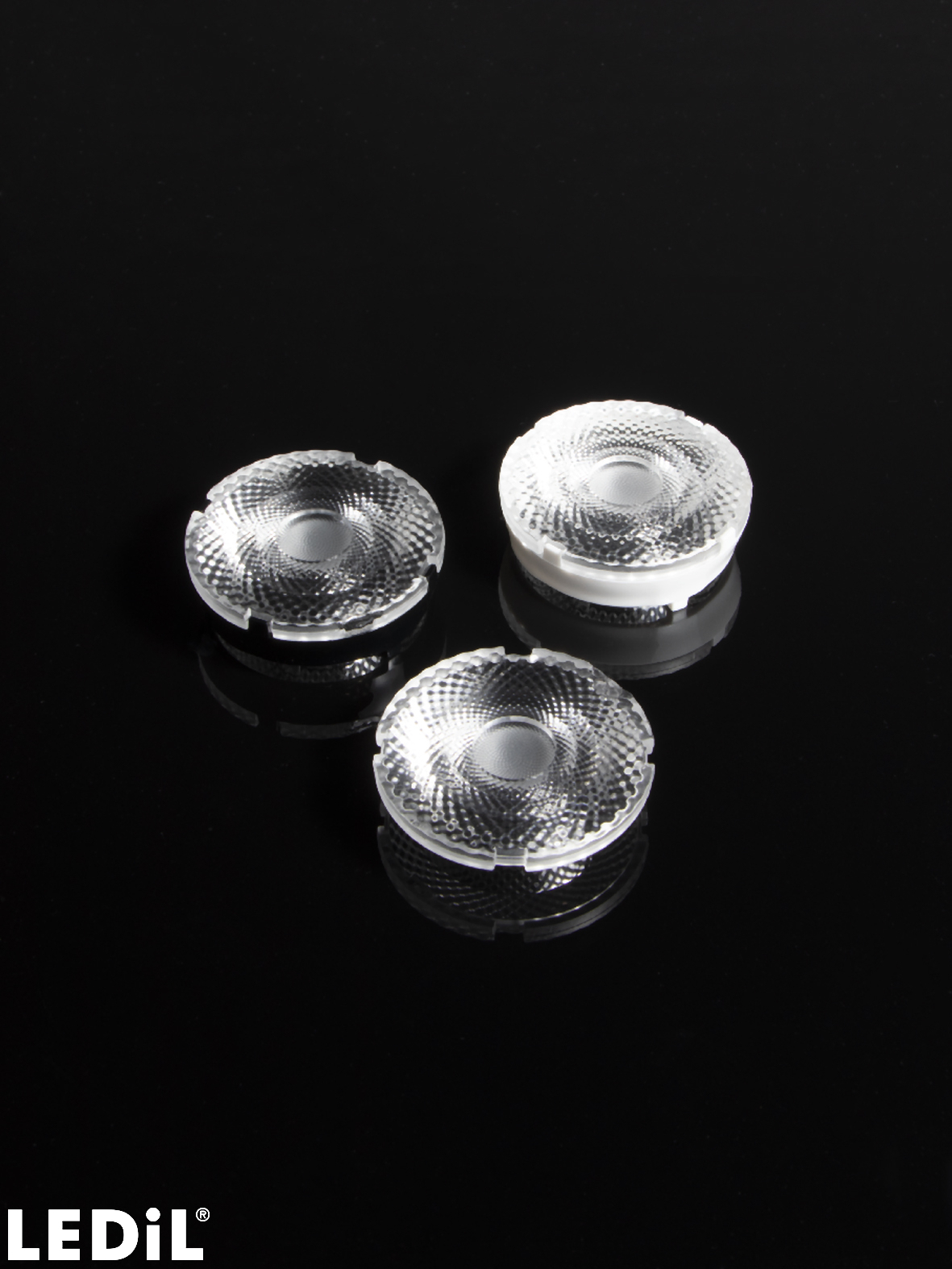

AMY-35-M

Print

~24° medium beam

This product consists of multiple buying options. See ordering information

Specification
  • Dimensions:
    35 mm
  • Height:
    8.52 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials
  • AMY-35-M
    PMMA
  • AMY-35-HLD2-B-WHT
    PC
  • AMY-35-HLD2-B
    PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Single lens
  • C17795_AMY-35-M
    clear
  • Quantity in box:
    1650 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.80 kg
  • MPQ:
    66 pcs
  • MOQ:
    132 pcs
  • MOQ Size:
    480 x 280 x 50 mm
  • MOQ Weight:
    1.00 kg
  • Assembly
  • CP19162_AMY-35-M-B2
    black,Holder B
  • CP19168_AMY-35-M-B2-WHT
    white,Holder B
  • Quantity in box:
    1320 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    0.00 kg
  • MPQ:
    66 pcs
  • MOQ:
    132 pcs
  • MOQ Size:
    480 x 280 x 60 mm
  • MOQ Weight:
    0.00 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17795_AMY-35-M
    CP19162_AMY-35-M-B2

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

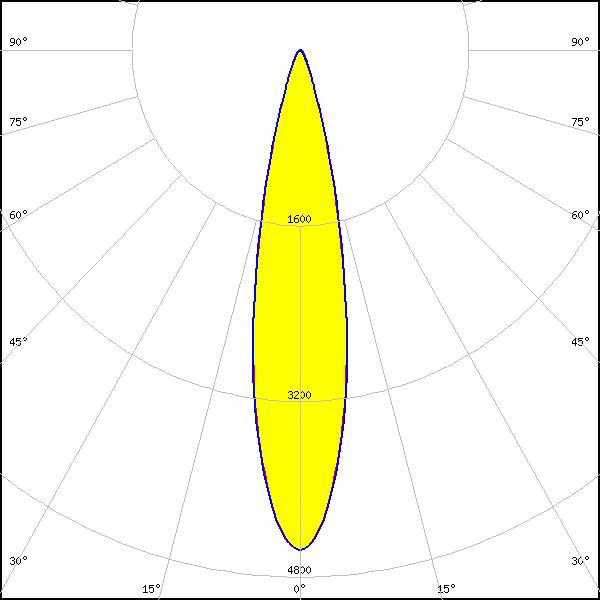

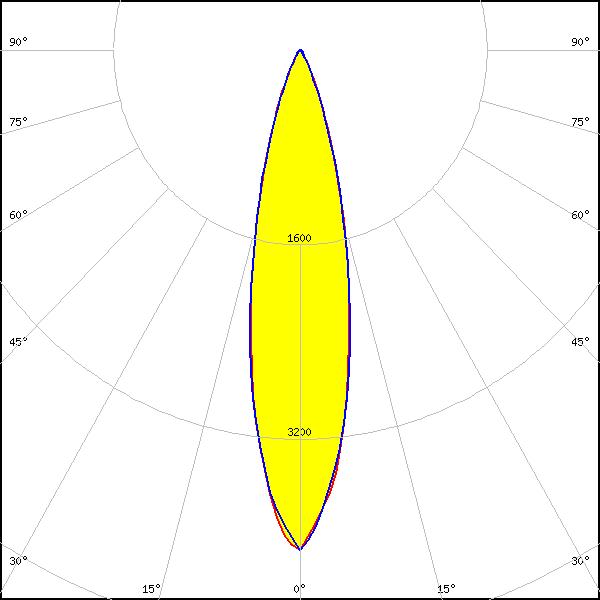

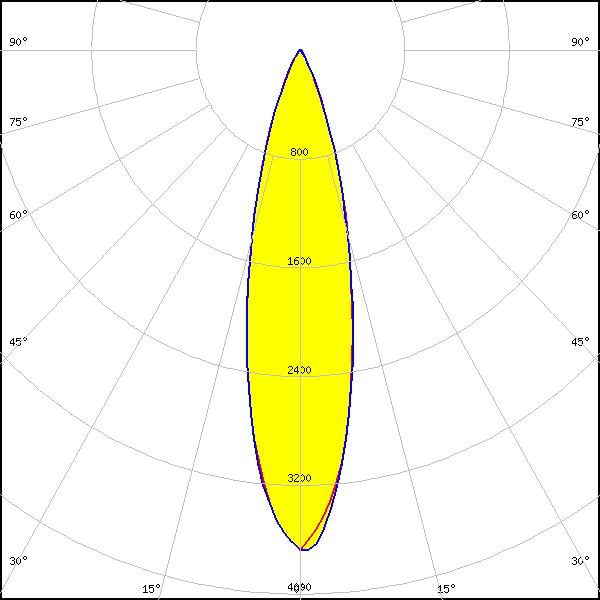

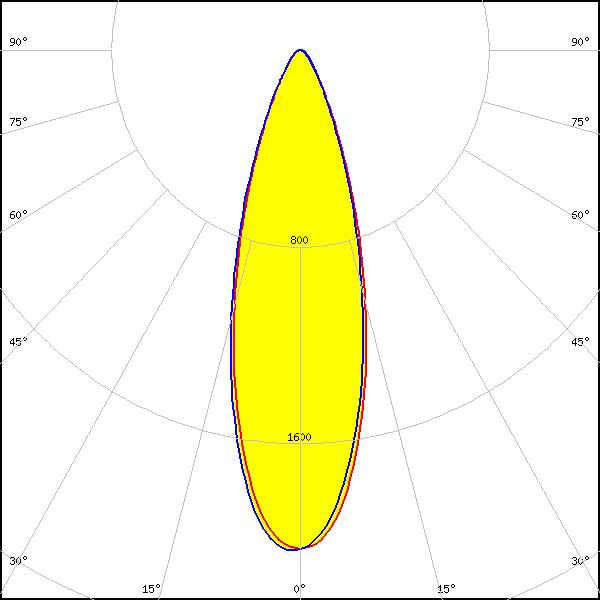

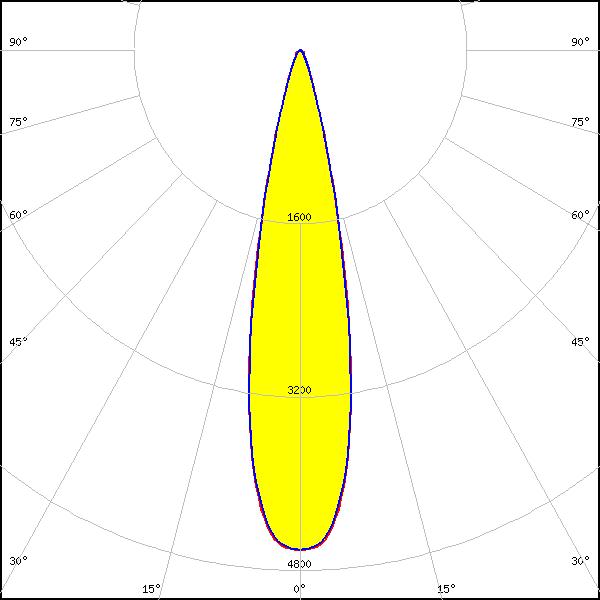

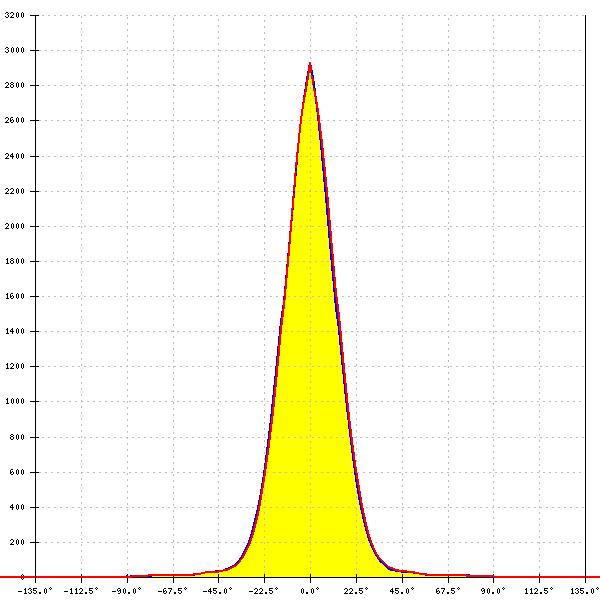

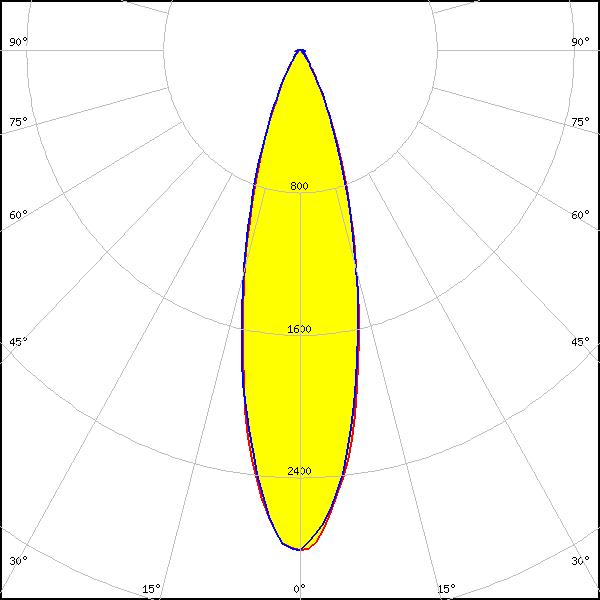

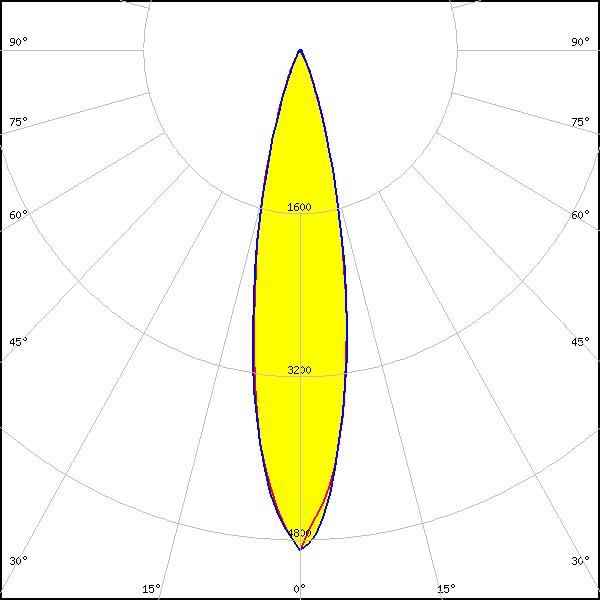

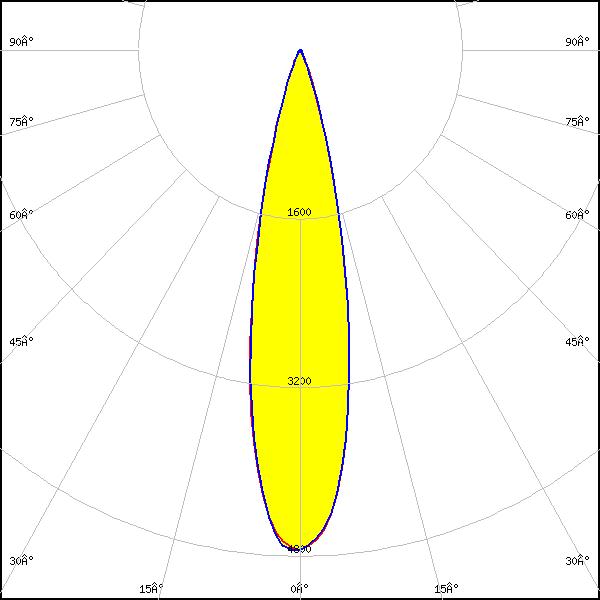

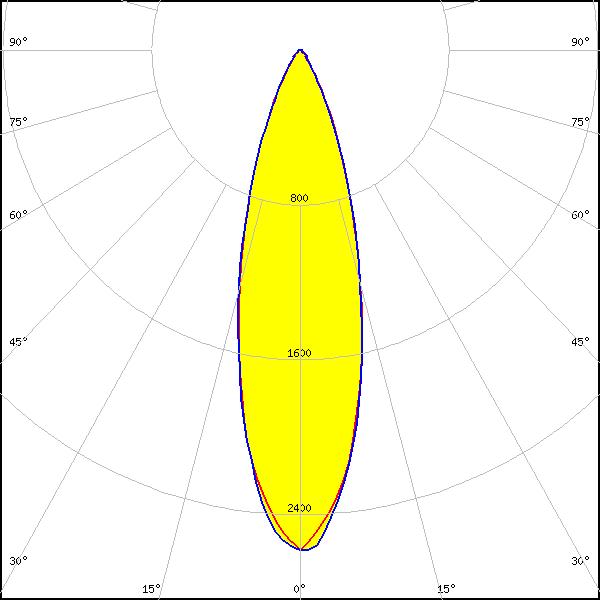

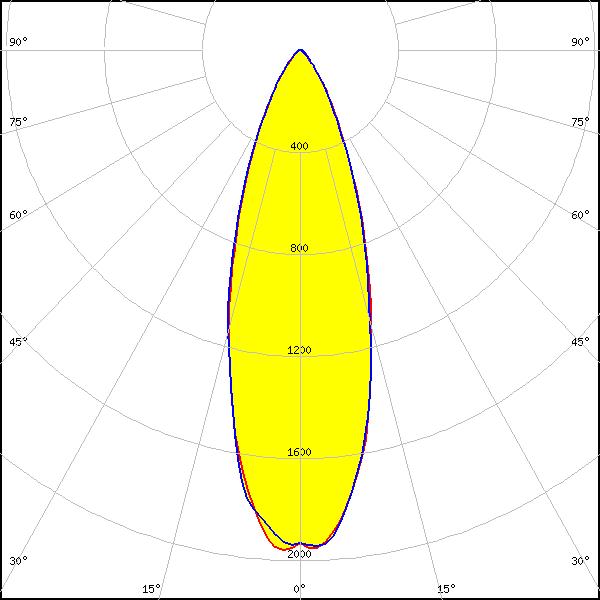

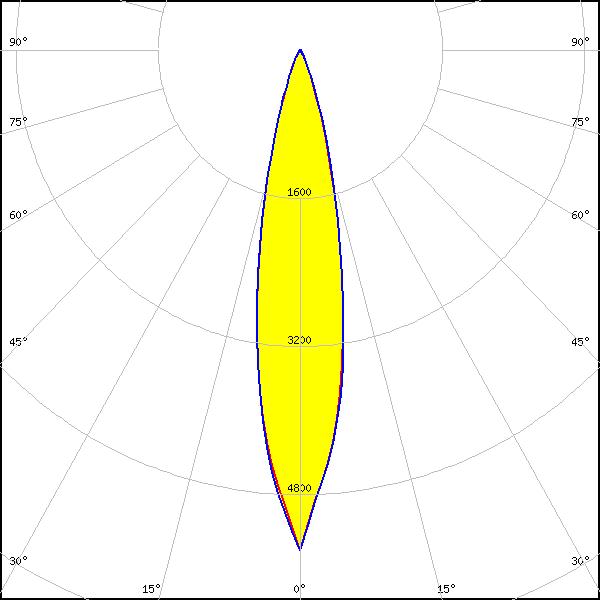

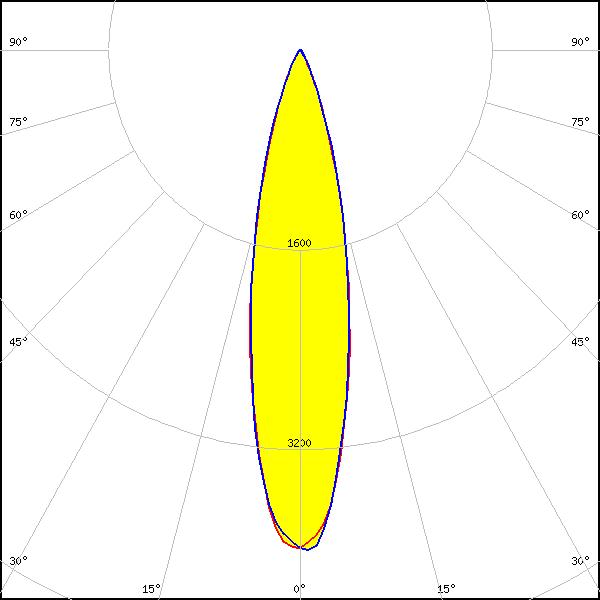

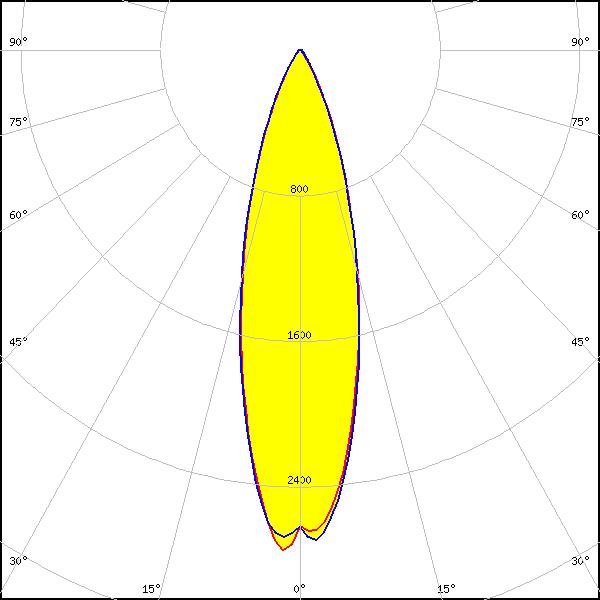

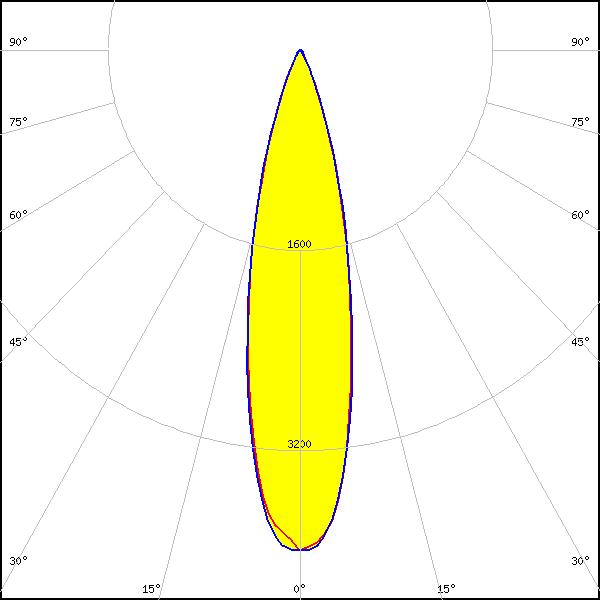

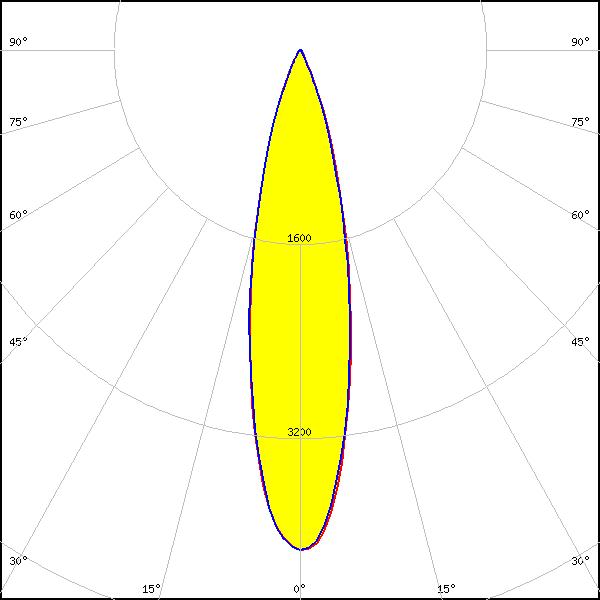

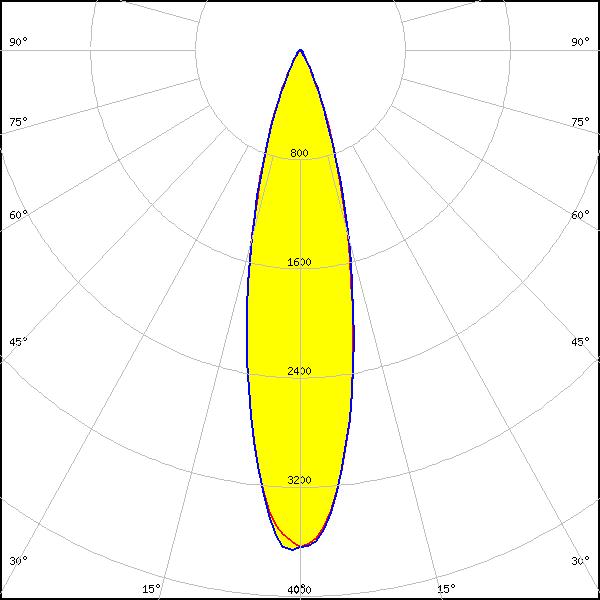

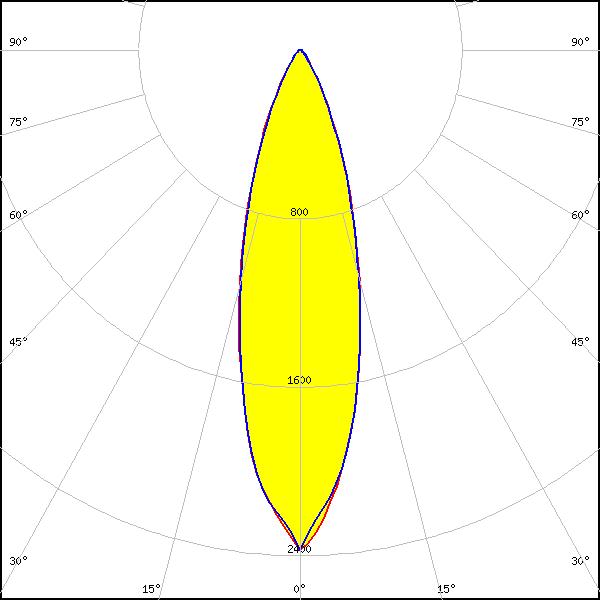

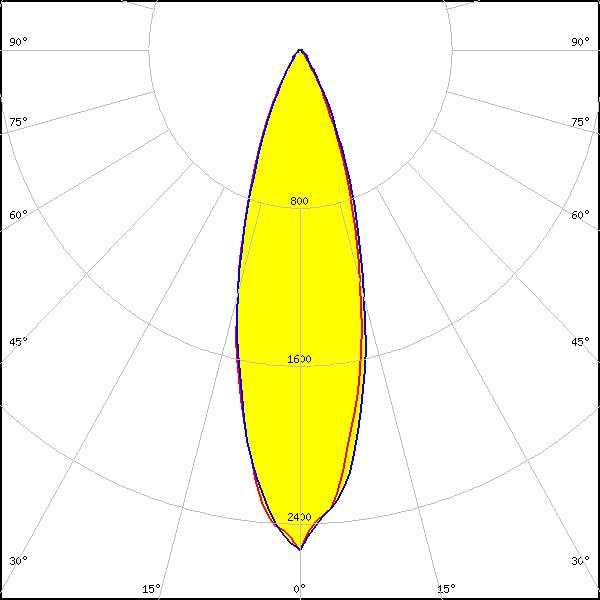

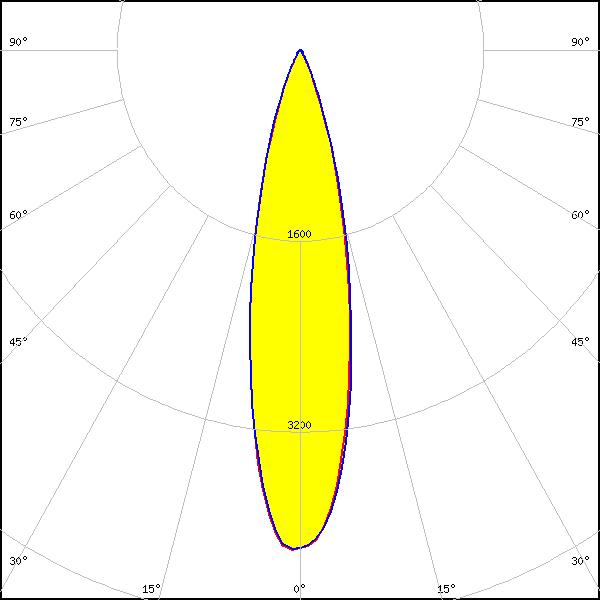

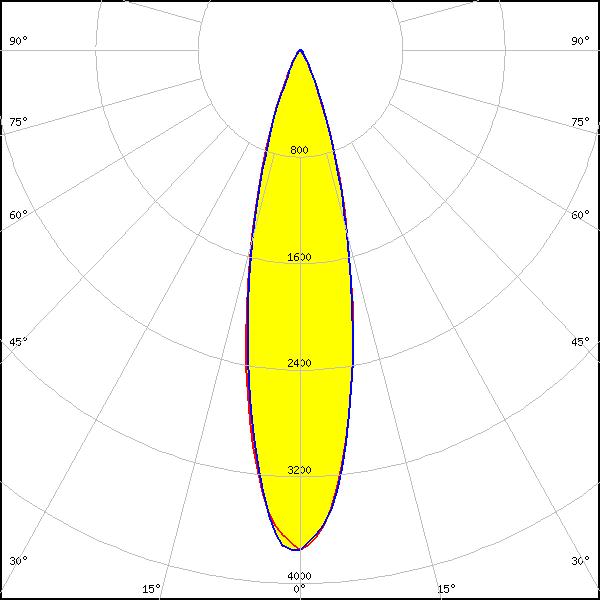

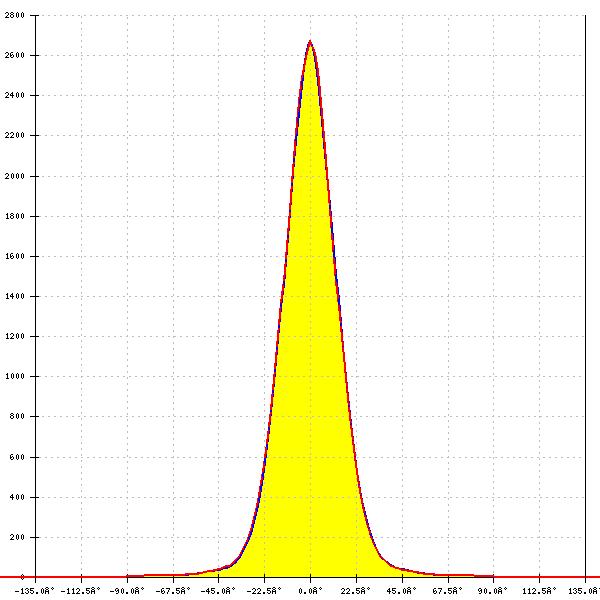

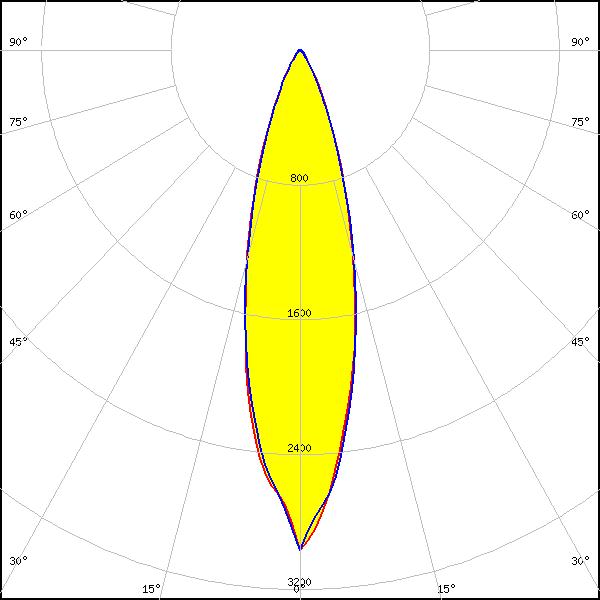

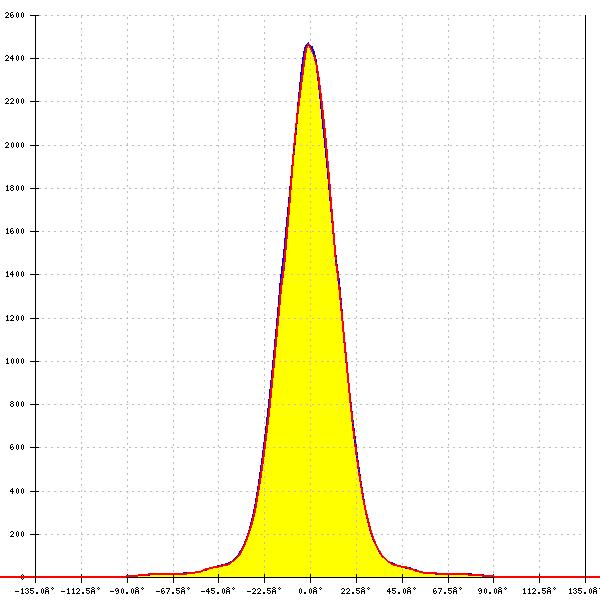

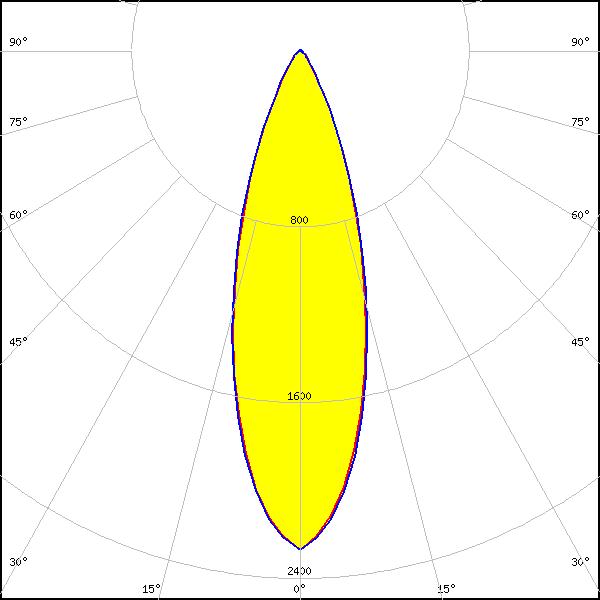

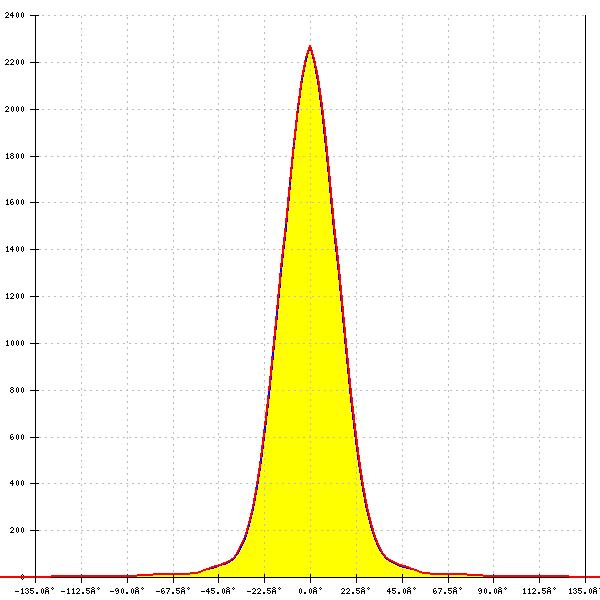

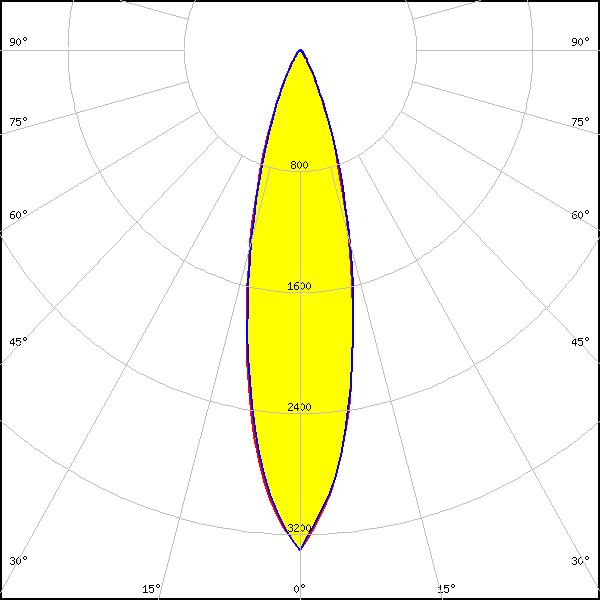

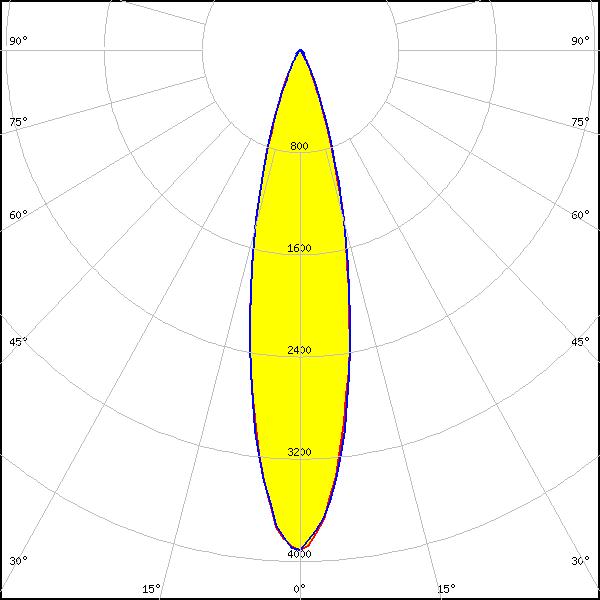

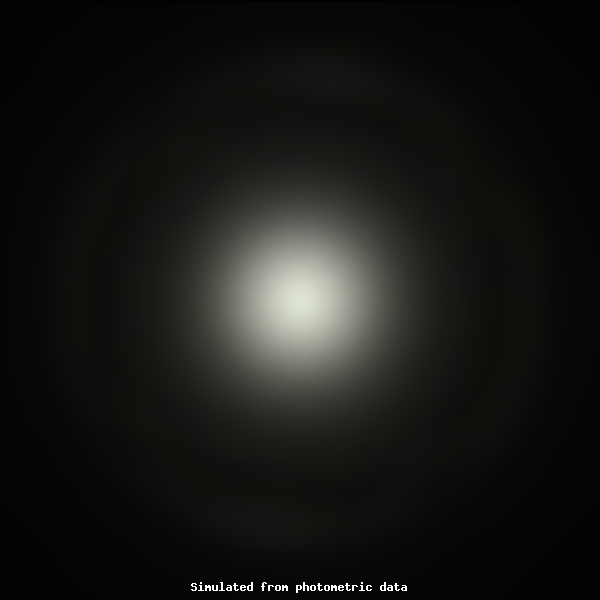

Optical results

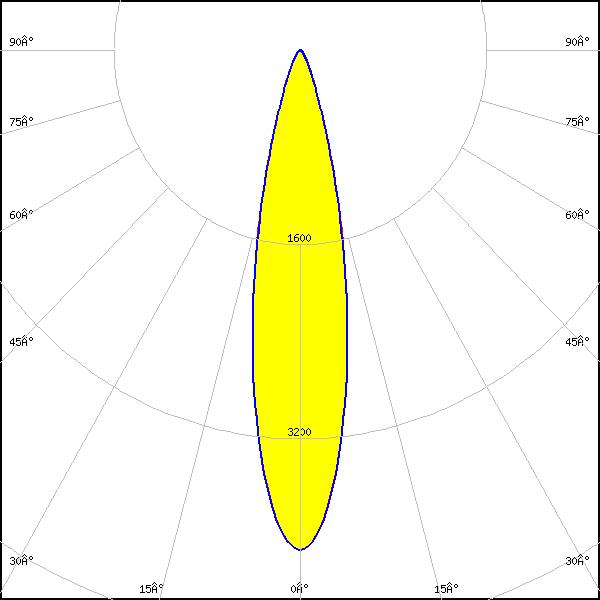

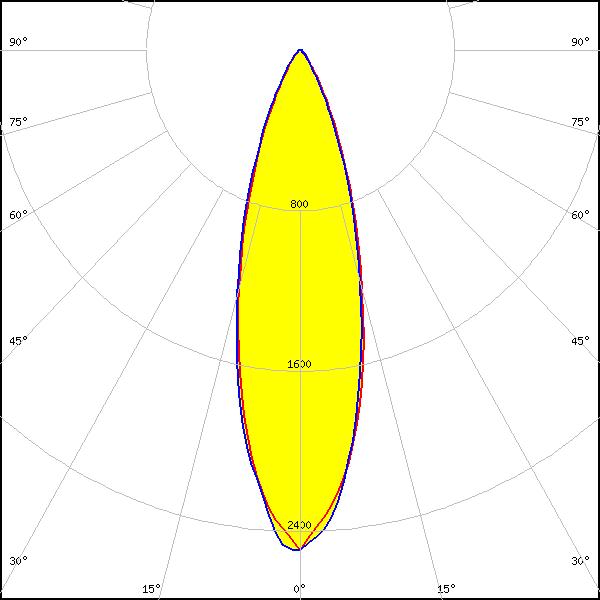

LED: V10 Gen 8-9
Ordering code: CP19162_AMY-35-M-B2
LES size: 10.0 mm
Required components:
BJB: 47.360.1020
FWHM: 28°
FWTM: 57°
Peak intensity: 2.605 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: V10 Gen 8-9
Ordering code: CP19162_AMY-35-M-B2
LES size: 10.0 mm
Required components:
Bender Wirth: 634b Bayonet35L
FWHM: 30°
FWTM: 59°
Peak intensity: 2.508 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

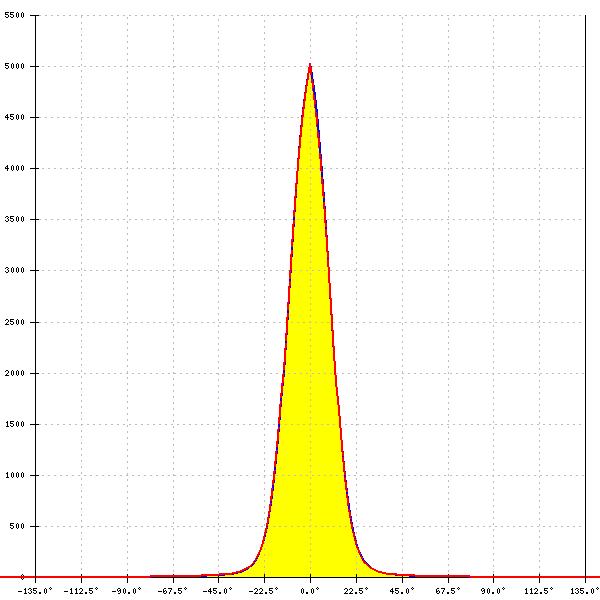

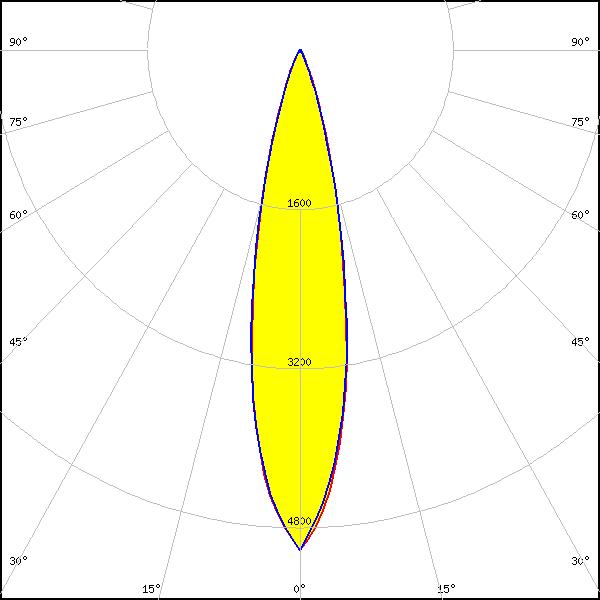

LED: V3 HD Gen 8 FC
Ordering code: CP19162_AMY-35-M-B2
LES size: 2.9 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 22°
FWTM: 42°
Peak intensity: 5.026 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

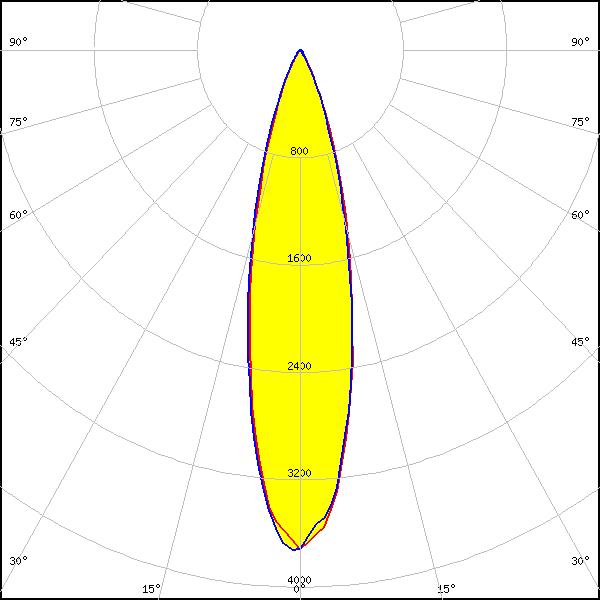

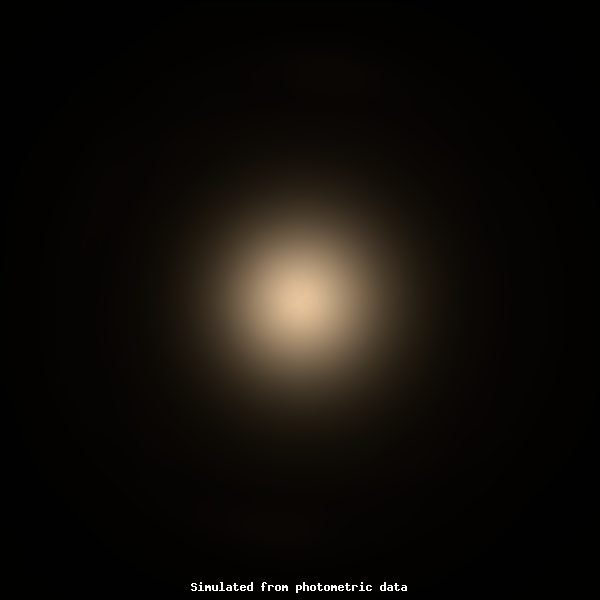

LED: V6 HD Gen 8
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.6 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 25°
FWTM: 49°
Peak intensity: 3.731 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

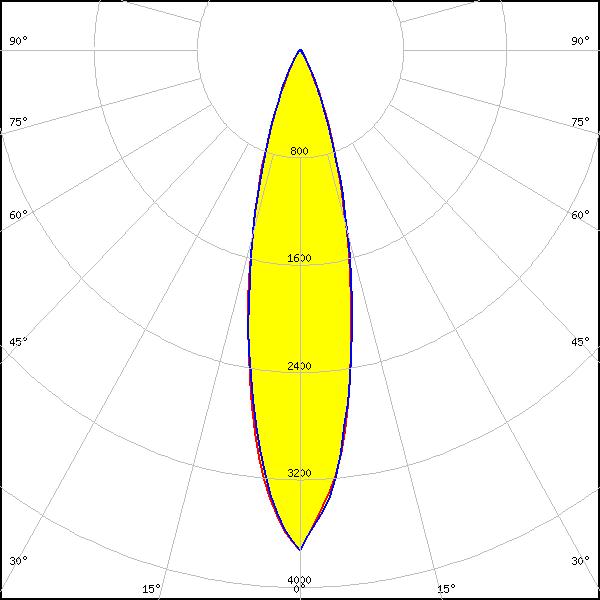

LED: Vesta DTW 6mm
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.8 mm
Required components:
Bender Wirth: 652b Bayonet35L
FWHM: 24°
FWTM: 50°
Peak intensity: 3.725 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

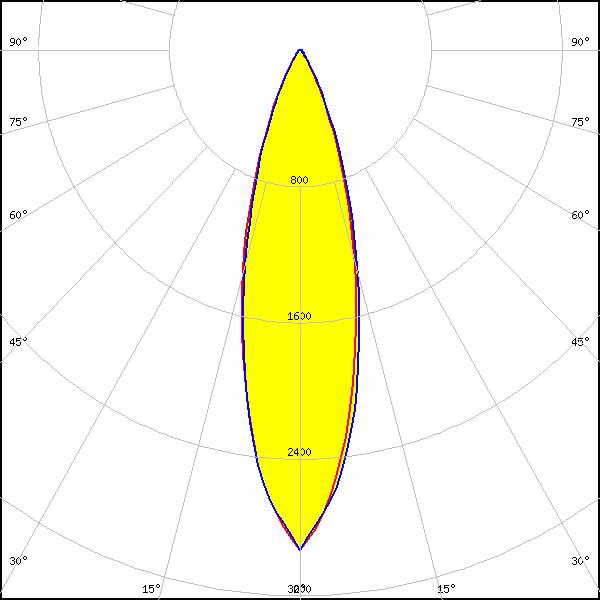

LED: Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP19162_AMY-35-M-B2
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Bayonet35L
FWHM: 28°
FWTM: 55°
Peak intensity: 2.934 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

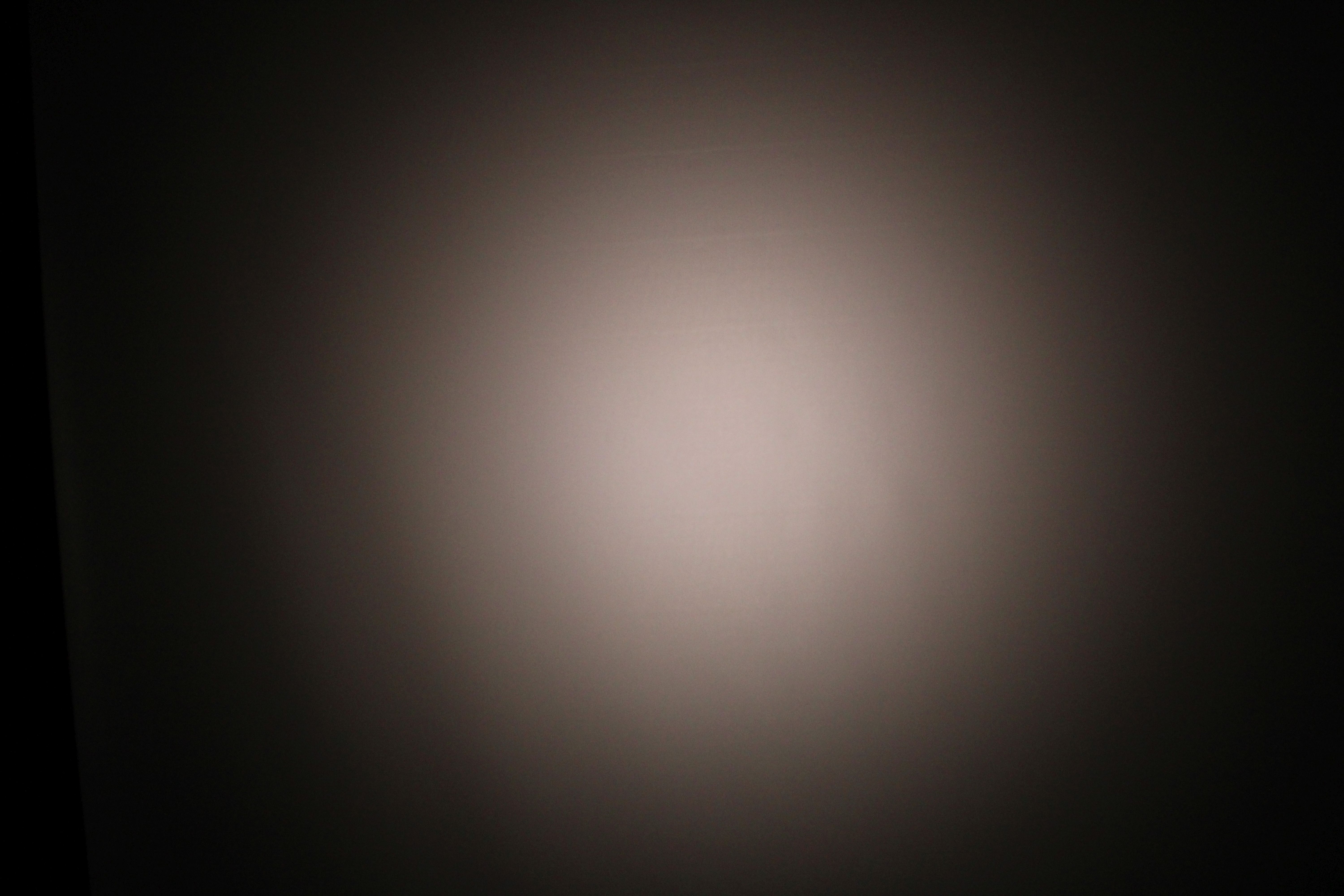

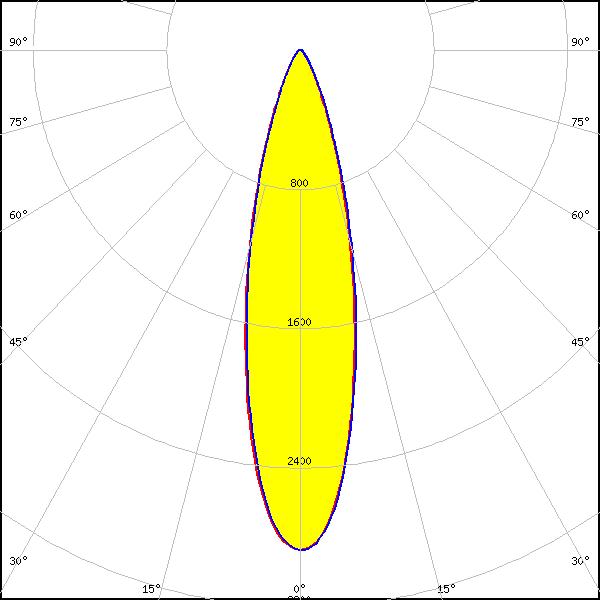

LED: Vesta TW 6mm DP
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.3 mm
Required components:
Bender Wirth: 504 Typ B35L
FWHM: 26°
FWTM: 53°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

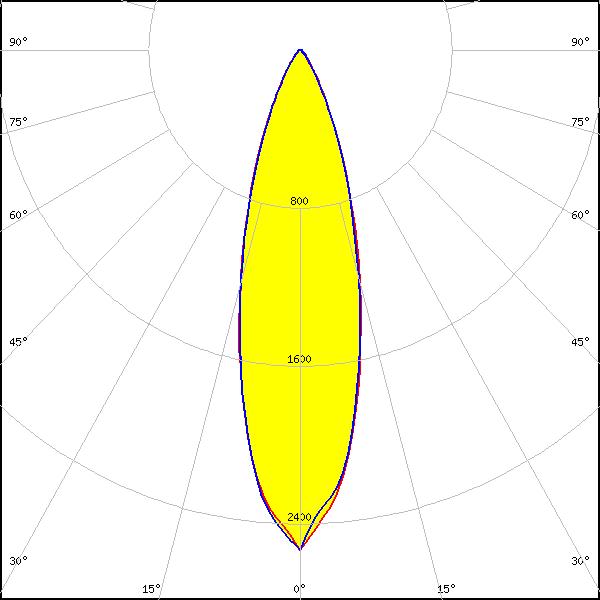

LED: CLL02x/CLU02x (LES10)
Ordering code: CP19162_AMY-35-M-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 29°
FWTM: 59°
Peak intensity: 2.534 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

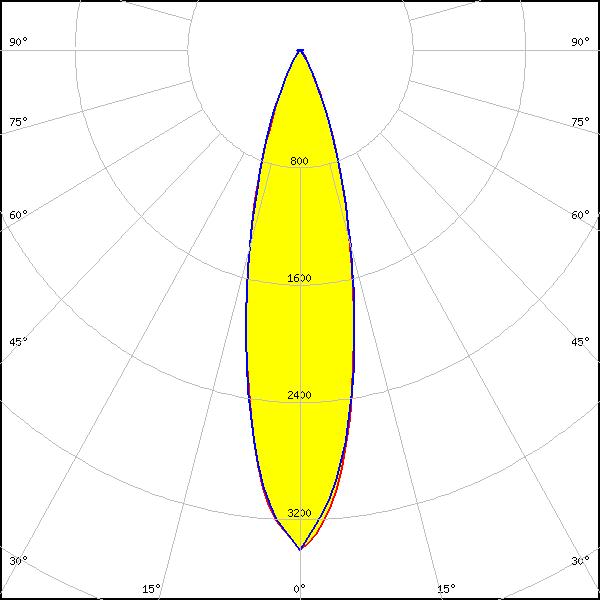

LED: CLU700/701/702/703
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 23°
FWTM: 47°
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

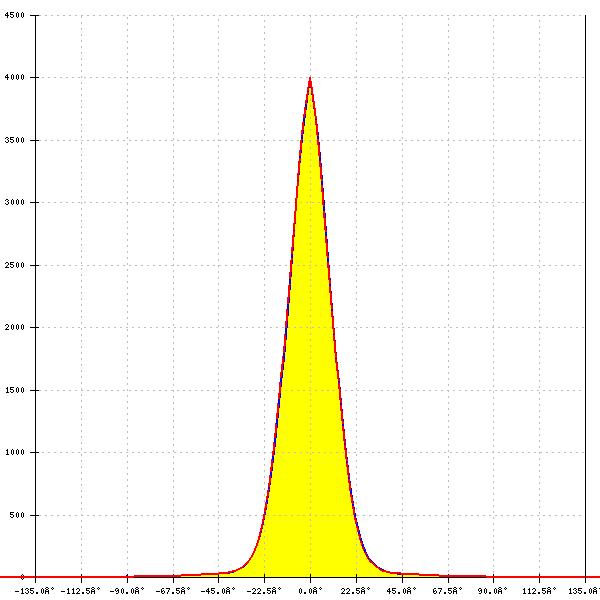

LED: CLU700/701/702/703
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 23°
FWTM: 46°
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

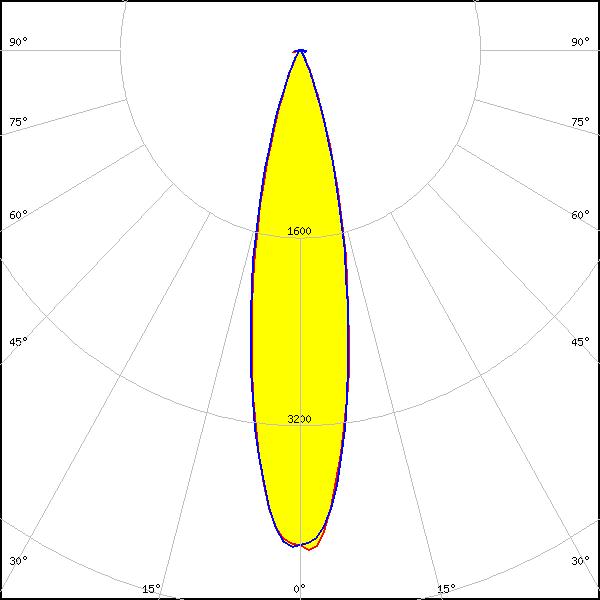

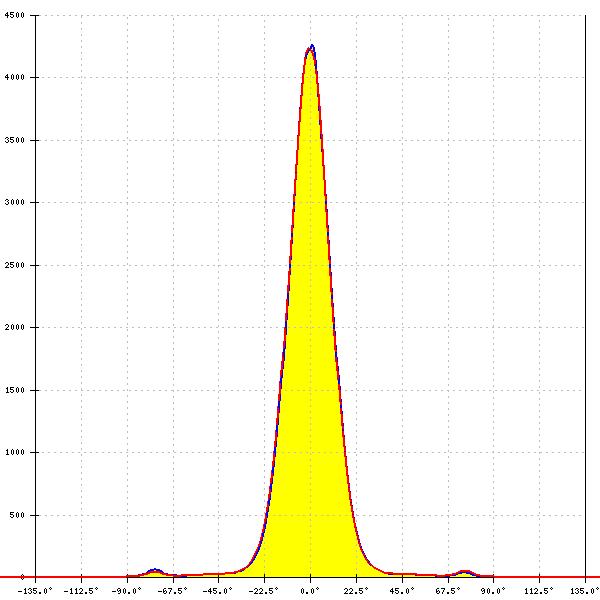

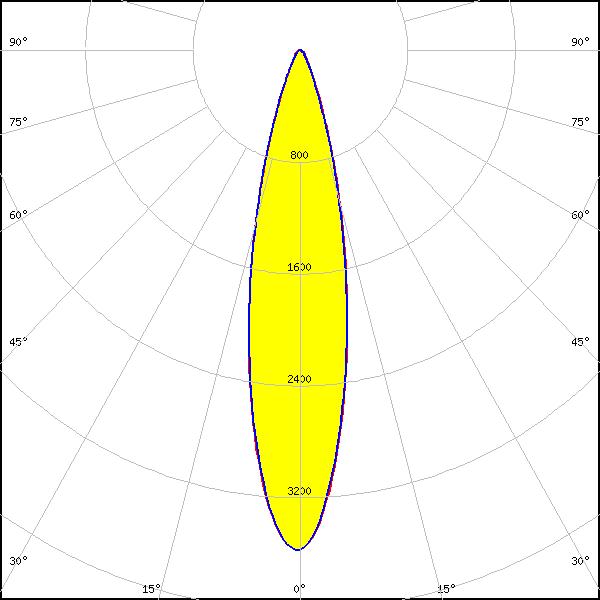

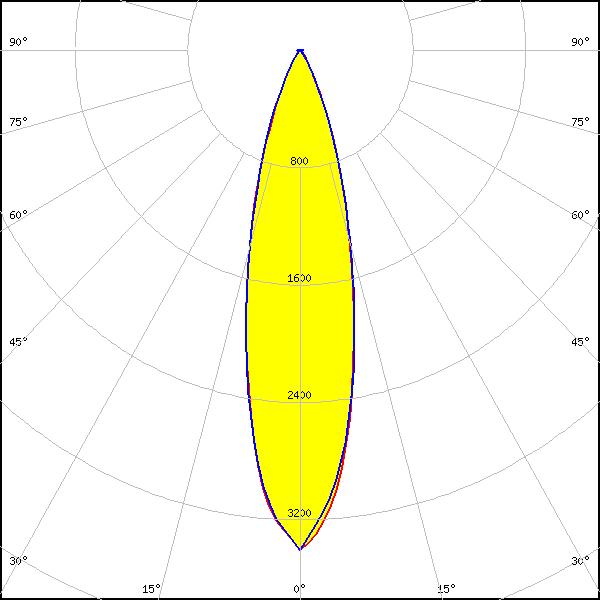

LED: CLU700/701/702/703
Ordering code: C17795_AMY-35-M
LES size: 6.0 mm
FWHM: 23°
FWTM: 47°
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

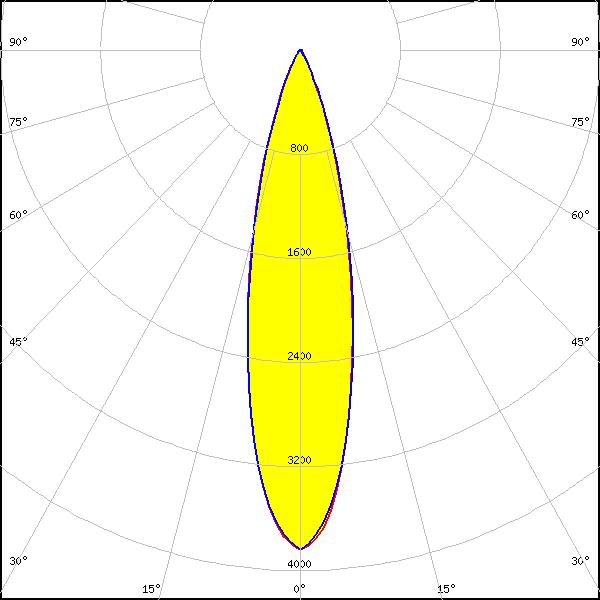

LED: CLU7A2/7A3
Ordering code: CP19162_AMY-35-M-B2
LES size: 4.2 mm
Required components:
BJB: 47.360.1020
FWHM: 20°
FWTM: 40°
Peak intensity: 5.403 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

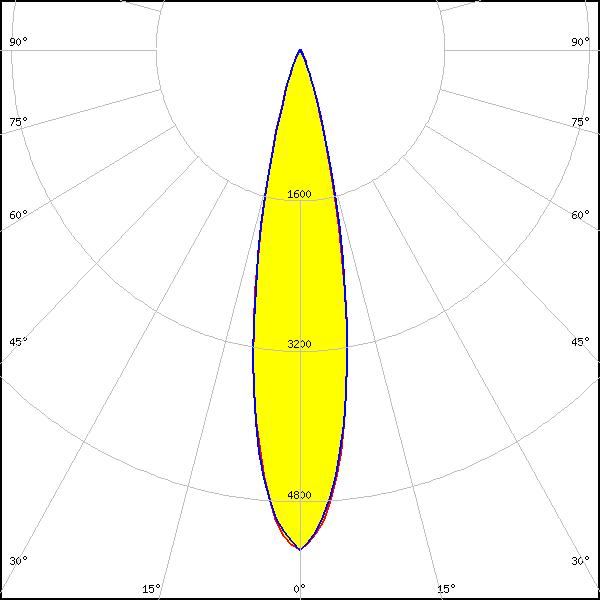

LED: CLU7B2
Ordering code: CP19162_AMY-35-M-B2
LES size: 3.3 mm
Required components:
BJB: 47.360.1020
FWHM: 22°
FWTM: 40°
Peak intensity: 5.317 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

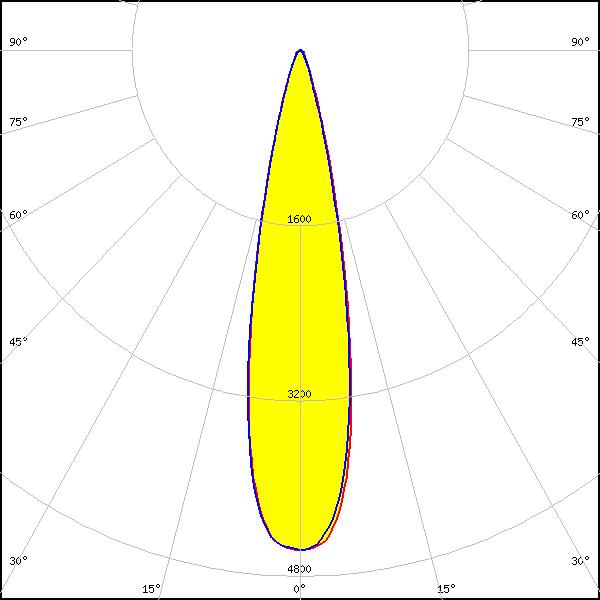

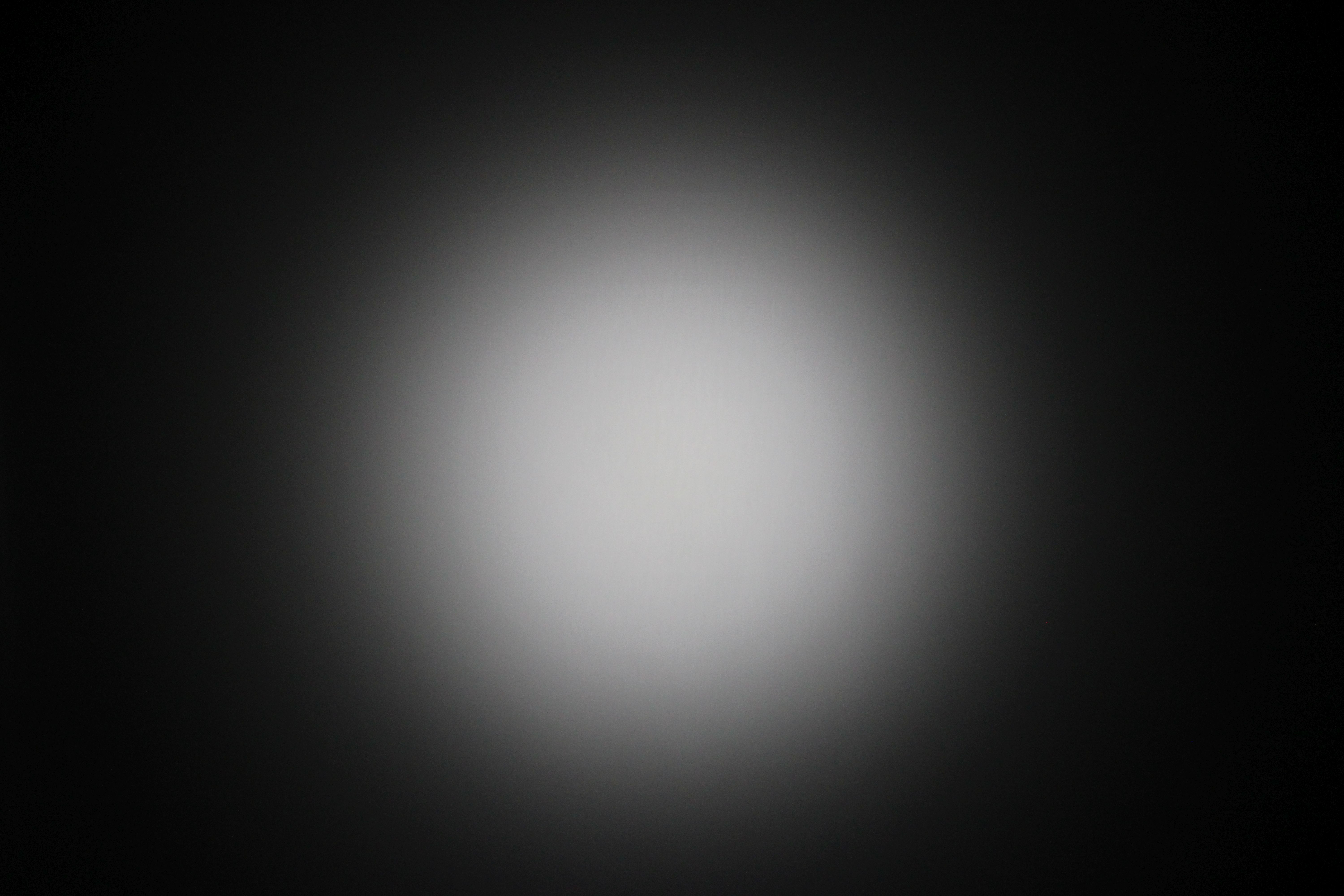

LED: CLU7L3
Ordering code: CP19162_AMY-35-M-B2
LES size: 2.4 mm
Required components:
Bender Wirth: 667a Bayonet35
FWHM: 23°
FWTM: 39°
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU7L3
Ordering code: CP19162_AMY-35-M-B2
LES size: 2.4 mm
Required components:
FWHM: 23°
FWTM: 39°
Peak intensity: 4.570 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

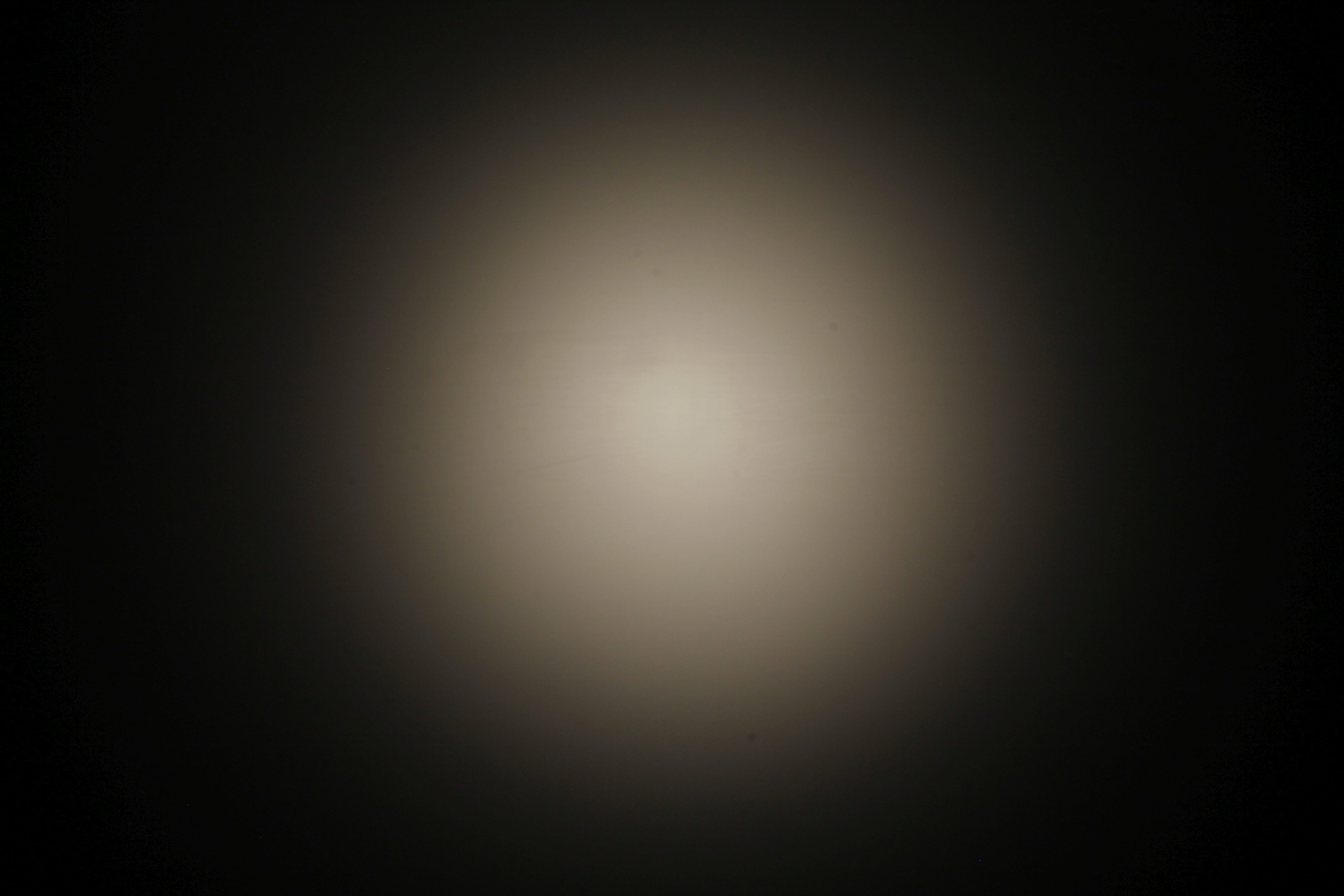

LED: CLU7R3
Ordering code: CP19162_AMY-35-M-B2
LES size: 4.2 mm
Required components:
FWHM: 22°
FWTM: 44°
Peak intensity: 4.119 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU7S3
Ordering code: CP19162_AMY-35-M-B2
LES size: 3.5 mm
Required components:
Bender Wirth: 667a Bayonet35
FWHM: 22°
FWTM: 41°
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

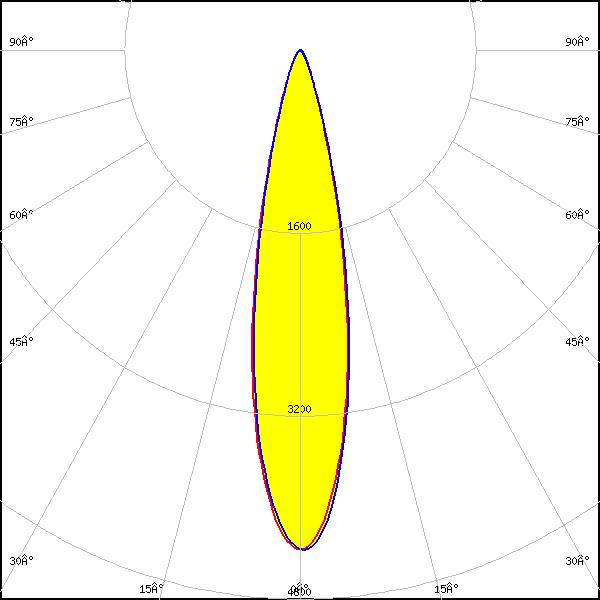

LED: CLU7S3
Ordering code: CP17971_AMY-35-M-B
LES size: 3.5 mm
Required components:
FWHM: 22°
FWTM: 42°
Peak intensity: 4.384 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

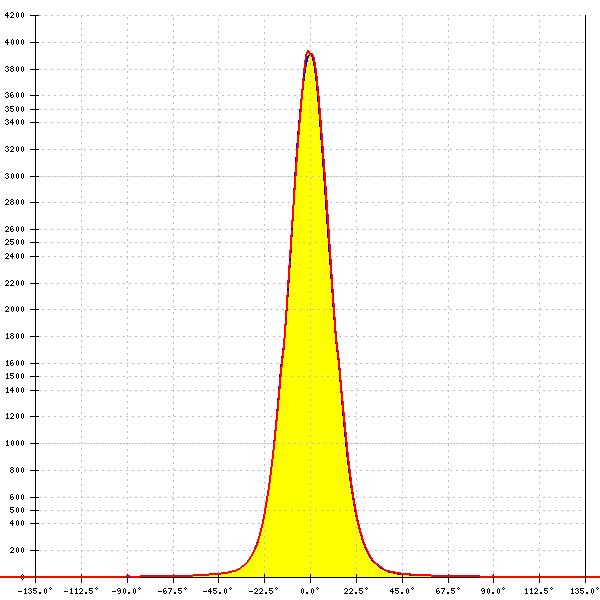

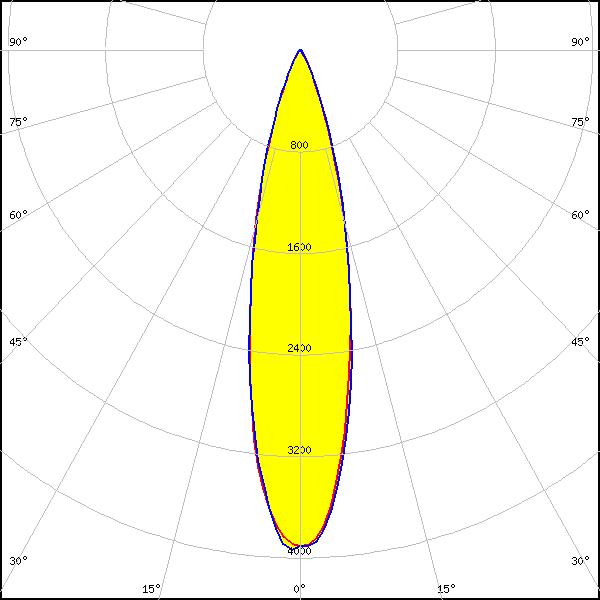

LED: CMA1306
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 24°
FWTM: 47°
Peak intensity: 4.017 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: CMU10xx
Ordering code: CP19162_AMY-35-M-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 31°
FWTM: 62°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

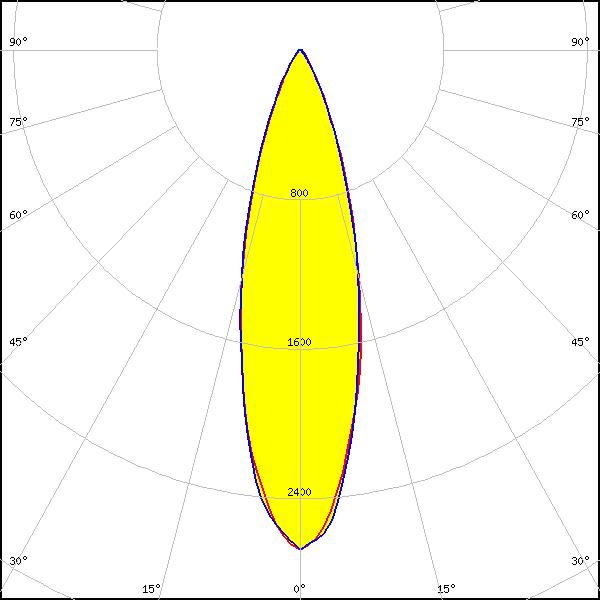

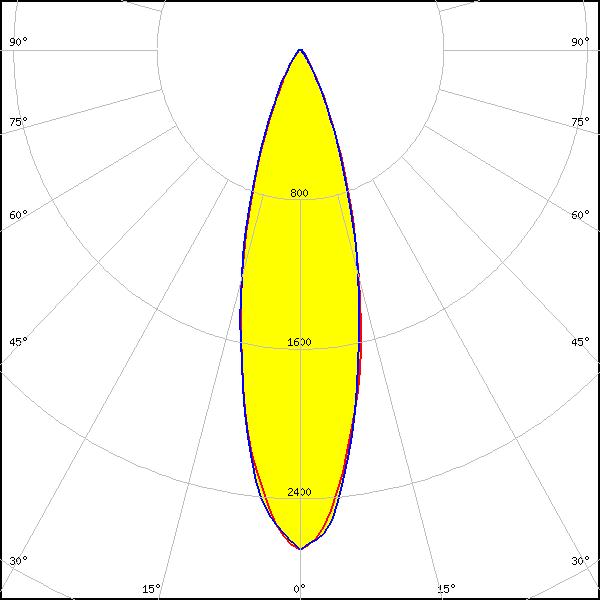

LED: CXA/B 15xx
Ordering code: CP19162_AMY-35-M-B2
LES size: 8.9 mm
Required components:
BJB: 47.360.1030
FWHM: 26°
FWTM: 54°
Peak intensity: 2.969 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 15xx
Ordering code: CP19162_AMY-35-M-B2
LES size: 8.9 mm
Required components:
BJB: 47.360.1030
FWHM: 28°
FWTM: 56°
Peak intensity: 2.697 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

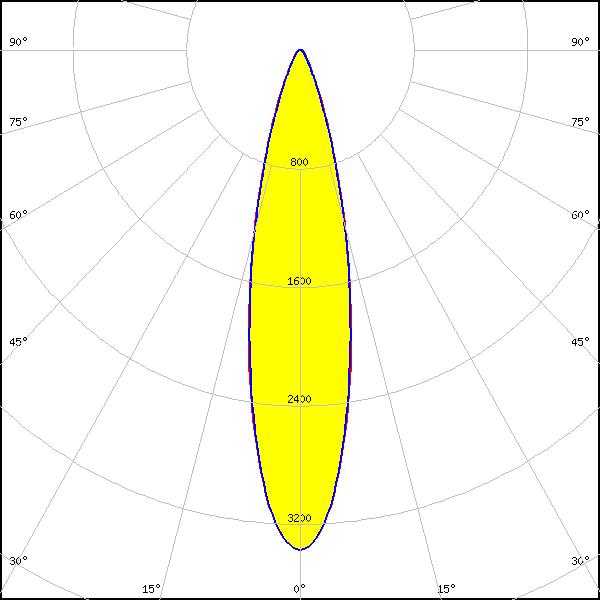

LED: LUXEON 7070
Ordering code: CP19162_AMY-35-M-B2
LES size: 0.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 24°
FWTM: 49°
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

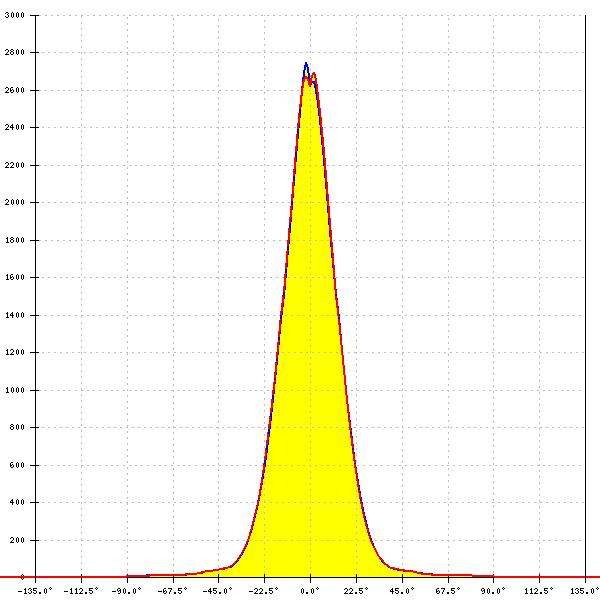

LED: LUXEON CoB 1202/1203
Ordering code: CP19162_AMY-35-M-B2
LES size: 9.0 mm
Required components:
BJB: 47.360.1110
FWHM: 28°
FWTM: 56°
Peak intensity: 2.750 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202HD
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.5 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 26°
FWTM: 50°
Peak intensity: 3.679 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB - HD S01H4
Ordering code: CP19162_AMY-35-M-B2
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 22°
FWTM: 42°
Peak intensity: 4.902 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

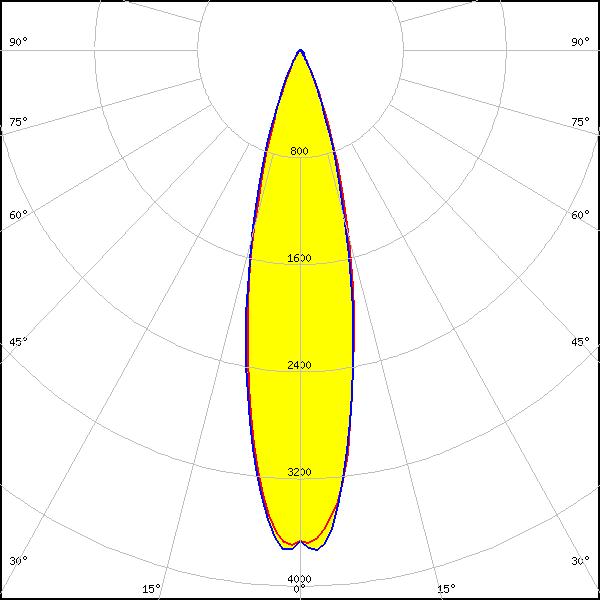

LED: LUXEON CX Plus CoB - HD S02H6
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 26°
FWTM: 49°
Peak intensity: 3.810 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

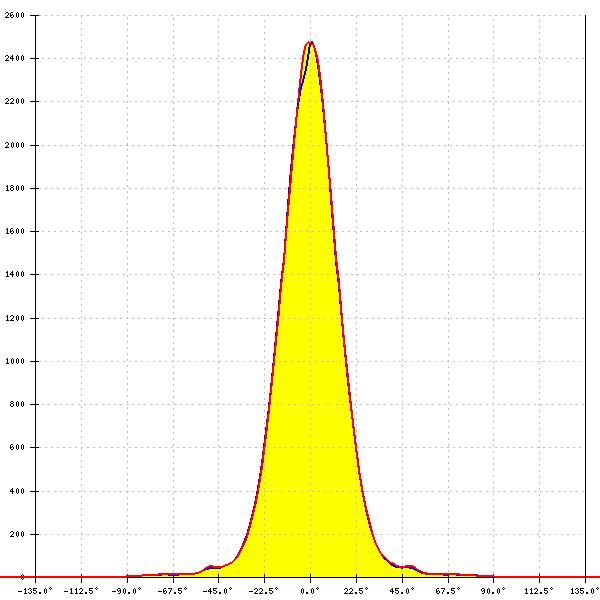

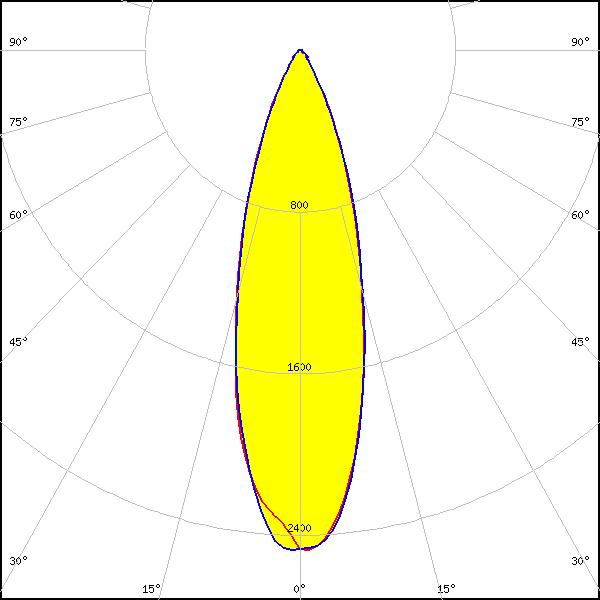

LED: LUXEON CX Plus CoB - HD S04H9
Ordering code: CP19162_AMY-35-M-B2
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 30°
FWTM: 59°
Peak intensity: 2.521 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 24°
FWTM: 46°
Peak intensity: 4.224 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

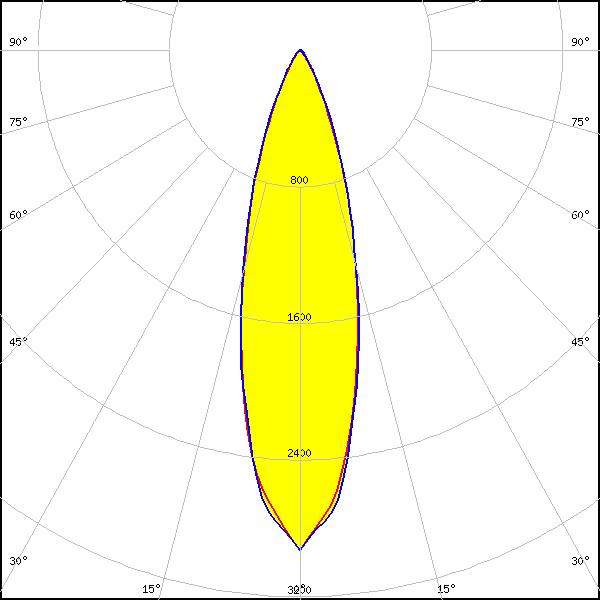

LED: CTM-6 (Tunable White) Gen2
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.8 mm
Required components:
Bender Wirth: 495 Typ B35L
FWHM: 28°
FWTM: 55°
Peak intensity: 2.939 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White

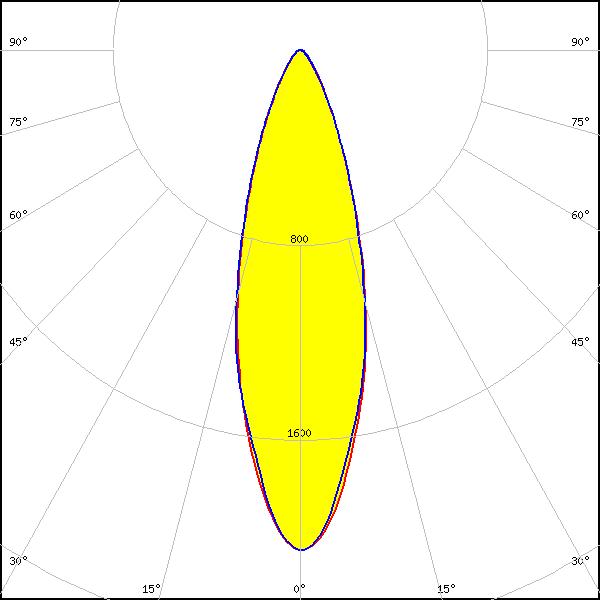

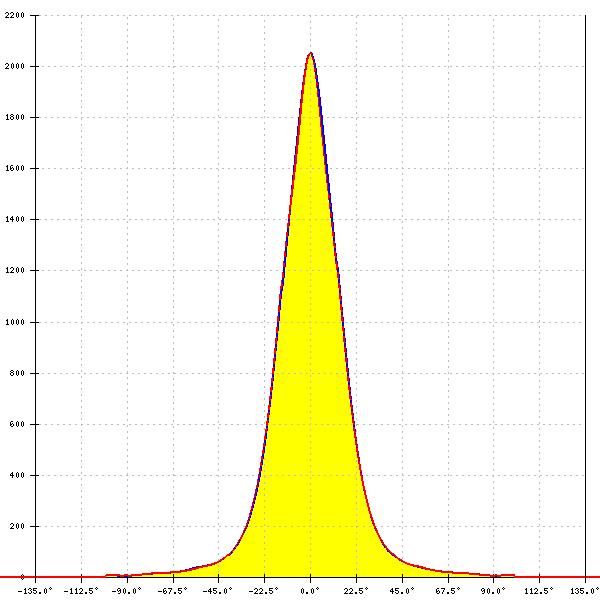

LED: CTM-9 (Tunable White)
Ordering code: CP19162_AMY-35-M-B2
LES size: 9.5 mm
Required components:
Bender Wirth: 495 Typ B35L
FWHM: 31°
FWTM: 63°
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

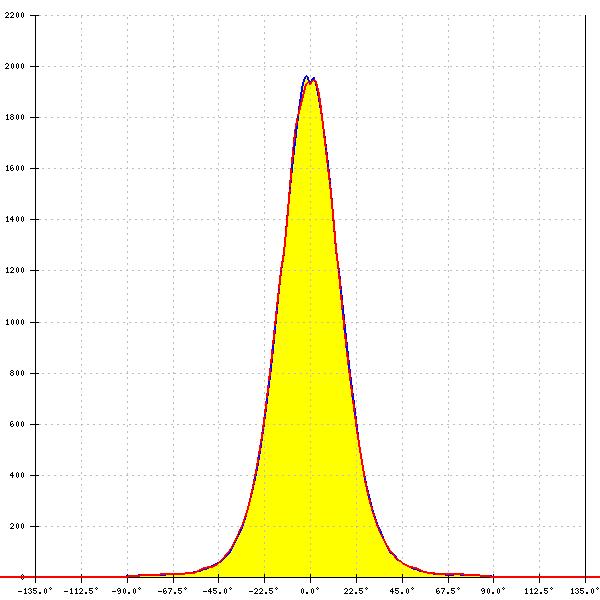

LED: CTM-9 (Tunable White) Gen2
Ordering code: CP19162_AMY-35-M-B2
LES size: 9.5 mm
Required components:
Bender Wirth: 495 Typ B35L
FWHM: 34°
FWTM: 68°
Peak intensity: 1.980 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: Tunable White

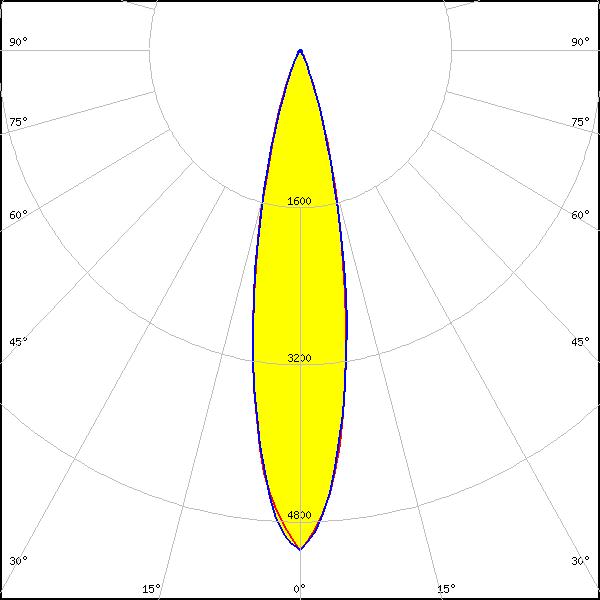

LED: CXM-4
Ordering code: CP19162_AMY-35-M-B2
LES size: 4.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 22°
FWTM: 41°
Peak intensity: 5.089 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

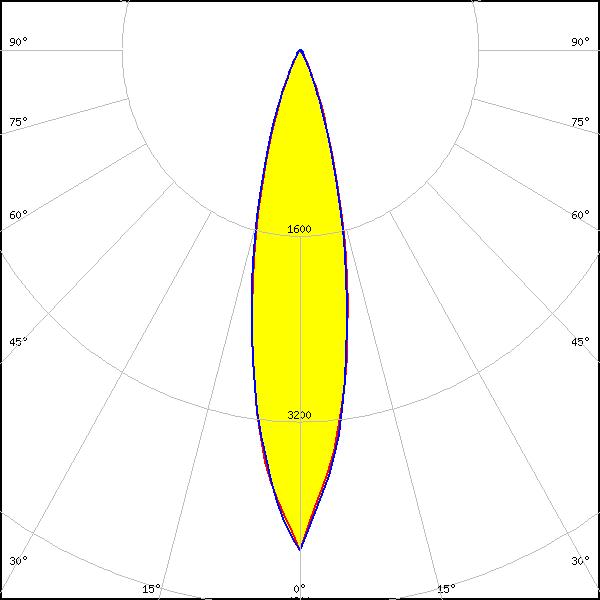

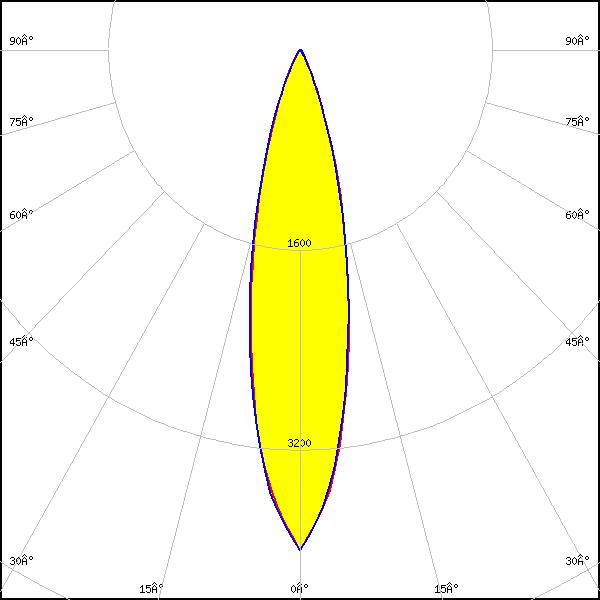

LED: CxM-6 (13.5x13.5)
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM: 23°
FWTM: 46°
Peak intensity: 4.307 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 6)
Ordering code: CP19162_AMY-35-M-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 24°
FWTM: 46°
Peak intensity: 4.064 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

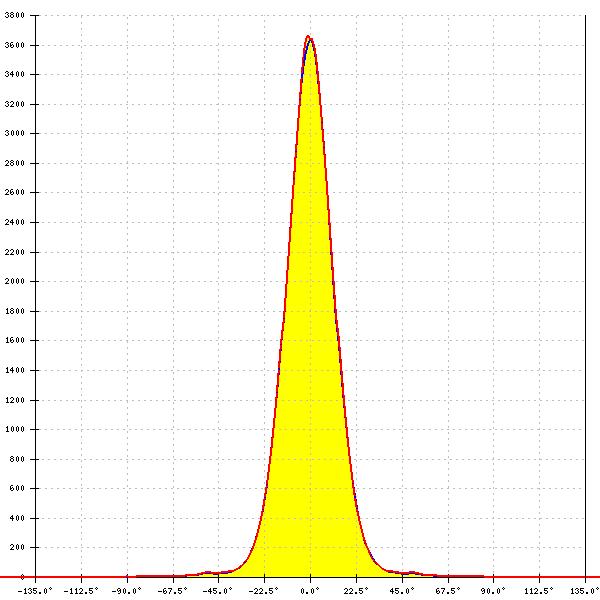

LED: COB S-Type (LES 7)
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 26°
FWTM: 50°
Peak intensity: 3.691 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: COB T-Type
Ordering code: CP19162_AMY-35-M-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 24°
FWTM: 47°
Peak intensity: 4.114 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LC003D / LC006D / LC009D / LC013D
Ordering code: CP19162_AMY-35-M-B2
LES size: 9.8 mm
Required components:
FWHM: 29°
FWTM: 58°
Peak intensity: 2.375 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: LC003D / LC006D / LC009D / LC013D
Ordering code: CP19162_AMY-35-M-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 30°
FWTM: 58°
Peak intensity: 2.607 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

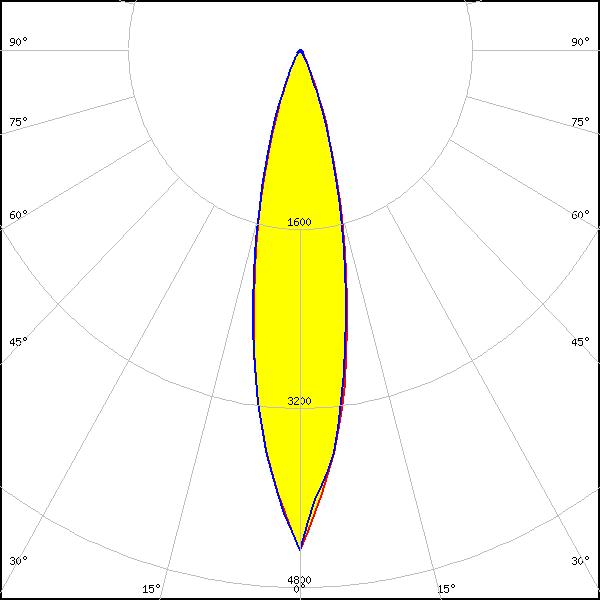

LED: LC010C G2
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 22°
FWTM: 46°
Peak intensity: 4.470 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LH502D
LES size: 0.0 mm
Required components:
BJB: 47.360.1010
FWHM: 22°
FWTM: 40°
Peak intensity: 4.761 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

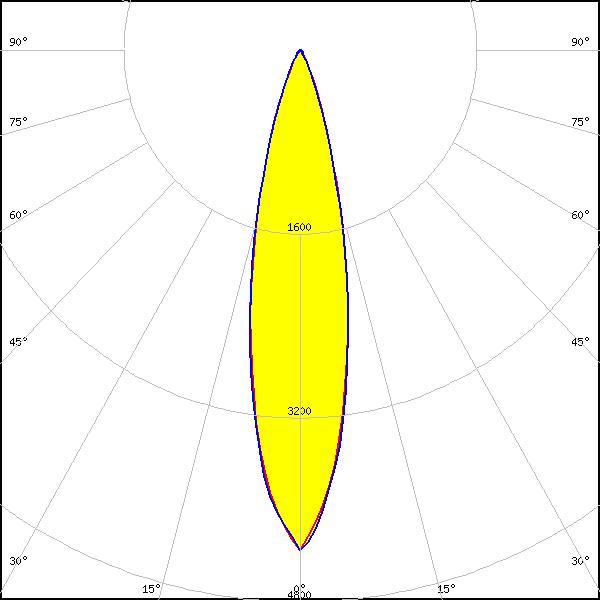

LED: MJT COB LES 6
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 23°
FWTM: 45°
Peak intensity: 4.374 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 9.8
Ordering code: CP19162_AMY-35-M-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 30°
FWTM: 58°
Peak intensity: 2.602 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

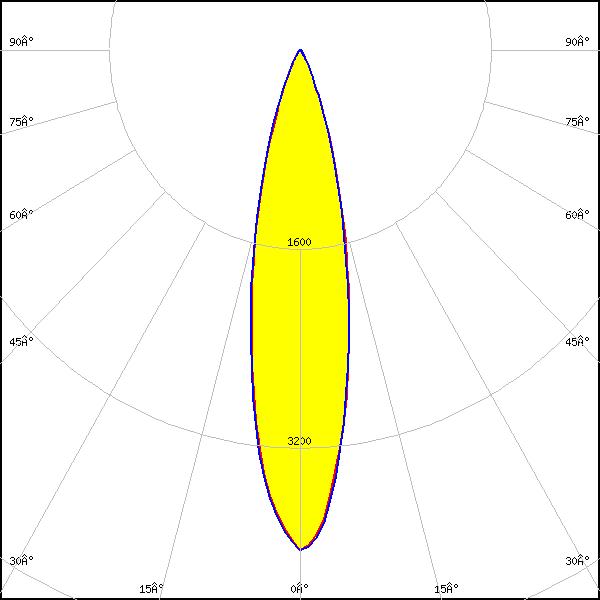

LED: SLE 06mm 1600lm xxx R ADV8
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.5 mm
Required components:
FWHM: 24°
FWTM: 46°
Peak intensity: 4.024 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: SLE SNC8 LES06
Ordering code: CP19162_AMY-35-M-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 24°
FWTM: 46°
Peak intensity: 4.133 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: XOB 6 mm
Ordering code: C17795_AMY-35-M
LES size: 6.0 mm
FWHM: 23°
FWTM: 44°
Peak intensity: 4.280 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

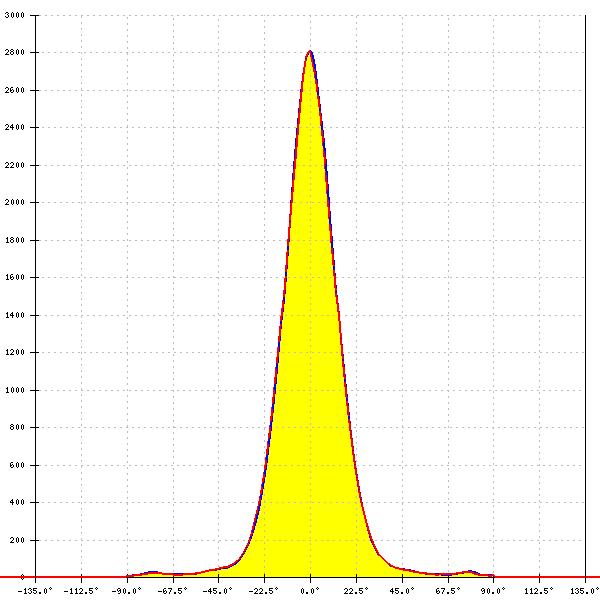

LED: XOB 9.8 mm
Ordering code: C17795_AMY-35-M
LES size: 9.8 mm
FWHM: 28°
FWTM: 55°
Peak intensity: 2.829 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
