Application example
Park lighting with BELLA-SQ
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

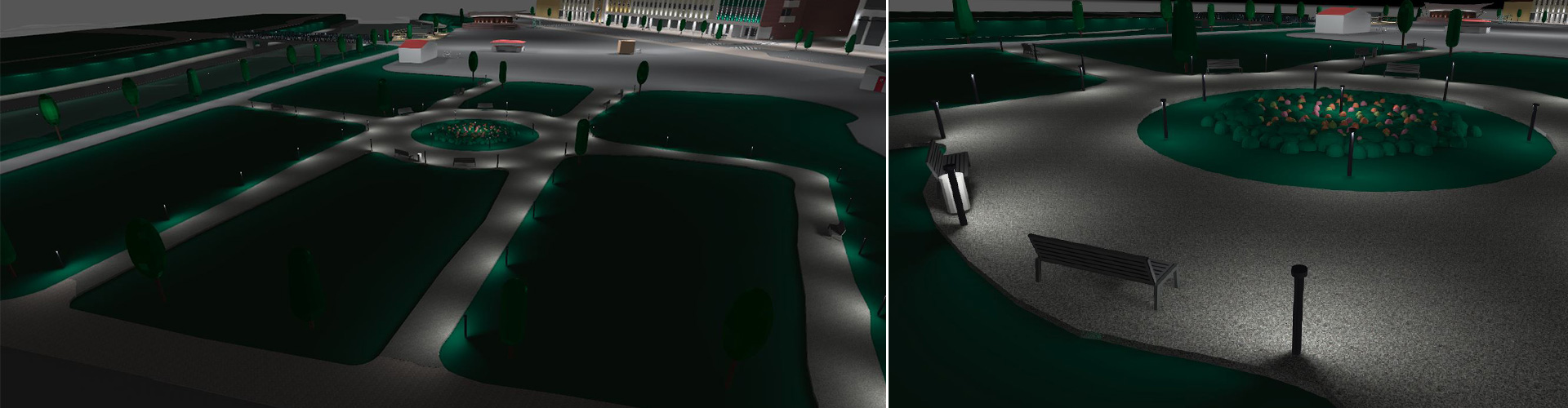

Park lighting - Salo, Finland
Setup:
| Application: | Park lighting |
| Optics: | BELLA-SQ |
| Installation height: | 1 m |
| Luminaire output: | 600 lm |
| Luminaire power: | 4.4 W |
Results:
| In the middle | |
| Average: | 19 x |
| Min: | 5 lx |
| Uniformity: | 0.28 |
| Pathway | |
| Average: | 18 lx |
| Min: | 3 lx |
| C18688_BELLA-SQ-HVSM | ||
| C18689_BELLA-SQ-HC | ||
| CA18979_BELLA-SQ-HVSM | Assembly with installation tape. | |
| CA18980_BELLA-SQ-HC | Assembly with installation tape. |
