    C18688_BELLA-SQ-HVSM

    Print

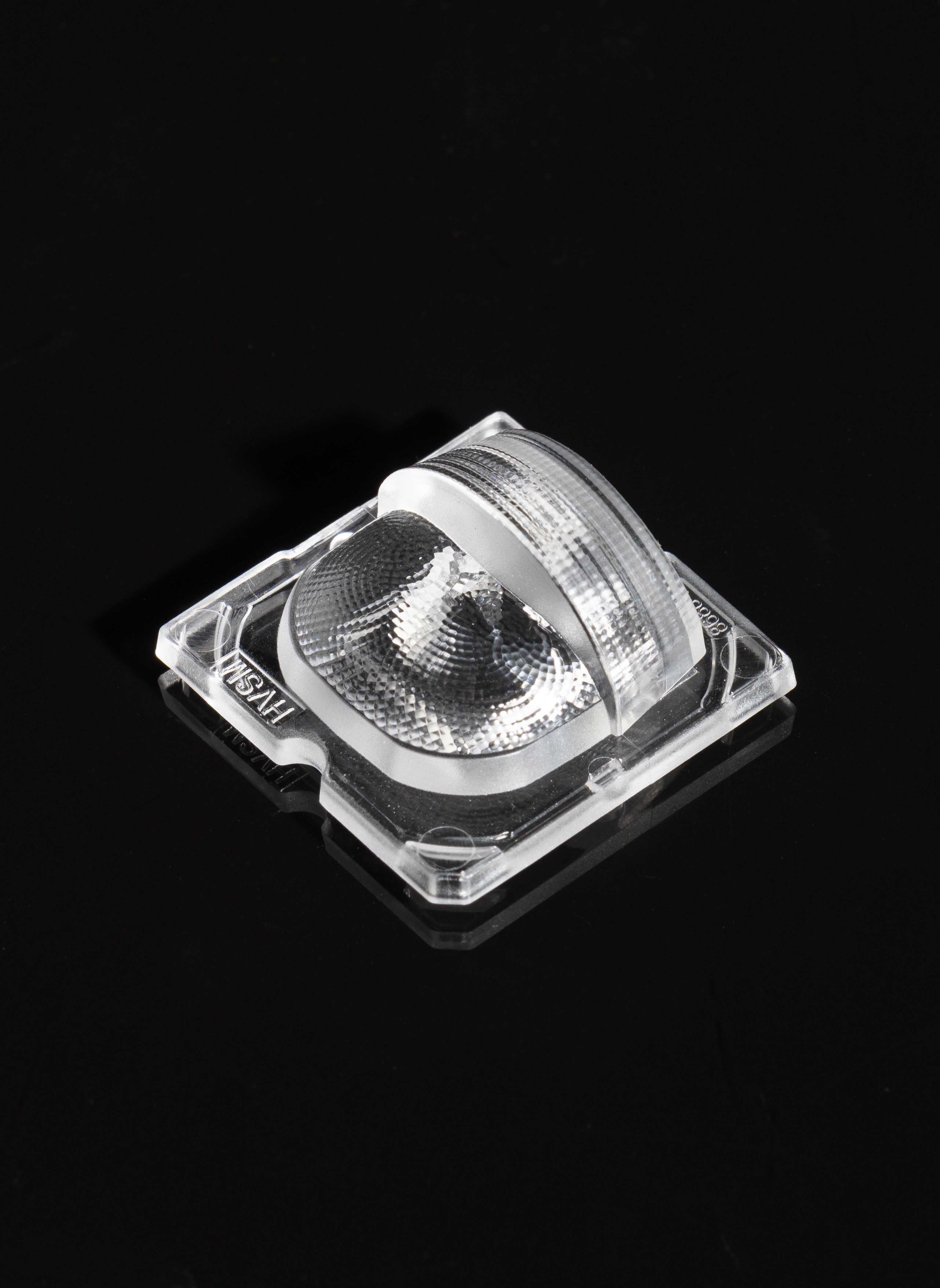

    Special lainaushalf-VSMlainaus type beam ideal for pathway lighting

    Specification
    • Dimensions:
      25 x  25 mm
    • Height:
      11.90 mm
    • Fastening:
      glue, pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      1568 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      5.0 kg
    • MPQ:
      98 pcs
    • MOQ:
      294 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18688_BELLA-SQ-HVSM
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application area

    Urban lighting with LEDiL optics

    Application guide

    LEDiL guide for urban lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    Application example

    Urban lighting with LEDiL optics

    News

    New products – September, 2023

    News

    BELLA-SQ – Half the light, twice the impact for the most efficient bollard lighting

    Application example

    Park lighting with BELLA-SQ

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Optical results

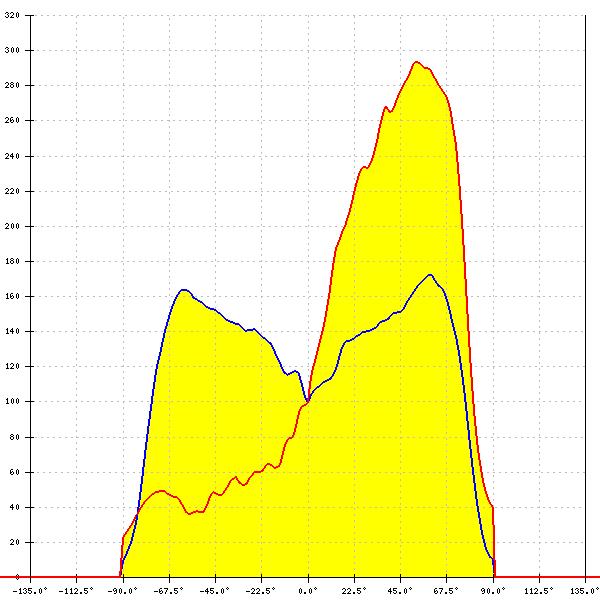

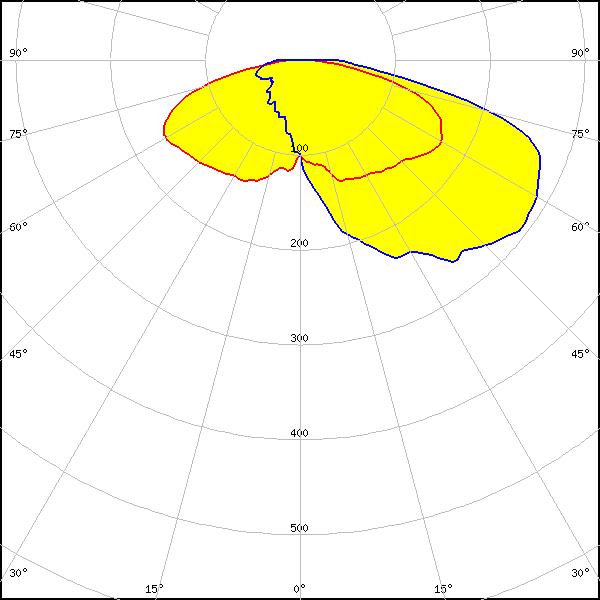

    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.397 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

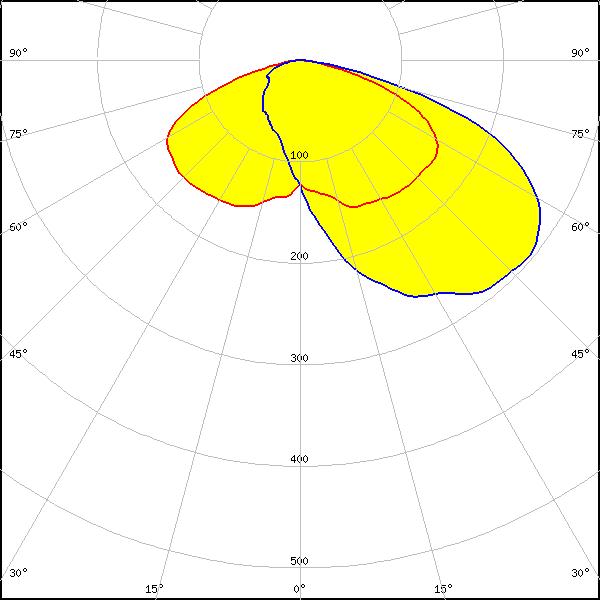

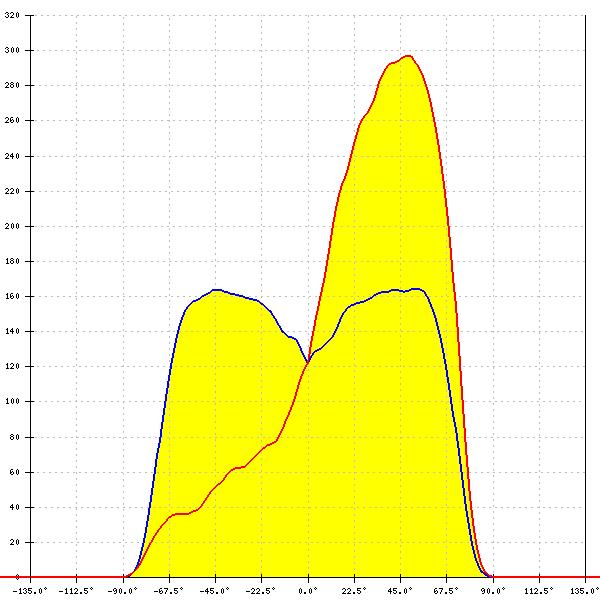

    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.316 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

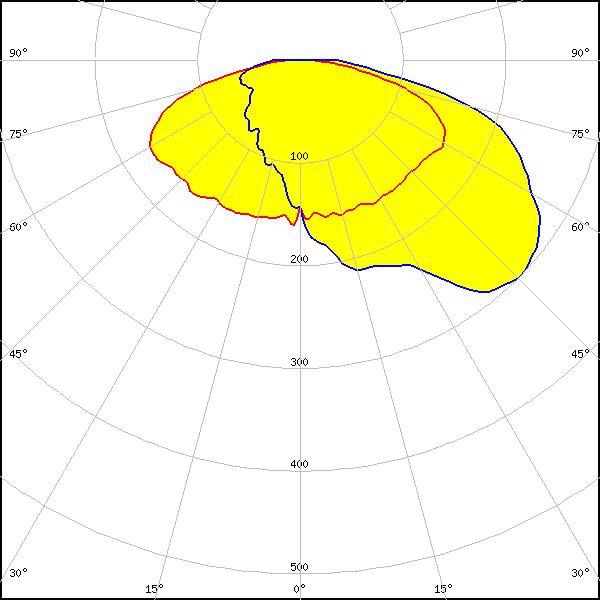

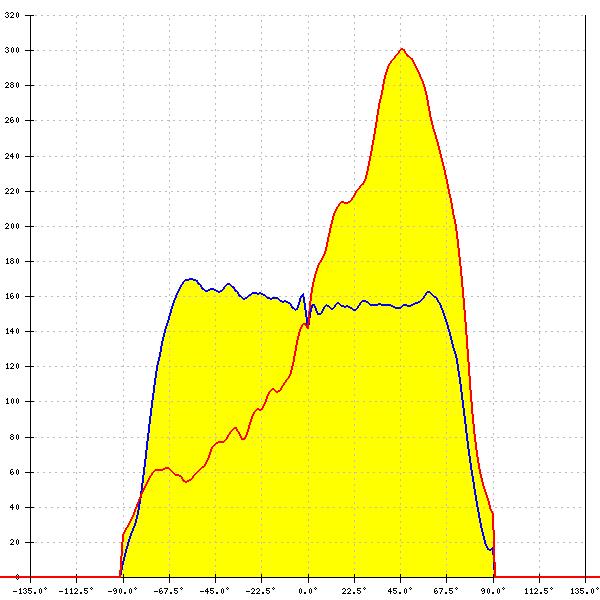

    LED: LUXEON 7070
    FWHM: asymmetric
    Peak intensity: 0.344 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

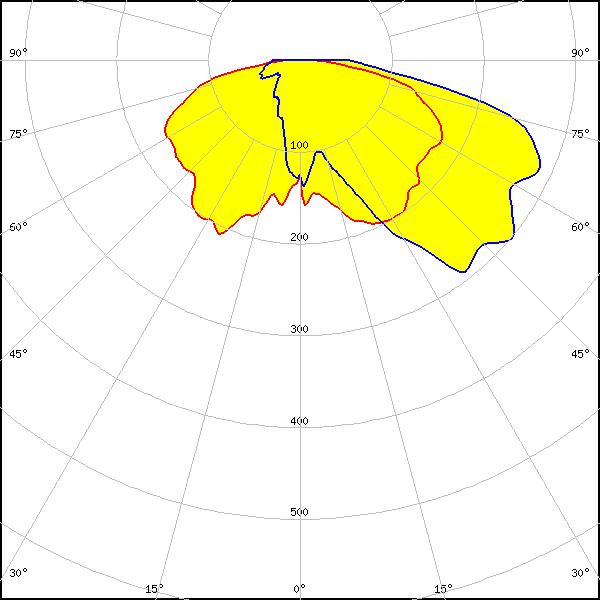

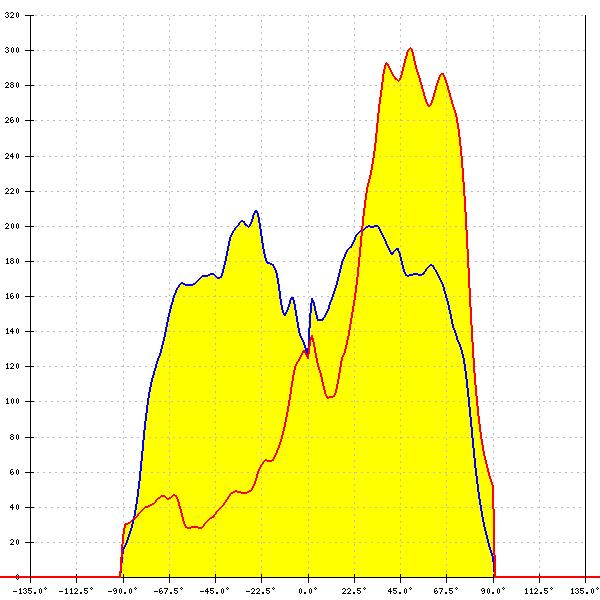

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.399 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
