Application example

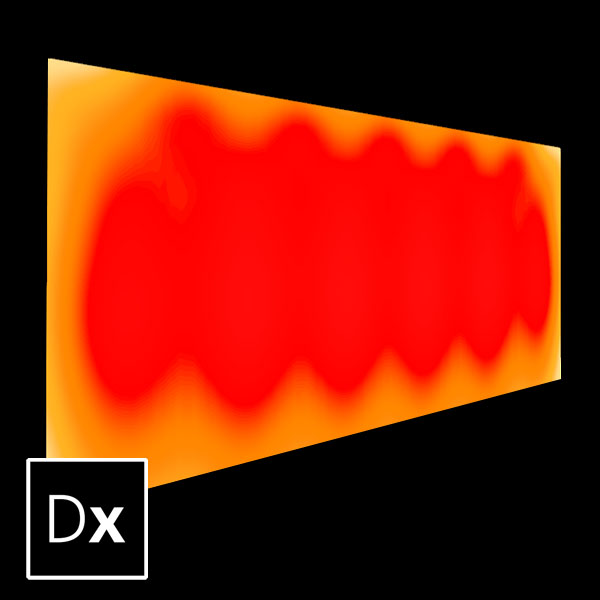

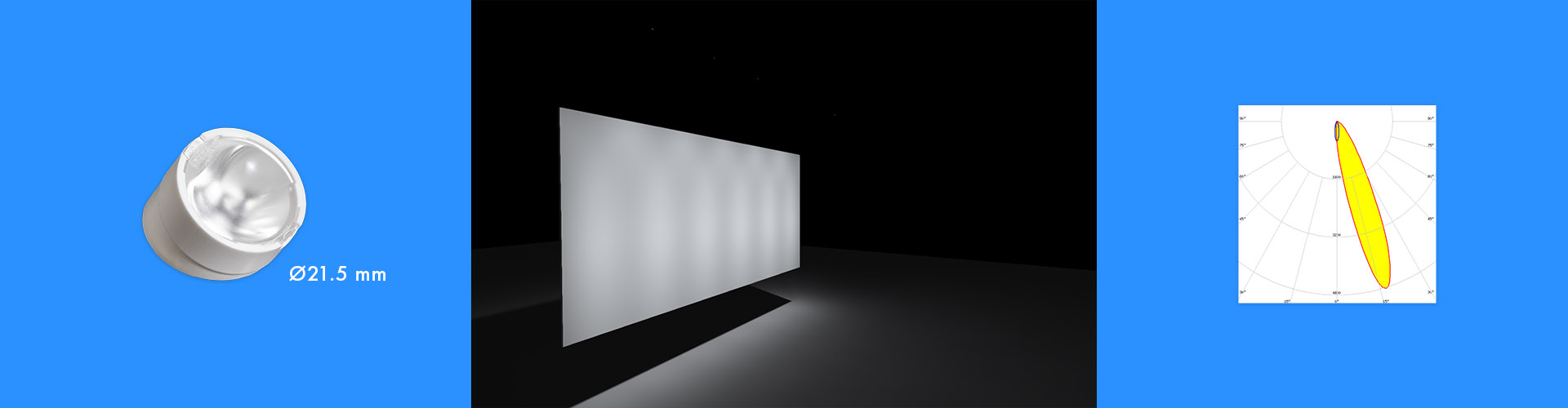

Billboard lighting with BILLIE-S-WHT.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Billboard lighting |
| Optics: | BILLIE-S-WHT |
| LED: | High-Power 3535 |
| Luminaire power: | 260 W |
| Number of luminaires: | 6 pcs |
| Total luminous flux (Luminaires): | 25 000 lm |
| Spacing: | 2.55 m |
| Distance from the billboard (X): | 3 m |
| Distance from the billboard (Y): | 2 m |
RESULTS:
| Average: | 100 lx |
| Uniformity | 0.58 |
Billboard lighting with BILLIE-S-WHT.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
