    FCA18588_BILLIE-S-WHT

    Print

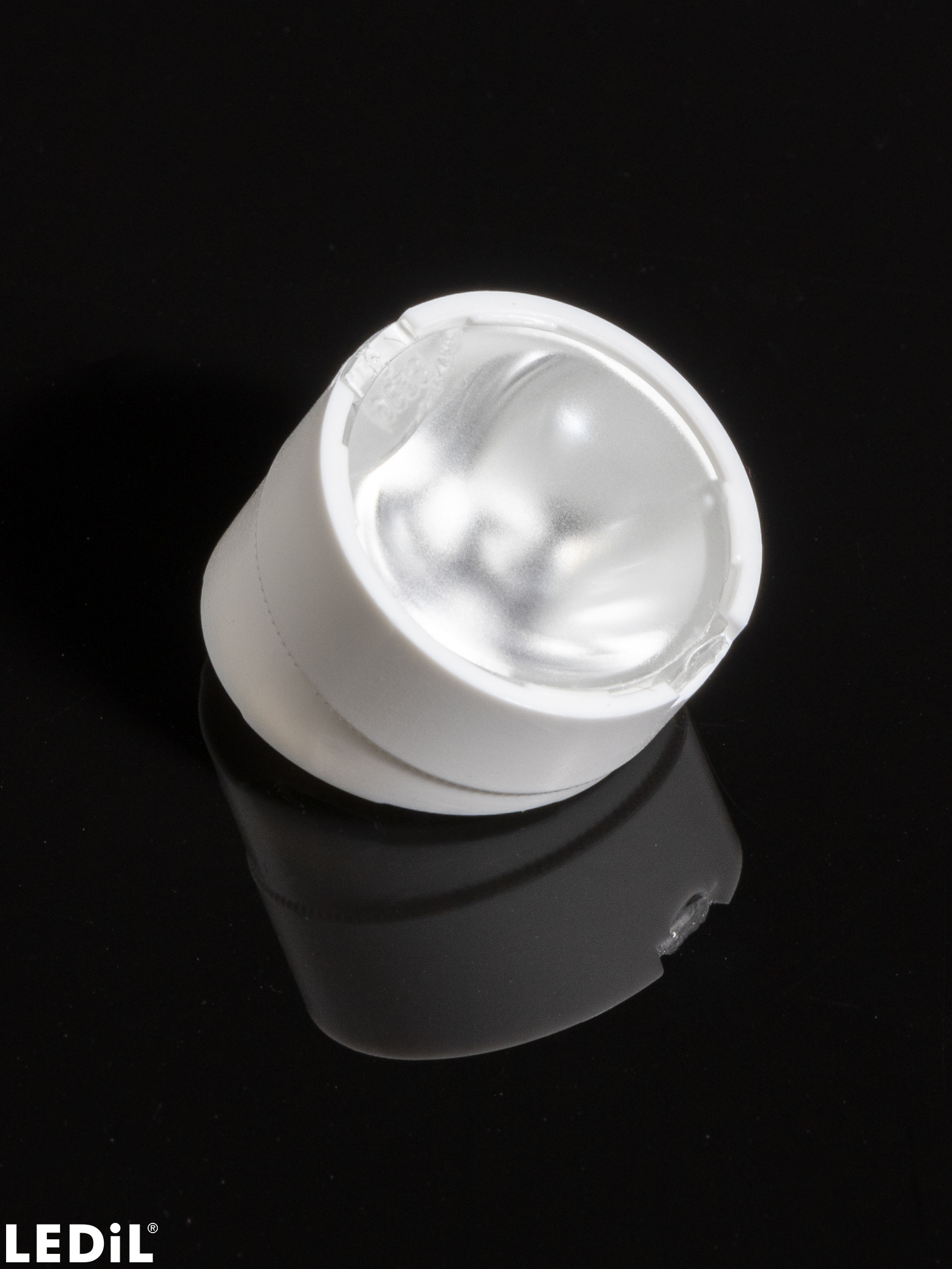

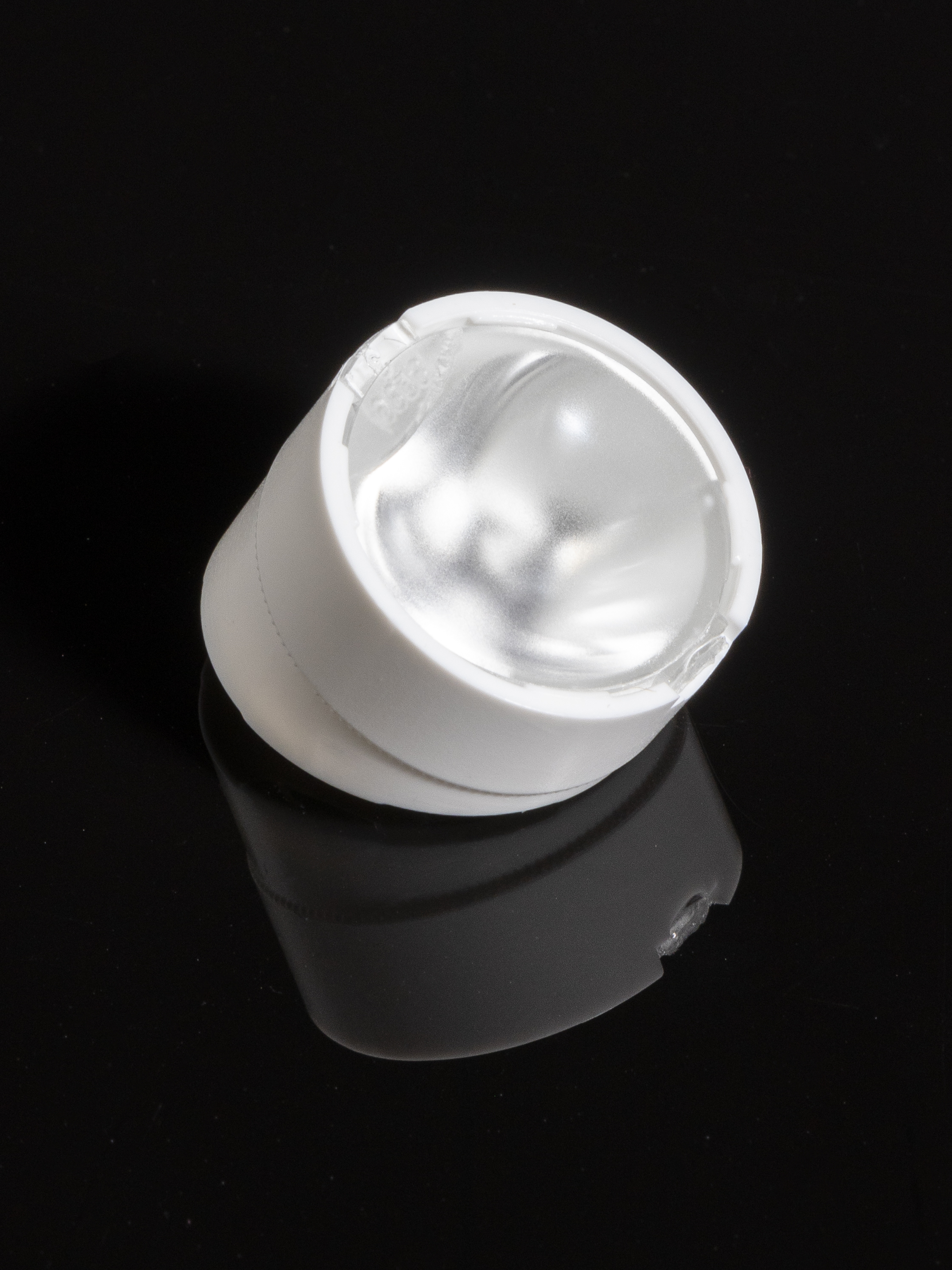

    Asymmetric spot beam with ~17° tilt for billboards. Assembly with holder and installation tape.

    Specification
    • Dimensions:
      22 mm
    • Height:
      16.10 mm
    • Fastening:
      tape, pin
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      1792 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.8 kg
    • MPQ:
      112 pcs
    • MOQ:
      336 pcs
    • MOQ size:
      480 x 280 x 50 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FCA18588_BILLIE-S-WHT
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – September 15, 2022

    Application example

    Billboard lighting with BILLIE-S

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Outdoor Special Applications

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

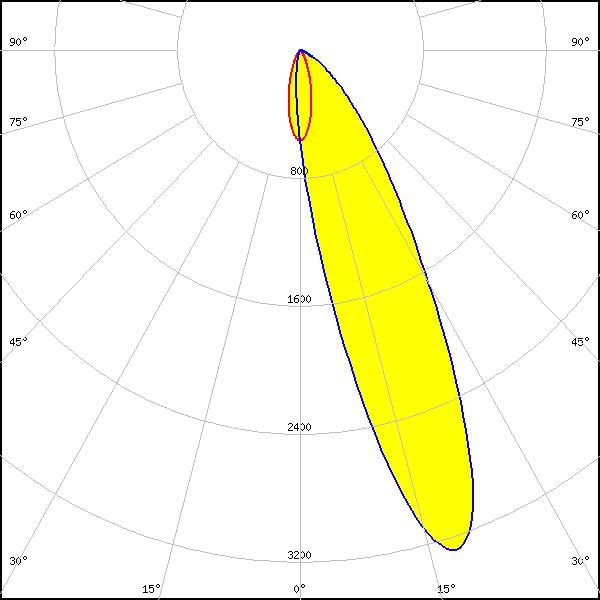

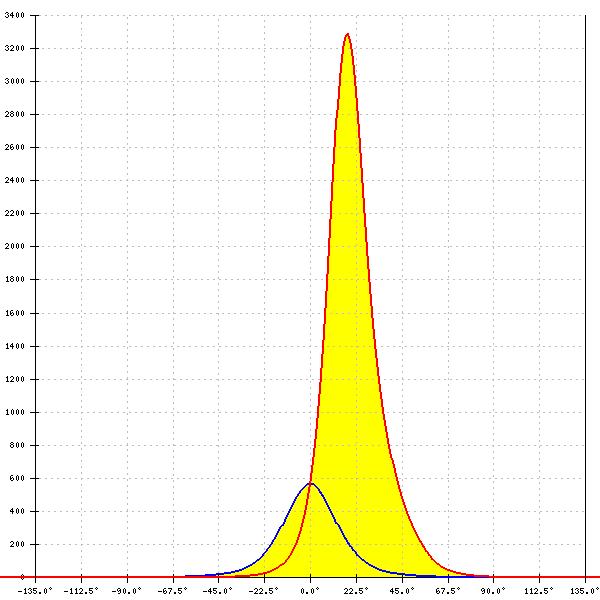

    Optical results

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 3.289 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
