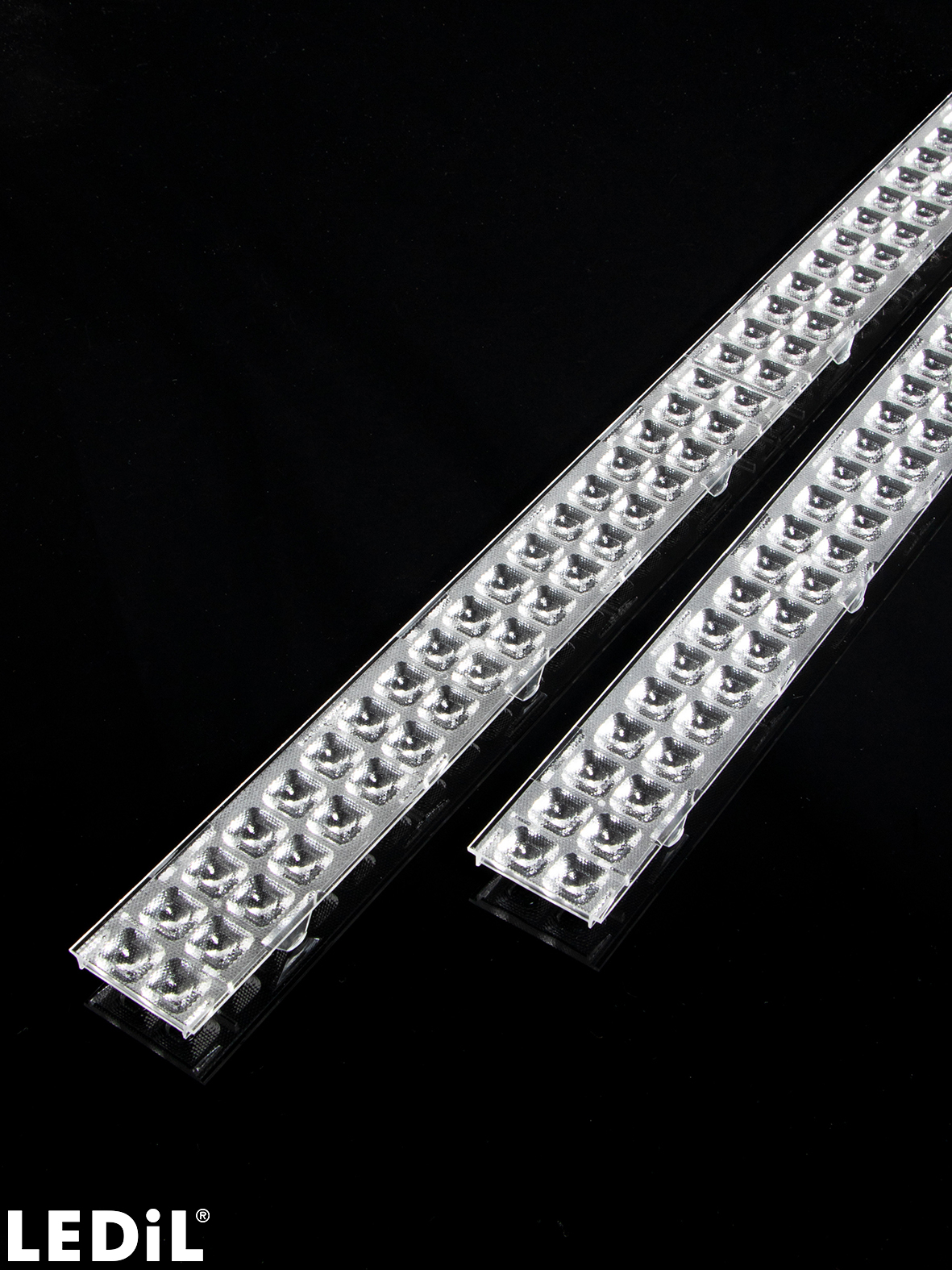

    LIANNA-2R-60

    Print

    ~60° wide beam

    Custom lengths available.

    This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

    Specification
    • Dimensions:
      40 x 1120 mm
      40 x 1400 mm
      40 x 1680 mm
    • Height:
      10.70 mm
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • C19709_LIANNA-2R-60-L5
      PMMA
    • C19475_LIANNA-2R-60-L6
      PMMA
    • C19474_LIANNA-2R-60-L4
      PMMA
    Ordering information
    • Linear lens
    • C19474_LIANNA-2R-60-L4
      clear, 1120mm
    • C19709_LIANNA-2R-60-L5
      clear, 1400mm
    • C19475_LIANNA-2R-60-L6
      clear, 1680mm
    • Quantity in box:
      50 pcs
    • Box size:
      1190 x 260 x 210 mm
    • Box weight:
      9.30 kg
    • MPQ:
      50 pcs
    • MOQ:
      50 pcs
    • MOQ Size:
      1190 x 260 x 210 mm
    • MOQ Weight:
      9.30 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C19474_LIANNA-2R-60-L4
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    LIANNA ‒ redefining linear lighting excellence

    News

    New beams and products - September 2024

    Catalogue

    LEDiL Latest products catalogue

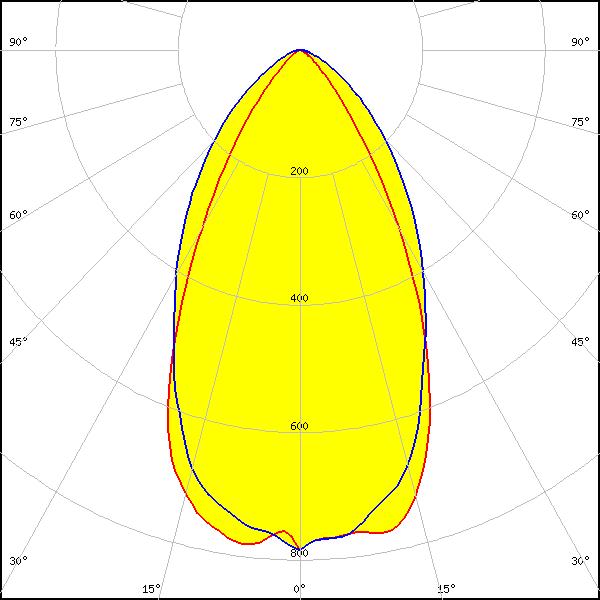

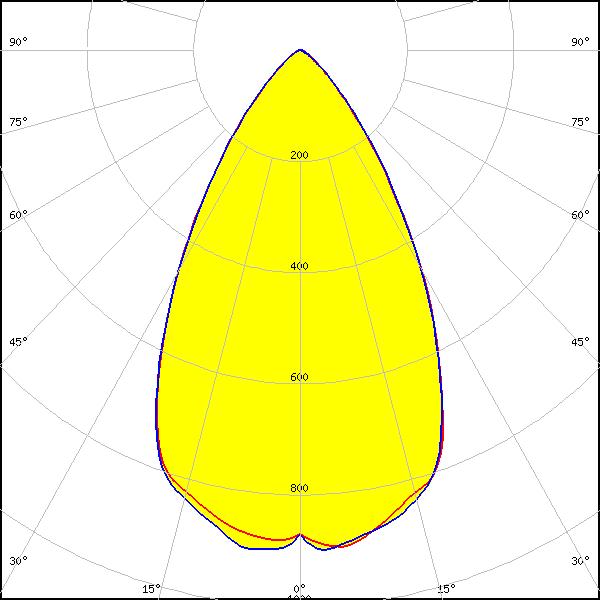

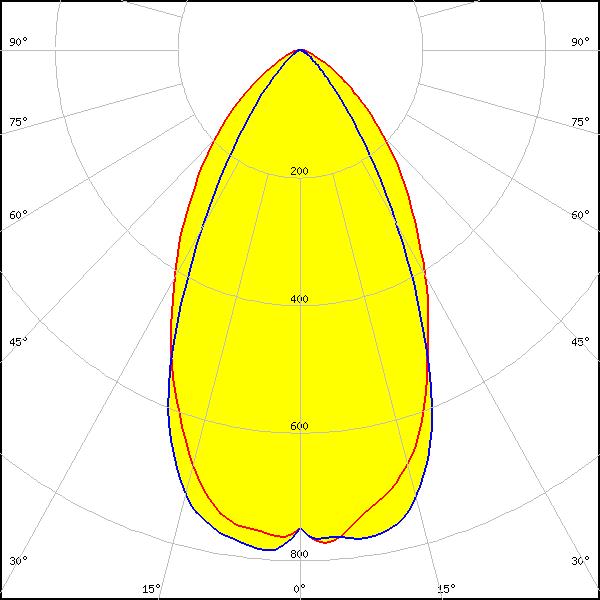

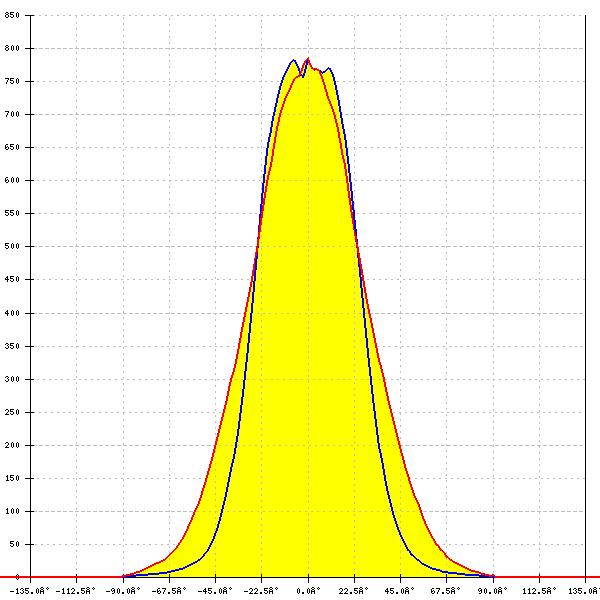

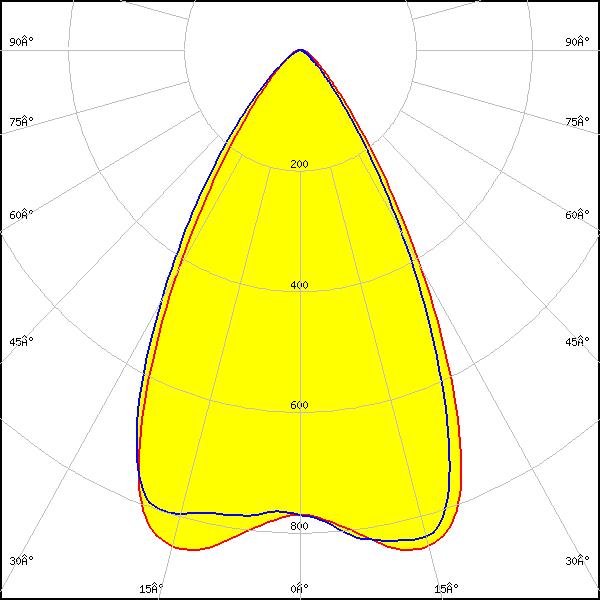

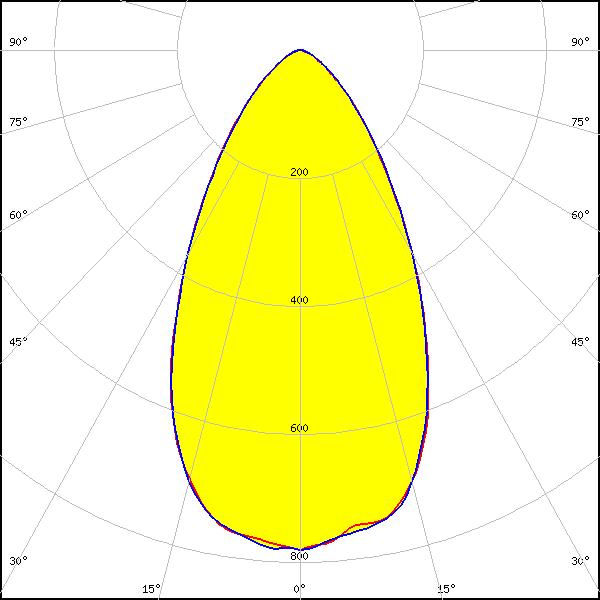

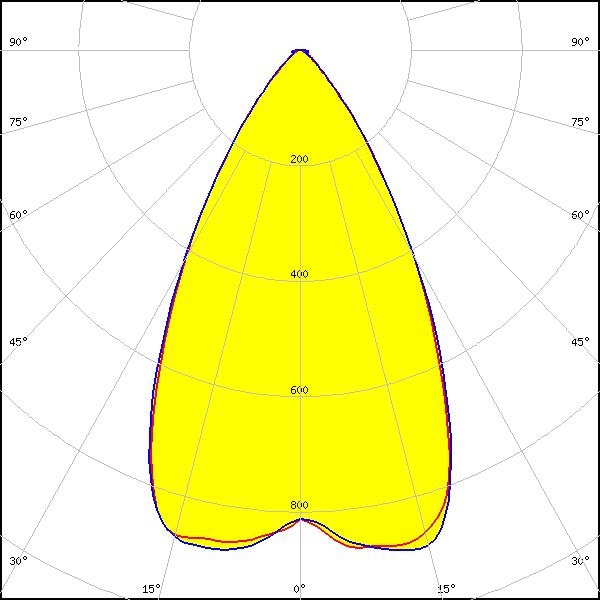

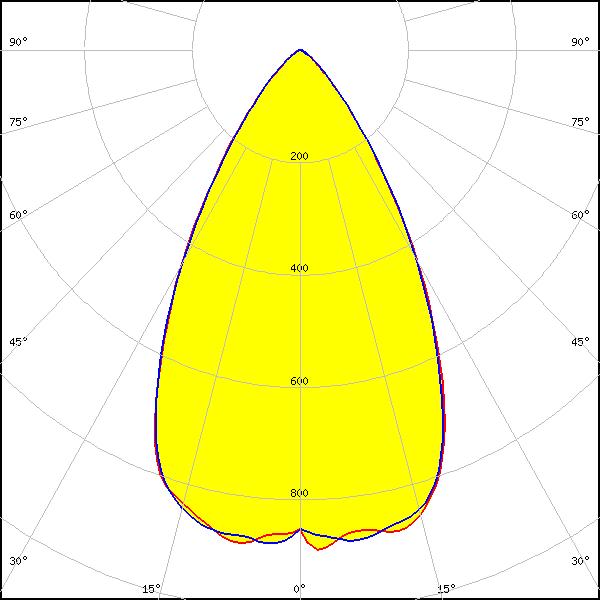

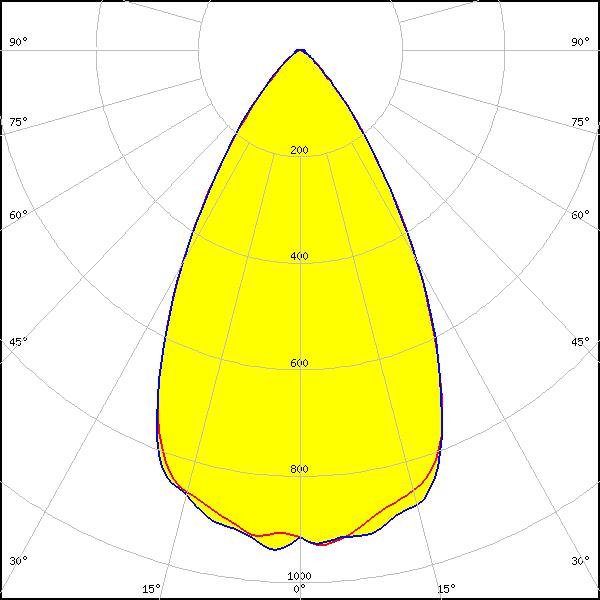

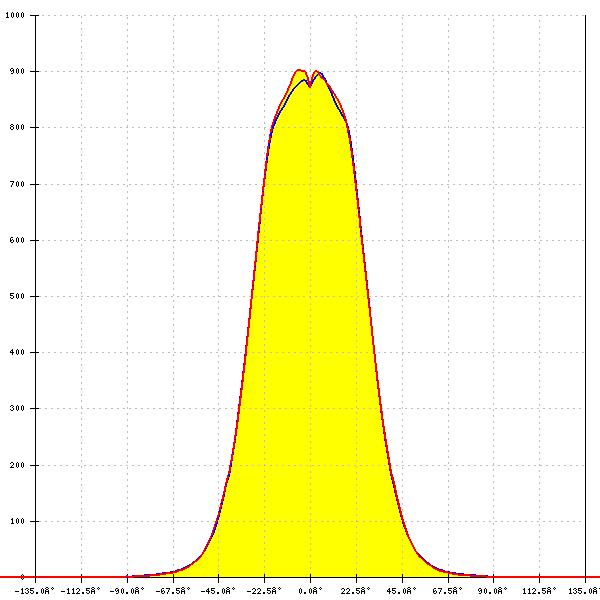

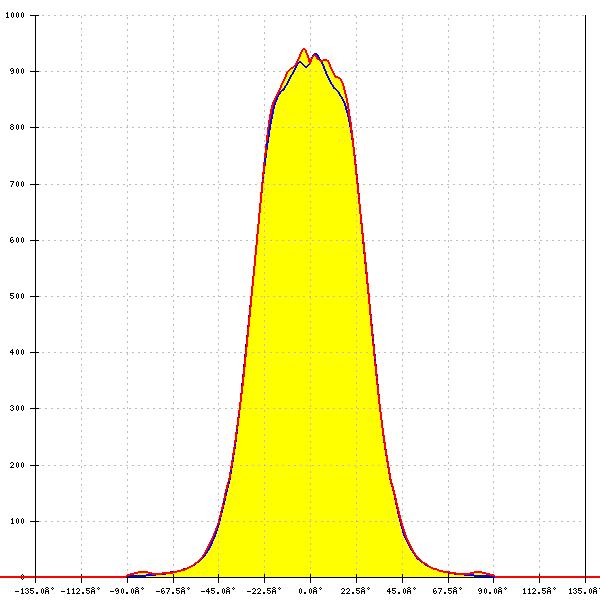

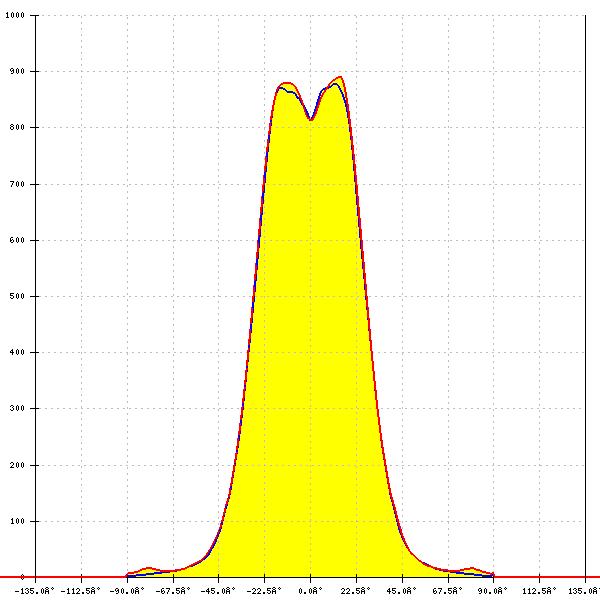

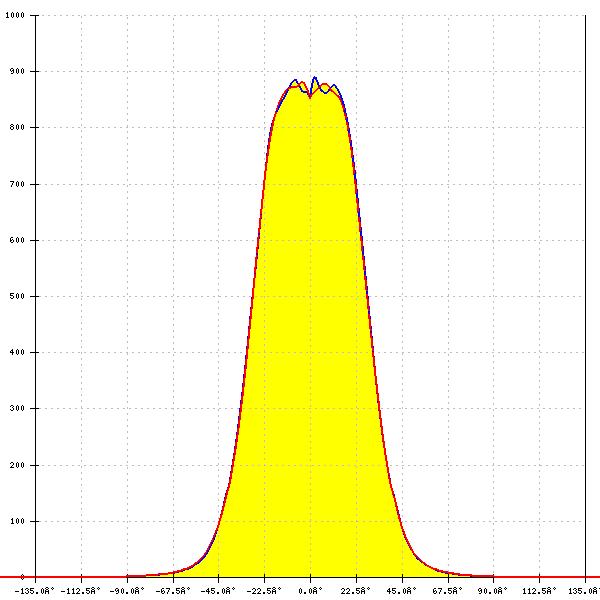

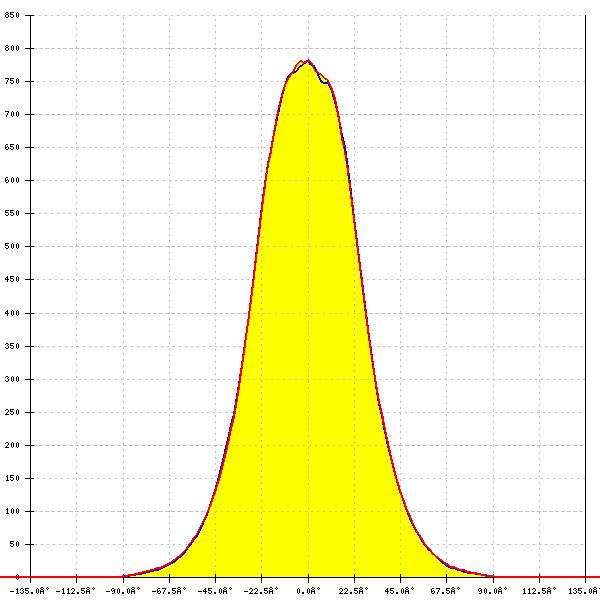

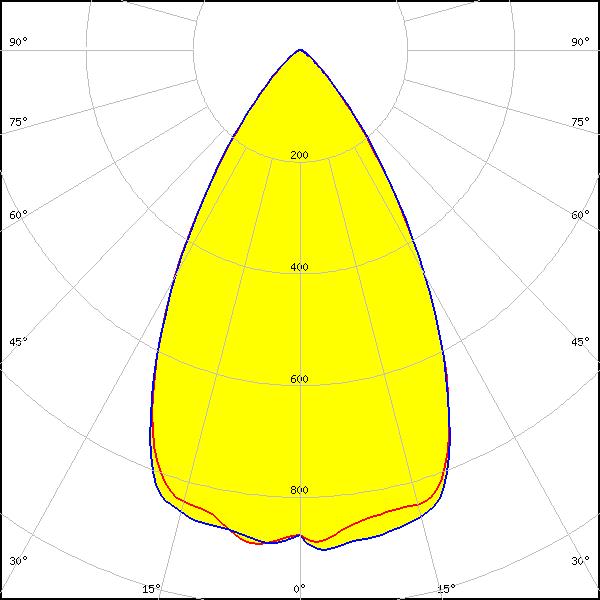

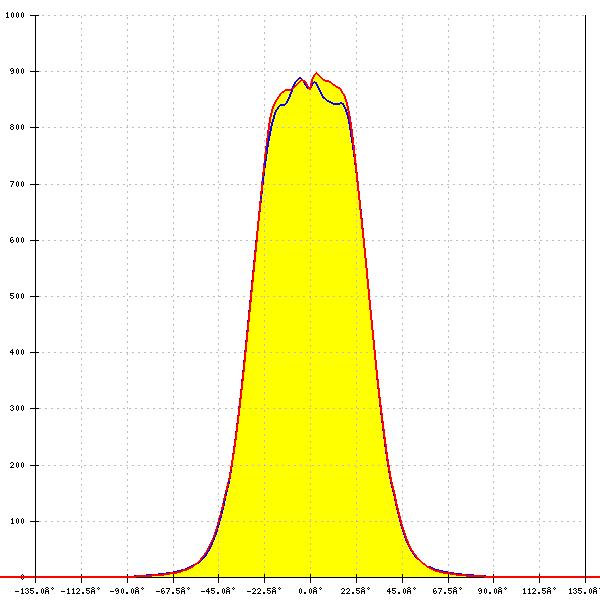

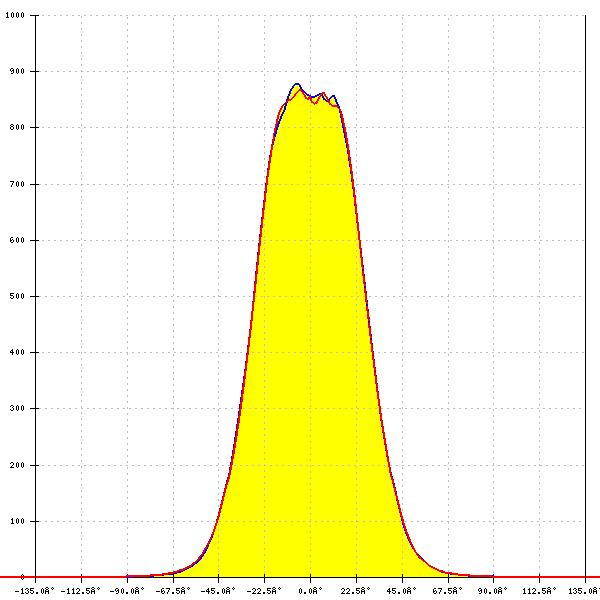

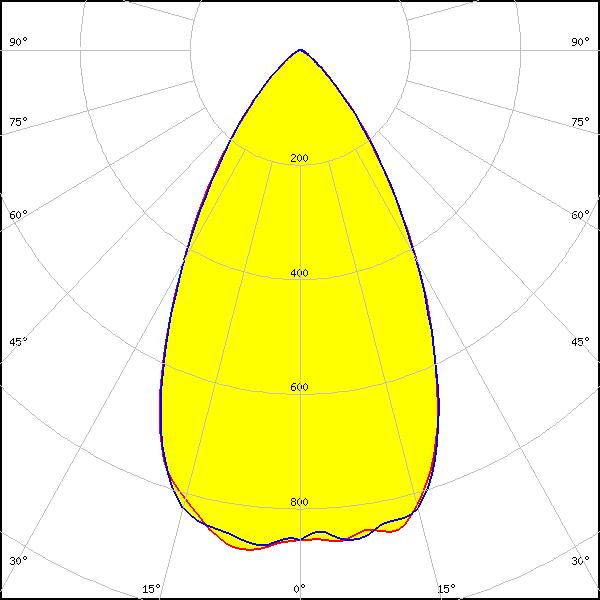

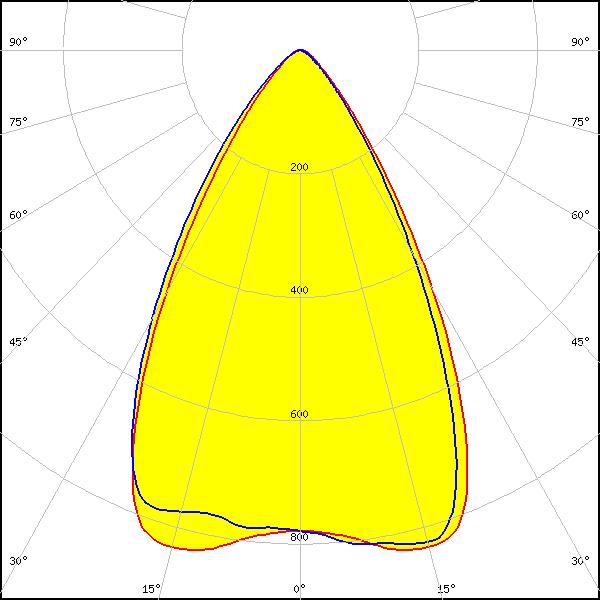

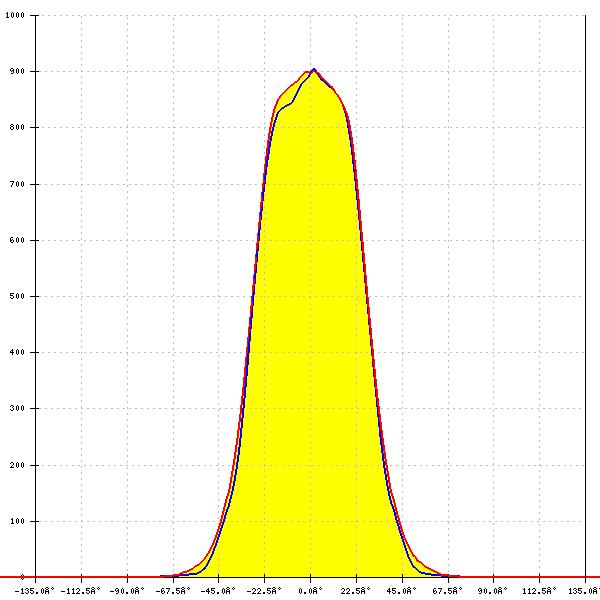

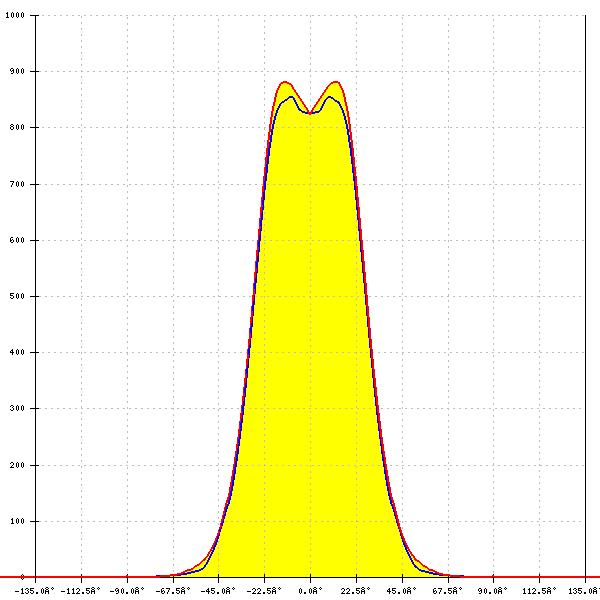

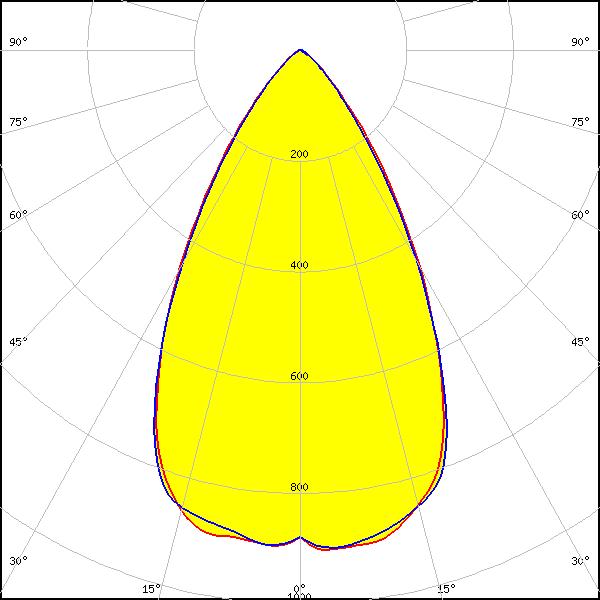

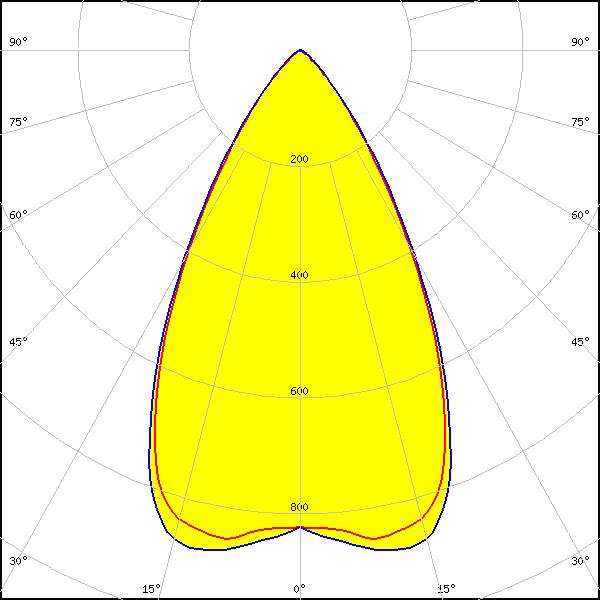

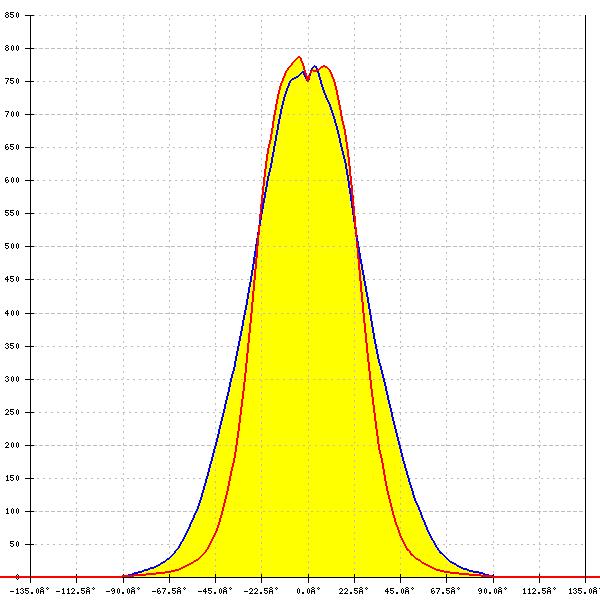

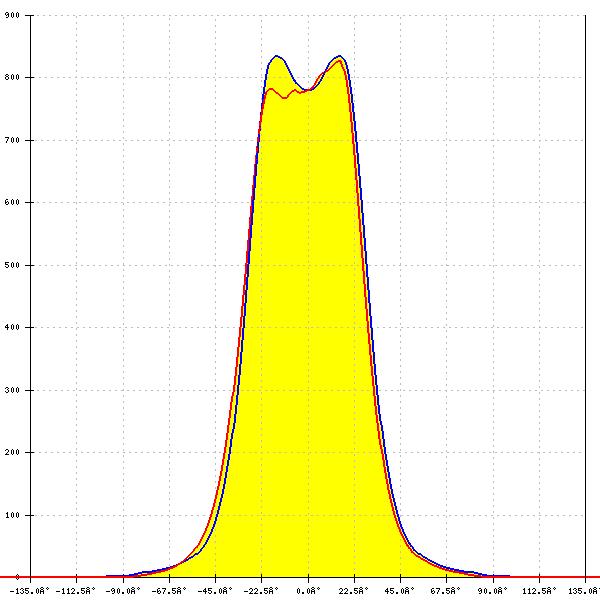

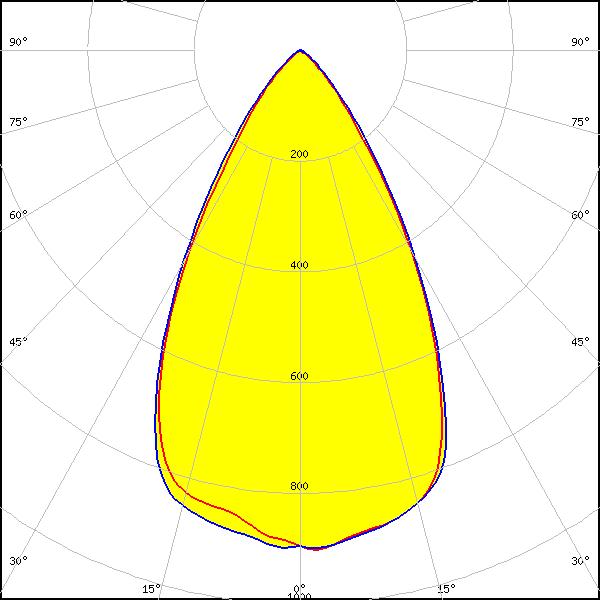

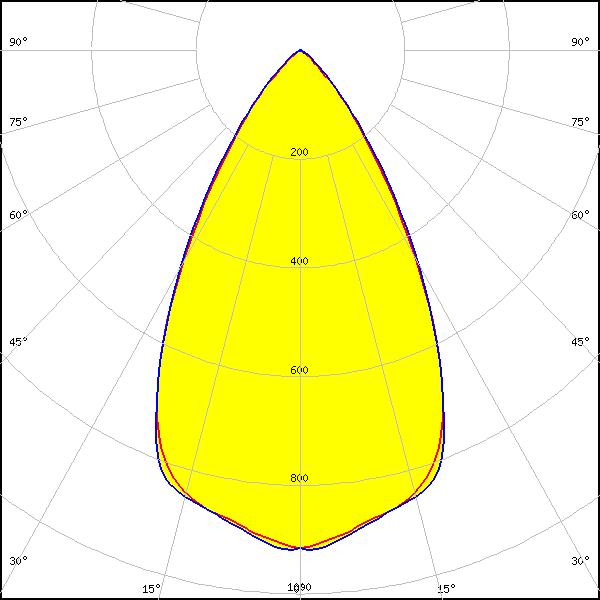

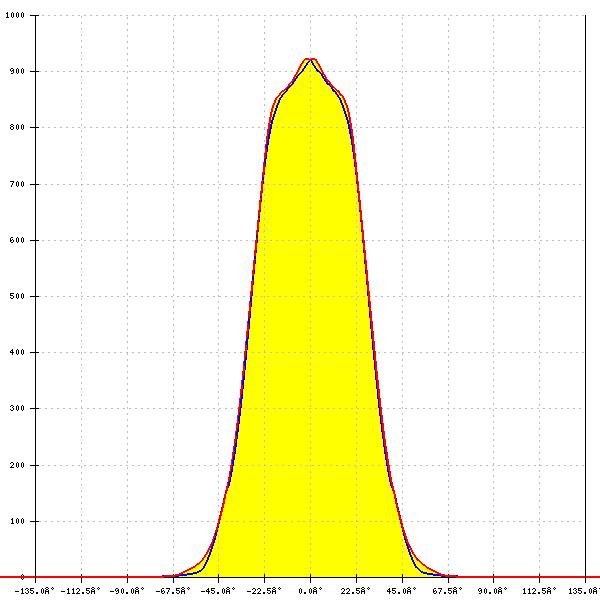

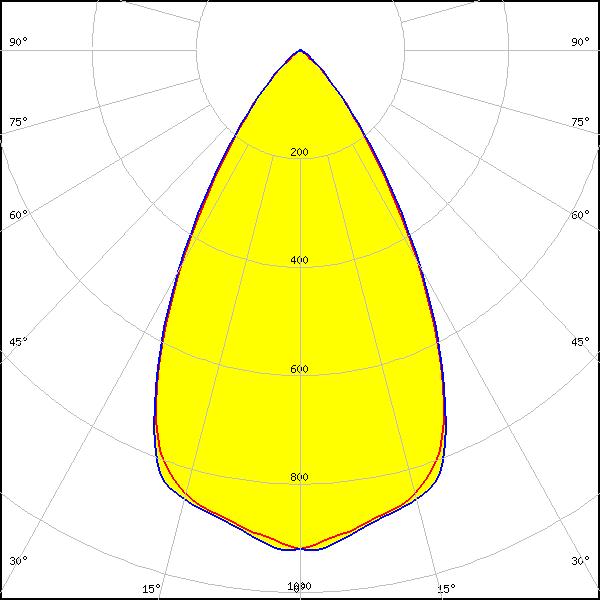

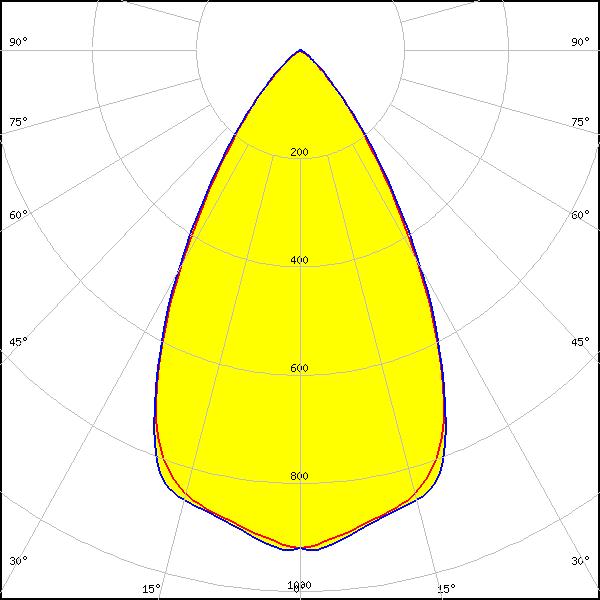

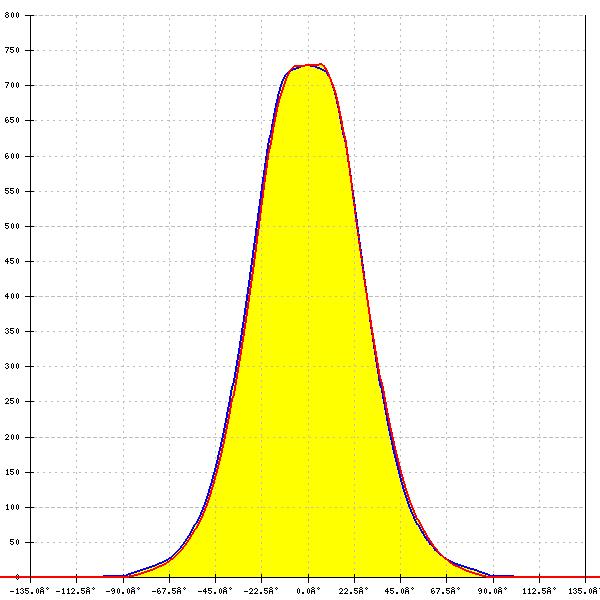

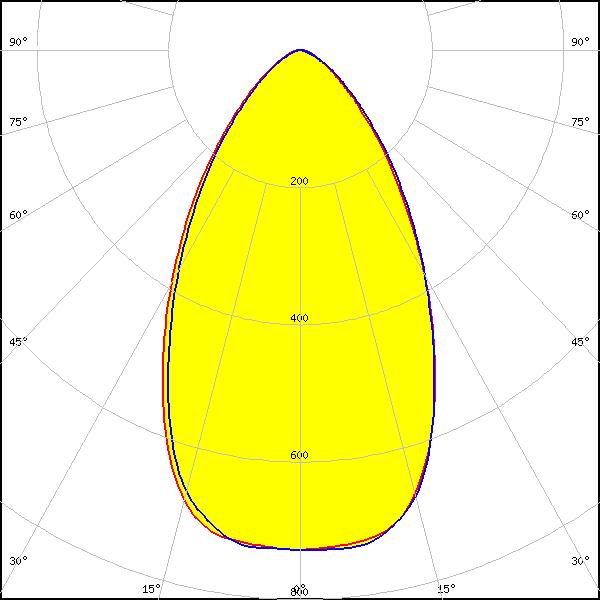

    Optical results

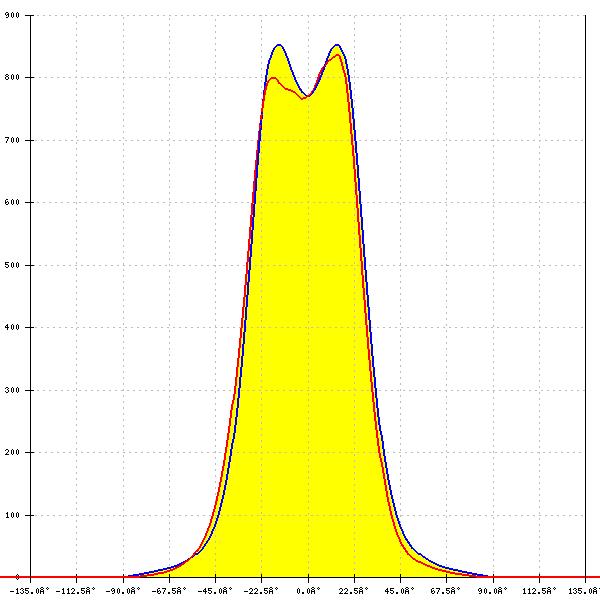

    LED: LinLED 277x26mm 1100lm 8x0 2C 27V LIANNA-2R G1
    Ordering code: C19471_LIANNA-2R-60-L1
    FWHM: 60°
    FWTM: 90°
    Peak intensity: 0.898 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

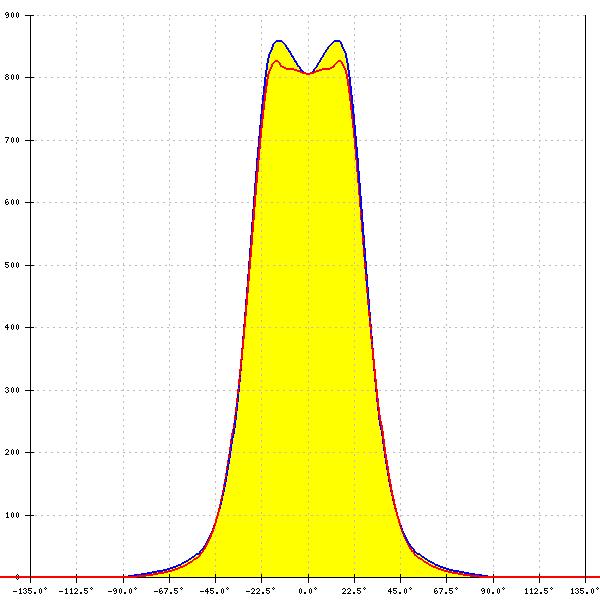

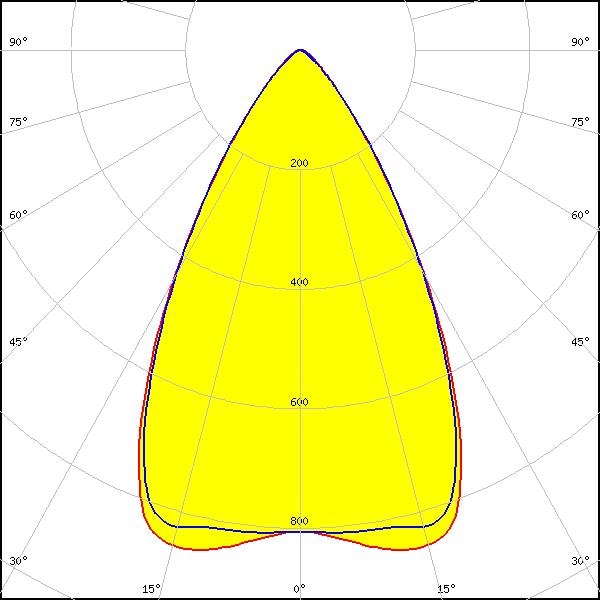

    LED: LM28xB Series
    Ordering code: C19471_LIANNA-2R-60-L1
    FWHM: 60°
    FWTM: 90°
    Peak intensity: 0.891 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
