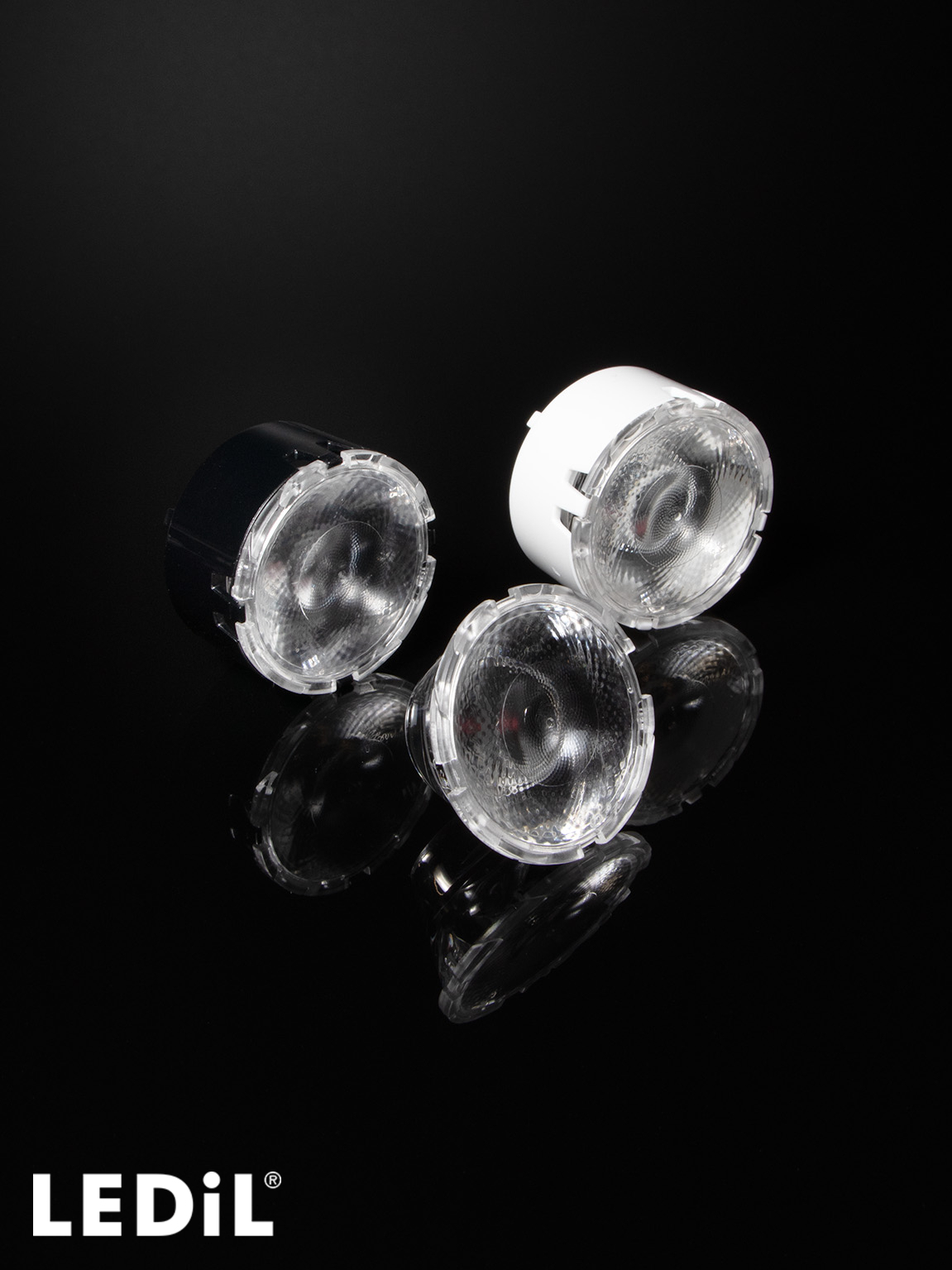

    YASMEEN-35-RS

    Print

    ~10° spot beam

    This product consists of multiple buying options. See ordering information.

    Specification
    • Dimensions:
      35 mm
    • Height:
      18.00 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • CP19706_YASMEEN-35-RS
    • Quantity in box:
      780 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.00 kg
    • MPQ:
      60 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 70 mm
    • MOQ Weight:
      1.40 kg
    • Assembly

      (single lens, holder)

    • CP19707_YASMEEN-35-RS-B
      black,Holder B
    • CP19708_YASMEEN-35-RS-B-WHT
      white,Holder B
    • Quantity in box:
      780 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.10 kg
    • MPQ:
      60 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 60 mm
    • MOQ Weight:
      1.70 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CP19706_YASMEEN-35-RS
      CP19707_YASMEEN-35-RS-B
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    YASMEEN - The best optic in class

    News

    The real spot beams with YASMEEN and AMY

    Article

    Finding the perfect spot – The art and science of narrowing beam angles

    Compatibility guide

    LEDiL connector and socket compatibility

    News

    YASMEEN – redefining track lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    News

    New products – May, 2023

    News

    YASMEEN-35 – superior light quality in a petite size

    Application guide

    Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    Catalogue

    LEDiL Latest products catalogue

    Article

    Explore new retail lighting opportunities

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

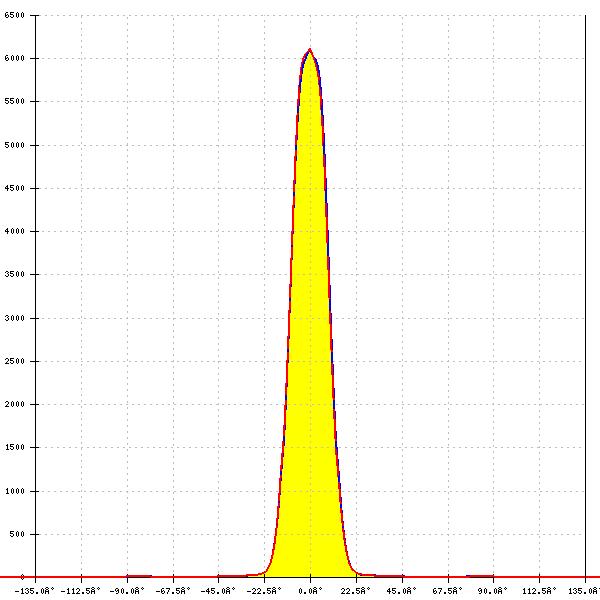

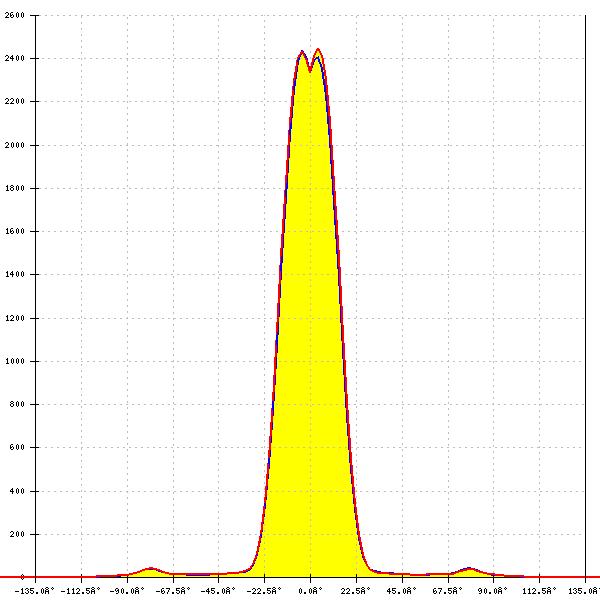

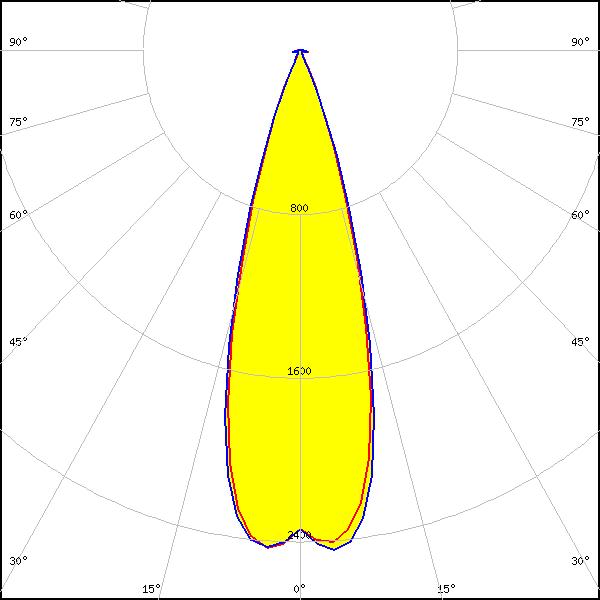

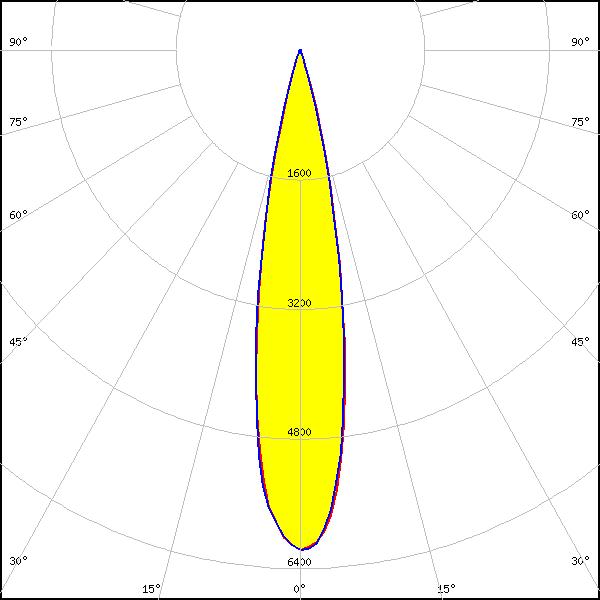

    Optical results

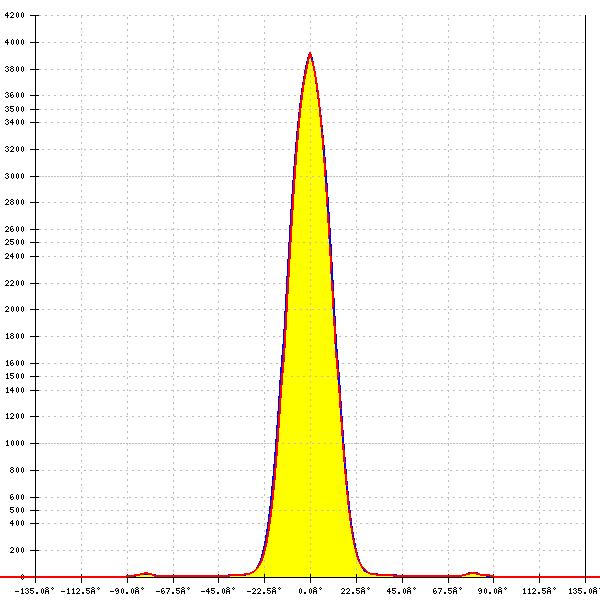

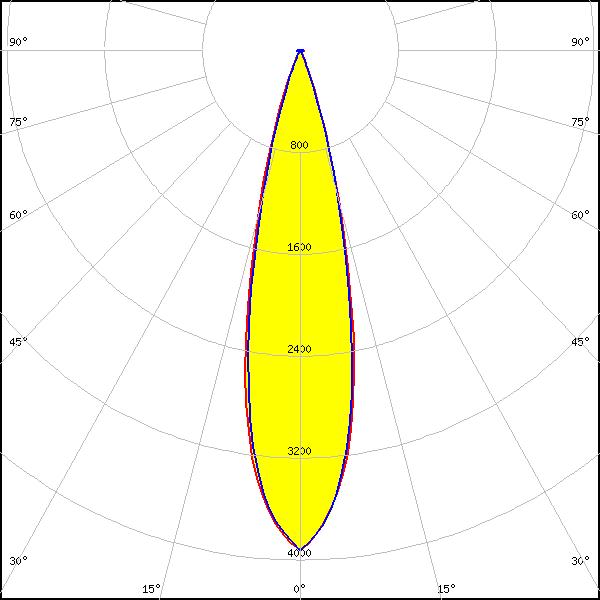

    LED: V9 HD Gen 8
    Ordering code: CP19707_YASMEEN-35-RS-B
    LES size: 8.8 mm
    Required components:
    C19308_SOCKET-B-35-I
    FWHM: 24°
    FWTM: 40°
    Peak intensity: 3.925 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

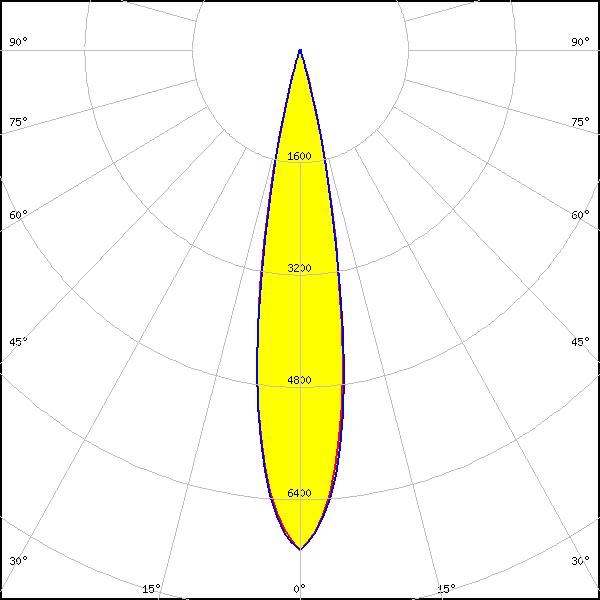

    LED: Vesta TW 6mm DP
    Ordering code: CP19707_YASMEEN-35-RS-B
    LES size: 6.3 mm
    Required components:
    C19309_SOCKET-B-35-L
    FWHM: 20°
    FWTM: 32°
    Peak intensity: 7.123 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

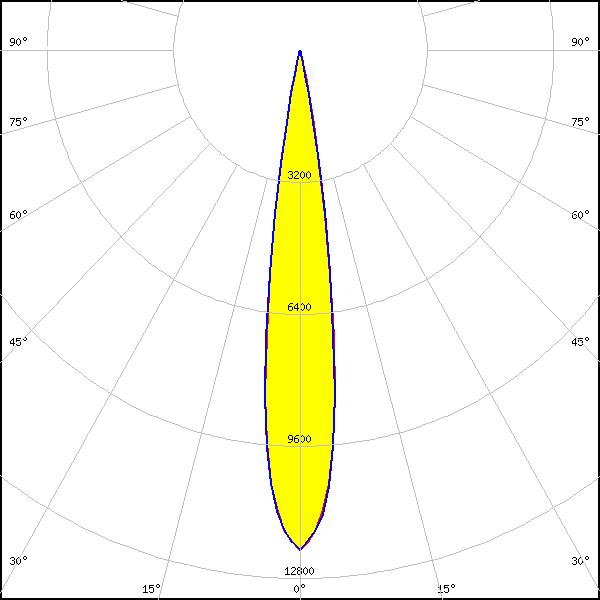

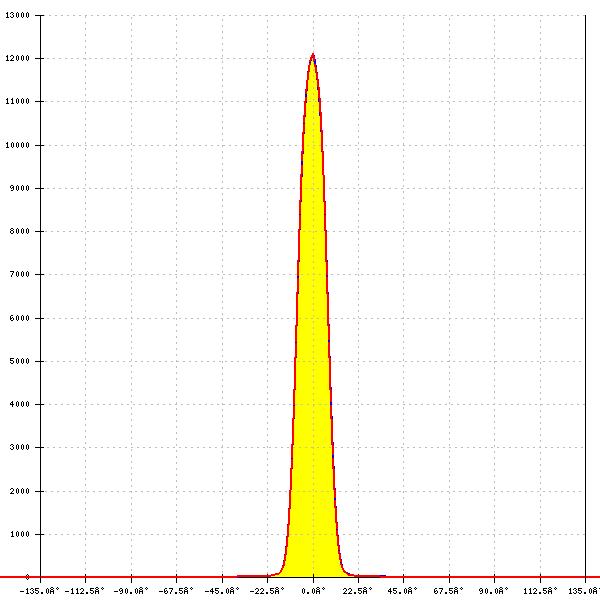

    LED: CLU7A2/7A3
    Ordering code: CP19707_YASMEEN-35-RS-B
    LES size: 4.2 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 16°
    FWTM: 24°
    Peak intensity: 12.121 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

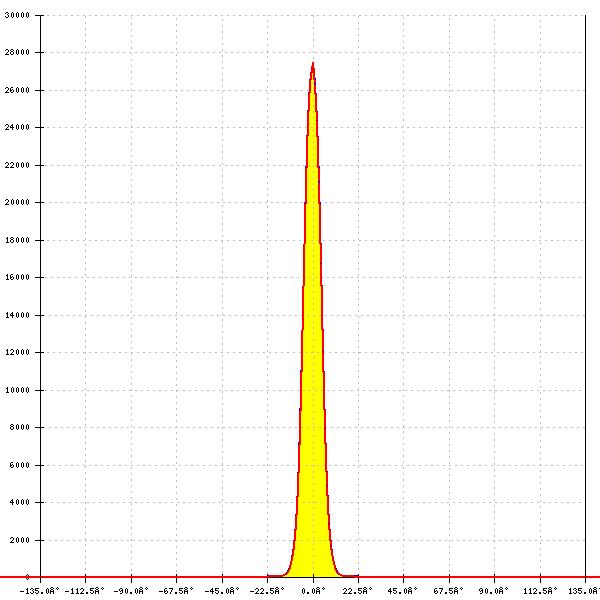

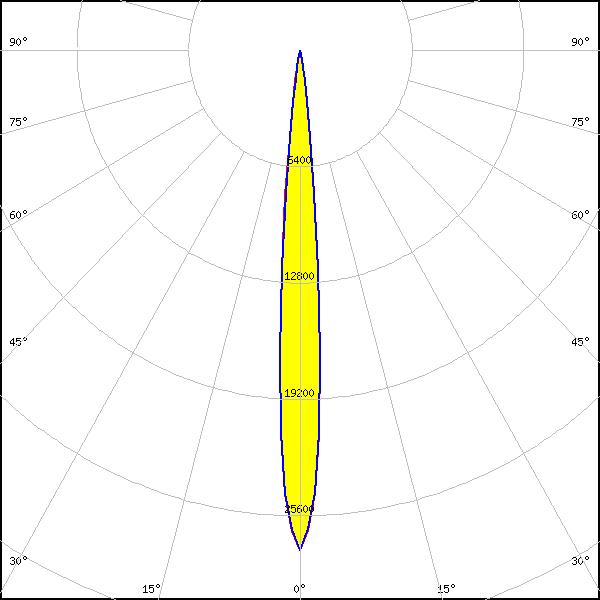

    LED: CLU7L3
    Ordering code: CP19707_YASMEEN-35-RS-B
    LES size: 2.4 mm
    Required components:
    C19425_SOCKET-B-35-N
    FWHM: 10°
    FWTM: 16°
    Peak intensity: 27.503 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

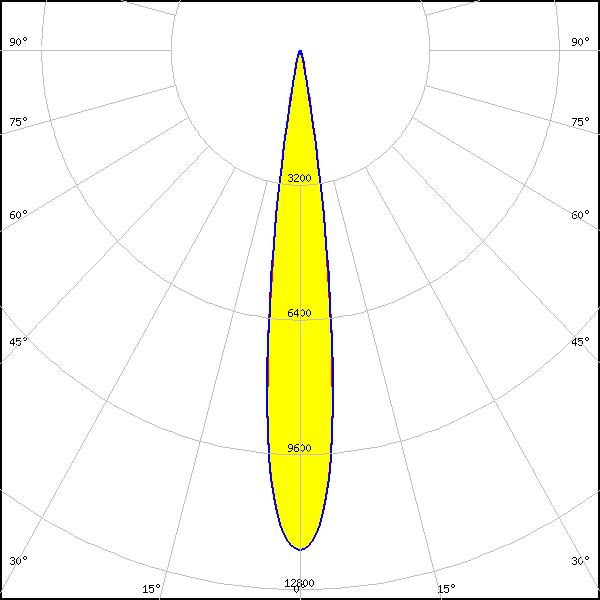

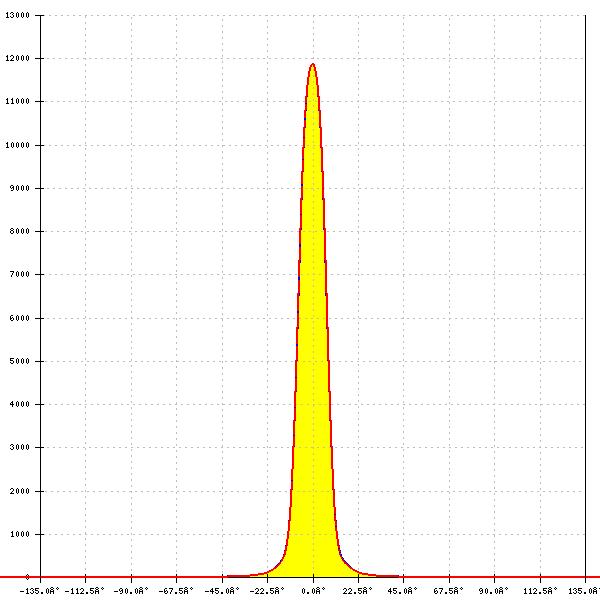

    LED: CLU7R3
    Ordering code: CP19707_YASMEEN-35-RS-B
    LES size: 4.2 mm
    Required components:
    C19424_SOCKET-B-35-M
    FWHM: 15°
    FWTM: 23°
    Peak intensity: 11.872 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
