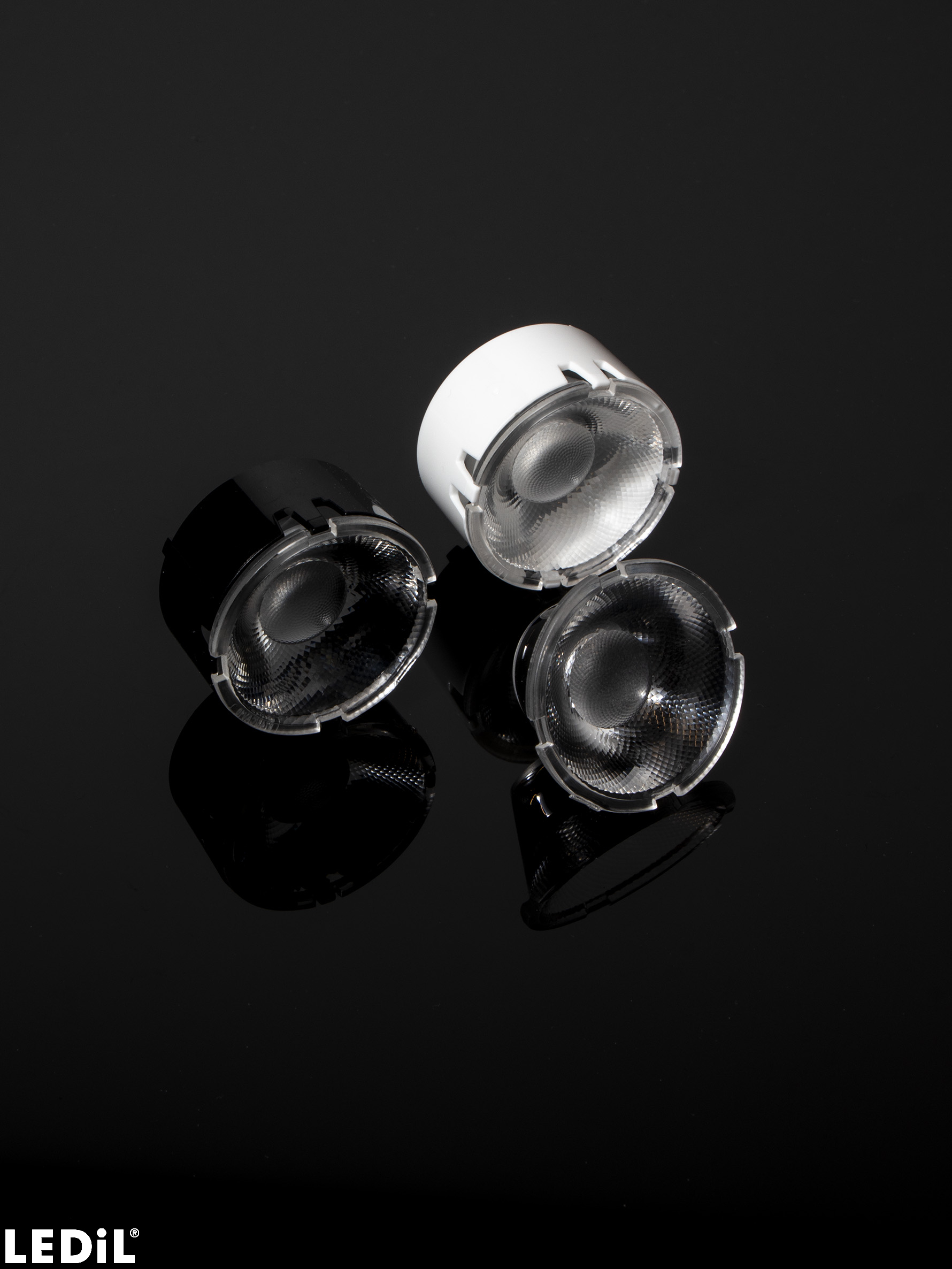

YASMEEN-35-NS
Print
~14° spot beam
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
Materials
- YASMEEN-35-NSPMMA
- YASMEEN-35-HLD-B-WHTPC
- YASMEEN-35-HLD-BPC
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

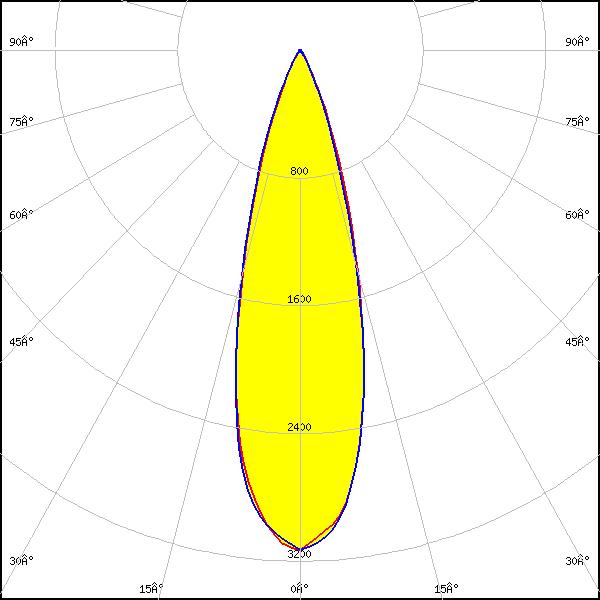

LED:
V10 Gen 8-9
Ordering code: CP19746_YASMEEN-35-S-B
LES size: 10.0 mm
Required components:
Bender Wirth: 634b Bayonet35L
FWHM:
28°
FWTM:
50°
Peak intensity:
3.141 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

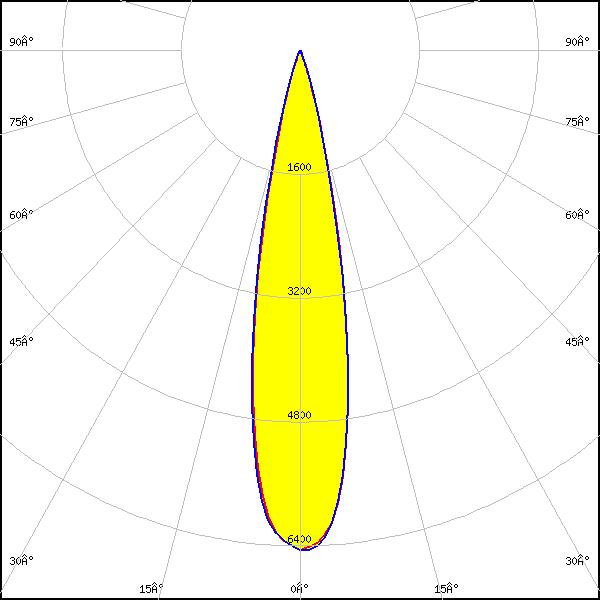

LED:
V6 HD Gen 8
Ordering code: CP19746_YASMEEN-35-S-B
LES size: 6.6 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
22°
FWTM:
34°
Peak intensity:
6.469 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

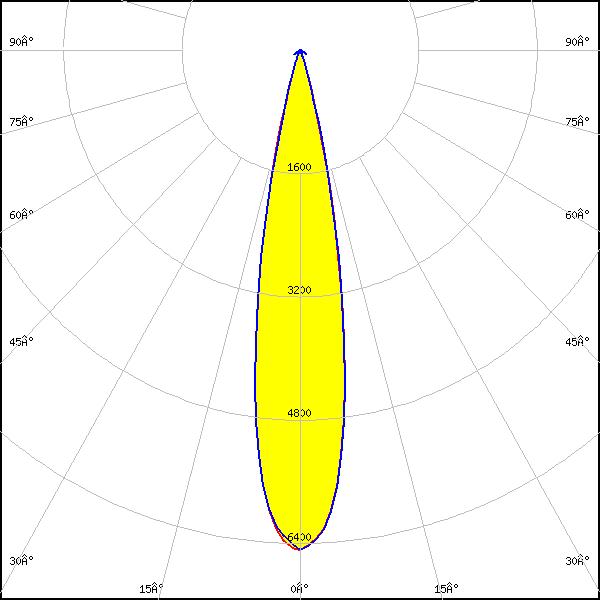

LED:
CLL02x/CLU02x (LES10)
Ordering code: CP19746_YASMEEN-35-NS-B
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
20°
FWTM:
32°
Peak intensity:
6.491 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

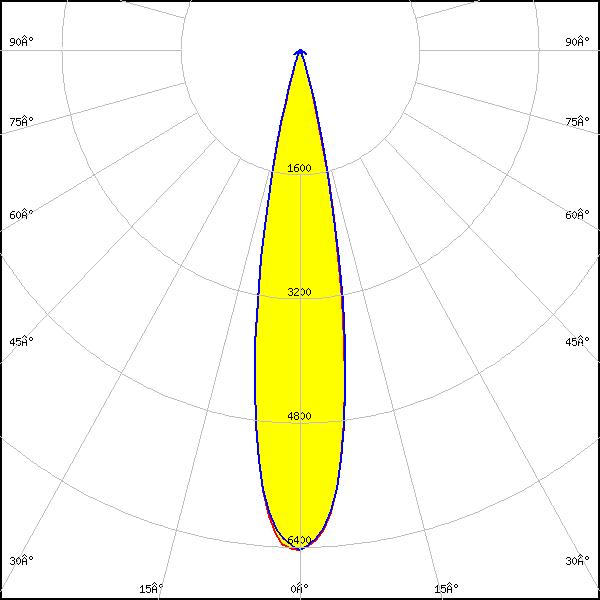

LED:
CLU700/701/702/703
Ordering code: CP19746_YASMEEN-35-NS-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
20°
FWTM:
32°
Peak intensity:
6.447 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

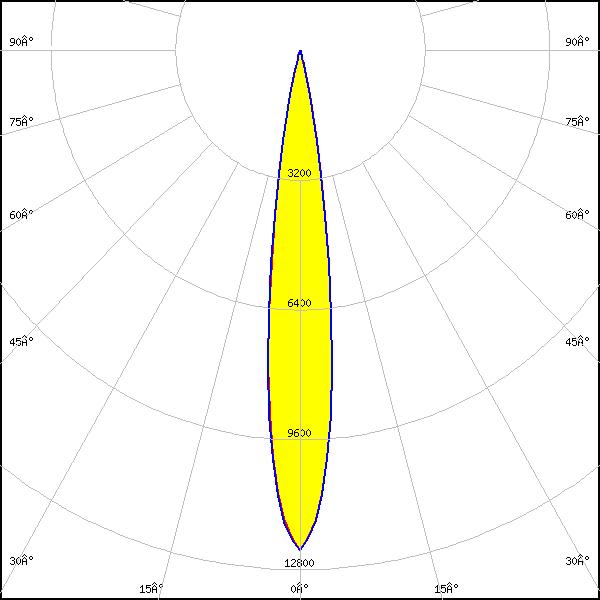

LED:

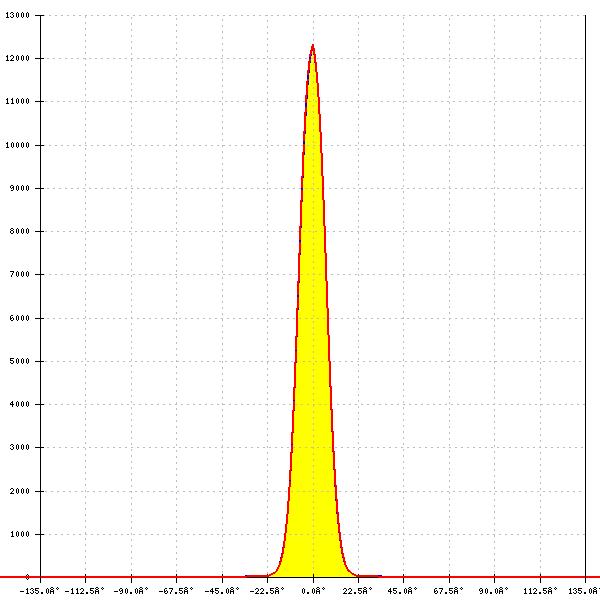

CLU7A2/7A3
Ordering code: CP19746_YASMEEN-35-S-B
LES size: 4.2 mm
Required components:
BJB: 47.360.1020
FWHM:
14°
FWTM:
26°
Peak intensity:
12.324 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

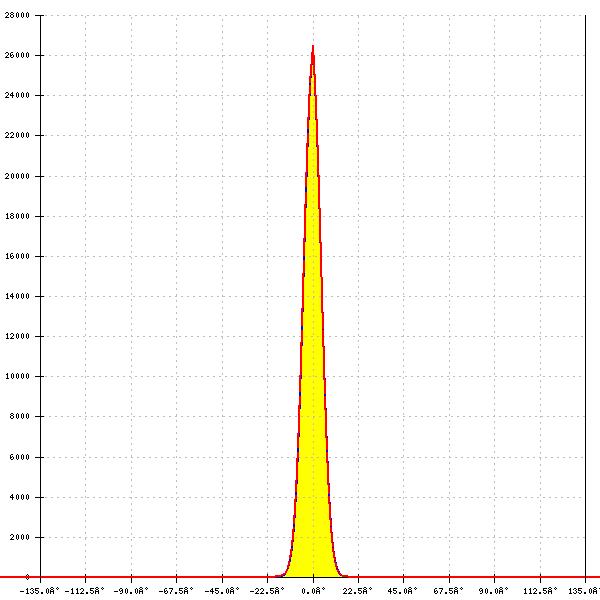

LED:

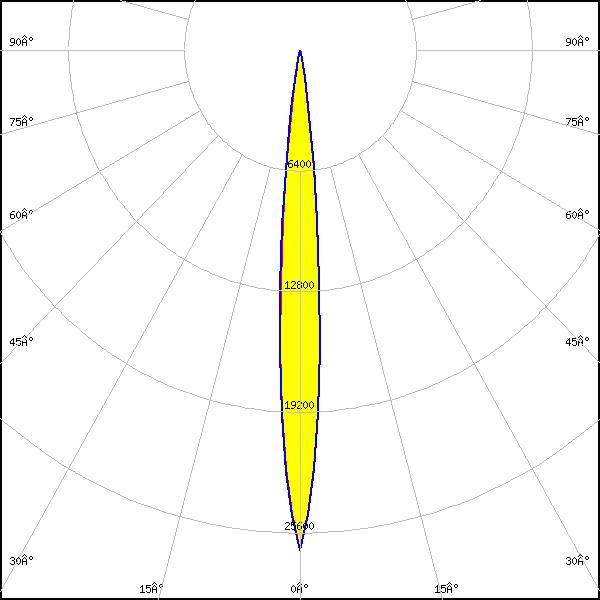

CLU7L3
Ordering code: CP19746_YASMEEN-35-S-B
LES size: 2.4 mm
Required components:
FWHM:
10°
FWTM:
18°
Peak intensity:
26.520 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

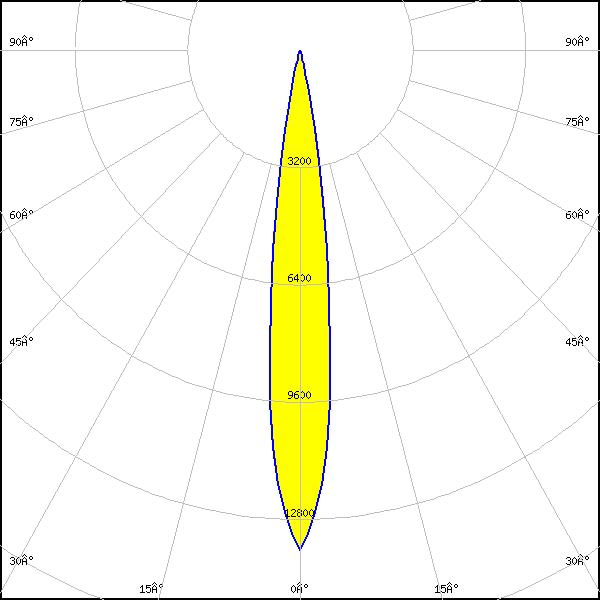

CLU7R3
Ordering code: CP19746_YASMEEN-35-S-B
LES size: 4.2 mm
Required components:
FWHM:
14°
FWTM:
24°
Peak intensity:
13.644 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

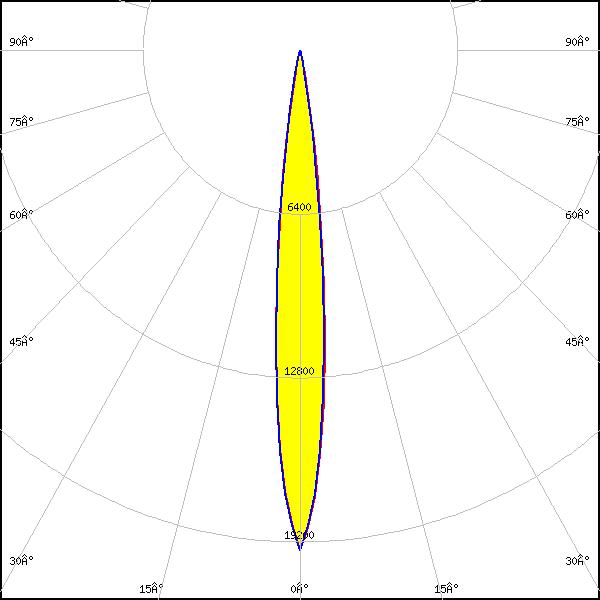

CHA0304
Ordering code: CP19746_YASMEEN-35-S-B
LES size: 3.3 mm
Required components:
BJB: 47.360.1020
FWHM:
12°
FWTM:
20°
Peak intensity:
19.533 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

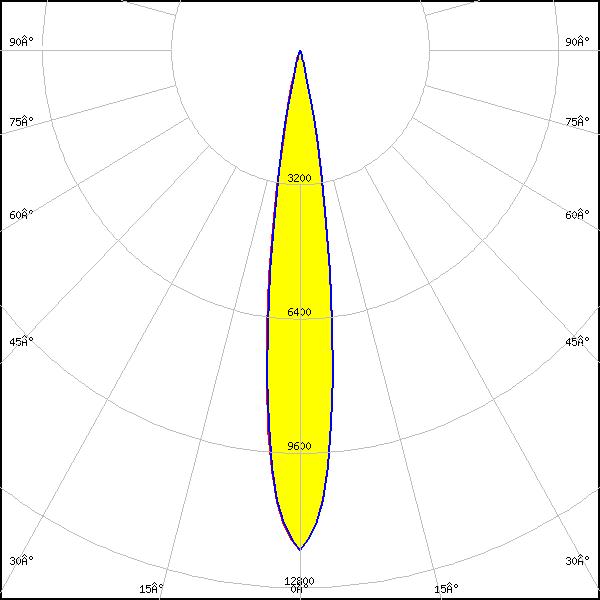

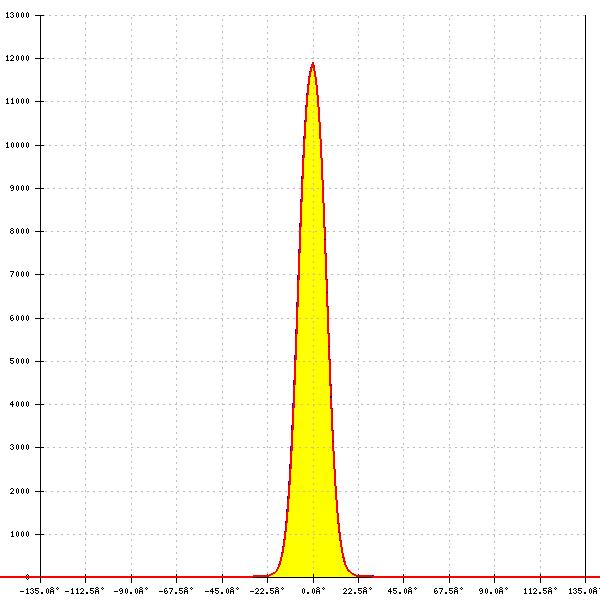

LED:
CHA0410
Ordering code: CP19746_YASMEEN-35-S-B
LES size: 4.2 mm
Required components:
BJB: 47.360.1020
FWHM:
15°
FWTM:
26°
Peak intensity:
11.913 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

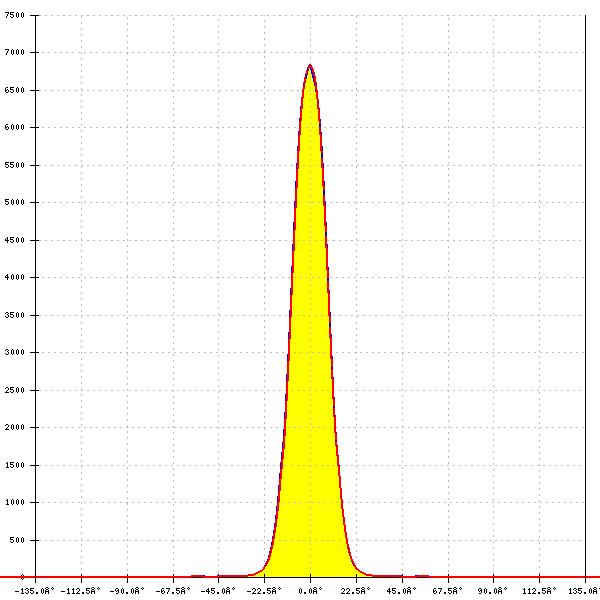

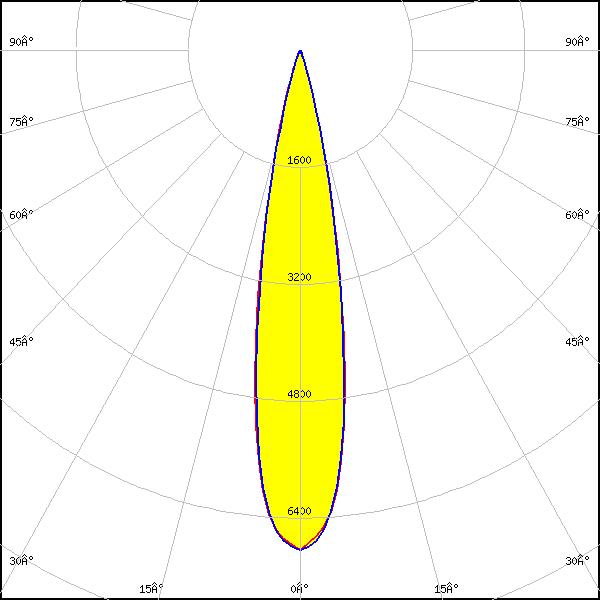

LED:
CHA0612
Ordering code: CP19746_YASMEEN-35-S-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
20°
FWTM:
34°
Peak intensity:
6.842 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

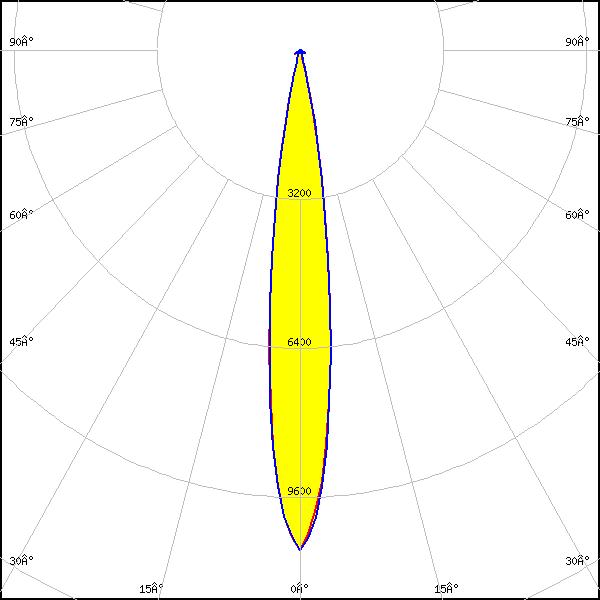

LUXEON 5050 HE
Ordering code: CP19746_YASMEEN-35-NS-B
LES size: 0.0 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
10.734 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

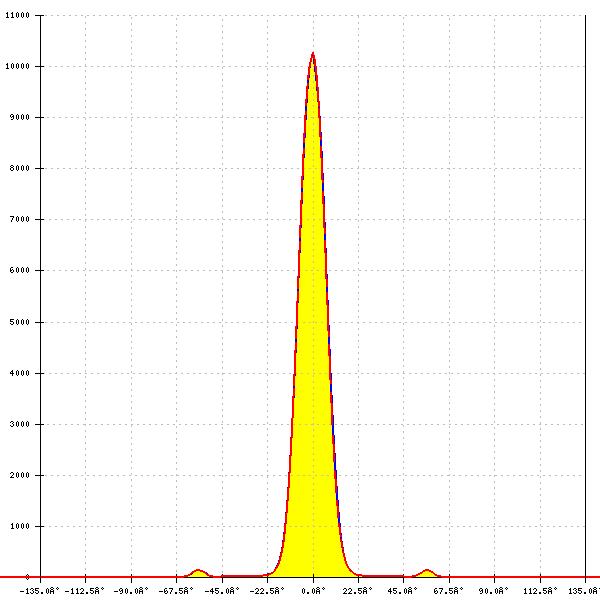

LED:

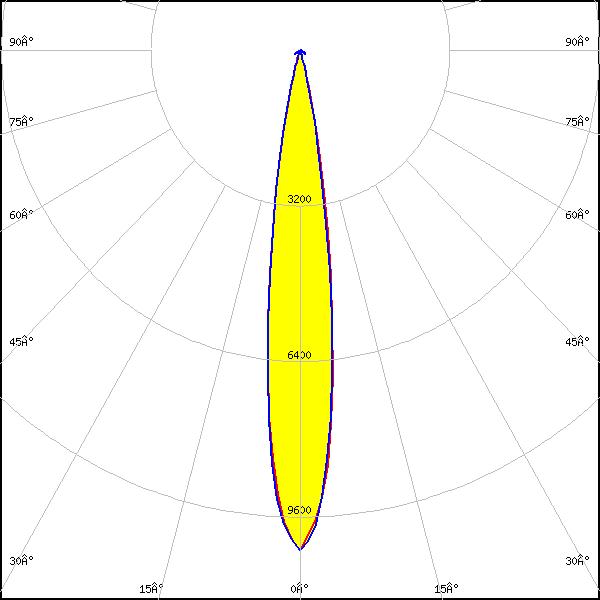

LUXEON 5050 Round LES
Ordering code: CP19746_YASMEEN-35-NS-B
LES size: 0.0 mm
Required components:
FWHM:
15°
FWTM:
26°
Peak intensity:
10.283 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

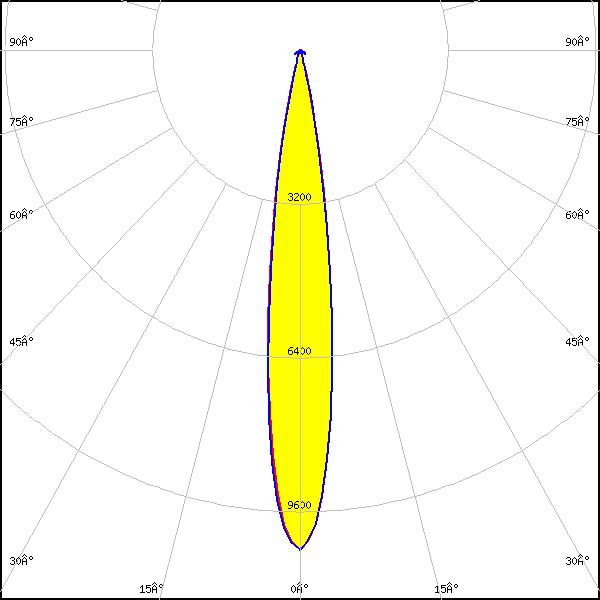

LED:
LUXEON 5050 Square LES
Ordering code: CP19746_YASMEEN-35-NS-B
LES size: 0.0 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
10.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

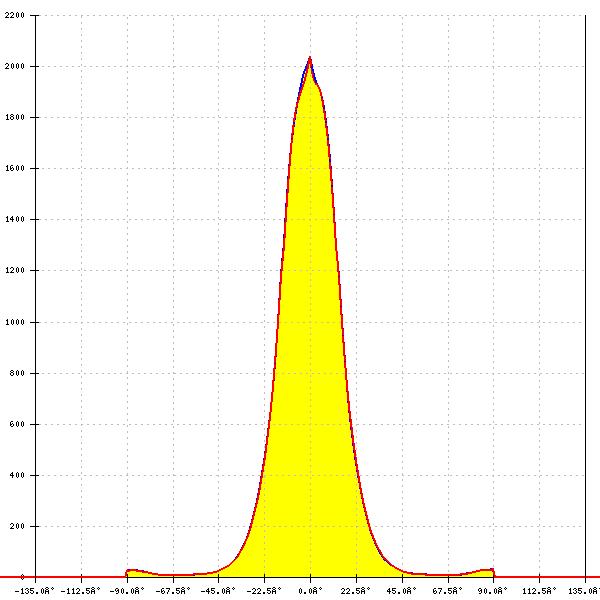

LED:

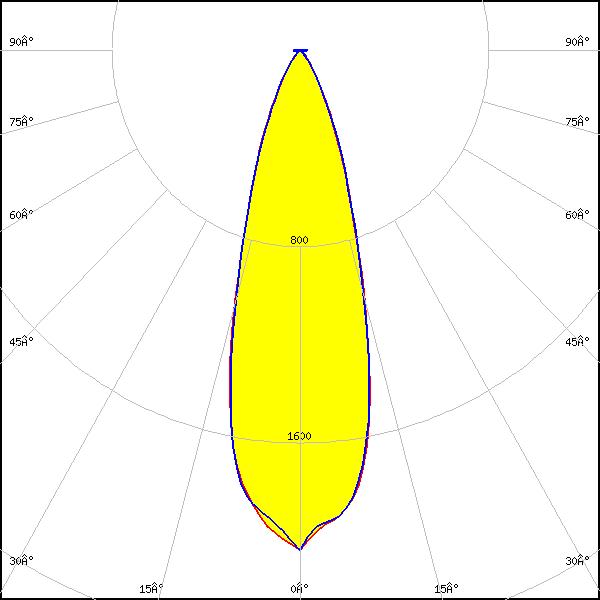

LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP19746_YASMEEN-35-NS-B
LES size: 12.0 mm
Required components:
BJB: 47.360.1040
FWHM:
30°
FWTM:
58°
Peak intensity:
2.038 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

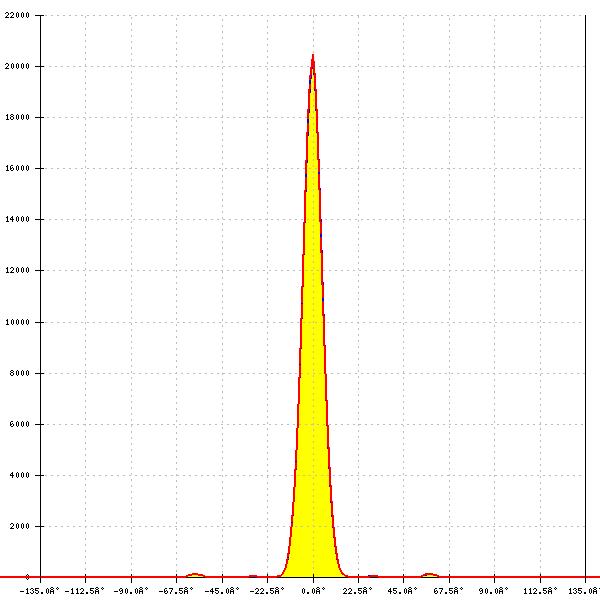

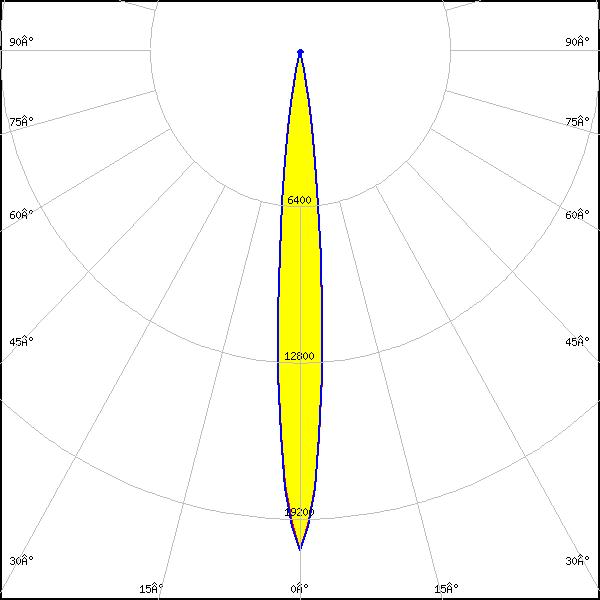

LED:
LUXEON HL2X
Ordering code: CP19746_YASMEEN-35-NS-B
LES size: 0.0 mm
Required components:
FWHM:
10°
FWTM:
20°
Peak intensity:
20.476 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

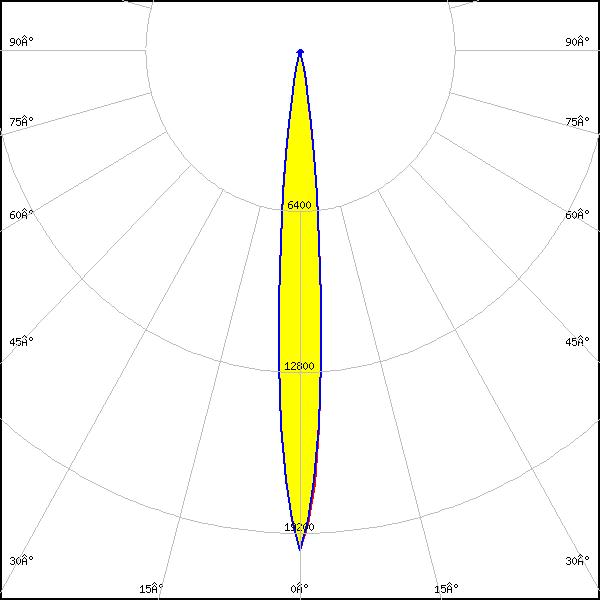

LED:

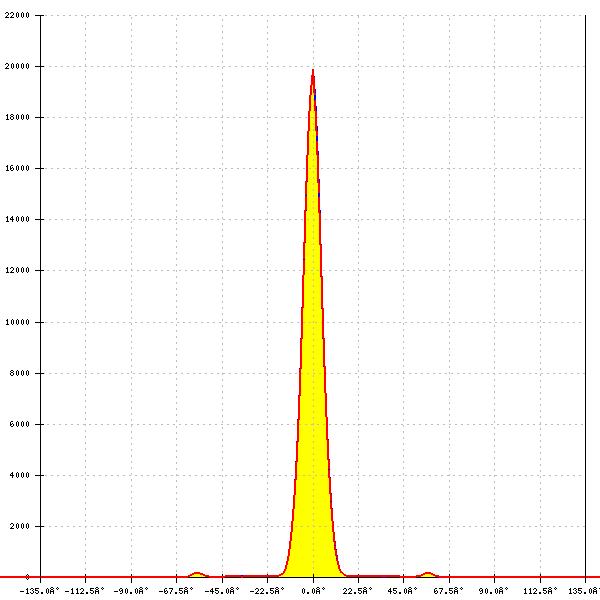

LUXEON HL2Z
Ordering code: CP19746_YASMEEN-35-NS-B
LES size: 0.0 mm
Required components:
FWHM:
10°
FWTM:
20°
Peak intensity:
19.873 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

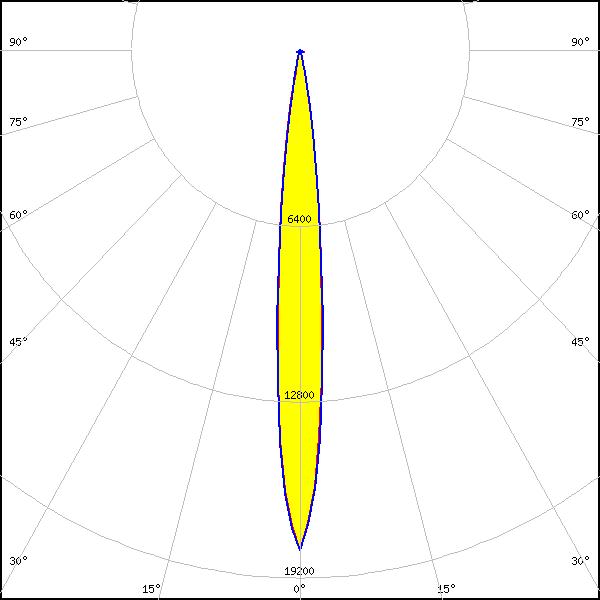

LED:

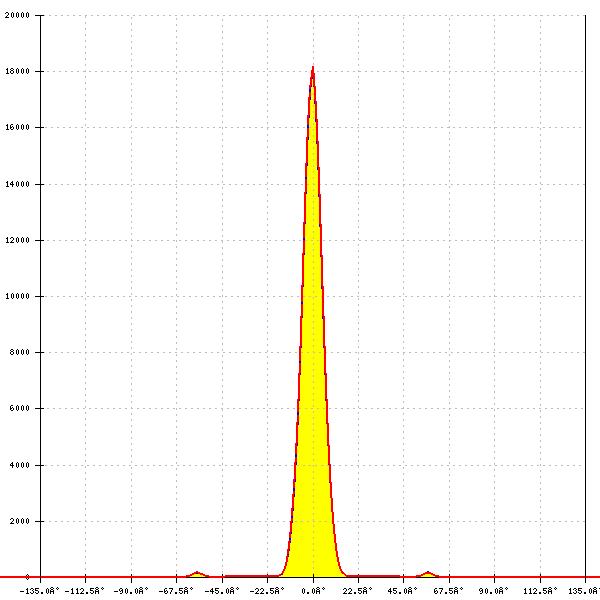

LUXEON HL4Z
Ordering code: CP19746_YASMEEN-35-NS-B
LES size: 0.0 mm
Required components:
FWHM:
10°
FWTM:
21°
Peak intensity:
18.199 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

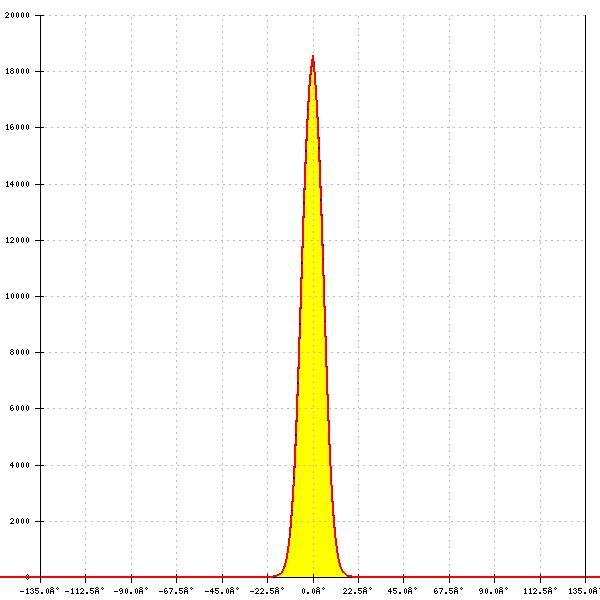

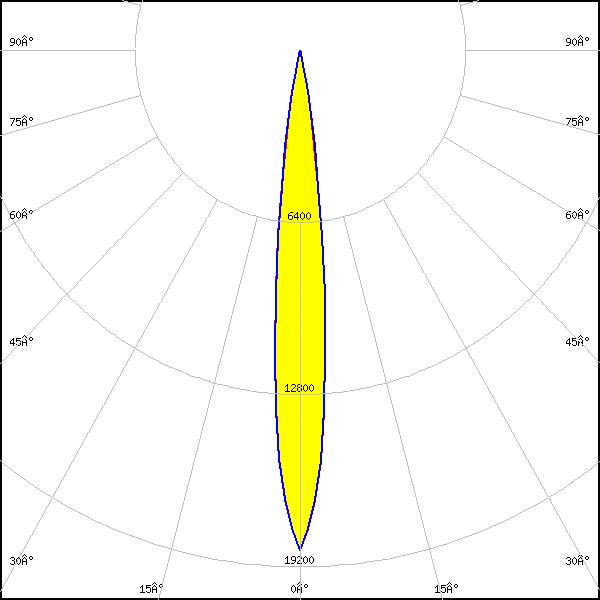

LED:
CXM-3
Ordering code: CP19746_YASMEEN-35-S-B
LES size: 3.5 mm
Required components:
BJB: 47.360.1020
FWHM:
12°
FWTM:
22°
Peak intensity:
18.588 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

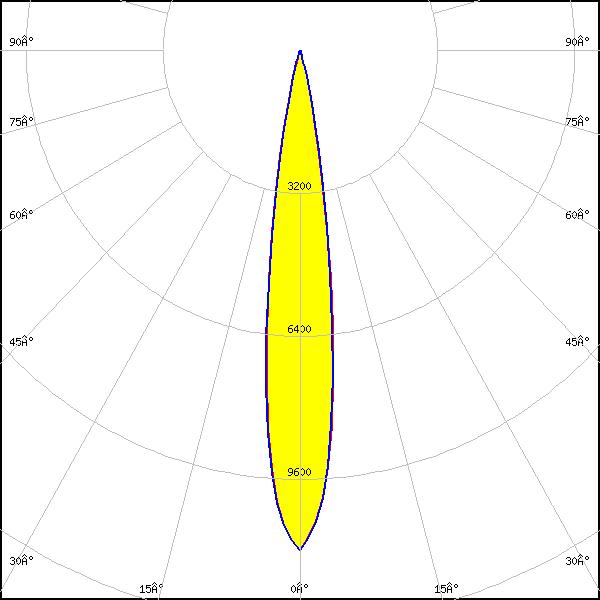

CXM-4
Ordering code: CP19746_YASMEEN-35-S-B
LES size: 4.5 mm
Required components:
BJB: 47.360.1020
FWHM:
16°
FWTM:
26°
Peak intensity:
11.192 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

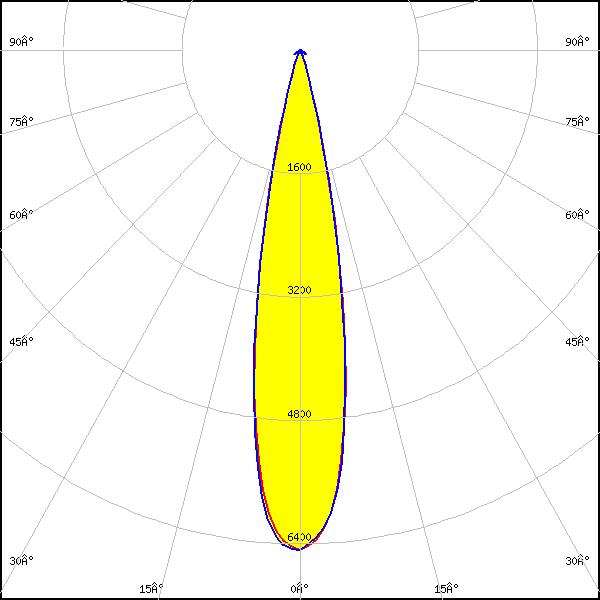

LED:
CxM-6 (13.5x13.5)
Ordering code: CP19747_YASMEEN-35-NS-B-WHT
LES size: 6.3 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
20°
FWTM:
32°
Peak intensity:
6.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

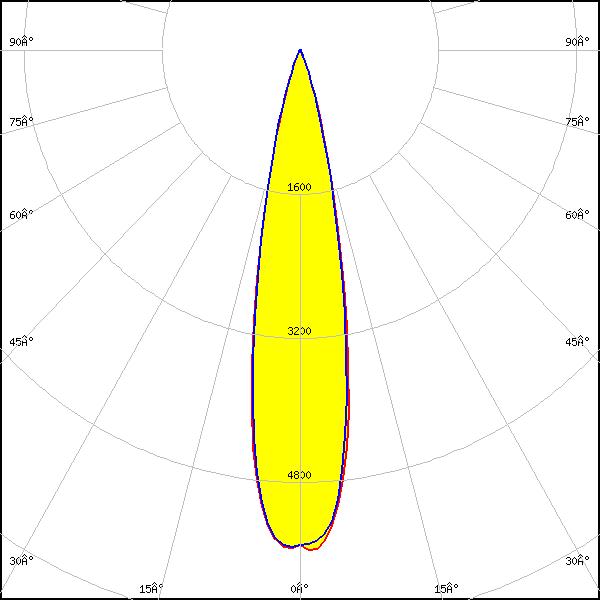

LED:
CxM-6 (13.5x13.5)
Ordering code: CP19746_YASMEEN-35-S-B
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM:
22°
FWTM:
38°
Peak intensity:
5.568 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

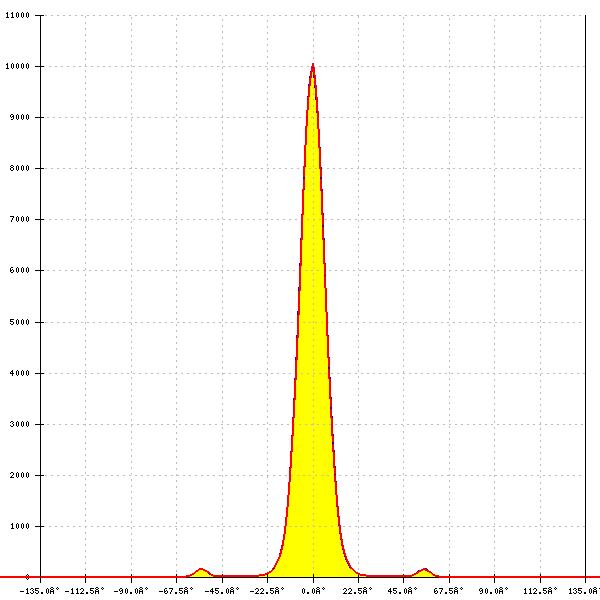

LED:

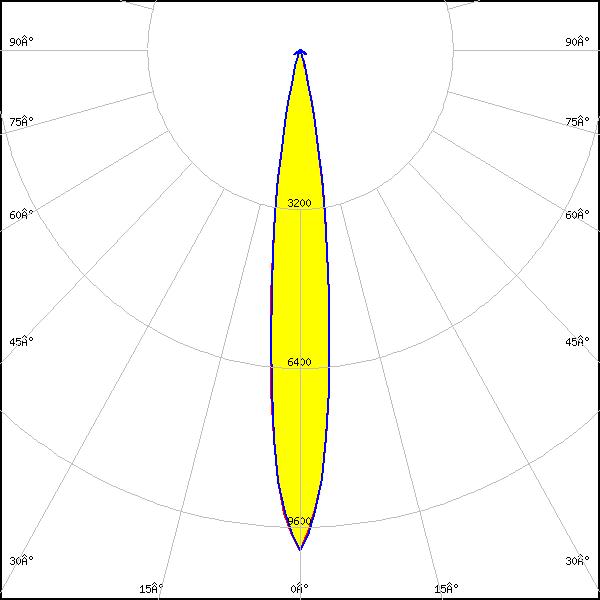

NCSxE17A
Ordering code: CP19746_YASMEEN-35-NS-B
LES size: 0.0 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
10.062 cd/lm
Efficiency:
86 %
LEDs/each optic:
4
Light colour/type:
White

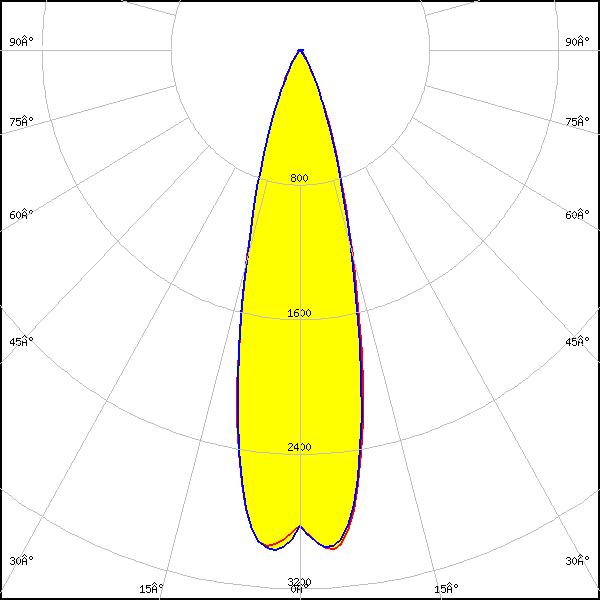

LED:

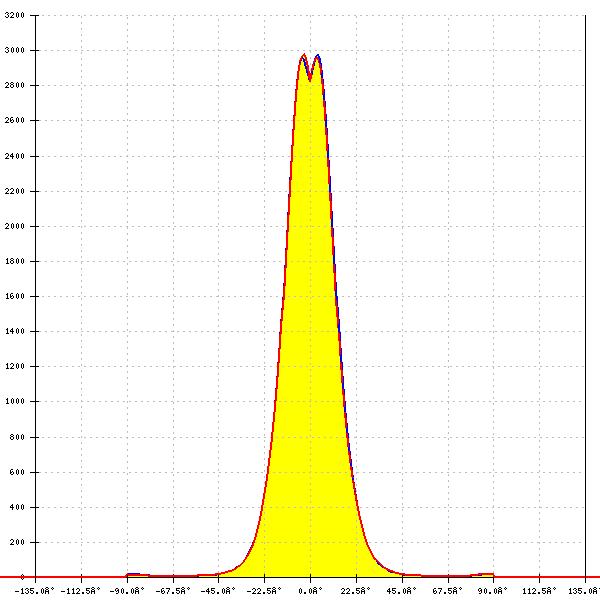

LC003D / LC006D / LC009D / LC013D
Ordering code: CP19746_YASMEEN-35-S-B
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
28°
FWTM:
50°
Peak intensity:
3.008 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

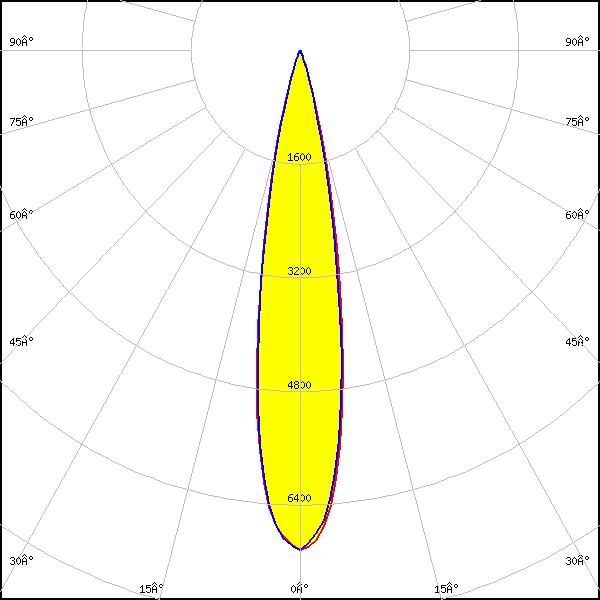

LC010C G2
Ordering code: CP19746_YASMEEN-35-S-B
LES size: 6.0 mm
Required components:
FWHM:
19°
FWTM:
34°
Peak intensity:
7.036 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

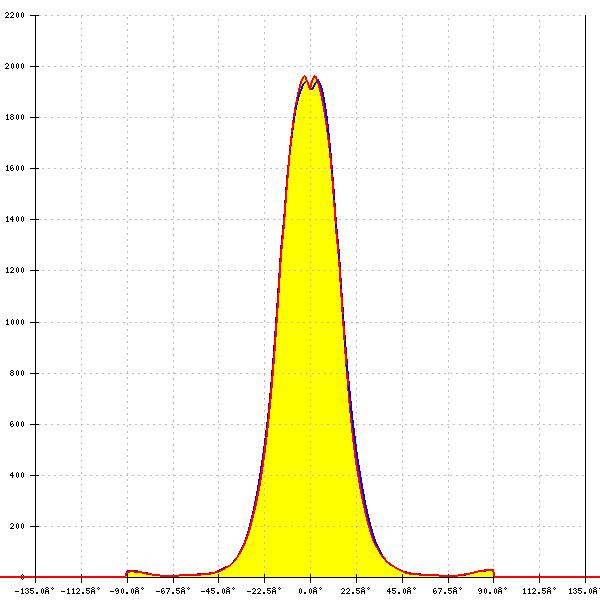

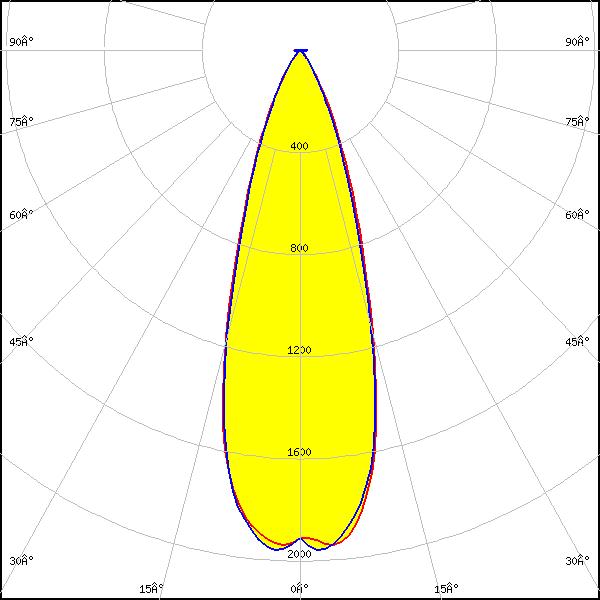

LC030C/040C G2
Ordering code: CP19746_YASMEEN-35-S-B
LES size: 11.5 mm
Required components:
BJB: 47.360.1010
FWHM:
33°
FWTM:
59°
Peak intensity:
1.977 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
