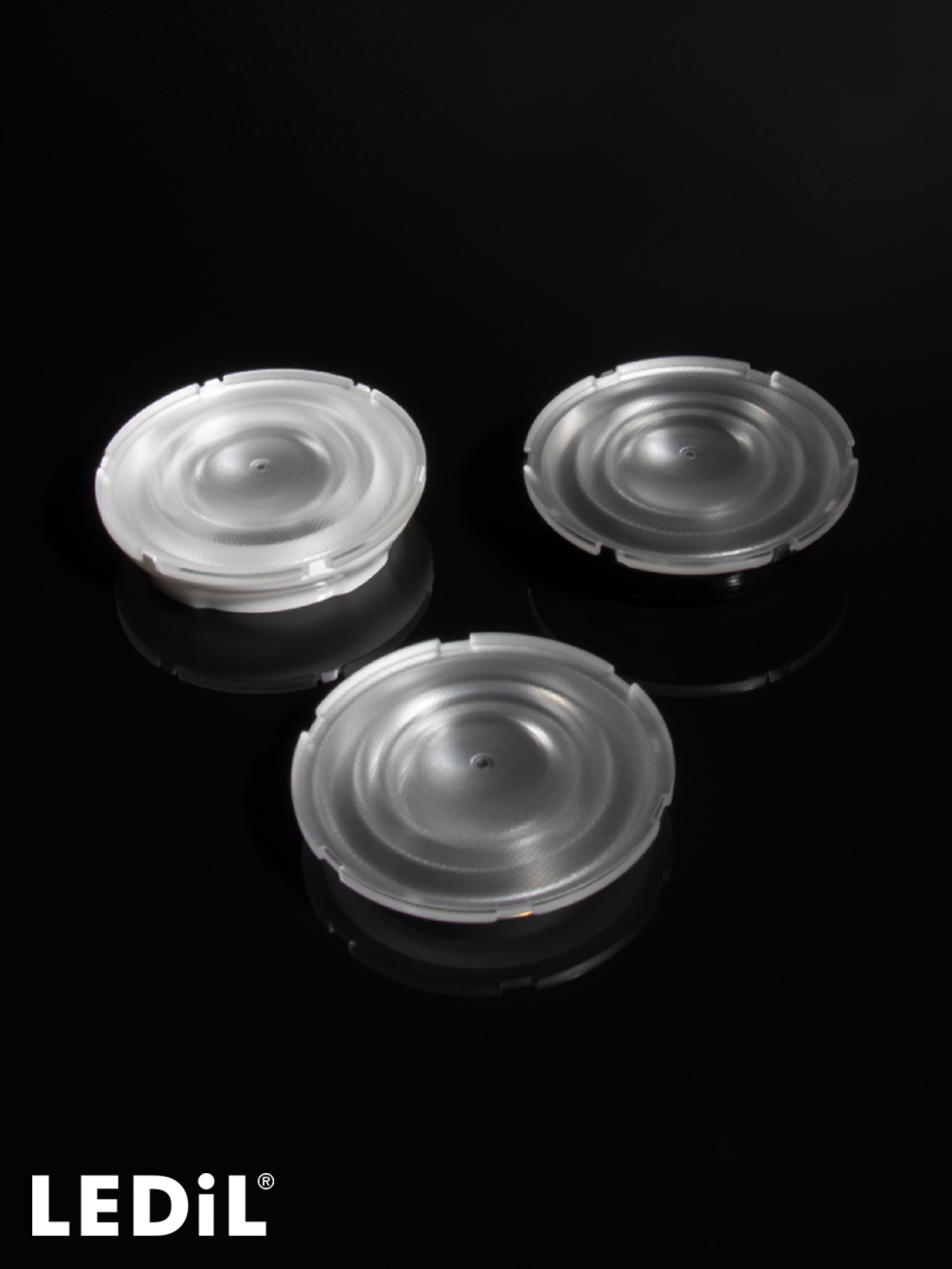

    AMY-70-WWW

    Print

    ~80° wide beam

    B2 variants fit ∅35 mm B+W and BJB connectors as well as SOCKET-B-35. B50 variants fit ∅50 mm B+W and BJB connectors.

    This product consists of multiple buying options. See ordering information.

    Specification
    • Dimensions:
      70 mm
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    • AMY-70-WWW
      Single lens
      PMMA
    • AMY-70-HLD2-C-WHT
      Holder
      PC
    • AMY-70-HLD2-C
      Holder
      PC
    • AMY-70-HLD2-B50-WHT
      Holder
      PC
    • AMY-70-HLD2-B50
      Holder
      PC
    • AMY-70-HLD2-B-WHT
      Holder
      PC
    • AMY-70-HLD2-B
      Holder
      PC
    • Request material files from Tech Support

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C19723_AMY-70-WWW
      clear
    • Quantity in box:
      285 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.30 kg
    • MPQ:
      15 pcs
    • MOQ:
      285 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      10.30 kg
    • Assembly

      (single lens, holder)

    • CP19727_AMY-70-WWW-B2
      black,Holder B
    • CP19728_AMY-70-WWW-B2-WHT
      white,Holder B
    • CP19729_AMY-70-WWW-B50
      black,Holder B
    • CP19730_AMY-70-WWW-B50-WHT
      white,Holder B
    • CP19725_AMY-70-WWW-C2
      black,Holder C
    • CP19726_AMY-70-WWW-C2-WHT
      white,Holder C
    • Quantity in box:
      210 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.50 kg
    • MPQ:
      15 pcs
    • MOQ:
      210 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      9.50 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C19723_AMY-70-WWW
      CP19725_AMY-70-WWW-C2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New beams and products – January 2025

    Catalogue

    LEDiL-Latest-products-catalogue_Q1_2025_v1.1_web

    Compatibility guide

    LEDiL connector and socket compatibility

    News

    New beams and products – December 2024

    News

    Illuminate with elegance – discover the versatility of AMY

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    Case story

    Alteme Lior luminaire

    PCN

    Product change notification NR194 - Change of AMY-35-50 and -70 holder design

    Compatible product

    B+W 630 Bayonet35 datasheet

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    Application guide

    Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    Catalogue

    LEDiL Latest products catalogue

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA sockets and HEKLA-G2 and -G2B connectors

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    HEKLA-G2B-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2B-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-I2

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-I3

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-TW1

    Version compatible with tunable white COBs of 15.8 x 15.8 mm packages

    HEKLA-G2B-TW2

    Version compatible with tunable white COBs of 18.8 x 18.8 mm packages

    HEKLA-SOCKET-RZ

    Version with integrated RZ mixing dome for RGBW LEDs

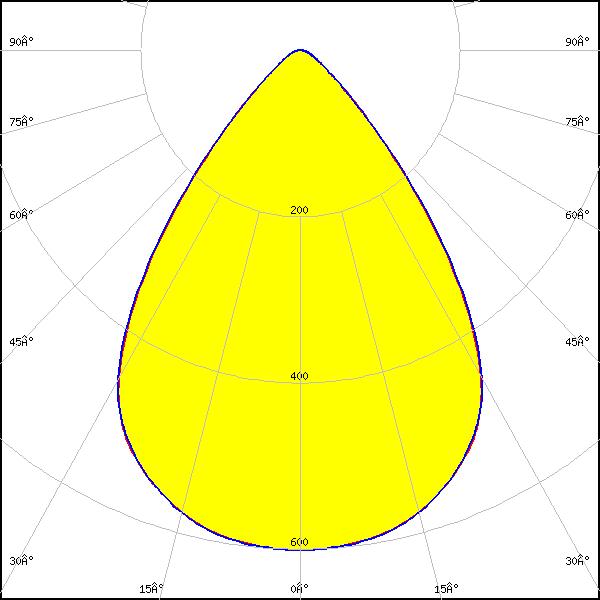

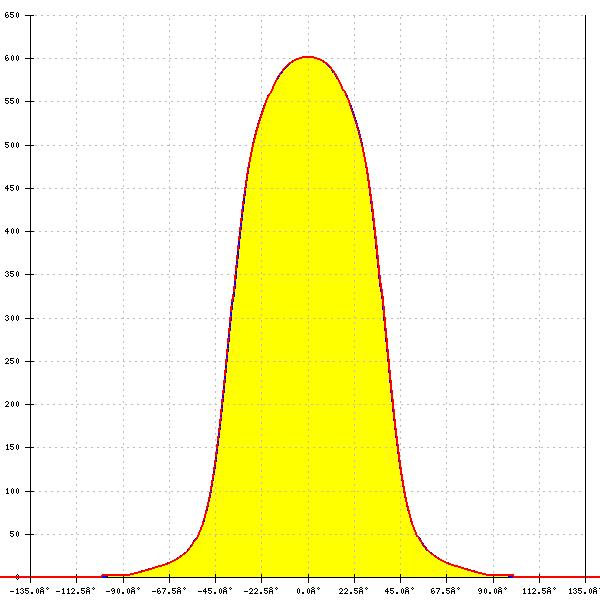

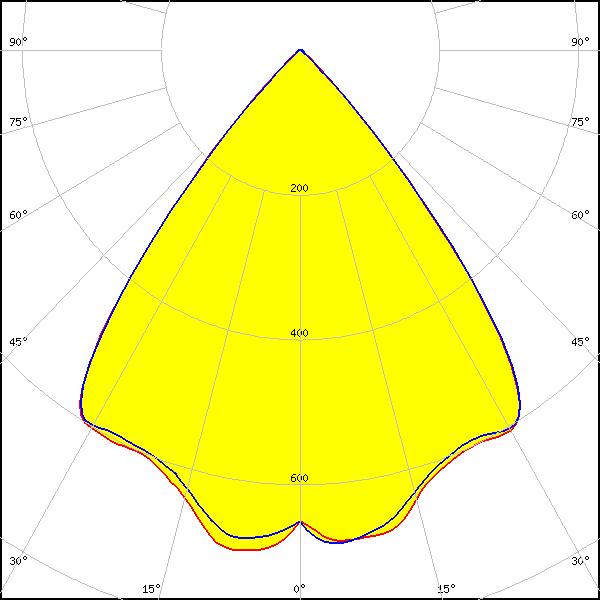

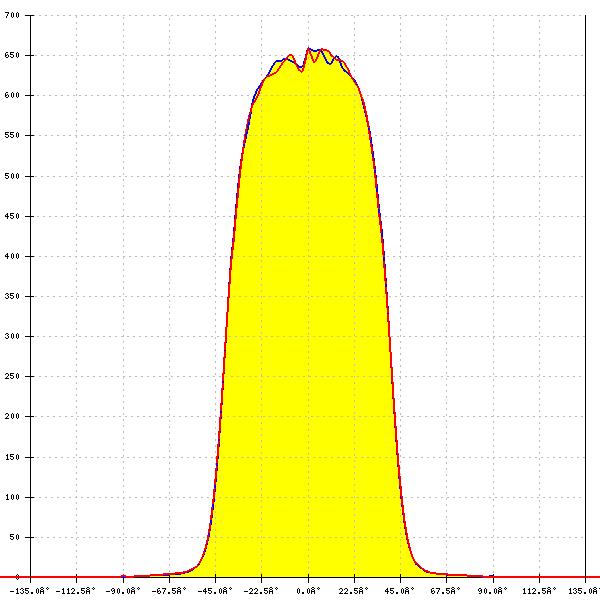

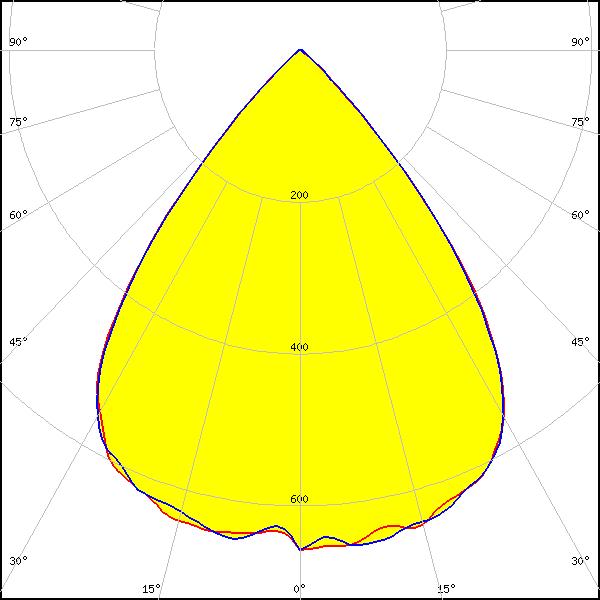

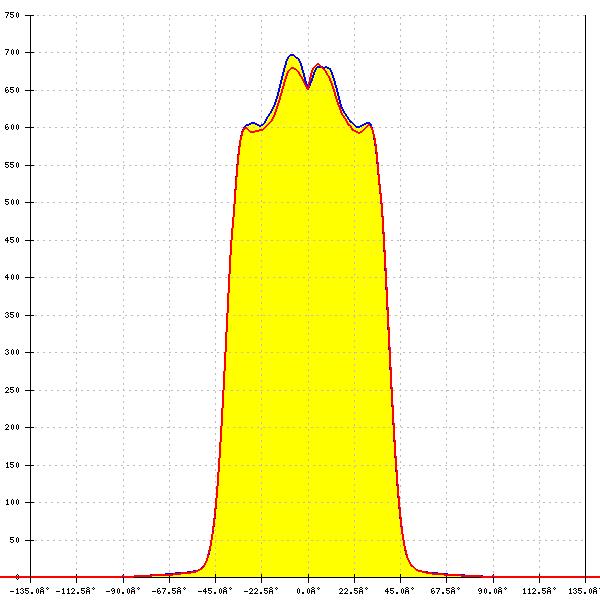

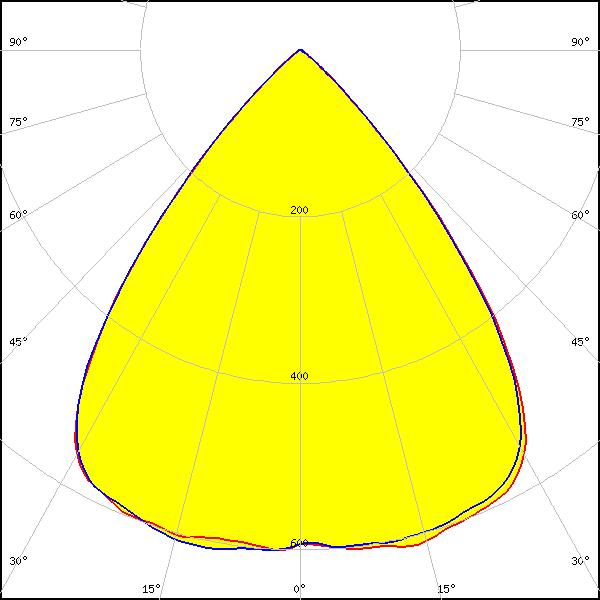

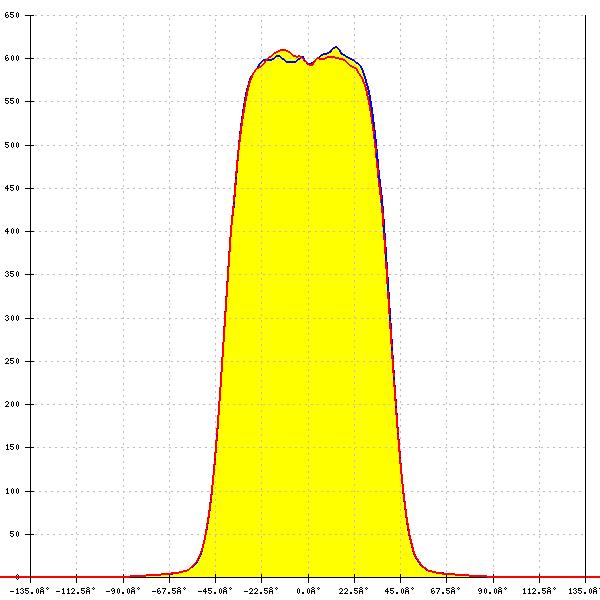

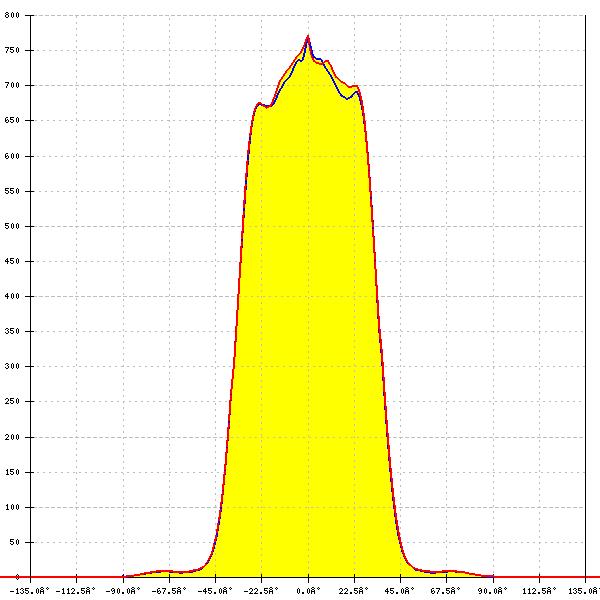

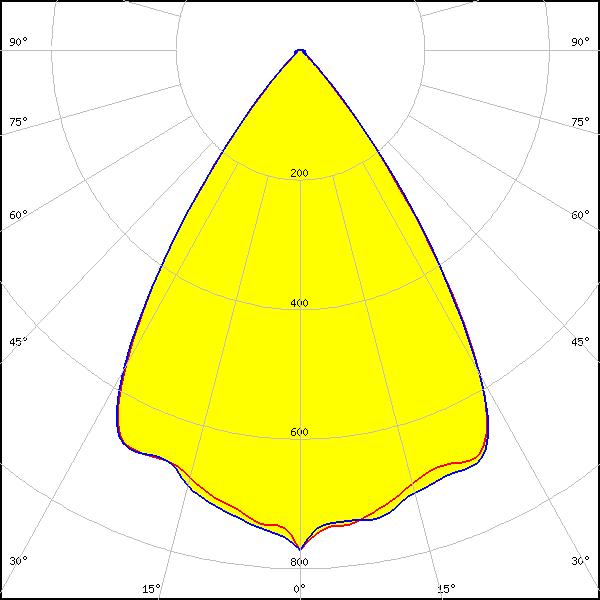

    Optical results
