    AMY-45-ZOOM

    Print

    Infinitely adjustable beam from 20 to 50 degrees.

    This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

    The sublens is a mandatory component that must be ordered separately. In addition to the sublens, you must choose either a single lens or an assembly.

    Specification
    • Dimensions:
      45 mm
    • Height:
      11.90 mm
    • Fastening:
      screw
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

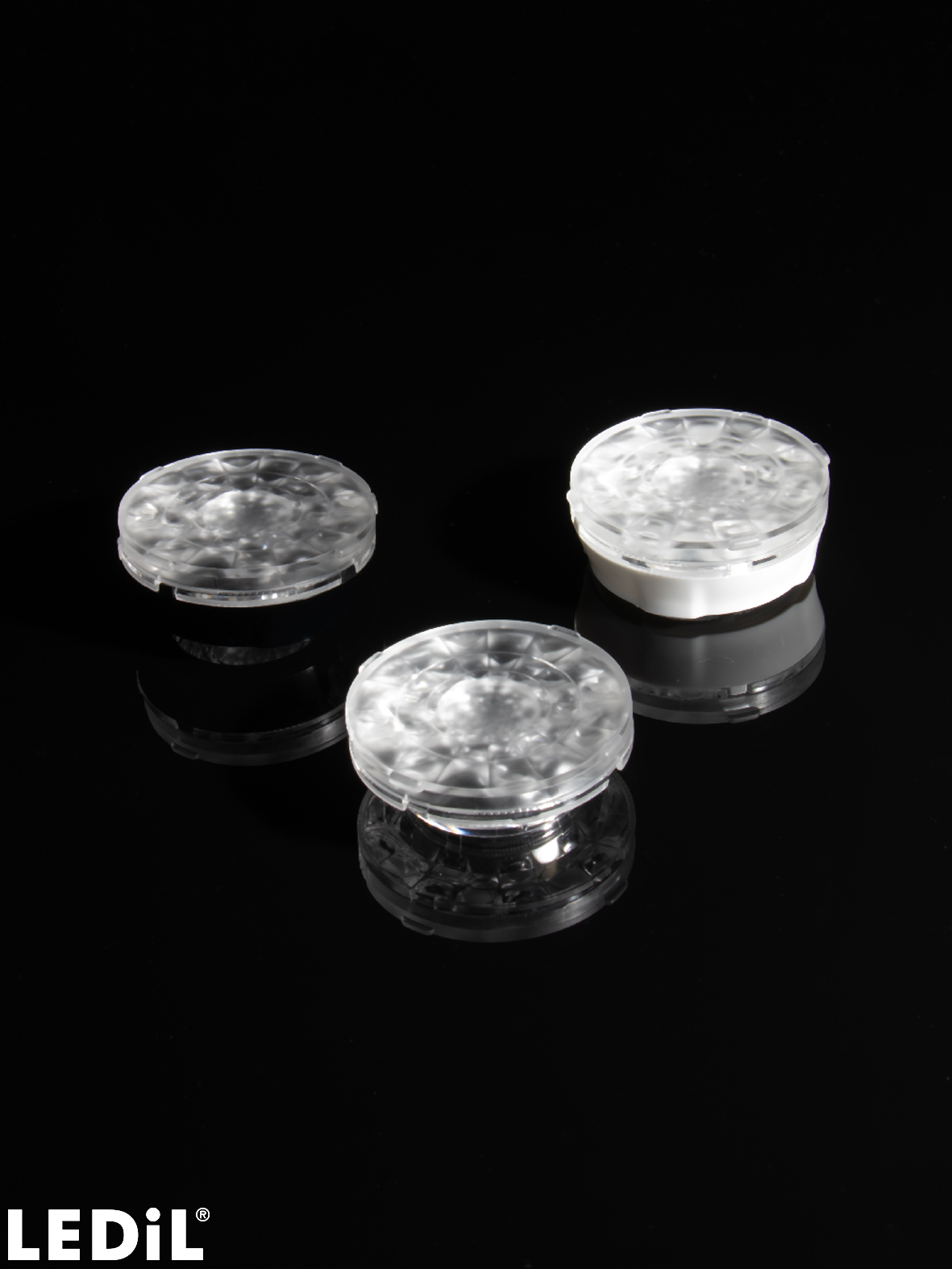

    • AMY-45-ZOOM
      PMMA
    • AMY-45-HLD2-B-WHT
      PC
    • AMY-45-HLD2-B
      PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Sublens
    • C18533_AMY-45-ZOOM-SUB
      clear
    • Quantity in box:
      1035 pcs
    • Box size:
      476 x 273 x 226 mm
    • Box weight:
      7.20 kg
    • MPQ:
      45 pcs
    • MOQ:
      180 pcs
    • MOQ Size:
      480 x 280 x 50 mm
    • MOQ Weight:
      1.30 kg
    • Single lens
    • C18532_AMY-45-ZOOM
      clear
    • Quantity in box:
      1035 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      12.10 kg
    • MPQ:
      45 pcs
    • MOQ:
      180 pcs
    • MOQ Size:
      480 x 280 x 70 mm
    • MOQ Weight:
      2.30 kg
    • Assembly
    • CP19627_AMY-45-ZOOM-B
      black,Holder B
    • CP19632_AMY-45-ZOOM-B-WHT
      white,Holder B
    • Quantity in box:
      765 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      11.50 kg
    • MPQ:
      45 pcs
    • MOQ:
      180 pcs
    • MOQ Size:
      480 x 280 x 90 mm
    • MOQ Weight:
      2.80 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18532_AMY-45-ZOOM
      C18533_AMY-45-ZOOM-SUB
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    Zoom goes slim with AMY zoom

    News

    Illuminate with elegance – discover the versatility of AMY

    Compatibility guide

    LEDiL connector and socket compatibility

    News

    New products – February 2024

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    Application guide

    Guide for Architectural lighting optics

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    LEDiL guide for retail lighting optics

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

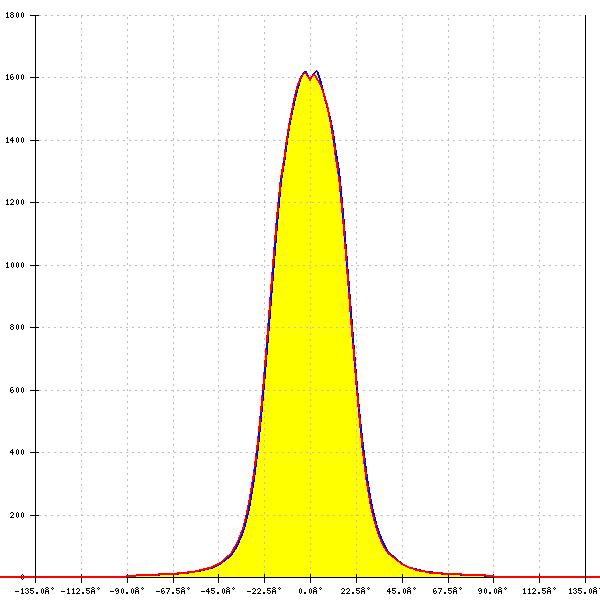

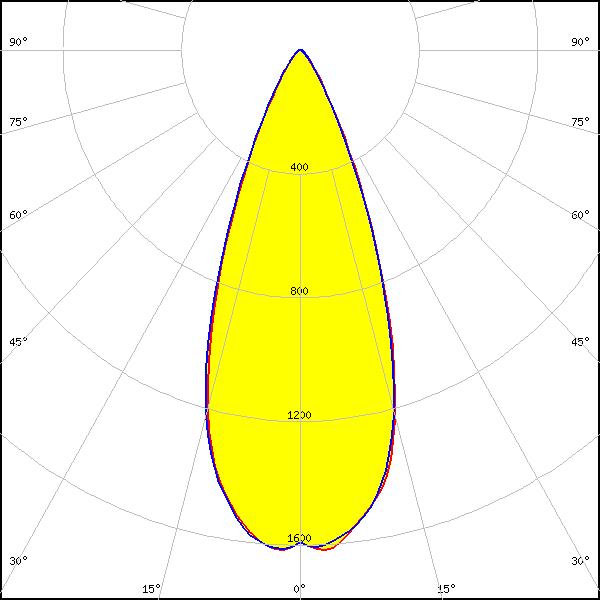

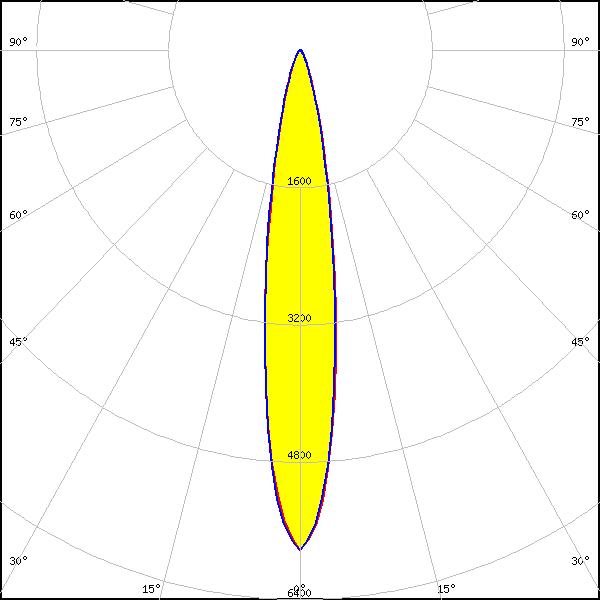

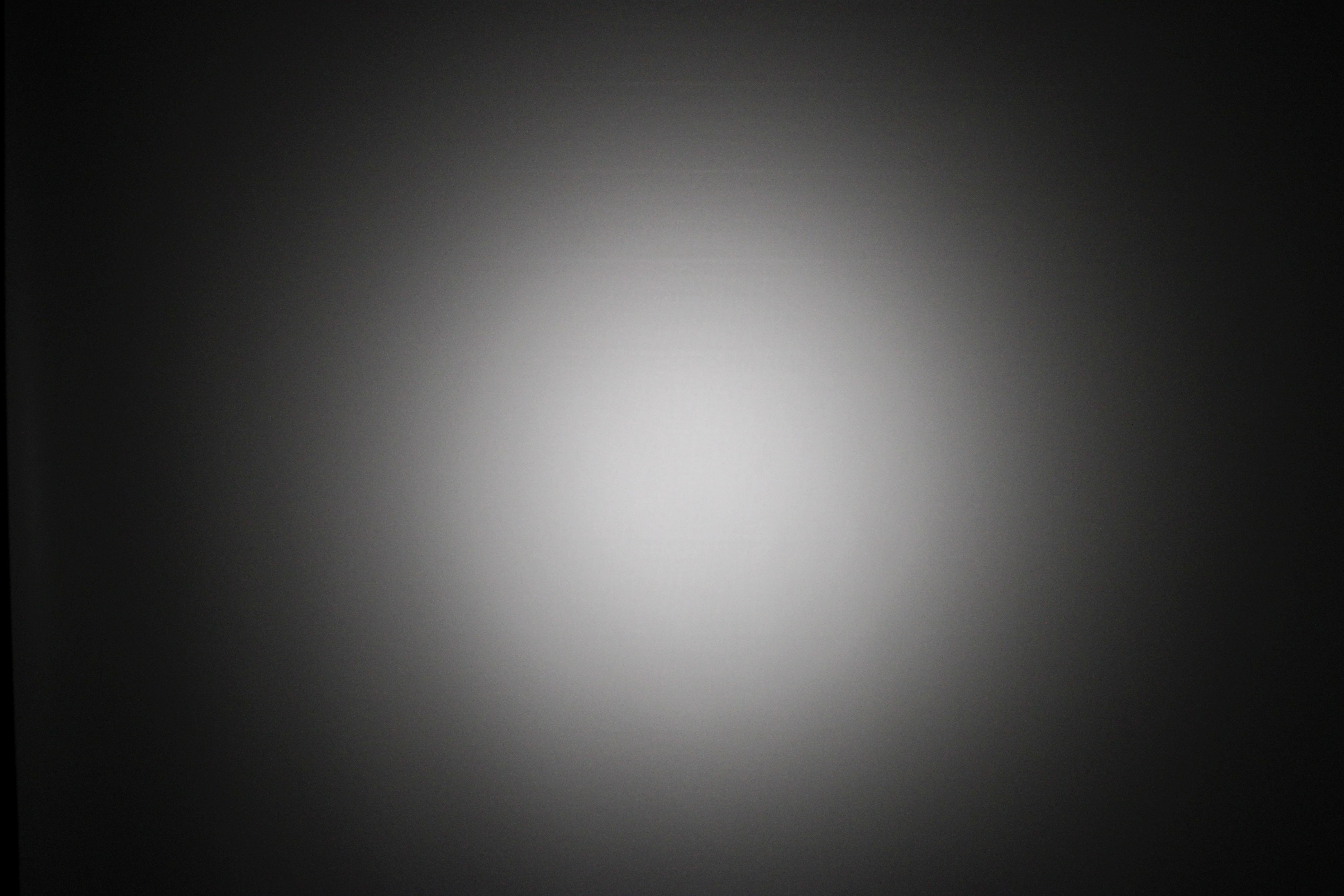

    Optical results

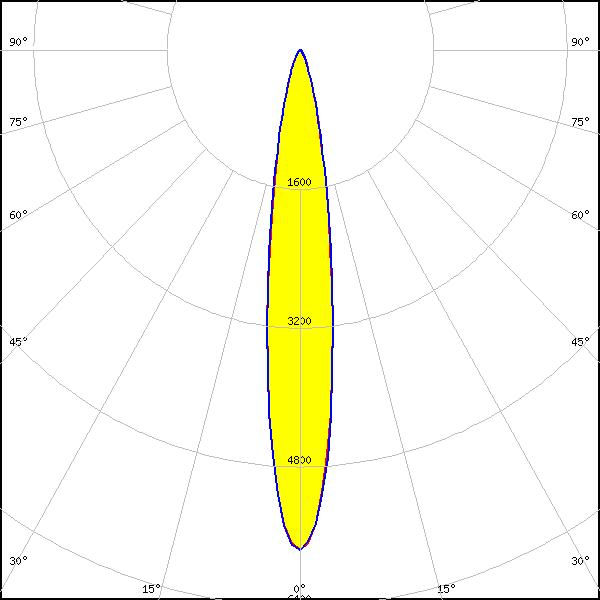

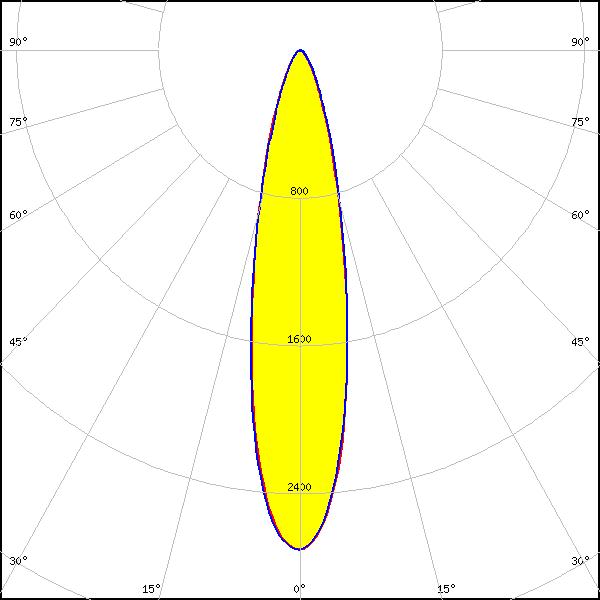

    LED: CLL02x/CLU02x (LES10)
    Ordering code: C18532_AMY-45-ZOOM
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    C18533_AMY-45-ZOOM-SUB
    FWHM: 23° - 52°
    FWTM: 50° - 88°
    Peak intensity: 2.707 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    Ordering code: C18532_AMY-45-ZOOM
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    C18533_AMY-45-ZOOM-SUB
    FWHM: 16° - 51°
    FWTM: 36° - 82°
    Peak intensity: 5.760 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

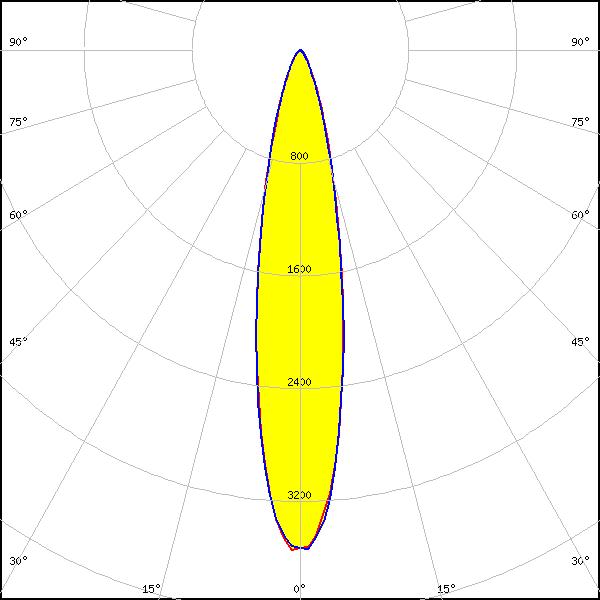

    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: C18532_AMY-45-ZOOM
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    C18533_AMY-45-ZOOM-SUB
    FWHM: 21° - 51°
    FWTM: 45° - 86°
    Peak intensity: 3.550 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

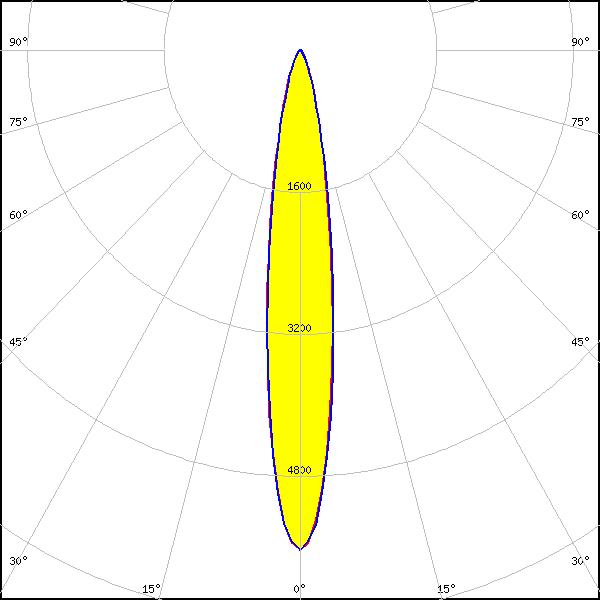

    LED: LC010C
