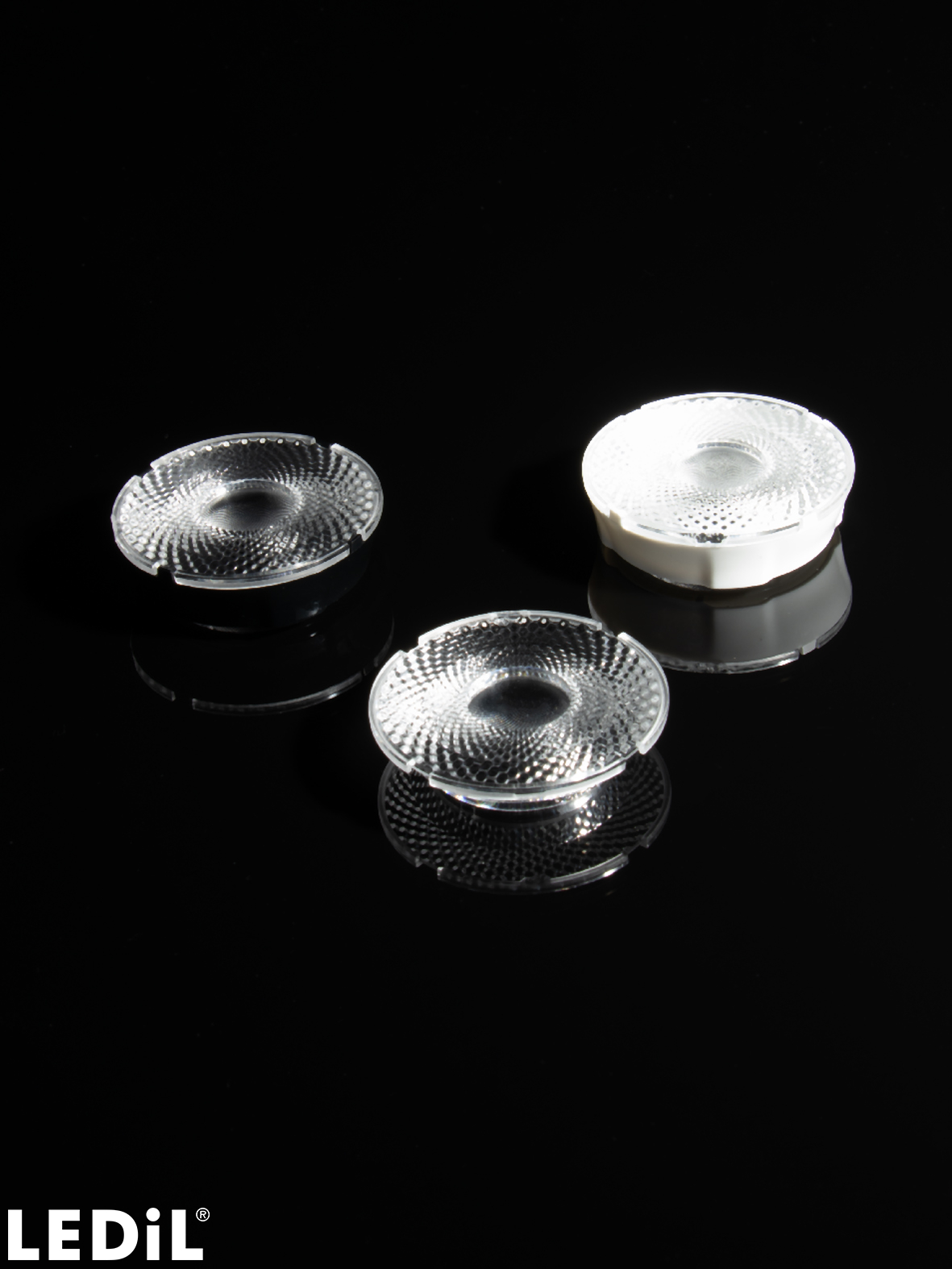

AMY-45-W
Print
~36° wide beam
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
Materials
- AMY-45-WPMMA
- AMY-45-HLD2-B-WHTPC
- AMY-45-HLD2-BPC
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

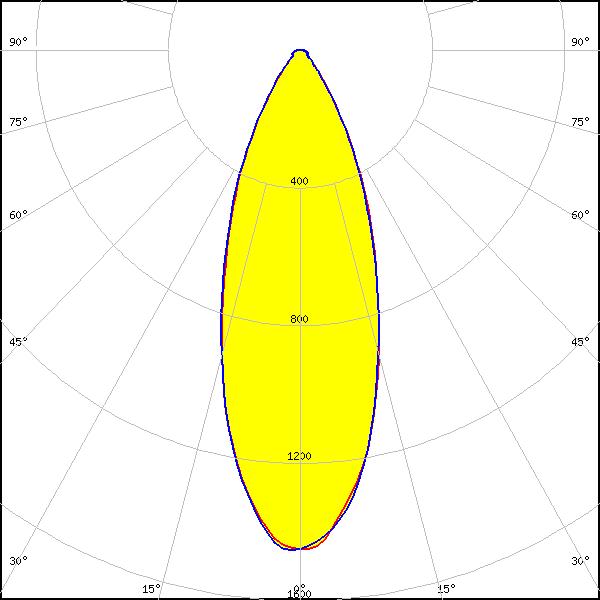

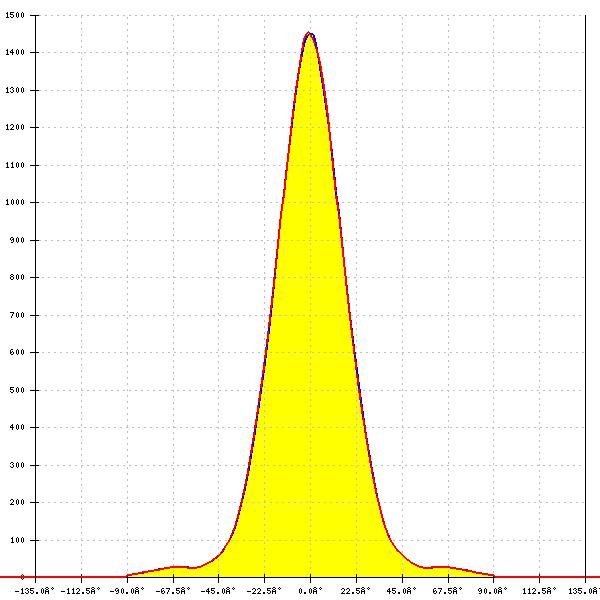

Optical results

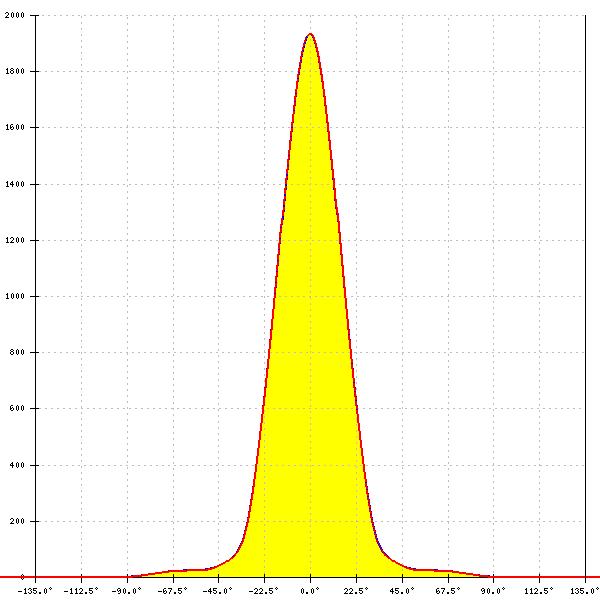

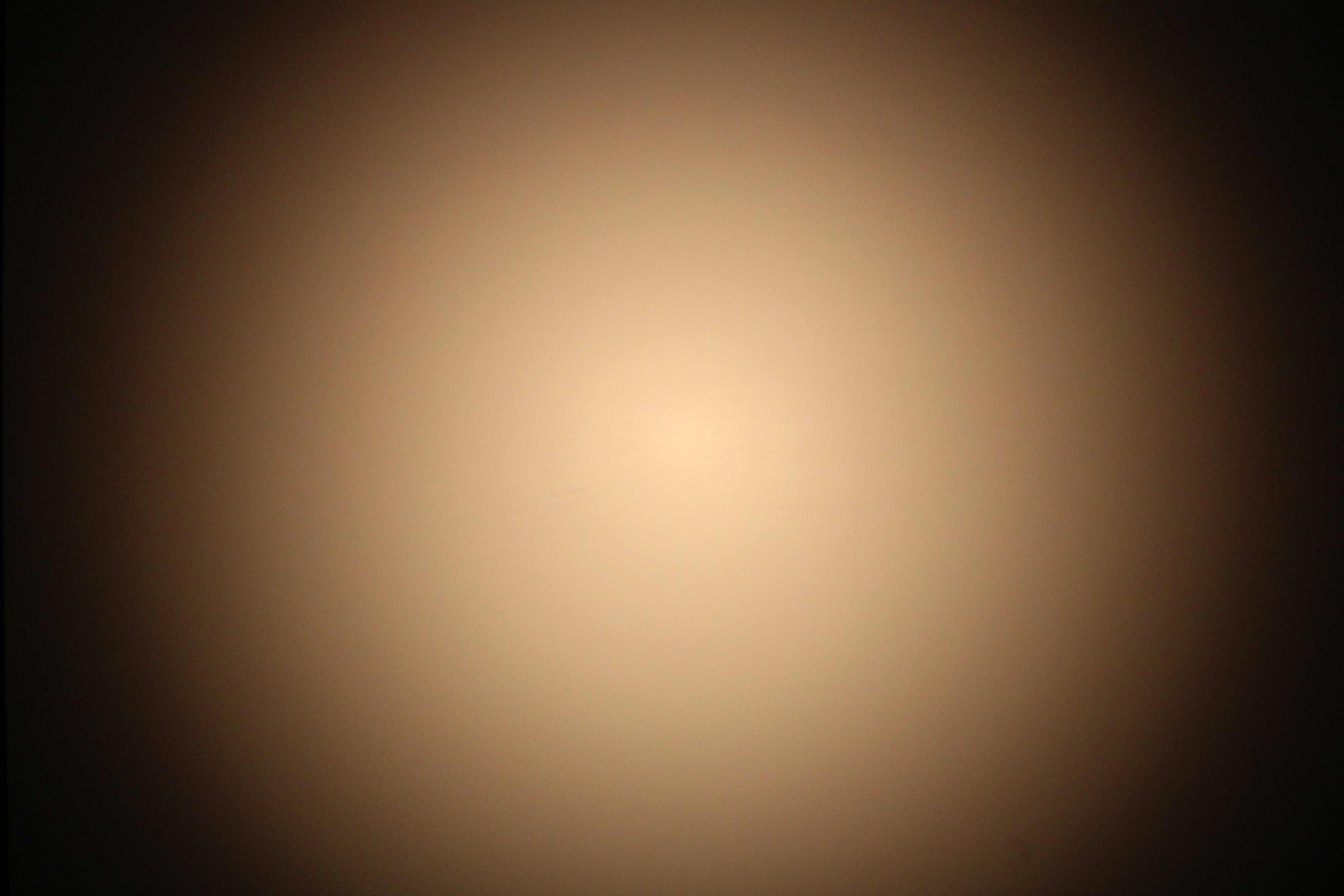

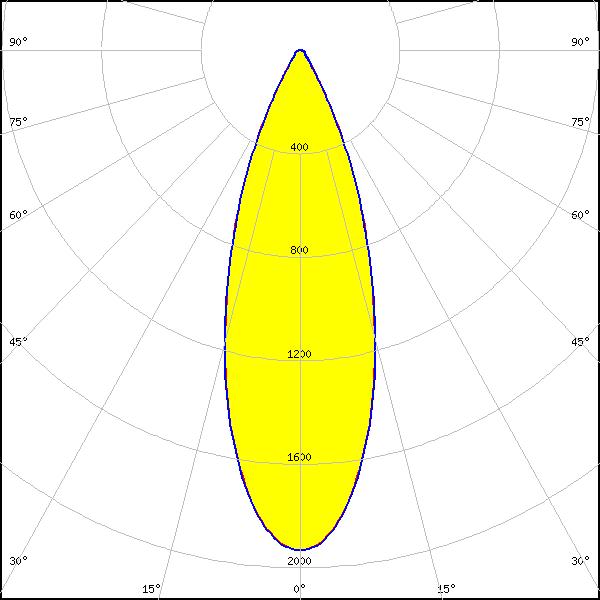

LED:
V11 HD Gen 8
Ordering code: C17792_AMY-45-W
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
35°
FWTM:
62°
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

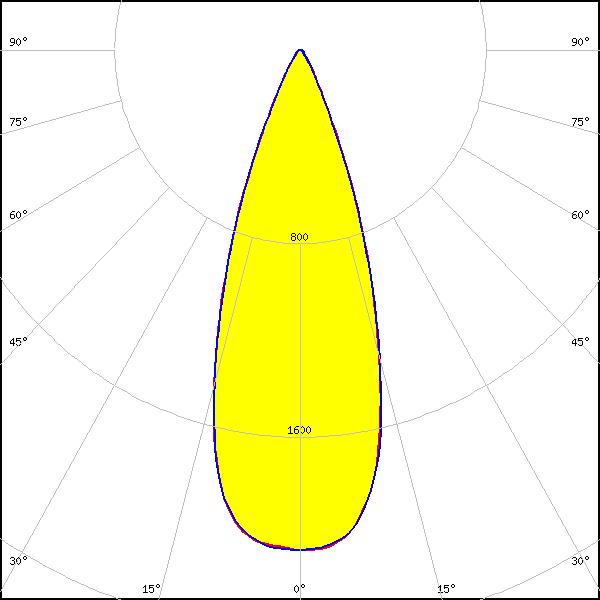

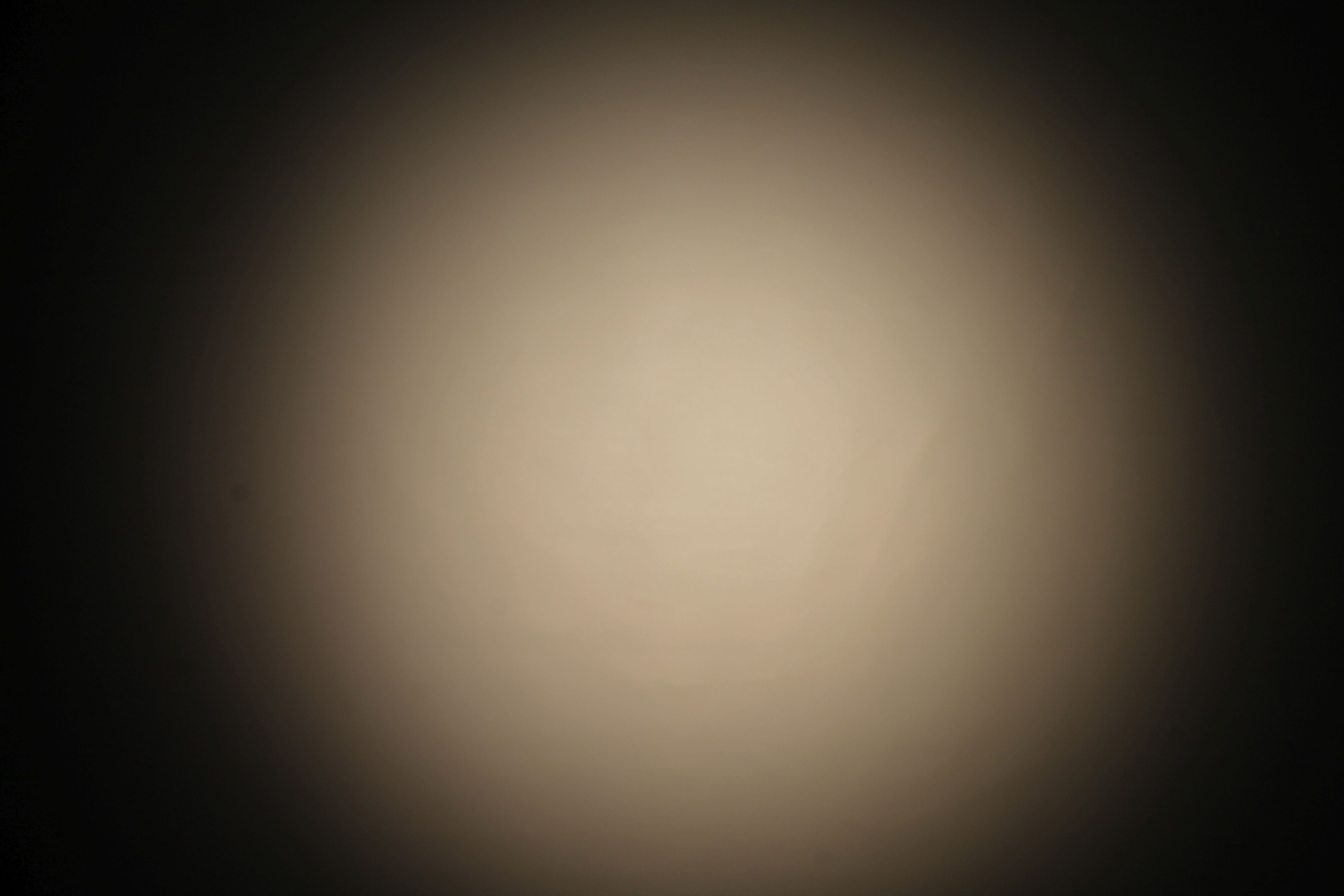

LED:
V6 HD Gen 7
Ordering code: C17792_AMY-45-W
LES size: 7.0 mm
Required components:
FWHM:
36°
FWTM:
56°
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

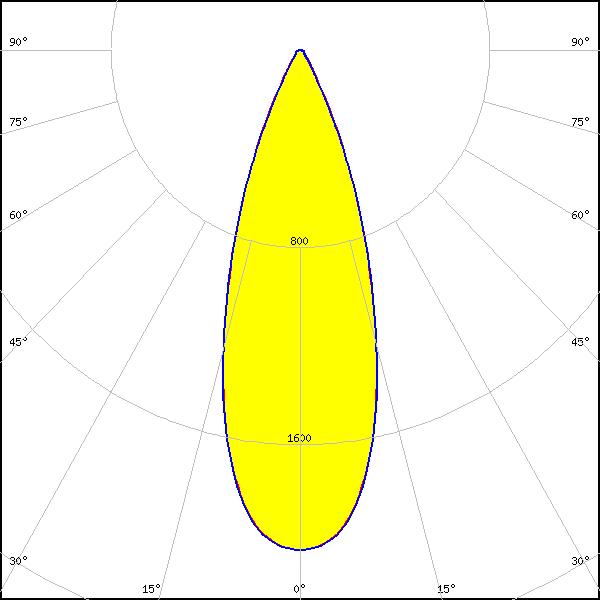

LED:
V9 HD Gen7
Ordering code: C17792_AMY-45-W
LES size: 9.2 mm
Required components:
FWHM:
35°
FWTM:
58°
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

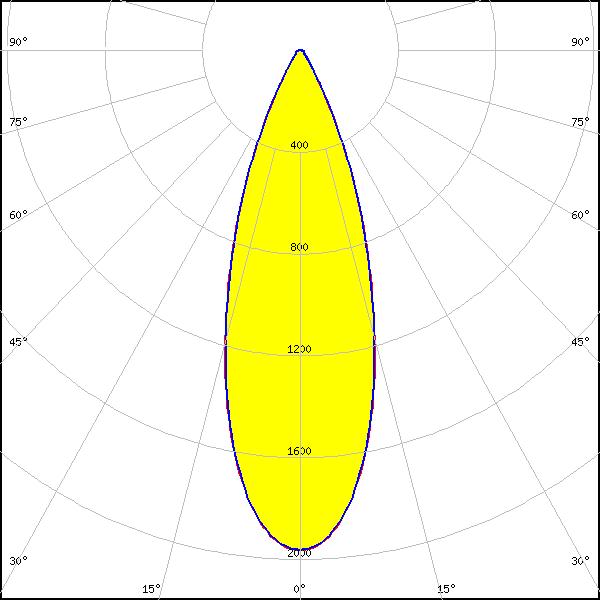

CLL02x/CLU02x (LES10)
Ordering code: C17792_AMY-45-W
LES size: 9.8 mm
Required components:
FWHM:
35°
FWTM:
60°
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

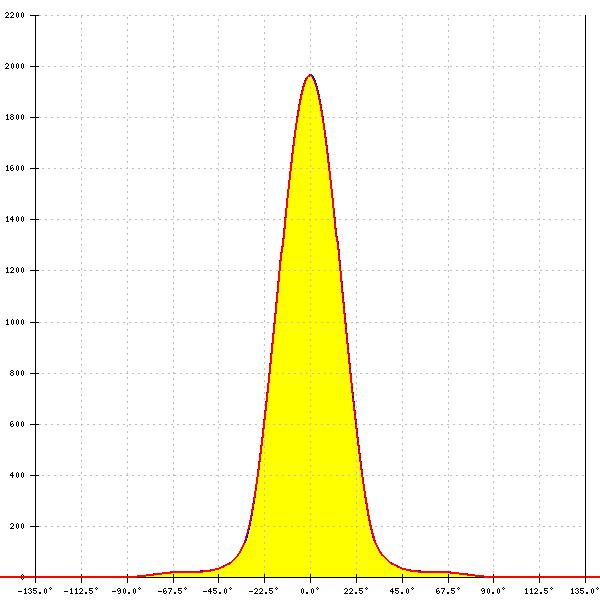

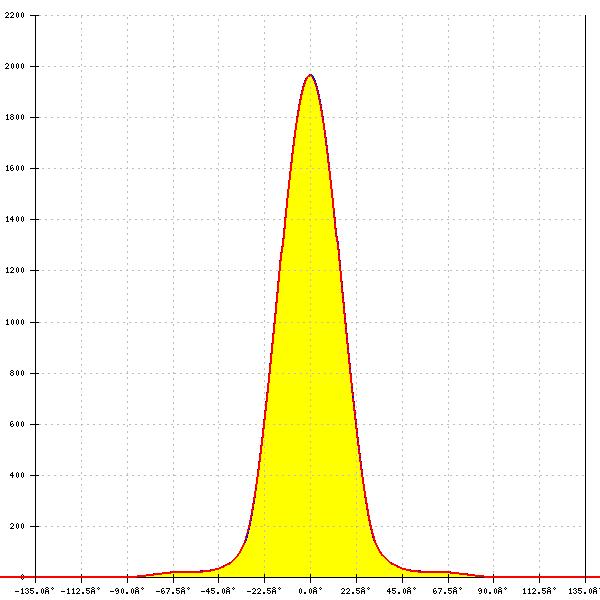

LED:
CLL02x/CLU02x (LES10)
Ordering code: C17792_AMY-45-W
LES size: 9.8 mm
Required components:
FWHM:
35°
FWTM:
60°
Peak intensity:
1.964 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

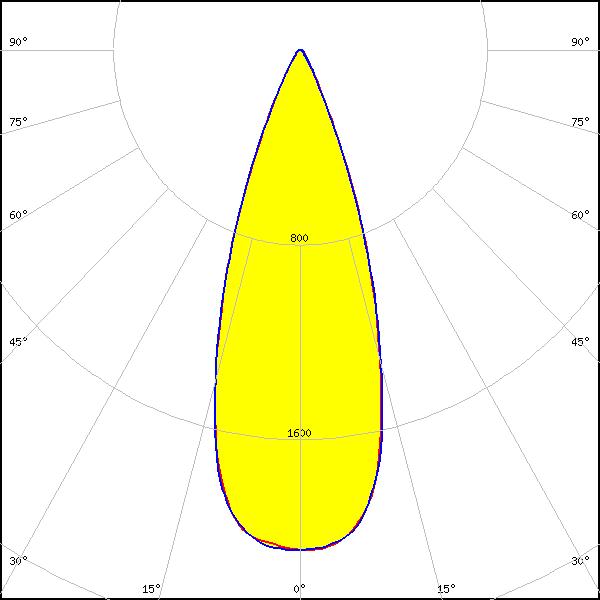

LED:

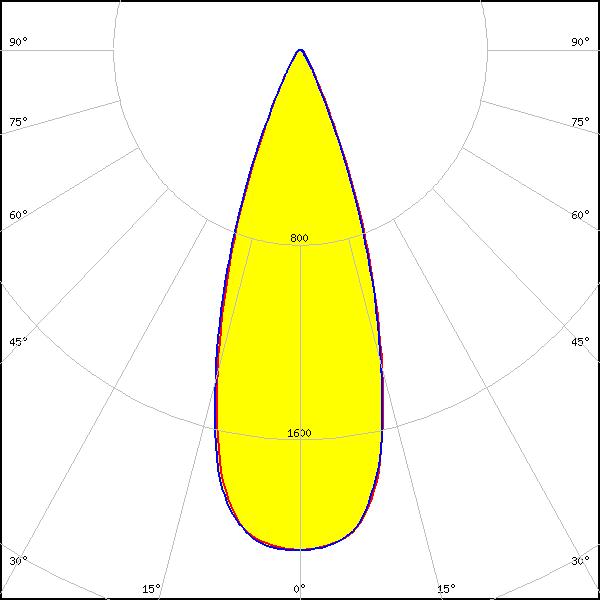

CLU700/701/702/703
Ordering code: C17792_AMY-45-W
LES size: 6.0 mm
Required components:
FWHM:
36°
FWTM:
56°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

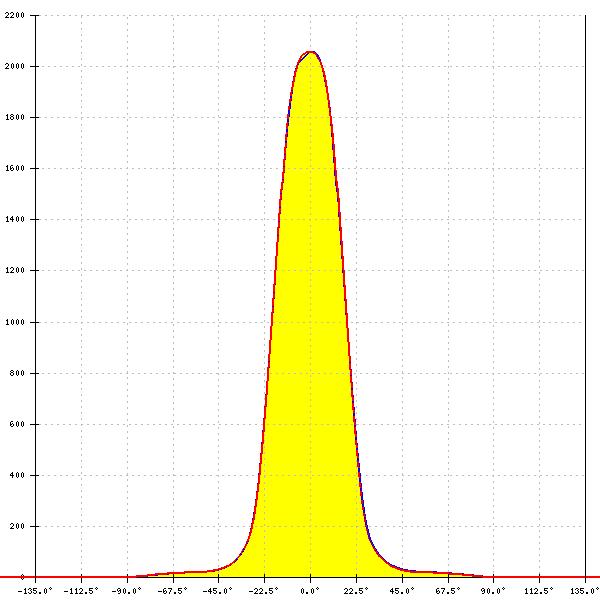

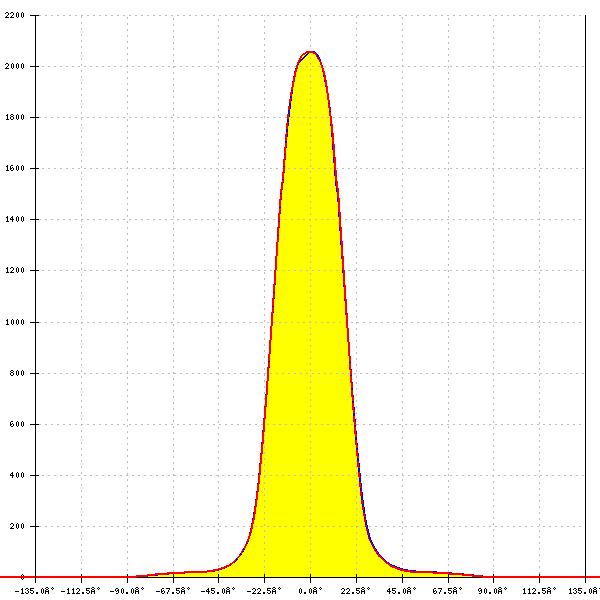

LED:
CLU700/701/702/703
Ordering code: C17792_AMY-45-W
LES size: 6.0 mm
Required components:
FWHM:
36°
FWTM:
56°
Peak intensity:
2.056 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

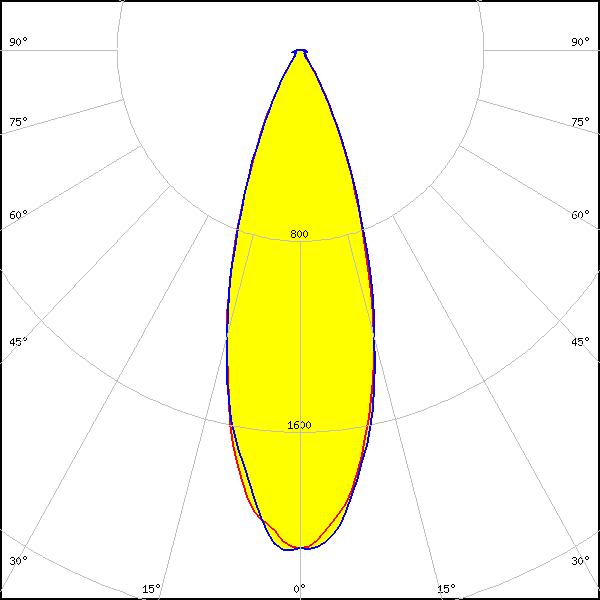

LED:

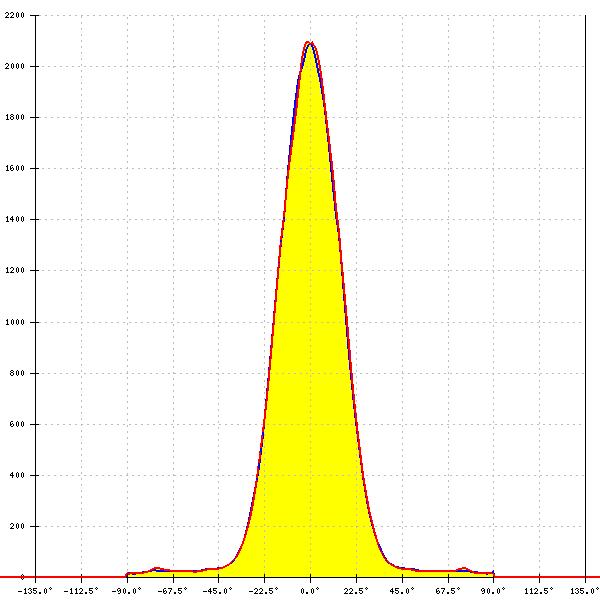

CLU712/713
Ordering code: C17792_AMY-45-W
LES size: 8.5 mm
Required components:
FWHM:
34°
FWTM:
61°
Peak intensity:
2.115 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

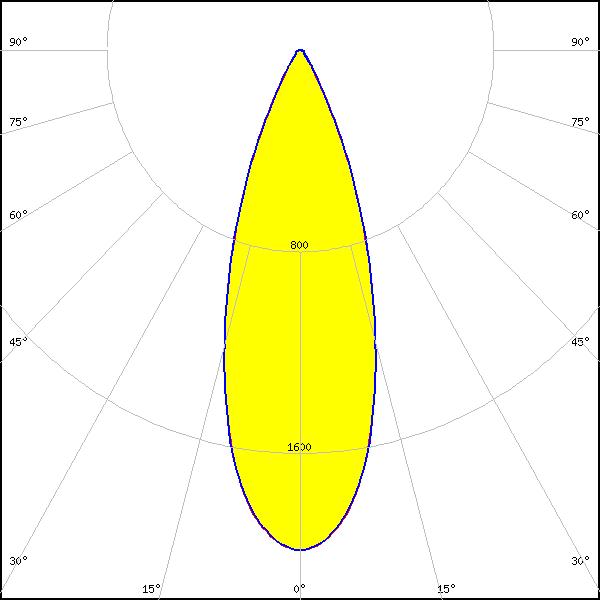

LED:
CMA1516
Ordering code: C17792_AMY-45-W
LES size: 9.0 mm
Required components:
FWHM:
35°
FWTM:
59°
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

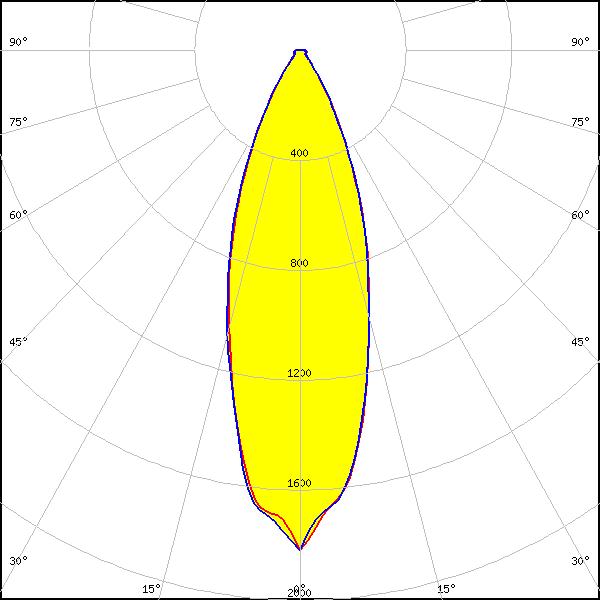

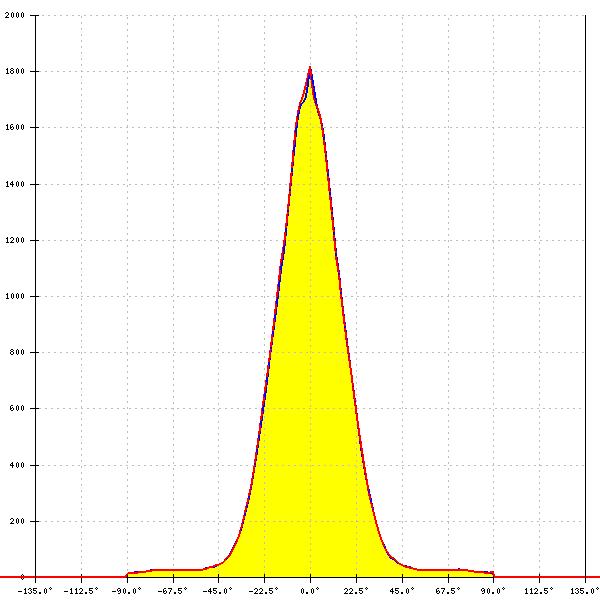

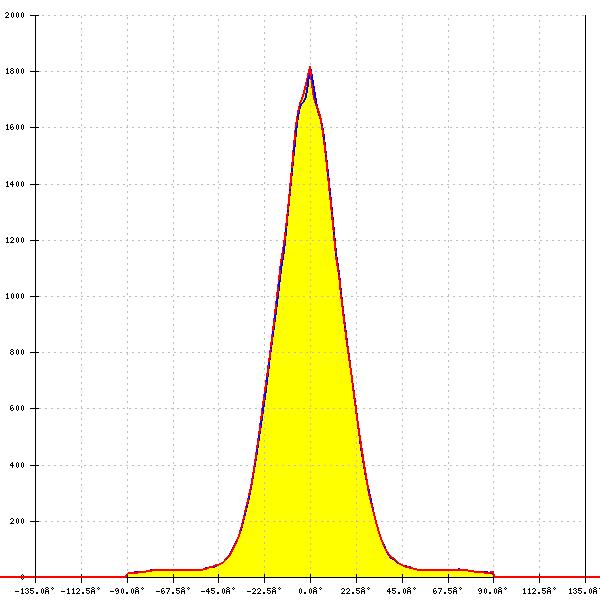

LED:
CMA1825
Ordering code: C17792_AMY-45-W
LES size: 12.0 mm
Required components:
FWHM:
34°
FWTM:
67°
Peak intensity:
1.819 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

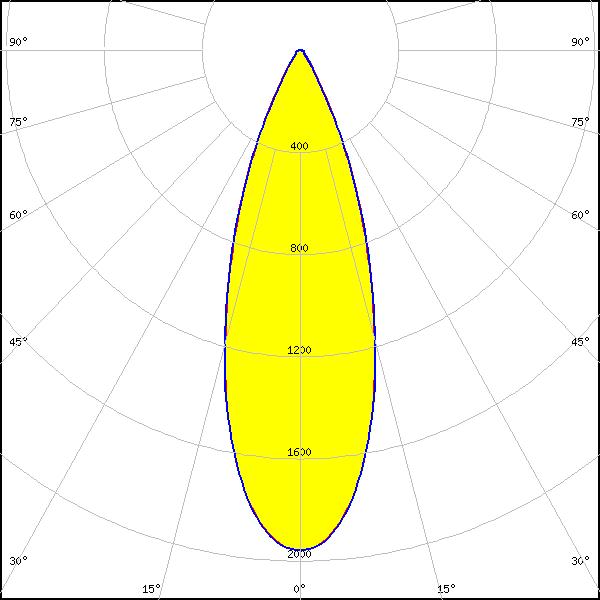

LED:
CMT14xx
Ordering code: C17792_AMY-45-W
LES size: 9.8 mm
Required components:
FWHM:
35°
FWTM:
60°
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

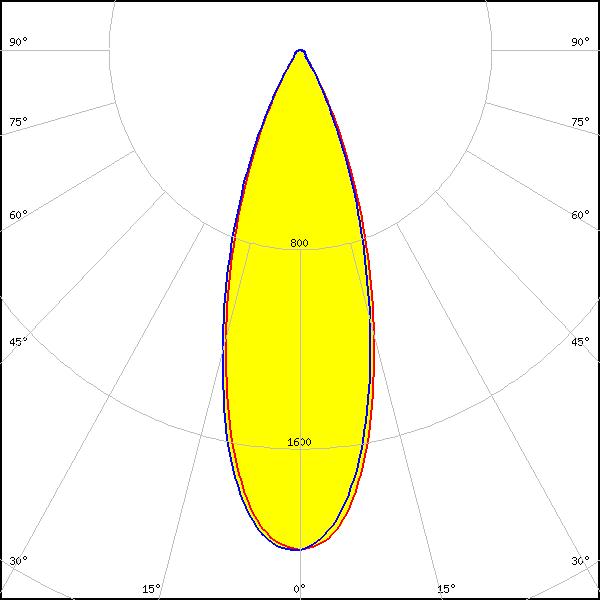

LED:

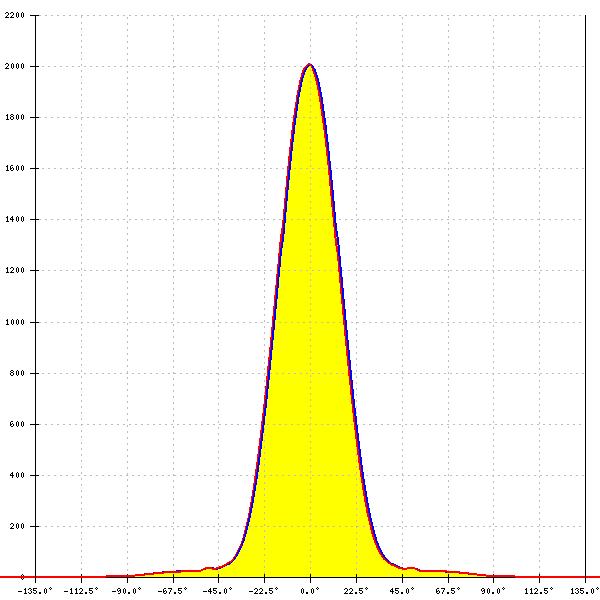

CMU10xx
Ordering code: C17792_AMY-45-W
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
35°
FWTM:
61°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

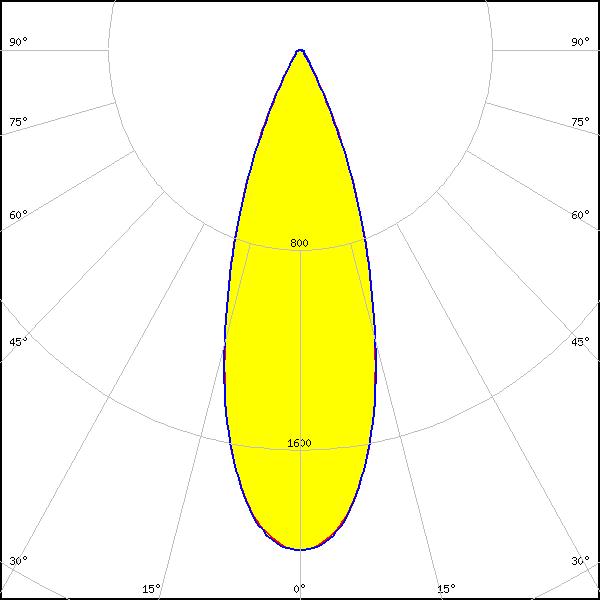

LED:

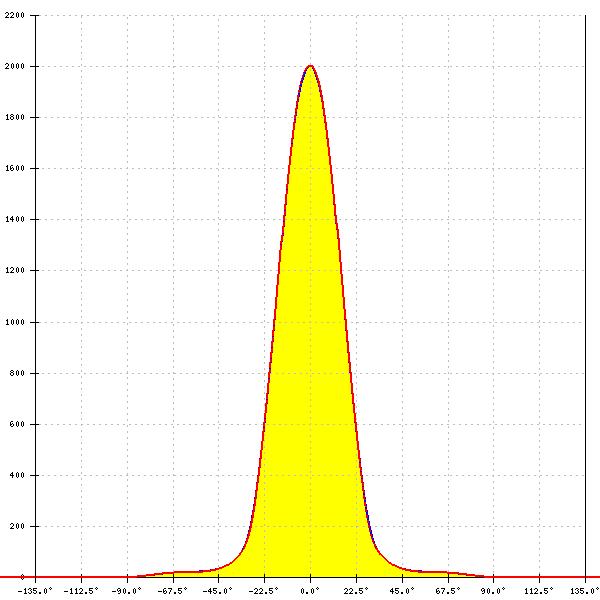

LUXEON CoB 1202/1203
Ordering code: C17792_AMY-45-W
LES size: 9.0 mm
Required components:
FWHM:
35°
FWTM:
59°
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

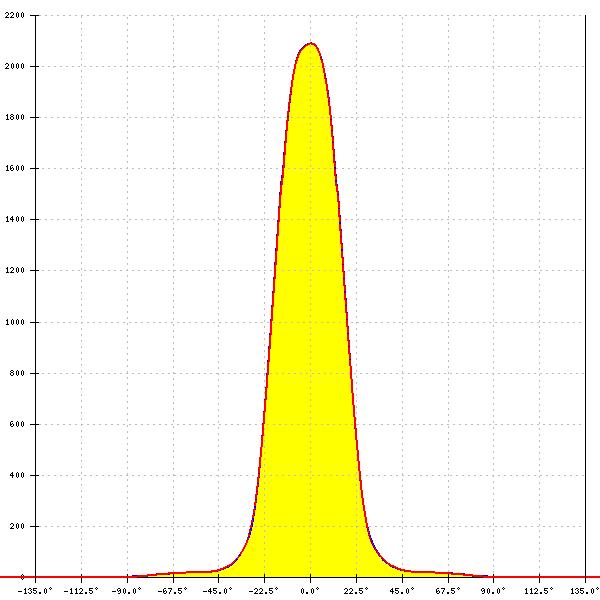

LED:

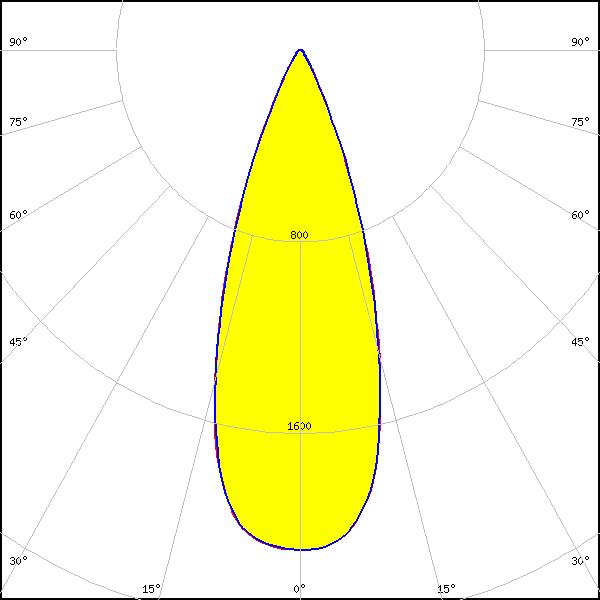

LUXEON CoB 1202s
Ordering code: C17792_AMY-45-W
LES size: 6.5 mm
Required components:
FWHM:
36°
FWTM:
57°
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

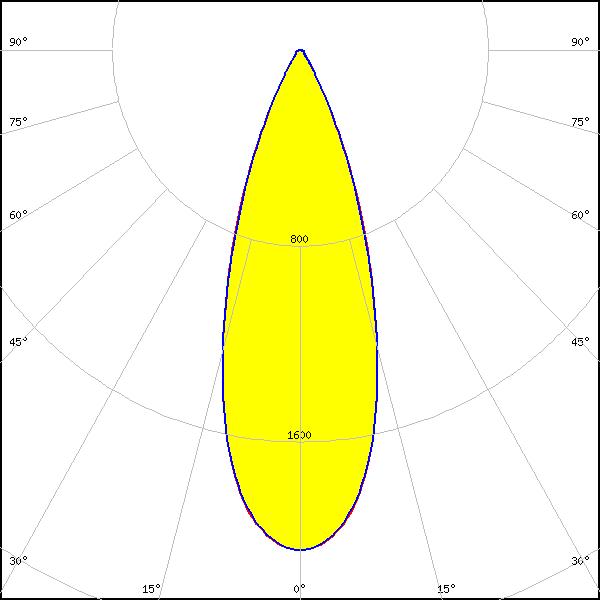

LUXEON CX Plus CoB M02 / M03 (Gen2)
Ordering code: C17792_AMY-45-W
LES size: 9.0 mm
Required components:
FWHM:
35°
FWTM:
59°
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

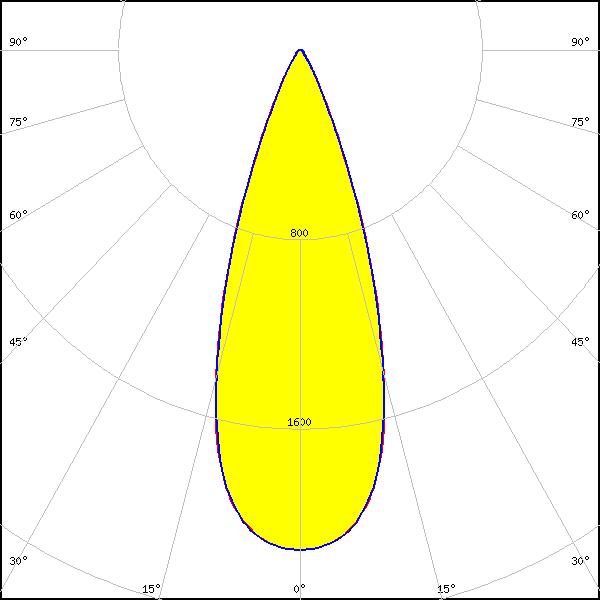

LED:
LUXEON CX Plus CoB S01 (Gen2)
Ordering code: C17792_AMY-45-W
LES size: 6.0 mm
Required components:
FWHM:
36°
FWTM:
56°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

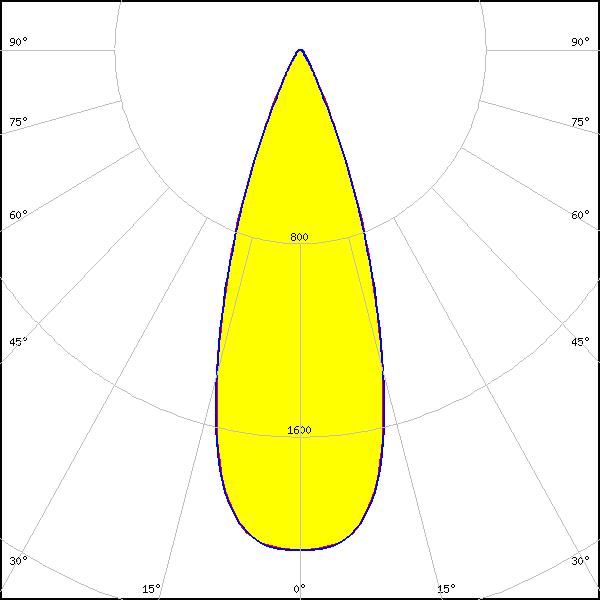

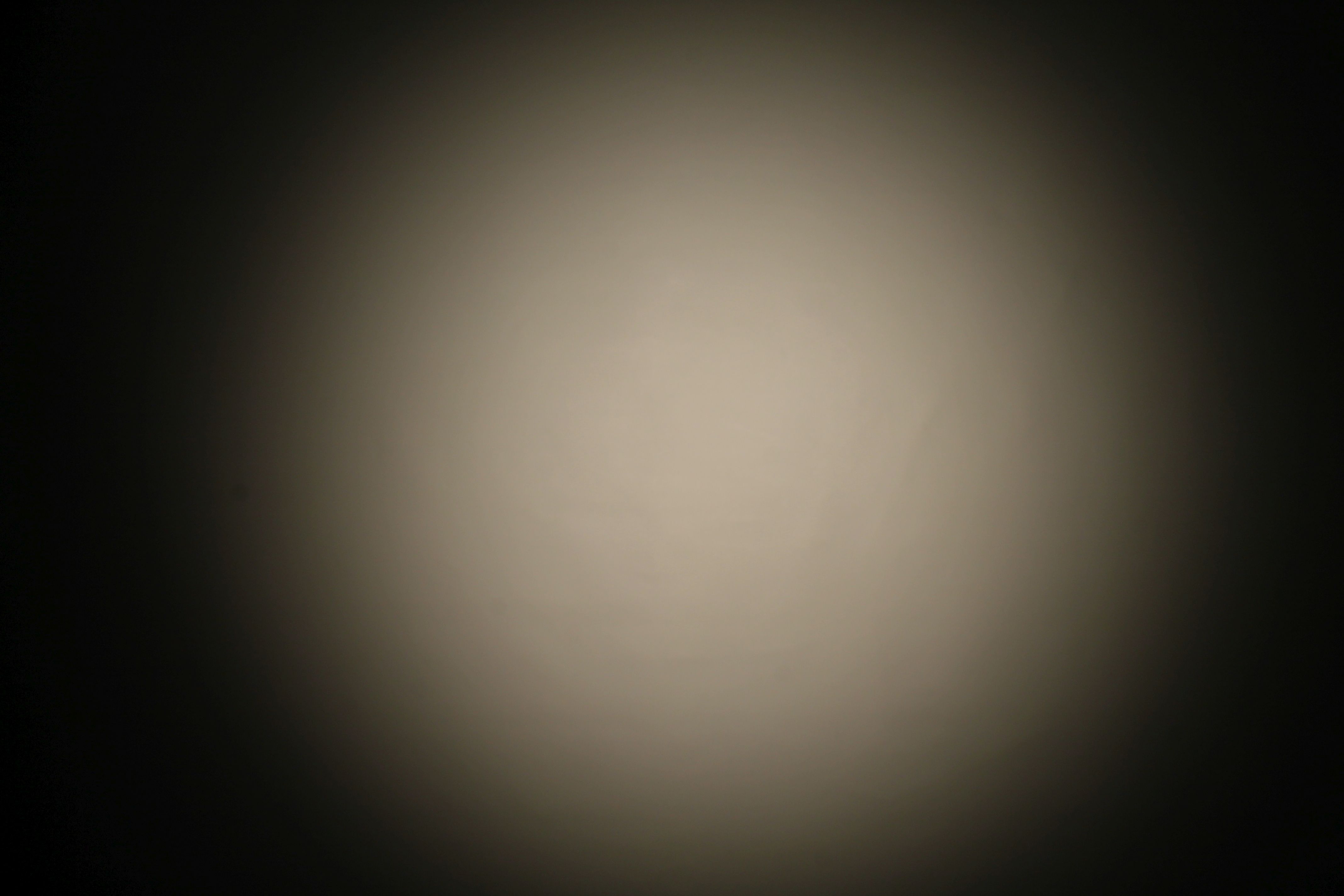

LED:

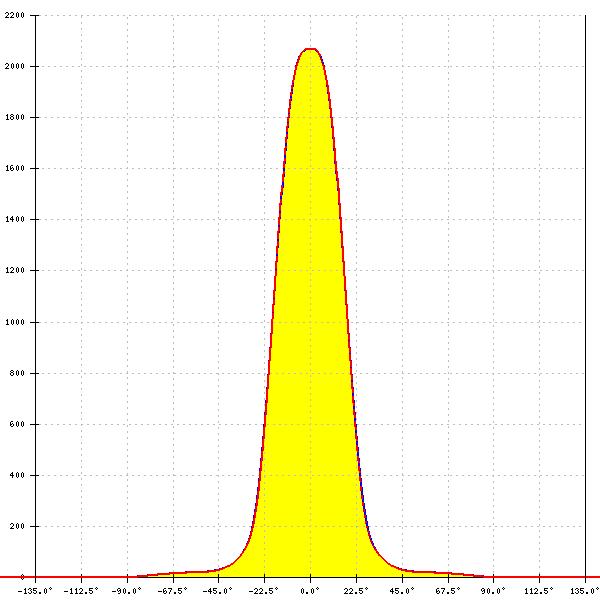

CxM-6 (13.5x13.5)
Ordering code: C17792_AMY-45-W
LES size: 6.3 mm
Required components:
FWHM:
36°
FWTM:
56°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

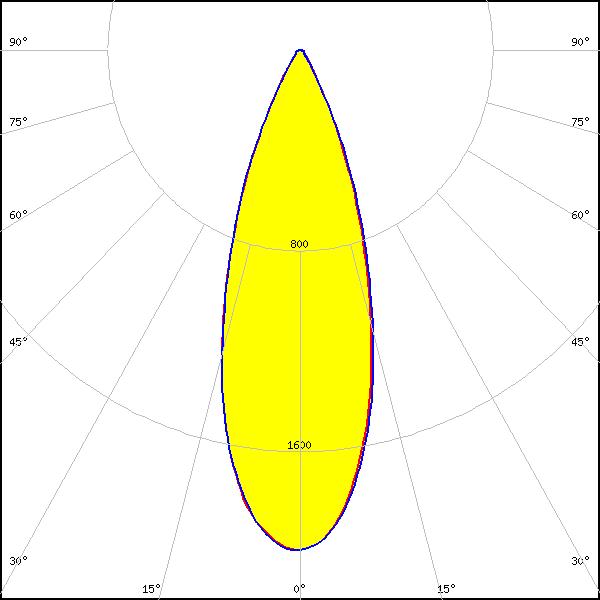

CxM-9 (13.5x13.5)
Ordering code: C17792_AMY-45-W
LES size: 9.8 mm
Required components:
FWHM:
35°
FWTM:
60°
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

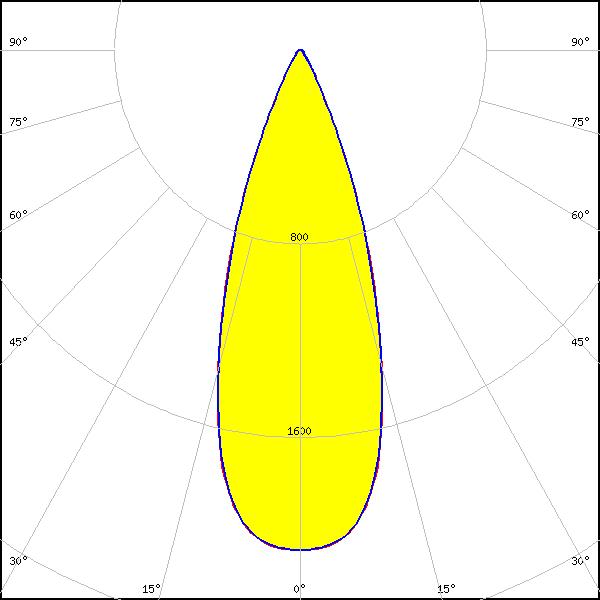

COB S-Type (LES 7)
Ordering code: C17792_AMY-45-W
LES size: 6.7 mm
Required components:
FWHM:
36°
FWTM:
57°
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

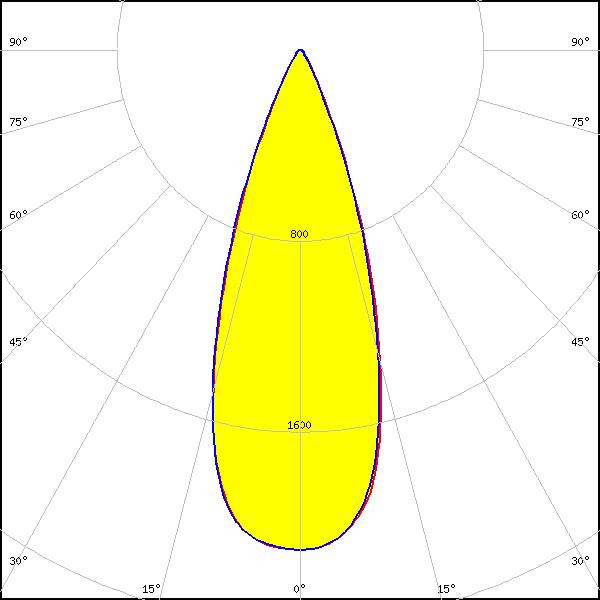

LED:

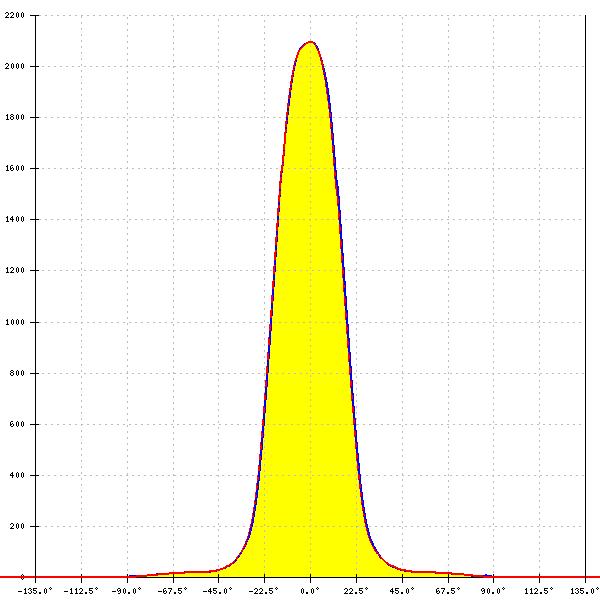

COB T-Type
Ordering code: C17792_AMY-45-W
LES size: 5.9 mm
Required components:
FWHM:
36°
FWTM:
56°
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

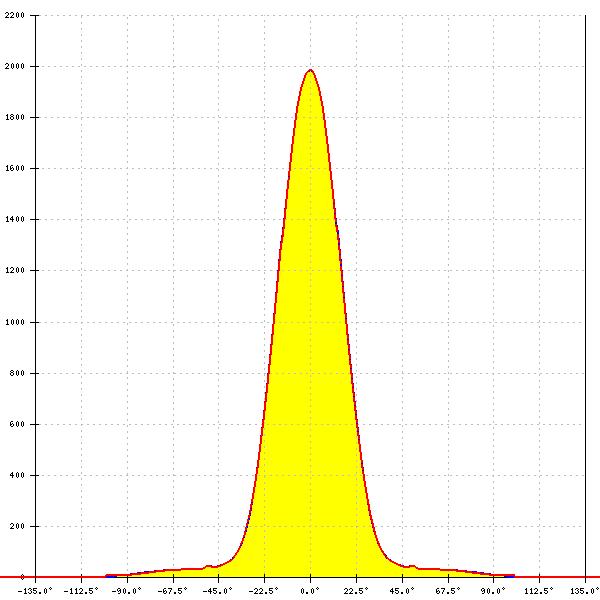

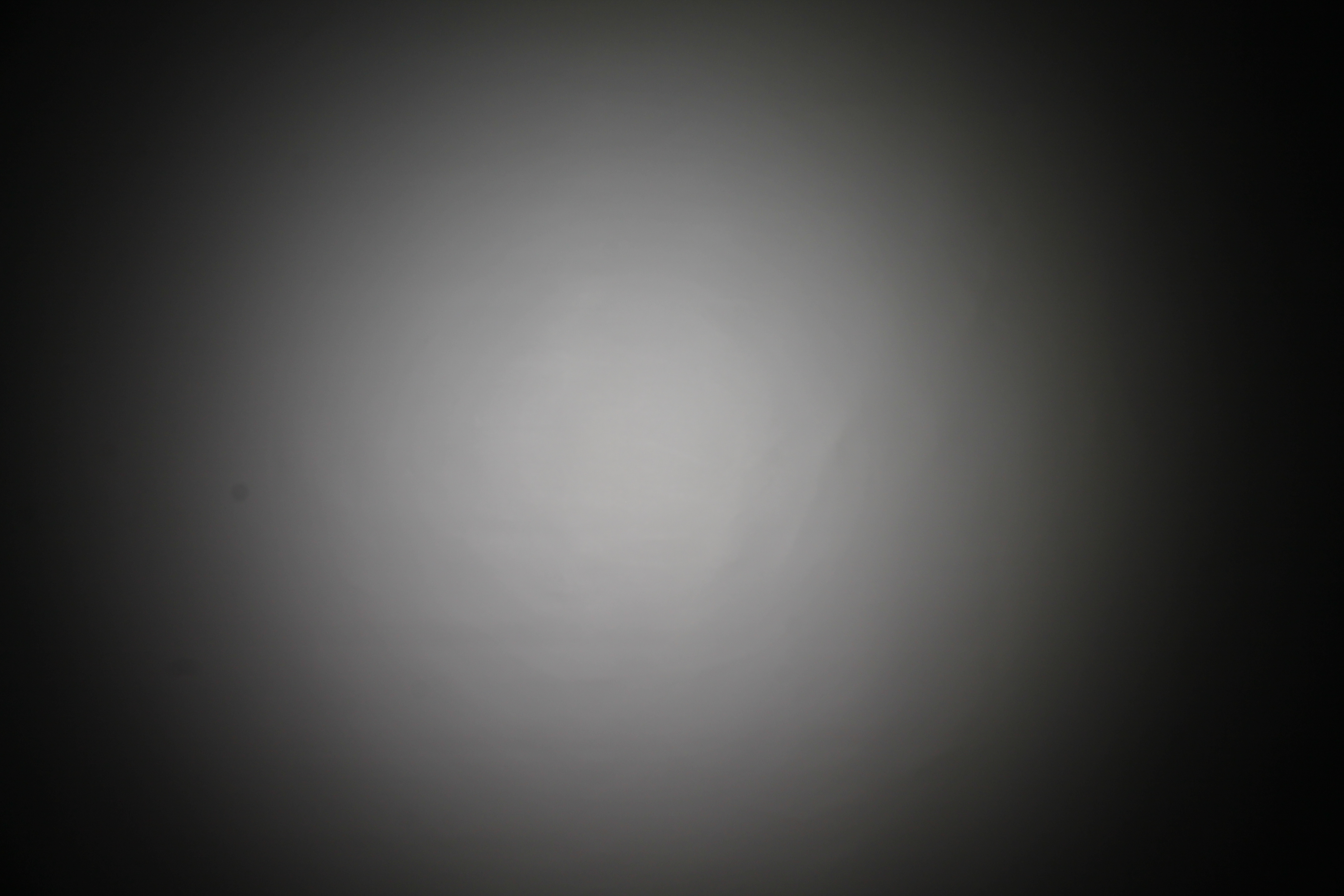

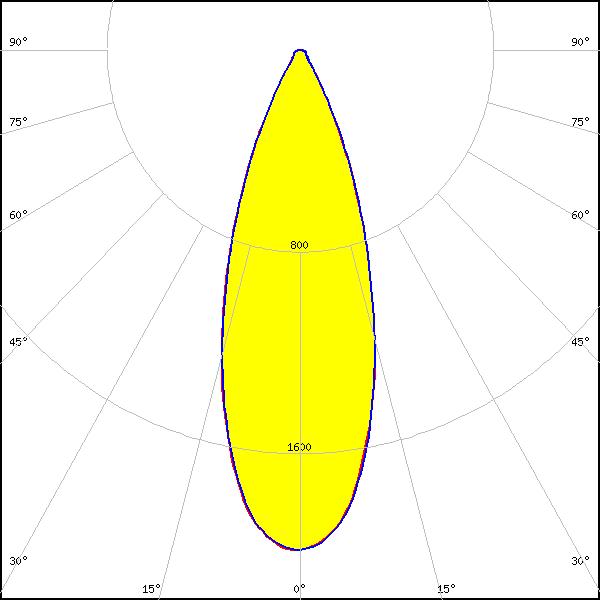

LED:

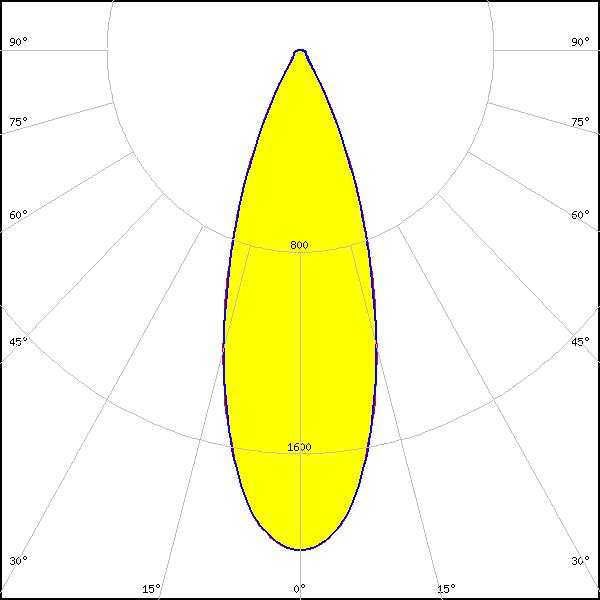

LC003D / LC006D / LC009D / LC013D
Ordering code: C17792_AMY-45-W
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
36°
FWTM:
62°
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

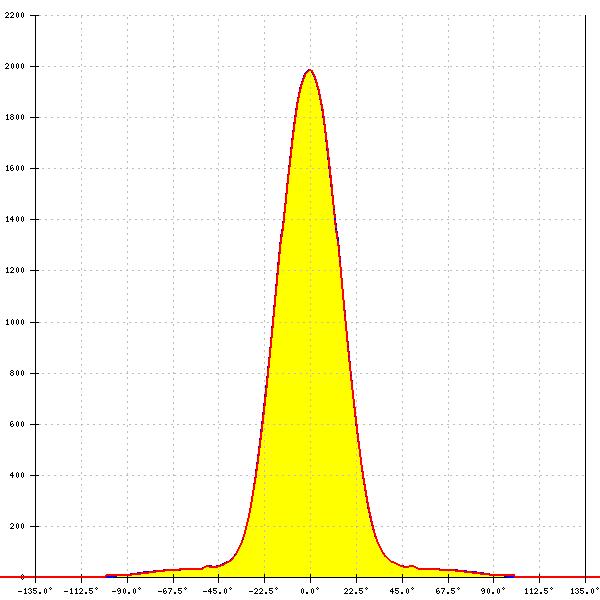

LED:
LC003D / LC006D / LC009D / LC013D
Ordering code: C17792_AMY-45-W
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
36°
FWTM:
62°
Peak intensity:
1.985 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

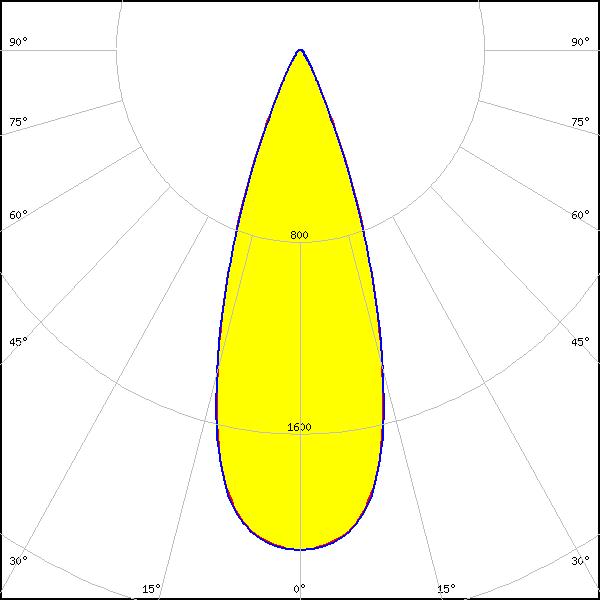

LED:
MJT COB LES 6
Ordering code: C17792_AMY-45-W
LES size: 6.0 mm
Required components:
FWHM:
36°
FWTM:
56°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

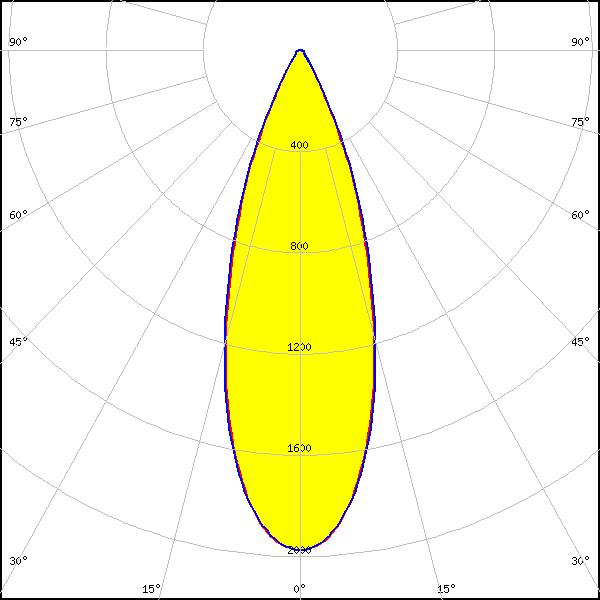

MJT COB LES 9.8
Ordering code: C17792_AMY-45-W
LES size: 9.8 mm
Required components:
FWHM:
35°
FWTM:
60°
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
