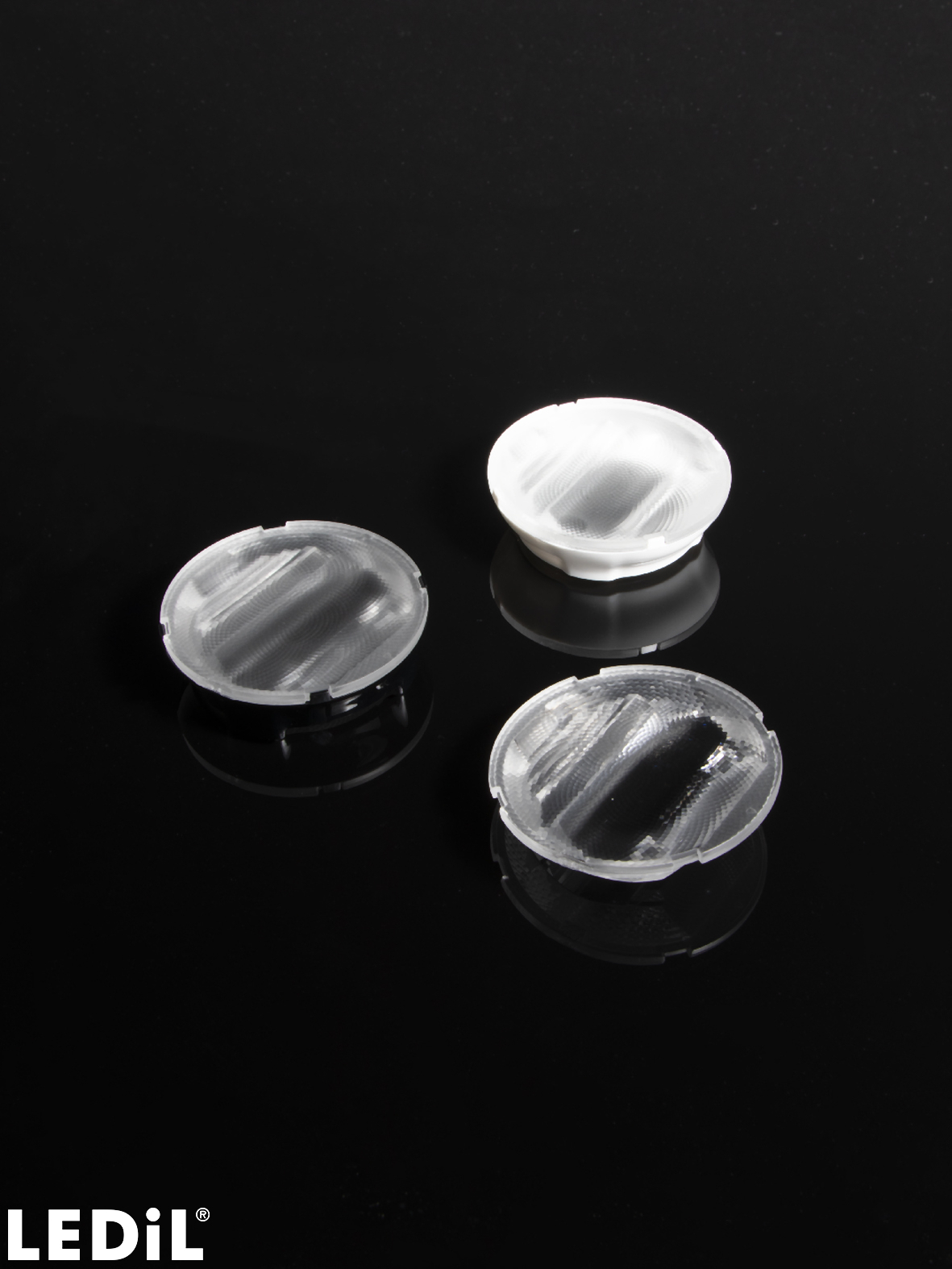

    AMY-50-WAS

    Print

    Asymmetric beam for wall-washing

    This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

    Specification
    • Dimensions:
      50 mm
    • Height:
      13.60 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • AMY-50-WAS
      PMMA
    • AMY-50-HLD2-C-WHT-ASYM
      PC
    • AMY-50-HLD2-C-ASYM
      PC
    • AMY-50-HLD2-B-WHT-ASYM
      PC
    • AMY-50-HLD2-B-ASYM
      PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C18441_AMY-50-WAS
      clear
    • Quantity in box:
      540 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.10 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 80 mm
    • MOQ Weight:
      2.10 kg
    • Assembly
    • CP19128_AMY-50-WAS-C2
      black,Holder C
    • CP19137_AMY-50-WAS-B2
      black,Holder B
    • CP19146_AMY-50-WAS-C2-WHT
      white,Holder C
    • CP19156_AMY-50-WAS-B2-WHT
      white,Holder B
    • Quantity in box:
      510 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.80 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 100 mm
    • MOQ Weight:
      2.40 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18441_AMY-50-WAS
      CP19128_AMY-50-WAS-C2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR200 – Change of AMY holders used with asymmetric beam versions

    News

    AMY WAS - The best COB wall-washer optics on the market

    Application example

    Downlight luminaire with AMY-50-WAS

    News

    Illuminate with elegance – discover the versatility of AMY

    Compatibility guide

    LEDiL connector and socket compatibility

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR194 - Change of AMY-35-50 and -70 holder design

    Compatible product

    B+W 630 Bayonet35 datasheet

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    News

    AMY-50 – low profile COB lens for compact luminaires

    Luminaire, example

    Track light luminaire with AMY-50

    Application guide

    Guide for Architectural lighting optics

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    LEDiL guide for retail lighting optics

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA-SOCKETS and HEKLA-G2 connectors

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

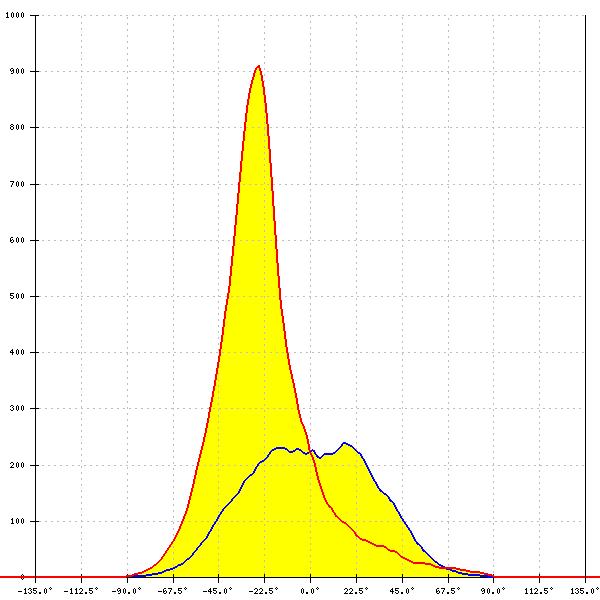

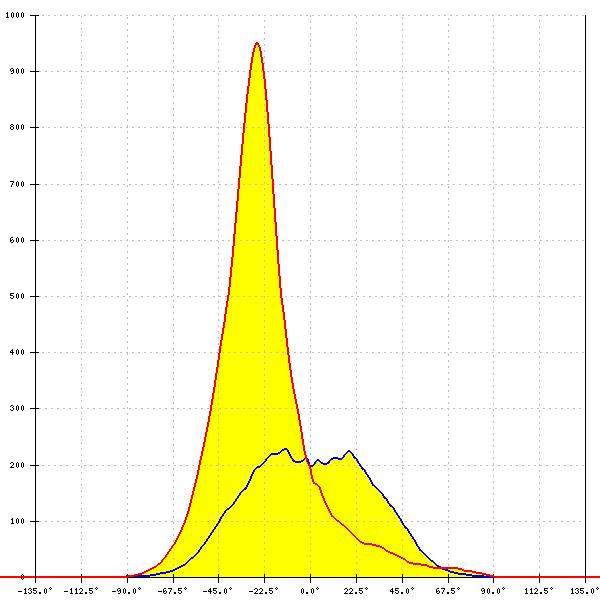

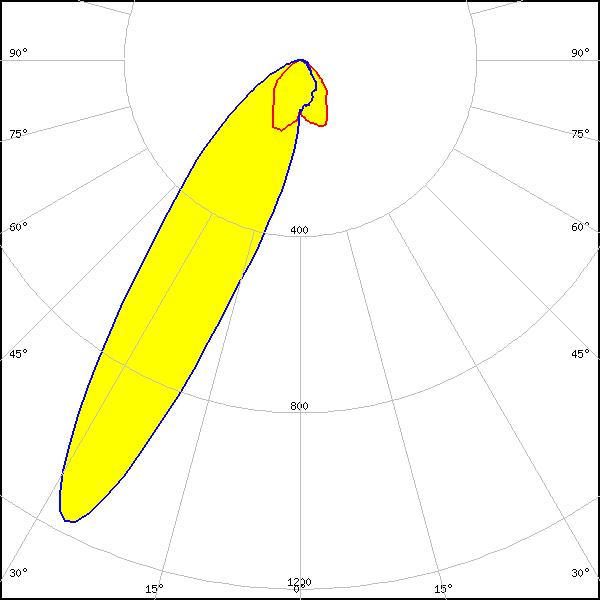

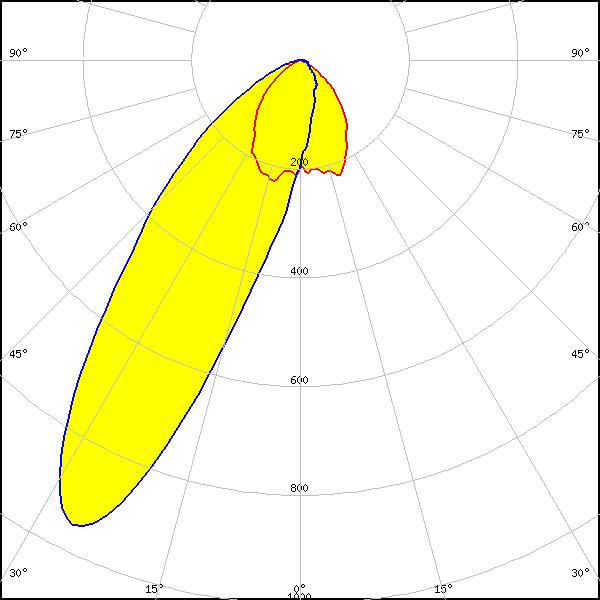

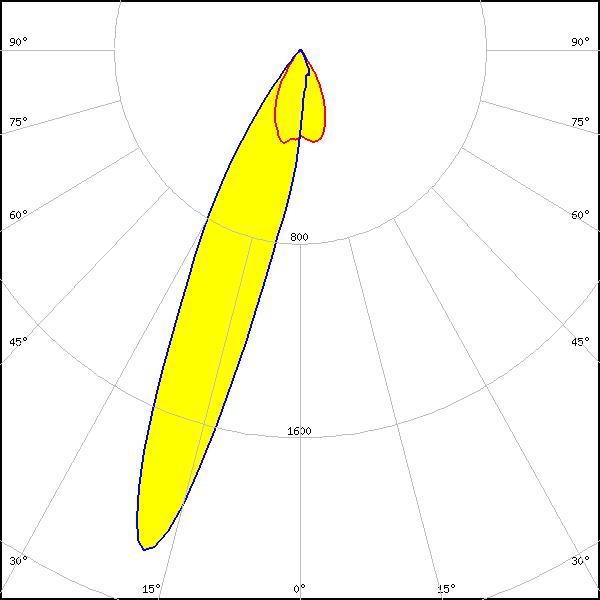

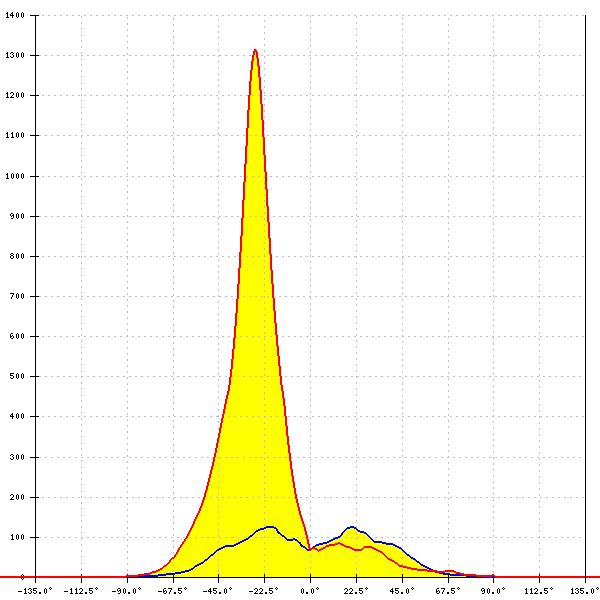

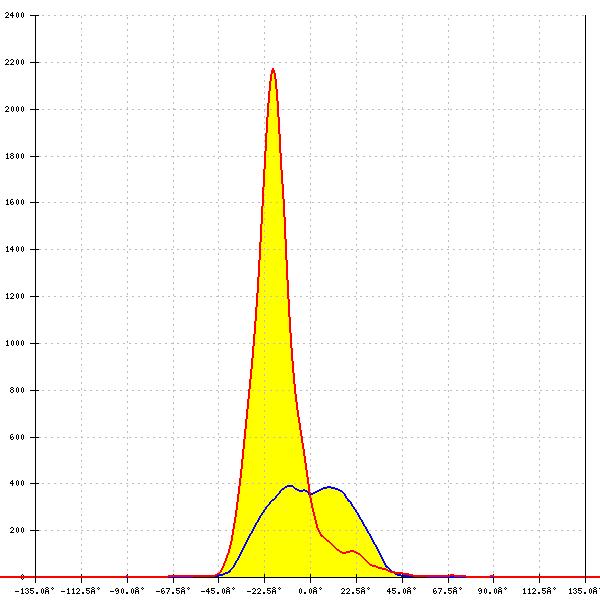

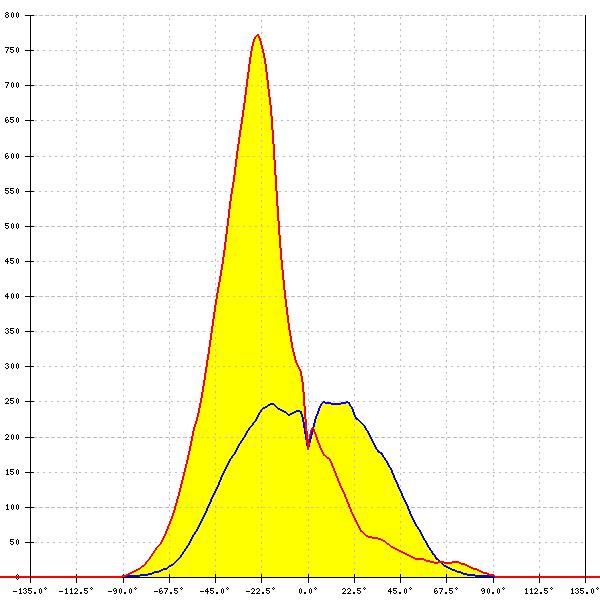

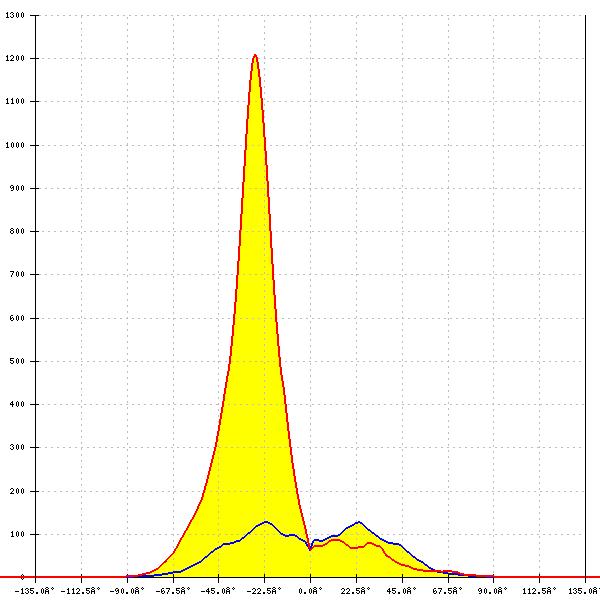

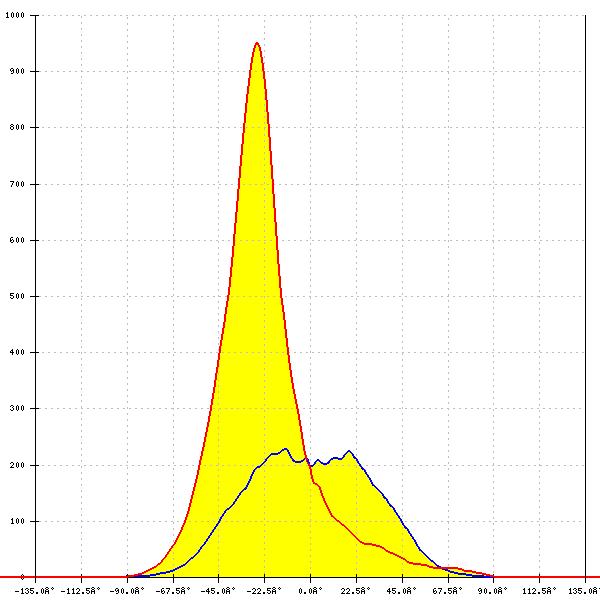

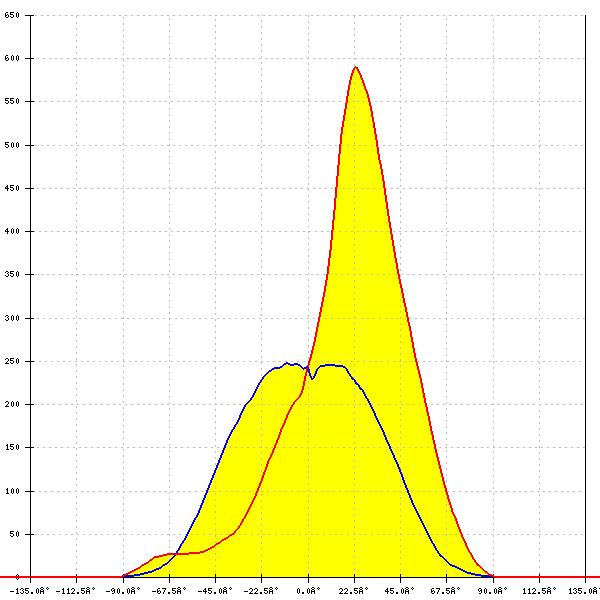

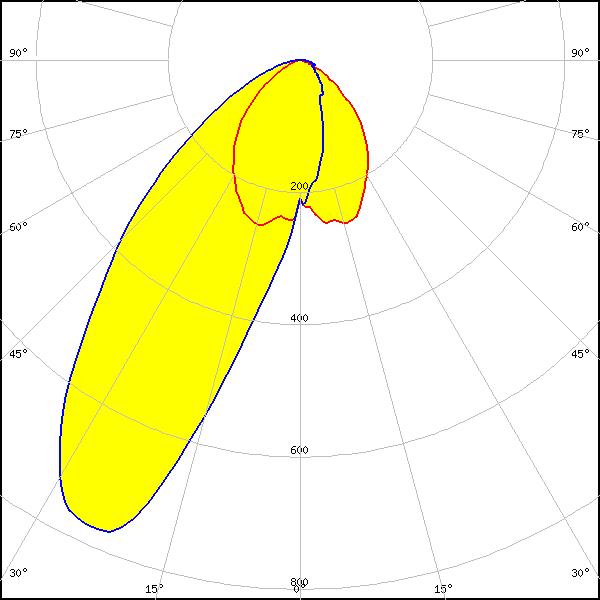

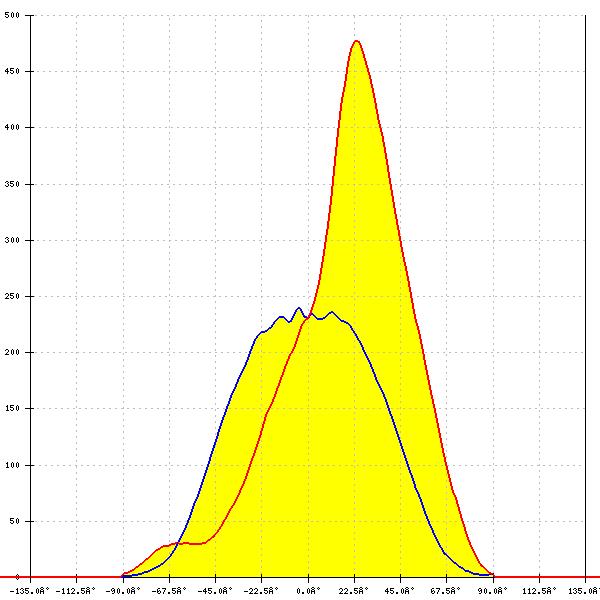

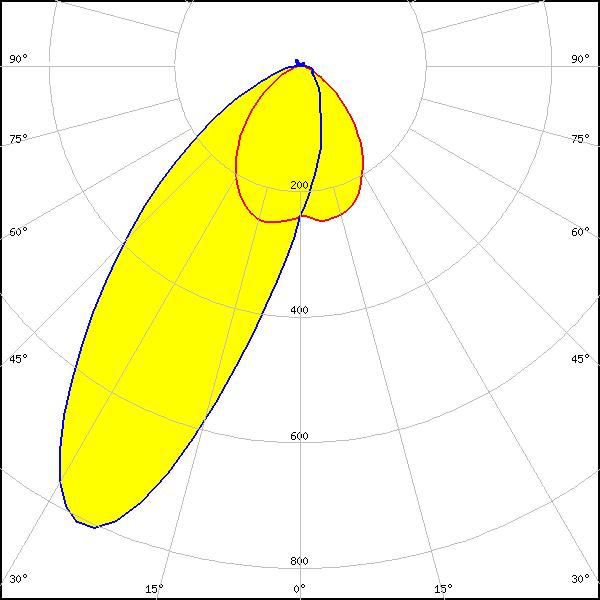

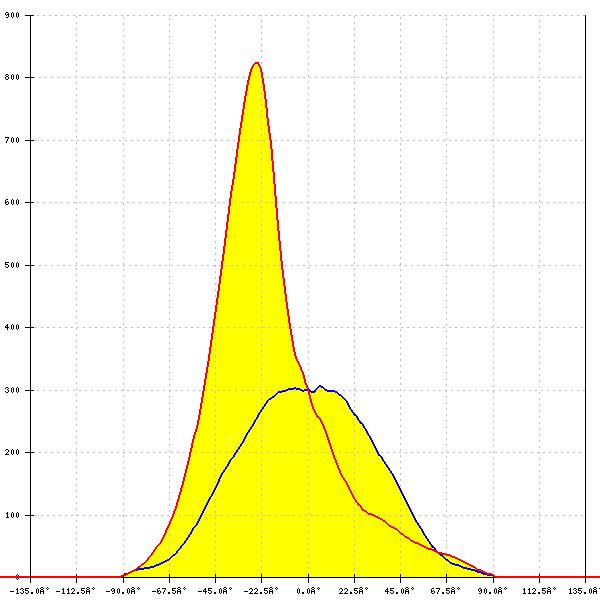

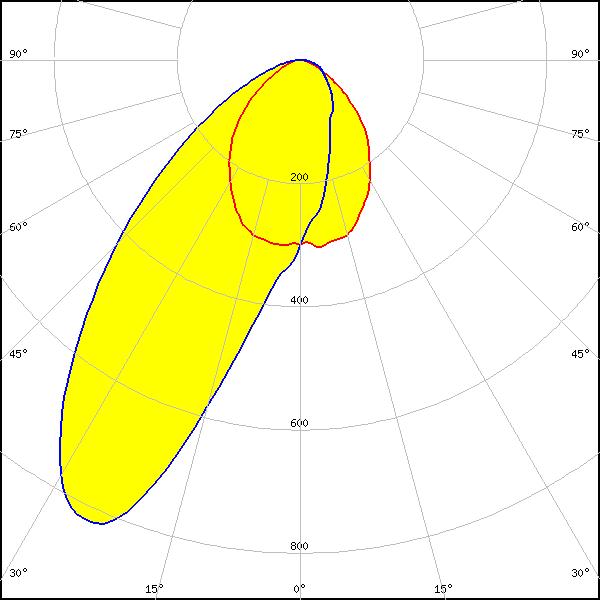

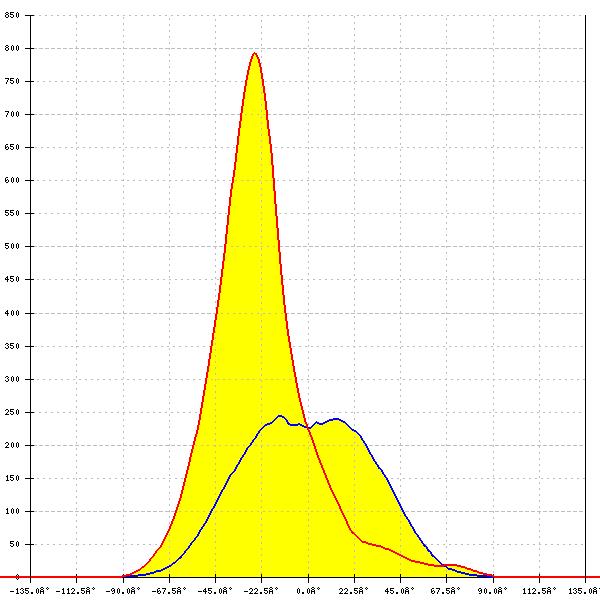

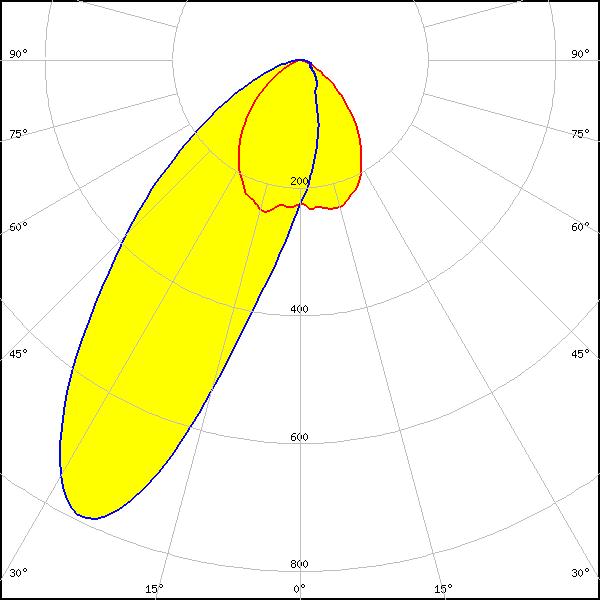

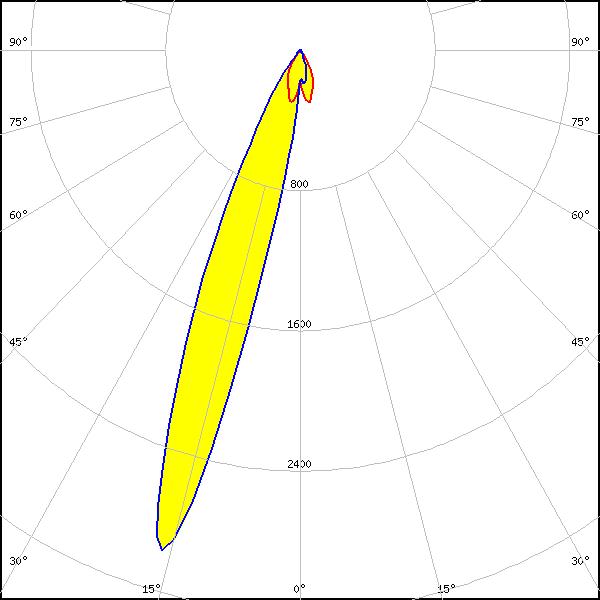

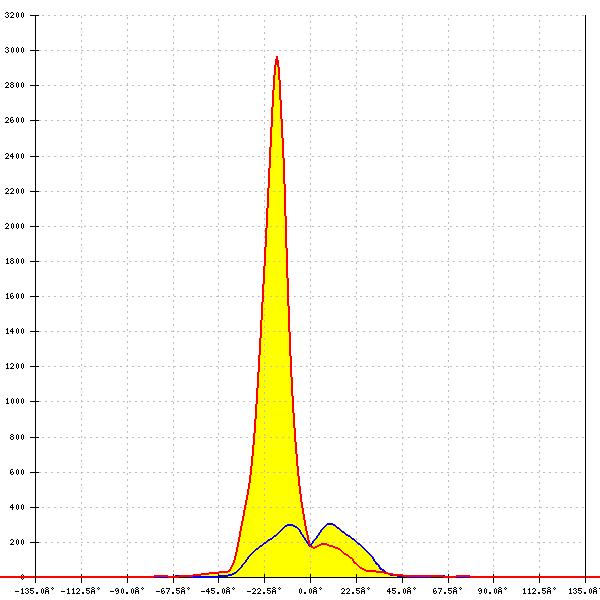

    Optical results

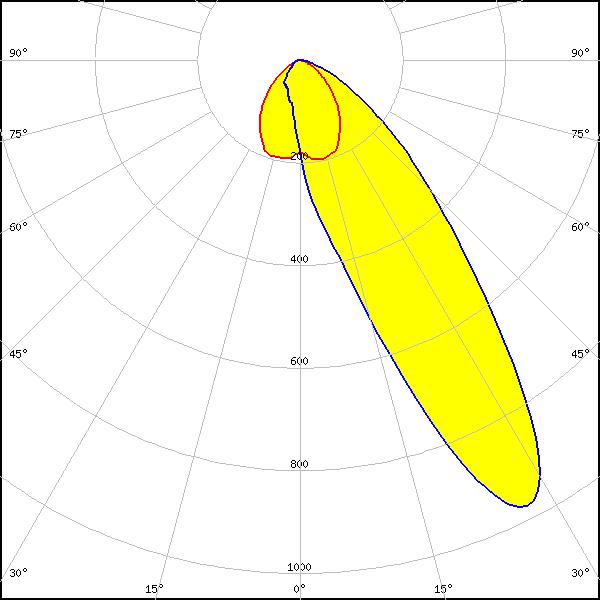

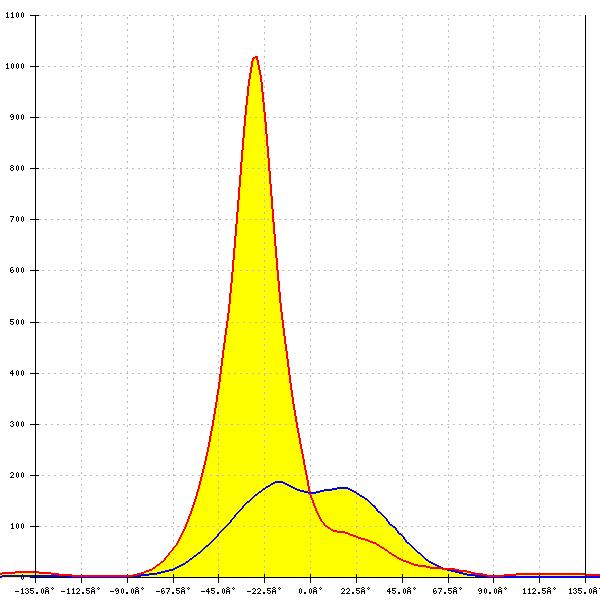

    LED: V10 Gen 8-9
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 10.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 1.023 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

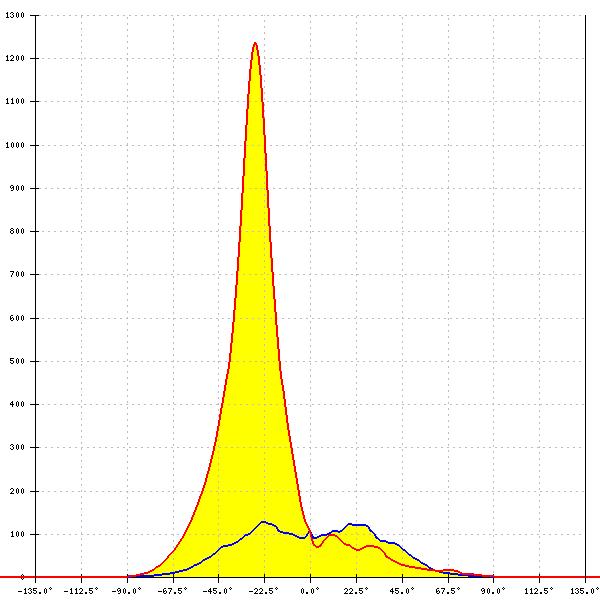

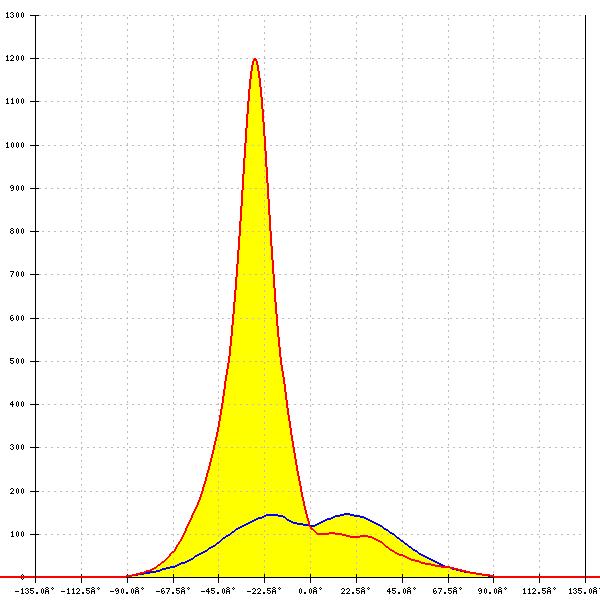

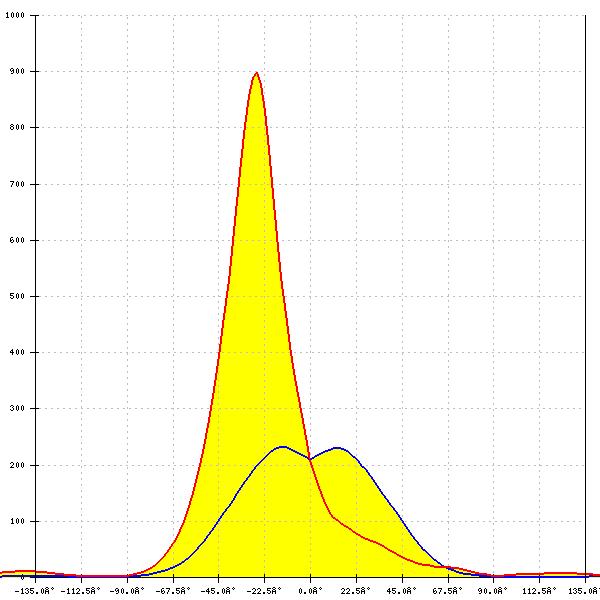

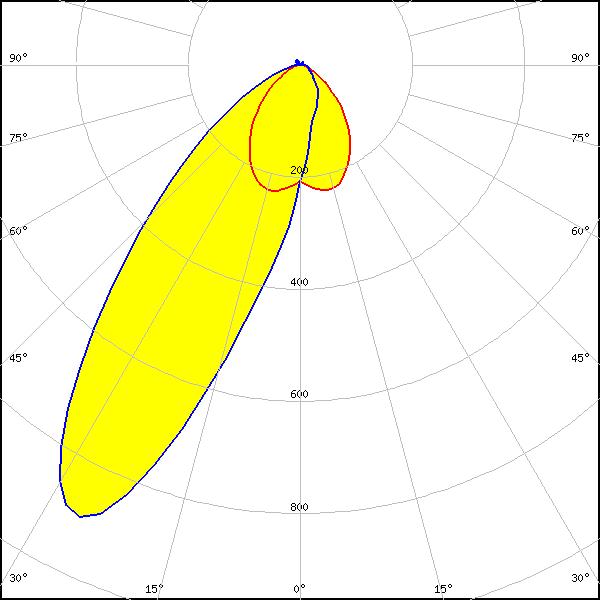

    LED: V6 HD Gen 8
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 6.6 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 1.238 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

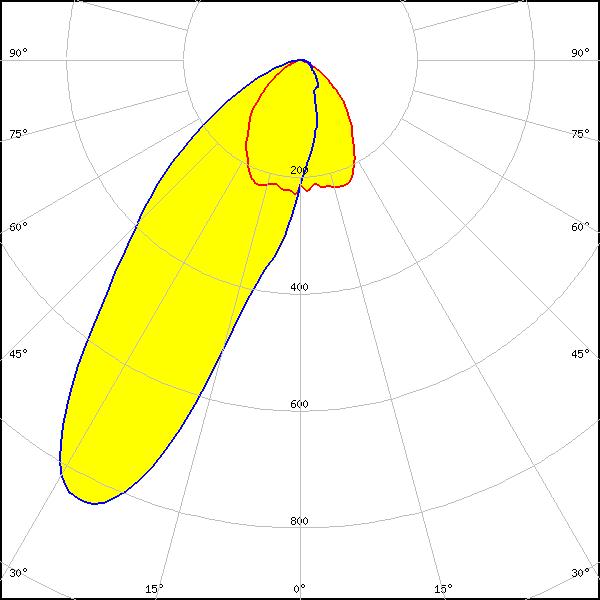

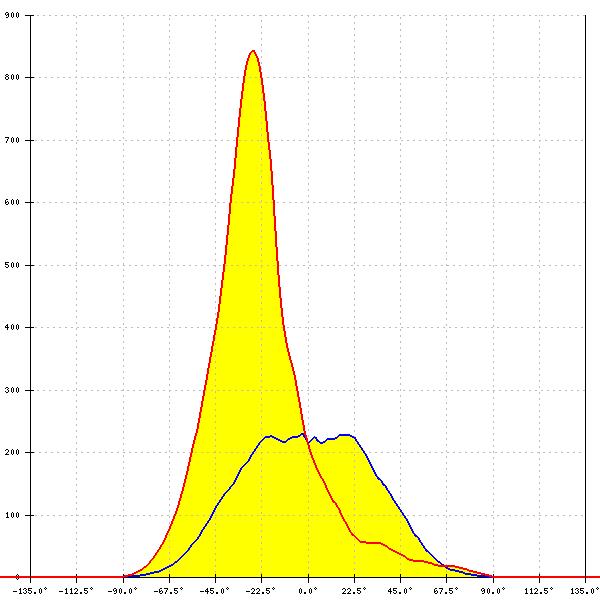

    LED: VERO13
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 13.4 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: asymmetric
    Peak intensity: 0.842 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

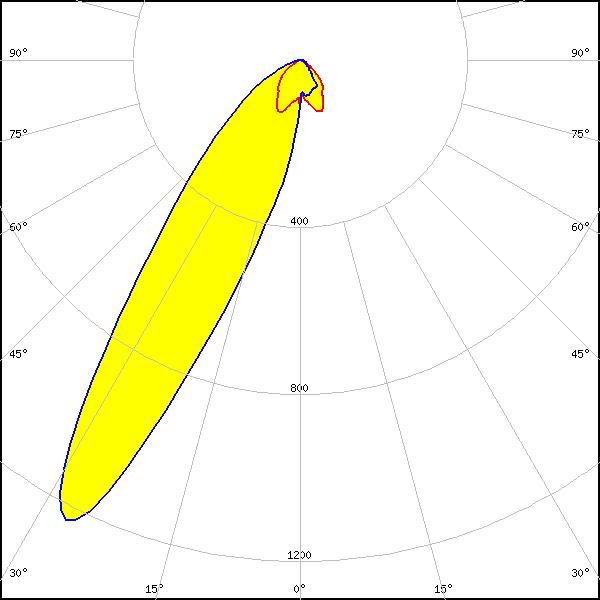

    LED: Vesta DTW 6mm
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 6.8 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: asymmetric
    Peak intensity: 1.235 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

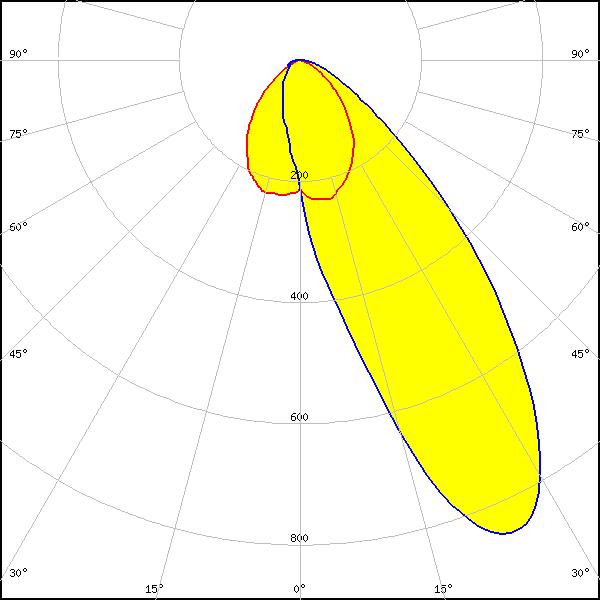

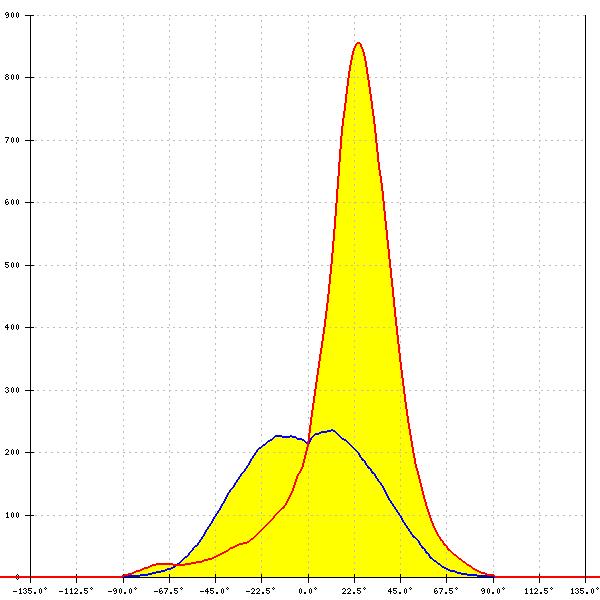

    LED: Vesta SE 13mm TW
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 14.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: asymmetric
    Peak intensity: 0.855 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

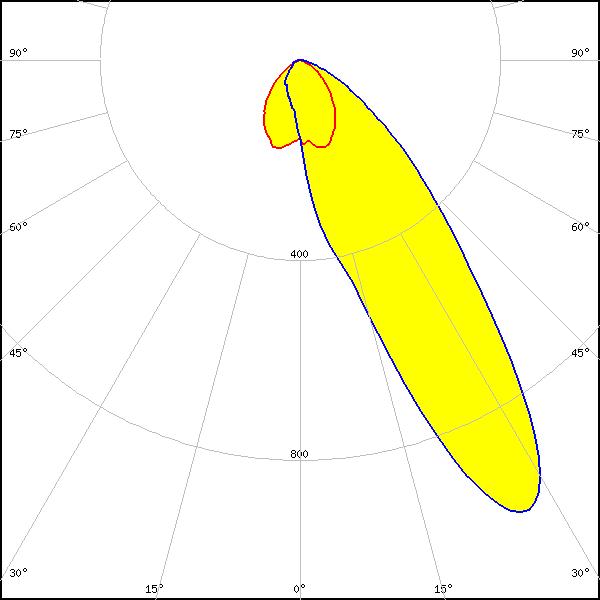

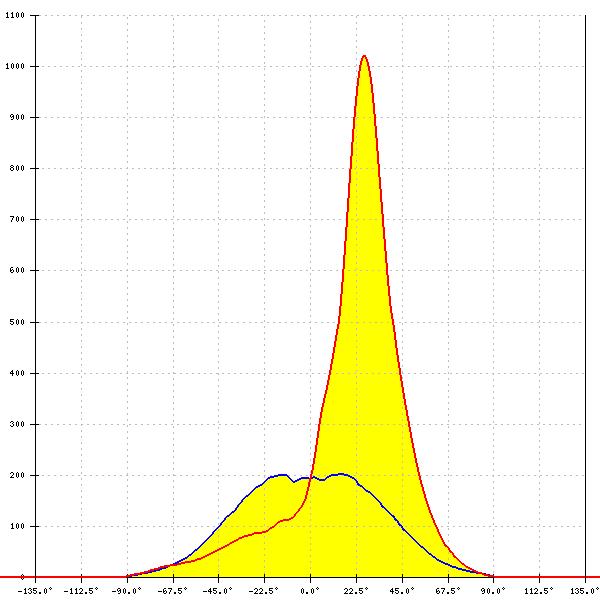

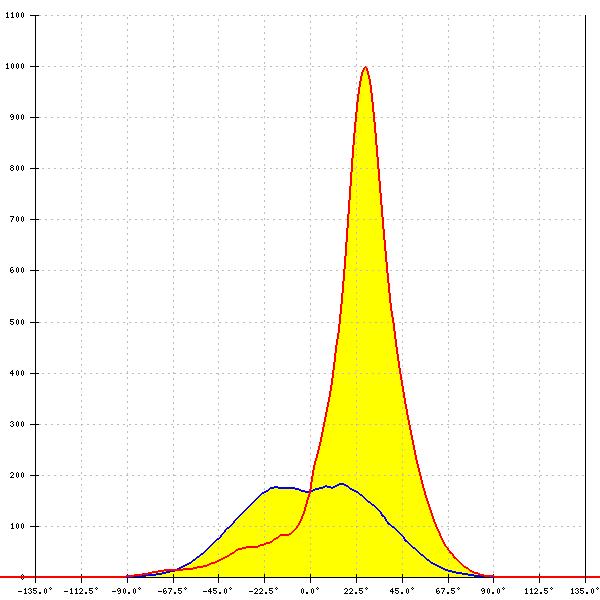

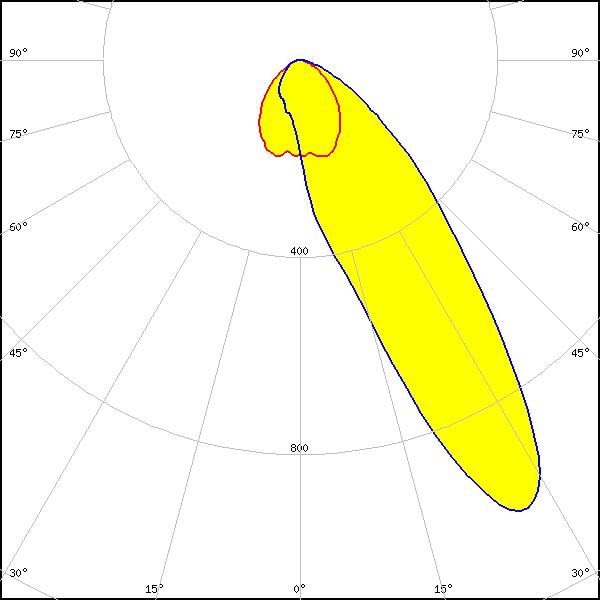

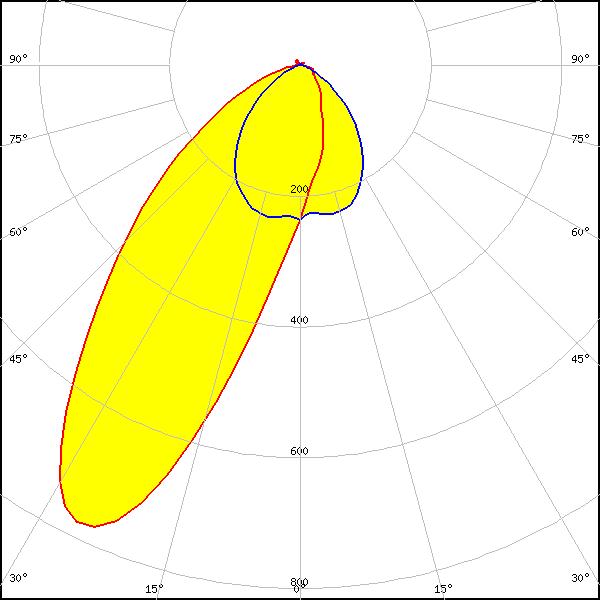

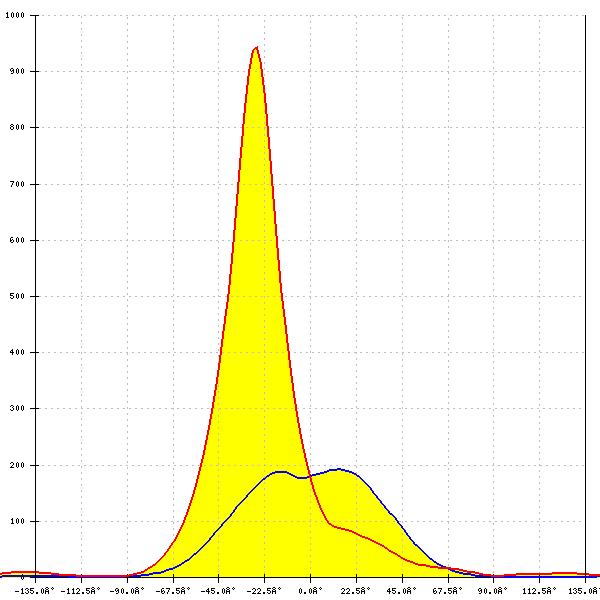

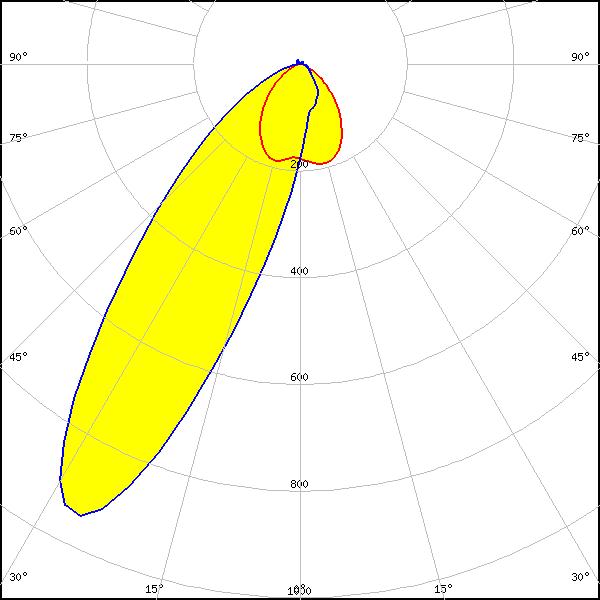

    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP19146_AMY-50-WAS-C2-WHT
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: asymmetric
    Peak intensity: 1.020 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

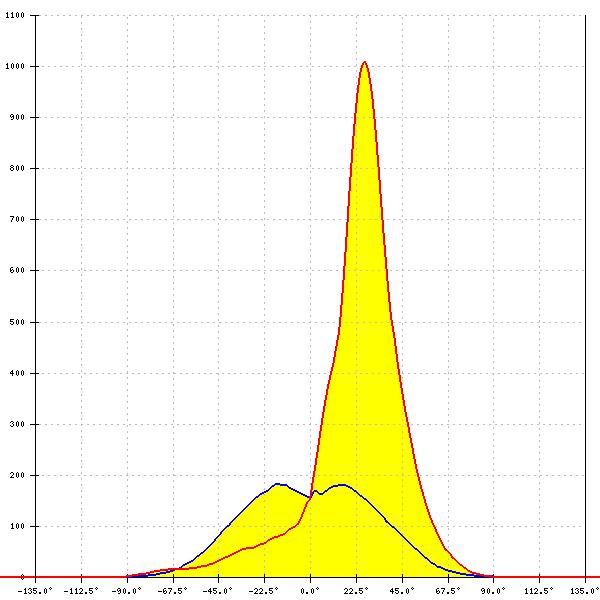

    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: asymmetric
    Peak intensity: 1.010 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

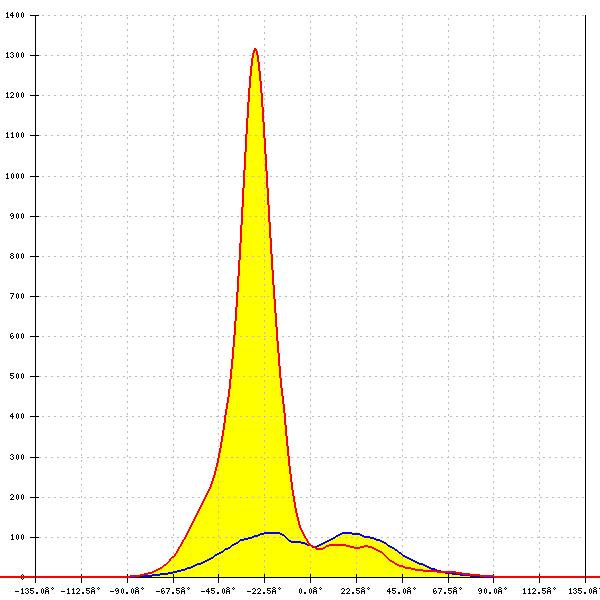

    LED: CHA0410
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 4.2 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: asymmetric
    Peak intensity: 1.319 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHA0612
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: asymmetric
    Peak intensity: 1.245 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHA0825
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 8.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: asymmetric
    Peak intensity: 1.061 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

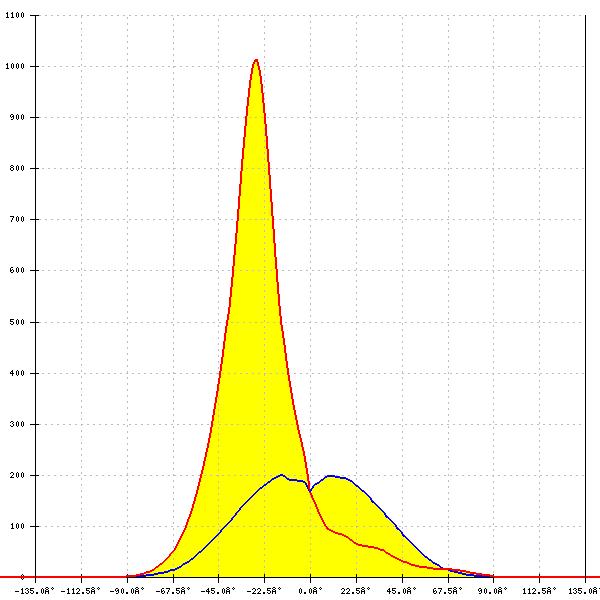

    LED: CMU10xx
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: asymmetric
    Peak intensity: 1.013 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

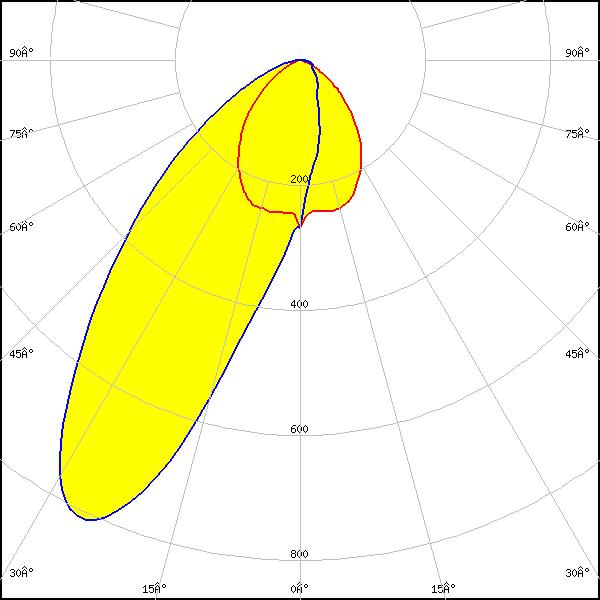

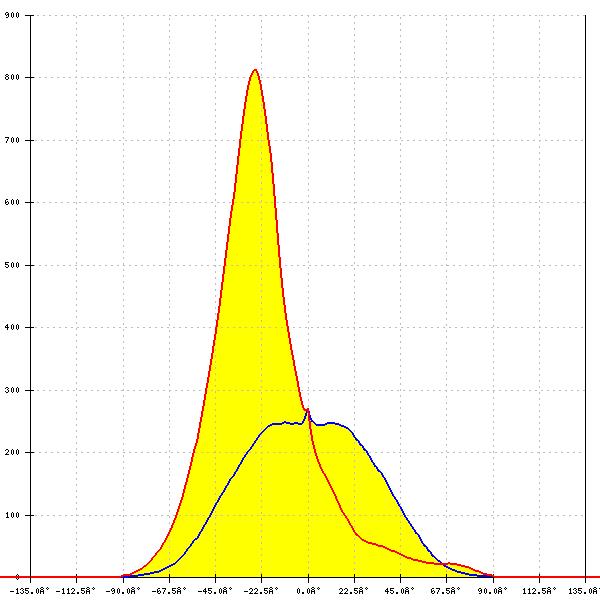

    LED: CMU15xx
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: asymmetric
    Peak intensity: 0.812 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

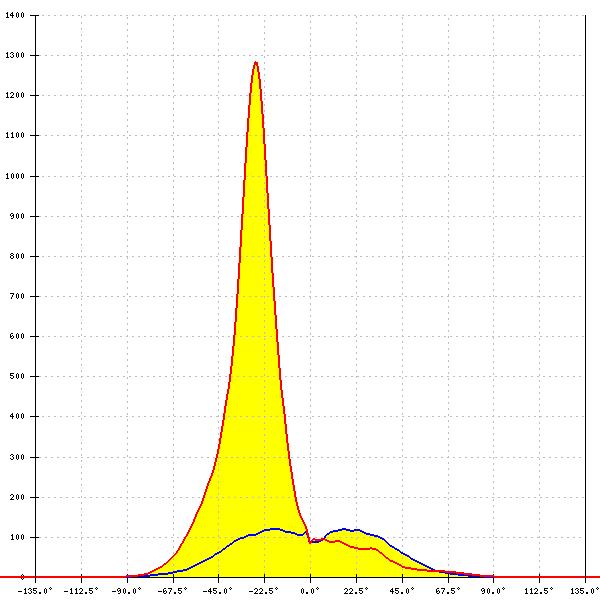

    LED: CXA/B 13xx
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 6.0 mm
    Required components:
    F17439_HEKLA-G2-J
    FWHM: asymmetric
    Peak intensity: 1.283 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 15xx
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 8.9 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: asymmetric
    Peak intensity: 1.056 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

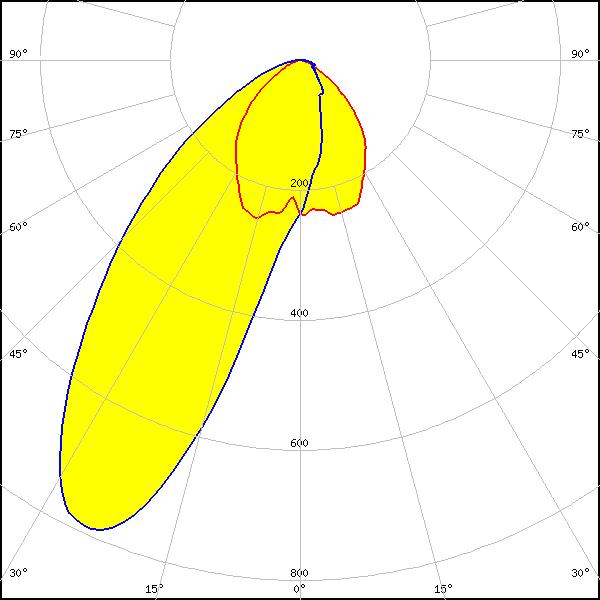

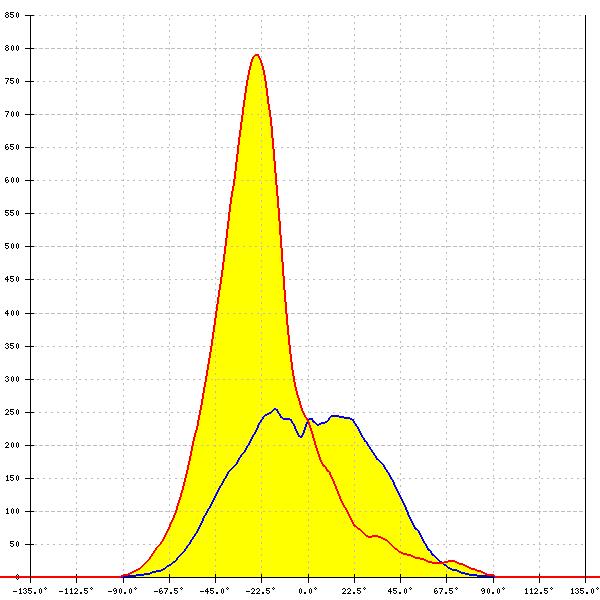

    LED: LUXEON CX Plus CoB L08 (Gen2)
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: asymmetric
    Peak intensity: 0.793 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

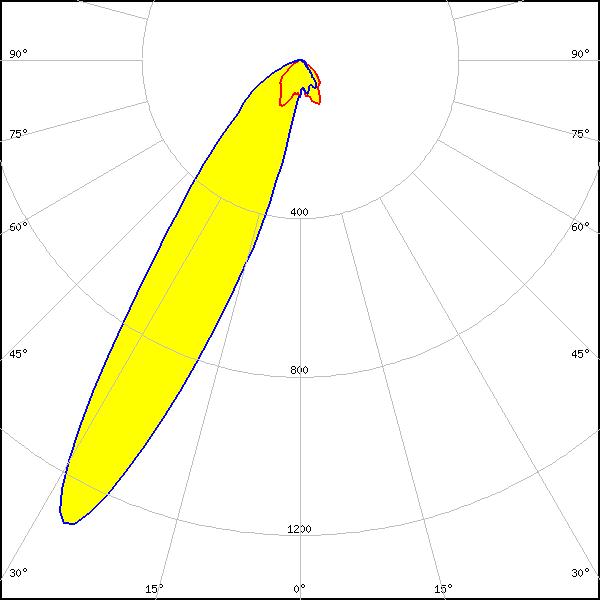

    LED: LUXEON CX Plus CoB - HD S01H4
    Ordering code: CP19137_AMY-50-WAS-B2
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: asymmetric
    Peak intensity: 1.314 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S02H6
    Ordering code: CP19137_AMY-50-WAS-B2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: asymmetric
    Peak intensity: 1.193 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

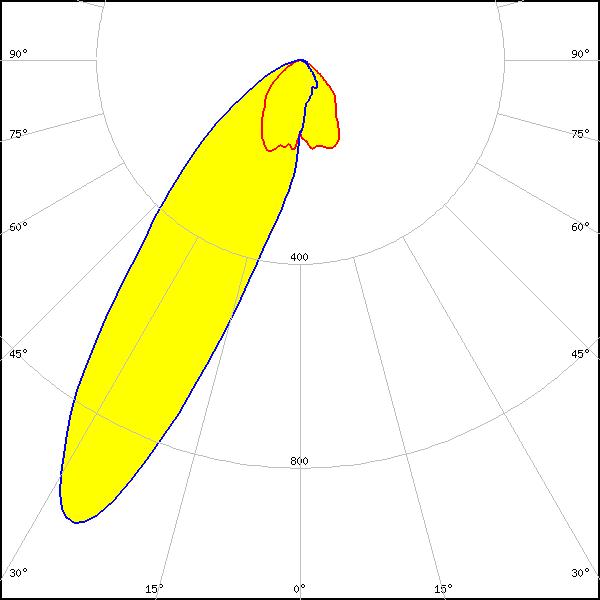

    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP19137_AMY-50-WAS-B2
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: asymmetric
    Peak intensity: 1.011 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

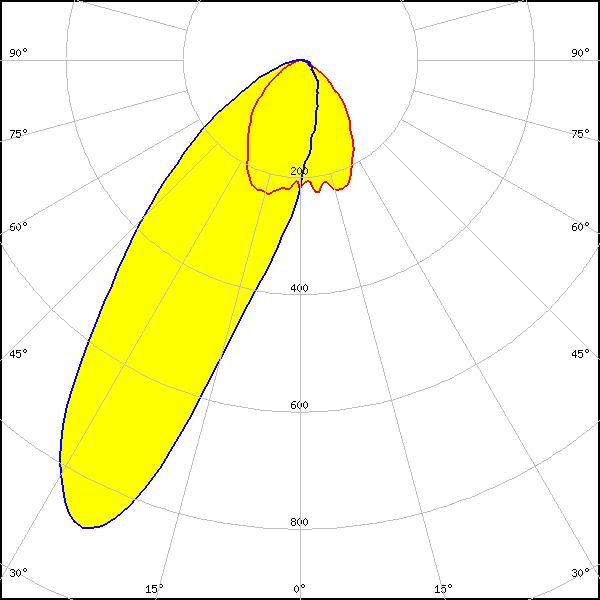

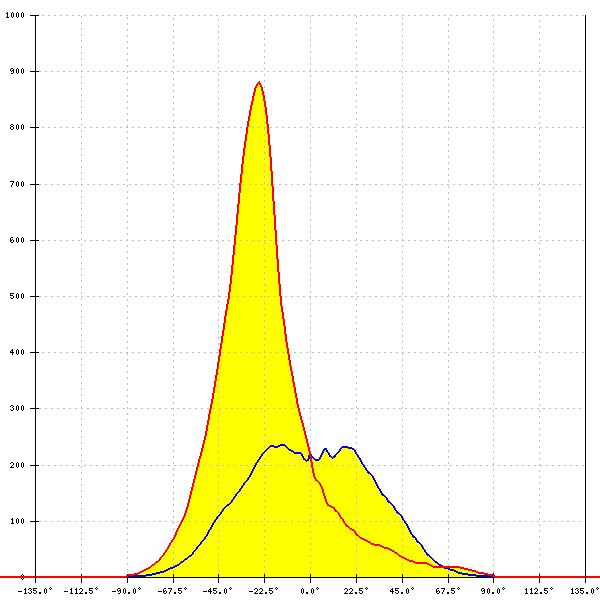

    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: asymmetric
    Peak intensity: 0.880 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

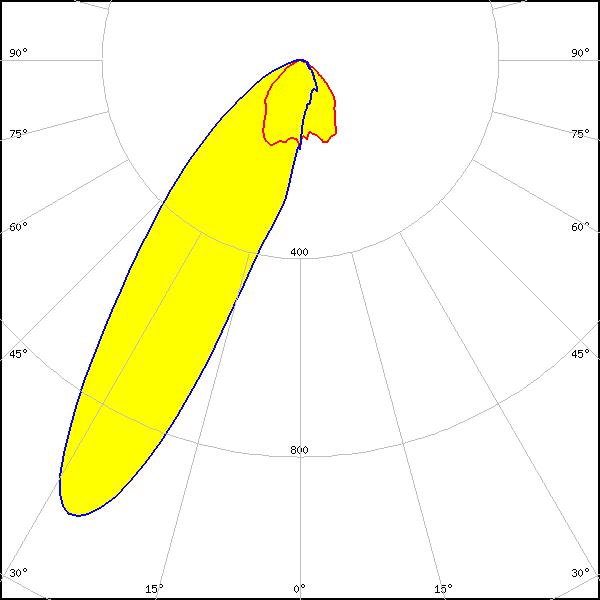

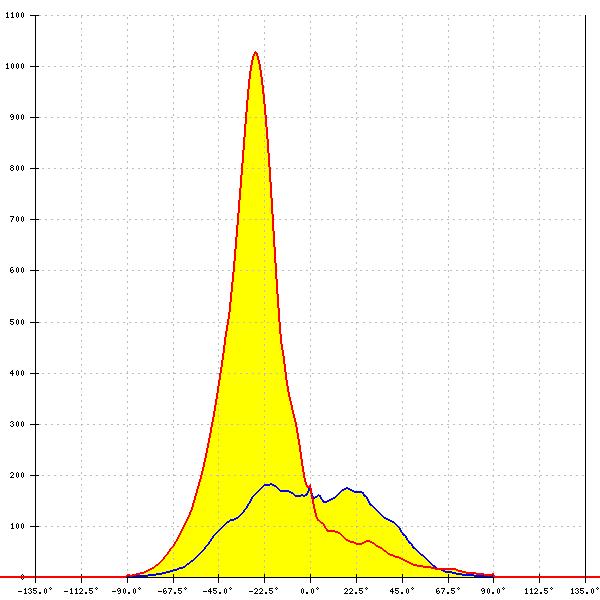

    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 9.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: asymmetric
    Peak intensity: 1.027 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: asymmetric
    Peak intensity: 1.184 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHM-9 XH (19x19)
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 9.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 1.111 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

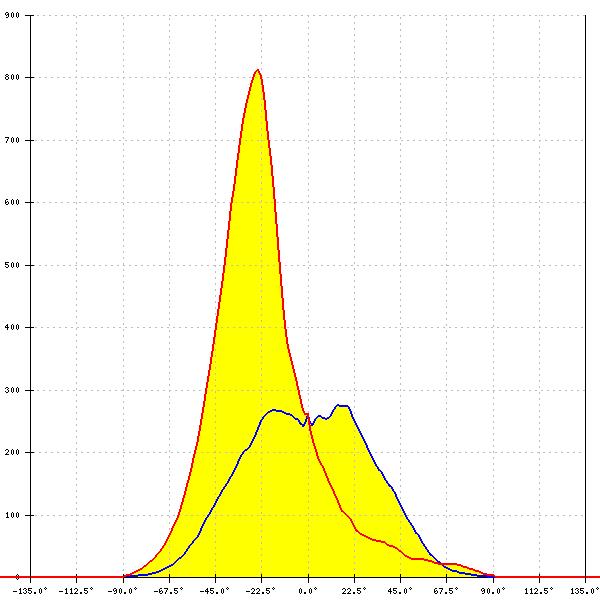

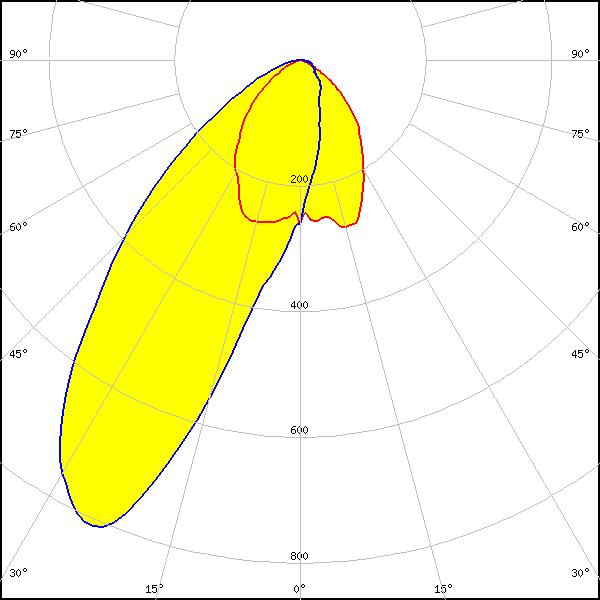

    LED: CTM-14 (Tunable White) Gen2
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 13.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: asymmetric
    Peak intensity: 0.812 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CTM-6 (Tunable White) Gen2
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 6.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: asymmetric
    Peak intensity: 1.227 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CTM-9 (Tunable White) Gen2
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: asymmetric
    Peak intensity: 1.103 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CxM-6 (13.5x13.5)
    Ordering code: CP19137_AMY-50-WAS-B2
    LES size: 6.3 mm
    Required components:
    BJB: 47.360.1020
    FWHM: asymmetric
    Peak intensity: 1.317 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB J-Type
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 14.6 mm
    Required components:
    Bender Wirth: 663a Hekla XL
    FWHM: asymmetric
    Peak intensity: 0.777 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 11.5 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: asymmetric
    Peak intensity: 0.909 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 9)
    LES size: 8.7 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: asymmetric
    Peak intensity: 1.047 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 6)
    Ordering code: CP19137_AMY-50-WAS-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: asymmetric
    Peak intensity: 1.211 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP19137_AMY-50-WAS-B2
    LES size: 6.7 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: asymmetric
    Peak intensity: 1.170 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB T-Type
    Ordering code: CP19137_AMY-50-WAS-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: asymmetric
    Peak intensity: 1.201 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NJCWL024Z-V1MT: COB L-Type Tunable White
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 7.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 497 Typ L8 HV
    FWHM: asymmetric
    Peak intensity: 1.233 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NJNWS012Z-V1MT: COB S-Type Tunable White
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 5.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8 HV
    FWHM: asymmetric
    Peak intensity: 1.365 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

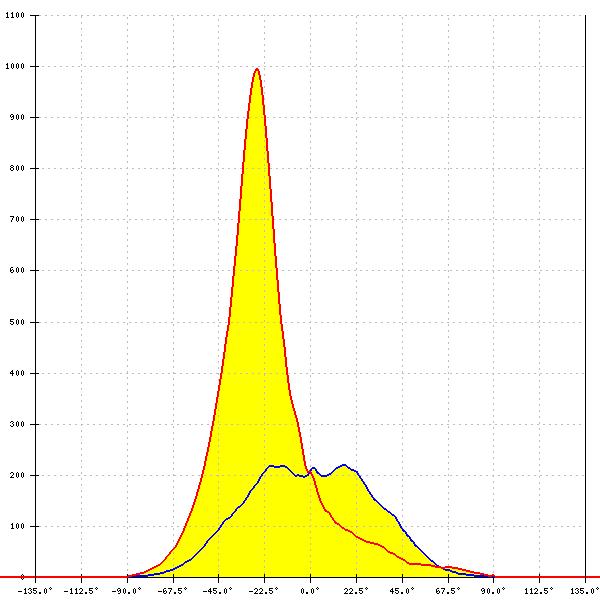

    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8 HV
    FWHM: asymmetric
    Peak intensity: 0.996 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: C18441_AMY-50-WAS
    LES size: 9.8 mm
    FWHM: asymmetric
    Peak intensity: 1.020 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

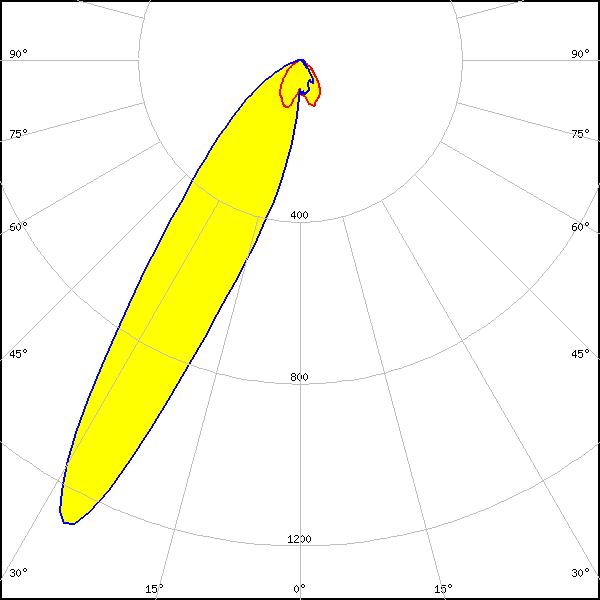

    LED: LC010C
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 6.0 mm
    FWHM: asymmetric
    Peak intensity: 1.290 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

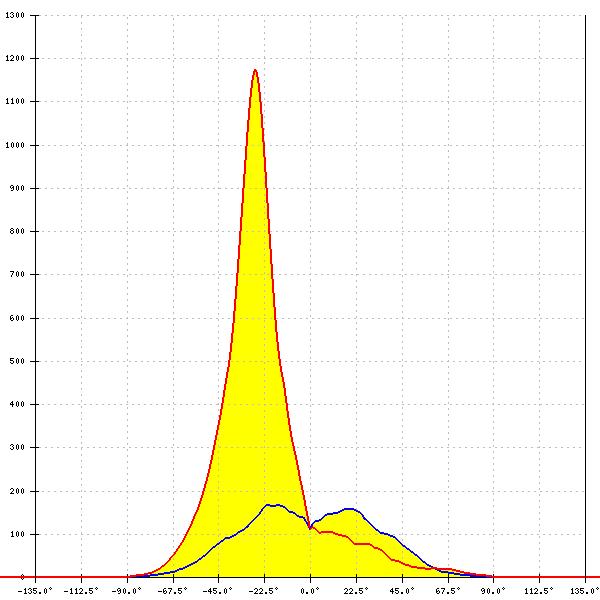

    LED: LC010T (Tunable White)
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: asymmetric
    Peak intensity: 1.174 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

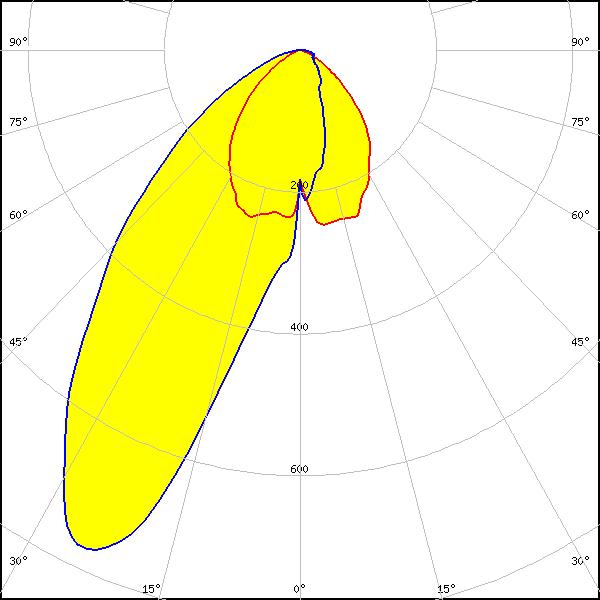

    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP19137_AMY-50-WAS-B2
    LES size: 14.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: asymmetric
    Peak intensity: 0.771 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

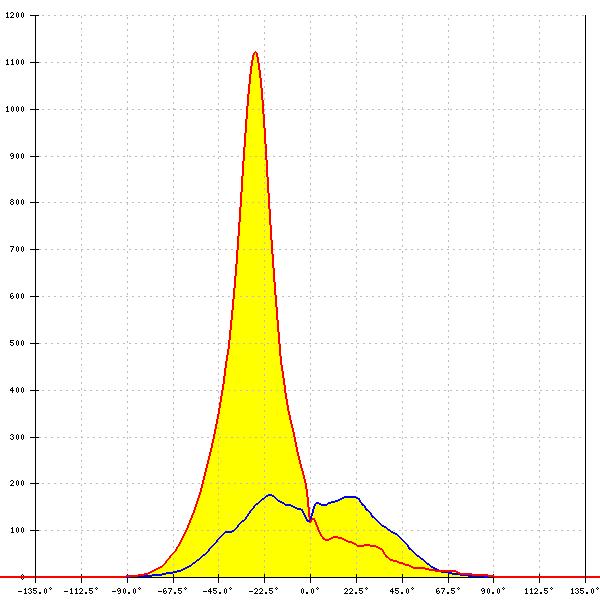

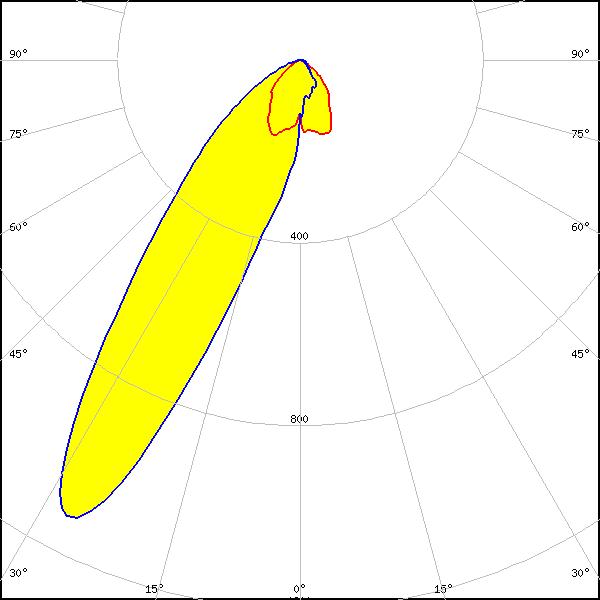

    LED: LC020C G2
    Ordering code: CP19137_AMY-50-WAS-B2
    LES size: 8.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: asymmetric
    Peak intensity: 1.122 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC030C/040C G2
    Ordering code: CP19137_AMY-50-WAS-B2
    LES size: 11.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: asymmetric
    Peak intensity: 0.951 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: asymmetric
    Peak intensity: 0.776 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 6
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 1.309 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 9.8
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: asymmetric
    Peak intensity: 0.975 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XOB 9.8 mm
    Ordering code: CP19128_AMY-50-WAS-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: asymmetric
    Peak intensity: 0.998 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
