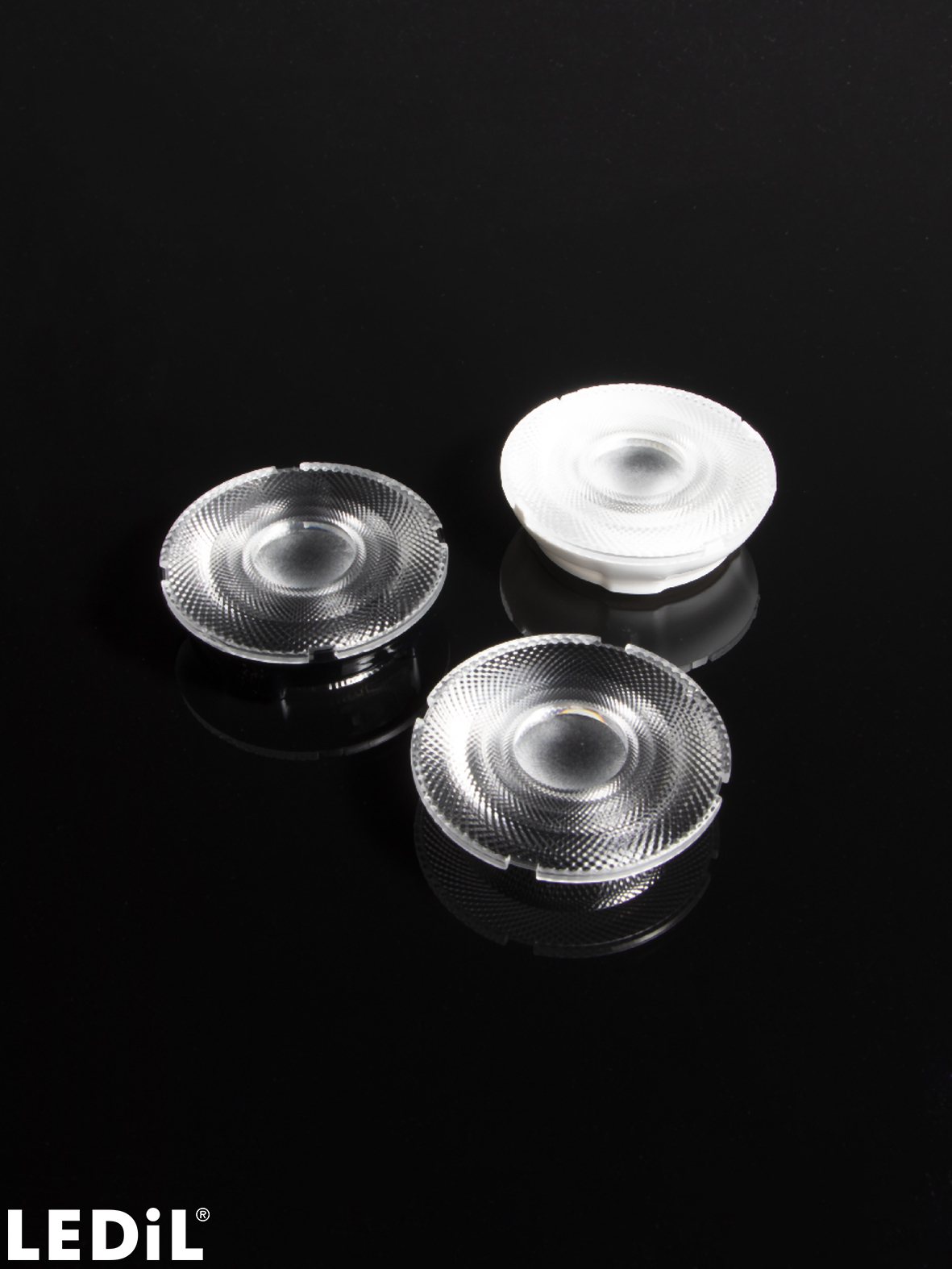

    AMY-50-M

    Print

    ~24° medium beam

    This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

    Specification
    • Dimensions:
      50 mm
    • Height:
      10.91 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • AMY-50-M
      PMMA
    • AMY-50-HLD2-C-WHT
      PC
    • AMY-50-HLD2-C
      PC
    • AMY-50-HLD2-B-WHT
      PC
    • AMY-50-HLD2-B
      PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C17687_AMY-50-M
      clear
    • Quantity in box:
      690 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.50 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 80 mm
    • MOQ Weight:
      1.80 kg
    • Assembly
    • CP19124_AMY-50-M-C2
      black,Holder C
    • CP19133_AMY-50-M-B2
      black,Holder B
    • CP19142_AMY-50-M-C2-WHT
      white,Holder C
    • CP19151_AMY-50-M-B2-WHT
      white,Holder B
    • Quantity in box:
      510 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.40 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 100 mm
    • MOQ Weight:
      2.10 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C17687_AMY-50-M
      CP19124_AMY-50-M-C2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    Illuminate with elegance – discover the versatility of AMY

    Compatibility guide

    LEDiL connector and socket compatibility

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR194 - Change of AMY-35-50 and -70 holder design

    Compatible product

    B+W 630 Bayonet35 datasheet

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    News

    AMY-50 – low profile COB lens for compact luminaires

    Luminaire, example

    Track light luminaire with AMY-50

    Application guide

    Guide for Architectural lighting optics

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    LEDiL guide for retail lighting optics

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA-SOCKETS and HEKLA-G2 connectors

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    HEKLA-G2B-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2B-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-I2

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-I3

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-TW1

    Version compatible with tunable white COBs of 15.8 x 15.8 mm packages

    HEKLA-G2B-TW2

    Version compatible with tunable white COBs of 18.8 x 18.8 mm packages

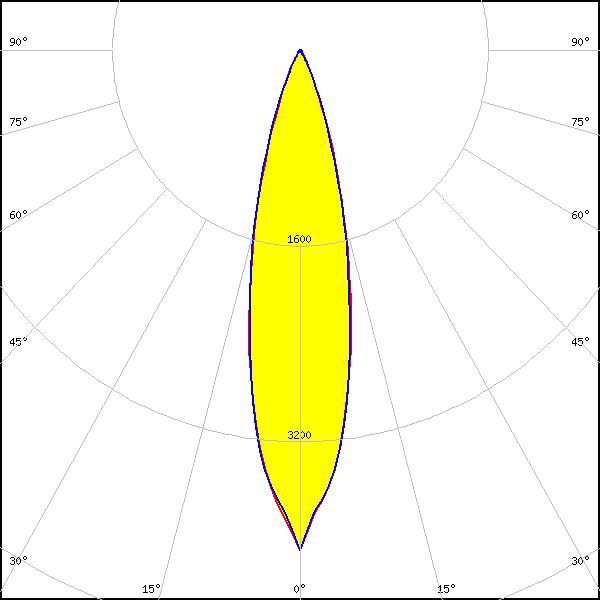

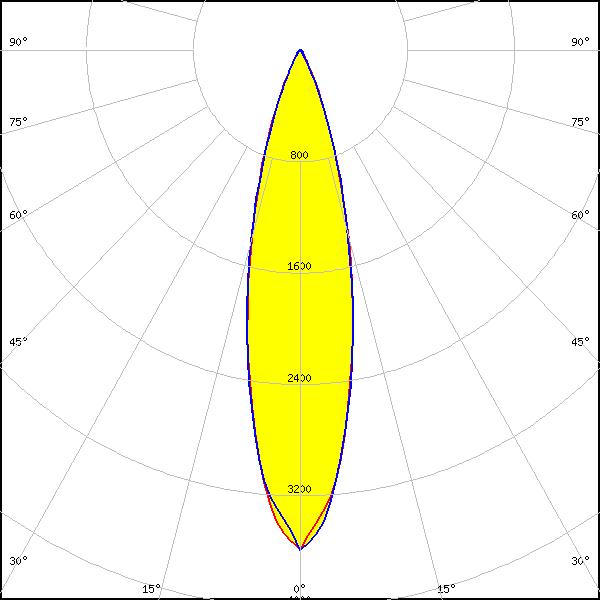

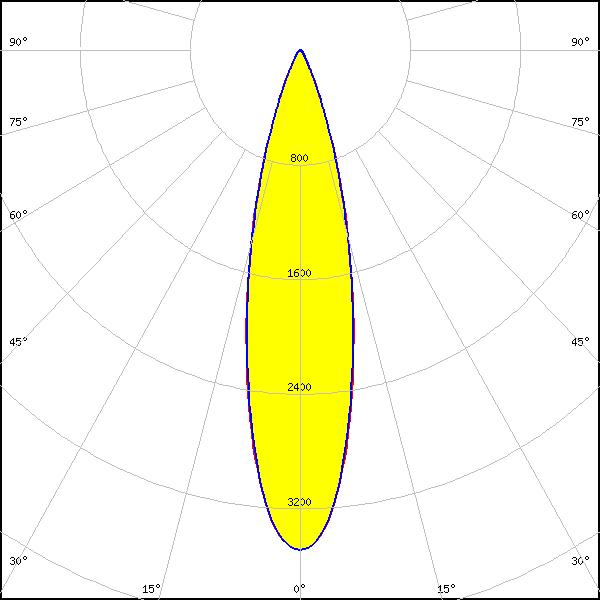

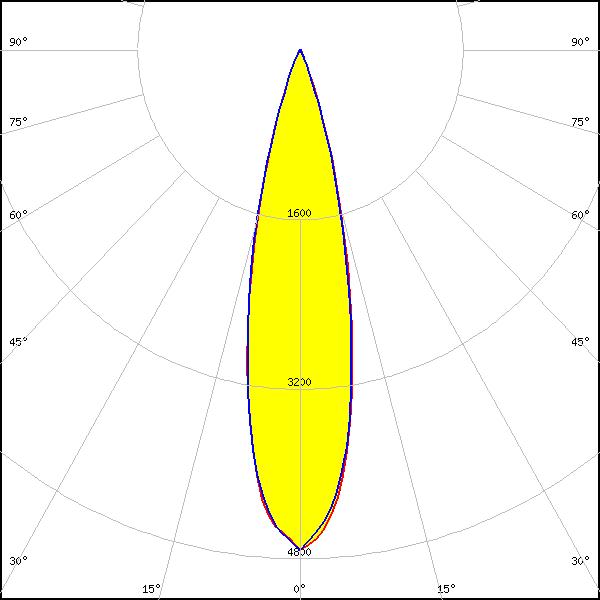

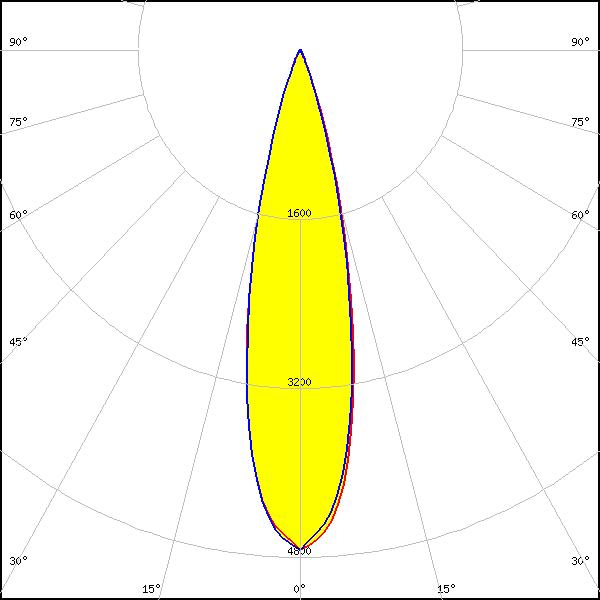

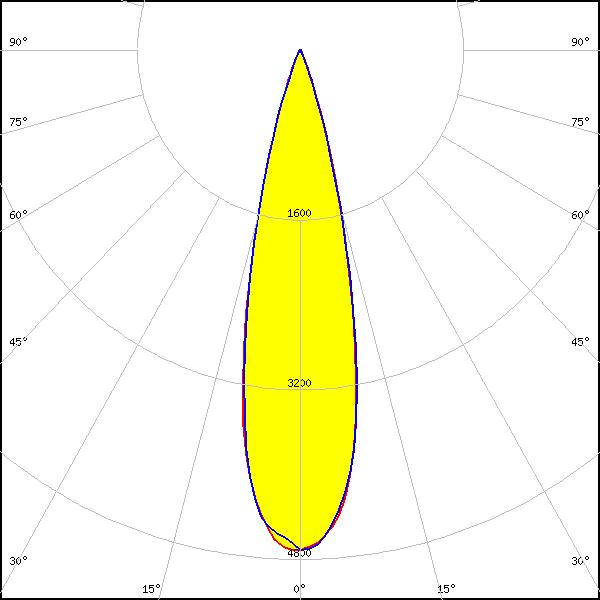

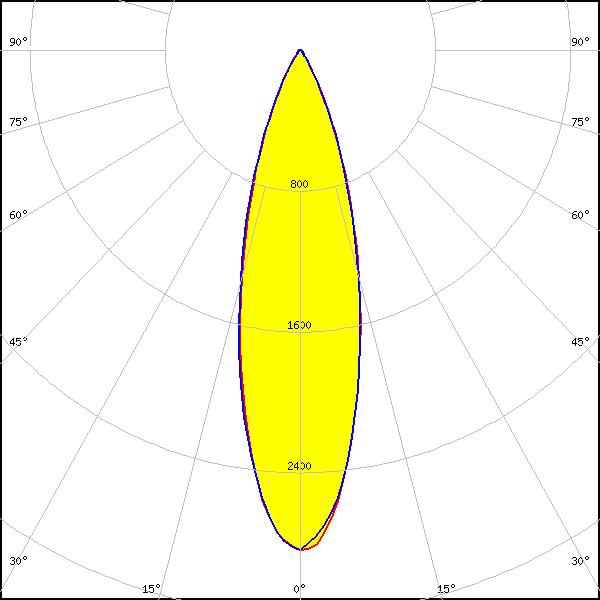

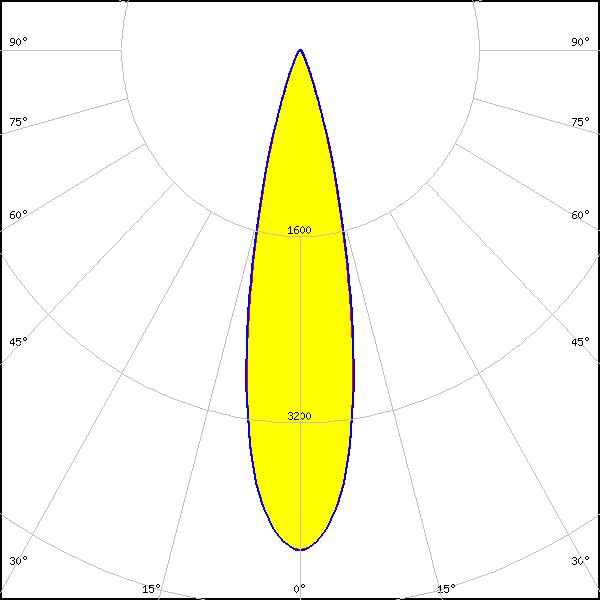

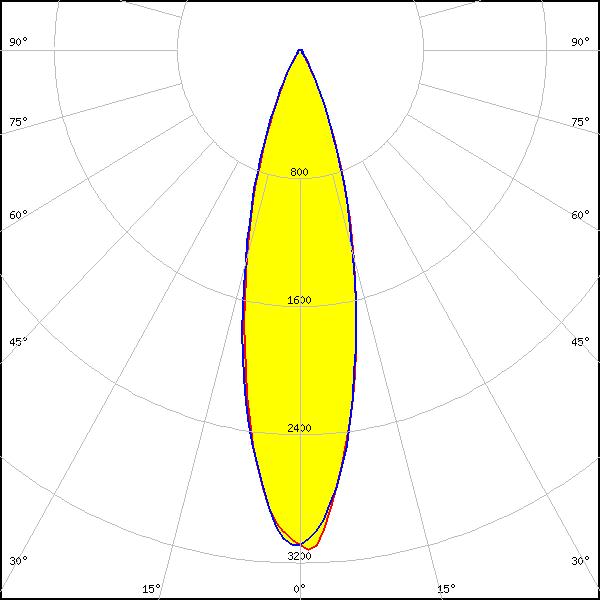

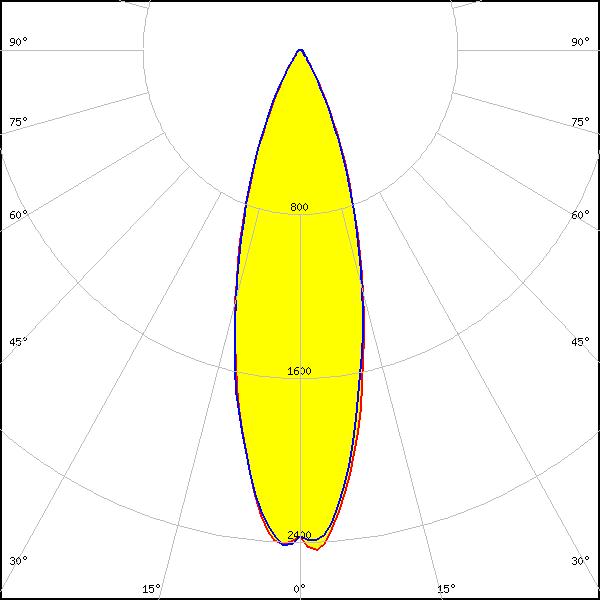

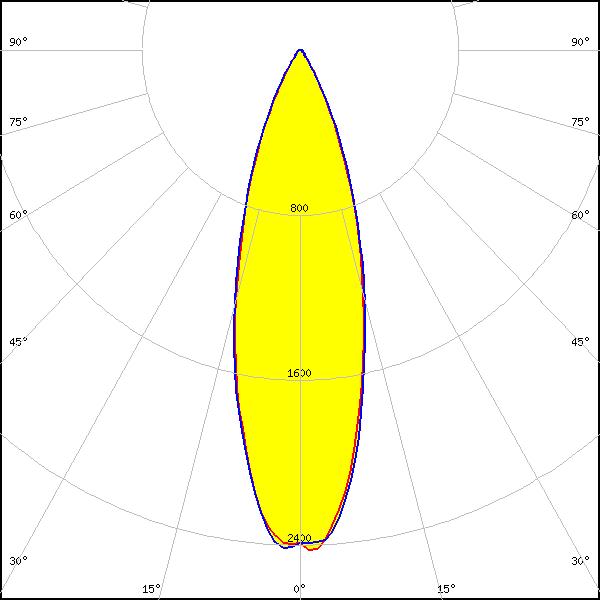

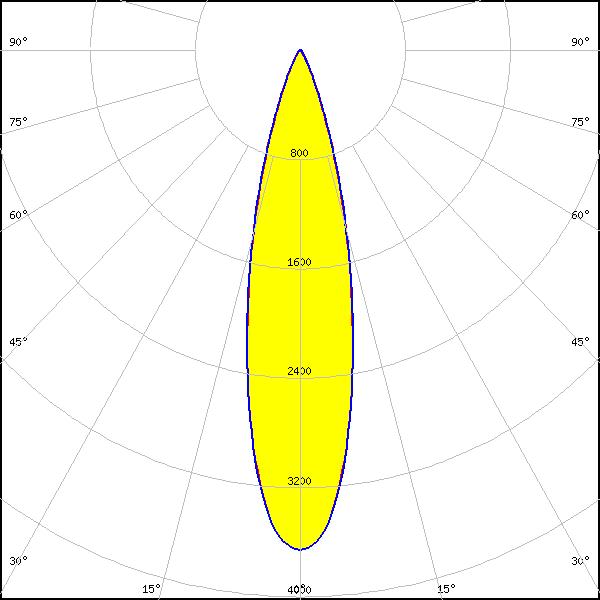

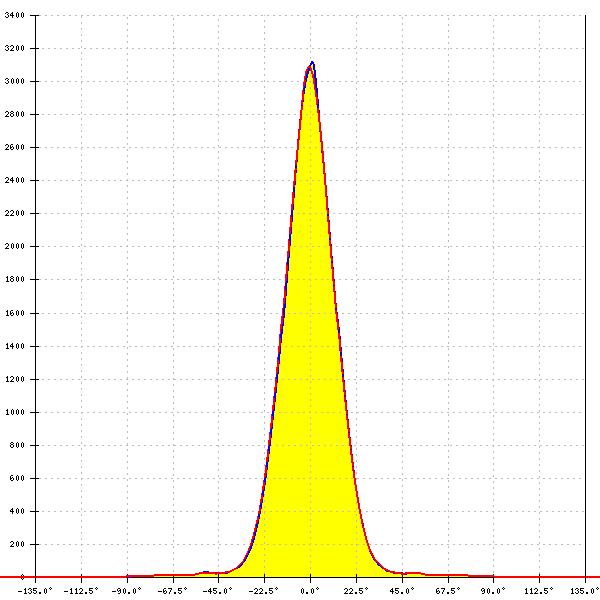

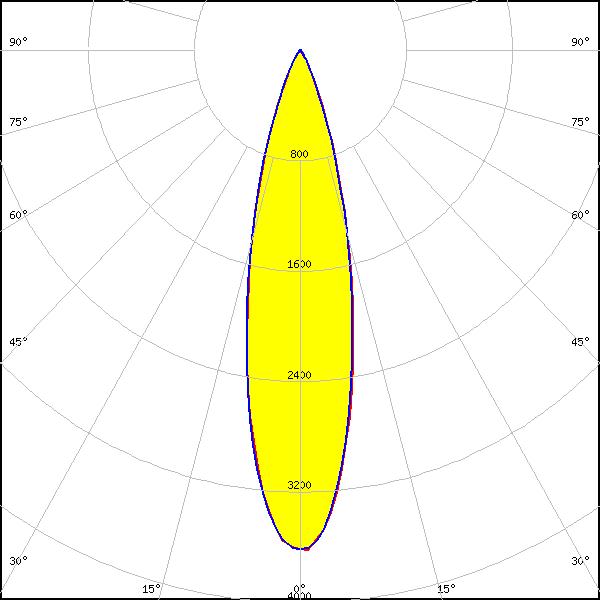

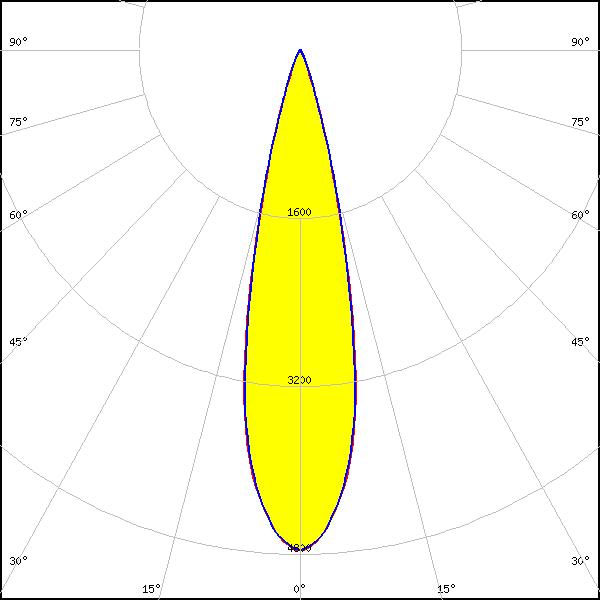

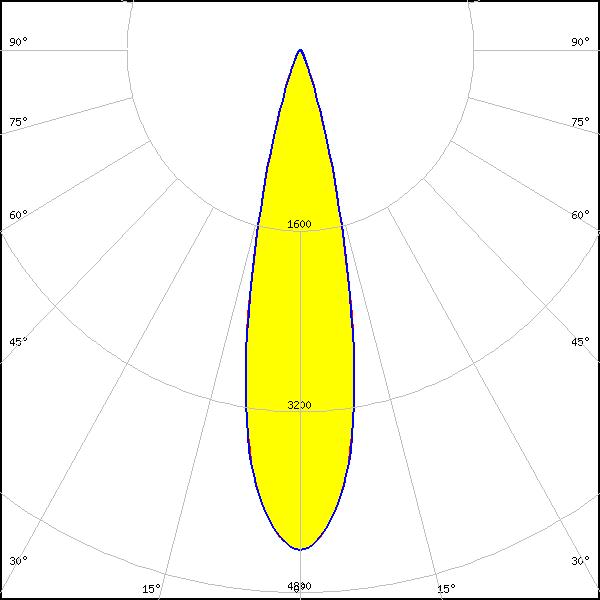

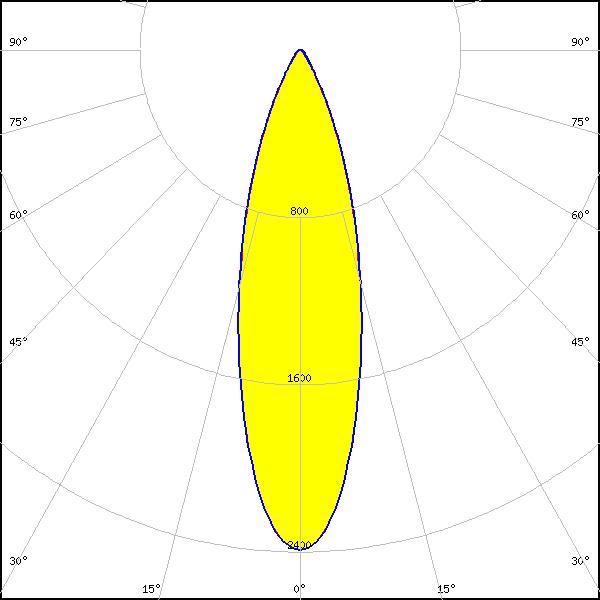

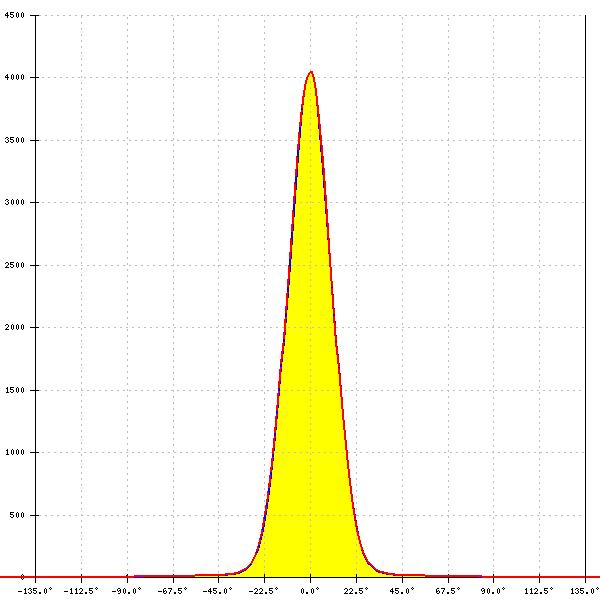

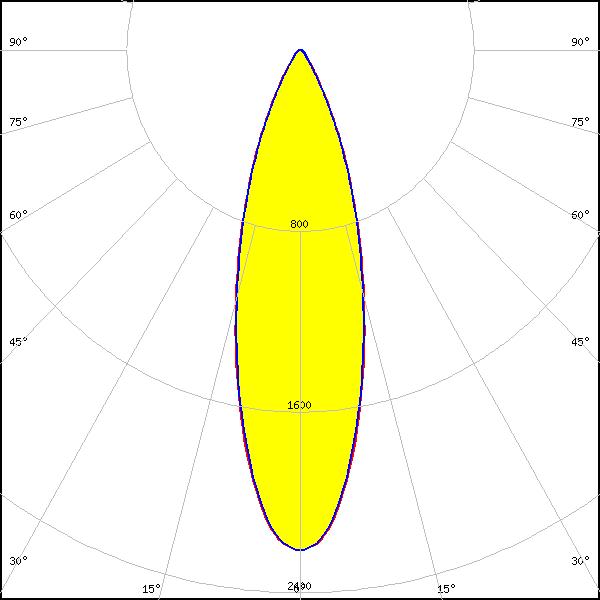

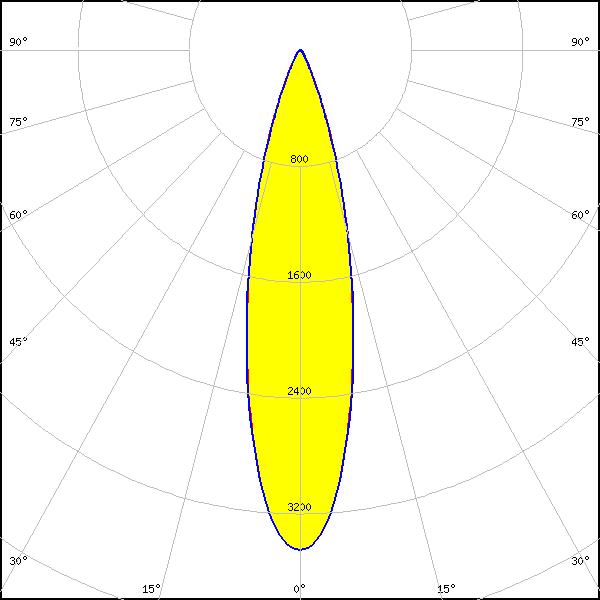

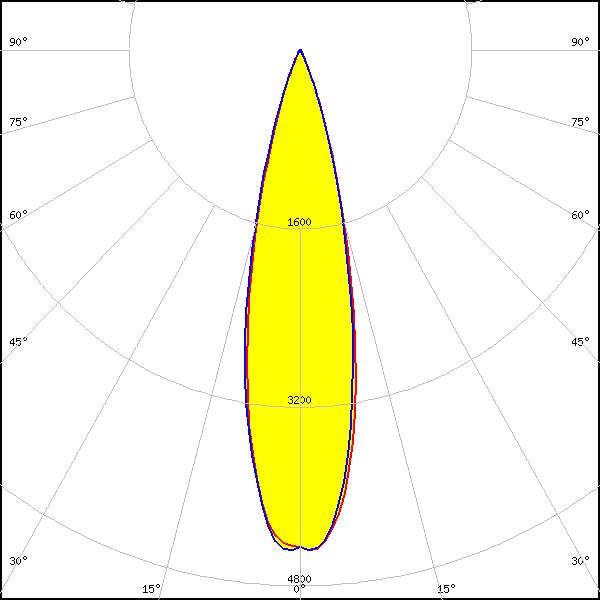

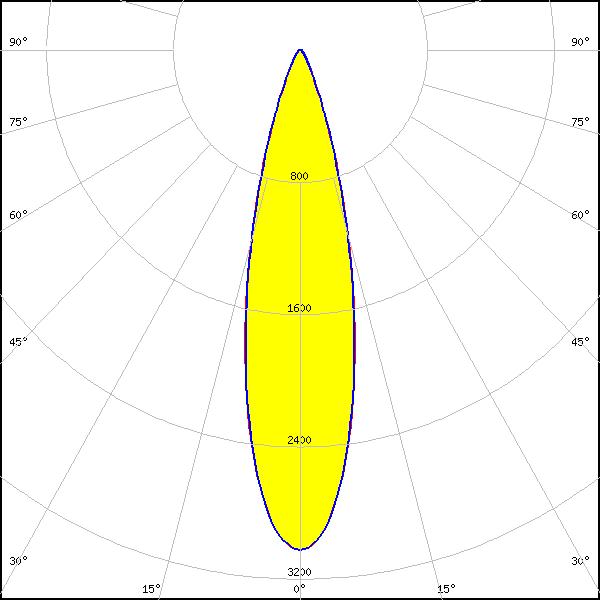

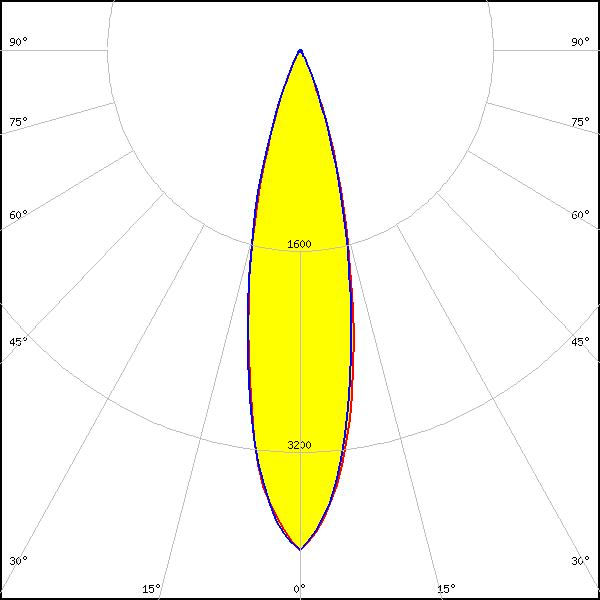

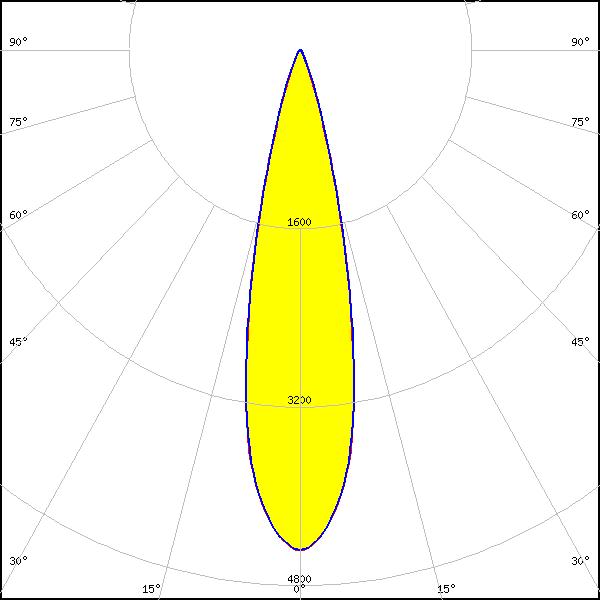

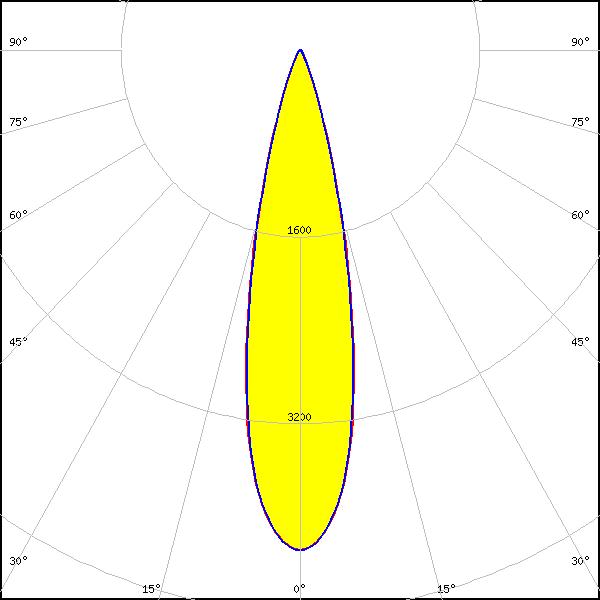

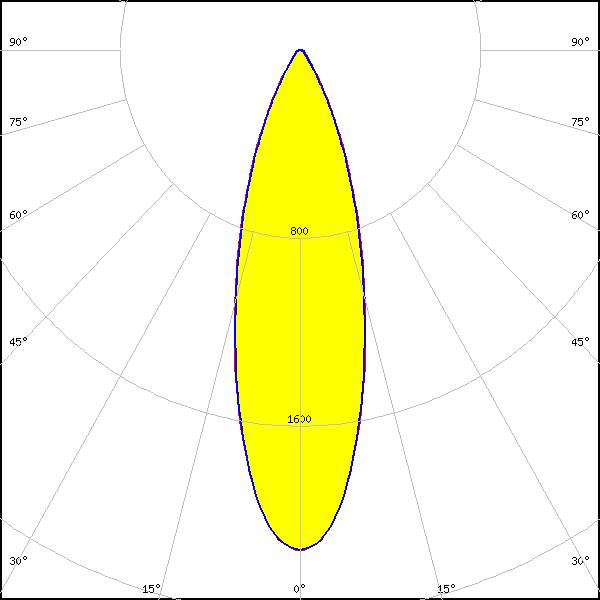

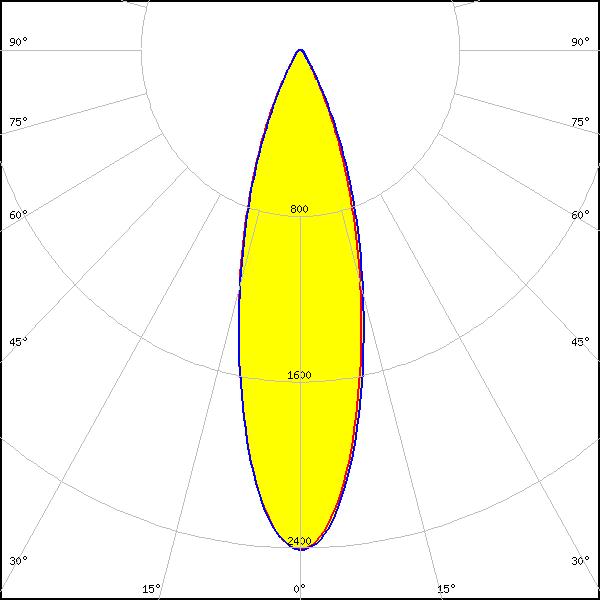

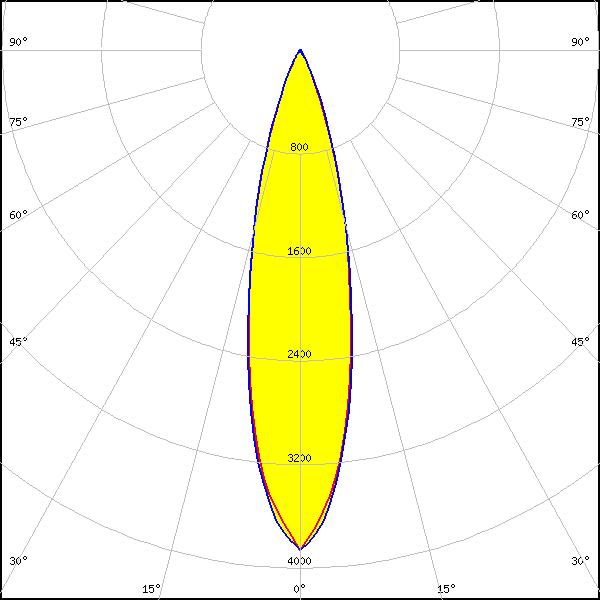

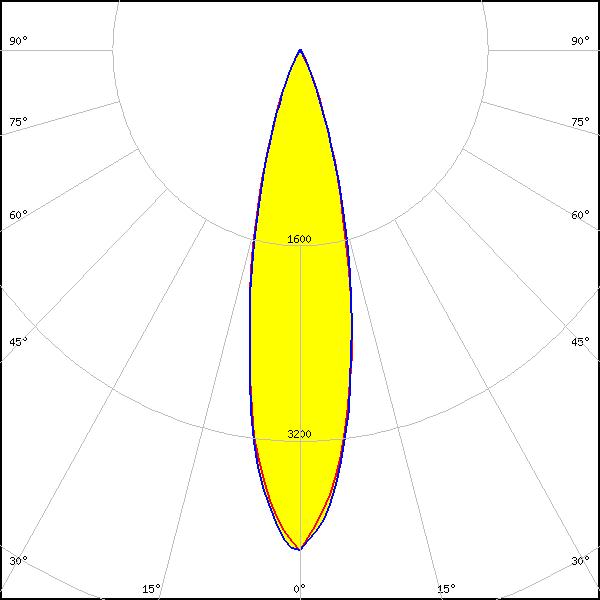

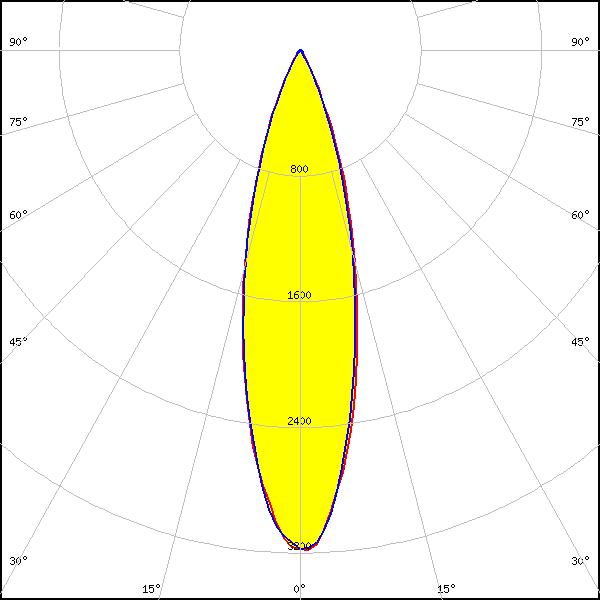

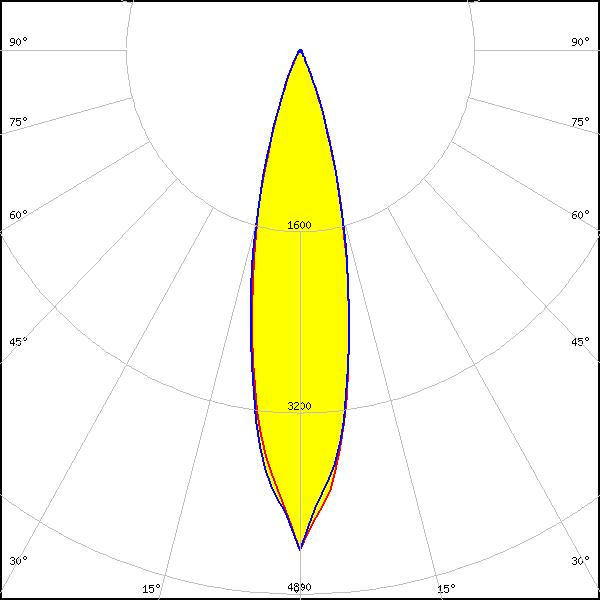

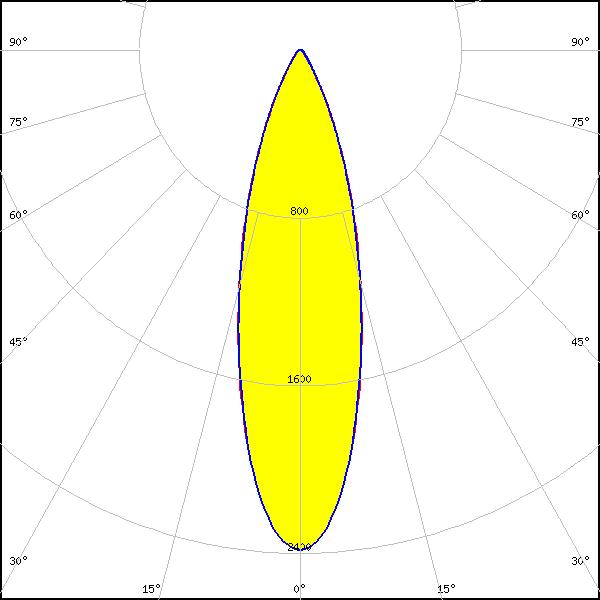

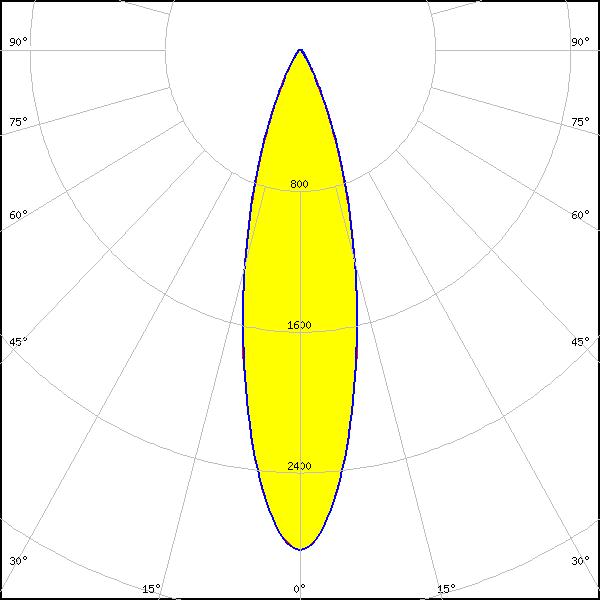

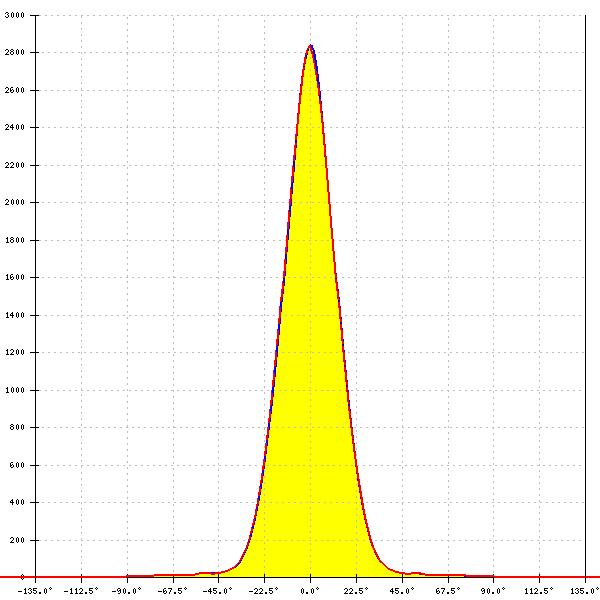

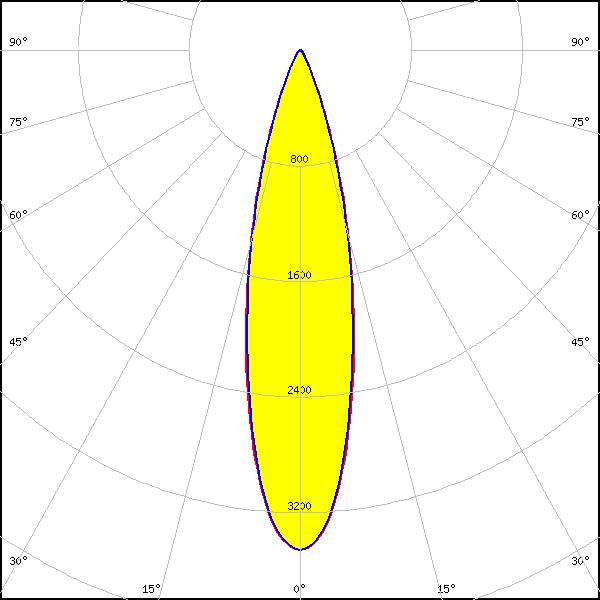

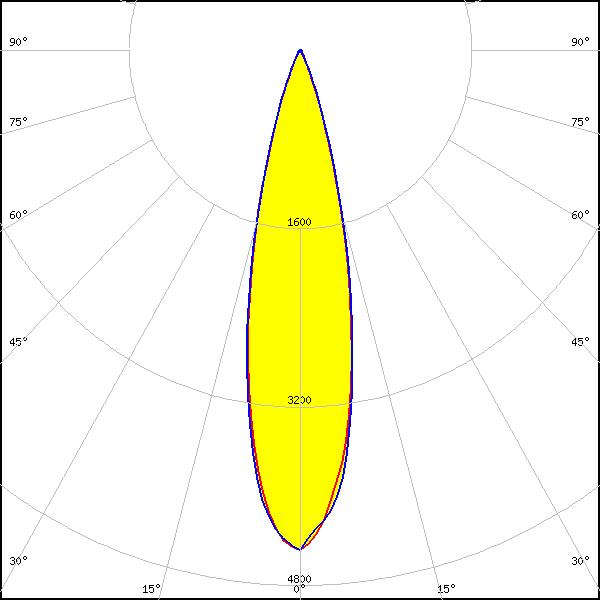

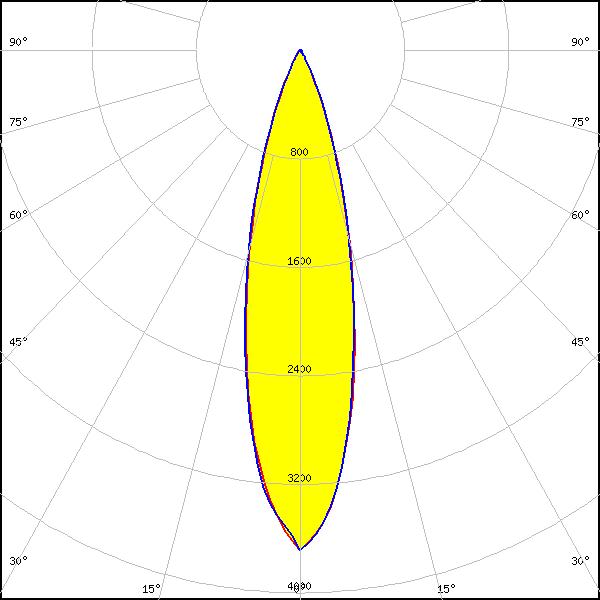

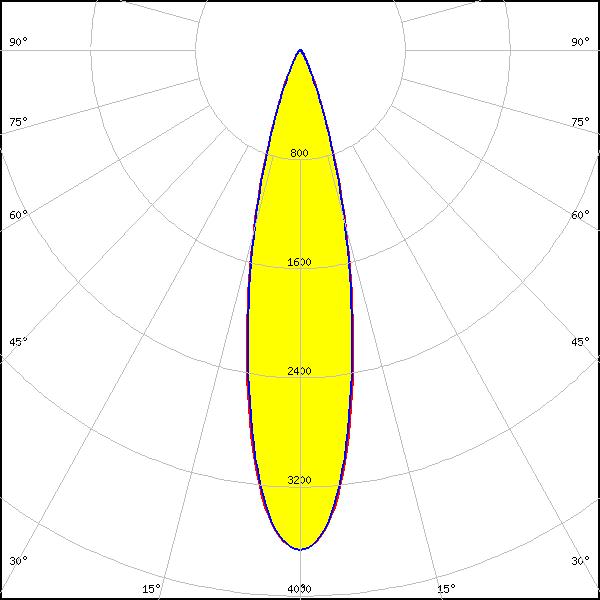

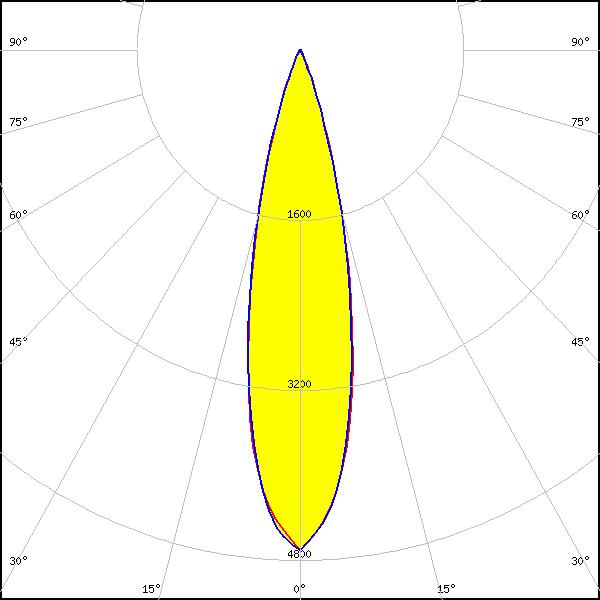

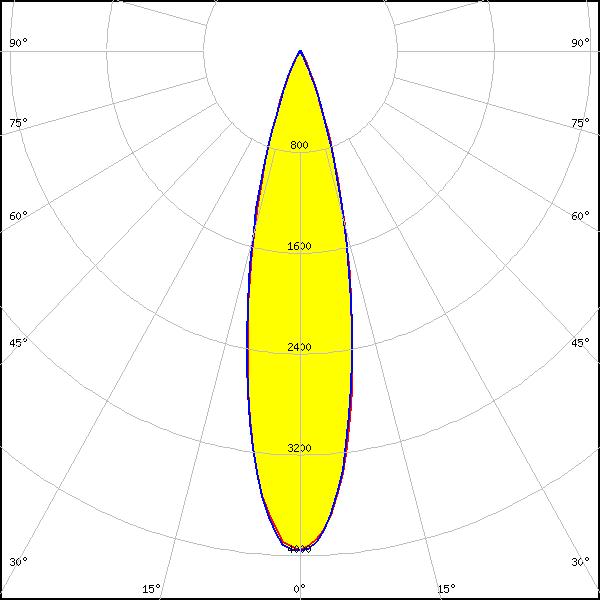

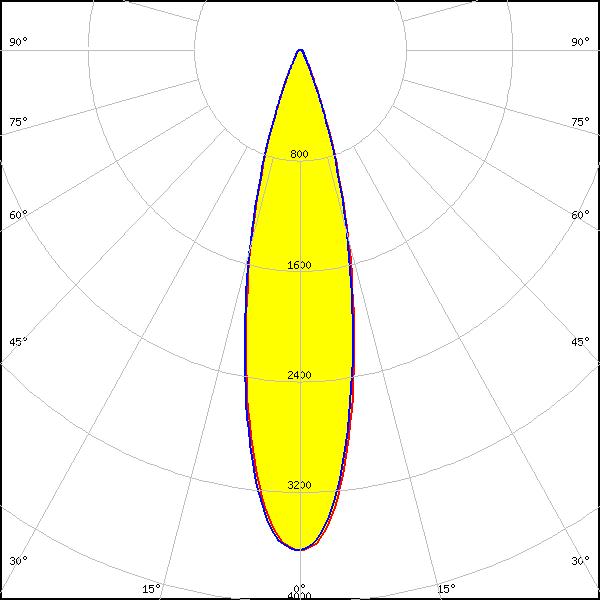

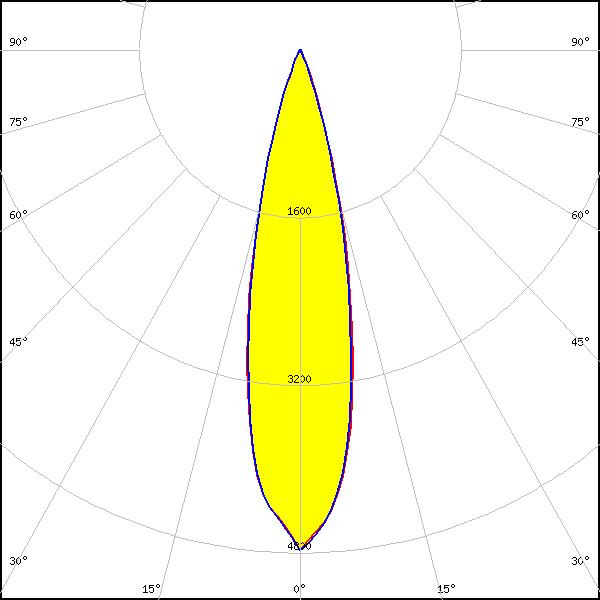

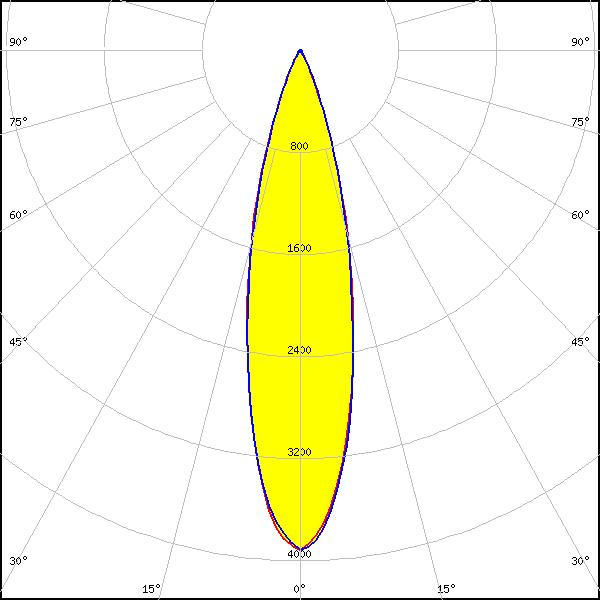

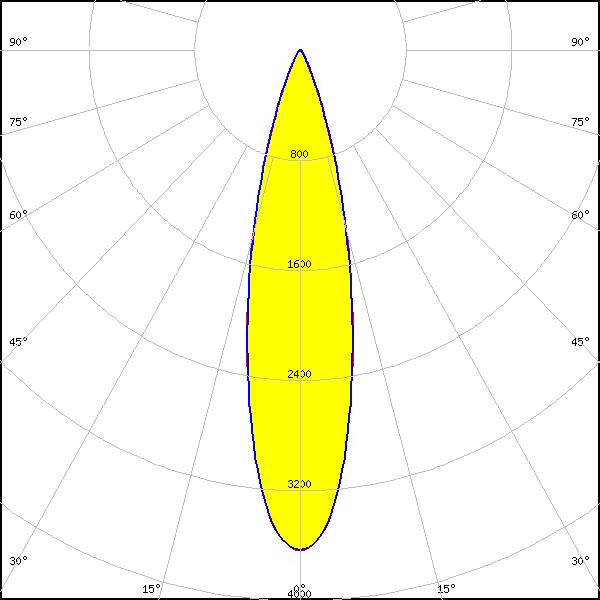

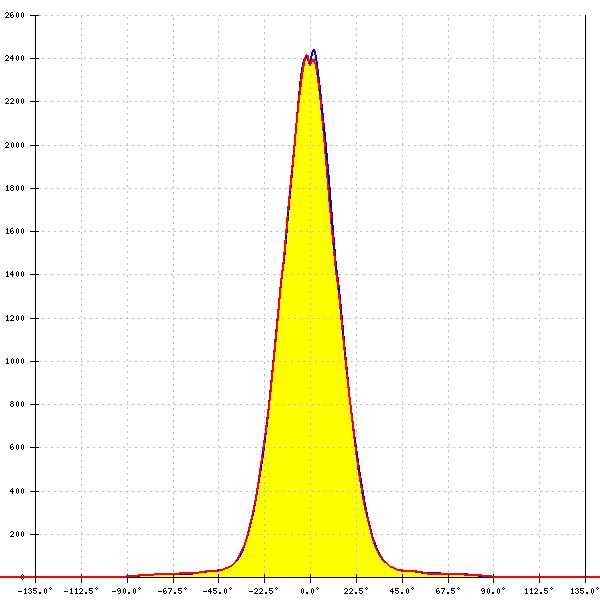

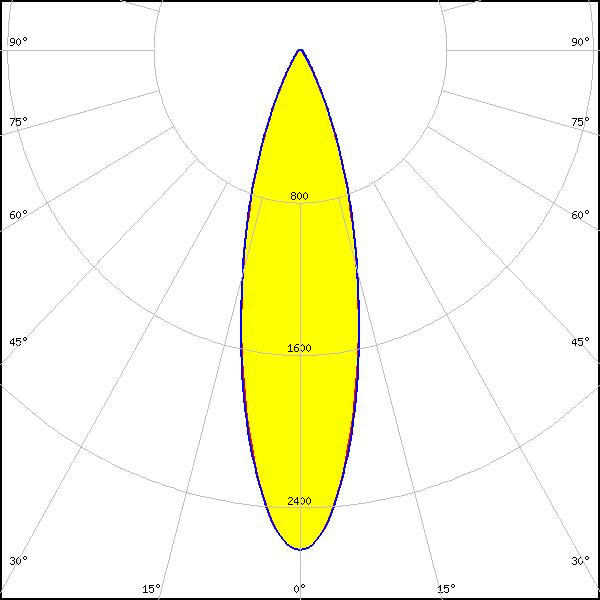

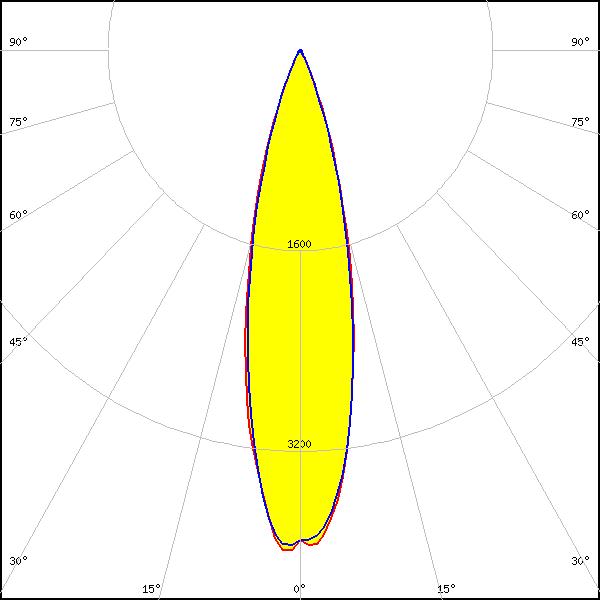

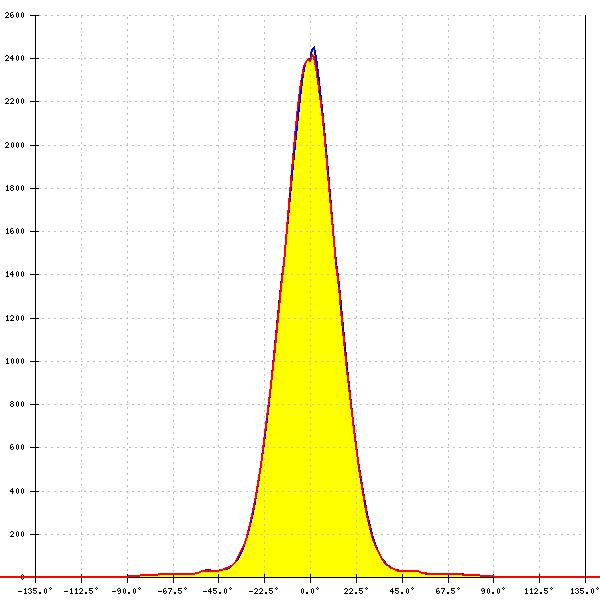

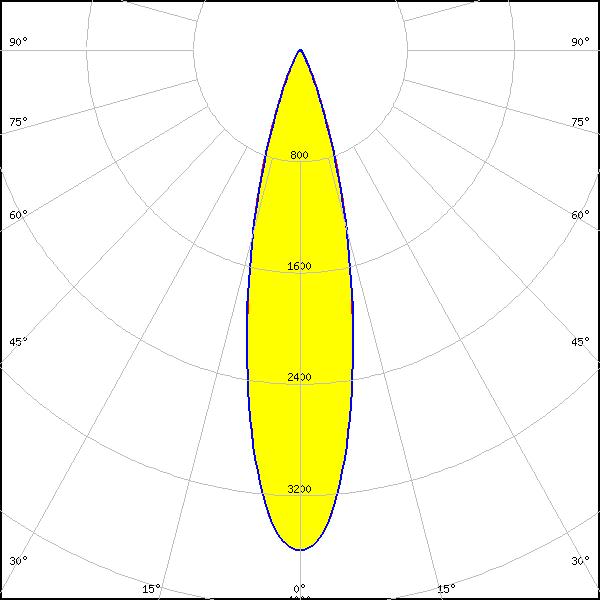

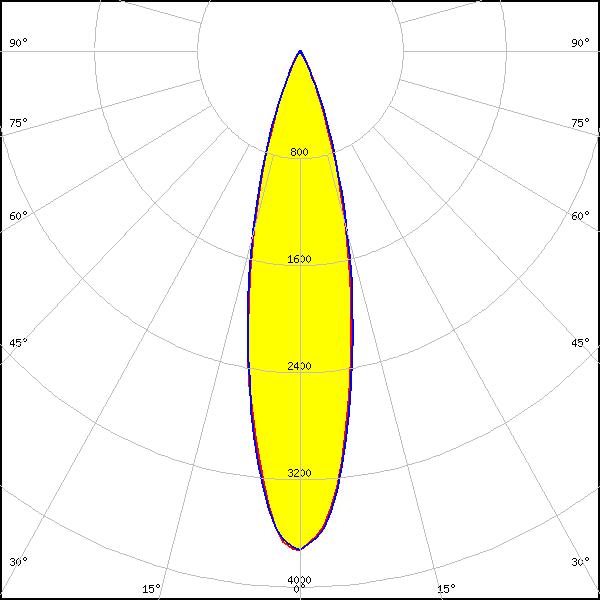

    Optical results

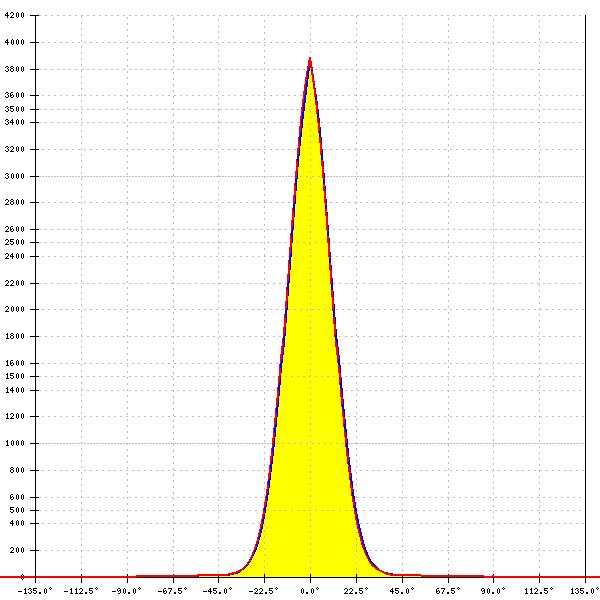

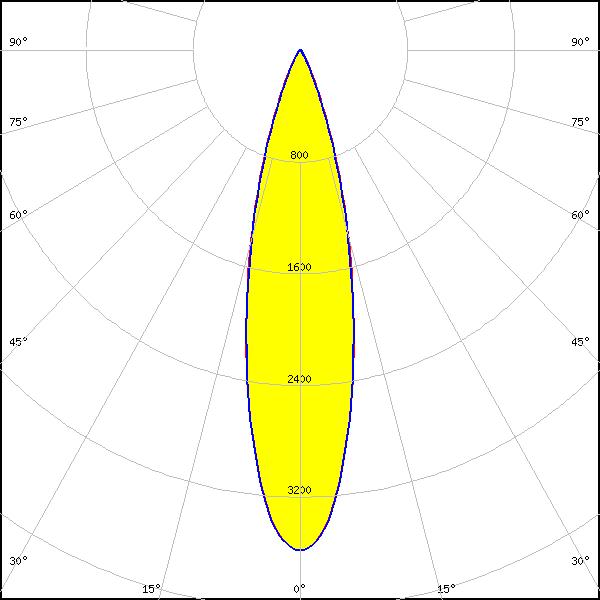

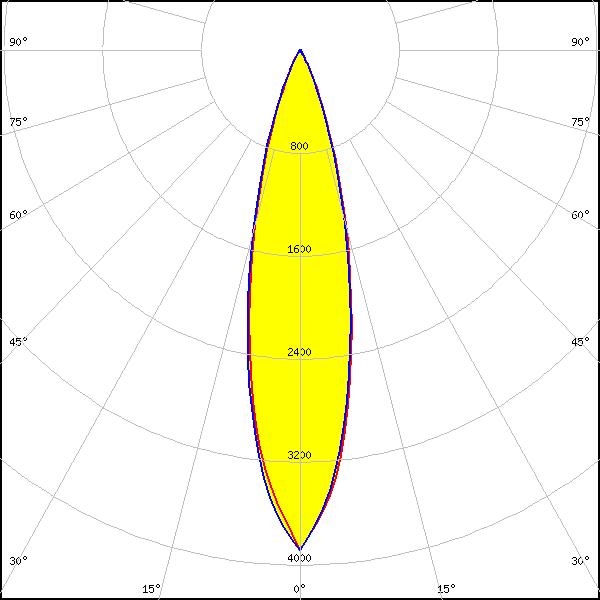

    LED: V10 Gen 8-9

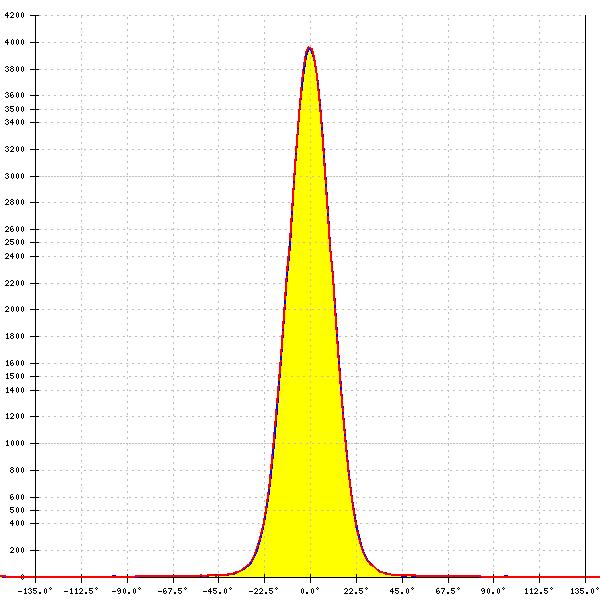

    Ordering code: CP19133_AMY-50-M-B2
    LES size: 10.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 24°
    FWTM: 47°
    Peak intensity: 3.887 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V10 Gen 8-9
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 10.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 26°
    FWTM: 48°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

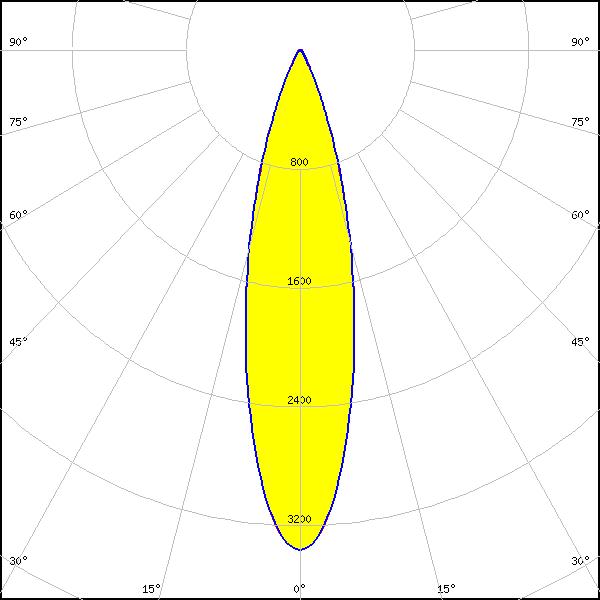

    LED: V11 HD Gen 8
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d Hekla
    FWHM: 26°
    FWTM: 50°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

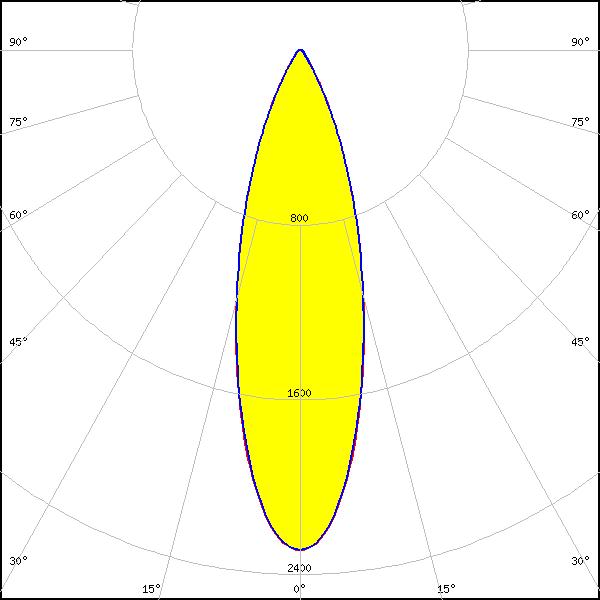

    LED: V13 Gen 8-9
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 14.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 31°
    FWTM: 60°
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

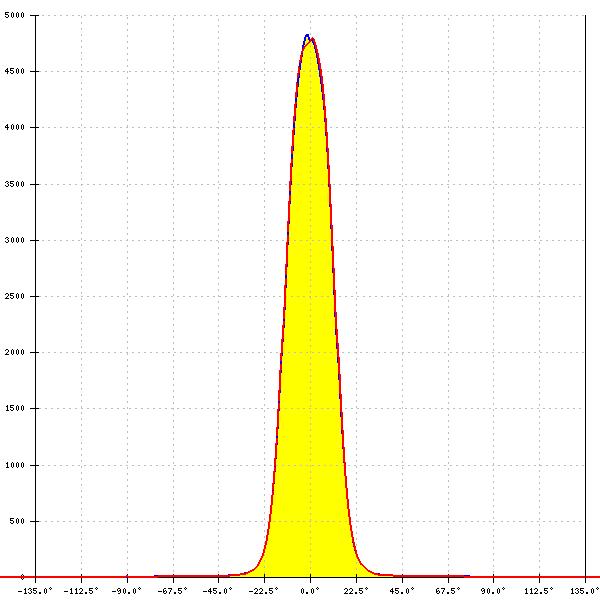

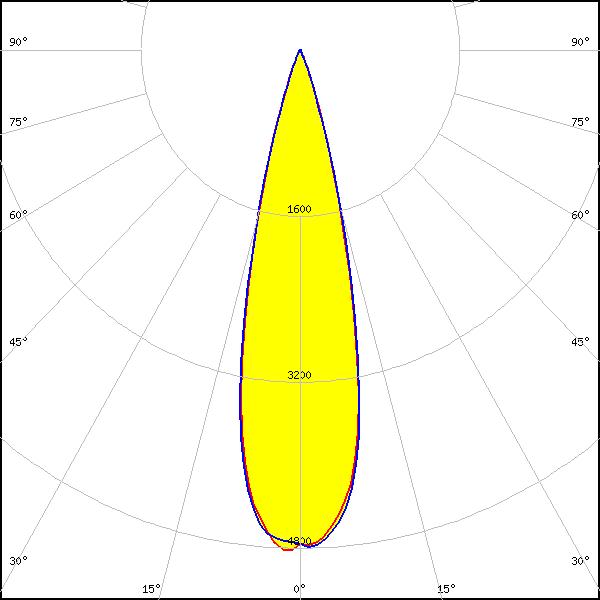

    LED: V3 HD Gen 8
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 3.8 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 26°
    FWTM: 40°
    Peak intensity: 4.824 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

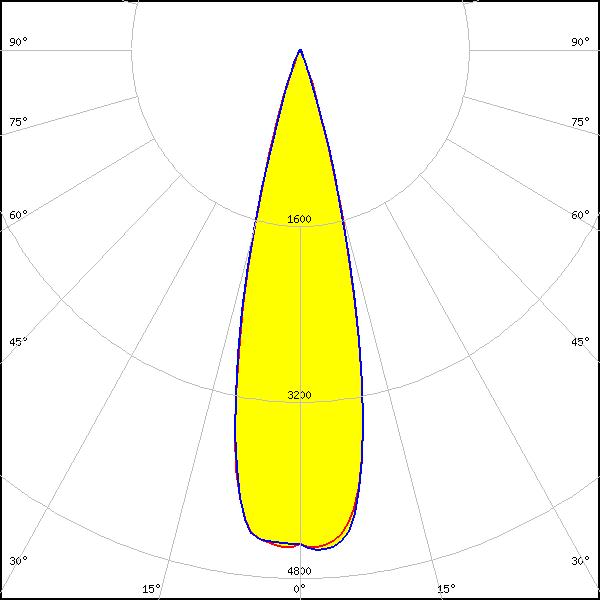

    LED: V3 HD Gen 8 FC
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 2.9 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 26°
    FWTM: 40°
    Peak intensity: 4.621 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V4 HD Gen 7
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 5.2 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 24°
    FWTM: 41°
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

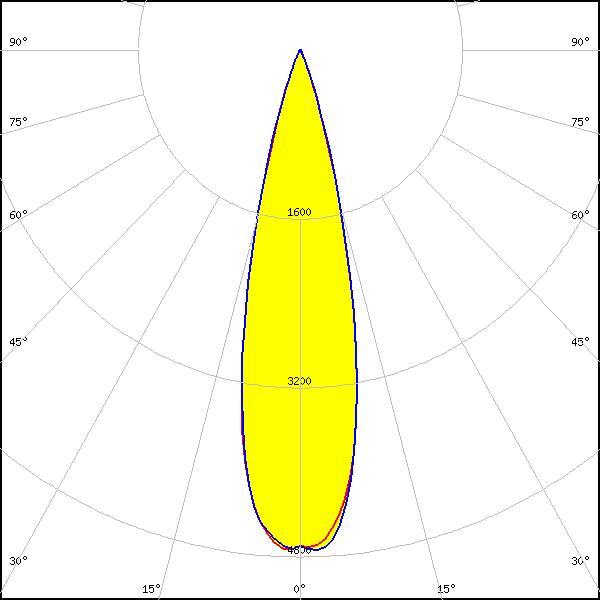

    LED: V4 HD Gen 8
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 4.8 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 26°
    FWTM: 40°
    Peak intensity: 4.809 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

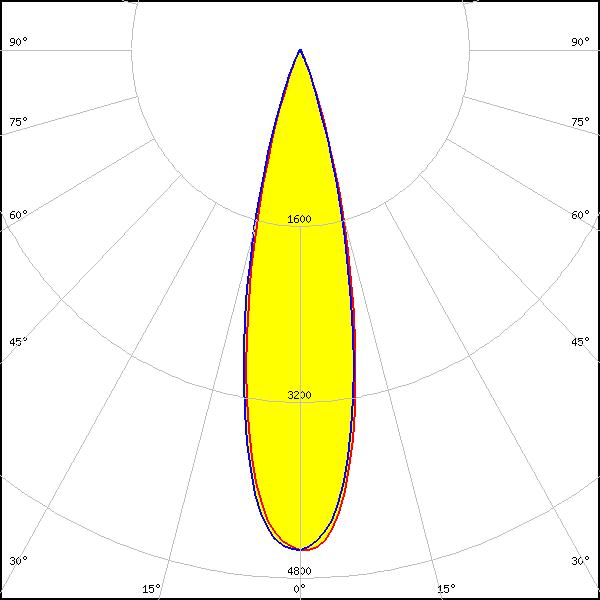

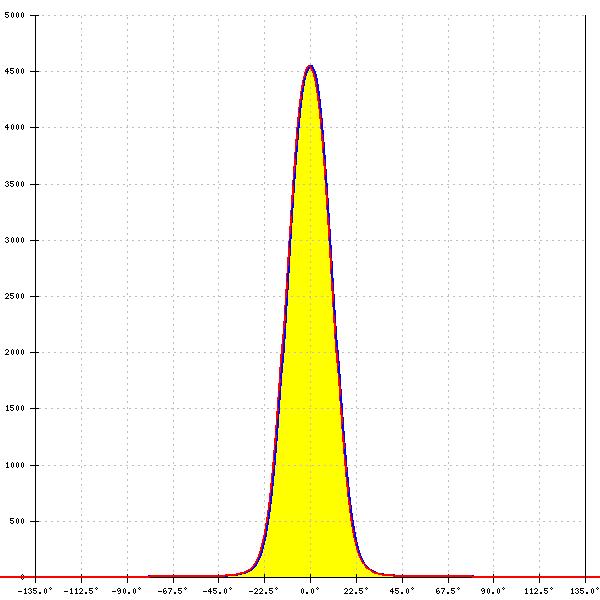

    LED: V6 Gen 8-9
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 6.3 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 25°
    FWTM: 42°
    Peak intensity: 4.560 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

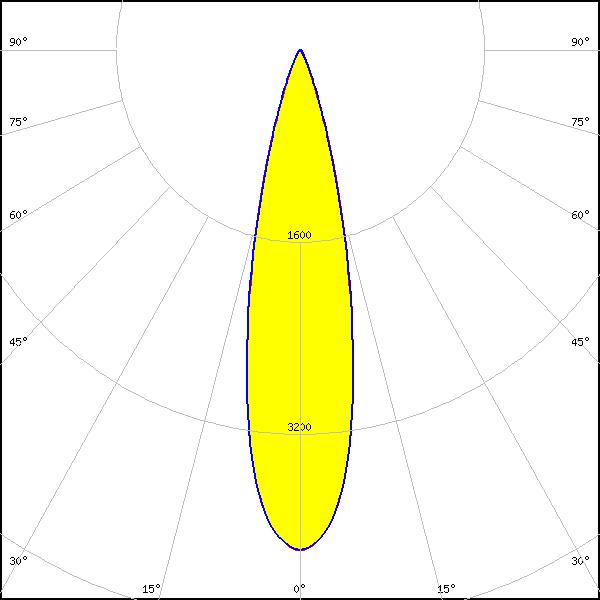

    LED: V6 HD Gen 7
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 24°
    FWTM: 43°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

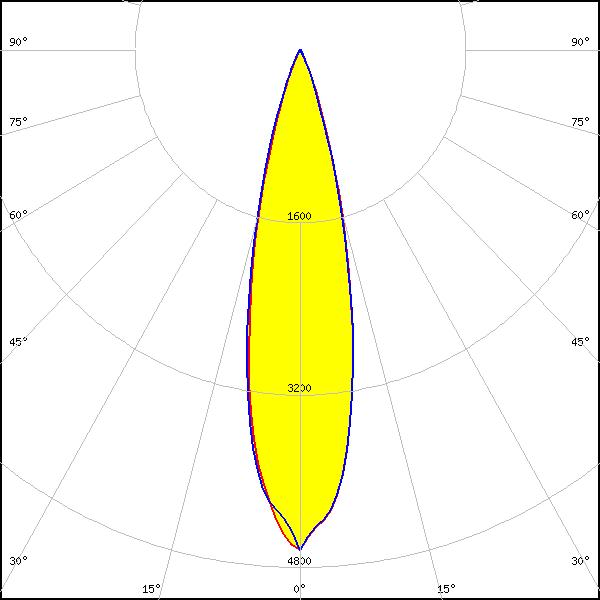

    LED: V6 HD Gen 8
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 6.6 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.641 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V8 Gen 8-9
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 8.5 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 25°
    FWTM: 46°
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

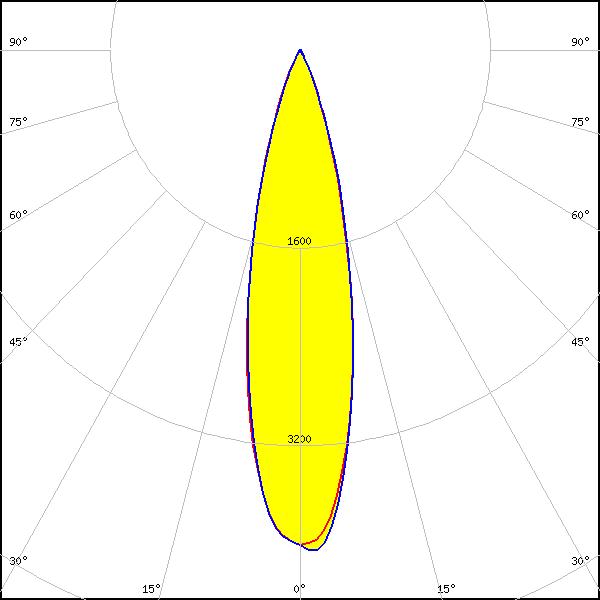

    LED: V8 Gen7
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 8.1 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 4.048 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

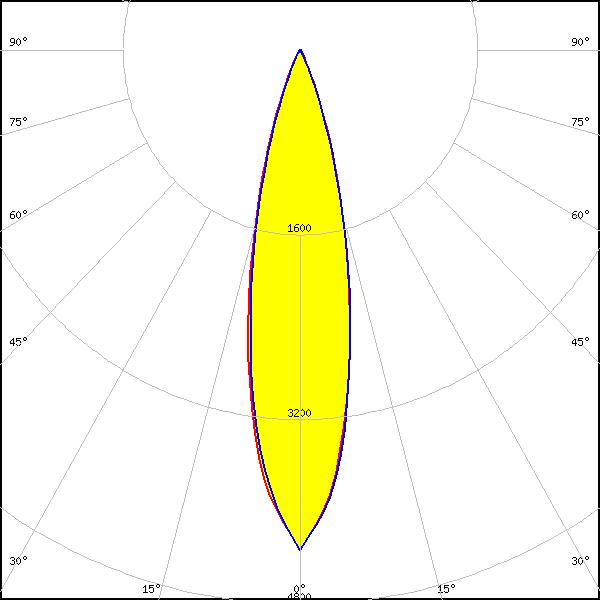

    LED: V9 HD Gen 8
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 8.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 24°
    FWTM: 45°
    Peak intensity: 4.334 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

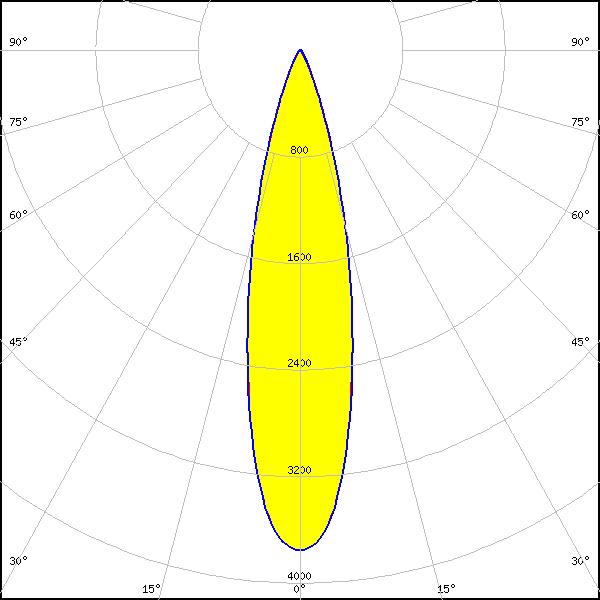

    LED: V9 HD Gen7
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.2 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 25°
    FWTM: 46°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

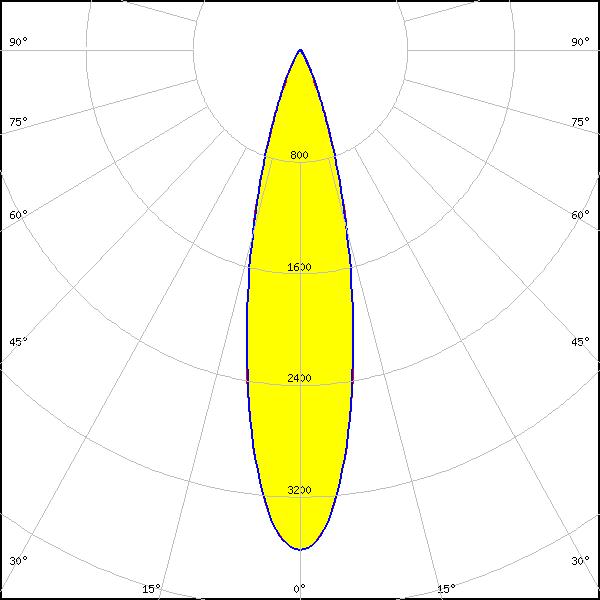

    LED: VERO10
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.9 mm
    Required components:
    F15616_HEKLA-SOCKET-F
    FWHM: 25°
    FWTM: 47°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

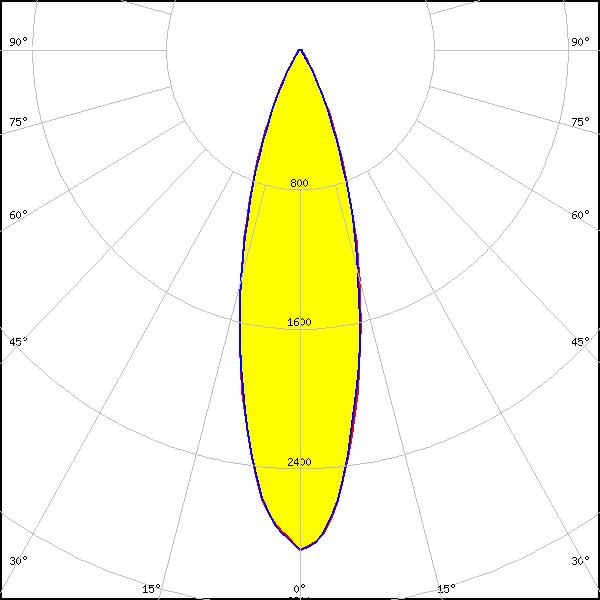

    LED: VERO13
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 13.4 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 29°
    FWTM: 56°
    Peak intensity: 2.882 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

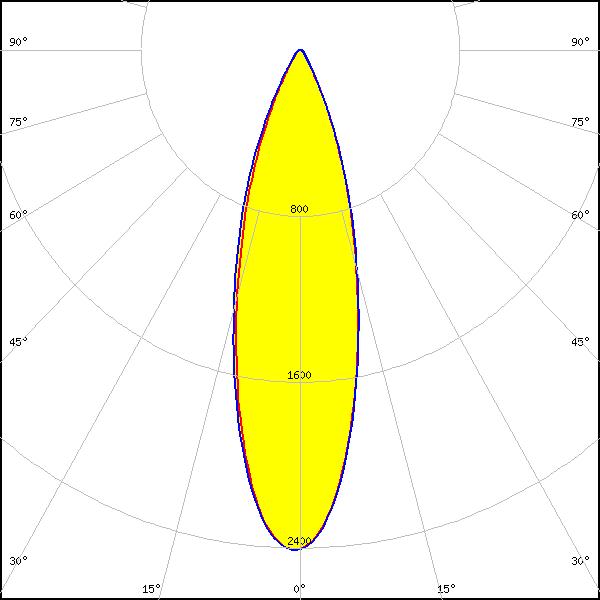

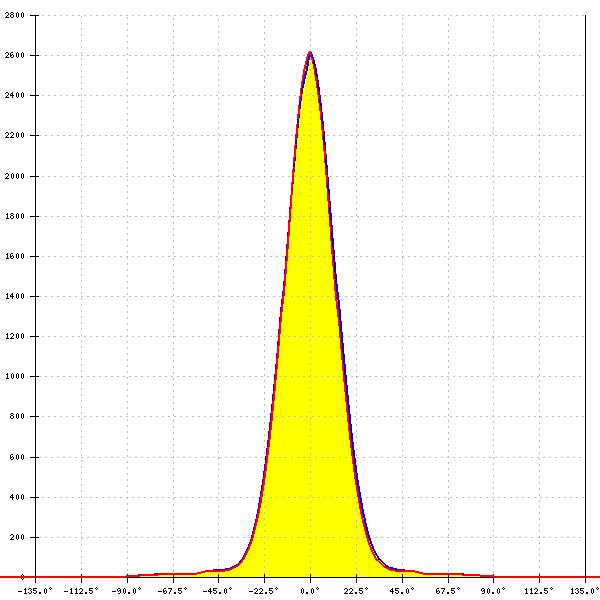

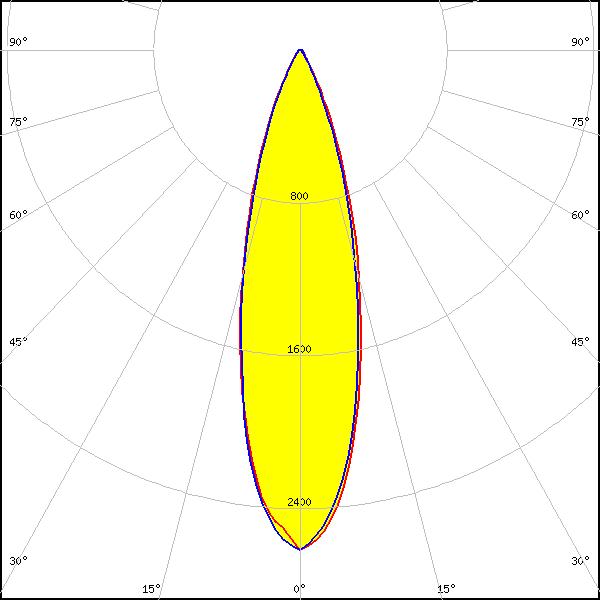

    LED: Vesta DTW 13mm (21W)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 491 Typ L8
    FWHM: 30°
    FWTM: 57°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

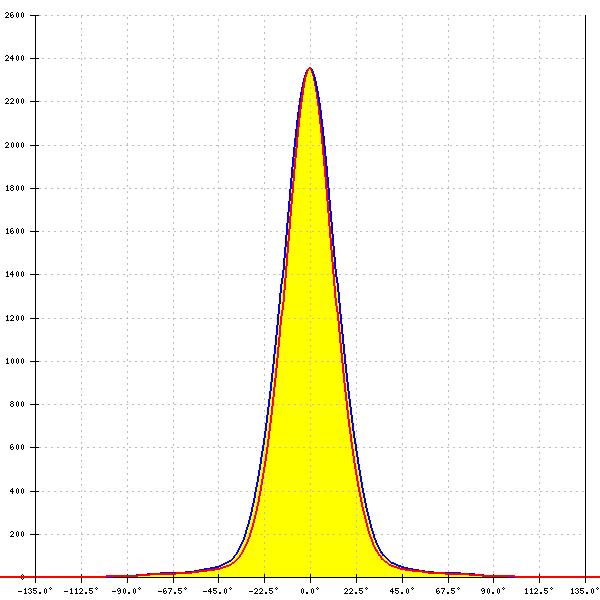

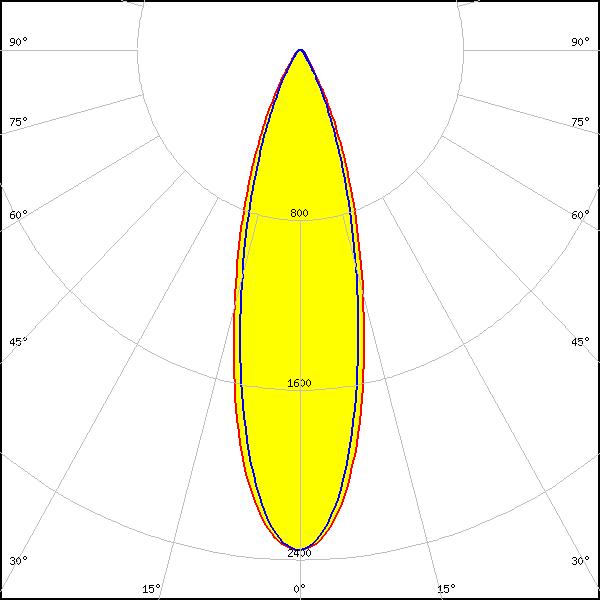

    LED: Vesta DTW 15mm (33W)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 16.2 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 491 Typ L8
    FWHM: 29°
    FWTM: 58°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

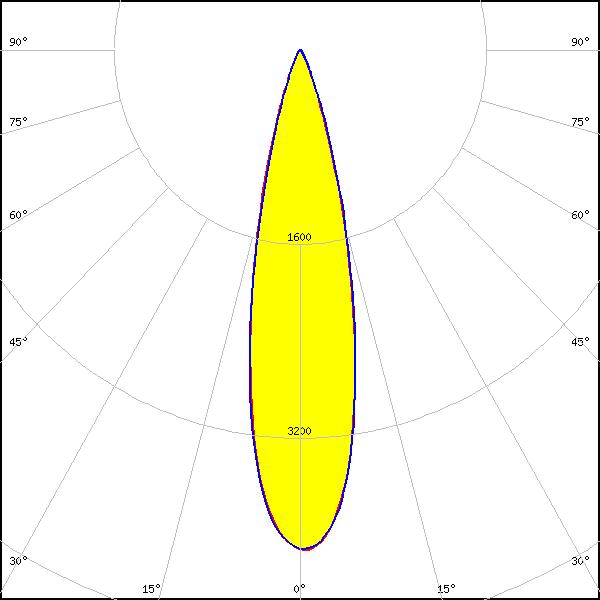

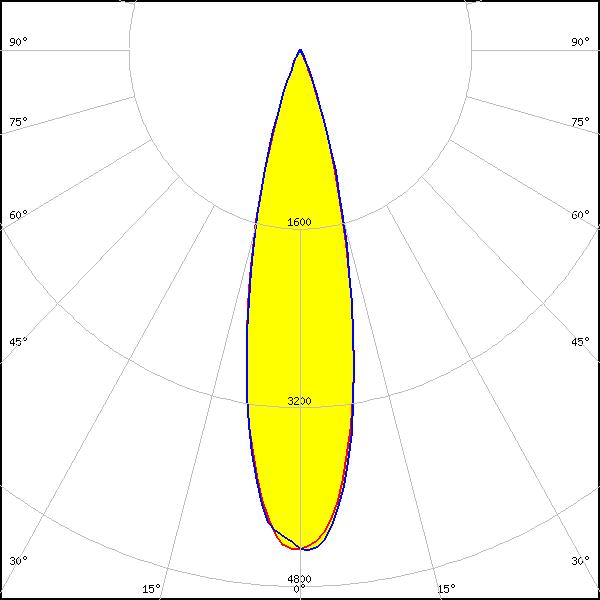

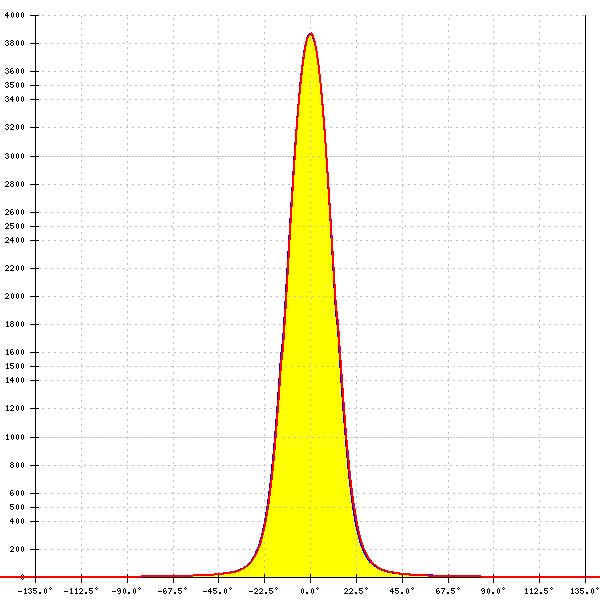

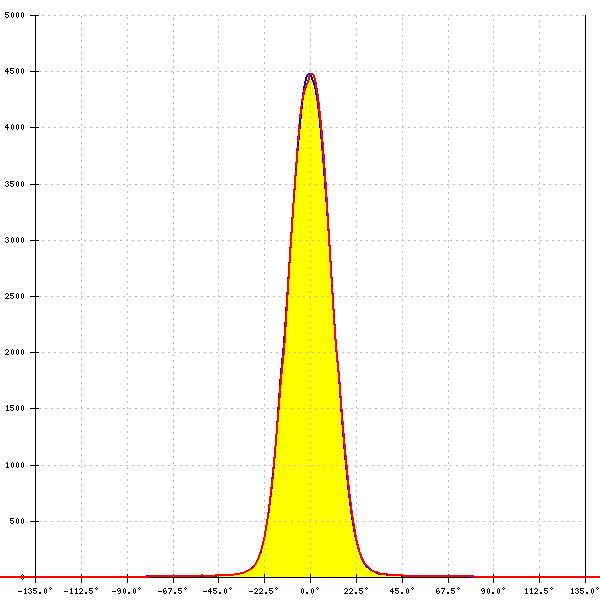

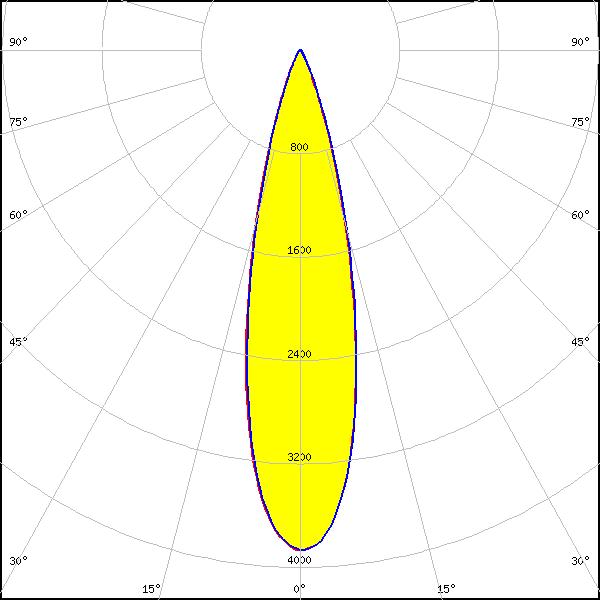

    LED: Vesta DTW 6mm
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 6.8 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 24°
    FWTM: 43°
    Peak intensity: 4.502 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

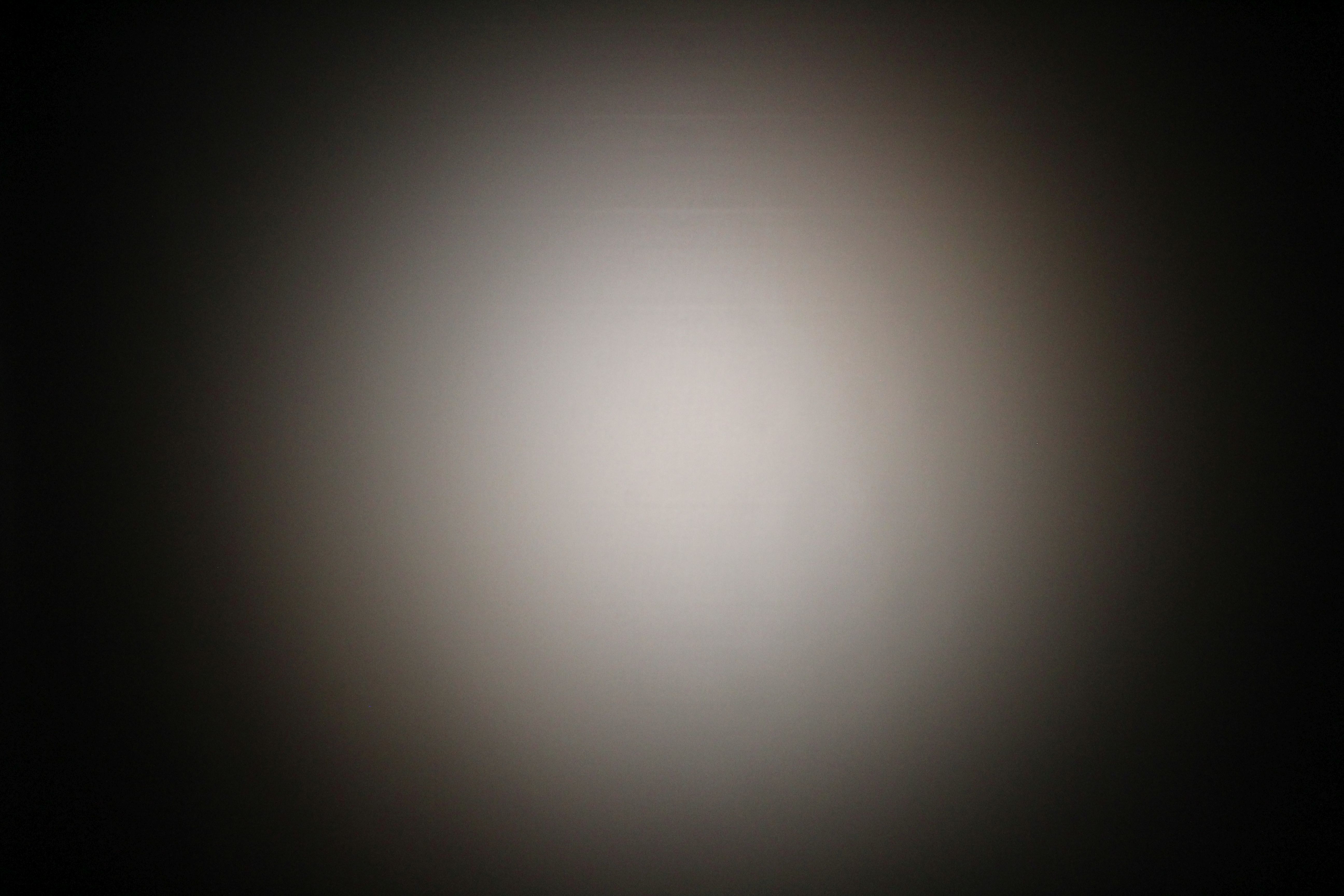

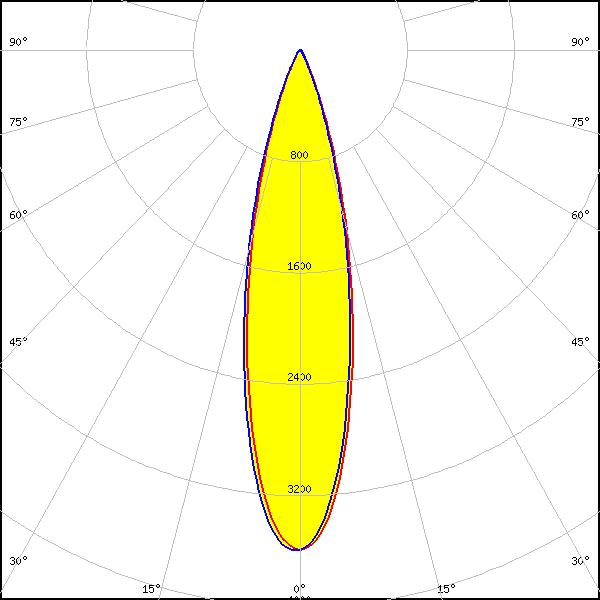

    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Hekla
    F18158_HEKLA-RZ-LENS
    FWHM: 26°
    FWTM: 47°
    Peak intensity: 3.558 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 24°
    FWTM: 44°
    Peak intensity: 4.317 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta SE 13mm TW
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 14.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 28°
    FWTM: 54°
    Peak intensity: 2.619 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

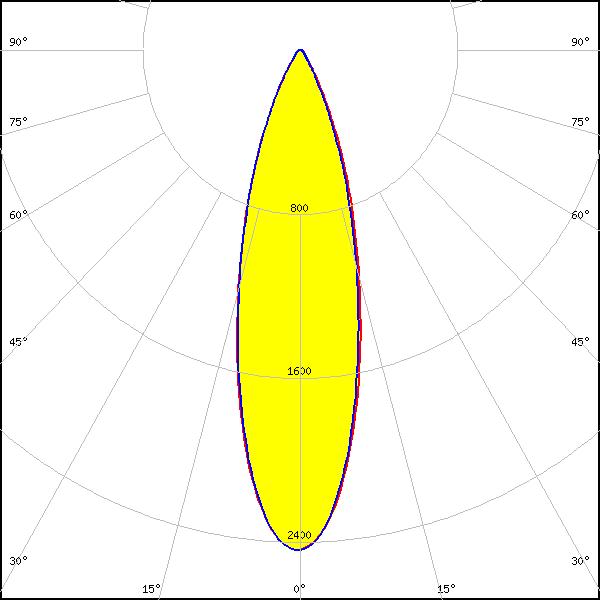

    LED: Vesta TW 13mm (18W) DP
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 492 Typ L8
    FWHM: 29°
    FWTM: 58°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

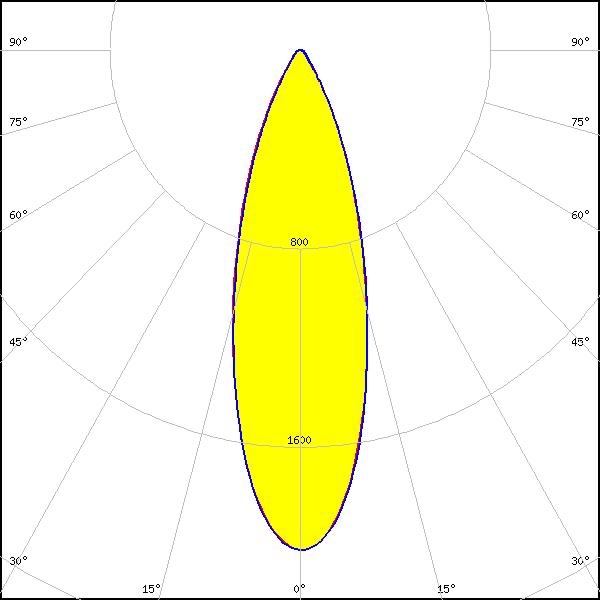

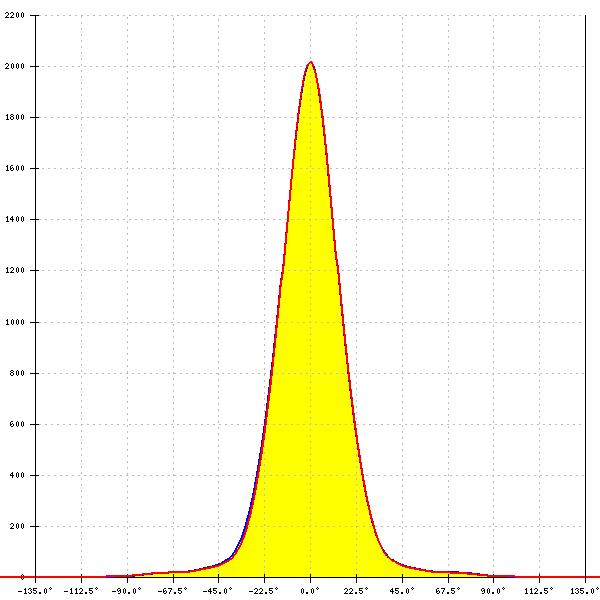

    LED: Vesta TW 15mm DP
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 16.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 482 Typ L8
    FWHM: 32°
    FWTM: 63°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 6mm DP
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 6.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 504 Typ L8
    FWHM: 24°
    FWTM: 43°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 6mm DP
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 6.3 mm
    Required components:
    Bender Wirth: 504 Typ B35L
    FWHM: 26°
    FWTM: 45°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 9mm (12W) CSP
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 3.647 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 9mm (9W) DP
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 10.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 489 Typ L8
    FWHM: 25°
    FWTM: 47°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 24°
    FWTM: 48°
    Peak intensity: 3.727 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 48°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

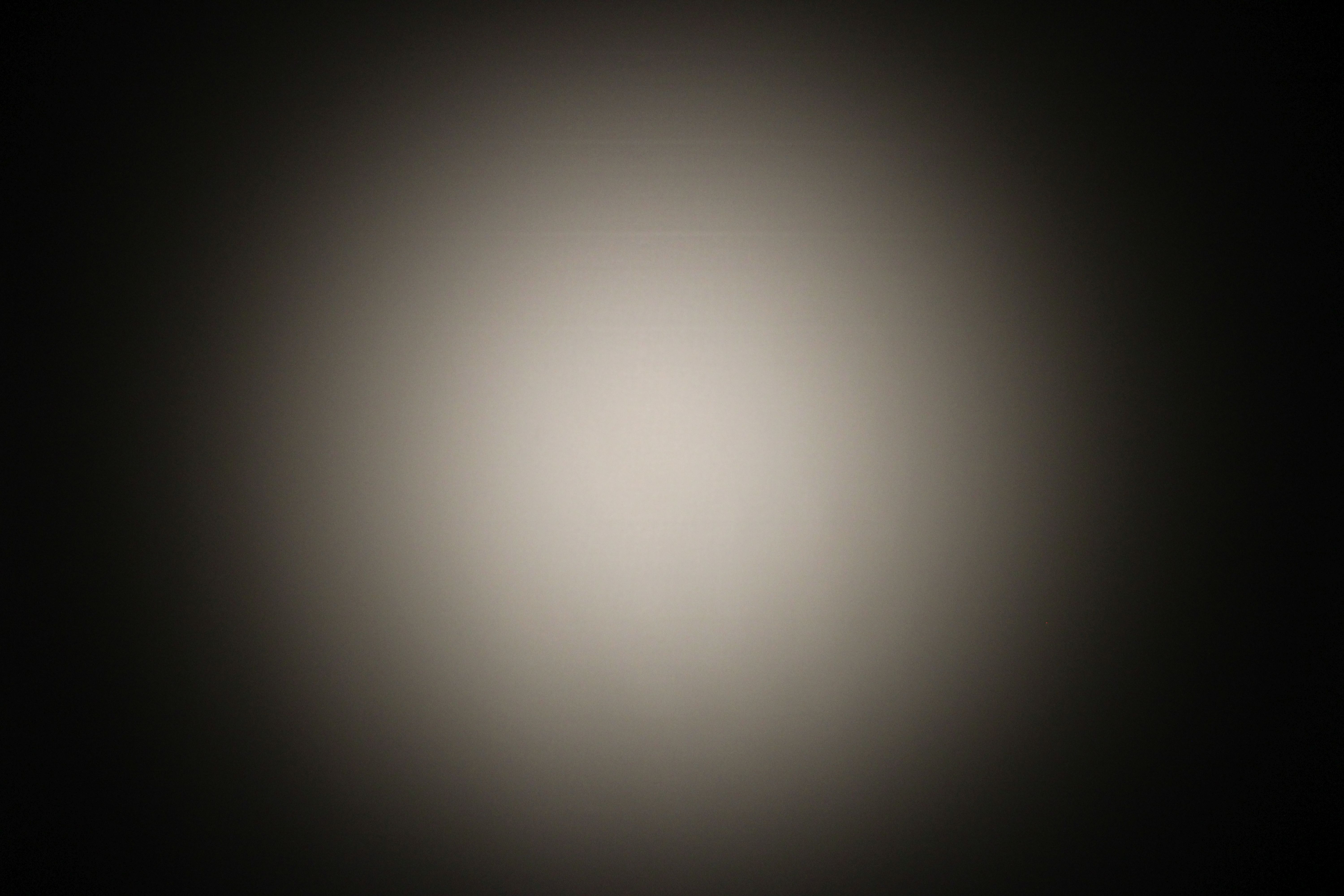

    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP19142_AMY-50-M-C2-WHT
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 26°
    FWTM: 47°
    Peak intensity: 3.620 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

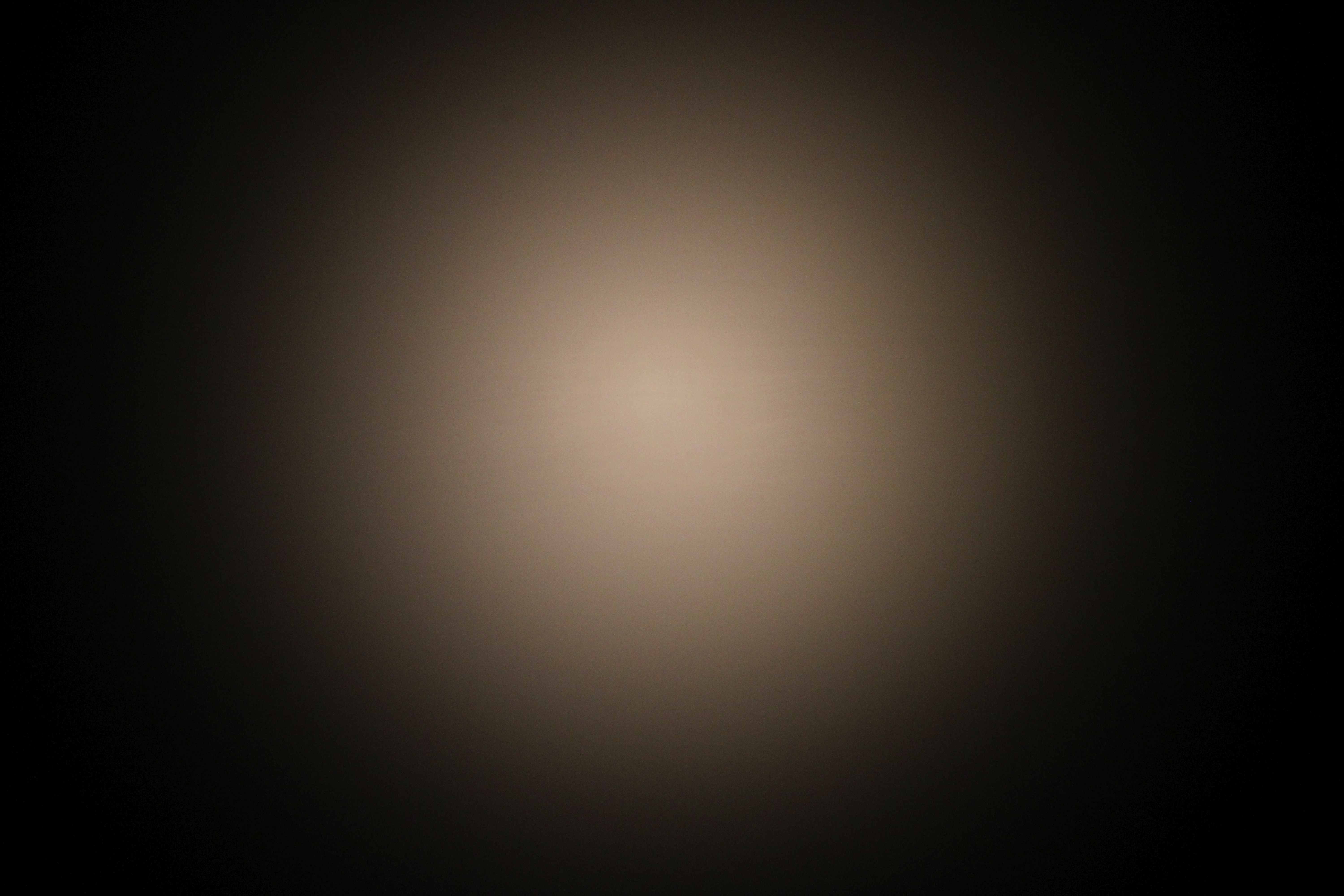

    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 9.8 mm
    Required components:
    Green Gems: GH27d
    FWHM: 26°
    FWTM: 49°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 29°
    FWTM: 58°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU02Q Type-F
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.7 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 28° + 27°
    FWTM: 52° + 52°
    Peak intensity: 3.239 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 25°
    FWTM: 42°
    Peak intensity: 4.323 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

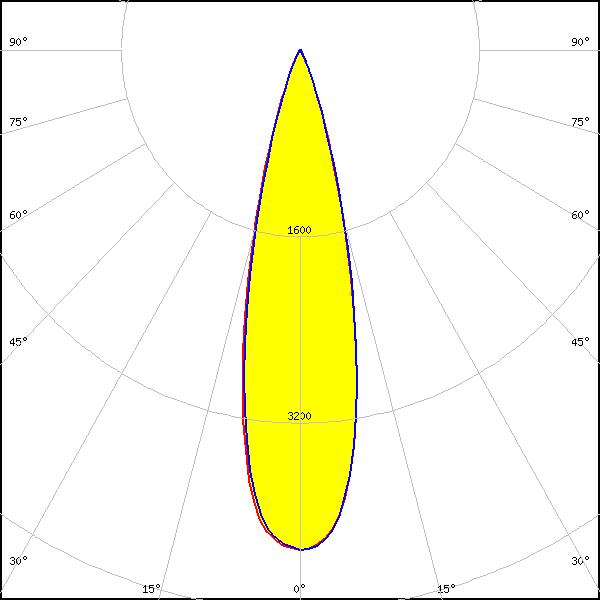

    LED: CLU700/701/702/703
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 43°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU710/711
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 8.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 3.960 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

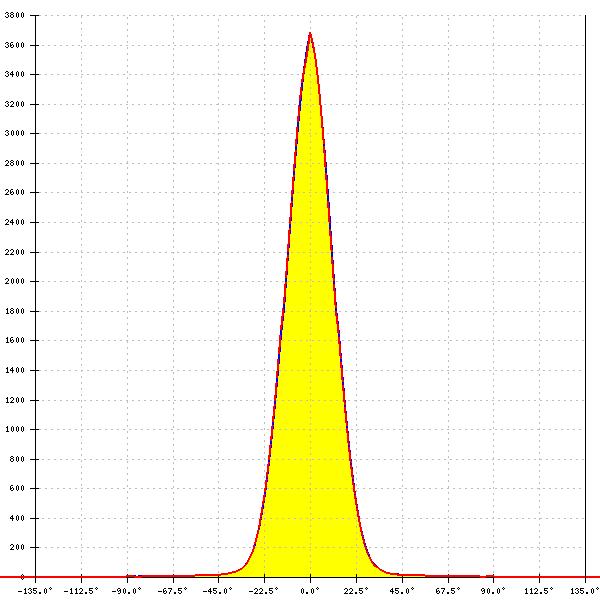

    LED: CLU712/713
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 8.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 4.168 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7A2/7A3
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 4.2 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 40°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7B2
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 3.3 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 39°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7L3
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 2.4 mm
    Required components:
    Bender Wirth: 667a Bayonet35
    FWHM: 24°
    FWTM: 39°
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

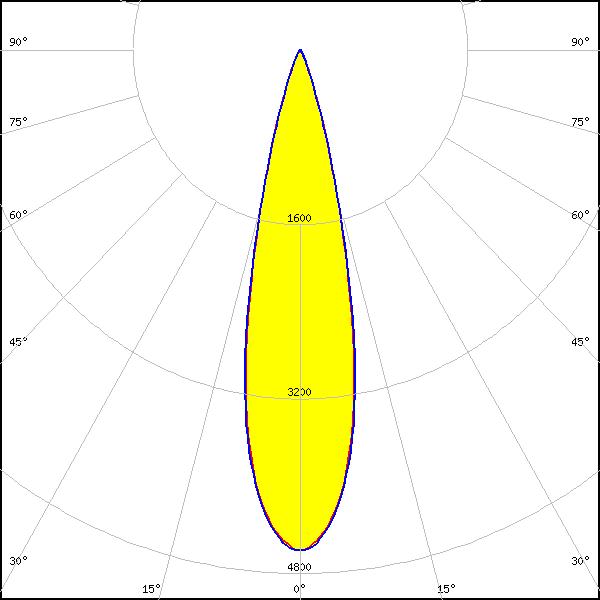

    LED: CLU7S3
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 3.5 mm
    Required components:
    Bender Wirth: 667a Bayonet35
    FWHM: 24°
    FWTM: 40°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

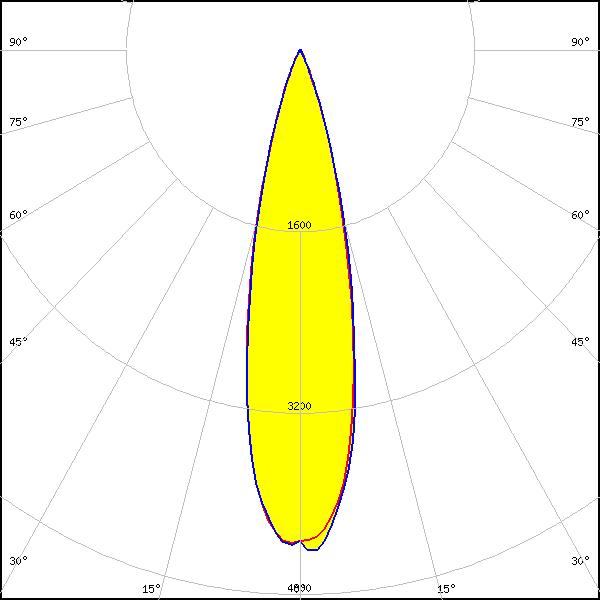

    LED: CMA1306
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 6.0 mm
    Required components:
    F17439_HEKLA-G2-J
    FWHM: 24°
    FWTM: 43°
    Peak intensity: 4.516 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1516
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.0 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 25°
    FWTM: 47°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1825
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 27°
    FWTM: 54°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT14xx
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 48°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT19xx
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 29°
    FWTM: 58°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU10xx
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 24°
    FWTM: 48°
    Peak intensity: 3.863 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

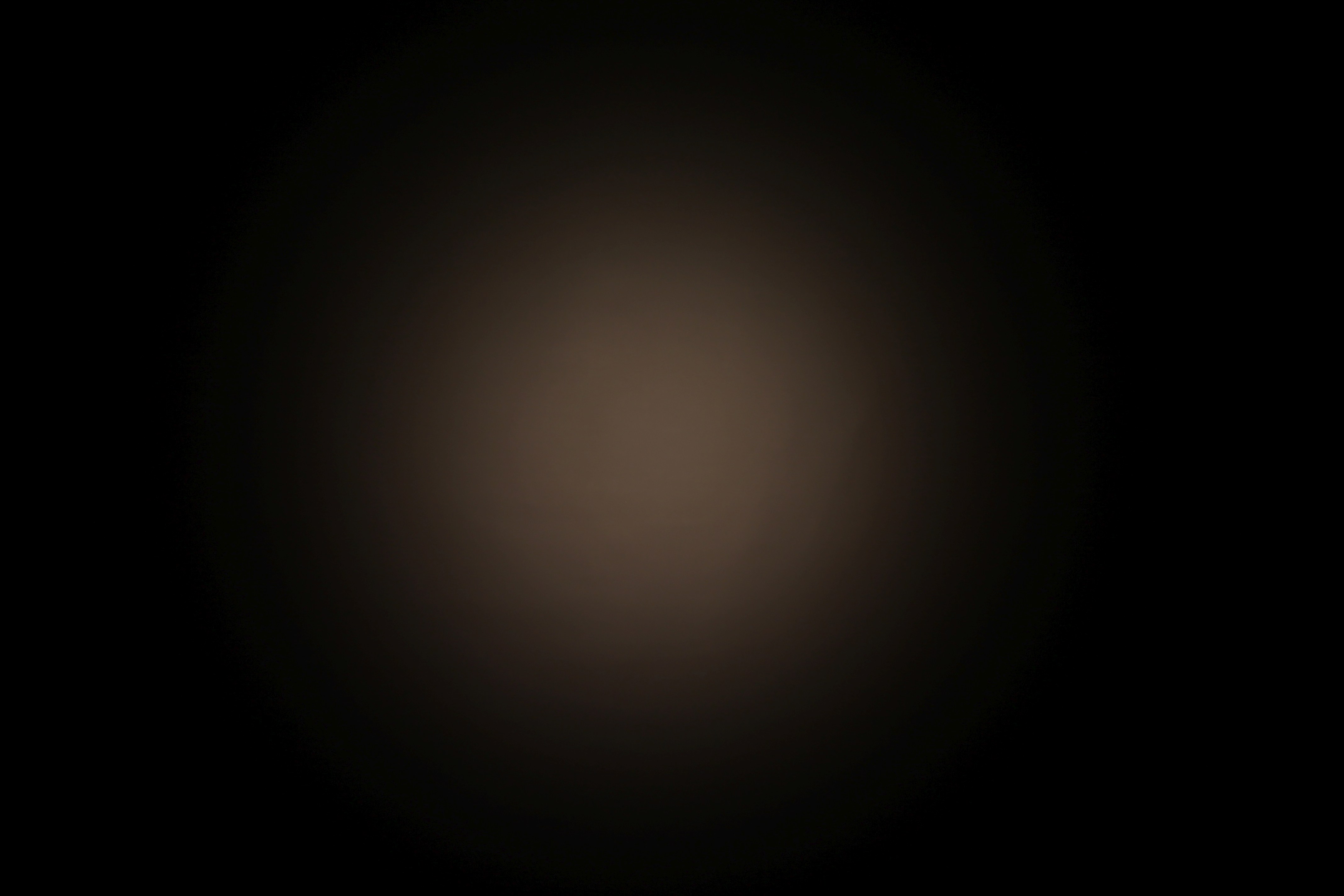

    LED: CXA/B 13xx
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 6.0 mm
    Required components:
    F17439_HEKLA-G2-J
    FWHM: 24°
    FWTM: 42°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

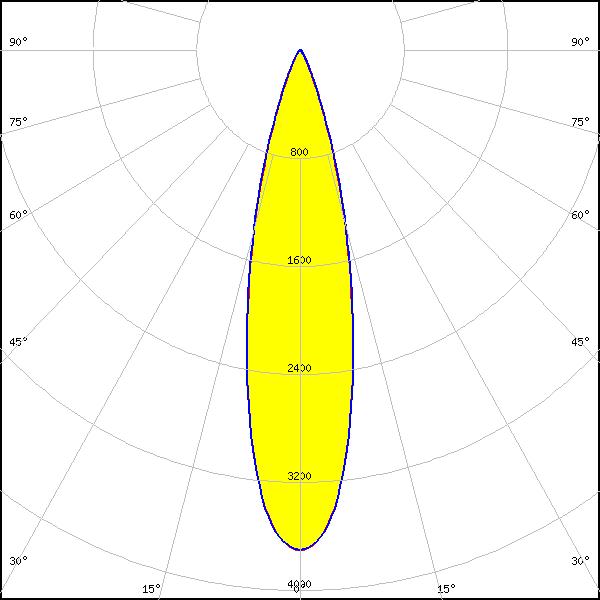

    LED: CXA/B 15xx
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 8.9 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 25°
    FWTM: 46°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

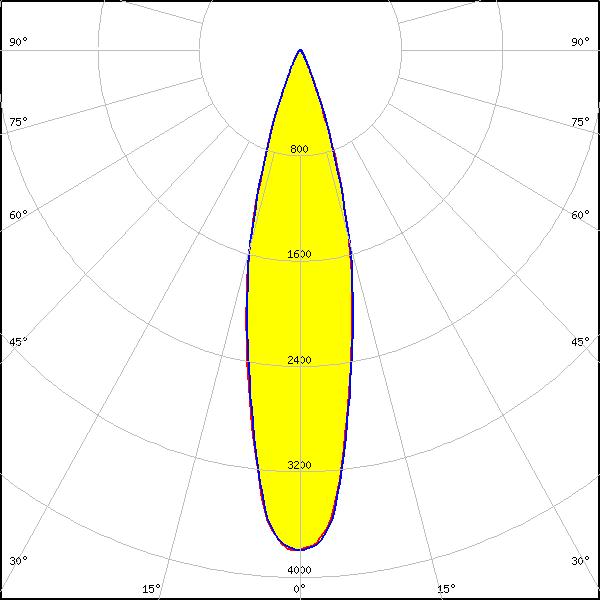

    LED: LEDIM/C6
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 8.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 26°
    FWTM: 46°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

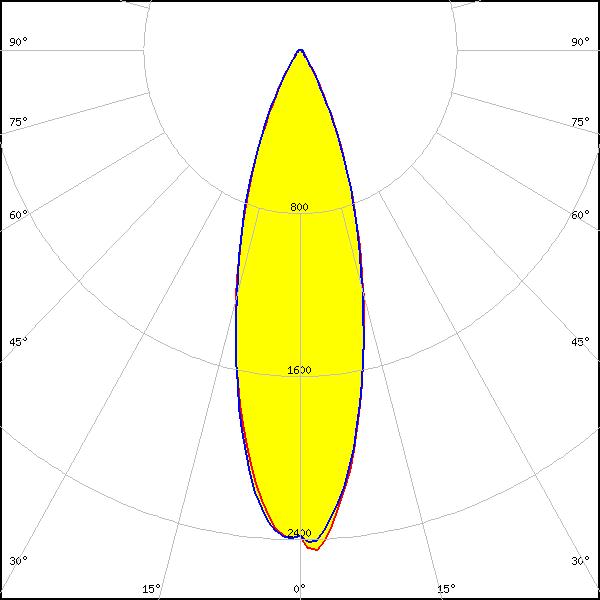

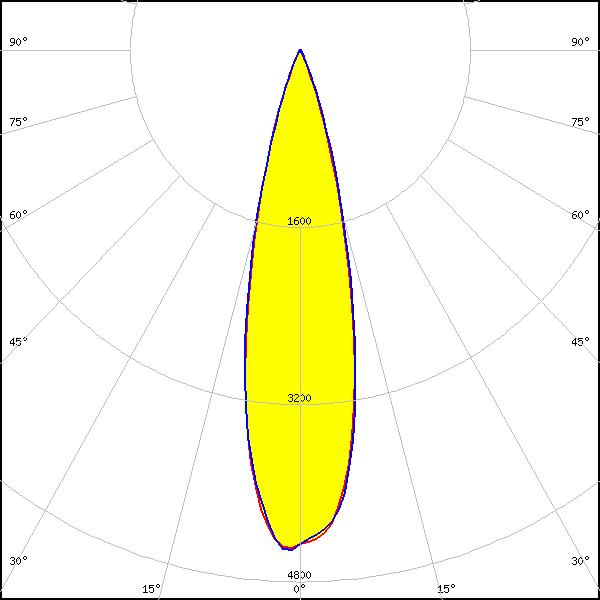

    LED: LUXEON CX Plus CoB L08 (Gen2)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 30°
    FWTM: 59°
    Peak intensity: 2.480 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

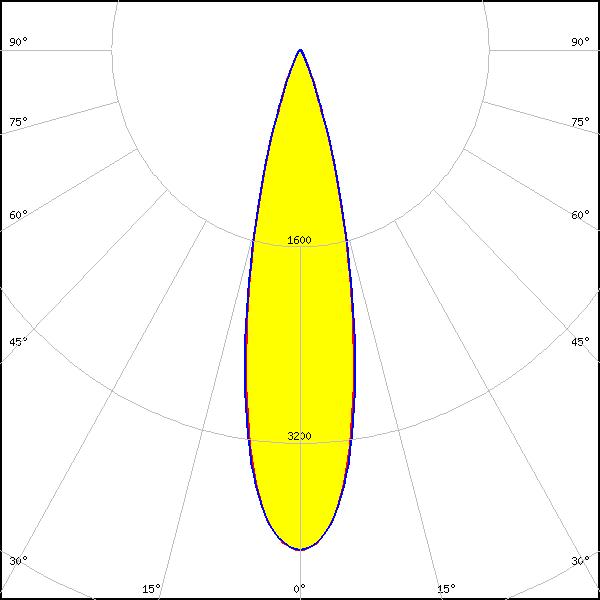

    LED: LUXEON 7070
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 0.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 25°
    FWTM: 44°
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

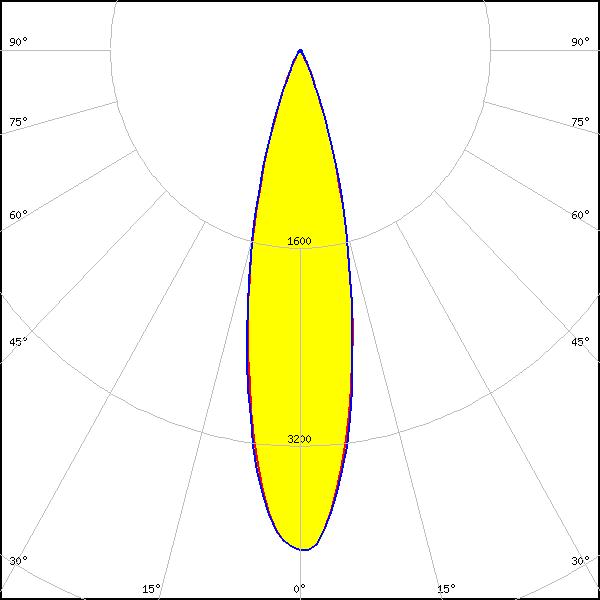

    LED: LUXEON CoB 1202/1203
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 25°
    FWTM: 46°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204/1205
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 27°
    FWTM: 54°
    Peak intensity: 3.041 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204HD
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 25°
    FWTM: 47°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

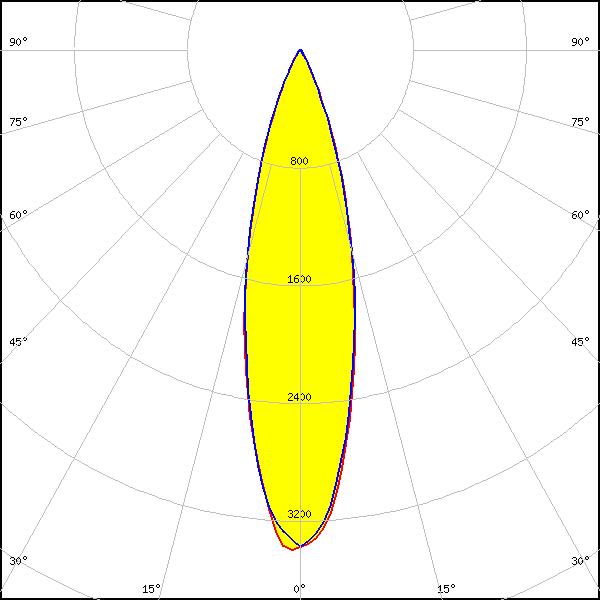

    LED: LUXEON CoB 1205HD
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 11.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 26°
    FWTM: 50°
    Peak intensity: 3.404 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1208
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 31°
    FWTM: 58°
    Peak intensity: 2.488 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB M02/M03
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 8.5 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 25°
    FWTM: 47°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB S01
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 5.5 mm
    Required components:
    F17439_HEKLA-G2-J
    FWHM: 24°
    FWTM: 42°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S01H4
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 25°
    FWTM: 40°
    Peak intensity: 4.735 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

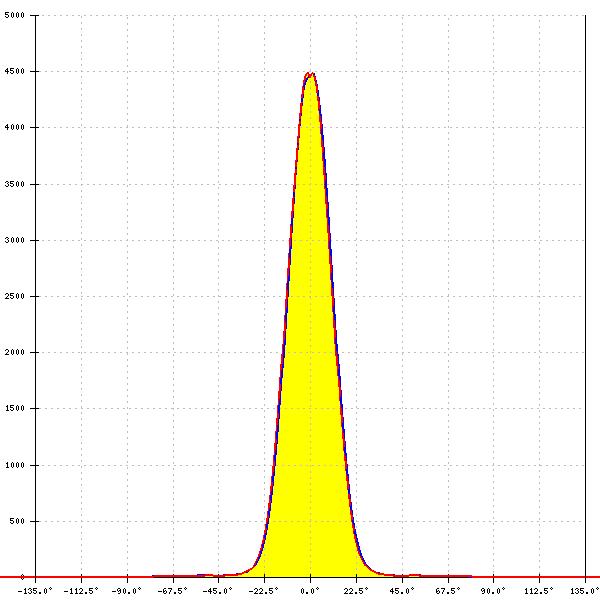

    LED: LUXEON CX Plus CoB - HD S02H6
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 25°
    FWTM: 43°
    Peak intensity: 4.572 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 26°
    FWTM: 47°
    Peak intensity: 3.924 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 27°
    FWTM: 52°
    Peak intensity: 3.145 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

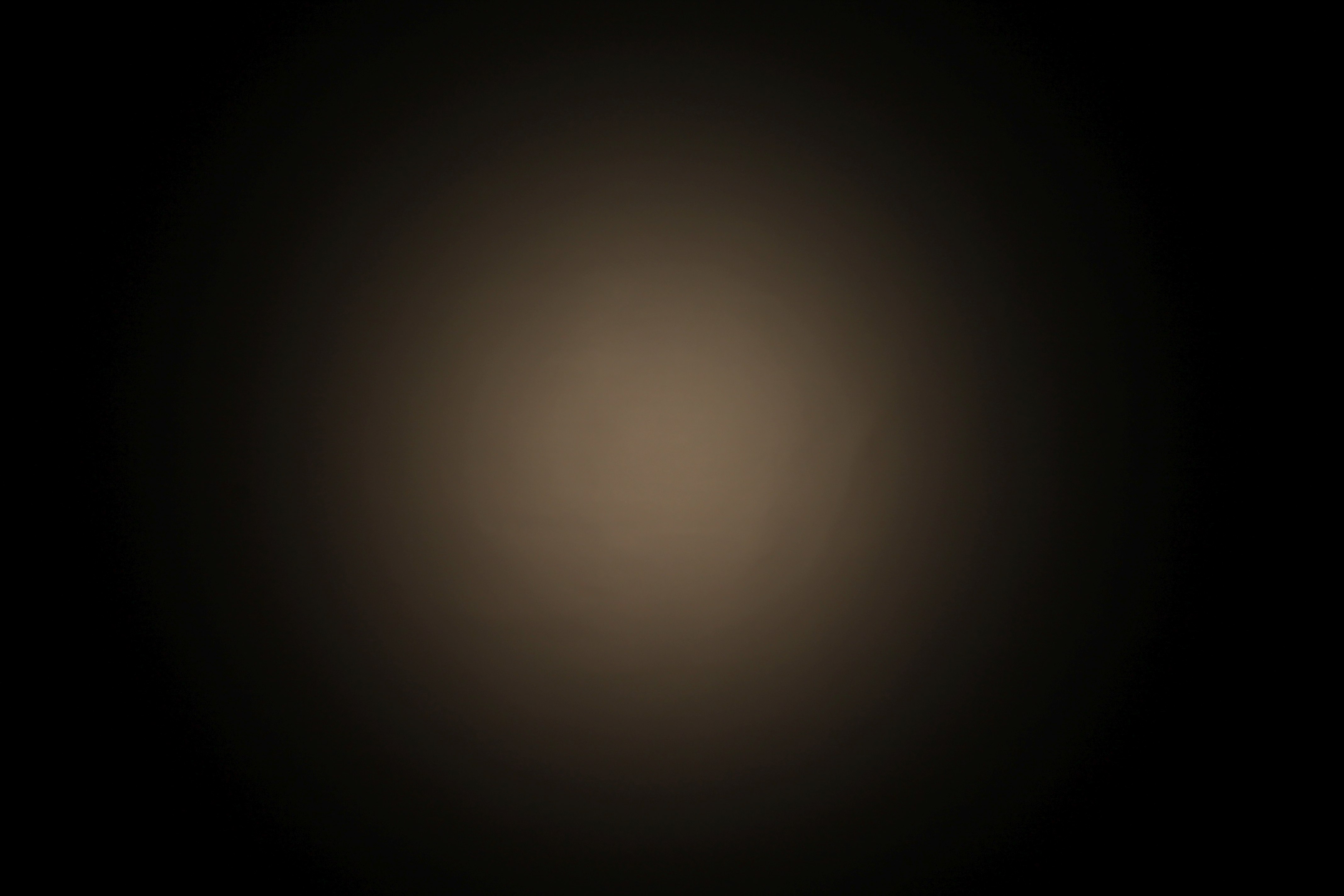

    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 25°
    FWTM: 46°
    Peak intensity: 3.981 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 25°
    FWTM: 42°
    Peak intensity: 4.521 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

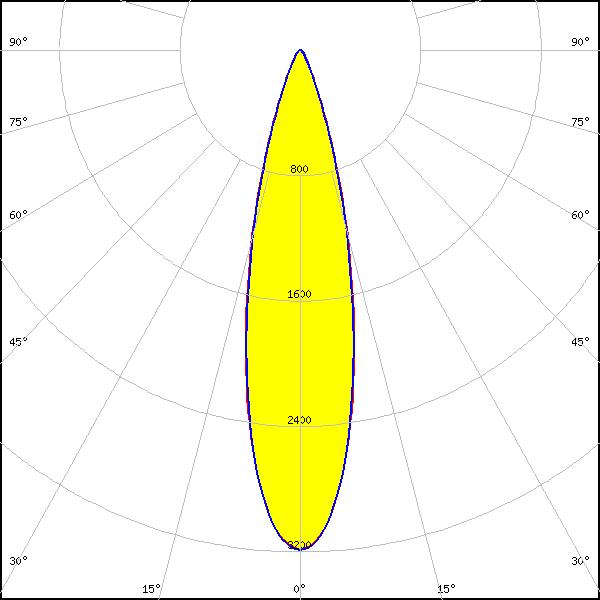

    LED: LUXEON Fusion 12-up (20x24)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 7.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    F18158_HEKLA-RZ-LENS
    FWHM: 25°
    FWTM: 47°
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Fusion 21-up (20x24)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 7.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    F18158_HEKLA-RZ-LENS
    FWHM: 26°
    FWTM: 48°
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

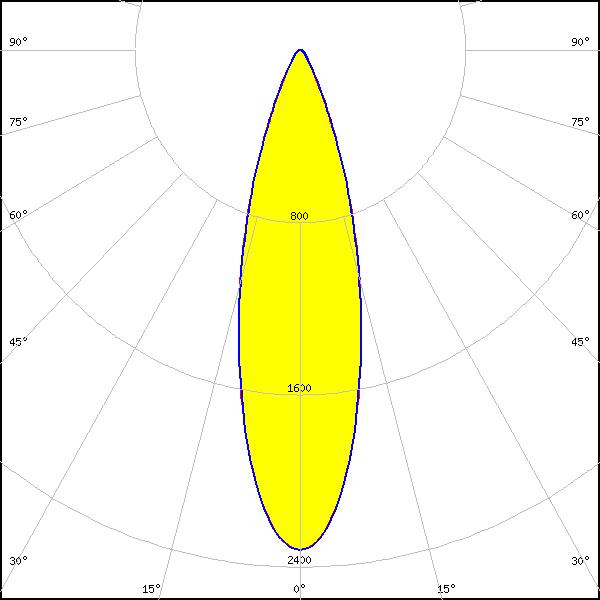

    LED: LUXEON Fusion 27-up (20x24)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 10.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    F18158_HEKLA-RZ-LENS
    FWHM: 29°
    FWTM: 55°
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHM-9 XH (19x19)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 24°
    FWTM: 44°
    Peak intensity: 4.413 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

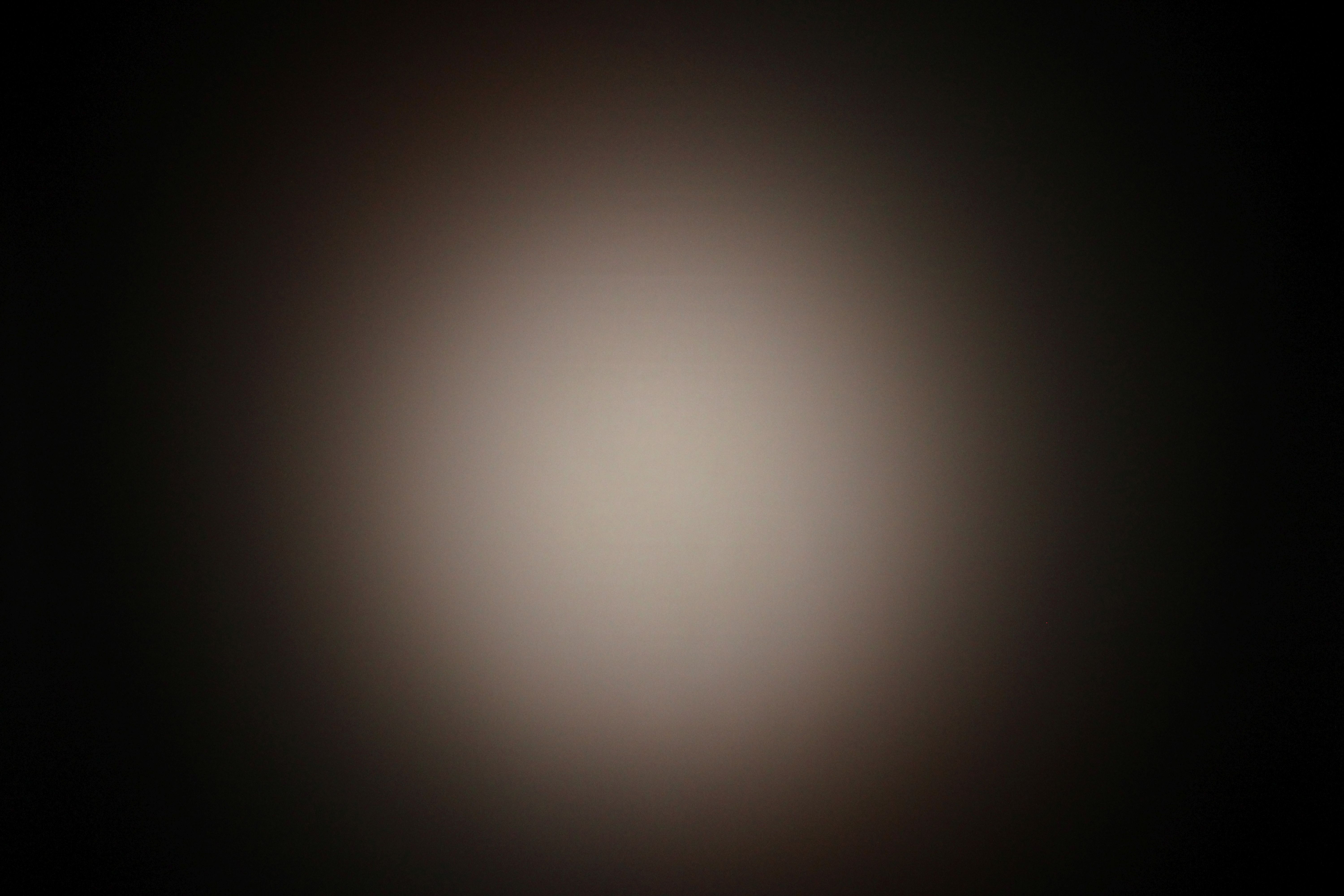

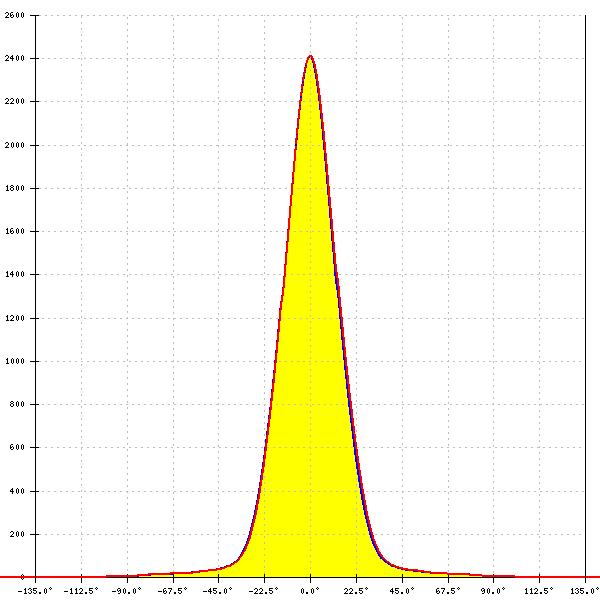

    LED: CTM-14 (Tunable White) Gen2
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 13.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 30°
    FWTM: 57°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-6 (Tunable White) Gen2
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 6.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.505 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

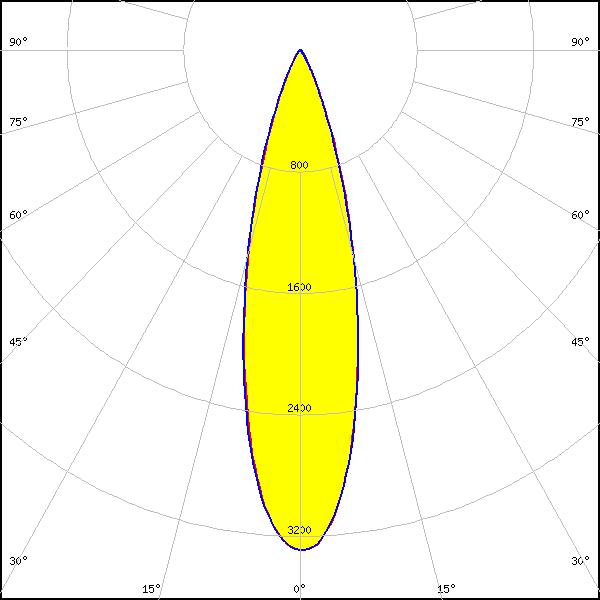

    LED: CTM-9 (Tunable White)
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 9.5 mm
    Required components:
    Bender Wirth: 495 Typ B35L
    FWHM: 27°
    FWTM: 50°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CTM-9 (Tunable White) Gen2
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 26°
    FWTM: 46°
    Peak intensity: 3.941 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

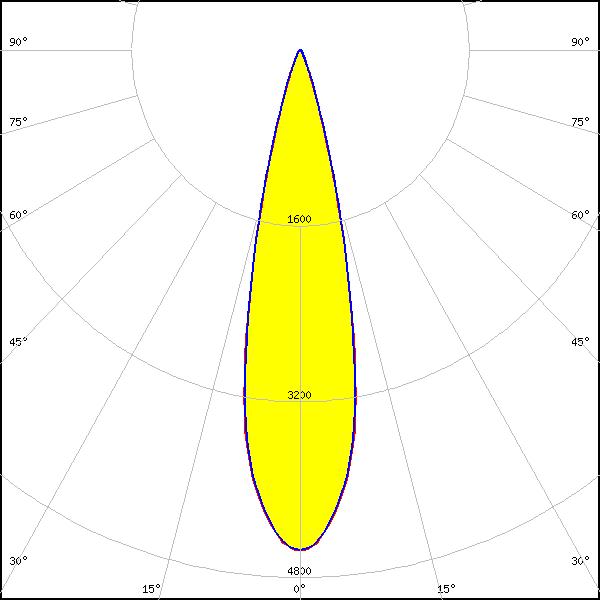

    LED: CXM-3
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 3.5 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 40°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXM-4
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 4.5 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 40°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-6 (13.5x13.5)
    Ordering code: CP19163_AMY-35-W-B2
    LES size: 6.3 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.722 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-9 (13.5x13.5)
    Ordering code: CP19151_AMY-50-M-B2-WHT
    LES size: 9.8 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 25°
    FWTM: 48°
    Peak intensity: 3.675 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB J-Type
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 14.6 mm
    Required components:
    Bender Wirth: 663a Hekla XL
    FWHM: 31°
    FWTM: 59°
    Peak intensity: 2.480 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

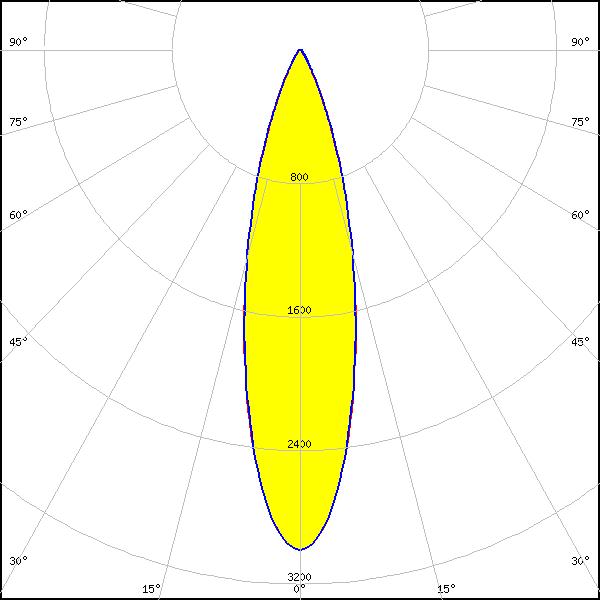

    LED: COB L-Type (LES 11)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 11.5 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 27°
    FWTM: 52°
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 9)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 8.7 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 25°
    FWTM: 46°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 6)
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.633 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 6.7 mm
    Required components:
    Bender Wirth: 652a Hekla
    FWHM: 25°
    FWTM: 44°
    Peak intensity: 4.210 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 6.7 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.631 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 6.7 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 24°
    FWTM: 44°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB T-Type
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.706 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NJCWL024Z-V1MT: COB L-Type Tunable White
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 7.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 497 Typ L8 HV
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.550 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

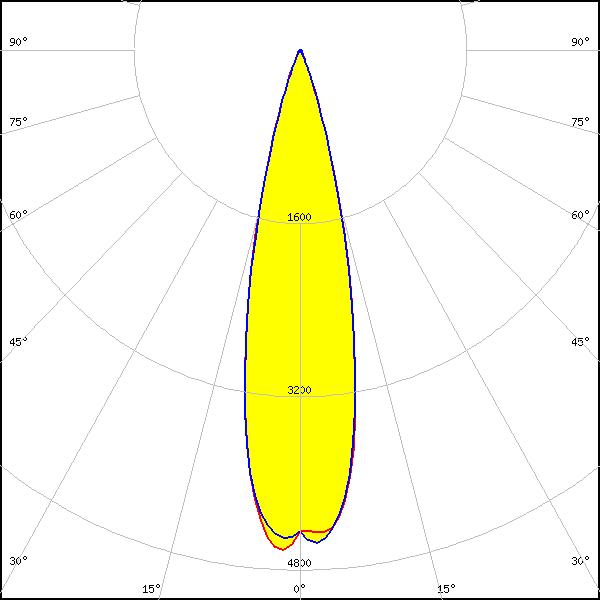

    LED: NJNWS012Z-V1MT: COB S-Type Tunable White
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 5.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8 HV
    FWHM: 24°
    FWTM: 40°
    Peak intensity: 4.675 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8 HV
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.592 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Fortimo SLM L09 CoB
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 25°
    FWTM: 47°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 4.089 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 48°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010C G2
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.775 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

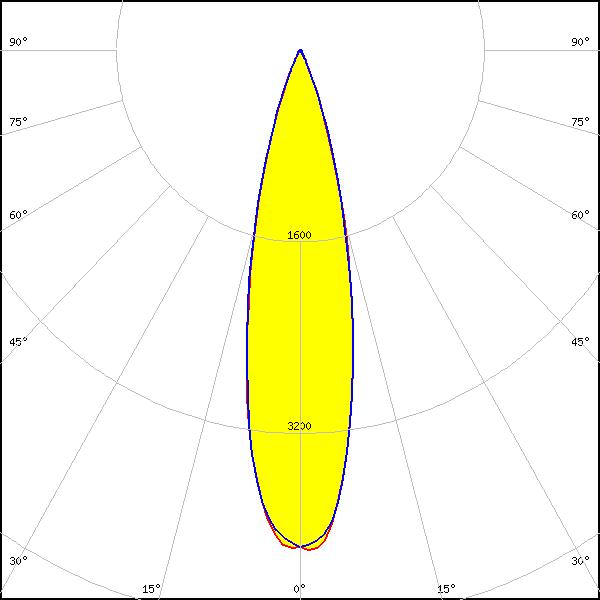

    LED: LC010T (Tunable White)
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.8 mm
    Required components:
    Bender Wirth: 501 Typ L8
    FWHM: 25°
    FWTM: 44°
    Peak intensity: 4.183 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

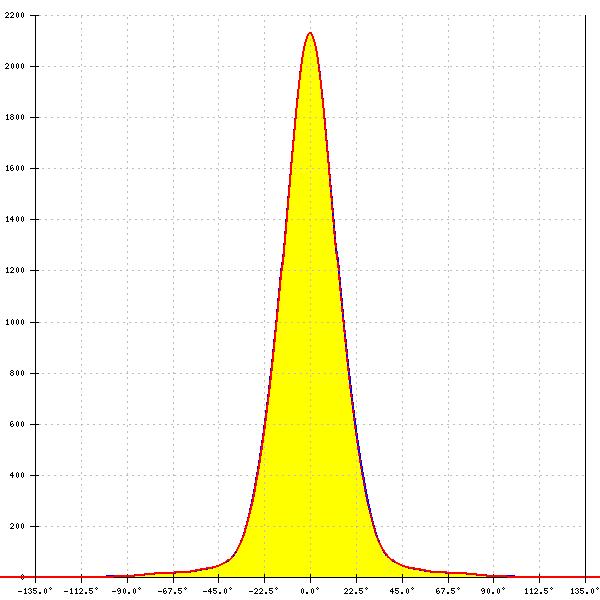

    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 31°
    FWTM: 62°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020C G2
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 8.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 25°
    FWTM: 46°
    Peak intensity: 4.027 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

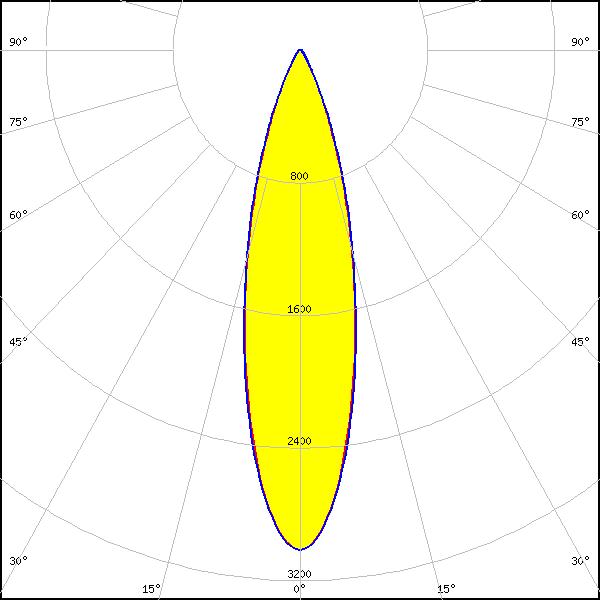

    LED: LC030C/040C G2
    Ordering code: CP19133_AMY-50-M-B2
    LES size: 11.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 28°
    FWTM: 52°
    Peak intensity: 3.202 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC030C/040C G2
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 11.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 26°
    FWTM: 52°
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 30°
    FWTM: 60°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 6
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 42°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 9.8
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 48°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES09
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 9.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 47°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

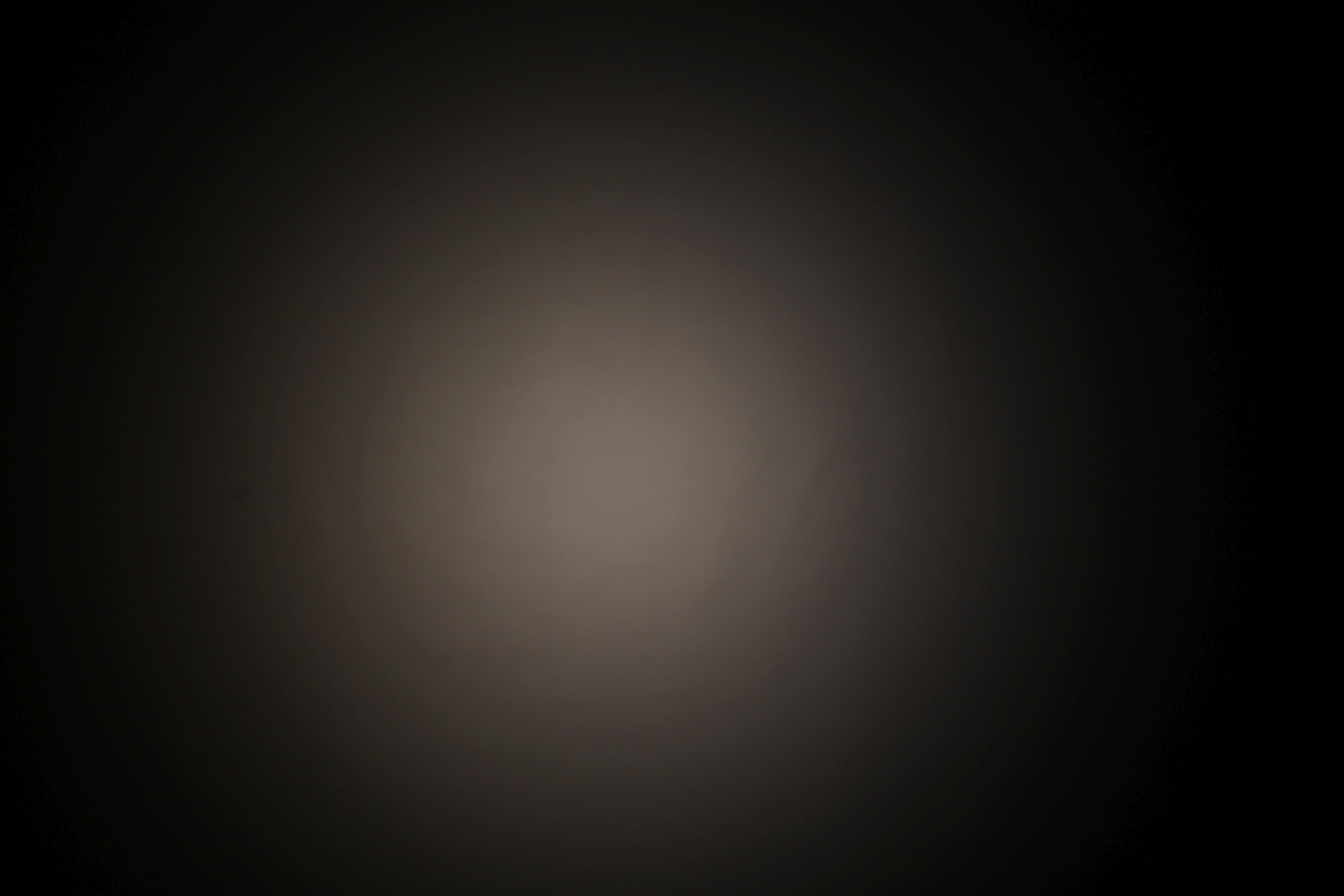

    LED: SLE G7 LES13
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 13.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 28°
    FWTM: 55°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

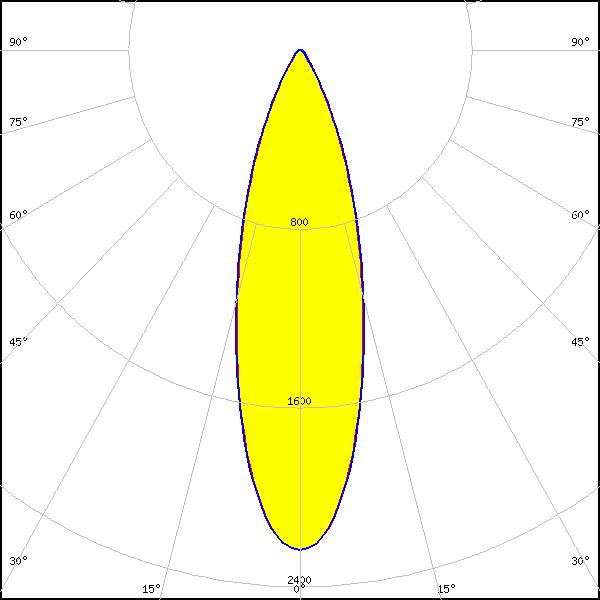

    LED: SLE G7 LES15
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 15.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 30°
    FWTM: 60°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE SNC8 LES06
    Ordering code: CP19124_AMY-50-M-C2
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.732 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
