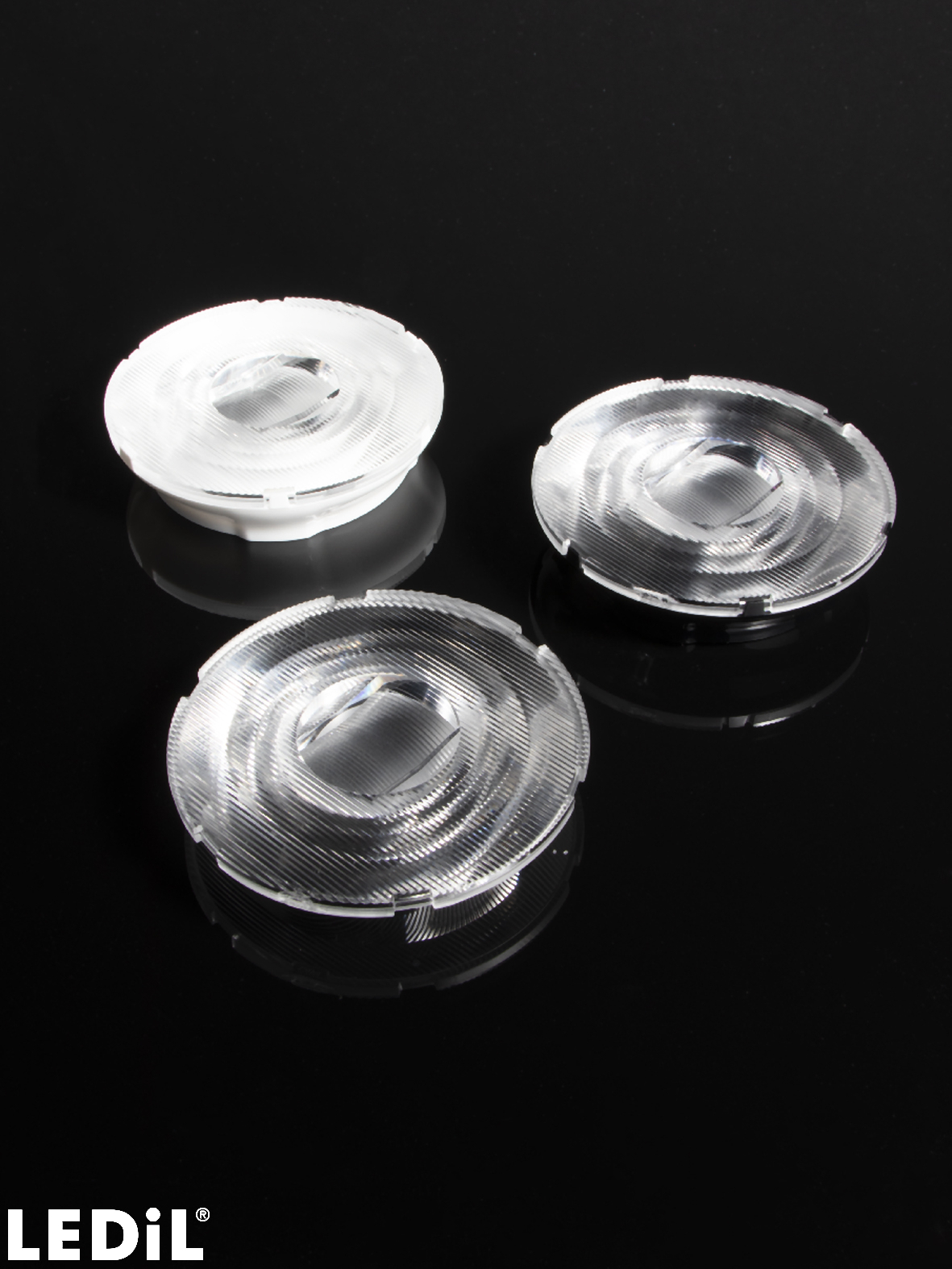

    AMY-70-O

    Print

    ~25 + 60° oval beam

    B2 variants fit ∅35 mm B+W and BJB connectors as well as SOCKET-B-35. B50 variants fit ∅50 mm B+W and BJB connectors.

    This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

    Specification
    • Dimensions:
      70 mm
    • Height:
      13.02 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • AMY-70-O
      PMMA
    • AMY-70-HLD2-C-WHT-ASYM
      PC
    • AMY-70-HLD2-C-ASYM
      PC
    • AMY-70-HLD2-B50-WHT-ASYM
      PC
    • AMY-70-HLD2-B50-ASYM
      PC
    • AMY-70-HLD2-B-WHT-ASYM
      PC
    • AMY-70-HLD2-B-ASYM
      PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C18466_AMY-70-O
      clear
    • Quantity in box:
      285 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.80 kg
    • MPQ:
      15 pcs
    • MOQ:
      285 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      9.80 kg
    • Assembly
    • CP19044_AMY-70-O-C2
      black,Holder C
    • CP19104_AMY-70-O-B2
      black,Holder B
    • CP19111_AMY-70-O-C2-WHT
      white,Holder C
    • CP19120_AMY-70-O-B2-WHT
      white,Holder B
    • CP19647_AMY-70-O-B50
      black,Holder B
    • CP19655_AMY-70-O-B50-WHT
      white,Holder B
    • Quantity in box:
      210 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.90 kg
    • MPQ:
      15 pcs
    • MOQ:
      210 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      8.90 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18466_AMY-70-O
      CP19044_AMY-70-O-C2
      CP19120_AMY-70-O-B2-WHT
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR200 – Change of AMY holders used with asymmetric beam versions

    News

    AMY oval – the smart choice for aisle lighting

    Application example

    Aisle lighting with AMY

    News

    Illuminate with elegance – discover the versatility of AMY

    Compatibility guide

    LEDiL connector and socket compatibility

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    Case story

    Alteme Lior luminaire

    PCN

    Product change notification NR194 - Change of AMY-35-50 and -70 holder design

    Compatible product

    B+W 630 Bayonet35 datasheet

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    Application guide

    Guide for Architectural lighting optics

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    LEDiL guide for retail lighting optics

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-RZ-LENS

    Colour mixing sublens for HEKLA-SOCKETS and HEKLA-G2 connectors

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    HEKLA-G2B-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2B-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-I2

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-I3

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-TW1

    Version compatible with tunable white COBs of 15.8 x 15.8 mm packages

    HEKLA-G2B-TW2

    Version compatible with tunable white COBs of 18.8 x 18.8 mm packages

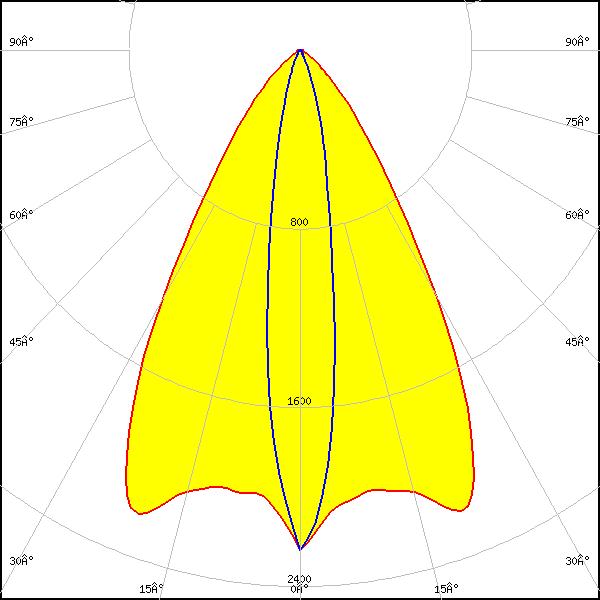

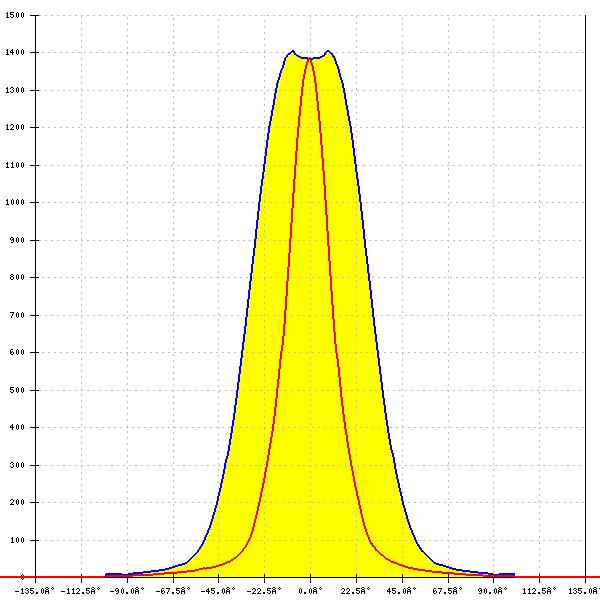

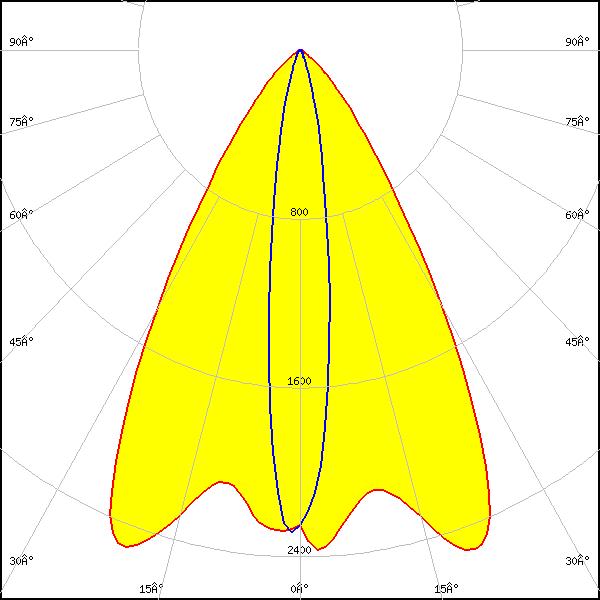

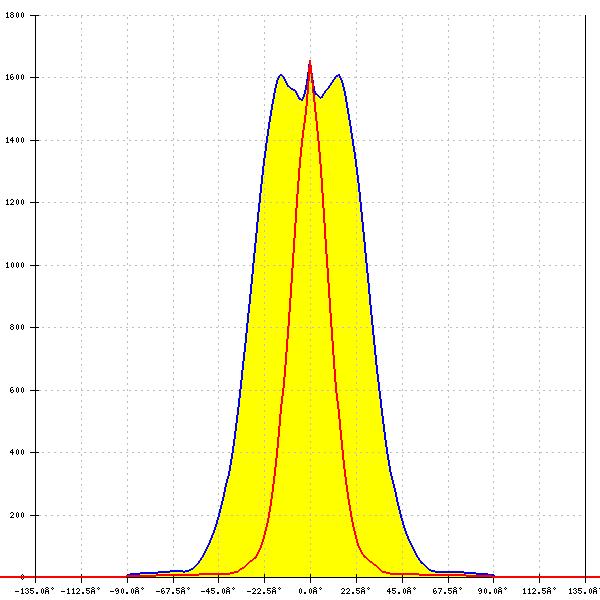

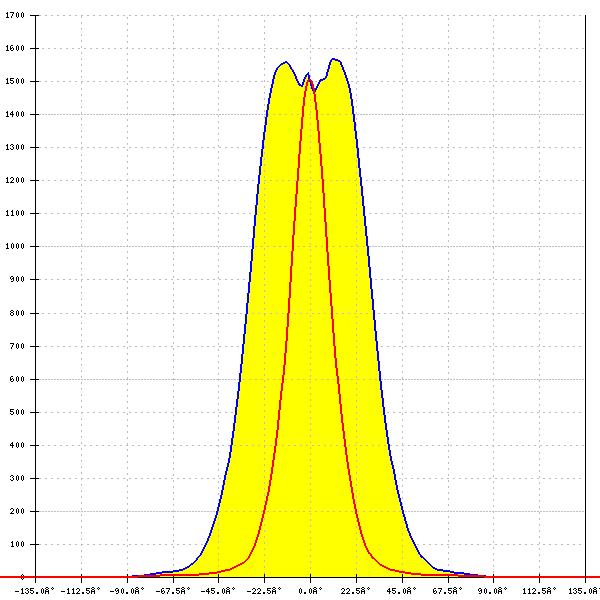

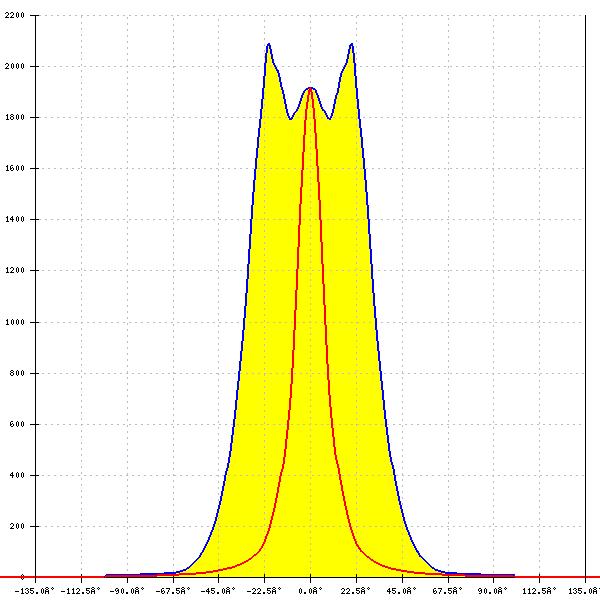

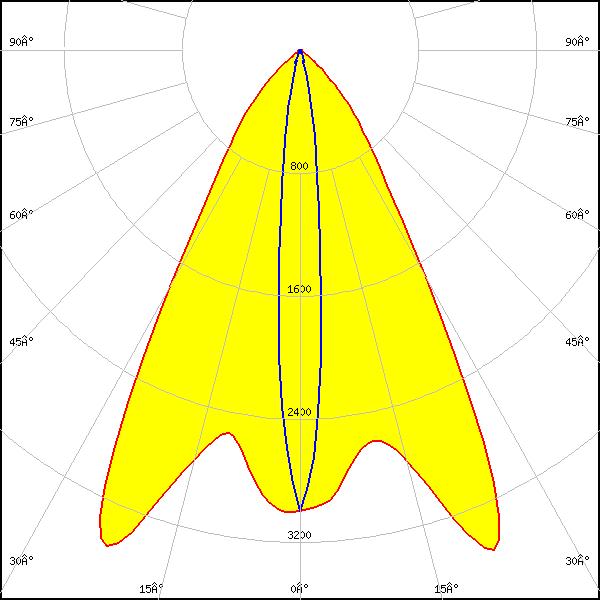

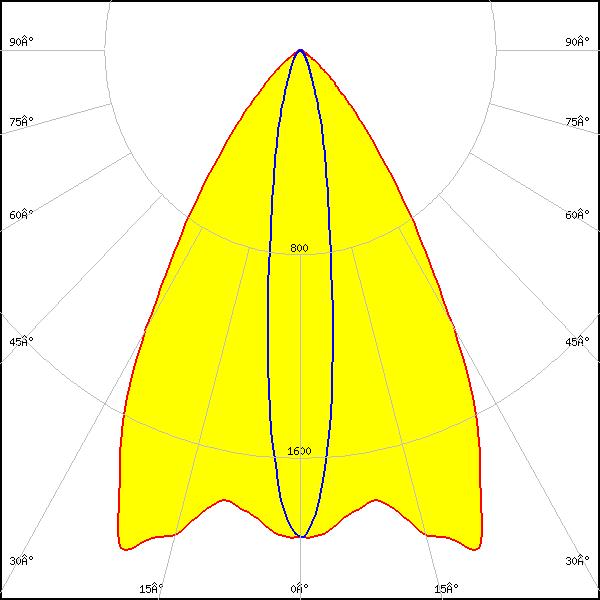

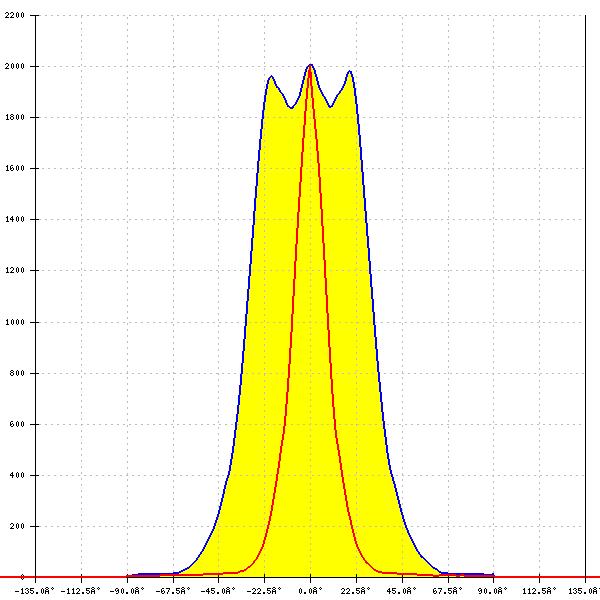

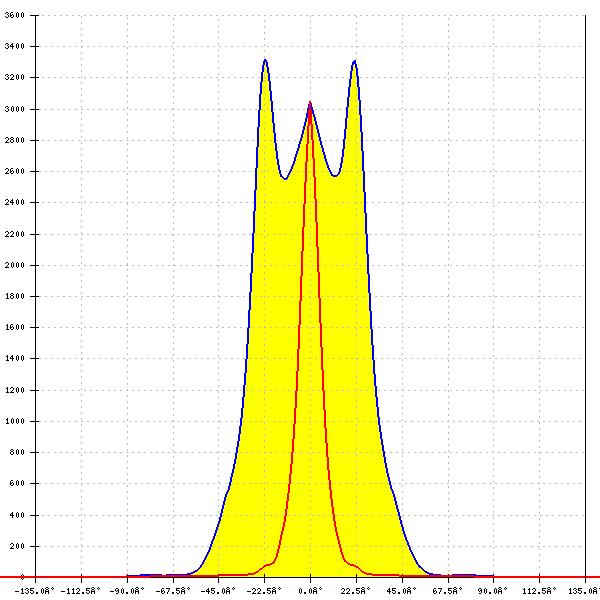

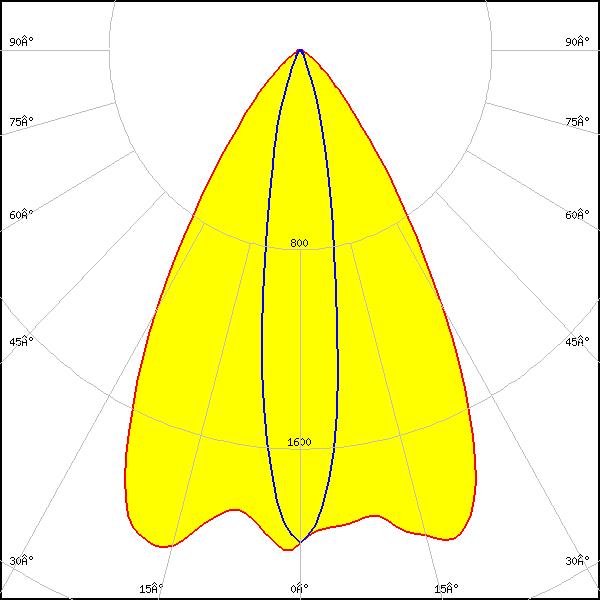

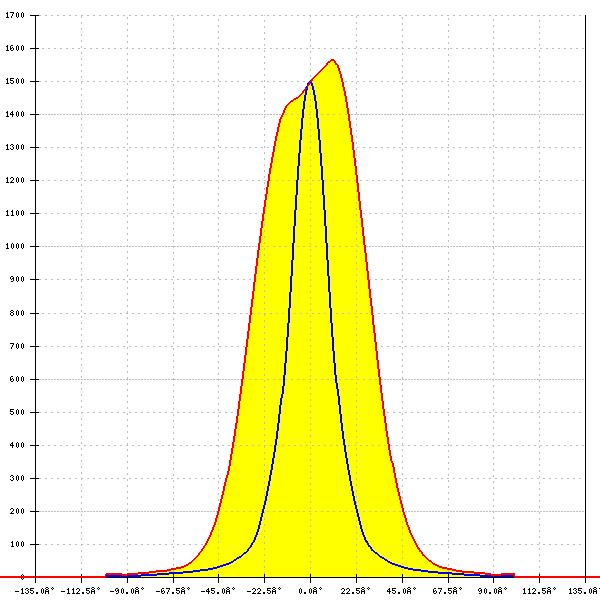

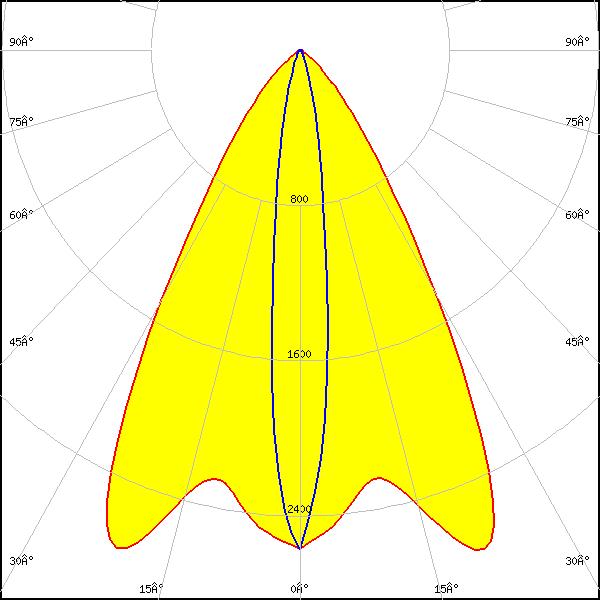

    Optical results

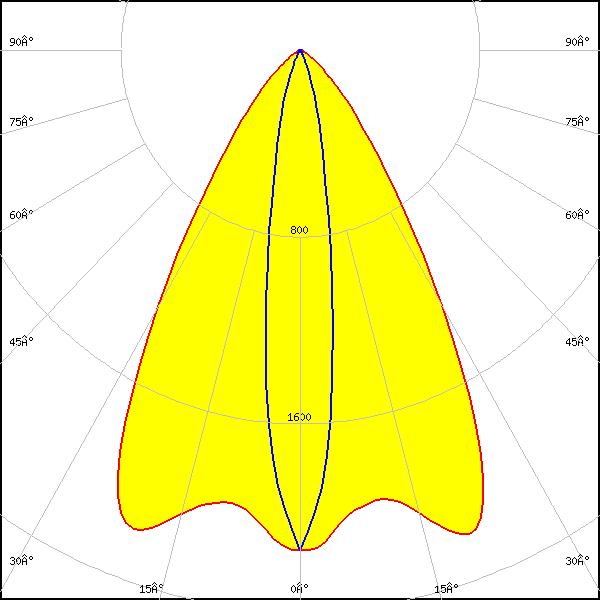

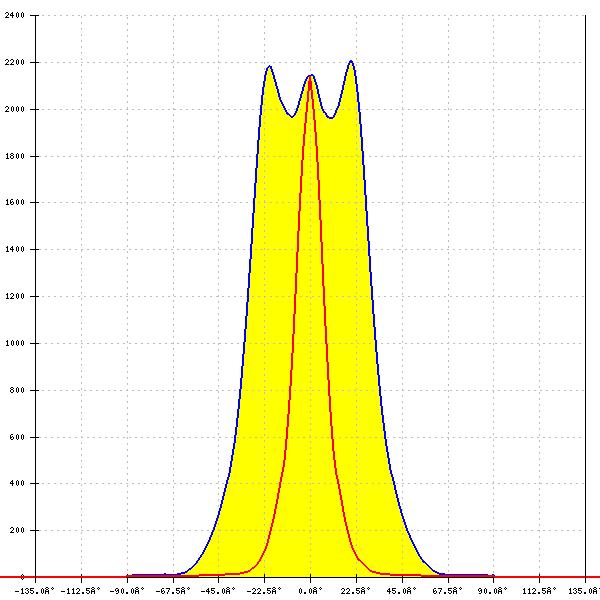

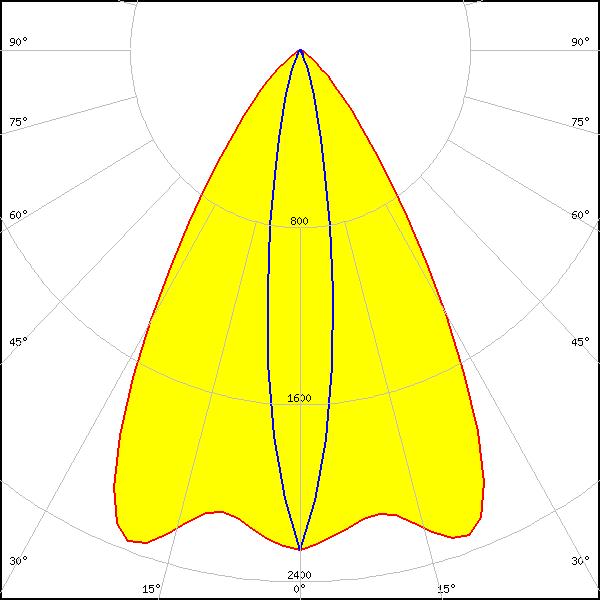

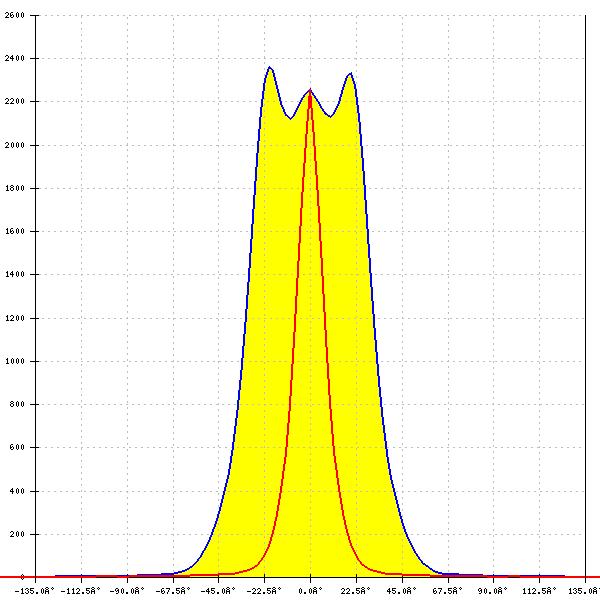

    LED: V10 Gen 8-9
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 10.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 62° + 16°
    FWTM: 94° + 37°
    Peak intensity: 2.207 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

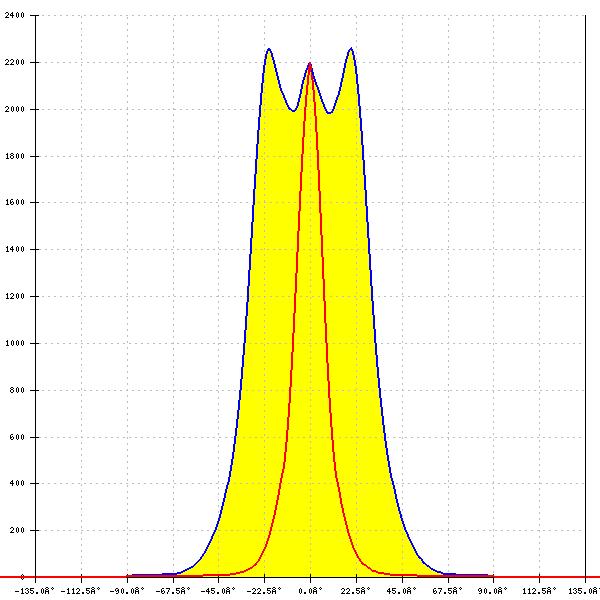

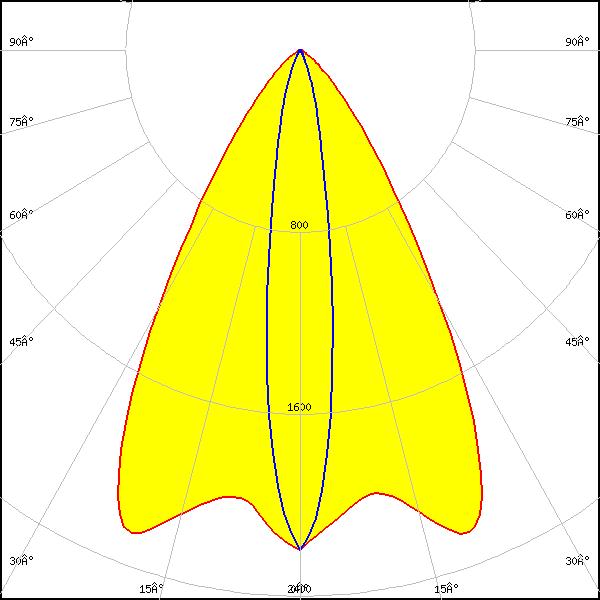

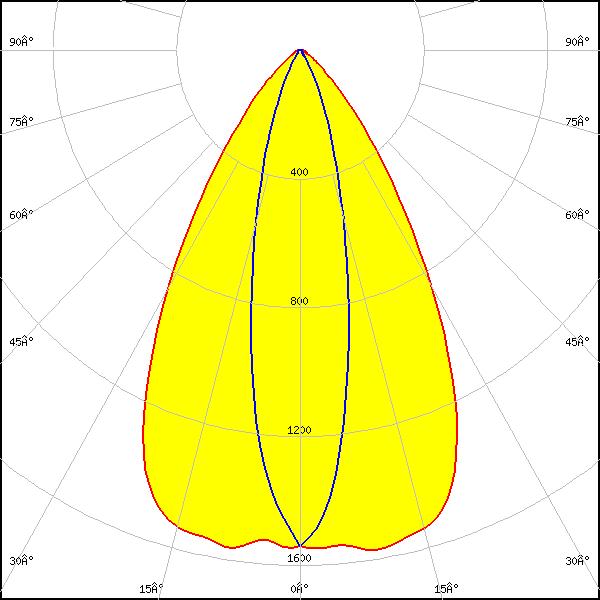

    LED: V10 Gen 8-9

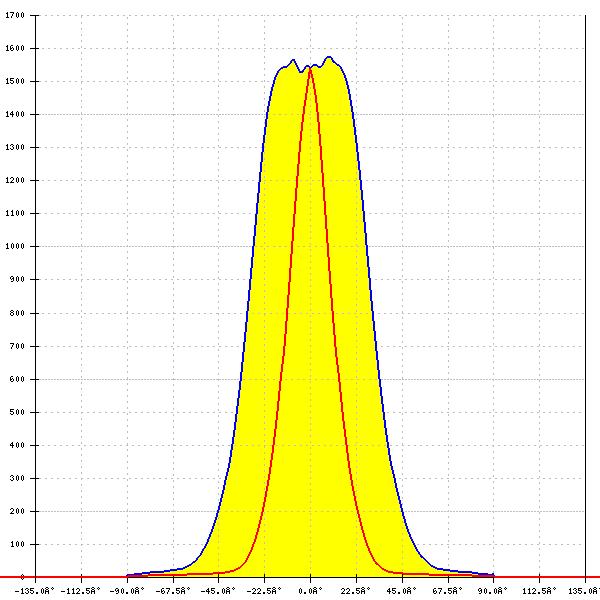

    Ordering code: CP19104_AMY-70-O-B2
    LES size: 10.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 62° + 16°
    FWTM: 91° + 37°
    Peak intensity: 2.259 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

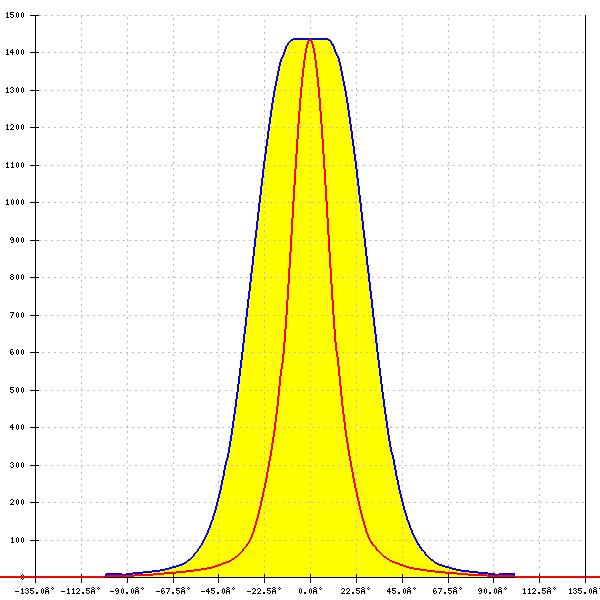

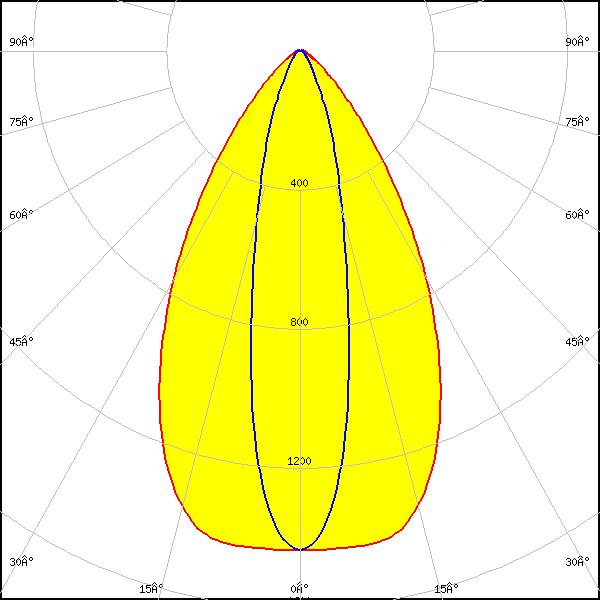

    LED: V13 Gen 8-9
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 14.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 60° + 23°
    FWTM: 96° + 53°
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

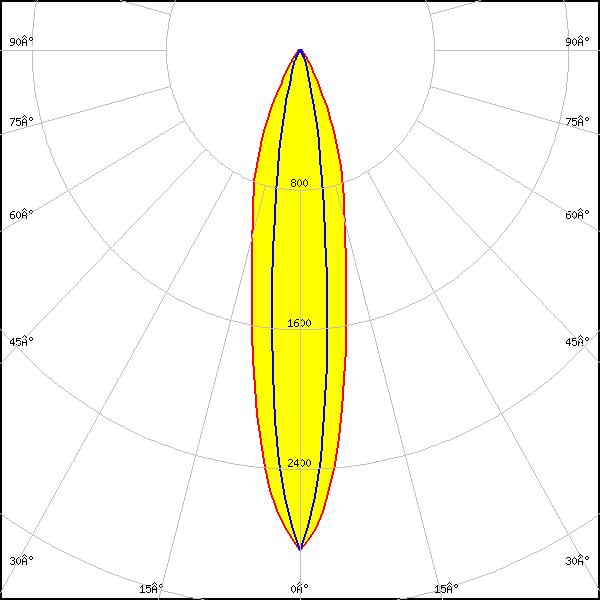

    LED: V6 HD Gen 8
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 6.6 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 13° + 23°
    FWTM: 31° + 57°
    Peak intensity: 3.019 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

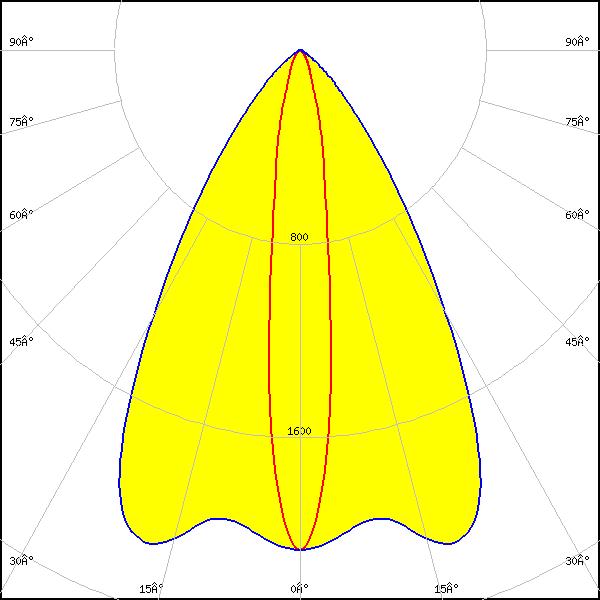

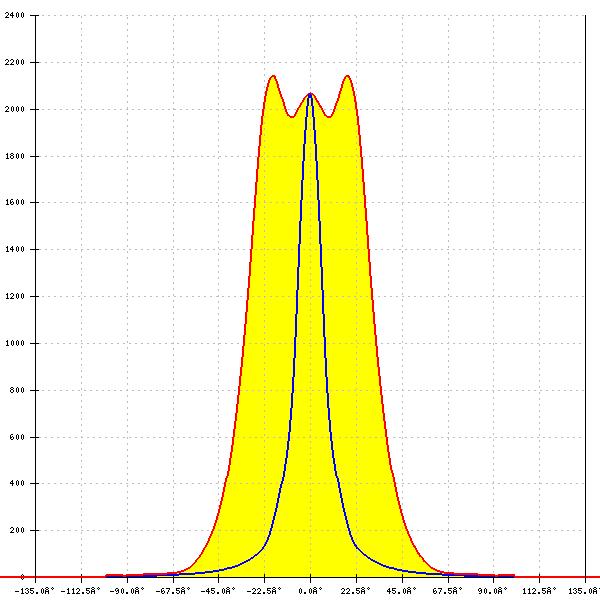

    LED: V9 HD Gen7
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 9.2 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 15° + 62°
    FWTM: 38° + 93°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

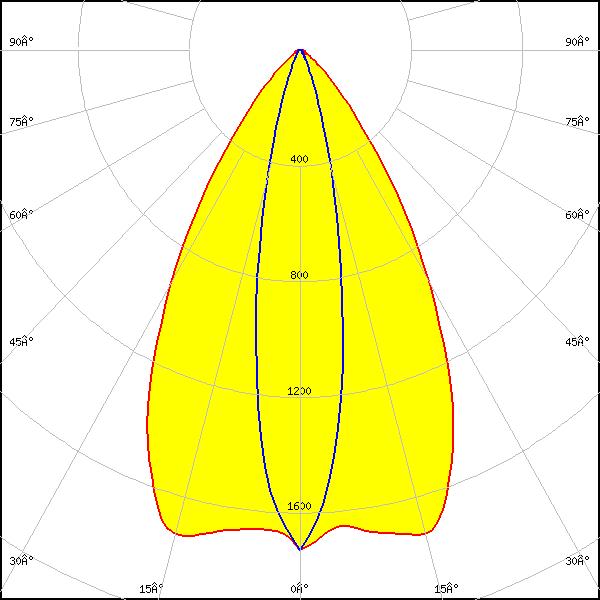

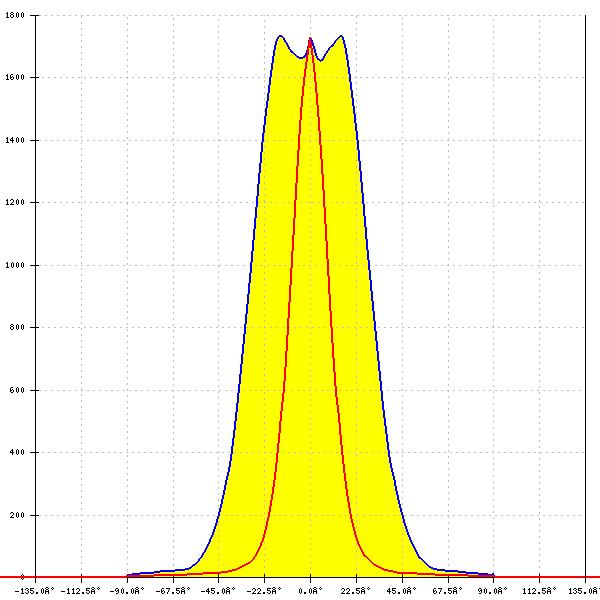

    LED: Vesta SE 13mm TW
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 14.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 62° + 20°
    FWTM: 92° + 42°
    Peak intensity: 1.733 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

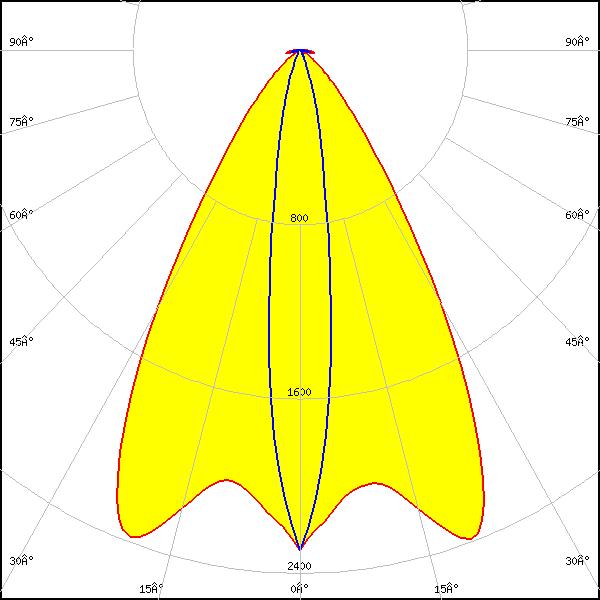

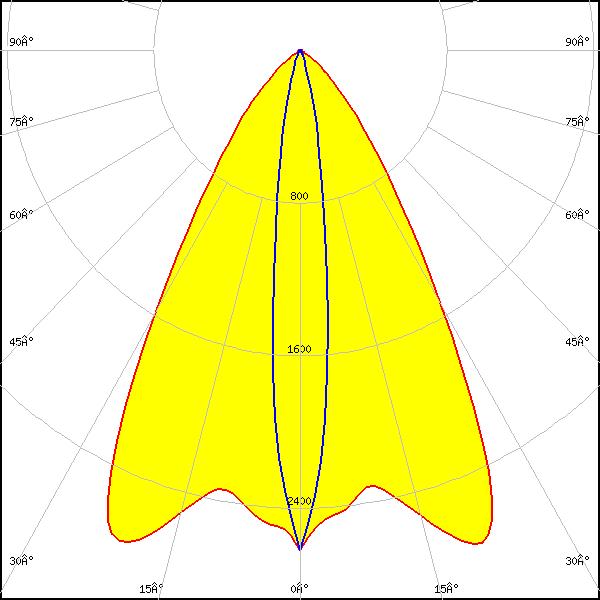

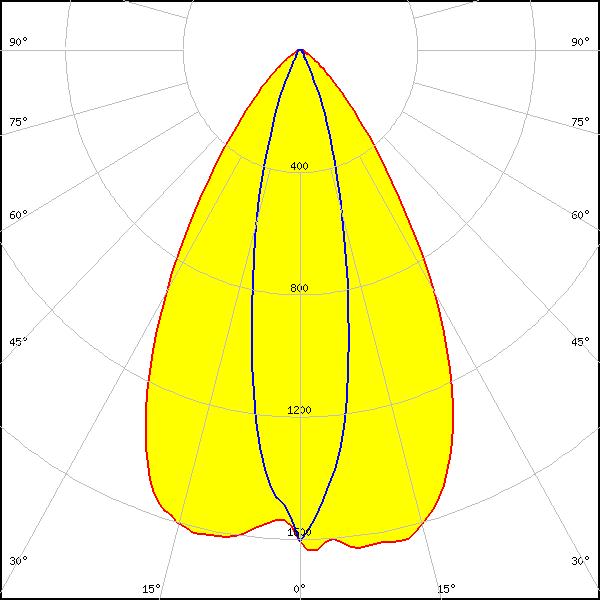

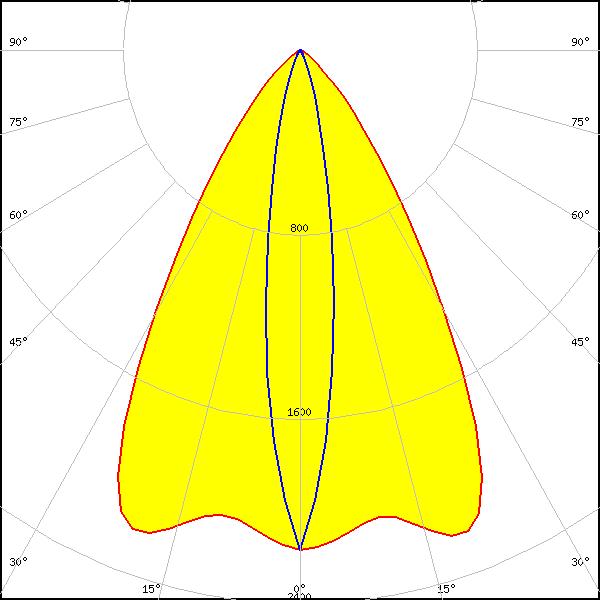

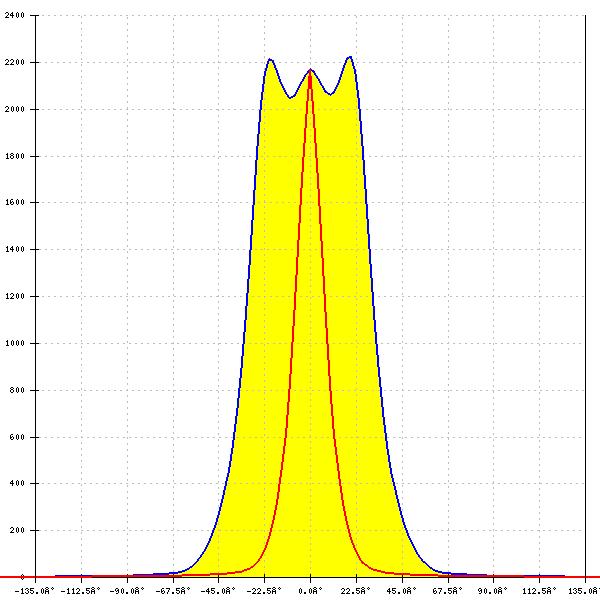

    LED: CLL02x/CLU02x (LES10)
    Ordering code: C18466_AMY-70-O
    LES size: 9.8 mm
    FWHM: 62° + 14°
    FWTM: 90° + 35°
    Peak intensity: 2.388 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

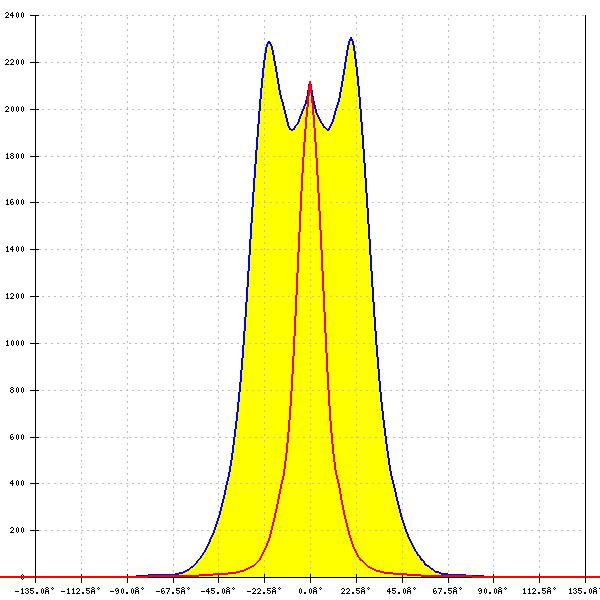

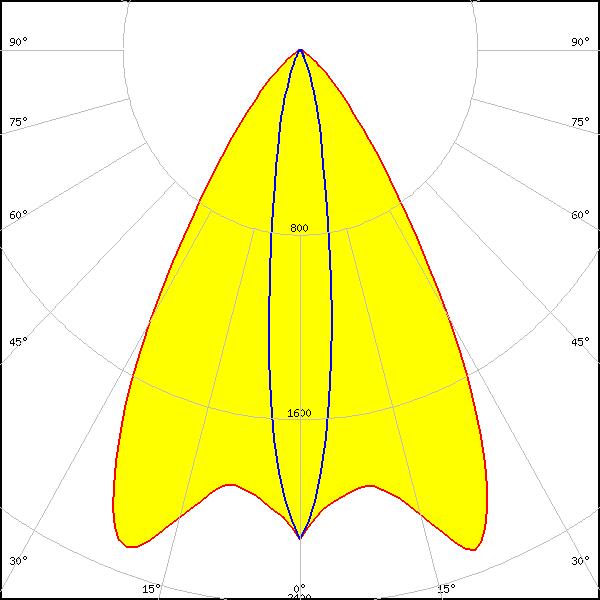

    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 62° + 16°
    FWTM: 92° + 36°
    Peak intensity: 2.305 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

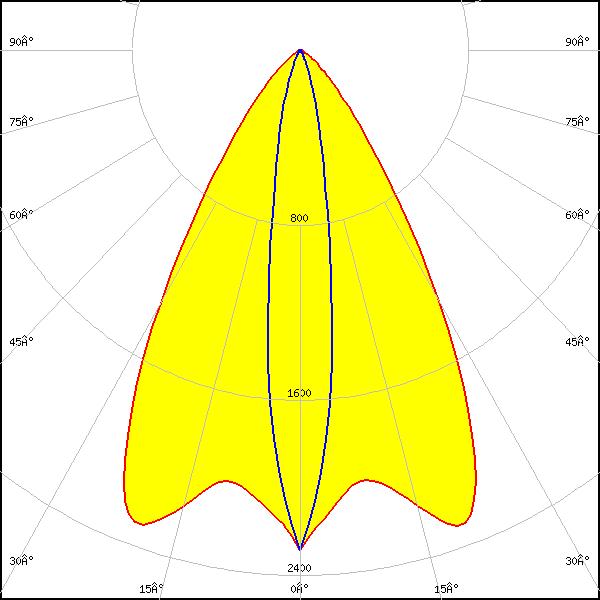

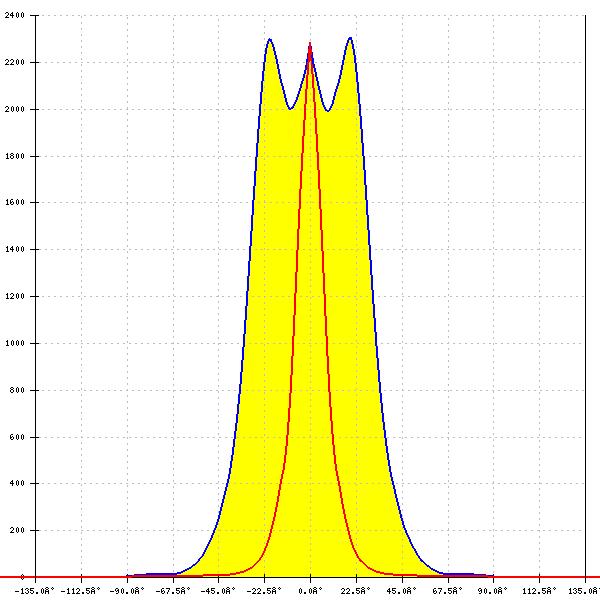

    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP19104_AMY-70-O-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 62° + 16°
    FWTM: 92° + 36°
    Peak intensity: 2.301 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

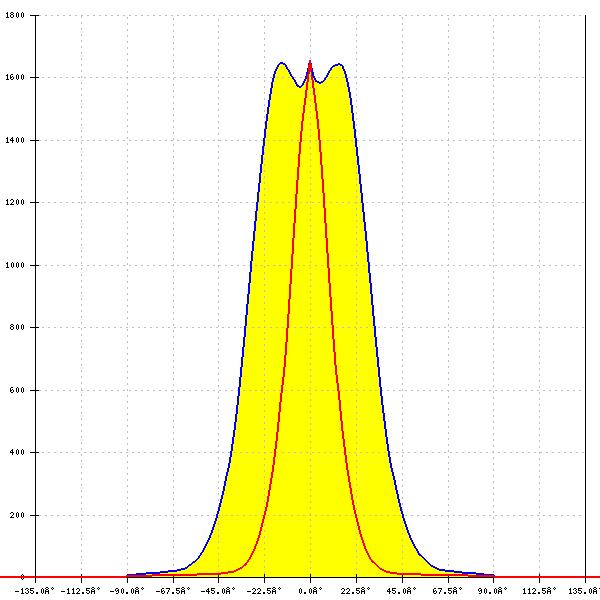

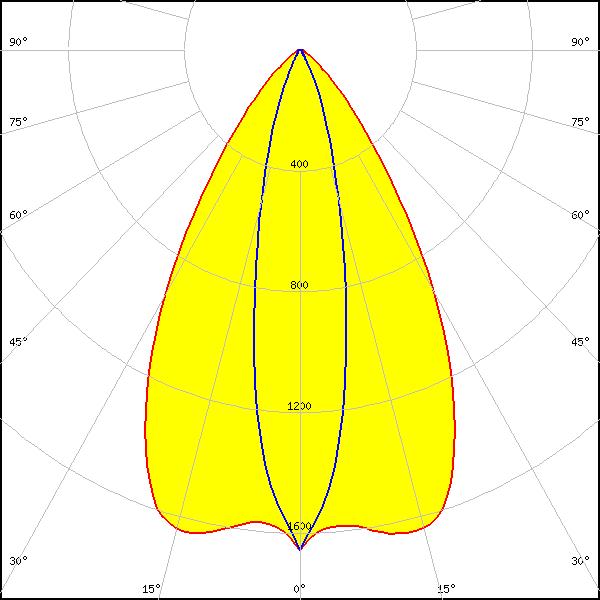

    LED: CLL03x/CLU03x
    Ordering code: CP19104_AMY-70-O-B2
    LES size: 14.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 62° + 22°
    FWTM: 94° + 48°
    Peak intensity: 1.657 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

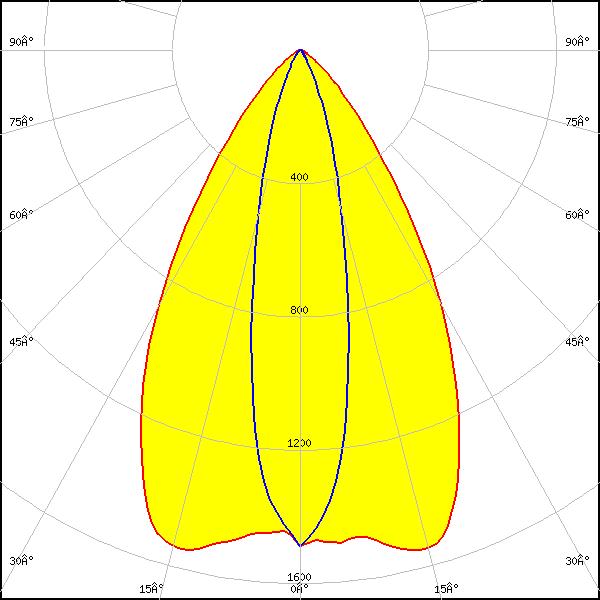

    LED: CLL03x/CLU03x
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 23° + 63°
    FWTM: 52° + 97°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

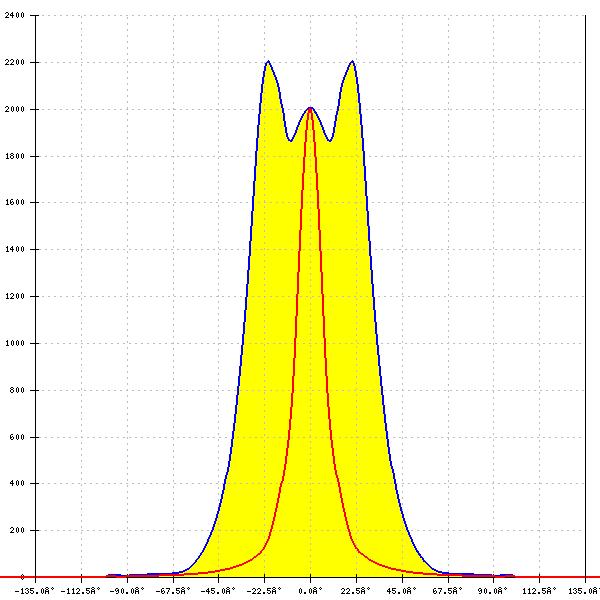

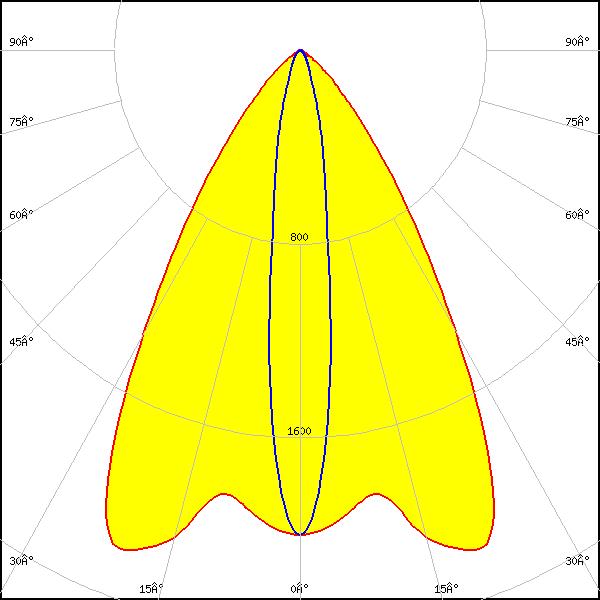

    LED: CLU712/713
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 8.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 64° + 15°
    FWTM: 94° + 38°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

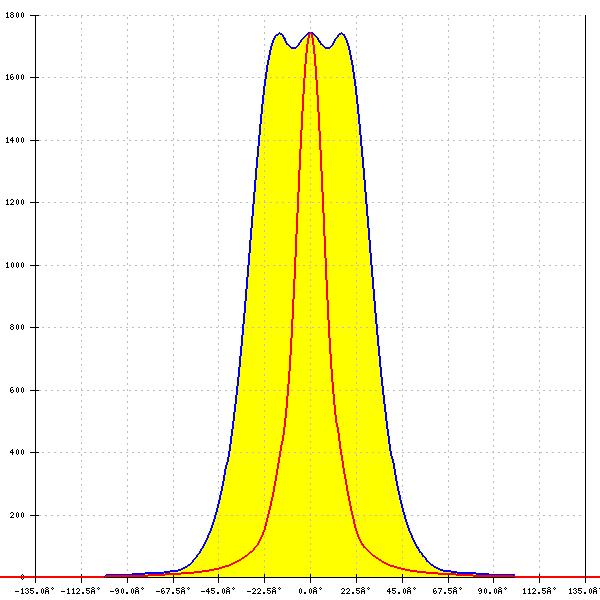

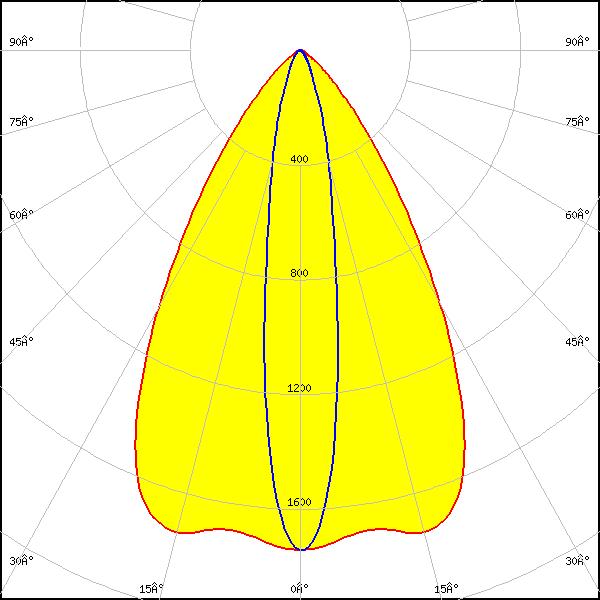

    LED: CLU720/721/723
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 11.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 63° + 18°
    FWTM: 94° + 43°
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

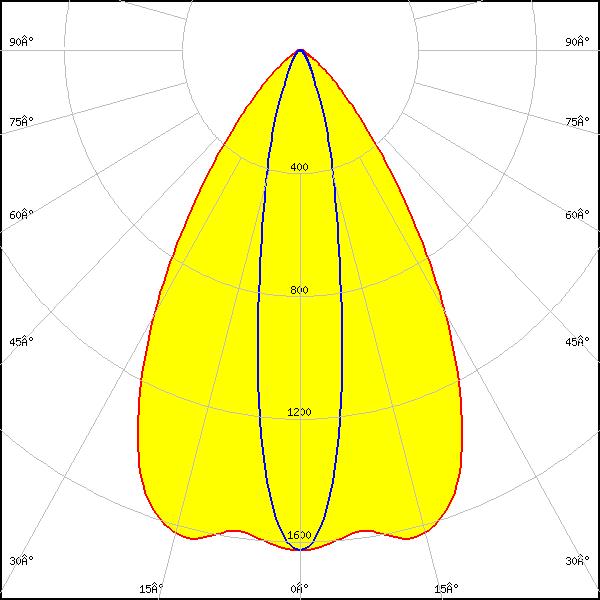

    LED: CMA1825
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 65° + 20°
    FWTM: 97° + 47°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

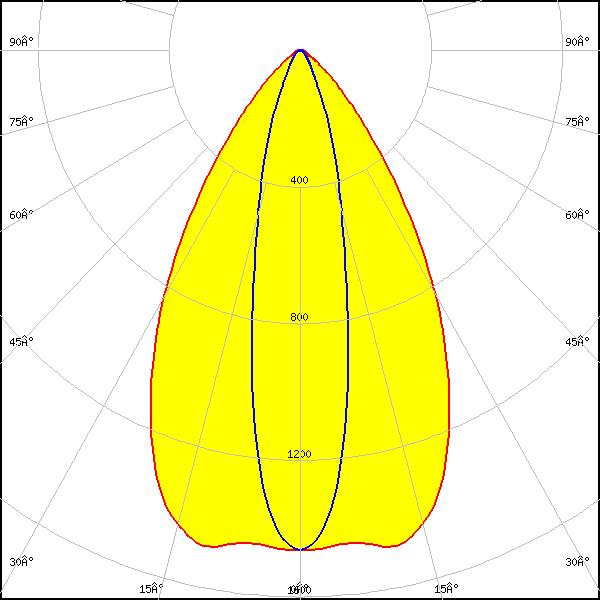

    LED: CMT19xx
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 63° + 23°
    FWTM: 97° + 52°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

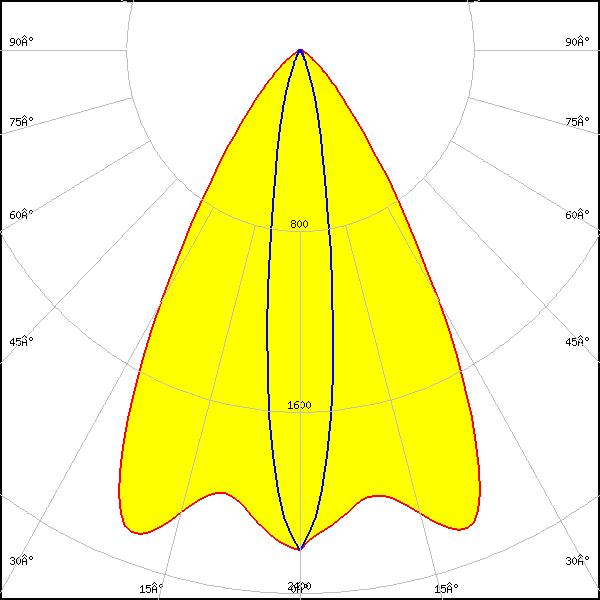

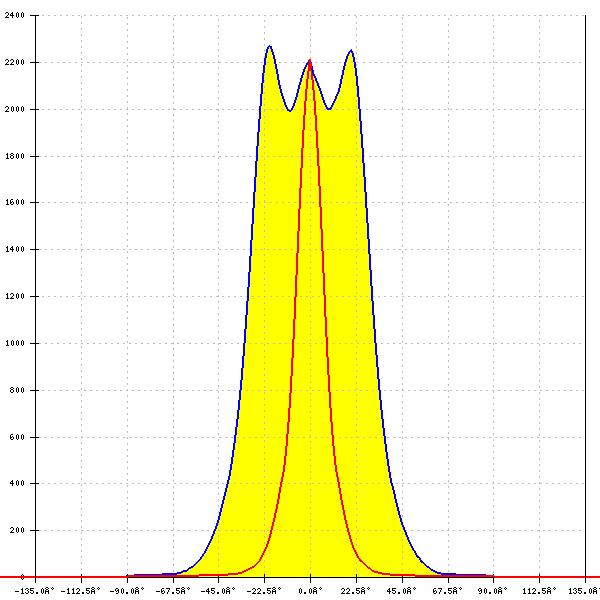

    LED: CMU10xx
    Ordering code: CP19104_AMY-70-O-B2
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 62° + 16°
    FWTM: 91° + 36°
    Peak intensity: 2.270 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

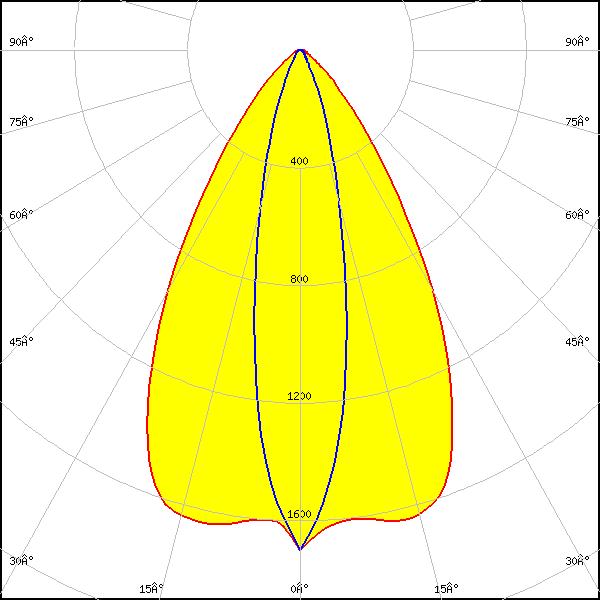

    LED: CMU15xx
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 62° + 22°
    FWTM: 95° + 48°
    Peak intensity: 1.701 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

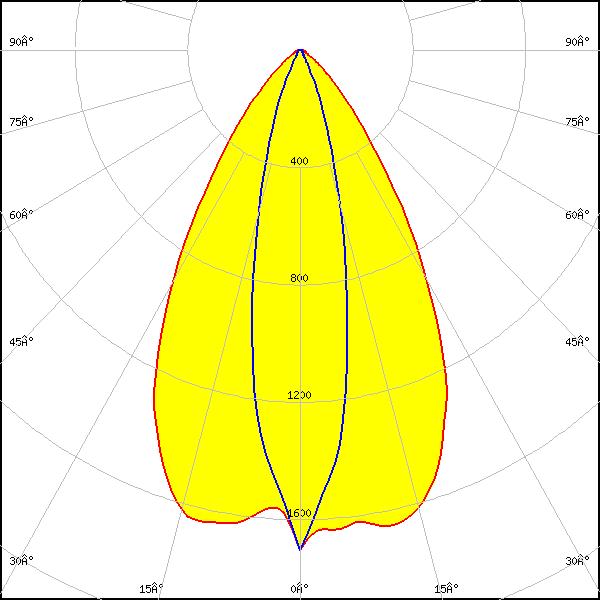

    LED: LUXEON CX Plus CoB L08 (Gen2)
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 62° + 22°
    FWTM: 94° + 47°
    Peak intensity: 1.705 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

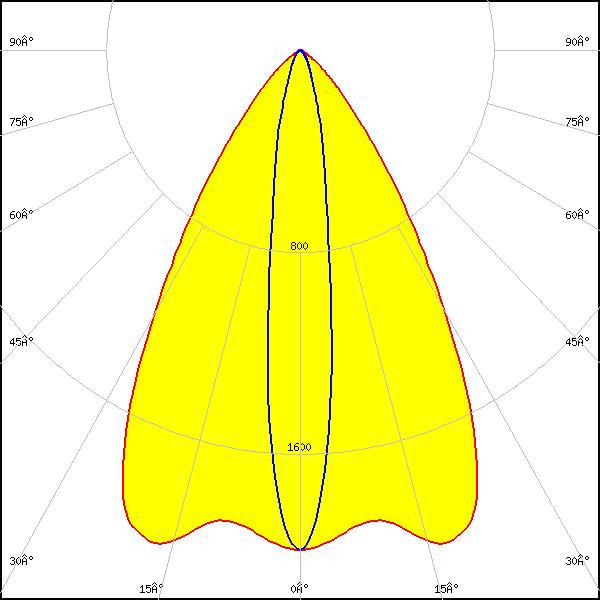

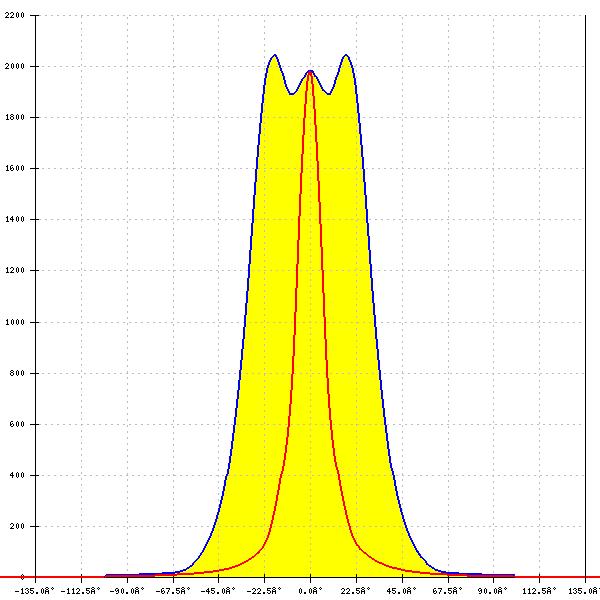

    LED: LUXEON CoB 1204HD
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 63° + 15°
    FWTM: 93° + 39°
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

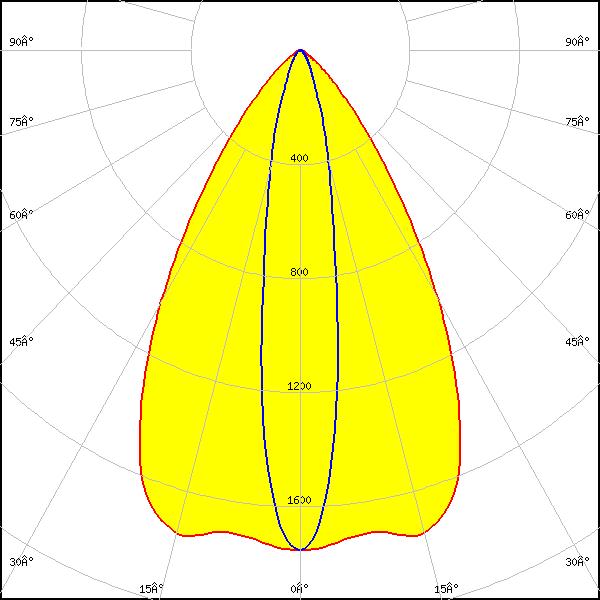

    LED: LUXEON CoB 1205HD
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 11.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 62° + 18°
    FWTM: 94° + 44°
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

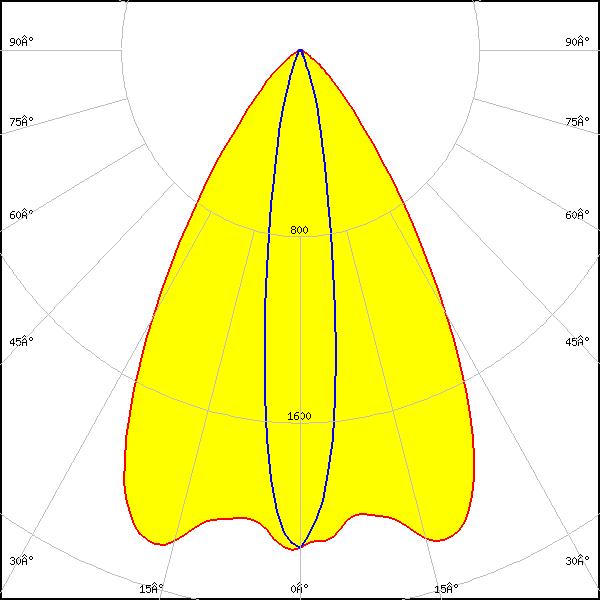

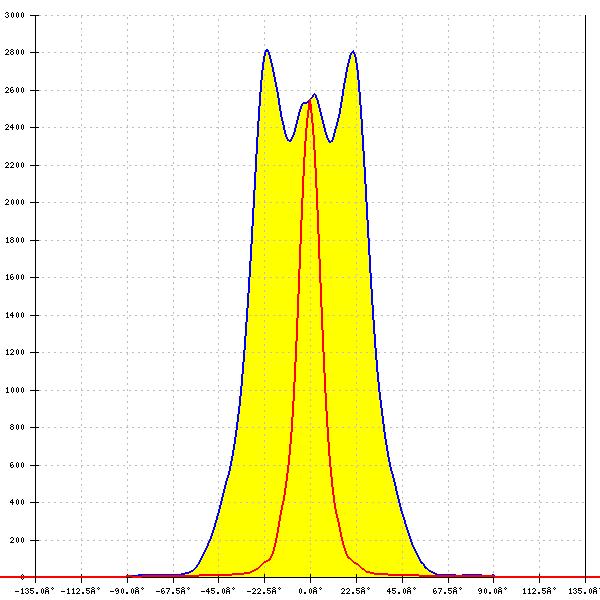

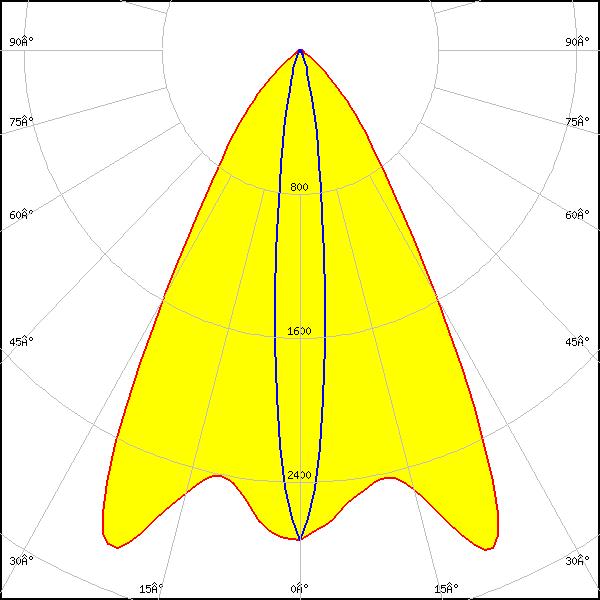

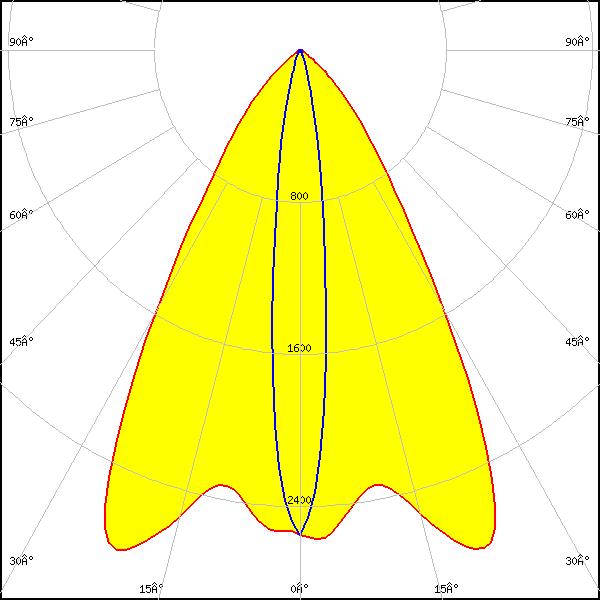

    LED: LUXEON CX Plus CoB - HD S02H6
    Ordering code: CP19104_AMY-70-O-B2
    LES size: 6.0 mm
    FWHM: 62° + 13°
    FWTM: 93° + 30°
    Peak intensity: 2.817 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP19104_AMY-70-O-B2
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 64° + 16°
    FWTM: 94° + 36°
    Peak intensity: 2.219 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    Ordering code: CP19129_AMY-50-O-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 52° + 23°
    FWTM: 86° + 50°
    Peak intensity: 1.818 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 9.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 62° + 16°
    FWTM: 93° + 35°
    Peak intensity: 2.314 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 61° + 12°
    FWTM: 92° + 29°
    Peak intensity: 2.982 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHM-11 XH (19x19)
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 11.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 62° + 14°
    FWTM: 92° + 34°
    Peak intensity: 2.561 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

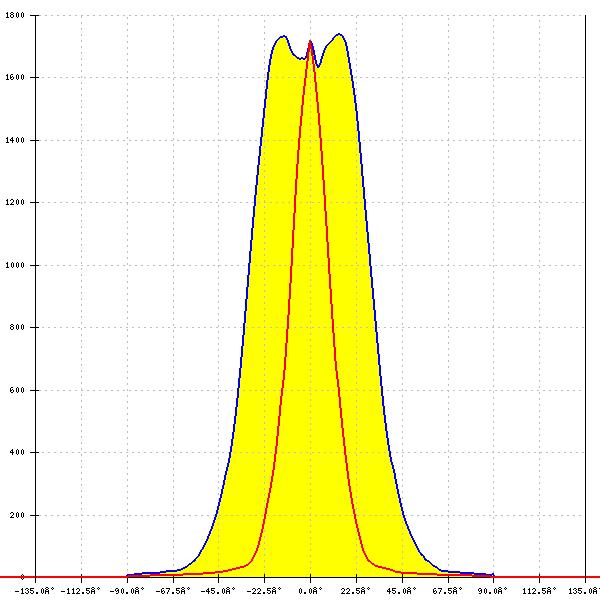

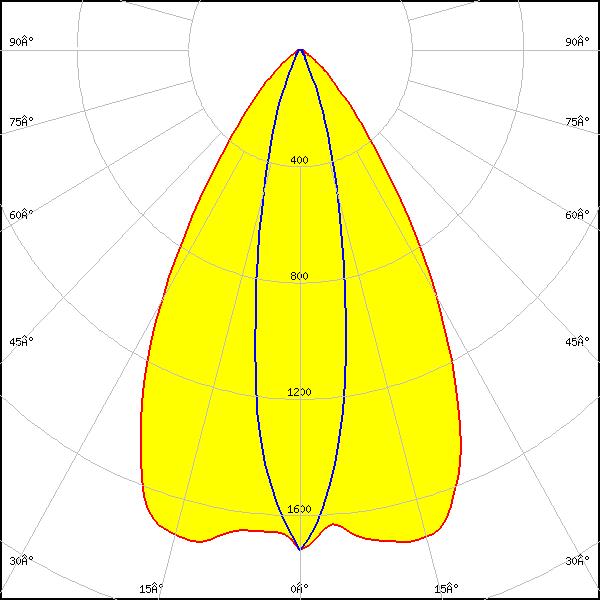

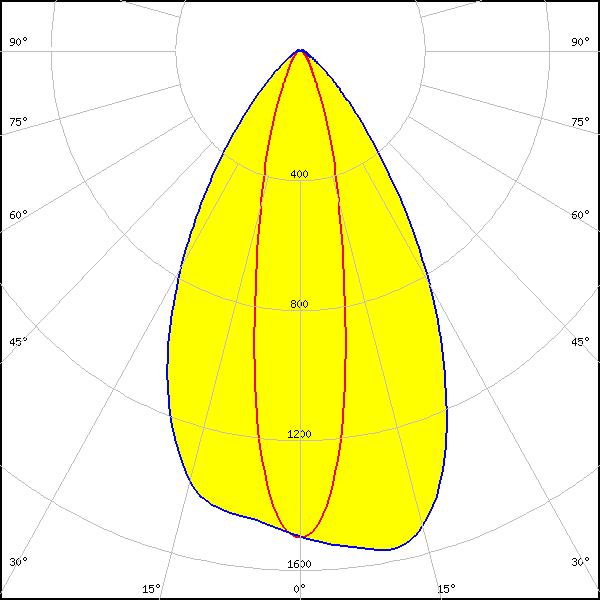

    LED: CTM-14 (Tunable White) Gen2
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 13.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 64° + 22°
    FWTM: 94° + 46°
    Peak intensity: 1.757 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CTM-14 (Tunable White) Gen2
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 13.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 22° + 61°
    FWTM: 51° + 95°
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

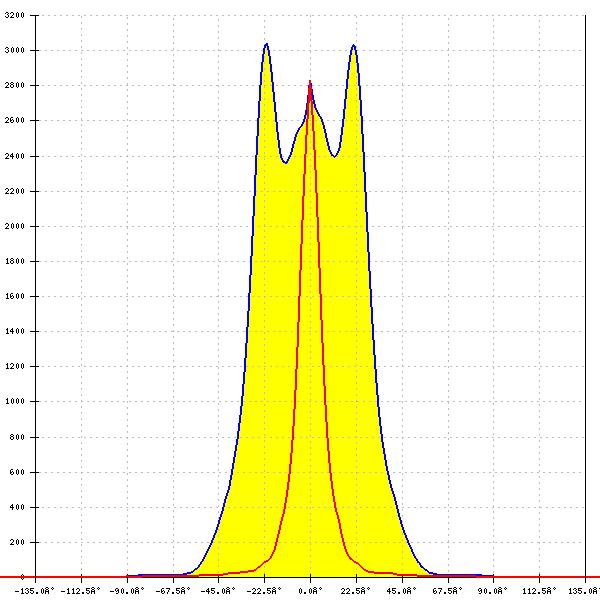

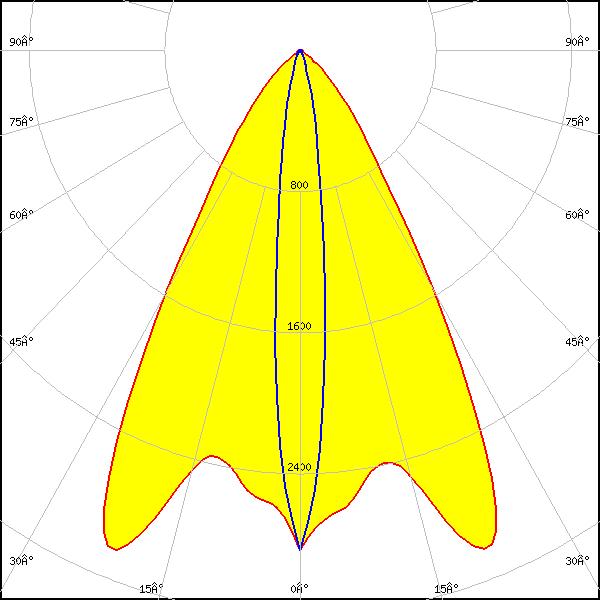

    LED: CTM-6 (Tunable White) Gen2
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 6.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 60° + 12°
    FWTM: 90° + 30°
    Peak intensity: 3.035 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

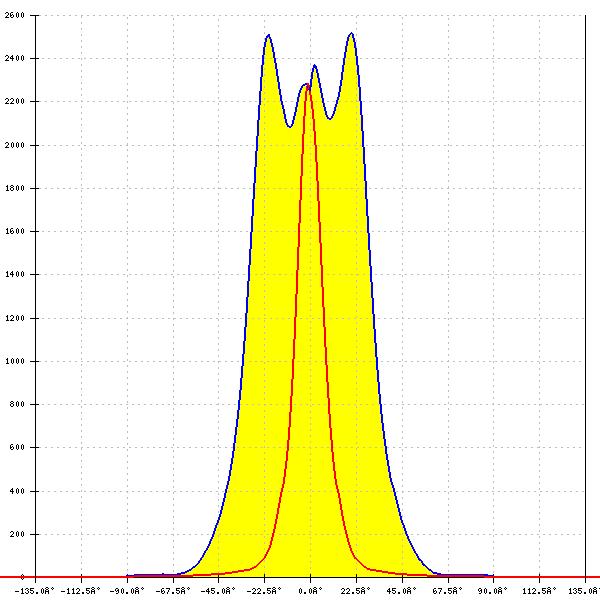

    LED: CTM-9 (Tunable White) Gen2
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 62° + 15°
    FWTM: 90° + 34°
    Peak intensity: 2.519 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

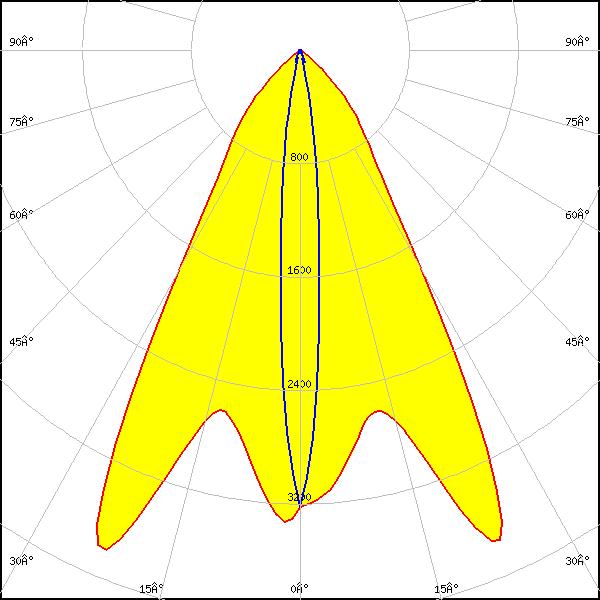

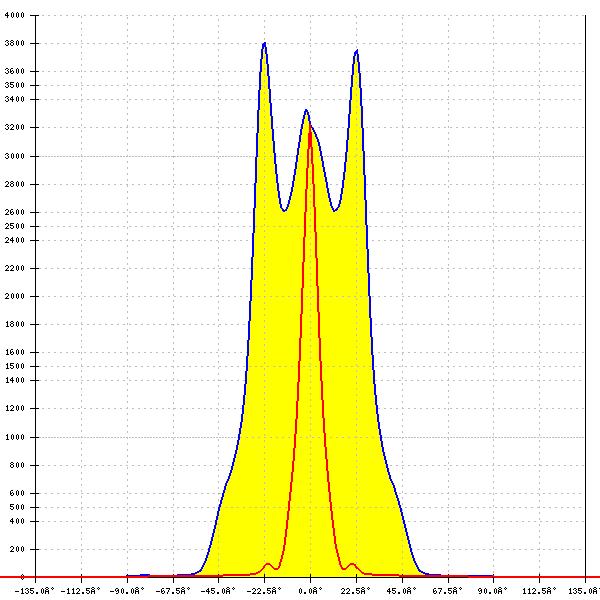

    LED: CXM-3
    Ordering code: CP19104_AMY-70-O-B2
    LES size: 3.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 59° + 10°
    FWTM: 92° + 24°
    Peak intensity: 3.804 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

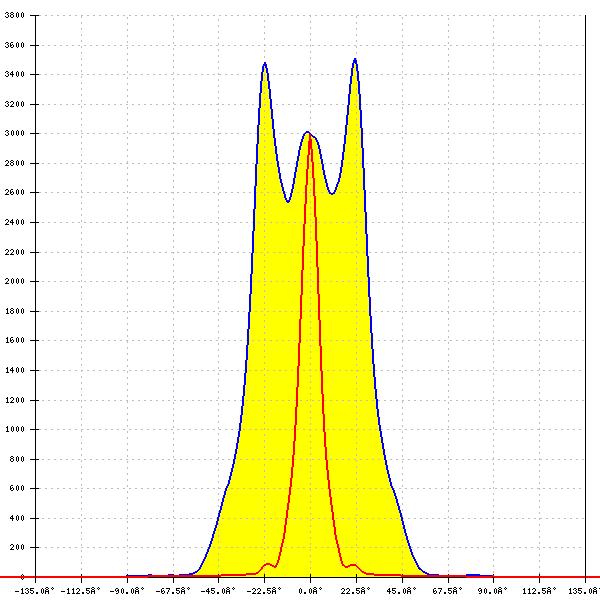

    LED: CXM-4
    Ordering code: CP19104_AMY-70-O-B2
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 60° + 11°
    FWTM: 92° + 26°
    Peak intensity: 3.508 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-6 (13.5x13.5)
    Ordering code: CP19104_AMY-70-O-B2
    LES size: 6.3 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 60° + 12°
    FWTM: 90° + 26°
    Peak intensity: 3.282 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB J-Type
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 14.6 mm
    Required components:
    Bender Wirth: 663a Hekla XL
    FWHM: 62° + 24°
    FWTM: 96° + 48°
    Peak intensity: 1.657 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 11.5 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 64° + 18°
    FWTM: 94° + 40°
    Peak intensity: 2.005 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 6)
    Ordering code: CP19104_AMY-70-O-B2
    LES size: 5.9 mm
    FWHM: 62° + 12°
    FWTM: 94° + 28°
    Peak intensity: 2.995 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP19104_AMY-70-O-B2
    LES size: 6.7 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 62° + 13°
    FWTM: 94° + 30°
    Peak intensity: 2.766 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB T-Type
    Ordering code: CP19104_AMY-70-O-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 62° + 13°
    FWTM: 94° + 30°
    Peak intensity: 2.904 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

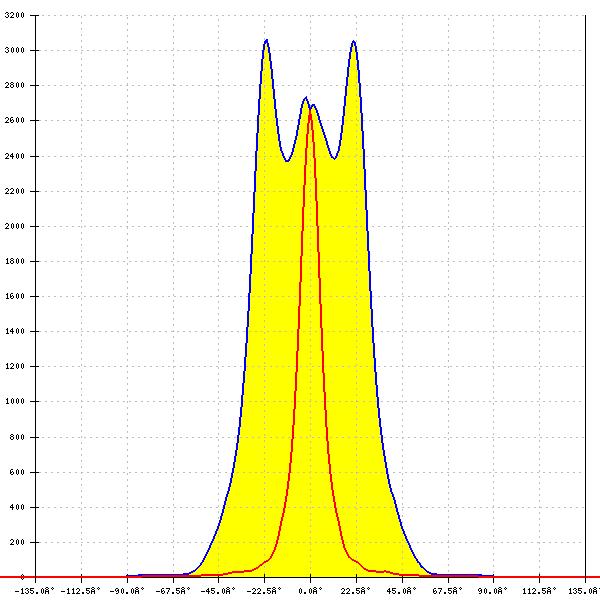

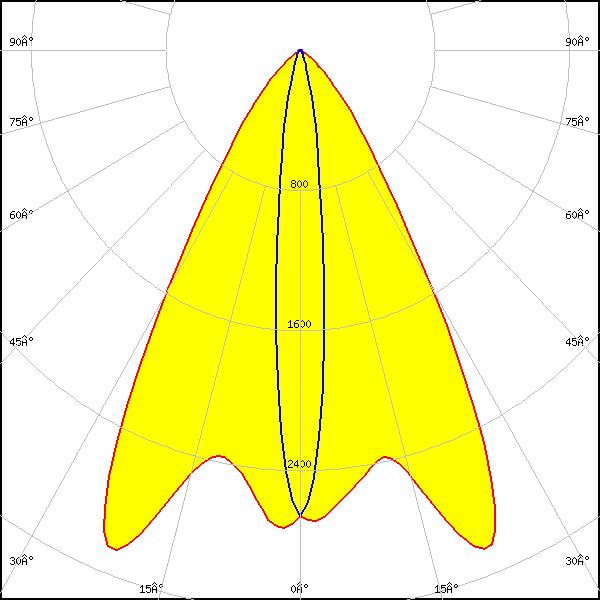

    LED: NJCWL024Z-V1MT: COB L-Type Tunable White
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 7.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 497 Typ L8 HV
    FWHM: 60° + 12°
    FWTM: 88° + 30°
    Peak intensity: 3.058 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

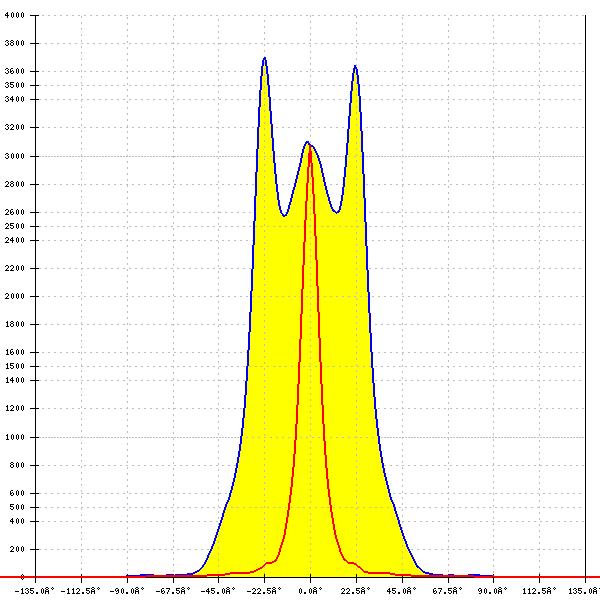

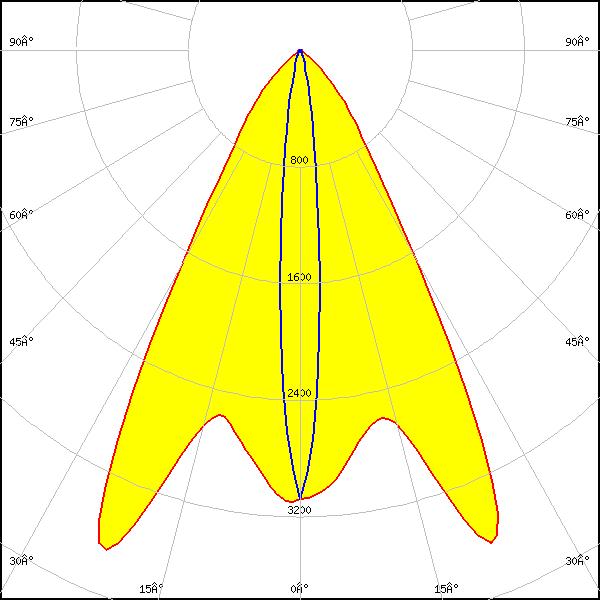

    LED: NJNWS012Z-V1MT: COB S-Type Tunable White
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 5.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8 HV
    FWHM: 58° + 10°
    FWTM: 88° + 26°
    Peak intensity: 3.699 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

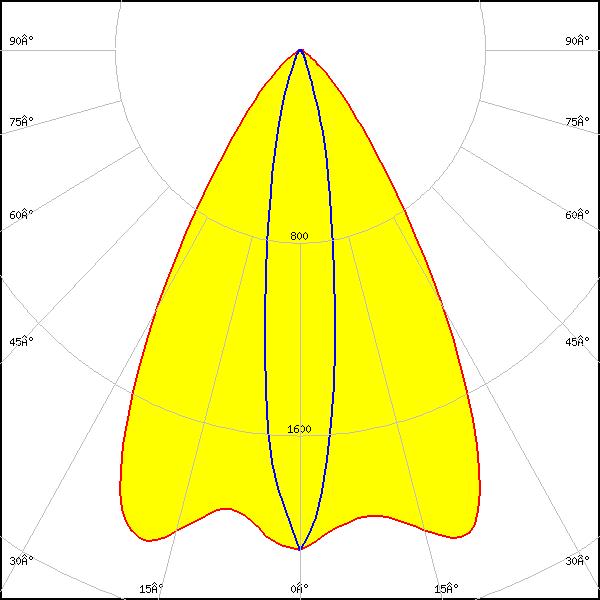

    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8 HV
    FWHM: 63° + 16°
    FWTM: 92° + 38°
    Peak intensity: 2.143 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

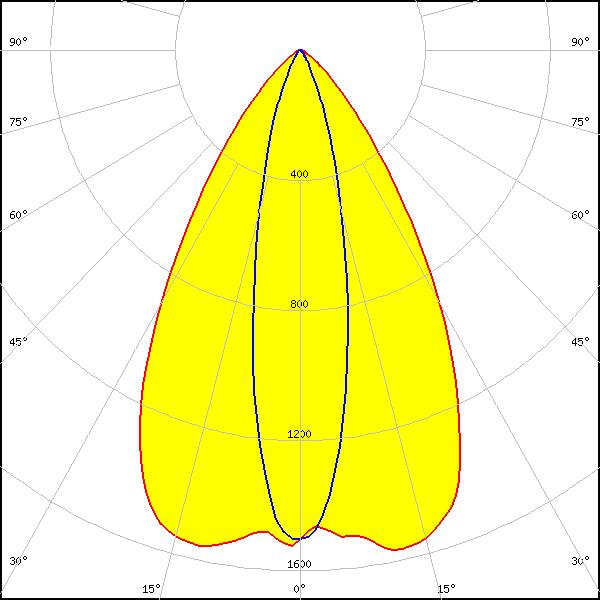

    LED: Fortimo SLM L15 CoB
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 63° + 23°
    FWTM: 95° + 48°
    Peak intensity: 1.568 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 63° + 16°
    FWTM: 93° + 40°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

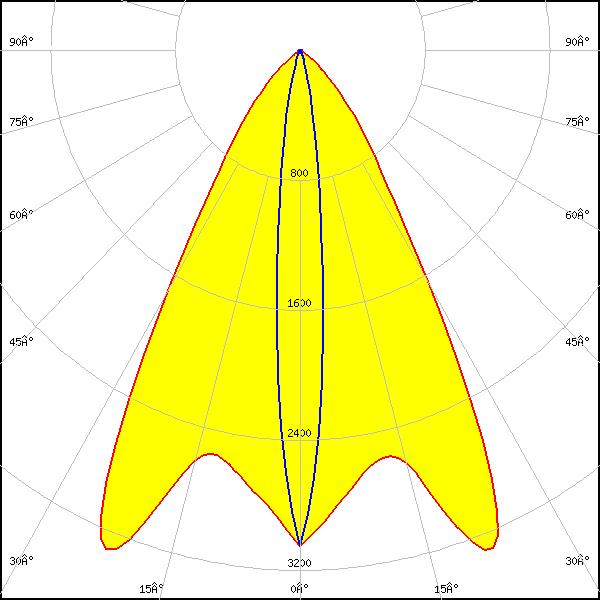

    LED: LC010C G2
    Ordering code: CP19104_AMY-70-O-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 60° + 12°
    FWTM: 90° + 26°
    Peak intensity: 3.316 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010T (Tunable White)
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 62° + 14°
    FWTM: 90° + 32°
    Peak intensity: 2.756 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP19104_AMY-70-O-B2
    LES size: 14.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 62° + 24°
    FWTM: 94° + 50°
    Peak intensity: 1.573 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

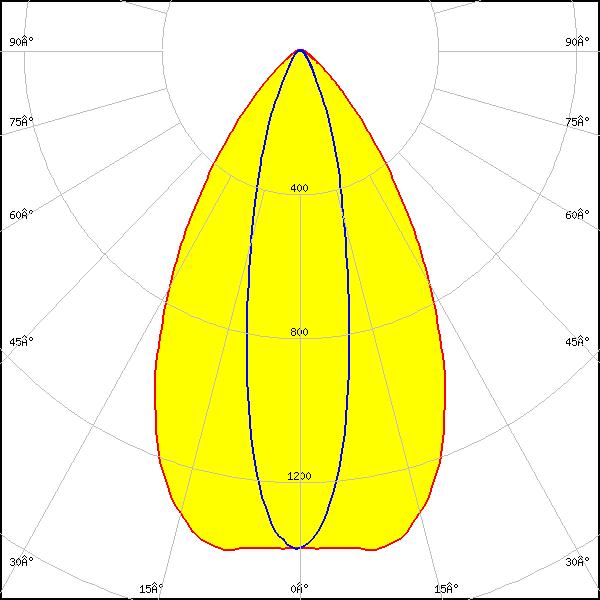

    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 62° + 24°
    FWTM: 98° + 54°
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

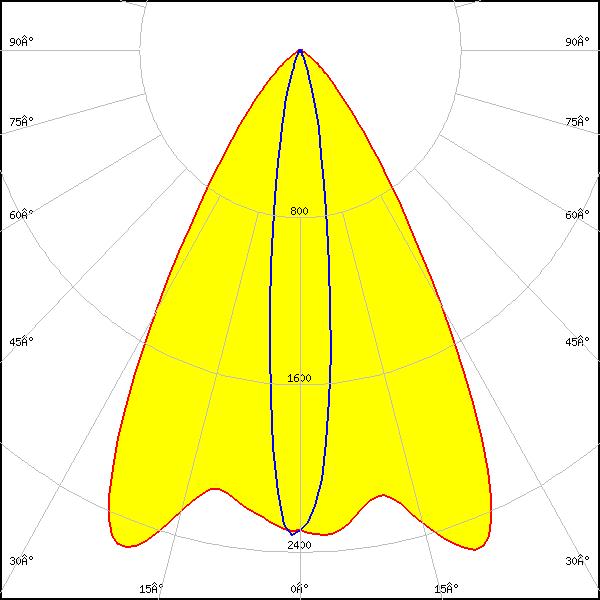

    LED: LC020C G2
    Ordering code: CP19104_AMY-70-O-B2
    LES size: 8.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 62° + 14°
    FWTM: 91° + 34°
    Peak intensity: 2.545 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

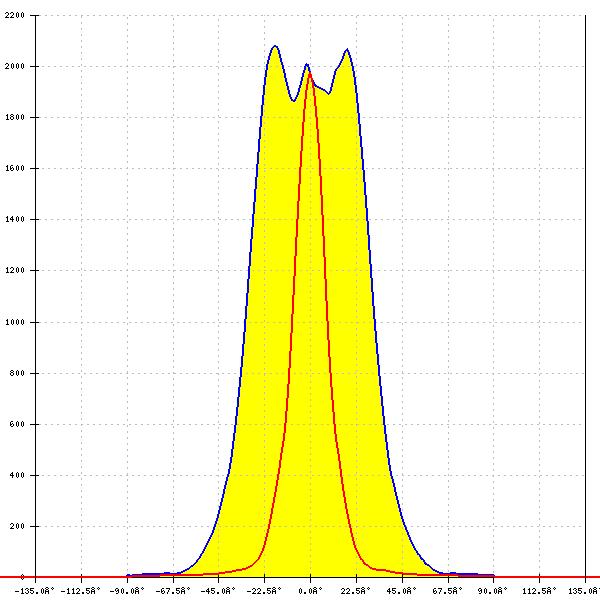

    LED: LC020T (Tunable white)
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 62° + 18°
    FWTM: 92° + 40°
    Peak intensity: 2.080 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

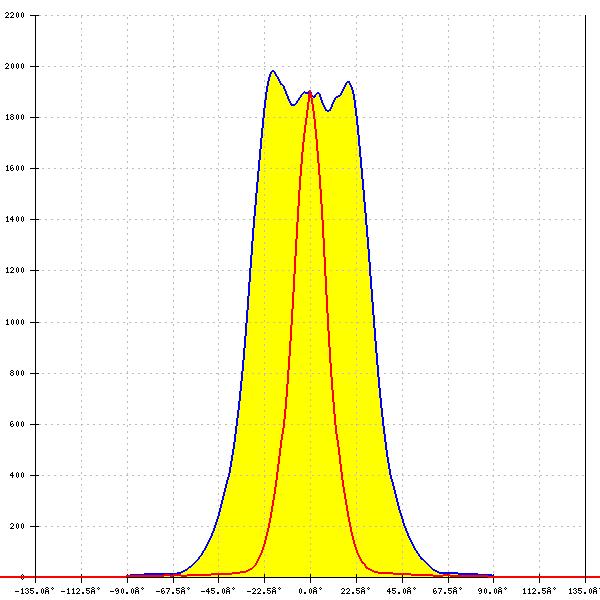

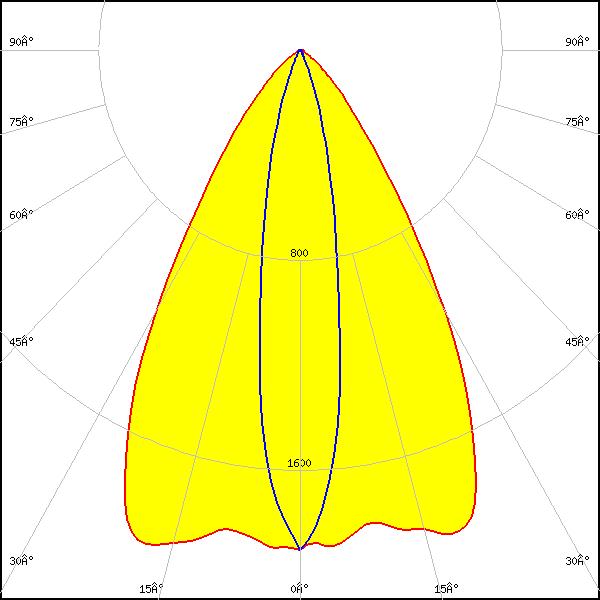

    LED: LC030C/040C G2
    Ordering code: CP19104_AMY-70-O-B2
    LES size: 11.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 63° + 19°
    FWTM: 94° + 40°
    Peak intensity: 1.980 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 60° + 22°
    FWTM: 93° + 48°
    Peak intensity: 1.759 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 6
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 6.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 60° + 12°
    FWTM: 91° + 28°
    Peak intensity: 3.274 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 6
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 6.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 62° + 16°
    FWTM: 93° + 36°
    Peak intensity: 2.239 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

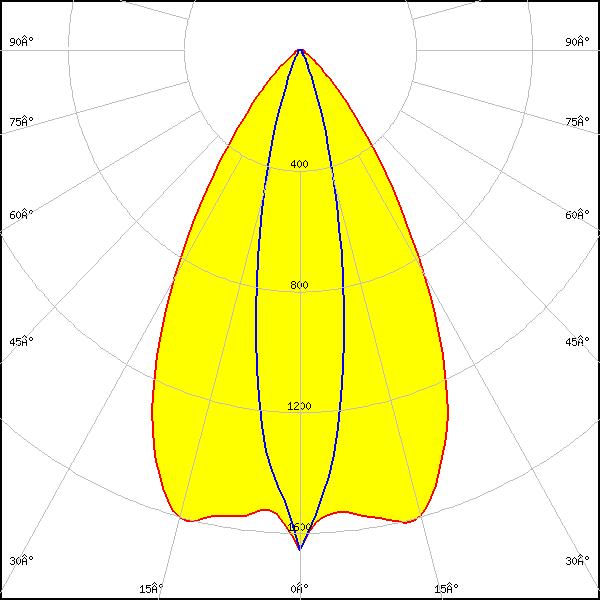

    LED: XOB 14.5 mm
    Ordering code: CP19044_AMY-70-O-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 61° + 21°
    FWTM: 92° + 42°
    Peak intensity: 1.656 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
