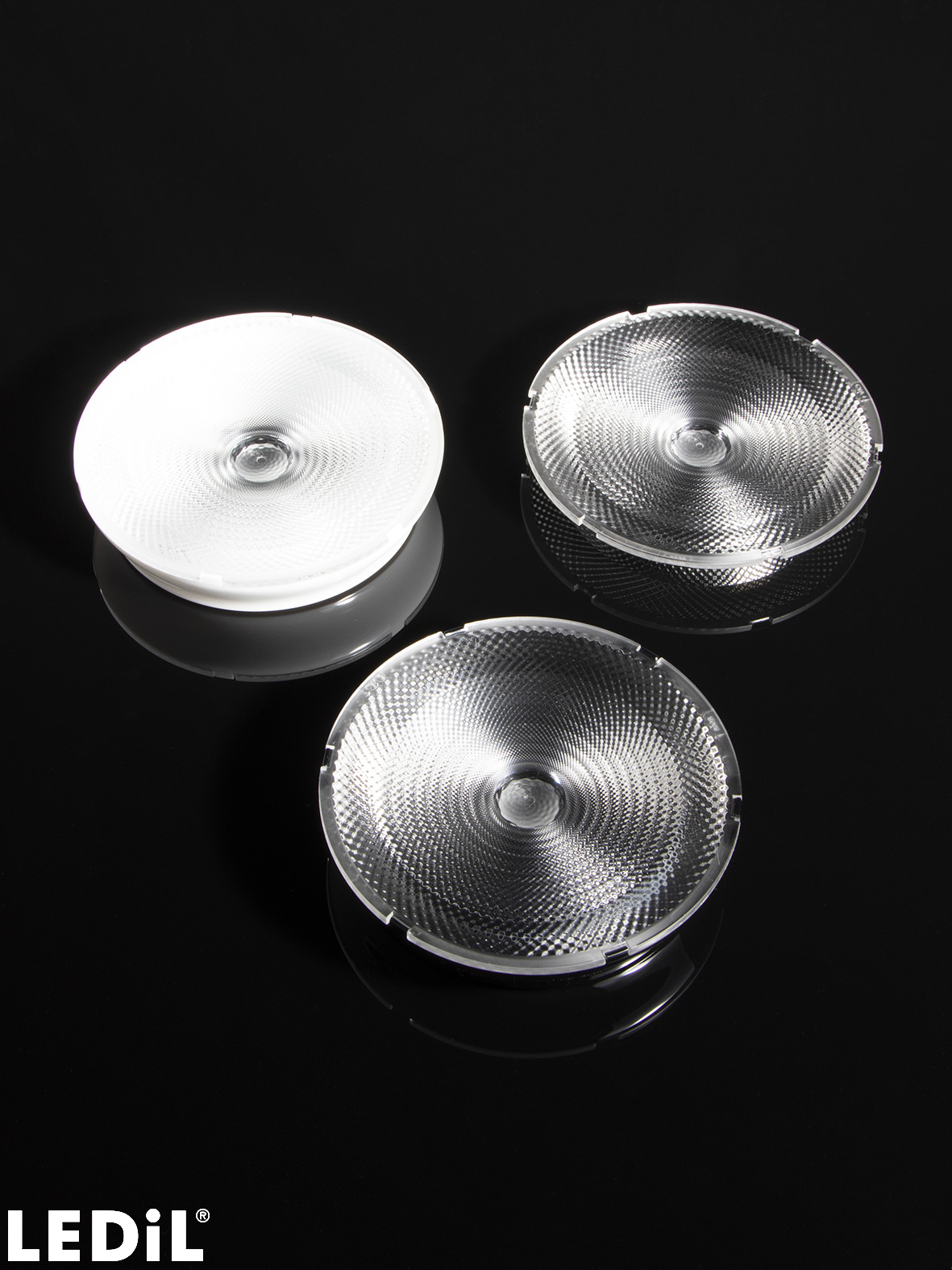

AMY-110-M
Print
~24° medium beam
B variants fit ∅50 mm B+W and BJB connectors.
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
Materials
- AMY-110-MPMMA
- AMY-110-HLD-C-WHTPC
- AMY-110-HLD-CPC
- AMY-110-HLD-B-WHTPC
- AMY-110-HLD-BPC
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

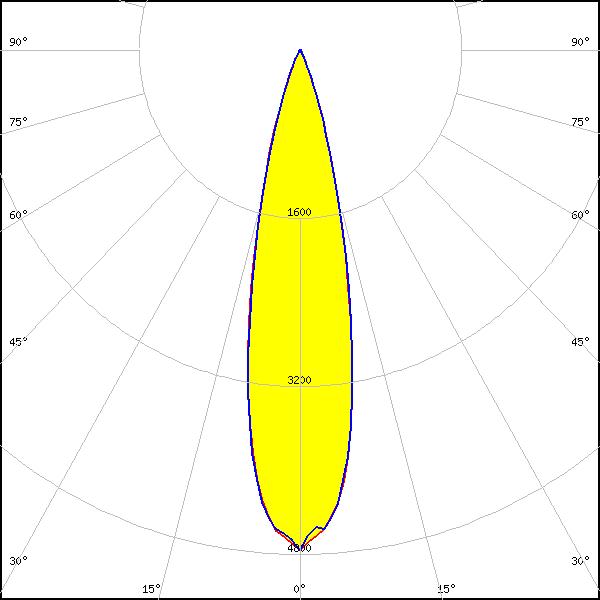

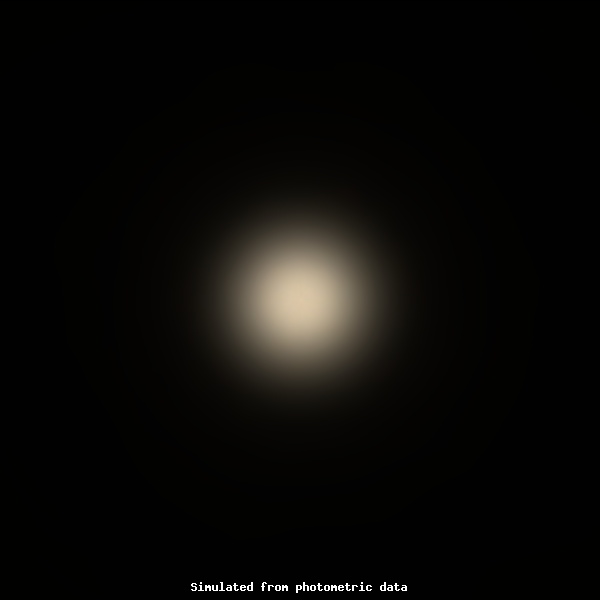

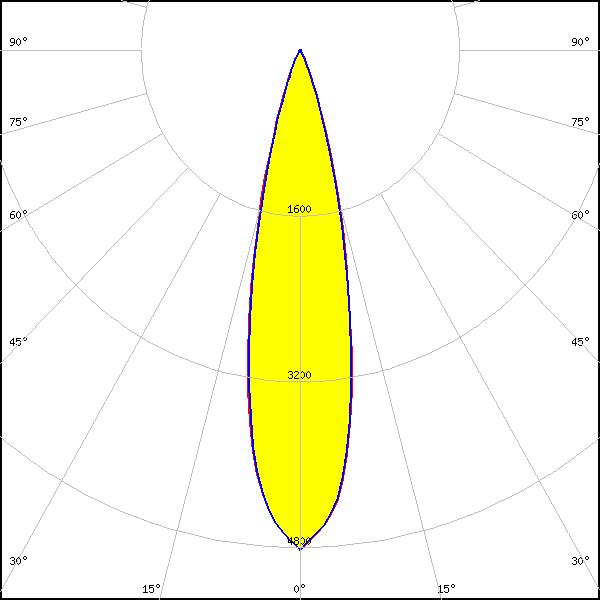

Optical results

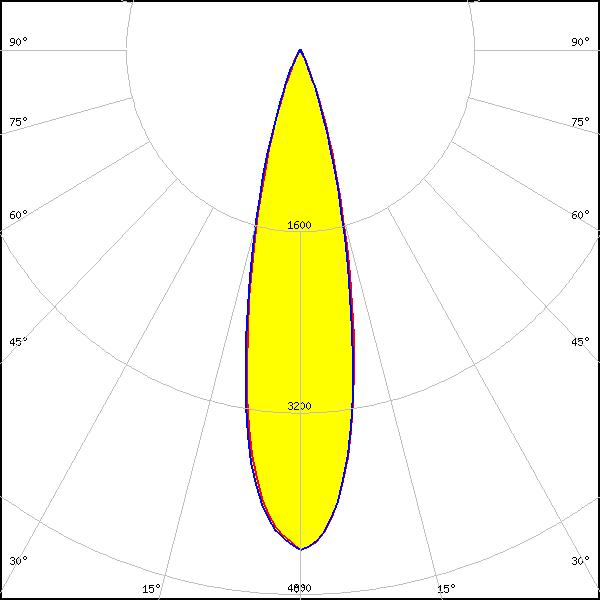

LED:
V10 Gen 8-9
Ordering code: CP18572_AMY-110-M-C
LES size: 10.0 mm
Required components:
FWHM:
24°
FWTM:
44°
Peak intensity:
4.412 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

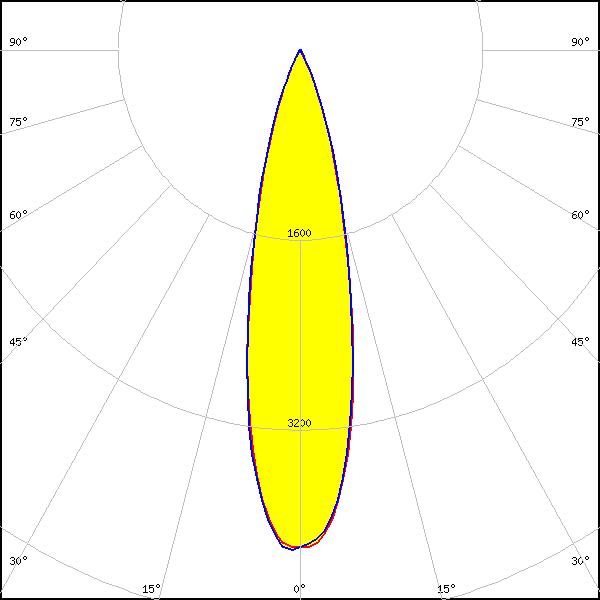

LED:
V11 HD Gen 8
Ordering code: CP18572_AMY-110-M-C
LES size: 11.3 mm
Required components:
FWHM:
24°
FWTM:
46°
Peak intensity:
4.244 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

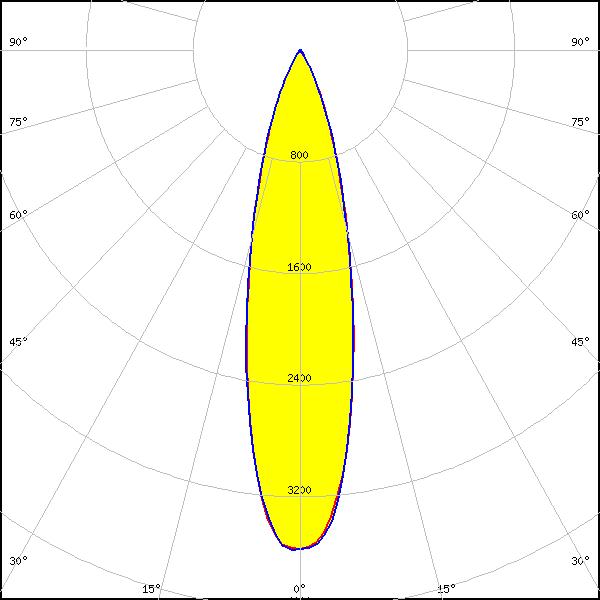

V13 Gen 8-9
Ordering code: CP18572_AMY-110-M-C
LES size: 14.8 mm
Required components:
FWHM:
26°
FWTM:
52°
Peak intensity:
3.619 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

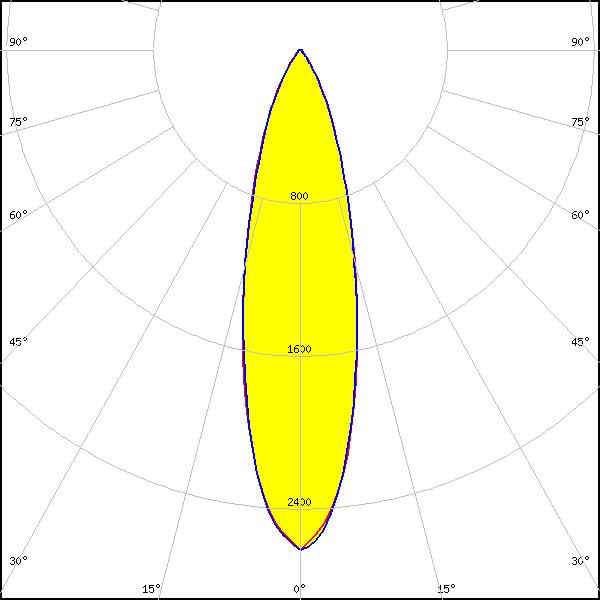

V18 Gen 8-9
Ordering code: CP18572_AMY-110-M-C
LES size: 19.6 mm
Required components:
FWHM:
28°
FWTM:
59°
Peak intensity:
2.616 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

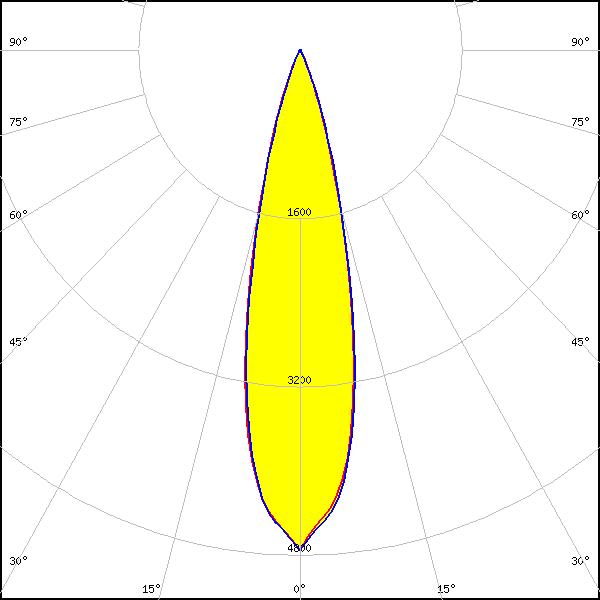

V8 Gen 8-9
Ordering code: CP18572_AMY-110-M-C
LES size: 8.5 mm
Required components:
FWHM:
24°
FWTM:
42°
Peak intensity:
4.755 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

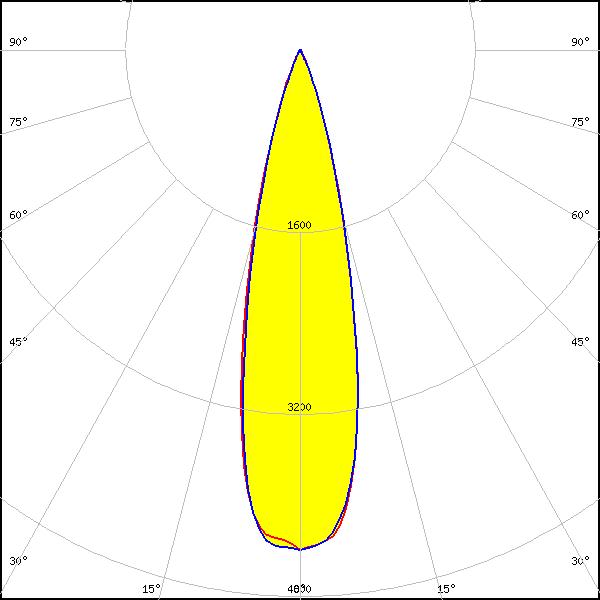

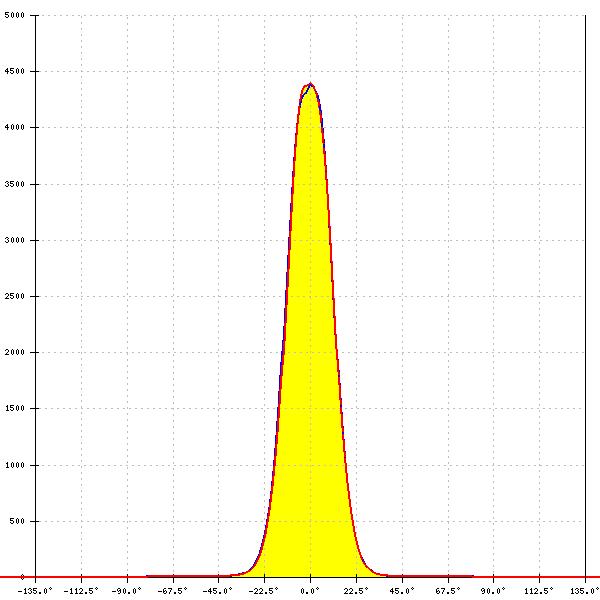

V9 HD Gen 8
Ordering code: CP18572_AMY-110-M-C
LES size: 8.8 mm
Required components:
FWHM:
26°
FWTM:
43°
Peak intensity:
4.505 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

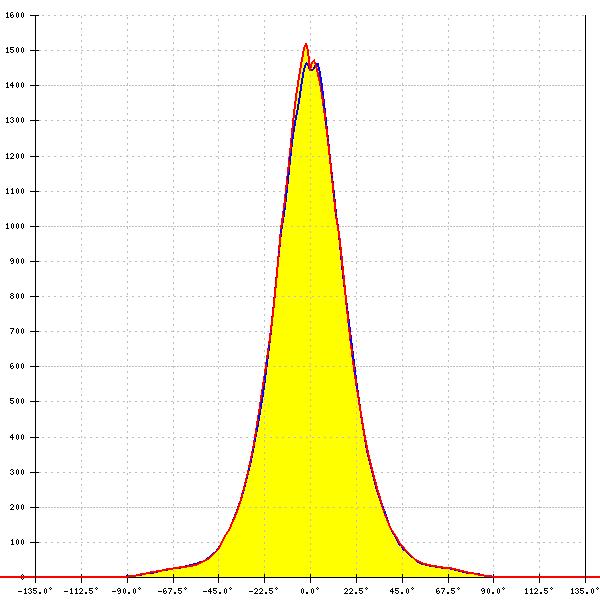

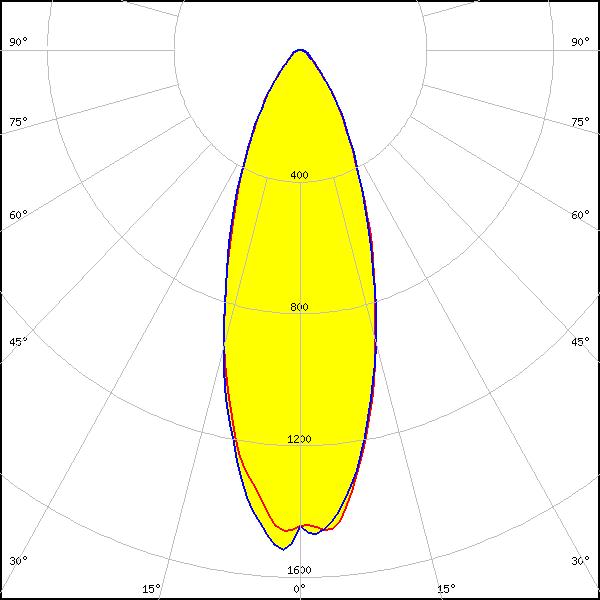

Vero SE 29
Ordering code: CP19029_AMY-110-M-C-WHT
LES size: 29.2 mm
FWHM:
36°
FWTM:
78°
Peak intensity:
1.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

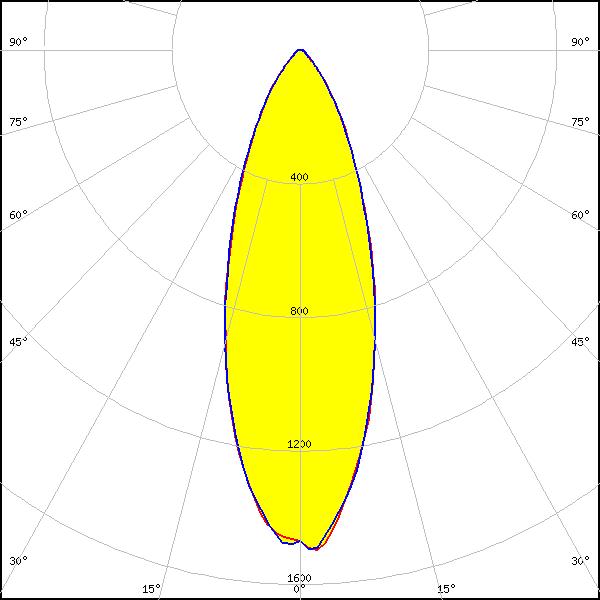

LED:
Vero SE 29
Ordering code: CP18572_AMY-110-M-C
LES size: 29.2 mm
FWHM:
36°
FWTM:
75°
Peak intensity:
1.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

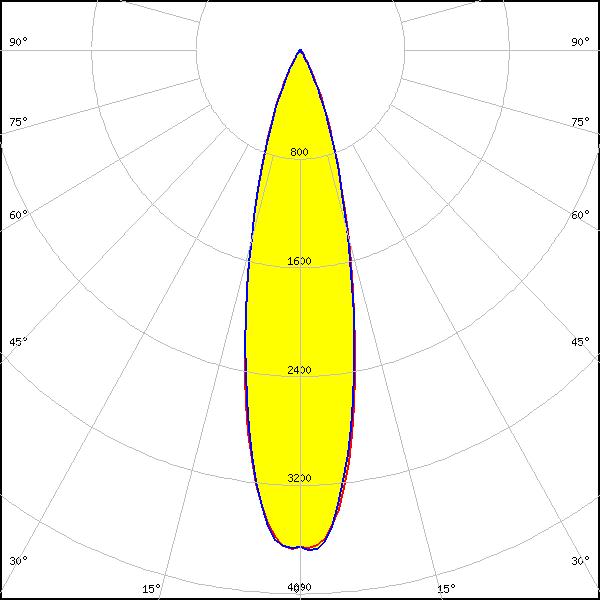

VERO13
Ordering code: CP18572_AMY-110-M-C
LES size: 13.4 mm
Required components:
FWHM:
26°
FWTM:
50°
Peak intensity:
3.706 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

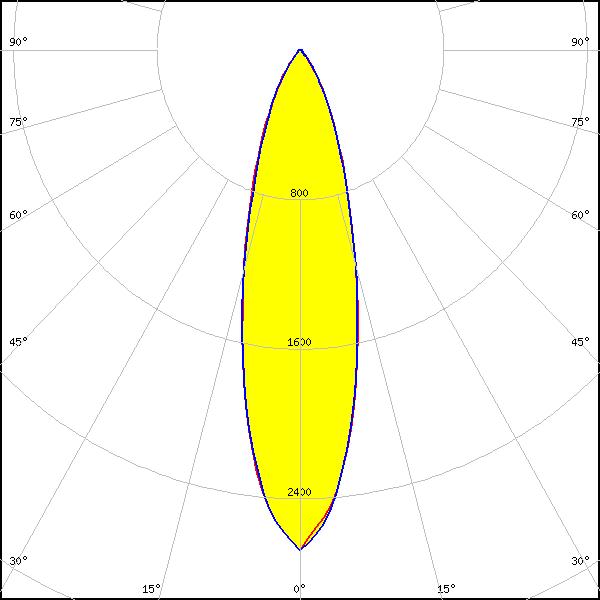

VERO18
Ordering code: CP18572_AMY-110-M-C
LES size: 18.6 mm
Required components:
FWHM:
28°
FWTM:
60°
Peak intensity:
2.677 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

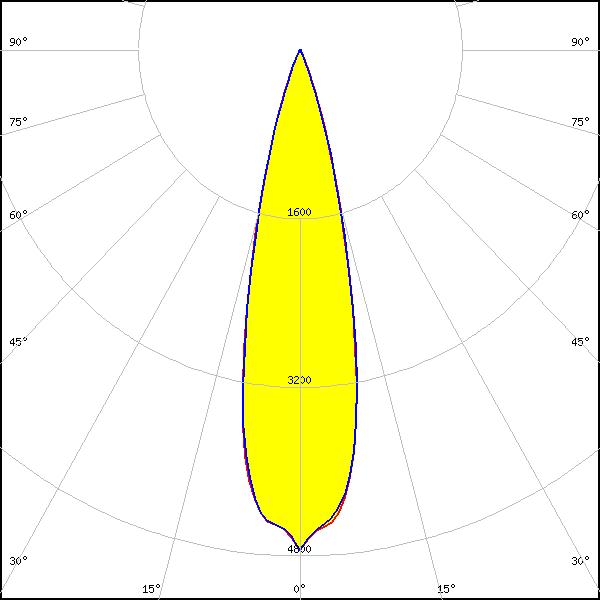

Vesta DTW 13mm (21W)
Ordering code: CP18572_AMY-110-M-C
LES size: 14.0 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM:
24°
FWTM:
40°
Peak intensity:
4.748 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

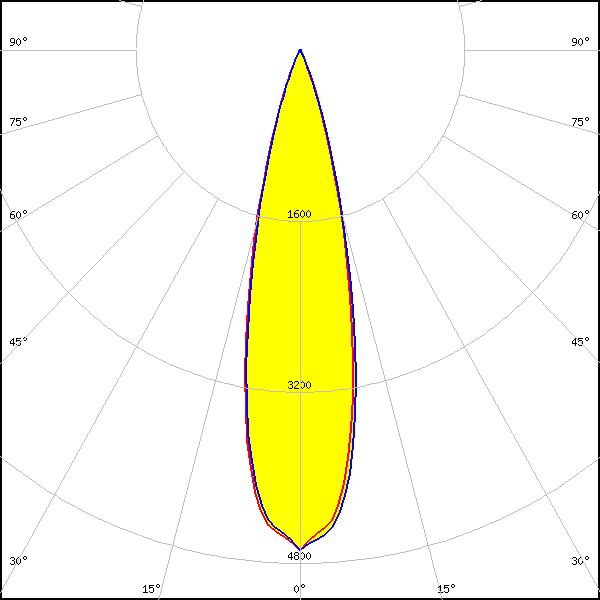

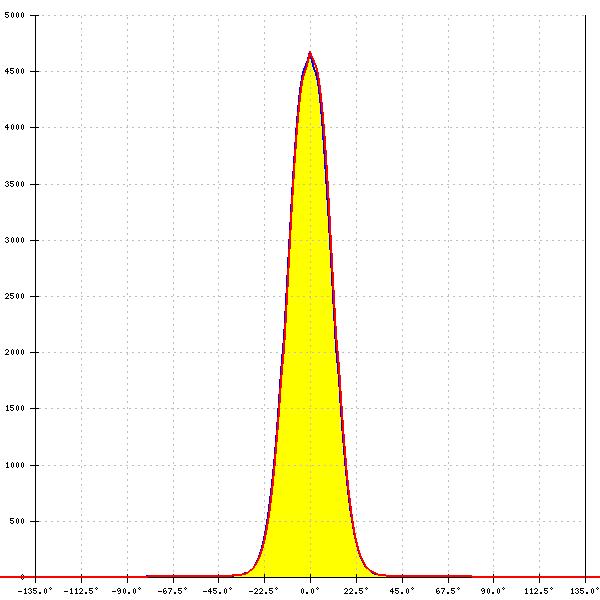

Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP18572_AMY-110-M-C
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Hekla
FWHM:
24°
FWTM:
42°
Peak intensity:
4.679 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

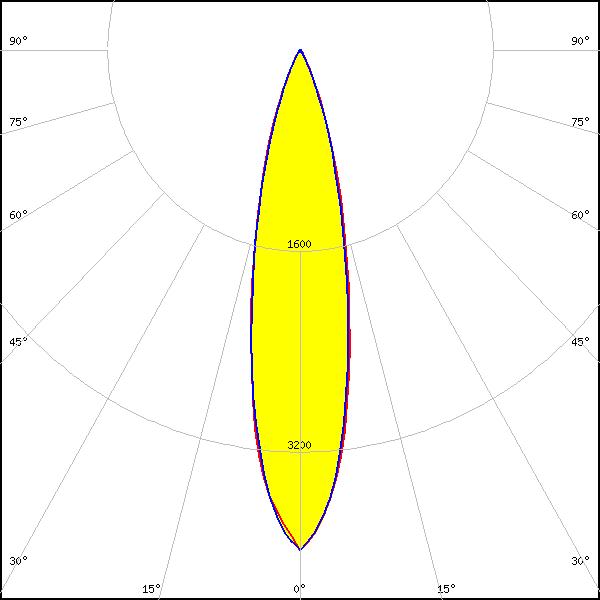

LED:
Vesta SE 13mm TW
Ordering code: CP18572_AMY-110-M-C
LES size: 14.3 mm
Required components:
FWHM:
24°
FWTM:
47°
Peak intensity:
3.984 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White

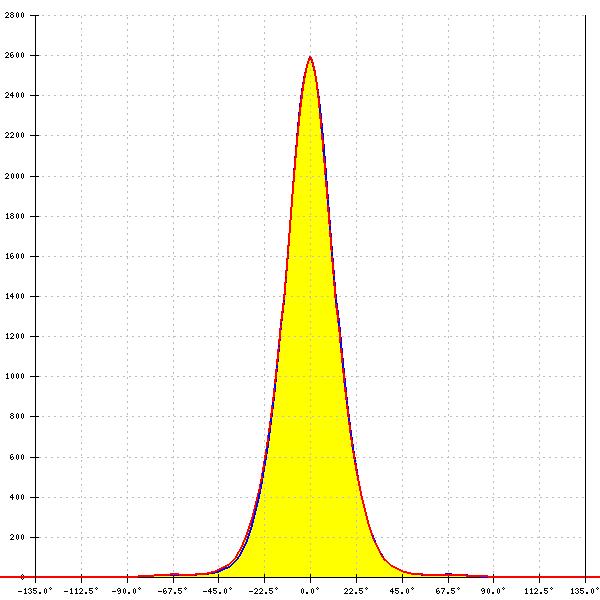

LED:

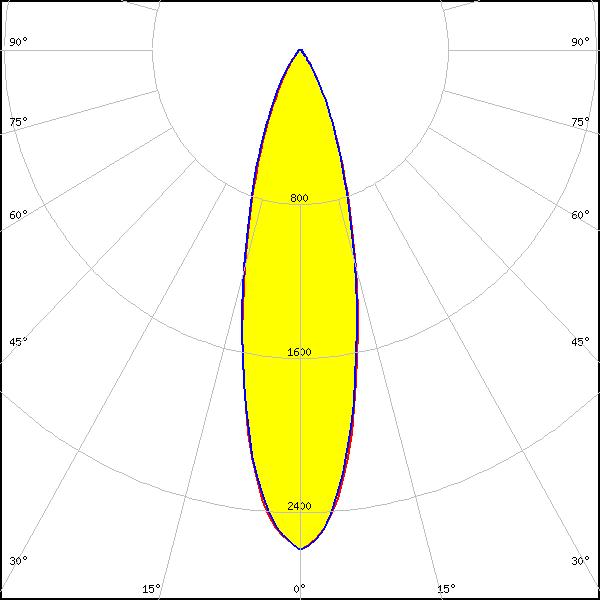

Vesta TW 18mm (31W) DP
Ordering code: CP18572_AMY-110-M-C
LES size: 19.7 mm
Required components:
FWHM:
28°
FWTM:
58°
Peak intensity:
2.606 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

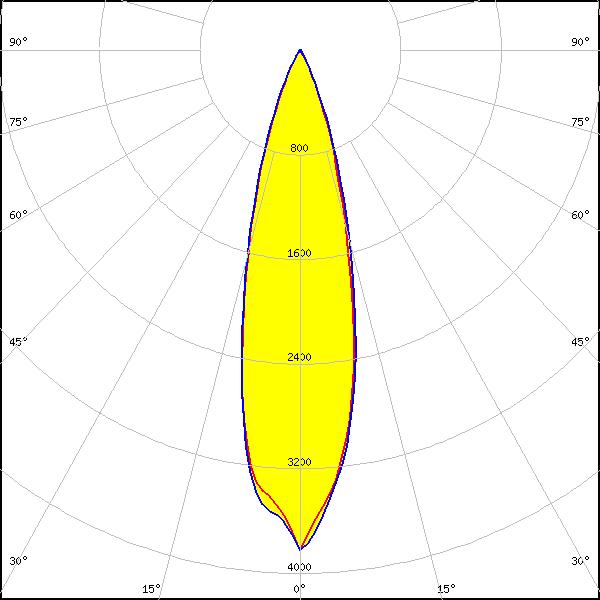

LED:

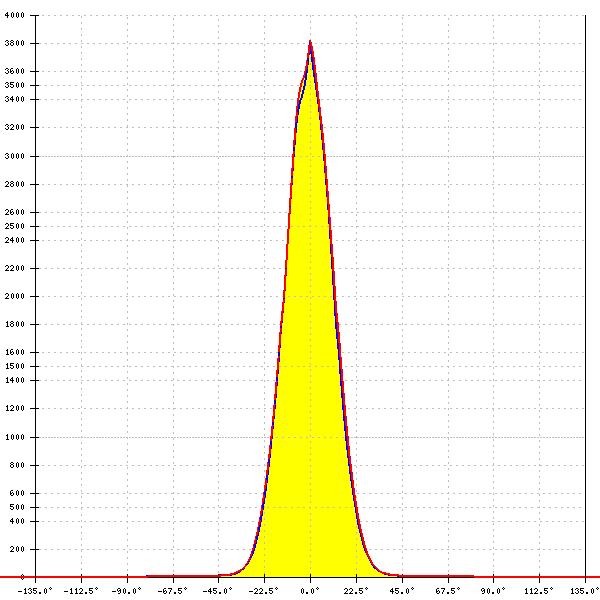

Vesta TW 9mm (9W) DP
Ordering code: CP18572_AMY-110-M-C
LES size: 10.0 mm
Required components:
FWHM:
26°
FWTM:
49°
Peak intensity:
3.824 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

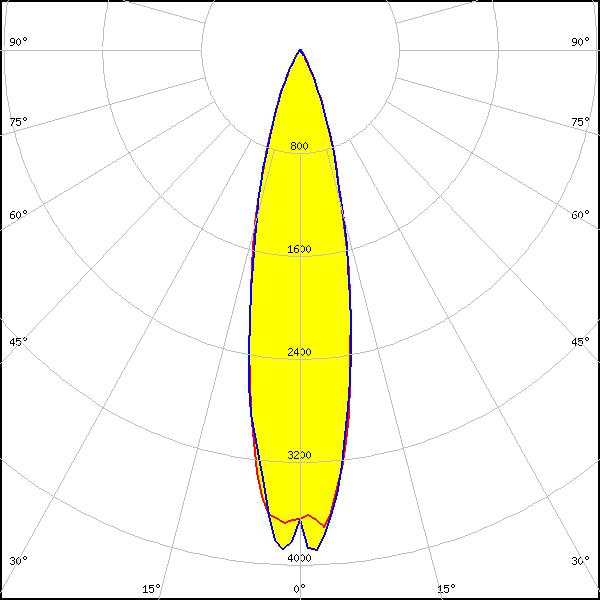

CLL03x/CLU03x
Ordering code: CP18576_AMY-110-M-B
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
24°
FWTM:
49°
Peak intensity:
3.943 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

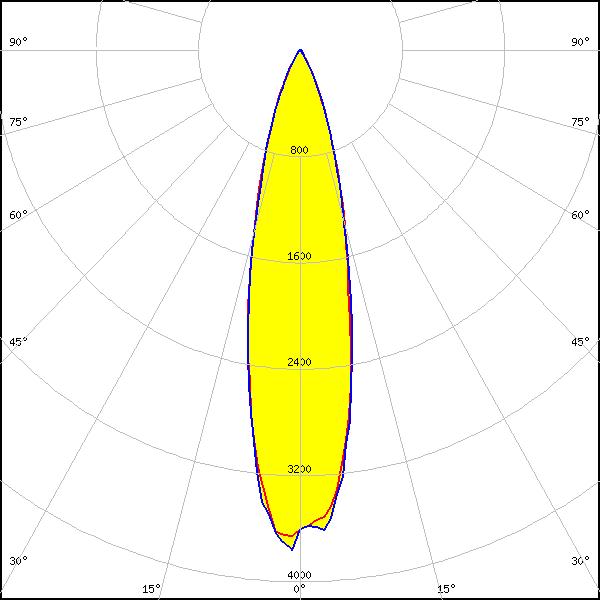

CLL03x/CLU03x
Ordering code: CP19029_AMY-110-M-C-WHT
LES size: 14.5 mm
Required components:
FWHM:
25°
FWTM:
50°
Peak intensity:
3.864 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

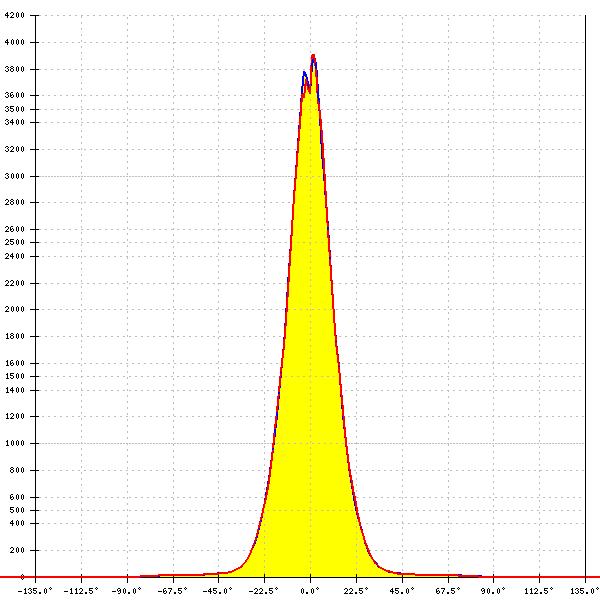

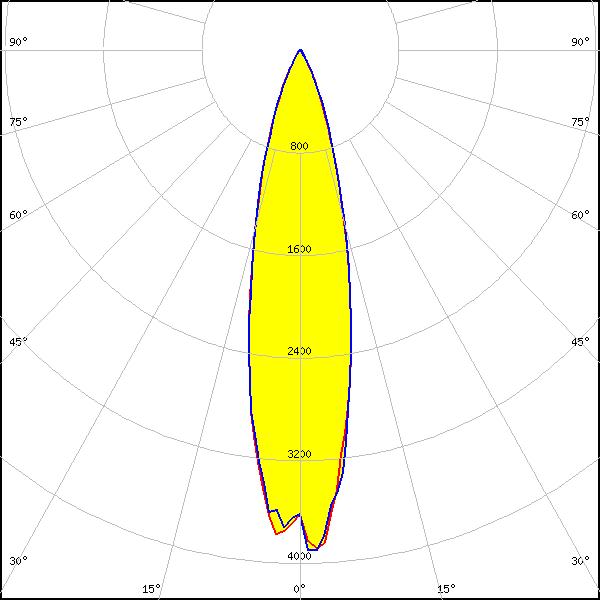

LED:
CLL03x/CLU03x
Ordering code: CP19033_AMY-110-M-B-WHT
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
24°
FWTM:
50°
Peak intensity:
3.961 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
Ordering code: C18568_AMY-110-M
LES size: 14.5 mm
Required components:
FWHM:
24°
FWTM:
50°
Peak intensity:
3.660 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

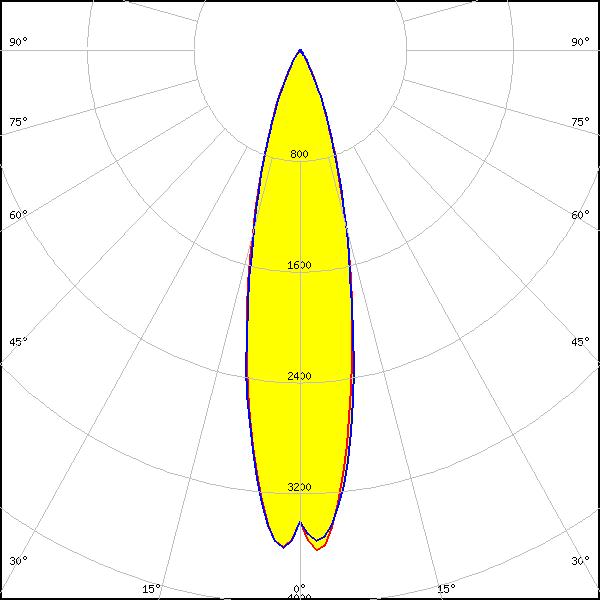

CLL03x/CLU03x
Ordering code: CP18572_AMY-110-M-C
LES size: 14.5 mm
Required components:
FWHM:
24°
FWTM:
50°
Peak intensity:
3.660 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
Ordering code: CP18576_AMY-110-M-B
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
28°
FWTM:
60°
Peak intensity:
2.694 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

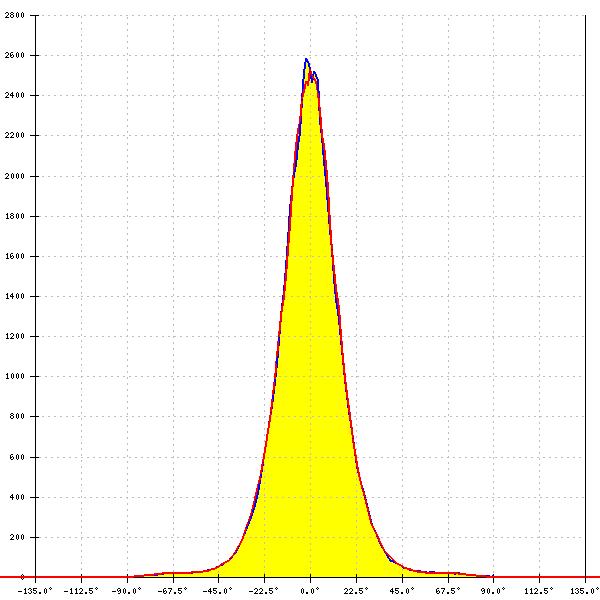

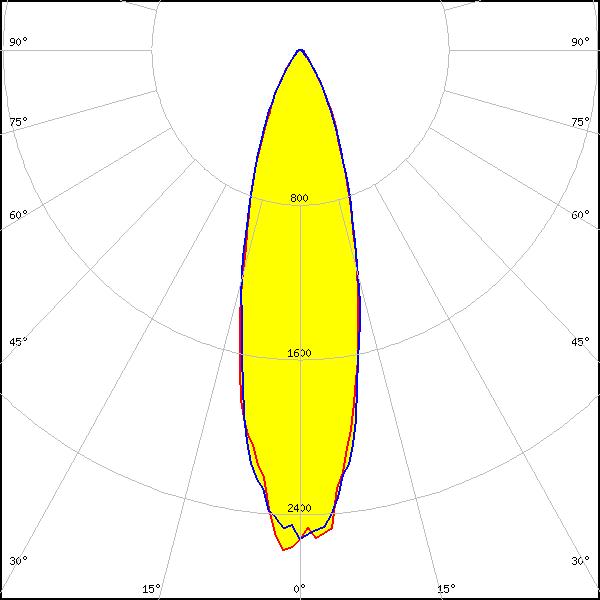

CLL04x/CLU04x
Ordering code: CP19033_AMY-110-M-B-WHT
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
29°
FWTM:
62°
Peak intensity:
2.667 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

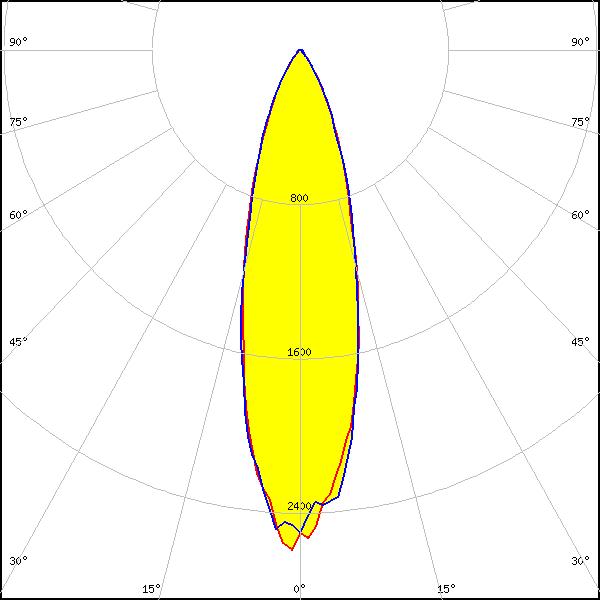

LED:

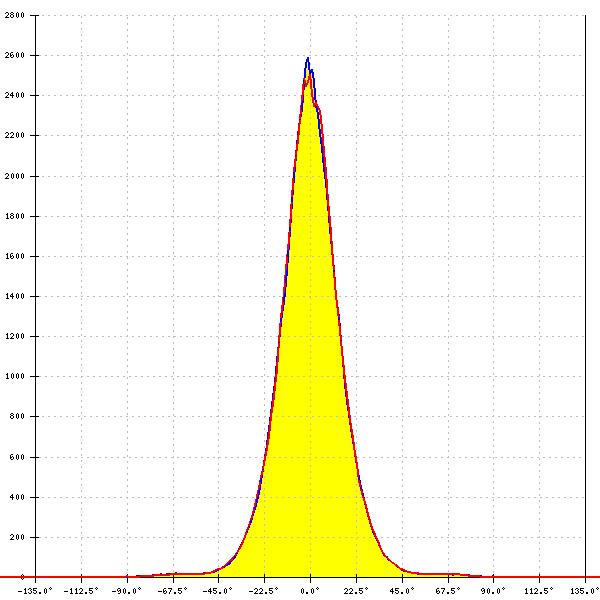

CLL04x/CLU04x
Ordering code: C18568_AMY-110-M
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
28°
FWTM:
60°
Peak intensity:
2.694 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

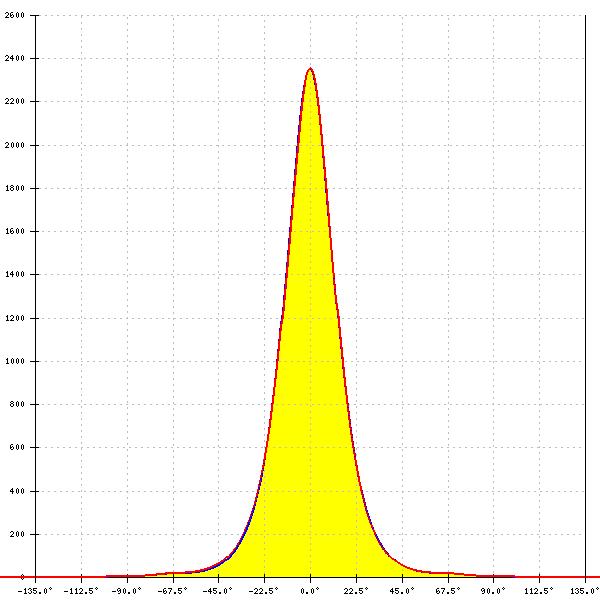

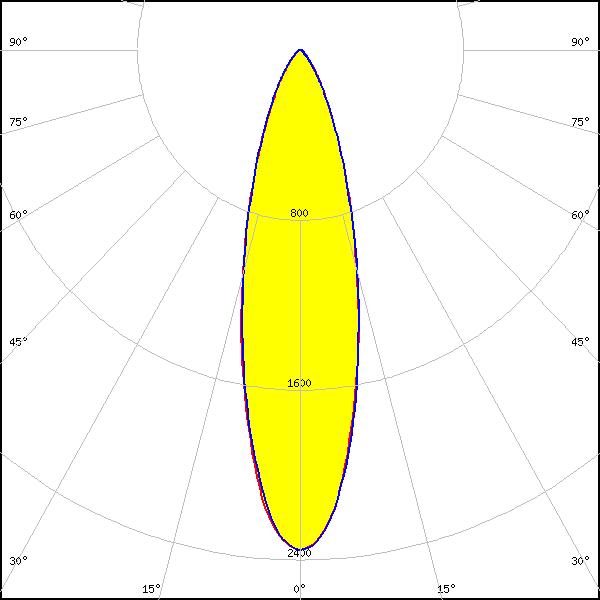

LCN-C07A
Ordering code: C18568_AMY-110-M
LES size: 24.0 mm
FWHM:
28°
FWTM:
61°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

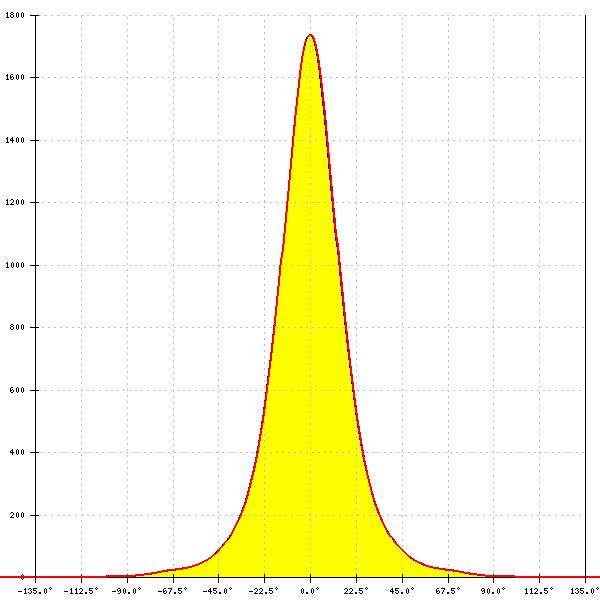

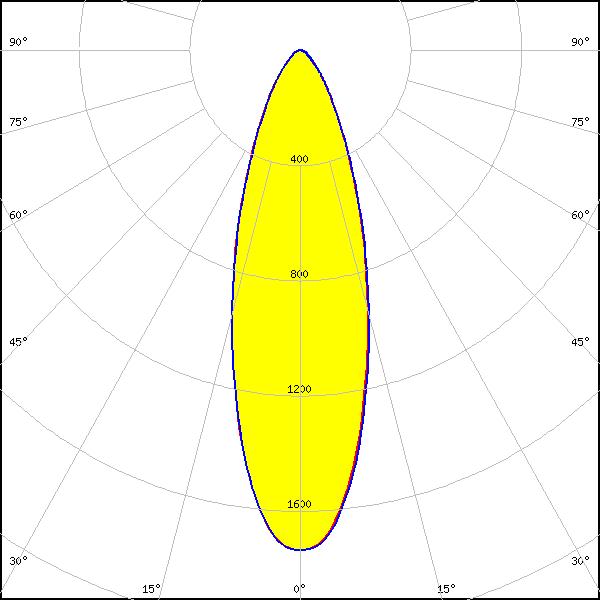

LCN-C08A
Ordering code: C18568_AMY-110-M
LES size: 31.0 mm
FWHM:
33°
FWTM:
72°
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

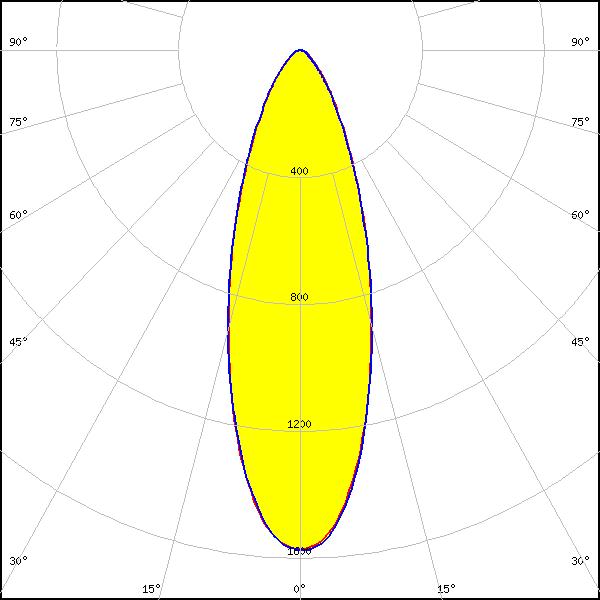

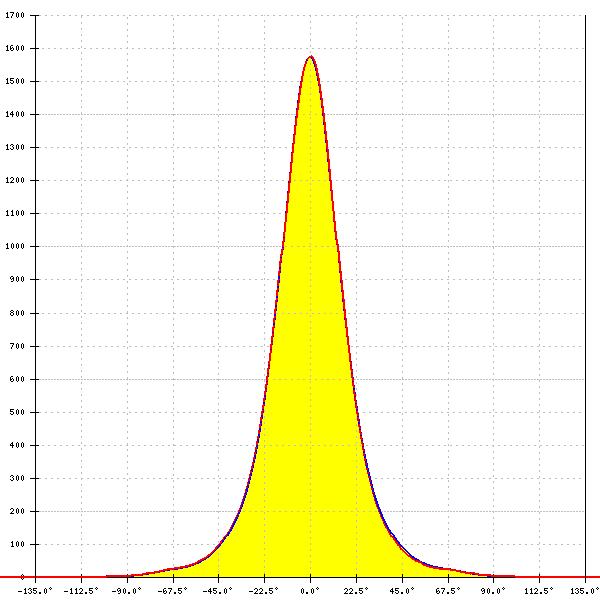

LCN-C09A
Ordering code: C18568_AMY-110-M
LES size: 32.0 mm
FWHM:
34°
FWTM:
75°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

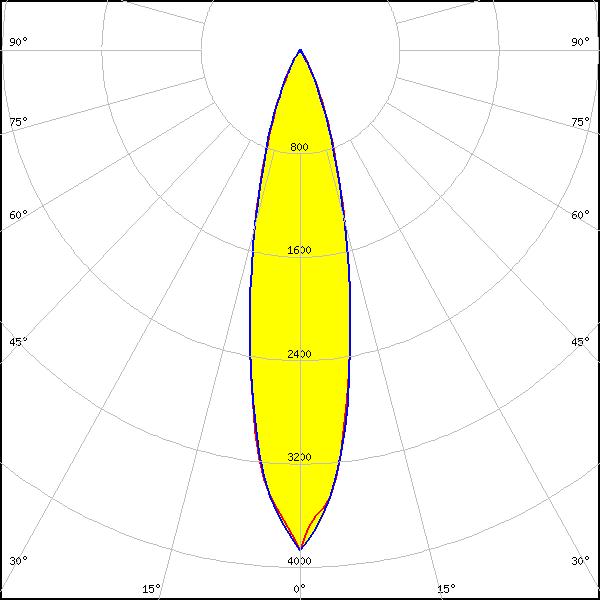

LUXEON CX Plus CoB L08 (Gen2)
Ordering code: CP18572_AMY-110-M-C
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
24°
FWTM:
50°
Peak intensity:
3.868 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

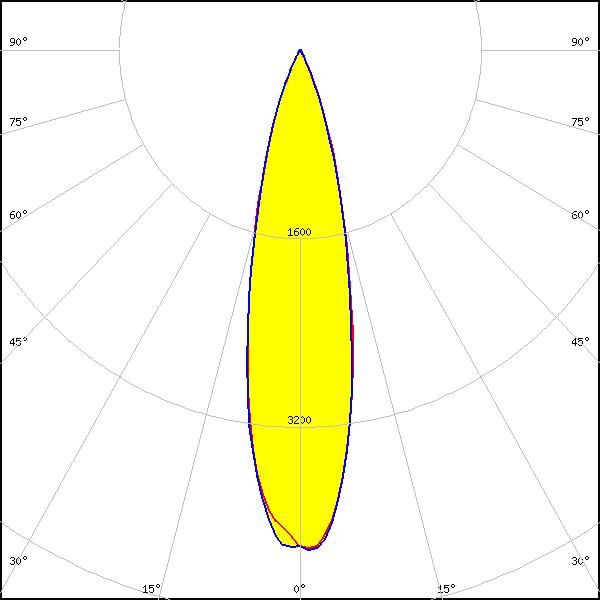

LUXEON CoB 1205HD
Ordering code: CP18572_AMY-110-M-C
LES size: 11.0 mm
Required components:
FWHM:
24°
FWTM:
46°
Peak intensity:
4.246 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

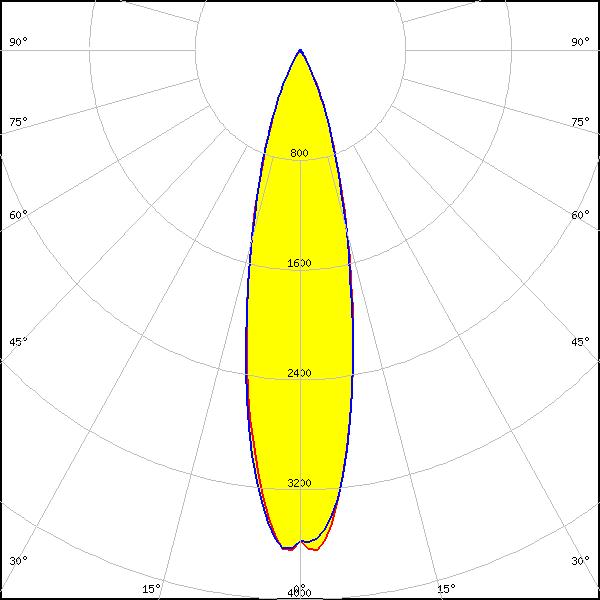

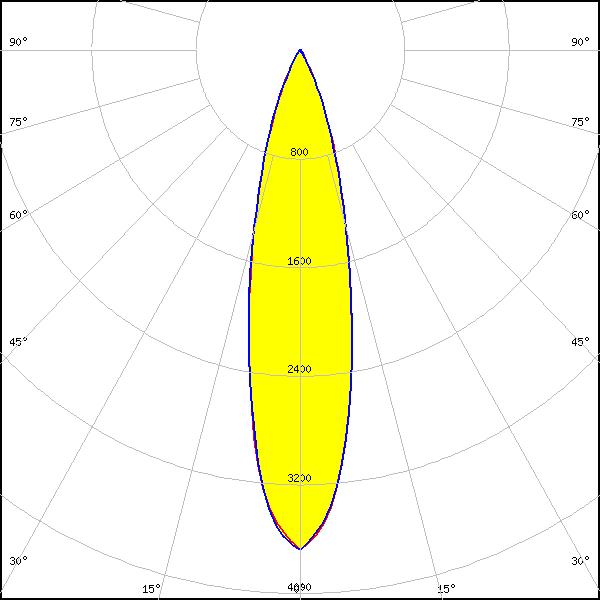

LUXEON CoB 1208
Ordering code: CP18572_AMY-110-M-C
LES size: 15.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
26°
FWTM:
50°
Peak intensity:
3.702 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

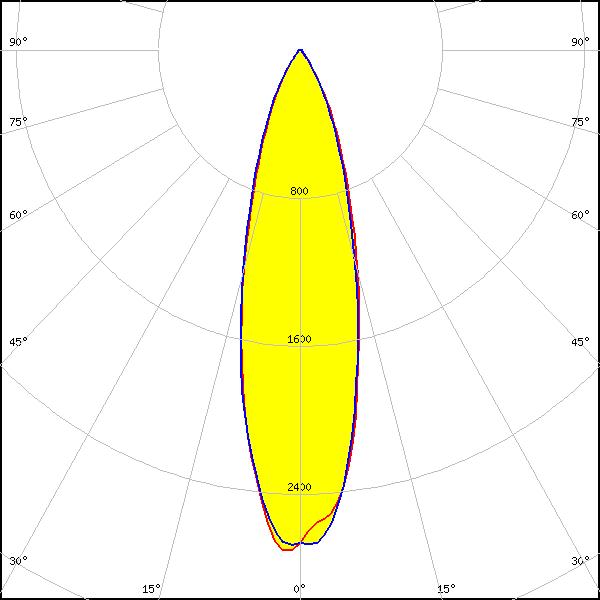

LED:

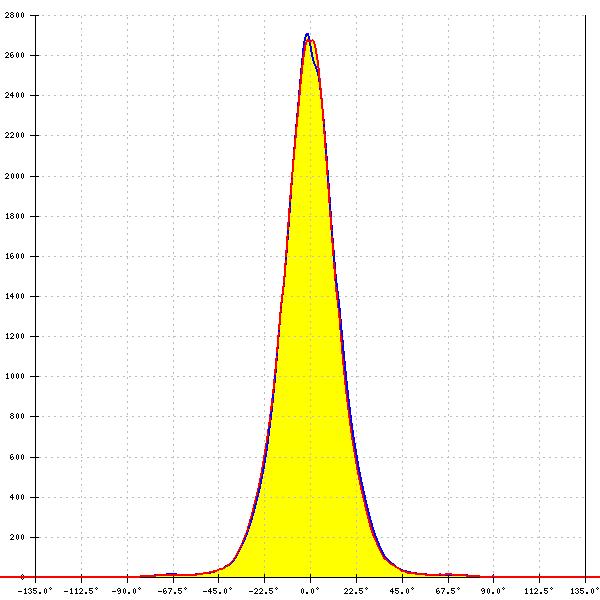

LUXEON CoB 1211
Ordering code: CP18572_AMY-110-M-C
LES size: 18.5 mm
Required components:
Bender Wirth: 631b Hekla XL
FWHM:
28°
FWTM:
59°
Peak intensity:
2.736 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

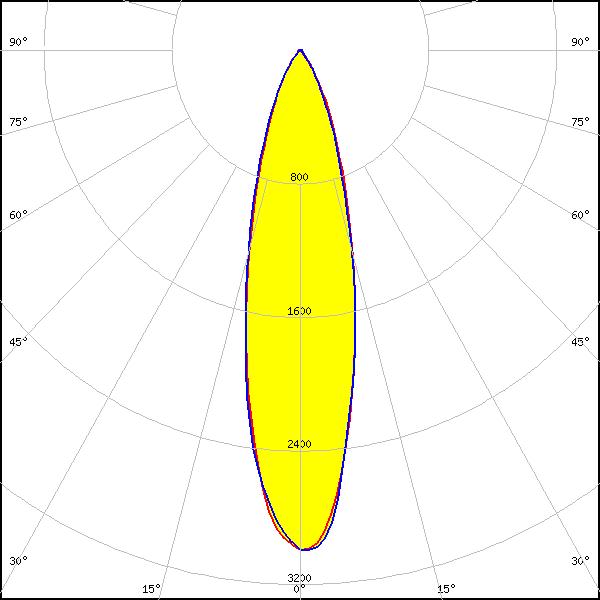

LED:
LUXEON CoB 1211
Ordering code: CP18576_AMY-110-M-B
LES size: 18.5 mm
Required components:
Bender Wirth: 631b Bayonet50
FWHM:
26°
FWTM:
57°
Peak intensity:
3.059 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

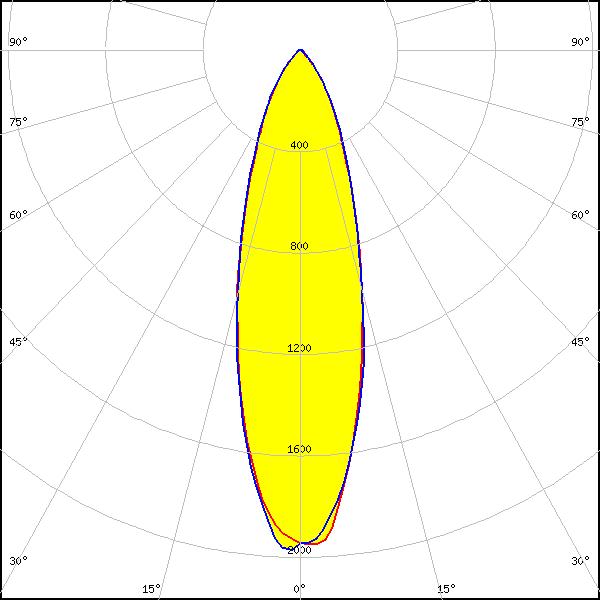

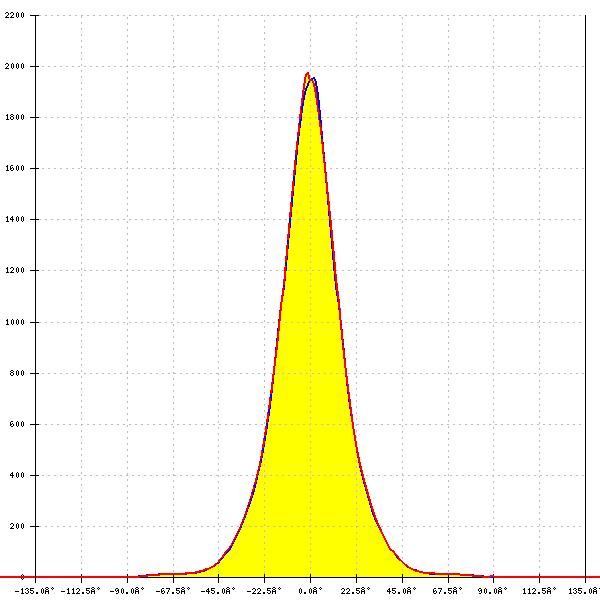

LUXEON CoB 1213/1216/1812
Ordering code: CP18572_AMY-110-M-C
LES size: 23.0 mm
Required components:
Bender Wirth: 631b Hekla XL
FWHM:
30°
FWTM:
68°
Peak intensity:
1.977 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

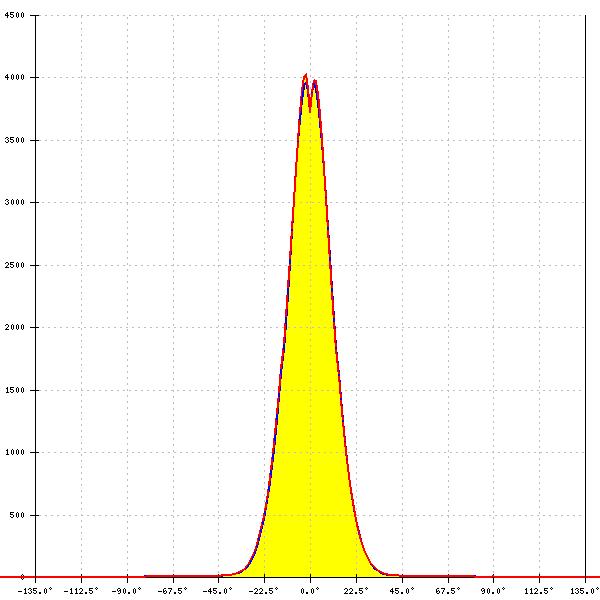

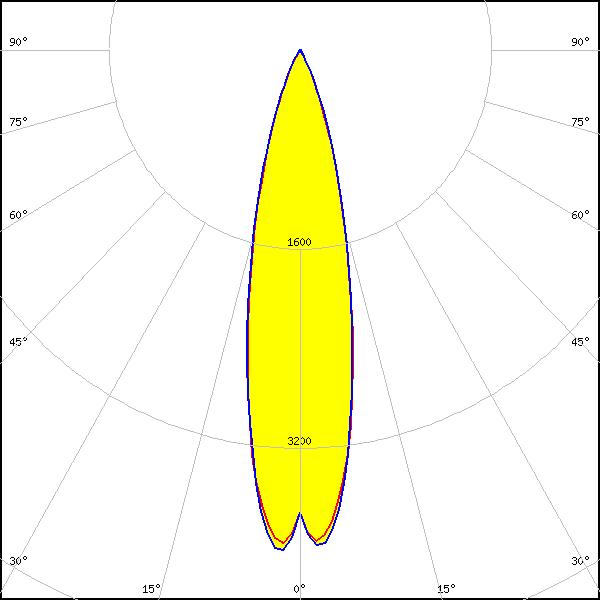

LED:

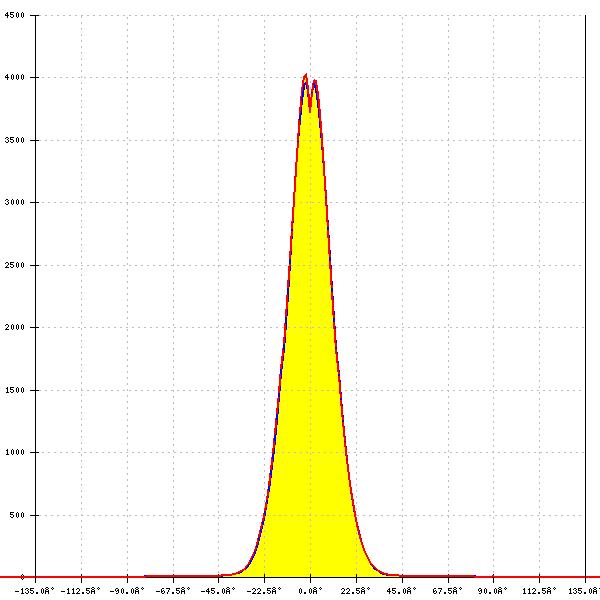

LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP18572_AMY-110-M-C
LES size: 12.0 mm
Required components:
FWHM:
24°
FWTM:
47°
Peak intensity:
4.039 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

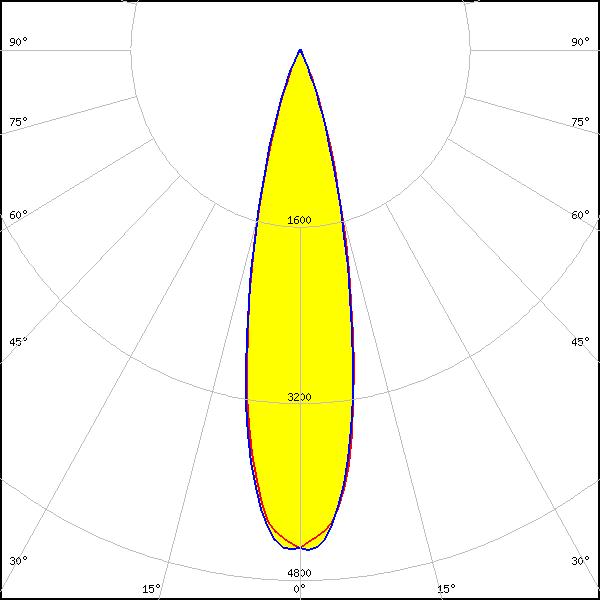

LUXEON CX Plus CoB M02 / M03 (Gen2)
Ordering code: CP18572_AMY-110-M-C
LES size: 9.0 mm
Required components:
FWHM:
24°
FWTM:
44°
Peak intensity:
4.568 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

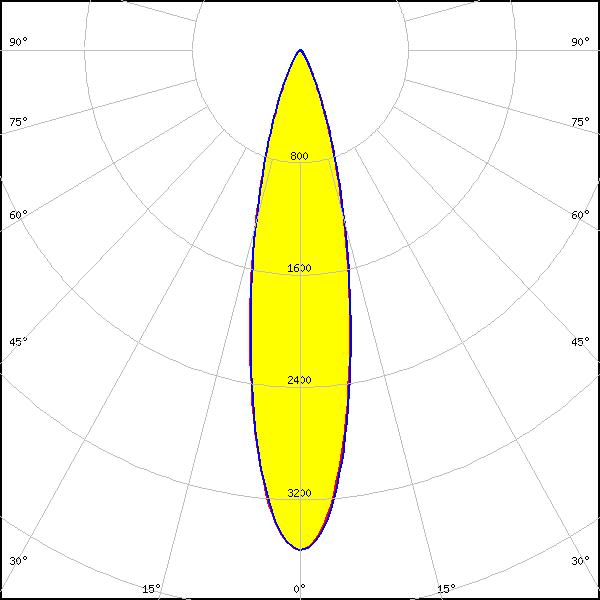

CTM-14 (Tunable White) Gen2
Ordering code: CP18572_AMY-110-M-C
LES size: 13.9 mm
Required components:
FWHM:
24°
FWTM:
49°
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

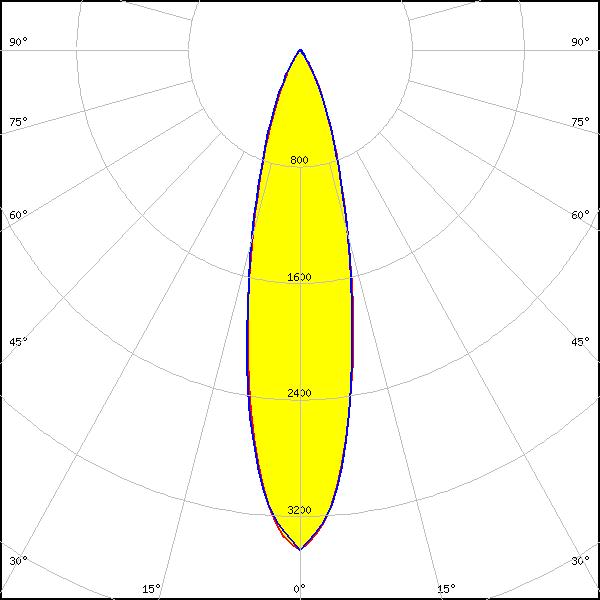

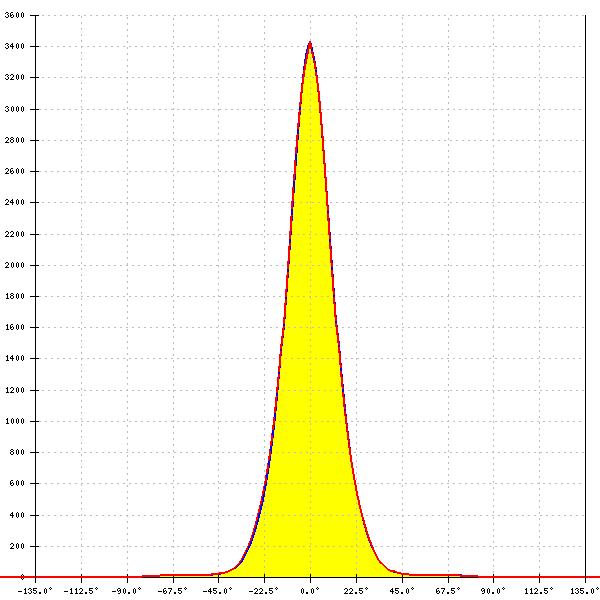

LED:

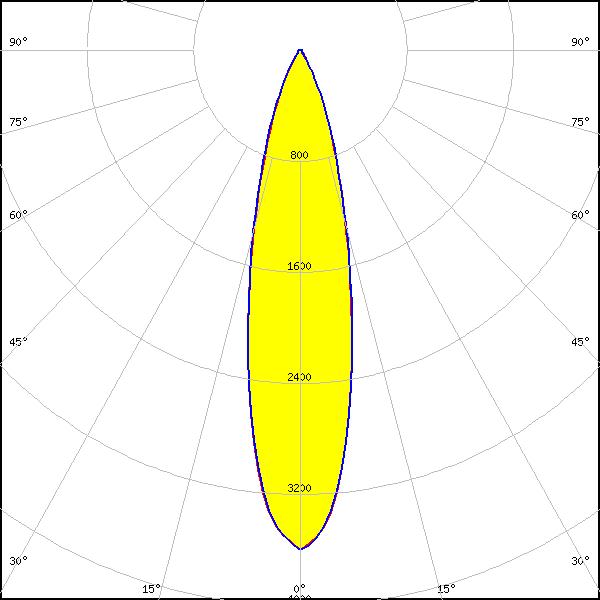

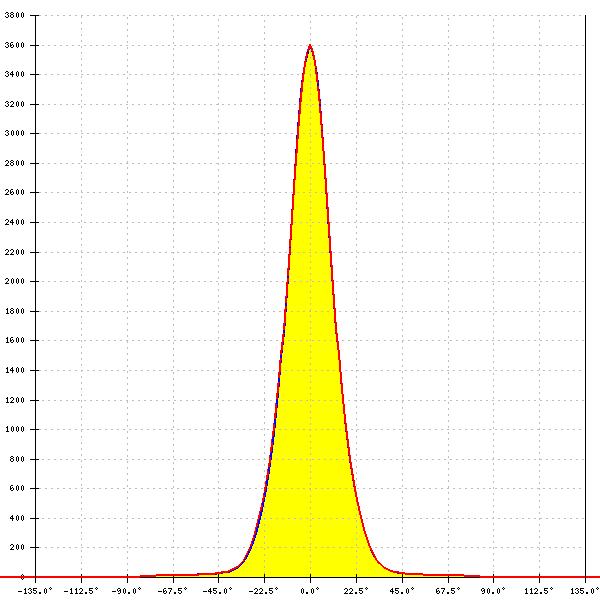

CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
24°
FWTM:
52°
Peak intensity:
3.603 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
25°
FWTM:
54°
Peak intensity:
3.433 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
Ordering code: CP18572_AMY-110-M-C
LES size: 14.6 mm
Required components:
Bender Wirth: 663a Hekla XL
FWHM:
25°
FWTM:
50°
Peak intensity:
3.742 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

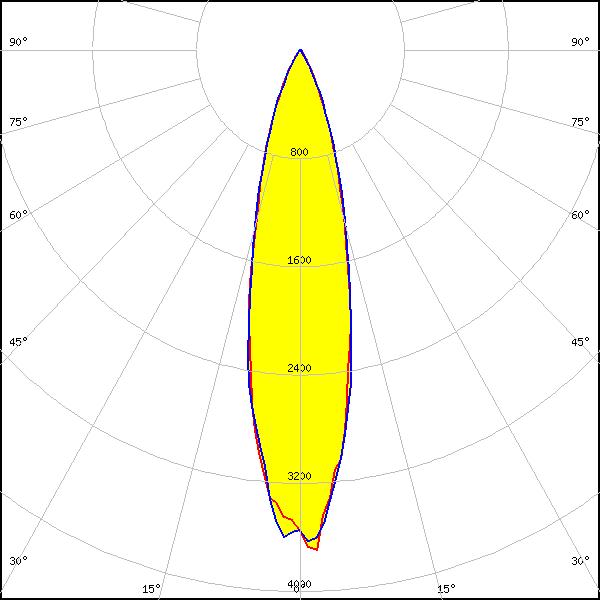

LED:

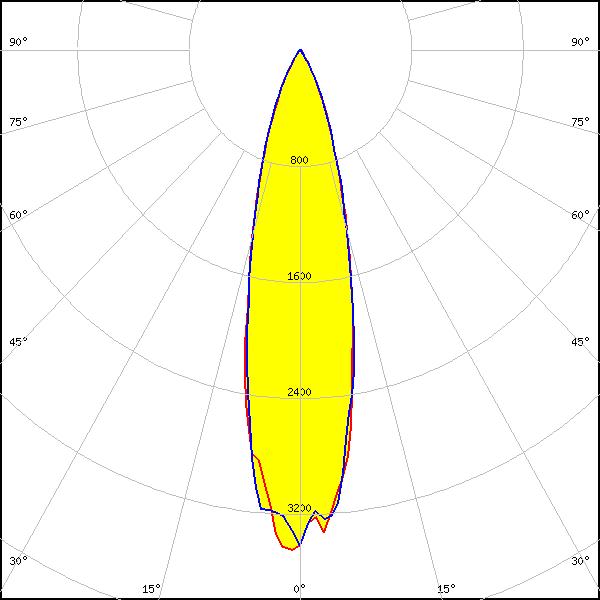

LC016D / LC019D / LC026D / LC033D
Ordering code: CP18576_AMY-110-M-B
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
24°
FWTM:
51°
Peak intensity:
3.890 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

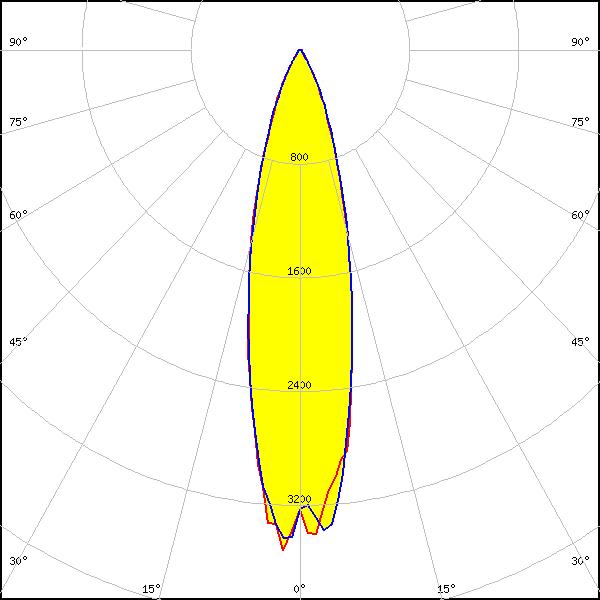

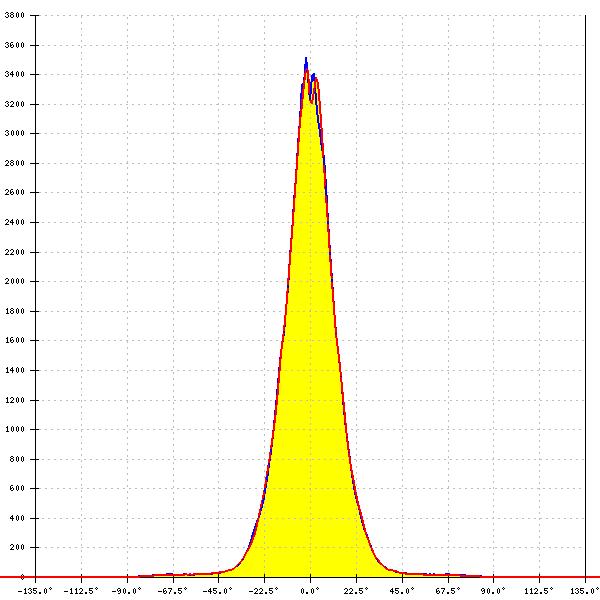

LC016D / LC019D / LC026D / LC033D
Ordering code: CP19029_AMY-110-M-C-WHT
LES size: 14.5 mm
Required components:
FWHM:
25°
FWTM:
53°
Peak intensity:
3.702 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

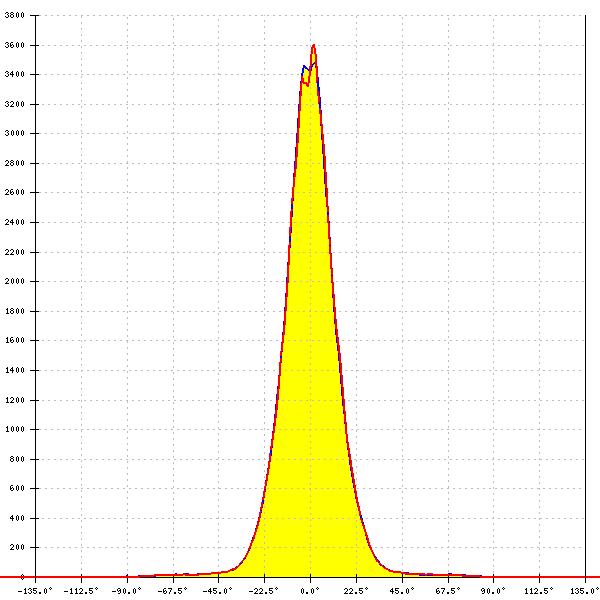

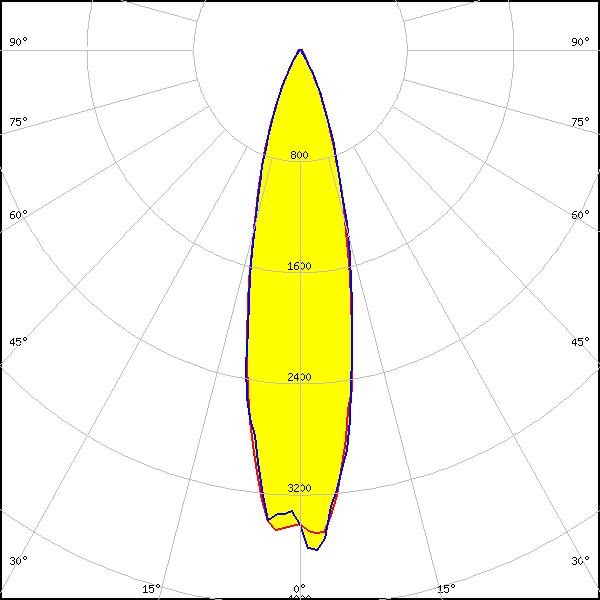

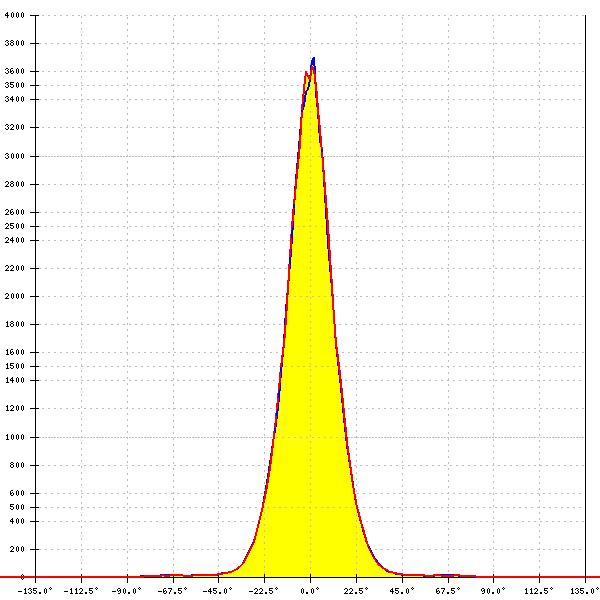

LC016D / LC019D / LC026D / LC033D
Ordering code: CP19033_AMY-110-M-B-WHT
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
25°
FWTM:
52°
Peak intensity:
3.705 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
Ordering code: C18568_AMY-110-M
LES size: 14.5 mm
Required components:
FWHM:
25°
FWTM:
52°
Peak intensity:
3.672 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
Ordering code: CP18572_AMY-110-M-C
LES size: 14.5 mm
Required components:
FWHM:
25°
FWTM:
52°
Peak intensity:
3.672 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

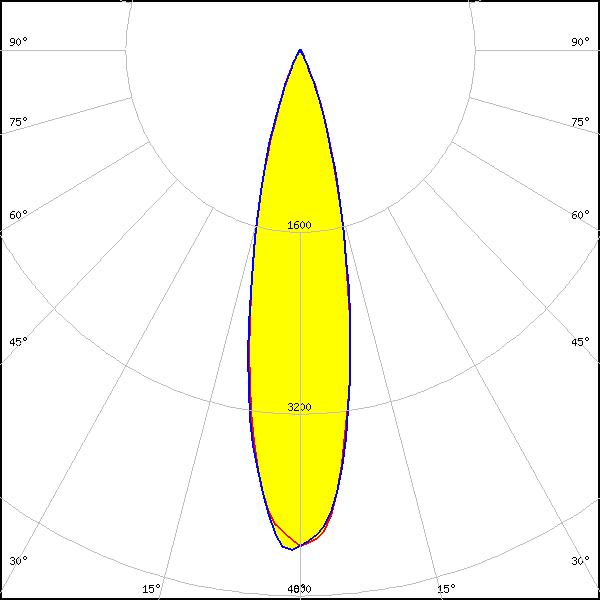

LC020T (Tunable white)
Ordering code: CP18572_AMY-110-M-C
LES size: 13.0 mm
Required components:
FWHM:
24°
FWTM:
45°
Peak intensity:
4.408 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

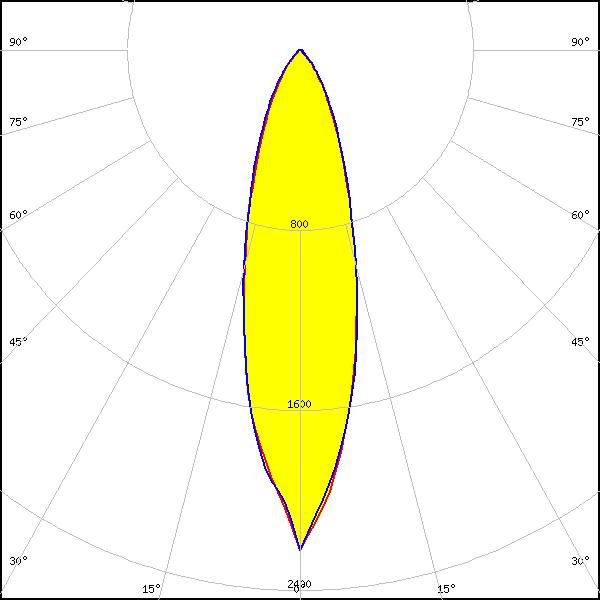

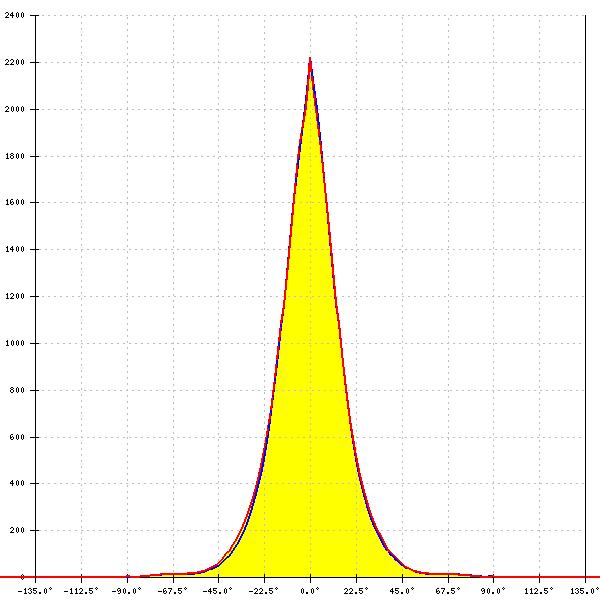

LC040D / LC060D / LC080D
Ordering code: CP18572_AMY-110-M-C
LES size: 22.0 mm
Required components:

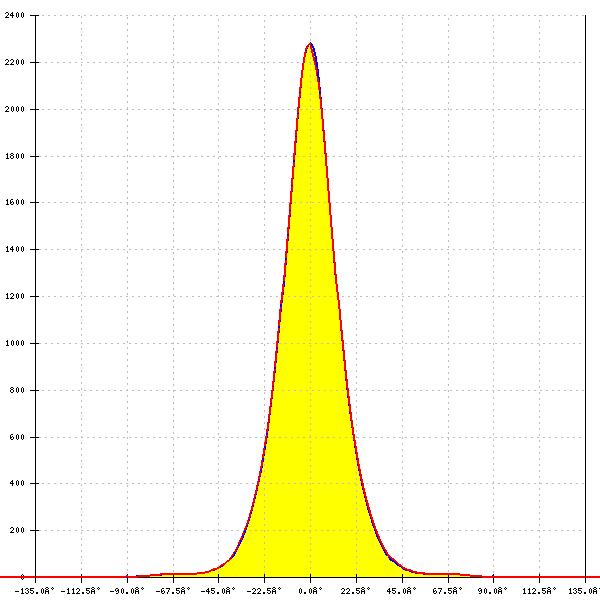

Bender Wirth: 631b Hekla XL
FWHM:
28°
FWTM:
64°
Peak intensity:
2.222 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
Ordering code: CP18572_AMY-110-M-C
LES size: 14.5 mm
Required components:
FWHM:
26°
FWTM:
52°
Peak intensity:
3.629 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 22
Ordering code: CP18576_AMY-110-M-B
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
30°
FWTM:
63°
Peak intensity:
2.404 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

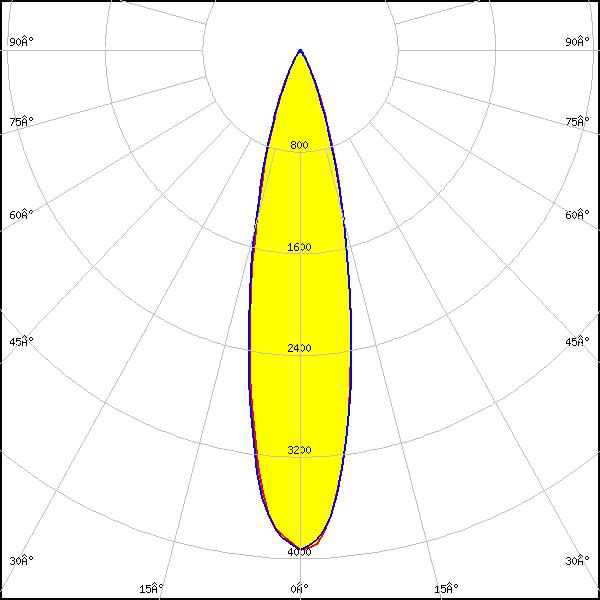

SLE G7 LES13
Ordering code: CP18572_AMY-110-M-C
LES size: 13.0 mm
Required components:
FWHM:
24°
FWTM:
48°
Peak intensity:
3.950 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

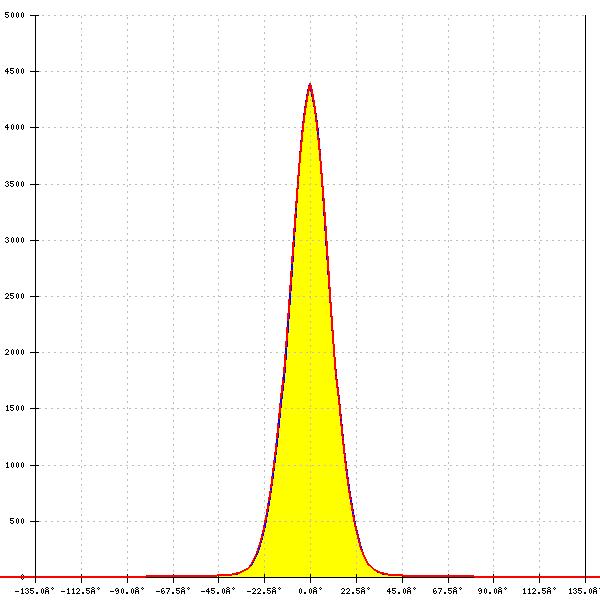

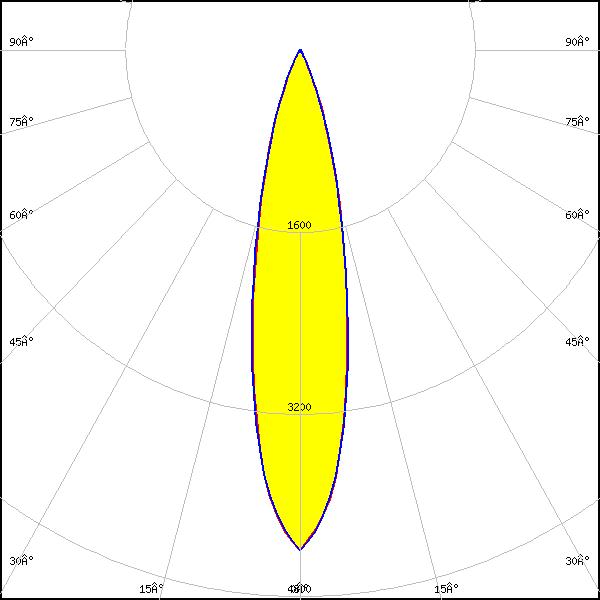

SLE G7 LES13 H
Ordering code: CP18576_AMY-110-M-B
FWHM:
22°
FWTM:
45°
Peak intensity:
4.397 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
