AMY-110-S
Print
~18° spot beam
B variants fit ∅50 mm B+W and BJB connectors.
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
Materials
- AMY-110-SPMMA
- AMY-110-HLD-C-WHTPC
- AMY-110-HLD-CPC
- AMY-110-HLD-B-WHTPC
- AMY-110-HLD-BPC
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

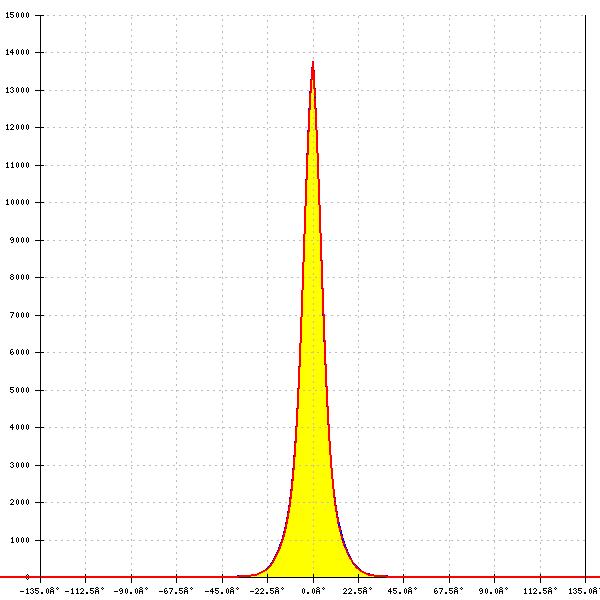

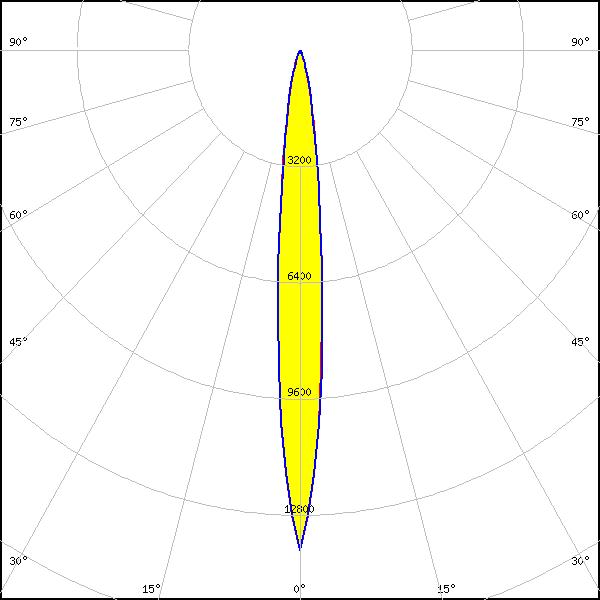

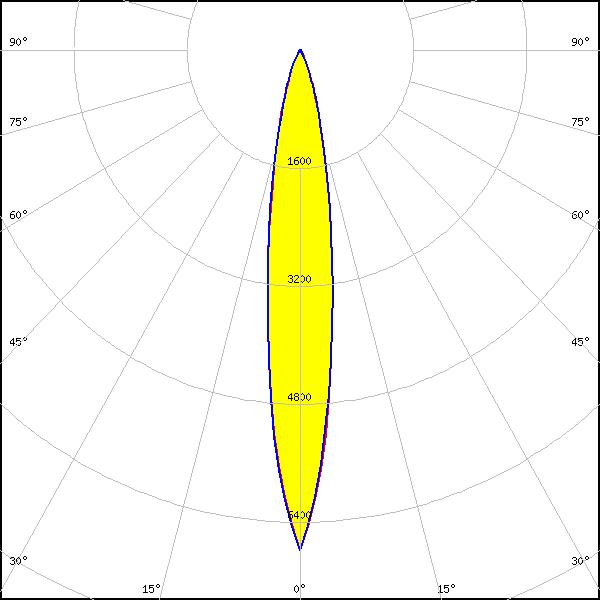

Optical results

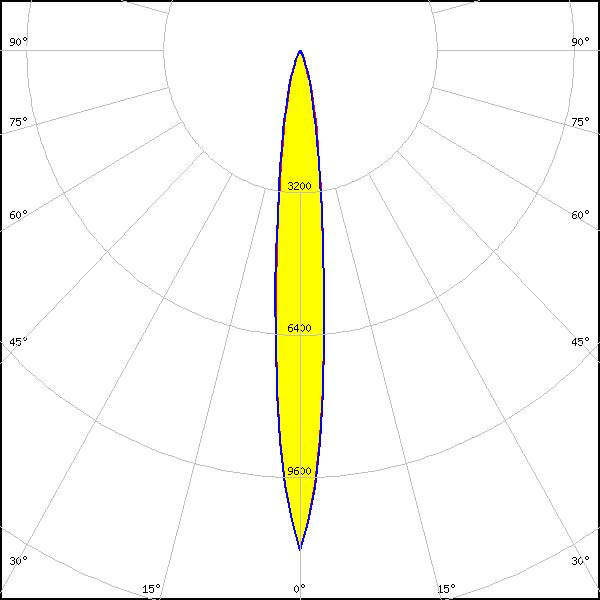

LED:
V10 Gen 8-9
Ordering code: CP18557_AMY-110-S-C
LES size: 10.0 mm
Required components:
FWHM:
12°
FWTM:
30°
Peak intensity:
11.230 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

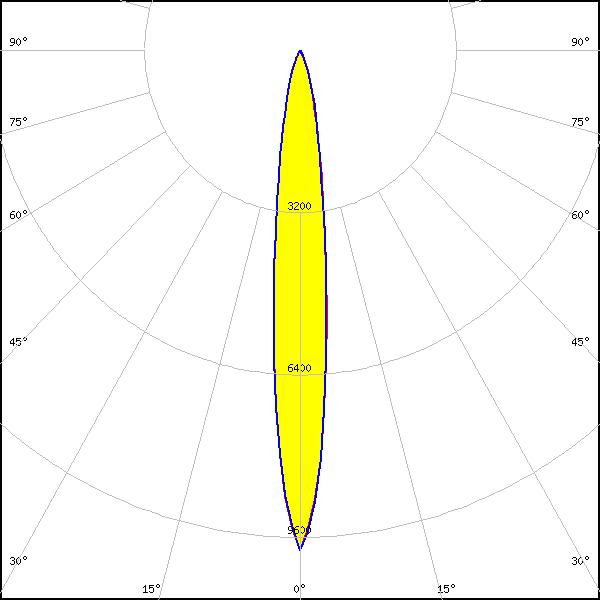

V11 HD Gen 8
Ordering code: CP18557_AMY-110-S-C
LES size: 11.3 mm
Required components:
FWHM:
12°
FWTM:
32°
Peak intensity:
9.857 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

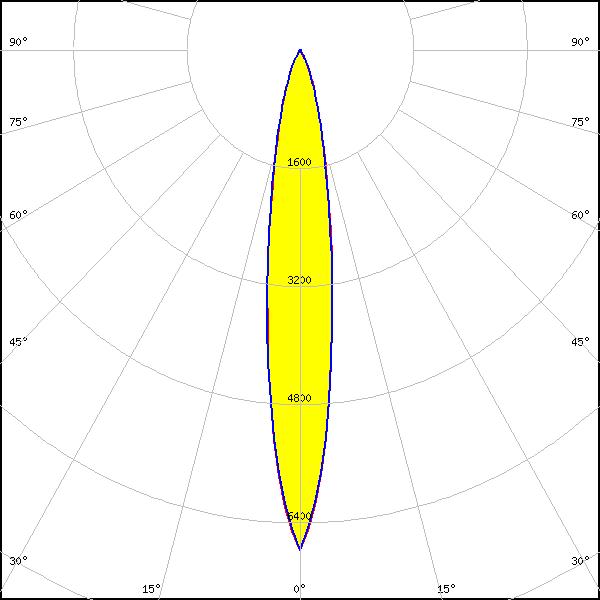

LED:
V13 Gen 8-9
Ordering code: CP18557_AMY-110-S-C
LES size: 14.8 mm
Required components:
FWHM:
16°
FWTM:
38°
Peak intensity:
6.773 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

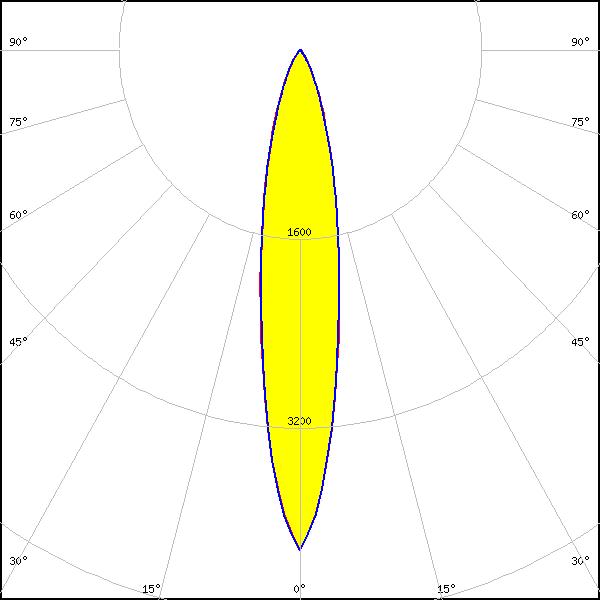

LED:
V18 Gen 8-9
Ordering code: CP18557_AMY-110-S-C
LES size: 19.6 mm
Required components:
FWHM:
18°
FWTM:
47°
Peak intensity:
4.235 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

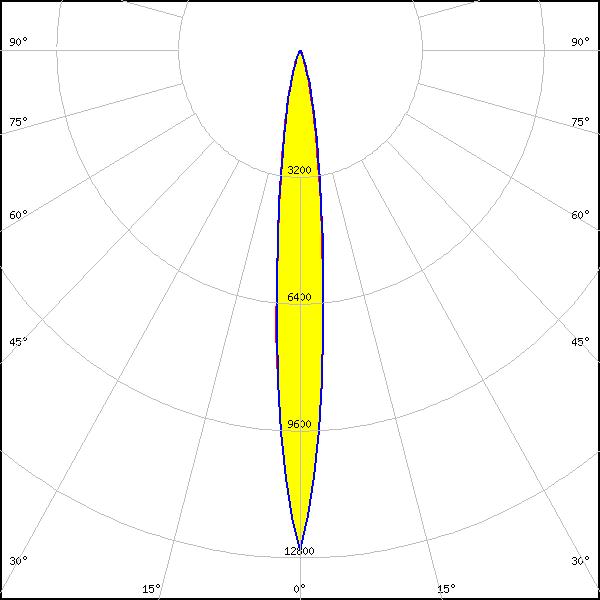

LED:
V8 Gen 8-9
Ordering code: CP18557_AMY-110-S-C
LES size: 8.5 mm
Required components:
FWHM:
12°
FWTM:
28°
Peak intensity:
12.611 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

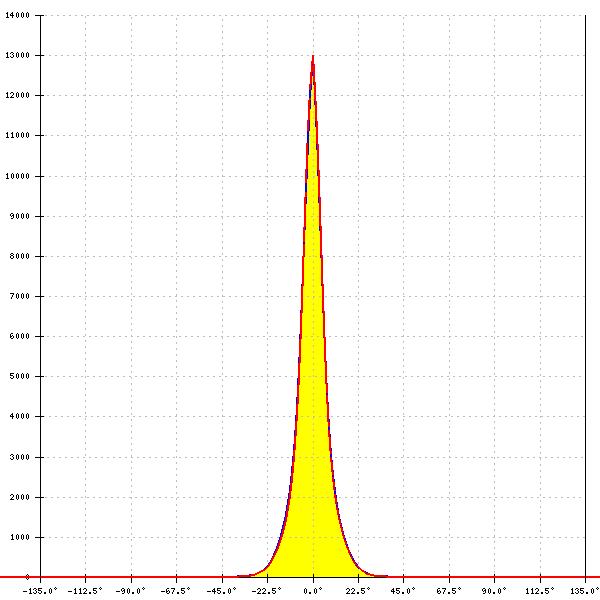

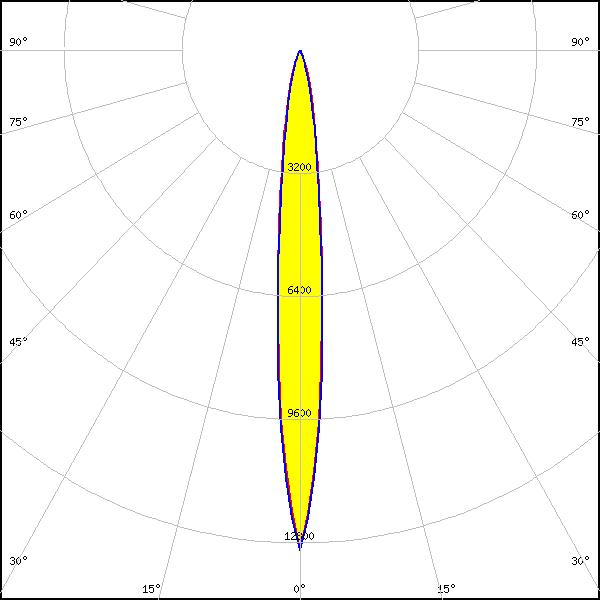

LED:
V9 HD Gen 8
Ordering code: CP18557_AMY-110-S-C
LES size: 8.8 mm
Required components:
FWHM:
10°
FWTM:
28°
Peak intensity:
12.998 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:

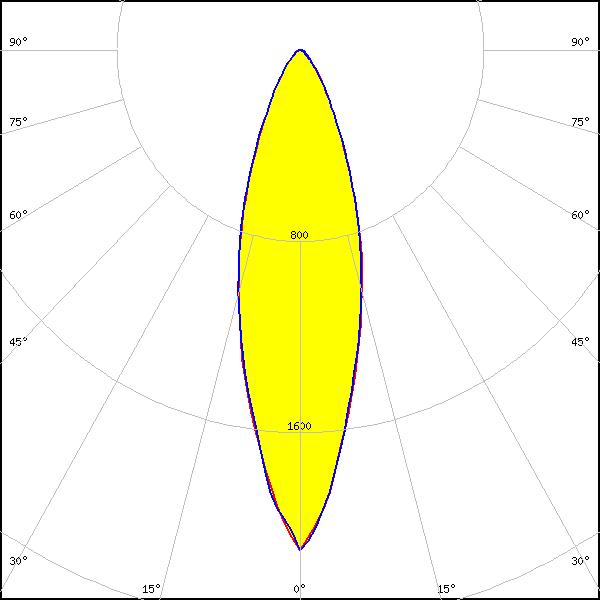

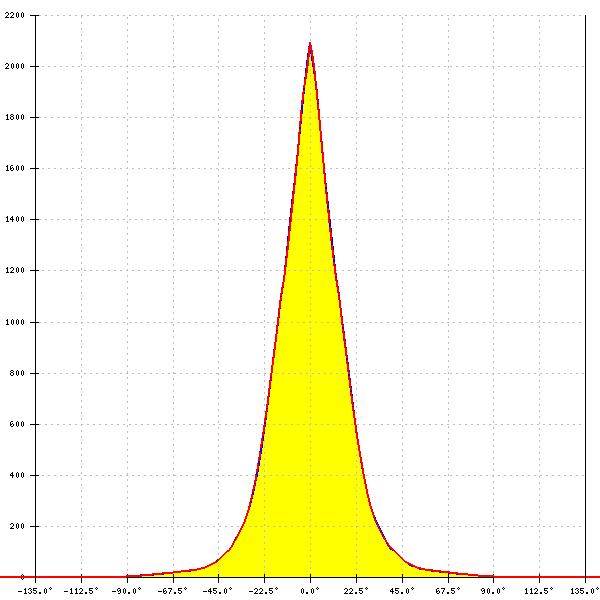

White
LED:
Vero SE 29
Ordering code: CP19028_AMY-110-S-C-WHT
LES size: 29.2 mm
FWHM:
29°
FWTM:
65°
Peak intensity:
2.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

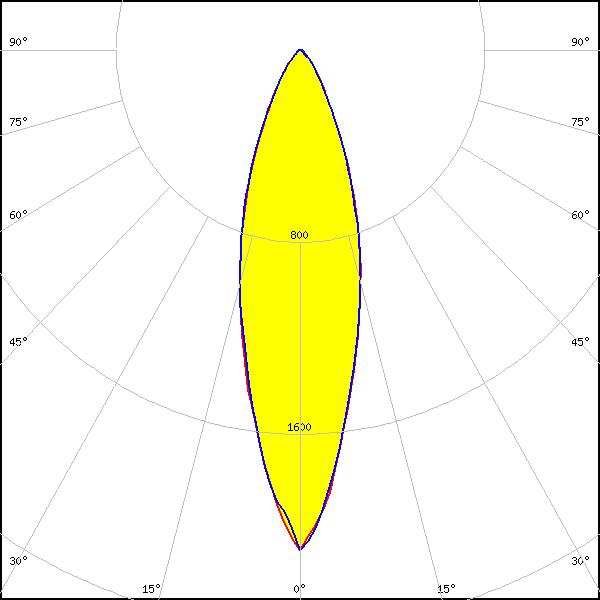

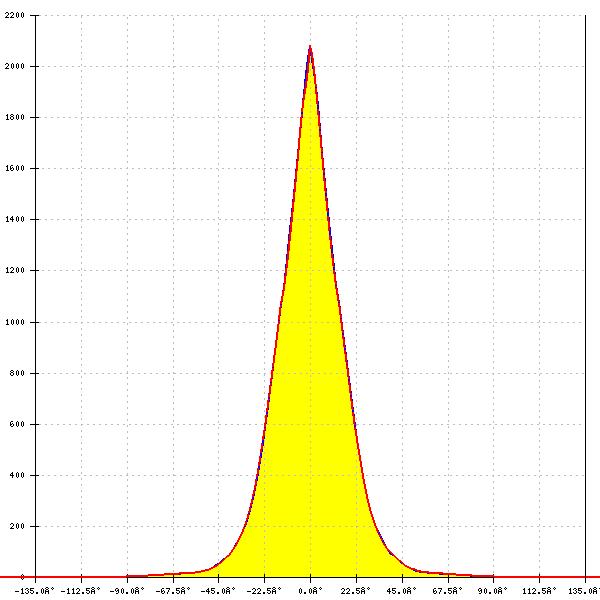

LED:
Vero SE 29
Ordering code: CP18557_AMY-110-S-C
LES size: 29.2 mm
FWHM:
29°
FWTM:
64°
Peak intensity:
2.100 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

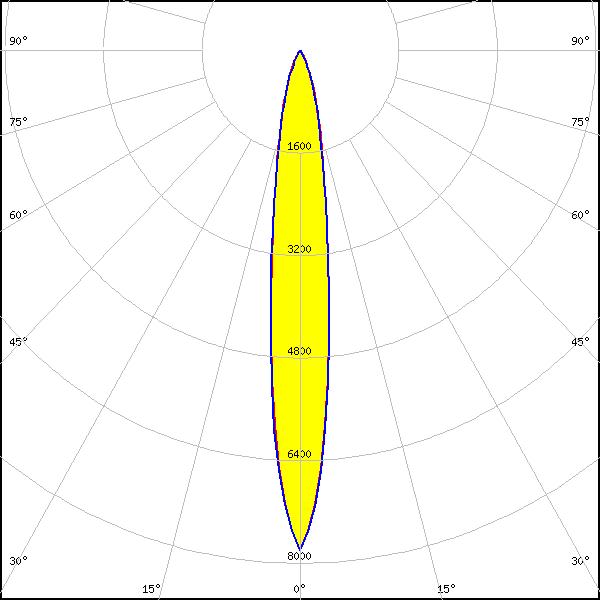

VERO13
Ordering code: CP18557_AMY-110-S-C
LES size: 13.4 mm
Required components:
FWHM:
14°
FWTM:
37°
Peak intensity:
7.801 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

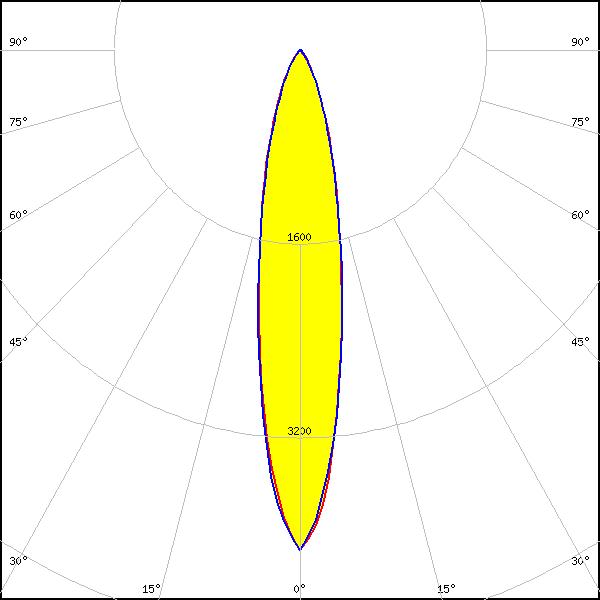

LED:
VERO18
Ordering code: CP18557_AMY-110-S-C
LES size: 18.6 mm
Required components:
FWHM:
20°
FWTM:
50°
Peak intensity:
4.129 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

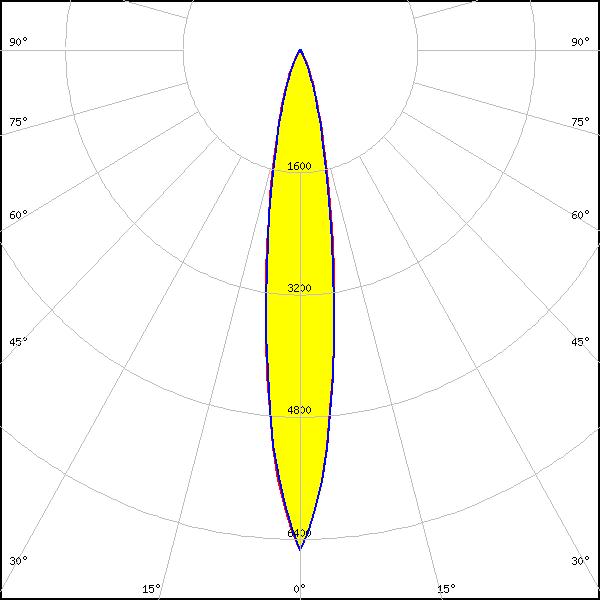

Vesta DTW 15mm (33W)
Ordering code: CP18557_AMY-110-S-C
LES size: 16.2 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM:
16°
FWTM:
40°
Peak intensity:
6.542 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

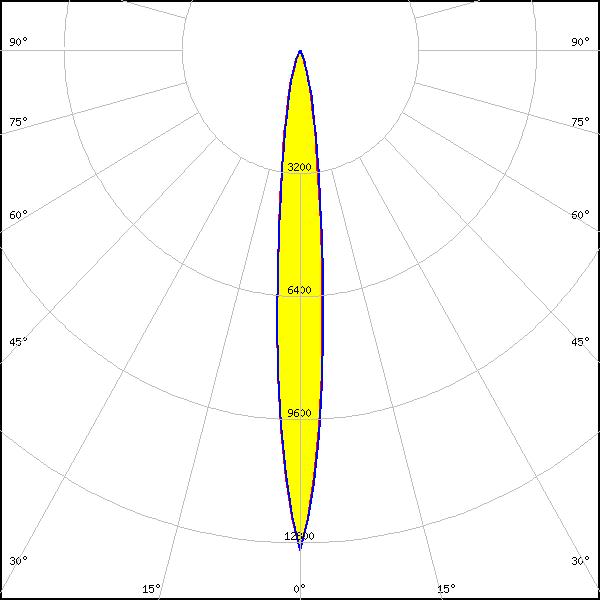

Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP18557_AMY-110-S-C
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Hekla
FWHM:
11°
FWTM:
28°
Peak intensity:
12.998 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

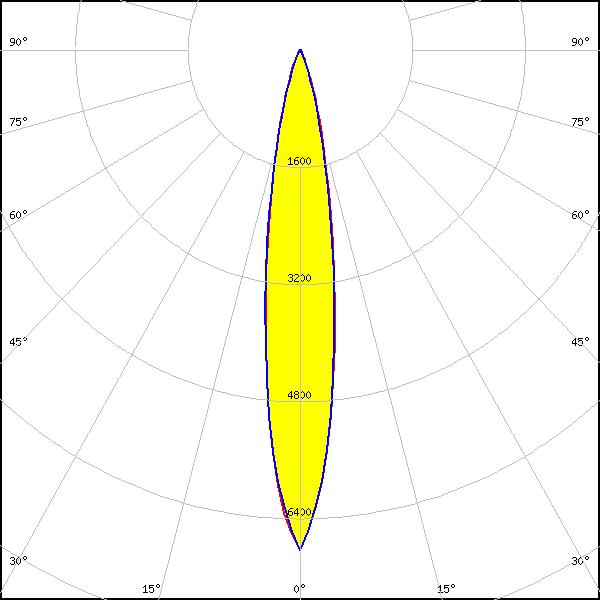

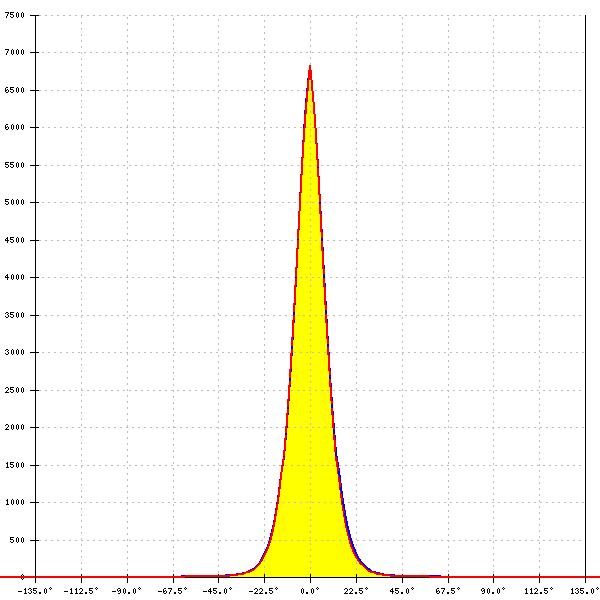

LED:
Vesta SE 13mm TW
Ordering code: CP18557_AMY-110-S-C
LES size: 14.3 mm
Required components:
FWHM:
16°
FWTM:
36°
Peak intensity:
6.830 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
Tunable White

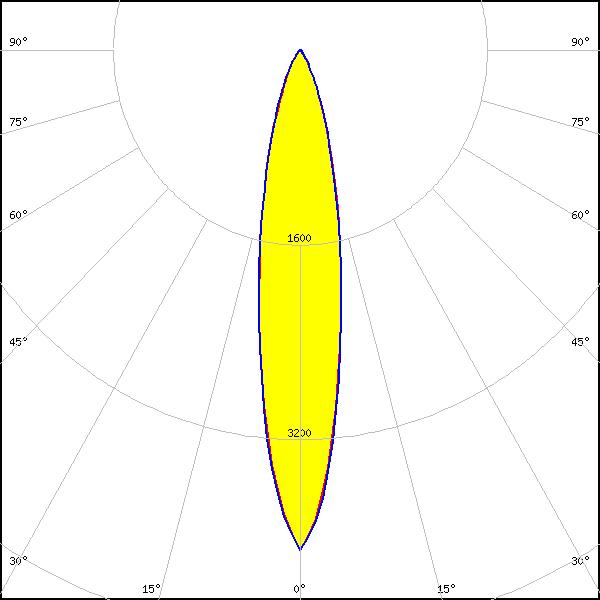

LED:
Vesta TW 18mm (31W) DP
Ordering code: CP18557_AMY-110-S-C
LES size: 19.7 mm
Required components:
FWHM:
20°
FWTM:
48°
Peak intensity:
4.109 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

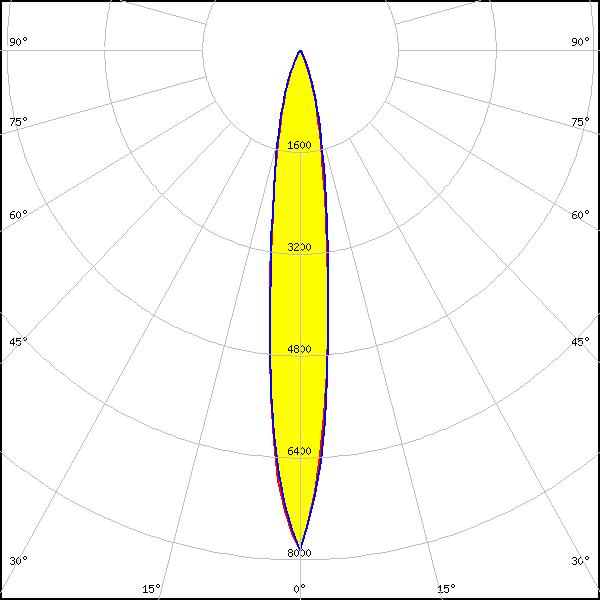

Vesta TW 9mm (9W) DP
Ordering code: CP18557_AMY-110-S-C
LES size: 10.0 mm
Required components:
FWHM:
14°
FWTM:
38°
Peak intensity:
7.852 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

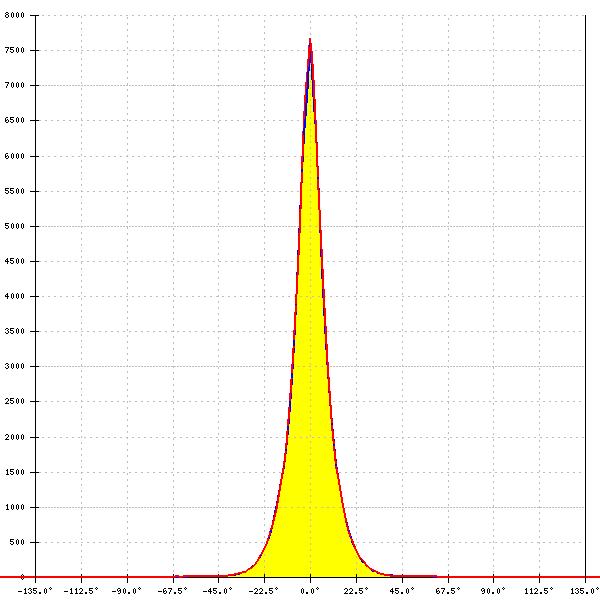

LED:

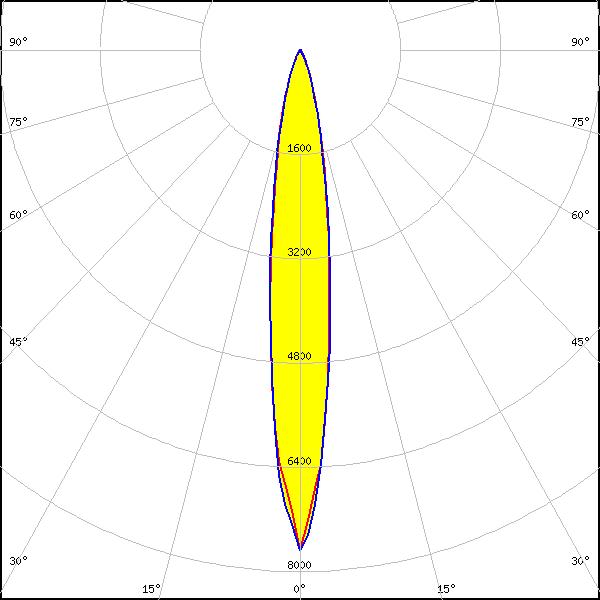

CLL03x/CLU03x
Ordering code: CP18575_AMY-110-S-B
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
F10173_OPTX-D-SUB
F10173_OPTX-D-SUB
FWHM:
14°
FWTM:
36°
Peak intensity:
7.673 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

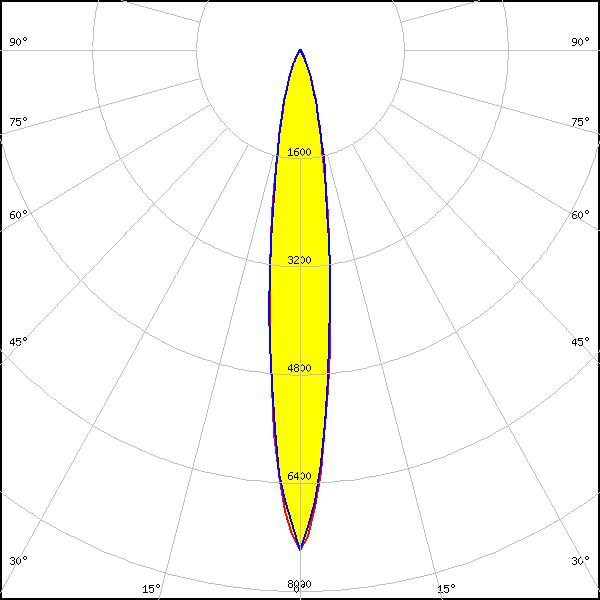

CLL03x/CLU03x
Ordering code: CP19028_AMY-110-S-C-WHT
LES size: 14.5 mm
Required components:
FWHM:
14°
FWTM:
37°
Peak intensity:
7.394 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

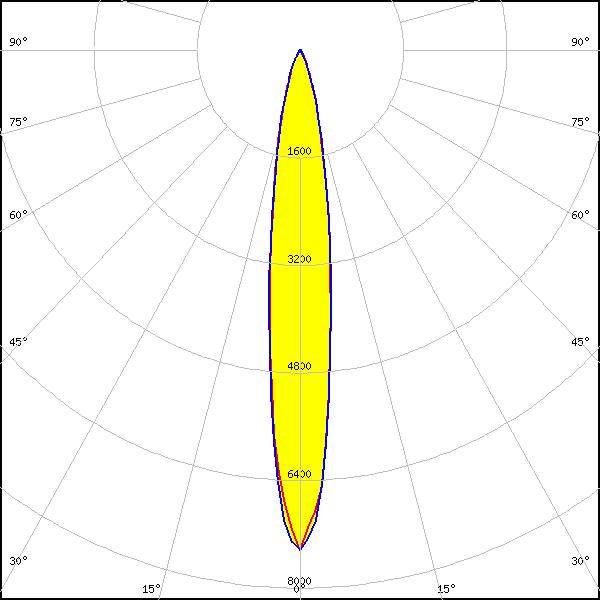

CLL03x/CLU03x
Ordering code: CP19032_AMY-110-S-B-WHT
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
14°
FWTM:
36°
Peak intensity:
7.440 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
Ordering code: C18555_AMY-110-S
LES size: 14.5 mm
Required components:
FWHM:
14°
FWTM:
37°
Peak intensity:
7.145 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

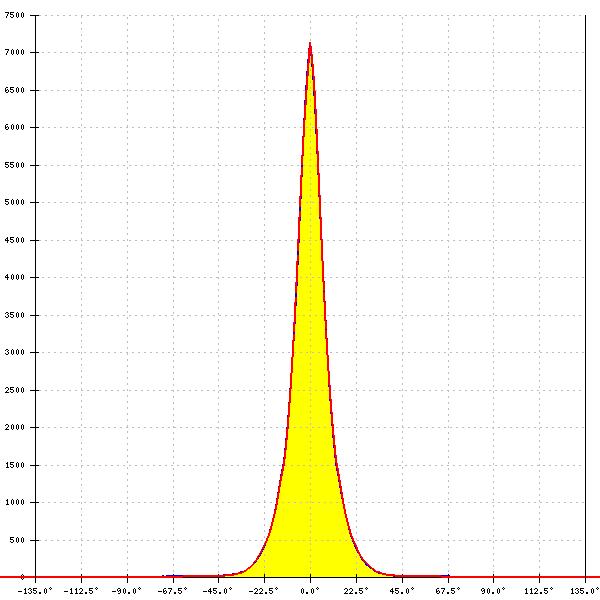

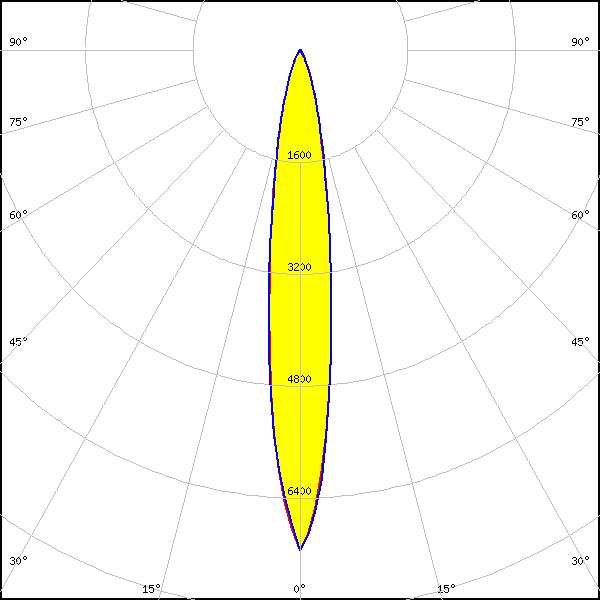

LED:
CLL03x/CLU03x
Ordering code: CP18557_AMY-110-S-C
LES size: 14.5 mm
Required components:
FWHM:
14°
FWTM:
36°
Peak intensity:
7.145 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

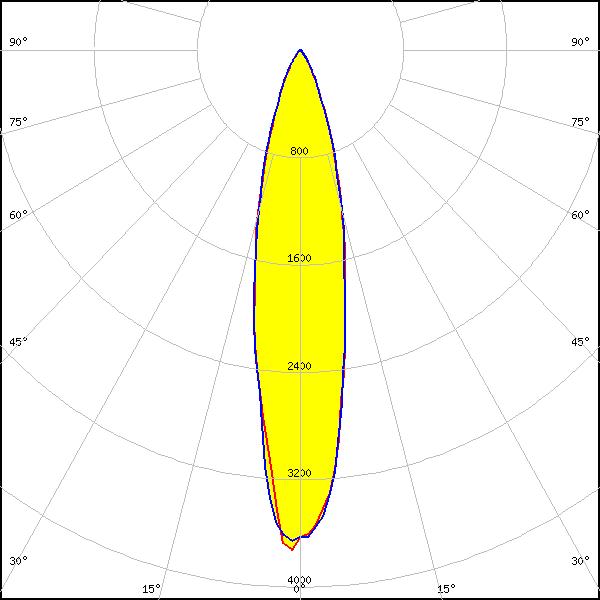

CLL04x/CLU04x
Ordering code: CP18575_AMY-110-S-B
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
22°
FWTM:
50°
Peak intensity:
3.822 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

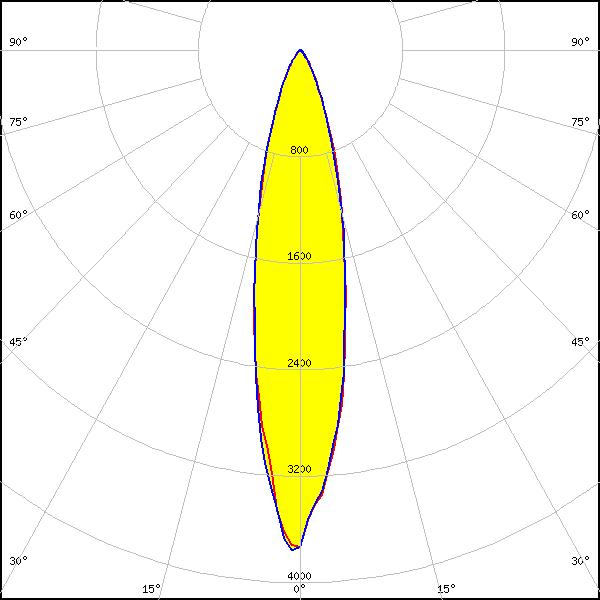

LED:
CLL04x/CLU04x
Ordering code: CP19032_AMY-110-S-B-WHT
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
22°
FWTM:
50°
Peak intensity:
3.858 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
Ordering code: C18555_AMY-110-S
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
22°
FWTM:
50°
Peak intensity:
3.822 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

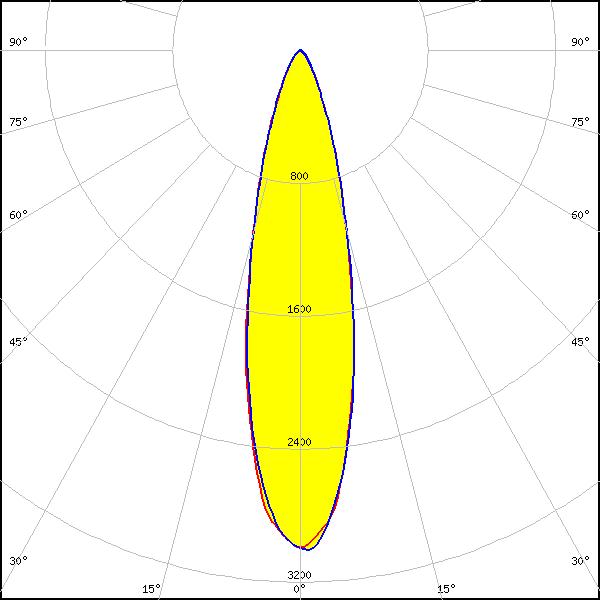

LED:
LCN-C07A
Ordering code: C18555_AMY-110-S
LES size: 24.0 mm
FWHM:
25°
FWTM:
53°
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

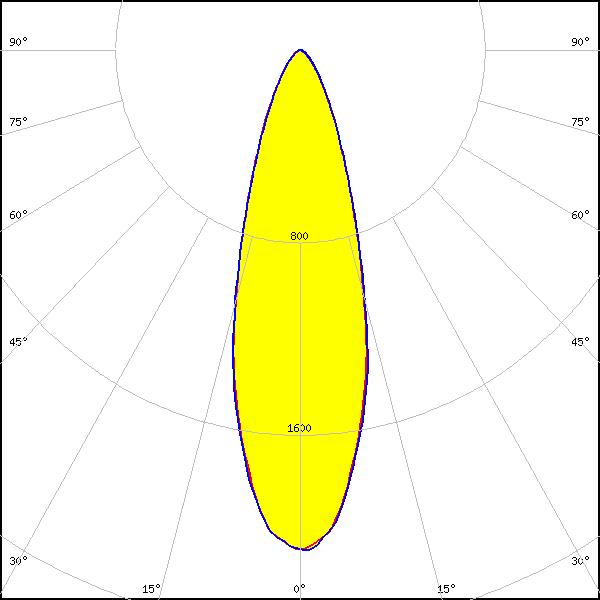

LED:
LCN-C08A
Ordering code: C18555_AMY-110-S
LES size: 31.0 mm
FWHM:
31°
FWTM:
65°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

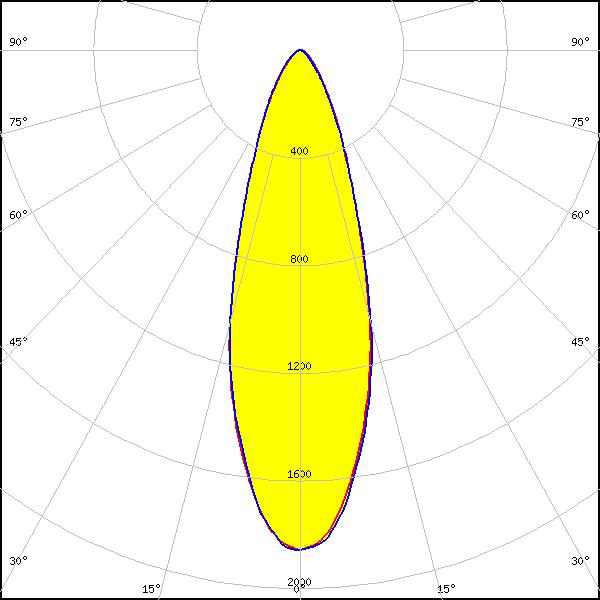

LED:

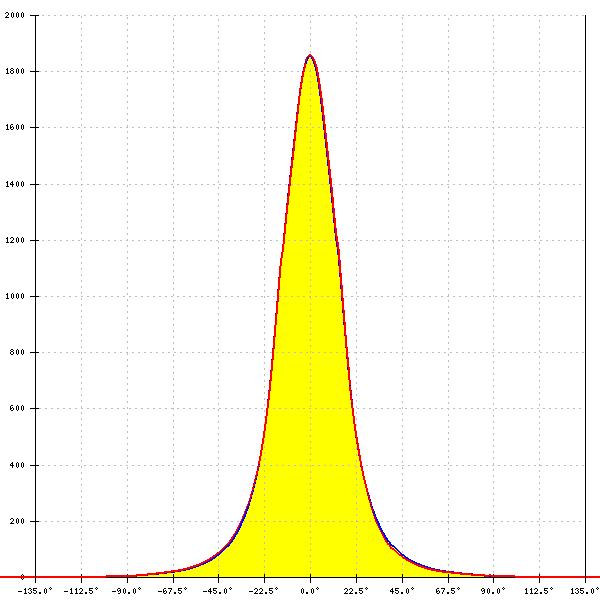

LCN-C09A
Ordering code: C18555_AMY-110-S
LES size: 32.0 mm
FWHM:
33°
FWTM:
68°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

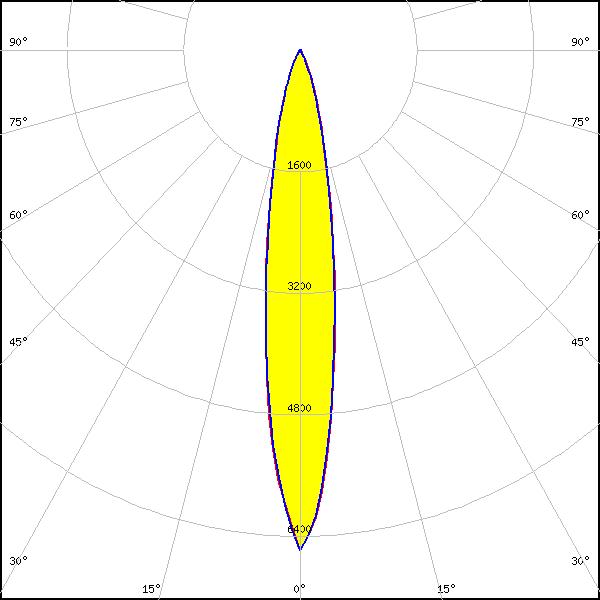

LED:

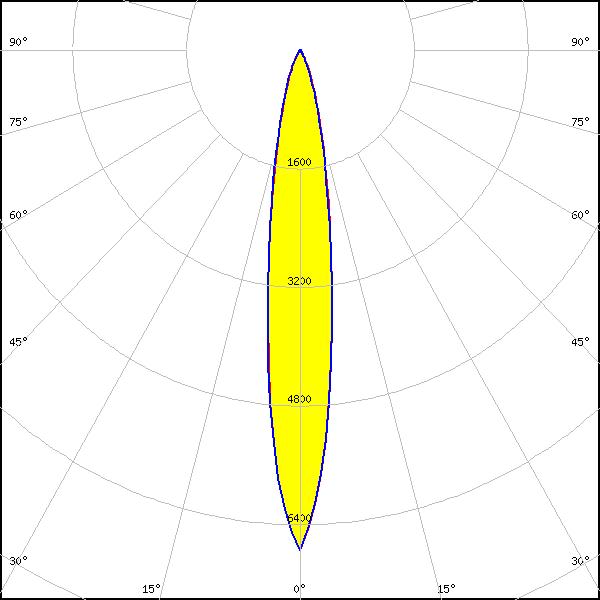

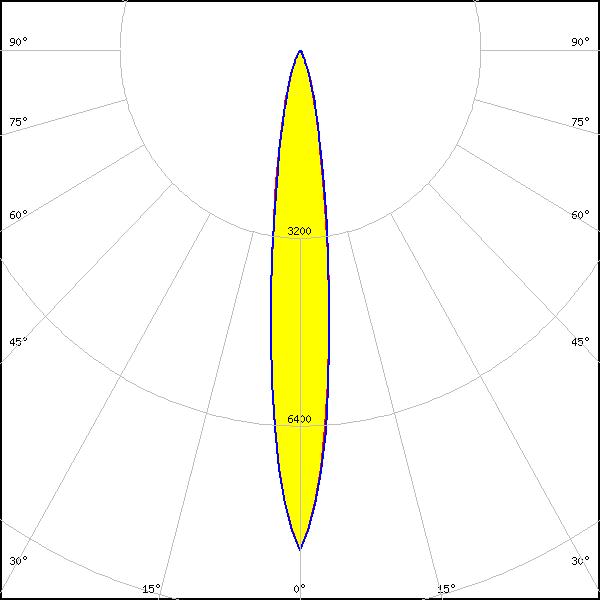

LUXEON CX Plus CoB L08 (Gen2)
Ordering code: CP18557_AMY-110-S-C
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
16°
FWTM:
39°
Peak intensity:
6.586 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

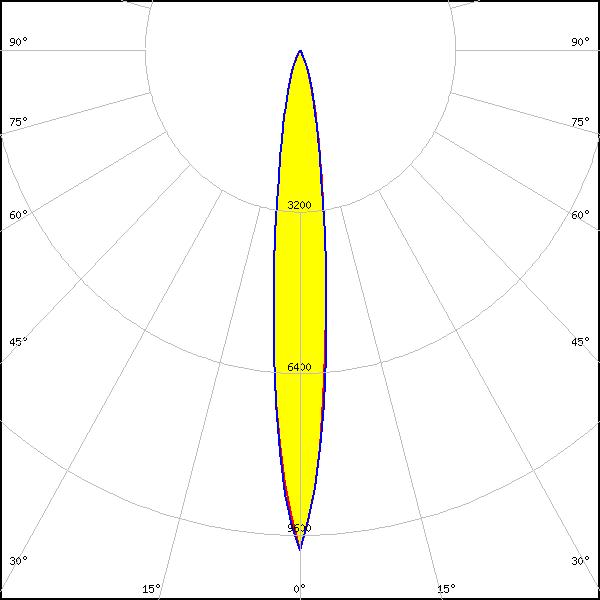

LED:

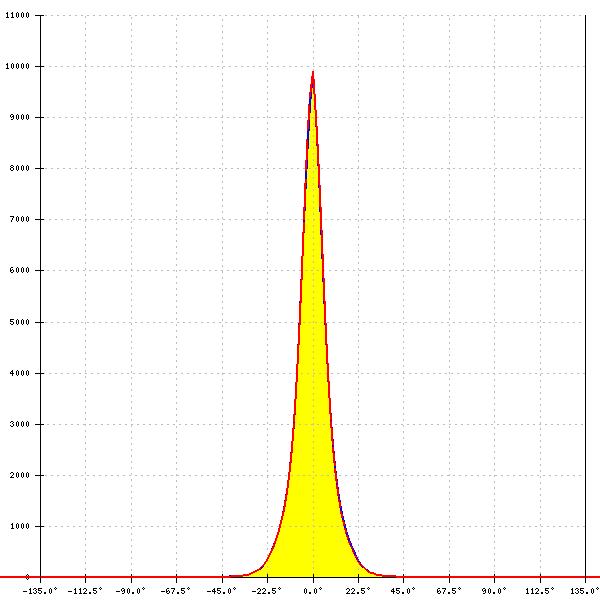

LUXEON CoB 1205HD
Ordering code: CP18557_AMY-110-S-C
LES size: 11.0 mm
Required components:
FWHM:
12°
FWTM:
32°
Peak intensity:
9.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

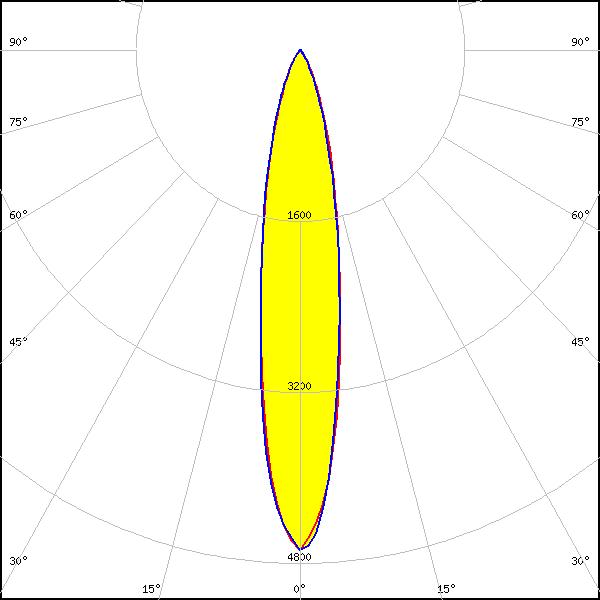

LED:
LUXEON CoB 1211
Ordering code: CP18575_AMY-110-S-B
LES size: 18.5 mm
Required components:
Bender Wirth: 631b Bayonet50
FWHM:
19°
FWTM:
46°
Peak intensity:
4.682 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

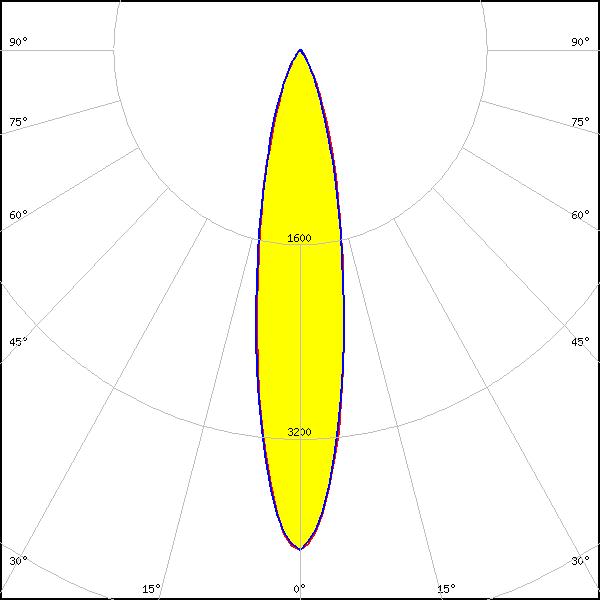

LED:

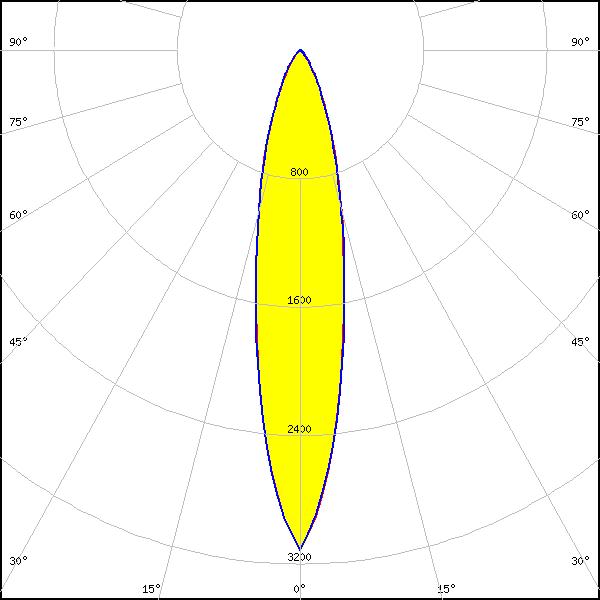

LUXEON CoB 1211
Ordering code: CP18557_AMY-110-S-C
LES size: 18.5 mm
Required components:
Bender Wirth: 631b Hekla XL
FWHM:
20°
FWTM:
49°
Peak intensity:
4.118 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

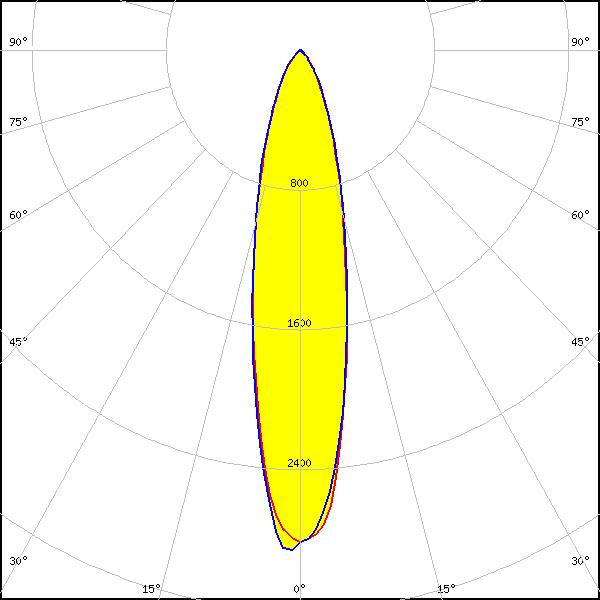

LED:
LUXEON CoB 1213/1216/1812
Ordering code: CP18557_AMY-110-S-C
LES size: 23.0 mm
Required components:
Bender Wirth: 631b Hekla XL
FWHM:
23°
FWTM:
57°
Peak intensity:
2.865 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

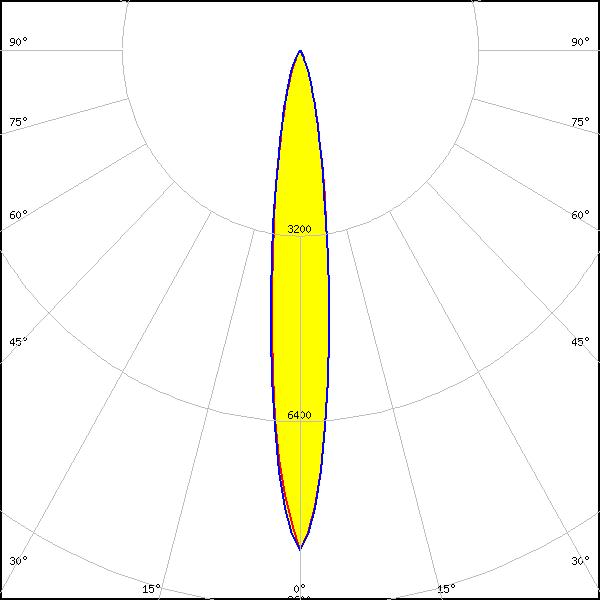

LED:

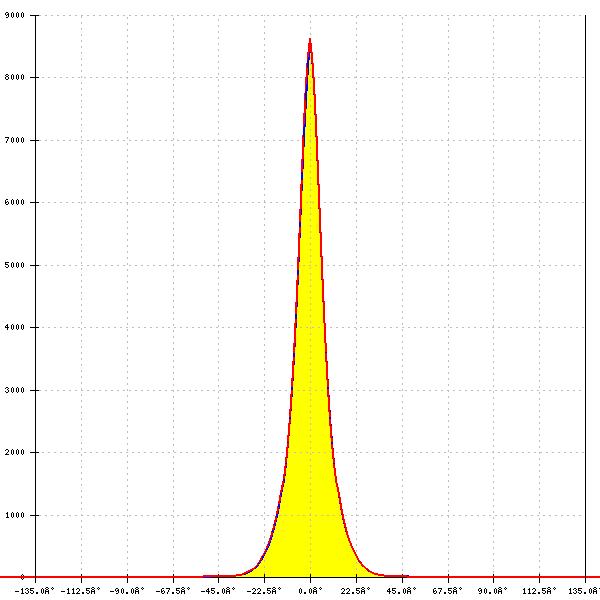

LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP18557_AMY-110-S-C
LES size: 12.0 mm
Required components:
FWHM:
14°
FWTM:
34°
Peak intensity:
8.624 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

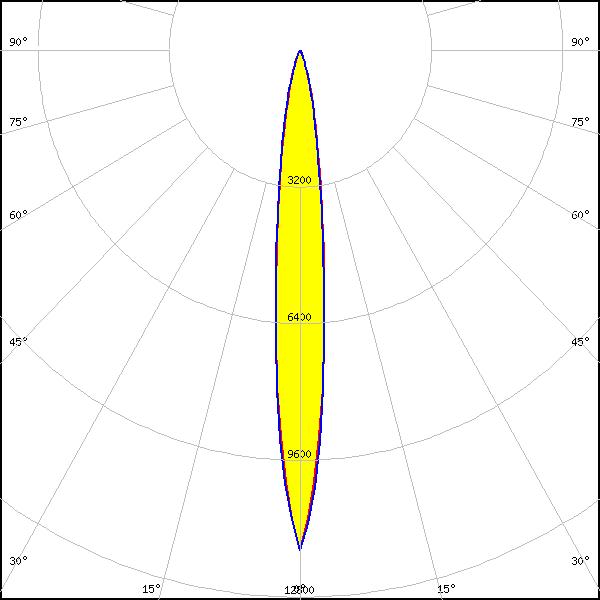

LED:

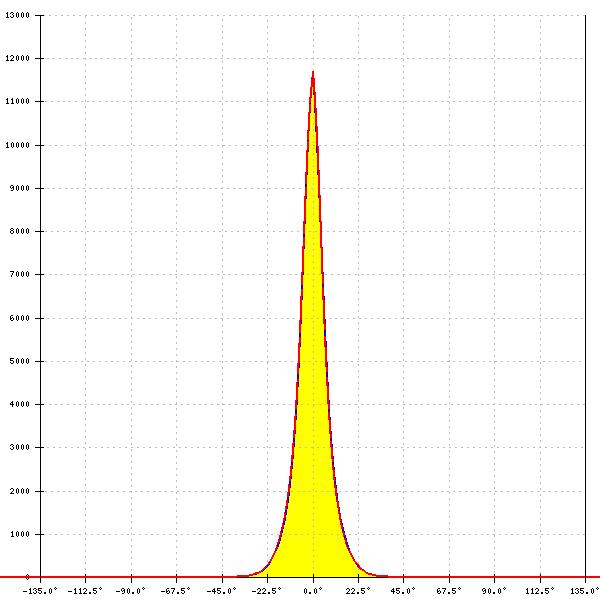

LUXEON CX Plus CoB M02 / M03 (Gen2)
Ordering code: CP18557_AMY-110-S-C
LES size: 9.0 mm
Required components:
FWHM:
12°
FWTM:
29°
Peak intensity:
11.706 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

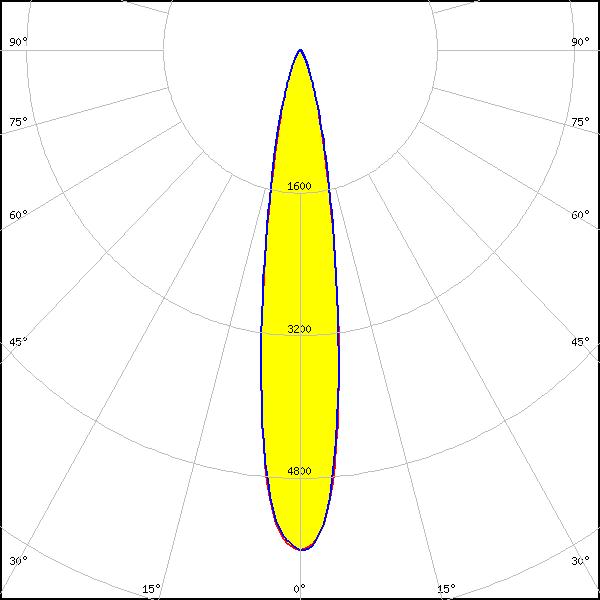

LED:

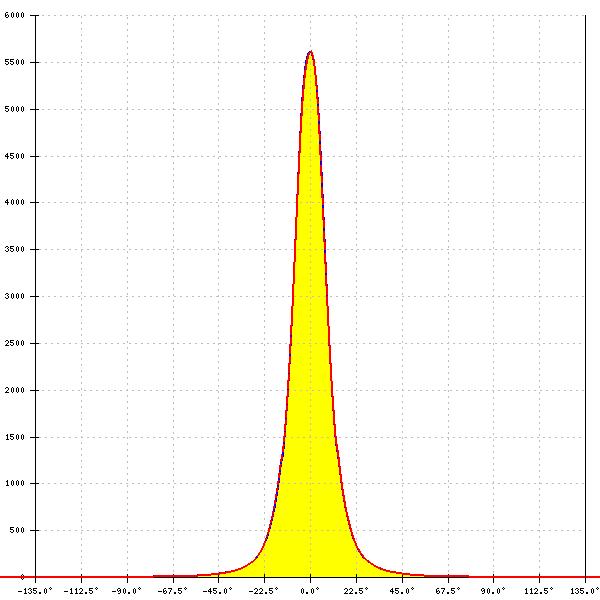

CTM-14 (Tunable White) Gen2
Ordering code: CP18557_AMY-110-S-C
LES size: 13.9 mm
Required components:
FWHM:
18°
FWTM:
39°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
Ordering code: CP18557_AMY-110-S-C
LES size: 14.6 mm
Required components:
Bender Wirth: 663a Hekla XL
FWHM:
16°
FWTM:
39°
Peak intensity:
6.526 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

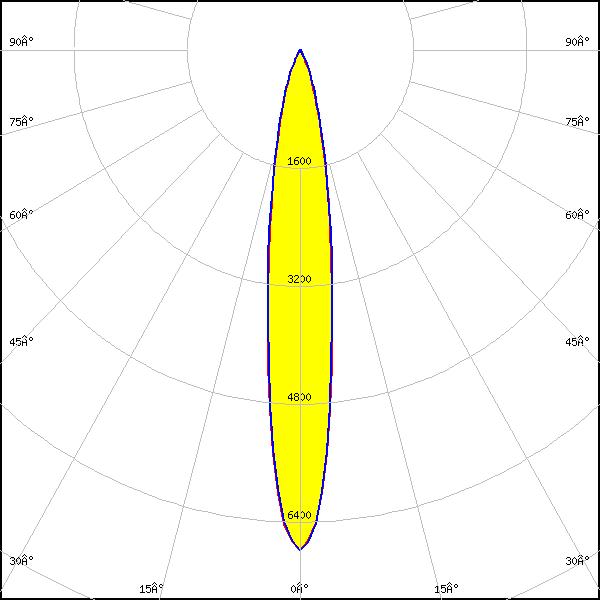

Fortimo SLM L15 1919 CoB
Ordering code: CP18557_AMY-110-S-C
LES size: 14.5 mm
Required components:
FWHM:
16°
FWTM:
38°
Peak intensity:
6.784 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

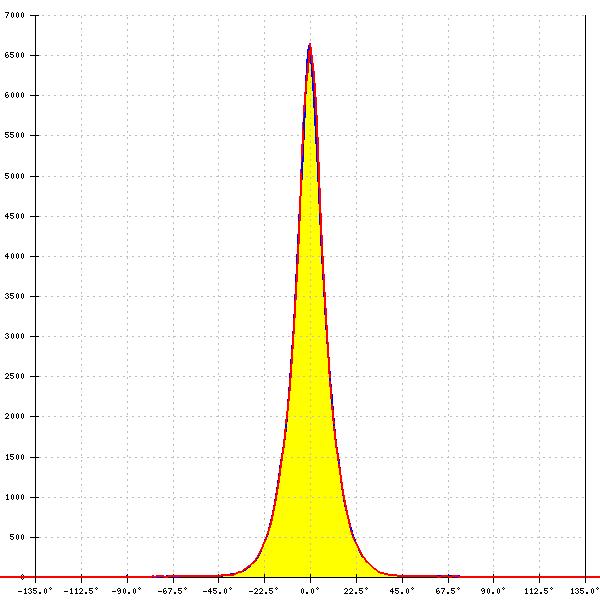

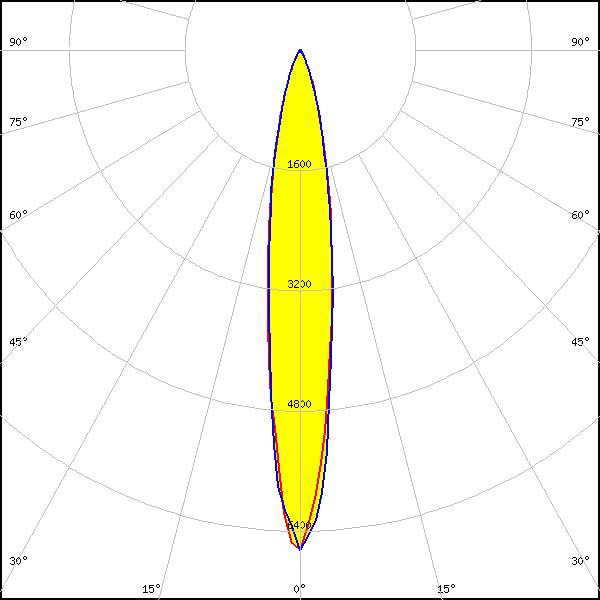

LC016D / LC019D / LC026D / LC033D
Ordering code: CP18575_AMY-110-S-B
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
16°
FWTM:
38°
Peak intensity:
6.742 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

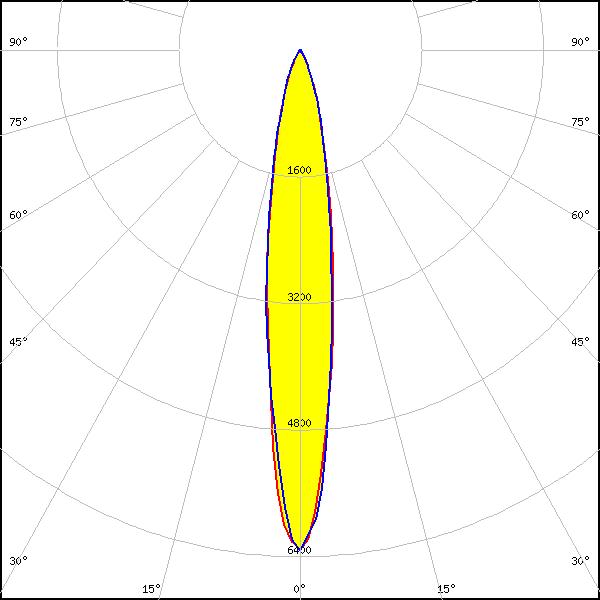

LED:
LC016D / LC019D / LC026D / LC033D
Ordering code: CP19028_AMY-110-S-C-WHT
LES size: 14.5 mm
Required components:
FWHM:
16°
FWTM:
40°
Peak intensity:
6.424 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

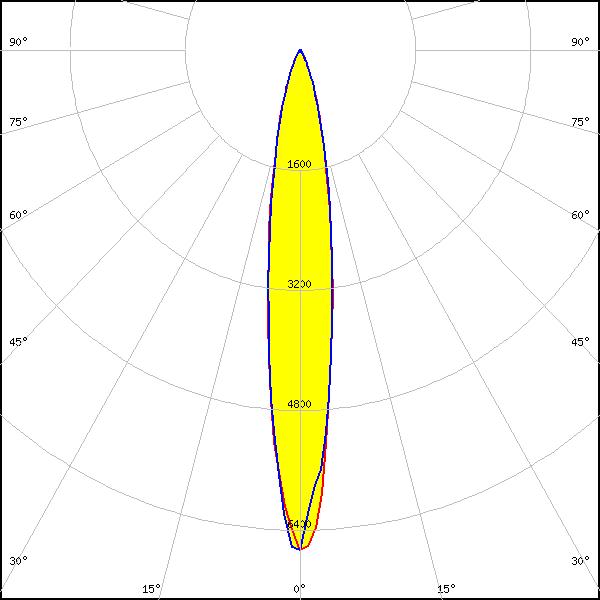

LED:
LC016D / LC019D / LC026D / LC033D
Ordering code: CP19032_AMY-110-S-B-WHT
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
16°
FWTM:
38°
Peak intensity:
6.764 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

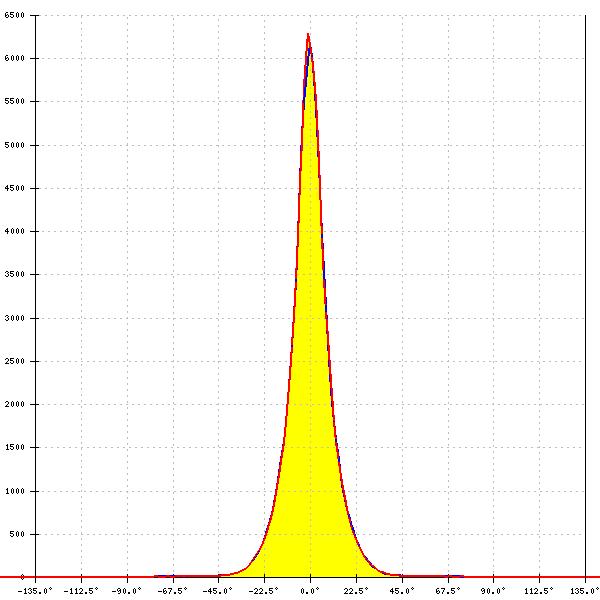

LED:
LC016D / LC019D / LC026D / LC033D
Ordering code: C18555_AMY-110-S
LES size: 14.5 mm
Required components:
FWHM:
16°
FWTM:
40°
Peak intensity:
6.368 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

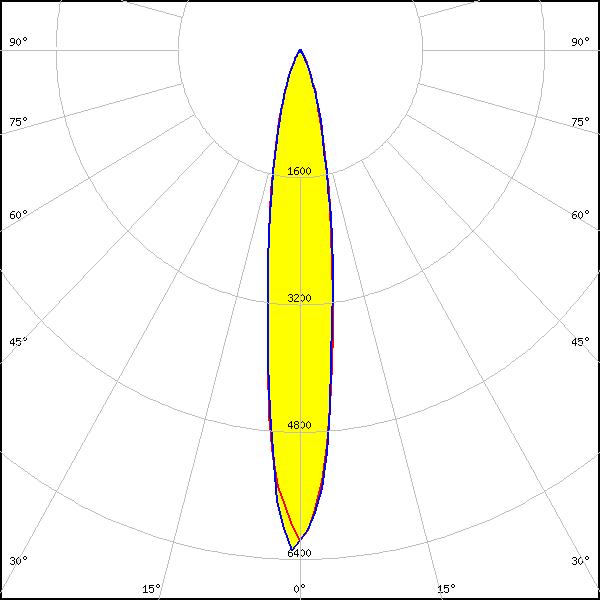

LED:
LC016D / LC019D / LC026D / LC033D
Ordering code: CP18557_AMY-110-S-C
LES size: 14.5 mm
Required components:
FWHM:
16°
FWTM:
40°
Peak intensity:
6.368 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

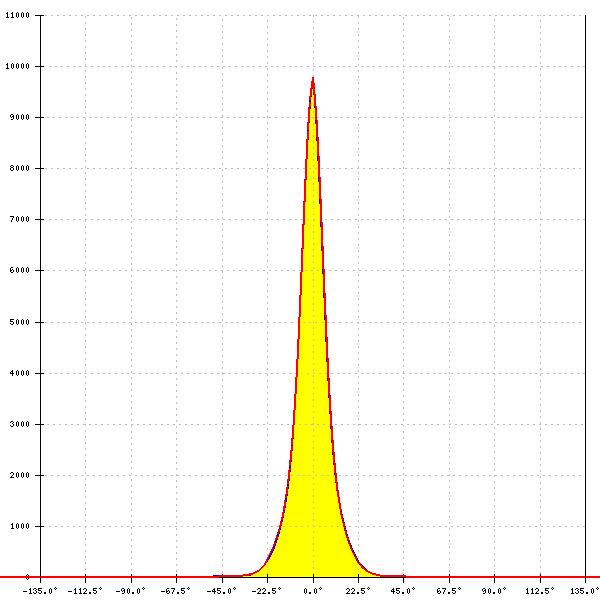

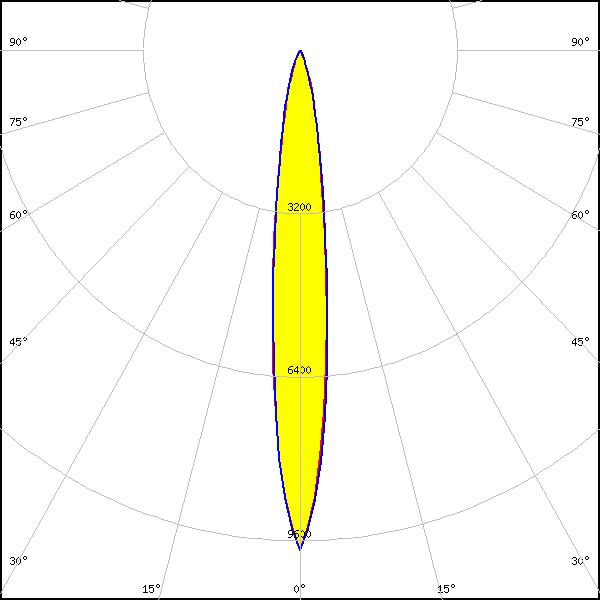

LED:
LC020T (Tunable white)
Ordering code: CP18557_AMY-110-S-C
LES size: 13.0 mm
Required components:
FWHM:
13°
FWTM:
32°
Peak intensity:
9.790 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

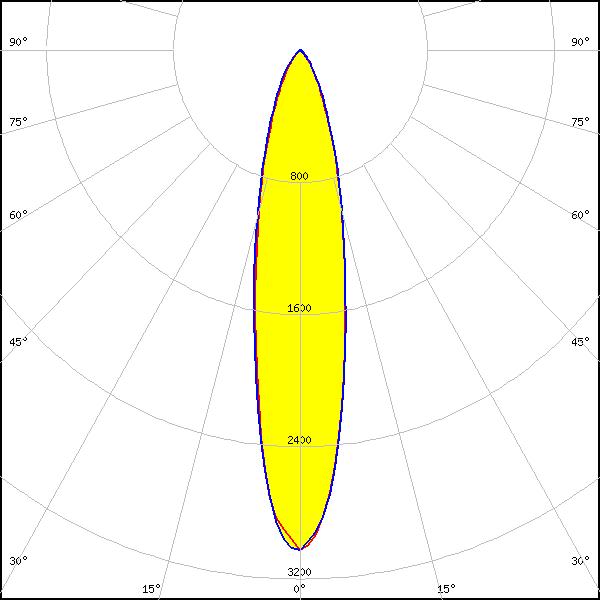

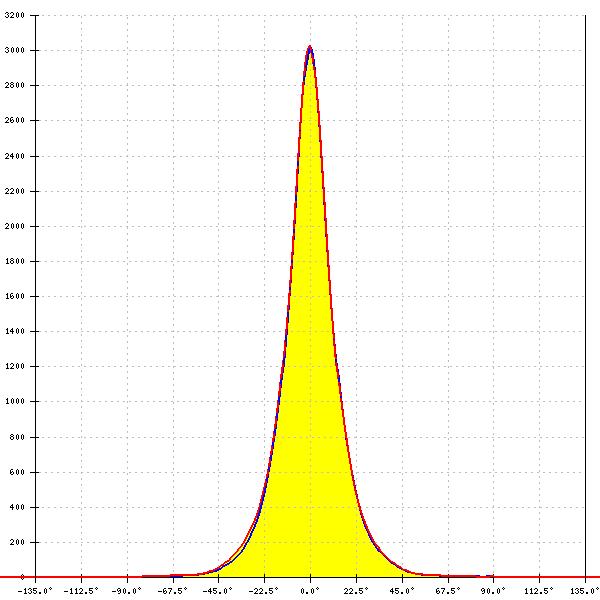

LC040D / LC060D / LC080D
Ordering code: CP18557_AMY-110-S-C
LES size: 22.0 mm
Required components:

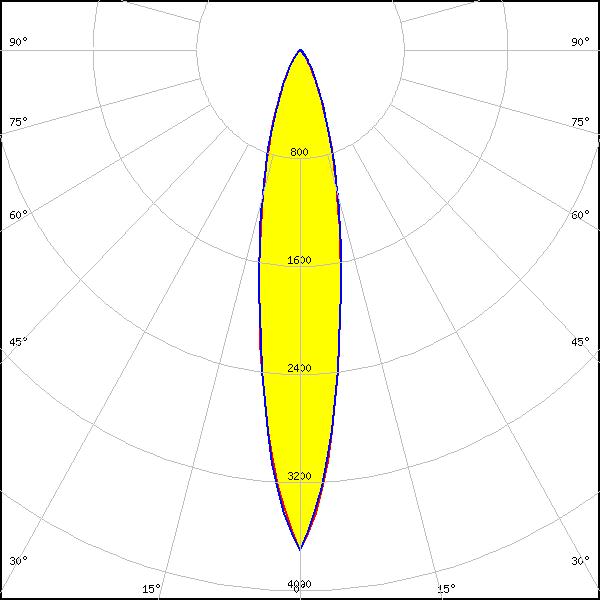

Bender Wirth: 631b Hekla XL
FWHM:
22°
FWTM:
55°
Peak intensity:
3.063 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
Ordering code: CP18557_AMY-110-S-C
LES size: 14.5 mm
Required components:
FWHM:
16°
FWTM:
40°
Peak intensity:
6.427 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 22
Ordering code: CP18575_AMY-110-S-B
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
24°
FWTM:
54°
Peak intensity:
3.313 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

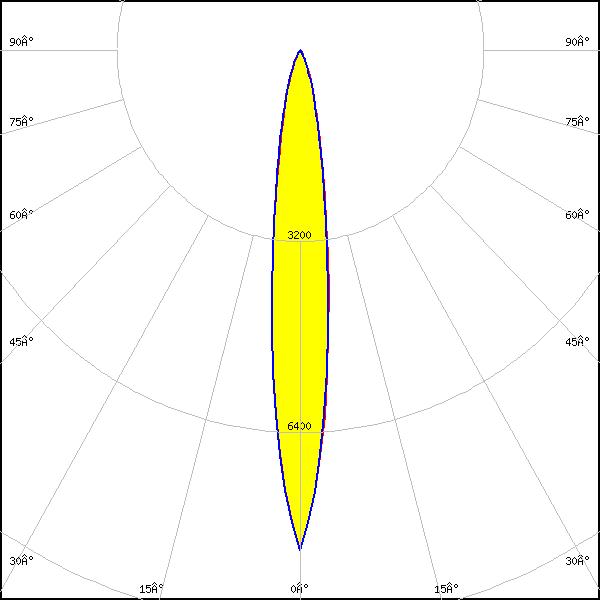

SLE G7 LES13
Ordering code: CP18557_AMY-110-S-C
LES size: 13.0 mm
Required components:
FWHM:
14°
FWTM:
34°
Peak intensity:
8.374 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

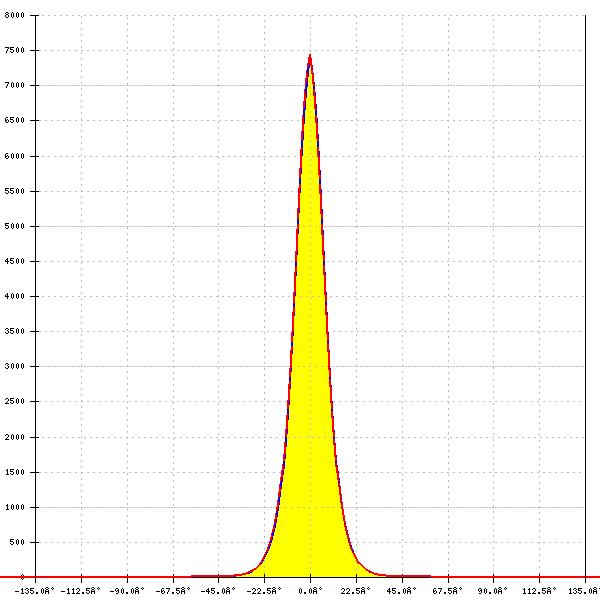

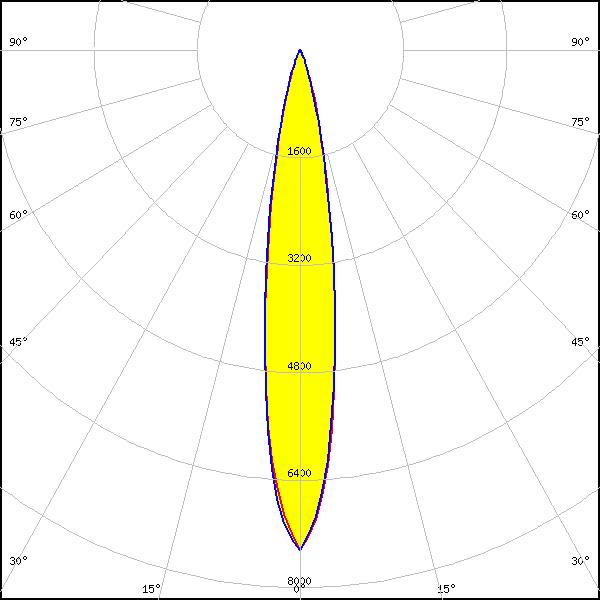

SLE G7 LES13 H
Ordering code: CP18575_AMY-110-S-B
FWHM:
16°
FWTM:
34°
Peak intensity:
7.446 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
