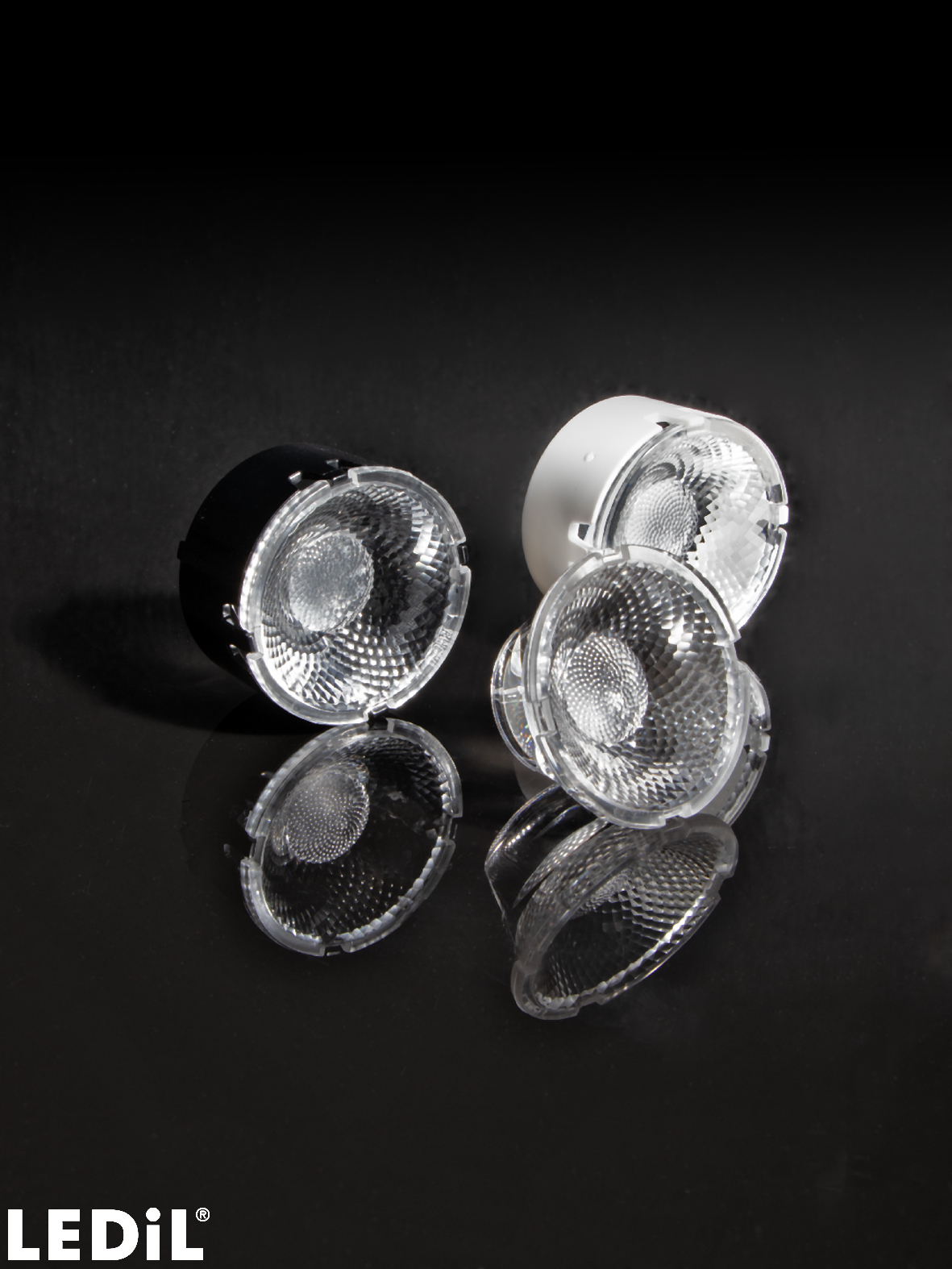

YASMEEN-35-M

Print

~26° spot beam

This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

Specification
  • Dimensions:
    35 mm
  • Height:
    18.00 mm
  • Fastening:
    socket
  • Colour:
    white
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    MBO19260_YASMEEN-35-M
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

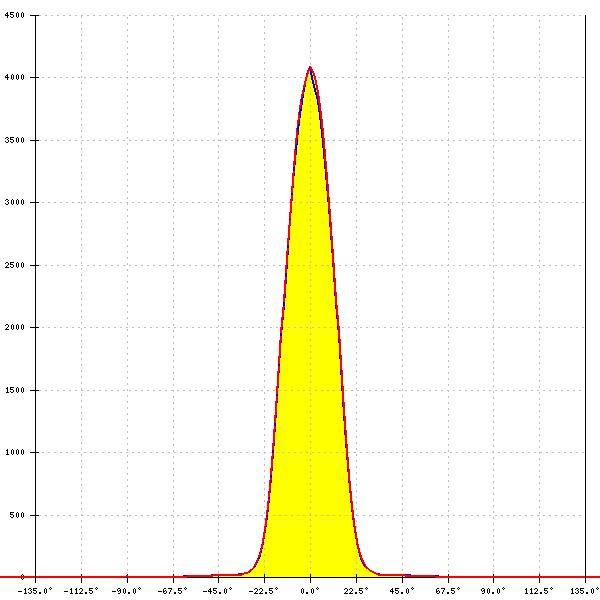

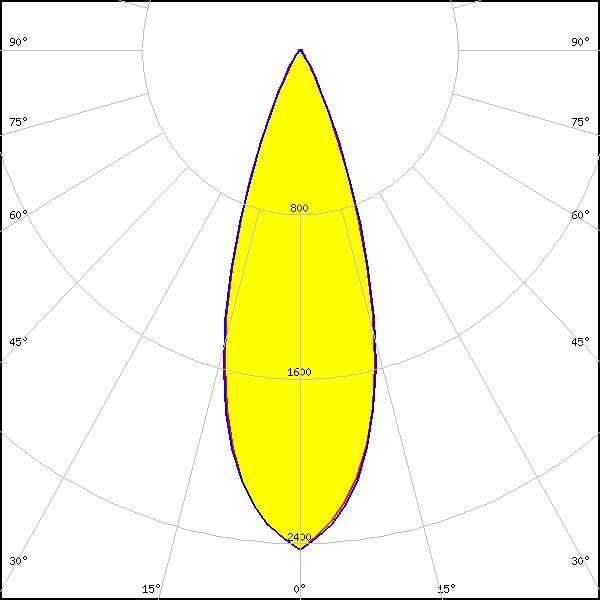

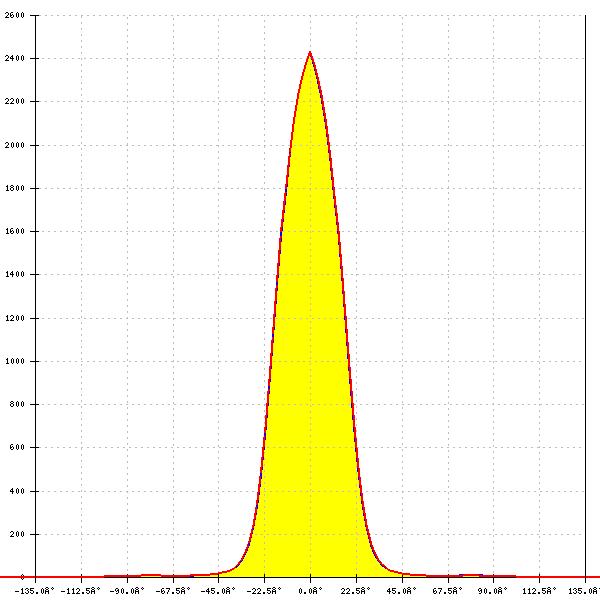

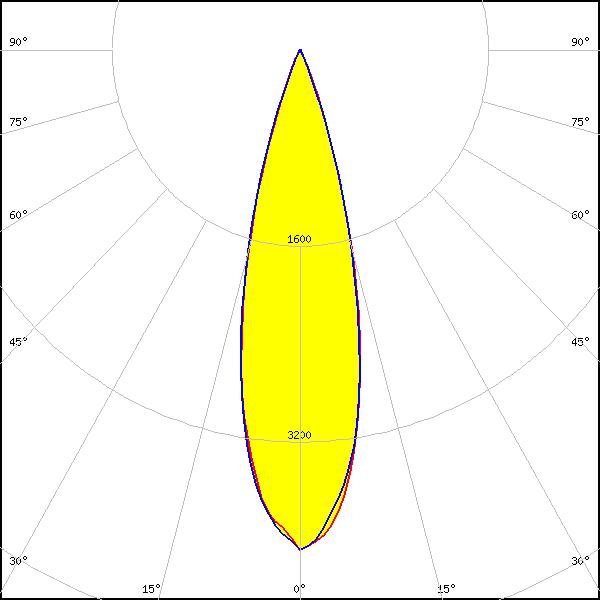

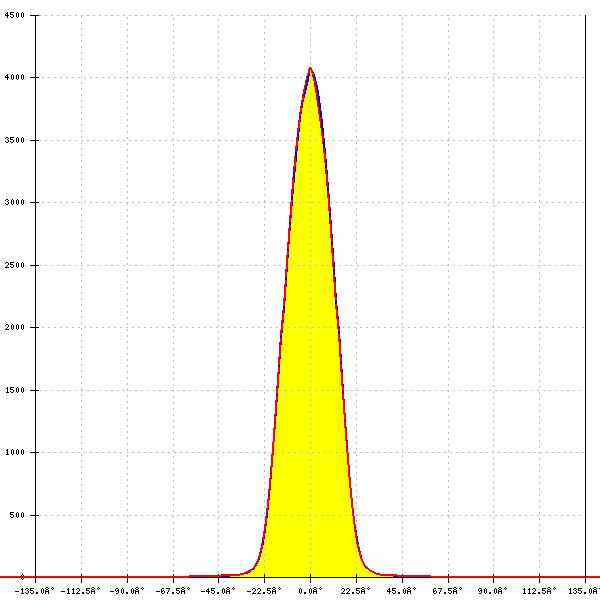

Optical results

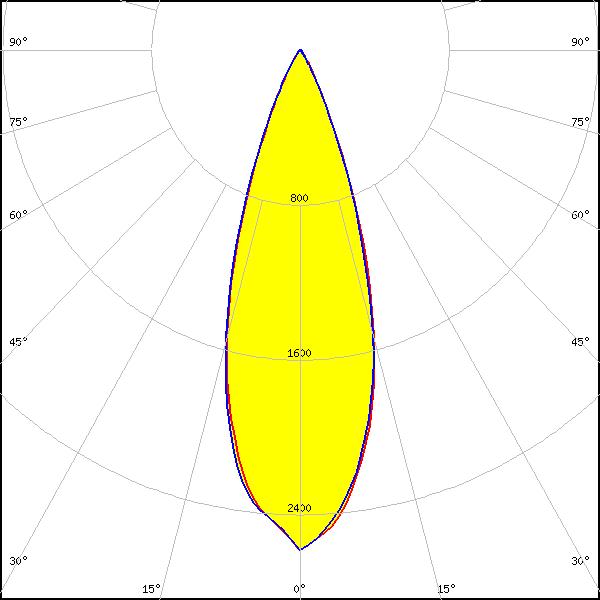

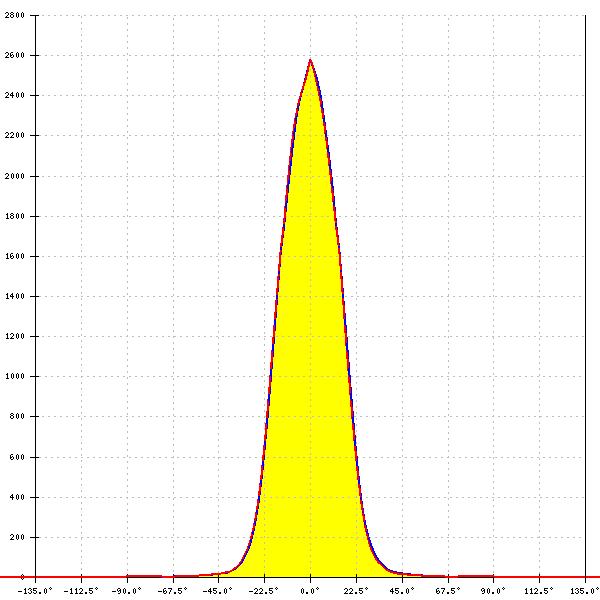

LED: V10 Gen 8-9
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 10.0 mm
Required components:
Bender Wirth: 634b Bayonet35L
FWHM: 34°
FWTM: 55°
Peak intensity: 2.583 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

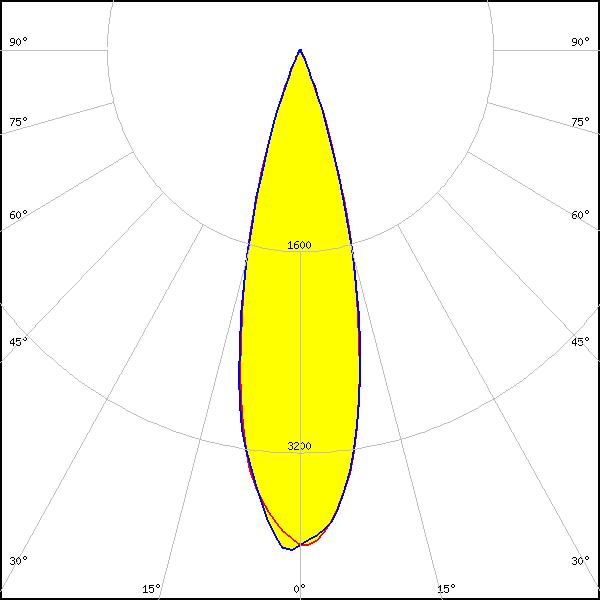

LED: V4 HD Gen 7
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 5.2 mm
Required components:
BJB: 47.360.1020
FWHM: 26°
FWTM: 38°
Peak intensity: 4.984 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

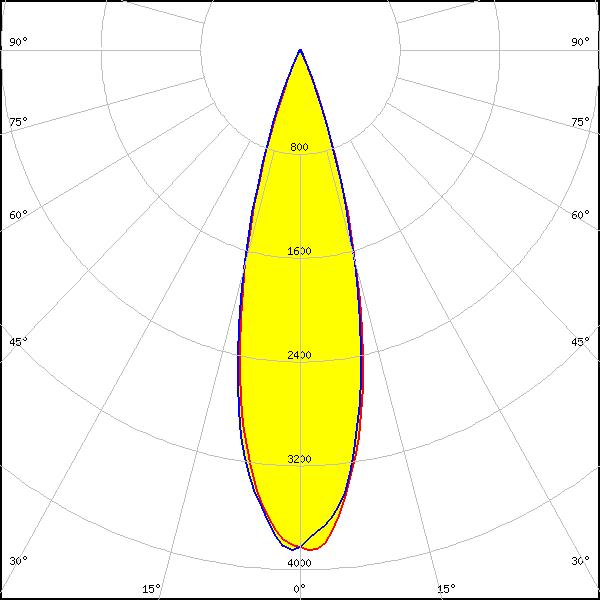

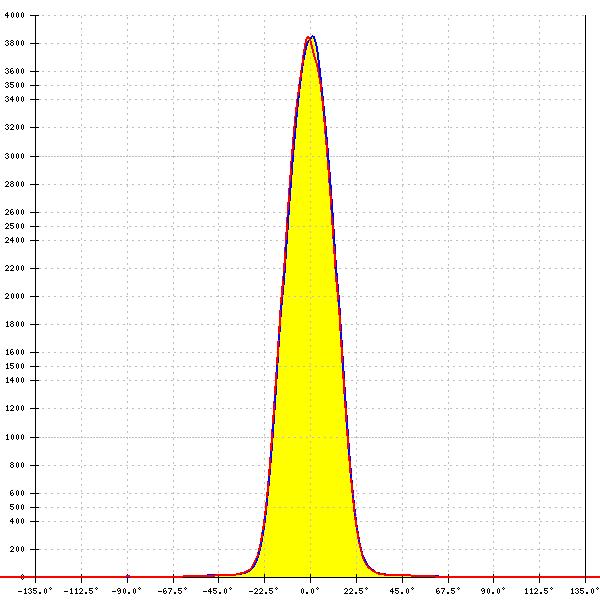

LED: V6 HD Gen 8
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.6 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 28°
FWTM: 45°
Peak intensity: 3.873 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

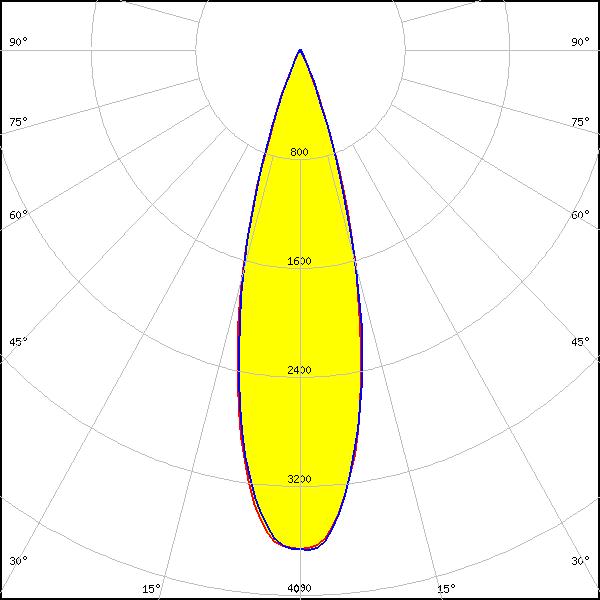

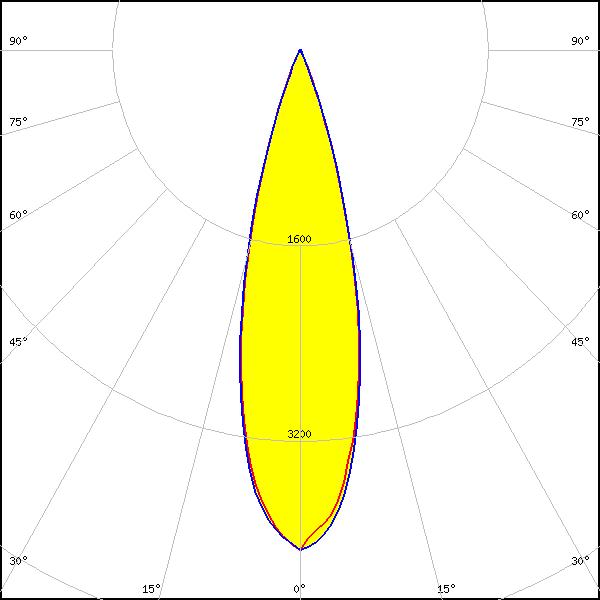

LED: Vesta DTW 6mm
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.8 mm
Required components:
Bender Wirth: 652b Bayonet35L
FWHM: 28°
FWTM: 46°
Peak intensity: 3.713 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Bayonet35L
FWHM: 31°
FWTM: 50°
Peak intensity: 3.198 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

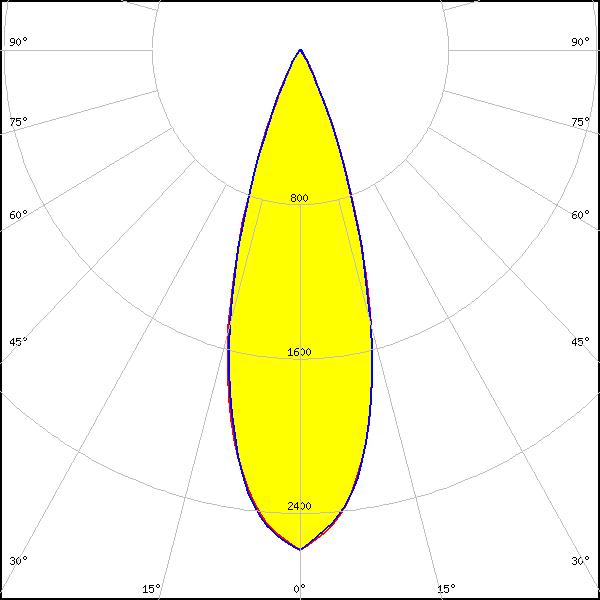

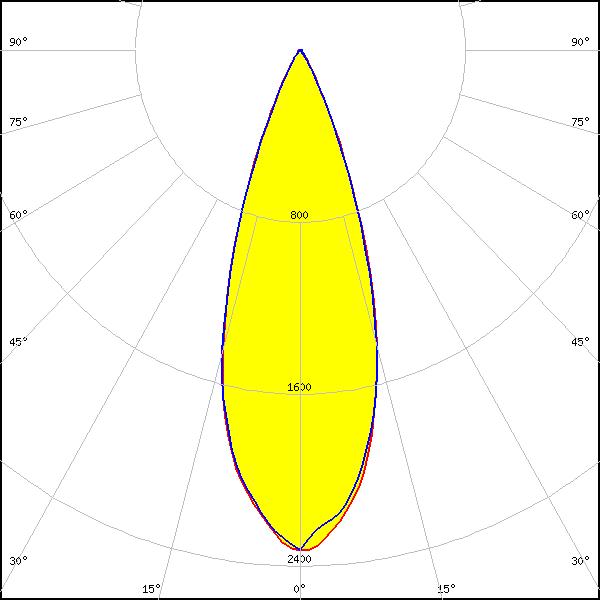

LED: CLL02x/CLU02x (LES10)
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 32°
FWTM: 53°
Peak intensity: 2.613 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

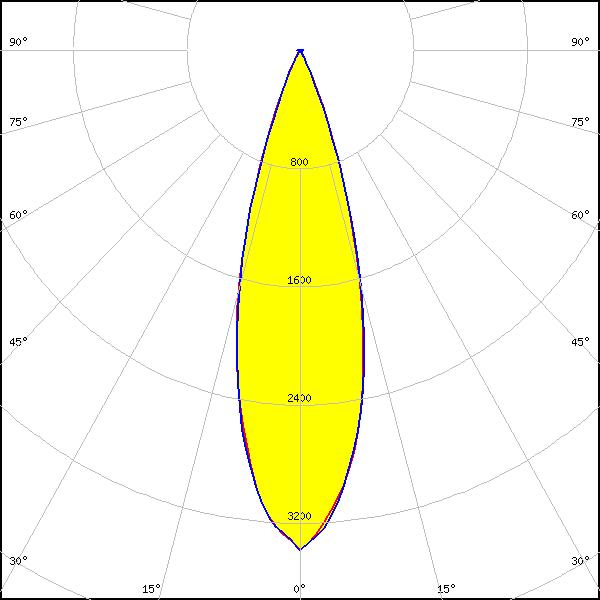

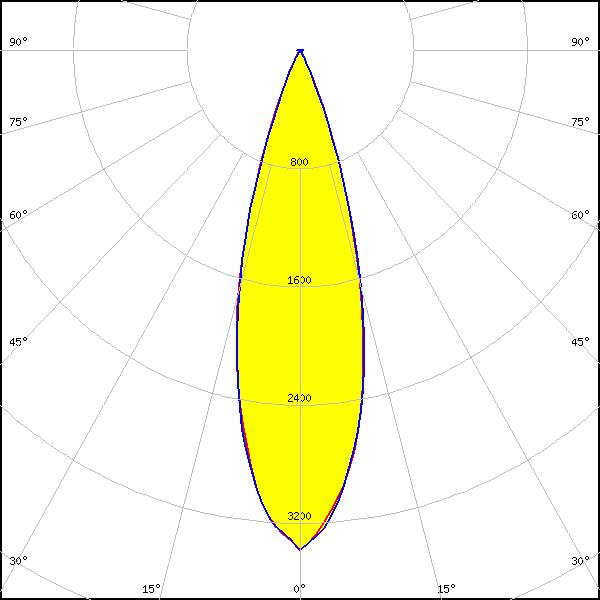

LED: CLU700/701/702/703
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 24°
FWTM: 39°
Peak intensity: 5.098 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

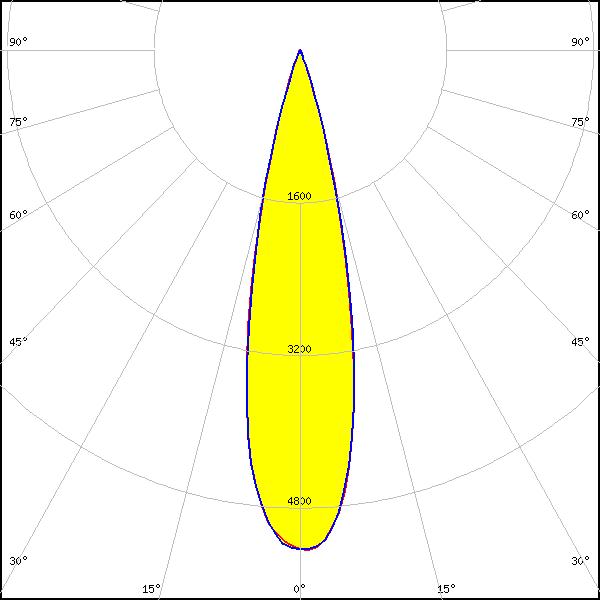

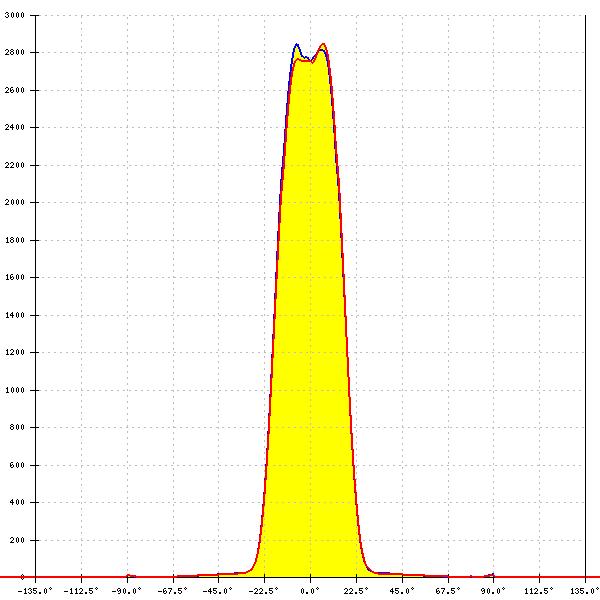

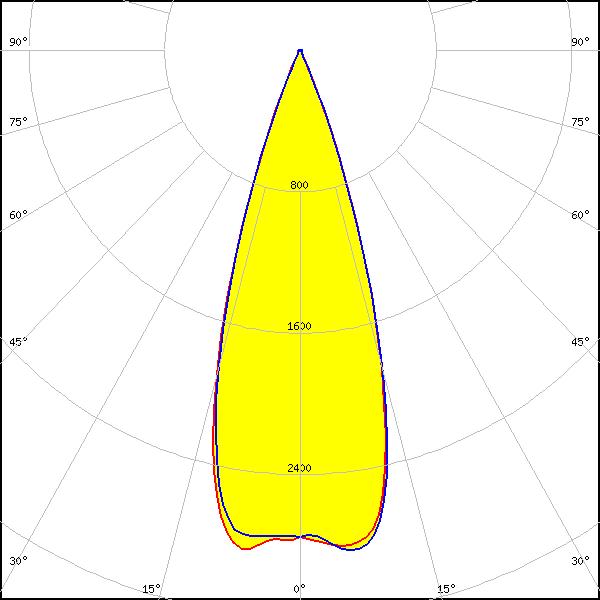

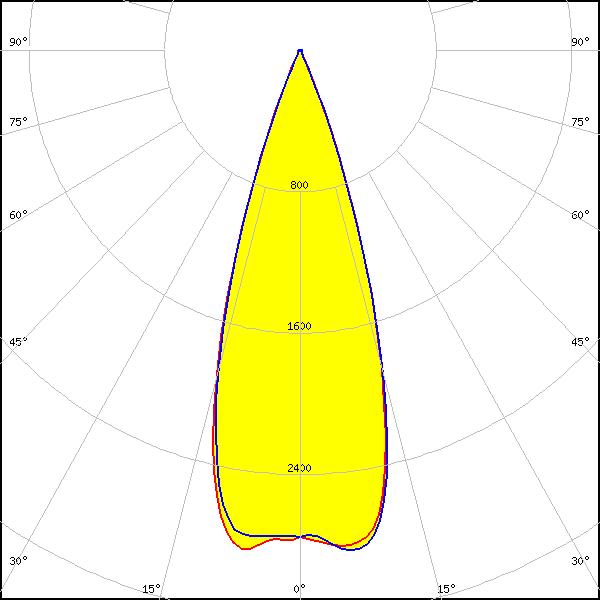

LED: CLU7A2/7A3
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 4.2 mm
Required components:
BJB: 47.360.1020
FWHM: 24°
FWTM: 38°
Peak intensity: 5.288 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

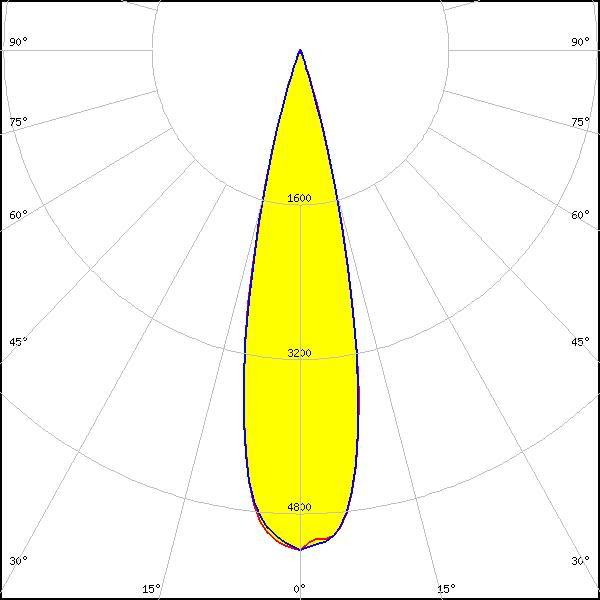

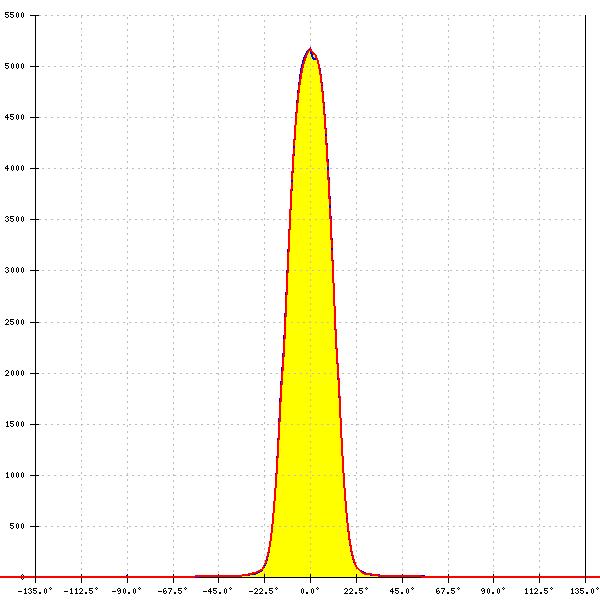

LED: CLU7B2
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 3.3 mm
Required components:
BJB: 47.360.1020
FWHM: 24°
FWTM: 36°
Peak intensity: 5.213 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

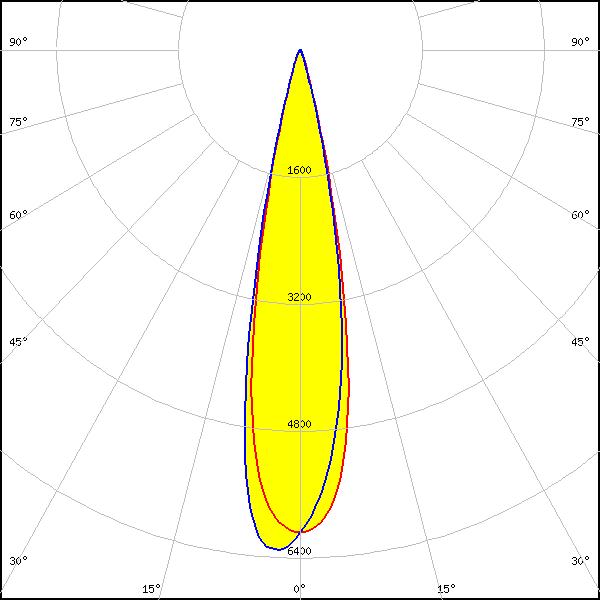

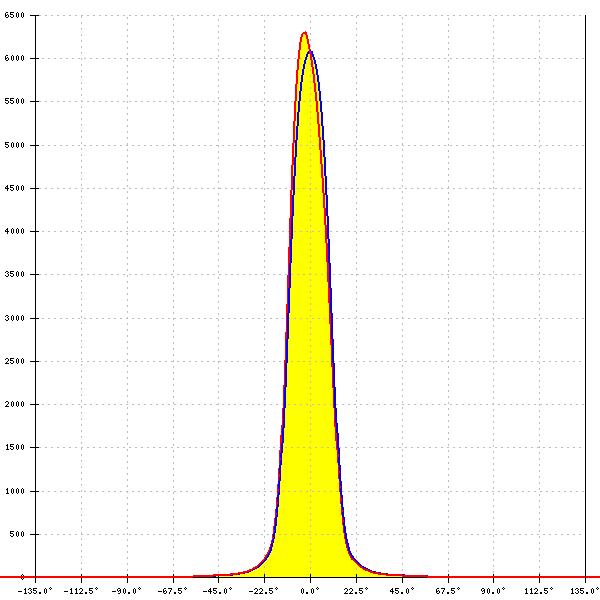

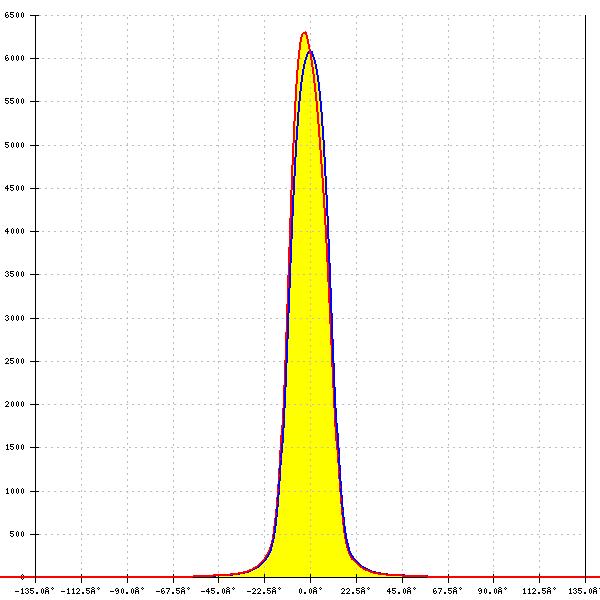

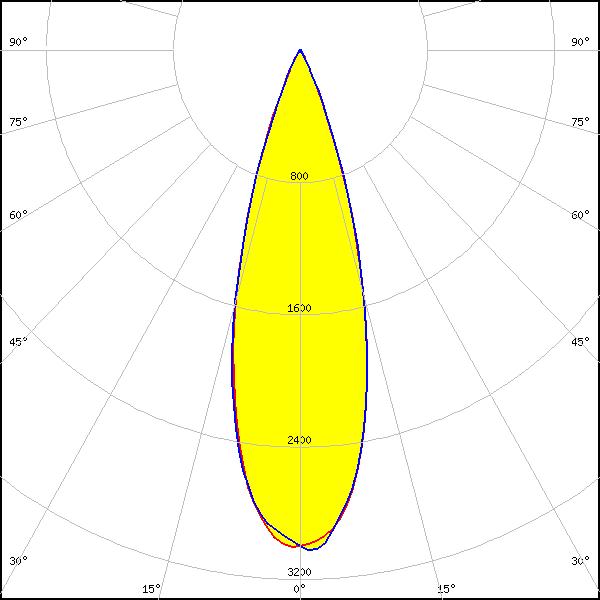

LED: CLU7L3
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 2.4 mm
Required components:
FWHM: 21°
FWTM: 33°
Peak intensity: 6.364 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

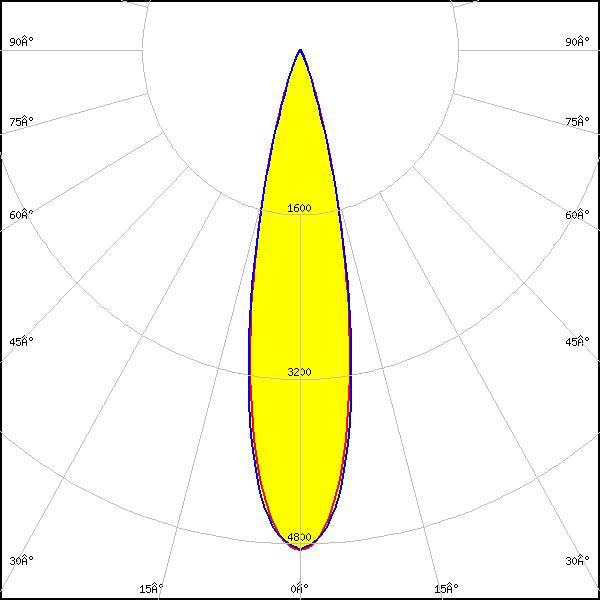

LED: CLU7R3
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 4.2 mm
Required components:
FWHM: 23°
FWTM: 40°
Peak intensity: 4.942 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

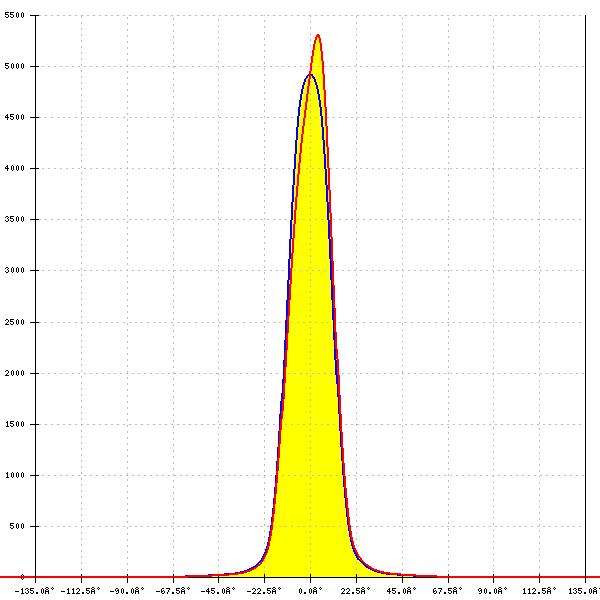

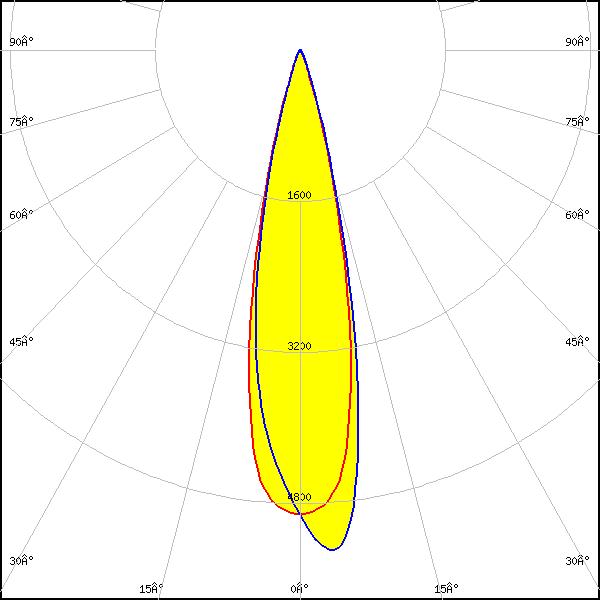

LED: CLU7S3
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 3.5 mm
Required components:
FWHM: 24°
FWTM: 38°
Peak intensity: 5.309 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

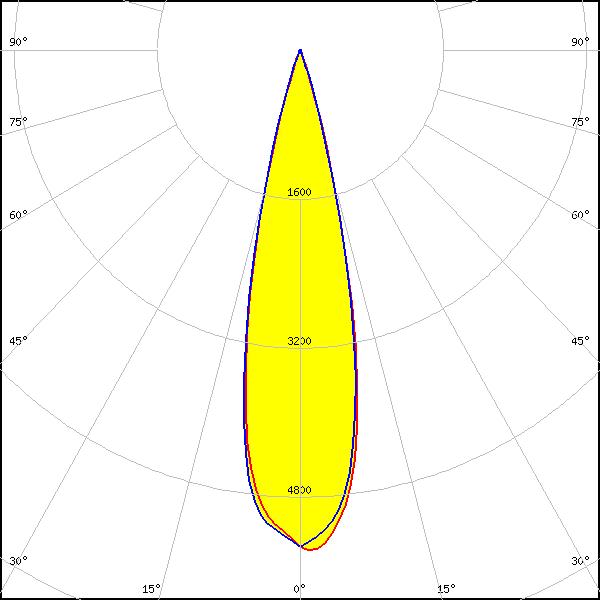

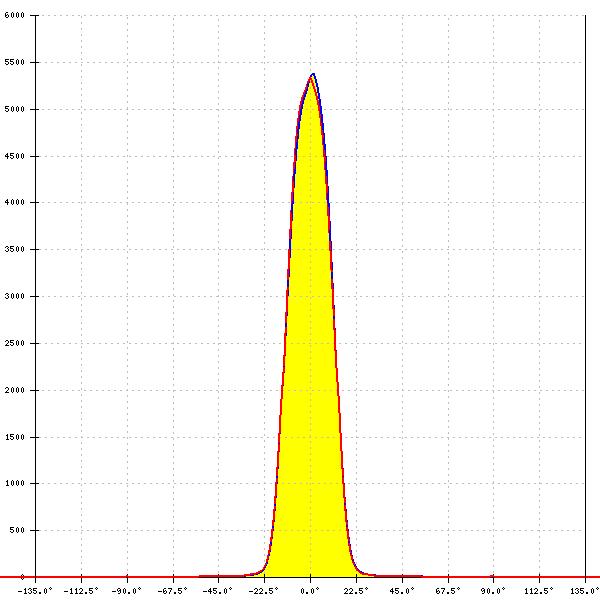

LED: CHA0304
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 3.3 mm
Required components:
BJB: 47.360.1020
FWHM: 24°
FWTM: 36°
Peak intensity: 5.379 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

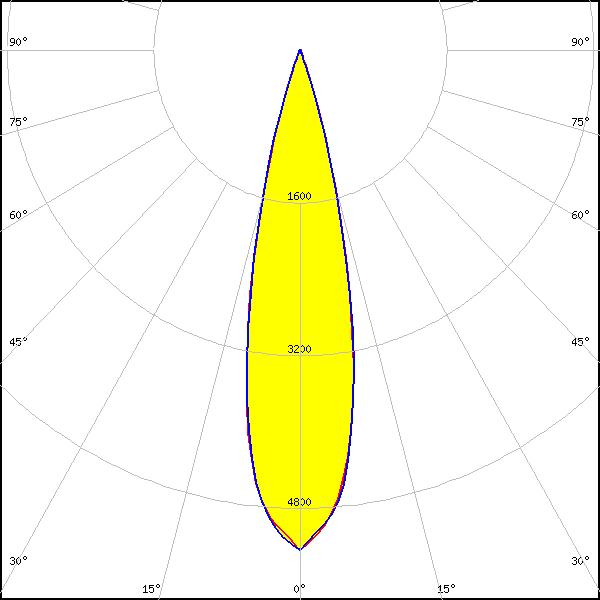

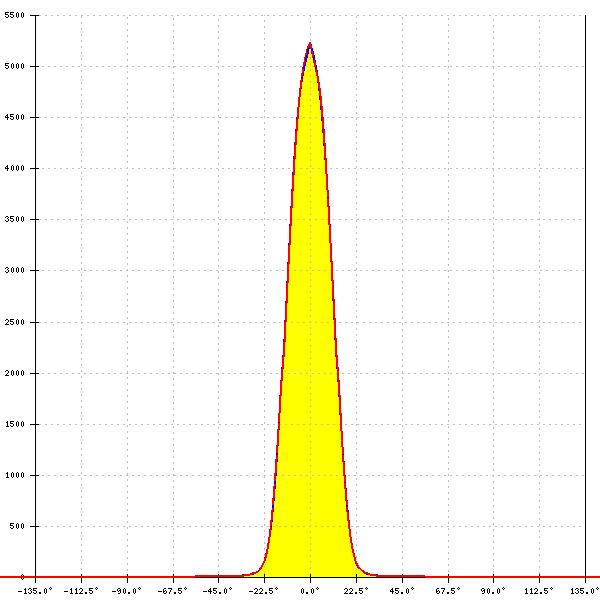

LED: CHA0410
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 4.2 mm
Required components:
BJB: 47.360.1020
FWHM: 24°
FWTM: 38°
Peak intensity: 5.240 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

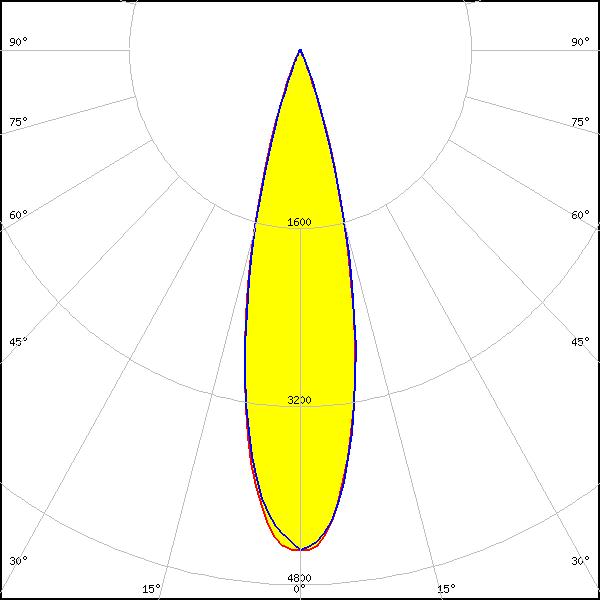

LED: CHA0612
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 26°
FWTM: 42°
Peak intensity: 4.516 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

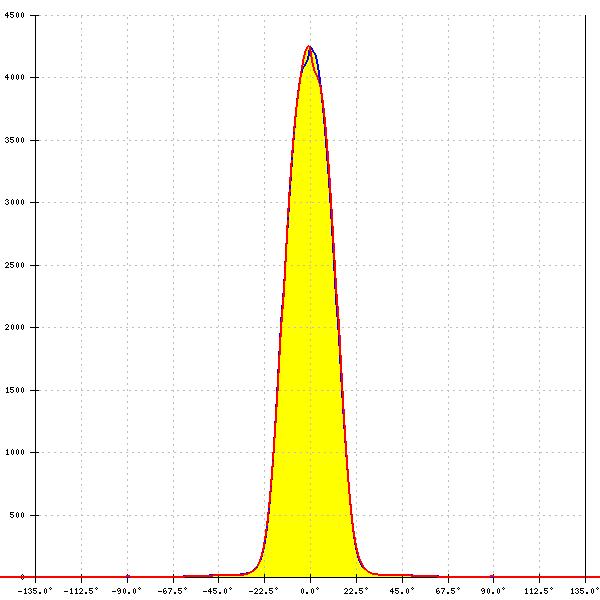

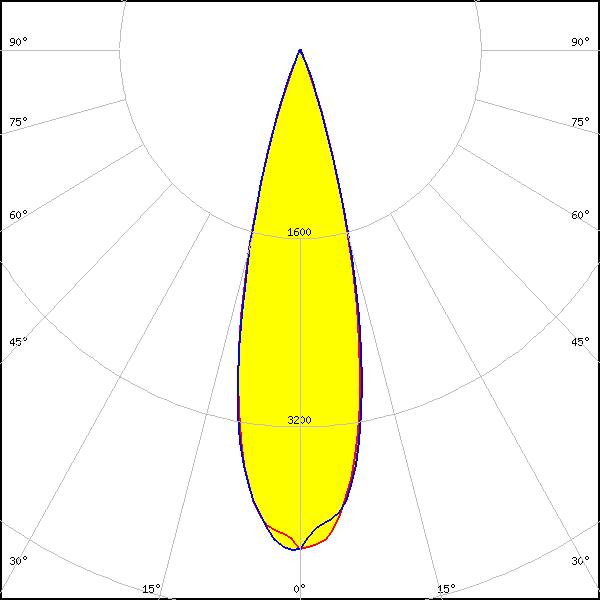

LED: LUXEON CX Plus CoB - HD S01H4
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 28°
FWTM: 42°
Peak intensity: 4.260 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

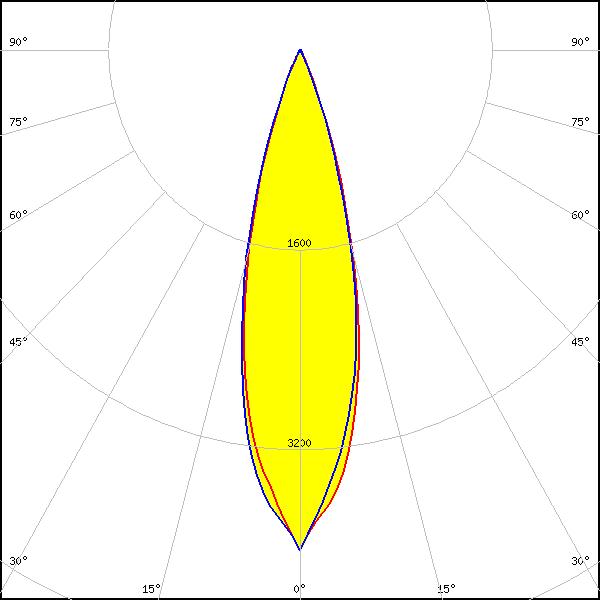

LED: LUXEON CX Plus CoB - HD S02H6
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 27°
FWTM: 46°
Peak intensity: 4.008 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

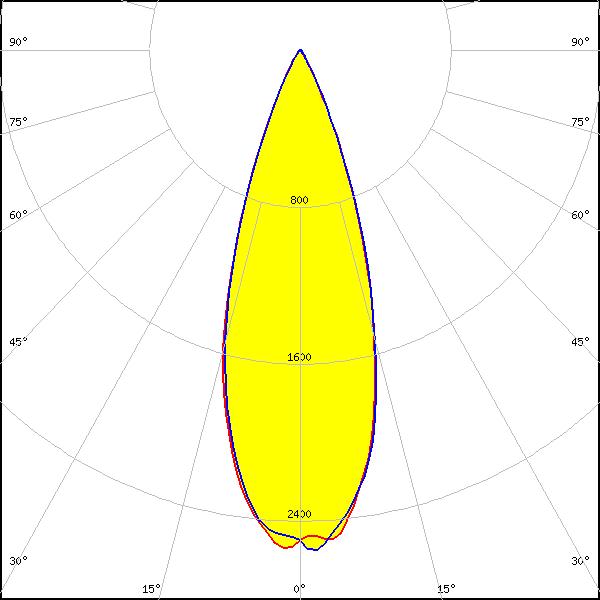

LED: LUXEON CX Plus CoB - HD S04H9
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 34°
FWTM: 54°
Peak intensity: 2.583 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

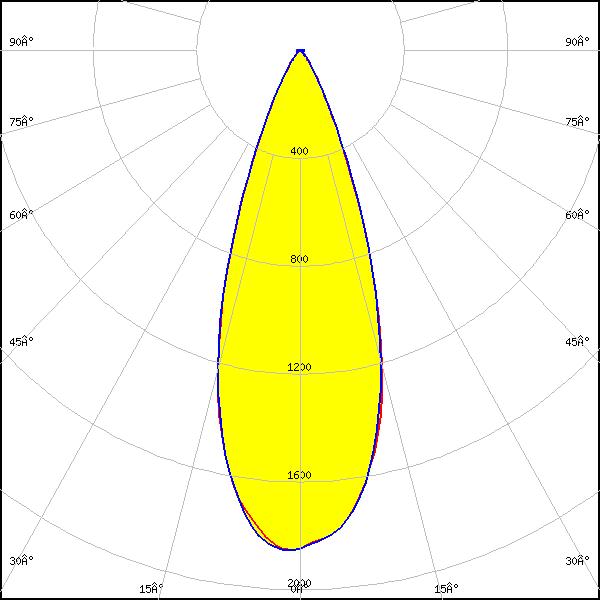

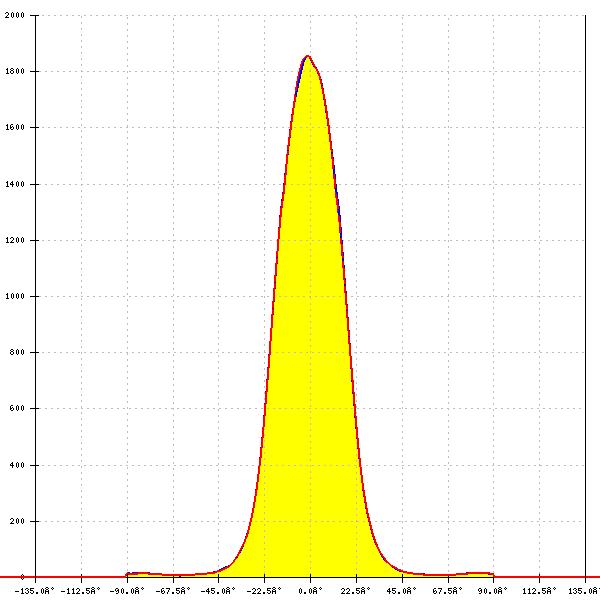

LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 12.0 mm
Required components:
BJB: 47.360.1040
FWHM: 36°
FWTM: 60°
Peak intensity: 1.868 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

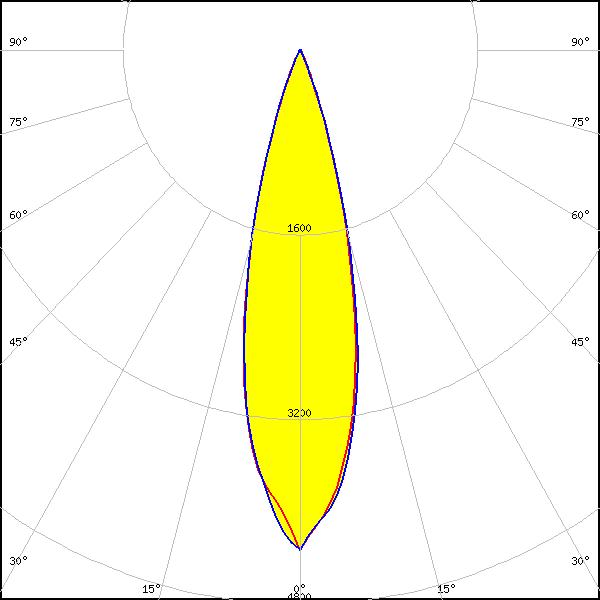

LED: LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM: 26°
FWTM: 43°
Peak intensity: 4.334 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

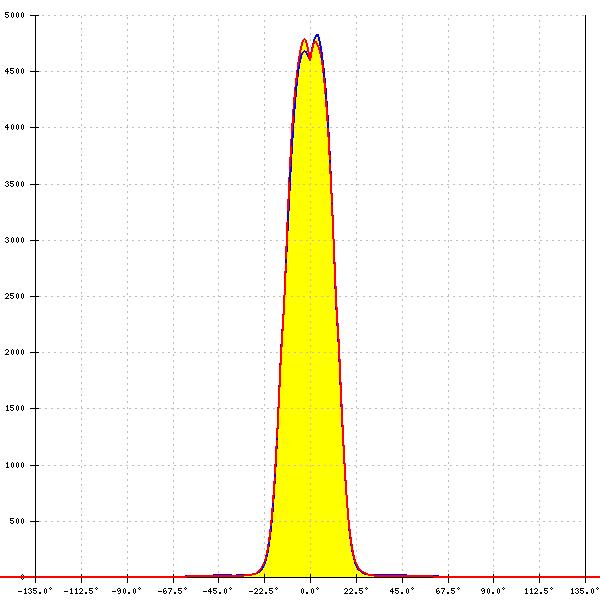

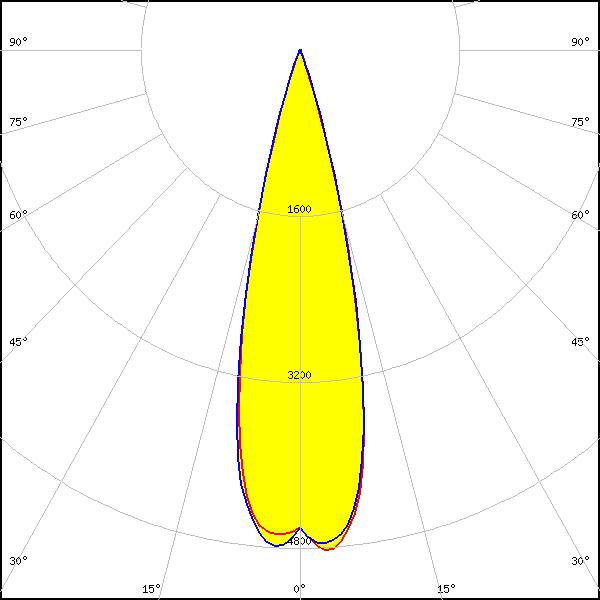

LED: CXM-3
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 3.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 26°
FWTM: 38°
Peak intensity: 4.851 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CXM-3
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 3.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 26°
FWTM: 38°
Peak intensity: 4.851 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

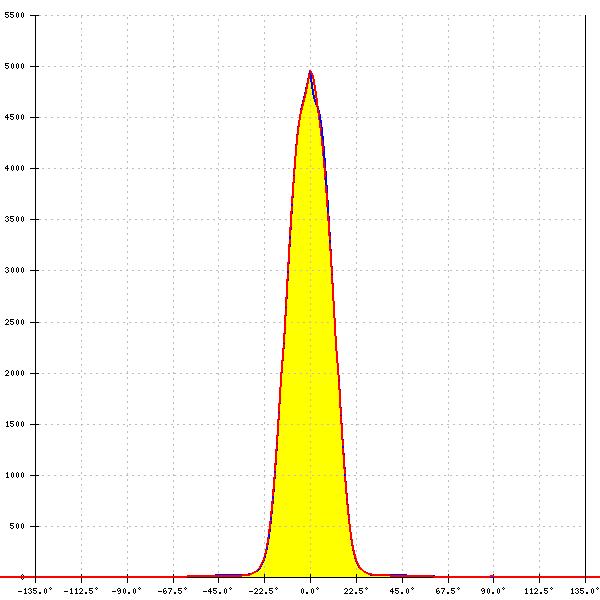

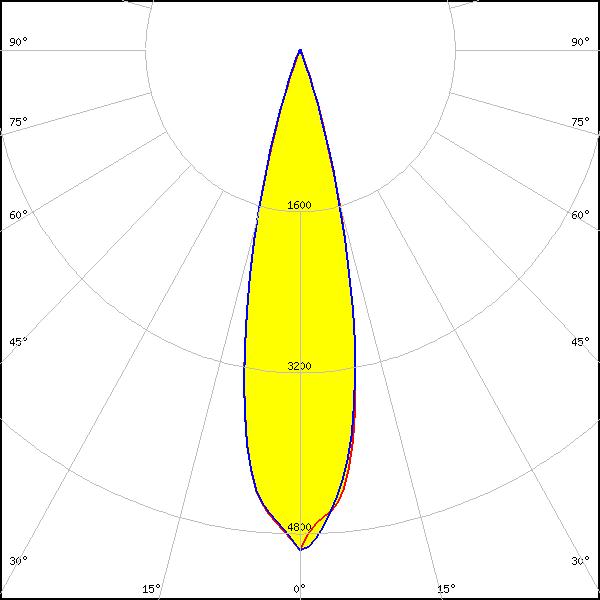

LED: CXM-4
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 4.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 24°
FWTM: 39°
Peak intensity: 4.964 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

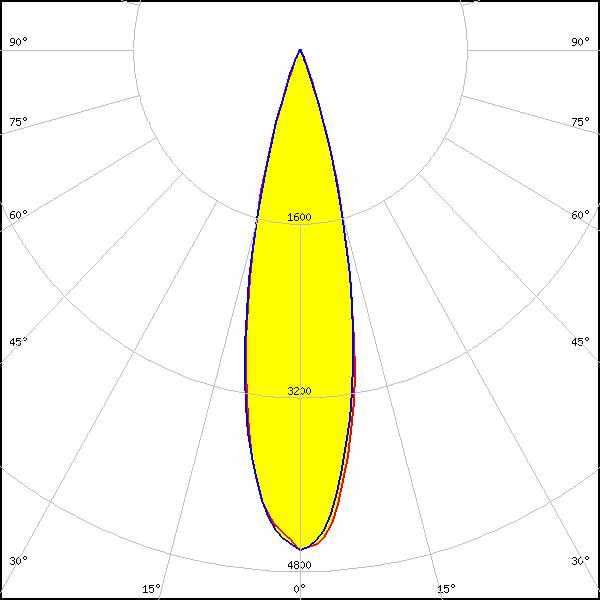

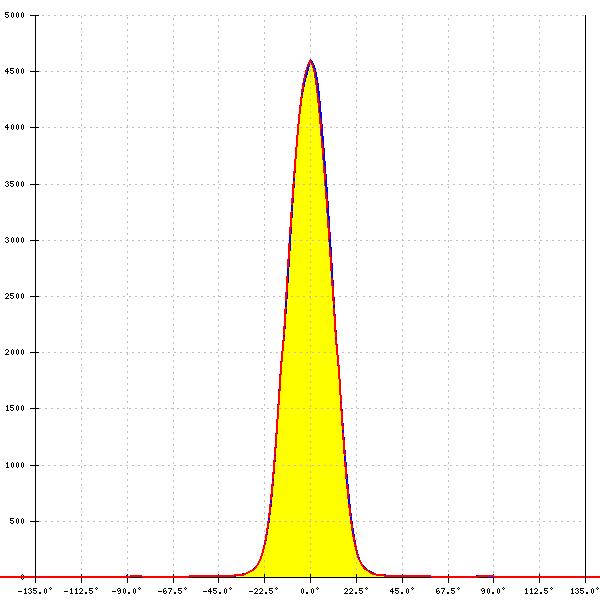

LED: CxM-6 (13.5x13.5)
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM: 25°
FWTM: 41°
Peak intensity: 4.625 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

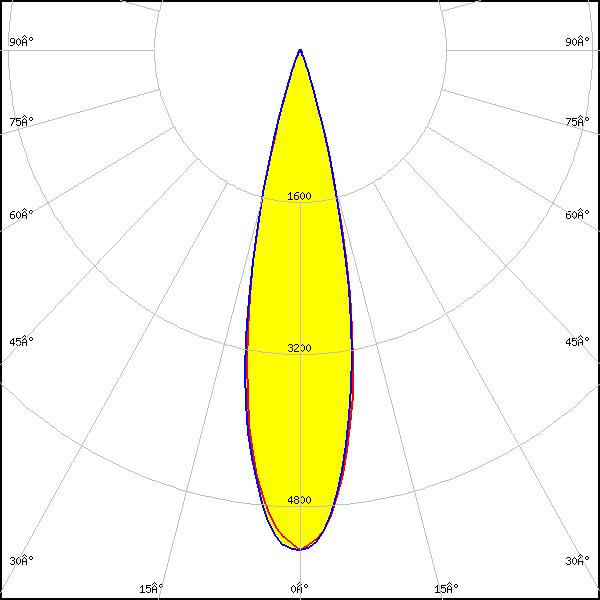

LED: CxM-6 (13.5x13.5)
Ordering code: CP19221_YASMEEN-35-M-B-WHT
LES size: 6.3 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM: 24°
FWTM: 38°
Peak intensity: 5.266 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 6)
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 28°
FWTM: 44°
Peak intensity: 4.102 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 7)
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 28°
FWTM: 46°
Peak intensity: 3.780 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: COB T-Type
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM: 28°
FWTM: 44°
Peak intensity: 3.977 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

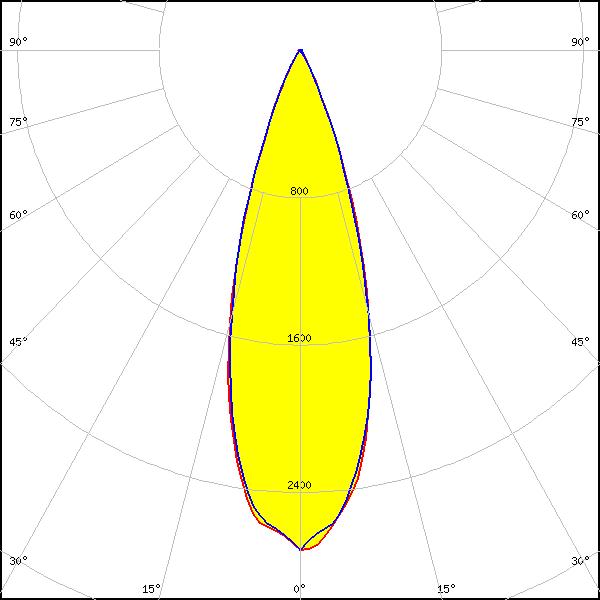

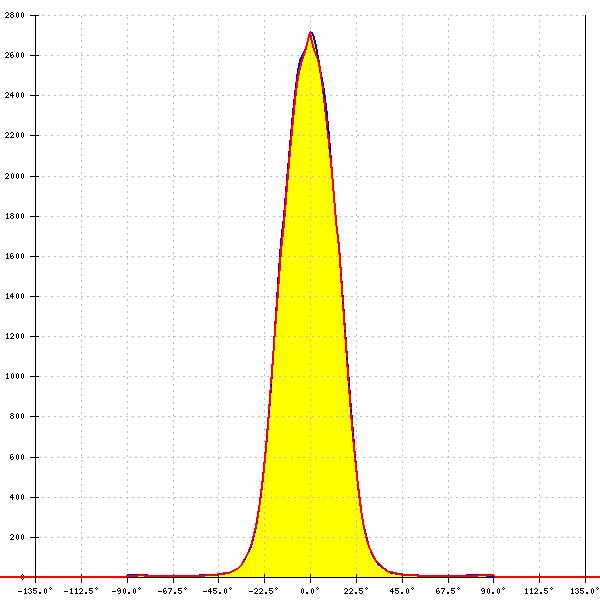

LED: LC003D / LC006D / LC009D / LC013D
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM: 32°
FWTM: 52°
Peak intensity: 2.715 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

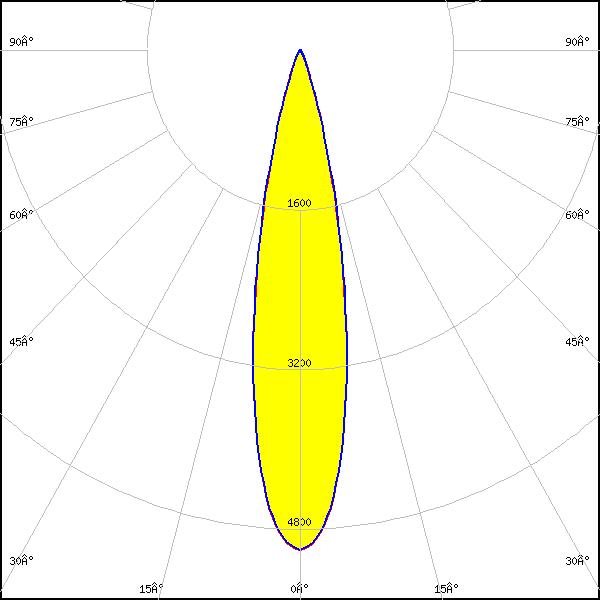

LED: LC010C G2
Ordering code: CP18524_YASMEEN-35-M-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM: 22°
FWTM: 38°
Peak intensity: 5.011 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
