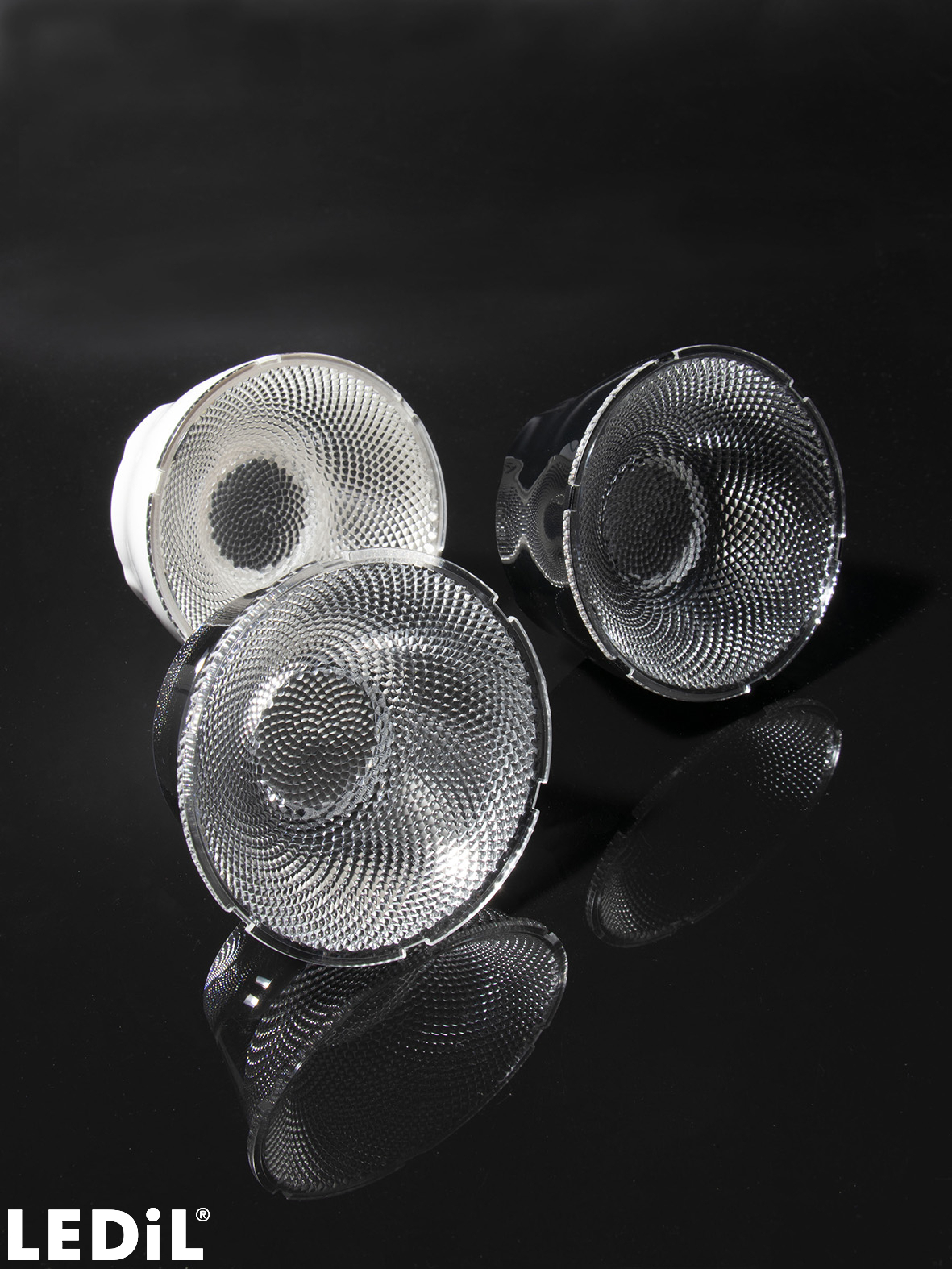

    YASMEEN-70-WW

    Print

    ~60° wide beam

    This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.

    Specification
    • Dimensions:
      70 mm
    • Height:
      34.63 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • YASMEEN-70-WW
      PMMA
    • YASMEEN-70-HLD2-C-WHT
      PC
    • YASMEEN-70-HLD2-C
      PC
    • YASMEEN-70-HLD2-B50-WHT
      PC
    • YASMEEN-70-HLD2-B50
      PC
    • YASMEEN-70-HLD2-B-WHT
      PC
    • YASMEEN-70-HLD2-B
      PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C17241_YASMEEN-70-WW
      clear
    • Quantity in box:
      105 pcs
    • Box size:
      476 x 273 x 305 mm
    • Box weight:
      8.20 kg
    • MPQ:
      15 pcs
    • MOQ:
      105 pcs
    • MOQ Size:
      476 x 273 x 305 mm
    • MOQ Weight:
      8.20 kg
    • Assembly
    • CP18764_YASMEEN-70-WW-C2
      black,Holder C
    • CP18771_YASMEEN-70-WW-B2
      black,Holder B
    • CP18778_YASMEEN-70-WW-C2-WHT
      white,Holder C
    • CP18785_YASMEEN-70-WW-B2-WHT
      white,Holder B
    • Quantity in box:
      105 pcs
    • Box size:
      476 x 273 x 305 mm
    • Box weight:
      9.60 kg
    • MPQ:
      15 pcs
    • MOQ:
      105 pcs
    • MOQ Size:
      476 x 273 x 305 mm
    • MOQ Weight:
      9.60 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C17241_YASMEEN-70-WW
      CP18764_YASMEEN-70-WW-C2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    YASMEEN - The best optic in class

    News

    YASMEEN – redefining track lighting

    Compatibility guide

    LEDiL connector and socket compatibility

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    Case story

    Regiolux Changy luminaire

    News

    New products – May, 2023

    PCN

    Product change notification NR192 - Change of YASMEEN-50 and -70 holder design

    News

    Our bright star YASMEEN now features a new, improved holder

    Compatible product

    B+W 630 Bayonet35 datasheet

    News

    YASMEEN zoom optics receive BrightStar Award

    News

    YASMEEN zoom optics win Design Plus award

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Compatible product

    B+W 630 Hekla datasheet

    Application example

    Track light luminaires with YASMEEN

    Application example

    Spot lighting with YASMEEN

    News

    YASMEEN – supreme light quality and beam control

    Application area

    Indoor Architectural Lighting

    Application guide

    Guide for Architectural lighting optics

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    LEDiL guide for retail lighting optics

    Article

    Explore new retail lighting opportunities

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    HEKLA-G2B-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    HEKLA-G2B-C2

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-C3

    Version compatible with COBs of 13.5 x 13.5 mm packages

    HEKLA-G2B-I2

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-I3

    Version compatible with COBs of 19 x 19 mm packages

    HEKLA-G2B-TW1

    Version compatible with tunable white COBs of 15.8 x 15.8 mm packages

    HEKLA-G2B-TW2

    Version compatible with tunable white COBs of 18.8 x 18.8 mm packages

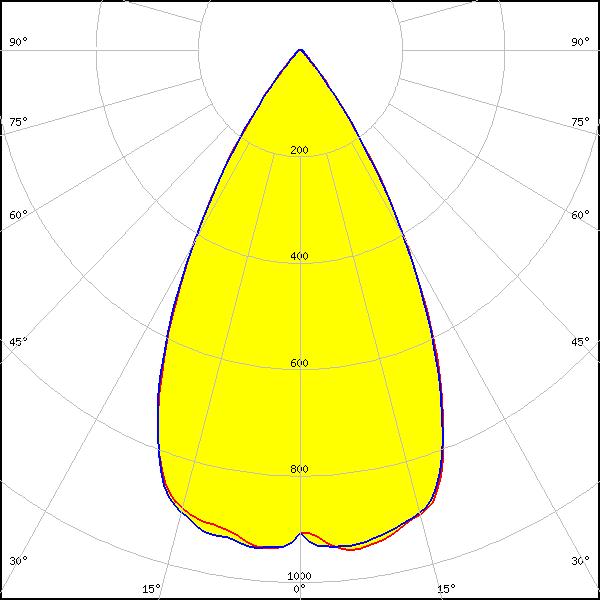

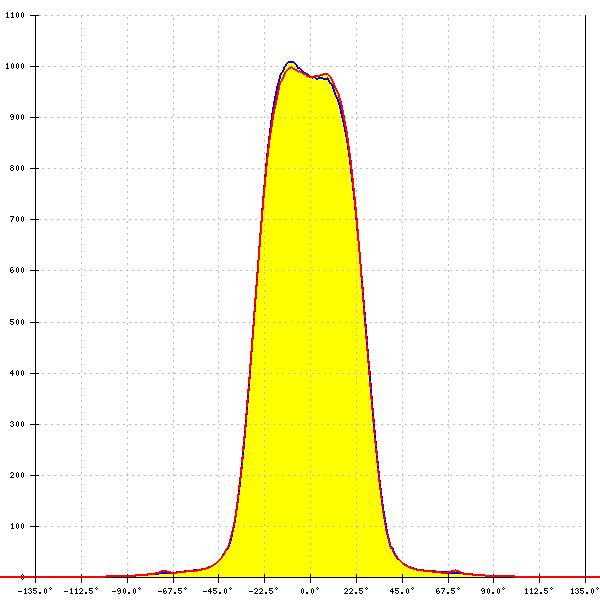

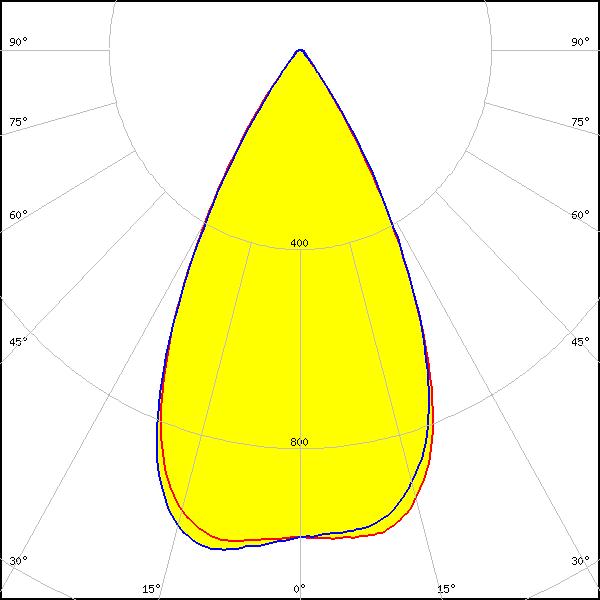

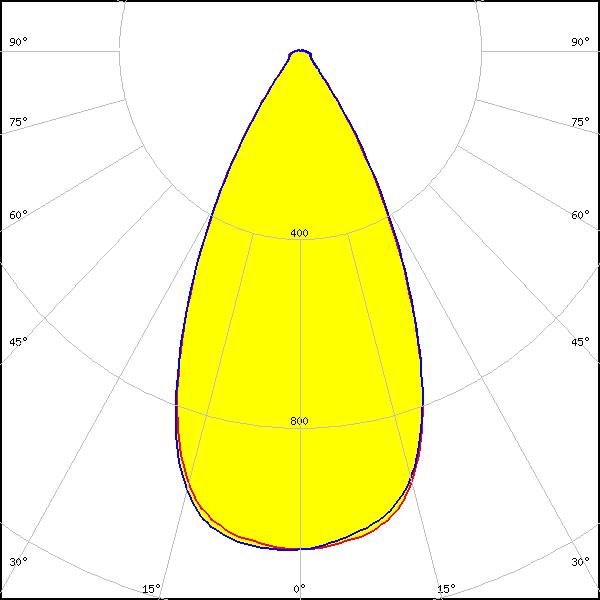

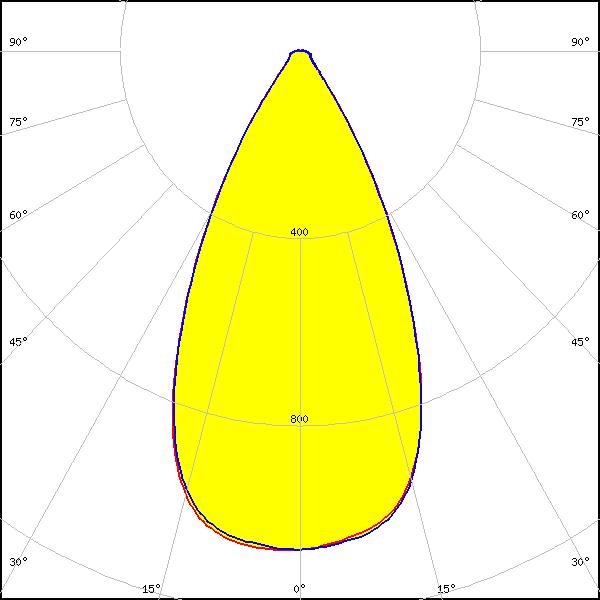

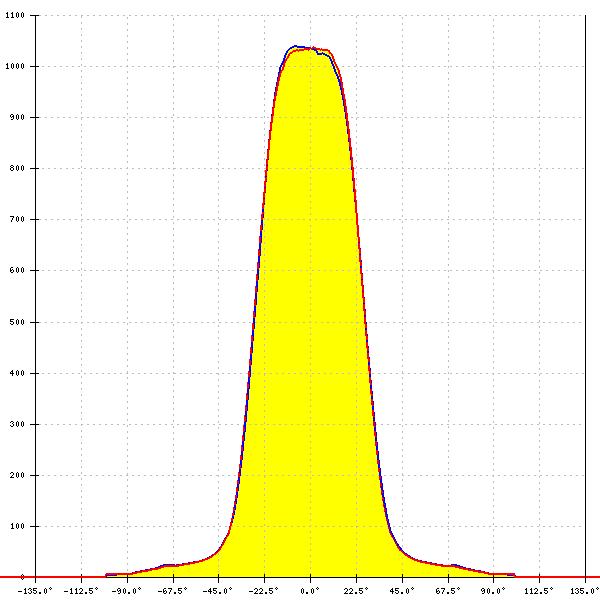

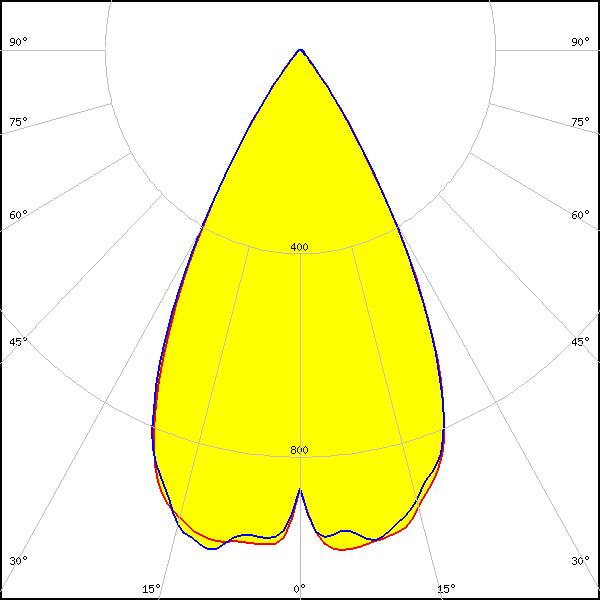

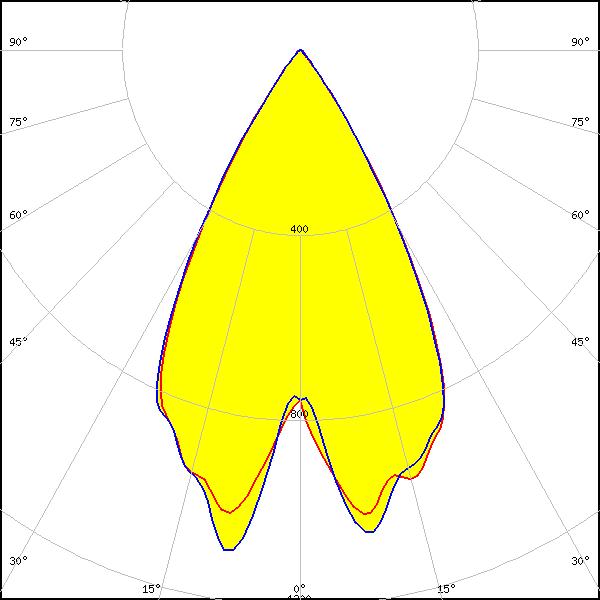

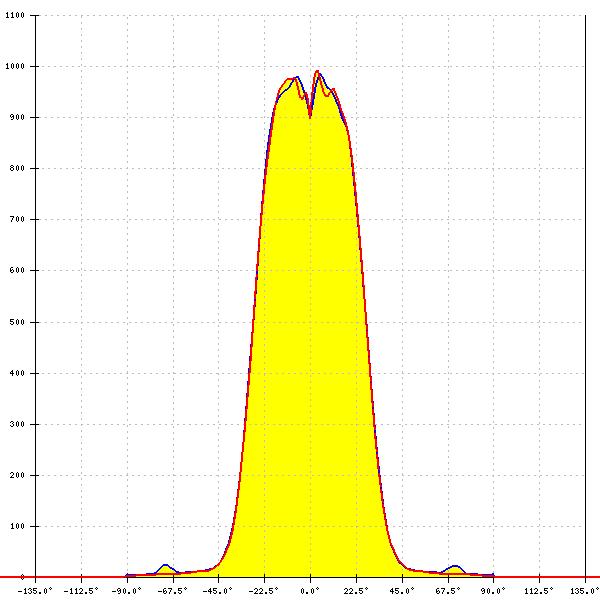

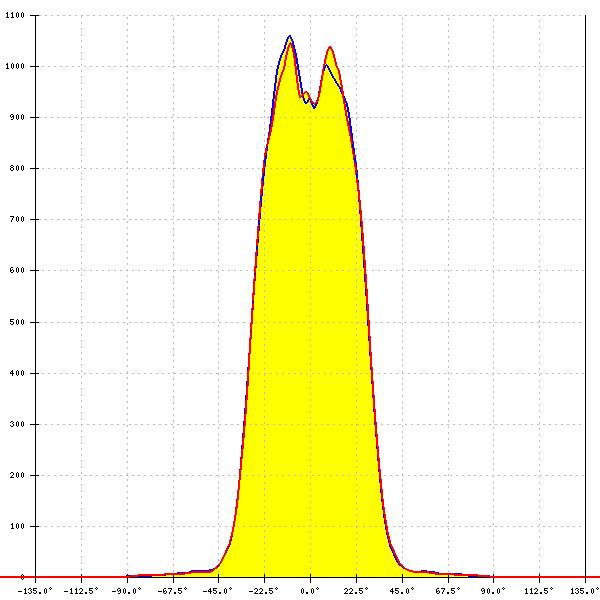

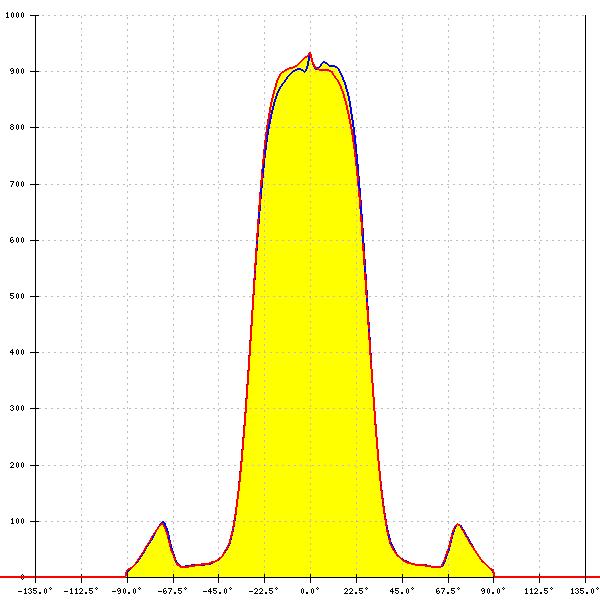

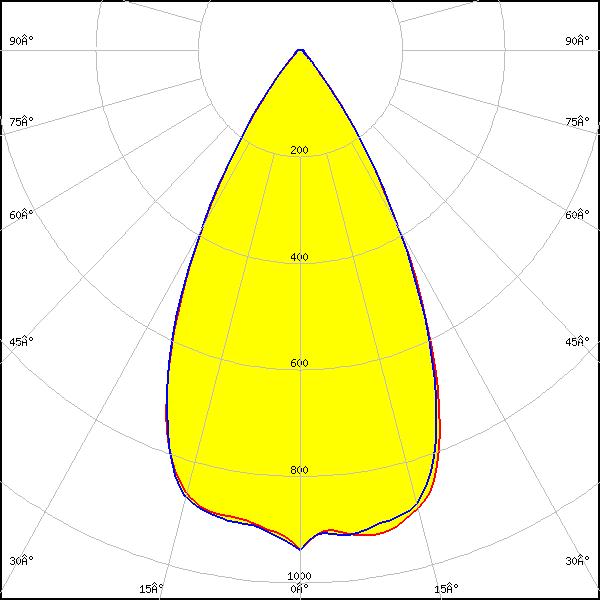

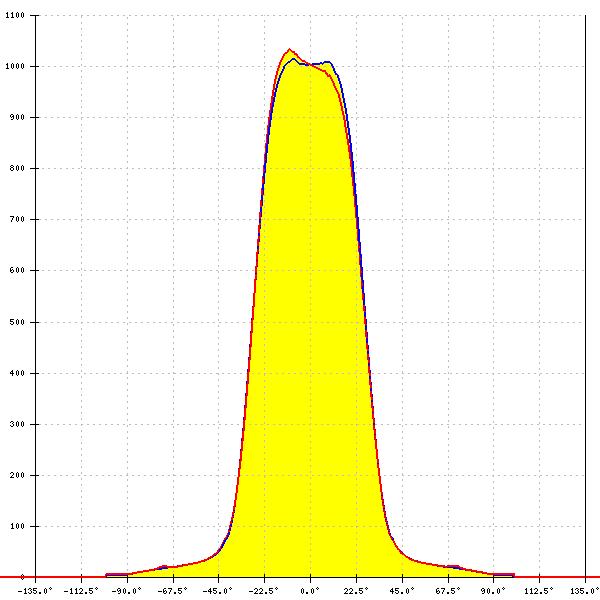

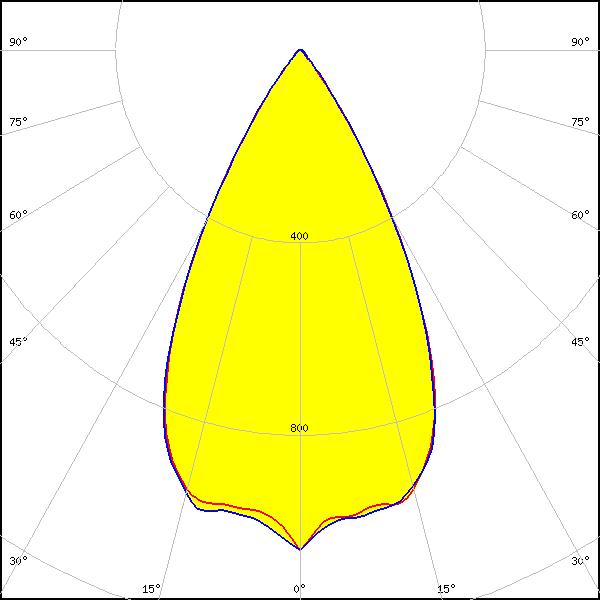

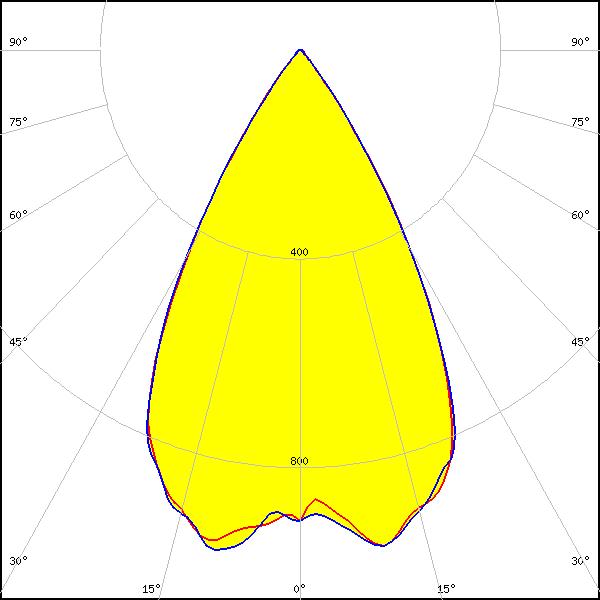

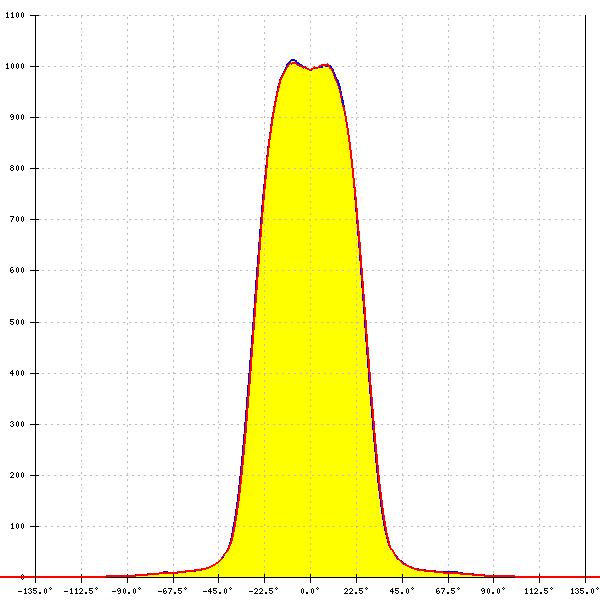

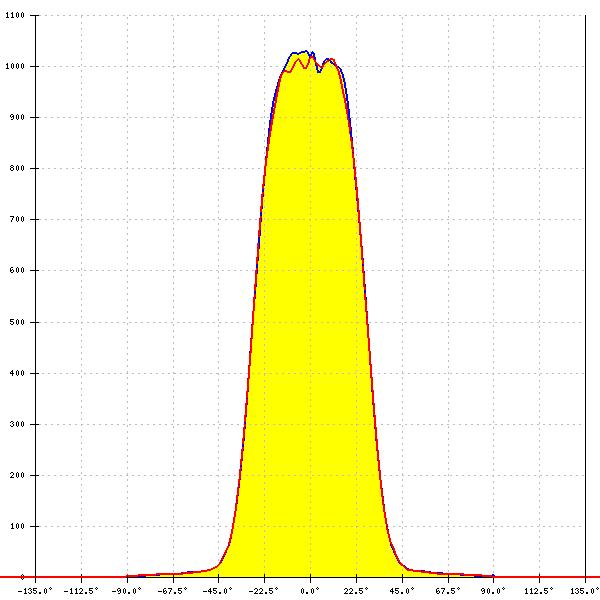

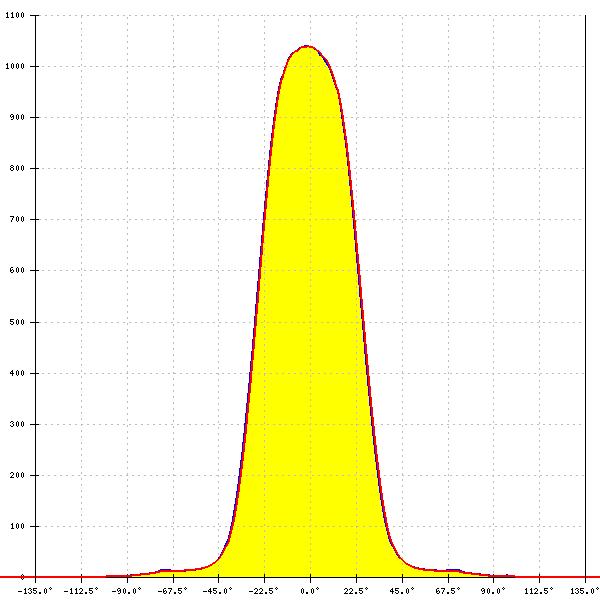

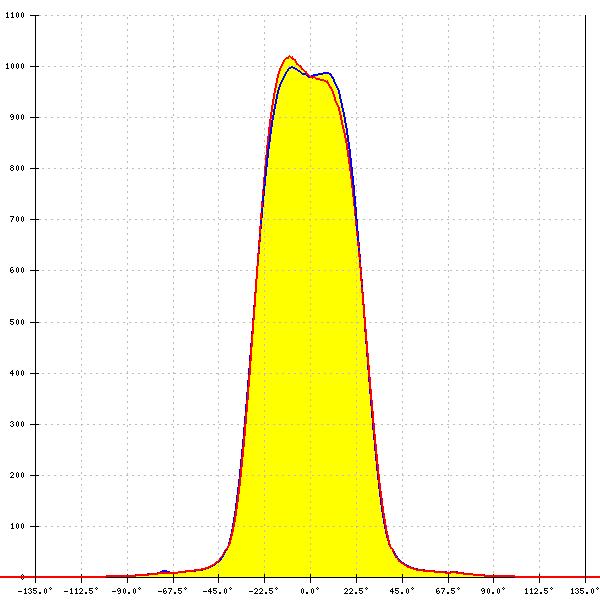

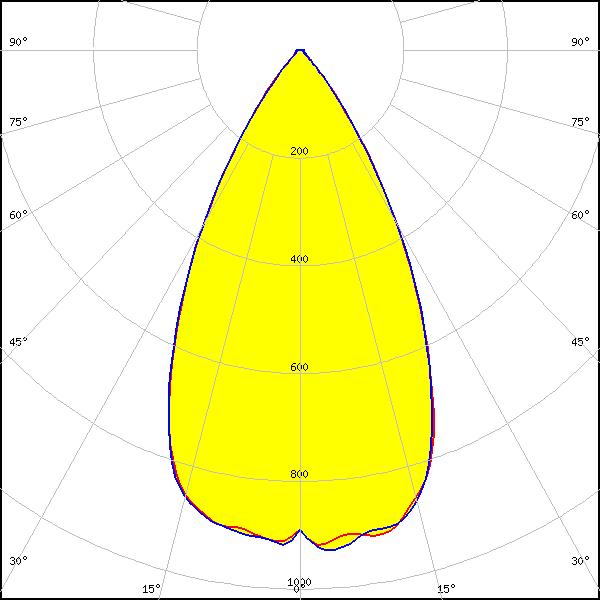

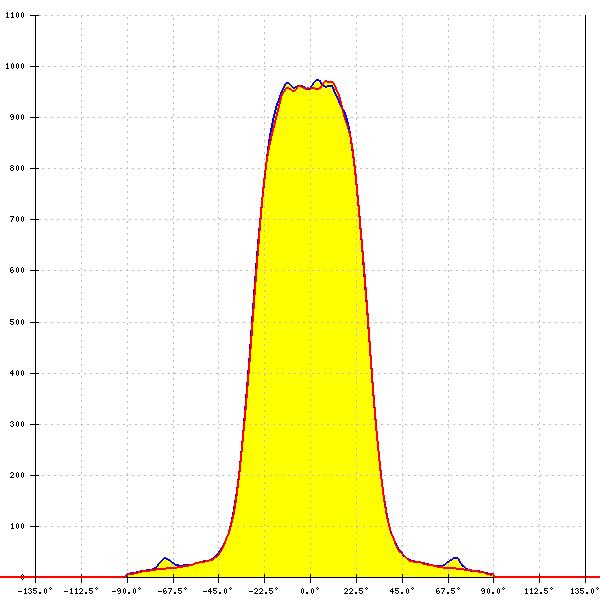

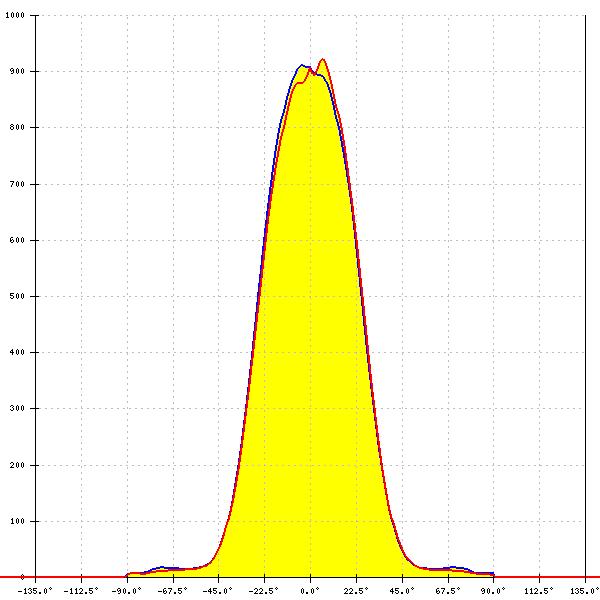

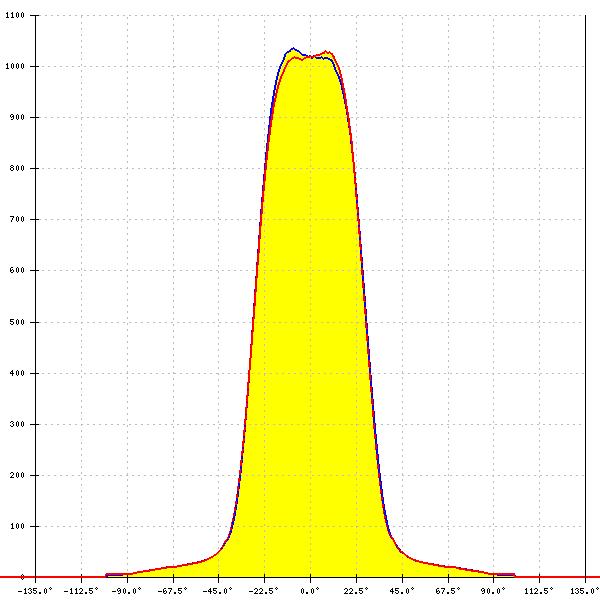

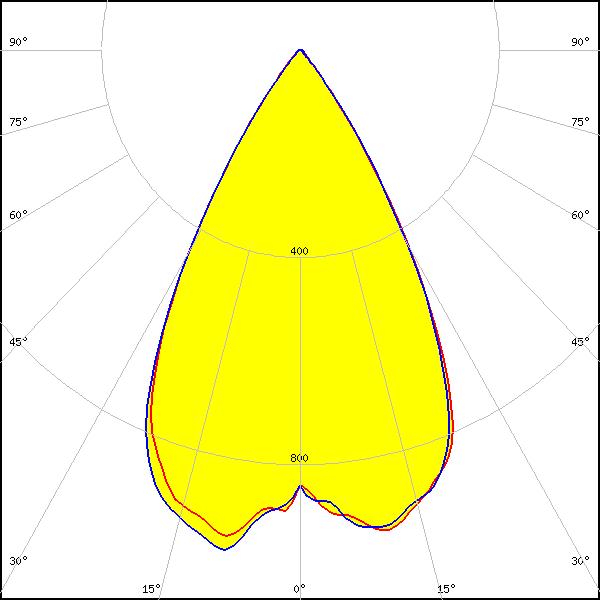

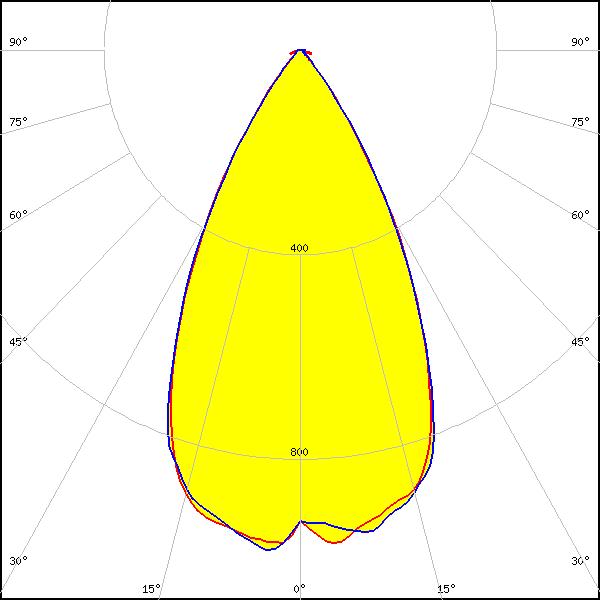

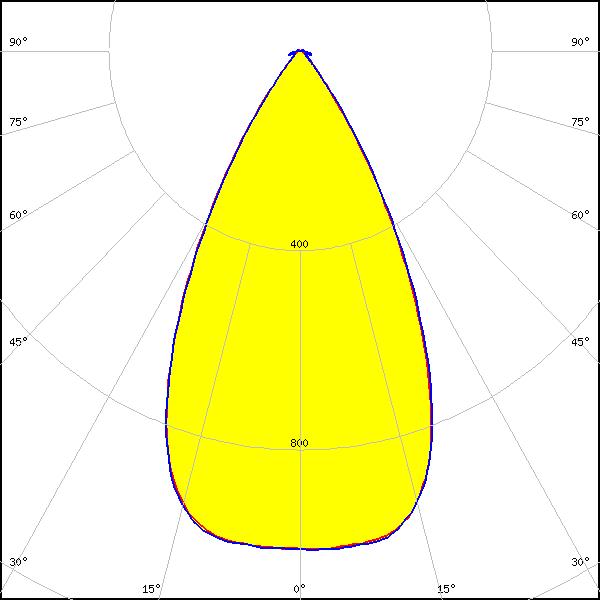

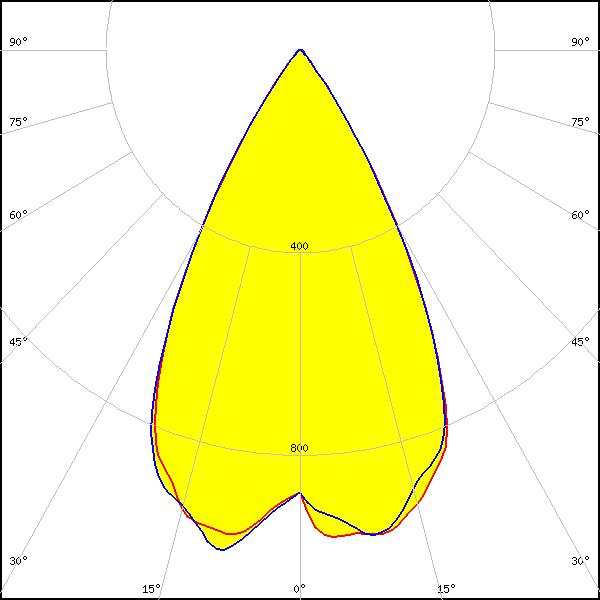

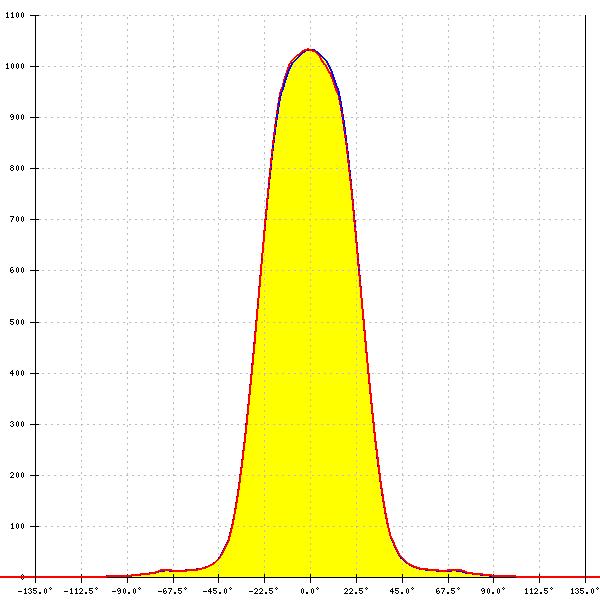

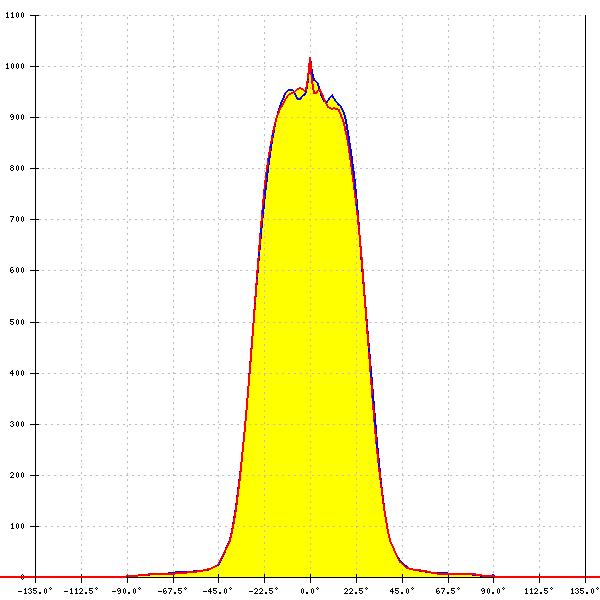

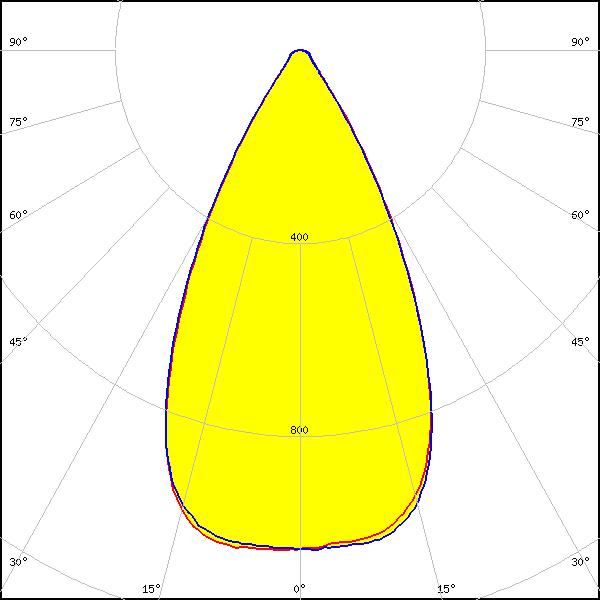

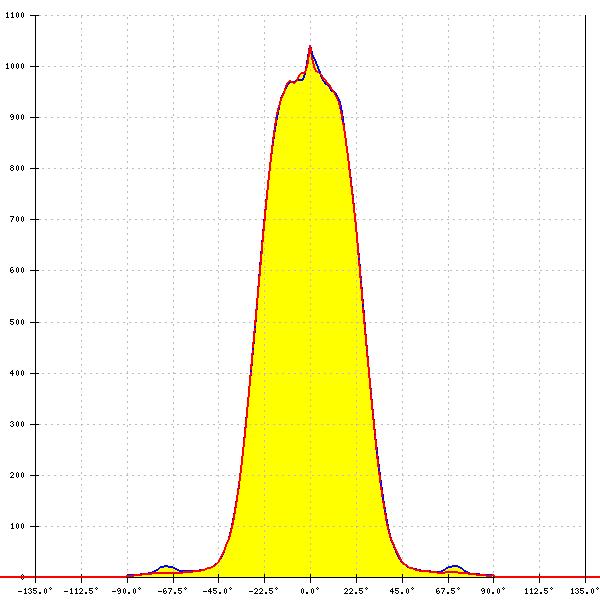

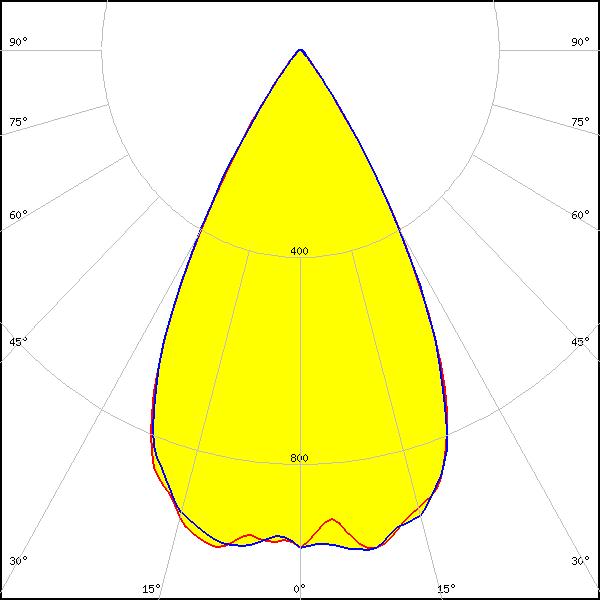

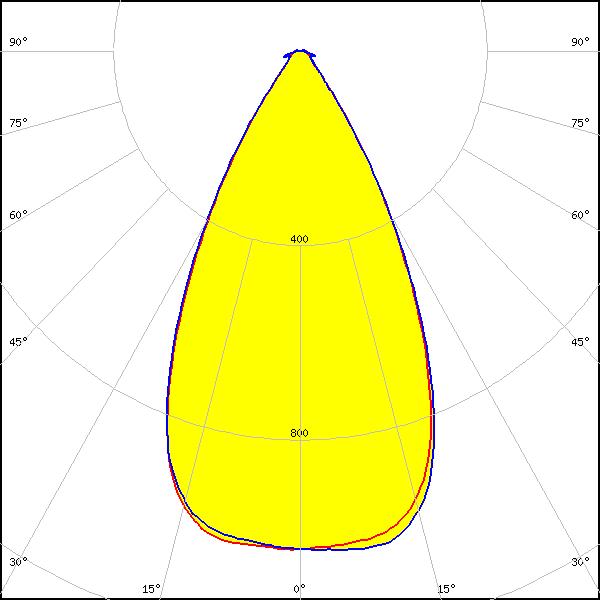

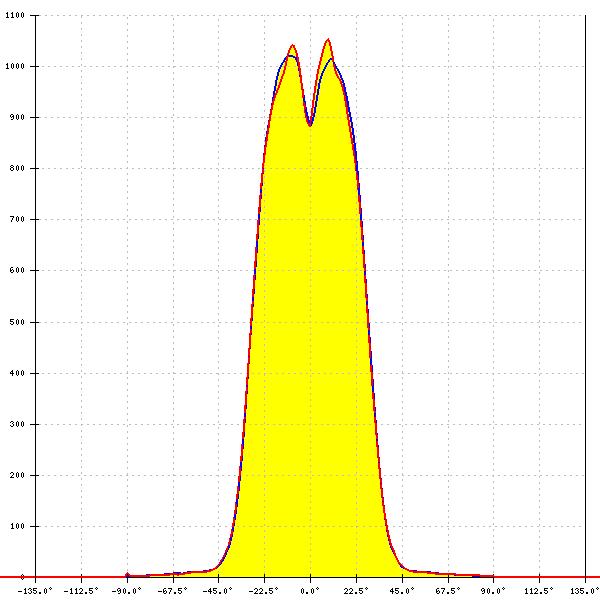

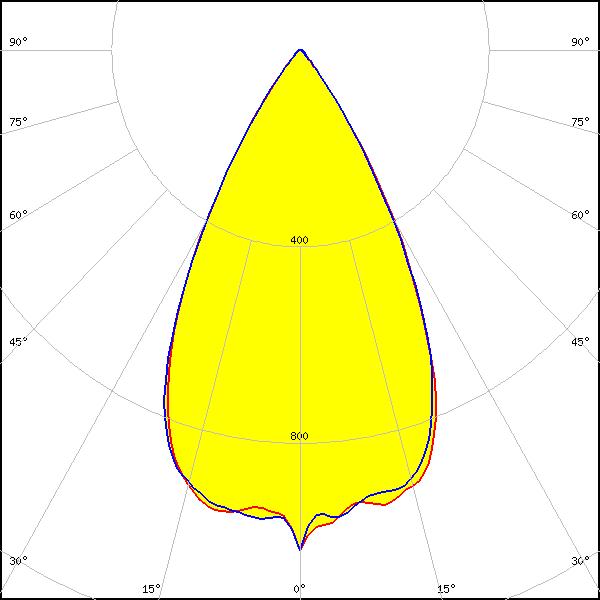

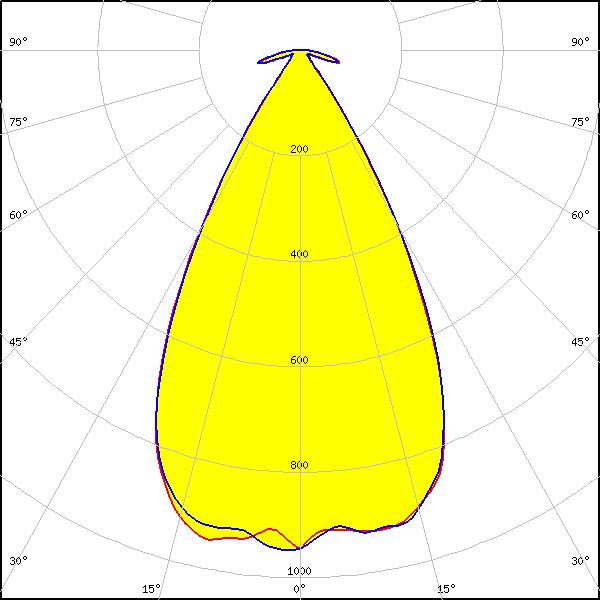

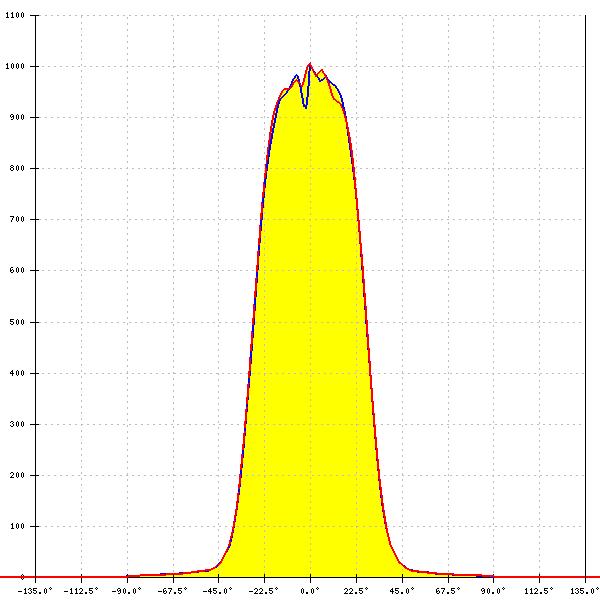

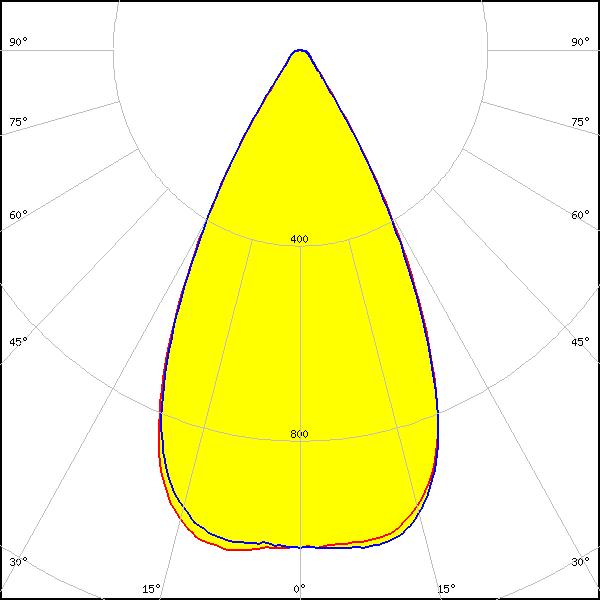

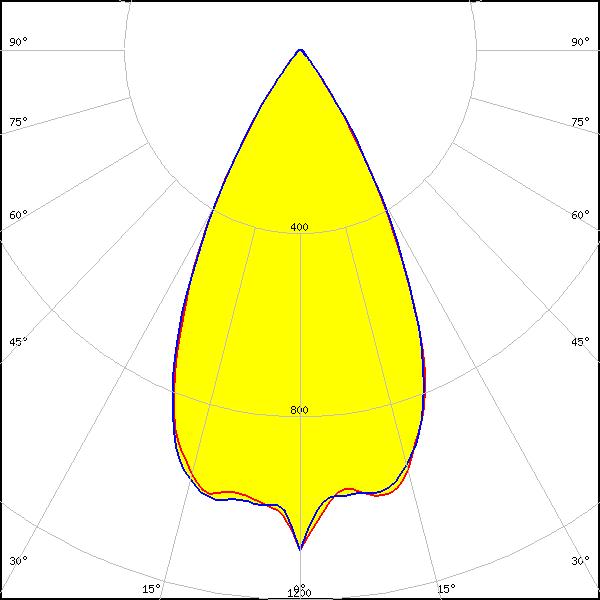

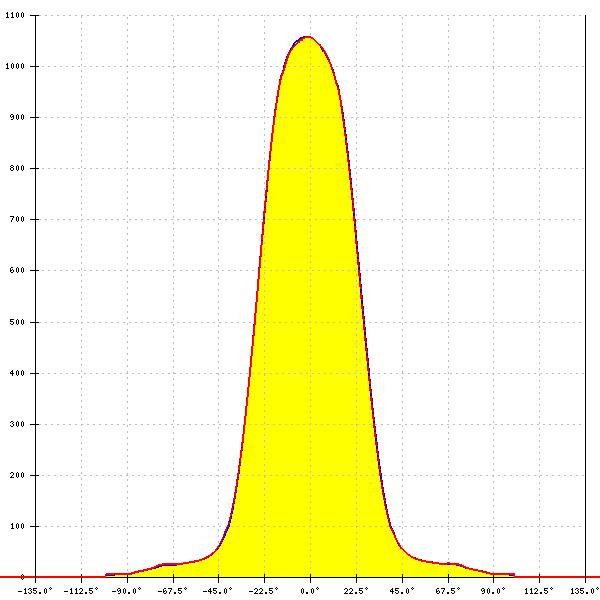

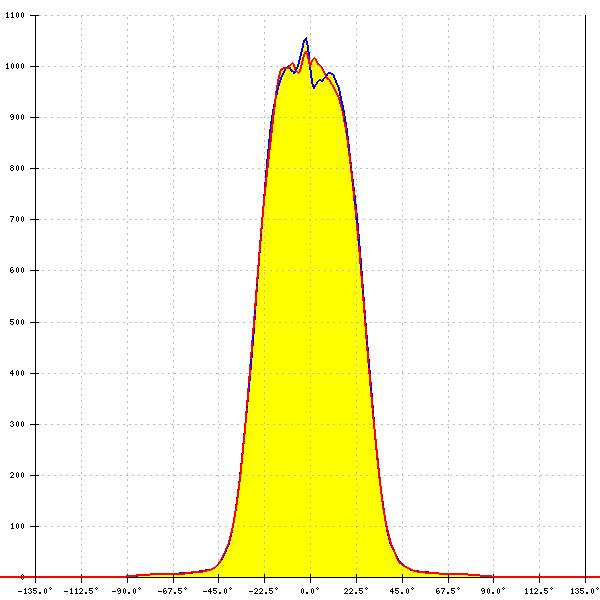

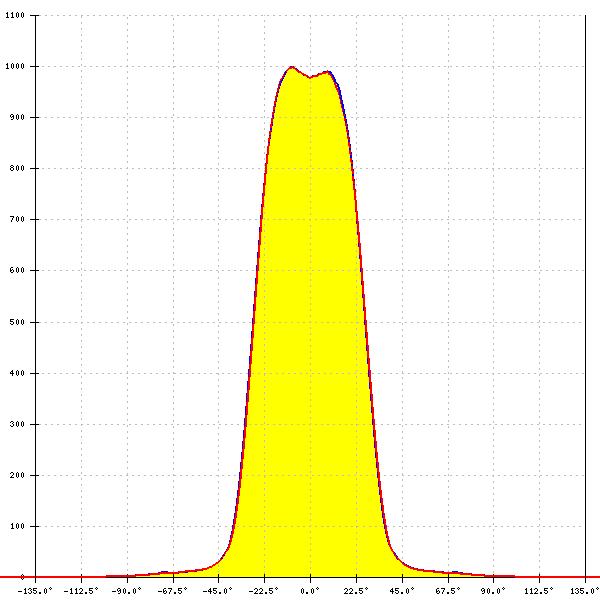

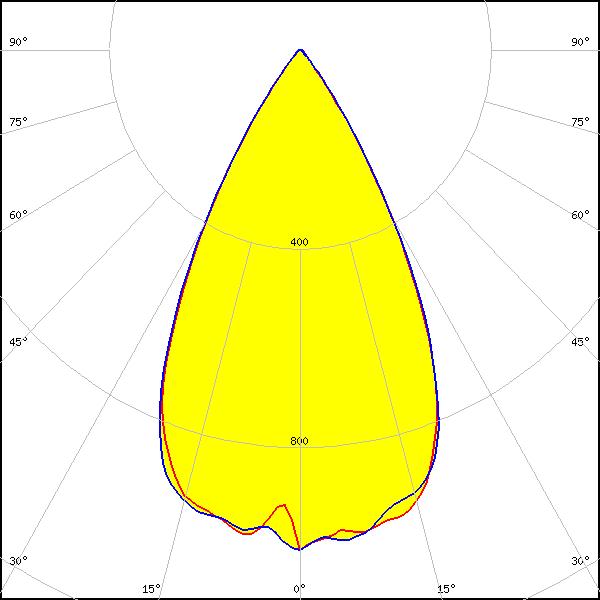

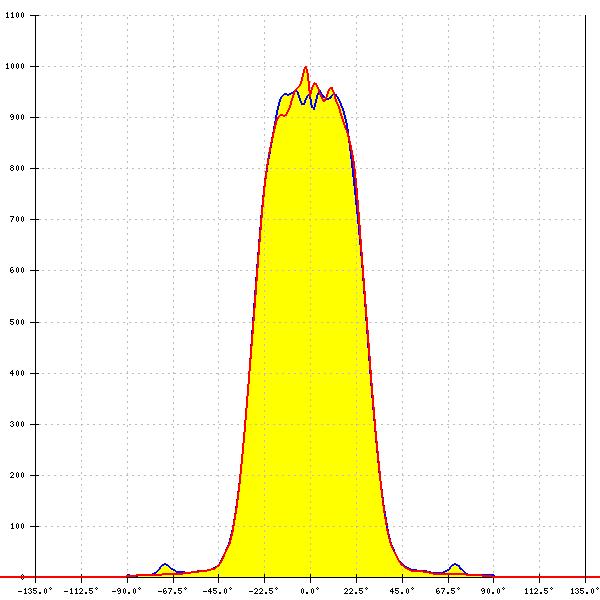

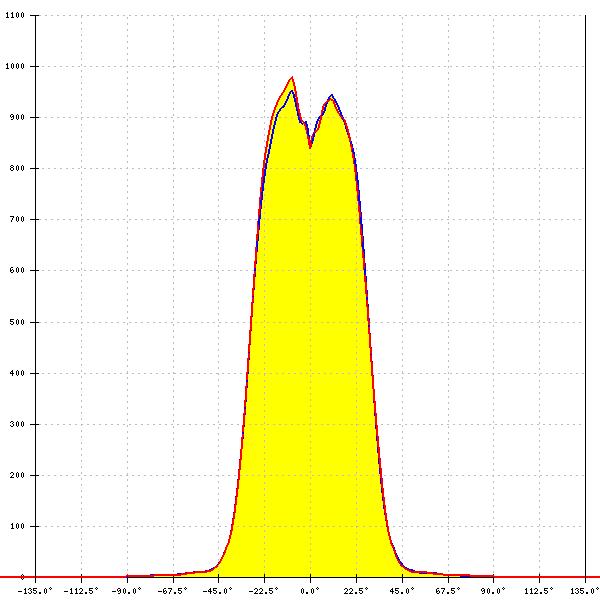

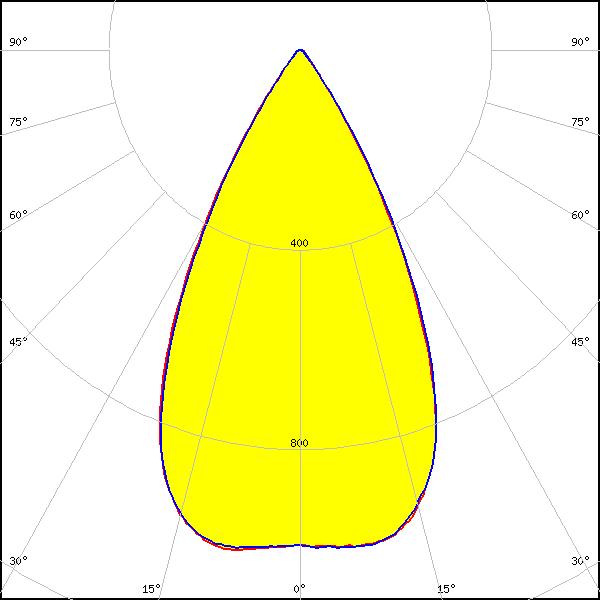

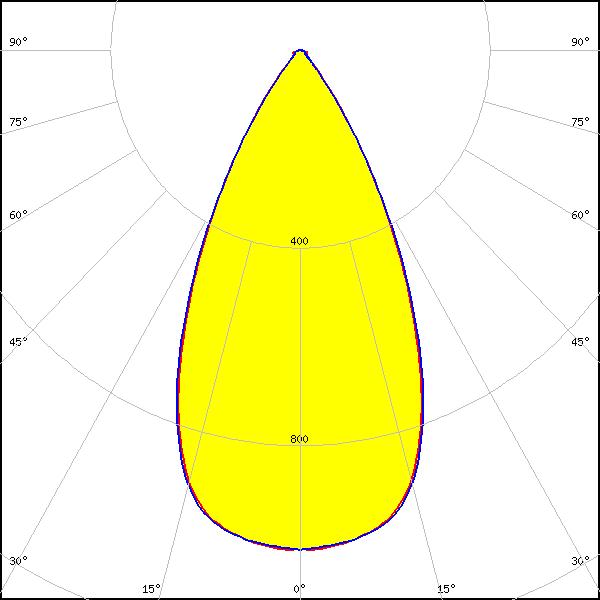

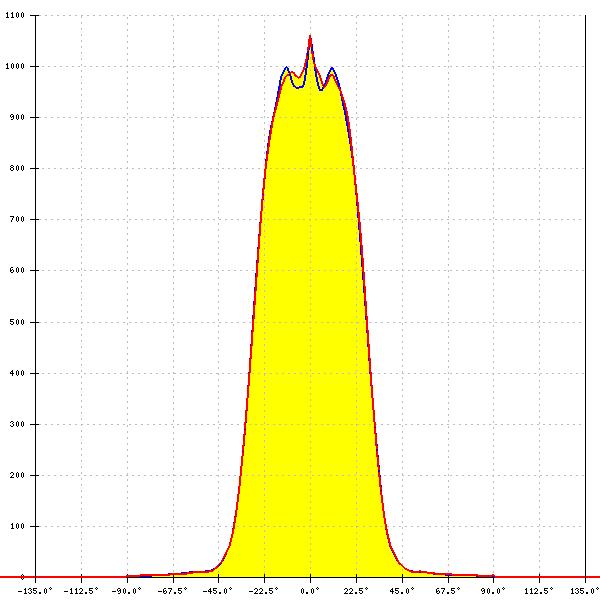

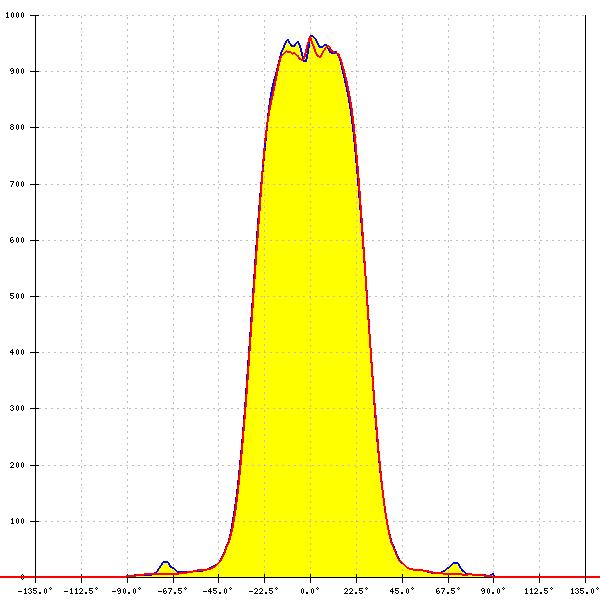

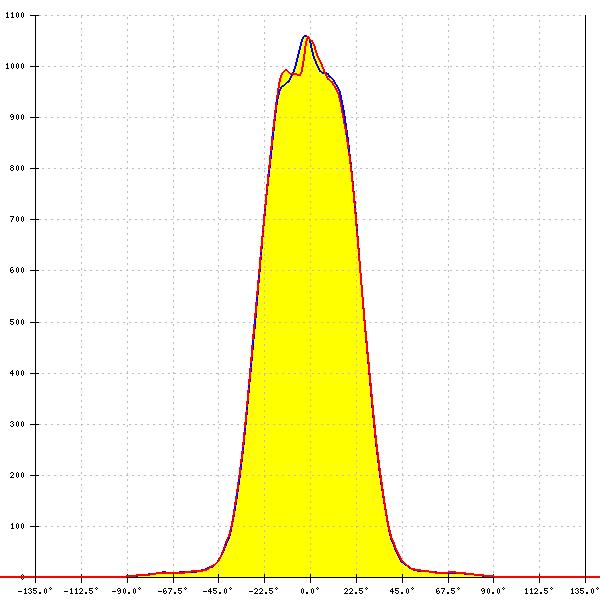

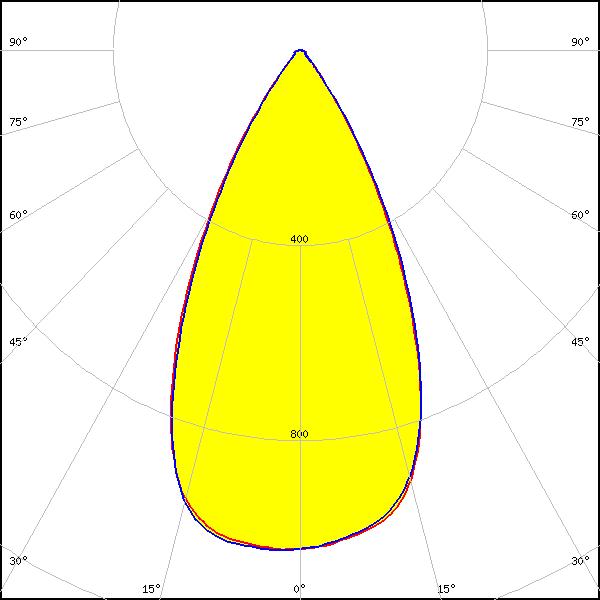

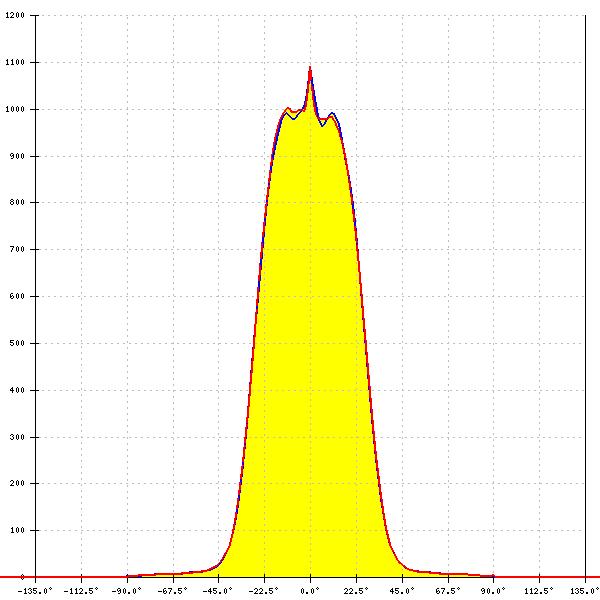

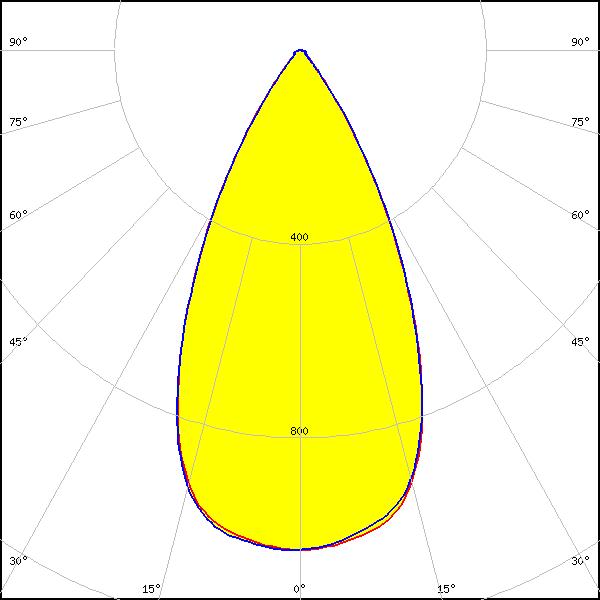

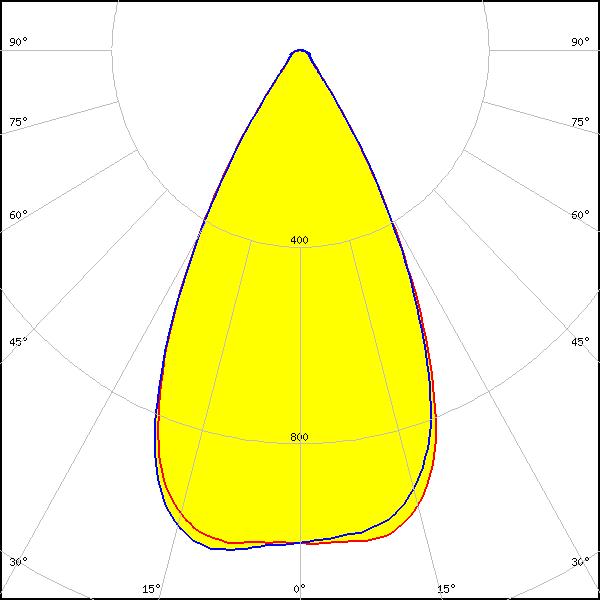

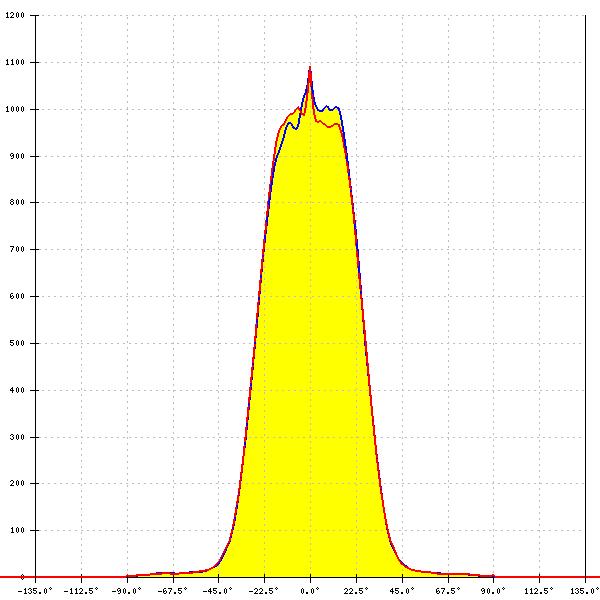

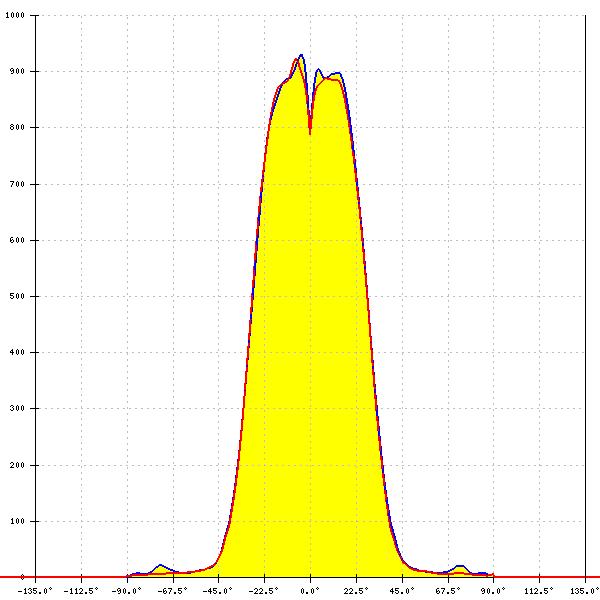

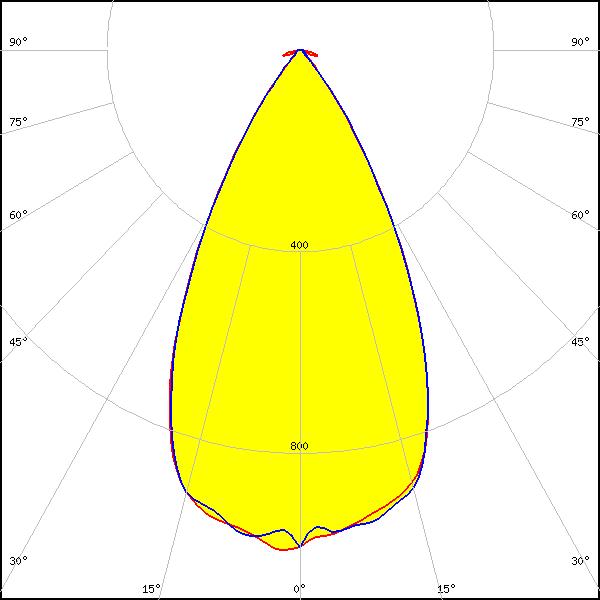

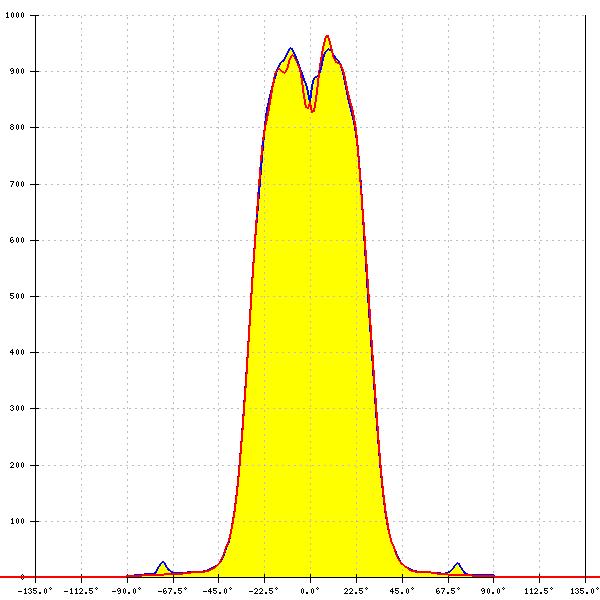

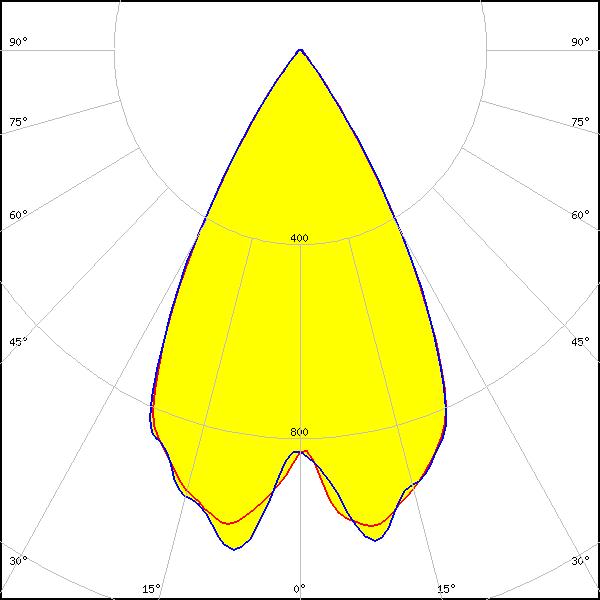

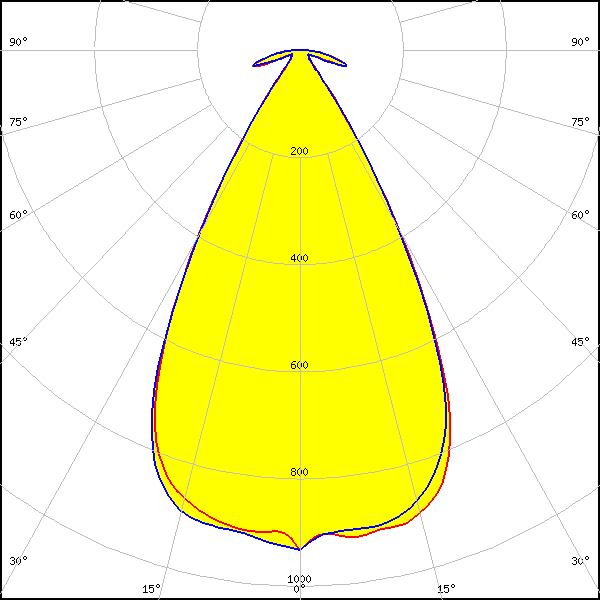

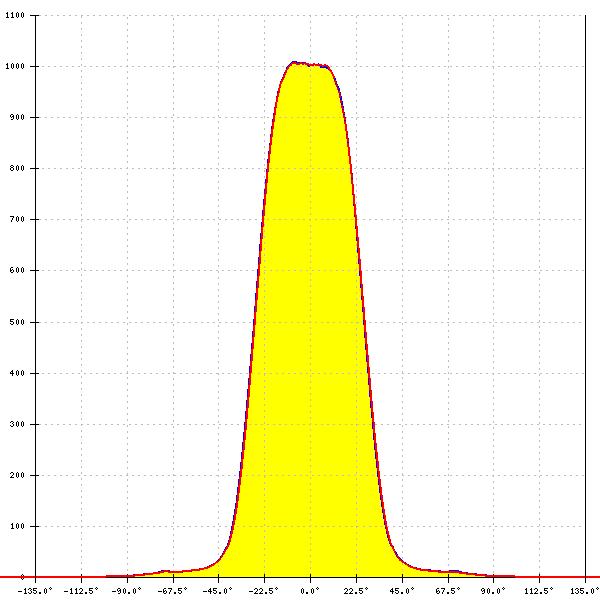

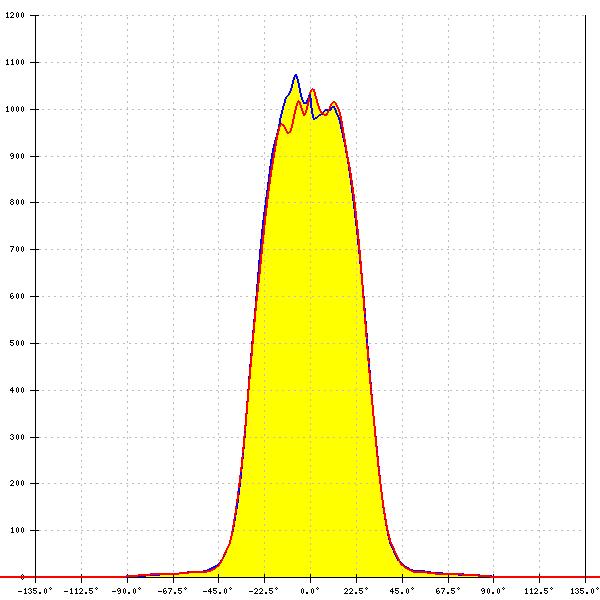

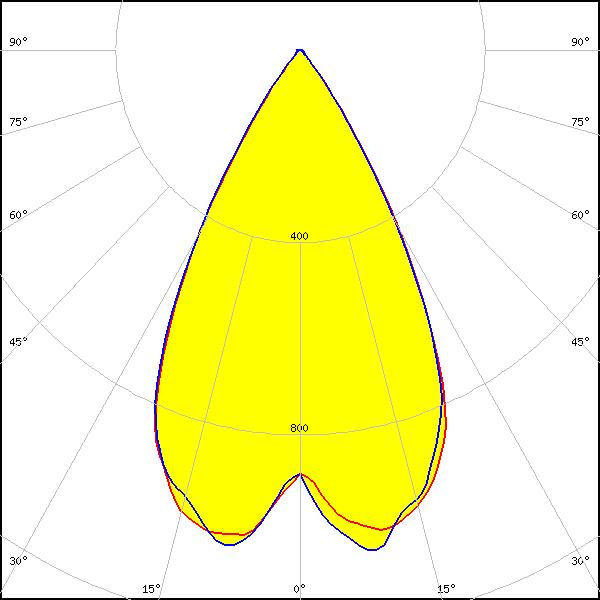

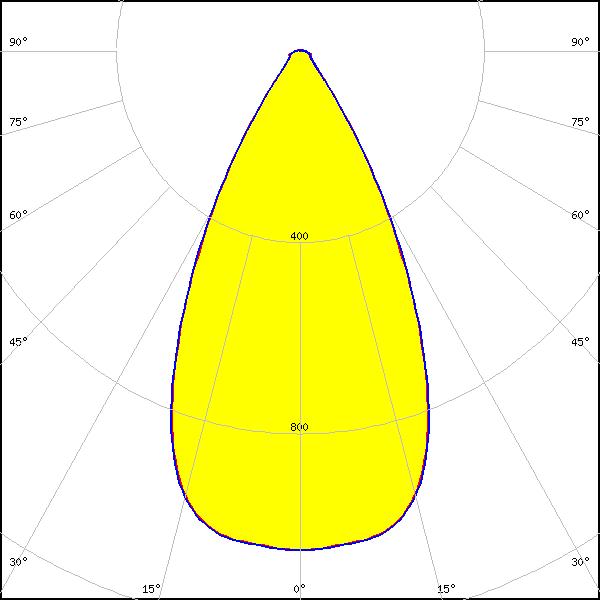

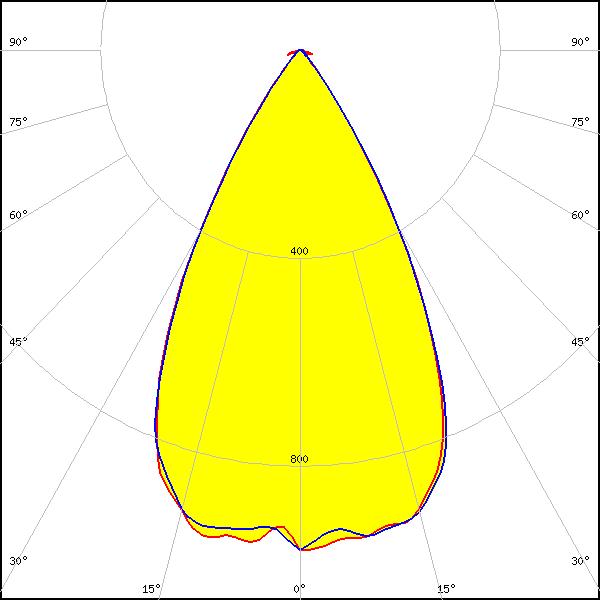

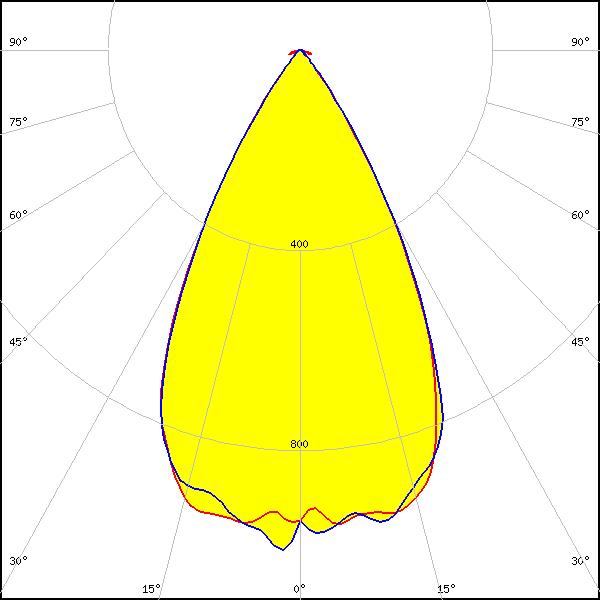

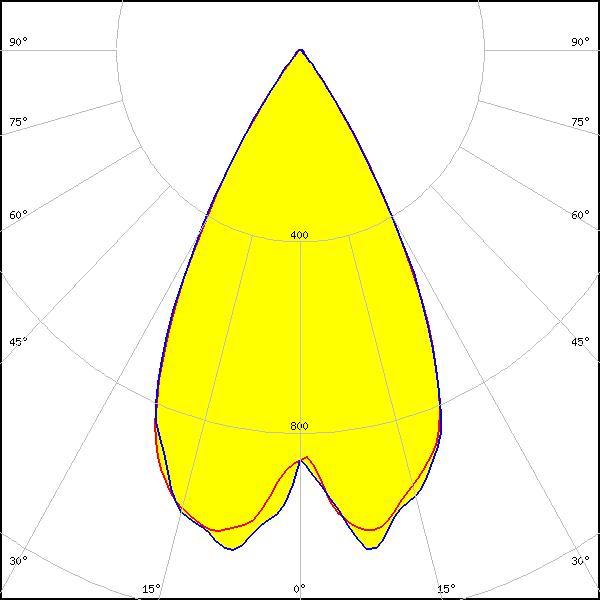

    Optical results

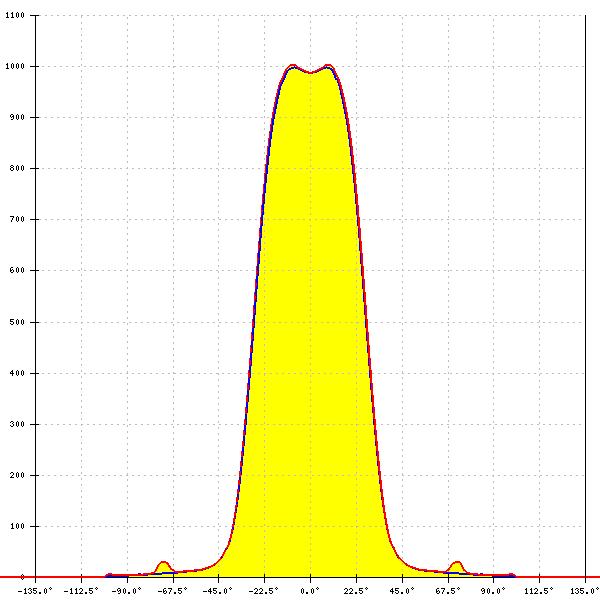

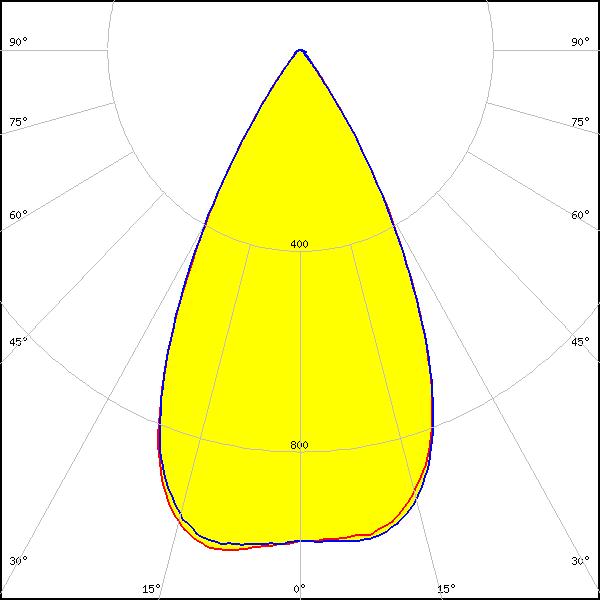

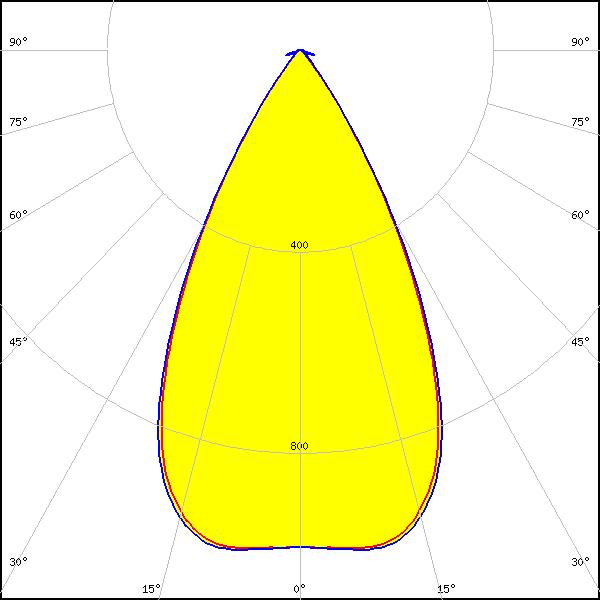

    LED: V10 Gen 8-9
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 10.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 55°
    FWTM: 76°
    Peak intensity: 1.014 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V11 HD Gen 8
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d Hekla
    FWHM: 54°
    FWTM: 75°
    Peak intensity: 1.030 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

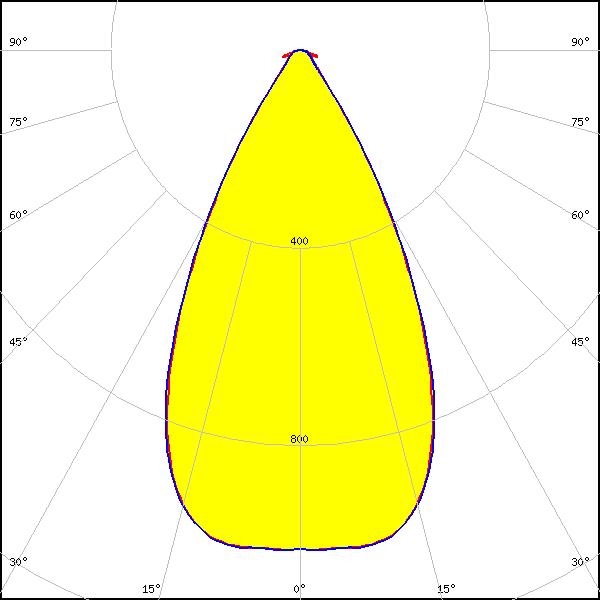

    LED: V11 HD Gen 8
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d Hekla
    FWHM: 55°
    FWTM: 78°
    Peak intensity: 1.020 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

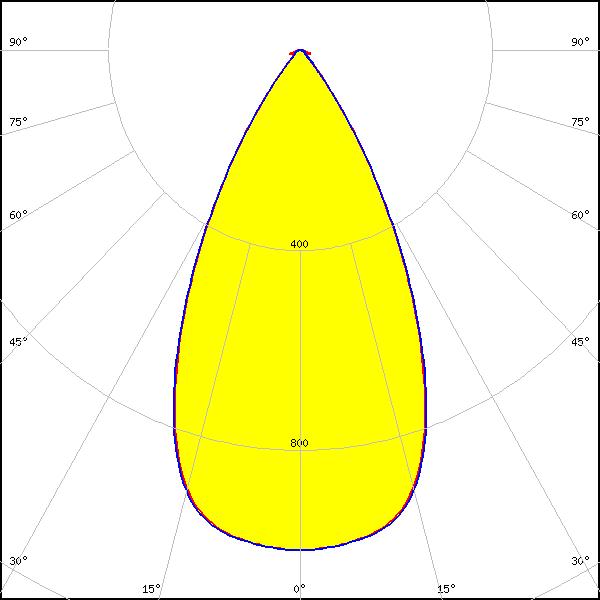

    LED: V13 Gen 8-9
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 14.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 53°
    FWTM: 78°
    Peak intensity: 1.005 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

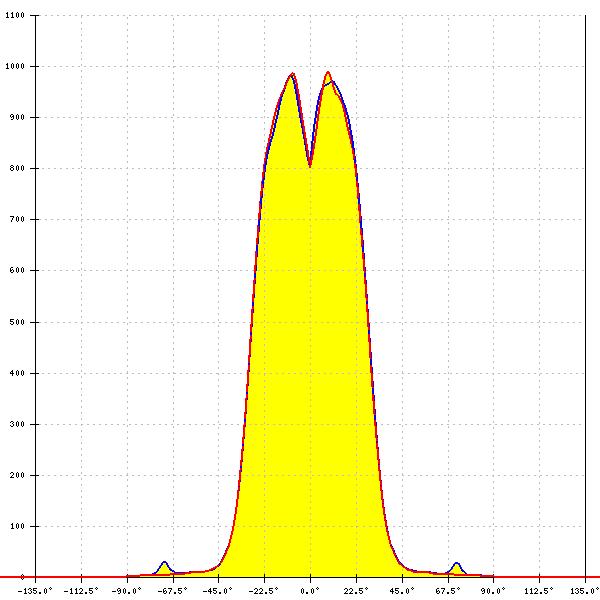

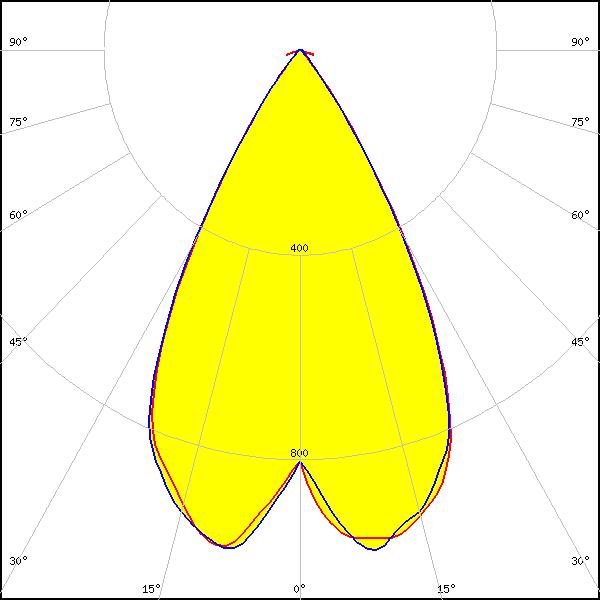

    LED: V6 HD Gen 7
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 58°
    FWTM: 76°
    Peak intensity: 1.000 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

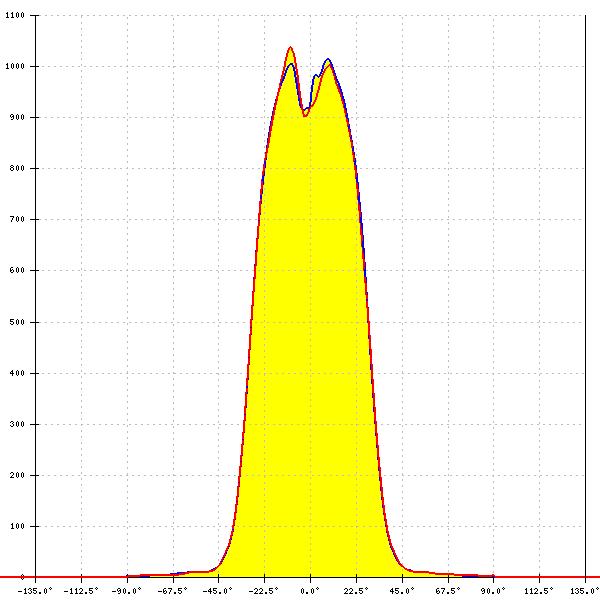

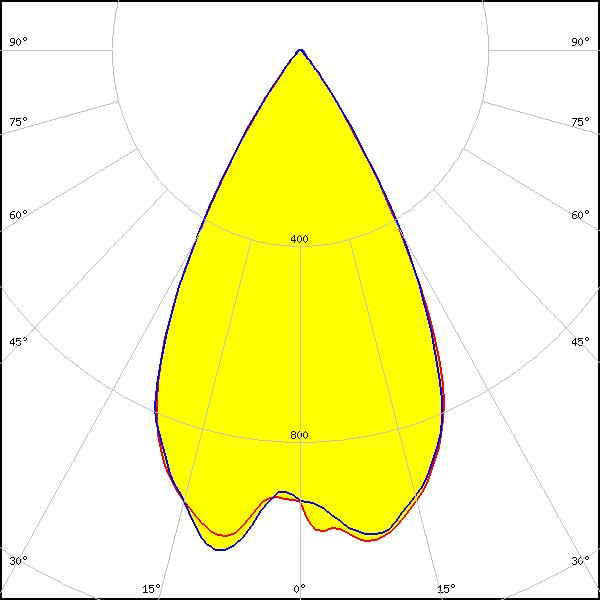

    LED: V6 HD Gen 8
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 6.6 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 58°
    FWTM: 76°
    Peak intensity: 1.037 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

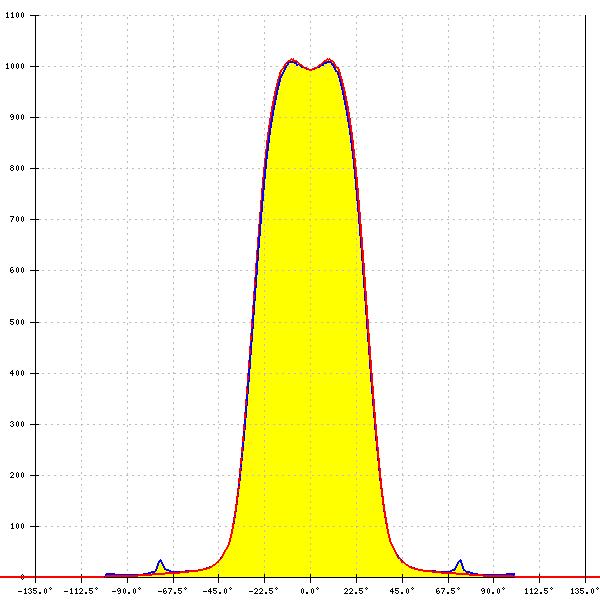

    LED: V8 Gen 8-9
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 8.5 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.032 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

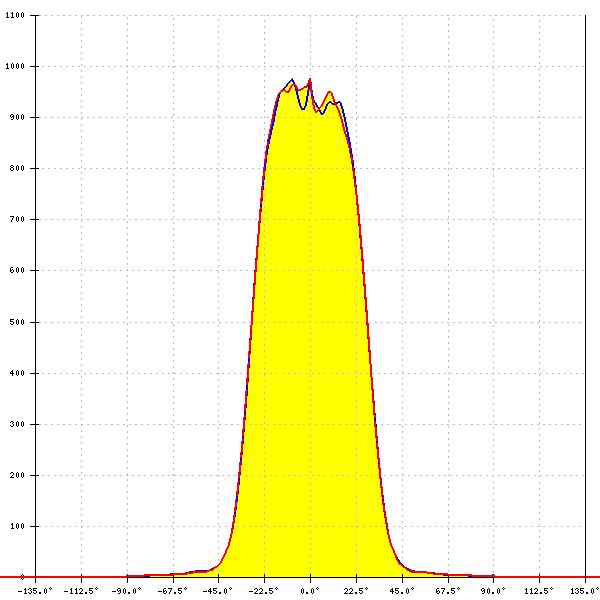

    LED: V9 HD Gen 8
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 8.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 57°
    FWTM: 76°
    Peak intensity: 0.996 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

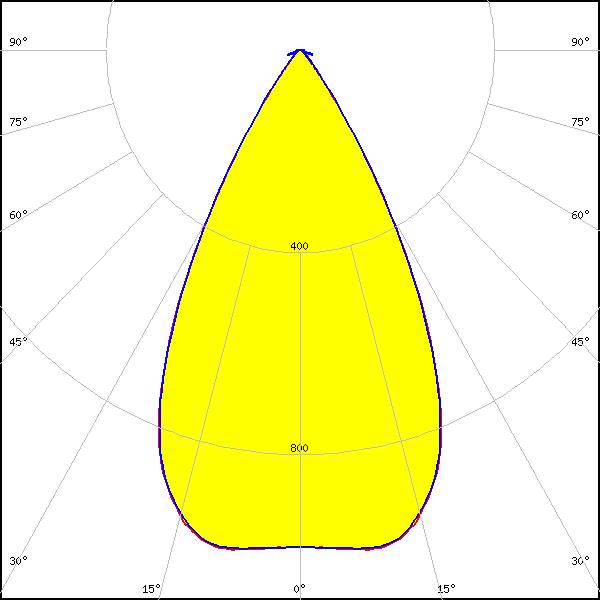

    LED: V9 HD Gen7
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.2 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 55°
    FWTM: 74°
    Peak intensity: 1.009 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V9 HD Gen7
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 9.2 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 55°
    FWTM: 76°
    Peak intensity: 1.024 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

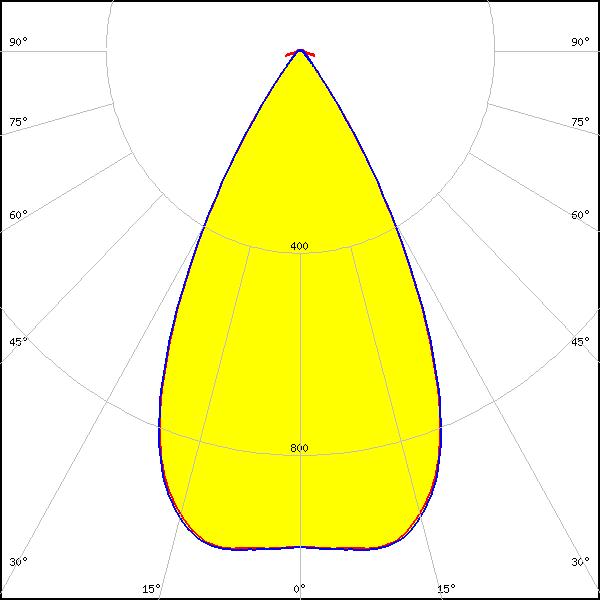

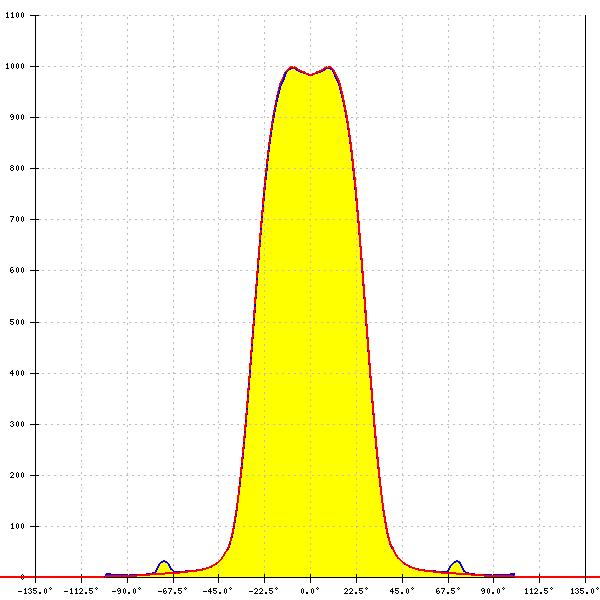

    LED: VERO10
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.9 mm
    Required components:
    F15616_HEKLA-SOCKET-F
    FWHM: 55°
    FWTM: 75°
    Peak intensity: 1.007 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

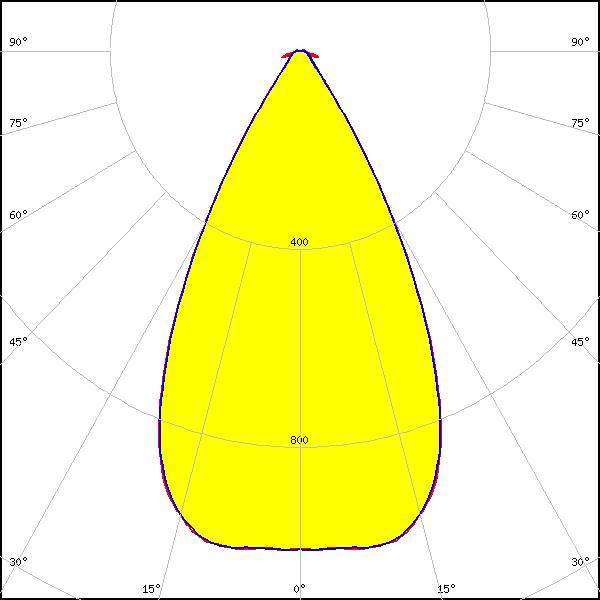

    LED: VERO10
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 9.9 mm
    Required components:
    F15616_HEKLA-SOCKET-F
    FWHM: 56°
    FWTM: 77°
    Peak intensity: 1.021 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

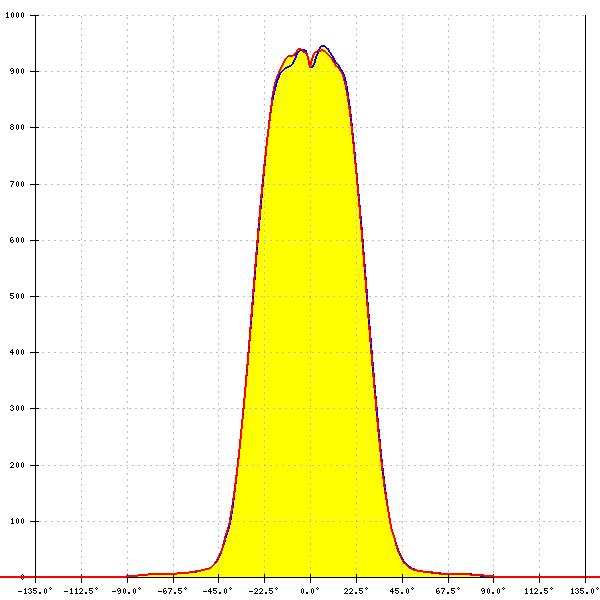

    LED: VERO13
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 13.4 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 58°
    FWTM: 80°
    Peak intensity: 0.975 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

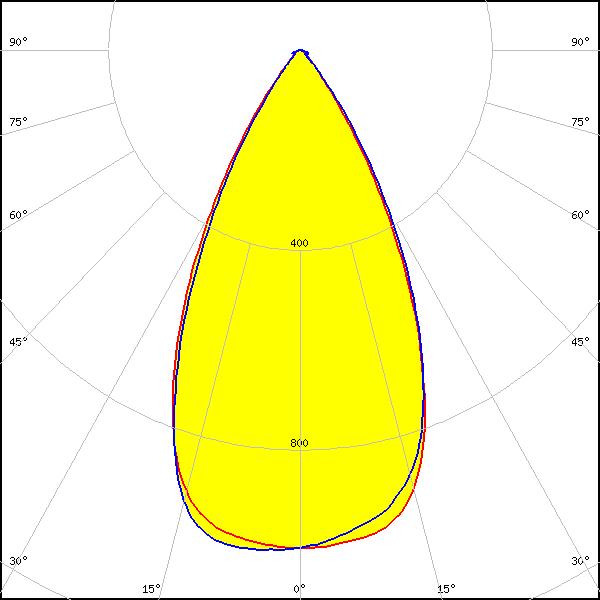

    LED: Vesta DTW 13mm (21W)
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 632a Hekla
    FWHM: 53°
    FWTM: 77°
    Peak intensity: 1.005 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 13mm (21W)
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 54°
    FWTM: 79°
    Peak intensity: 1.029 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 15mm (33W)
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 16.2 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 52°
    FWTM: 77°
    Peak intensity: 1.030 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

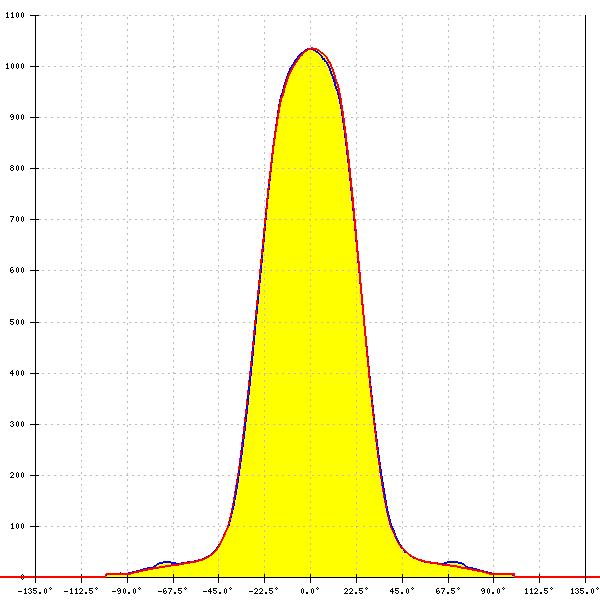

    LED: Vesta DTW 15mm (33W)
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 16.2 mm
    Required components:
    Bender Wirth: 632b Hekla XL
    FWHM: 52°
    FWTM: 80°
    Peak intensity: 1.035 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

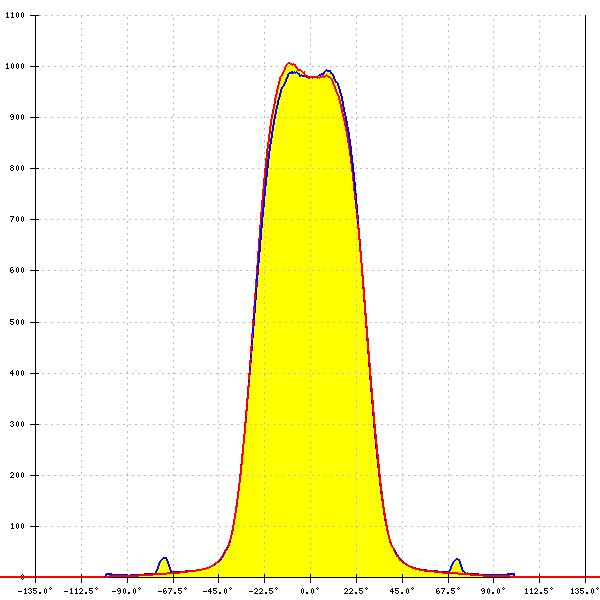

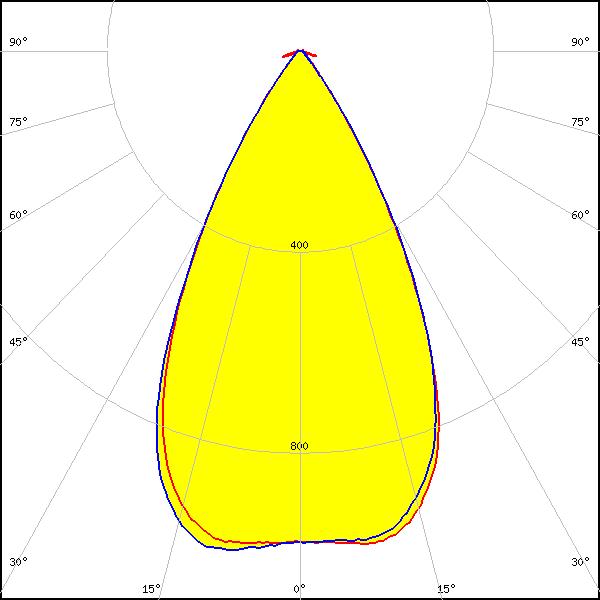

    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 55°
    FWTM: 76°
    Peak intensity: 1.007 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

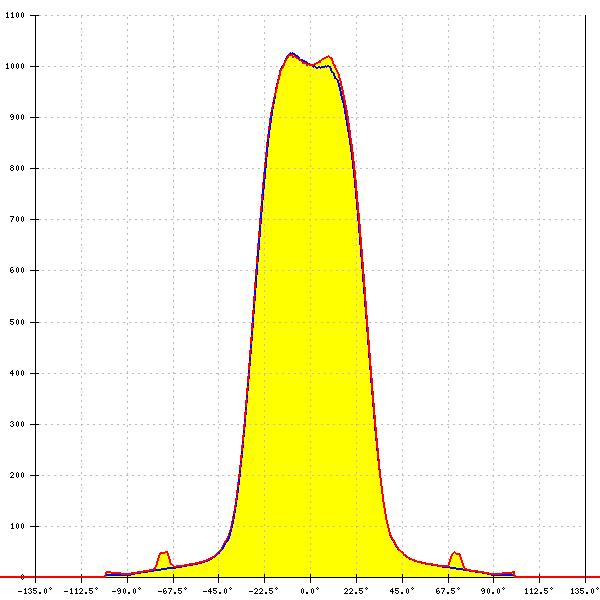

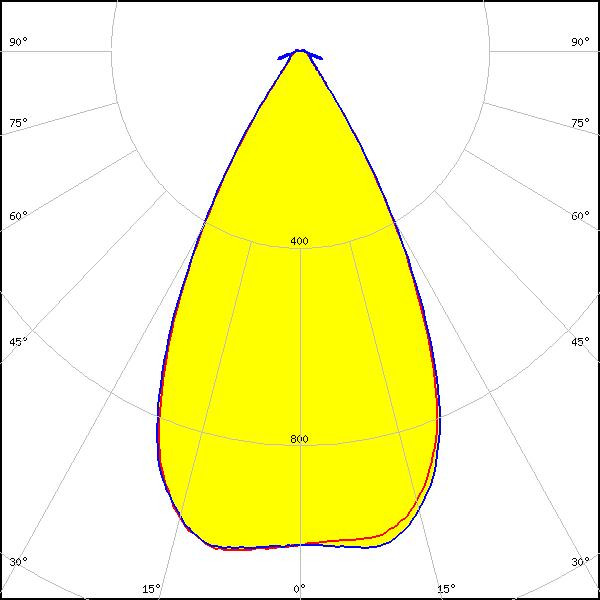

    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Hekla
    FWHM: 56°
    FWTM: 77°
    Peak intensity: 1.029 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta SE 13mm TW
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 14.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 51°
    FWTM: 74°
    Peak intensity: 1.052 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 13mm (18W) DP
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 492 Typ L8
    FWHM: 52°
    FWTM: 75°
    Peak intensity: 1.115 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 15mm DP
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 16.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 482 Typ L8
    FWHM: 51°
    FWTM: 76°
    Peak intensity: 1.121 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta TW 9mm (9W) DP
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 10.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 489 Typ L8
    FWHM: 59°
    FWTM: 80°
    Peak intensity: 0.980 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 54°
    FWTM: 75°
    Peak intensity: 1.009 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

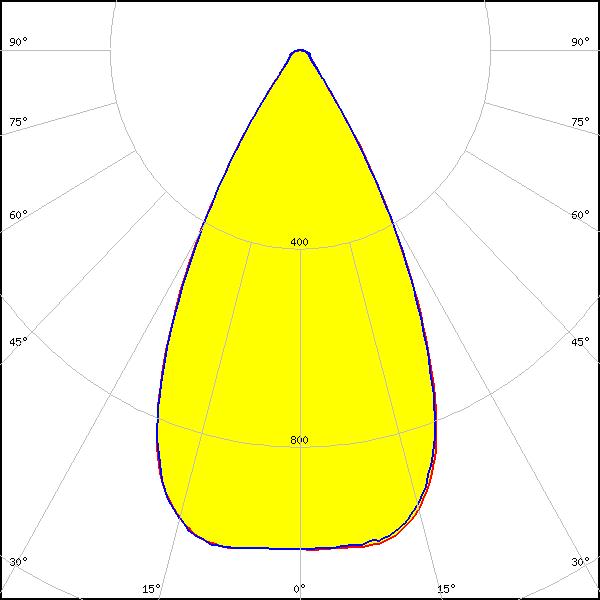

    LED: CLL02x/CLU02x (LES10)
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 77°
    Peak intensity: 1.017 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    Ordering code: CP18771_YASMEEN-70-WW-B2
    LES size: 14.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.001 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    Ordering code: CP18785_YASMEEN-70-WW-B2-WHT
    LES size: 14.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 54°
    FWTM: 80°
    Peak intensity: 1.041 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 52°
    FWTM: 76°
    Peak intensity: 1.040 cd/lm
    Efficiency: 80 %

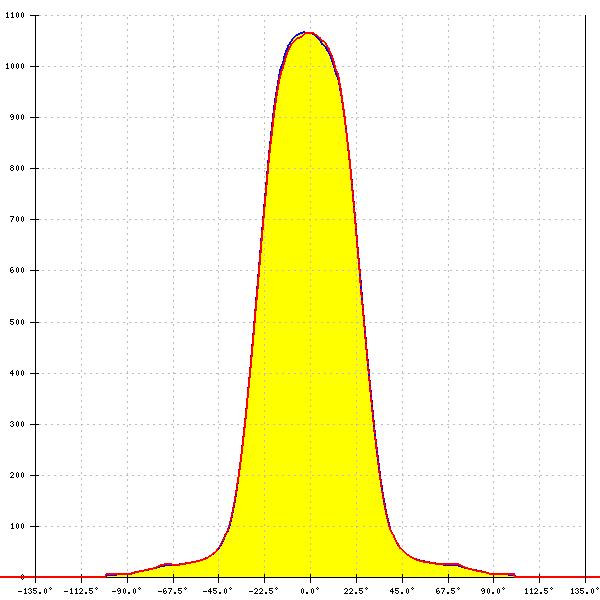

    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL03x/CLU03x
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 14.5 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 52°
    FWTM: 78°
    Peak intensity: 1.066 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU03Q Type-F
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 0.943 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU712/713
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 8.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 0.977 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU712/713
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 8.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 58°
    FWTM: 78°
    Peak intensity: 1.003 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU712/713
    Ordering code: C17241_YASMEEN-70-WW
    LES size: 8.5 mm
    FWHM: 57°
    FWTM: 76°
    Peak intensity: 0.958 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1516
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.0 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 55°
    FWTM: 75°
    Peak intensity: 1.002 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

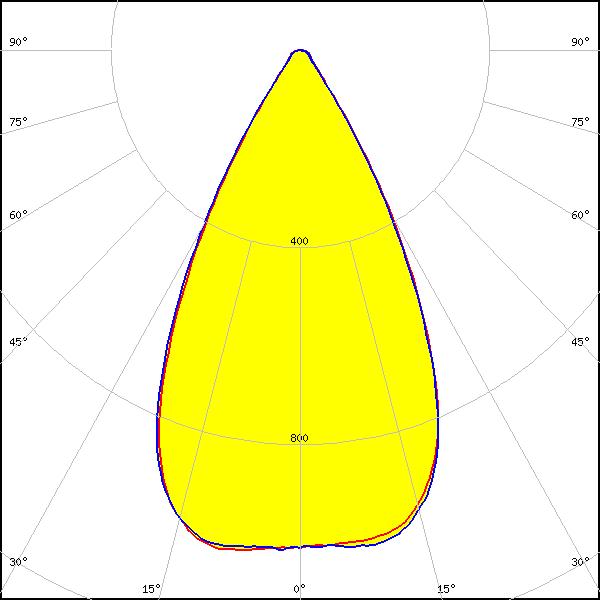

    LED: CMA1516
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 9.0 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 55°
    FWTM: 77°
    Peak intensity: 1.027 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1825
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.003 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMA1825
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.035 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT14xx
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 75°
    Peak intensity: 1.019 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT14xx
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 55°
    FWTM: 77°
    Peak intensity: 1.033 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT19xx
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 52°
    FWTM: 76°
    Peak intensity: 1.027 cd/lm
    Efficiency: 80 %

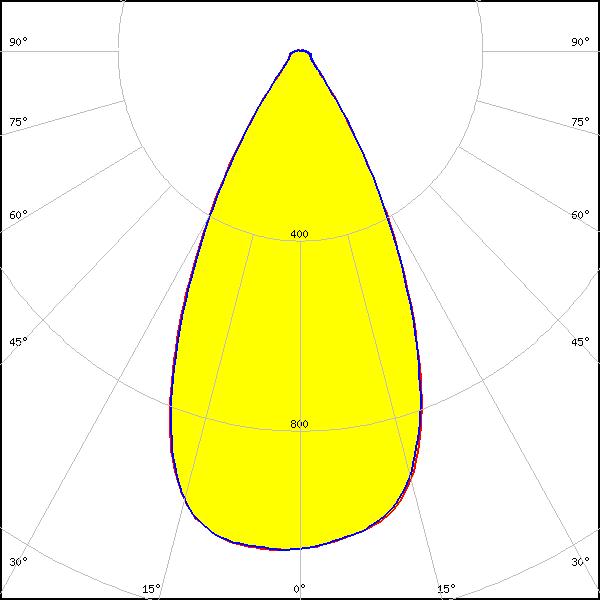

    LEDs/each optic: 1
    Light colour/type: White
    LED: CMT19xx
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 52°
    FWTM: 78°
    Peak intensity: 1.054 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU10xx
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.000 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CMU15xx
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 52°
    FWTM: 77°
    Peak intensity: 1.014 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 13xx
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 6.0 mm
    Required components:
    F17439_HEKLA-G2-J
    FWHM: 58°
    FWTM: 76°
    Peak intensity: 0.987 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 15xx
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 8.9 mm
    Required components:
    F17436_HEKLA-G2-D
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.000 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1830
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637b Hekla
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.010 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

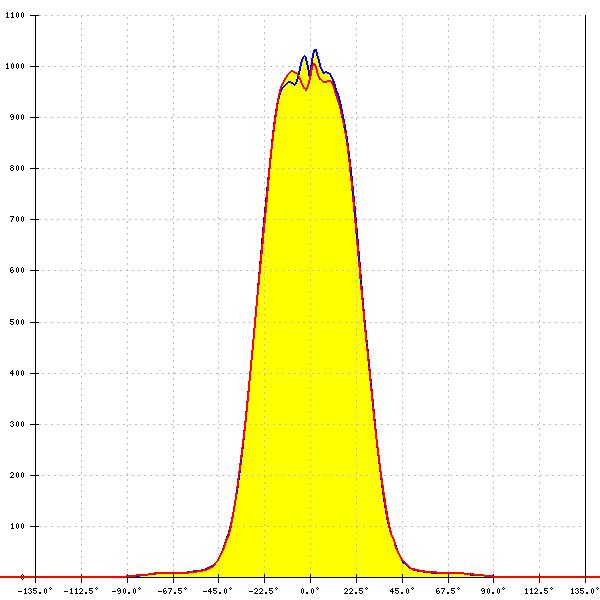

    LED: LUXEON CX Plus CoB L08 (Gen2)
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.042 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 7070
    LES size: 0.0 mm
    FWHM: 57°
    FWTM: 75°
    Peak intensity: 0.934 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202/1203
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 55°
    FWTM: 74°
    Peak intensity: 1.008 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202/1203
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 55°
    FWTM: 76°
    Peak intensity: 1.037 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202HD
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 6.5 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 57°
    FWTM: 75°
    Peak intensity: 1.041 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204/1205
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 52°
    FWTM: 76°
    Peak intensity: 1.097 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204HD
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.014 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1205HD
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 11.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.025 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1208
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 53°
    FWTM: 77°
    Peak intensity: 1.069 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S02H6
    Ordering code: CP18771_YASMEEN-70-WW-B2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 58°
    FWTM: 77°
    Peak intensity: 0.987 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP18771_YASMEEN-70-WW-B2
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.036 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.025 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.058 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 57°
    FWTM: 76°
    Peak intensity: 1.053 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

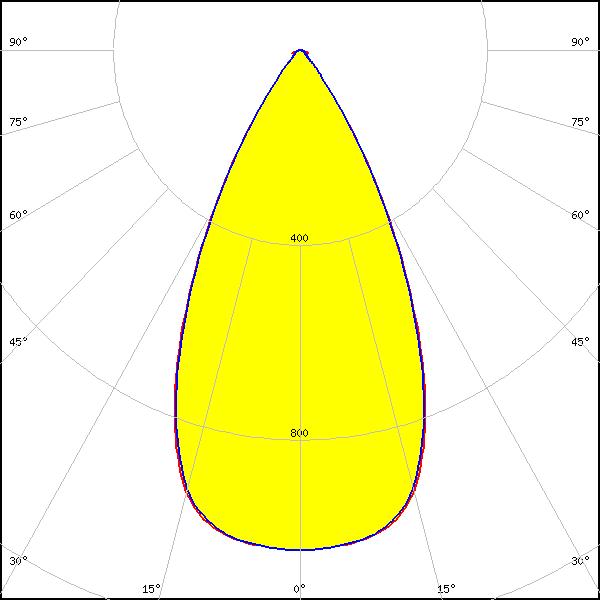

    LED: CTM-14 (Tunable White) Gen2
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 13.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 52°
    FWTM: 76°
    Peak intensity: 1.030 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CTM-6 (Tunable White) Gen2
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 6.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 57°
    FWTM: 74°
    Peak intensity: 1.001 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CTM-9 (Tunable White) Gen2
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.033 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: CxM-14 (18.5x18.5)
    Ordering code: CP18764_YASMEEN-70-WW-C2

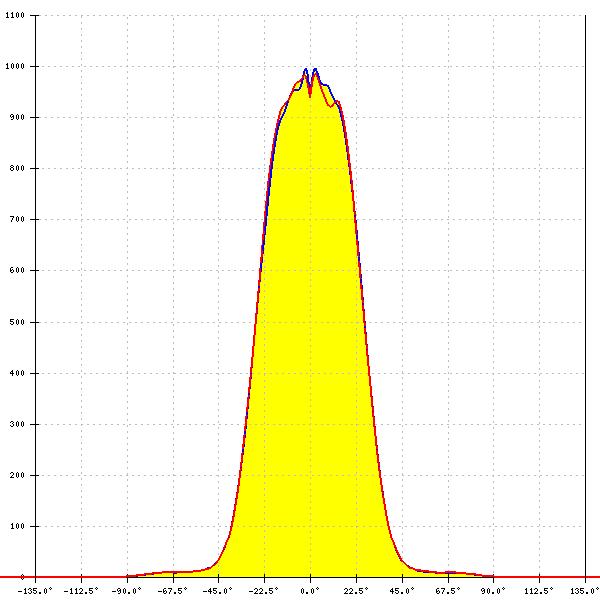

    LES size: 13.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.011 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-14 (19x19)
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.004 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

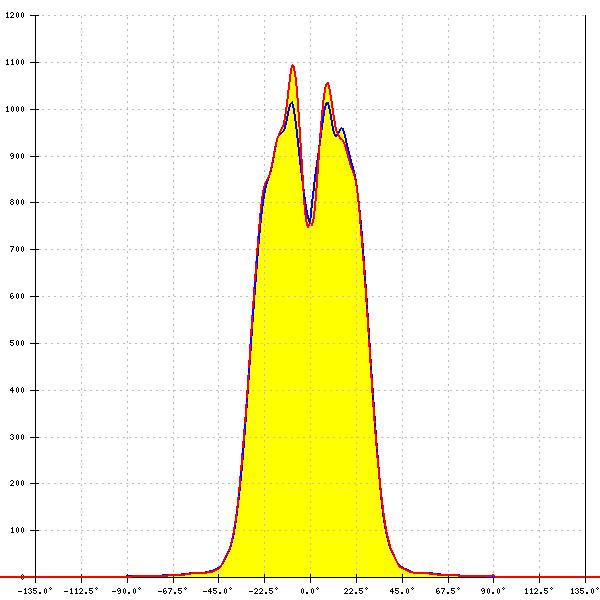

    LED: CXM-3
    Ordering code: CP18771_YASMEEN-70-WW-B2
    LES size: 3.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 57°
    FWTM: 74°
    Peak intensity: 1.093 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXM-4
    Ordering code: CP18771_YASMEEN-70-WW-B2
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 58°
    FWTM: 75°
    Peak intensity: 1.040 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-6 (13.5x13.5)
    Ordering code: CP18771_YASMEEN-70-WW-B2
    LES size: 6.3 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 56°
    FWTM: 74°
    Peak intensity: 1.074 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-9 (13.5x13.5)
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.040 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 11)
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 11.5 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 54°
    FWTM: 75°
    Peak intensity: 1.019 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 6)
    Ordering code: CP18771_YASMEEN-70-WW-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 58°
    FWTM: 76°
    Peak intensity: 0.979 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP18771_YASMEEN-70-WW-B2
    LES size: 6.7 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 58°
    FWTM: 76°
    Peak intensity: 0.972 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

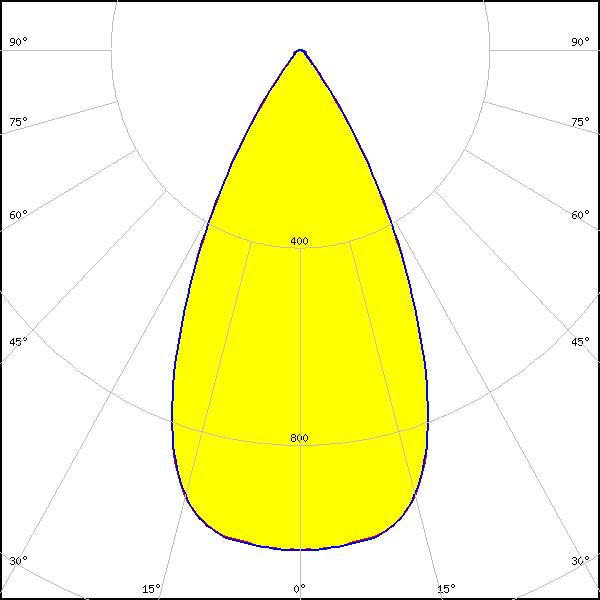

    LED: COB S-Type (LES 7)
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 6.7 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 53°
    FWTM: 76°
    Peak intensity: 1.022 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB T-Type
    Ordering code: CP18771_YASMEEN-70-WW-B2
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 58°
    FWTM: 76°
    Peak intensity: 0.977 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NJCWL024Z-V1MT: COB L-Type Tunable White
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 7.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 497 Typ L8 HV
    FWHM: 56°
    FWTM: 74°
    Peak intensity: 0.983 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

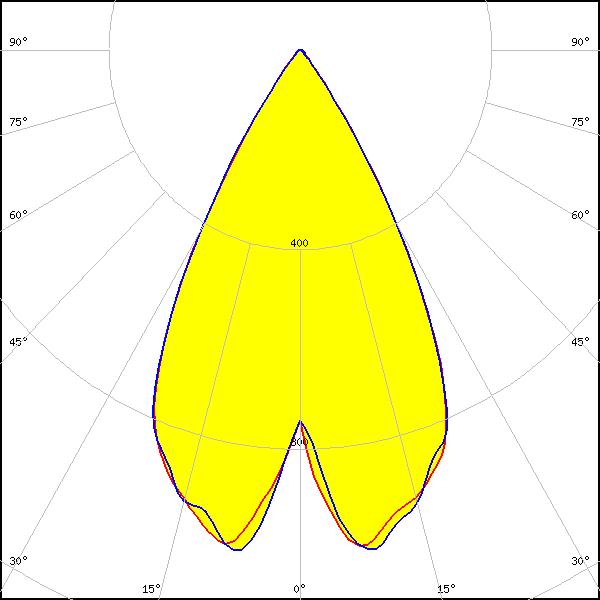

    LED: NJNWS012Z-V1MT: COB S-Type Tunable White
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 5.9 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 495 Typ L8 HV
    FWHM: 56°
    FWTM: 74°
    Peak intensity: 1.025 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

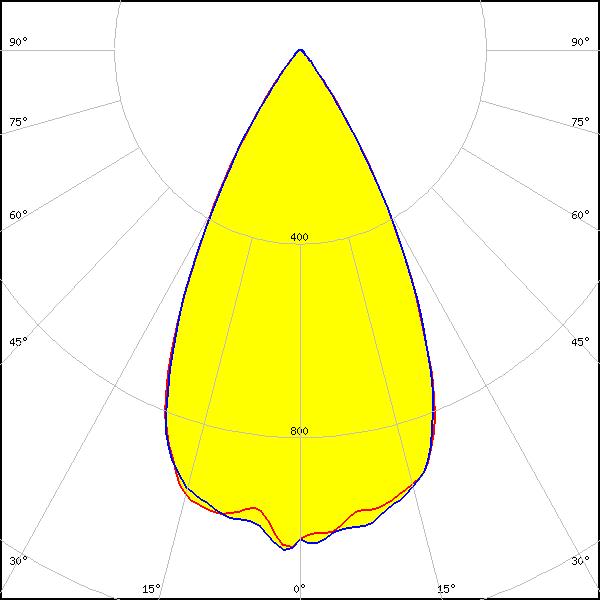

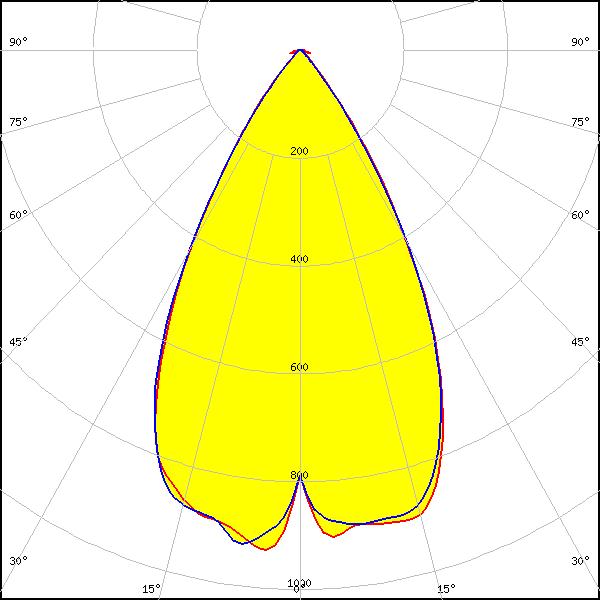

    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8 HV
    FWHM: 58°
    FWTM: 80°
    Peak intensity: 0.930 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 10.6 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 498 Typ L8 HV
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.057 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: PrevaLED Core G7 LES15 CoB
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 52°
    FWTM: 78°
    Peak intensity: 1.045 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L09 CoB
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.013 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L09 CoB
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.041 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

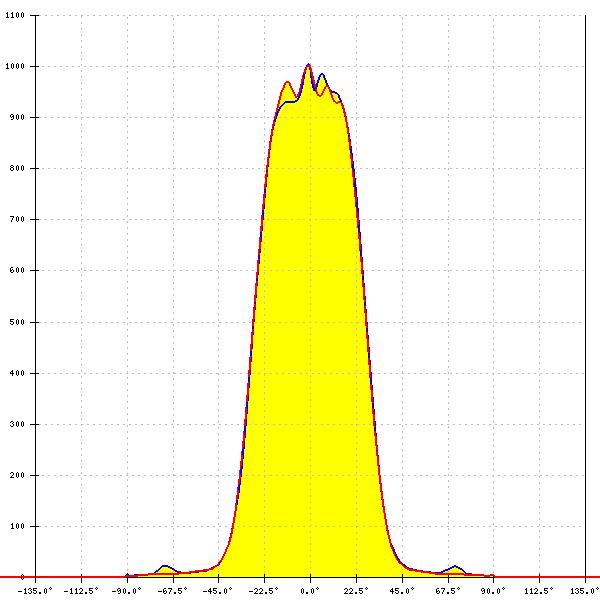

    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.018 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.045 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010C G2
    Ordering code: CP18771_YASMEEN-70-WW-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 56°
    FWTM: 74°
    Peak intensity: 1.060 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010T (Tunable White)
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 56°
    FWTM: 75°
    Peak intensity: 1.007 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

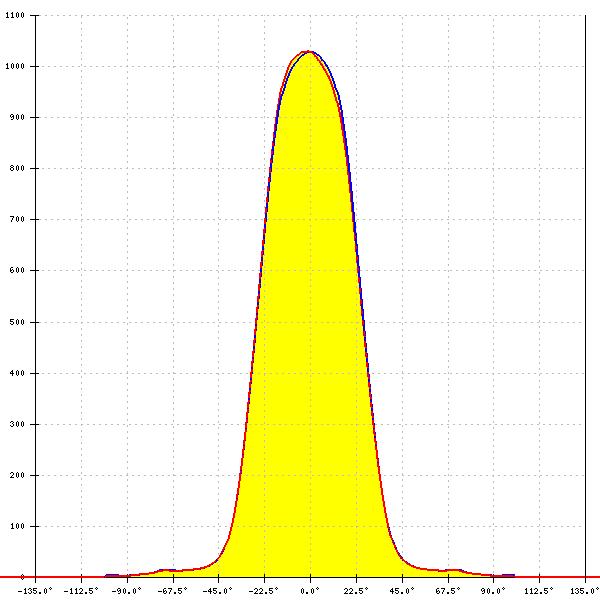

    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 52°
    FWTM: 77°
    Peak intensity: 1.030 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

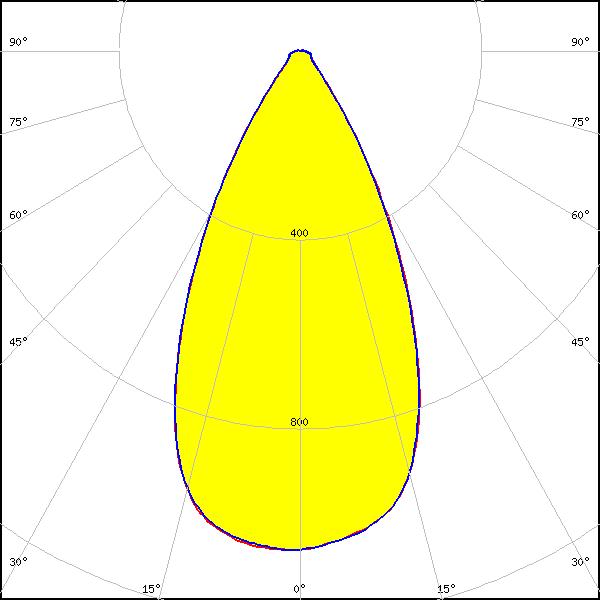

    LED: LC016D / LC019D / LC026D / LC033D
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 52°
    FWTM: 79°
    Peak intensity: 1.059 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

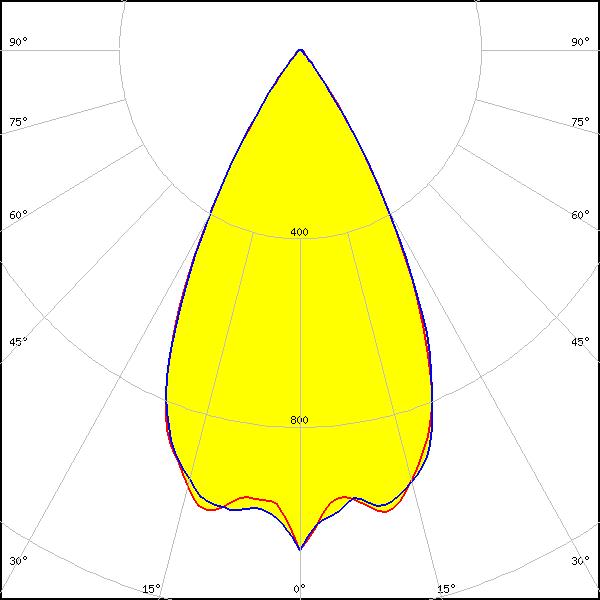

    LED: LC020C G2
    Ordering code: CP18771_YASMEEN-70-WW-B2
    LES size: 8.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.061 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020T (Tunable white)
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 53°
    FWTM: 74°
    Peak intensity: 1.092 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LC020T (Tunable white)
    Ordering code: C17241_YASMEEN-70-WW
    LES size: 13.0 mm
    FWHM: 59°
    FWTM: 80°
    Peak intensity: 0.903 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC030C/040C G2
    Ordering code: CP18771_YASMEEN-70-WW-B2
    LES size: 11.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.073 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC030C/040C G2
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 11.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 54°
    FWTM: 75°
    Peak intensity: 1.009 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC030C/040C G2
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 11.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 54°
    FWTM: 78°
    Peak intensity: 1.040 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

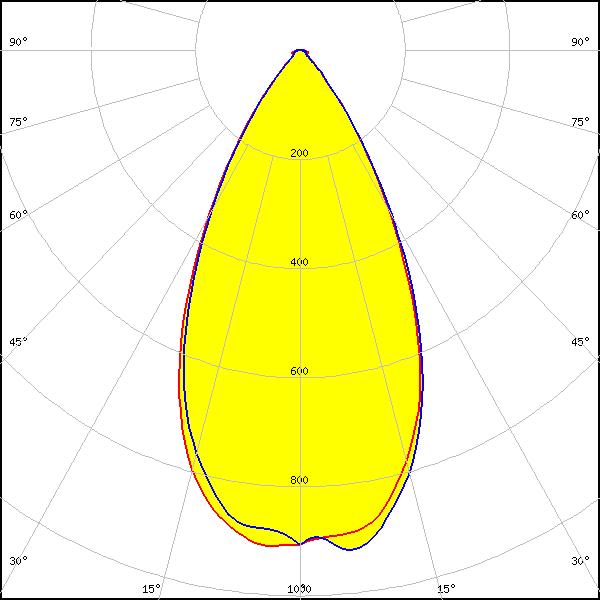

    LED: LC035T (Tunable white)
    Ordering code: C17241_YASMEEN-70-WW
    LES size: 22.0 mm
    FWHM: 54°
    FWTM: 82°
    Peak intensity: 0.922 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 52°
    FWTM: 77°
    Peak intensity: 1.033 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

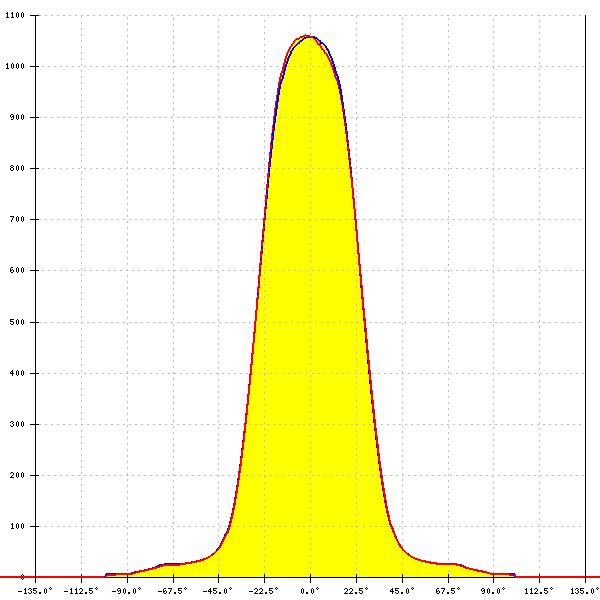

    LED: MJT COB LES 14.5
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 52°
    FWTM: 79°
    Peak intensity: 1.060 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 6
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 56°
    FWTM: 75°
    Peak intensity: 1.061 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 9.8
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 56°
    FWTM: 76°
    Peak intensity: 1.074 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES13
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 13.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 53°
    FWTM: 78°
    Peak intensity: 1.049 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

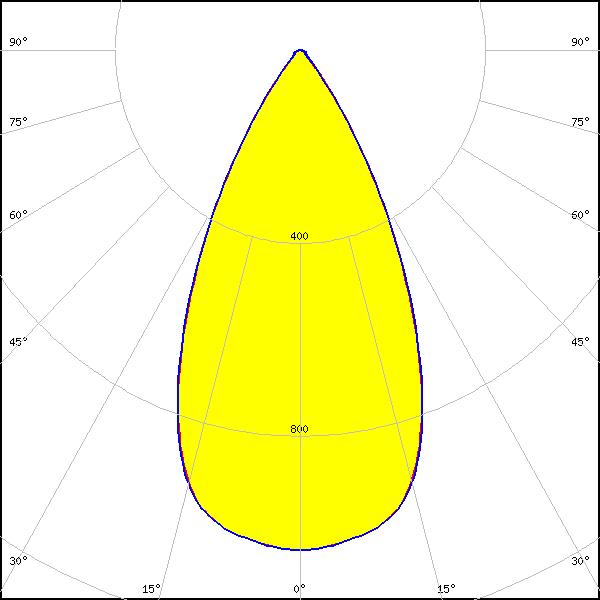

    LED: SLE G7 LES15
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 15.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 52°
    FWTM: 76°
    Peak intensity: 1.039 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES15
    Ordering code: CP18778_YASMEEN-70-WW-C2-WHT
    LES size: 15.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 52°
    FWTM: 78°
    Peak intensity: 1.076 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

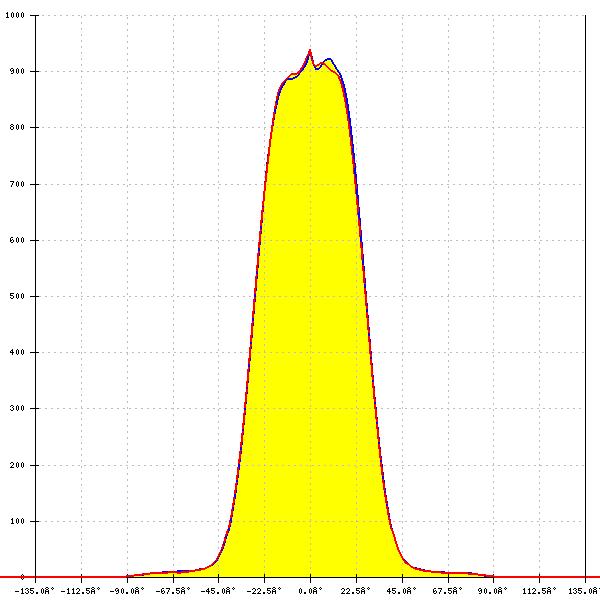

    LED: XOB 14.5 mm
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 56°
    FWTM: 80°
    Peak intensity: 0.939 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

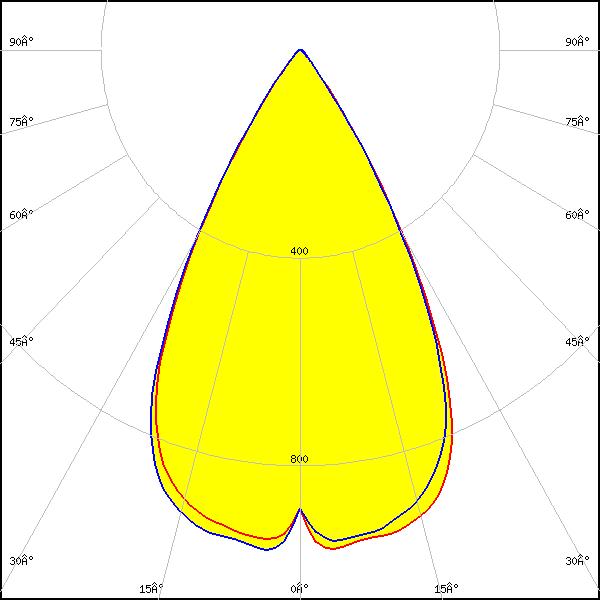

    LED: XOB 6 mm
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634b Hekla
    FWHM: 58°
    FWTM: 76°
    Peak intensity: 0.970 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XOB 9.8 mm
    Ordering code: CP18764_YASMEEN-70-WW-C2
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 58°
    FWTM: 78°
    Peak intensity: 0.922 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
