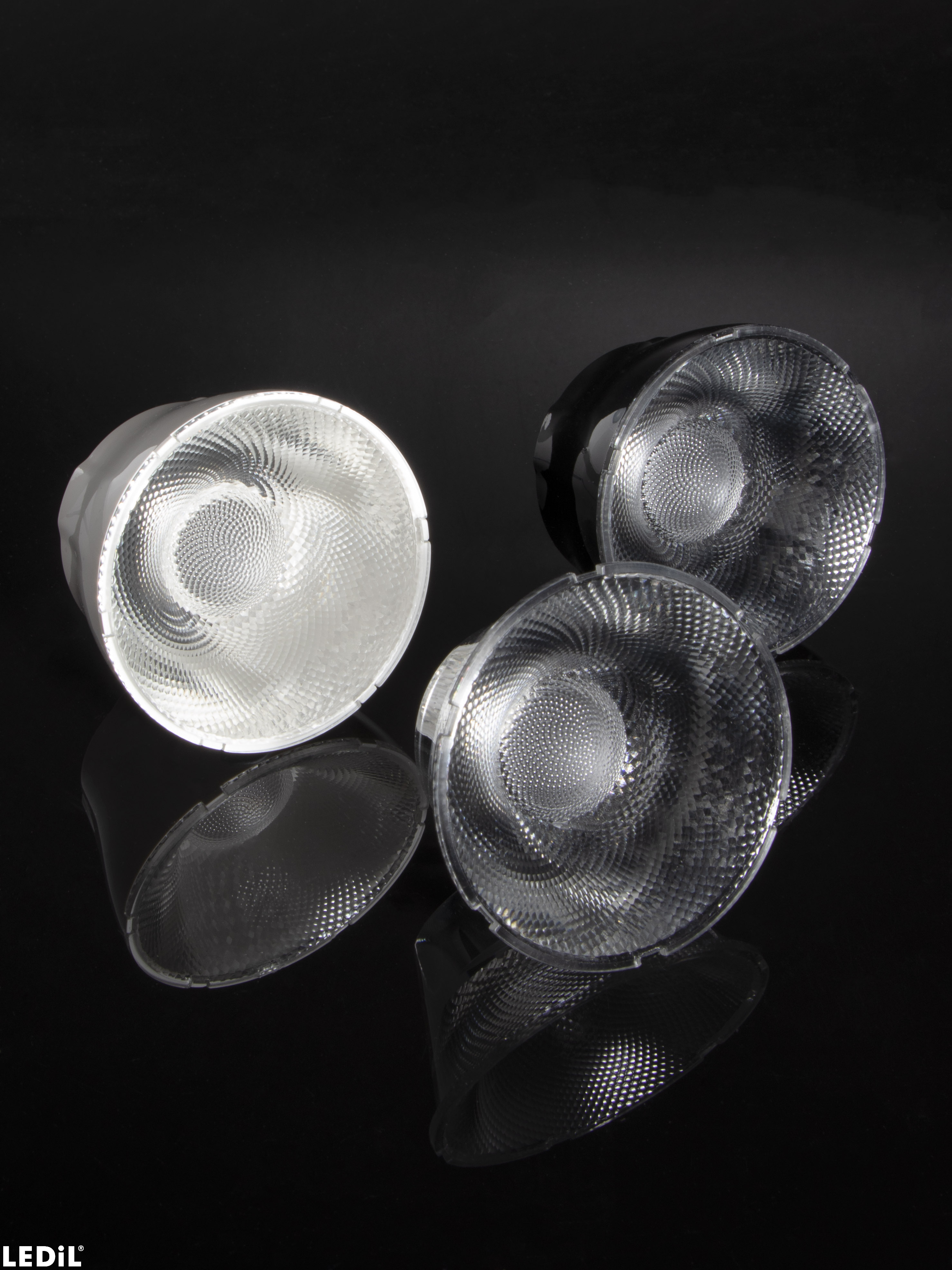

YASMEEN-70-S
Print~15° spot beam
This product consist of multiple buying options, and different options may have different packaging information. Contact us for details.
Specification
-
Dimensions:70 mm
-
Height:37.70 mm
-
Fastening:socket
-
Colour:black
-
RoHS and REACH compliant:Yes
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES

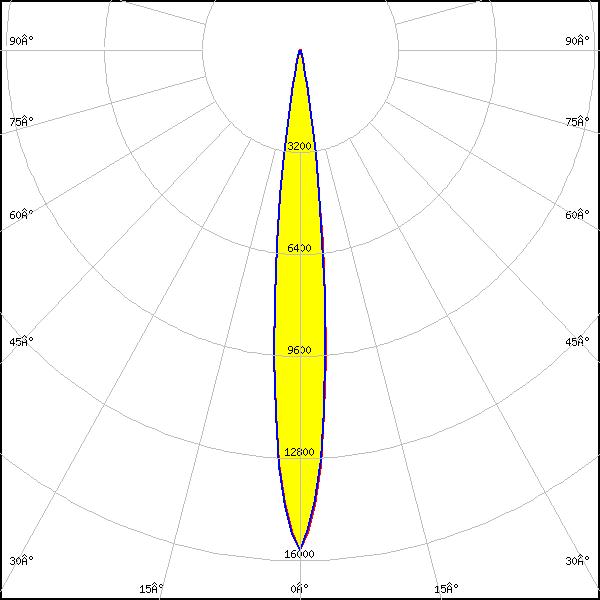

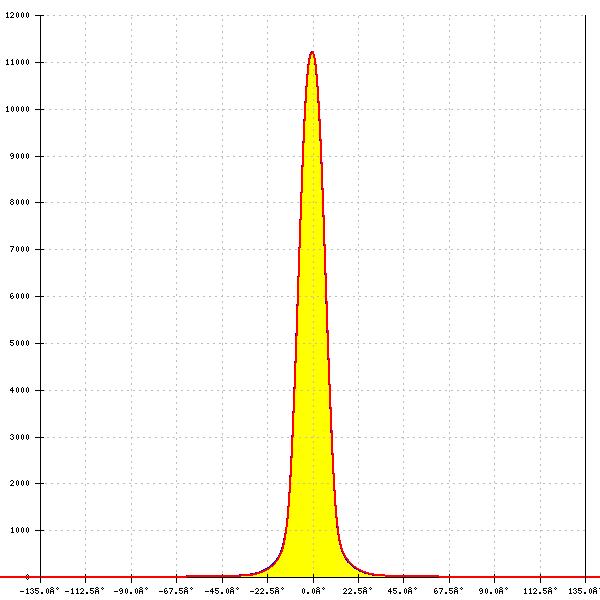

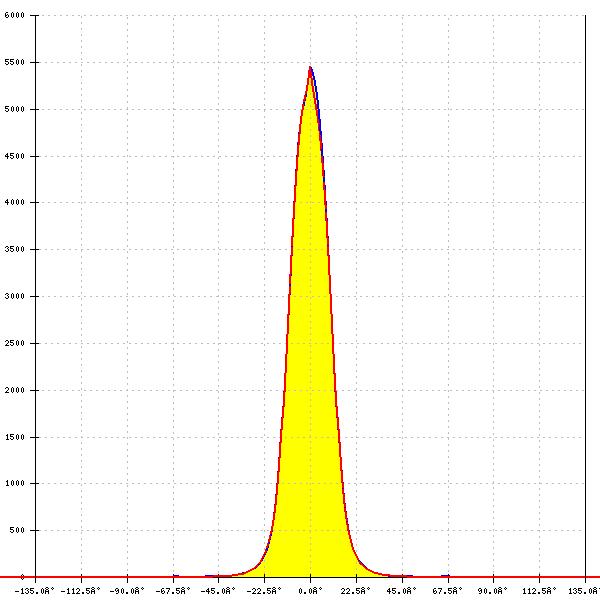

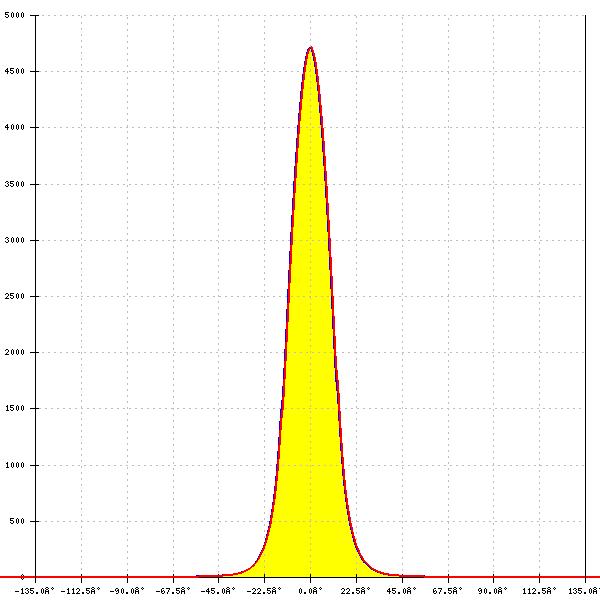

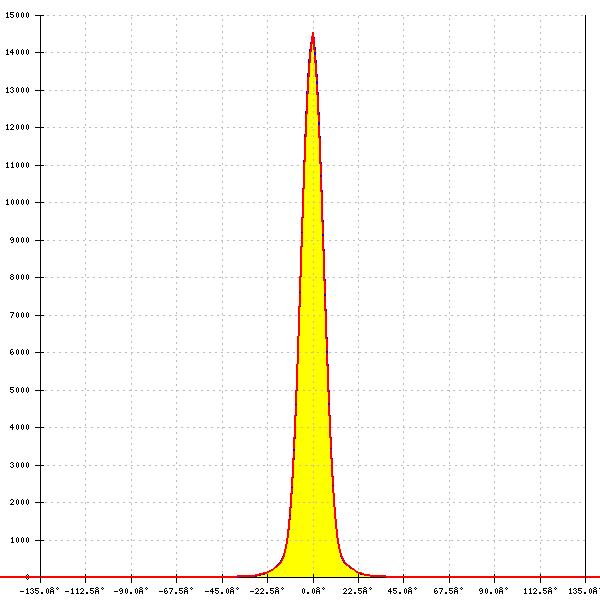

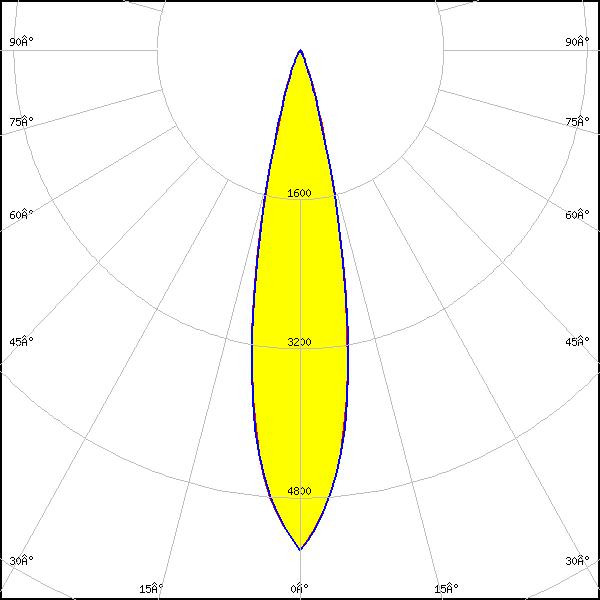

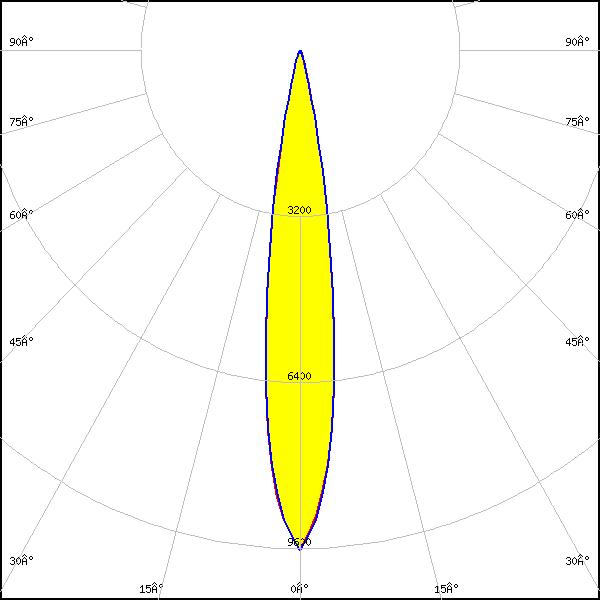

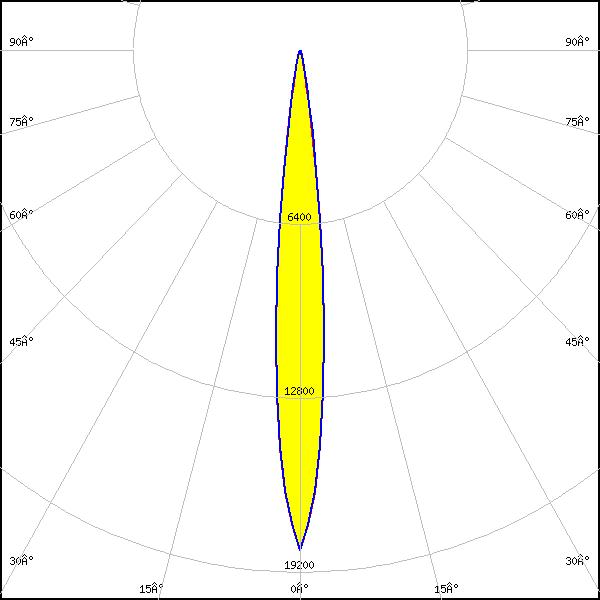

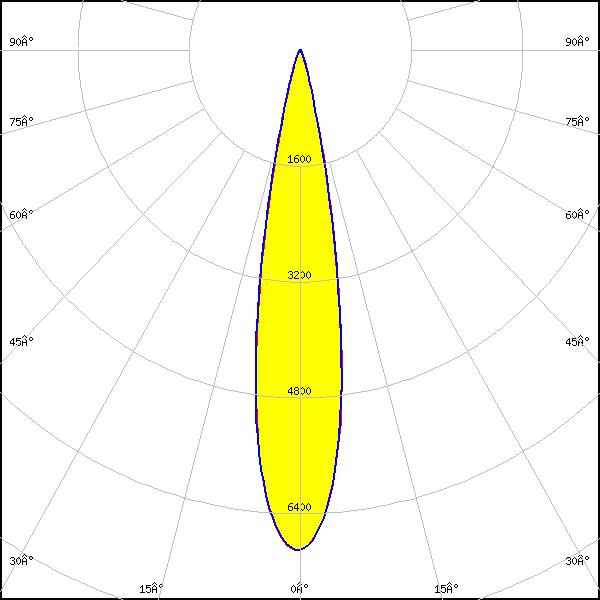

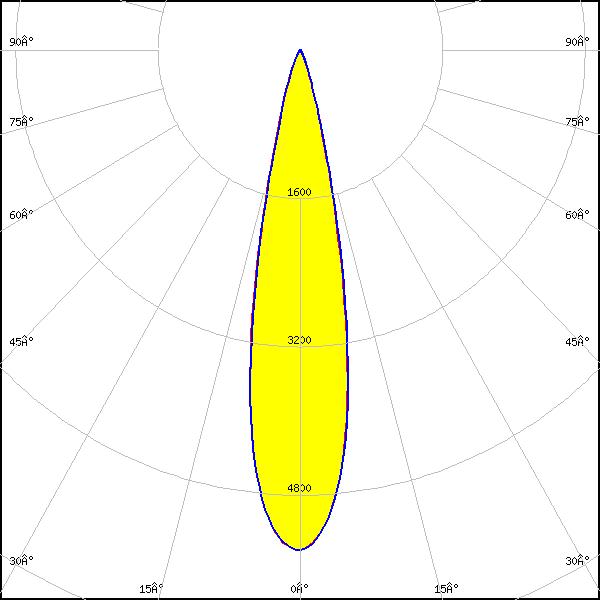

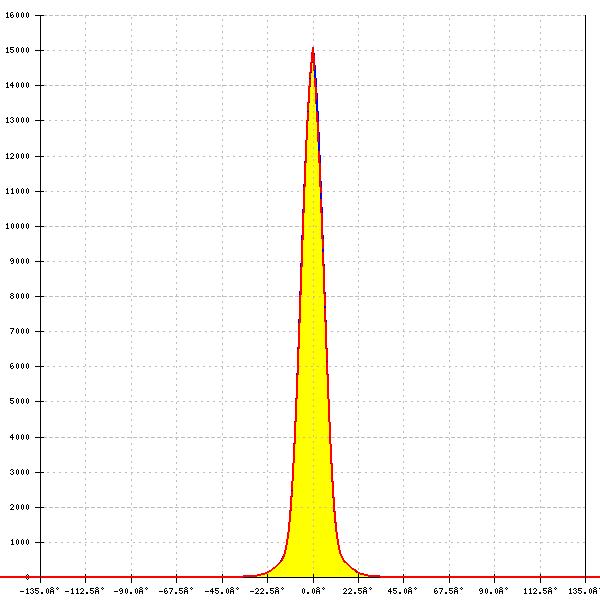

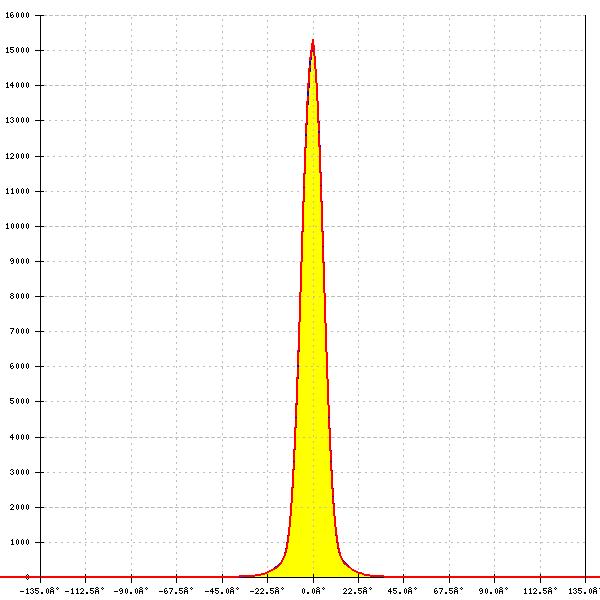

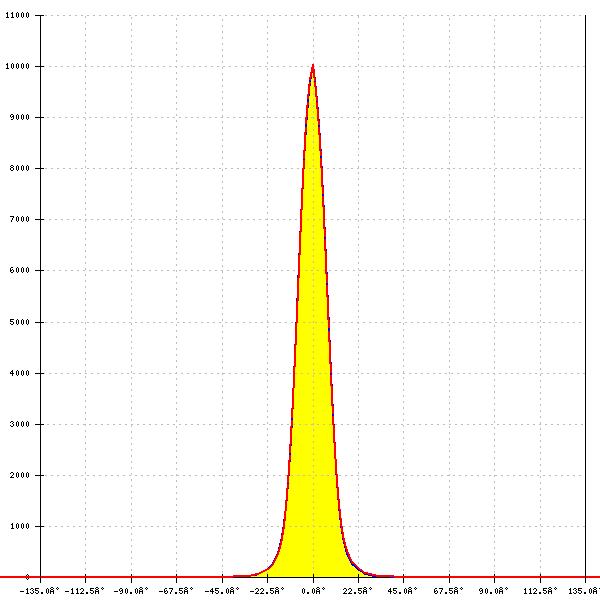

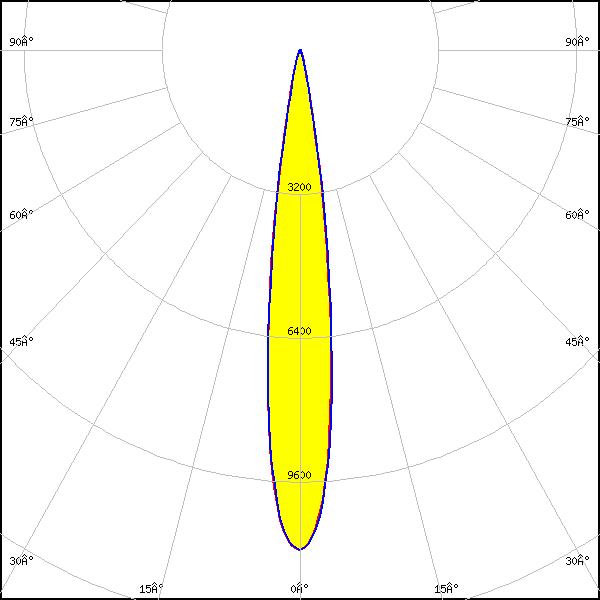

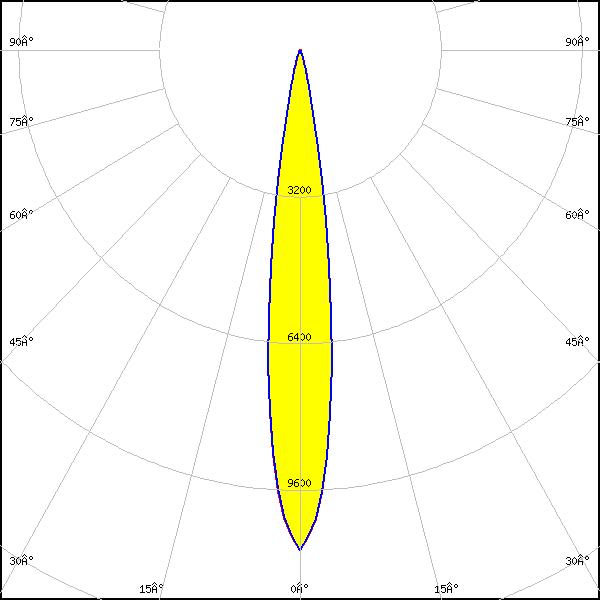

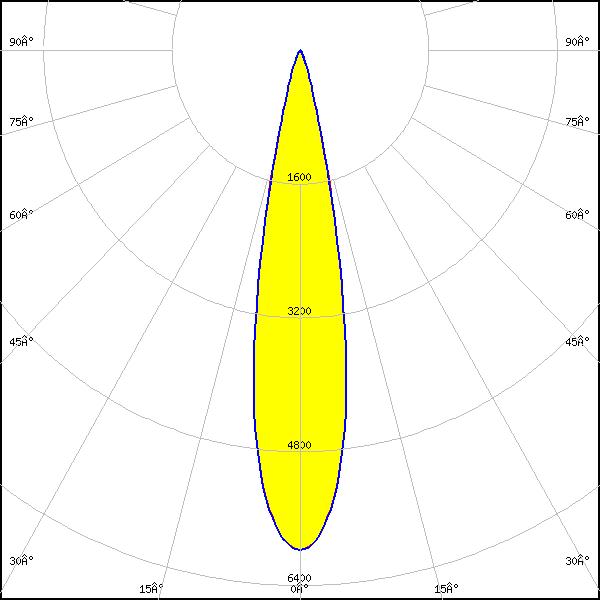

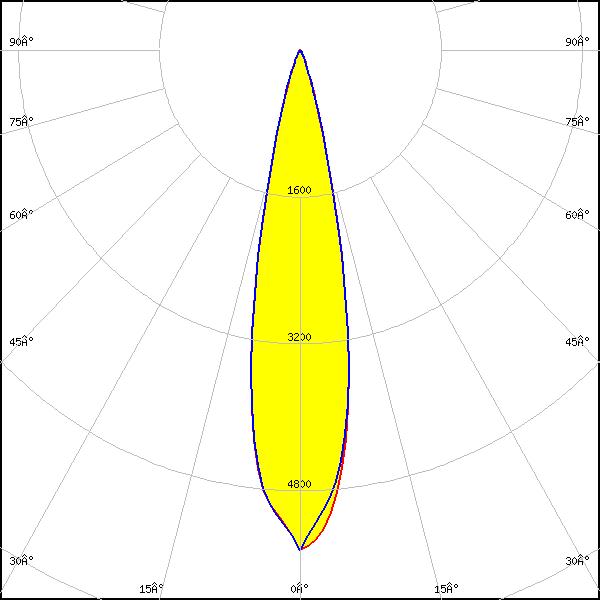

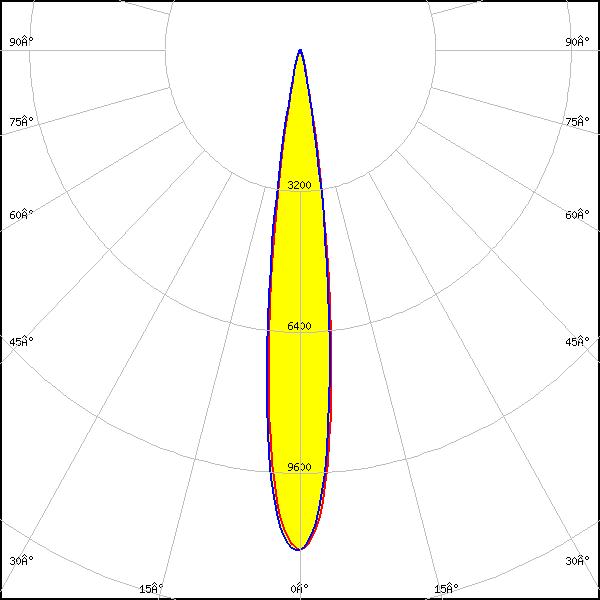

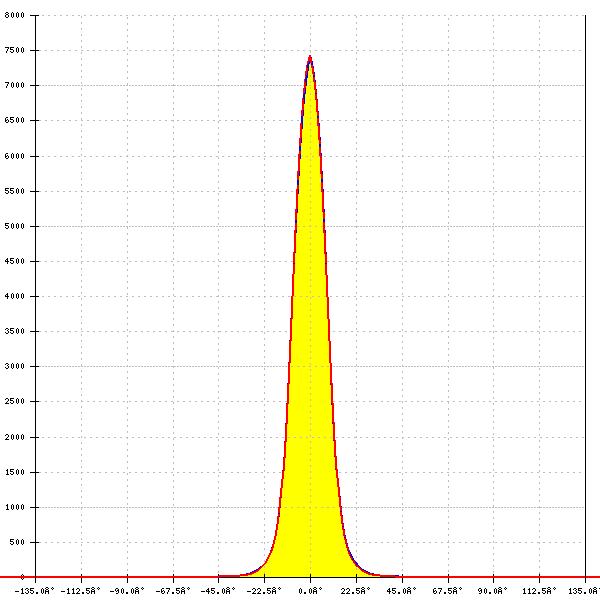

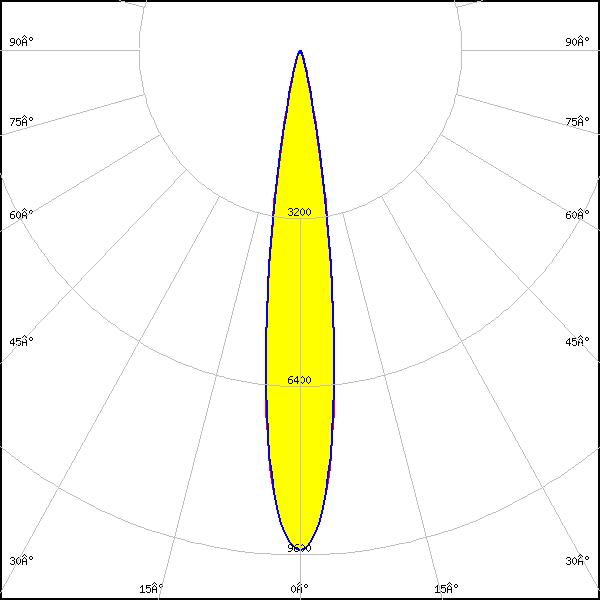

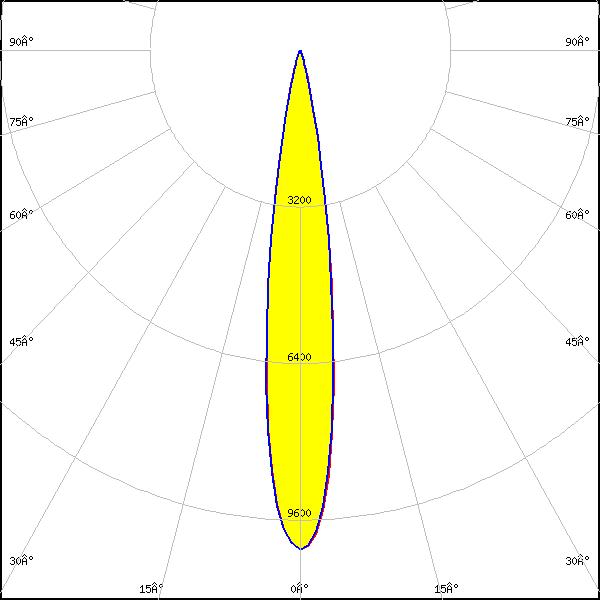

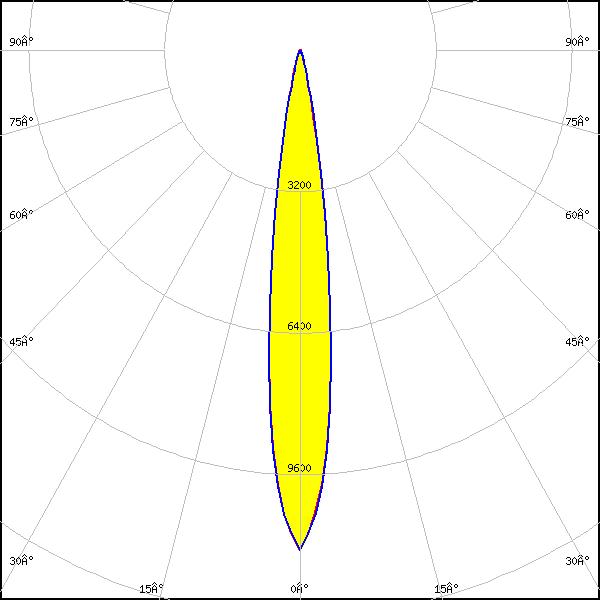

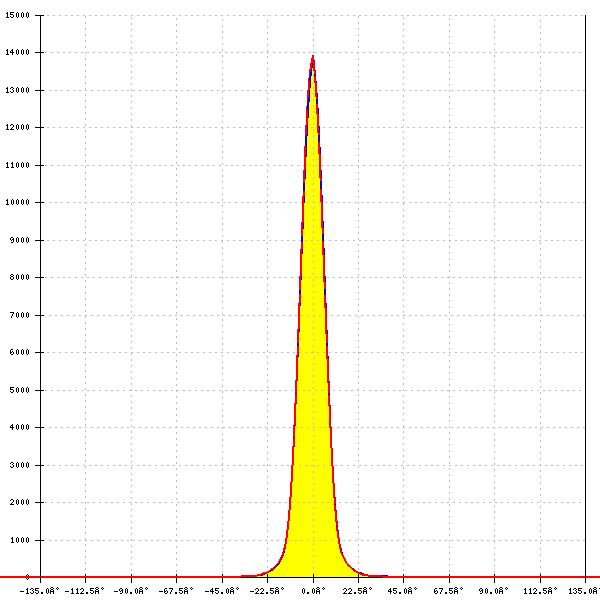

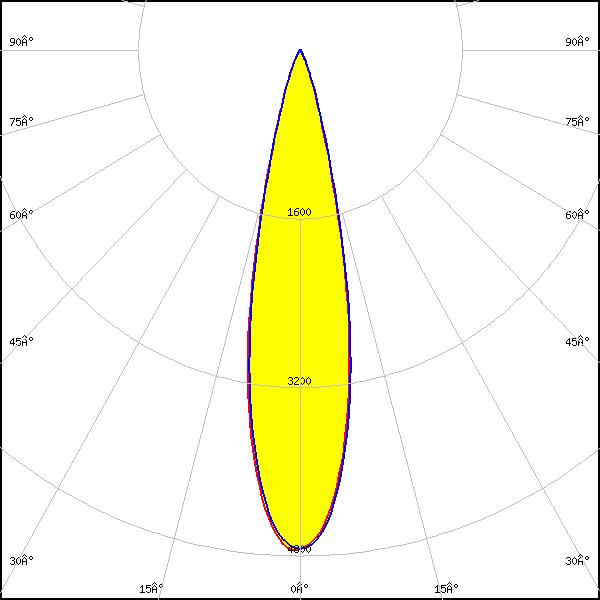

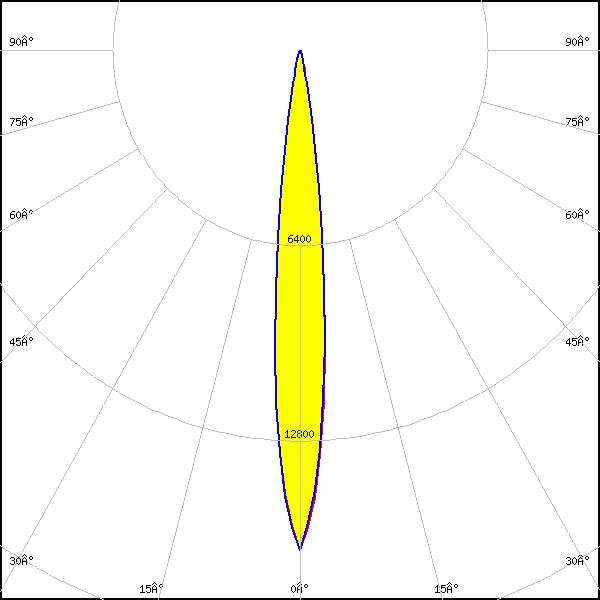

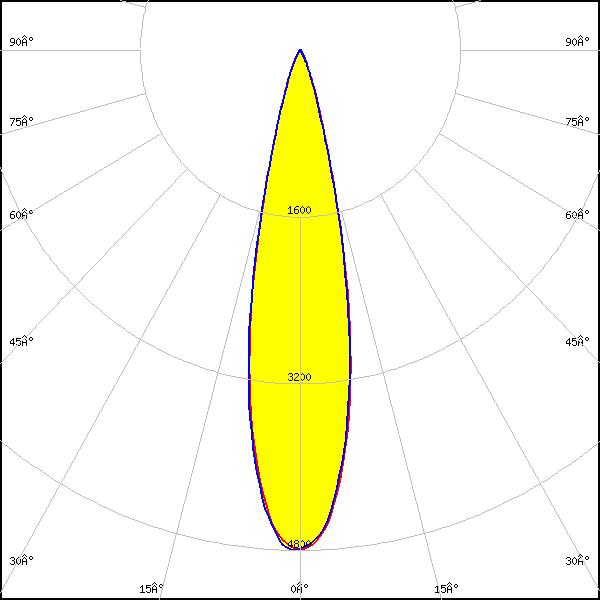

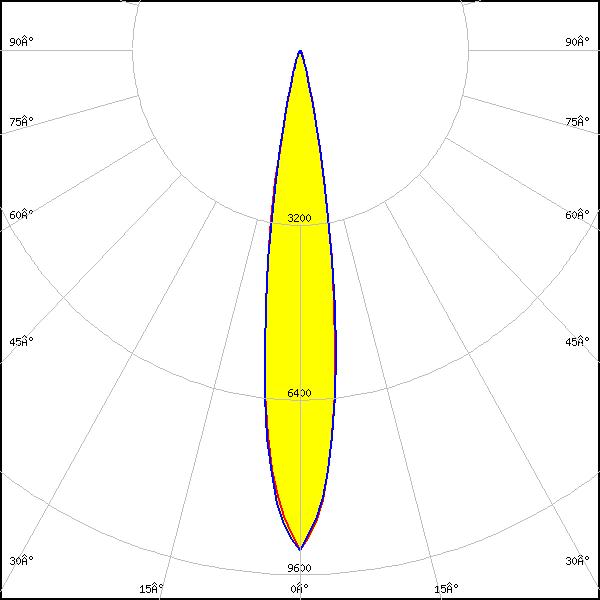

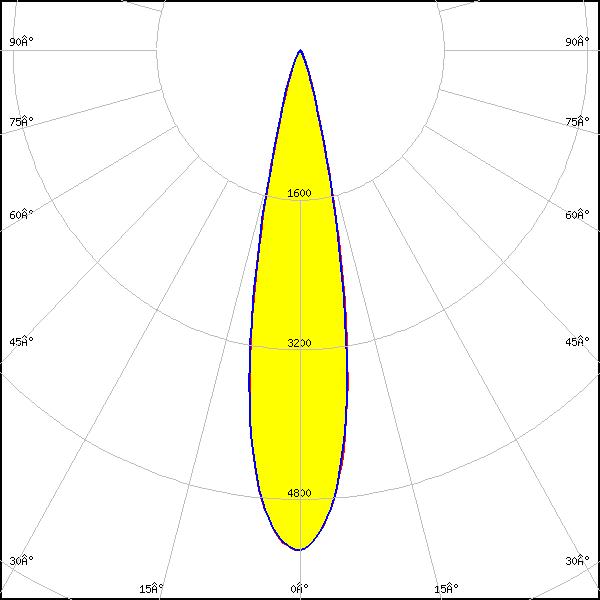

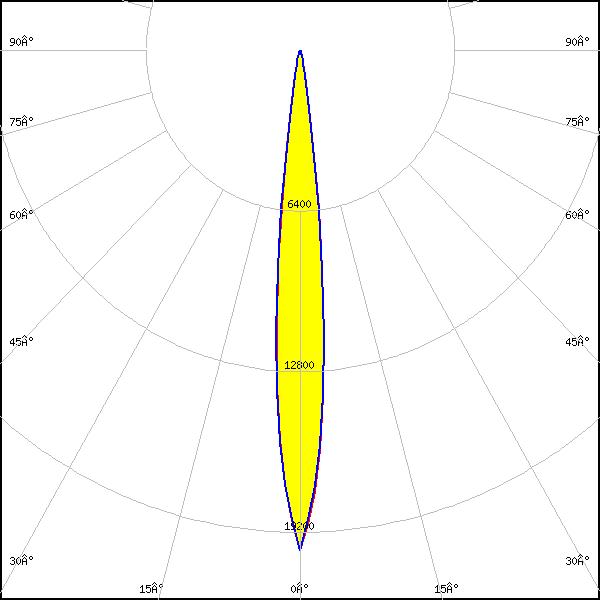

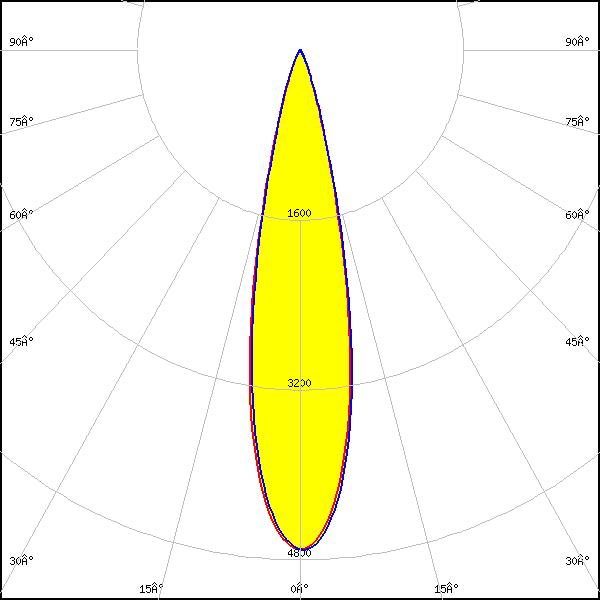

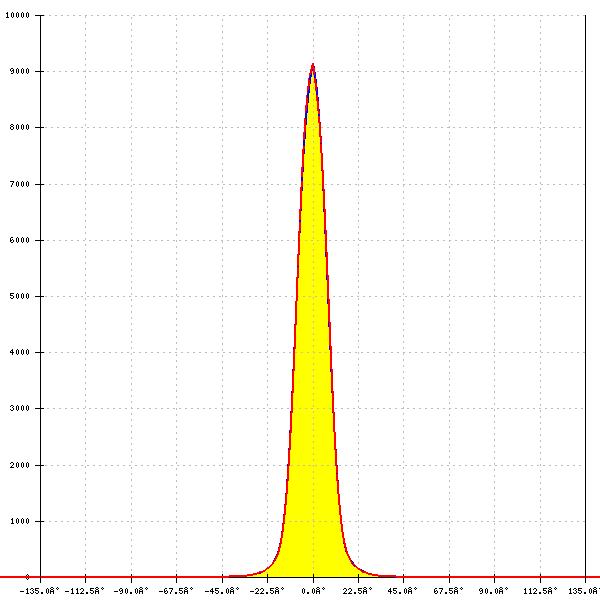

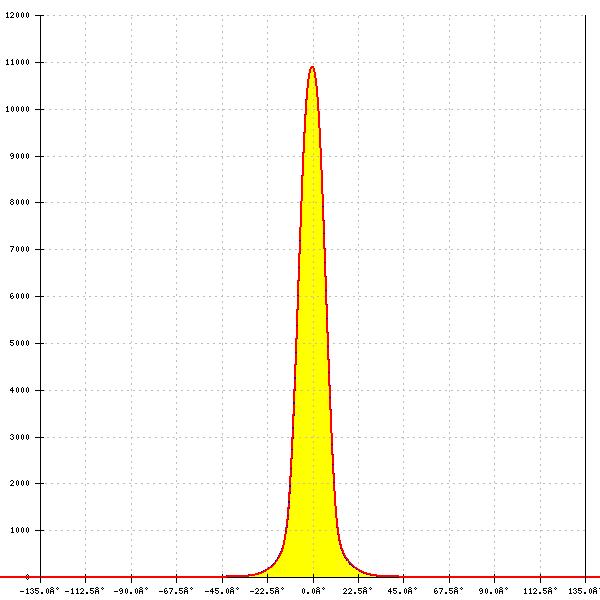

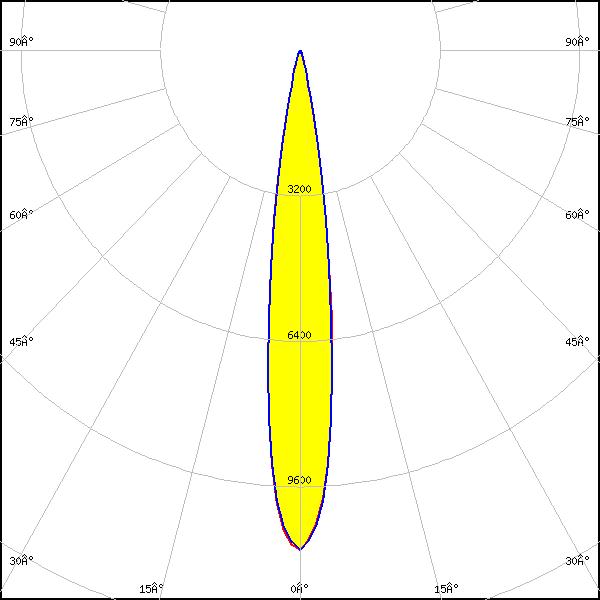

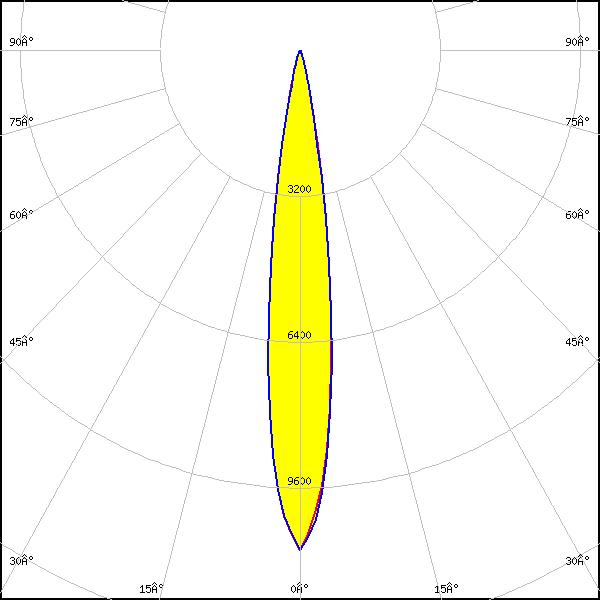

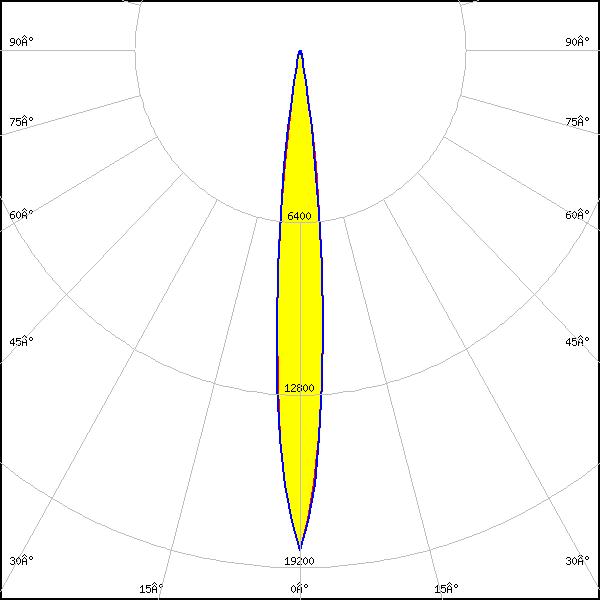

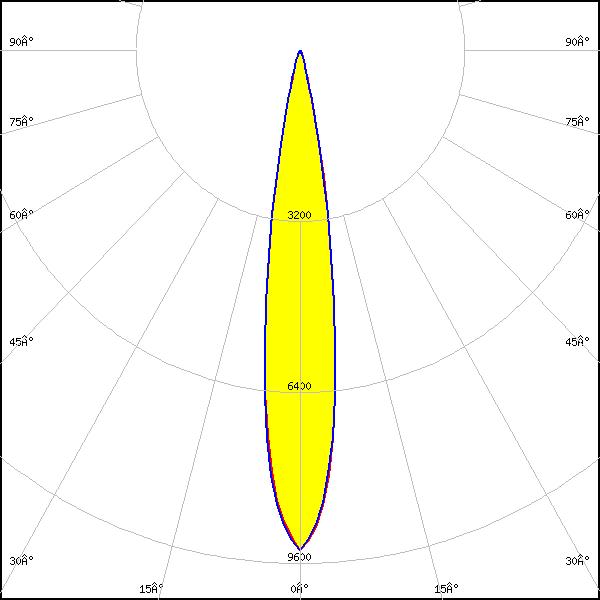

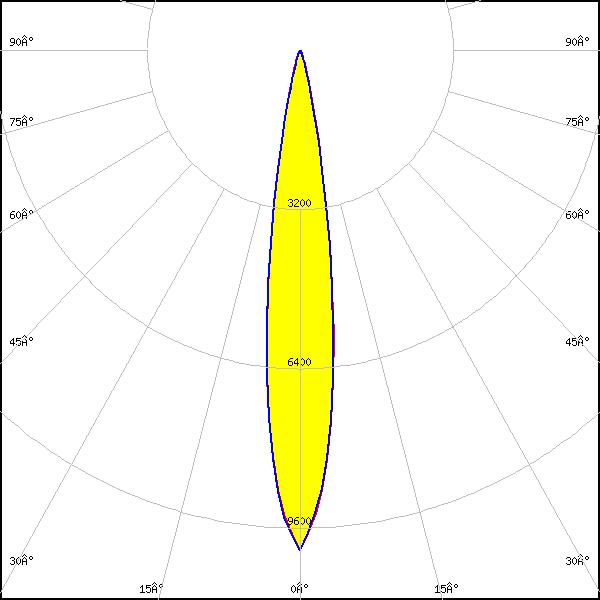

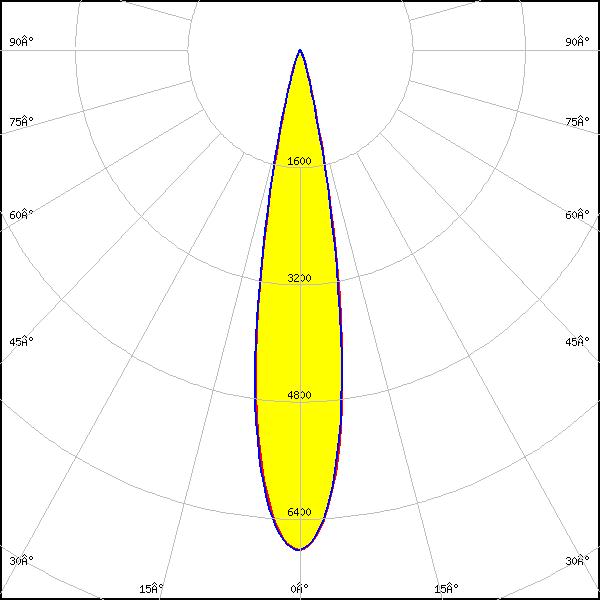

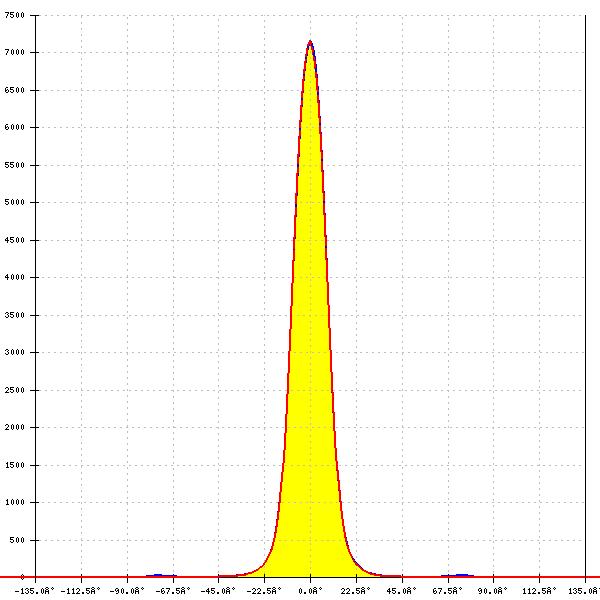

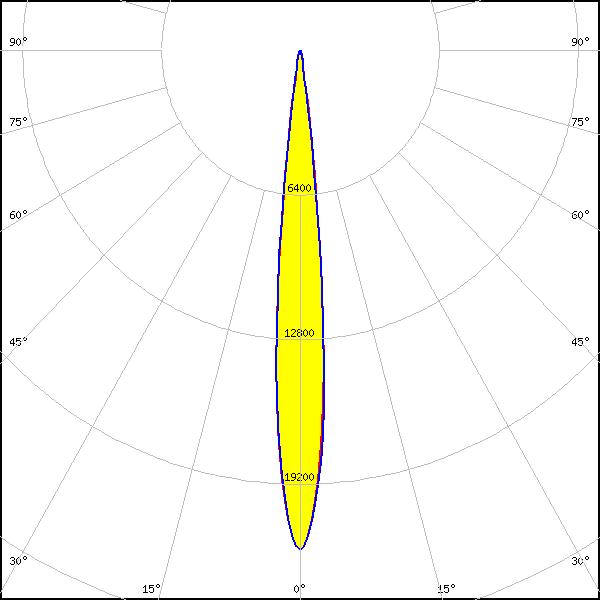

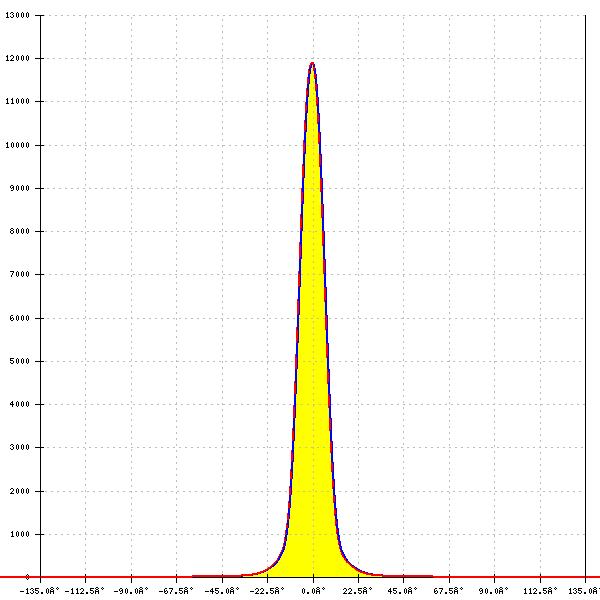

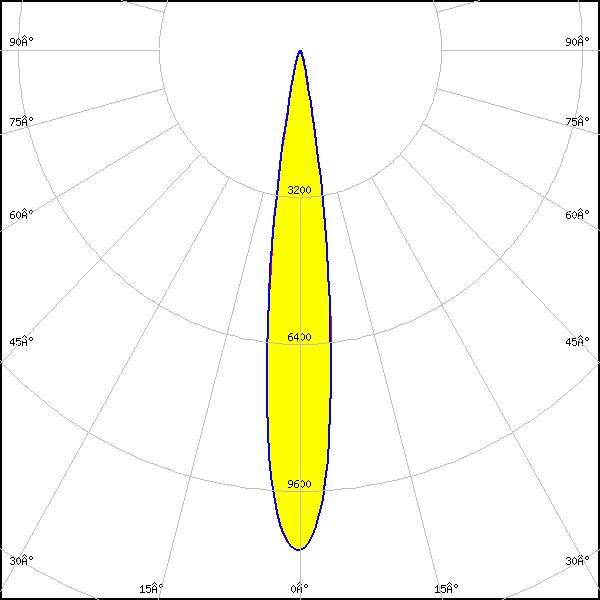

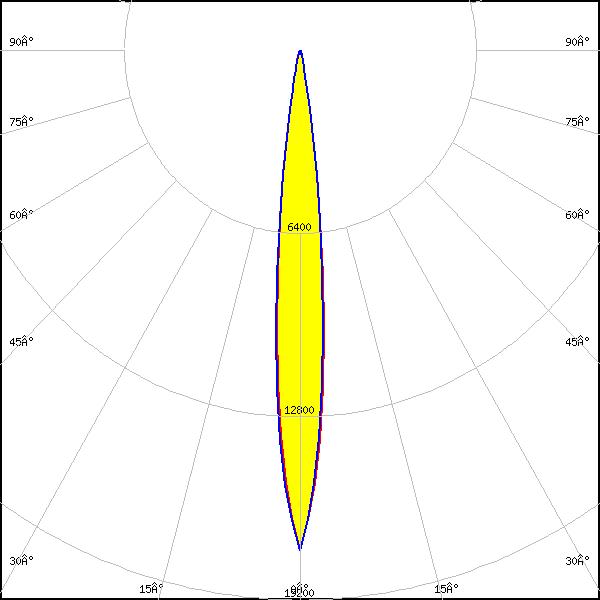

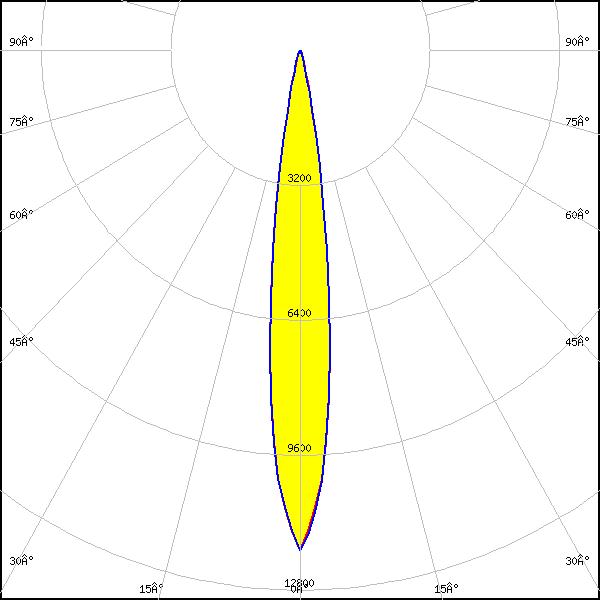

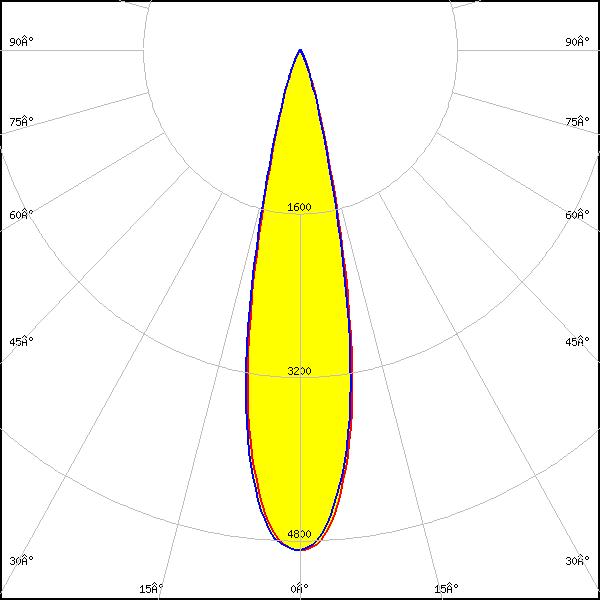

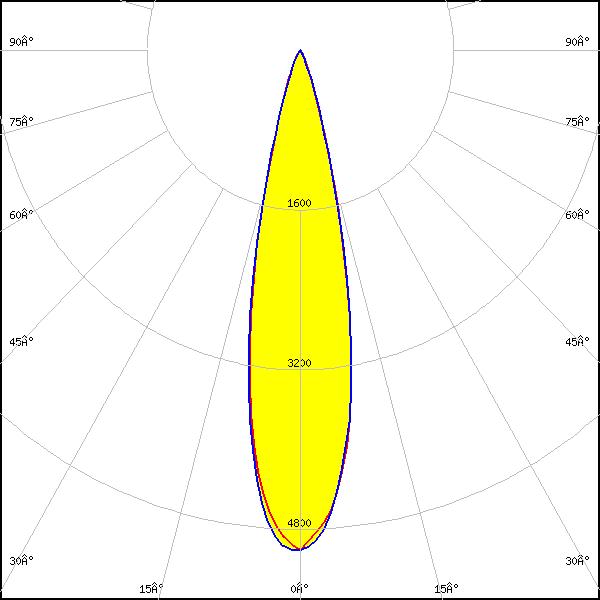

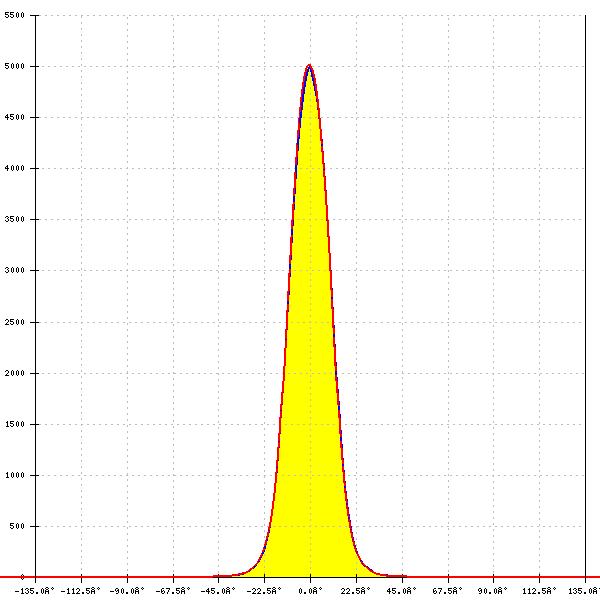

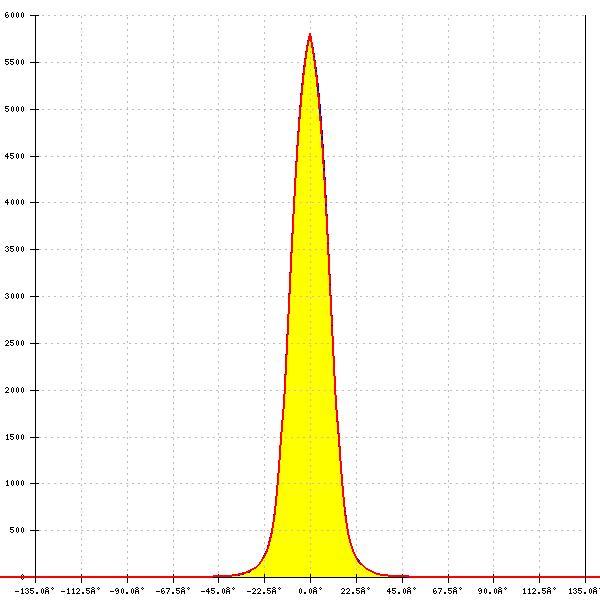

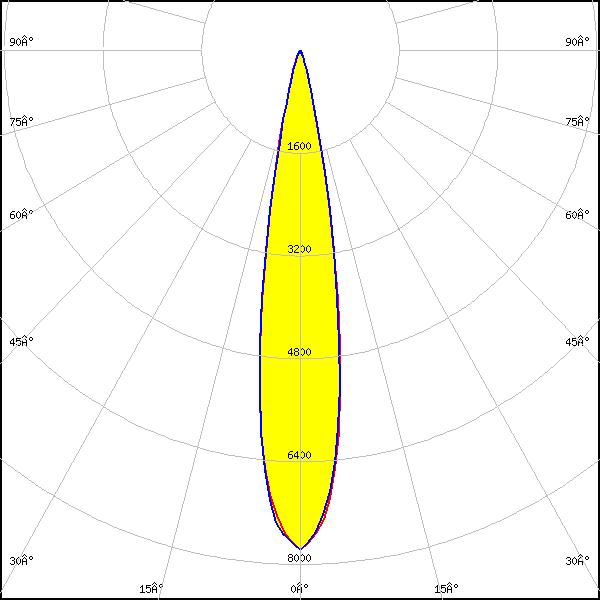

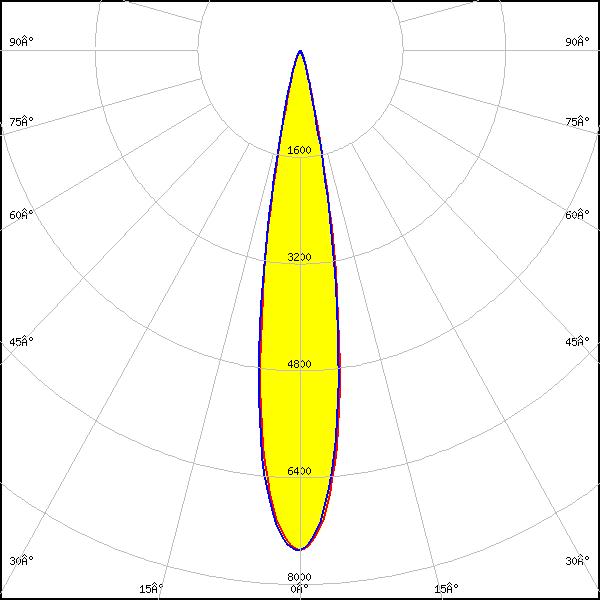

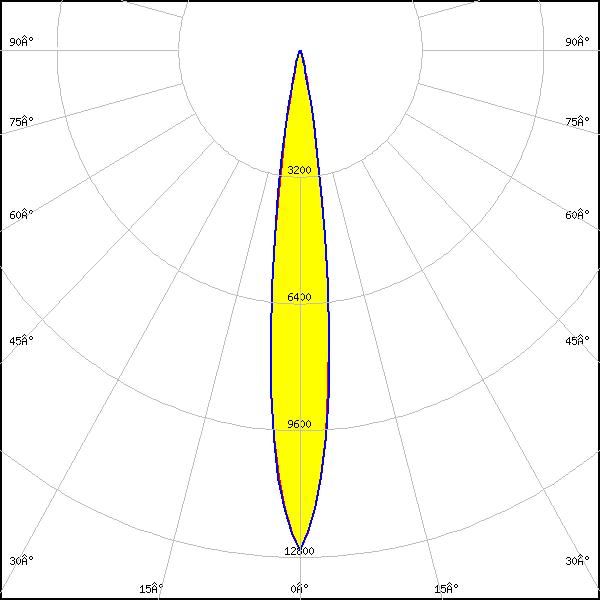

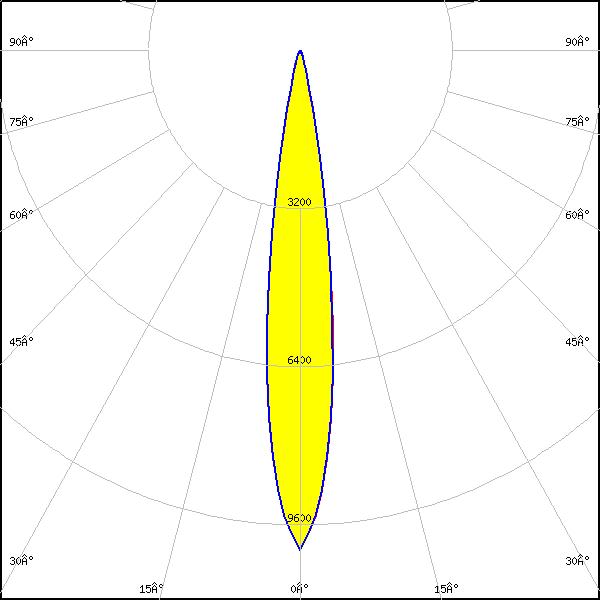

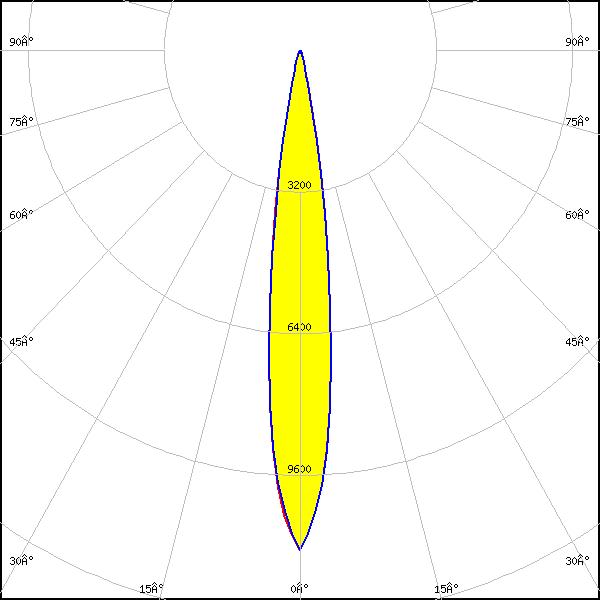

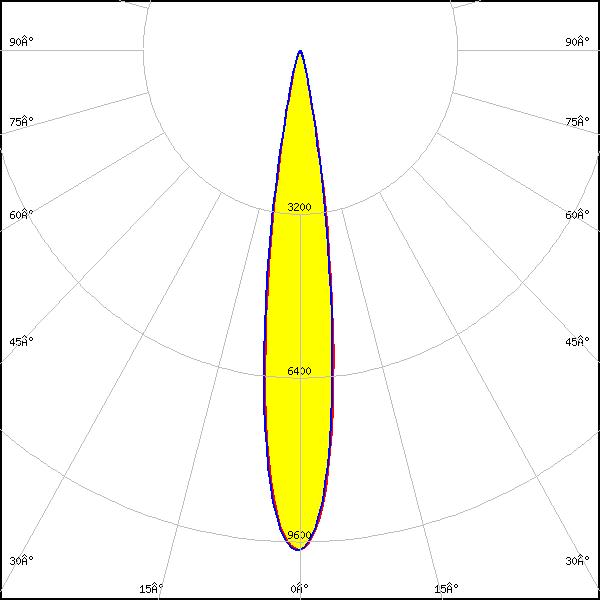

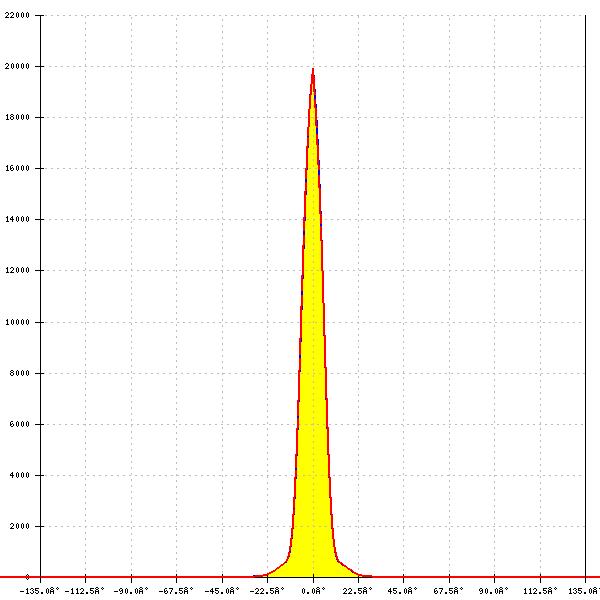

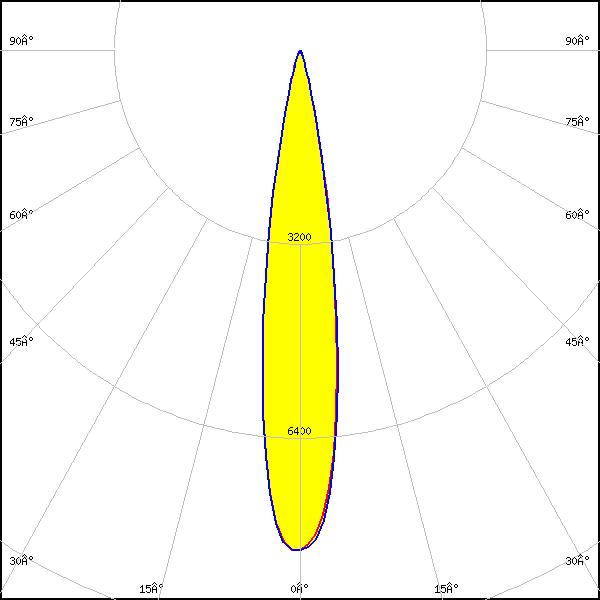

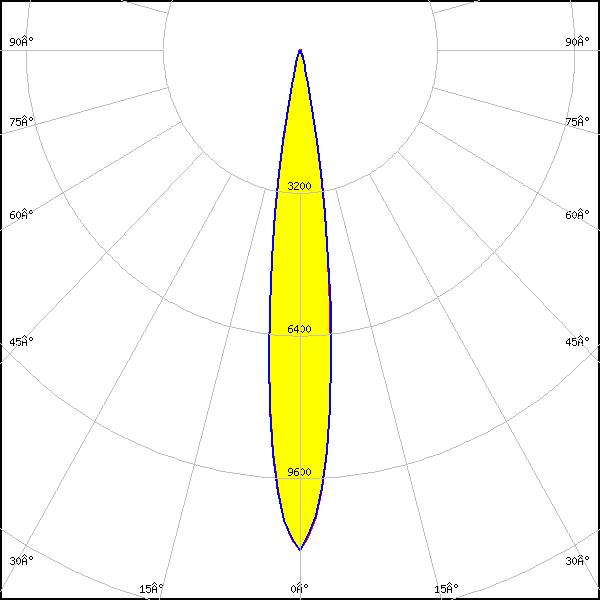

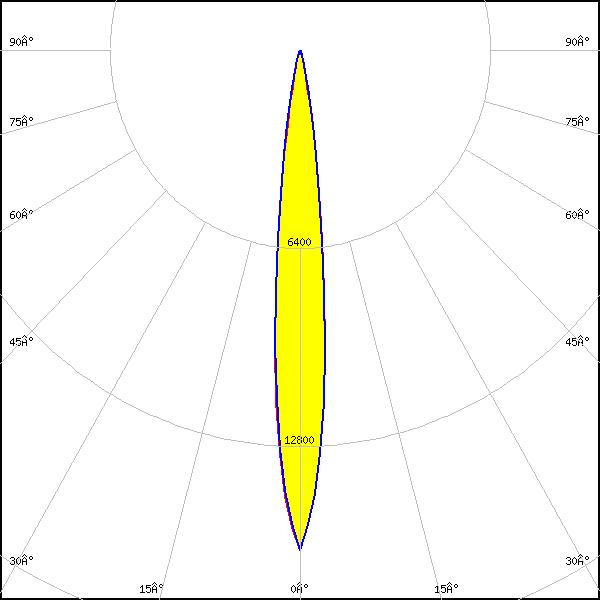

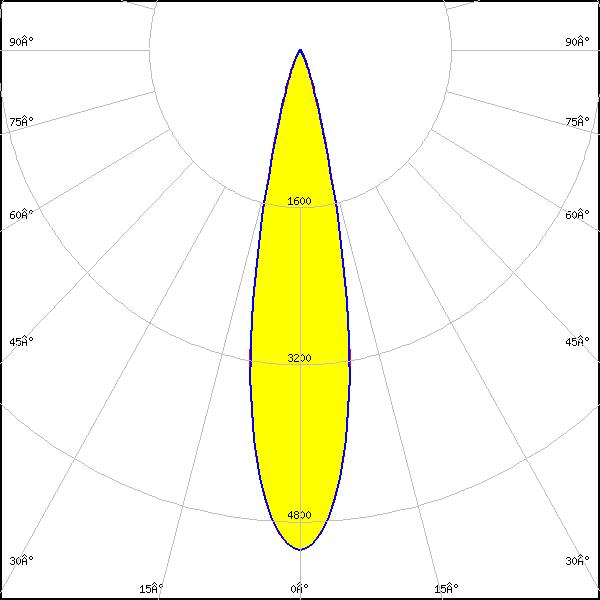

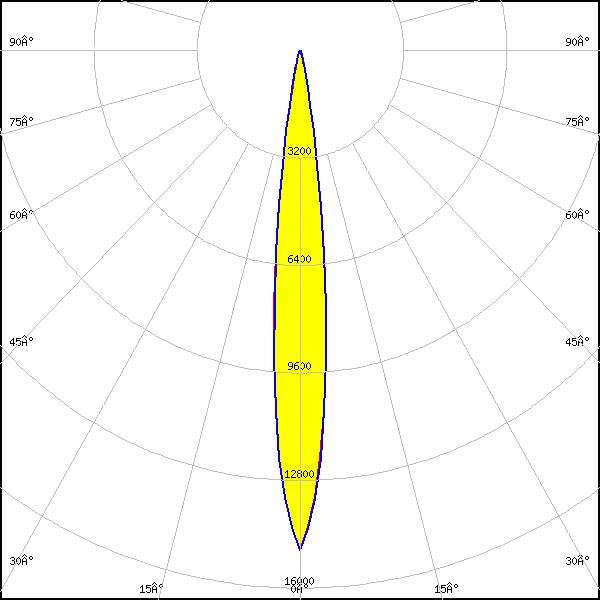

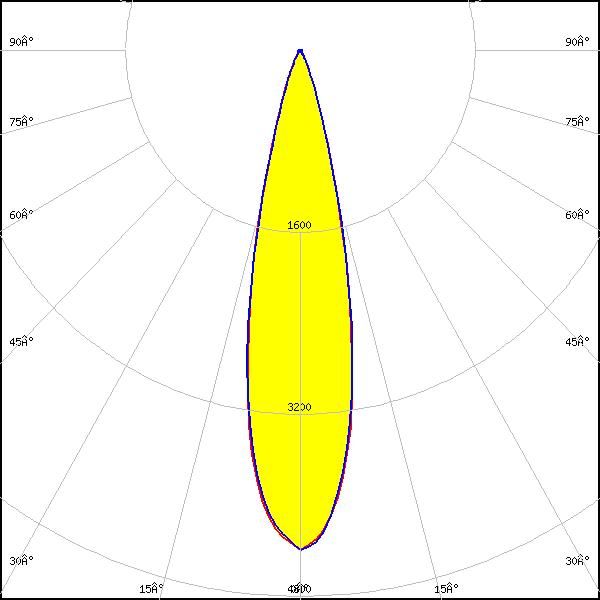

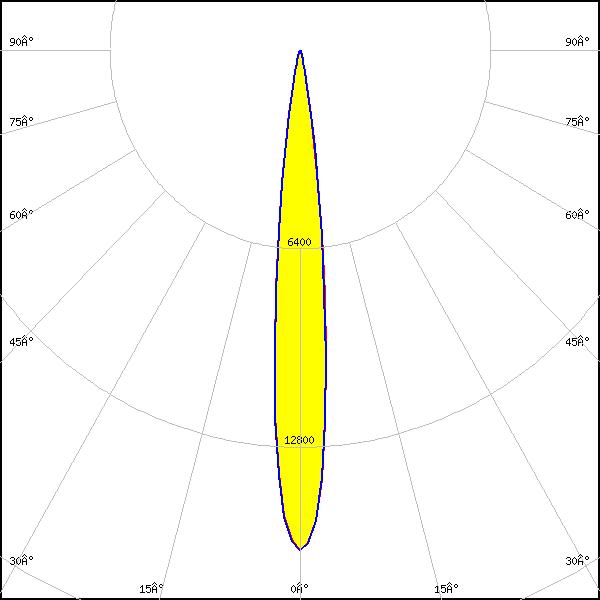

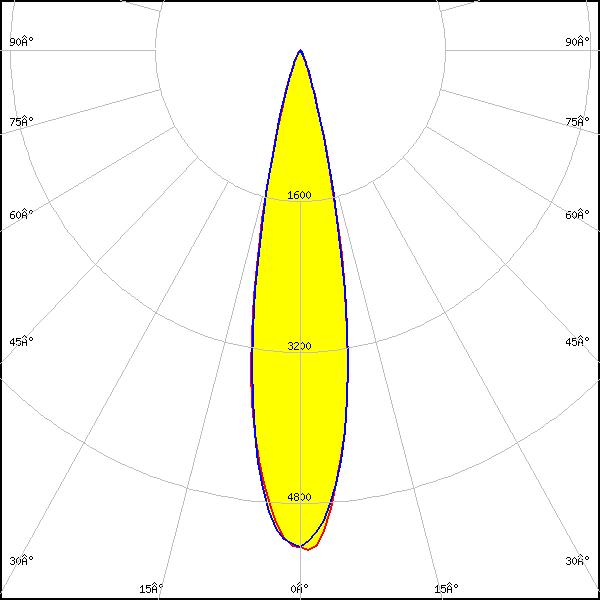

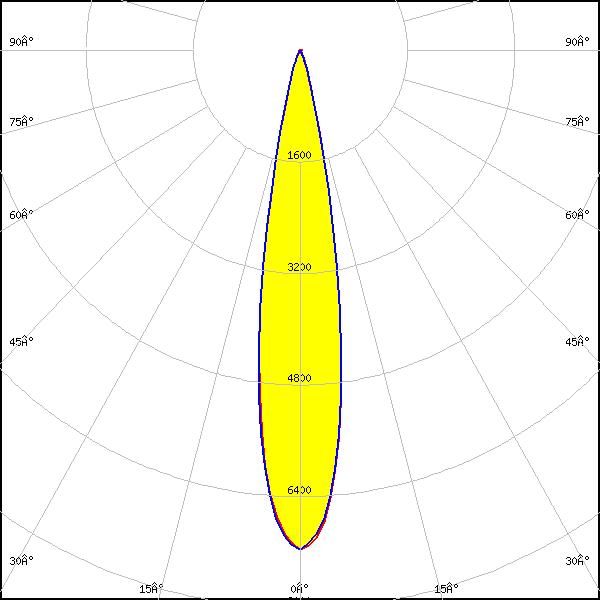

Optical results

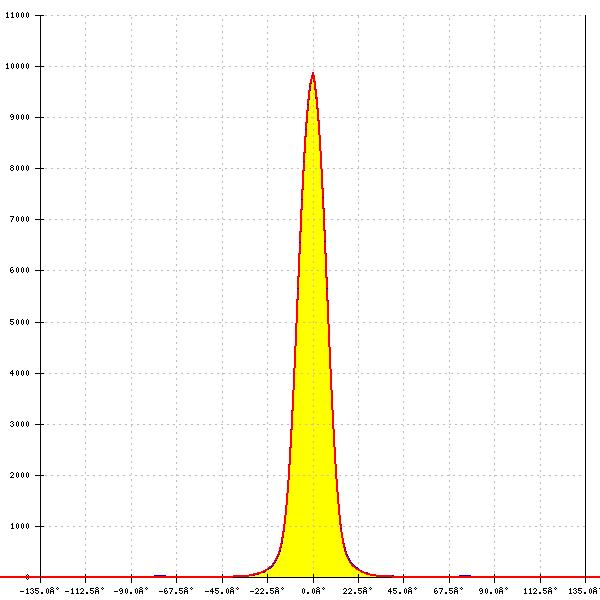

LED:
V10 Gen 8-9
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 10.0 mm
Required components:
BJB: 47.360.1020
FWHM:
16°
FWTM:
28°
Peak intensity:
9.887 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen 8-9
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 10.0 mm
Required components:
FWHM:
16°
FWTM:
27°
Peak intensity:
9.515 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

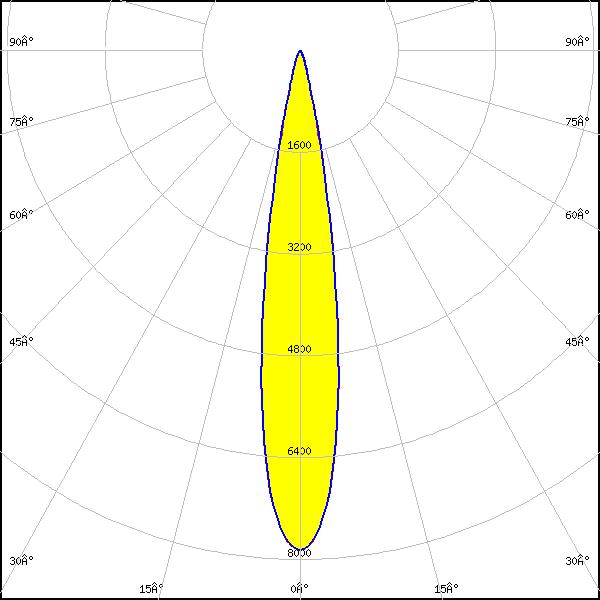

LED:
V11 HD Gen 8
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
18°
FWTM:
30°
Peak intensity:
8.001 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

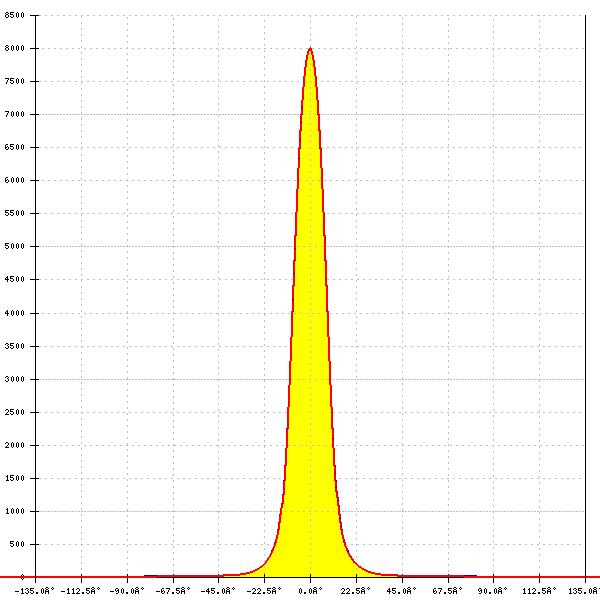

LED:
V11 HD Gen 8
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
18°
FWTM:
30°
Peak intensity:
8.001 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen 8-9
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 14.8 mm
Required components:
FWHM:
23°
FWTM:
39°
Peak intensity:
4.787 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

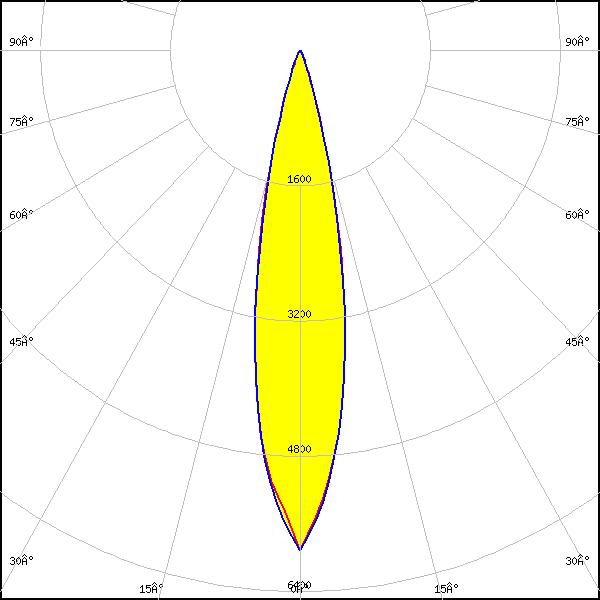

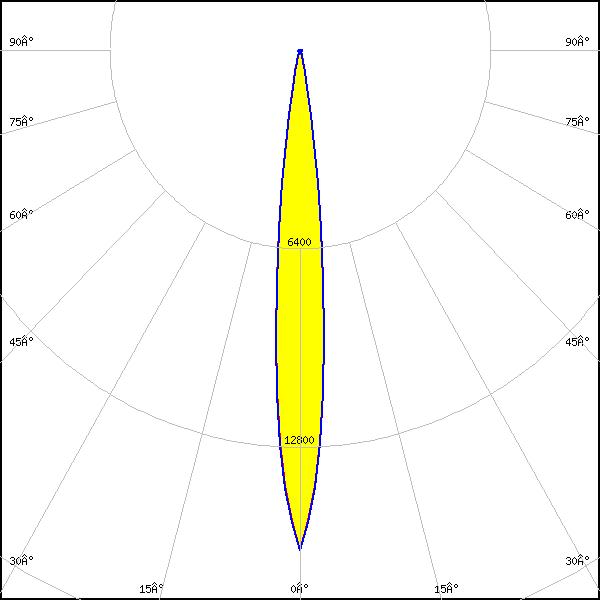

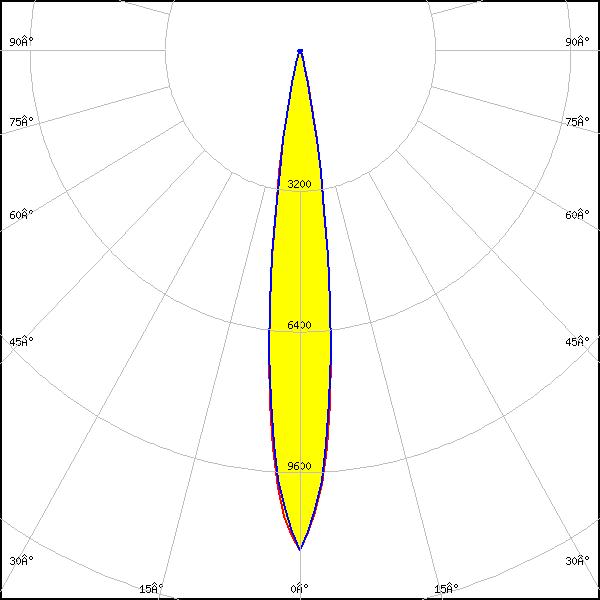

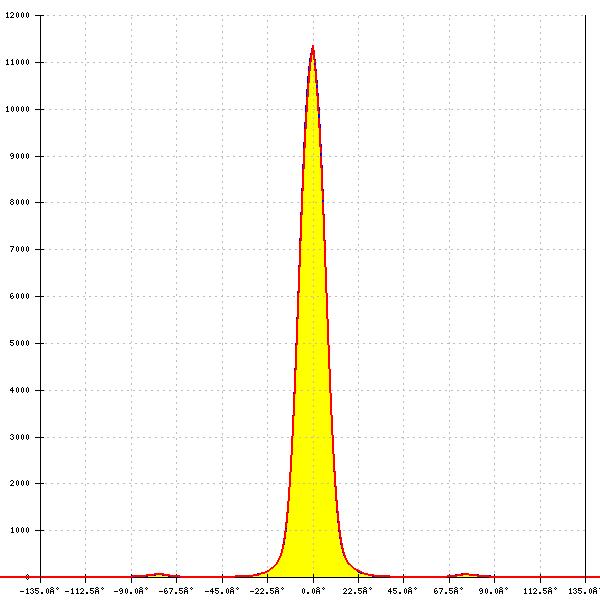

LED:
V13 Gen7
Ordering code: C17238_YASMEEN-70-S
LES size: 14.0 mm
FWHM:
22°
FWTM:
36°
Peak intensity:
5.913 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

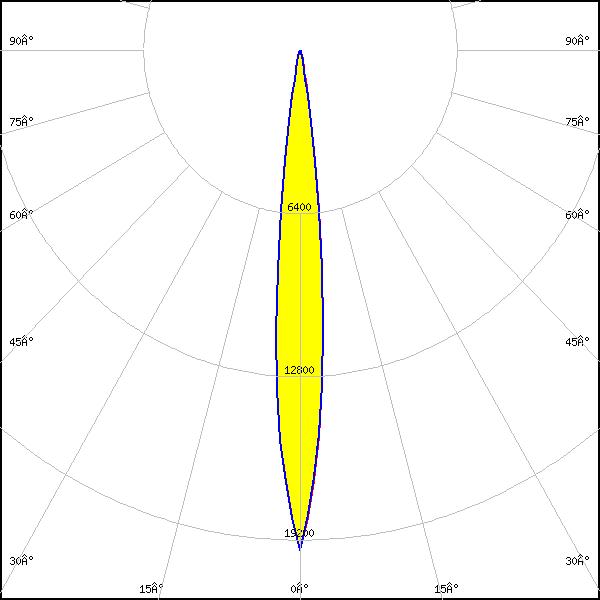

LED:
V3 HD Gen 8
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 3.8 mm
Required components:
FWHM:
11°
FWTM:
20°
Peak intensity:
19.607 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

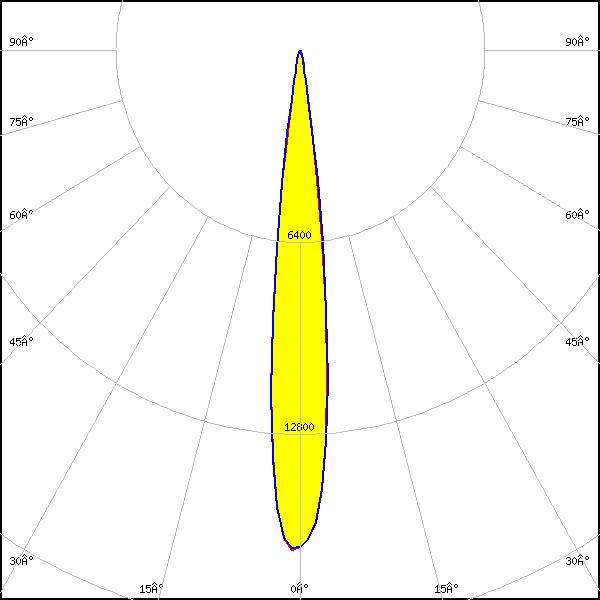

LED:
V3 HD Gen 8 FC
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 2.9 mm
Required components:
FWHM:
12°
FWTM:
20°
Peak intensity:
16.803 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

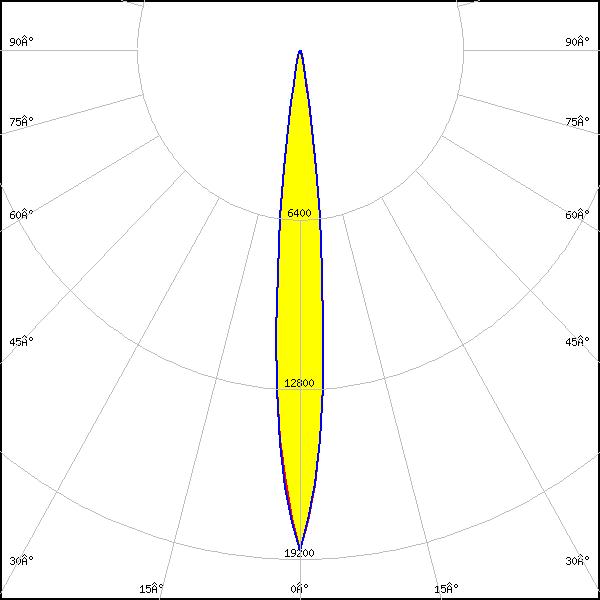

LED:

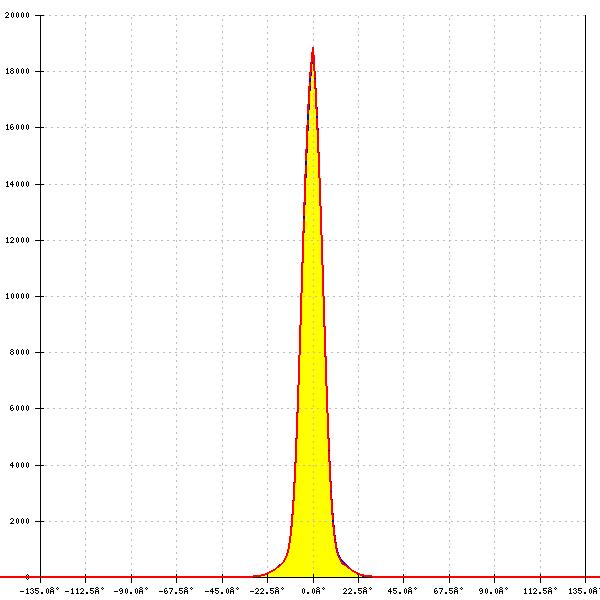

V4 HD Gen 8
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 4.8 mm
Required components:
FWHM:
12°
FWTM:
20°
Peak intensity:
18.854 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

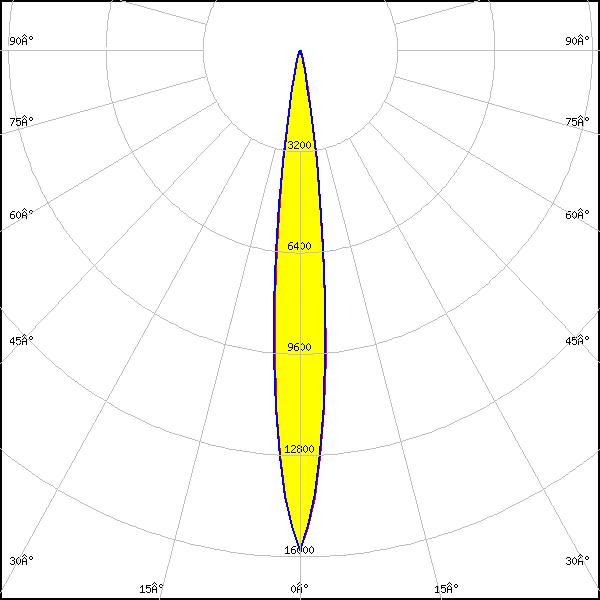

V6 Gen 8-9
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 6.3 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
15.795 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

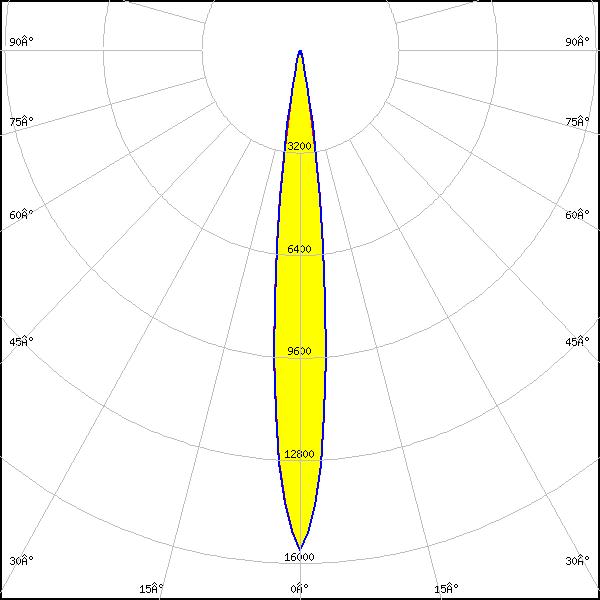

LED:

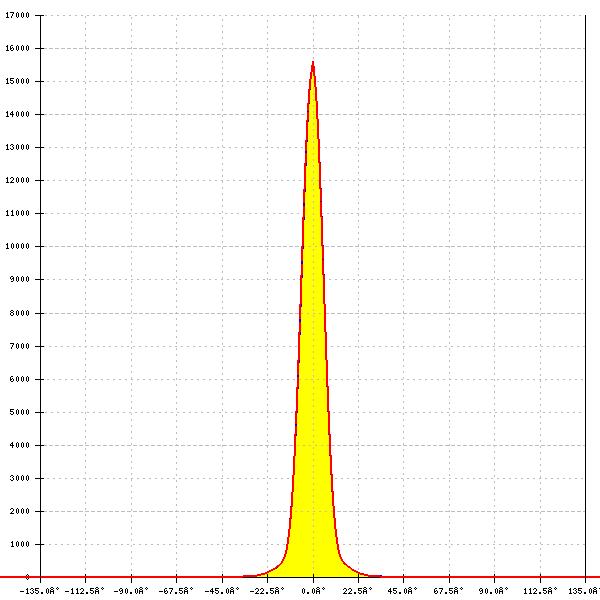

V6 HD Gen 7
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 7.0 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
15.593 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

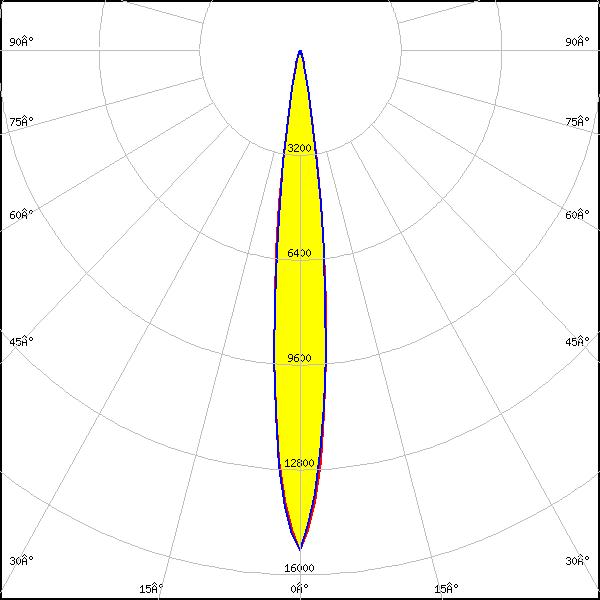

LED:
V6 HD Gen 8
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 6.6 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
15.254 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

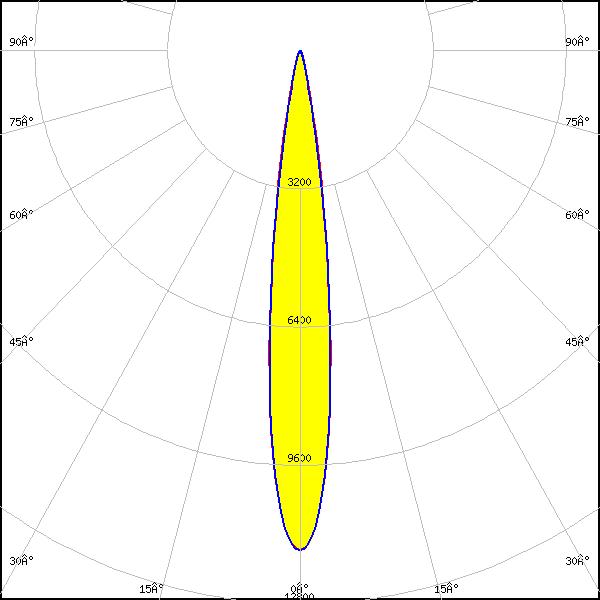

V8 Gen 8-9
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 8.5 mm
Required components:
FWHM:
14°
FWTM:
25°
Peak intensity:
11.568 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V9 HD Gen 8
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 8.8 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
12.366 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

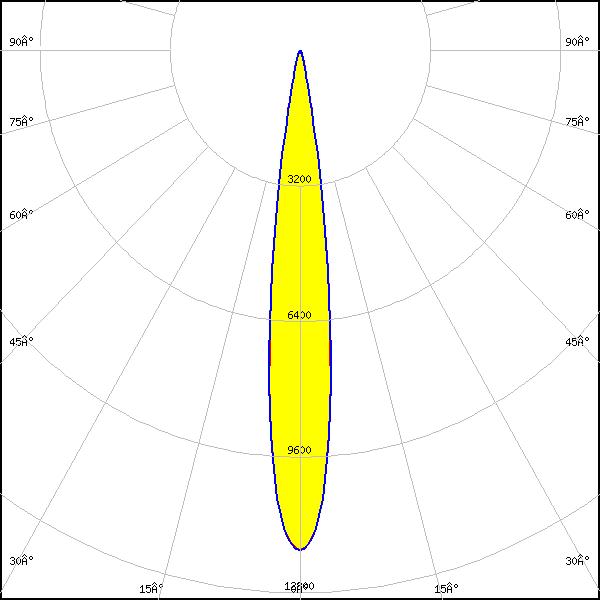

LED:

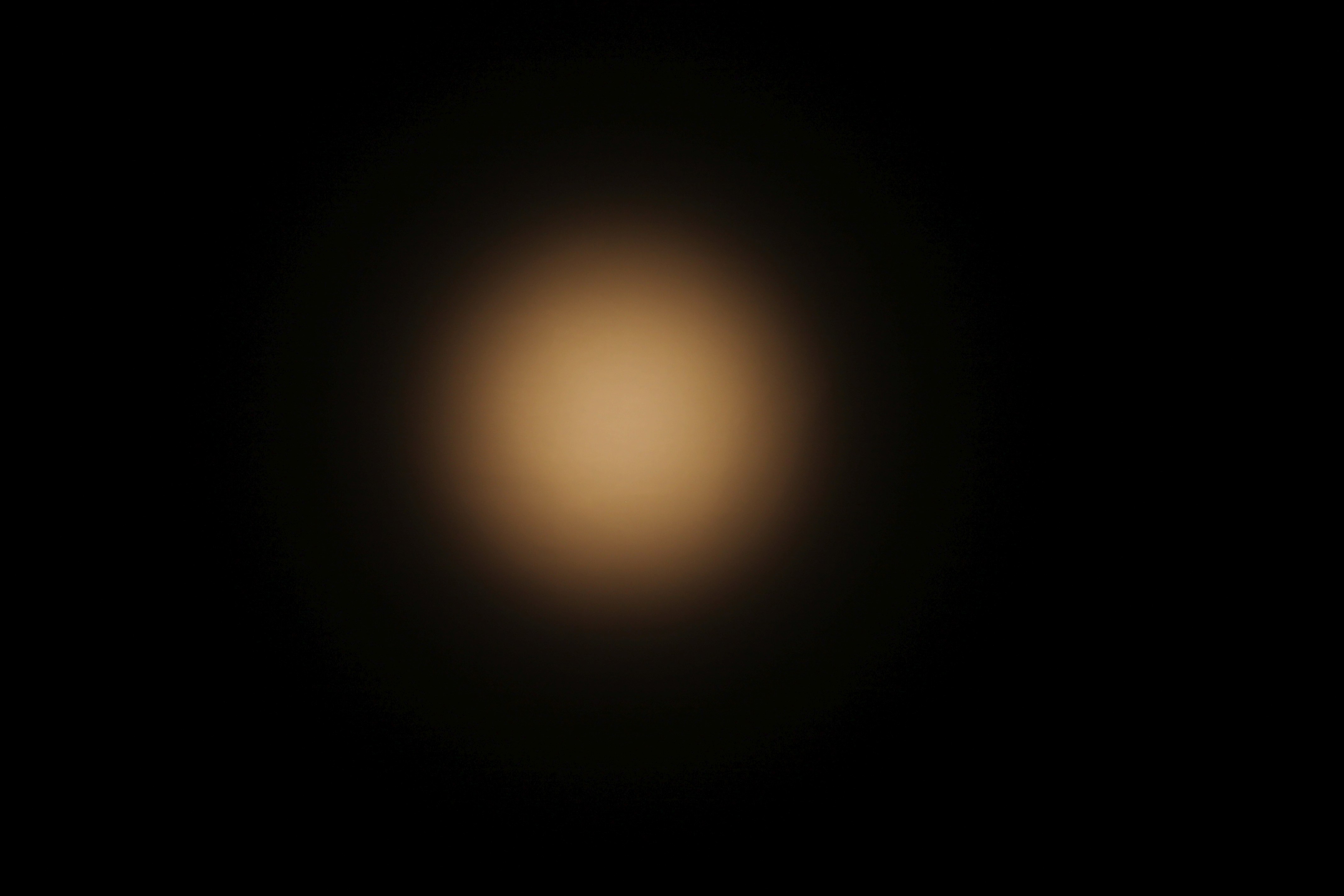

V9 HD Gen7
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.2 mm
Required components:
FWHM:
14°
FWTM:
24°
Peak intensity:
12.106 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V9 HD Gen7
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 9.2 mm
Required components:
FWHM:
13°
FWTM:
24°
Peak intensity:
12.106 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO10
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.9 mm
Required components:
FWHM:
14°
FWTM:
25°
Peak intensity:
10.887 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO10
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 9.9 mm
Required components:
FWHM:
14°
FWTM:
25°
Peak intensity:
10.887 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 13.4 mm
Required components:
FWHM:
20°
FWTM:
34°
Peak intensity:
6.679 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

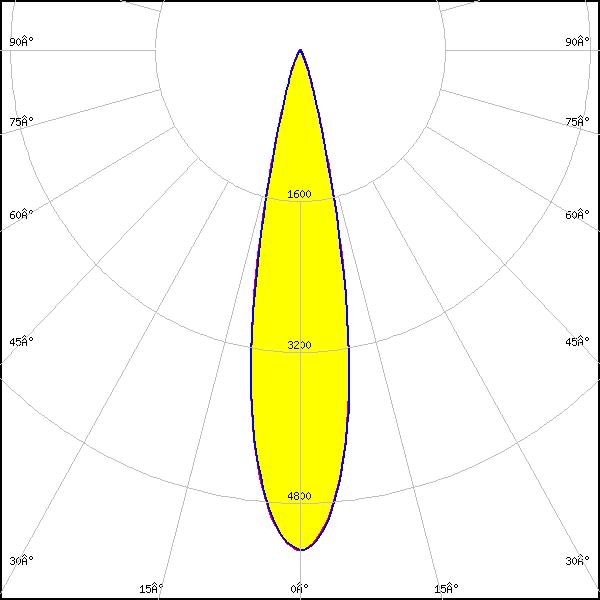

LED:

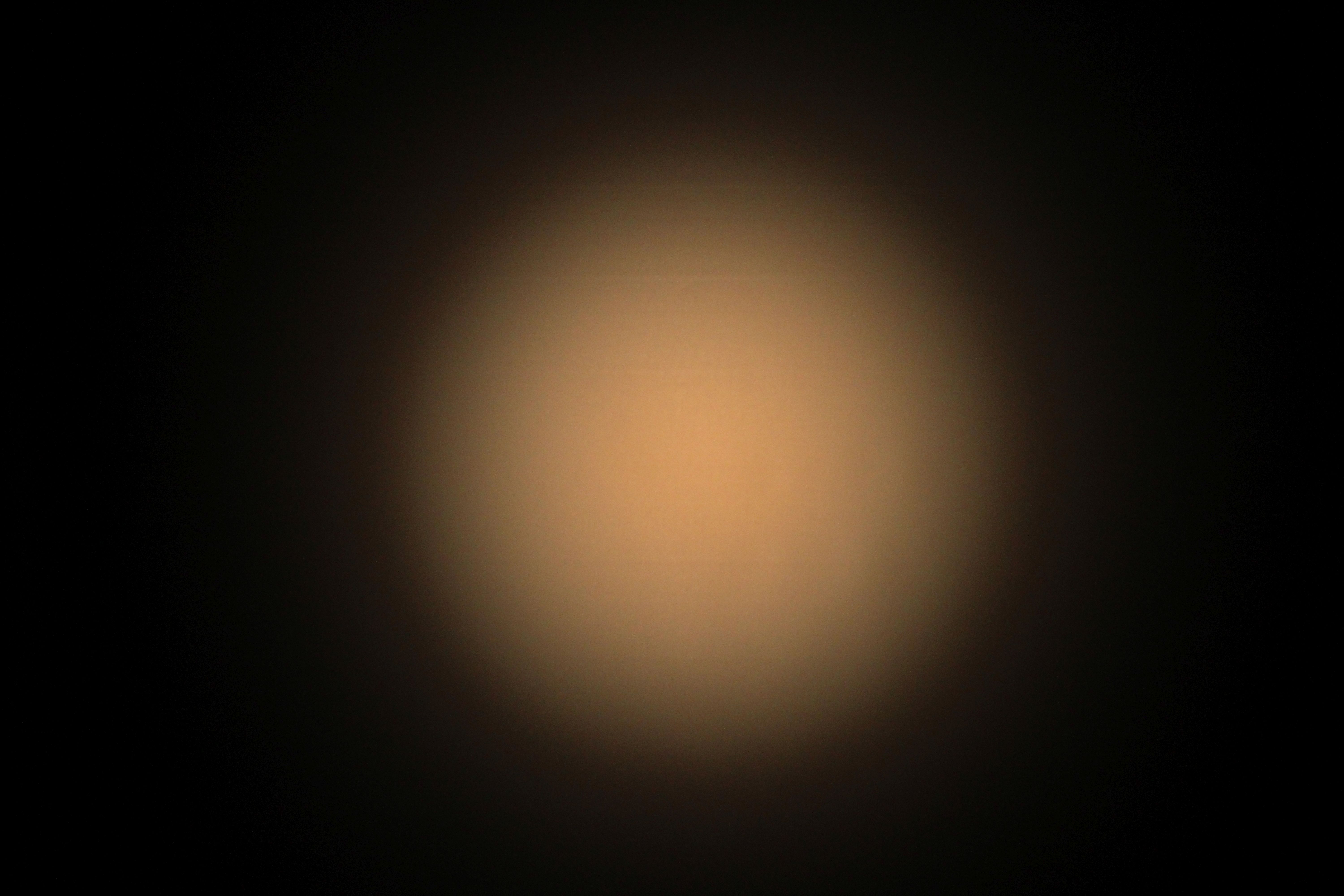

Vesta DTW 13mm (21W)
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM:
22°
FWTM:
37°
Peak intensity:
5.306 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

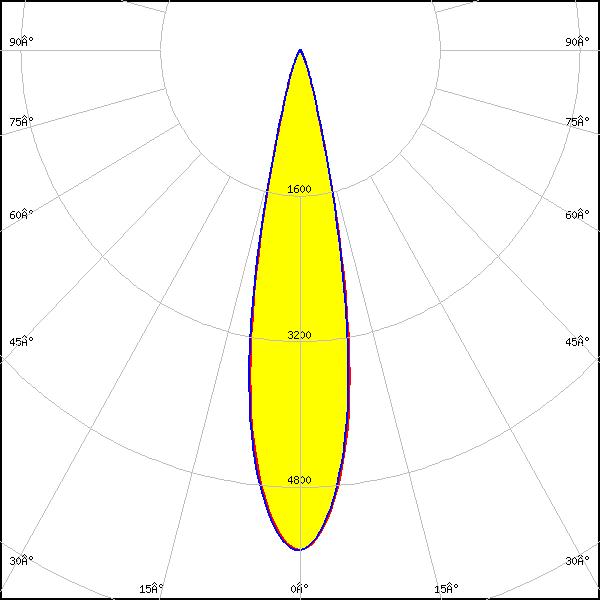

LED:
Vesta DTW 13mm (21W)
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 14.0 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM:
22°
FWTM:
36°
Peak intensity:
5.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta DTW 15mm (33W)
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 16.2 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM:
23°
FWTM:
39°
Peak intensity:
4.934 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

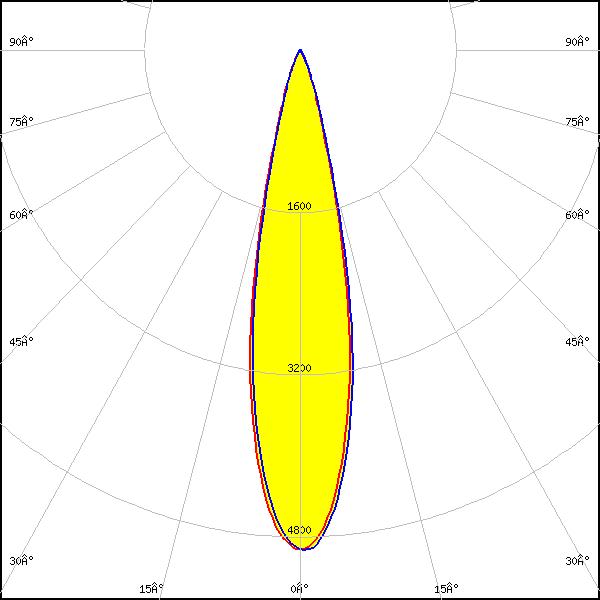

Vesta DTW 15mm (33W)
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 16.2 mm
Required components:
Bender Wirth: 632b Hekla XL
FWHM:
23°
FWTM:
39°
Peak intensity:
4.934 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta DTW 6mm
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 6.8 mm
Required components:
Bender Wirth: 652b Hekla
FWHM:
12°
FWTM:
22°
Peak intensity:
15.084 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

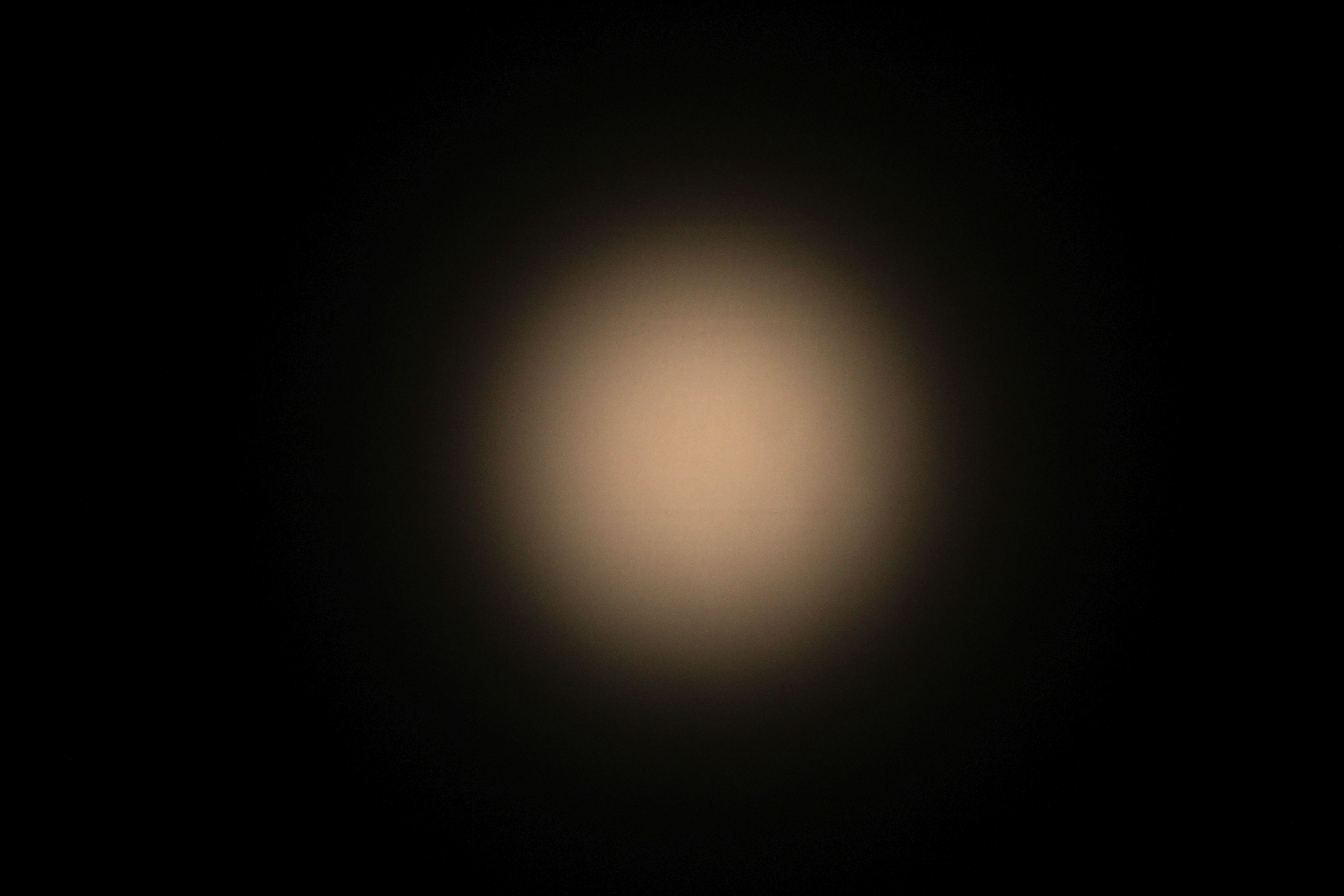

Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Hekla
FWHM:
15°
FWTM:
26°
Peak intensity:
10.572 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

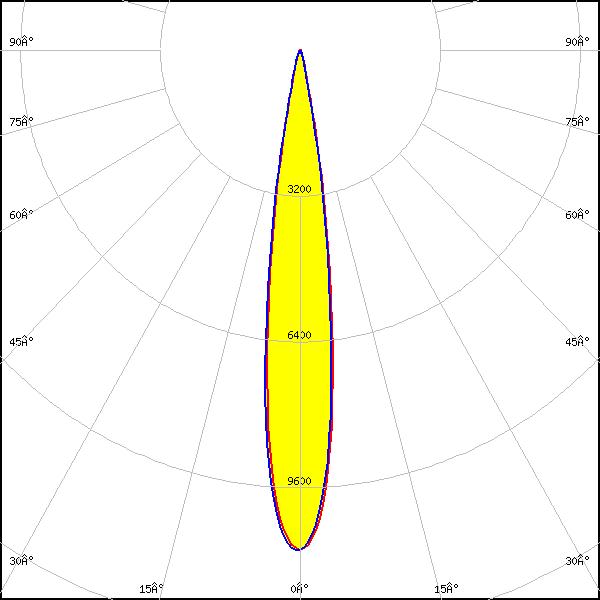

Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Hekla
FWHM:
15°
FWTM:
25°
Peak intensity:
10.983 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

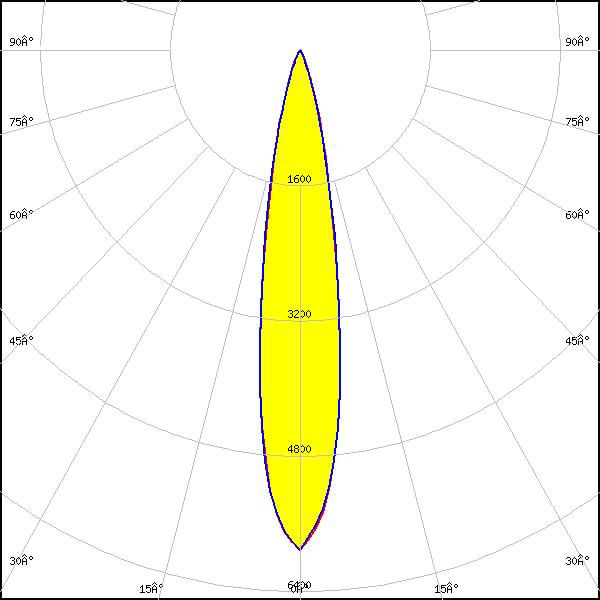

LED:
Vesta SE 13mm TW
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 14.3 mm
Required components:
FWHM:
18°
FWTM:
37°
Peak intensity:
5.913 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 13mm (18W) DP
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 14.0 mm
Required components:
FWHM:
20°
FWTM:
35°
Peak intensity:
6.354 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White

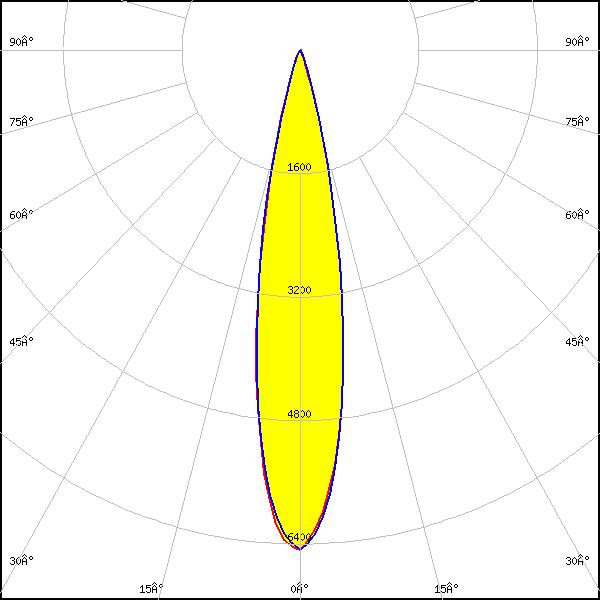

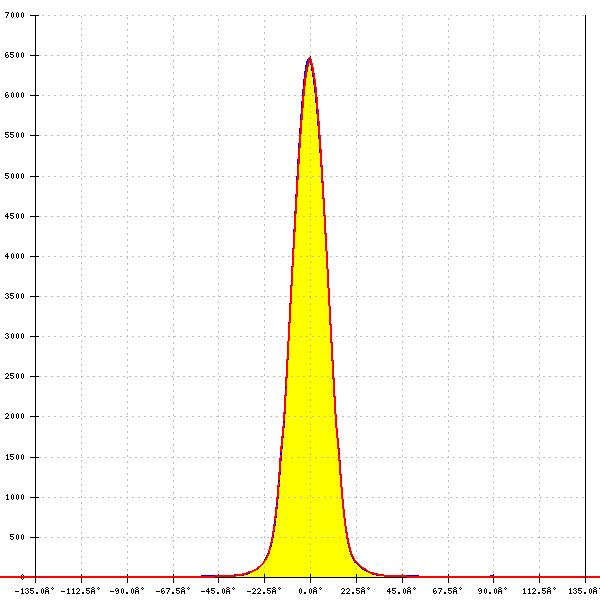

LED:
Vesta TW 13mm (25W) CSP
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 14.3 mm
Required components:
FWHM:
20°
FWTM:
34°
Peak intensity:
6.483 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 15mm DP
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 16.3 mm
Required components:
FWHM:
24°
FWTM:
42°
Peak intensity:
4.554 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
Tunable White

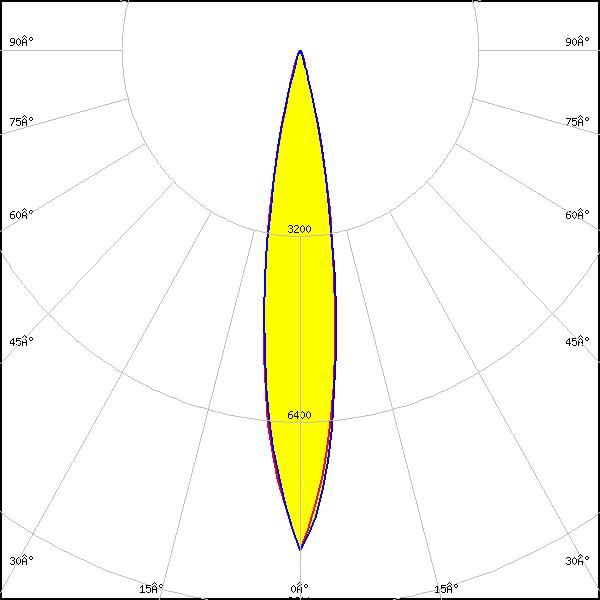

LED:
Vesta TW 9mm (12W) CSP
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.8 mm
Required components:
FWHM:
16°
FWTM:
30°
Peak intensity:
8.607 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 9mm (9W) DP
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 10.0 mm
Required components:
FWHM:
17°
FWTM:
31°
Peak intensity:
8.562 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Tunable White

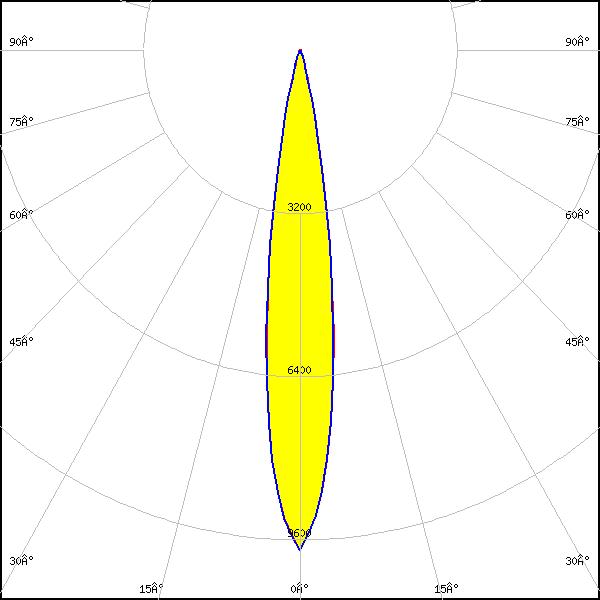

LED:

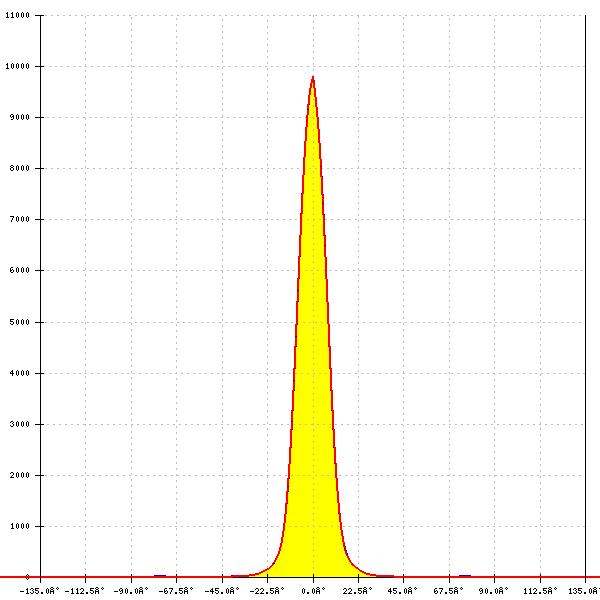

CLL02x/CLU02x (LES10)
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
16°
FWTM:
28°
Peak intensity:
9.807 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.8 mm
Required components:
FWHM:
15°
FWTM:
27°
Peak intensity:
9.766 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.8 mm
Required components:
FWHM:
16°
FWTM:
27°
Peak intensity:
9.951 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

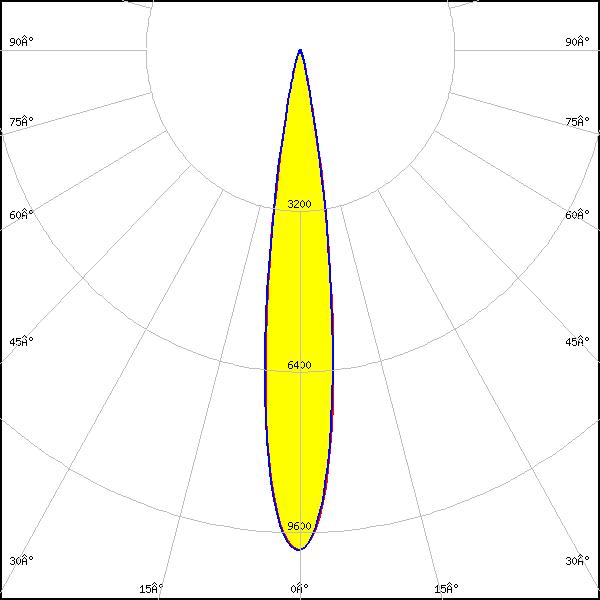

LED:
CLL02x/CLU02x (LES10)
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 9.8 mm
Required components:
FWHM:
16°
FWTM:
27°
Peak intensity:
9.951 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

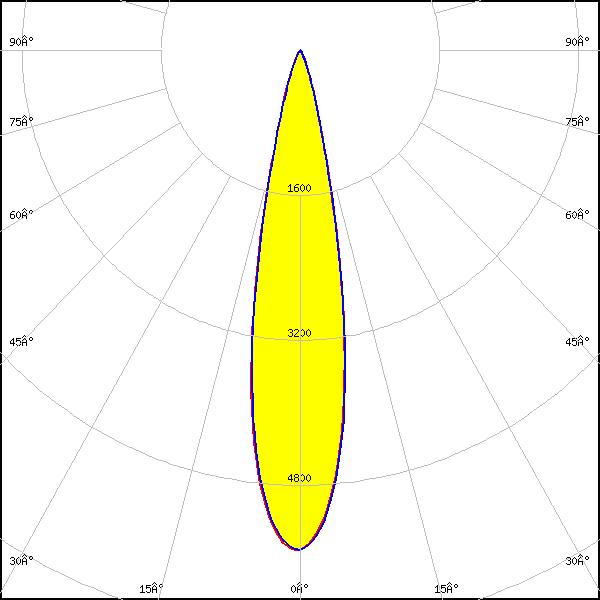

LED:
CLL03x/CLU03x
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 14.5 mm
Required components:
FWHM:
21°
FWTM:
37°
Peak intensity:
5.520 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

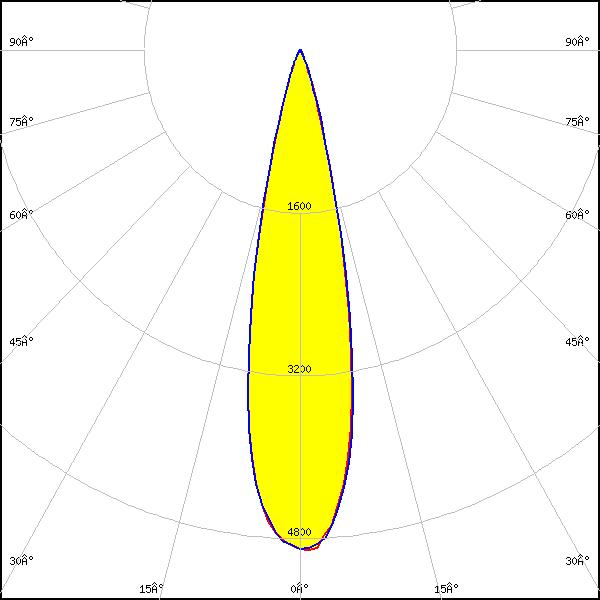

CLL03x/CLU03x
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 14.5 mm
Required components:
FWHM:
21°
FWTM:
37°
Peak intensity:
5.579 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 14.5 mm
Required components:
BJB: 47.360.1010
FWHM:
21°
FWTM:
37°
Peak intensity:
5.579 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

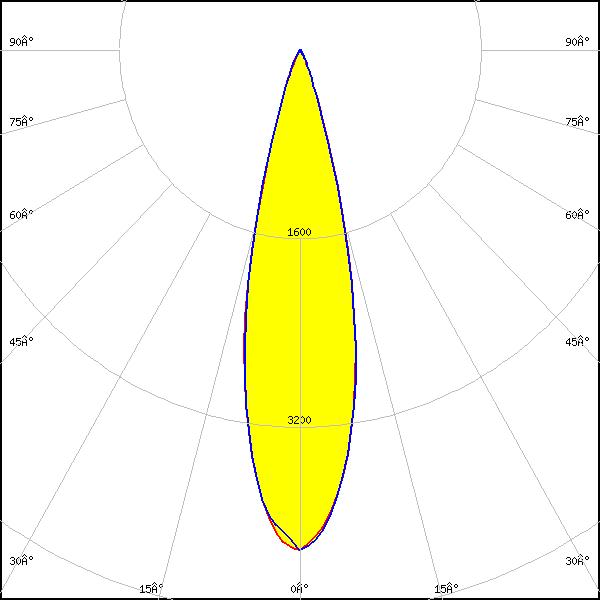

LED:
CLU03Q Type-F
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 14.5 mm
Required components:
FWHM:
26°
FWTM:
42°
Peak intensity:
4.247 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

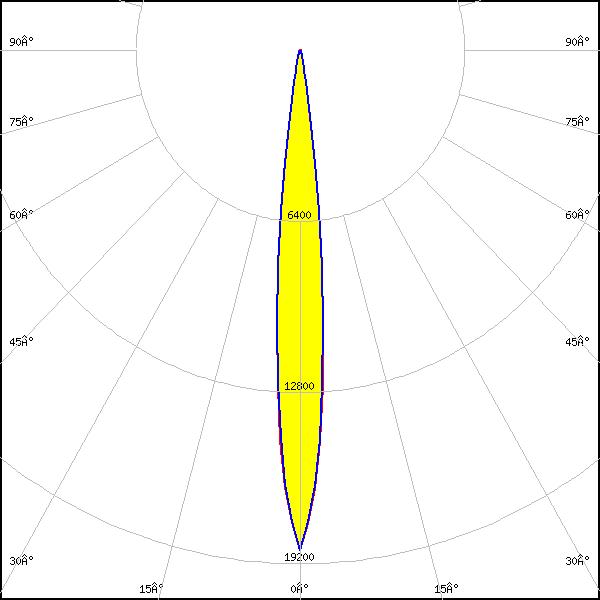

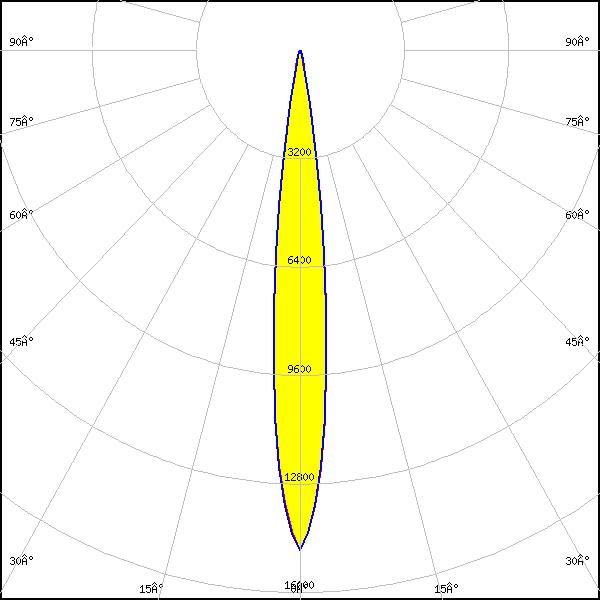

LED:

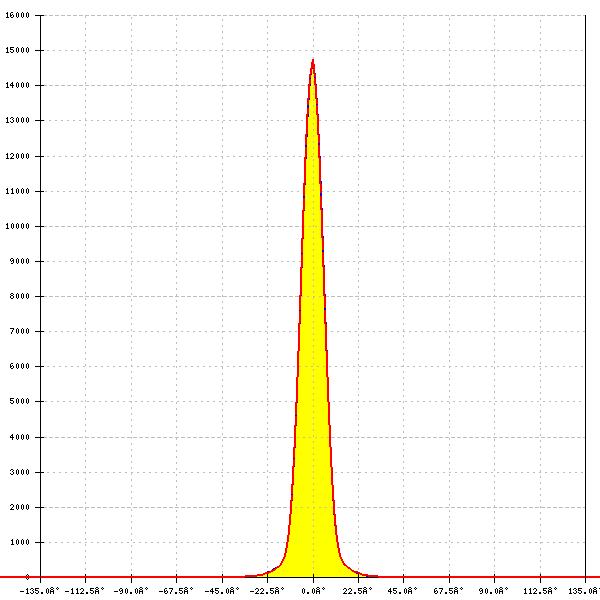

CLU700/701/702/703
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
12°
FWTM:
22°
Peak intensity:
14.760 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU712/713
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 8.5 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
11.293 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU712/713
Ordering code: C17238_YASMEEN-70-S
LES size: 8.5 mm
FWHM:
14°
FWTM:
26°
Peak intensity:
11.365 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU712/713
LES size: 8.5 mm
FWHM:
14°
FWTM:
26°
Peak intensity:
11.365 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU712/713

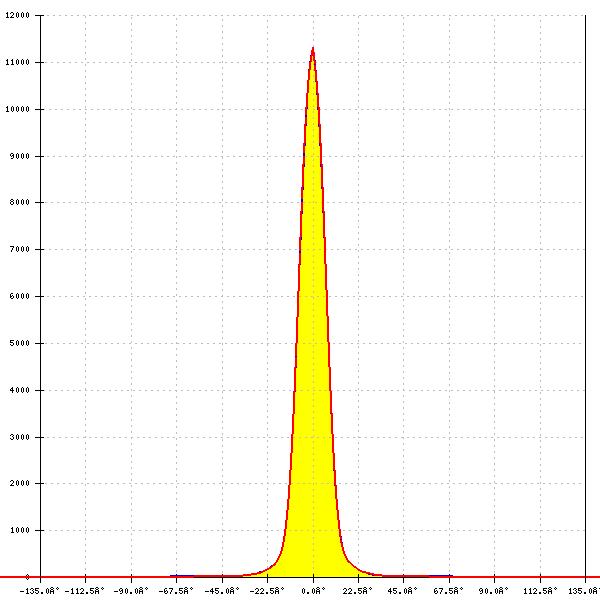

Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 8.5 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
11.314 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU712/713
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM:
14°
FWTM:
26°
Peak intensity:
11.204 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7A2/7A3
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 4.2 mm
Required components:
BJB: 47.360.1020
FWHM:
10°
FWTM:
20°
Peak intensity:
18.699 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

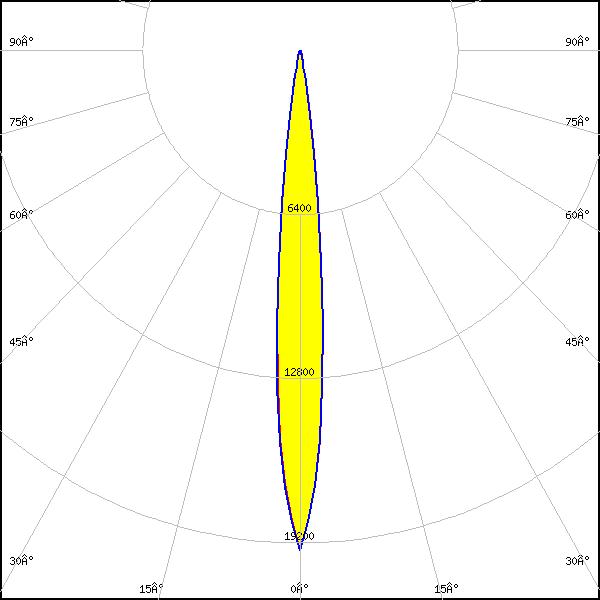

LED:
CHA0304
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 3.3 mm
Required components:
FWHM:
10°
FWTM:
20°
Peak intensity:
19.497 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHA0410
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 4.2 mm
Required components:
FWHM:
10°
FWTM:
20°
Peak intensity:
18.560 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

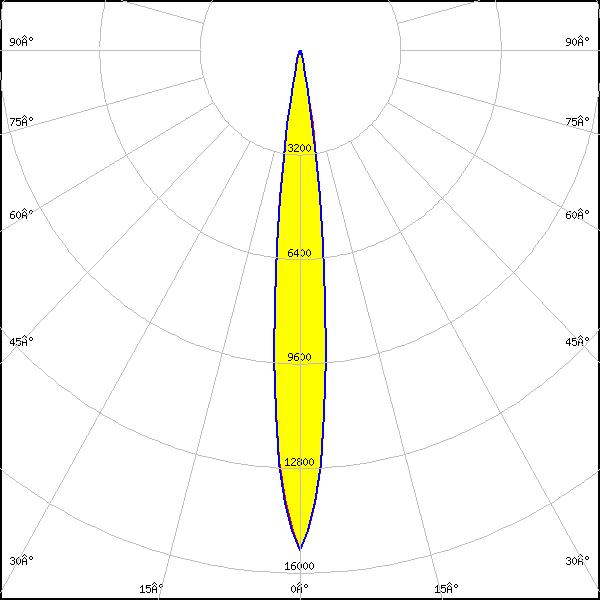

LED:
CHA0612
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 6.0 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
15.308 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA1306
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 6.0 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
16.129 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

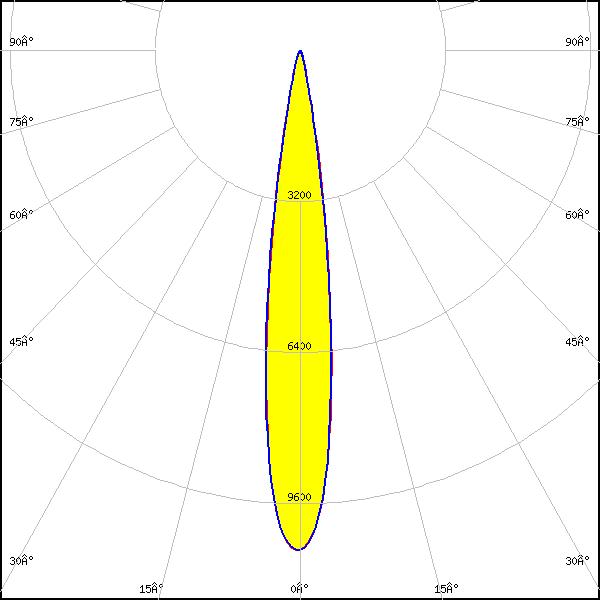

LED:
CMA1516
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.0 mm
Required components:
FWHM:
14°
FWTM:
25°
Peak intensity:
10.853 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

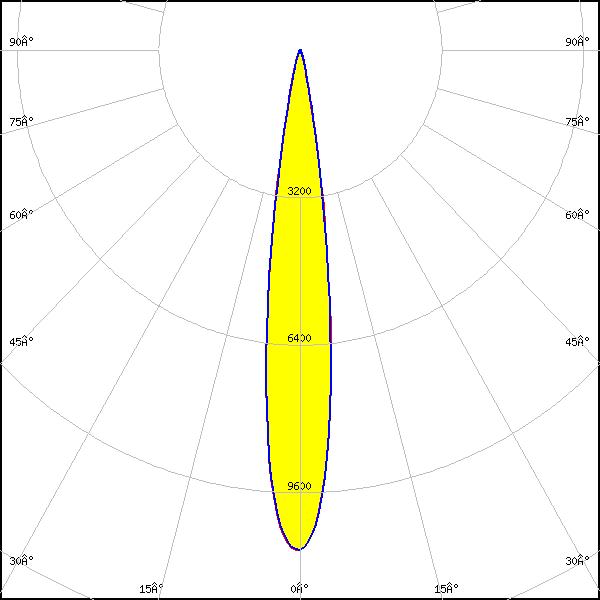

CMA1516
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 9.0 mm
Required components:
FWHM:
14°
FWTM:
25°
Peak intensity:
10.853 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA1825
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 12.0 mm
Required components:
FWHM:
19°
FWTM:
32°
Peak intensity:
6.907 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA1825
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 12.0 mm
Required components:
FWHM:
19°
FWTM:
32°
Peak intensity:
6.907 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT14xx
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.8 mm
Required components:
FWHM:
15°
FWTM:
26°
Peak intensity:
10.106 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

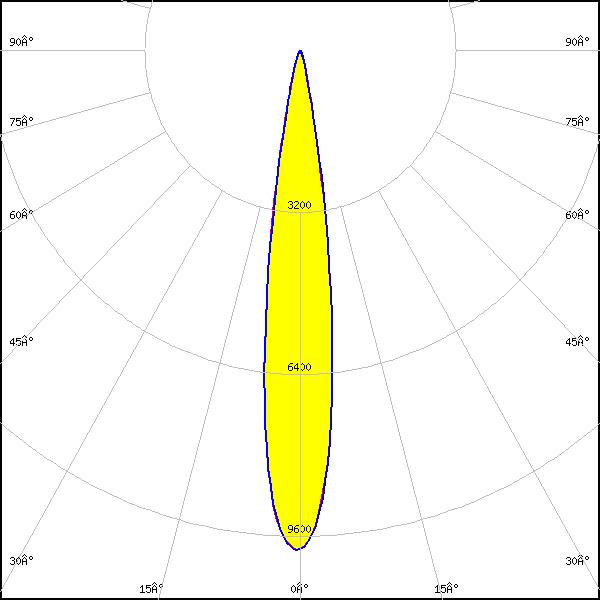

LED:
CMT14xx
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 9.8 mm
Required components:
FWHM:
15°
FWTM:
26°
Peak intensity:
10.106 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT19xx
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 14.5 mm
Required components:
FWHM:
21°
FWTM:
36°
Peak intensity:
5.396 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT19xx
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 14.5 mm
Required components:
FWHM:
21°
FWTM:
36°
Peak intensity:
5.396 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMU10xx
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.8 mm
Required components:
FWHM:
16°
FWTM:
28°
Peak intensity:
9.635 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

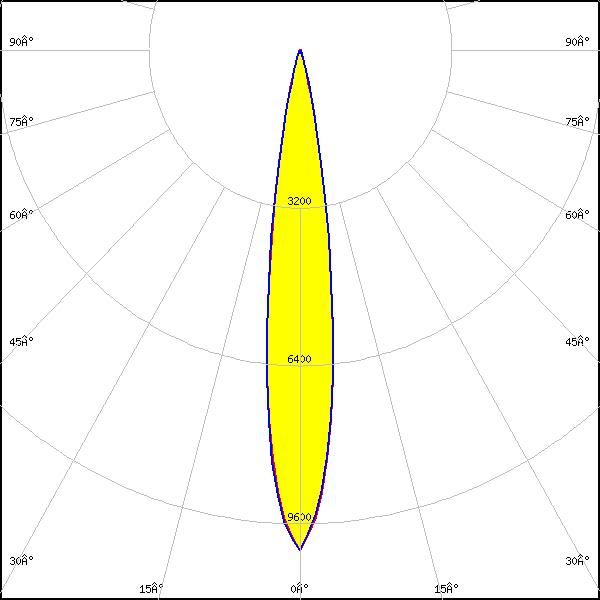

LED:
CMU10xx
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
16°
FWTM:
28°
Peak intensity:
10.141 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMU15xx
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 14.5 mm
Required components:
FWHM:
23°
FWTM:
39°
Peak intensity:
4.720 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 6.0 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
14.881 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

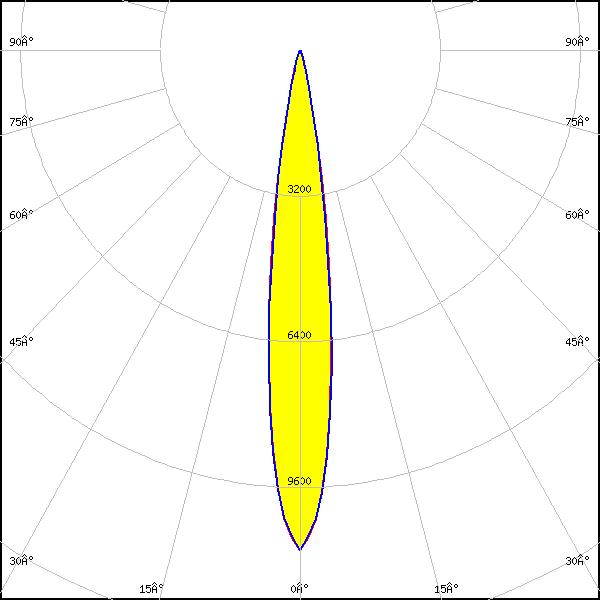

CXA/B 15xx
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 8.9 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
10.981 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1830
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 637b Hekla
FWHM:
22°
FWTM:
36°
Peak intensity:
5.452 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L08 (Gen2)
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
24°
FWTM:
40°
Peak intensity:
5.013 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 7070
LES size: 0.0 mm
FWHM:
12°
FWTM:
22°
Peak intensity:
16.129 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.0 mm
Required components:
FWHM:
14°
FWTM:
24°
Peak intensity:
11.202 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 9.0 mm
Required components:
FWHM:
14°
FWTM:
24°
Peak intensity:
11.202 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202HD
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 6.5 mm
Required components:
FWHM:
12°
FWTM:
24°
Peak intensity:
15.126 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 13.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
20°
FWTM:
34°
Peak intensity:
6.393 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204HD
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.0 mm
Required components:
FWHM:
16°
FWTM:
26°
Peak intensity:
10.667 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1205HD
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 11.0 mm
Required components:
FWHM:
18°
FWTM:
33°
Peak intensity:
7.715 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 15.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
22°
FWTM:
38°
Peak intensity:
5.360 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S02H6
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
13°
FWTM:
24°
Peak intensity:
13.933 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

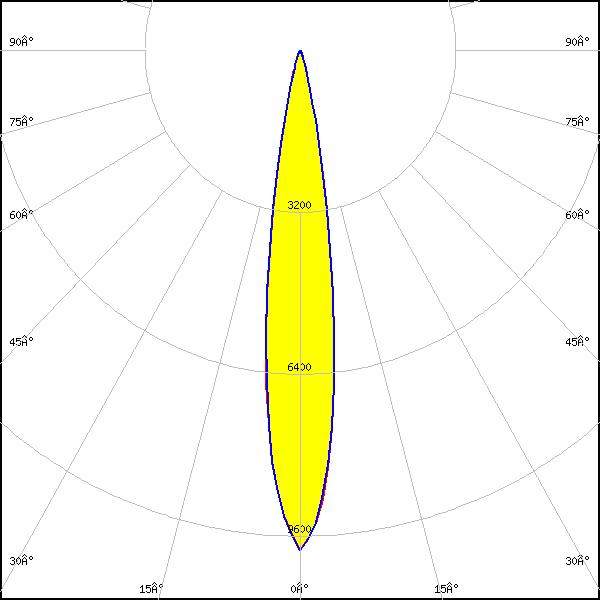

LUXEON CX Plus CoB - HD S04H9
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
16°
FWTM:
28°
Peak intensity:
9.882 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 12.0 mm
Required components:
FWHM:
18°
FWTM:
32°
Peak intensity:
7.160 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB M02 / M03 (Gen2)
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.0 mm
Required components:
FWHM:
16°
FWTM:
28°
Peak intensity:
10.218 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

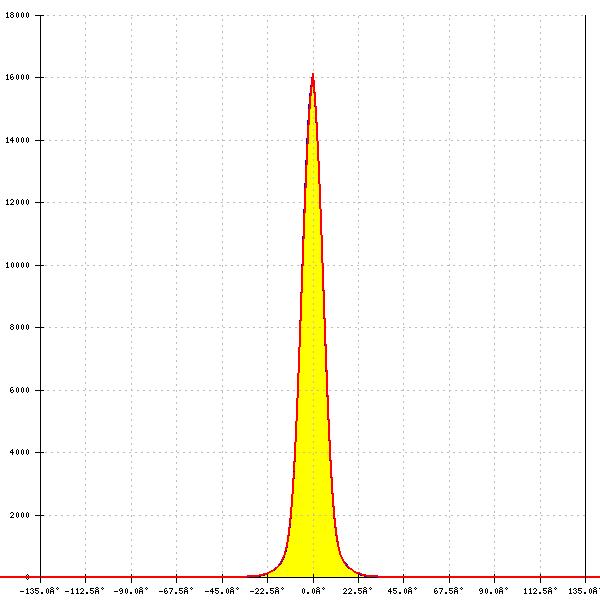

LED:
LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 6.0 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
16.153 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHM-9 XH (19x19)
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.0 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
11.859 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

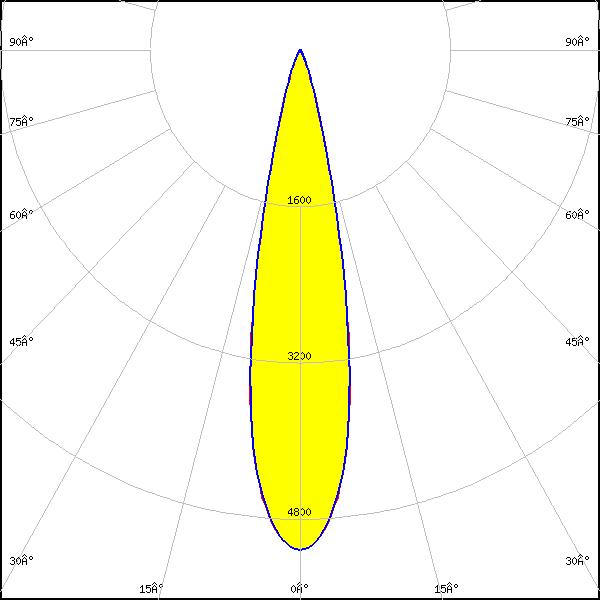

CTM-14 (Tunable White) Gen2
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 13.9 mm
Required components:
FWHM:
22°
FWTM:
38°
Peak intensity:
5.121 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

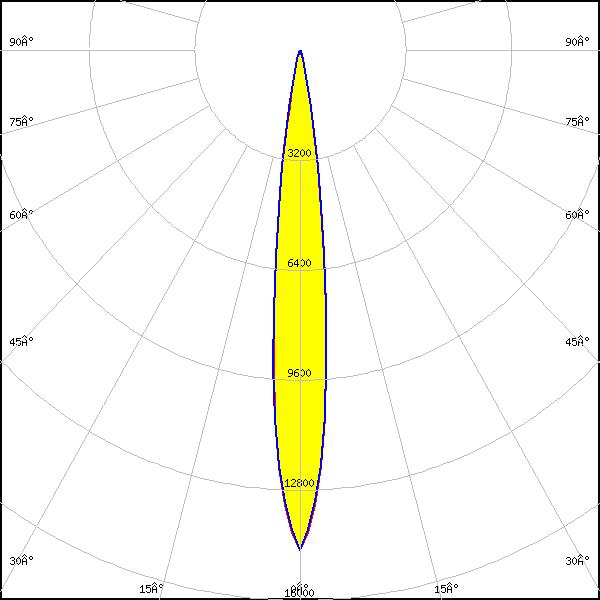

CTM-6 (Tunable White) Gen2
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 6.8 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
14.553 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CTM-9 (Tunable White) Gen2
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.5 mm
Required components:
FWHM:
14°
FWTM:
26°
Peak intensity:
10.970 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
CxM-14 (18.5x18.5)
LES size: 13.5 mm
Required components:
FWHM:
24°
FWTM:
40°
Peak intensity:
4.597 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-3
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 3.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
12°
FWTM:
20°
Peak intensity:
19.917 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-4
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 4.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
12°
FWTM:
20°
Peak intensity:
18.404 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-6 (13.5x13.5)
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM:
12°
FWTM:
22°
Peak intensity:
16.383 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.8 mm
Required components:
FWHM:
16°
FWTM:
28°
Peak intensity:
9.353 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 11.5 mm
Required components:
FWHM:
17°
FWTM:
30°
Peak intensity:
7.492 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

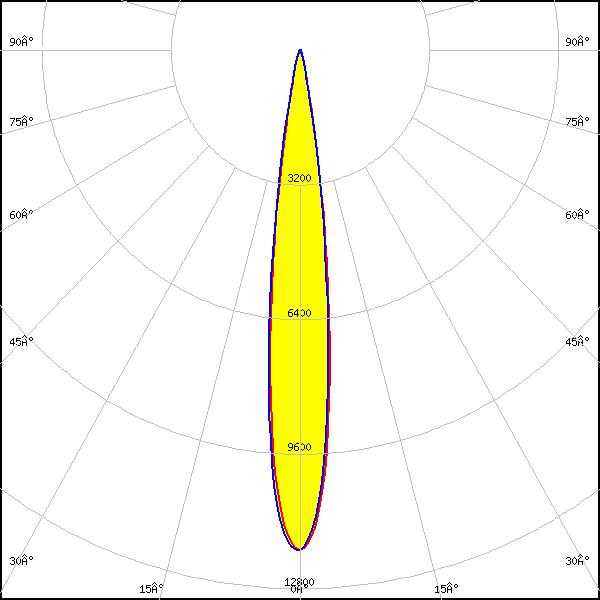

COB L-Type (LES 9)
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 8.7 mm
Required components:
FWHM:
13°
FWTM:
24°
Peak intensity:
11.889 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 6)
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
12°
FWTM:
22°
Peak intensity:
15.213 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
12°
FWTM:
24°
Peak intensity:
14.048 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 6.7 mm
Required components:
FWHM:
20°
FWTM:
34°
Peak intensity:
6.064 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

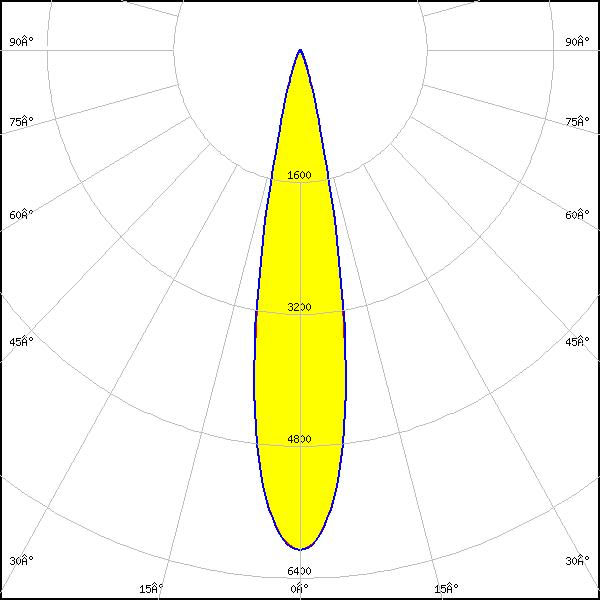

COB S-Type (LES 7)
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 6.7 mm
Required components:
FWHM:
20°
FWTM:
34°
Peak intensity:
6.064 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
12°
FWTM:
24°
Peak intensity:
14.571 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

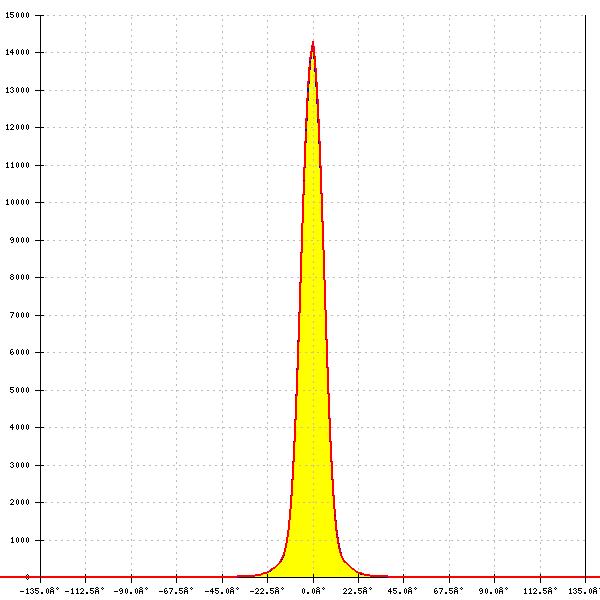

NJCWL024Z-V1MT: COB L-Type Tunable White
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 7.0 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
14.306 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
NJCWL024Z-V1MT: COB L-Type Tunable White
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 7.0 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
14.306 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
NJCWL024Z-V1MT: COB L-Type Tunable White
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 7.0 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
14.306 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
NJNWS012Z-V1MT: COB S-Type Tunable White
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 5.9 mm
Required components:
FWHM:
10°
FWTM:
20°
Peak intensity:
18.241 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 10.6 mm
Required components:
FWHM:
18°
FWTM:
30°
Peak intensity:
8.280 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Fortimo SLM L09 CoB
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.0 mm
Required components:
FWHM:
14°
FWTM:
25°
Peak intensity:
11.122 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L09 CoB
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 9.0 mm
Required components:
FWHM:
14°
FWTM:
25°
Peak intensity:
11.122 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

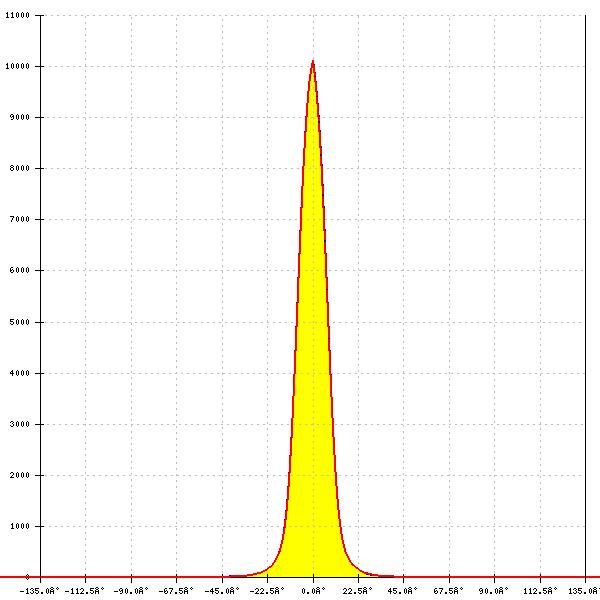

Fortimo SLM L13 CoB
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 13.0 mm
Required components:
Bender Wirth: 632a Hekla XL
FWHM:
16°
FWTM:
28°
Peak intensity:
10.117 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 1919 CoB
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 14.5 mm
Required components:
FWHM:
22°
FWTM:
38°
Peak intensity:
5.346 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.8 mm
Required components:
FWHM:
16°
FWTM:
28°
Peak intensity:
8.789 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.8 mm
Required components:
FWHM:
16°
FWTM:
28°
Peak intensity:
9.154 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
16°
FWTM:
29°
Peak intensity:
9.021 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C G2
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
12°
FWTM:
22°
Peak intensity:
15.678 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010T (Tunable White)
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.8 mm
Required components:
FWHM:
14°
FWTM:
24°
Peak intensity:
12.618 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LC016D / LC019D / LC026D / LC033D
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 14.5 mm
Required components:
BJB: 47.360.1010
FWHM:
24°
FWTM:
42°
Peak intensity:
4.418 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 14.5 mm
Required components:
FWHM:
23°
FWTM:
39°
Peak intensity:
4.748 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 14.5 mm
Required components:
FWHM:
23°
FWTM:
40°
Peak intensity:
4.803 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C G2
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM:
14°
FWTM:
26°
Peak intensity:
10.996 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C G2
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 8.5 mm
Required components:
BJB: 47.360.1010
FWHM:
14°
FWTM:
26°
Peak intensity:
10.910 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020T (Tunable white)
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 13.0 mm
Required components:
FWHM:
18°
FWTM:
30°
Peak intensity:
7.781 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

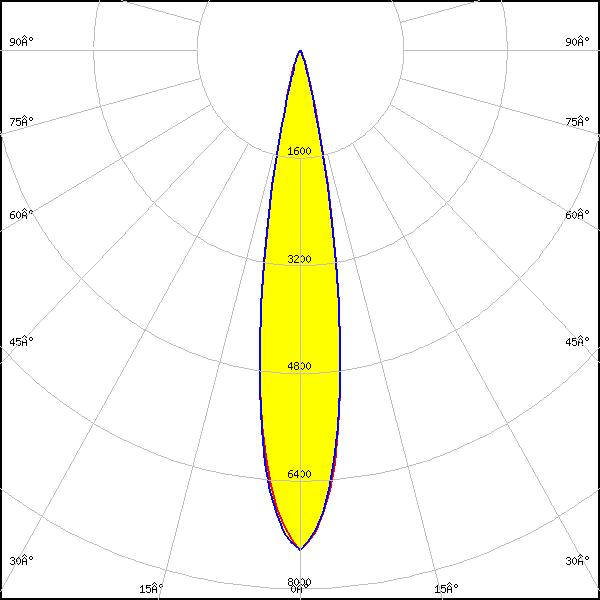

LC030C/040C G2
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 11.5 mm
Required components:
BJB: 47.360.1010
FWHM:
18°
FWTM:
32°
Peak intensity:
7.431 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC030C/040C G2
Ordering code: CP18768_YASMEEN-70-S-B2
LES size: 11.5 mm
Required components:
BJB: 47.360.1010
FWHM:
18°
FWTM:
32°
Peak intensity:
7.172 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC030C/040C G2
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 11.5 mm
Required components:
FWHM:
17°
FWTM:
30°
Peak intensity:
7.732 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC030C/040C G2
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 11.5 mm
Required components:
FWHM:
17°
FWTM:
30°
Peak intensity:
7.732 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 14.5 mm
Required components:
FWHM:
23°
FWTM:
38°
Peak intensity:
4.844 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 14.5 mm
Required components:
FWHM:
23°
FWTM:
39°
Peak intensity:
4.897 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 6
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 6.0 mm
Required components:
FWHM:
12°
FWTM:
22°
Peak intensity:
16.898 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 9.8
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 9.8 mm
Required components:
FWHM:
16°
FWTM:
28°
Peak intensity:
10.046 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES09
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 9.0 mm
Required components:
FWHM:
15°
FWTM:
25°
Peak intensity:
11.347 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

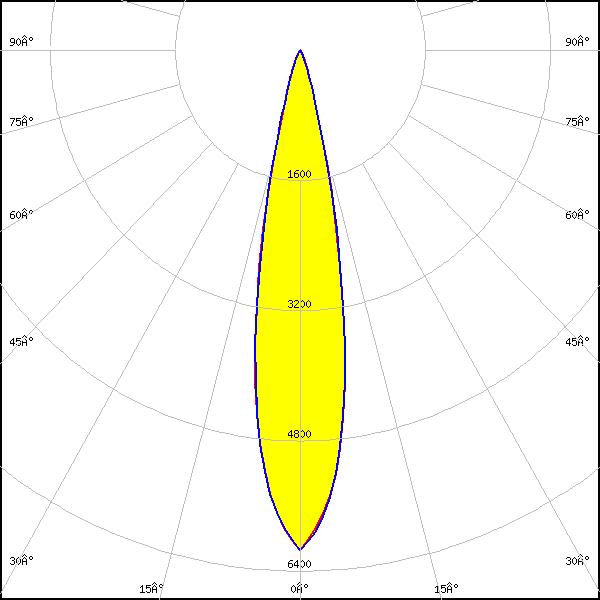

LED:
SLE G7 LES13
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 13.0 mm
Required components:
FWHM:
20°
FWTM:
34°
Peak intensity:
6.146 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES15
Ordering code: CP18751_YASMEEN-70-S-C2
LES size: 15.0 mm
Required components:
FWHM:
22°
FWTM:
38°
Peak intensity:
5.089 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES15
Ordering code: CP18775_YASMEEN-70-S-C2-WHT
LES size: 15.0 mm
Required components:
FWHM:
22°
FWTM:
38°
Peak intensity:
5.089 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
We use cookies to offer you a better experience, analyse site traffic, and serve targeted marketing.
Do you consent to the use of cookies in accordance with our Privacy Policy.
Accept allNo, I don't acceptManage settings
Do you consent to the use of cookies in accordance with our Privacy Policy.
Accept allNo, I don't acceptManage settings
