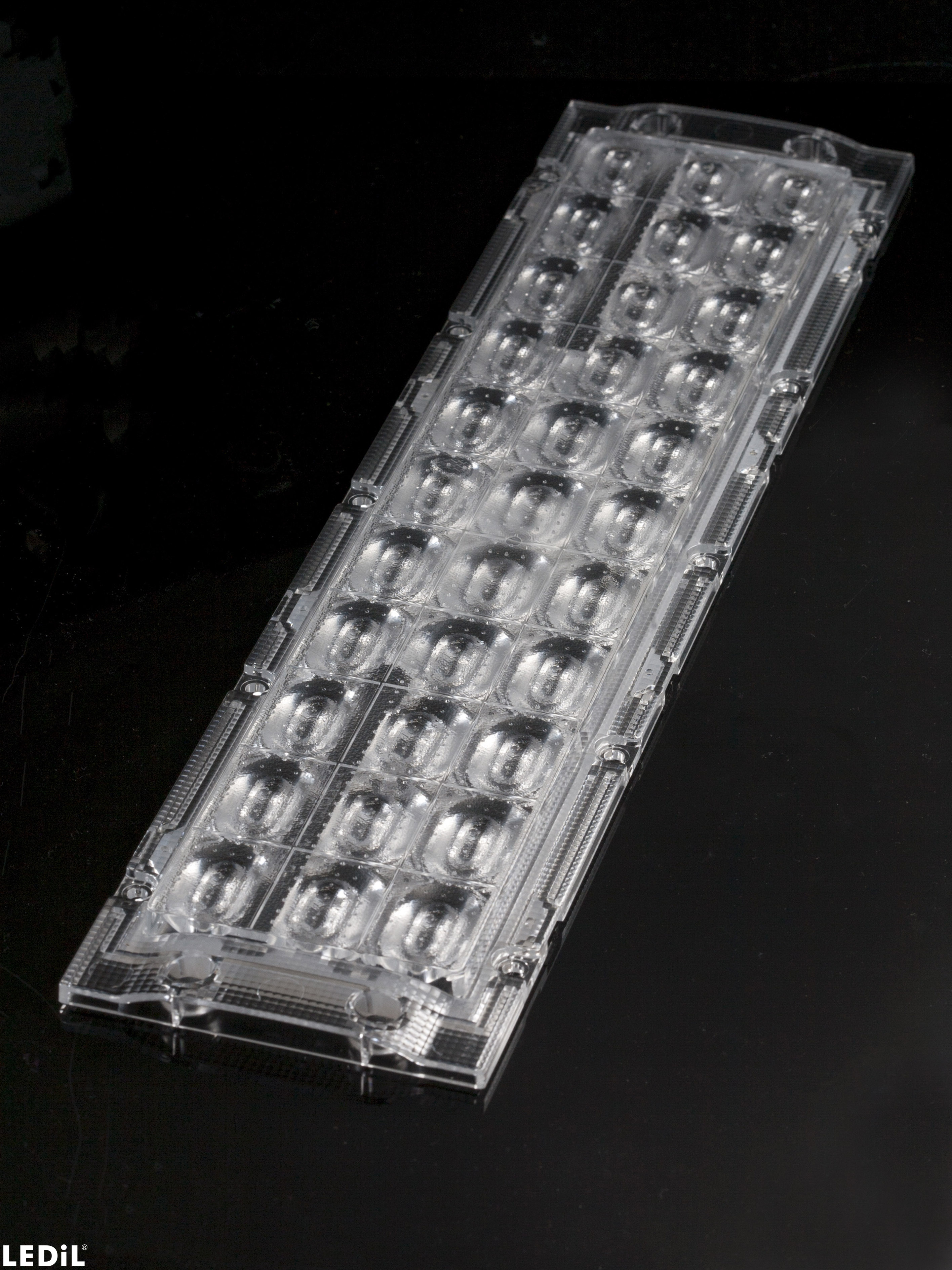

FS15847_FLORENCE-3R-IP-O
Print
~85° + 40° oval beam
Materials
- FLORENCE-3R-IP-O, Linear lens, PC
- FLORENCE-3R-IP-SEAL, Seal, Silicone
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

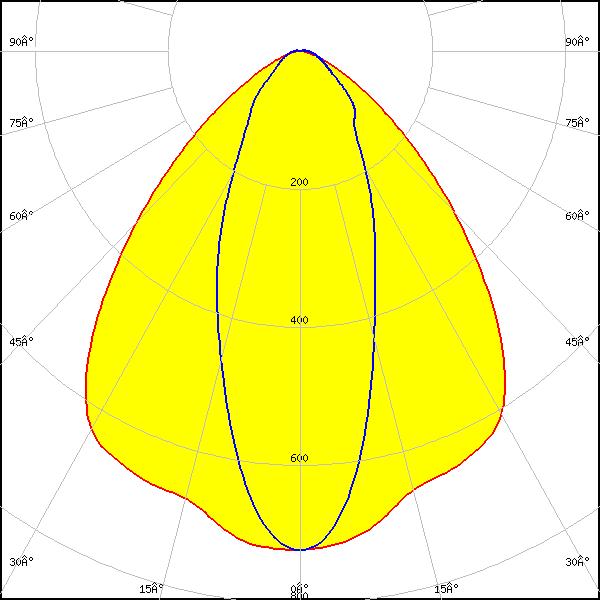

Optical results

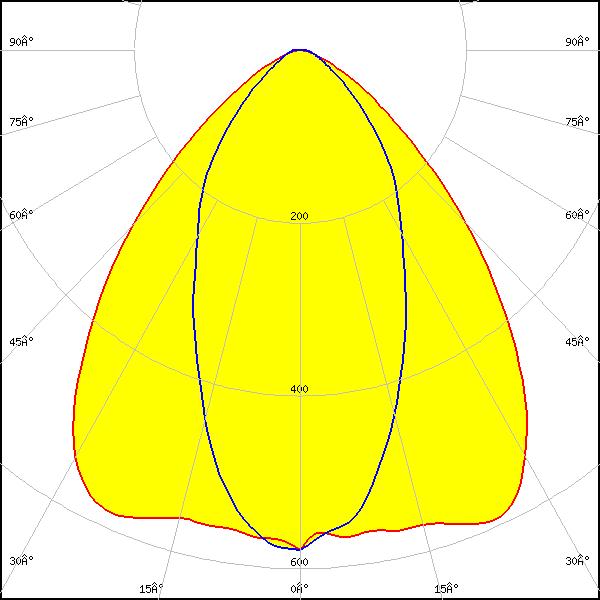

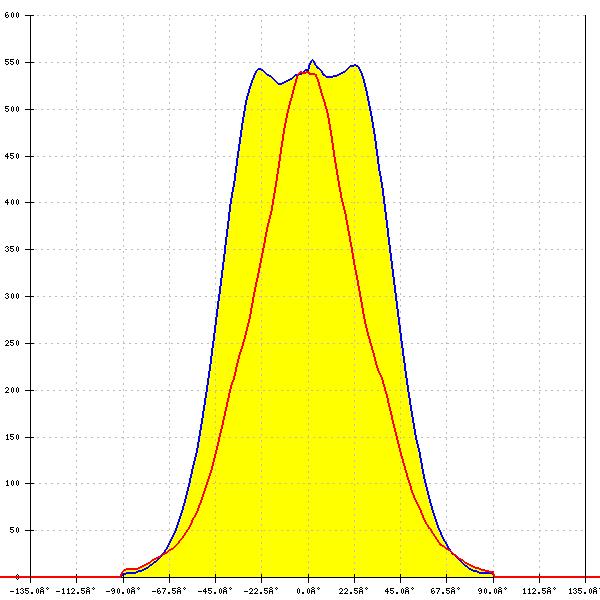

LED:

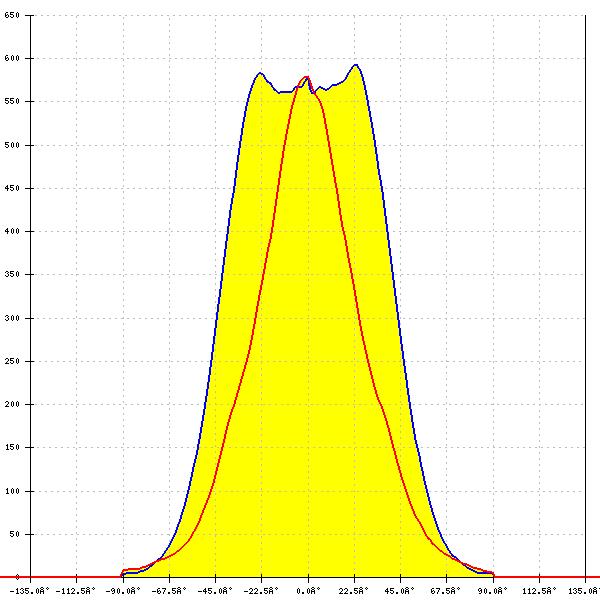

J Series 5050 Round LES
FWHM:
88° + 52°
FWTM:
126° + 109°
Peak intensity:
0.592 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 6V K Class
FWHM:
88° + 57°
FWTM:
126° + 116°
Peak intensity:
0.554 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

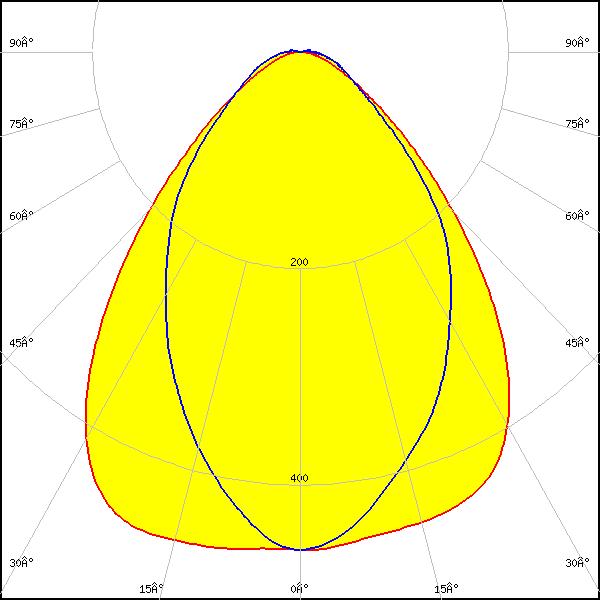

LED:

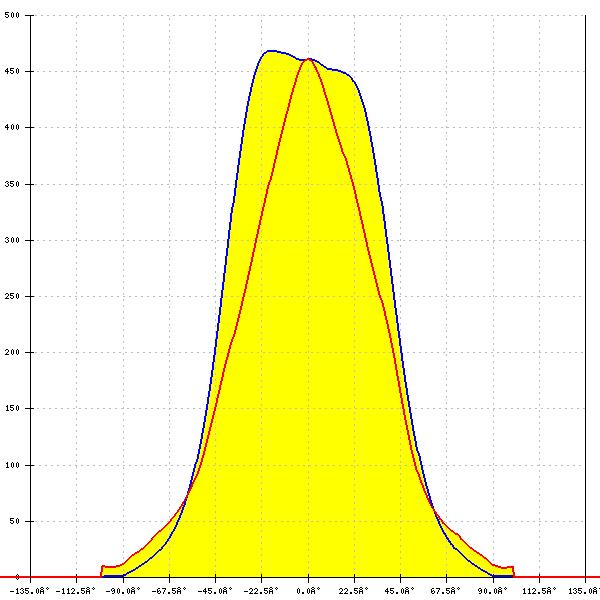

LUXEON 5050 Round LES
FWHM:
86° + 72°
FWTM:
128° + 136°
Peak intensity:
0.470 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

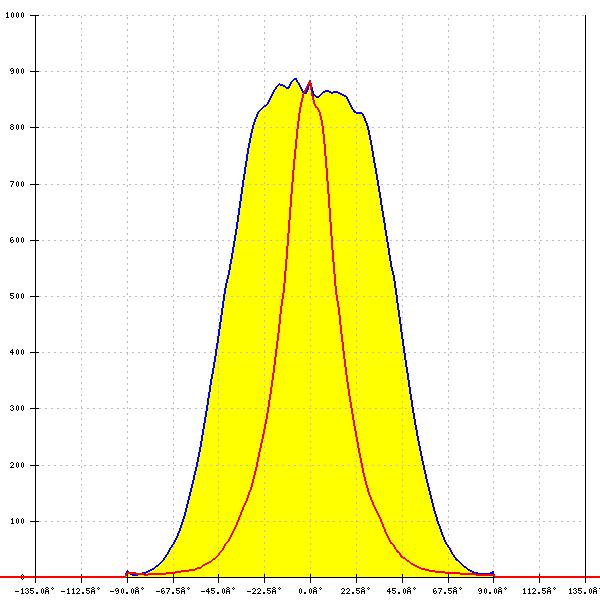

LED:

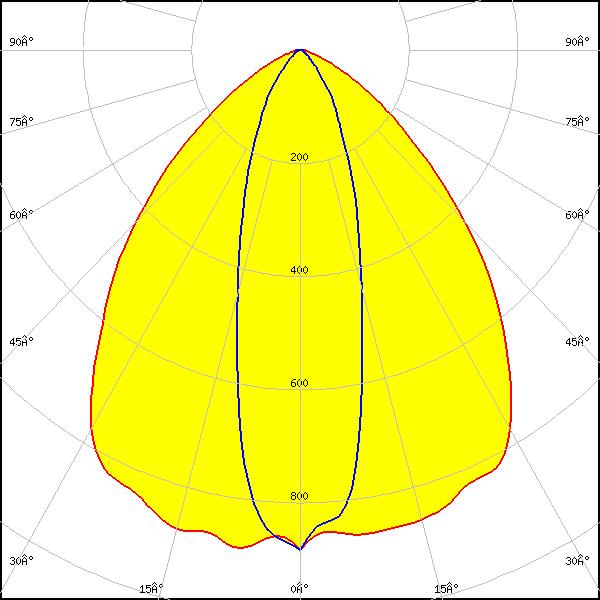

LUXEON CZ
FWHM:
89° + 30°
FWTM:
128° + 74°
Peak intensity:
0.890 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON XR-3535L (L202 - xxxx033C30001)
LEDs/each optic:
1
Light colour/type:
White
LED:

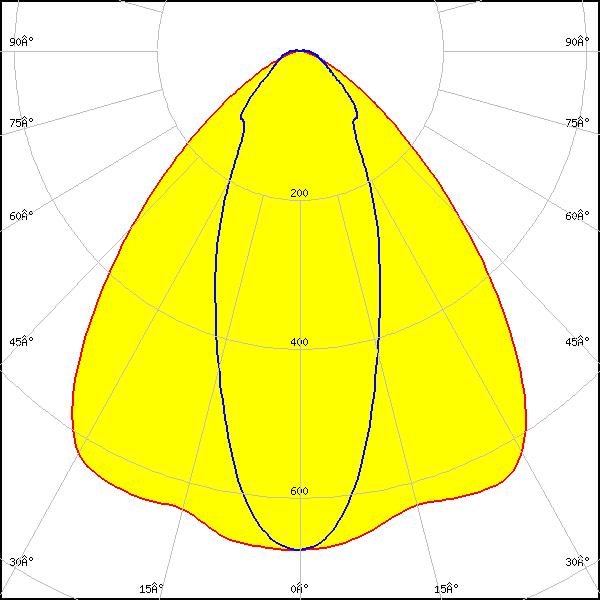

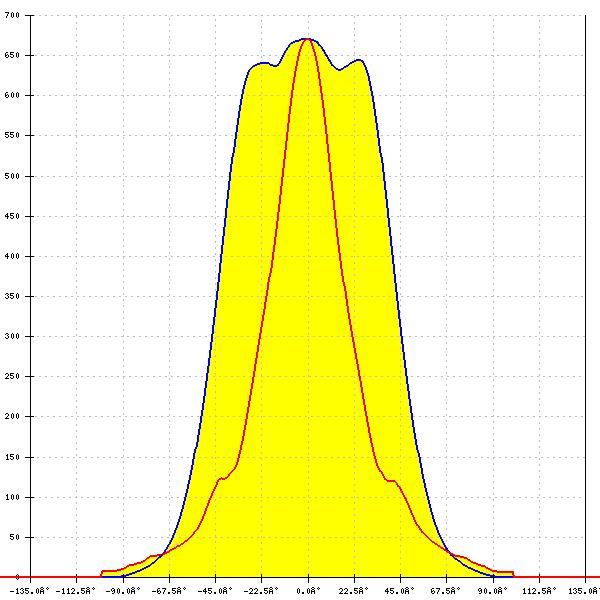

LinLED 280x55mm 1100lm 840 3x11 33V Opt G2
FWHM:
89° + 40°
FWTM:
125° + 106°
Peak intensity:
0.670 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

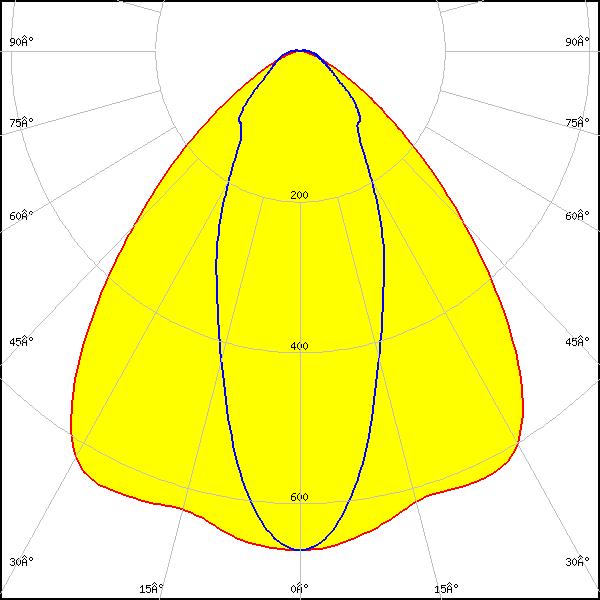

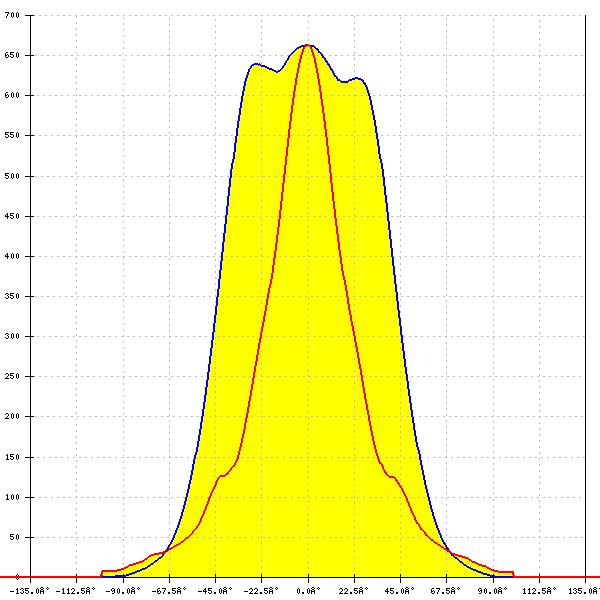

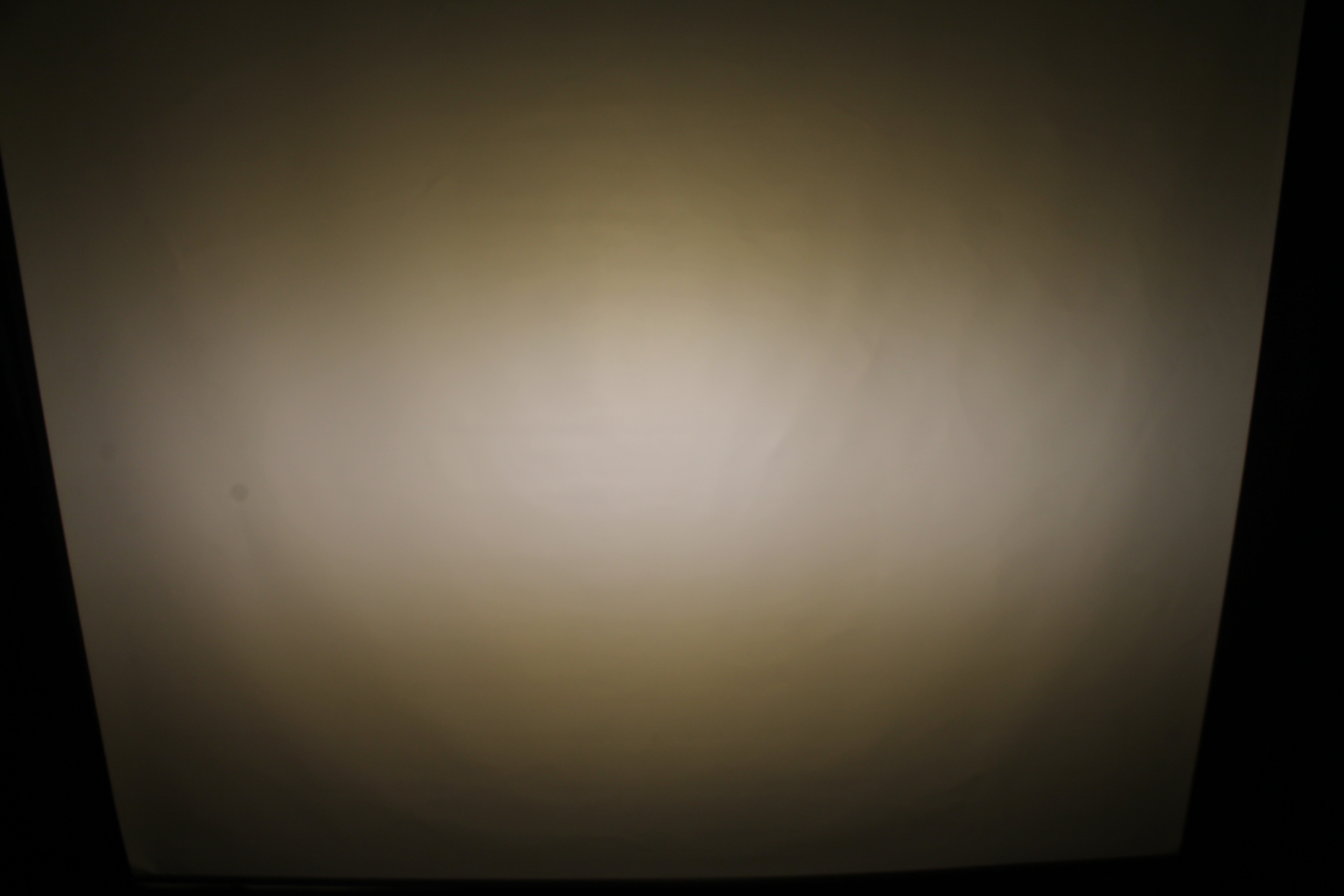

LinLED 280x55mm 2000lm 830 33V Opt G1
FWHM:
89° + 41°
FWTM:
125° + 107°
Peak intensity:
0.662 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

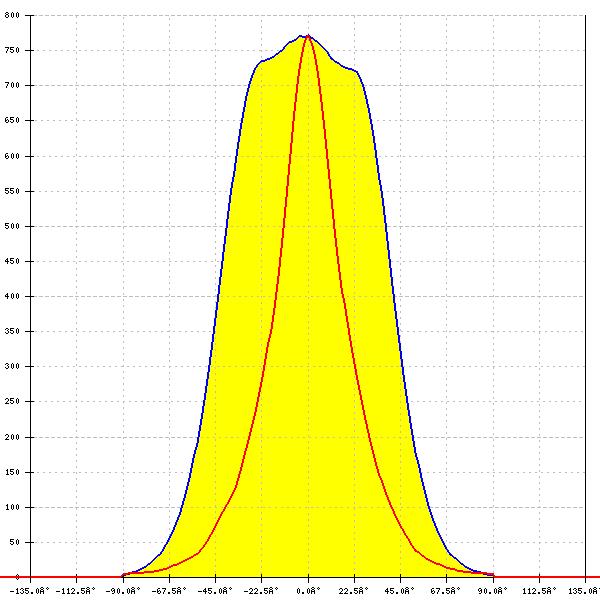

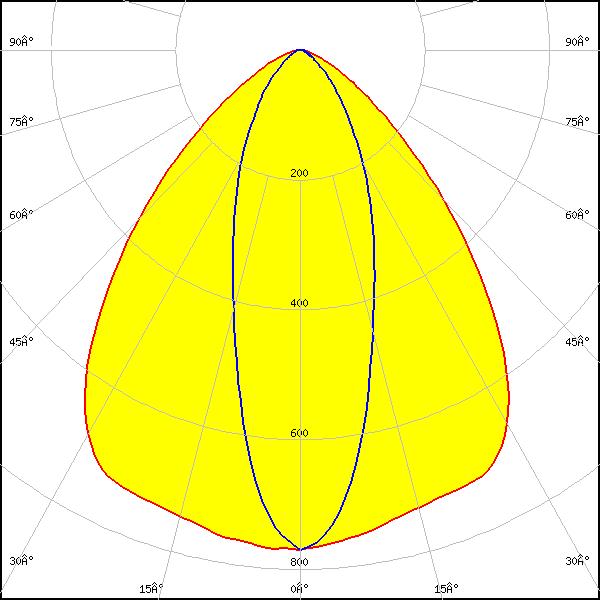

NF2x757D
FWHM:
86° + 34°
FWTM:
126° + 89°
Peak intensity:
0.780 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

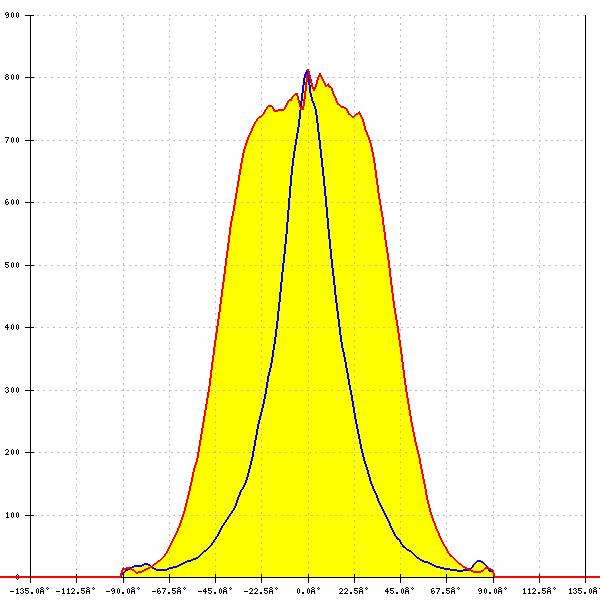

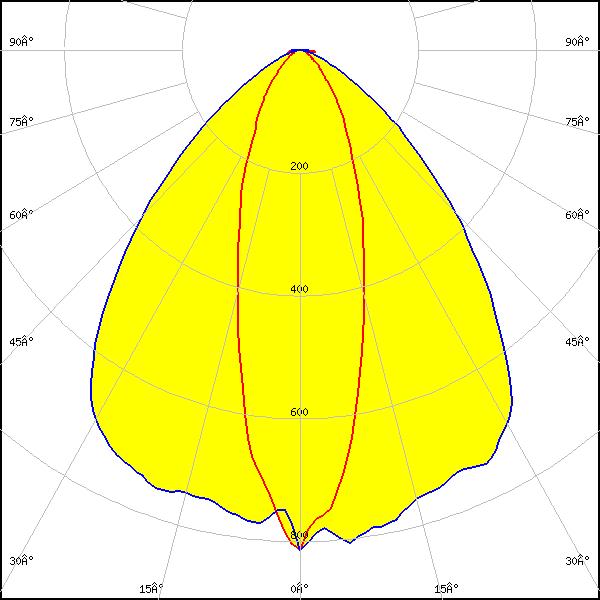

NVSxE21A
FWHM:
30° + 87°
FWTM:
81° + 124°
Peak intensity:
0.829 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PLG2-BAR-1100-xxx-280x55-DC
FWHM:
84° + 40°
FWTM:
125° + 111°
Peak intensity:
0.680 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

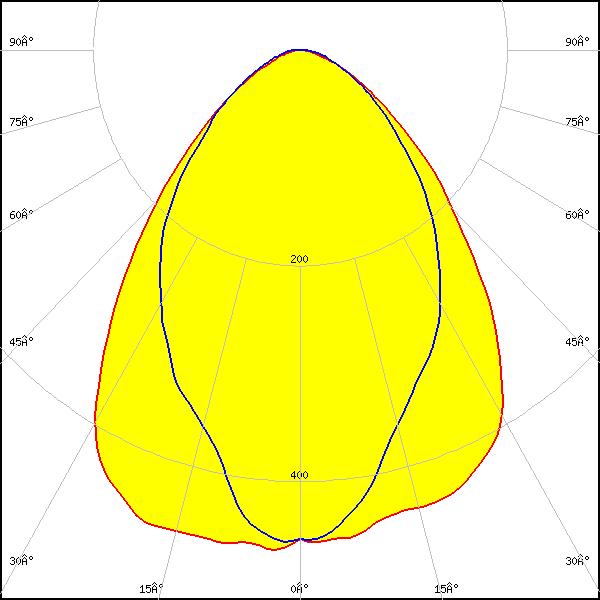

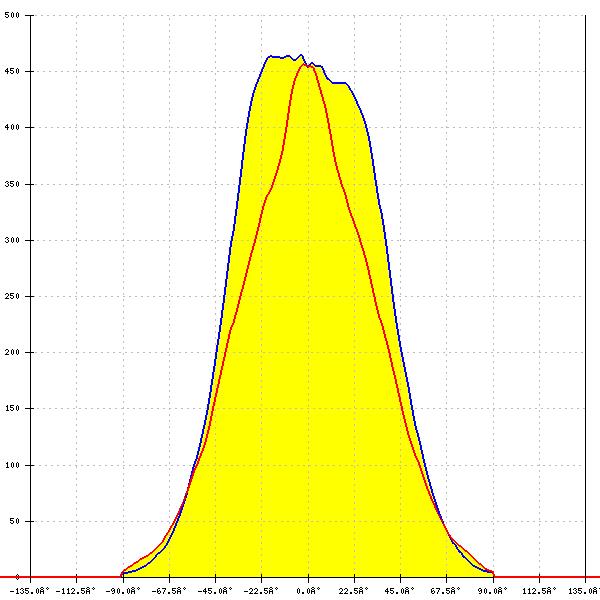

Duris S10
FWHM:
85° + 72°
FWTM:
131° + 133°
Peak intensity:
0.475 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

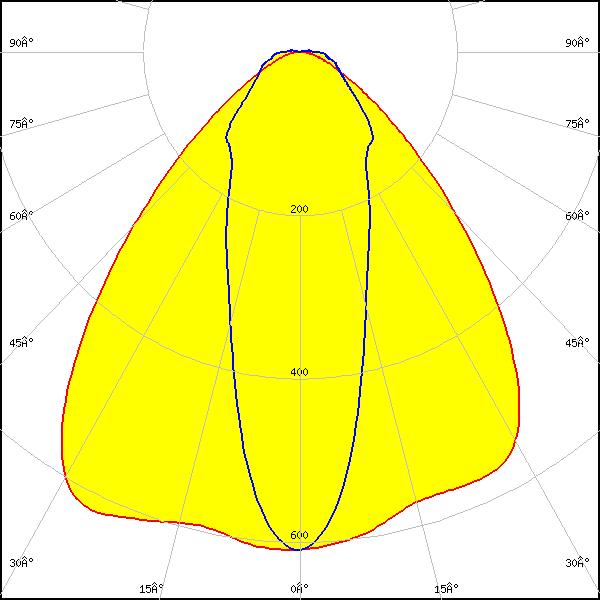

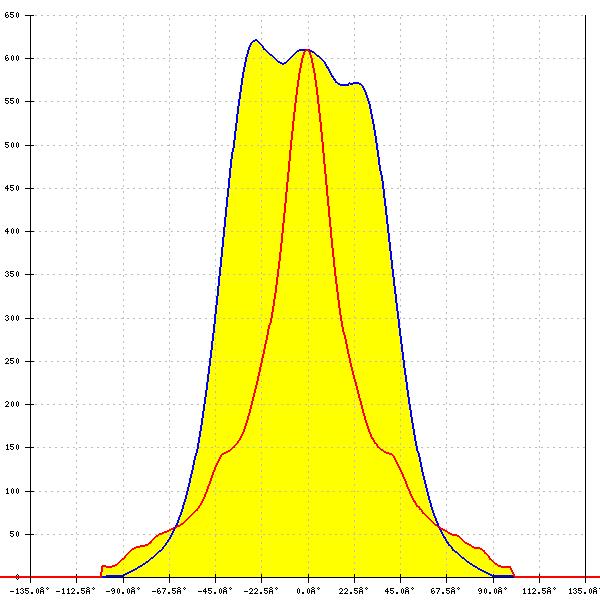

Duris S2
FWHM:
88° + 34°
FWTM:
127° + 124°
Peak intensity:
0.621 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

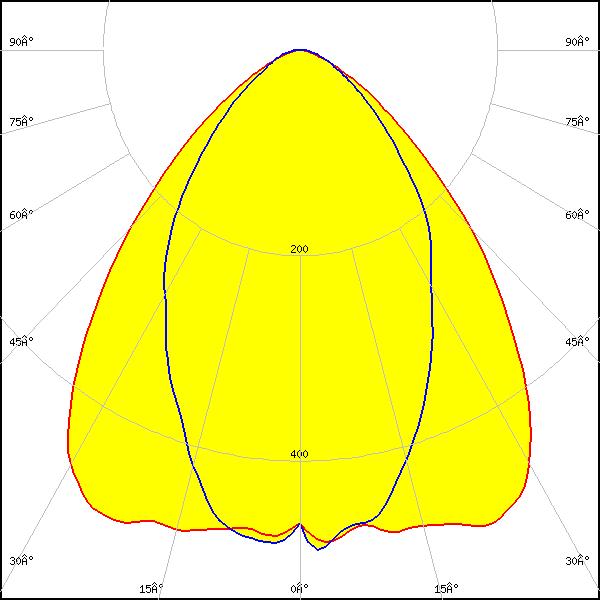

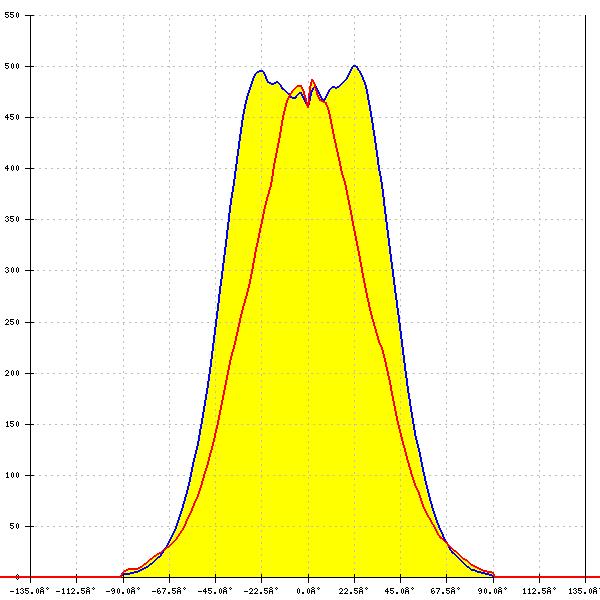

Duris S8
FWHM:
89° + 67°
FWTM:
128° + 122°
Peak intensity:
0.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

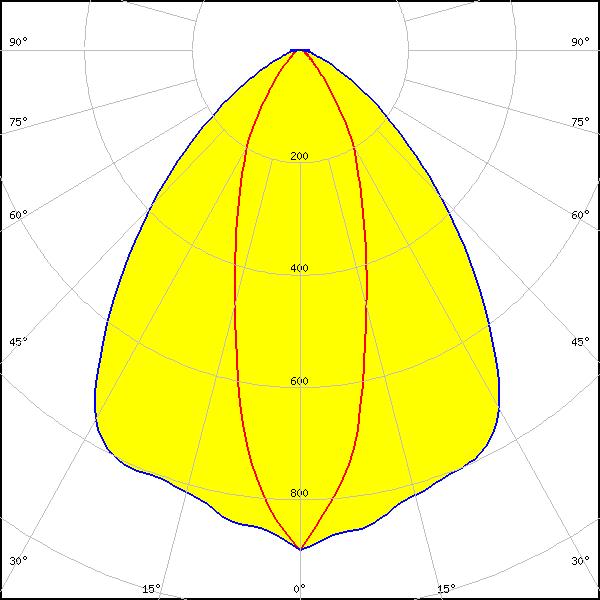

OSCONIQ P 3030
FWHM:
32° + 85°
FWTM:
77° + 125°
Peak intensity:
0.890 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

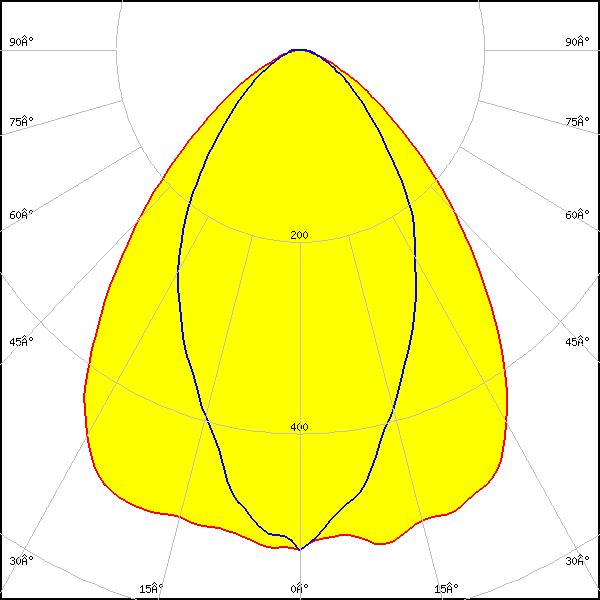

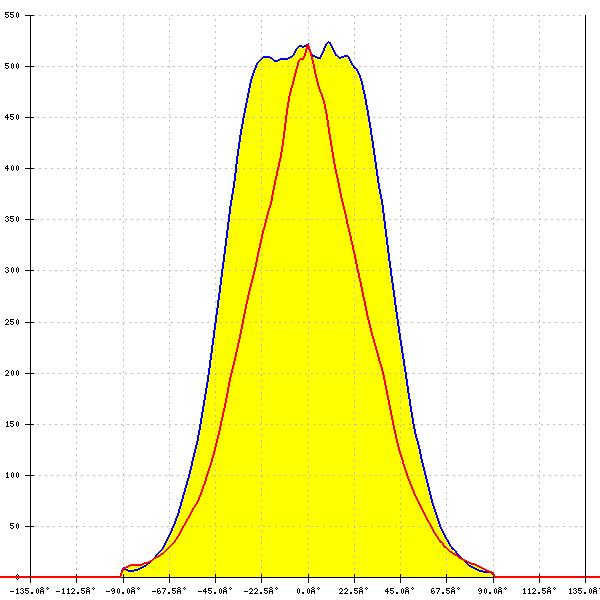

LED:
LH502D
FWHM:
87° + 59°
FWTM:
129° + 119°
Peak intensity:
0.532 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

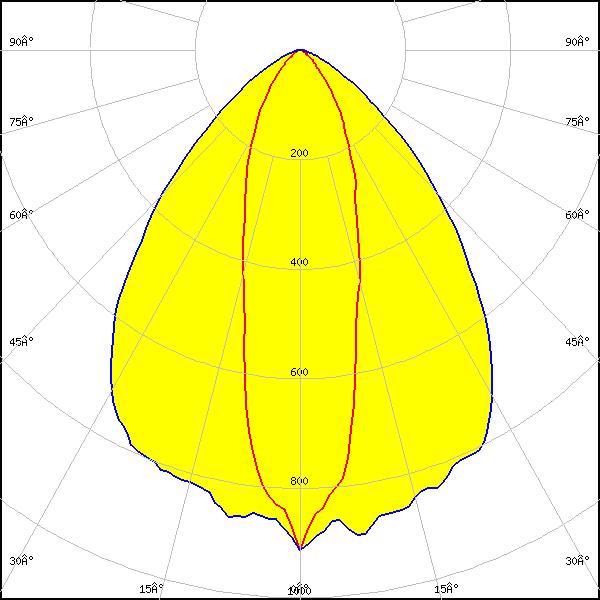

LED:

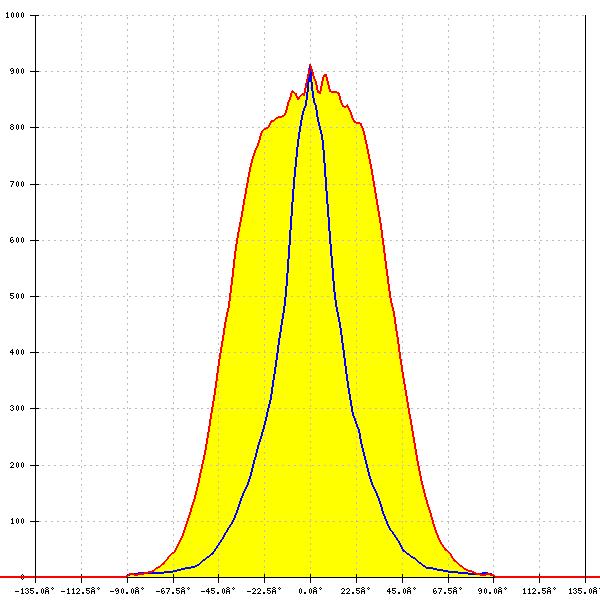

LM302B
FWHM:
82° + 28°
FWTM:
128° + 78°
Peak intensity:
0.920 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

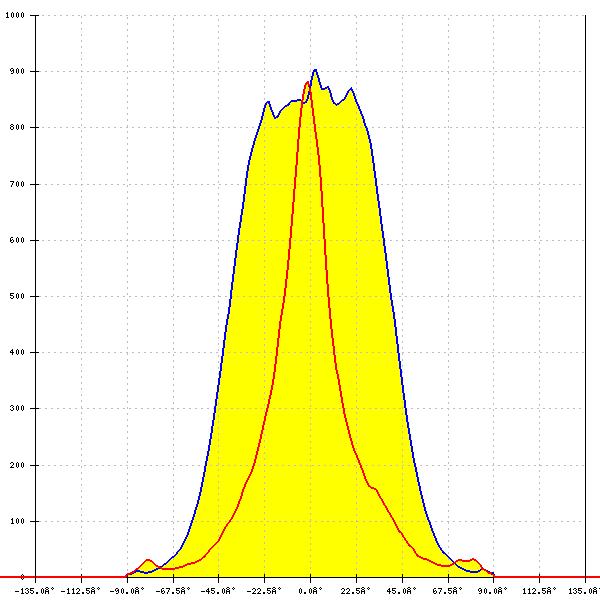

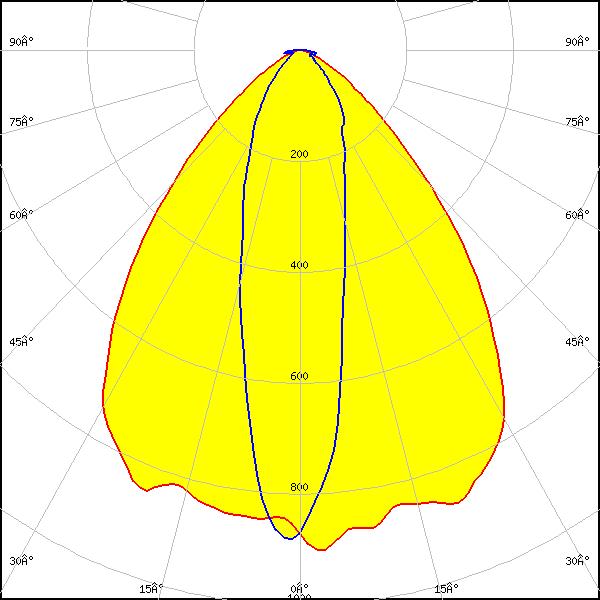

LED:
LM302Z
FWHM:
82° + 25°
FWTM:
119° + 84°
Peak intensity:
0.910 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

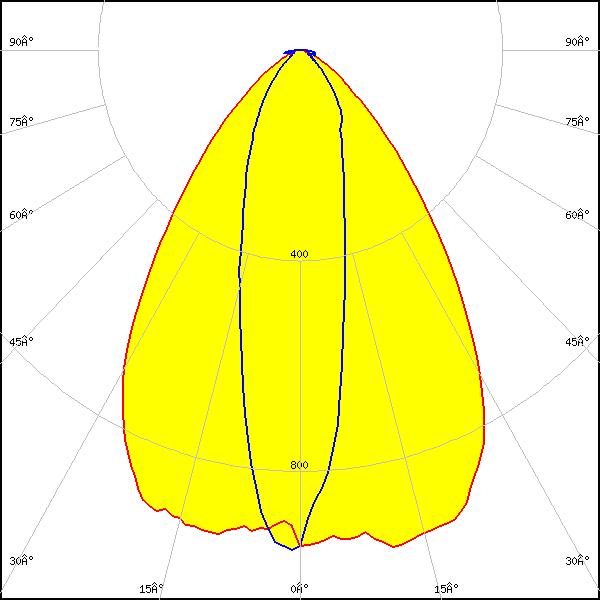

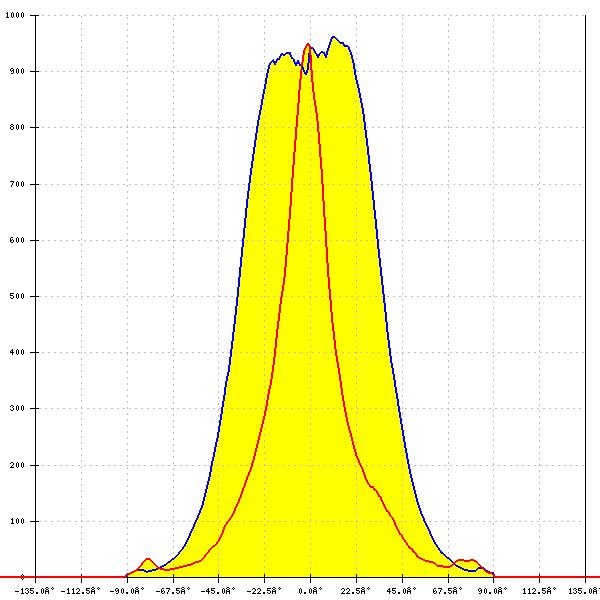

LED:
LM302Z
FWHM:
73° + 27°
FWTM:
114° + 83°
Peak intensity:
0.960 cd/lm
Efficiency:
88 %
LEDs/each optic:
2
Light colour/type:
White

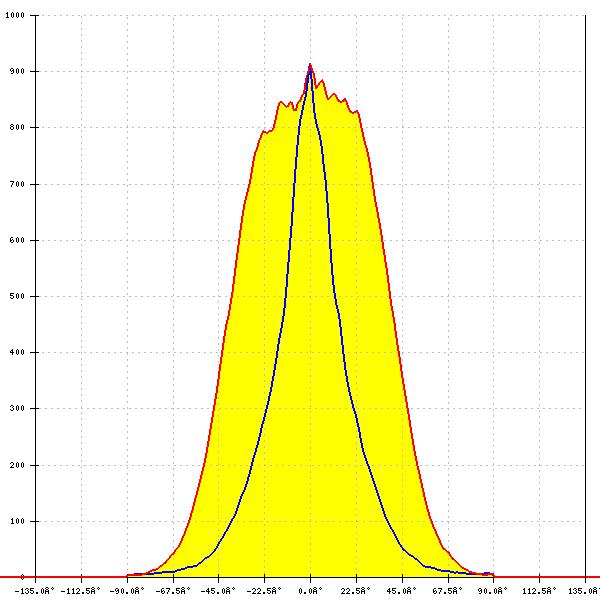

LED:

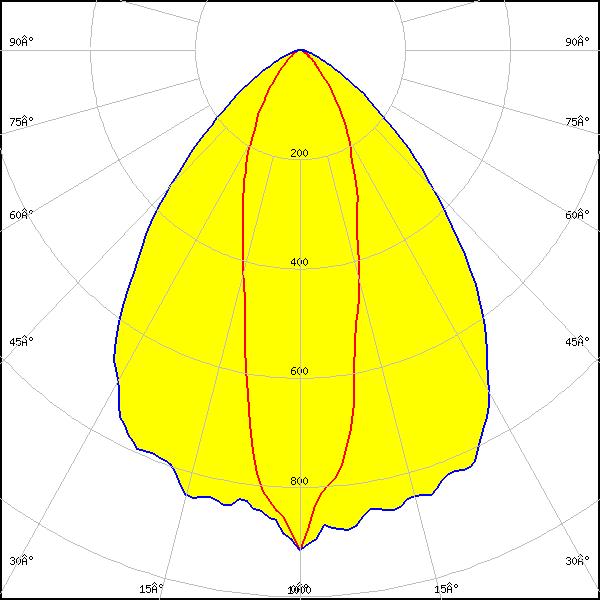

LM561B Plus
FWHM:
82° + 28°
FWTM:
121° + 79°
Peak intensity:
0.930 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

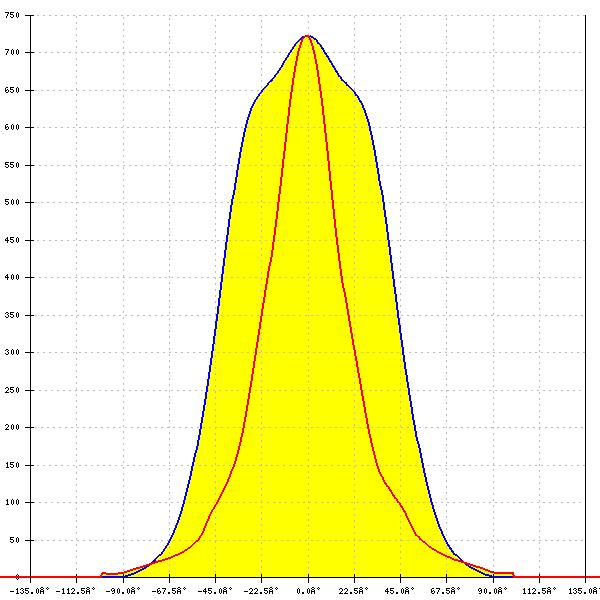

LED:

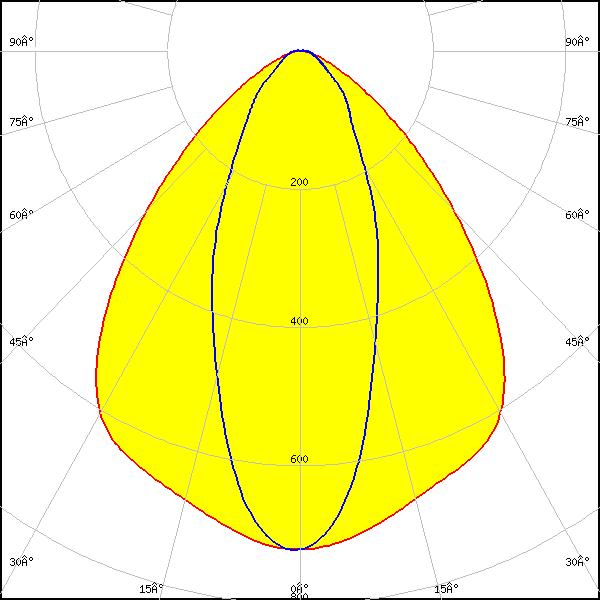

SEOUL 5630C
FWHM:
87° + 41°
FWTM:
127° + 99°
Peak intensity:
0.720 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

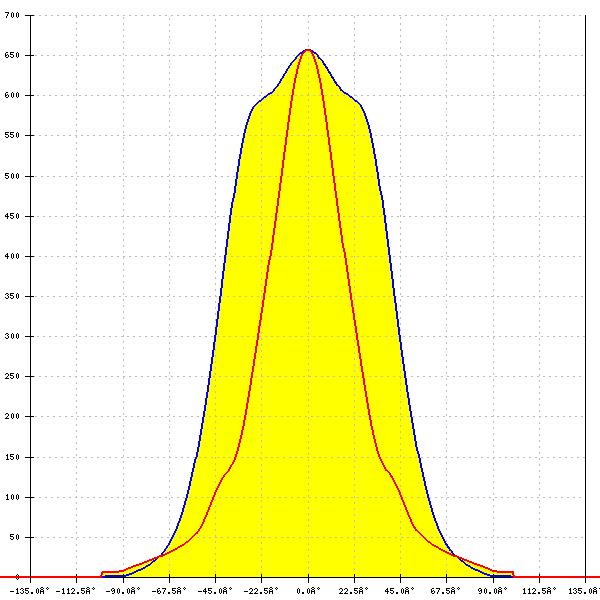

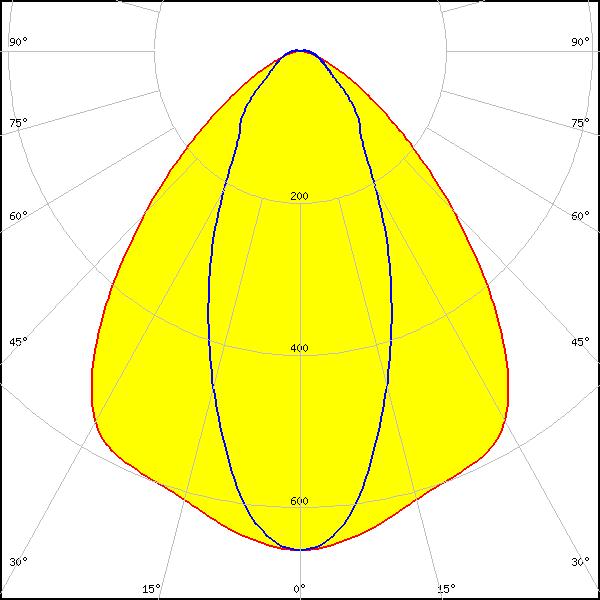

LED:
SEOUL DC 3030
FWHM:
88° + 39°
FWTM:
127° + 101°
Peak intensity:
0.720 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

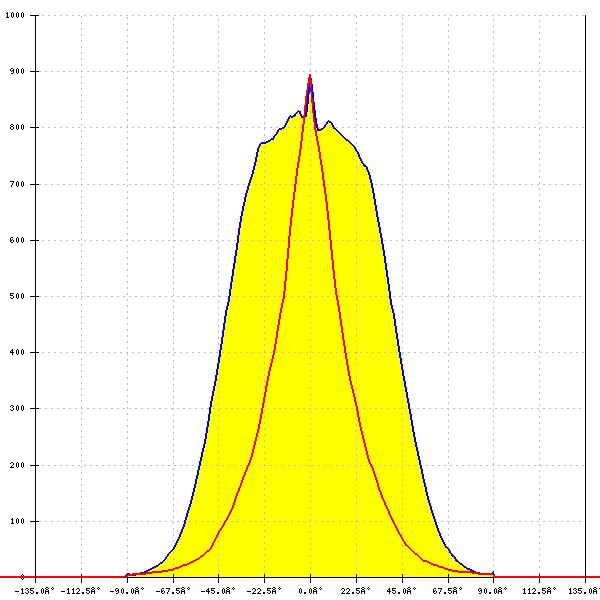

LED:

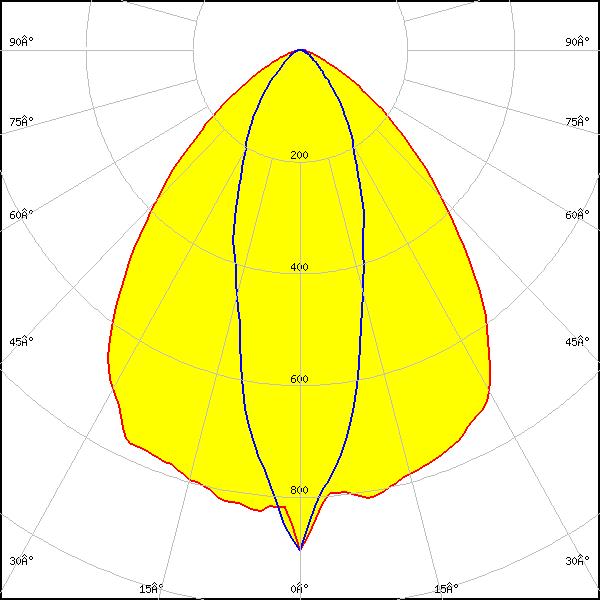

SEOUL DC 3030C
FWHM:
84° + 30°
FWTM:
125° + 85°
Peak intensity:
0.895 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

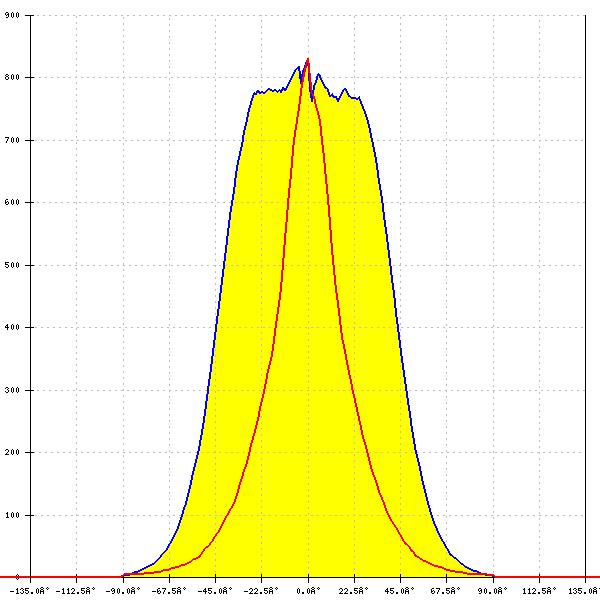

LED:

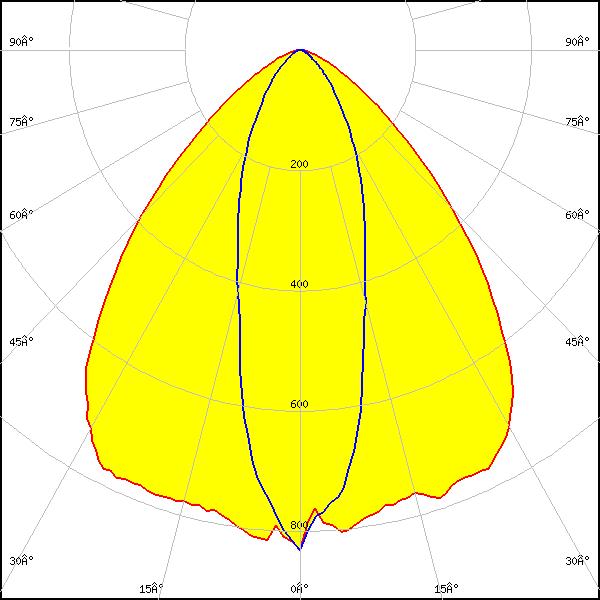

SEOUL DC 3528
FWHM:
87° + 31°
FWTM:
125° + 84°
Peak intensity:
0.840 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

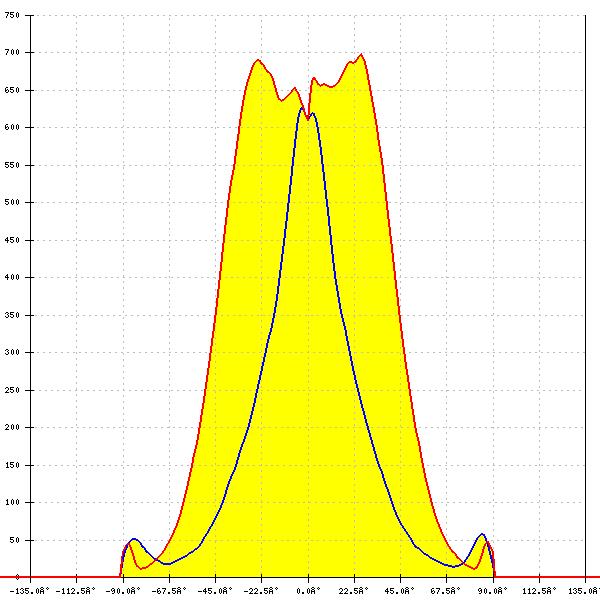

LED:

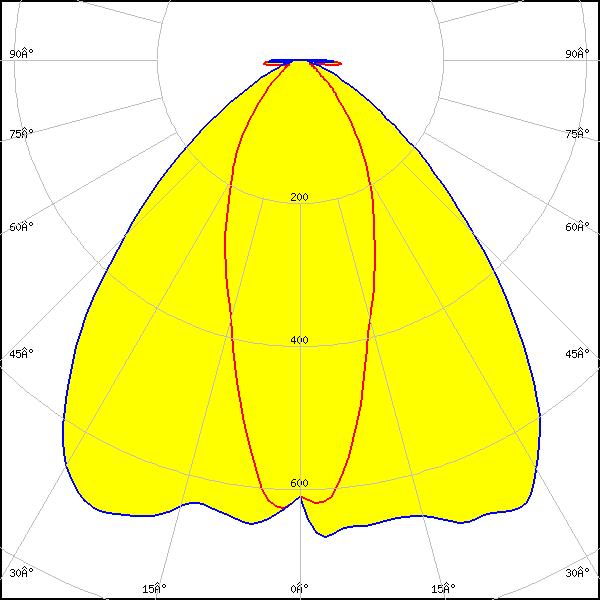

Z8Y22
FWHM:
90° + 40°
FWTM:
128° + 95°
Peak intensity:
0.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

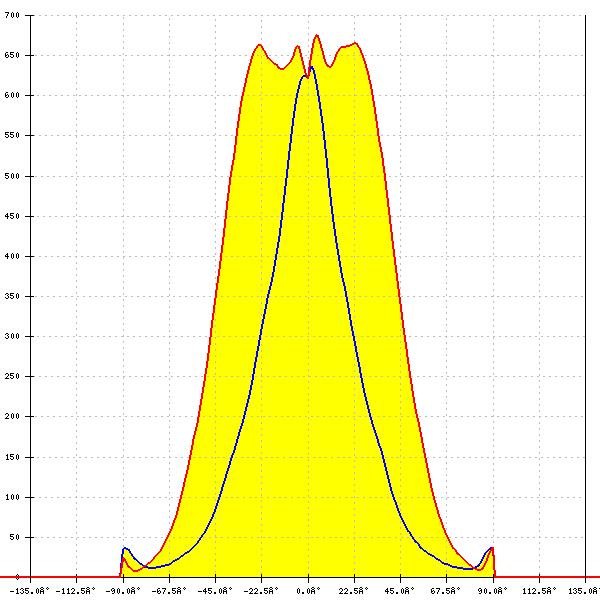

LED:

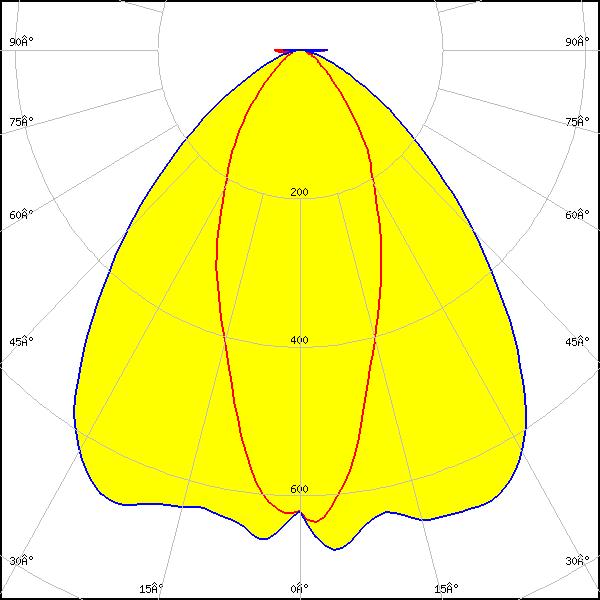

Z8Y22P
FWHM:
91° + 40°
FWTM:
131° + 95°
Peak intensity:
0.680 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

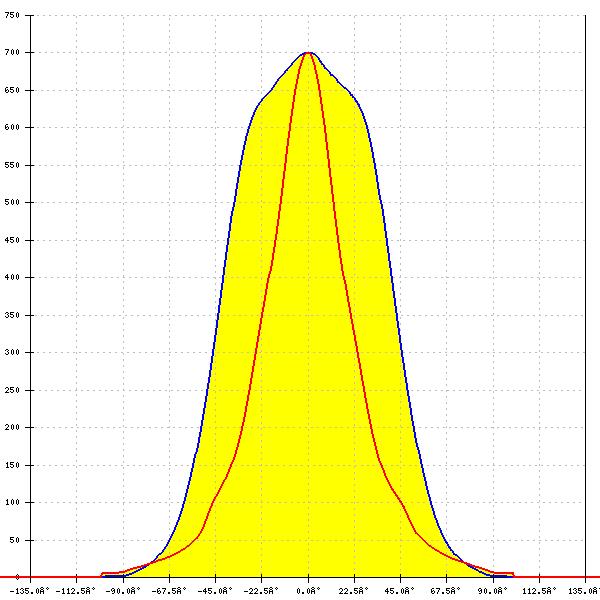

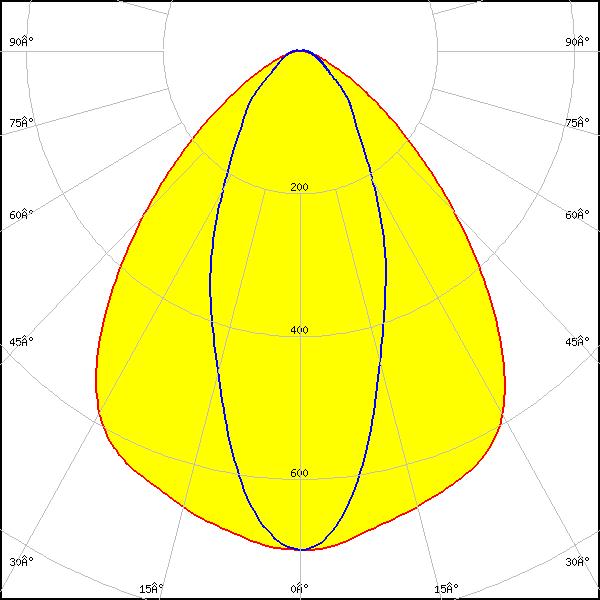

LLE G2 55x280mm 2000lm
FWHM:
87° + 43°
FWTM:
127° + 101°
Peak intensity:
0.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
