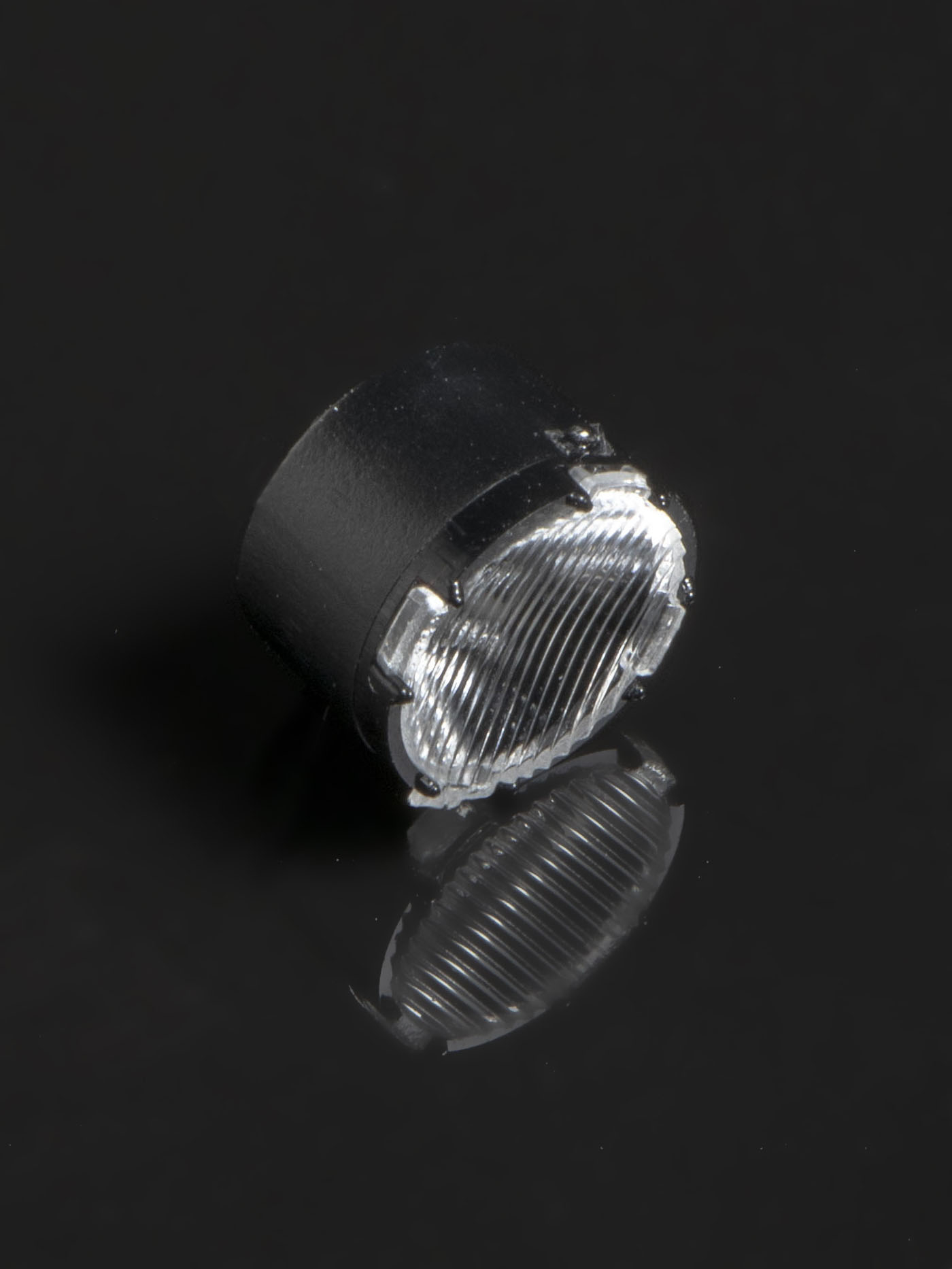

FP18601_LISA3-O-90-CLIP16
Print

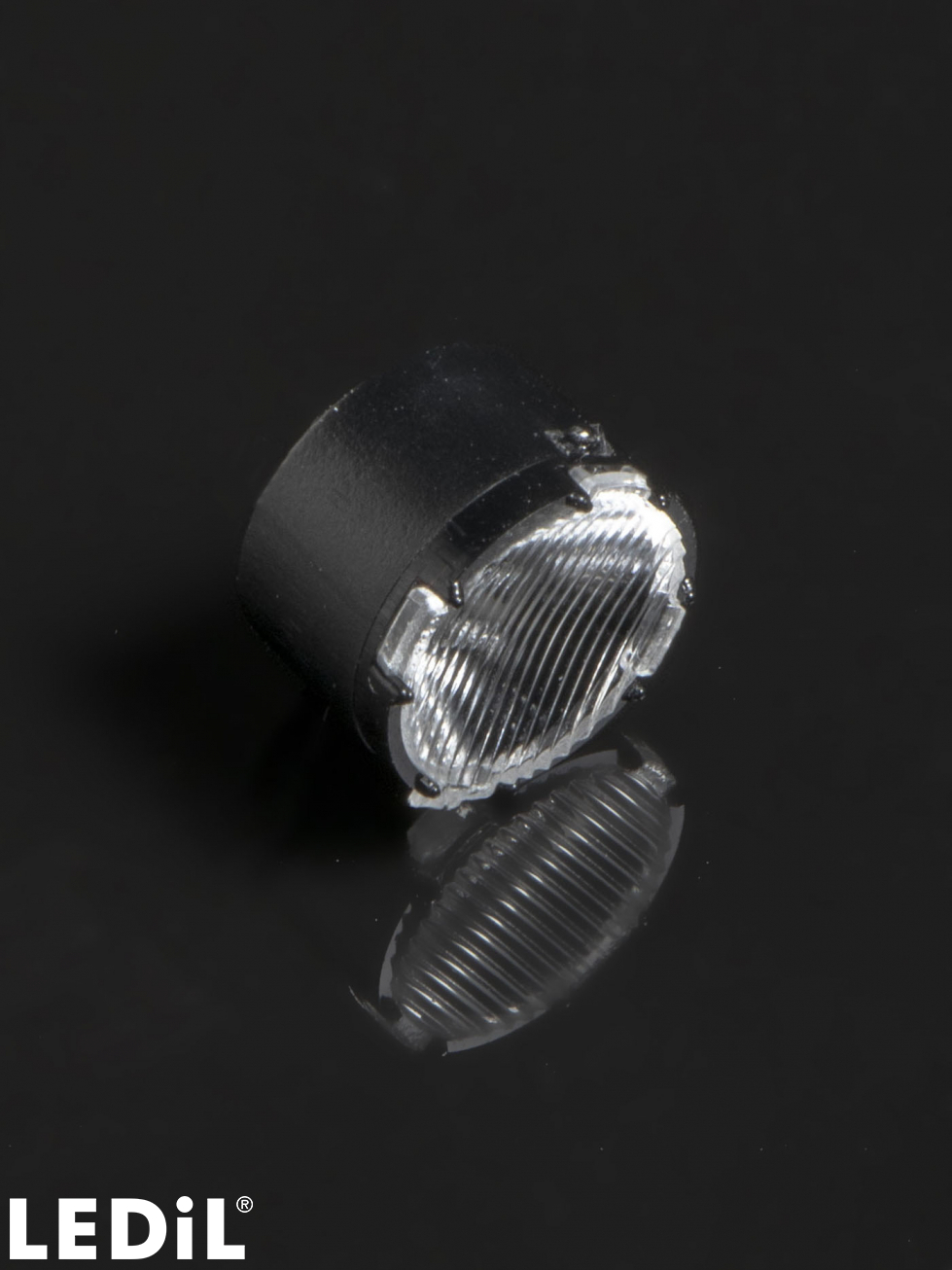

~15° + 50° oval beam with clip installation. Lens rotated 90°.
Materials
- LISA3-O, Single lens, PMMA
- LISA3-HLD-CLIP16, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

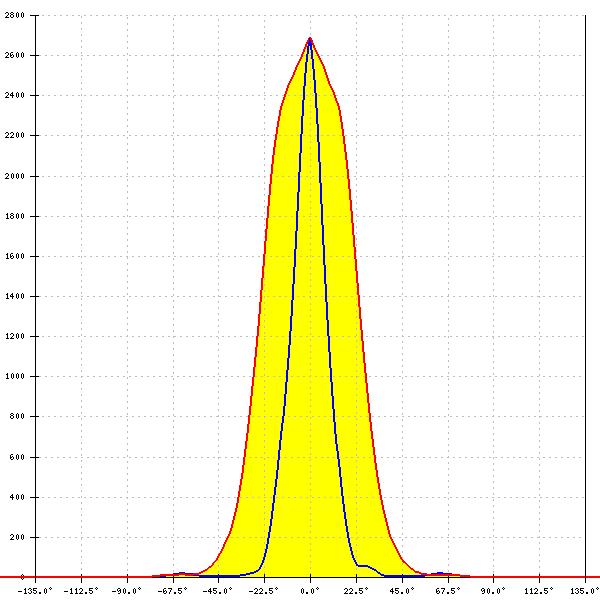

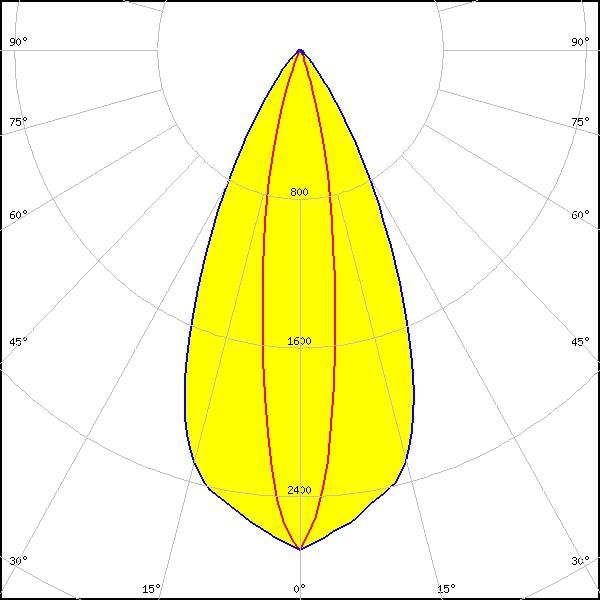

LED:
XP-E2
FWHM:
17° + 48°
FWTM:
37° + 76°
Peak intensity:
2.691 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

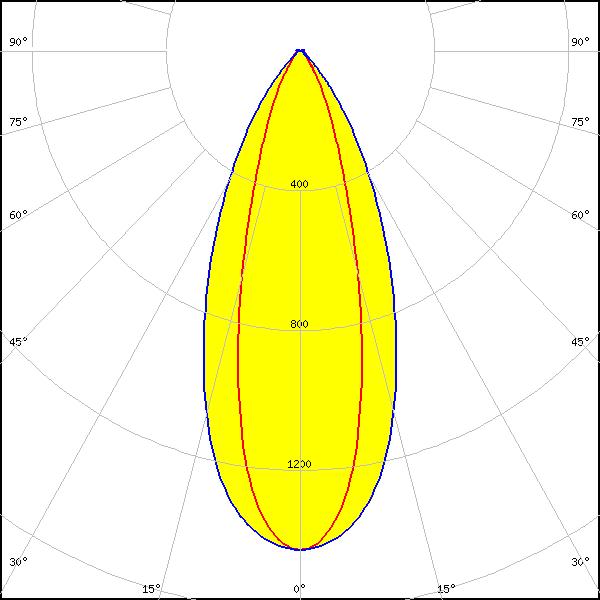

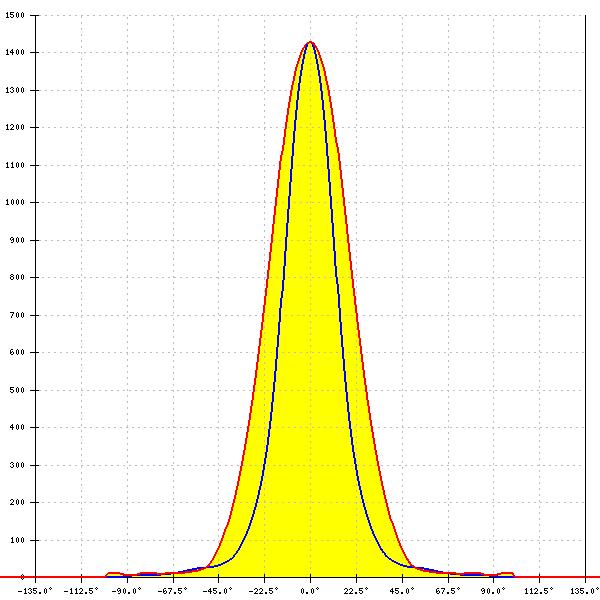

LED:
XP-G3
FWHM:
29° + 45°
FWTM:
59° + 81°
Peak intensity:
1.432 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

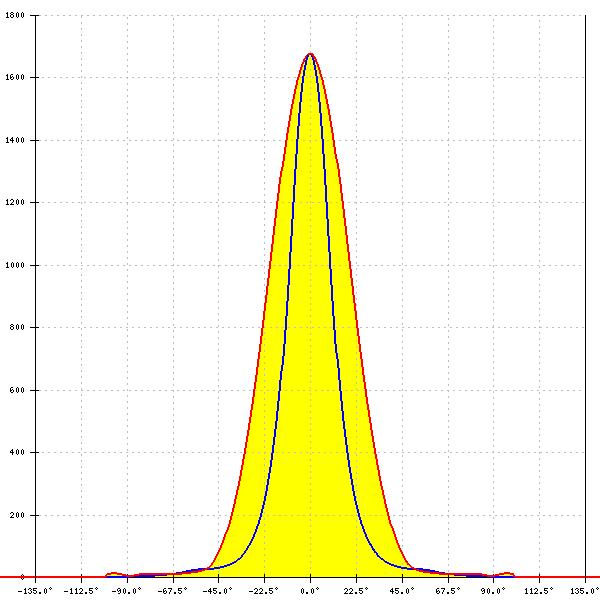

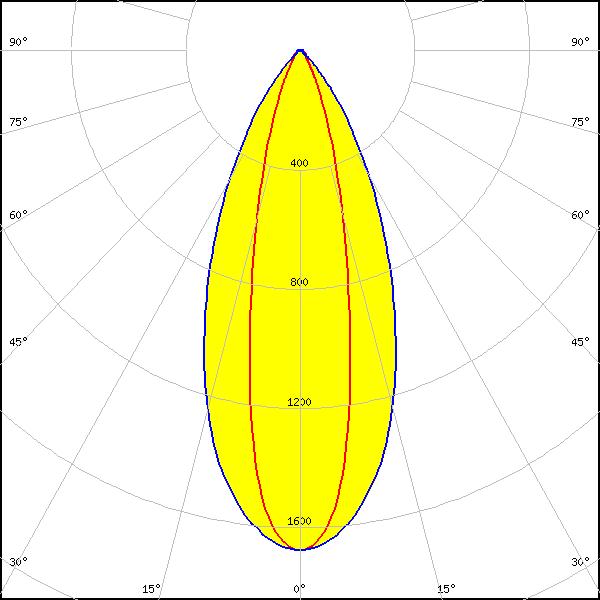

LED:
XT-E
FWHM:
24° + 45°
FWTM:
51° + 80°
Peak intensity:
1.677 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

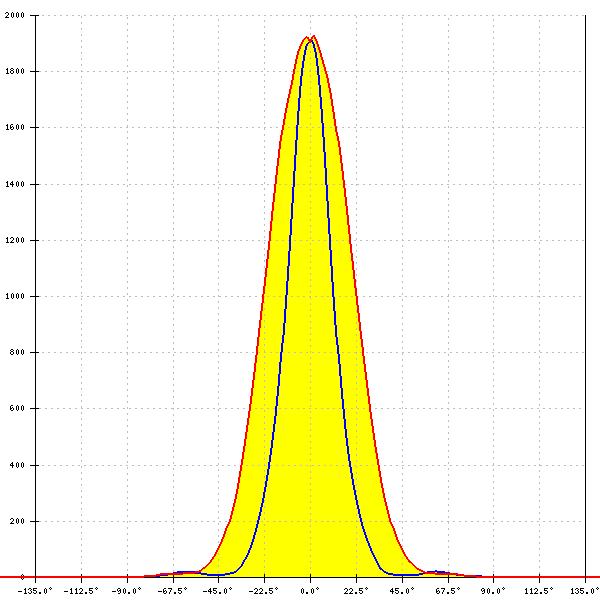

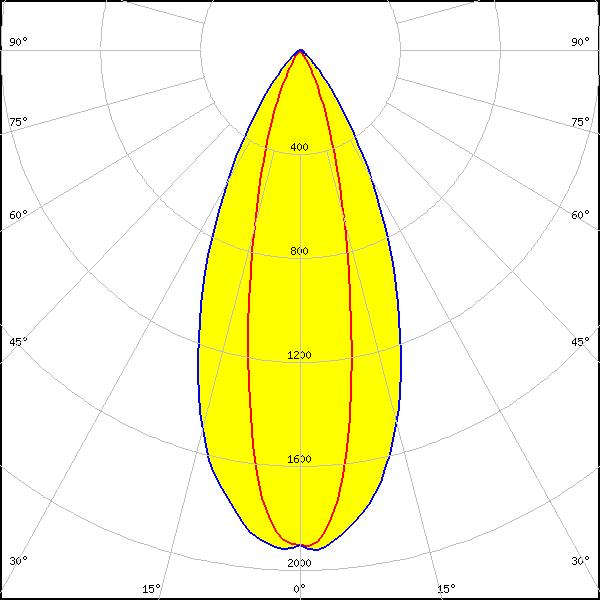

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
24° + 47°
FWTM:
52° + 80°
Peak intensity:
1.942 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

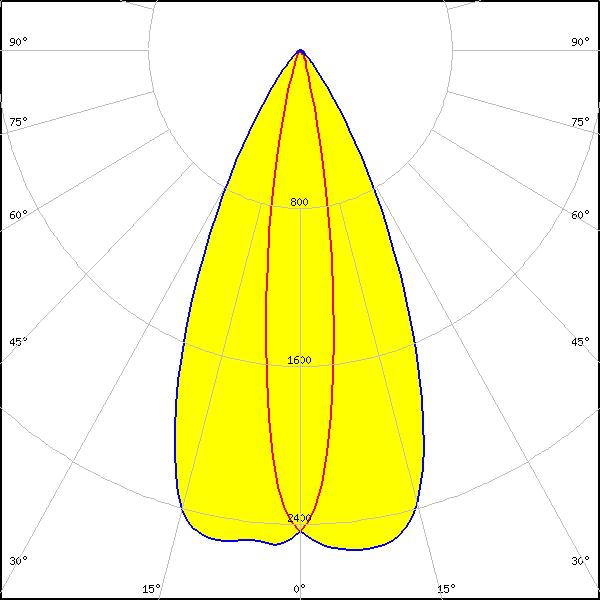

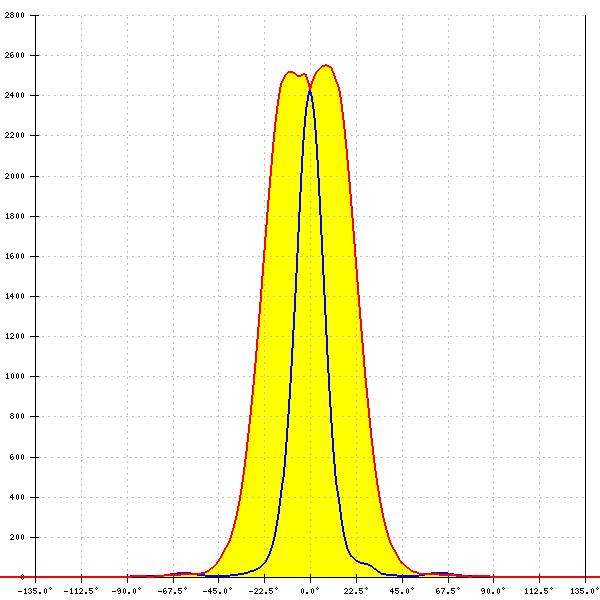

LED:
LM101B
FWHM:
16° + 50°
FWTM:
32° + 75°
Peak intensity:
2.548 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
