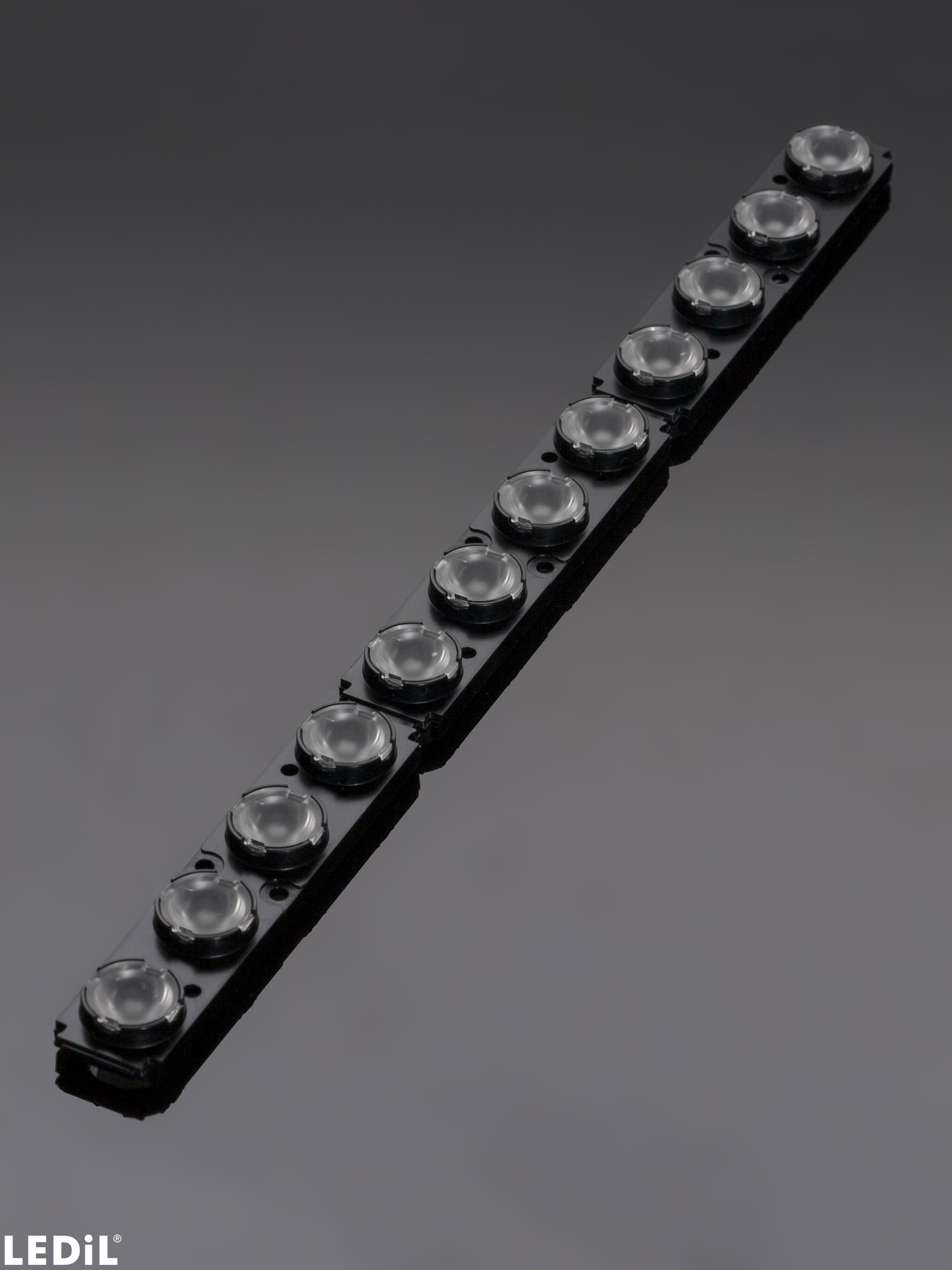

FP14998_FLORENTINA-HLD-WW
Print
~45° wide beam
Materials
- TINA-WW-XP, Single lens, PMMA
- FLORENTINA-HLD, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:

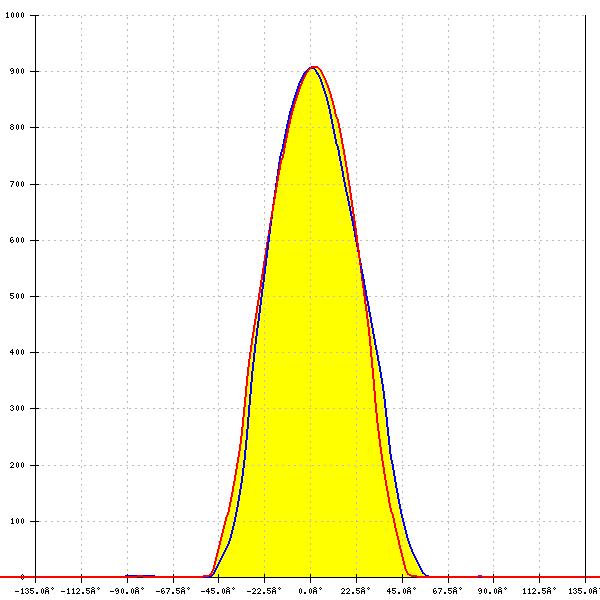

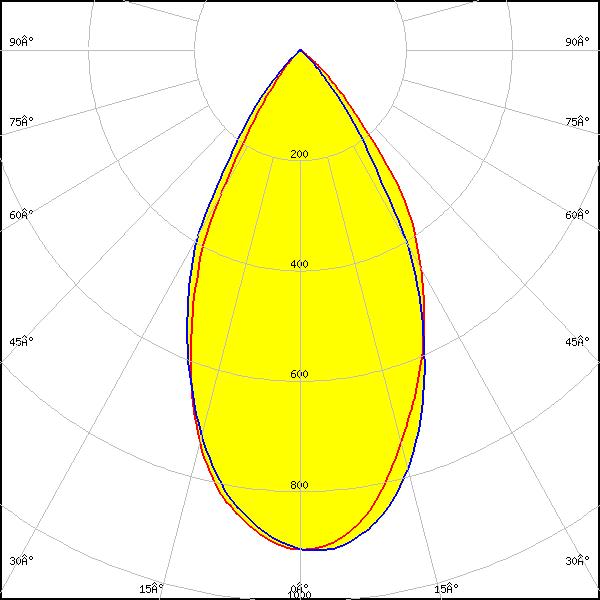

QUICK FLUX LED FL-XG 1x12 xxx
Required components:
FWHM:
56°
FWTM:
84°
Peak intensity:
0.910 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

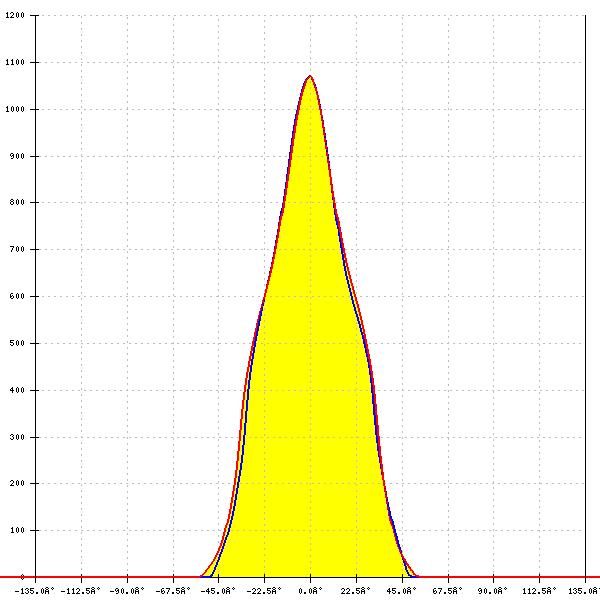

LED:

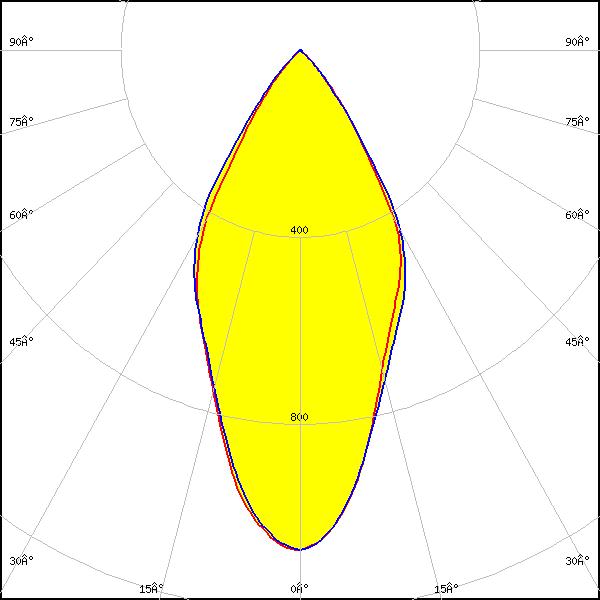

XP-E2
Required components:
FWHM:
52°
FWTM:
82°
Peak intensity:
1.100 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
Required components:
LEDs/each optic:
1
Light colour/type:
White

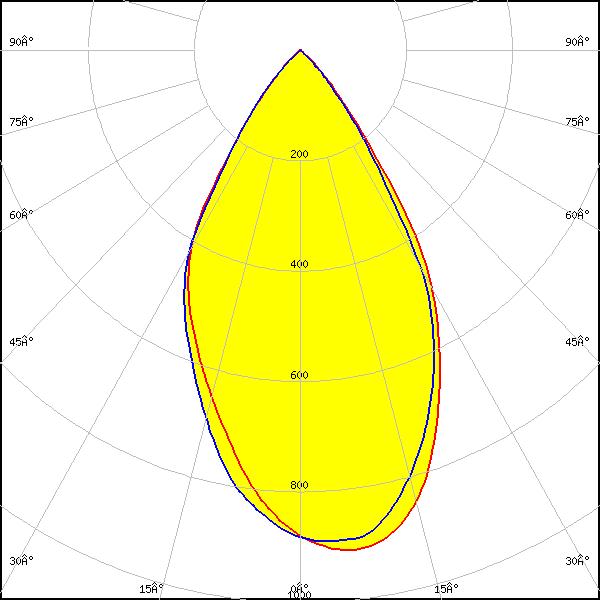

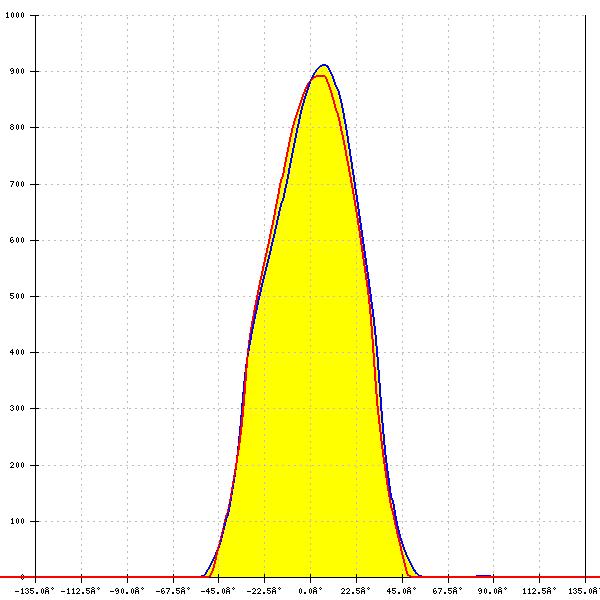

LED:
XP-G2
Required components:
FWHM:
59°
FWTM:
86°
Peak intensity:
0.900 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

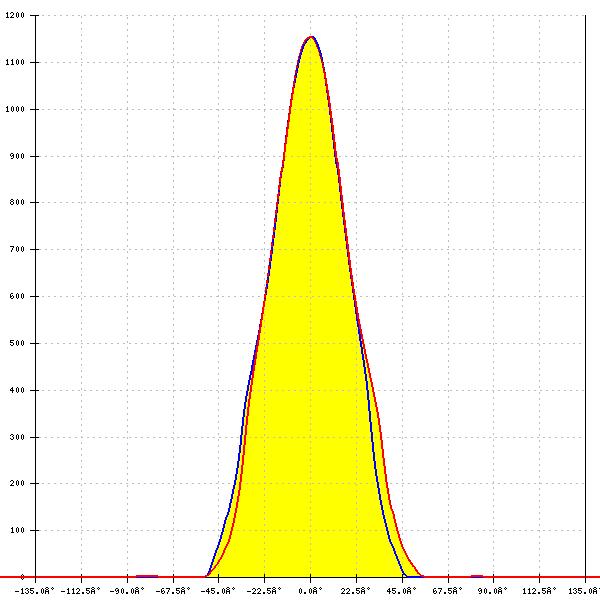

LED:

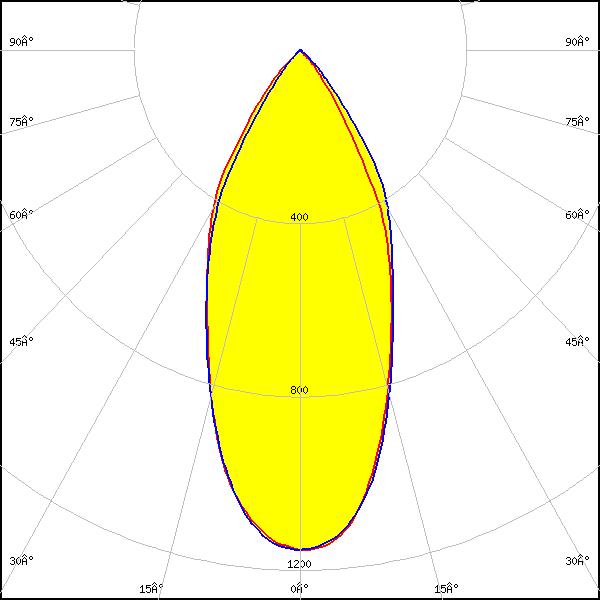

LUXEON Rebel ES
Required components:
FWHM:
46°
FWTM:
80°
Peak intensity:
1.200 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:

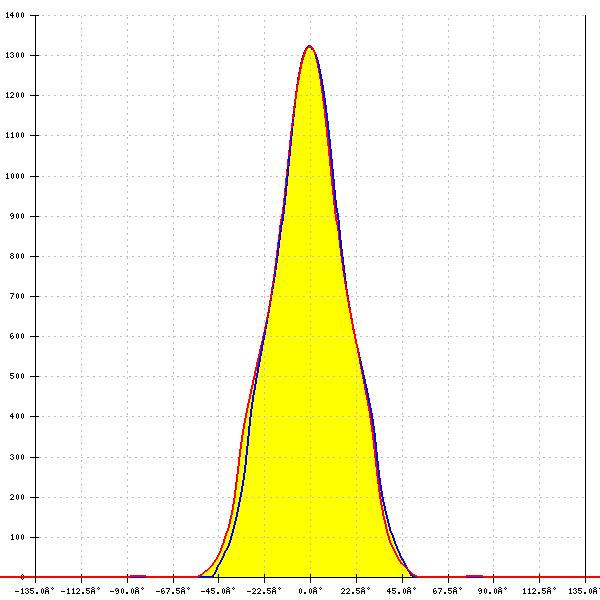

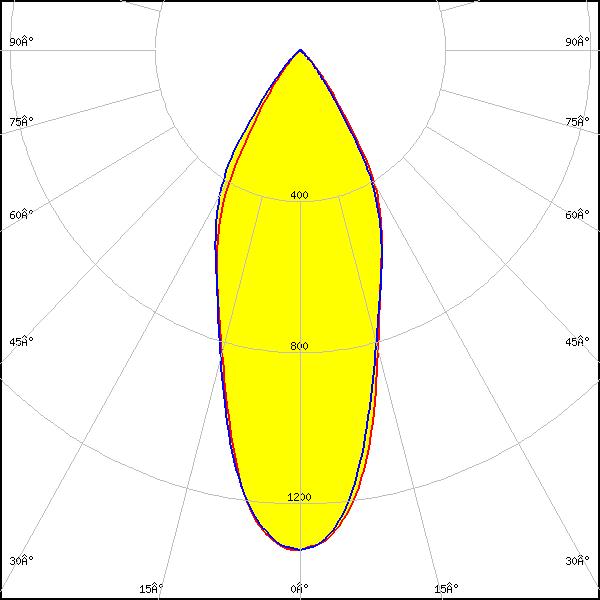

LUXEON Rebel Plus
Required components:
FWHM:
40°
FWTM:
78°
Peak intensity:
1.300 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

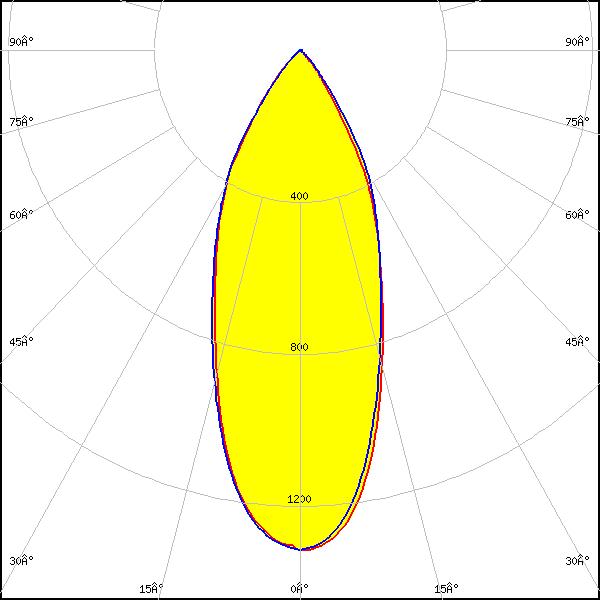

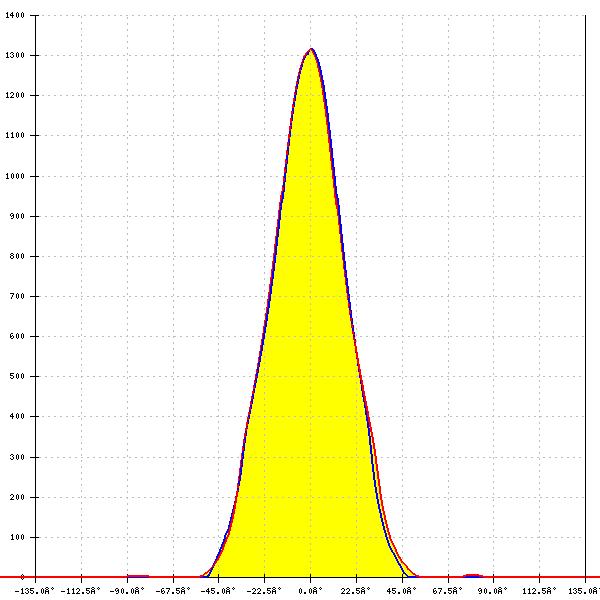

LUXEON TX
Required components:
FWHM:
41°
FWTM:
77°
Peak intensity:
1.300 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

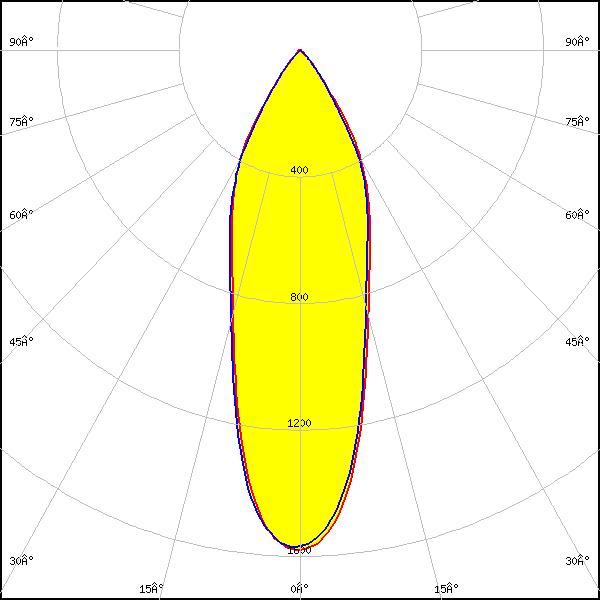

LED:

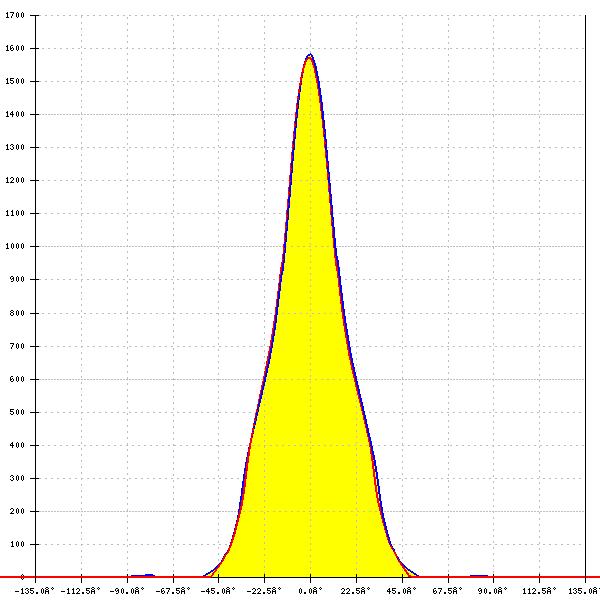

LUXEON Z ES
Required components:
FWHM:
33°
FWTM:
75°
Peak intensity:
1.580 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

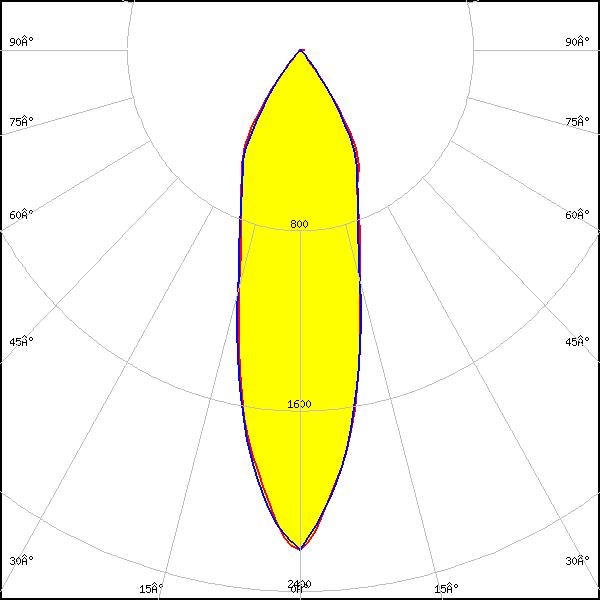

LED:

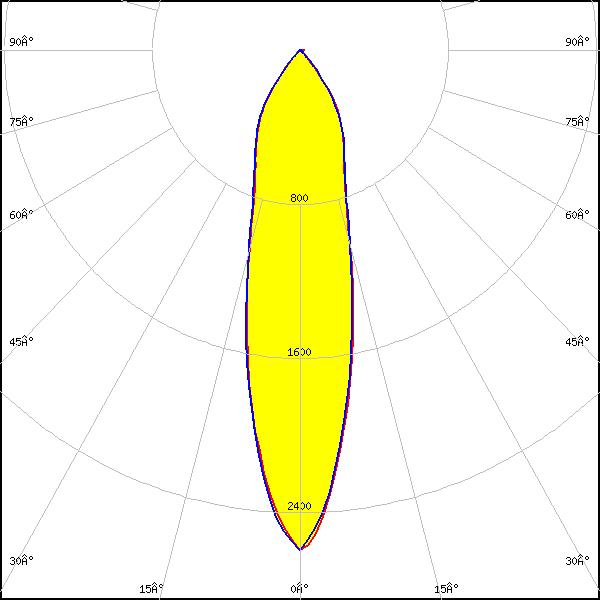

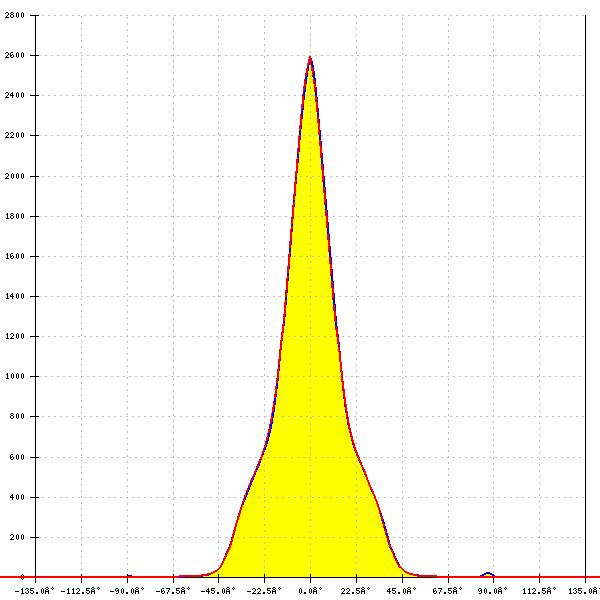

NCSxE17A
FWHM:
25°
FWTM:
73°
Peak intensity:
2.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

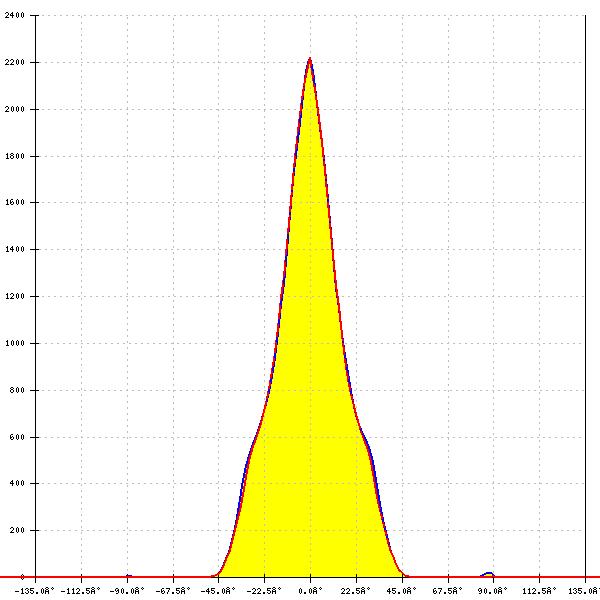

NCSxE17A
Required components:
FWHM:
29°
FWTM:
73°
Peak intensity:
2.220 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

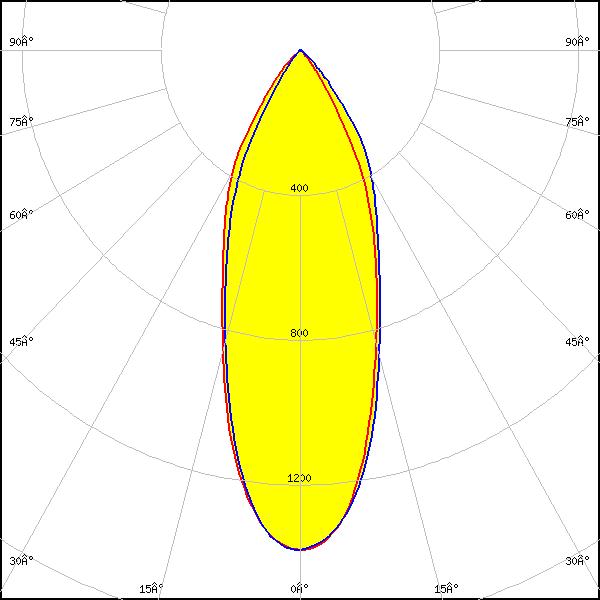

LED:

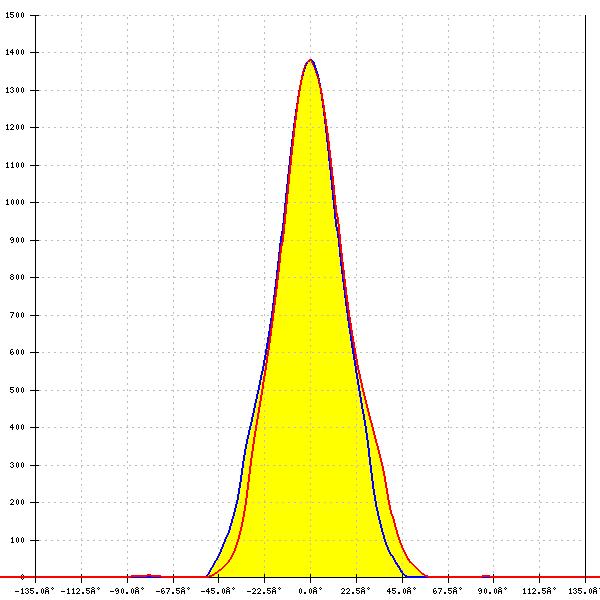

NCSxx19B
Required components:
FWHM:
38°
FWTM:
76°
Peak intensity:
1.400 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

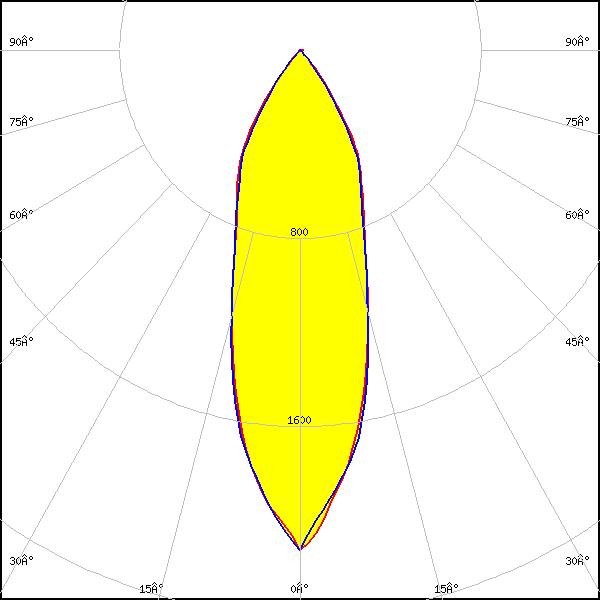

LED:

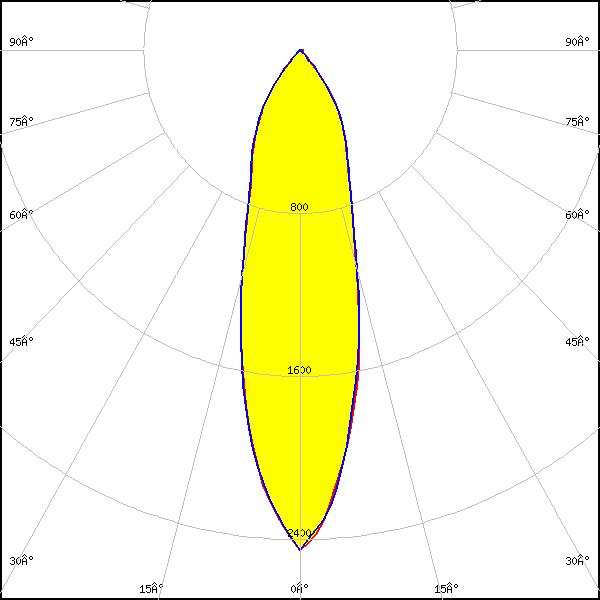

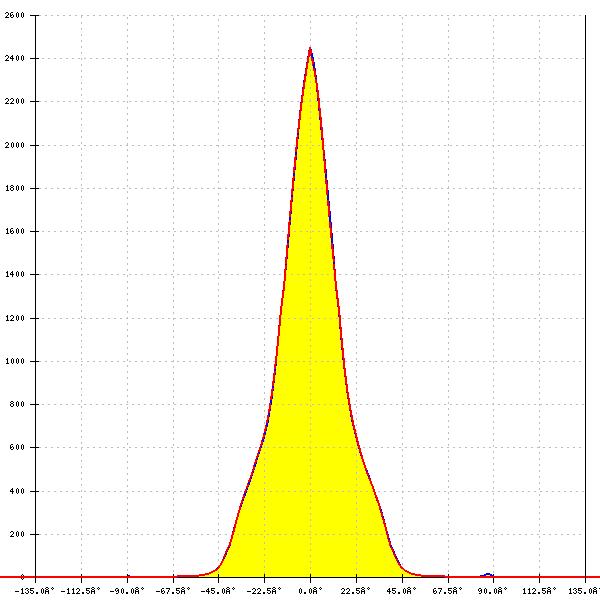

NVSxE21A
FWHM:
28°
FWTM:
74°
Peak intensity:
2.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

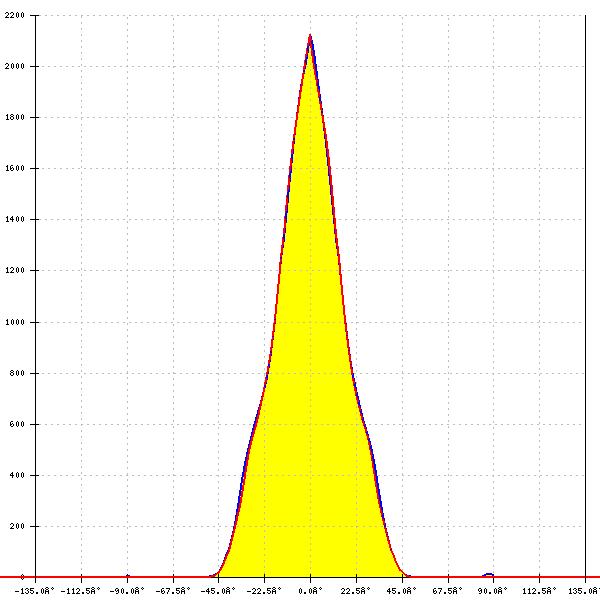

NVSxE21A
Required components:
FWHM:
33°
FWTM:
73°
Peak intensity:
2.130 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

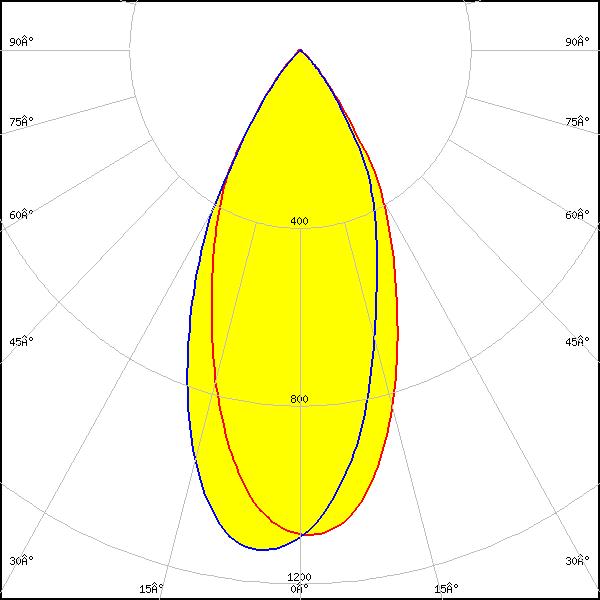

LED:

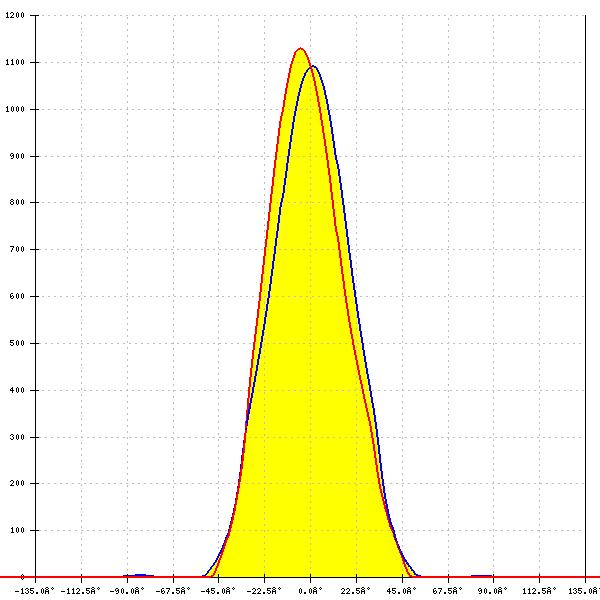

NVSxx19B/NVSxx19C
Required components:
FWHM:
46°
FWTM:
80°
Peak intensity:
1.130 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

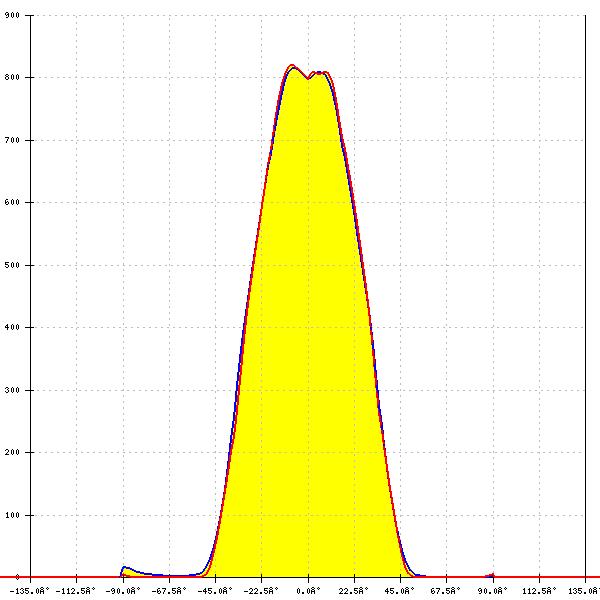

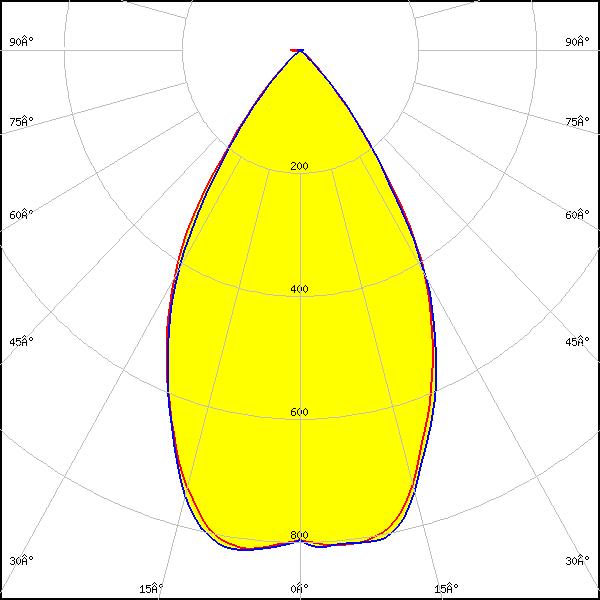

LED:
NWSx229A
Required components:
FWHM:
60°
FWTM:
85°
Peak intensity:
0.830 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:

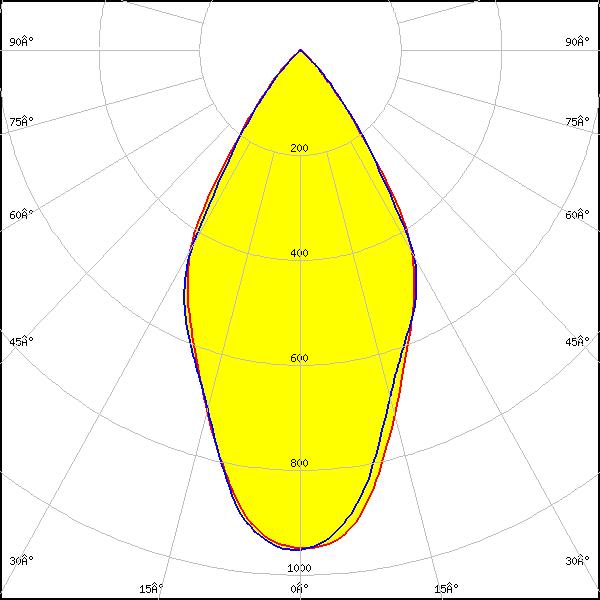

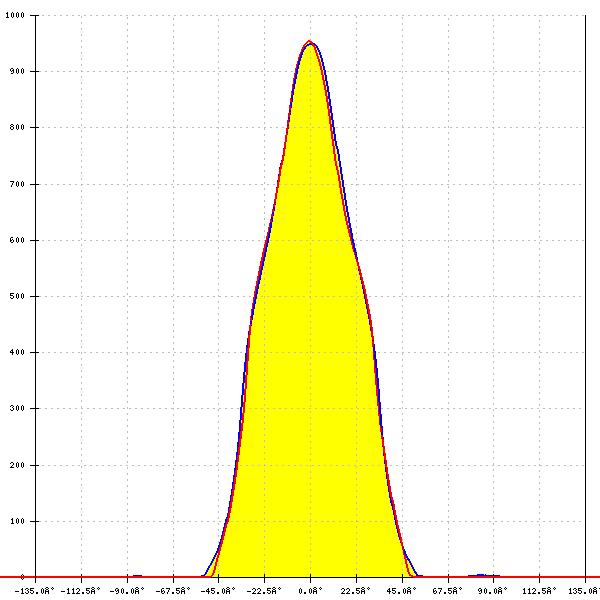

OSLON Square EC
Required components:
FWHM:
57°
FWTM:
84°
Peak intensity:
0.950 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

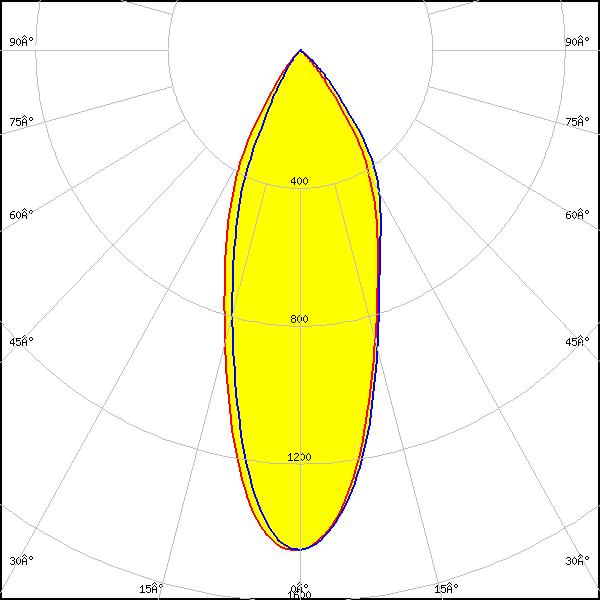

LED:

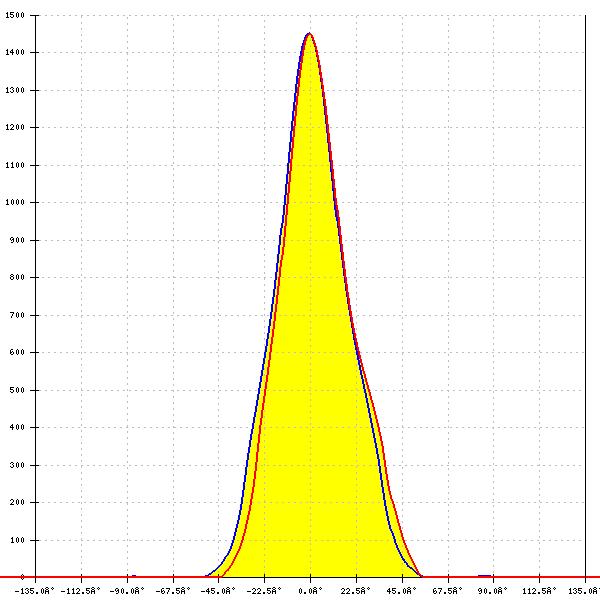

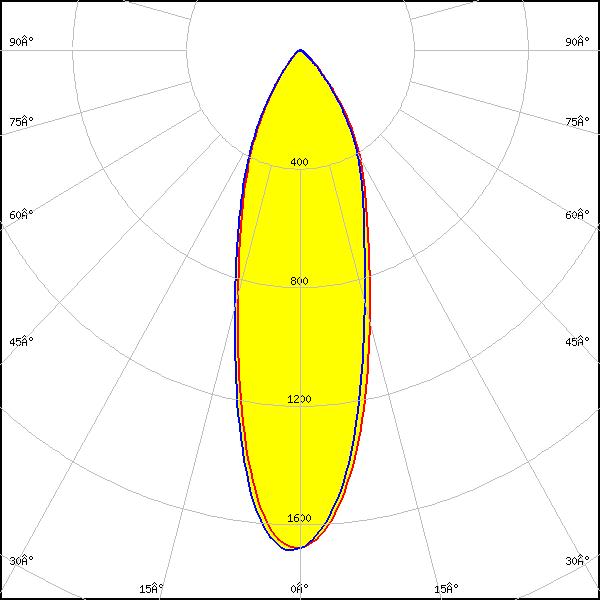

OSLON SSL 150
Required components:
FWHM:
37°
FWTM:
75°
Peak intensity:
1.500 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

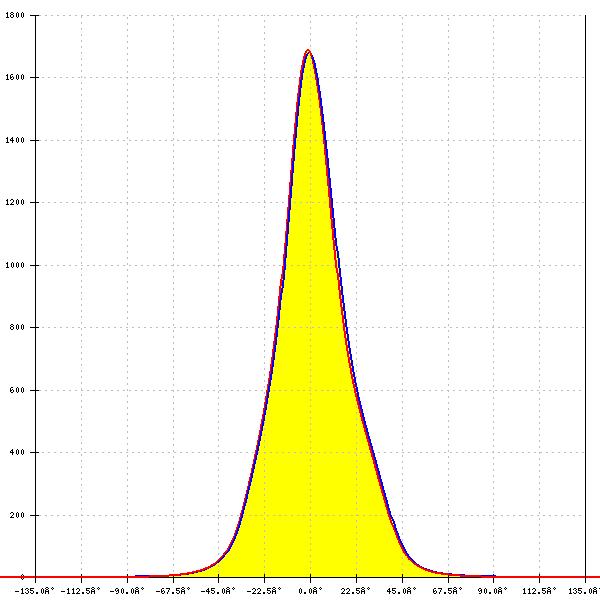

OSLON SSL 150
FWHM:
32°
FWTM:
76°
Peak intensity:
1.700 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

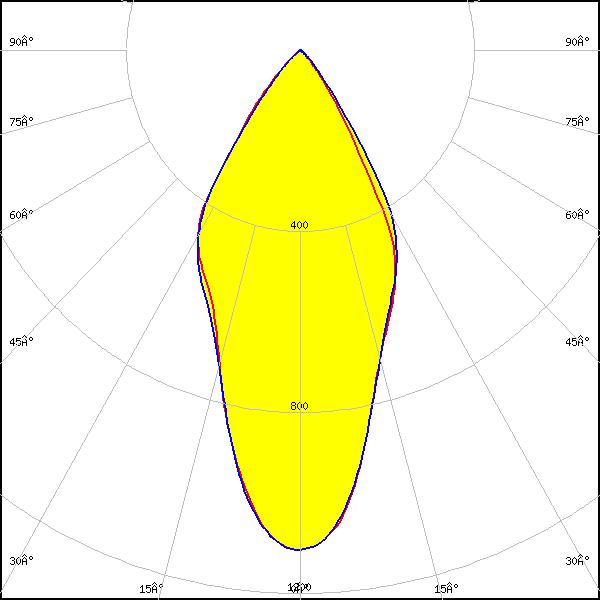

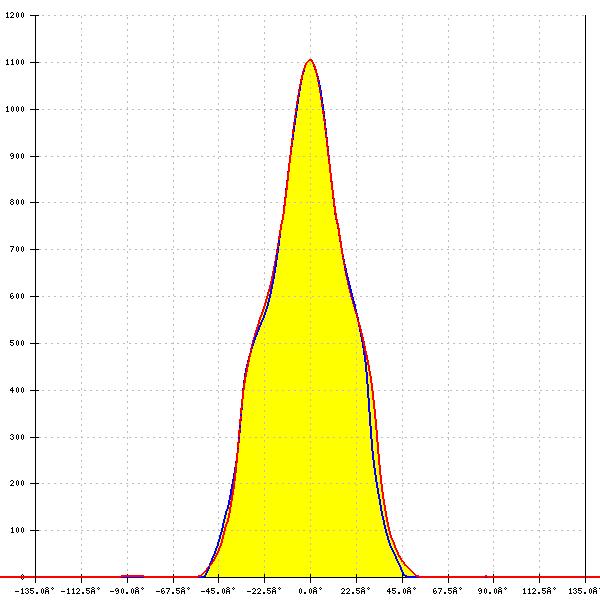

OSLON SSL 80
Required components:
FWHM:
47°
FWTM:
80°
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:

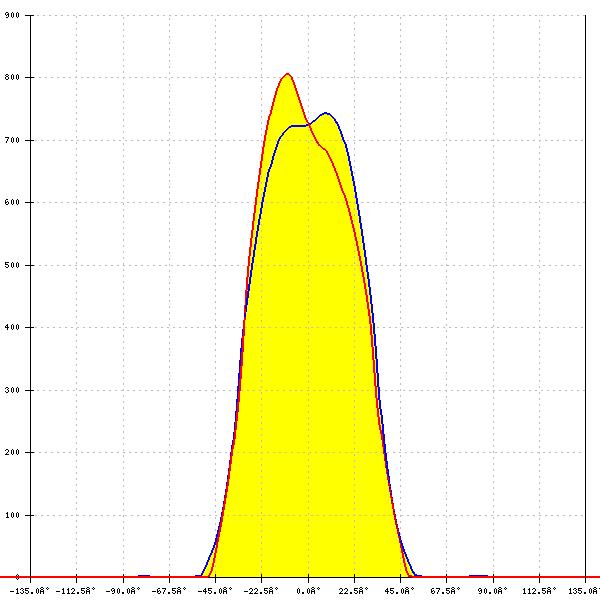

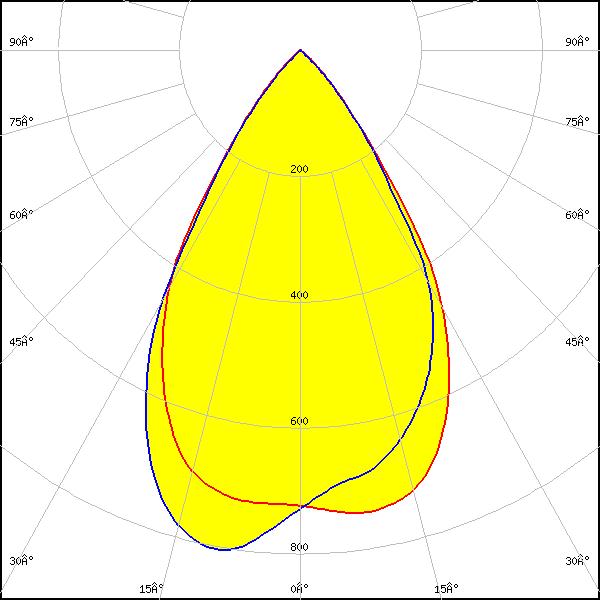

LH351B
Required components:
FWHM:
64°
FWTM:
87°
Peak intensity:
0.820 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:

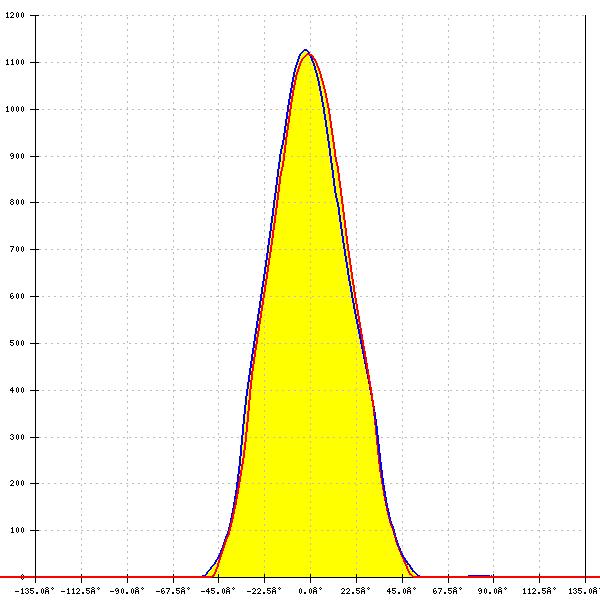

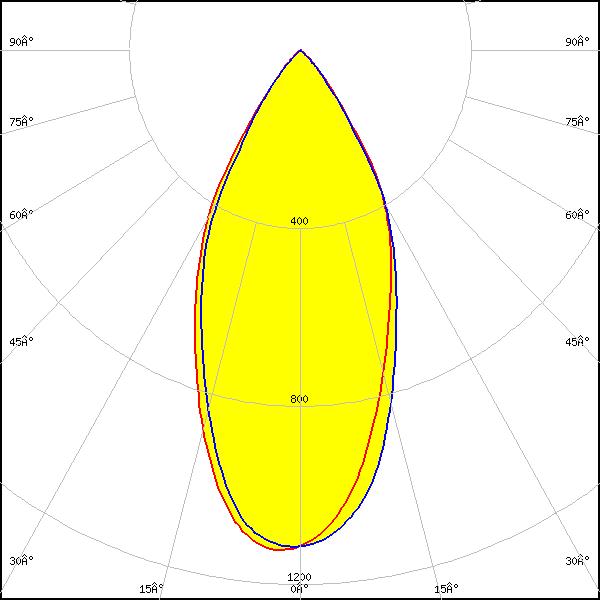

TL1L4
Required components:
FWHM:
48°
FWTM:
80°
Peak intensity:
1.130 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
