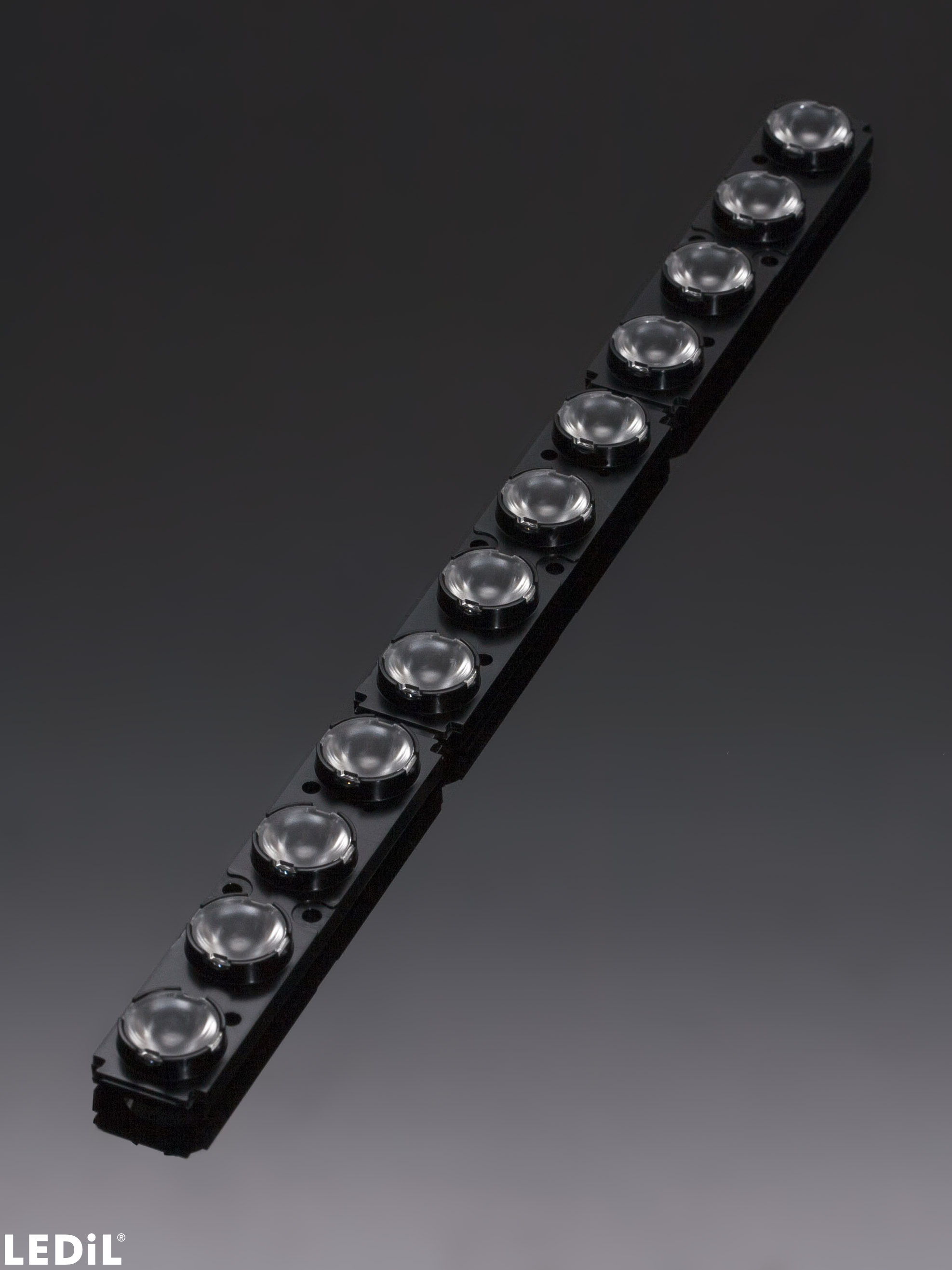

FP14997_FLORENTINA-HLD-W
Print
~40° wide beam
Materials
- TINA-XP-W, Single lens, PMMA
- FLORENTINA-HLD, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

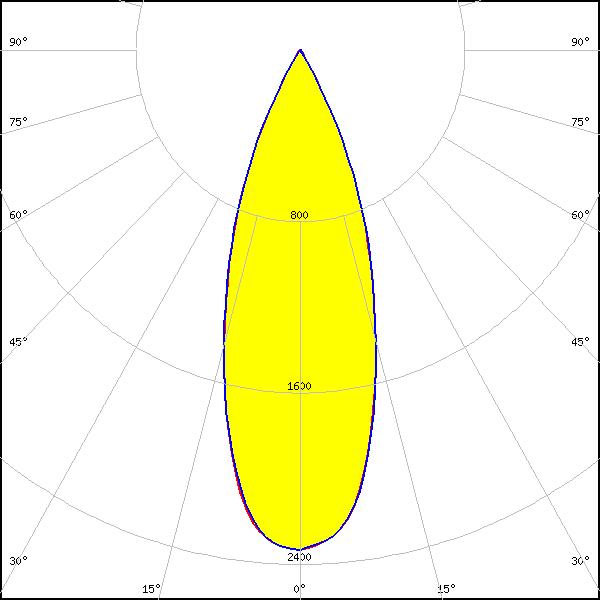

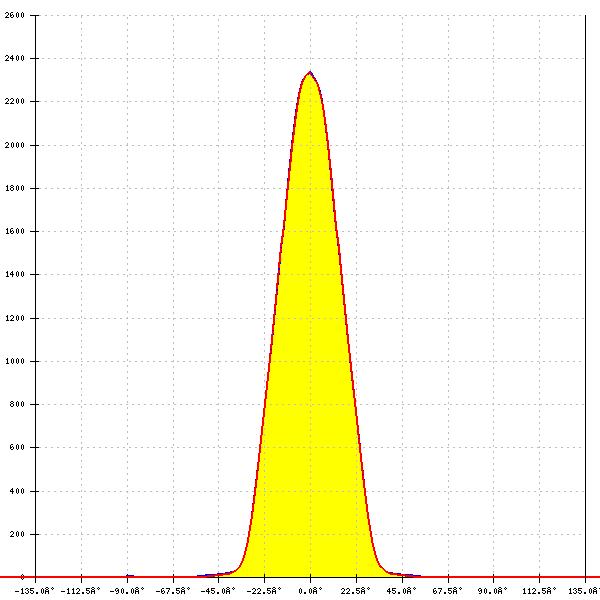

Optical results

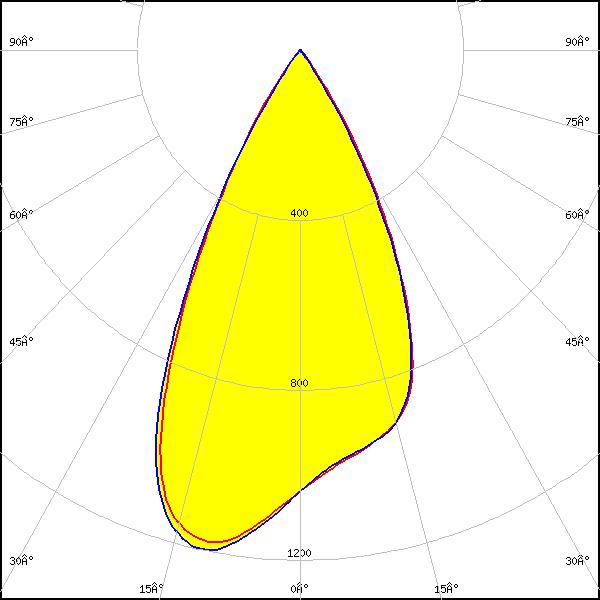

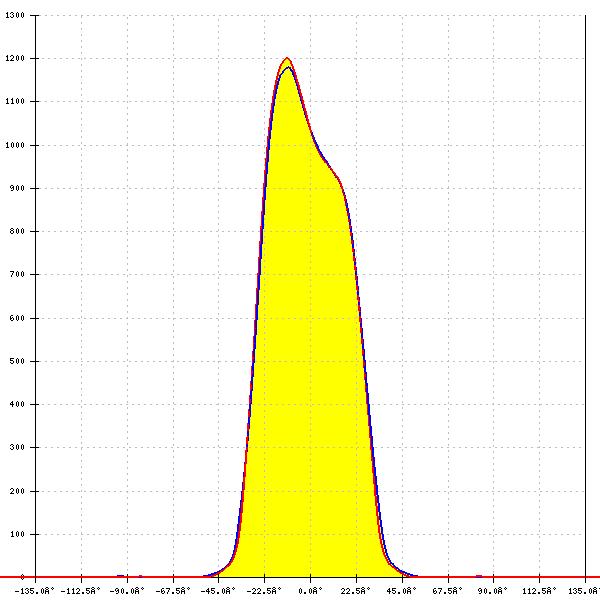

LED:
QUICK FLUX LED FL-XG 1x12 xxx
Required components:
FWHM:
51°
FWTM:
69°
Peak intensity:
1.300 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

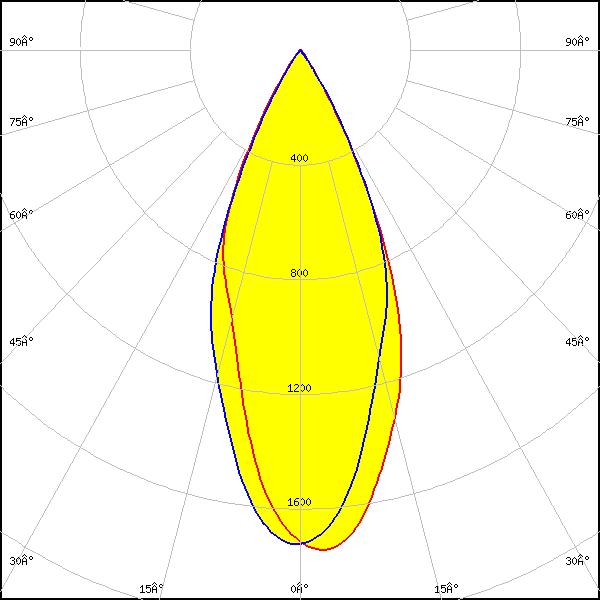

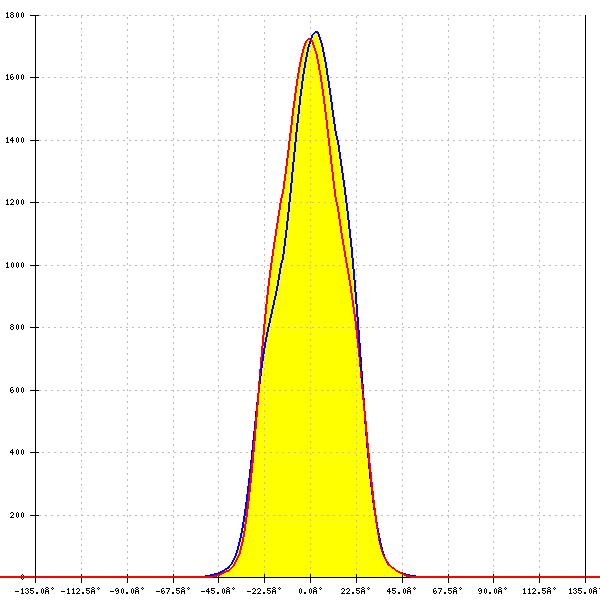

XP-E2
Required components:
FWHM:
42°
FWTM:
66°
Peak intensity:
1.750 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

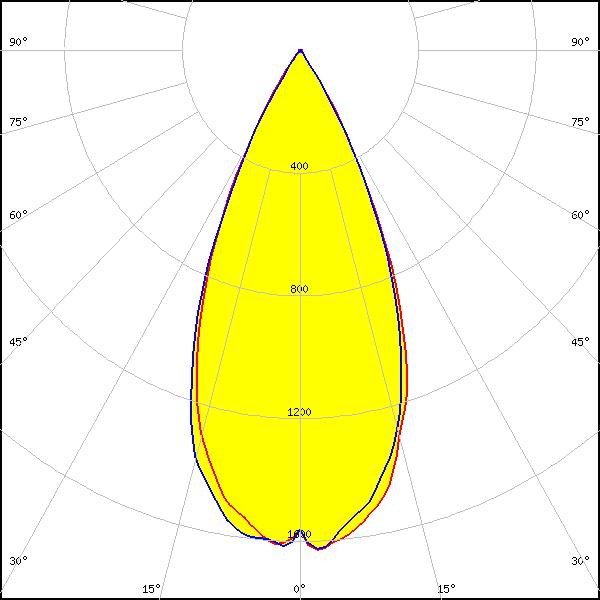

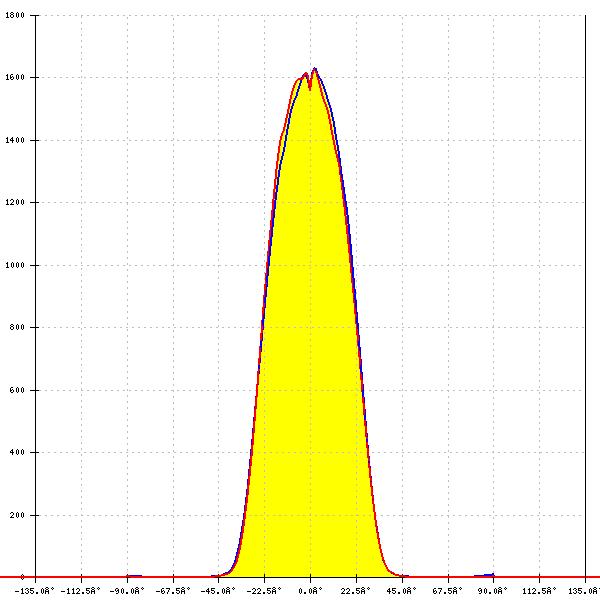

LED:
XP-G2 HE
Required components:
FWHM:
46°
FWTM:
66°
Peak intensity:
1.634 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

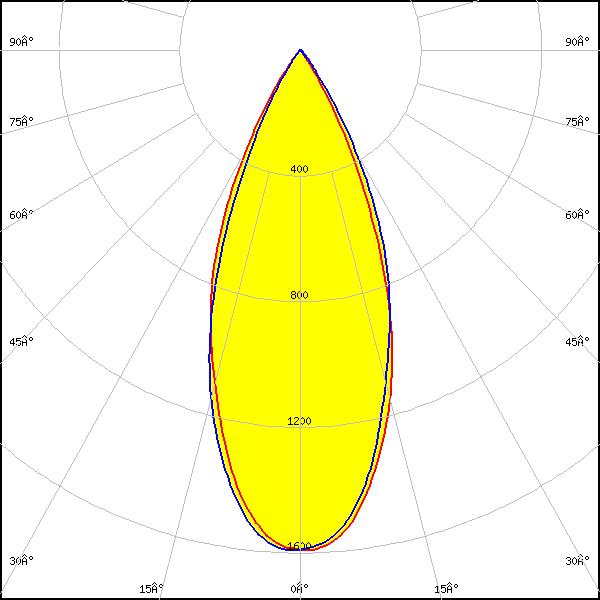

LED:

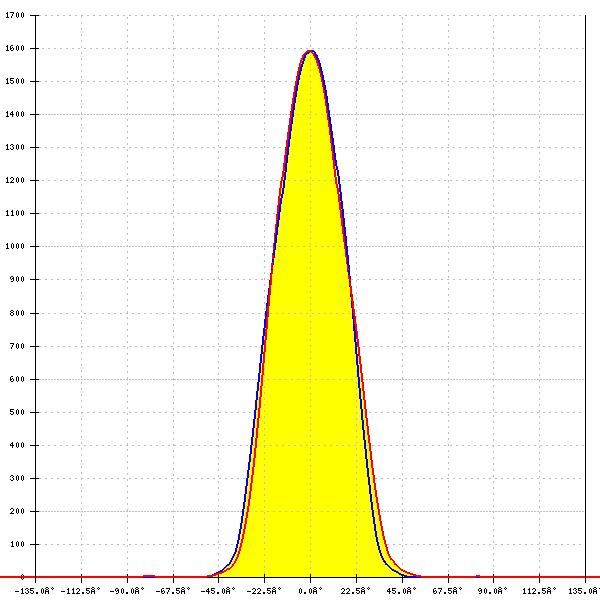

LUXEON Rebel ES
Required components:
FWHM:
43°
FWTM:
67°
Peak intensity:
1.600 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

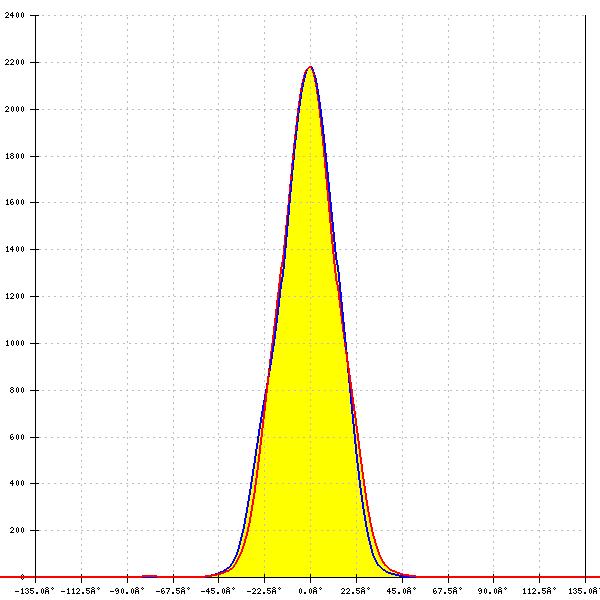

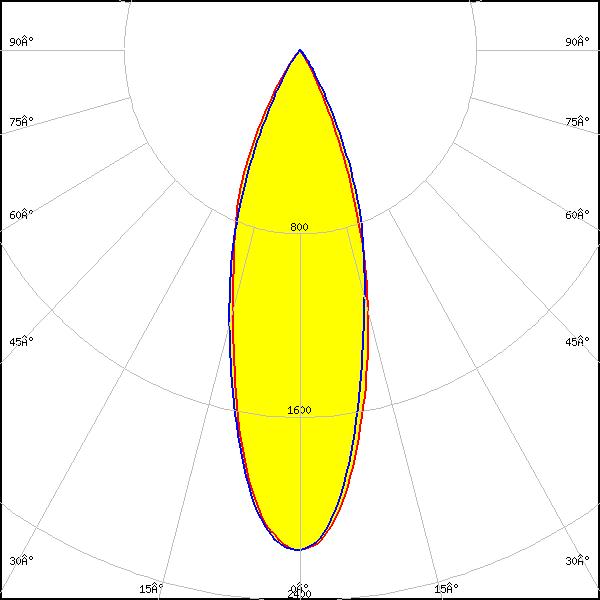

LED:
LUXEON Rebel Plus
Required components:
FWHM:
33°
FWTM:
61°
Peak intensity:
2.200 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

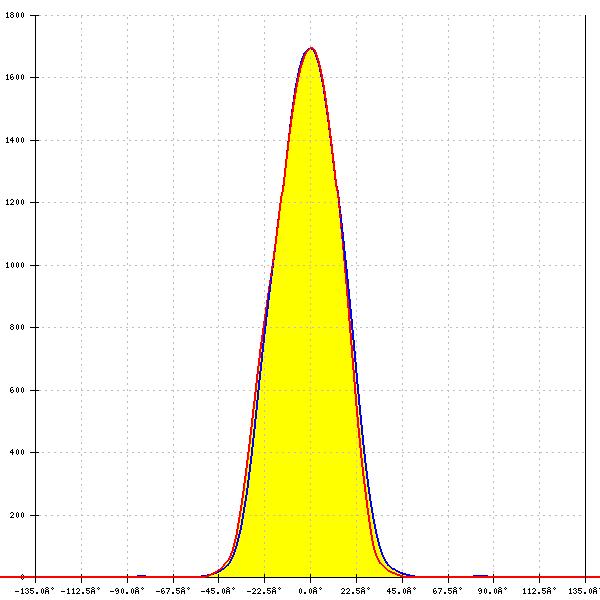

LED:

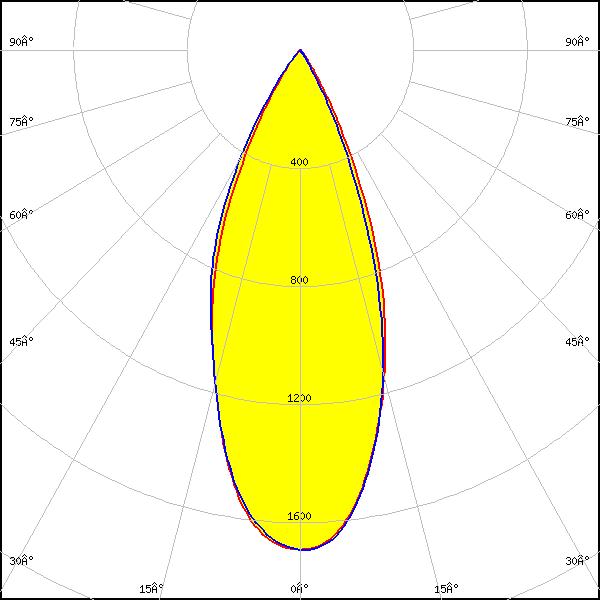

LUXEON TX
Required components:
FWHM:
41°
FWTM:
66°
Peak intensity:
1.700 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

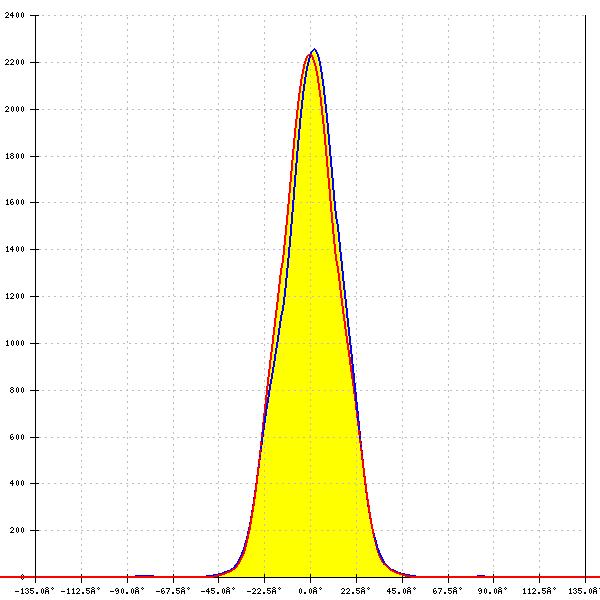

LED:

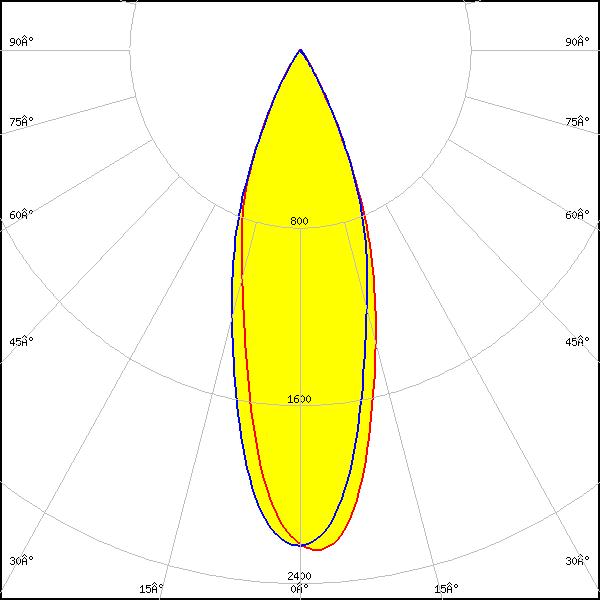

LUXEON Z ES
Required components:
FWHM:
33°
FWTM:
60°
Peak intensity:
2.250 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

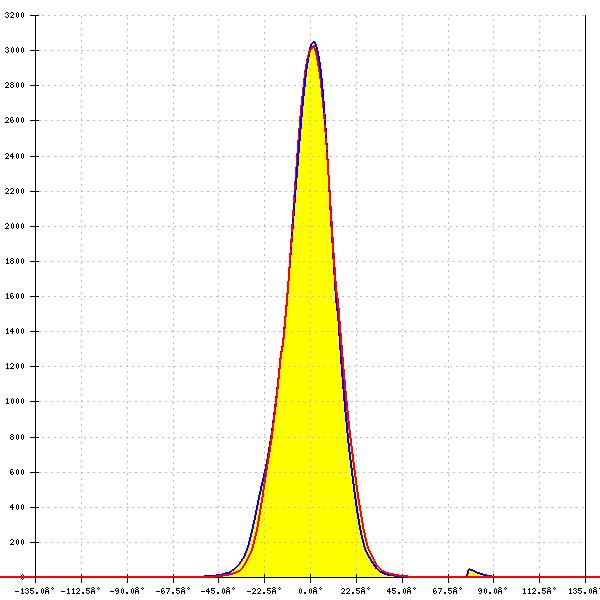

LED:

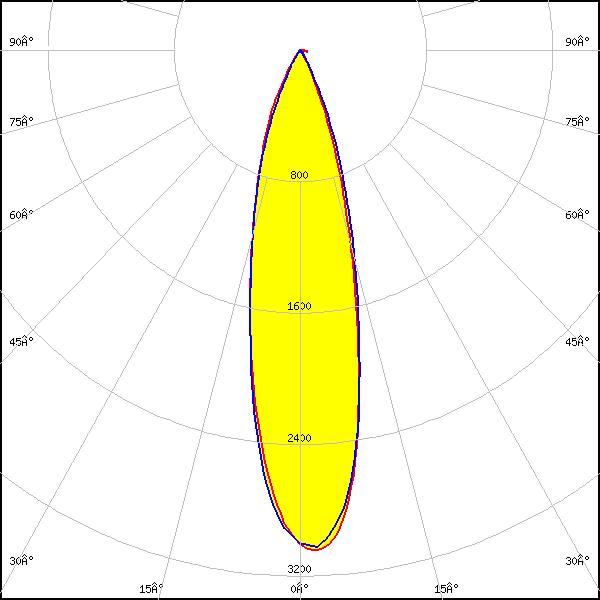

NCSxE17A
Required components:
FWHM:
26°
FWTM:
52°
Peak intensity:
3.000 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

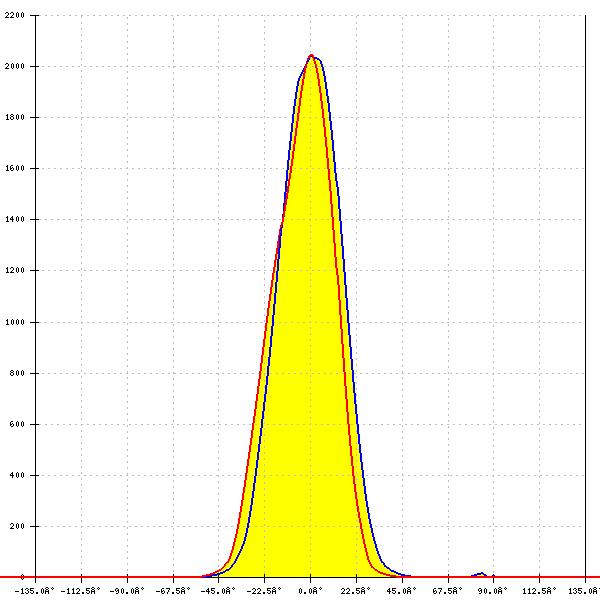

LED:

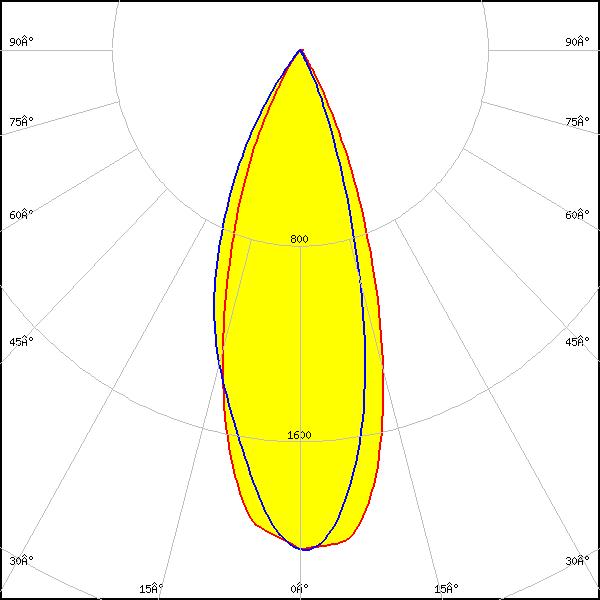

NF2x757G
Required components:
FWHM:
36°
FWTM:
60°
Peak intensity:
2.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

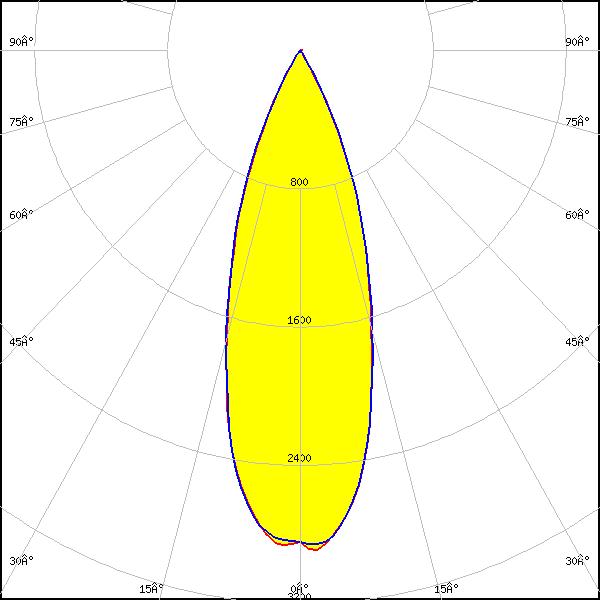

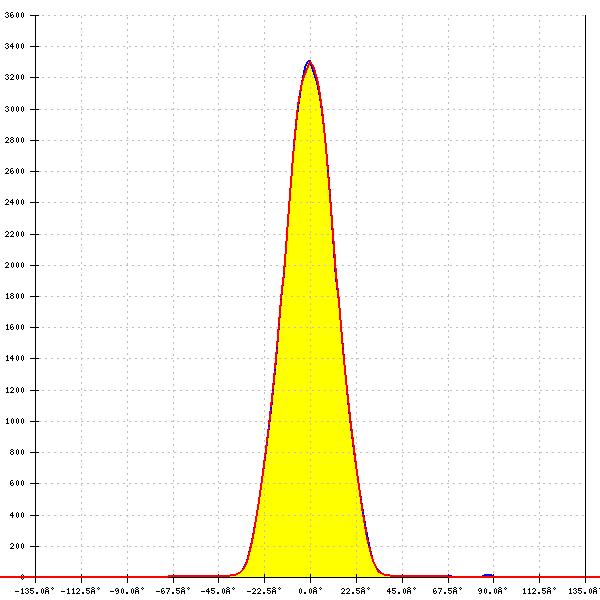

LED:

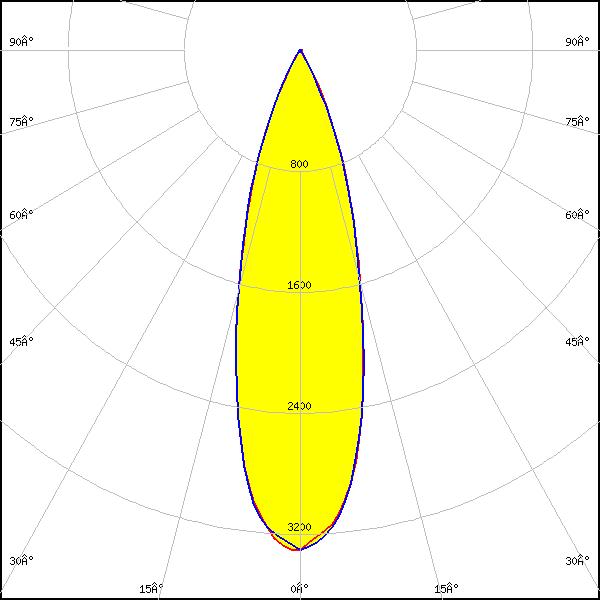

NVSxE21A
FWHM:
30°
FWTM:
54°
Peak intensity:
3.320 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

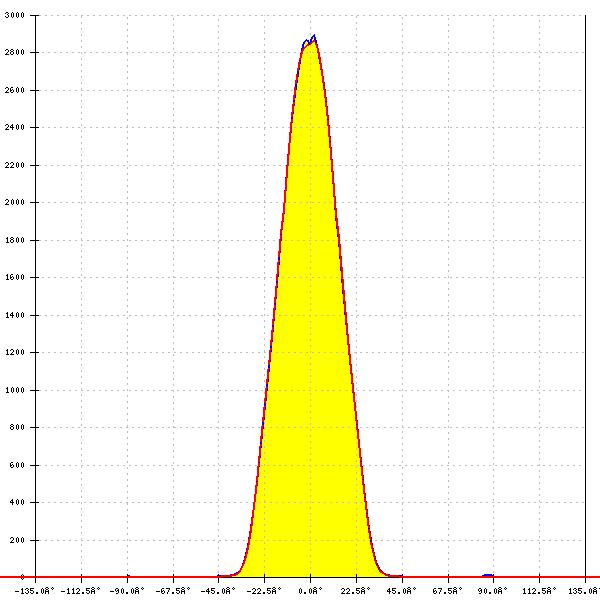

LED:
NVSxE21A
Required components:
FWHM:
34°
FWTM:
57°
Peak intensity:
2.920 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

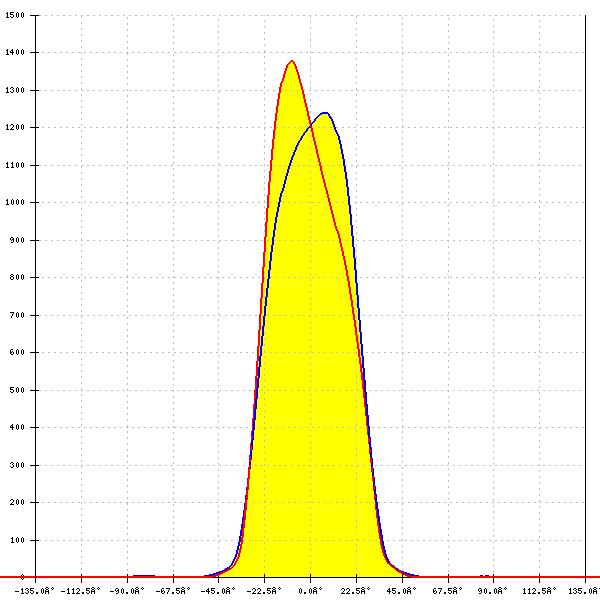

LED:

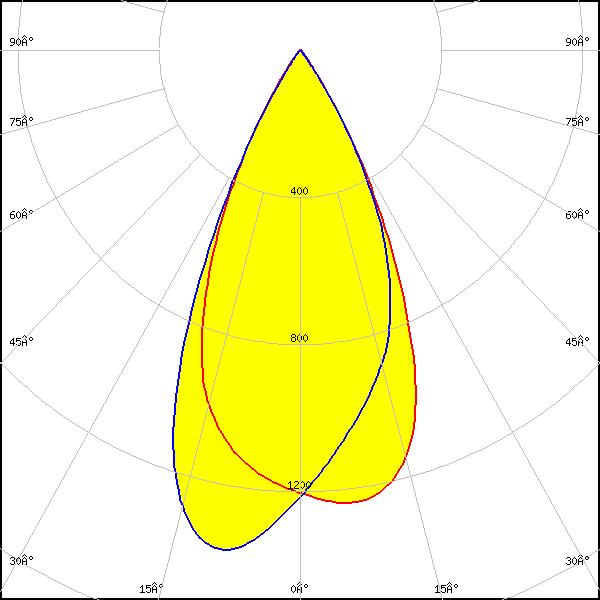

NVSxx19B/NVSxx19C
Required components:
FWHM:
48°
FWTM:
69°
Peak intensity:
1.400 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

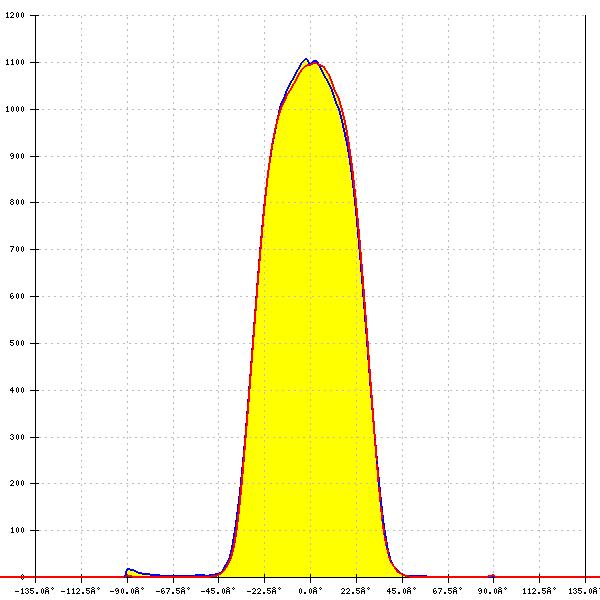

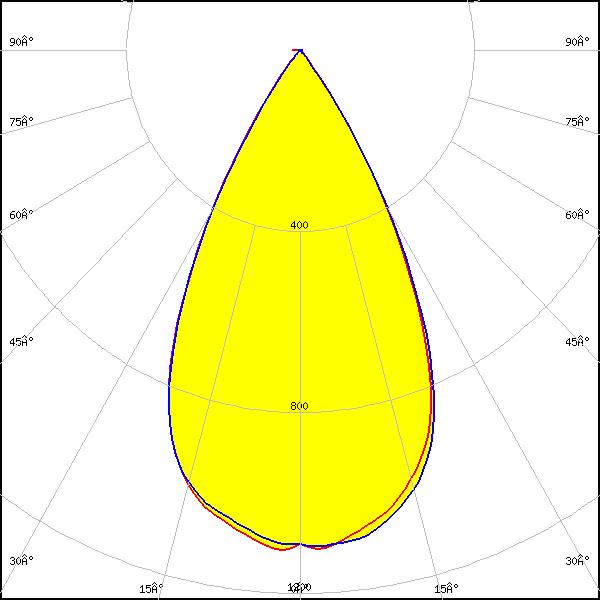

LED:
NWSx229A
Required components:
FWHM:
53°
FWTM:
73°
Peak intensity:
0.000 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

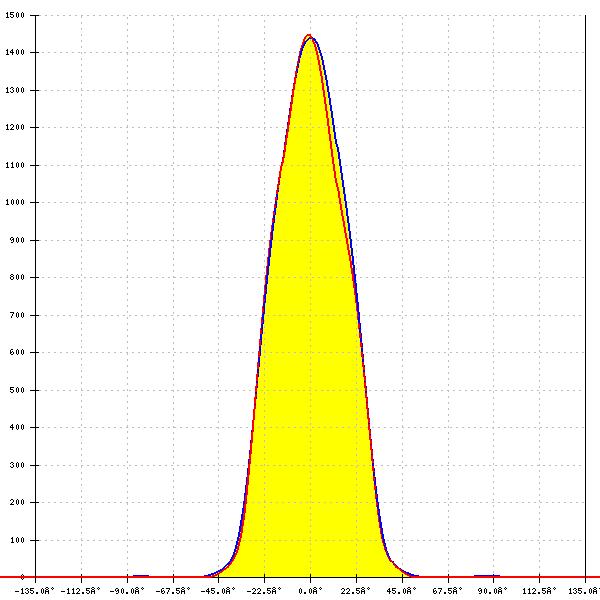

LED:

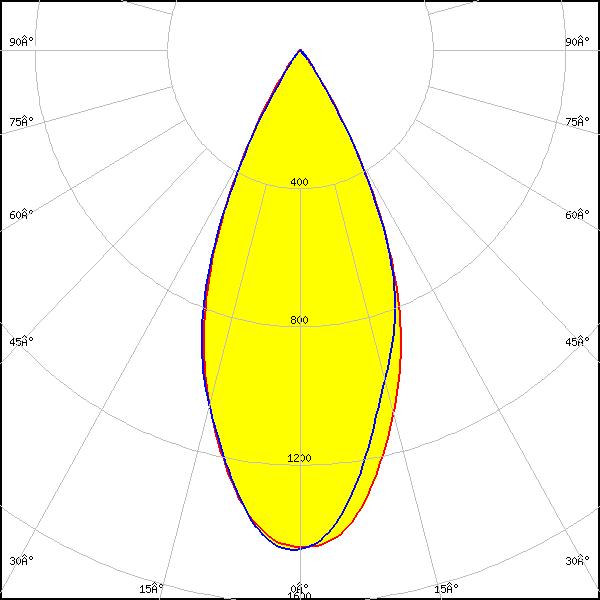

OSLON Square EC
Required components:
FWHM:
46°
FWTM:
69°
Peak intensity:
1.450 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

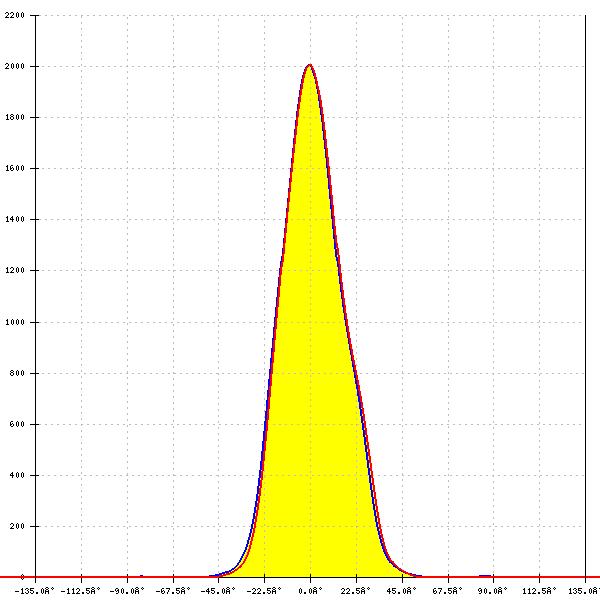

LED:

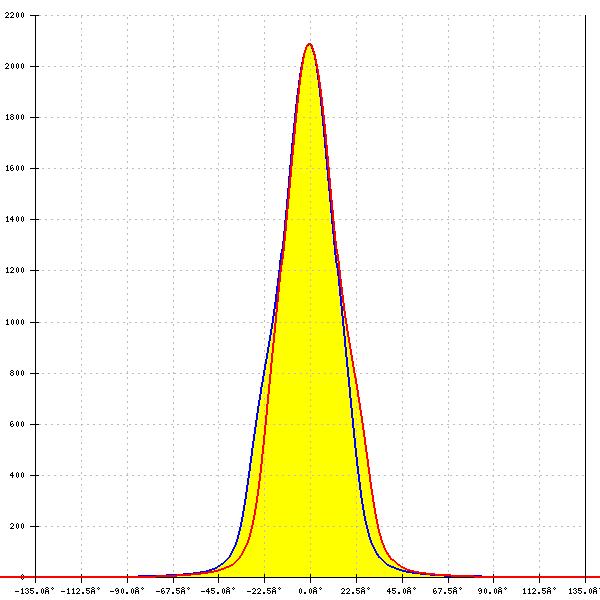

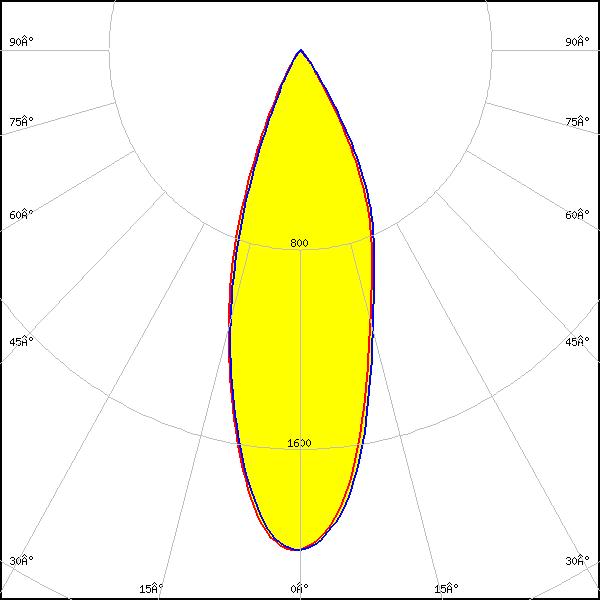

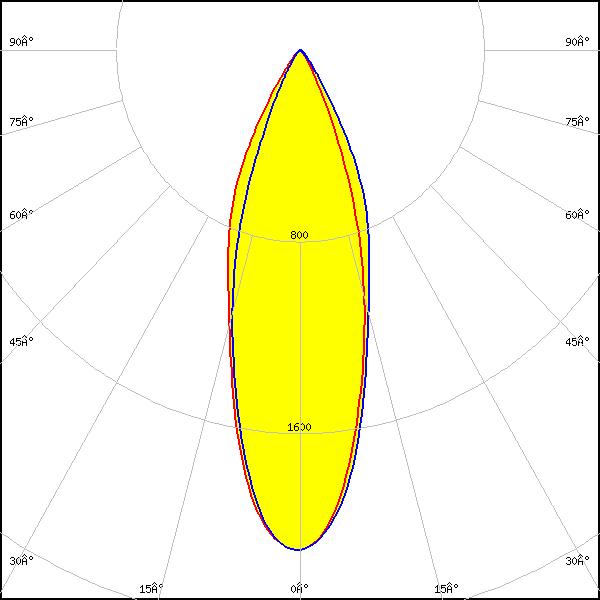

OSLON SSL 150
Required components:
FWHM:
34°
FWTM:
62°
Peak intensity:
2.000 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
33°
FWTM:
62°
Peak intensity:
2.100 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

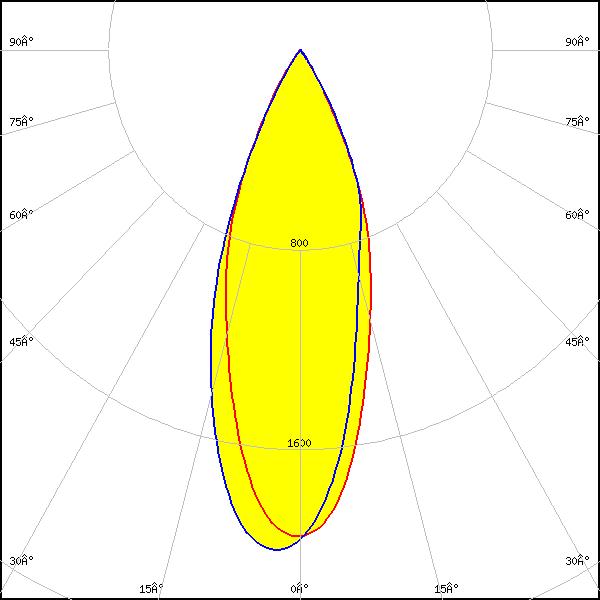

LED:

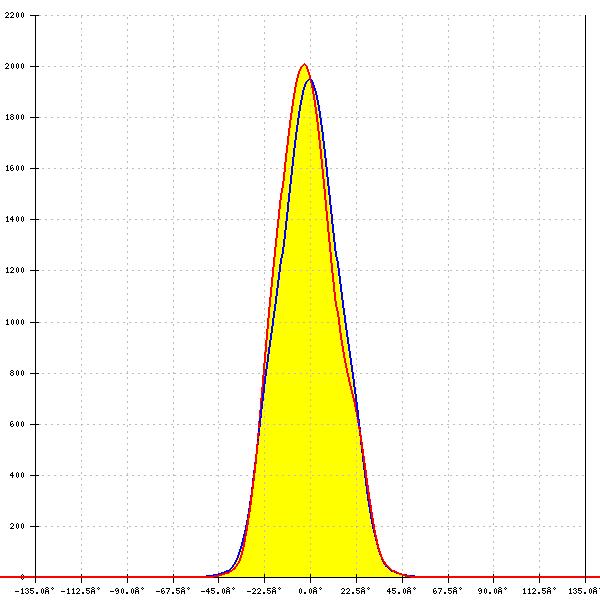

OSLON SSL 80
Required components:
FWHM:
35°
FWTM:
63°
Peak intensity:
2.000 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

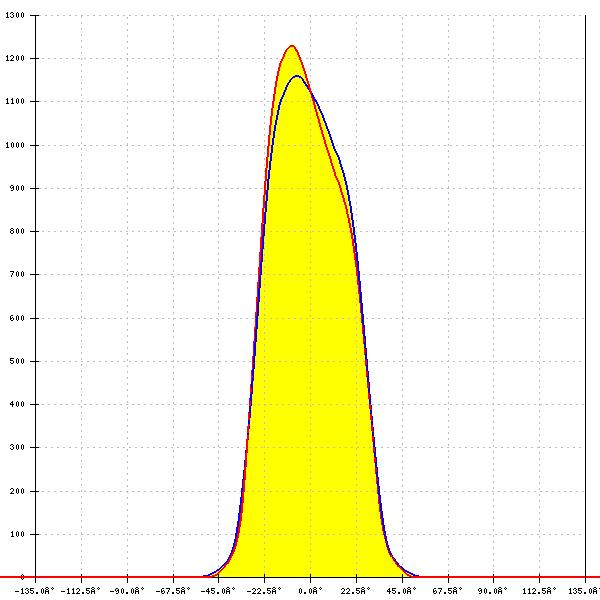

LED:

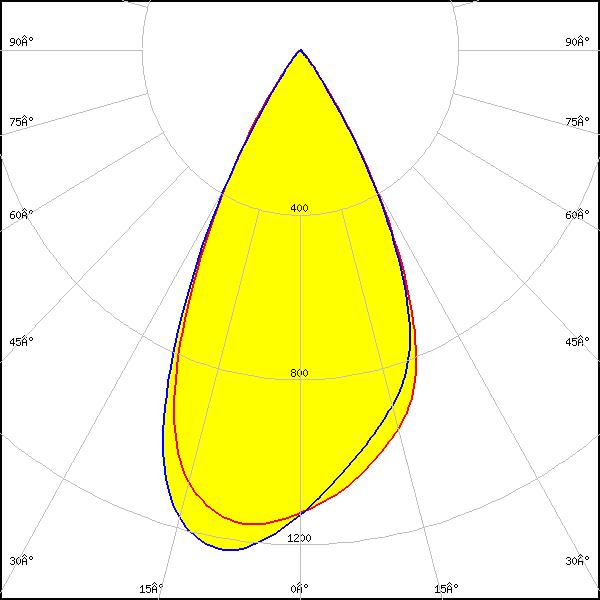

LH351B
Required components:
FWHM:
52°
FWTM:
72°
Peak intensity:
1.260 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

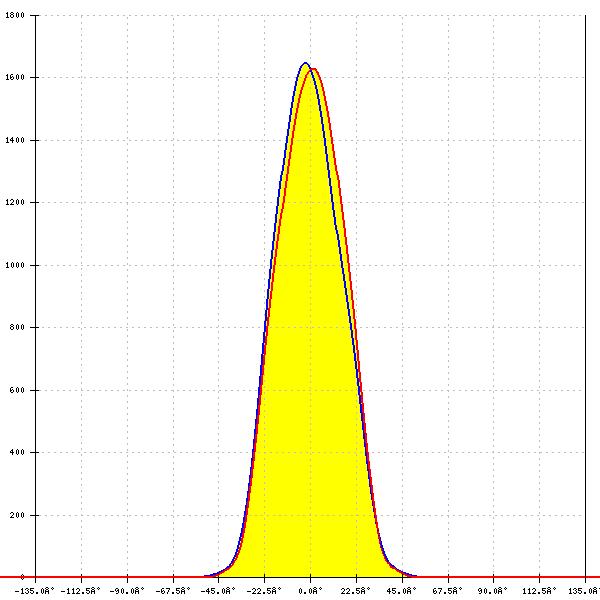

LED:

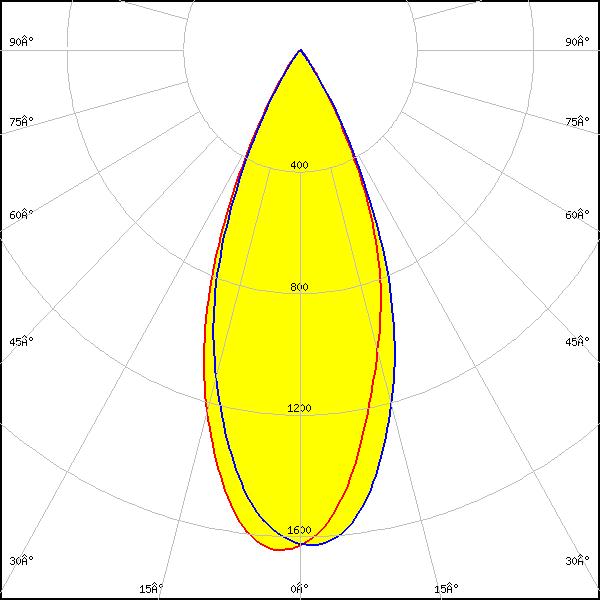

TL1L4
Required components:
FWHM:
42°
FWTM:
66°
Peak intensity:
1.650 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
