FP10995_LISA2-M-PIN
Print

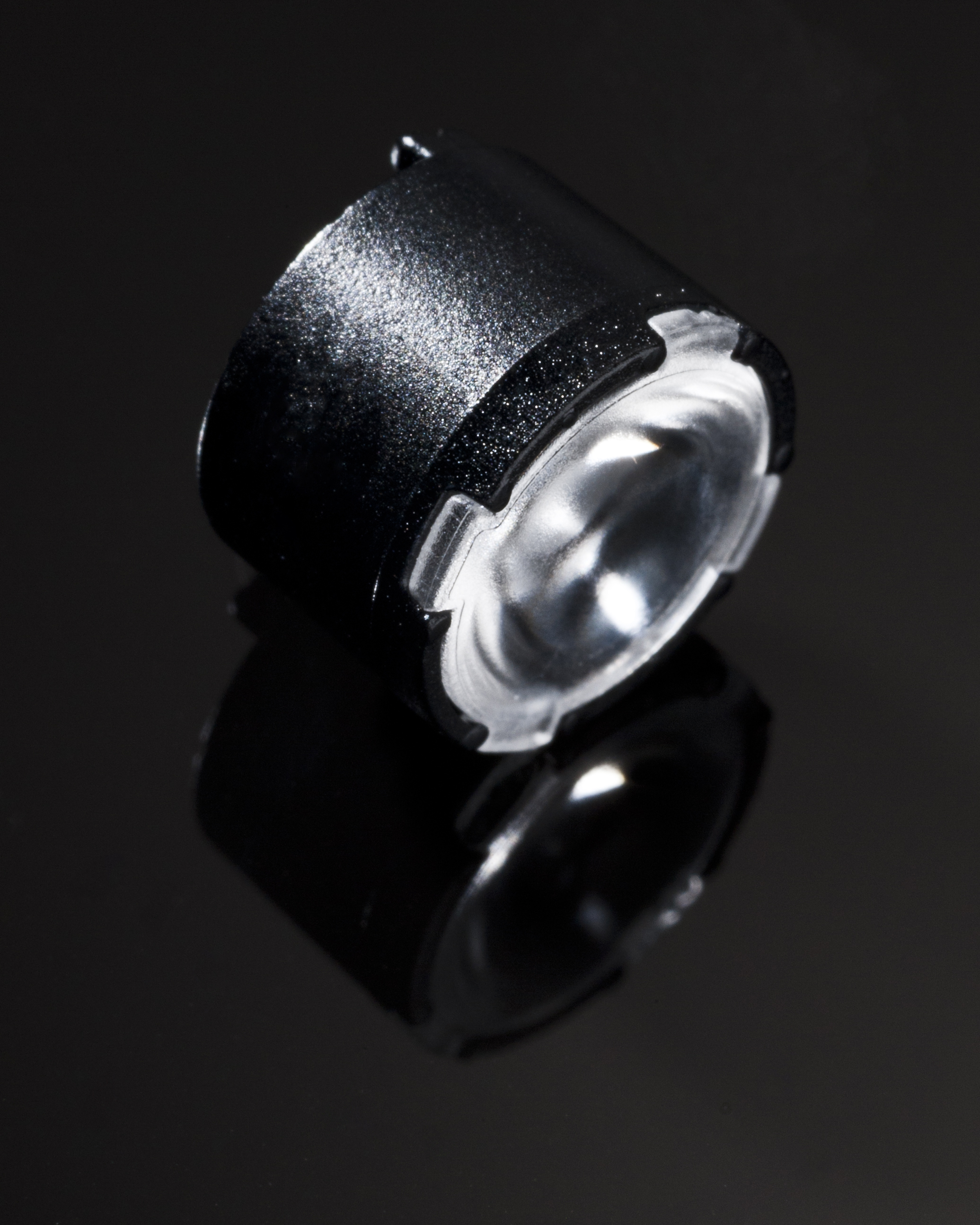

~20° medium beam. 6.8 mm high variant with location pin installation.
Materials
- LISA2-M, Single lens, PMMA
- LISA2-HLD-PIN, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:

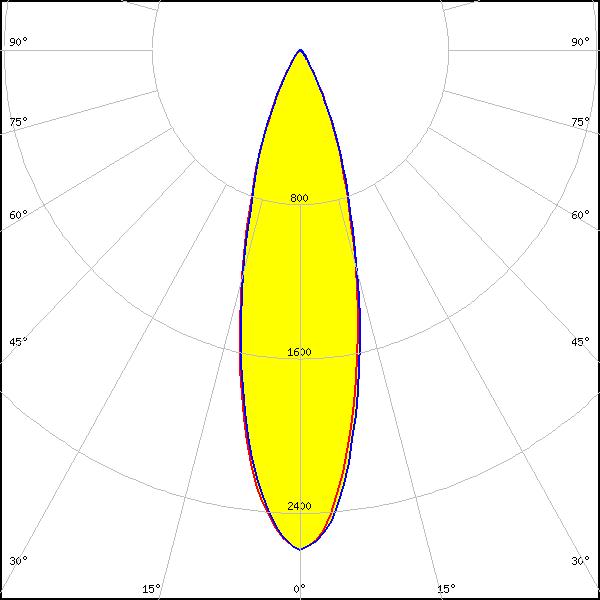

CSP 2323 (BXCP)
FWHM:
28°
FWTM:
56°
Peak intensity:
2.606 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

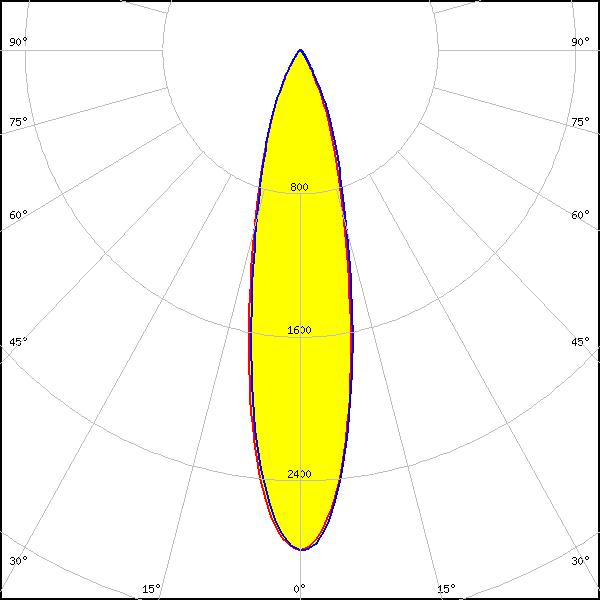

XD16
FWHM:
24°
FWTM:
53°
Peak intensity:
2.800 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:

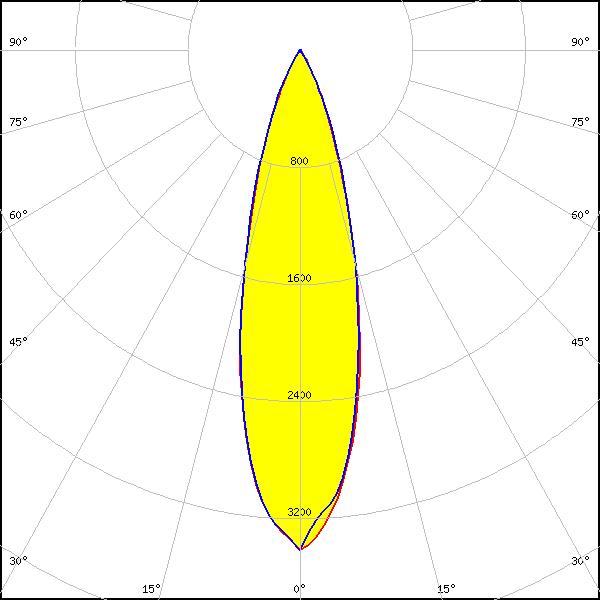

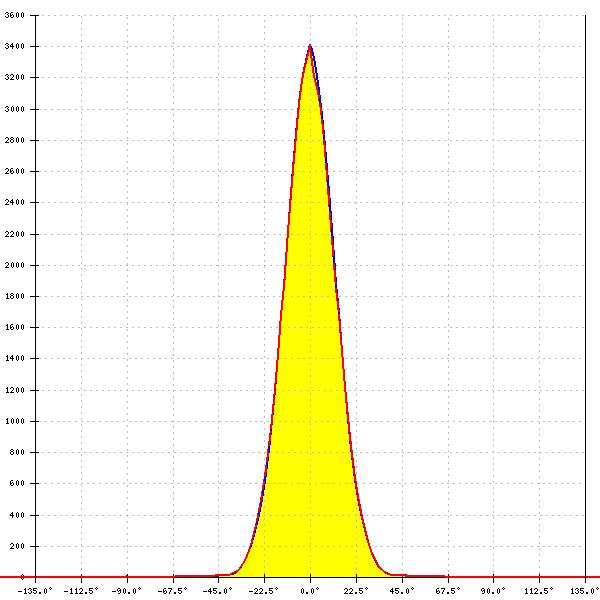

XP-E
FWHM:
24°
FWTM:
-
Peak intensity:
0.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

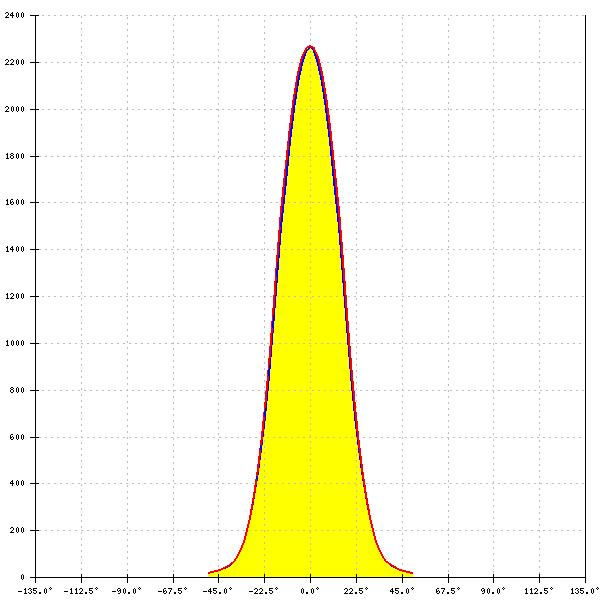

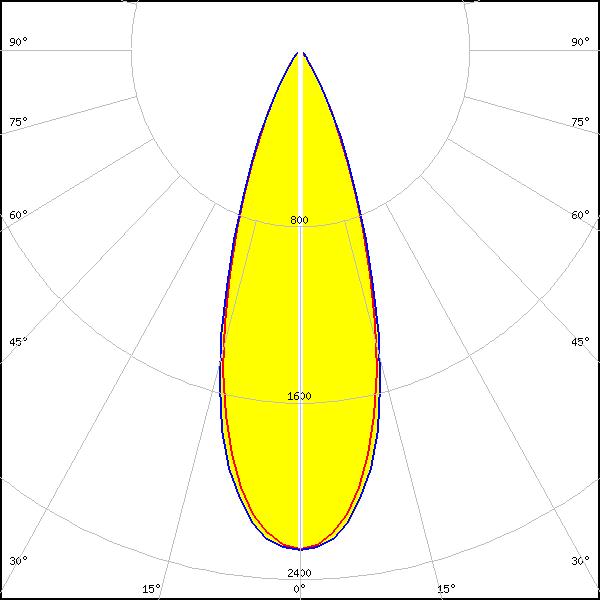

LED:
XP-G
FWHM:
34°
FWTM:
60°
Peak intensity:
2.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XQ-E HD
FWHM:
28°
FWTM:
63°
Peak intensity:
3.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

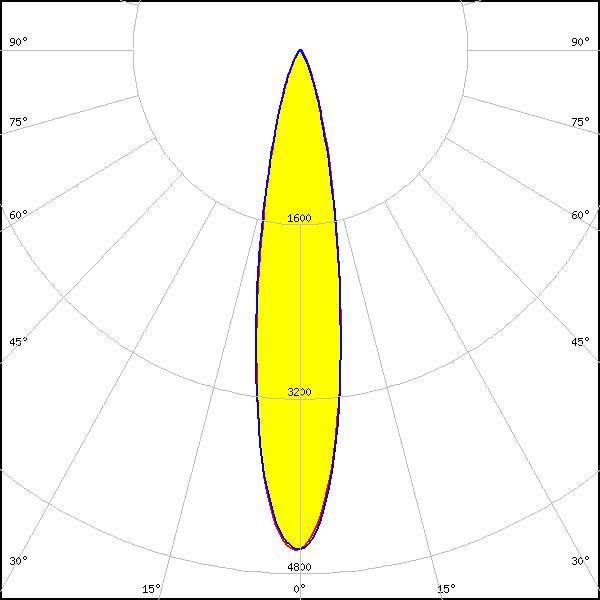

XQ-E HI
FWHM:
20°
FWTM:
43°
Peak intensity:
4.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

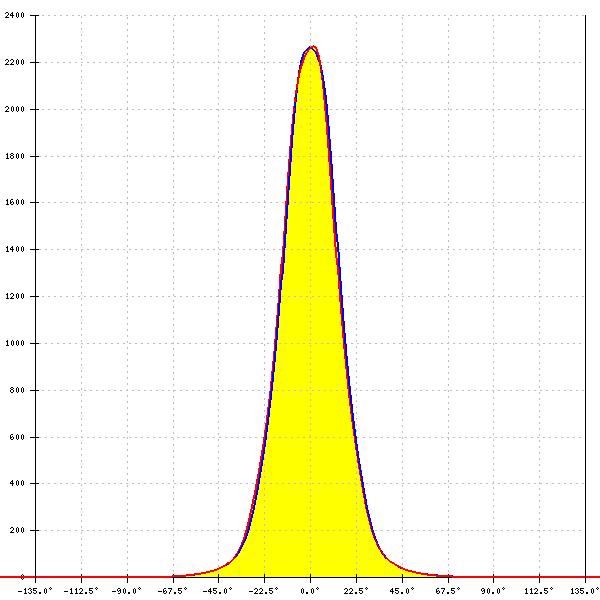

LED:

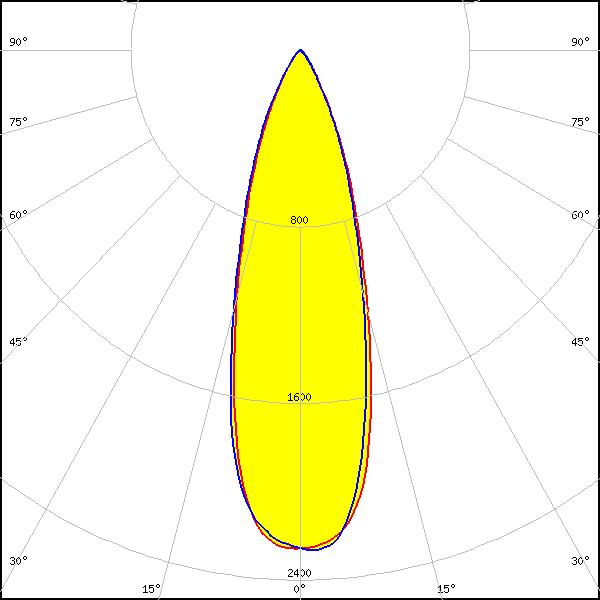

XT-E
FWHM:
31°
FWTM:
60°
Peak intensity:
2.300 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON IR 2720
FWHM:
23°
FWTM:
47°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
LUXEON Z
FWHM:
19°
FWTM:
41°
Peak intensity:
5.260 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

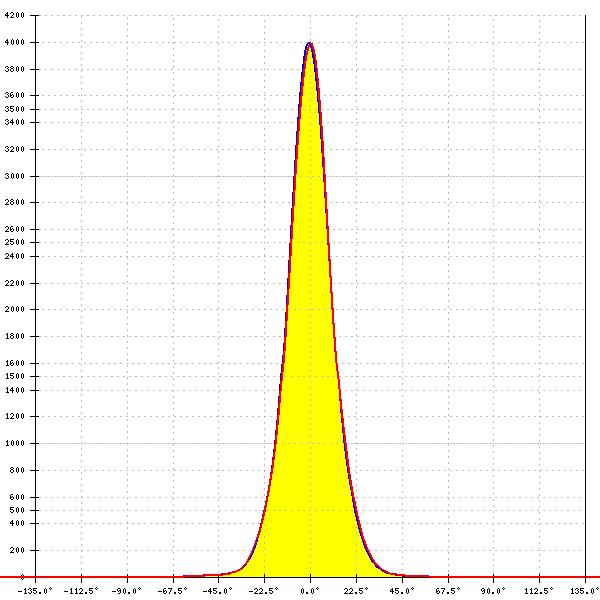

LED:

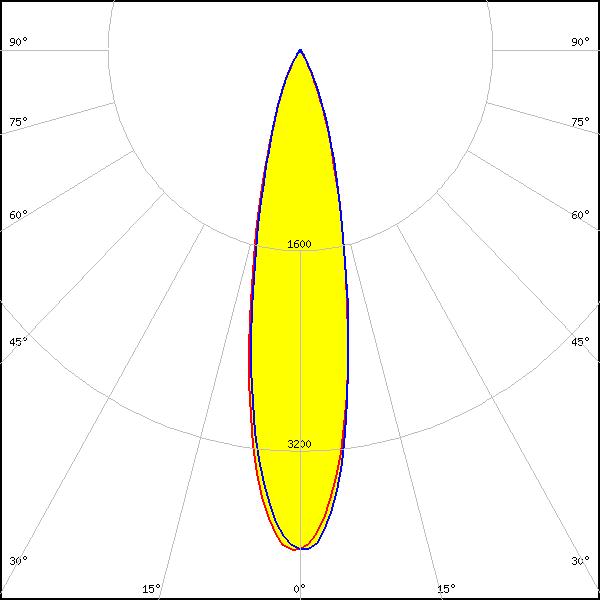

LUXEON Z ES
FWHM:
23°
FWTM:
48°
Peak intensity:
4.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

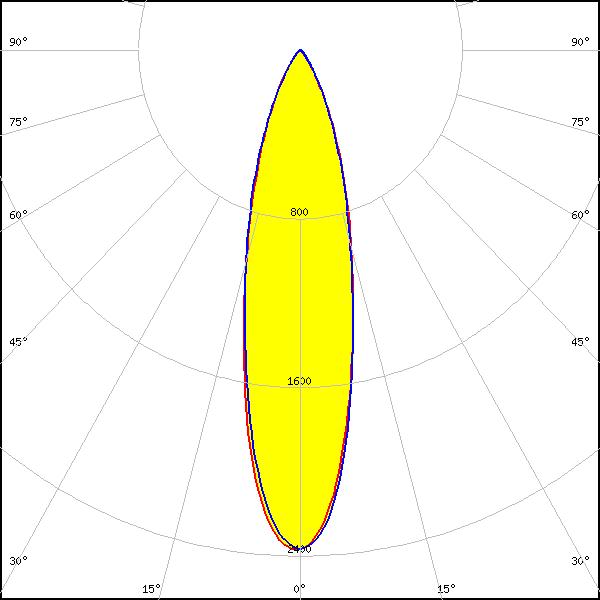

LED:

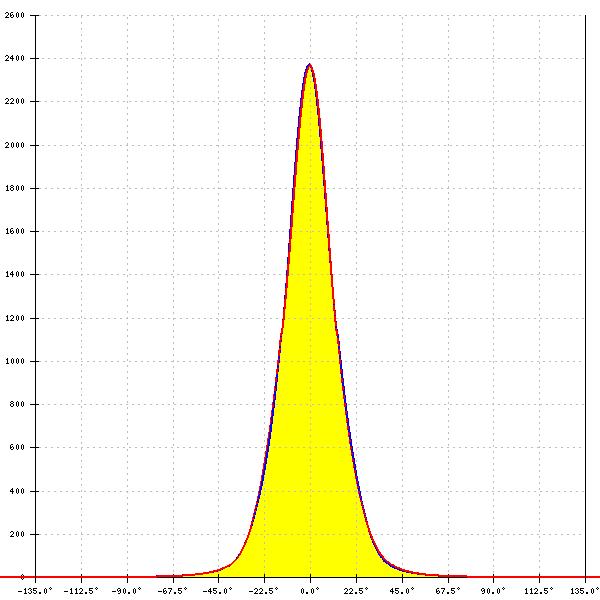

NCSxE17A
FWHM:
26°
FWTM:
57°
Peak intensity:
2.400 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:

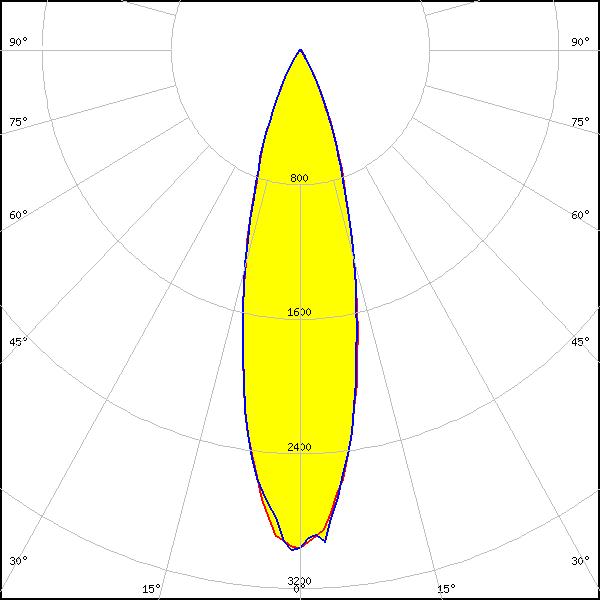

NVSxE21A
FWHM:
27°
FWTM:
54°
Peak intensity:
3.020 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

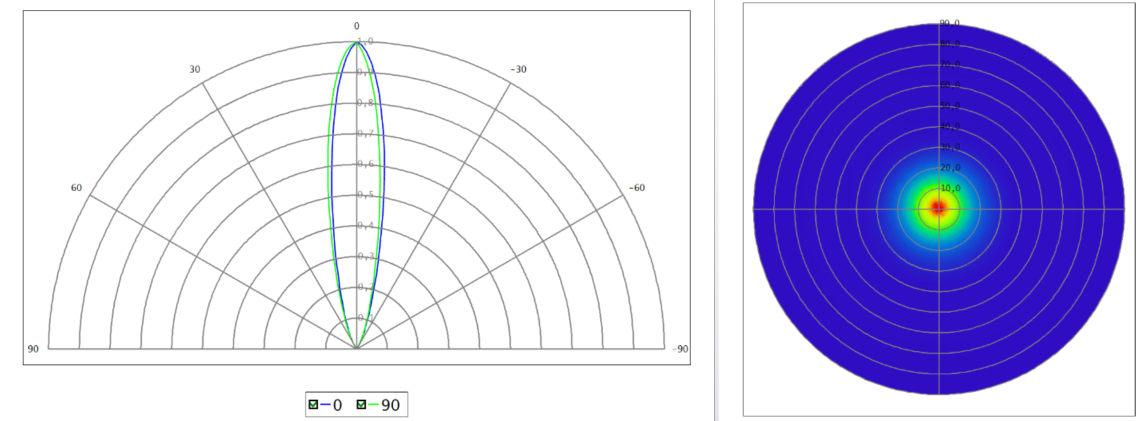

SFH 4170S
FWHM:
20°
FWTM:
41°
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4170S
FWHM:
14°
FWTM:
38°
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4180S
FWHM:
14°
FWTM:
38°
LEDs/each optic:
1
Light colour/type:
IR
LED:

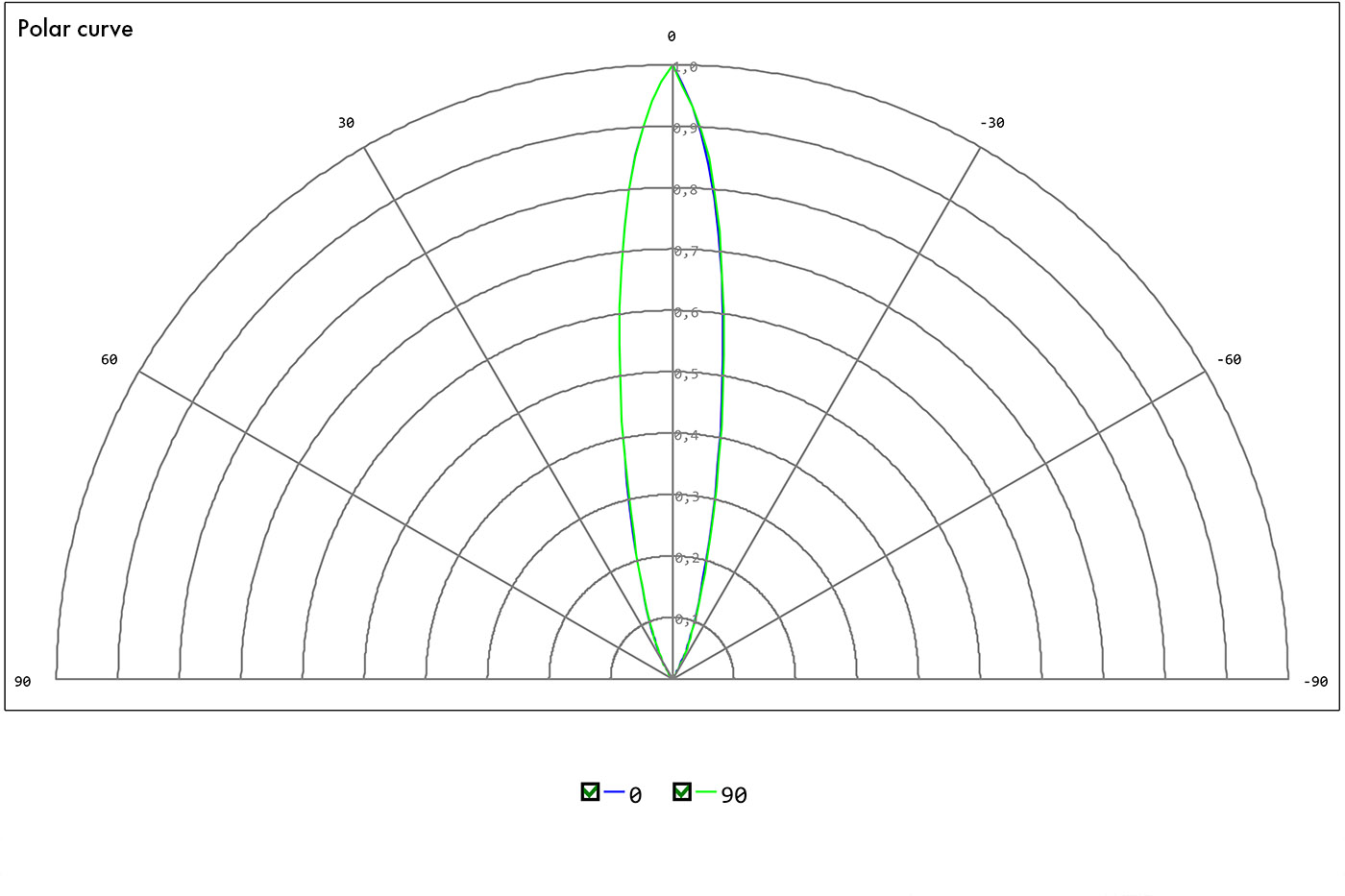

SFH 4770S
FWHM:
20°
FWTM:
43°
Peak intensity:
5.182 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
IR

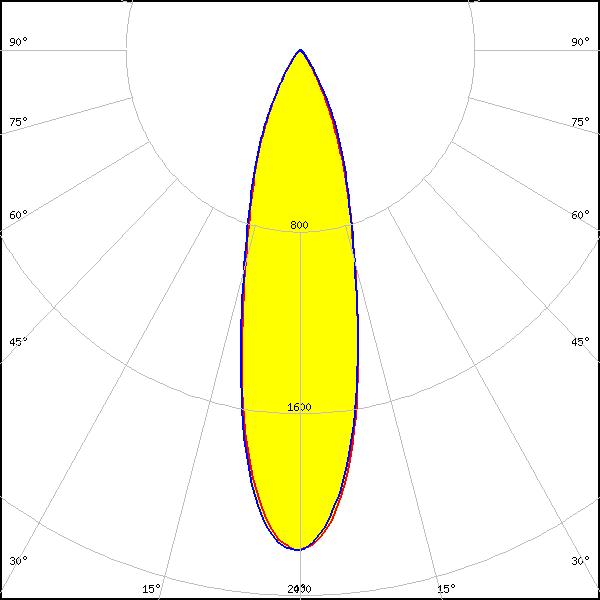

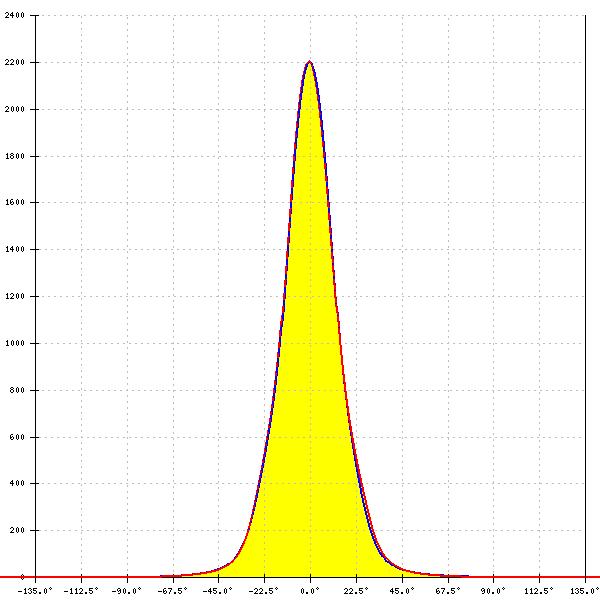

LED:
LH181B
FWHM:
27°
FWTM:
59°
Peak intensity:
2.200 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Double Dome (GM2BB)
FWHM:
28°
FWTM:
-
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
