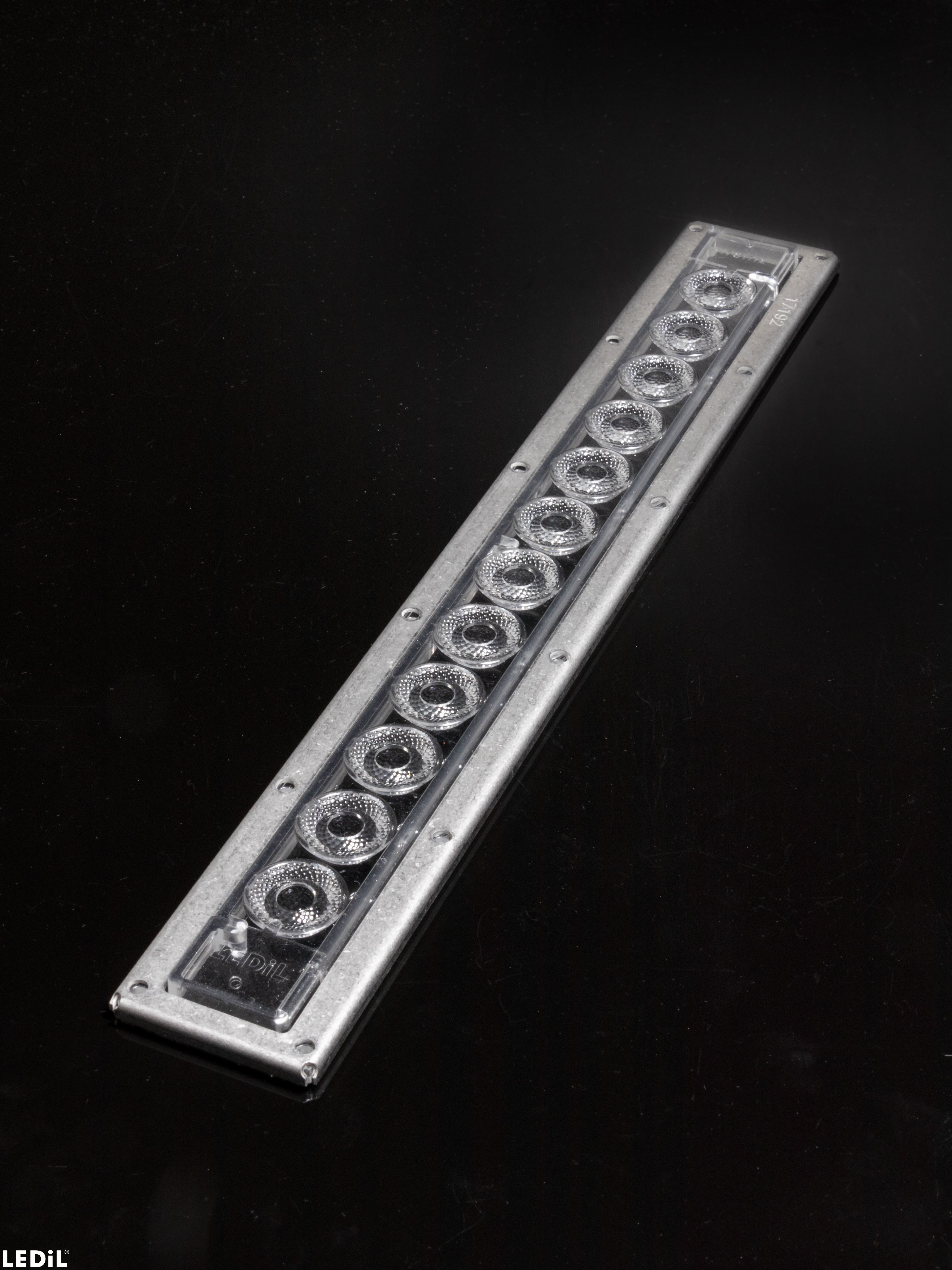

FN17818_VIOLET-12X1-W

Print

~60° wide beam

NOTE: Choose PCB thickness (both 0.9 mm and 1.6 mm options approved) to ensure optical/mechanical compatibilities.

Specification
  • Dimensions:
    295 x  42 mm
  • Height:
    8.80 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP66, IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    78 pcs
  • Box size:
    398 x 298 x 150 mm
  • Box weight:
    7.8 kg
  • MPQ:
    26 pcs
  • MOQ:
    26 pcs
  • MOQ size:
    400 x 300 x 70 mm
  • MOQ weight:
    2.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    FN17818_VIOLET-12X1-W

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

LED: LIGHT ENGINE VIOLET UVC 281 x 19.2mm (KL265-50V-SM-WD)
FWHM: 46°
FWTM: 67°
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: UV-C

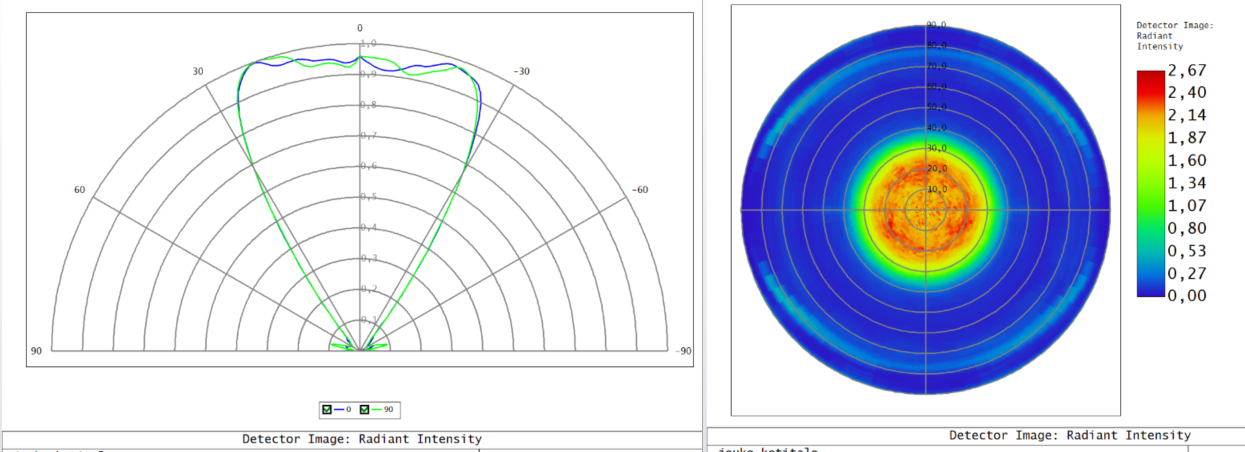

LED: Bolb UV-C 6060 SMD
FWHM: 65°
FWTM: 82°
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: CLH-N3S
FWHM: 60°
FWTM: 79°
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: KL265-50V-SM-WD
FWHM: 55°
FWTM: 73°
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: 110384-GC VIOLET
FWHM: 63°
FWTM: 84°
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: UV-C

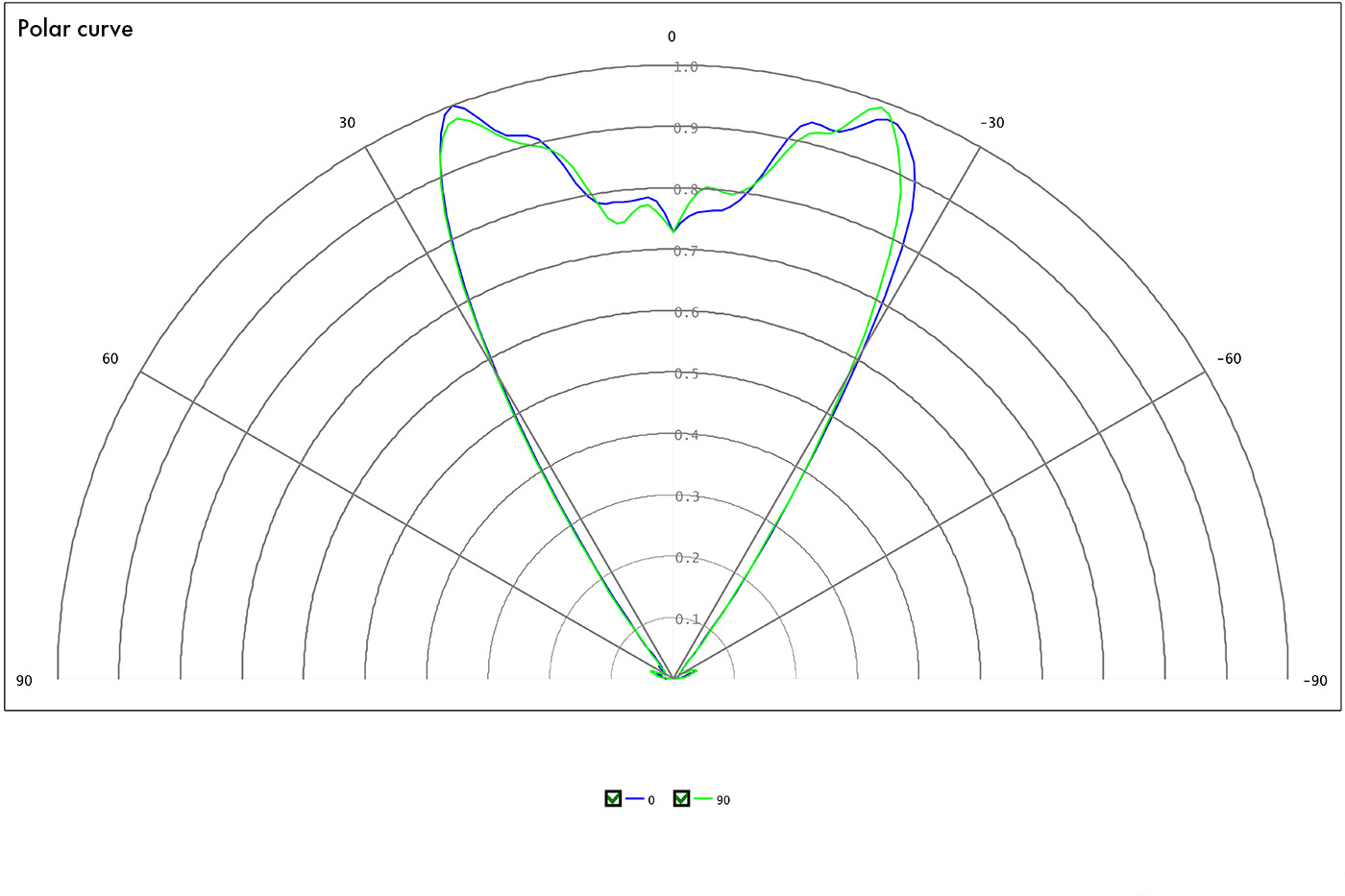

LED: 110384-GM VIOLET
FWHM: 64°
FWTM: 85°
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: LTPL-G35UV275GC-E
FWHM: 51°
FWTM: 71°
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: LTPL-G35UV275GR-E
FWHM: 54°
FWTM: 73°
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: LTPL-G35UVC275GH
FWHM: 55°
FWTM: 73°
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: LTPL-G35UVC275GZ
FWHM: 53°
FWTM: 73°
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: UV-C

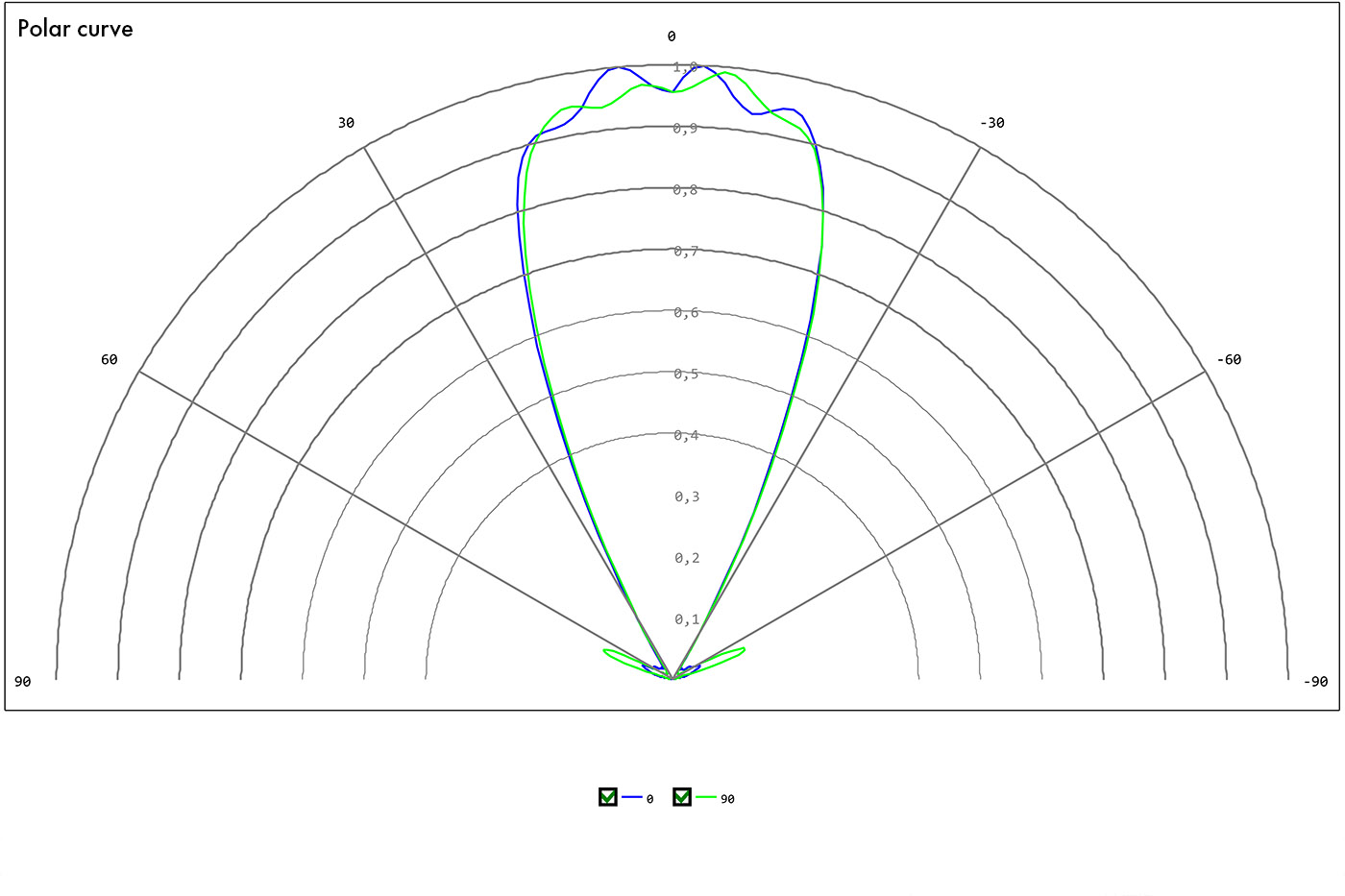

LED: SST-10-UV-X130
FWHM: 46°
FWTM: 142°
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: UV-A

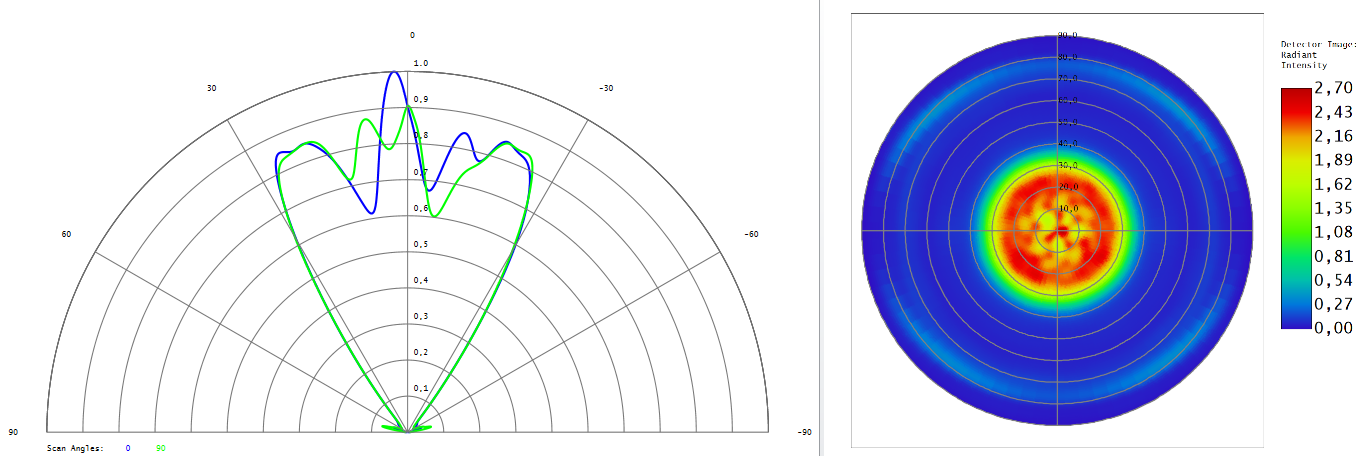

LED: XBT-1313
FWHM: 63°
FWTM: 78°
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: UV-C

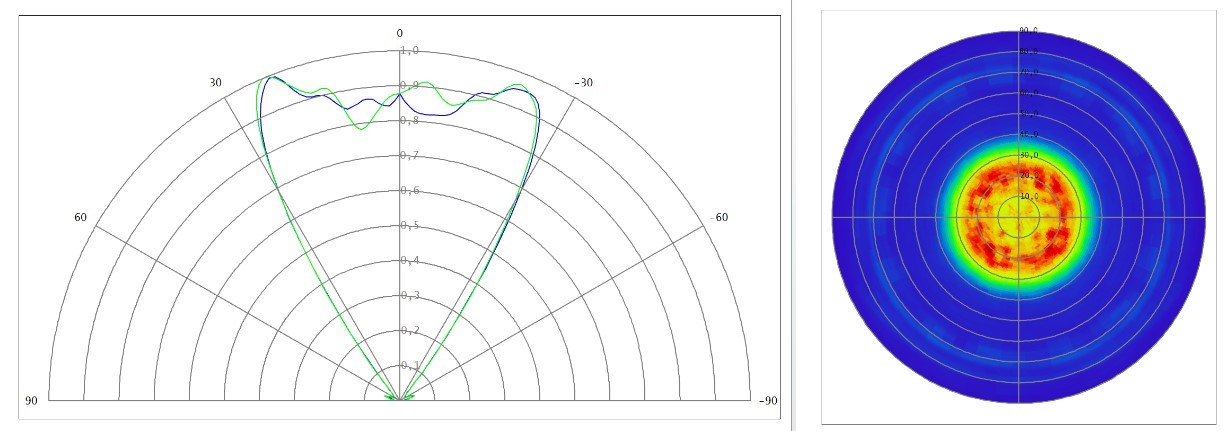

LED: XBT-3535-UV
FWHM: 65°
FWTM: 78°
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: XBT-3535-UV
FWHM: 56°
FWTM: 75°
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: UV-C

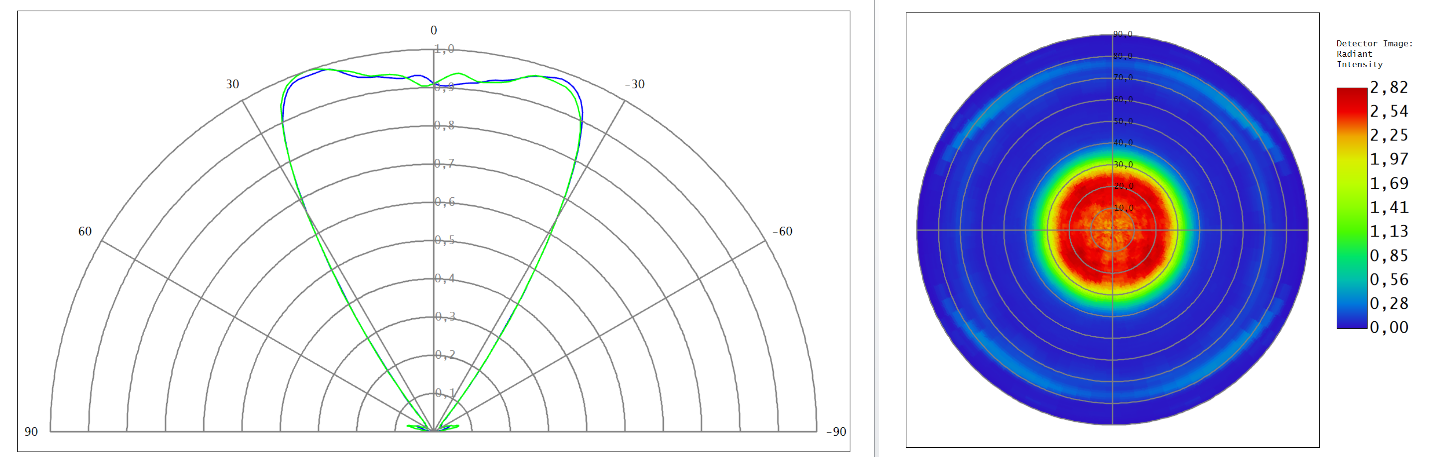

LED: XFM-5050 2 Die
FWHM: 64°
FWTM: 79°
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: XFM-5050 2 Die
FWHM: 56°
FWTM: 76°
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: UV-C

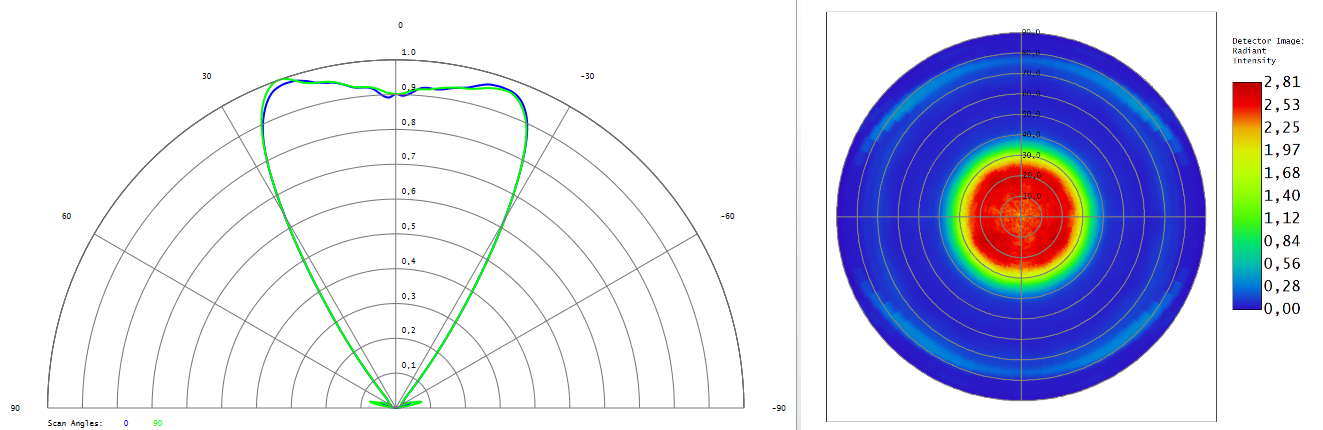

LED: XFM-5050 3 Die
FWHM: 62°
FWTM: 79°
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: XFM-5050 3 Die
FWHM: 54°
FWTM: 77°
Efficiency: 65 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: XFM-5050 4 Die
FWHM: 65°
FWTM: 79°
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: UV-C

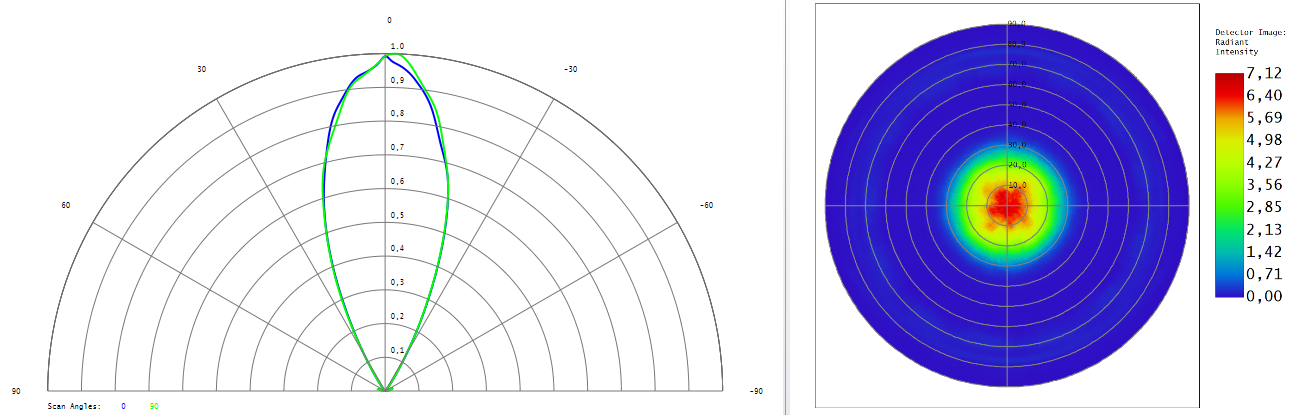

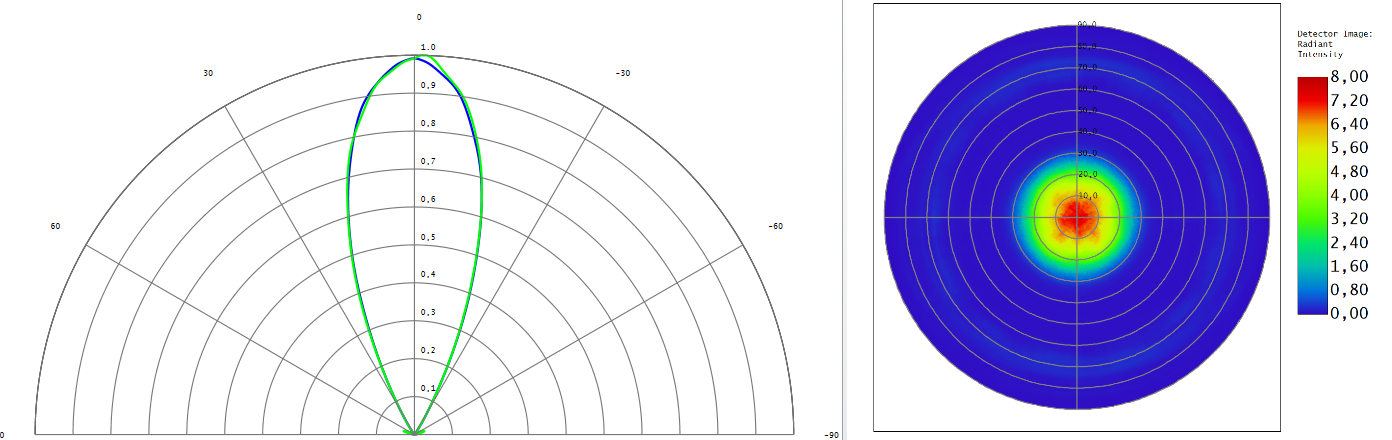

LED: XST-3535-UV
FWHM: 39°
FWTM: 58°
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: XST-3535-UV
FWHM: 41°
FWTM: 62°
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: XST-3535-UV
FWHM: 37°
FWTM: 58°
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: Violet UVC LED-Modul 280nm
FWHM: 59°
FWTM: 78°
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: NC4U334BR
FWHM: 64°
FWTM: 77°
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: NCSU334A
FWHM: 52°
FWTM: 73°
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: UV-C

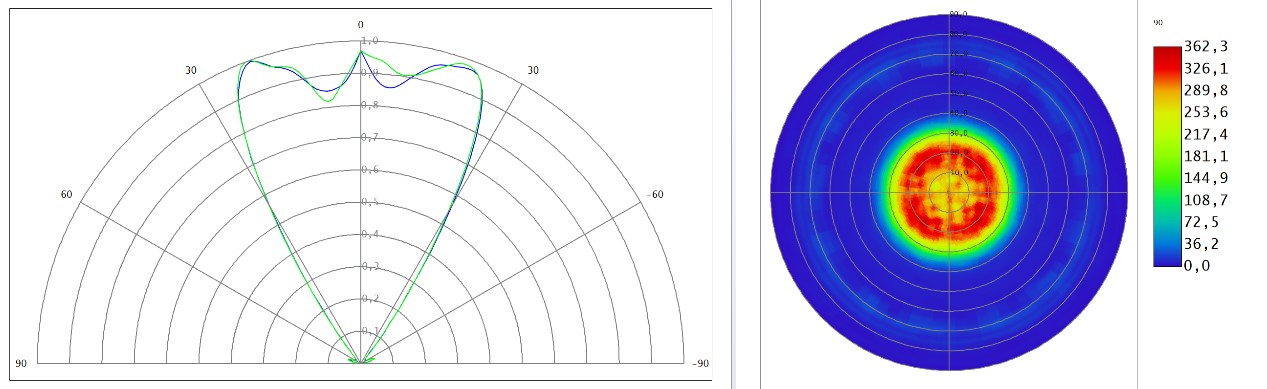

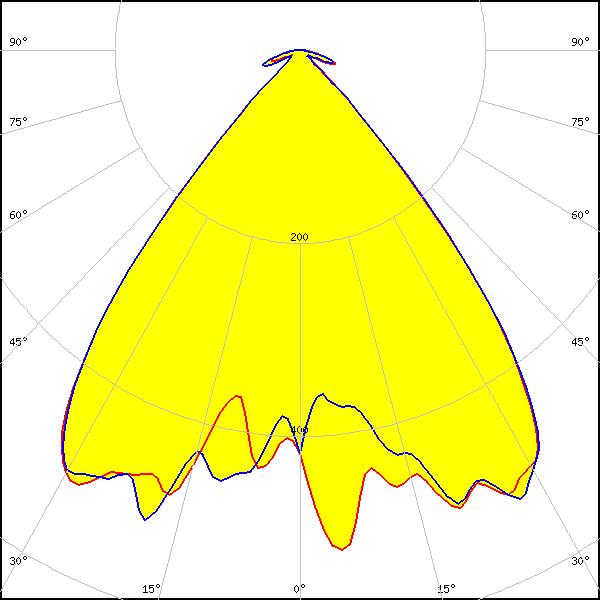

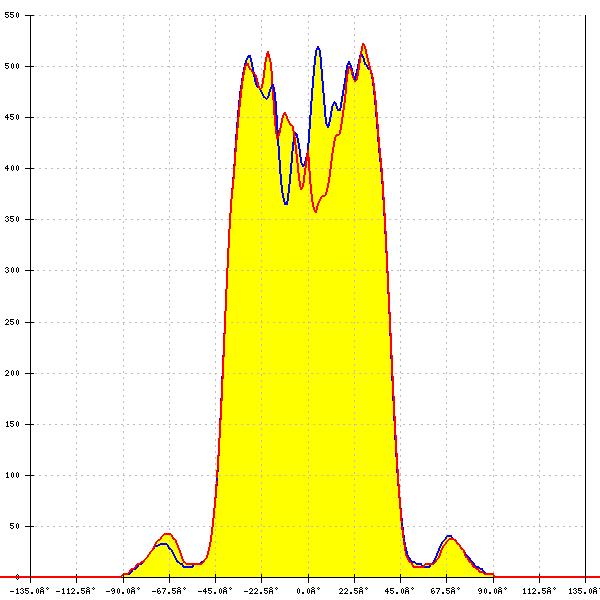

LED: NCSU334B
FWHM: 62°
FWTM: 76°
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: NCSU334B
FWHM: 53°
FWTM: 73°
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: NCSU434A
FWHM: 60°
FWTM: 74°
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: NCSU434B
FWHM: 61°
FWTM: 76°
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: CLE LED module with UV-C (SU CULCN1.VC)
FWHM: 55°
FWTM: 74°
Efficiency: 58 %
LEDs/each optic: 1
Light colour/type: UV-C

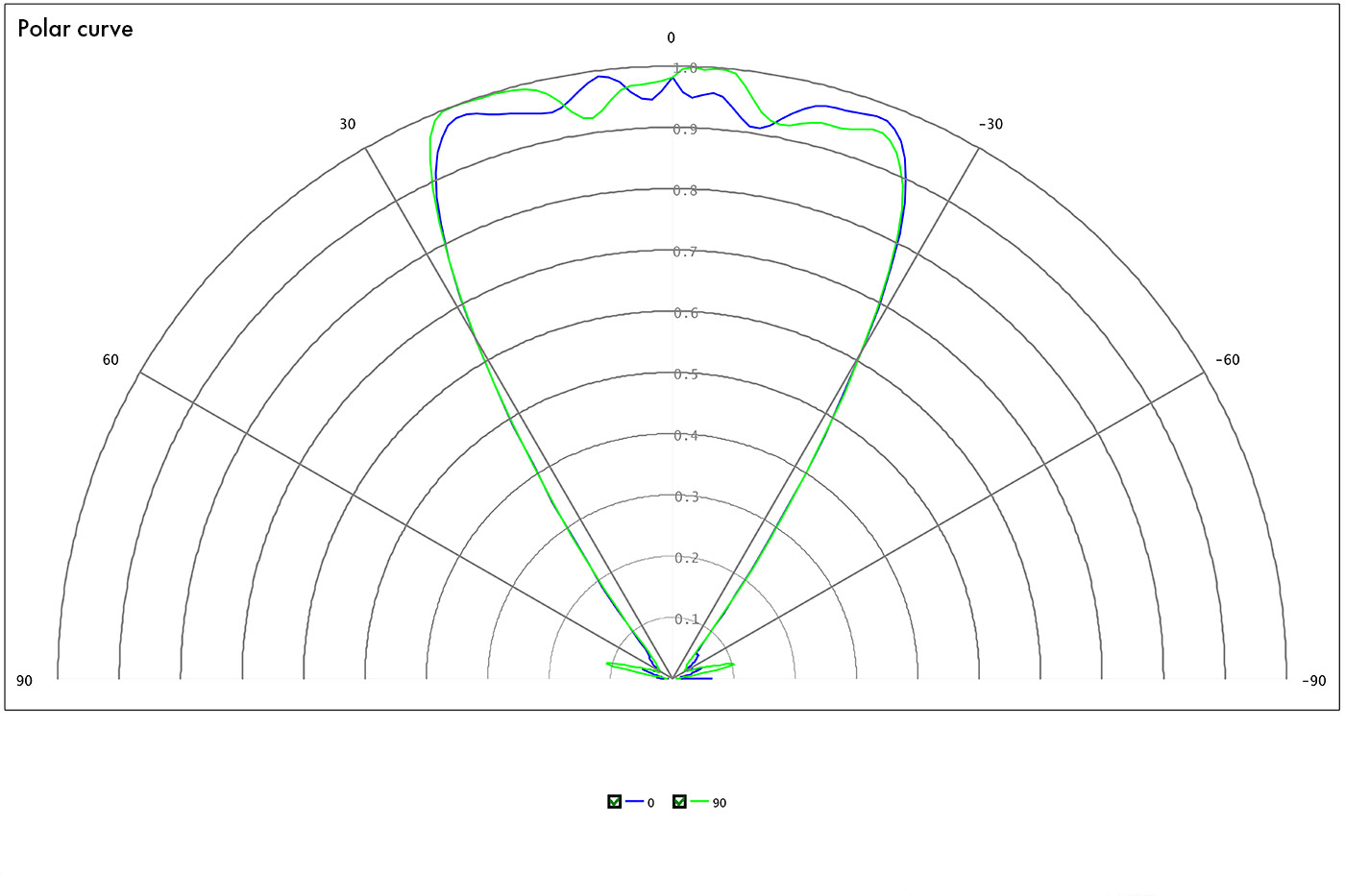

LED: OSLON UV 6060 (SU CZHEF1.VC)
FWHM: 64°
FWTM: 79°
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: OSLON UV 6060 (SU CZHPF1.VC)
FWHM: 62°
FWTM: 79°
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: OSLON UV 6060 (SU CZHPF1.VC)
FWHM: 56°
FWTM: 75°
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: UV351A
FWHM: 62°
FWTM: 79°
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: UV353B
FWHM: 65°
FWTM: 82°
Efficiency: 70 %
LEDs/each optic: 1
Light colour/type: UV-C

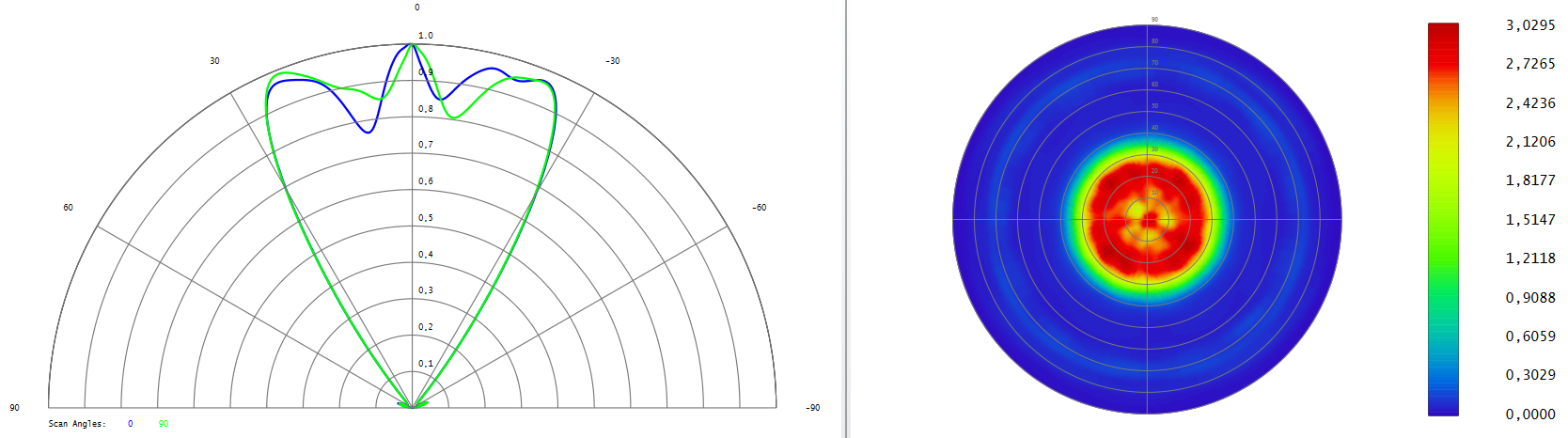

LED: CUD7GF1B
FWHM: 65°
FWTM: 79°
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: CUD7GF1B
FWHM: 48°
FWTM: 68°
Efficiency: 70 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: CUD7QF1A
FWHM: 43°
FWTM: 66°
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: UV-C

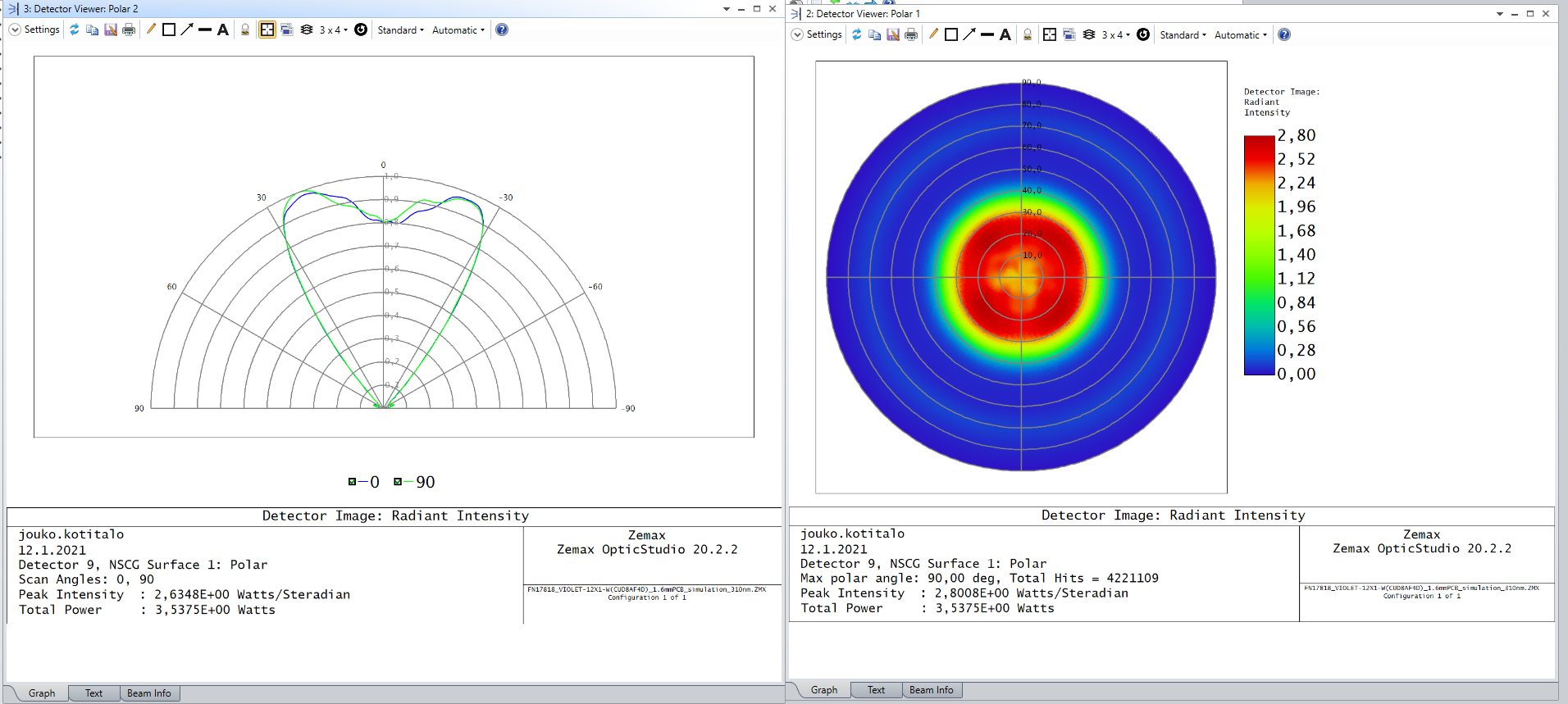

LED: CUD8AF4D
FWHM: 71°
FWTM: 87°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: UV-B

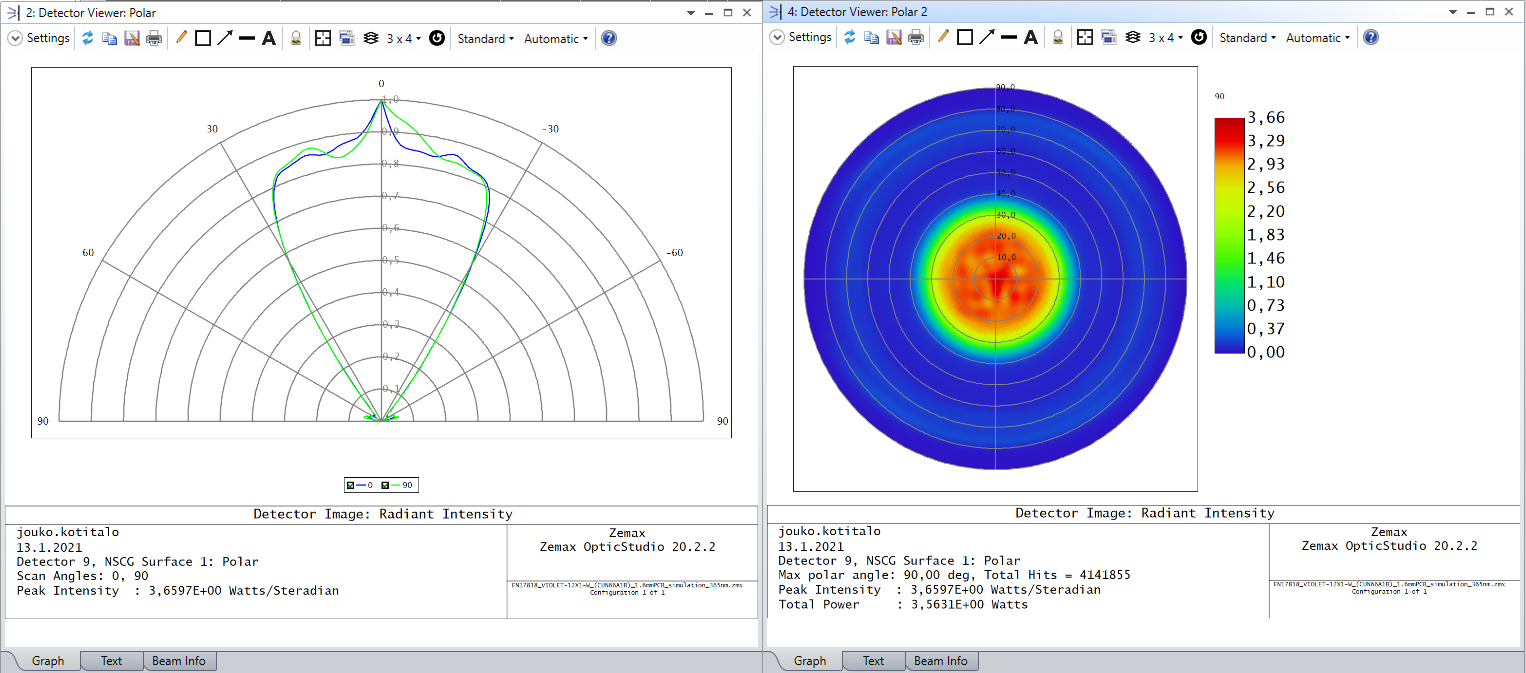

LED: CUN66A1B
FWHM: 62°
FWTM: 77°
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: UV-A
LED: WICOP DY9560-27
FWHM: 59°
FWTM: 73°
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: UV-C

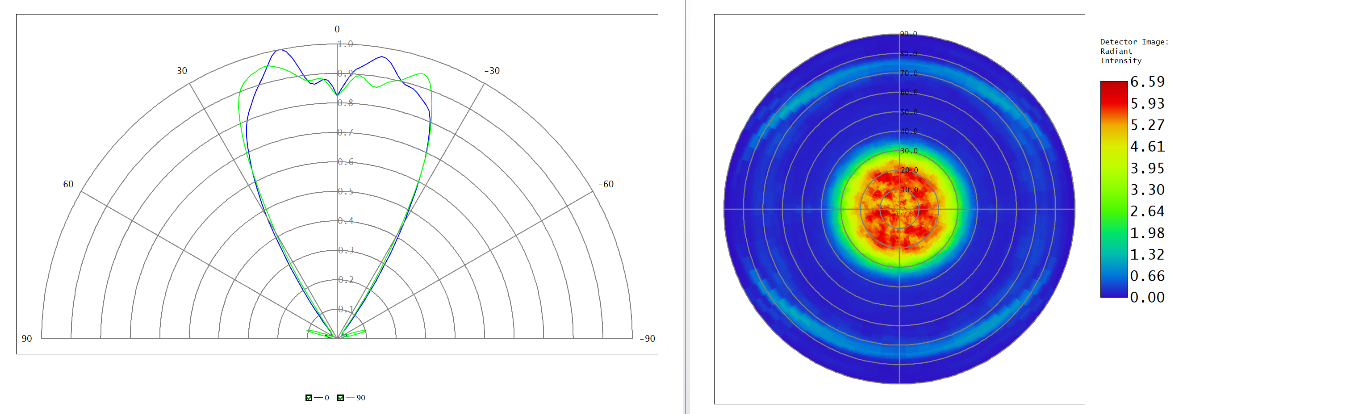

LED: WICOP DY9560-27
FWHM: 57° + 59°
FWTM: 72° + 76°
Efficiency: 73 %
LEDs/each optic: 2
Light colour/type: UV-C

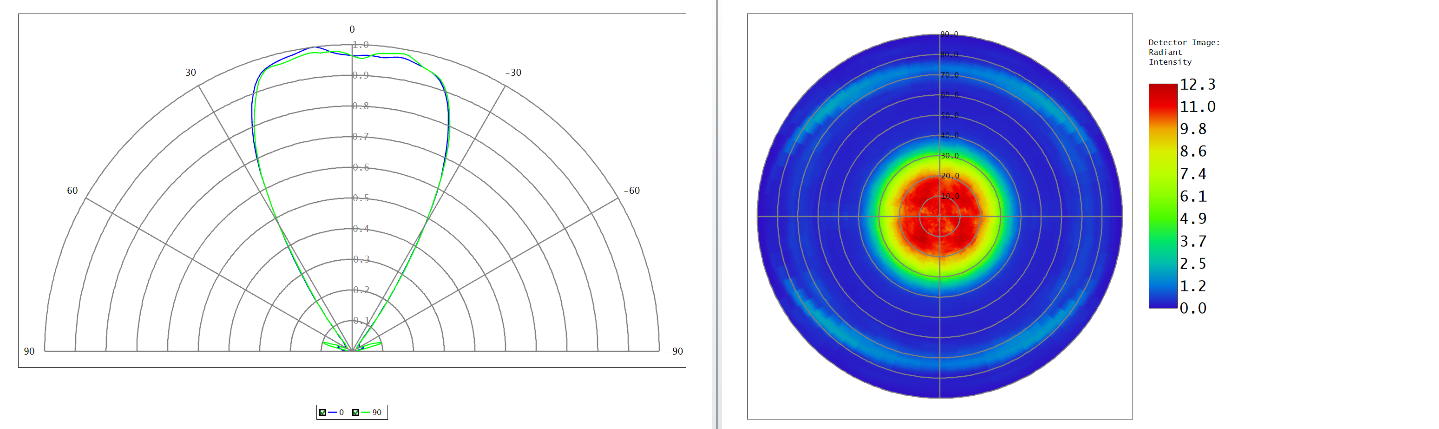

LED: WICOP DY9560-27
FWHM: 59°
FWTM: 77°
Efficiency: 73 %
LEDs/each optic: 4
Light colour/type: UV-C
LED: XMD-FBC-LLCA
FWHM: 51°
FWTM: 72°
Efficiency: 68 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: XMD-FBC-LLOA
FWHM: 50°
FWTM: 75°
Efficiency: 73 %
LEDs/each optic: 2
Light colour/type: UV-C
LED: XMD-FBC-LLVA
FWHM: 53°
FWTM: 76°
Efficiency: 70 %
LEDs/each optic: 4
Light colour/type: UV-C
LED: ZEUBE265 Series
FWHM: 57°
FWTM: 71°
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: UV-C
