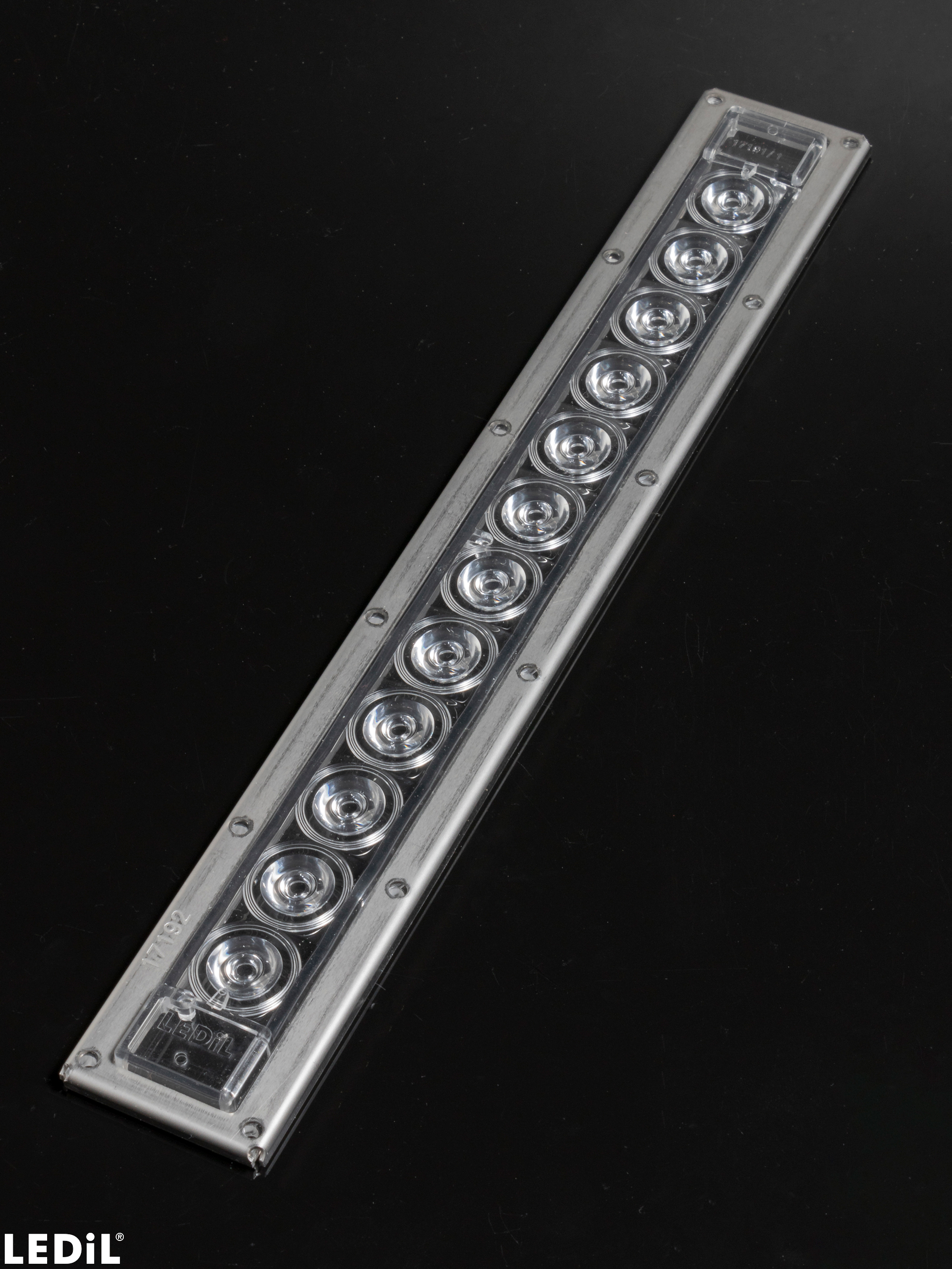

    FN17294_VIOLET-12X1-S

    Print

    ~20° wide beam when used with one UV LED

    NOTE: Choose PCB thickness (both 0.9 mm and 1.6 mm options approved) to ensure optical/mechanical compatibilities.

    Specification
    • Dimensions:
      295 x  42 mm
    • Height:
      8.80 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      78 pcs
    • Box size:
      398 x 298 x 150 mm
    • Box weight:
      7.7 kg
    • MPQ:
      26 pcs
    • MOQ:
      26 pcs
    • MOQ size:
      400 x 300 x 70 mm
    • MOQ weight:
      2.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      FN17294_VIOLET-12X1-S
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Training video

    UV-C disinfection using LEDs and VIOLET - Training by Tero Makinen

    Application example

    Disinfection with VIOLET and WICOP LEDs

    Reference design

    STERILUV EVO UV-C solution

    Reference product

    Lumitronix UV-C LED modules

    Application guide

    LEDiL guide for horticultural lighting optics

    News

    VIOLET-12X1 gets oval light distribution

    News

    VIOLET – silicone optic for UV-C applications

    Application area

    UV-C LIGHTING

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

    Application area

    Horticultural Lighting

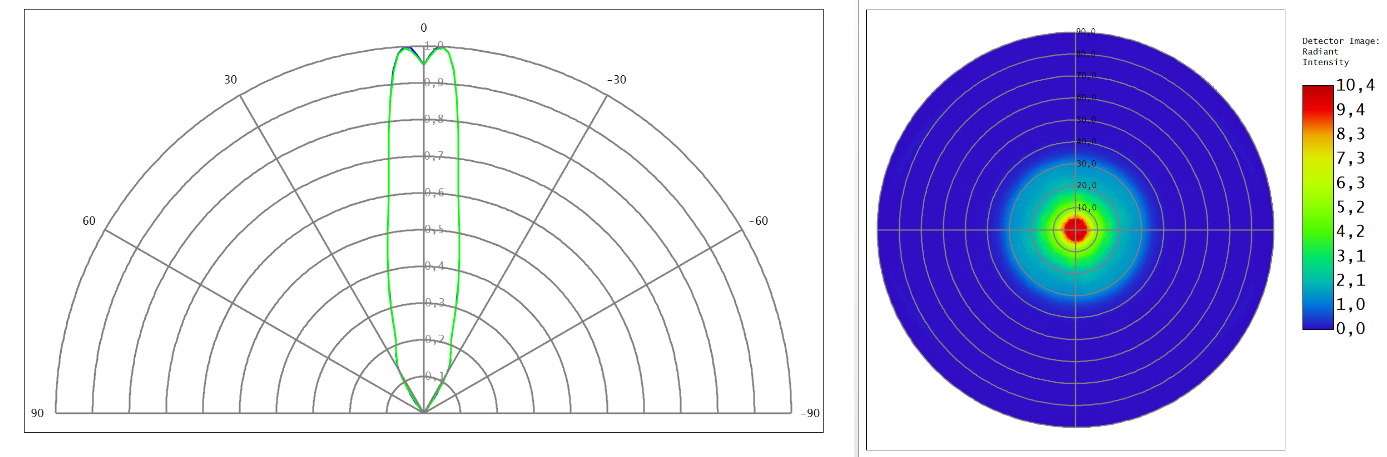

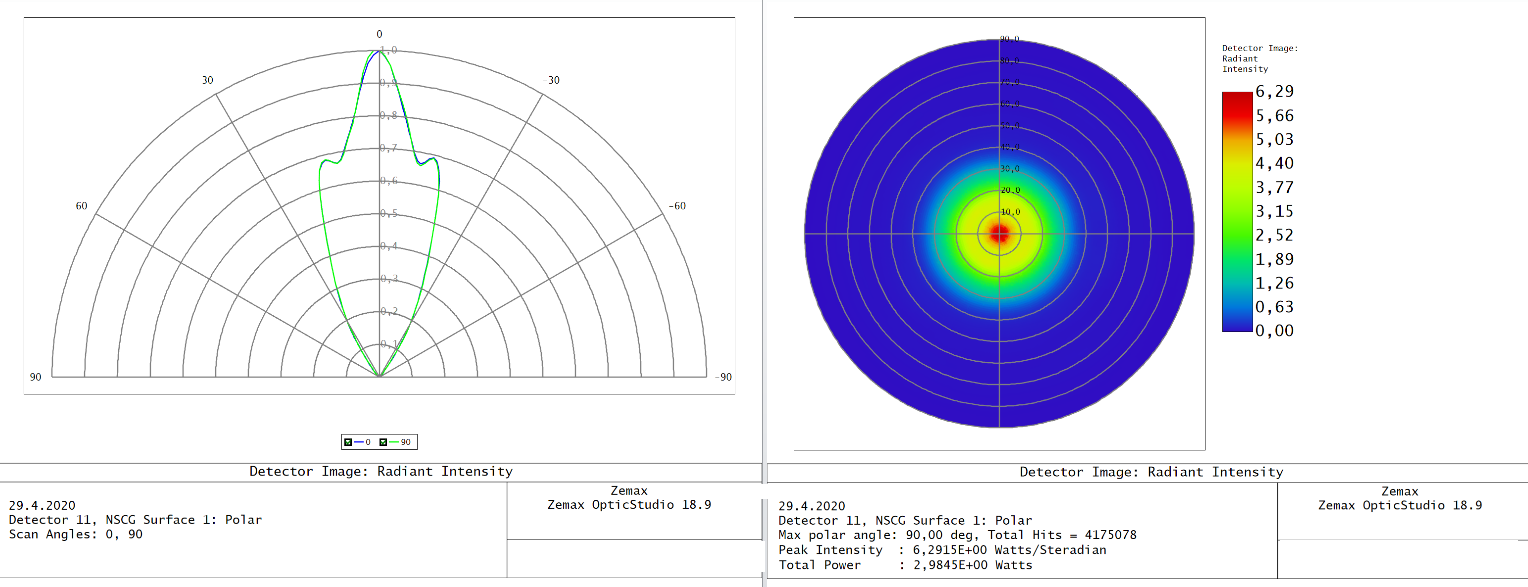

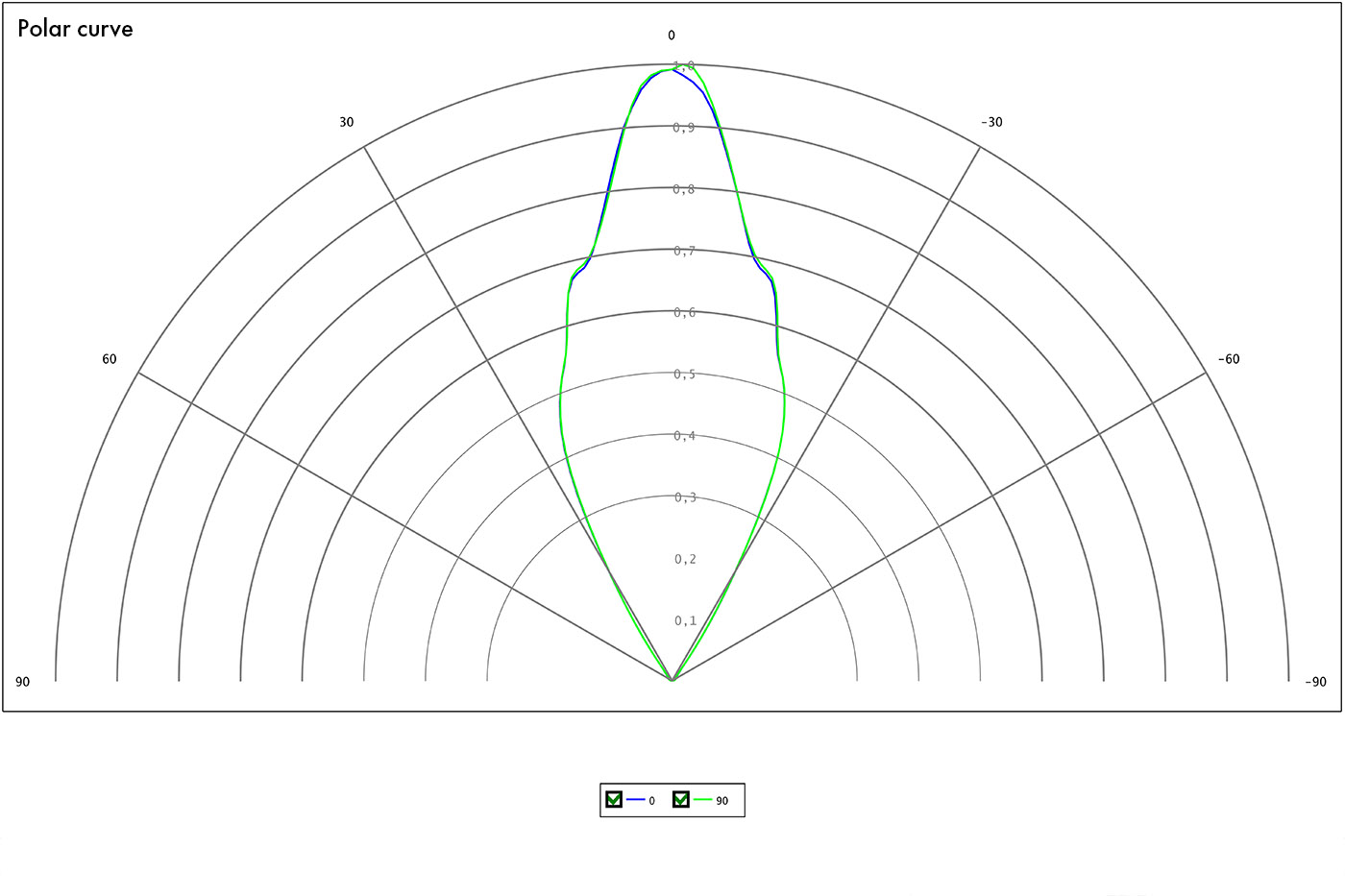

    Optical results

    LED: LIGHT ENGINE VIOLET UVC 281 x 19.2mm (KL265-50V-SM-WD)
    FWHM: 16°
    FWTM: 43°
    Efficiency: 55 %
    LEDs/each optic: 1
    Light colour/type: UV-C

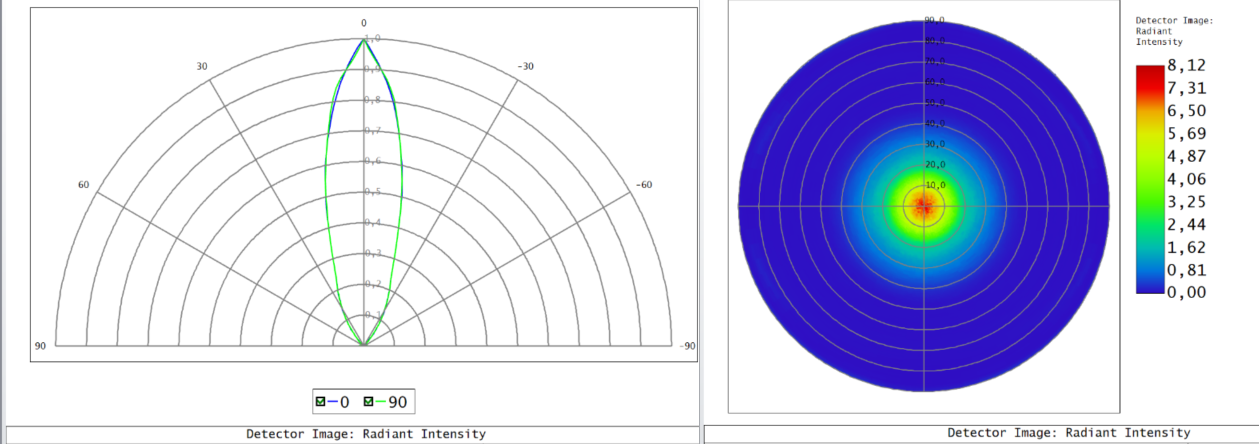

    LED: Bolb UV-C 6060 SMD
    FWHM: 28°
    FWTM: 66°
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: CLH-N3S
    FWHM: 36°
    FWTM: 63°
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: UV-C

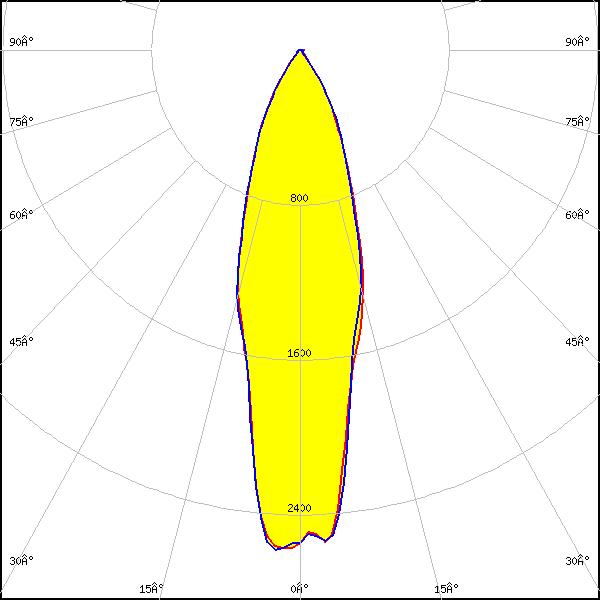

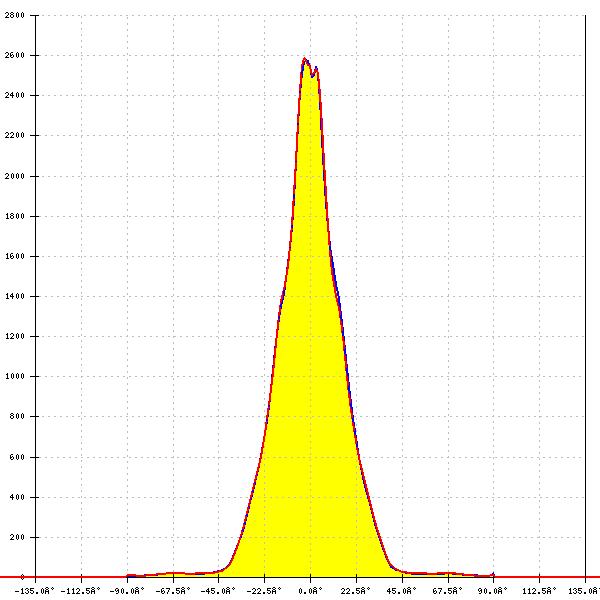

    LED: XT-E
    FWHM: 30°
    FWTM: 65°
    Peak intensity: 2.380 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: KL265-50V-SM-WD
    FWHM: 23°
    FWTM: 51°
    Efficiency: 54 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: 110384-GC VIOLET
    FWHM: 24°
    FWTM: 65°
    Efficiency: 69 %
    LEDs/each optic: 1
    Light colour/type: UV-C

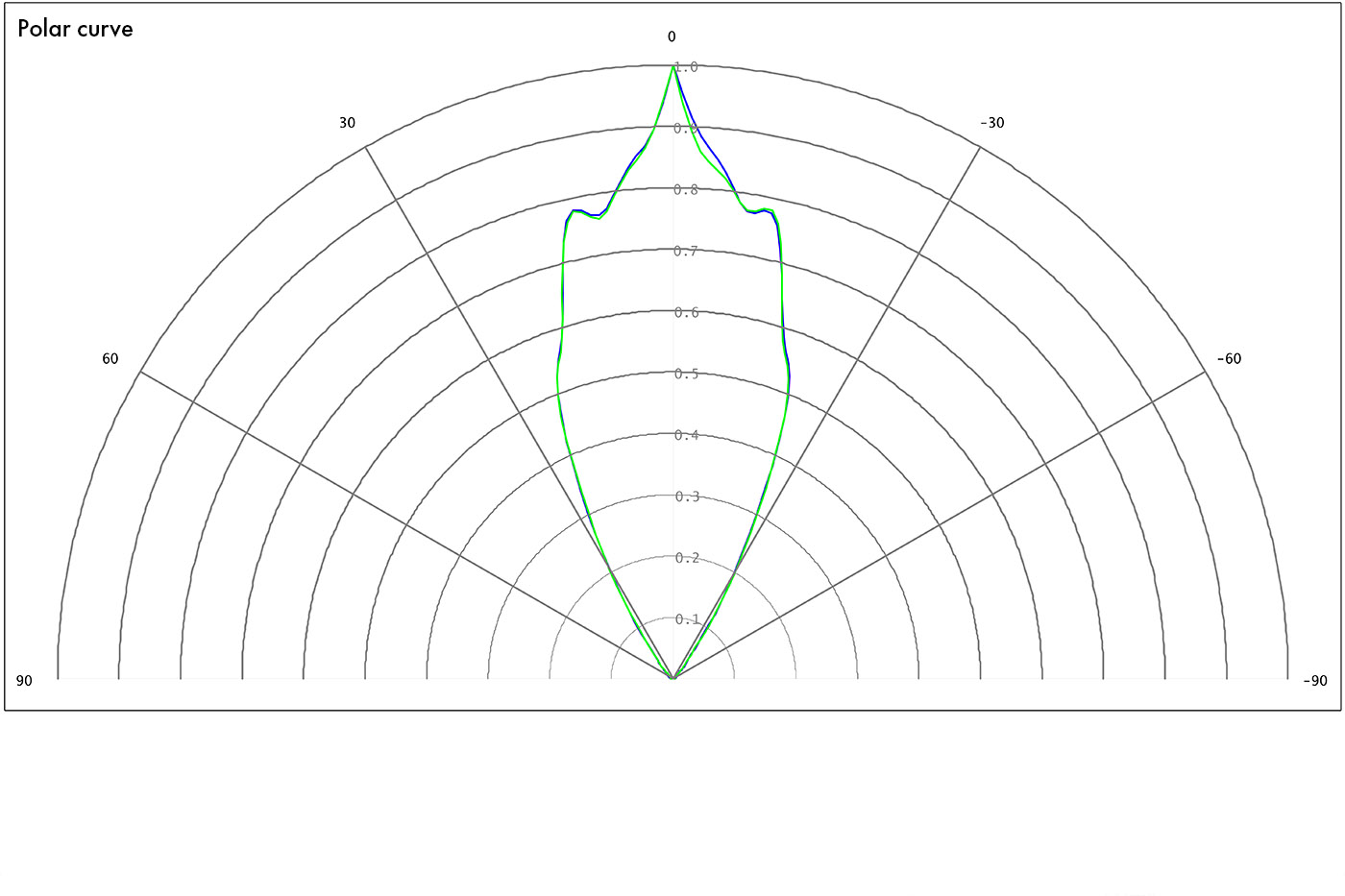

    LED: 110384-GM VIOLET
    FWHM: 47°
    FWTM: 74°
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: UV-C

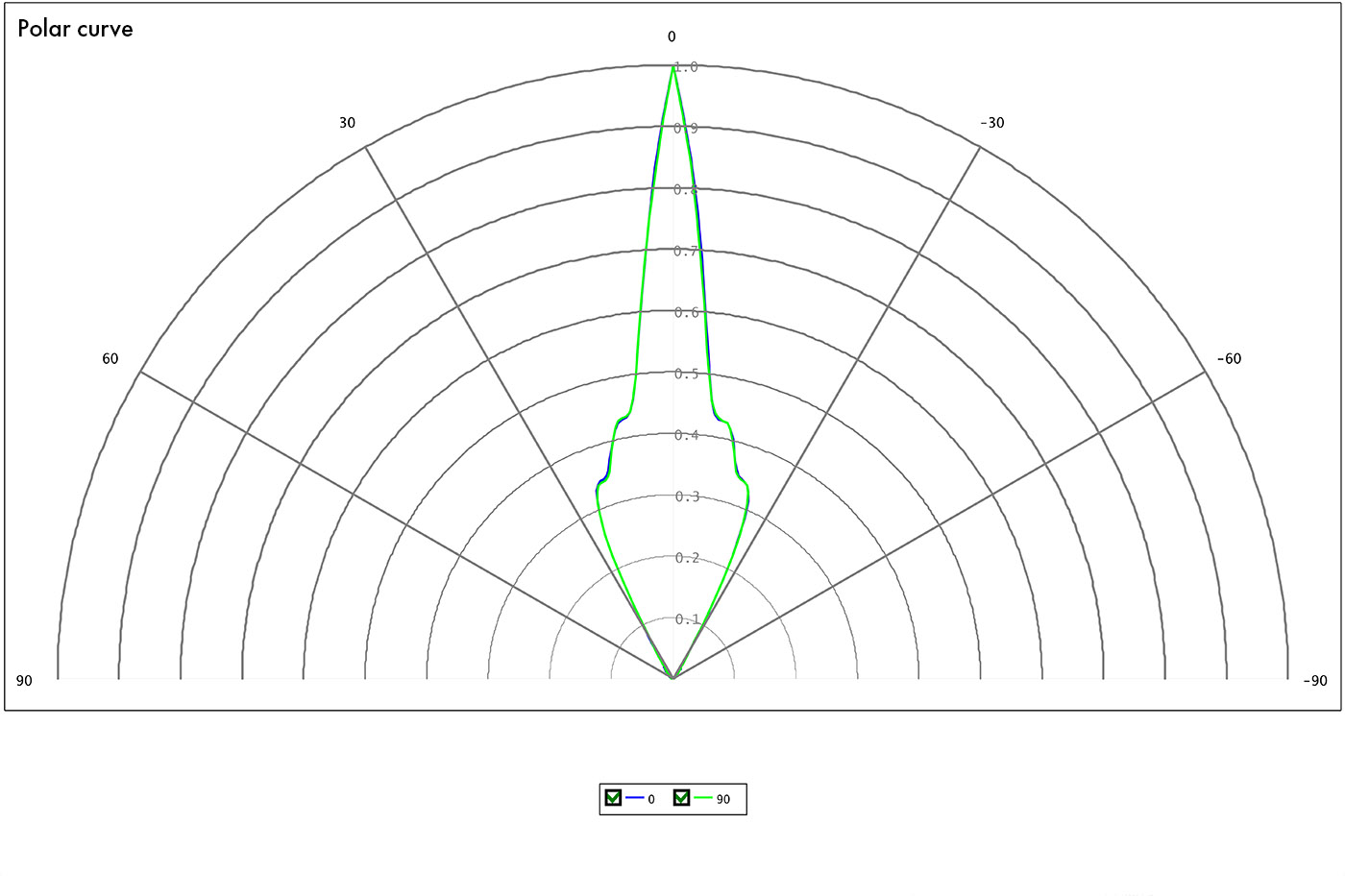

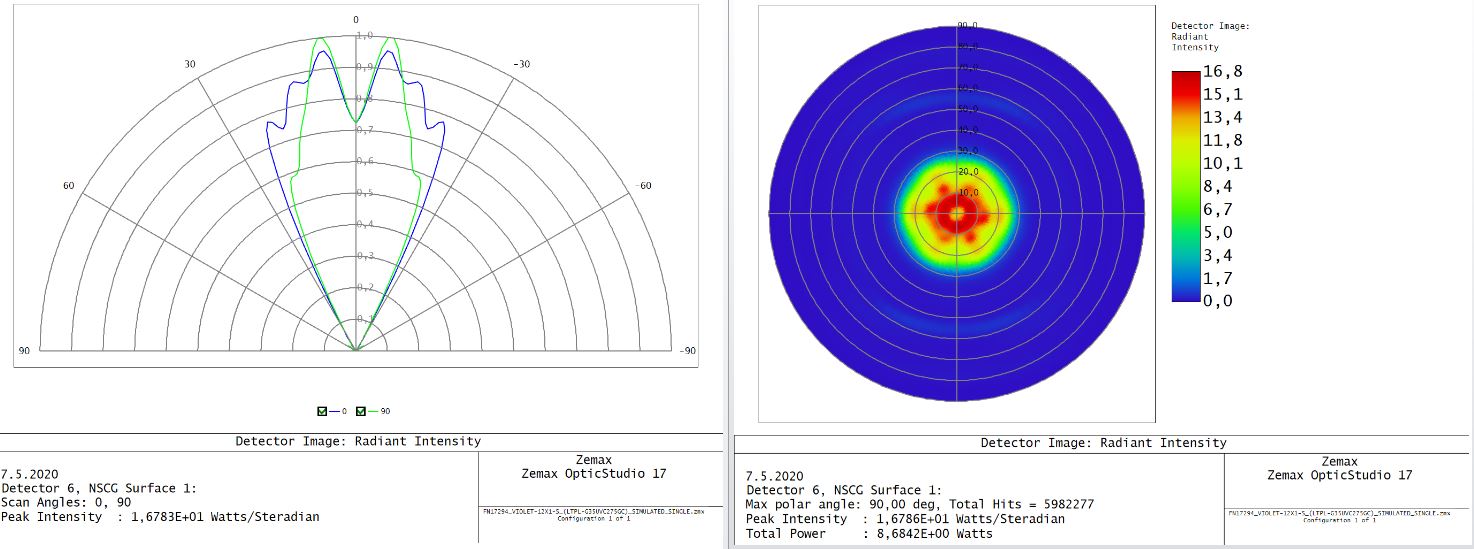

    LED: LTPL-G35UV275GC-E
    FWHM: 46°
    FWTM: 57°
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: LTPL-G35UV275GC-E
    FWHM: 15°
    FWTM: 46°
    Efficiency: 63 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: LTPL-G35UV275GR-E
    FWHM: 40°
    FWTM: 51°
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: LTPL-G35UV275GR-E
    FWHM: 21°
    FWTM: 50°
    Efficiency: 63 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: LTPL-G35UVC275GH
    FWHM: 26°
    FWTM: 54°
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: UV-C

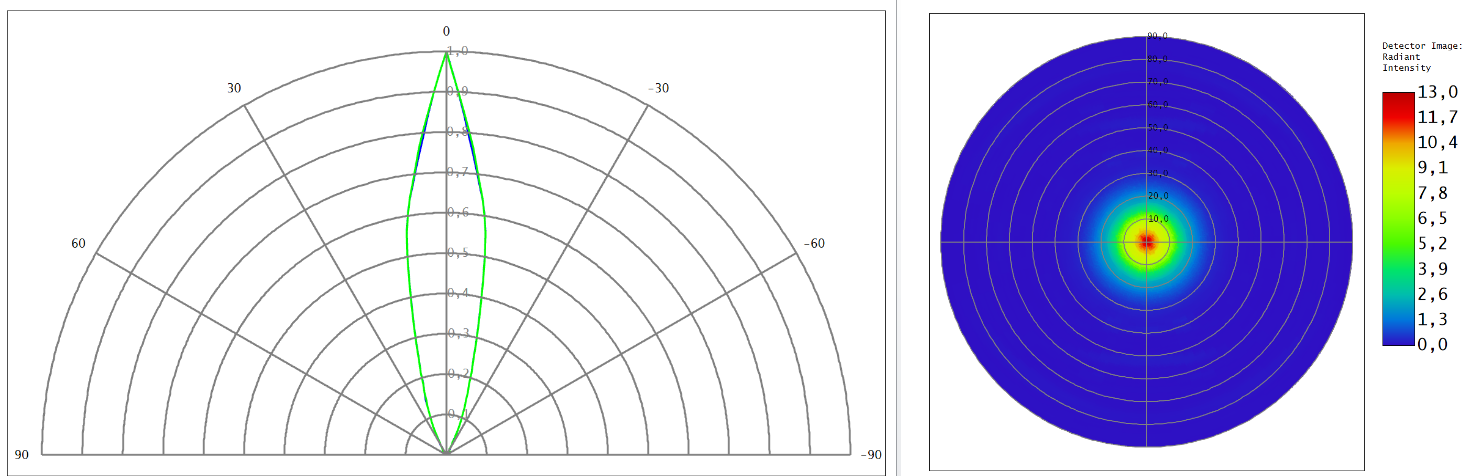

    LED: LTPL-G35UVC275GM
    FWHM: 22°
    FWTM: 44°
    Efficiency: 66 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: LTPL-G35UVC275GZ
    FWHM: 28°
    FWTM: 53°
    Efficiency: 62 %
    LEDs/each optic: 1
    Light colour/type: UV-C

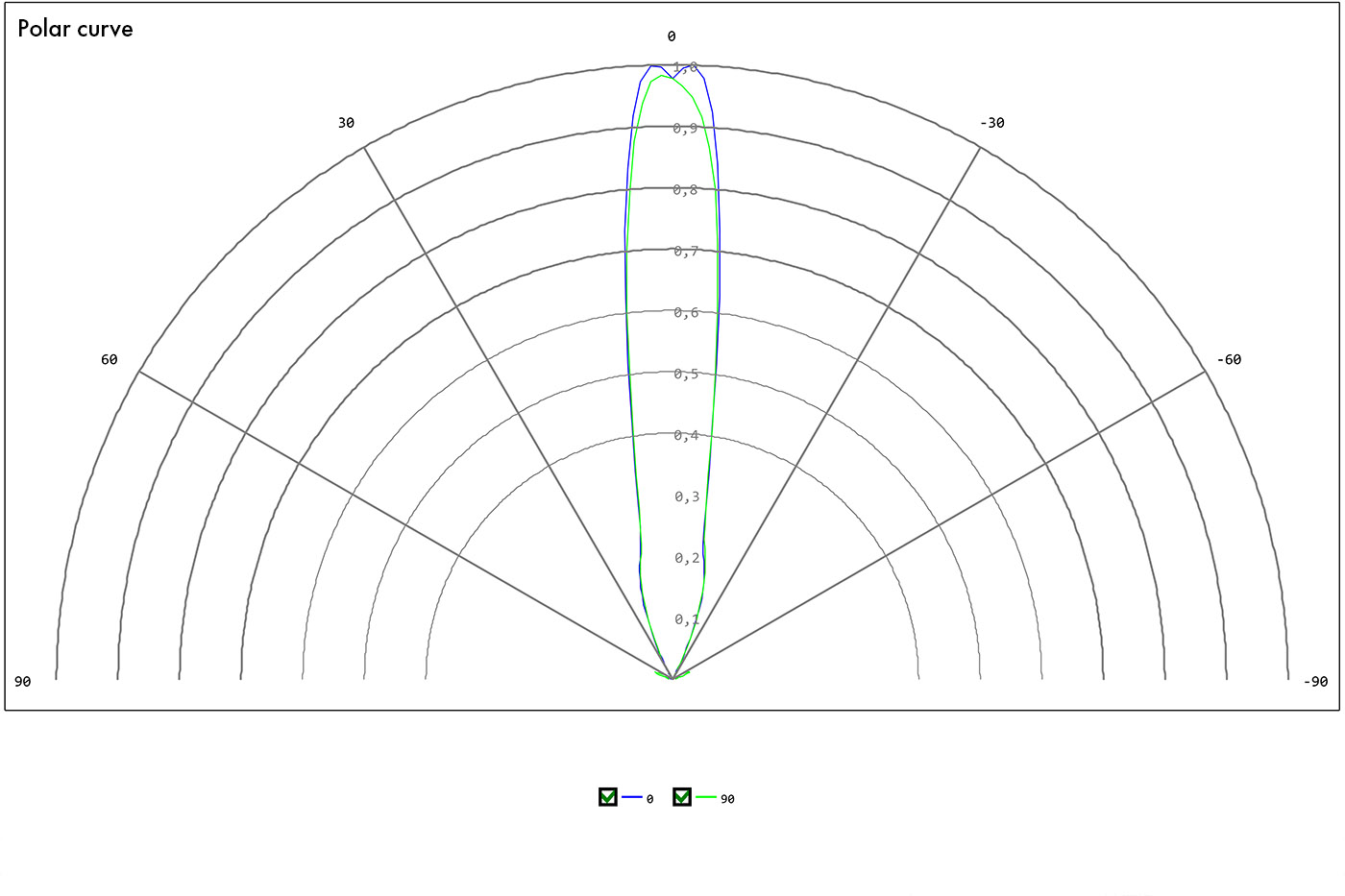

    LED: SST-10-UV-X130
    FWHM: 16°
    FWTM: 44°
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: UV-A
    LED: XBT-1313
    FWHM: 22°
    FWTM: 64°
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: UV-C

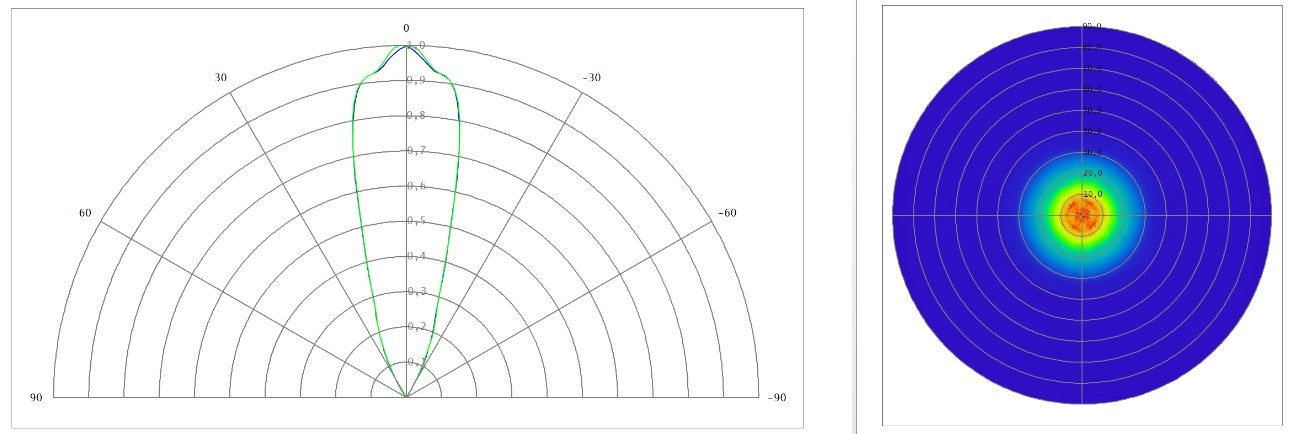

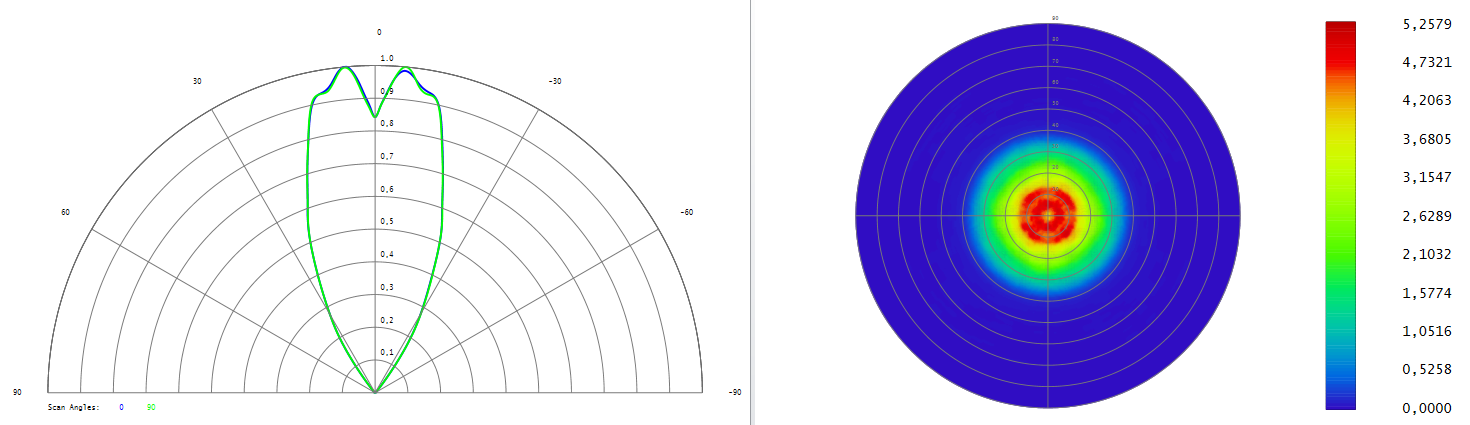

    LED: XBT-3535-UV
    FWHM: 29°
    FWTM: 55°
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: XBT-3535-UV
    FWHM: 47°
    FWTM: 72°
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: XBT-3535-UV
    FWHM: 32°
    FWTM: 60°
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: UV-C

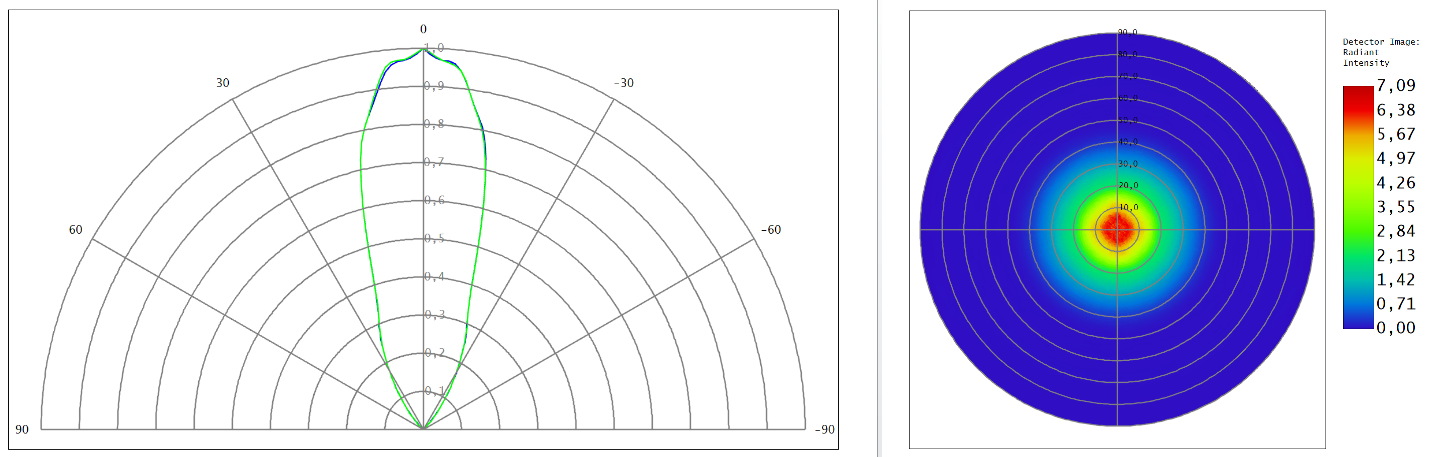

    LED: XFM-5050 2 Die
    FWHM: 33°
    FWTM: 71°
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: XFM-5050 2 Die
    FWHM: 32°
    FWTM: 59°
    Efficiency: 57 %
    LEDs/each optic: 1
    Light colour/type: UV-C

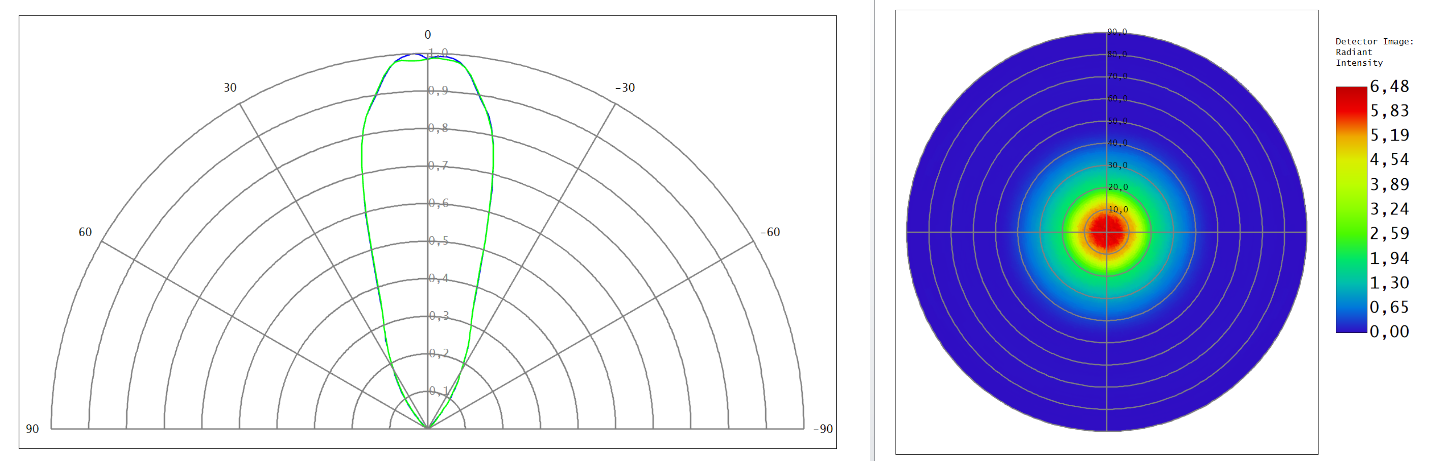

    LED: XFM-5050 3 Die
    FWHM: 35°
    FWTM: 73°
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: XFM-5050 3 Die
    FWHM: 28°
    FWTM: 55°
    Efficiency: 51 %
    LEDs/each optic: 1
    Light colour/type: UV-C

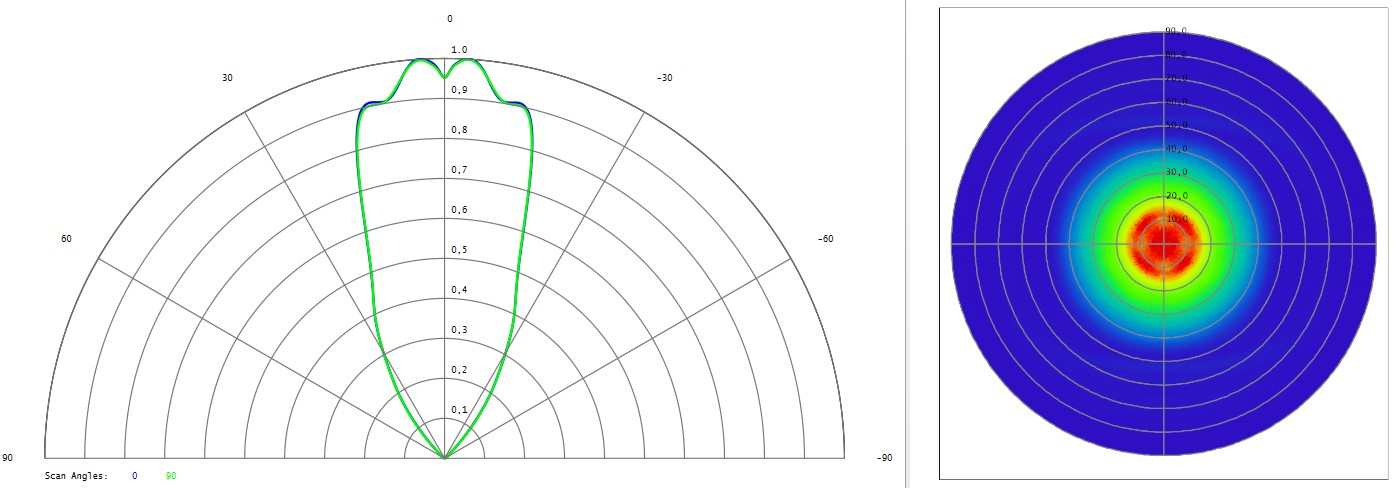

    LED: XFM-5050 4 Die
    FWHM: 43°
    FWTM: 82°
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: UV-C

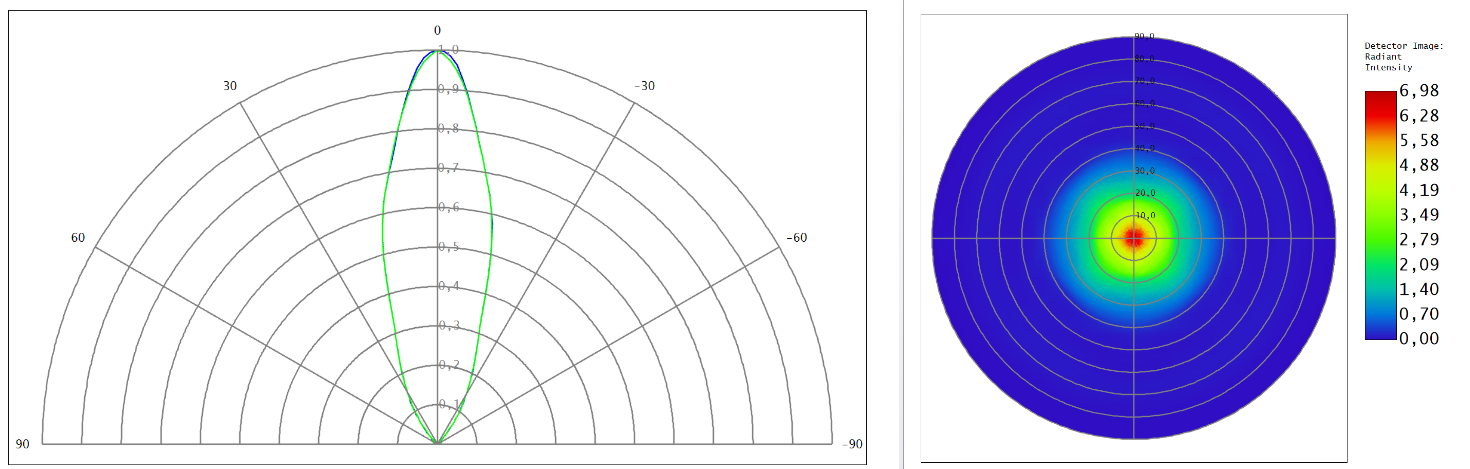

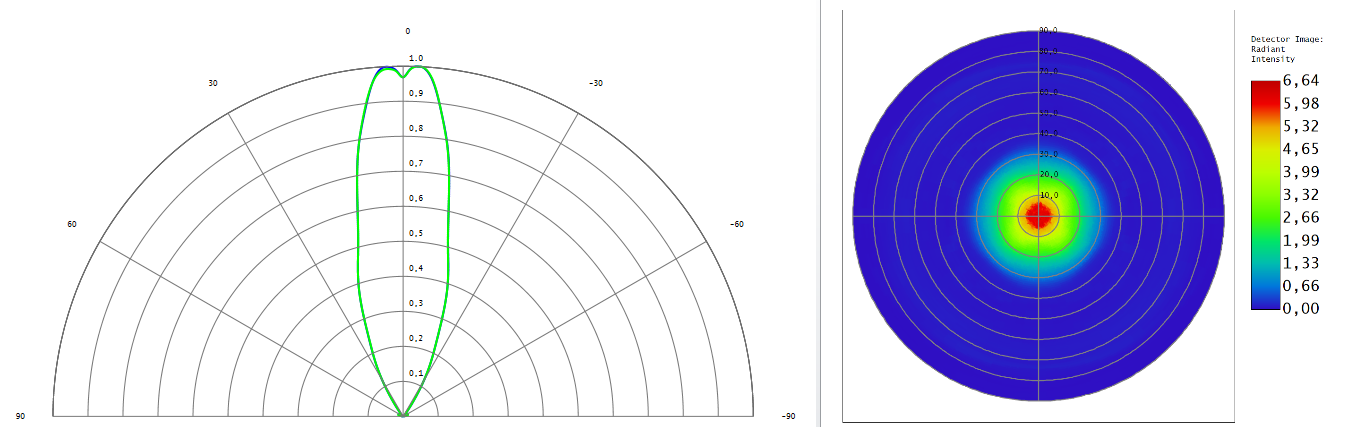

    LED: XST-3535-UV
    FWHM: 30°
    FWTM: 62°
    Efficiency: 63 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: XST-3535-UV
    FWHM: 32°
    FWTM: 69°
    Efficiency: 68 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: XST-3535-UV
    FWHM: 23°
    FWTM: 51°
    Efficiency: 62 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: Violet UVC LED-Modul 280nm
    FWHM: 36°
    FWTM: 64°
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: NC4U334BR
    FWHM: 53°
    FWTM: 80°
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: UV-C

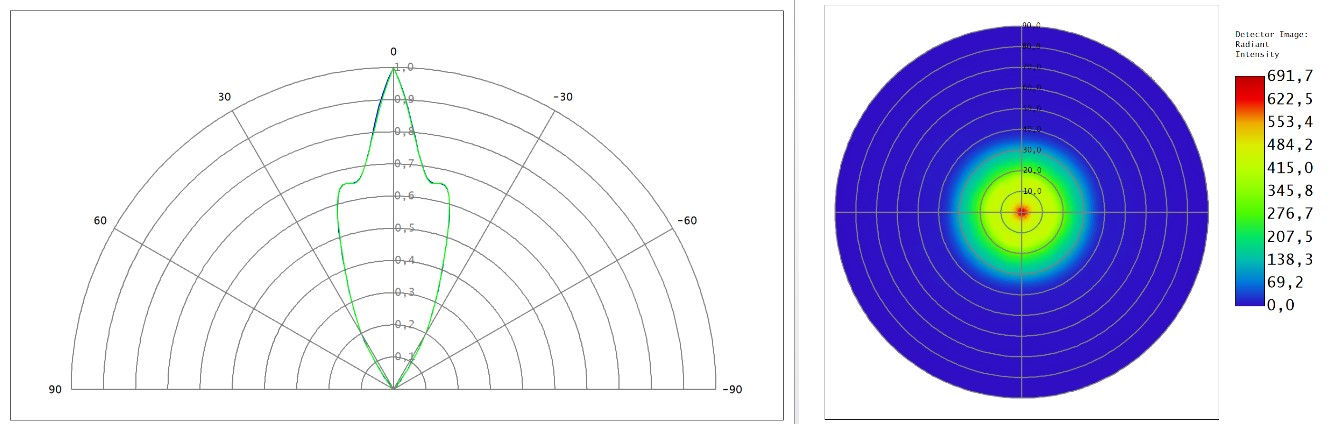

    LED: NCSU334A
    FWHM: 40°
    FWTM: 68°
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: NCSU334A
    FWHM: 23°
    FWTM: 52°
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: NCSU334B
    FWHM: 39°
    FWTM: 68°
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: NCSU334B
    FWHM: 26°
    FWTM: 51°
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: NCSU434A
    FWHM: 37°
    FWTM: 65°
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: UV-C

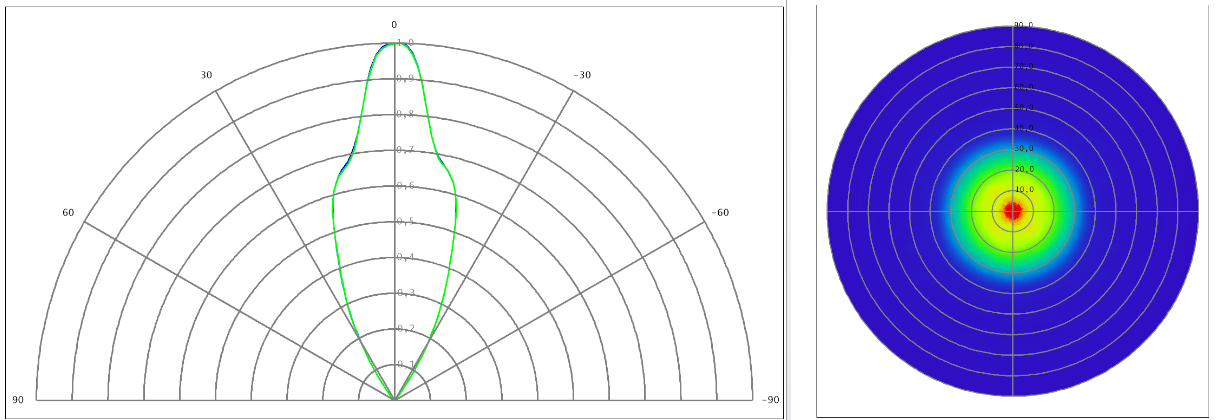

    LED: NCSU434B
    FWHM: 39°
    FWTM: 67°
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: CLE LED module with UV-C (SU CULCN1.VC)
    FWHM: 28°
    FWTM: 56°
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: OSLON UV 3535 (SU CULFP1.VC)
    FWHM: 30°
    FWTM: 58°
    Efficiency: 60 %
    LEDs/each optic: 1
    Light colour/type: UV-C

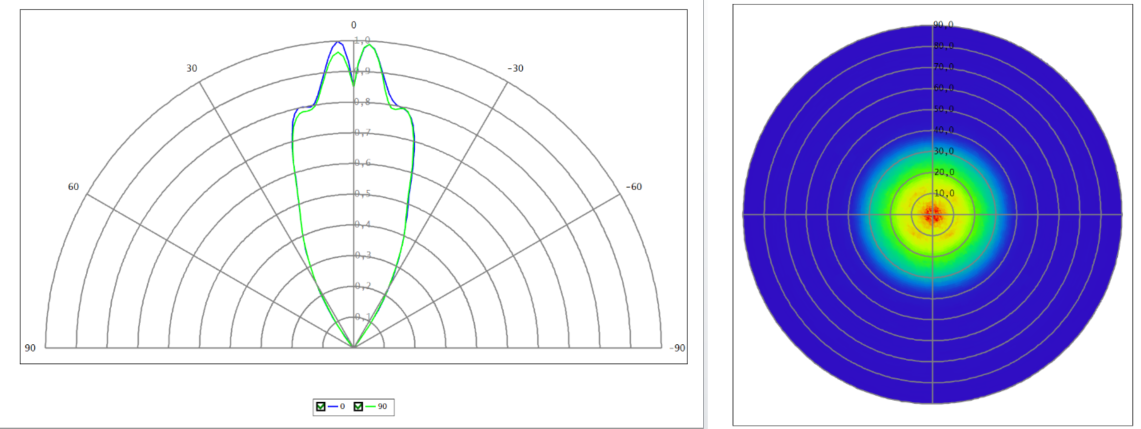

    LED: OSLON UV 3636 (SU CULBN1.VC)
    FWHM: 29°
    FWTM: 60°
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: OSLON UV 3636 (SU CULCN1.VC)
    FWHM: 33°
    FWTM: 63°
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: OSLON UV 3636 (SU CULDN1.VC)
    FWHM: 41°
    FWTM: 69°
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: UV-C

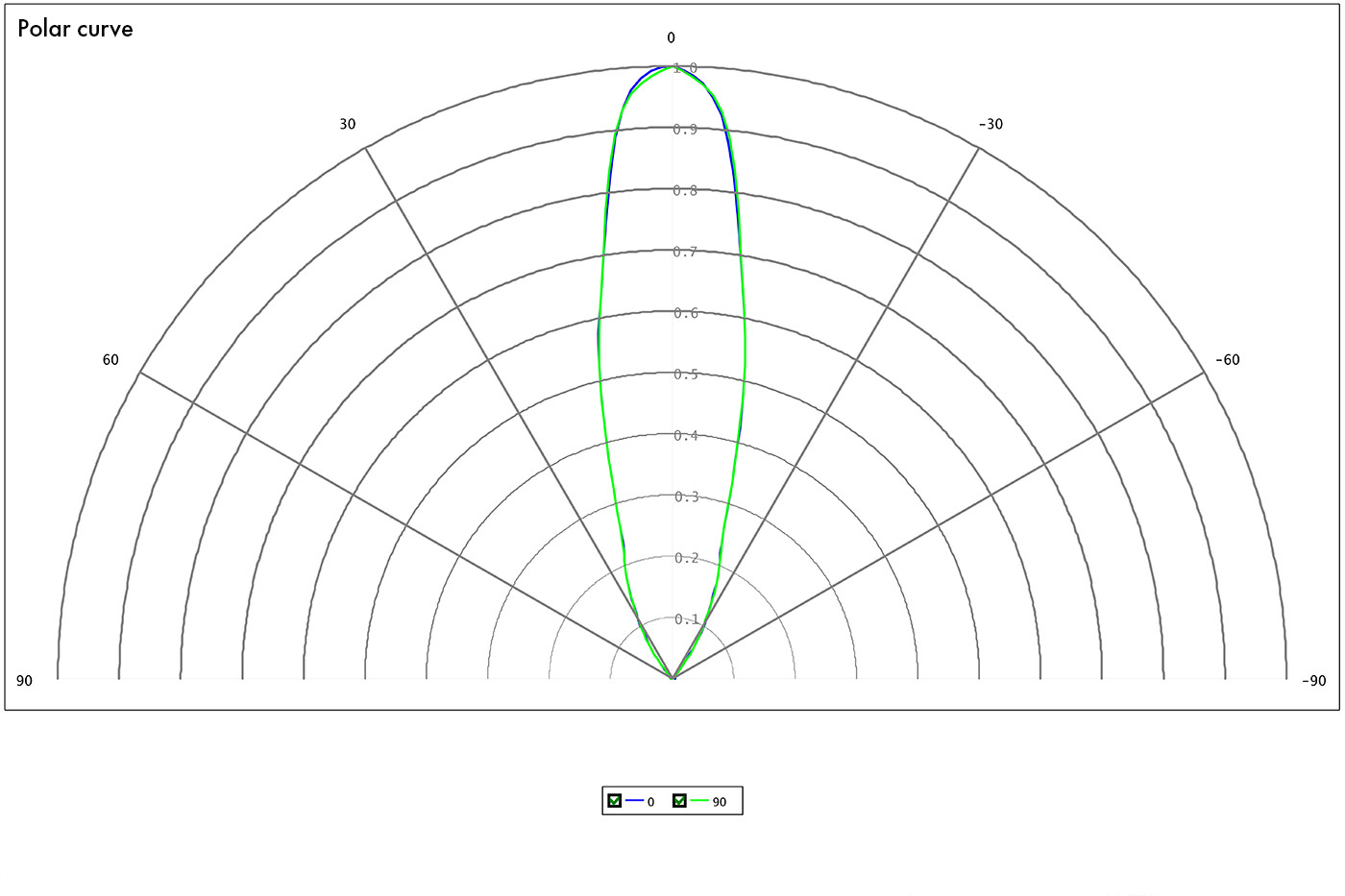

    LED: OSLON UV 6060 (SU CZHEF1.VC)
    FWHM: 27°
    FWTM: 62°
    Efficiency: 68 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: OSLON UV 6060 (SU CZHPF1.VC)
    FWHM: 24°
    FWTM: 61°
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: OSLON UV 6060 (SU CZHPF1.VC)
    FWHM: 31°
    FWTM: 60°
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: UV-C

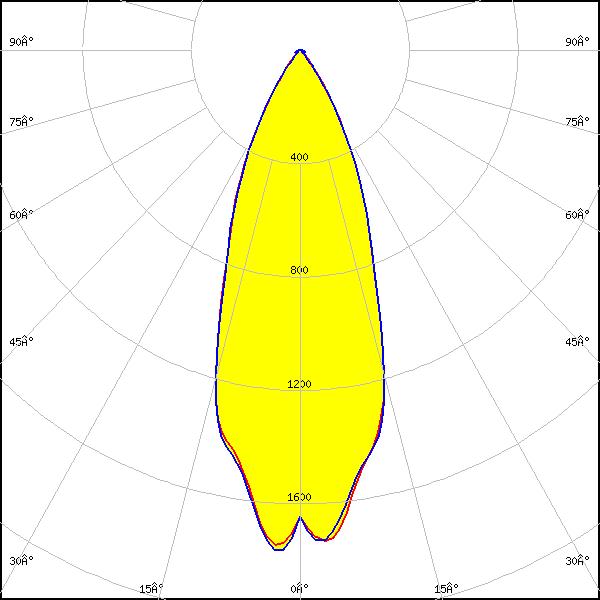

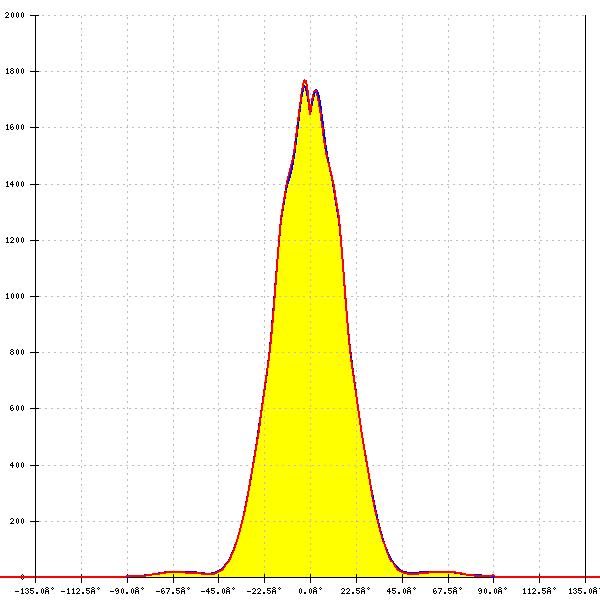

    LED: LM301B
    FWHM: 38°
    FWTM: 68°
    Peak intensity: 1.778 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: UV351A
    FWHM: 22°
    FWTM: 61°
    Efficiency: 65 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: UV351B
    FWHM: 38°
    FWTM: 64°
    Efficiency: 63 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: UV352B
    FWHM: 44°
    FWTM: 71°
    Efficiency: 63 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: UV353B
    FWHM: 45°
    FWTM: 74°
    Efficiency: 60 %
    LEDs/each optic: 1
    Light colour/type: UV-C

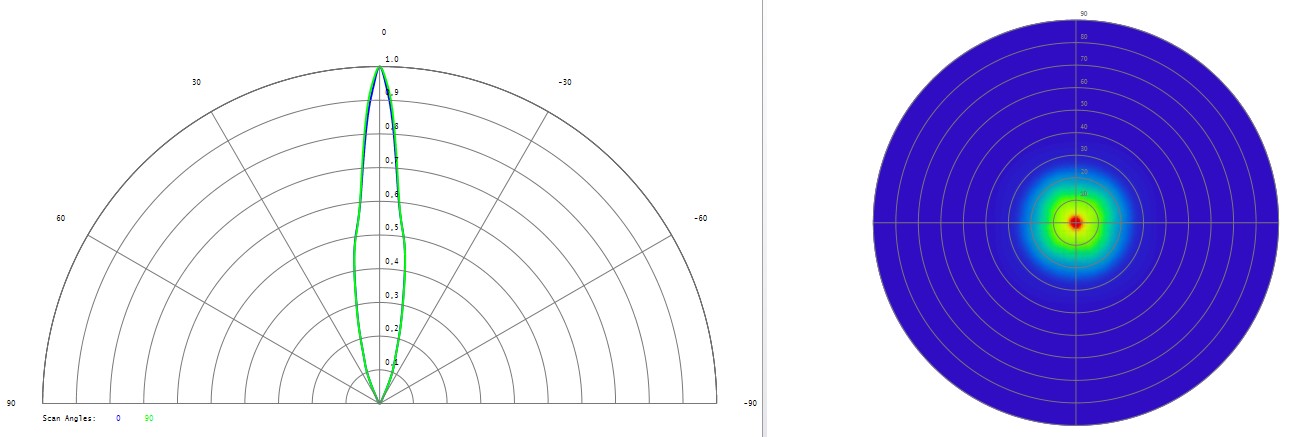

    LED: CUD7GF1A
    FWHM: 16°
    FWTM: 44°
    Efficiency: 66 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: CUD7GF1A
    FWHM: 13°
    FWTM: 40°
    Efficiency: 57 %
    LEDs/each optic: 1
    Light colour/type: UV-C

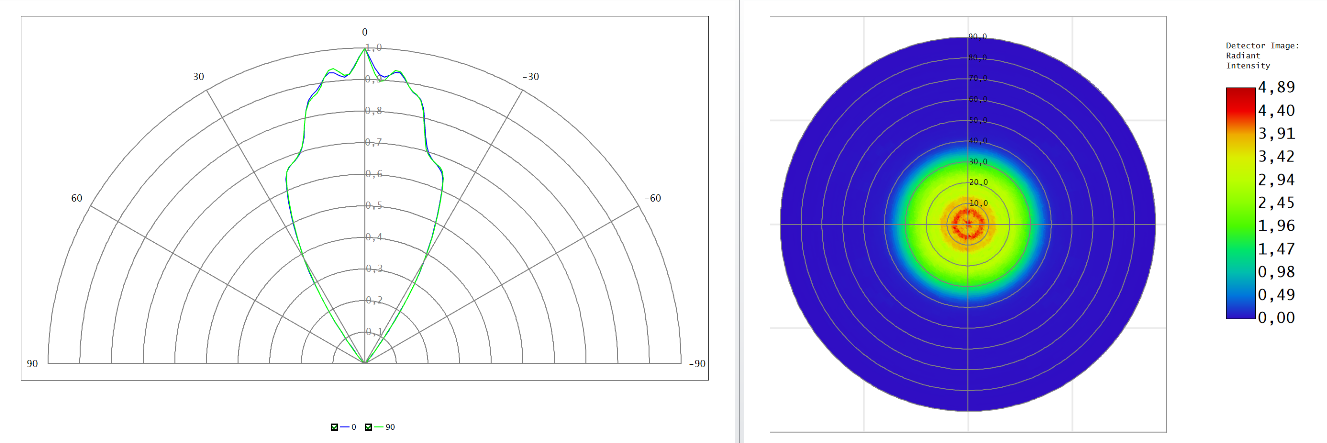

    LED: CUD7GF1B
    FWHM: 52°
    FWTM: 72°
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: CUD7GF1B
    FWHM: 19°
    FWTM: 43°
    Efficiency: 56 %
    LEDs/each optic: 1
    Light colour/type: UV-C

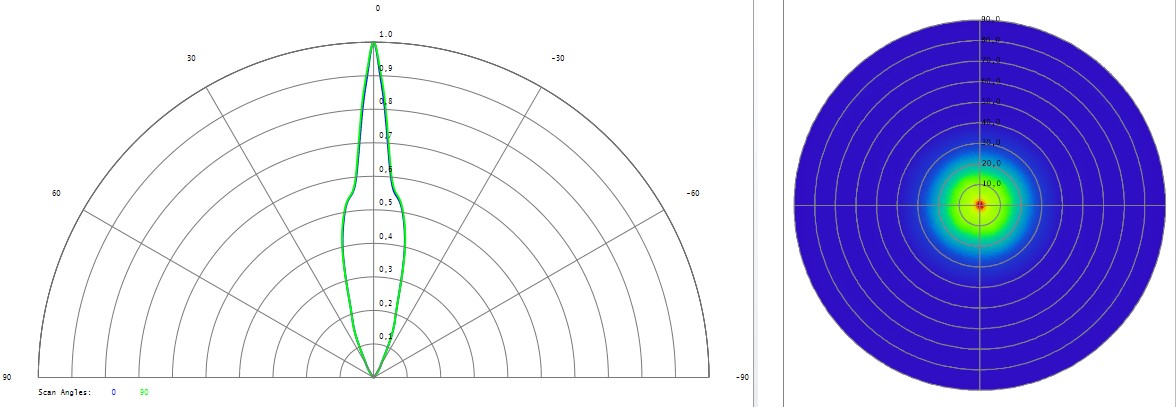

    LED: CUD7QF1A
    FWHM: 20°
    FWTM: 50°
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: CUD7QF1A
    FWHM: 14°
    FWTM: 41°
    Efficiency: 54 %
    LEDs/each optic: 1
    Light colour/type: UV-C

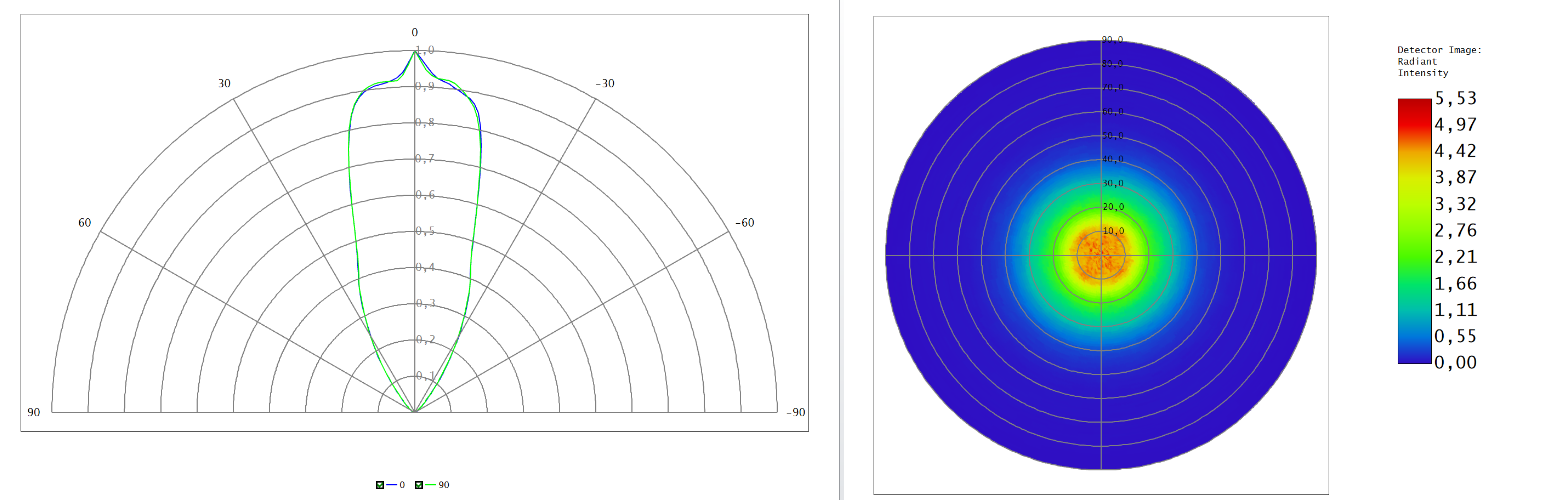

    LED: CUD8AF4D
    FWHM: 38°
    FWTM: 76°
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: UV-C

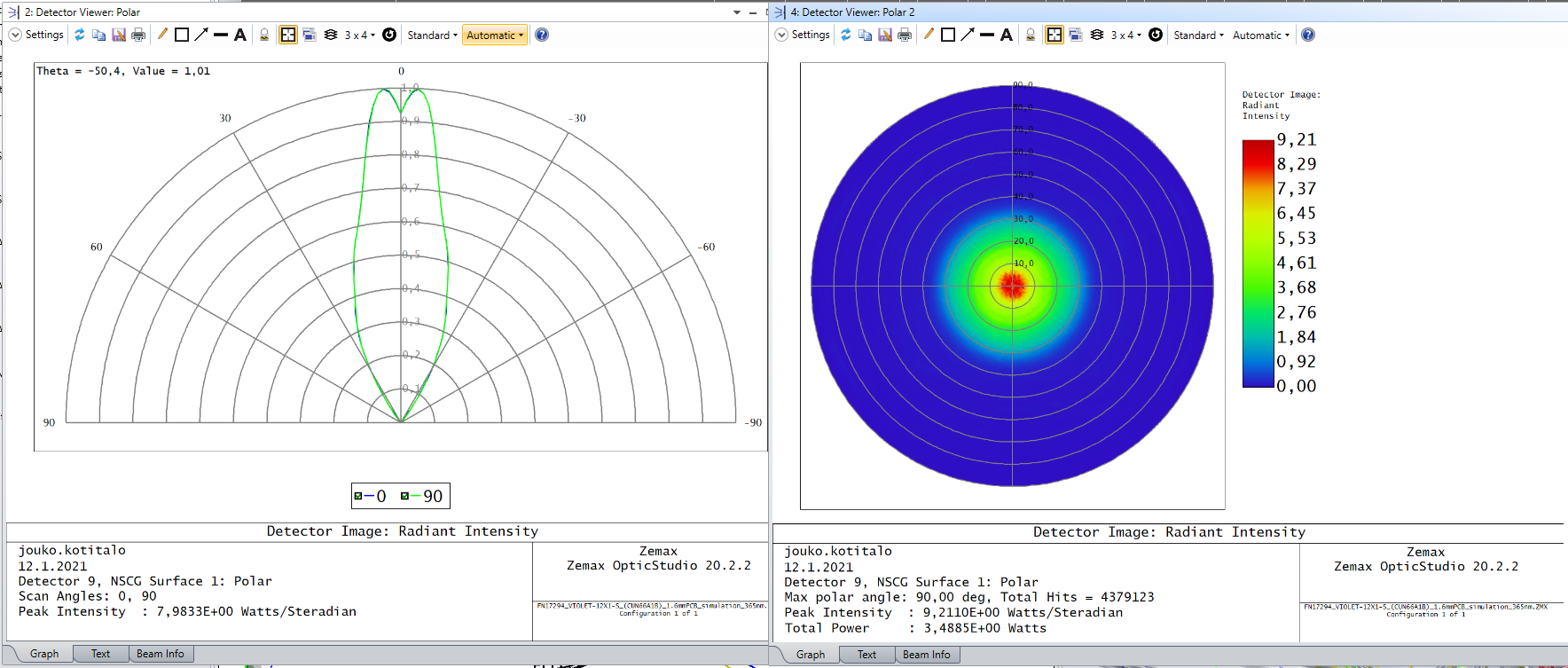

    LED: CUN66A1B
    FWHM: 33°
    FWTM: 67°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: UV-A

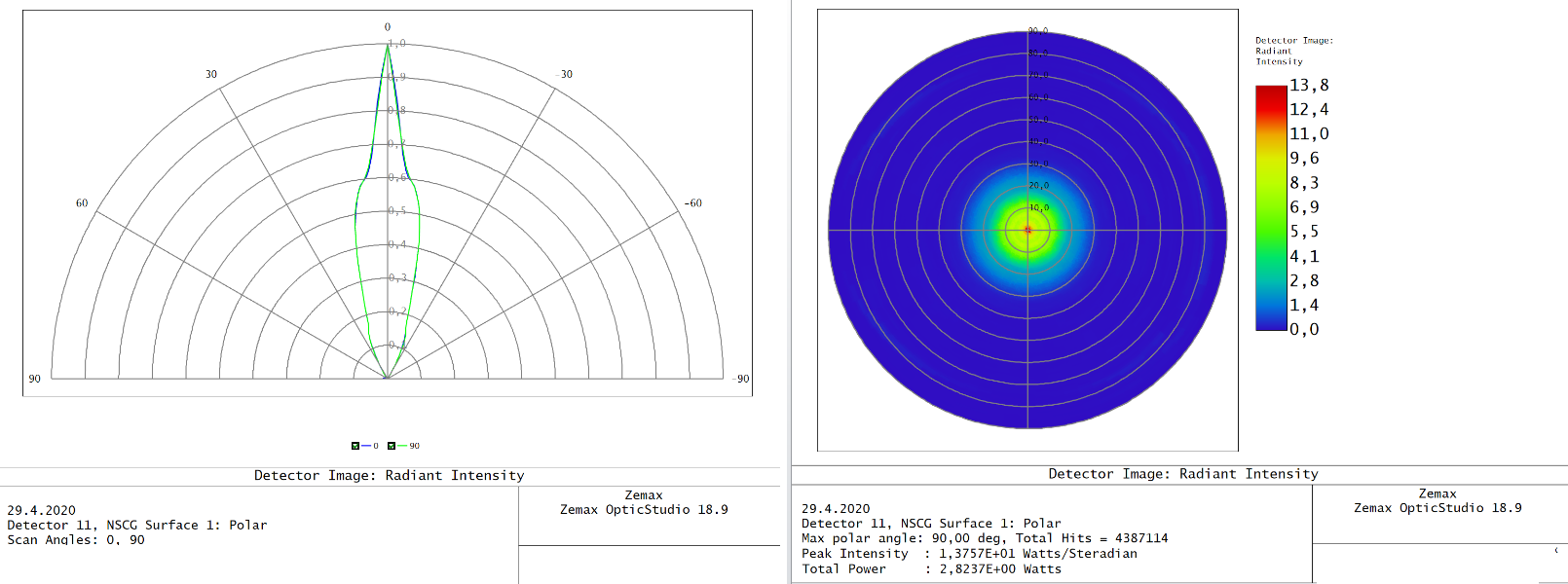

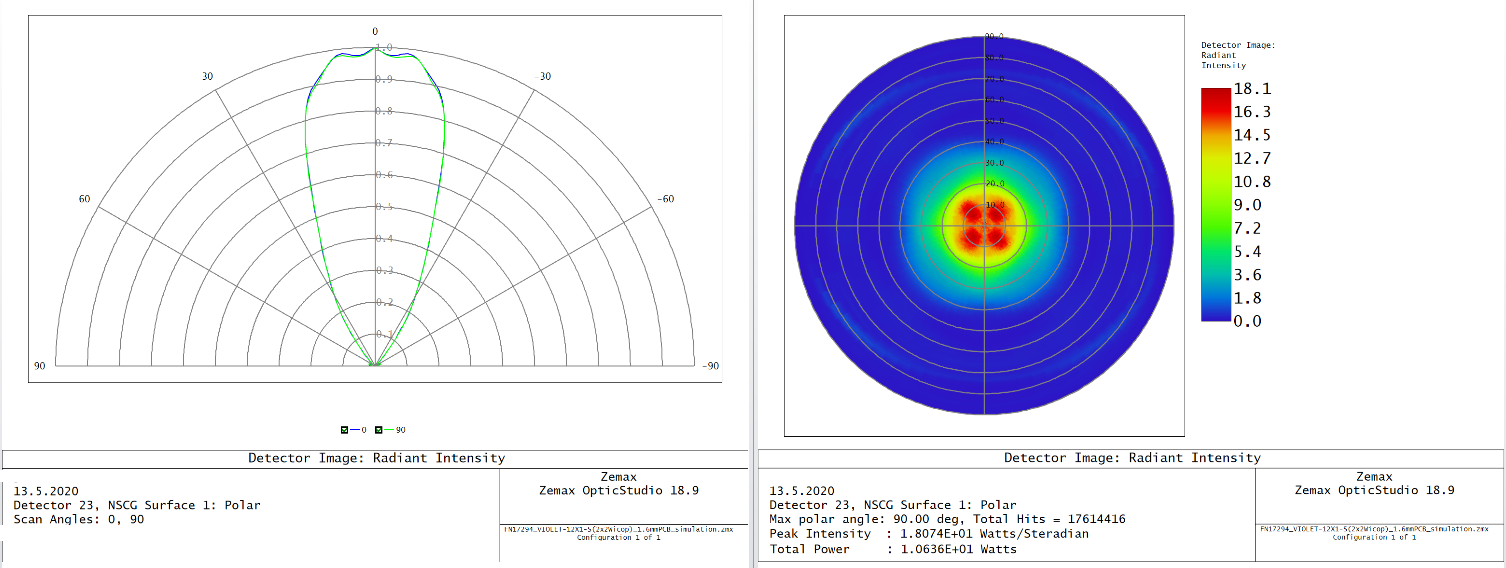

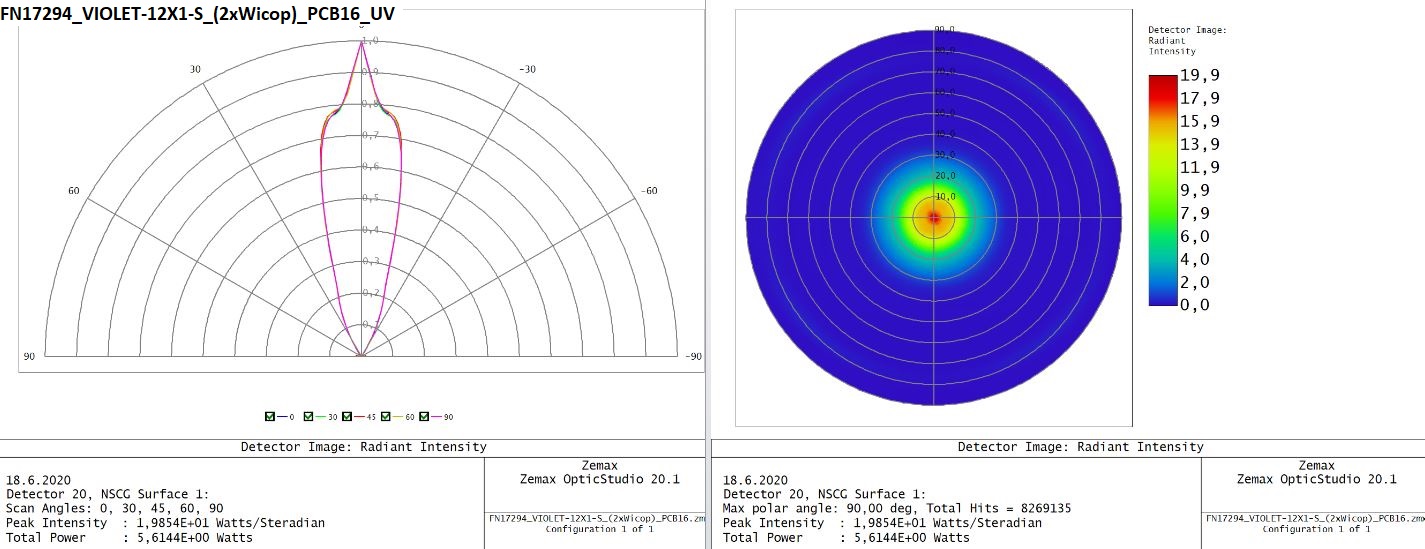

    LED: WICOP DY9560-27
