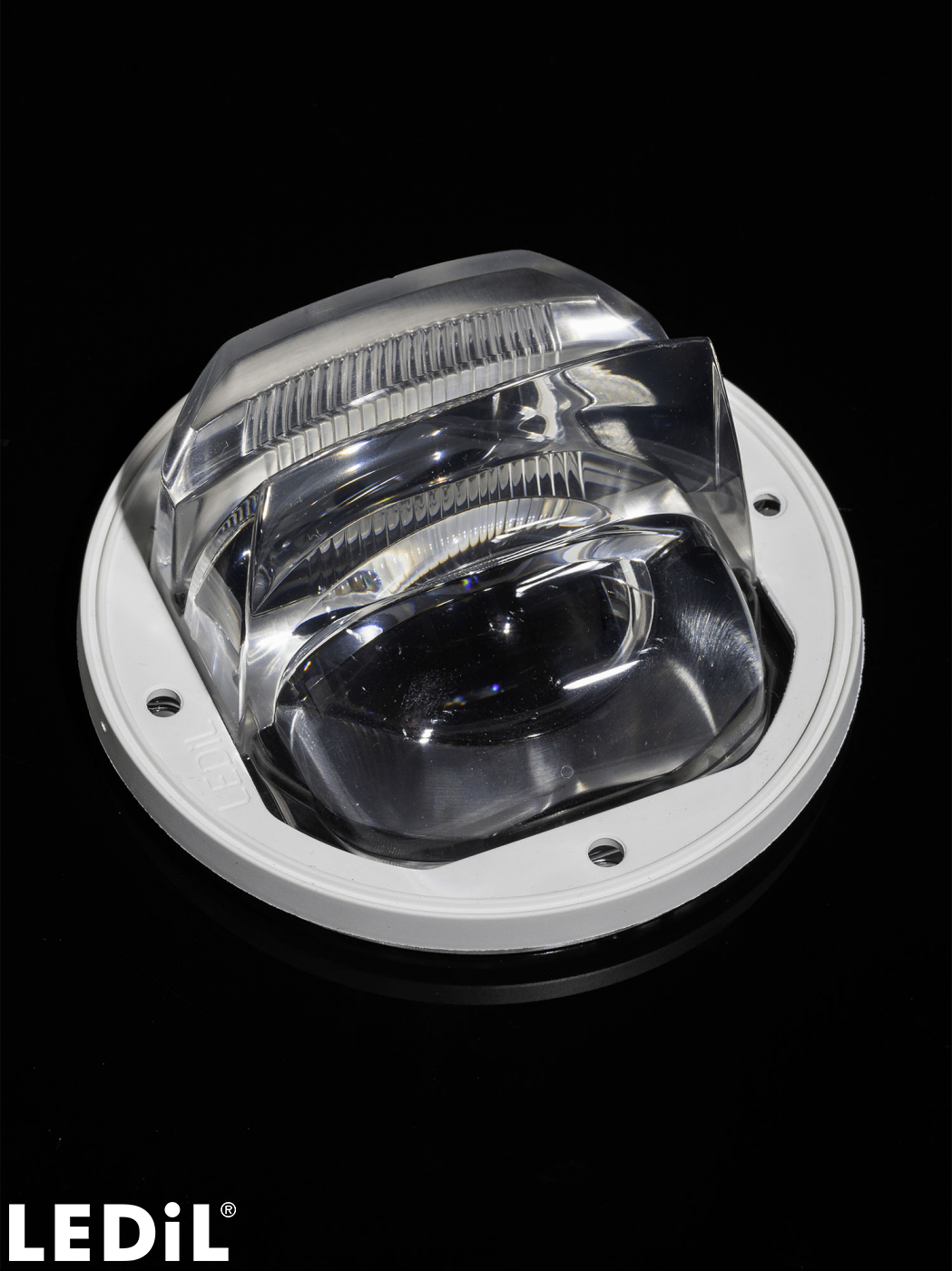

FN16480_STELLA-G2-T4
PrintIESNA Type IV for wider roads and area lighting like car parks and yards. Compatible with up to 30 mm LES size COBs. Variant with white frame.
Specification
-
Dimensions:90 mm
-
Height:45.15 mm
-
Fastening:socket
-
Colour:white
-
Ingress protection classes:IP67
-
RoHS and REACH compliant:Yes
Materials
- STELLA-G2-T4, Single lens, Silicone
- STELLA-FRAME-WHT, Holder, PA66
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:90 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:7.4 kg
-
MPQ:15 pcs
-
MOQ:90 pcs
-
MOQ size:480 x 280 x 300 mm
-
MOQ weight:7.4 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

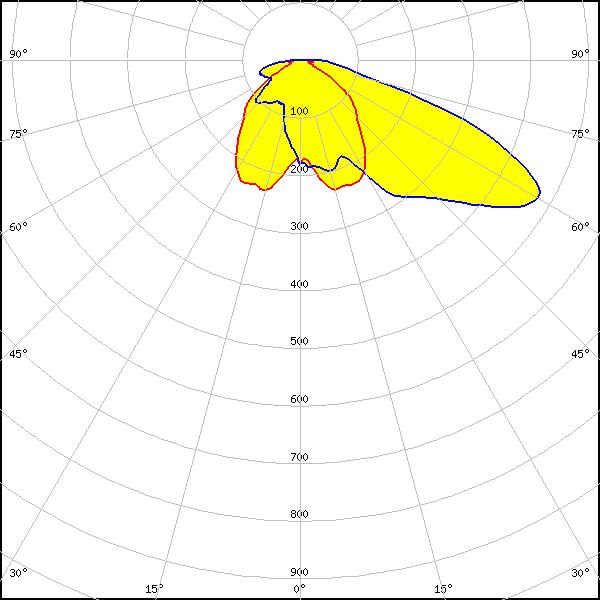

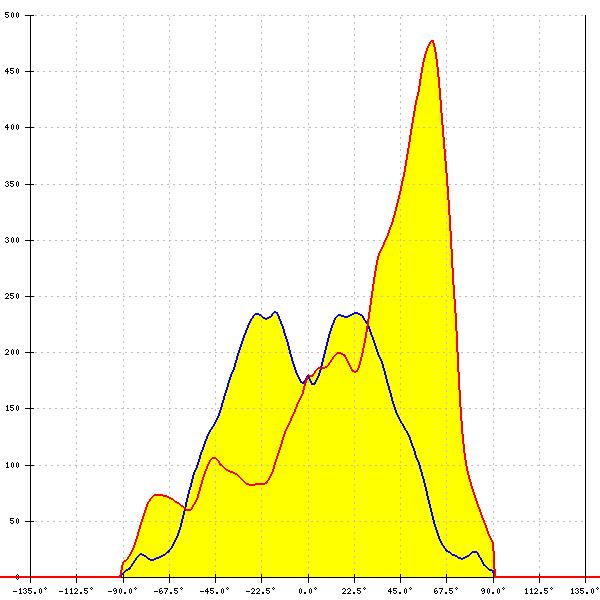

LED:
CLL04x/CLU04x
LES size: 22.0 mm
FWHM: asymmetric
Peak intensity:
0.556 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

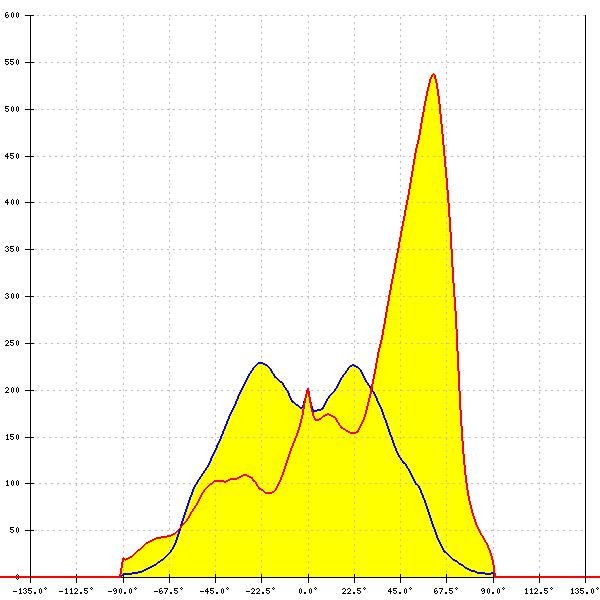

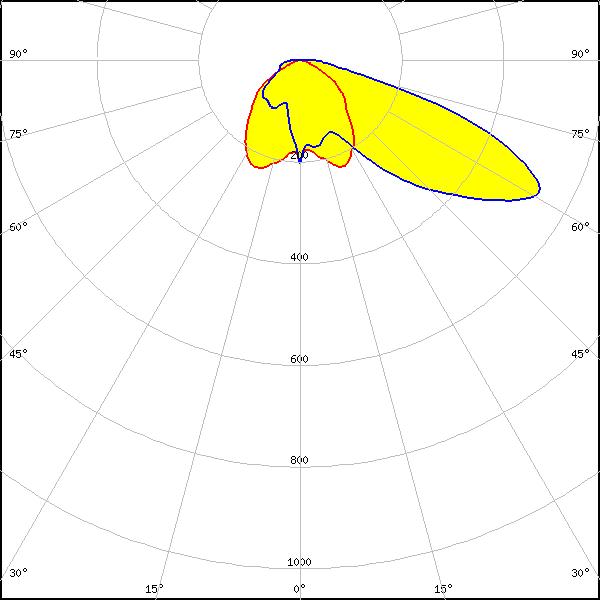

LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
TE Connectivity: 2213407-1
FWHM: asymmetric
Peak intensity:
0.658 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
