    FN16478_STELLA-G2-T2

    Print

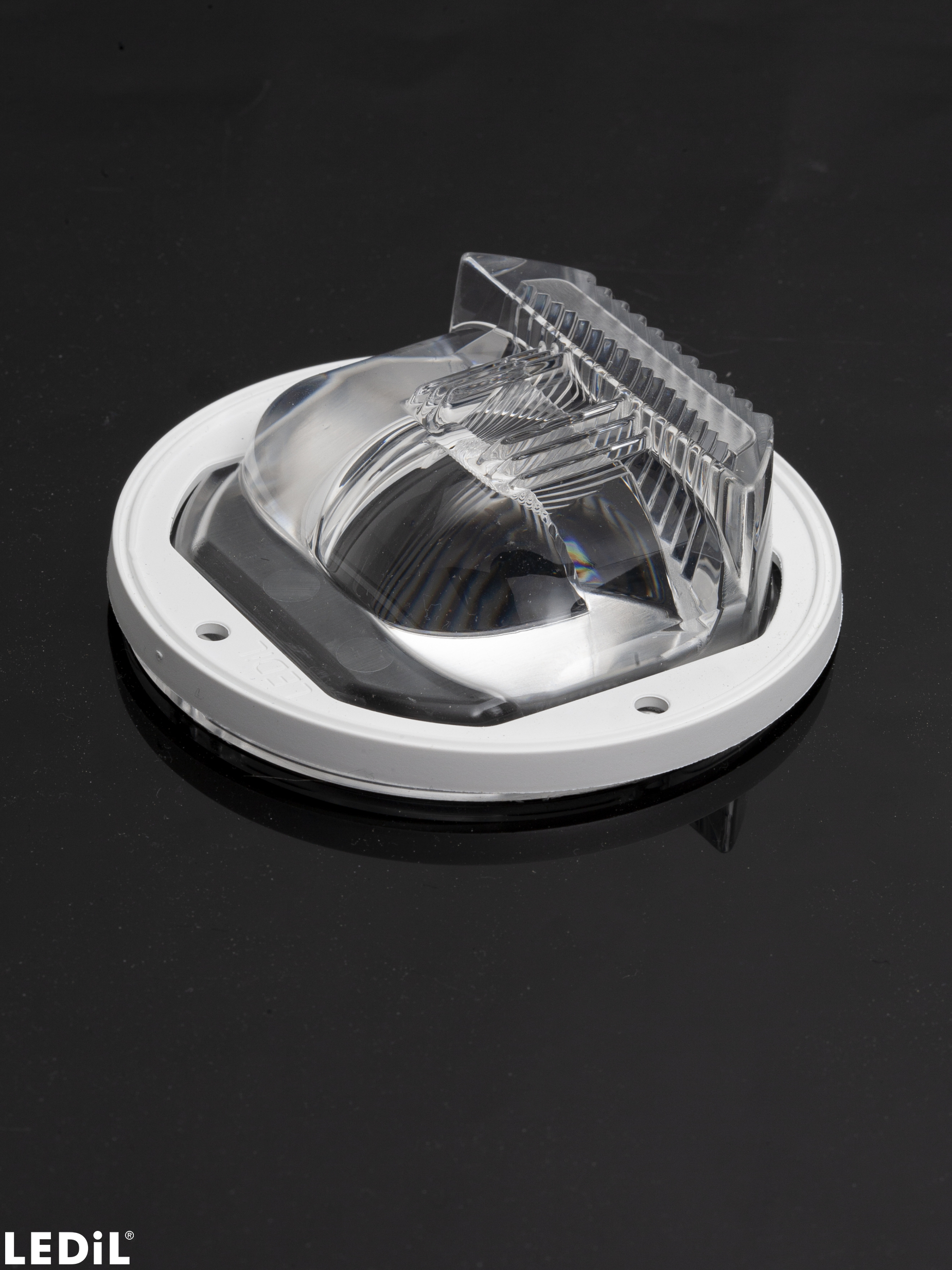

    IESNA Type II (medium) beam, applicable for European P-class standard pedestrian lighting and M-class roads. Compatible with up to 30 mm LES size COBs. Variant with white frame.

    Specification
    • Dimensions:
      90 mm
    • Height:
      27.00 mm
    • Fastening:
      socket
    • Colour:
      white
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      135 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.9 kg
    • MPQ:
      15 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FN16478_STELLA-G2-T2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New Products 2018-07-06

    News

    PRODUCT NEWS - STELLA-G2

    Case story

    Badia di Pomaio resort

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    Application area

    Outdoor Special Applications

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Case story

    The Luneur amusement park

    AVAILABLE LEDiL ACCESSORIES

    STELLA-CLAMP-CXA15-18

    Basepart for STELLA. Compatible with CREE CXA15xx and CXA18xx.

    Optical results

    LED: V22 Gen7
    LES size: 22.6 mm
    LEDs/each optic: 1
    Light colour/type: White

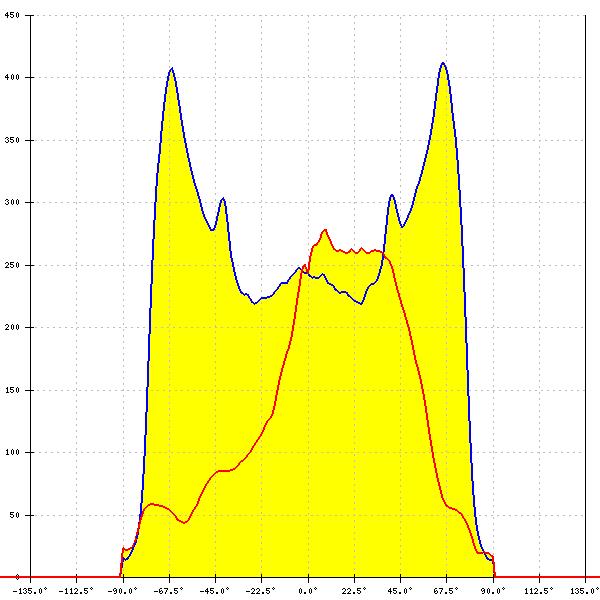

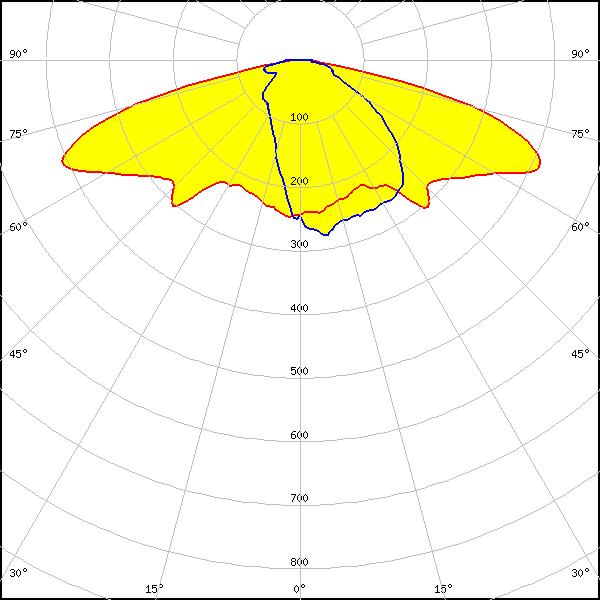

    LED: CLL04x/CLU04x
    LES size: 22.0 mm
    FWHM: asymmetric
    Peak intensity: 0.460 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

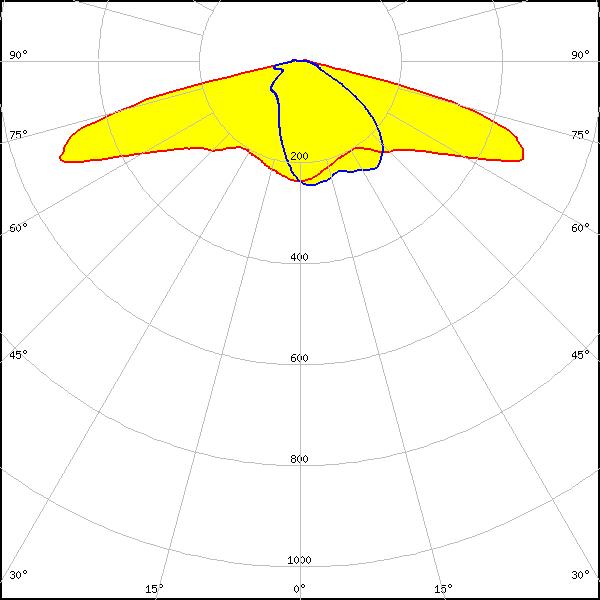

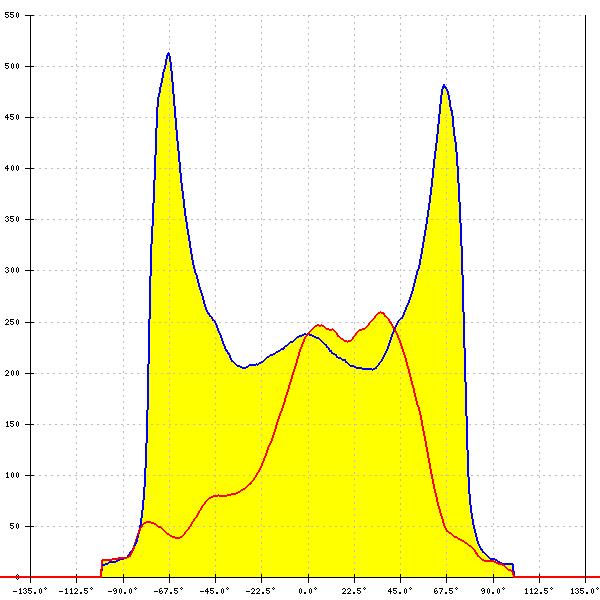

    LED: CXA/B 25xx
    LES size: 19.0 mm
    FWHM: asymmetric
    Peak intensity: 0.590 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
