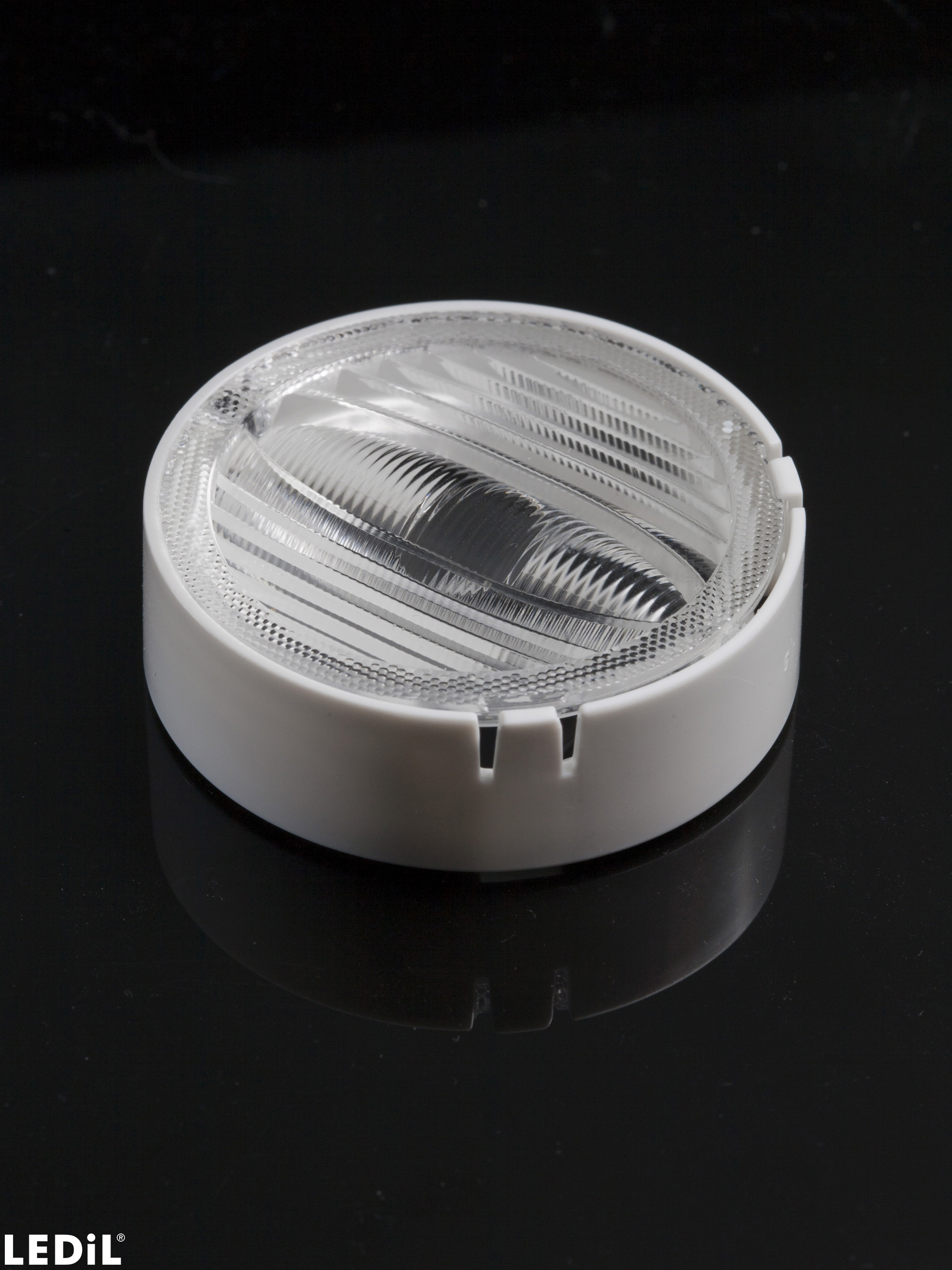

RONDA-O-C
Print
~50° + 30° oval beam with holder C compatible with LEDiL HEKLA
This product consists of multiple parts that need to be ordered separately. See ordering information.
Materials
- Holder
- F15635_RONDA-HLD-CPC
- Request material files from Tech Support
- Single lens
- F15990_RONDA-OPMMA
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

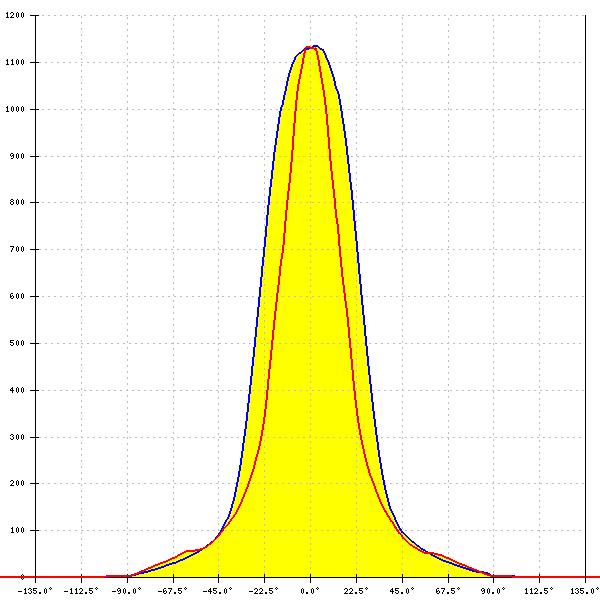

Optical results
LED:

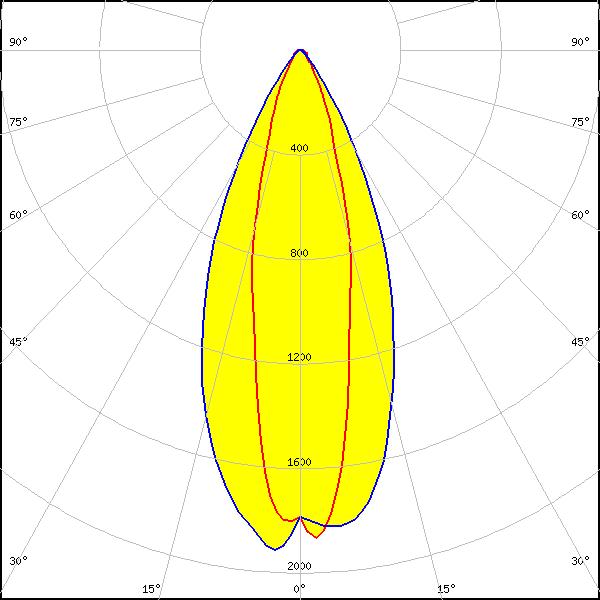

V10 Gen 8-9
LES size: 10.0 mm
Required components:
FWHM:
24° + 45°
FWTM:
56° + 73°
Peak intensity:
1.923 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

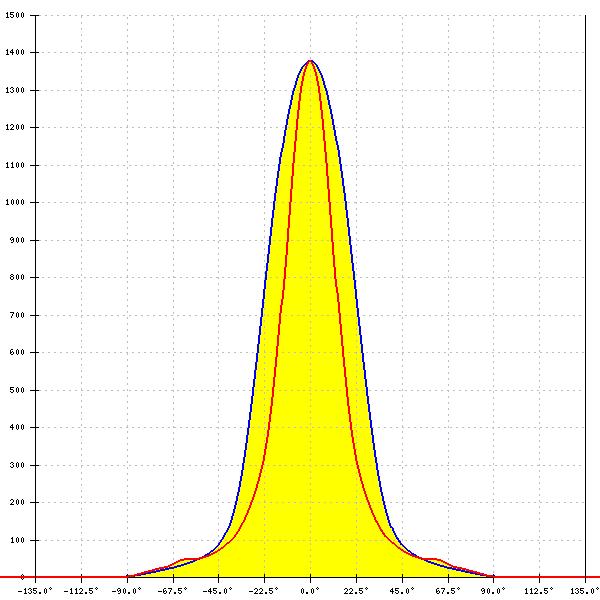

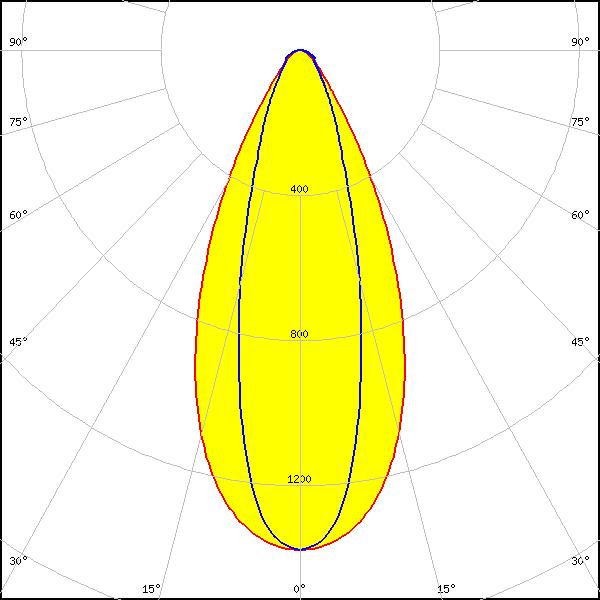

LED:
V11 HD Gen 8
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
48° + 29°
FWTM:
80° + 68°
Peak intensity:
1.379 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

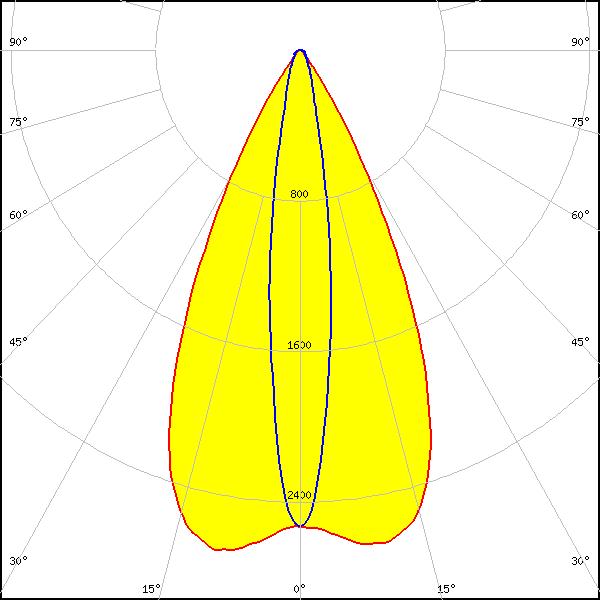

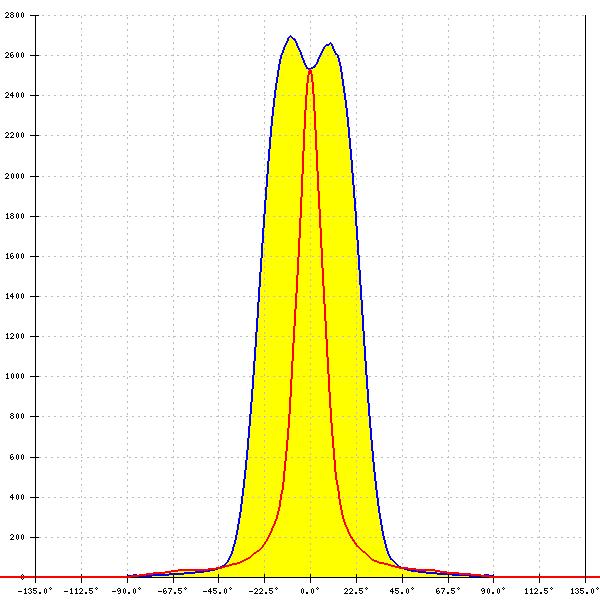

V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM:
51° + 16°
FWTM:
70° + 35°
Peak intensity:
2.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

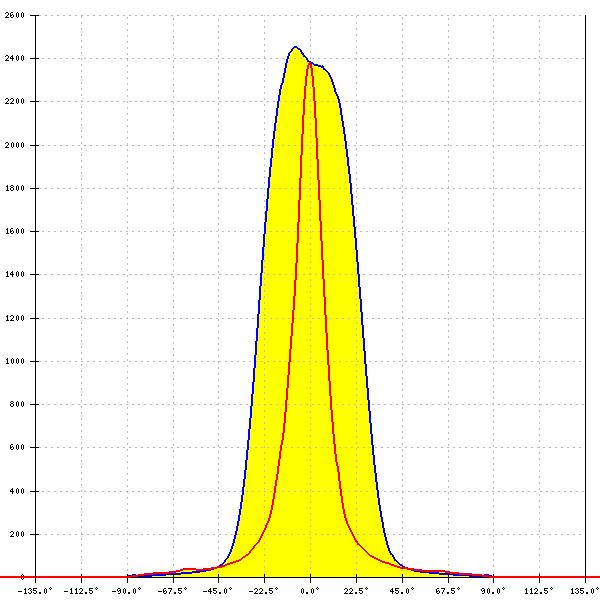

LED:

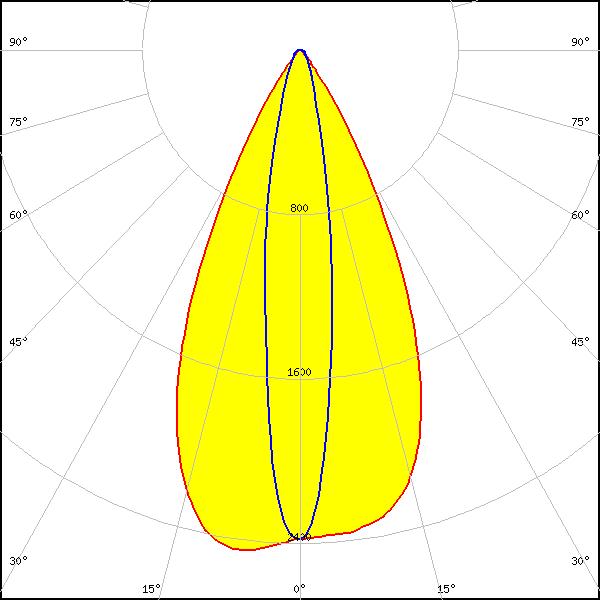

V6 Gen6
LES size: 6.0 mm
Required components:
FWHM:
50° + 17°
FWTM:
72° + 40°
Peak intensity:
2.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

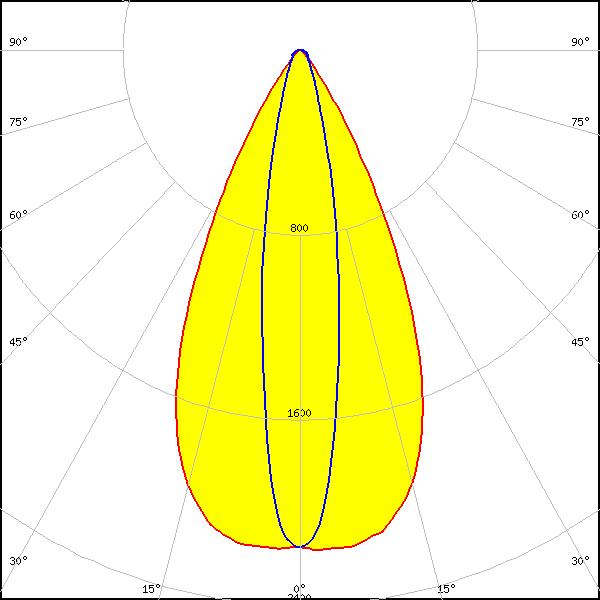

V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM:
51° + 19°
FWTM:
73° + 43°
Peak intensity:
2.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

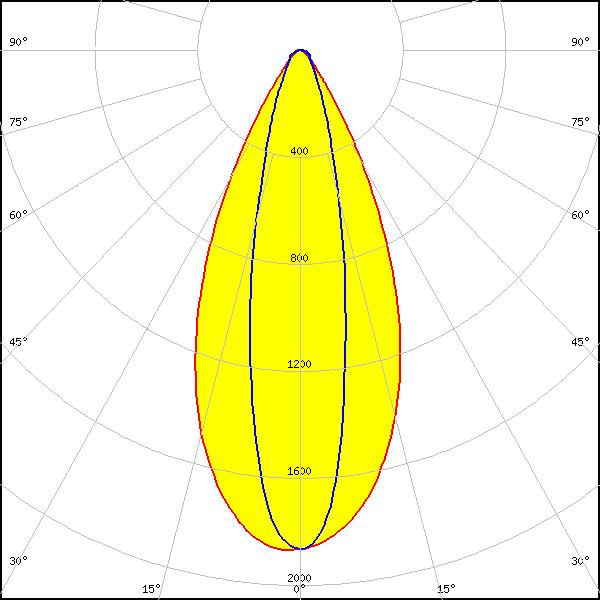

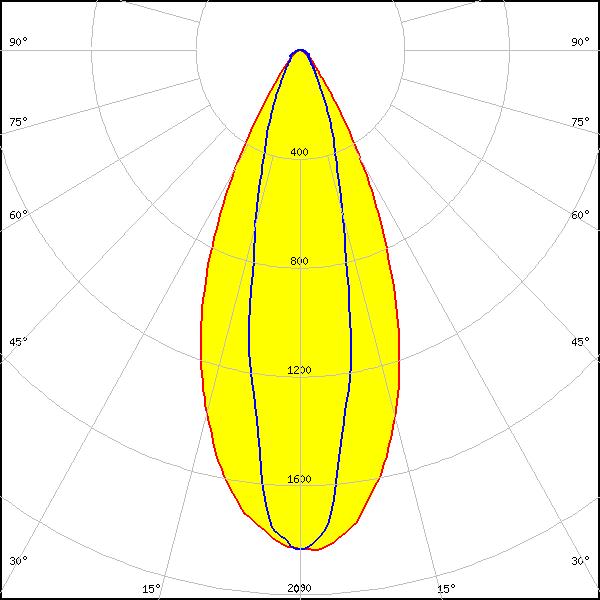

LED:
V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM:
47° + 23°
FWTM:
74° + 54°
Peak intensity:
1.870 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

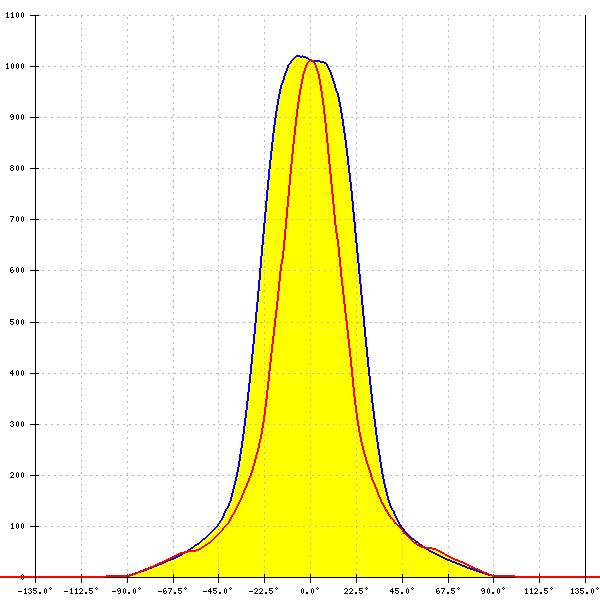

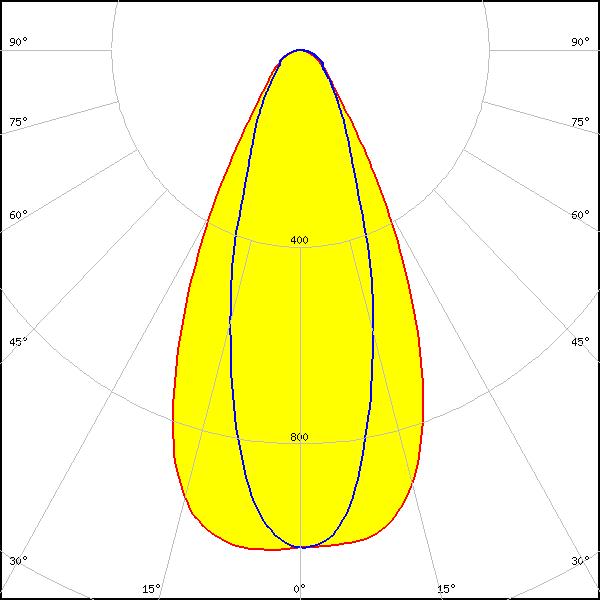

LED:
Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
FWHM:
53° + 35°
FWTM:
89° + 84°
Peak intensity:
1.021 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
Tunable White

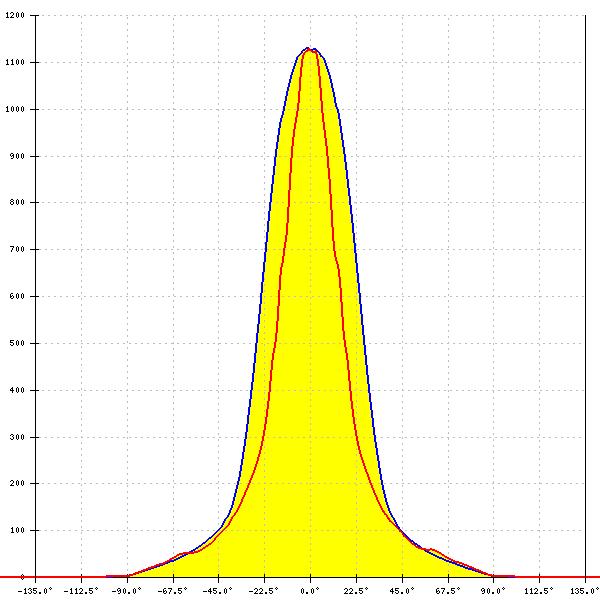

LED:

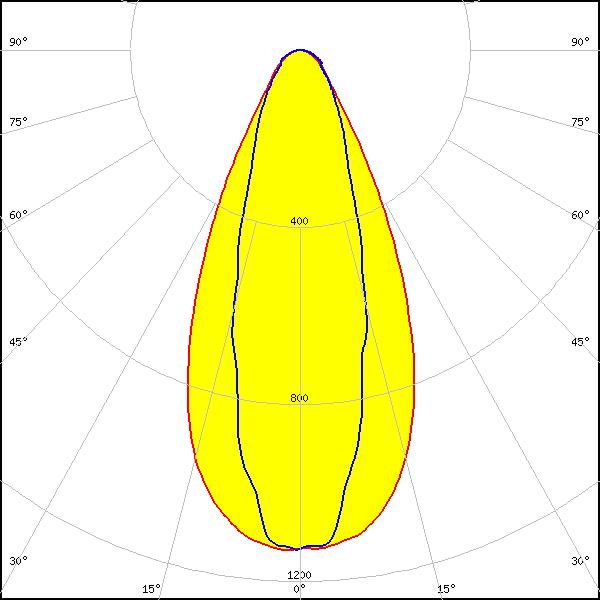

Vesta TW 13mm (25W) CSP
LES size: 14.3 mm
Required components:
FWHM:
50° + 31°
FWTM:
85° + 81°
Peak intensity:
1.100 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
48° + 19°
FWTM:
71° + 45°
Peak intensity:
2.114 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

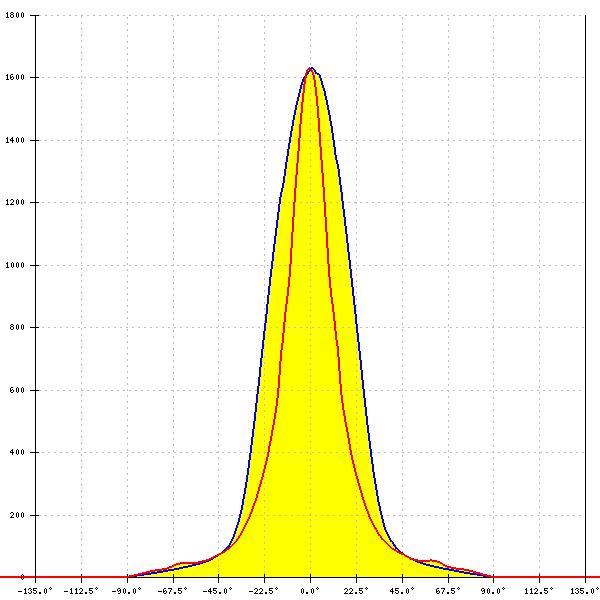

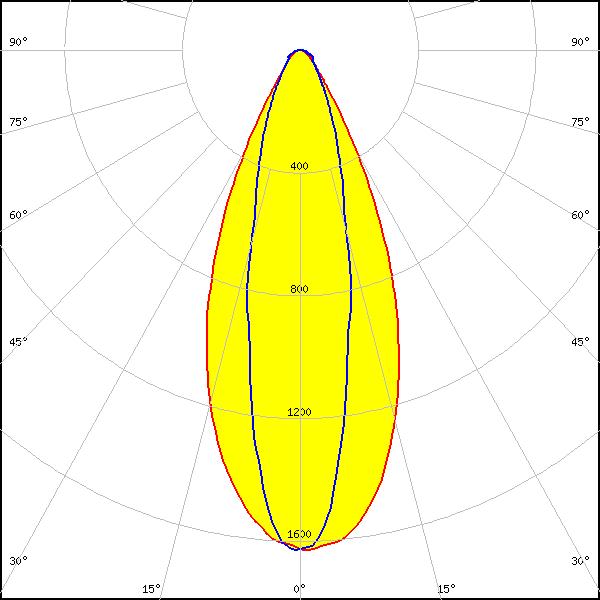

Vesta TW 9mm (12W) CSP
LES size: 9.8 mm
Required components:
FWHM:
44° + 25°
FWTM:
73° + 64°
Peak intensity:
1.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

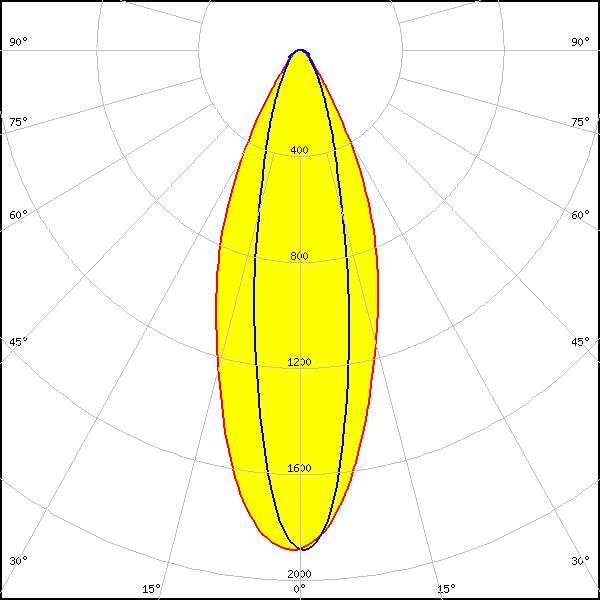

LED:

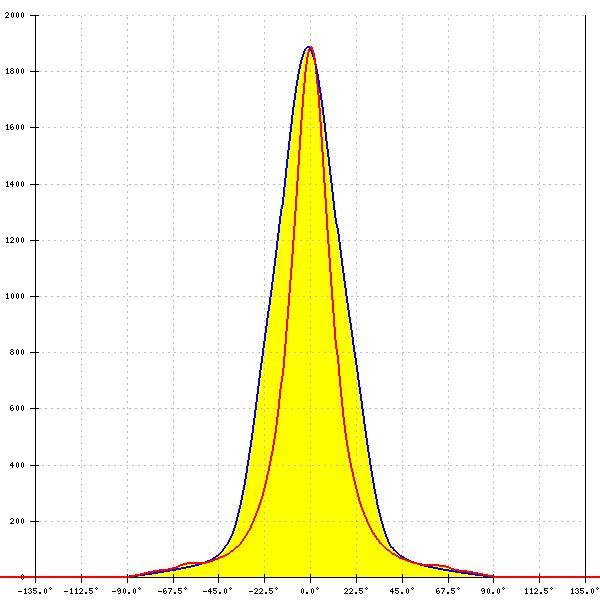

CLC020 Series (Dim-To-Warm)
LES size: 9.8 mm
Required components:
FWHM:
29° + 23°
FWTM:
72° + 57°
Peak intensity:
1.900 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

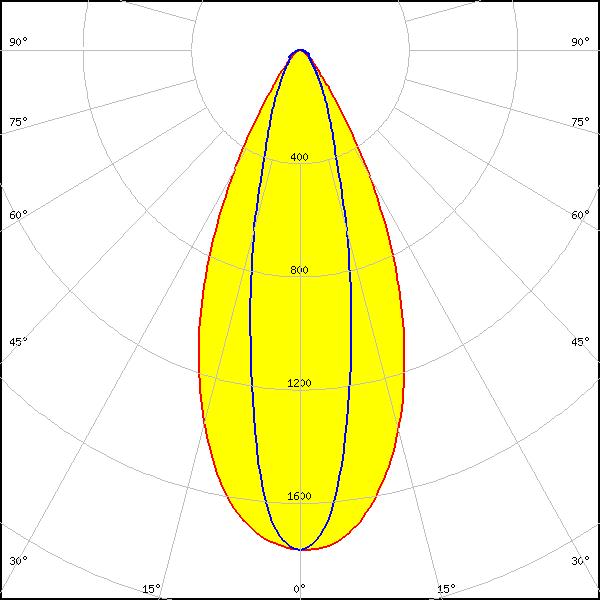

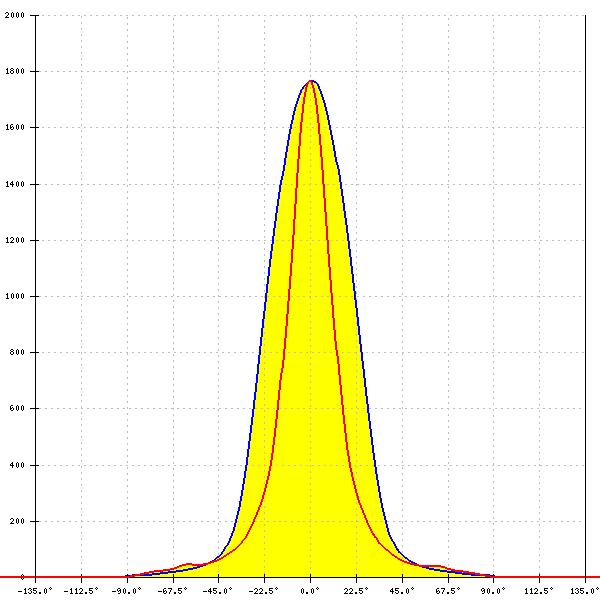

CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
47° + 24°
FWTM:
75° + 58°
Peak intensity:
1.800 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

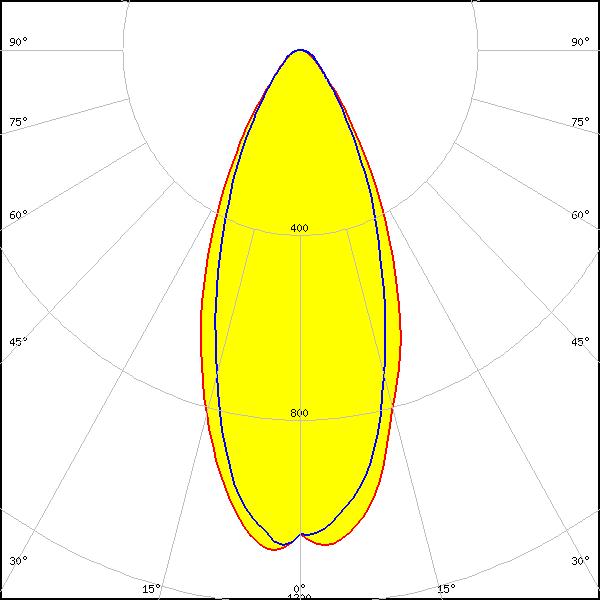

LED:

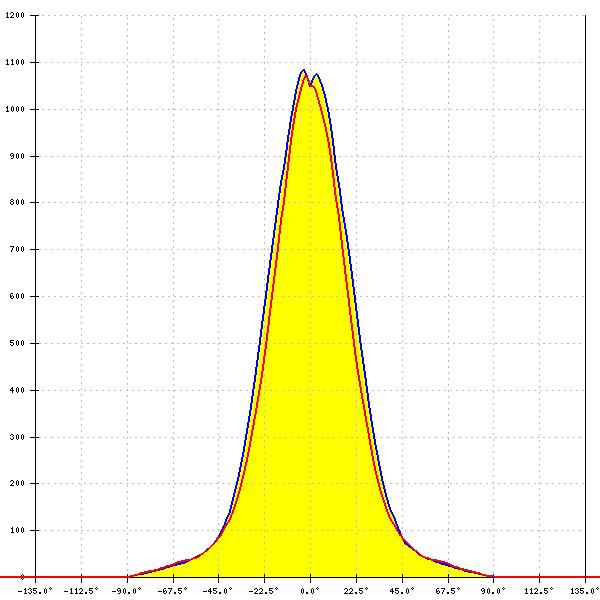

CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
47° + 40°
FWTM:
85° + 83°
Peak intensity:
1.094 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

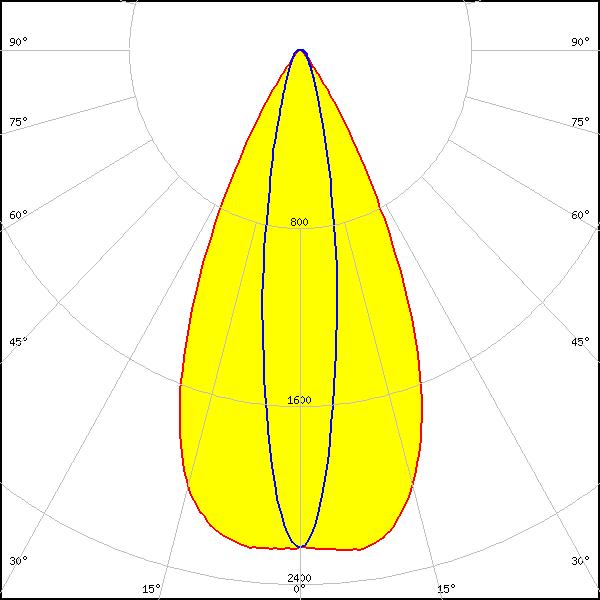

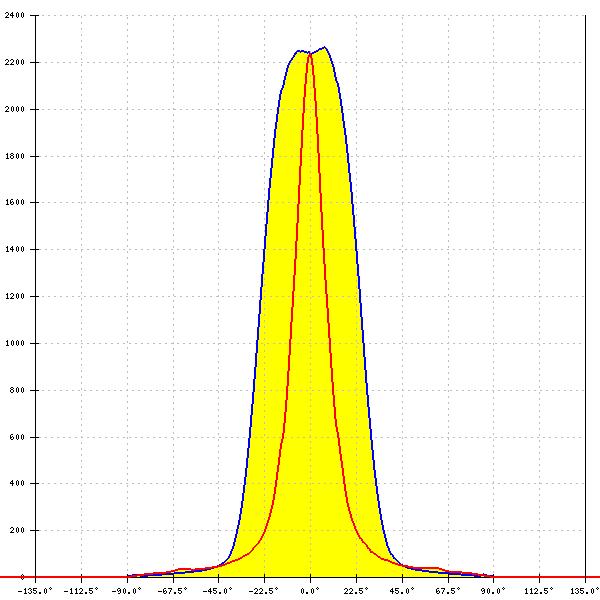

CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
50° + 18°
FWTM:
71° + 43°
Peak intensity:
2.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

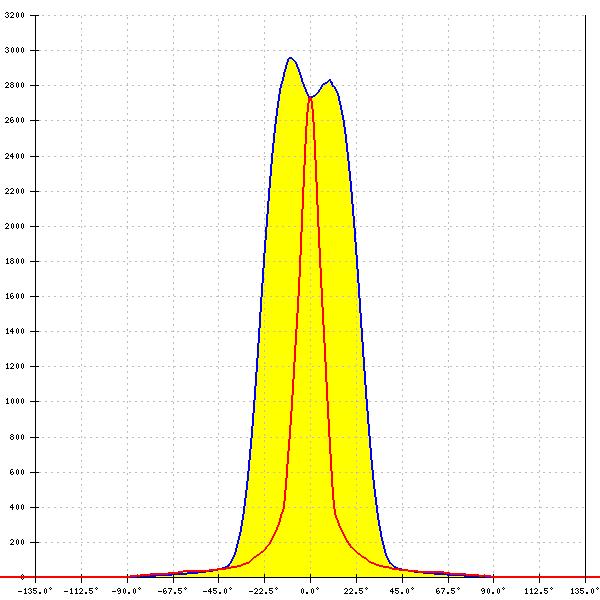

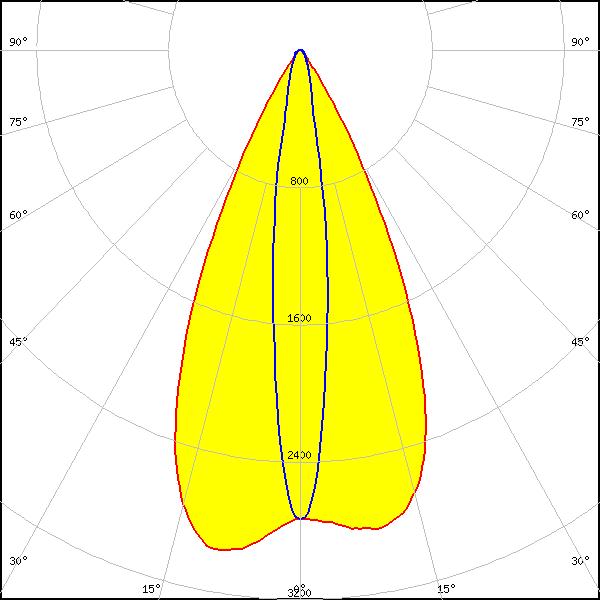

CLU7A2/7A3
LES size: 4.2 mm
Required components:
FWHM:
49° + 14°
FWTM:
68° + 31°
Peak intensity:
3.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

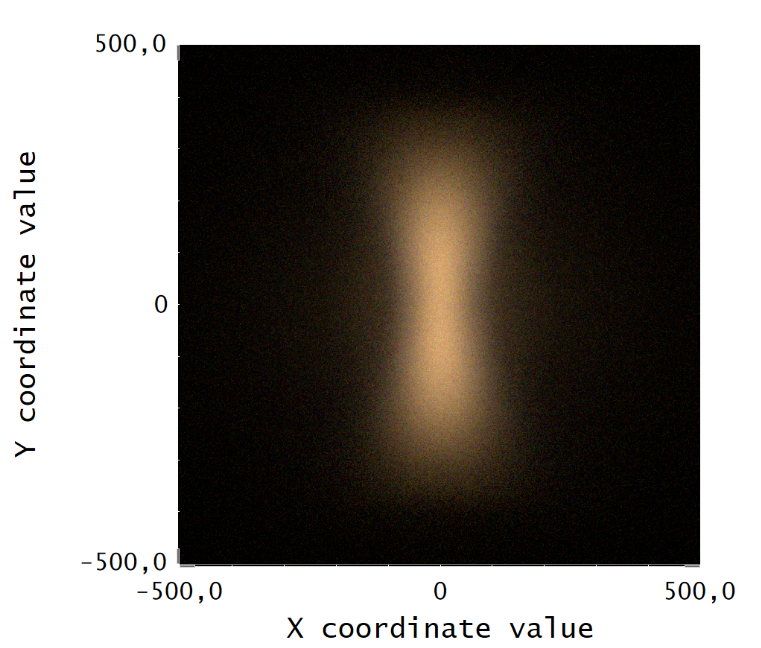

LED:

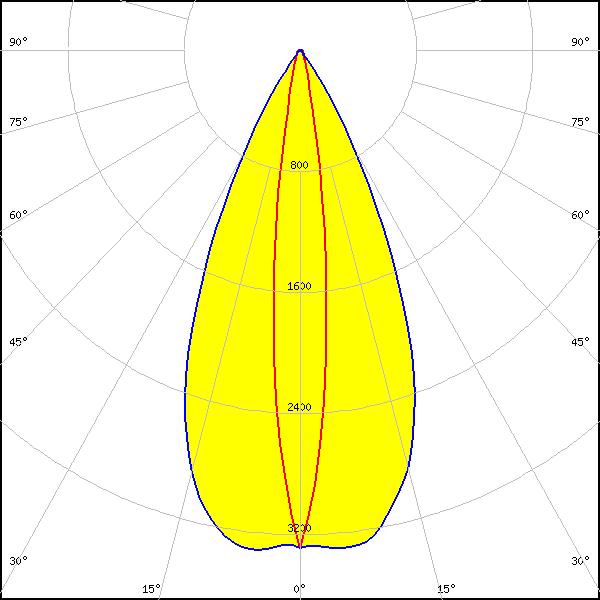

CLU7B2
LES size: 3.3 mm
Required components:
FWHM:
48° + 12°
FWTM:
68° + 27°
Peak intensity:
3.317 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

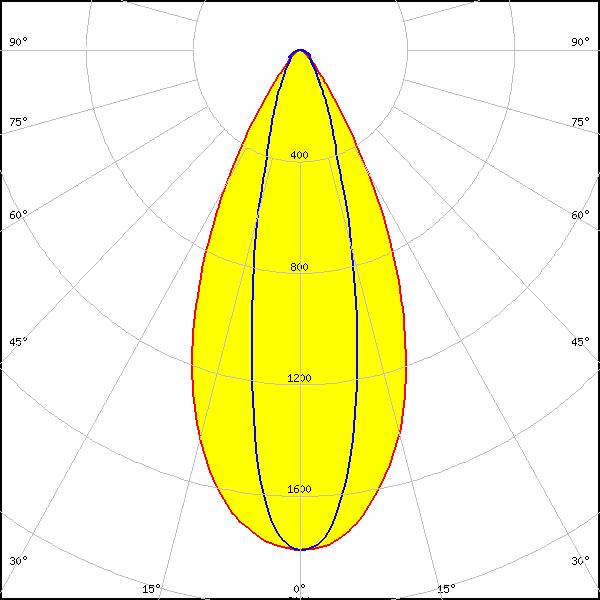

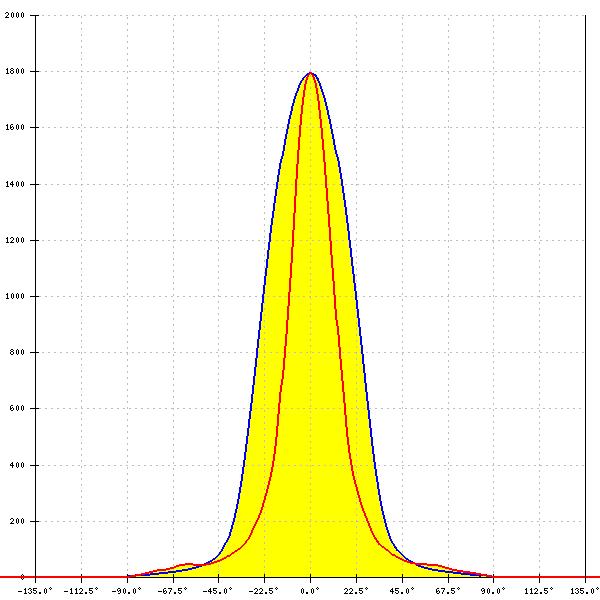

LED:
CMA1516
LES size: 9.0 mm
Required components:
FWHM:
49° + 25°
FWTM:
76° + 57°
Peak intensity:
1.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

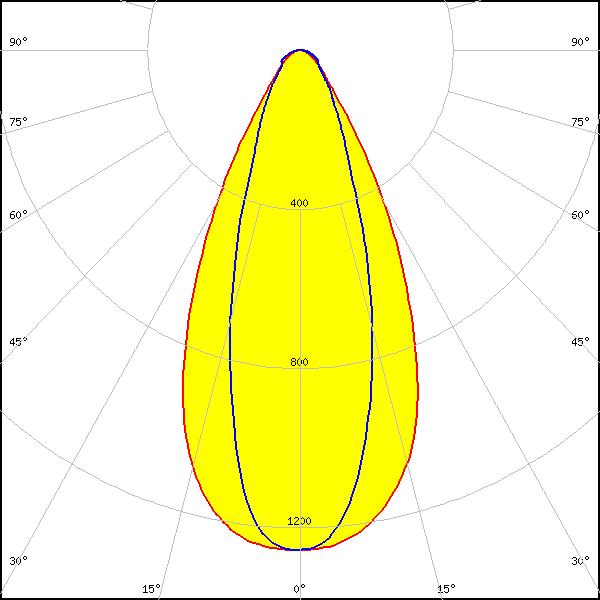

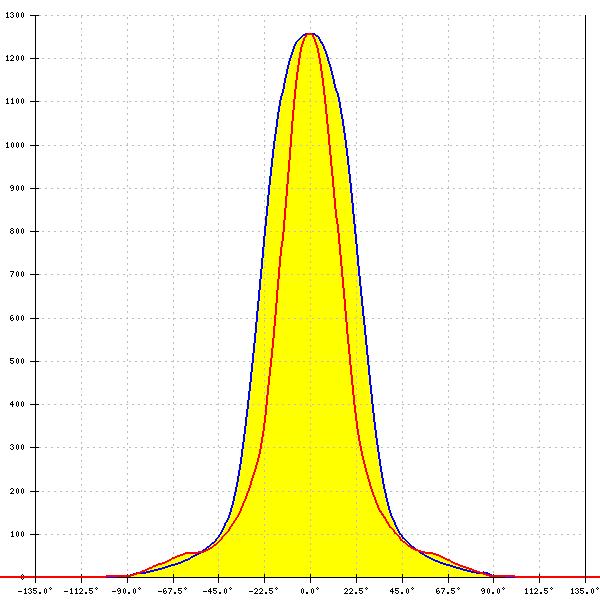

CMA1825
LES size: 12.0 mm
Required components:
FWHM:
51° + 33°
FWTM:
83° + 76°
Peak intensity:
1.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

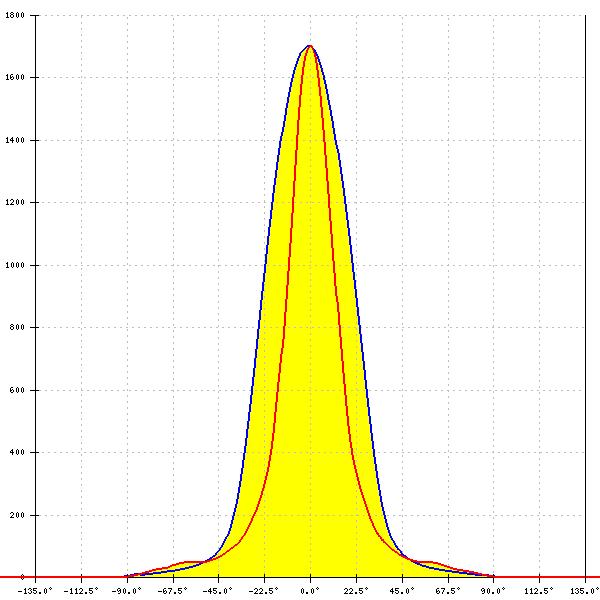

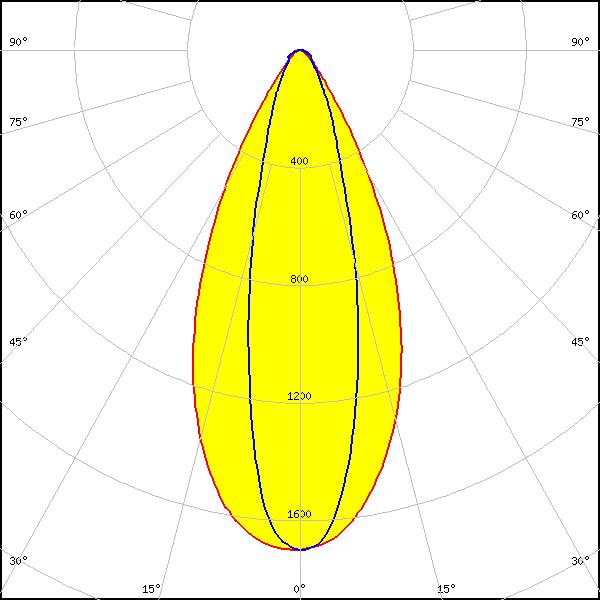

LED:
CMT14xx
LES size: 9.8 mm
Required components:
FWHM:
48° + 26°
FWTM:
77° + 60°
Peak intensity:
1.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

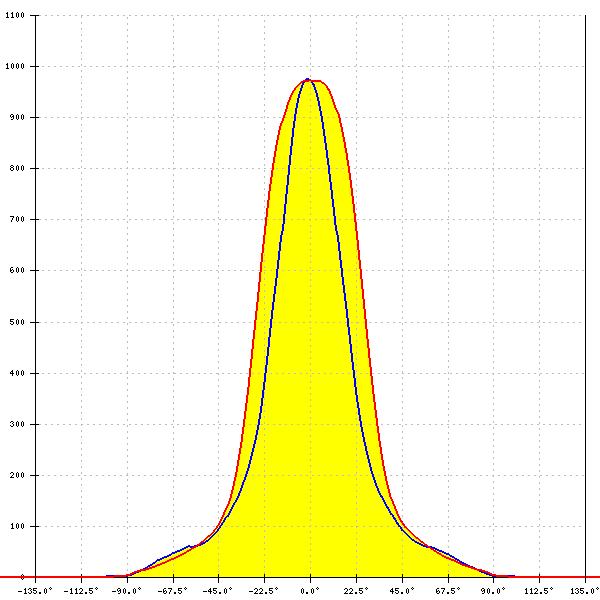

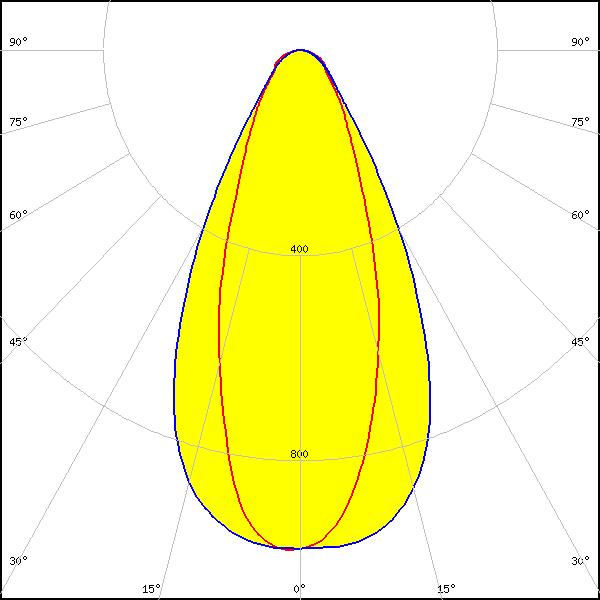

CMT19xx
LES size: 14.5 mm
Required components:
FWHM:
54° + 38°
FWTM:
92° + 88°
Peak intensity:
0.975 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

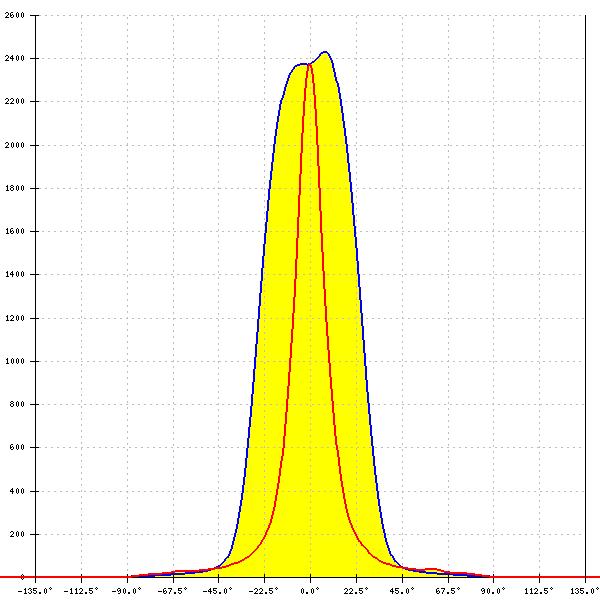

LED:

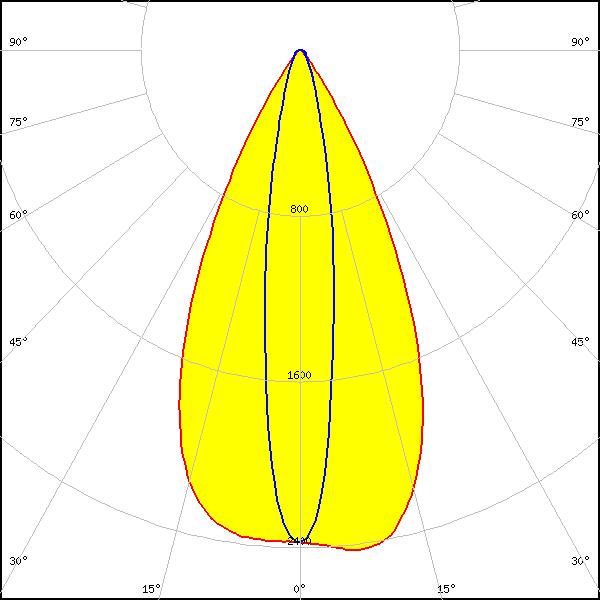

CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
50° + 17°
FWTM:
72° + 40°
Peak intensity:
2.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

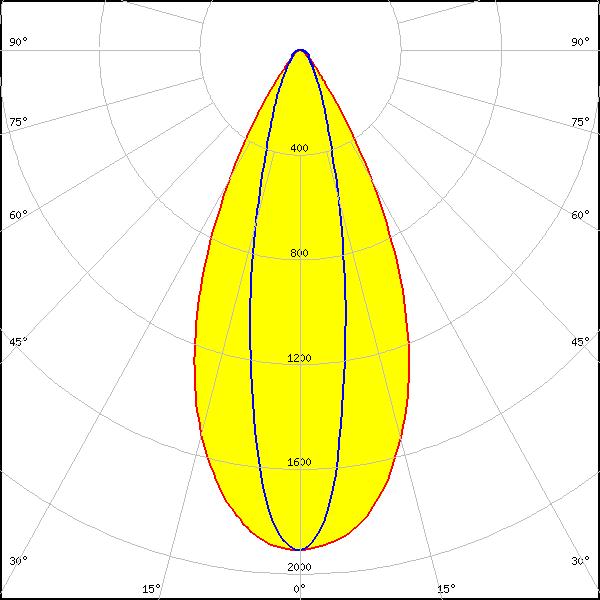

CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
49° + 23°
FWTM:
75° + 54°
Peak intensity:
1.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

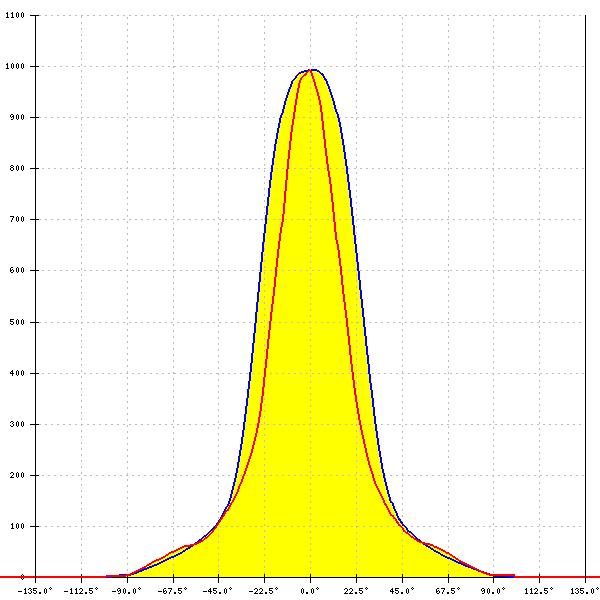

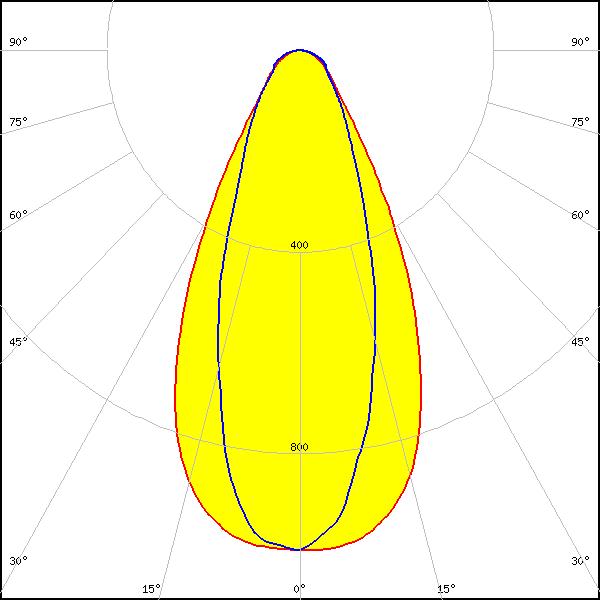

LUXEON CX Plus CoB L08 (Gen2)
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
54° + 38°
FWTM:
93° + 90°
Peak intensity:
0.993 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

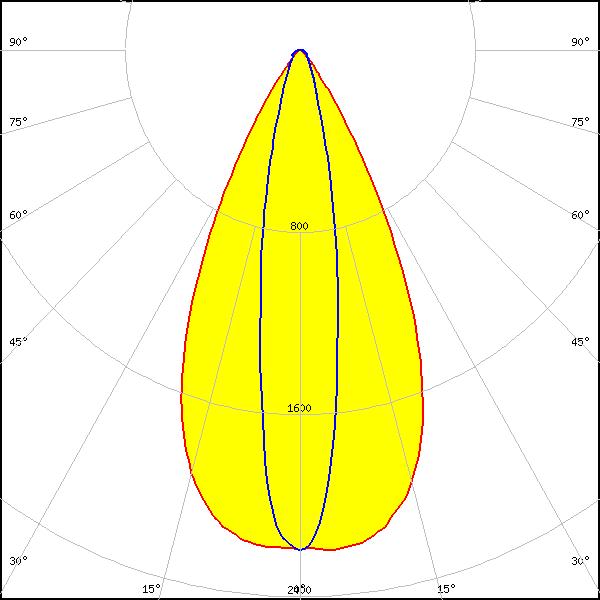

LED:

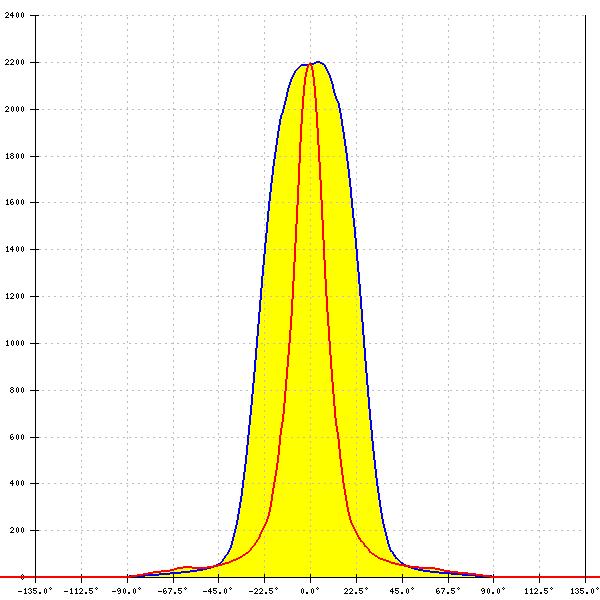

LUXEON CoB 1202HD
LES size: 6.5 mm
Required components:
FWHM:
51° + 18°
FWTM:
73° + 43°
Peak intensity:
2.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
51° + 17°
FWTM:
72° + 40°
Peak intensity:
2.300 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

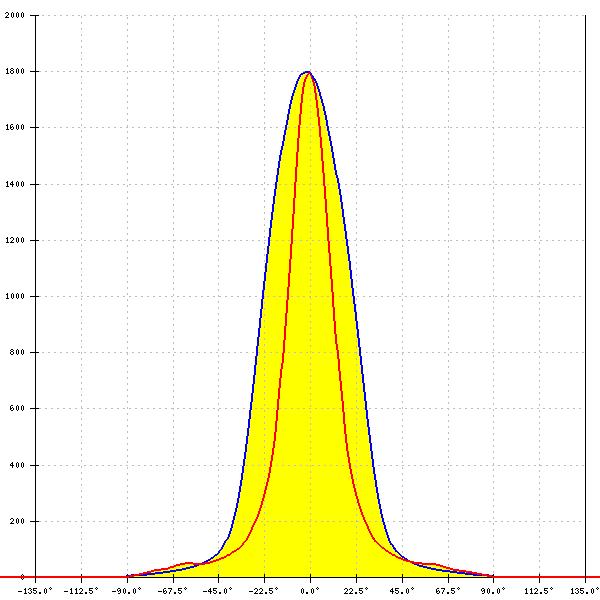

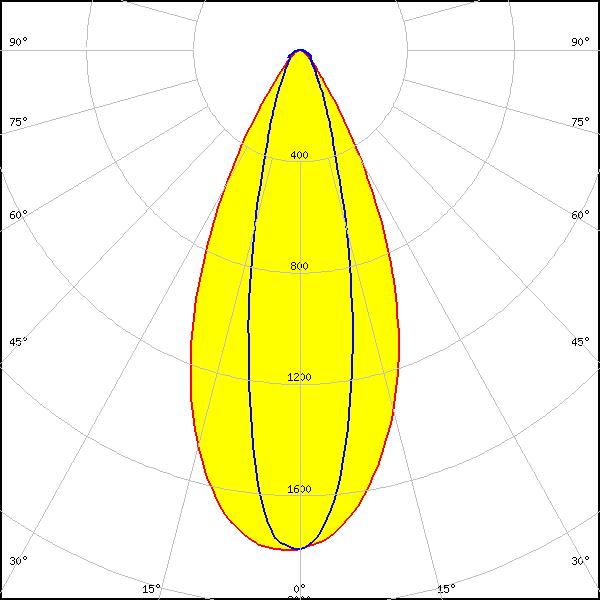

LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM:
48° + 25°
FWTM:
76° + 56°
Peak intensity:
1.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

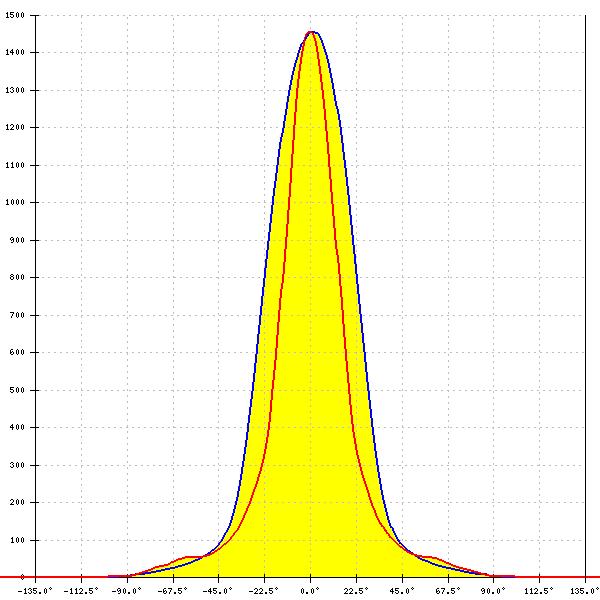

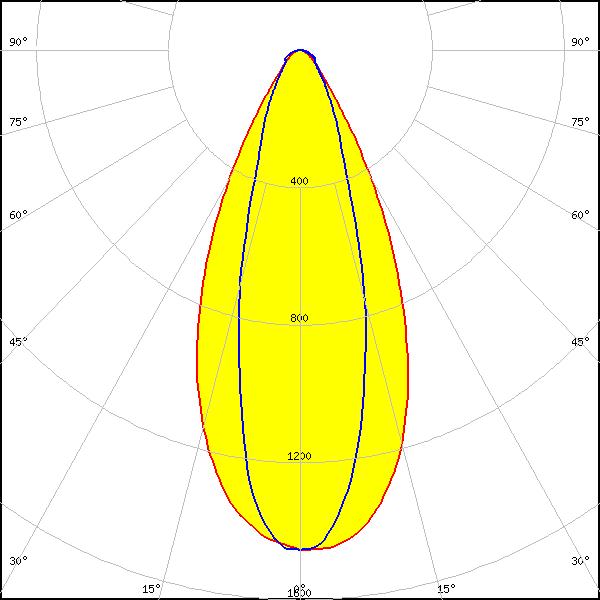

LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM:
48° + 30°
FWTM:
79° + 68°
Peak intensity:
1.450 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

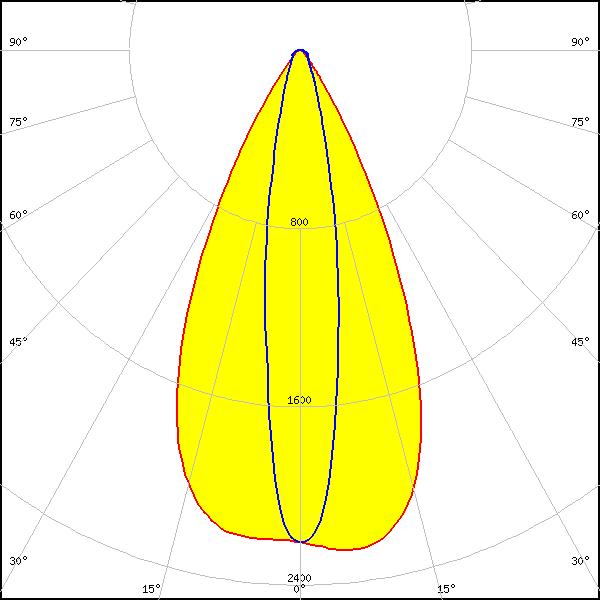

LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
50° + 18°
FWTM:
72° + 43°
Peak intensity:
2.255 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

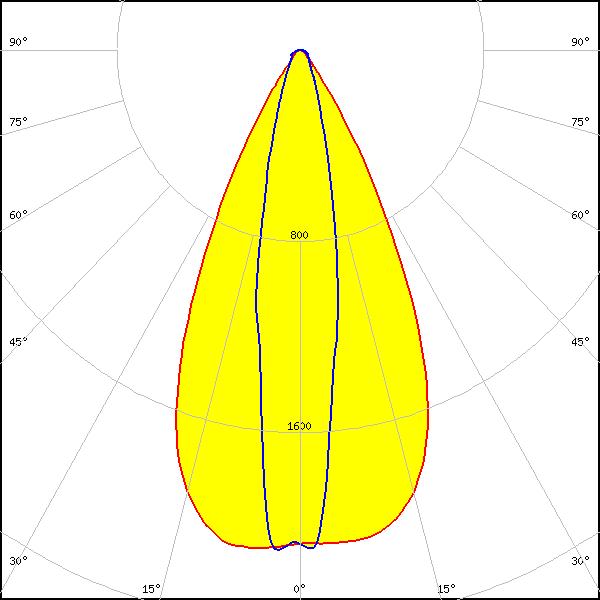

LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
51° + 20°
FWTM:
72° + 45°
Peak intensity:
2.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
46° + 25°
FWTM:
75° + 58°
Peak intensity:
1.845 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
48°
FWTM:
79°
Peak intensity:
1.399 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

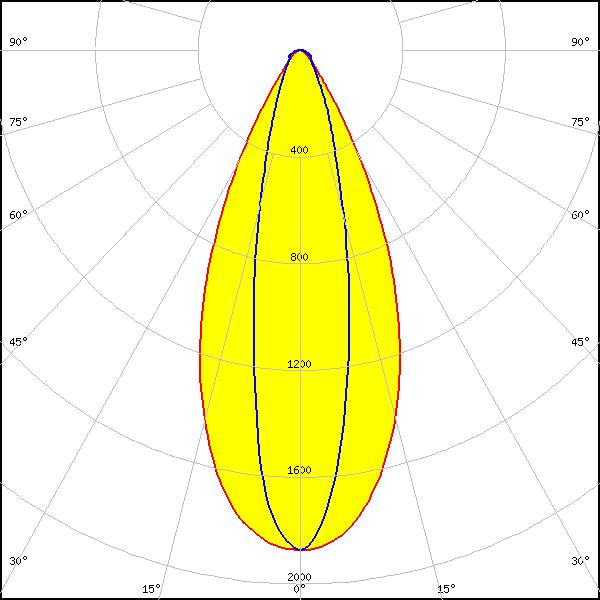

LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM:
46° + 23°
FWTM:
74° + 56°
Peak intensity:
1.874 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

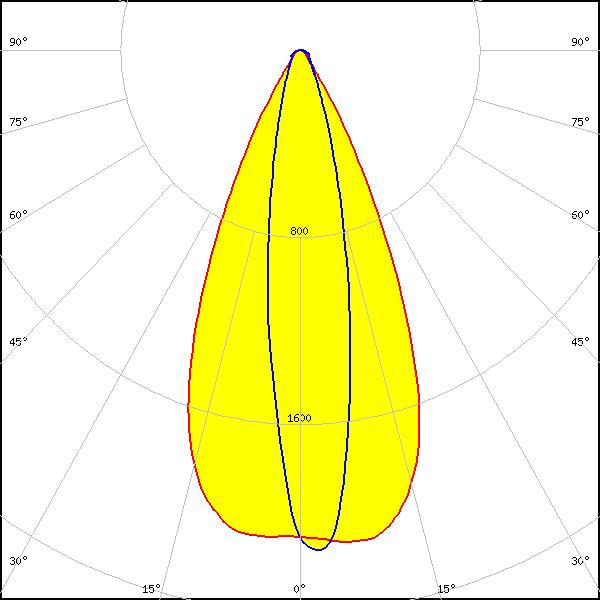

LED:

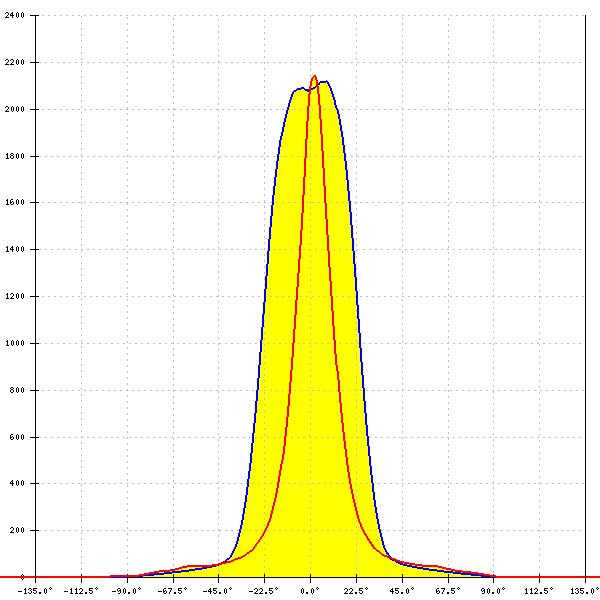

LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
48° + 20°
FWTM:
68° + 47°
Peak intensity:
2.182 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

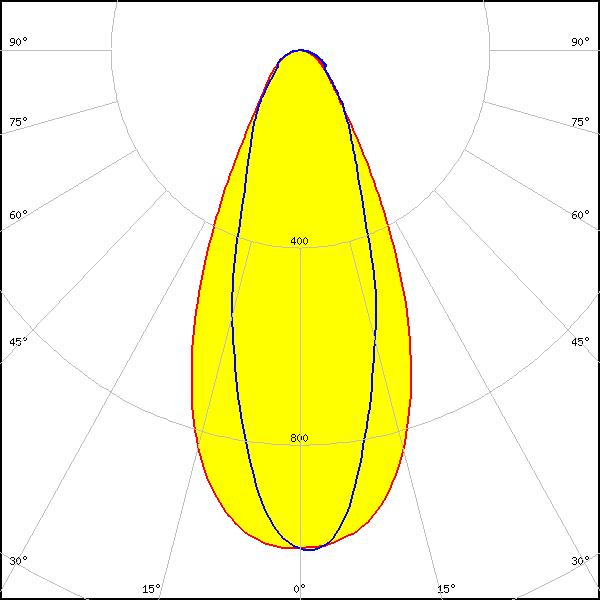

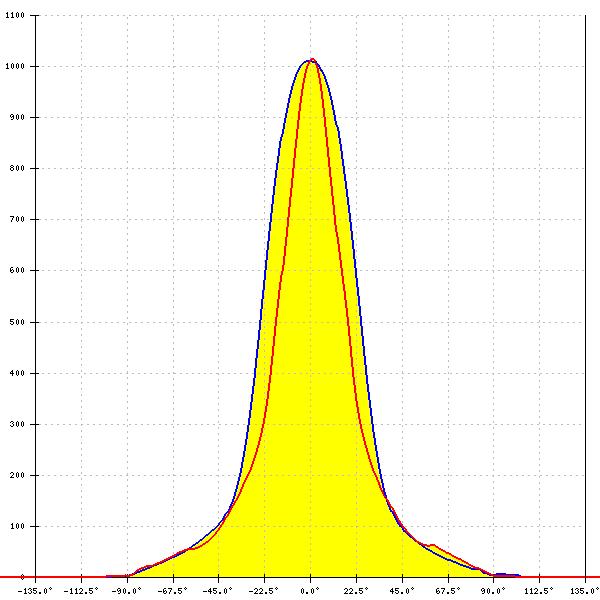

CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
49° + 35°
FWTM:
89° + 88°
Peak intensity:
1.000 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

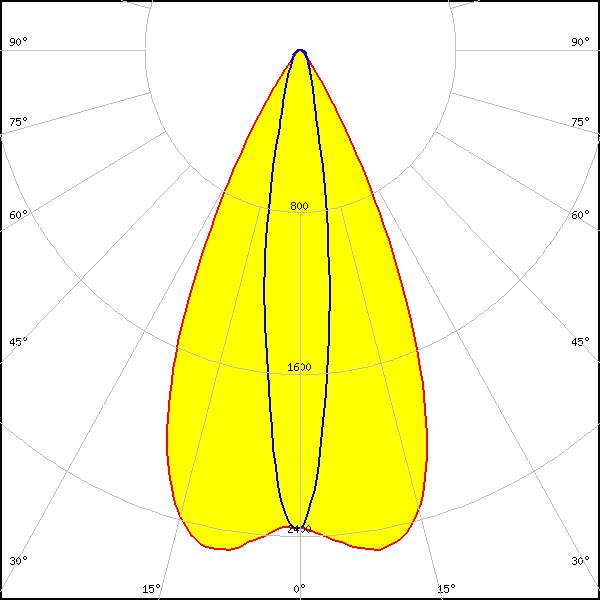

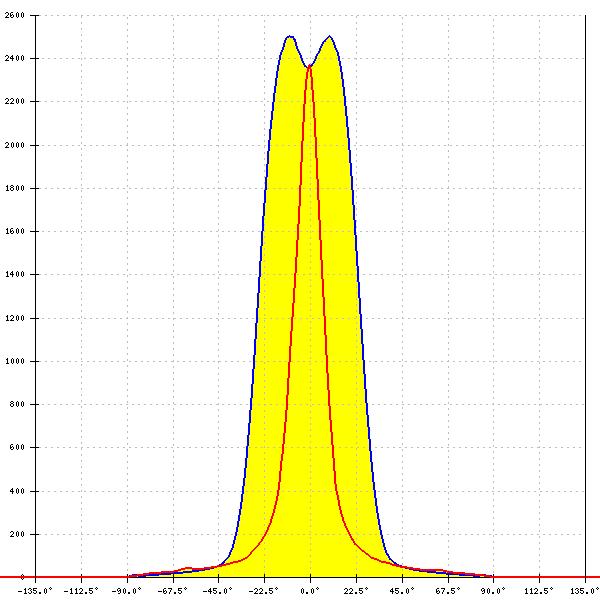

CXM-4
LES size: 4.5 mm
Required components:
FWHM:
51° + 16°
FWTM:
70° + 37°
Peak intensity:
2.502 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

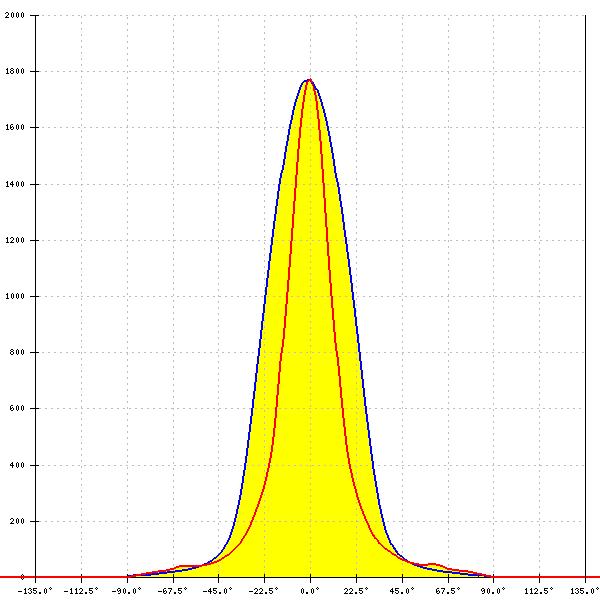

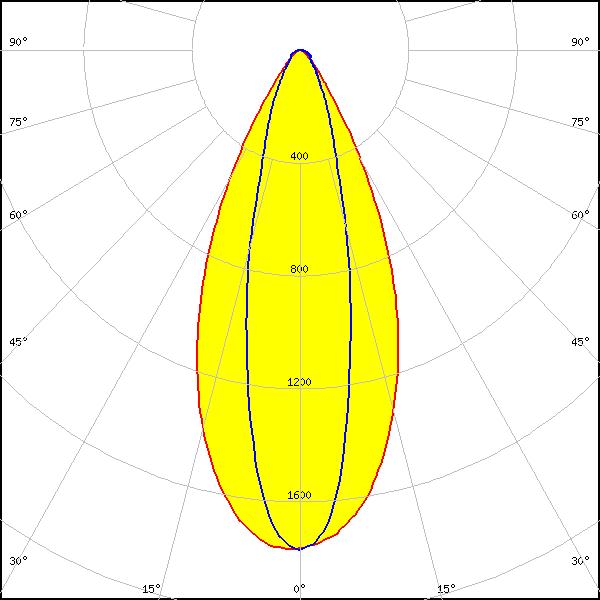

CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
47° + 25°
FWTM:
75° + 59°
Peak intensity:
1.800 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
LES size: 5.9 mm
Required components:
FWHM:
28° + 47°
FWTM:
40° + 71°
Peak intensity:
2.470 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

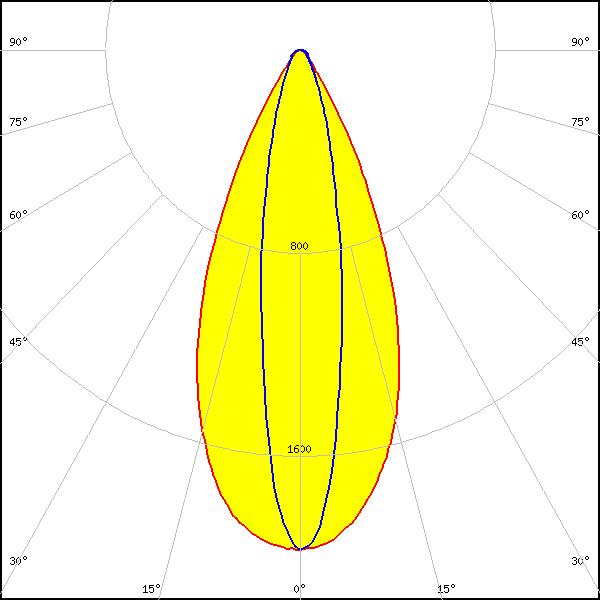

NJCWL024Z-V1MT: COB L-Type Tunable White
LES size: 7.0 mm
Required components:
FWHM:
46° + 20°
FWTM:
70° + 50°
Peak intensity:
1.900 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

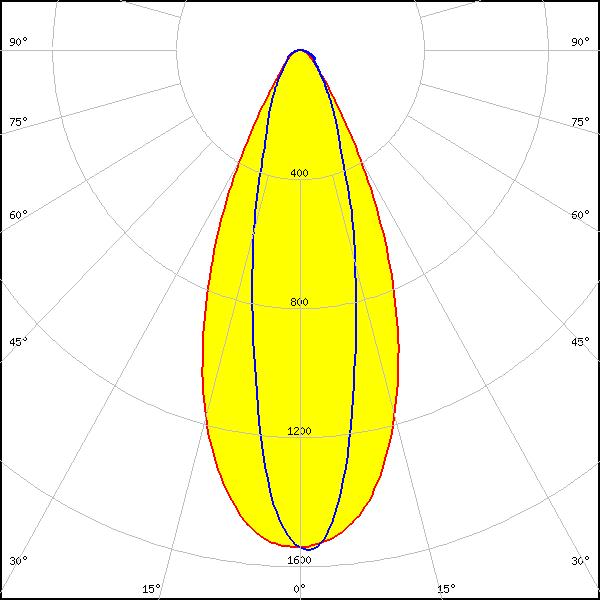

NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
45° + 25°
FWTM:
75° + 67°
Peak intensity:
1.550 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

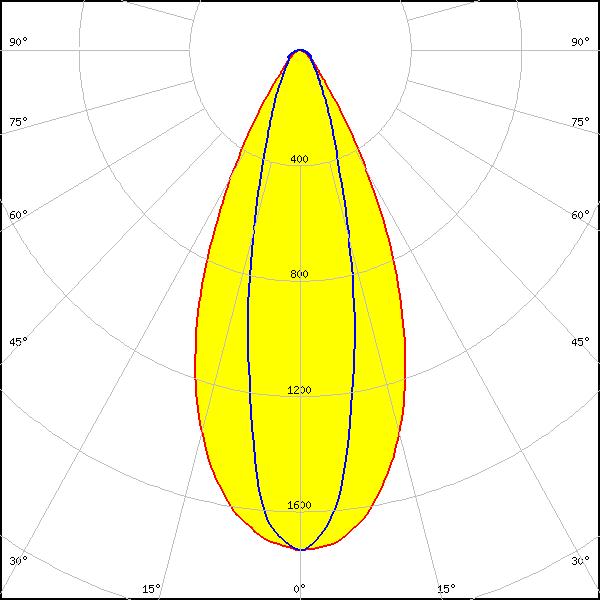

LED:
Fortimo SLM L09 CoB
LES size: 9.0 mm
Required components:
FWHM:
48° + 25°
FWTM:
76° + 58°
Peak intensity:
1.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
41° + 45°
FWTM:
90° + 89°
Peak intensity:
1.000 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
FWHM:
48° + 25°
FWTM:
76° + 60°
Peak intensity:
1.700 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

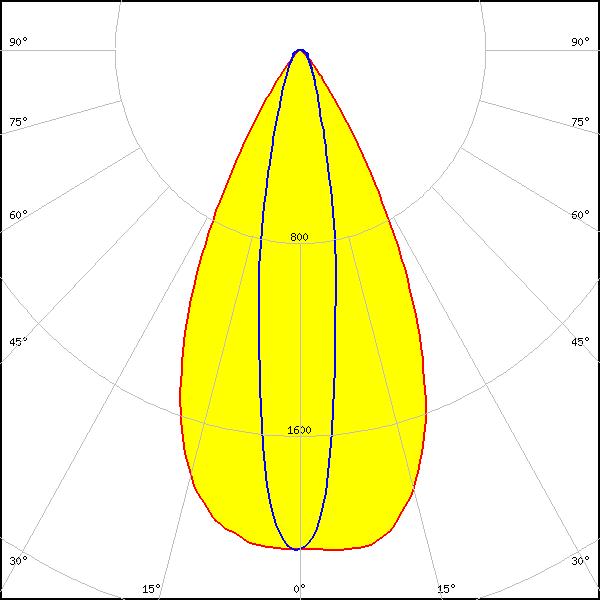

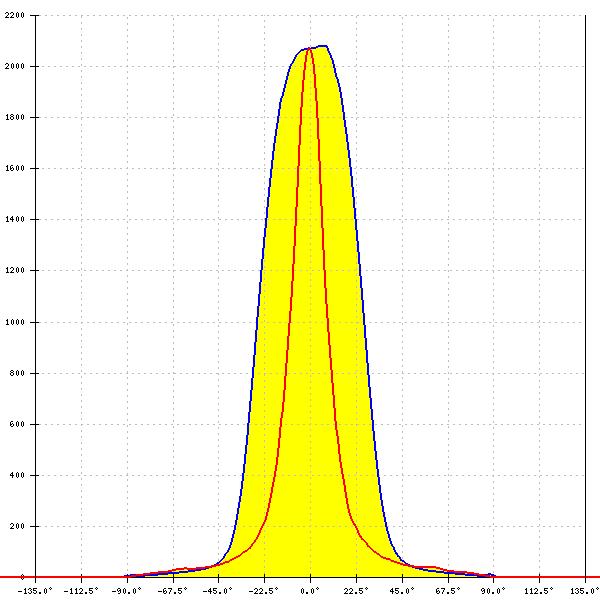

LC010C
LES size: 6.0 mm
Required components:
FWHM:
52° + 18°
FWTM:
74° + 44°
Peak intensity:
2.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

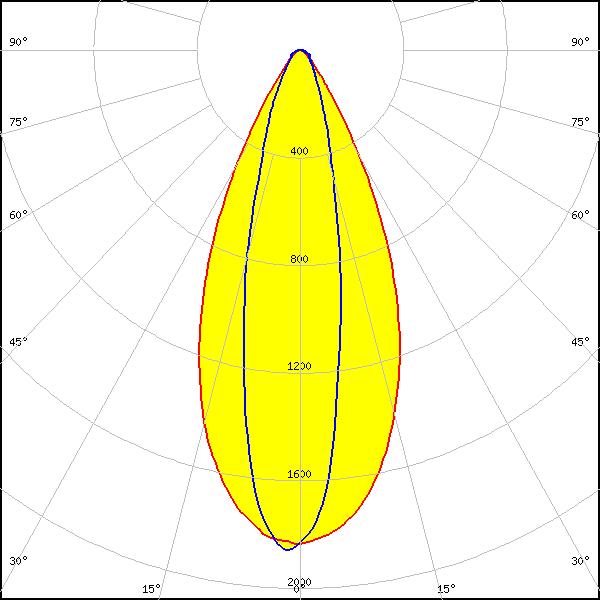

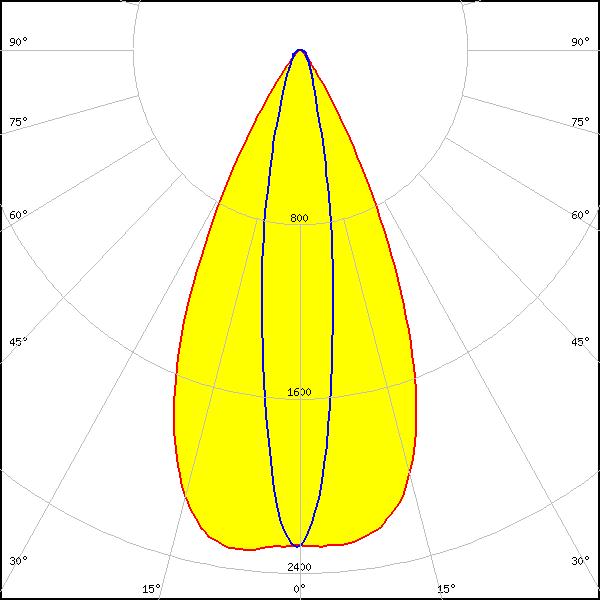

LED:
LC010C G2
LES size: 6.0 mm
Required components:
FWHM:
50° + 17°
FWTM:
71° + 41°
Peak intensity:
2.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
55° + 37°
FWTM:
94° + 89°
Peak intensity:
0.950 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

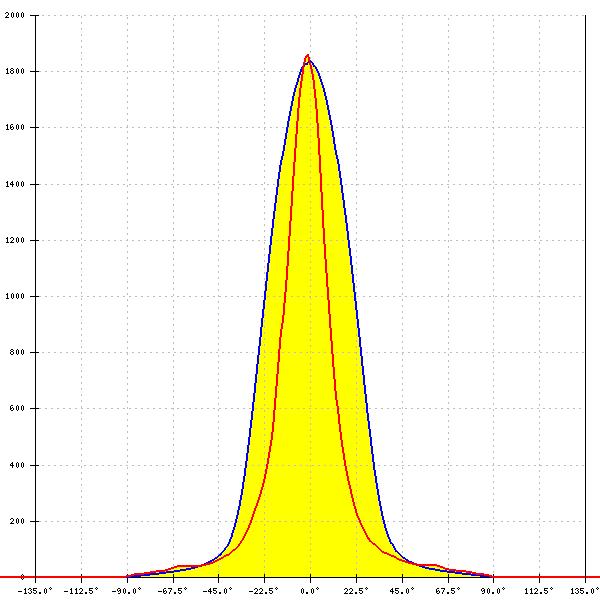

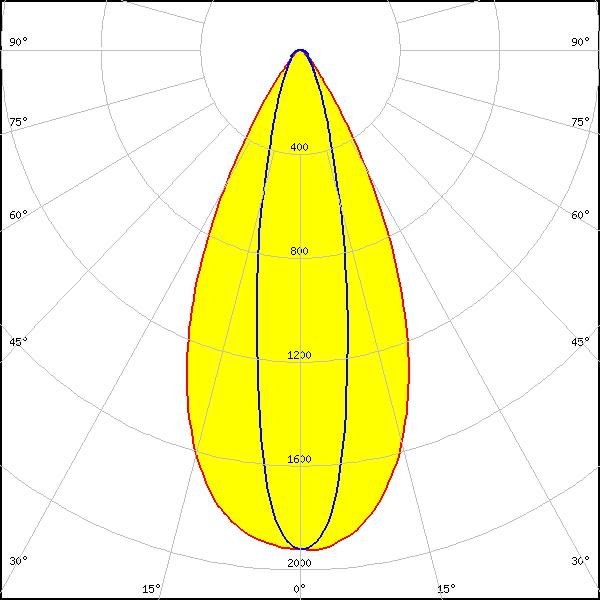

LC020C
LES size: 8.0 mm
Required components:
FWHM:
49° + 22°
FWTM:
75° + 52°
Peak intensity:
1.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C G2
LES size: 8.5 mm
Required components:
FWHM:
47° + 23°
FWTM:
74° + 55°
Peak intensity:
1.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

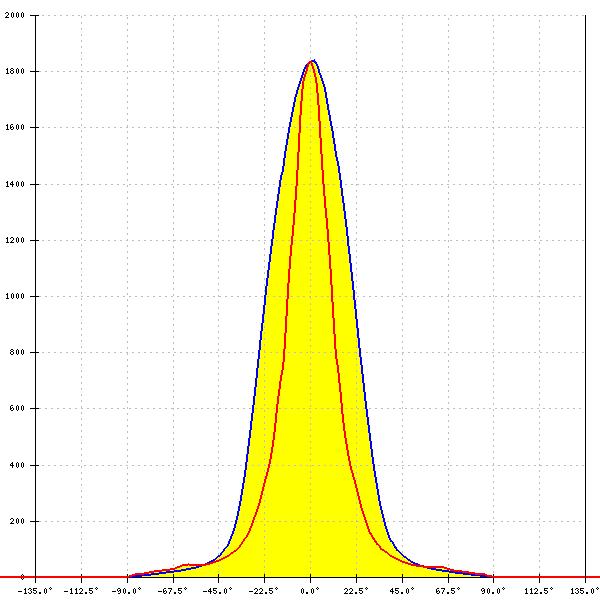

SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM:
46° + 24°
FWTM:
74° + 57°
Peak intensity:
1.800 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

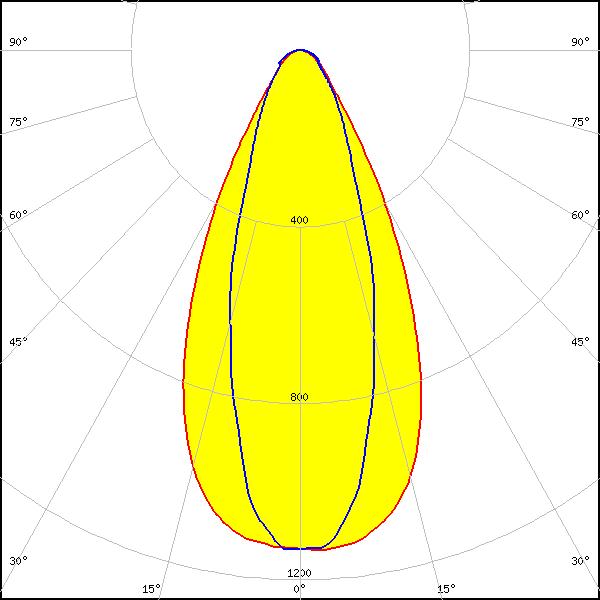

SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM:
52° + 35°
FWTM:
85° + 81°
Peak intensity:
1.100 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

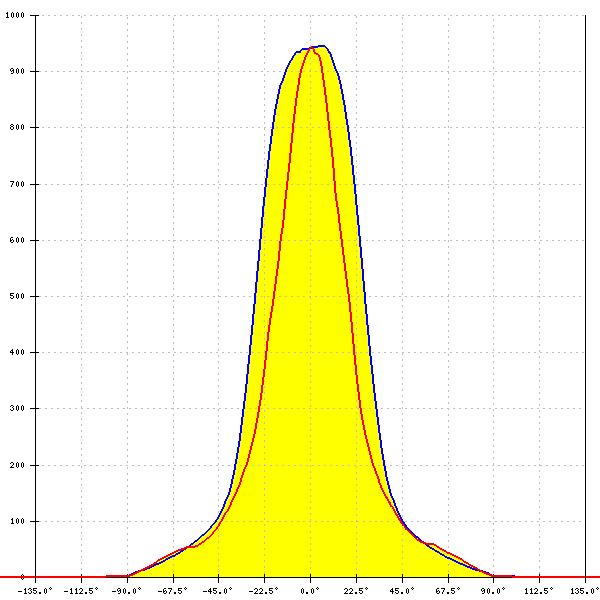

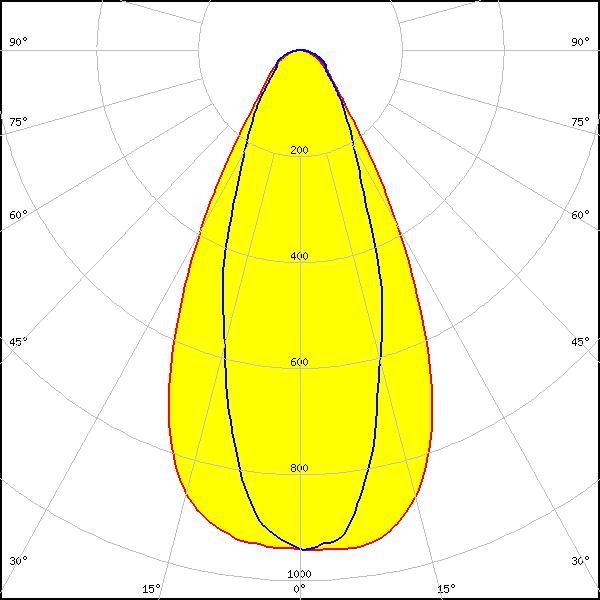

SLE G7 LES15
LES size: 15.0 mm
Required components:
FWHM:
55° + 39°
FWTM:
94° + 90°
Peak intensity:
0.950 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

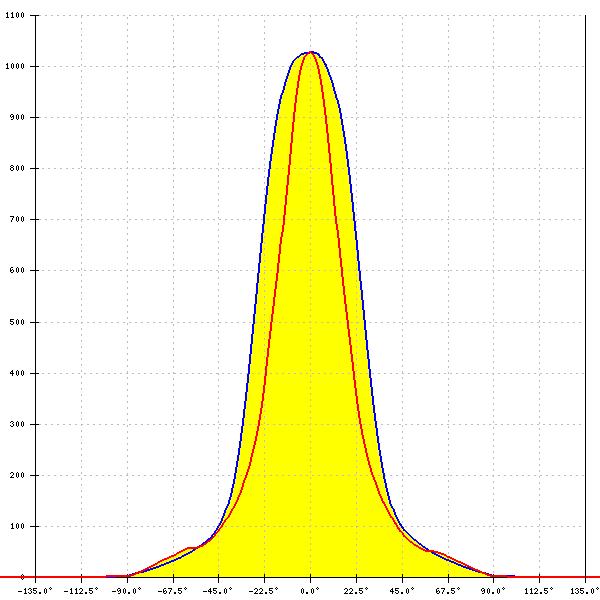

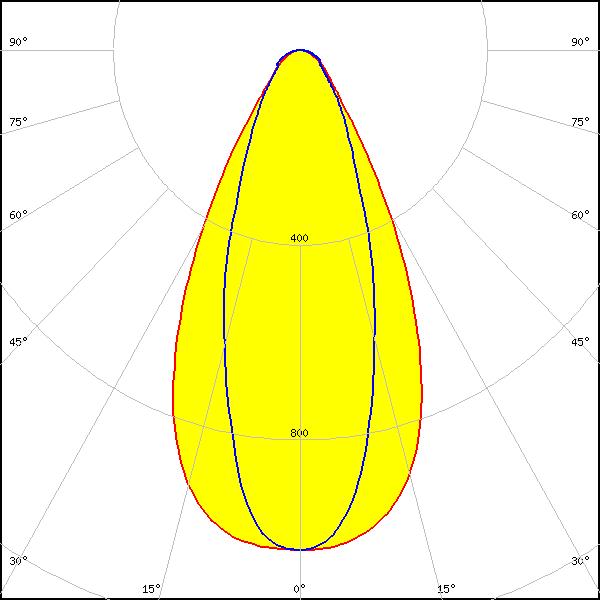

XOB 14.5 mm
LES size: 14.5 mm
Required components:
FWHM:
54° + 36°
FWTM:
88° + 84°
Peak intensity:
1.028 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

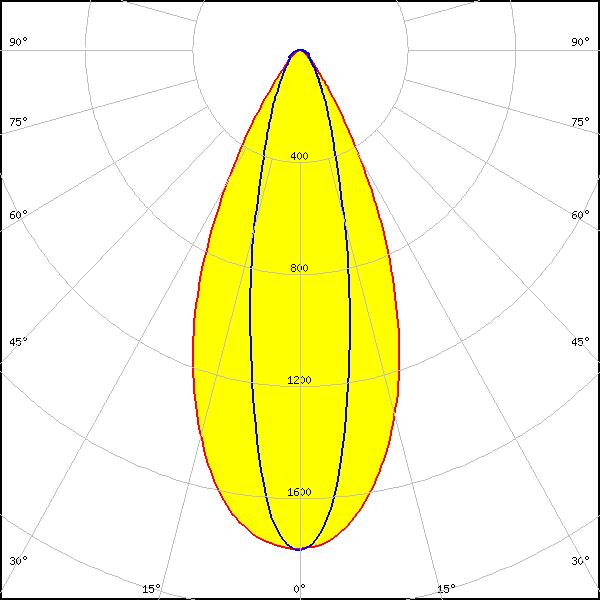

XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM:
48° + 24°
FWTM:
76° + 89°
Peak intensity:
1.788 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

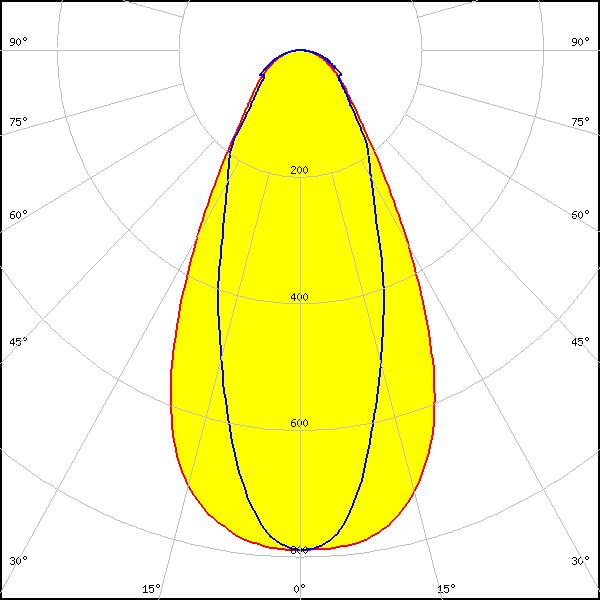

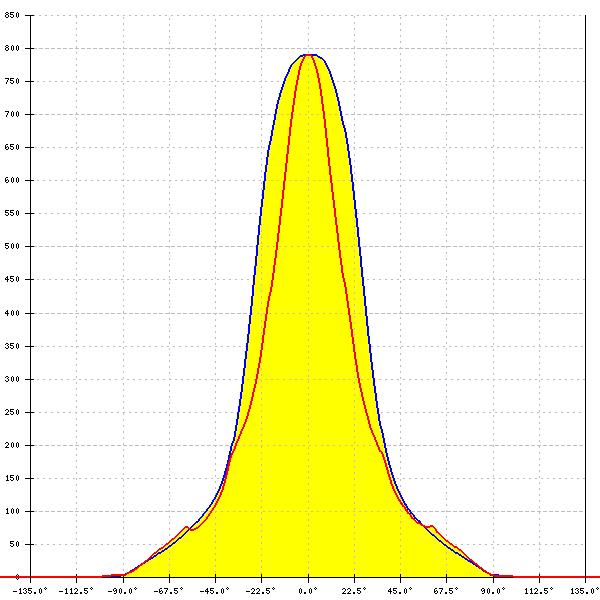

XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM:
57° + 40°
FWTM:
111° + 107°
Peak intensity:
0.790 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
