    RONDA-WAS2-B

    Print

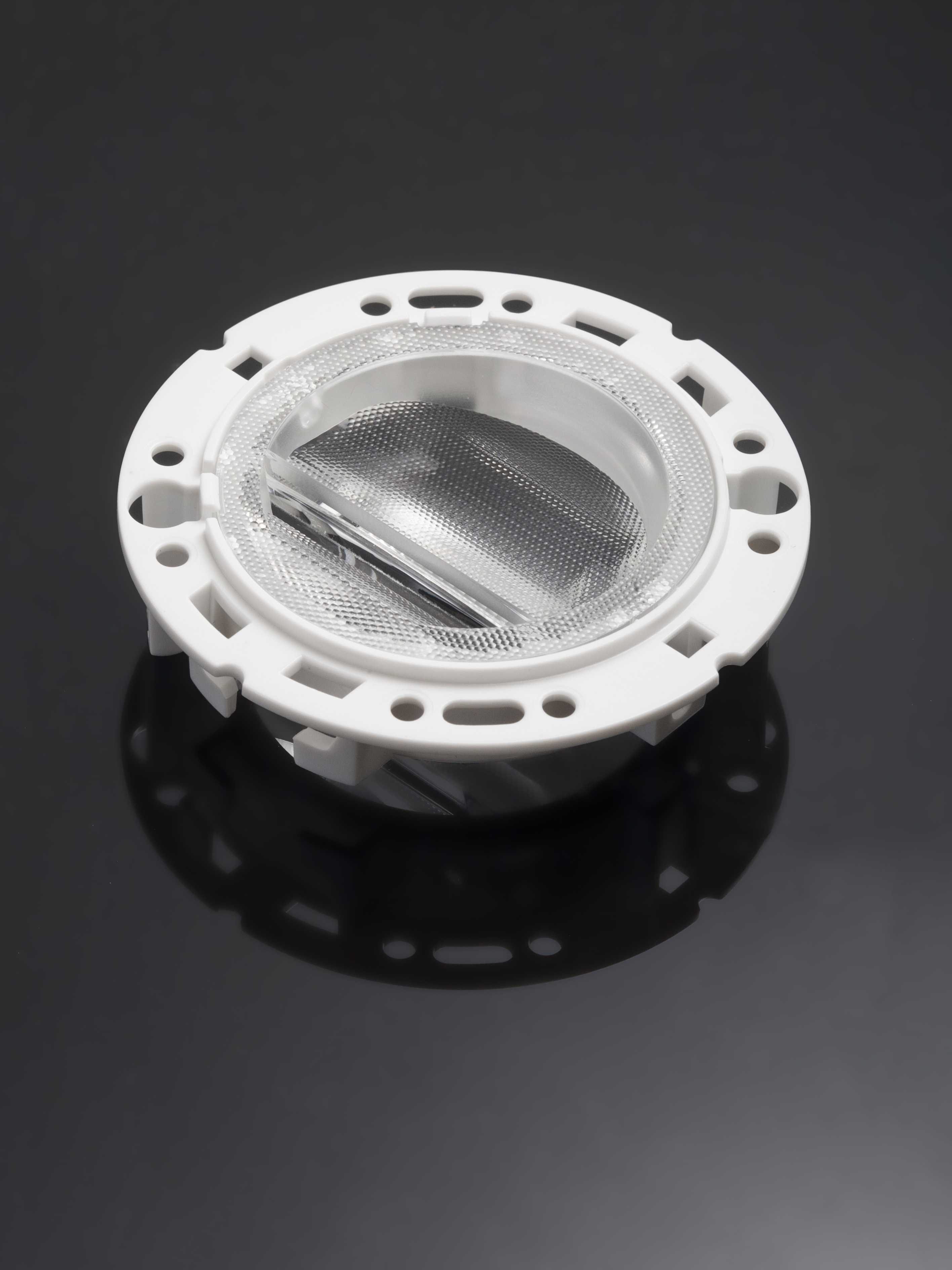

    Asymmetric beam for wall-washing with holder B compatible with 3rd party connectors from BJB, IDEAL and Stucchi.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      70 mm
    • Height:
      14.50 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Single lens
      1 pcs
    • Holder
      1 pcs
    • Single lens
    • F15862_RONDA-WAS2
      clear
    • Quantity in box:
      420 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.30 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 100 mm
    • MOQ Weight:
      2.40 kg
    • Holder
    • F15586_RONDA-HLD-B
      white
    • Quantity in box:
      420 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      4.40 kg
    • MPQ:
      30 pcs
    • MOQ:
      120 pcs
    • MOQ Size:
      480 x 280 x 120 mm
    • MOQ Weight:
      1.40 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F15862_RONDA-WAS2
      F15586_RONDA-HLD-B
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR182 - Change of ordering method and quantities

    News

    PRODUCT NEWS - RONDA-WAS2 AND -O

    Compatibility guide

    LEDiL connector and socket compatibility

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    Effective fashion retail lighting

    News

    PRODUCT NEWS - RONDA

    News

    PRODUCT NEWS - RONDA

    News

    HEKLA - Innovative family of sockets and solderless connectors

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    AVAILABLE LEDiL ACCESSORIES

    CLAMP-VERO13-18

    Basepart for reflectors and lenses with A-type interface. Compatible with Bridgelux VERO13 and VERO18.

    Optical results

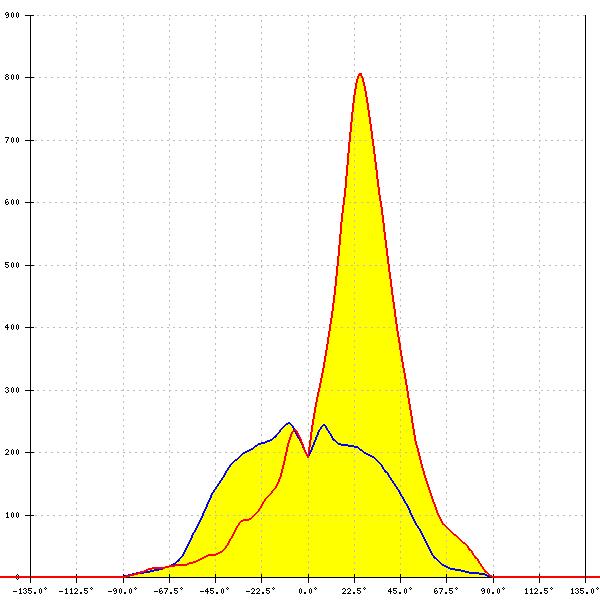

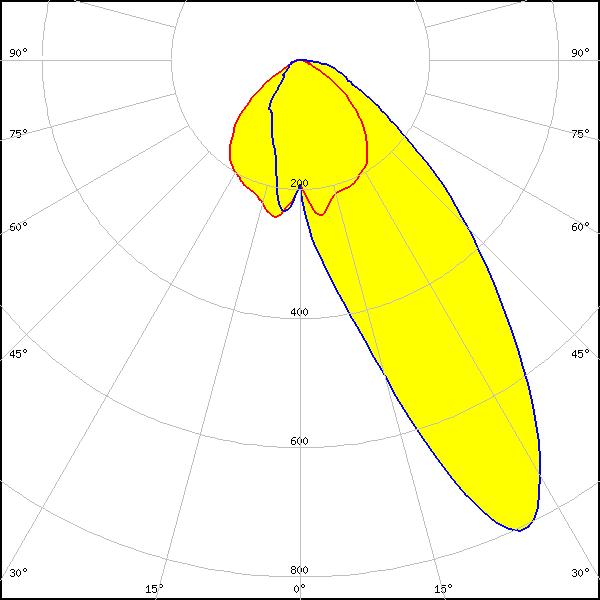

    LED: V10 Gen7
    LES size: 10.2 mm
    Required components:
    IDEAL: 50-2002CT
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    LEDs/each optic: 1
    Light colour/type: White
    LED: VERO13
    LES size: 13.4 mm
    Required components:
    C13658_CLAMP-VERO13-18
    FWHM: asymmetric
    Peak intensity: 0.000 cd/lm
    LEDs/each optic: 1
    Light colour/type: White

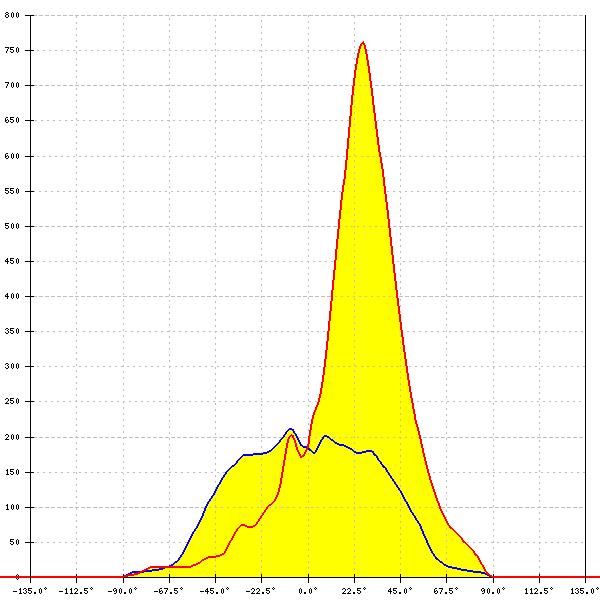

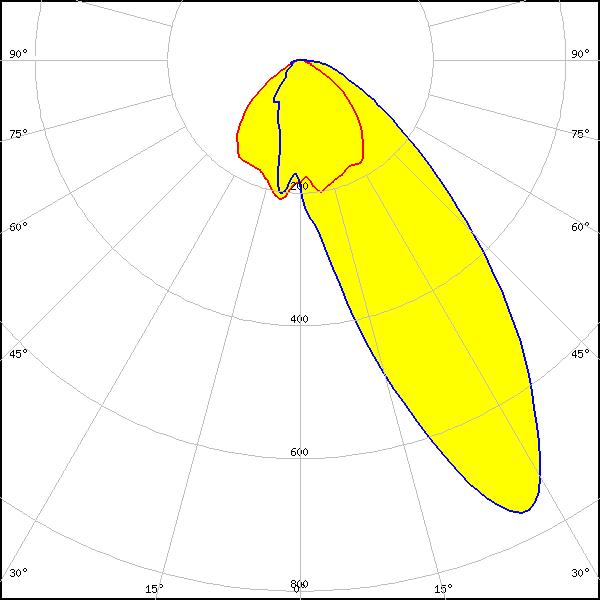

    LED: CLL02x/CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    IDEAL: 50-2002CT
    FWHM: asymmetric
    Peak intensity: 0.750 cd/lm
    LEDs/each optic: 1
    Light colour/type: White

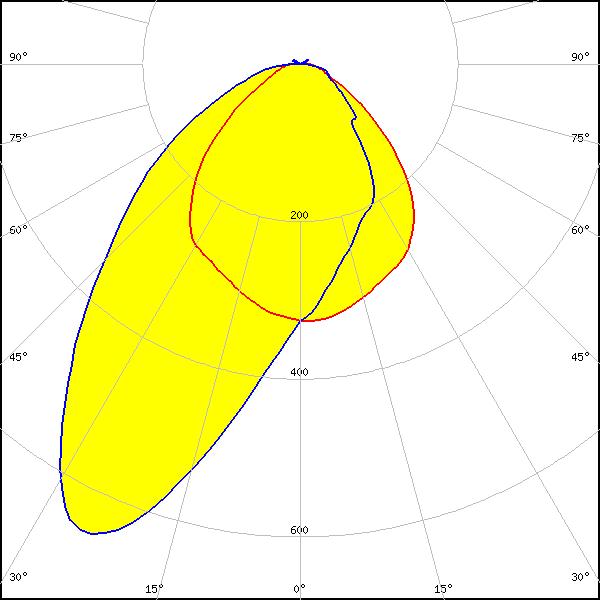

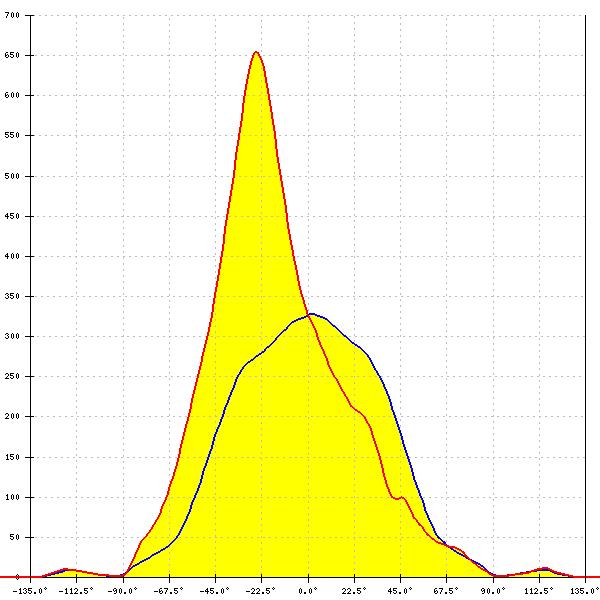

    LED: LUXEON CoB 1204/1205
    LES size: 13.0 mm
    Required components:
    BJB: 47.319.2011
    FWHM: asymmetric
    Peak intensity: 0.650 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
