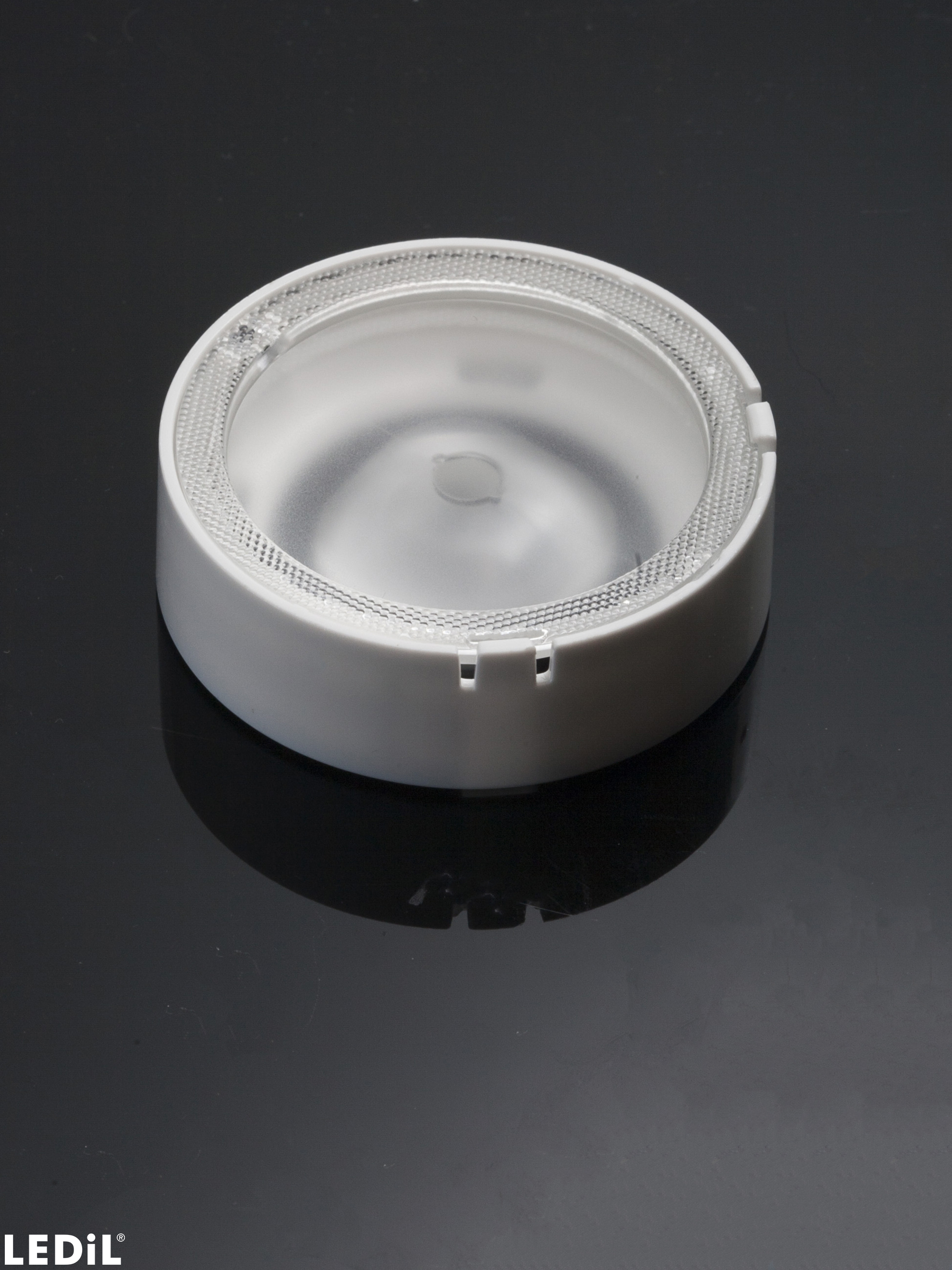

RONDA-REC-90-C
Print
~80° rectangular beam with holder C compatible with LEDiL HEKLA
This product consists of multiple parts that need to be ordered separately. See ordering information.
Materials
- Holder
- F15635_RONDA-HLD-CPC
- Request material files from Tech Support
- Single lens
- F15788_RONDA-REC-90PMMA
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

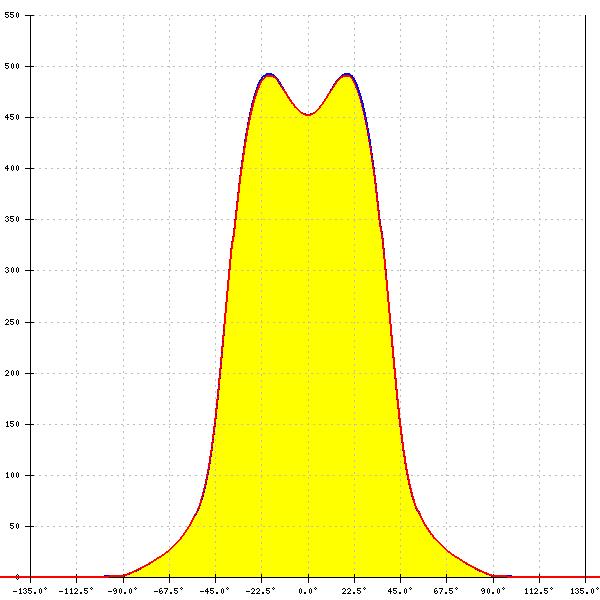

LED:

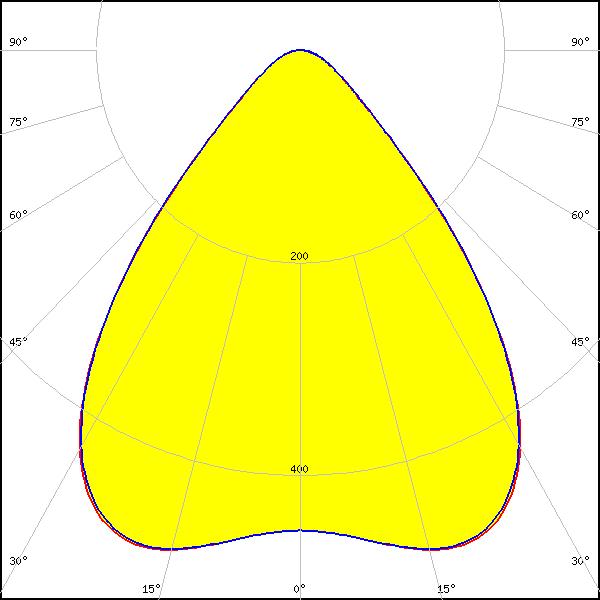

V11 HD Gen 8
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
81°
FWTM:
115°
Peak intensity:
0.512 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

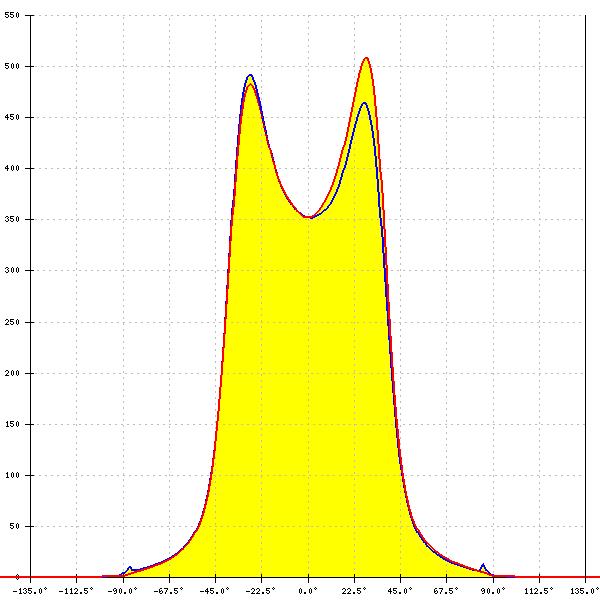

LED:
V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM:
85°
FWTM:
114°
Peak intensity:
0.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

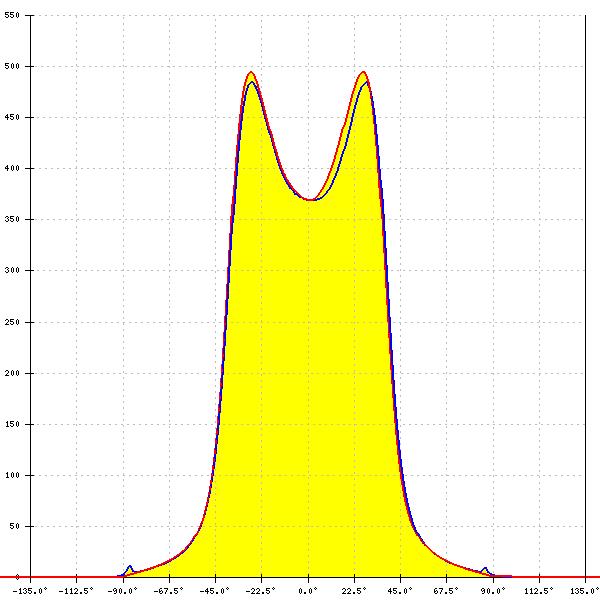

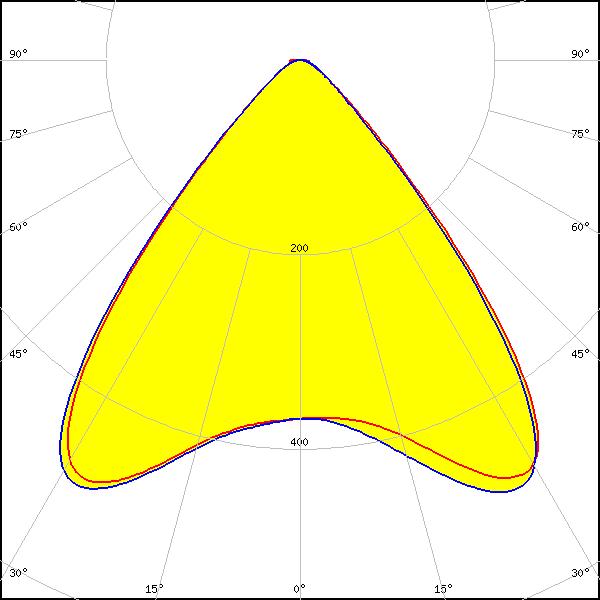

V6 Gen6
LES size: 6.0 mm
Required components:
FWHM:
84°
FWTM:
111°
Peak intensity:
0.650 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

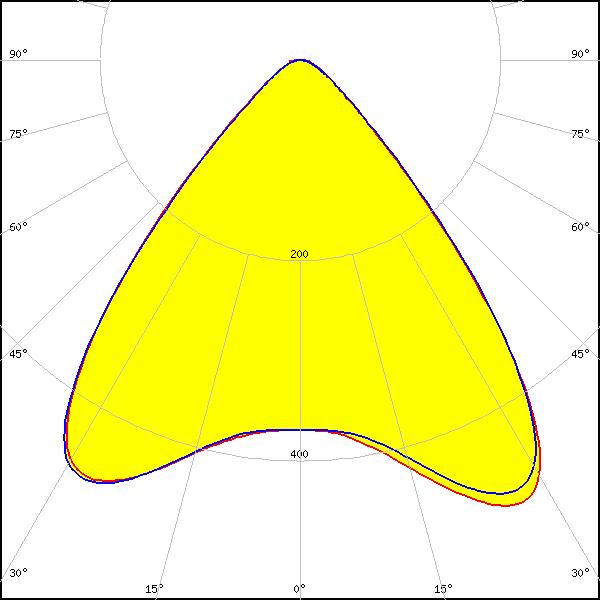

LED:
V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM:
85°
FWTM:
114°
Peak intensity:
0.620 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

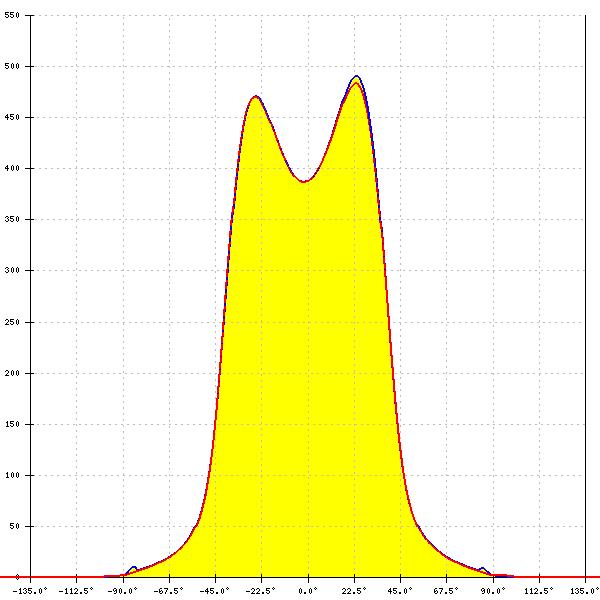

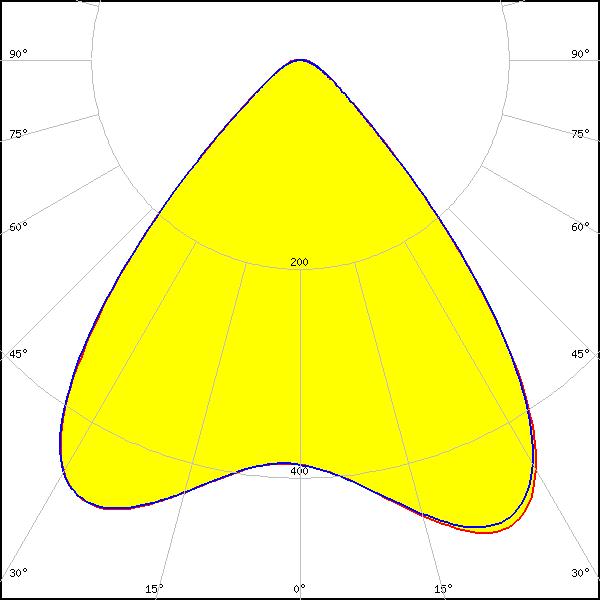

LED:
V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM:
85°
FWTM:
115°
Peak intensity:
0.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

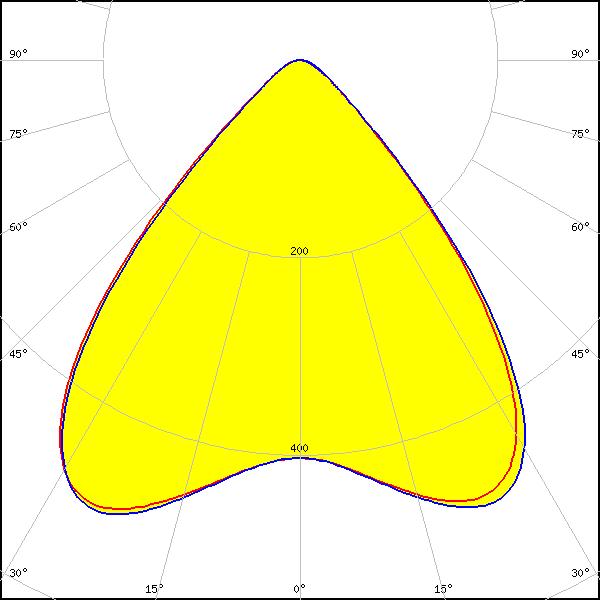

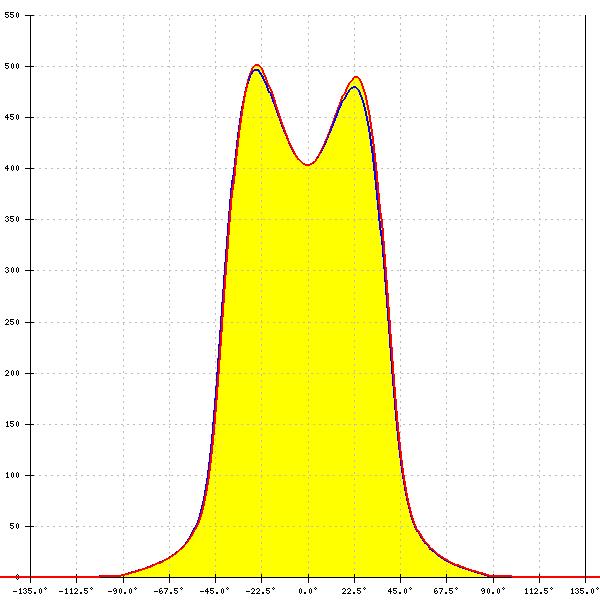

VERO10
LES size: 9.9 mm
Required components:
FWHM:
85°
FWTM:
111°
Peak intensity:
0.560 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

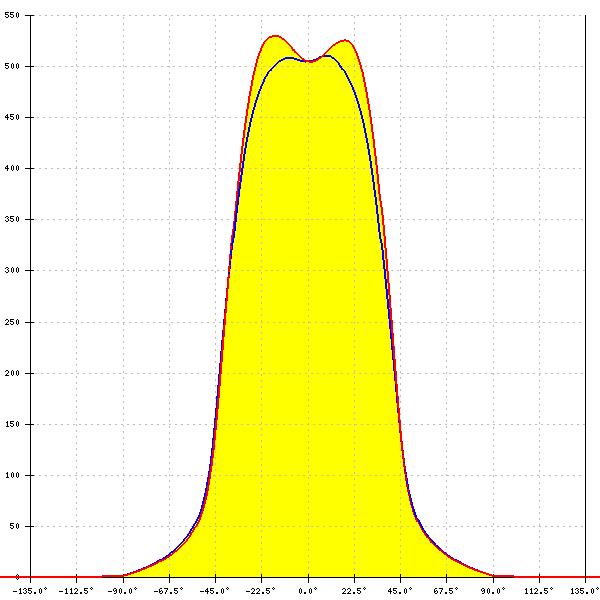

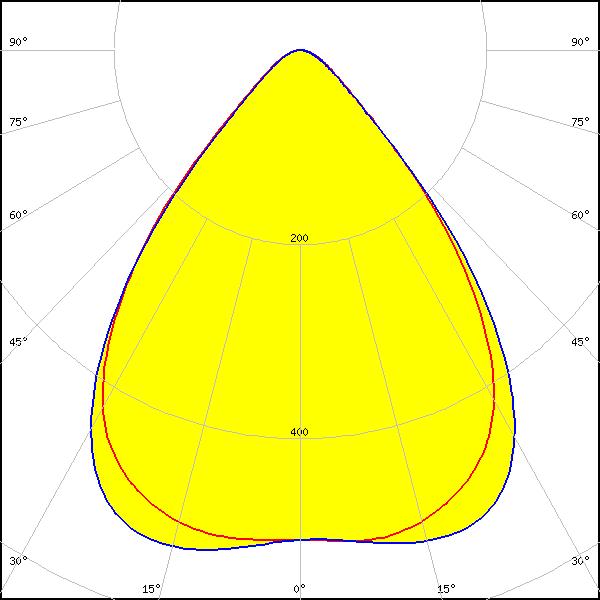

Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
FWHM:
80°
FWTM:
109°
Peak intensity:
0.530 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
Tunable White

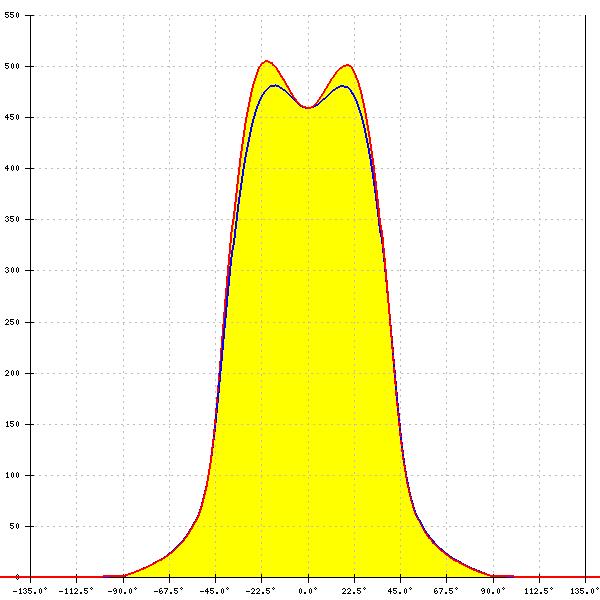

LED:

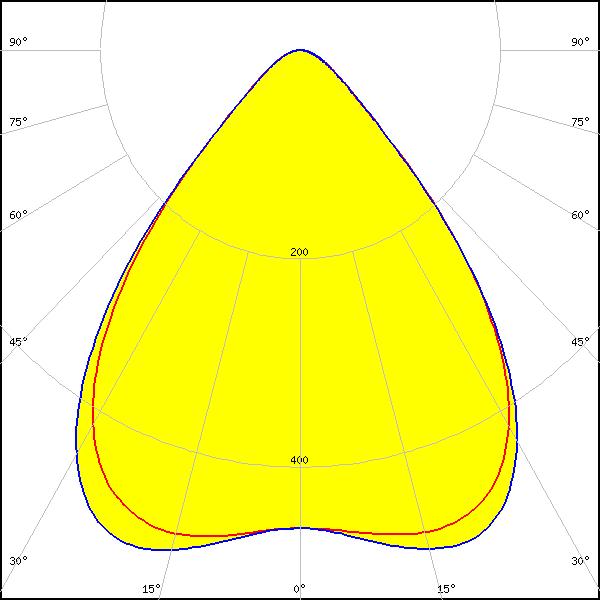

Vesta TW 13mm (25W) CSP
LES size: 14.3 mm
Required components:
FWHM:
82°
FWTM:
114°
Peak intensity:
0.510 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
77°
FWTM:
102°
Peak intensity:
0.603 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

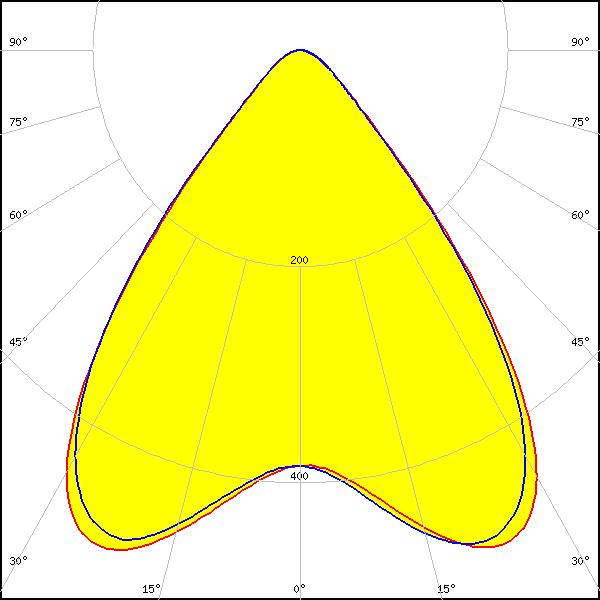

LED:

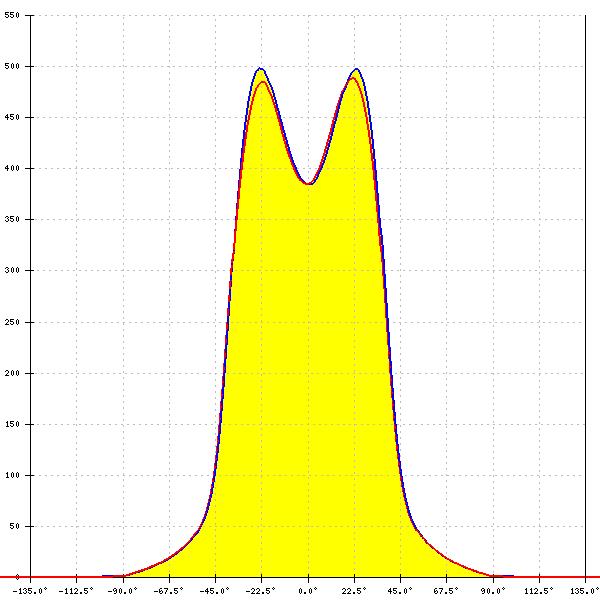

Vesta TW 9mm (12W) CSP
LES size: 9.8 mm
Required components:
FWHM:
82°
FWTM:
112°
Peak intensity:
0.580 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

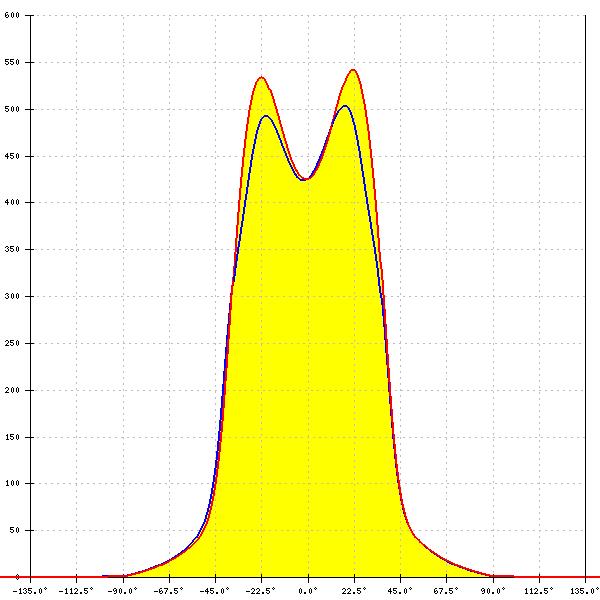

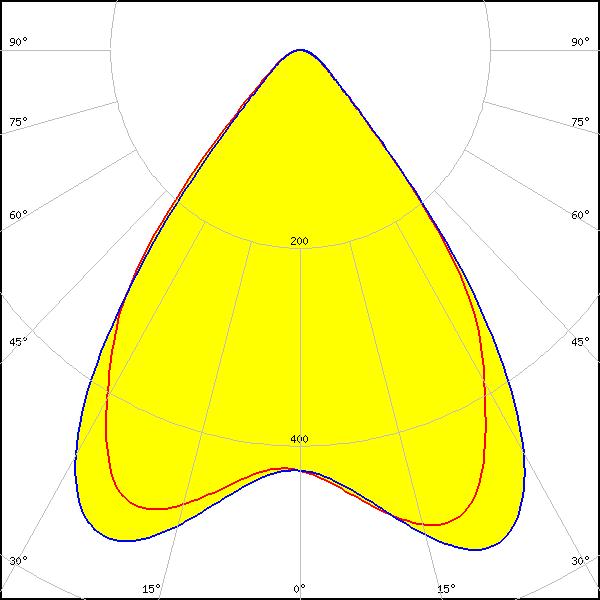

CLC020 Series (Dim-To-Warm)
LES size: 9.8 mm
Required components:
FWHM:
80°
FWTM:
107°
Peak intensity:
0.580 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

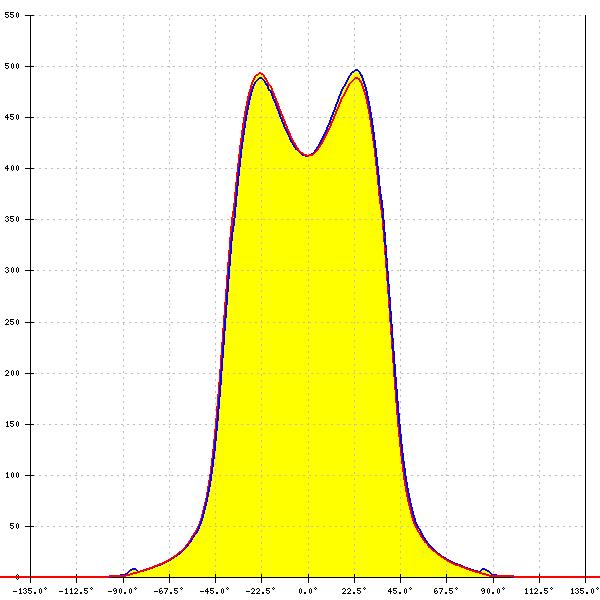

LED:

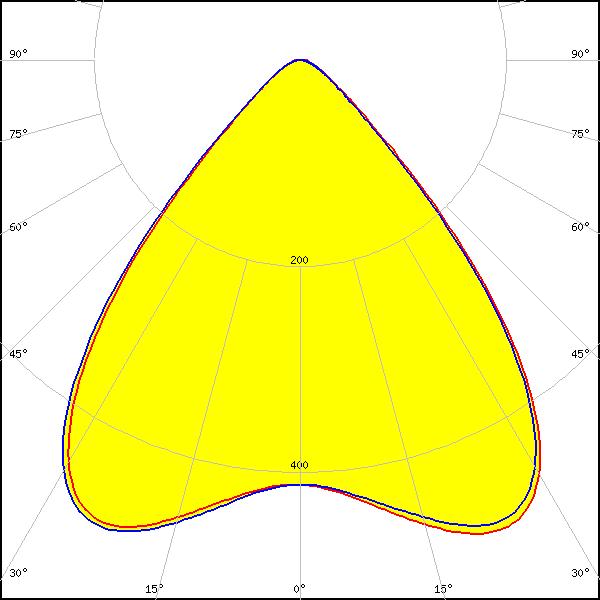

CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
84°
FWTM:
110°
Peak intensity:
0.550 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

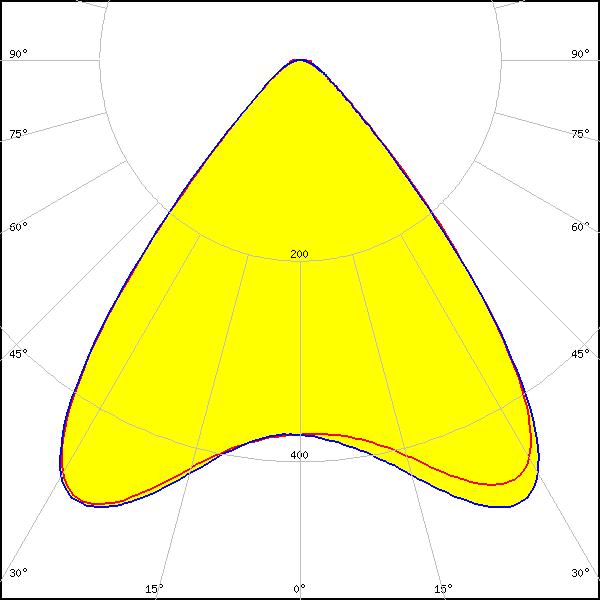

CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
83°
FWTM:
111°
Peak intensity:
0.640 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

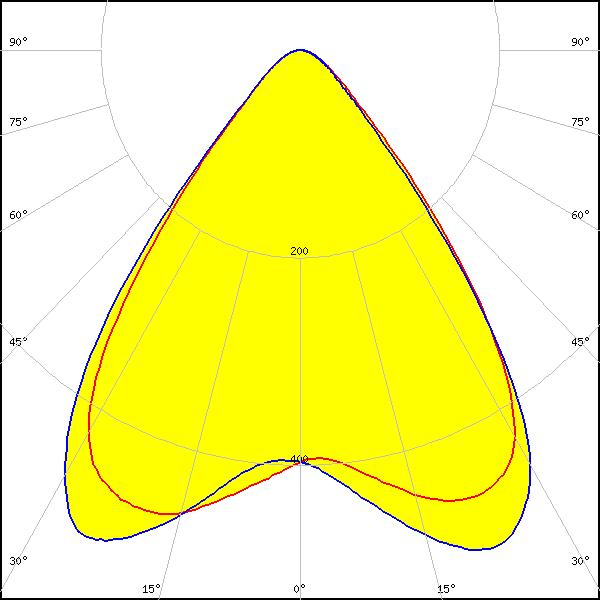

LCN-C01B (Tunable White)
LES size: 10.9 mm
Required components:
FWHM:
81°
FWTM:
113°
Peak intensity:
0.560 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

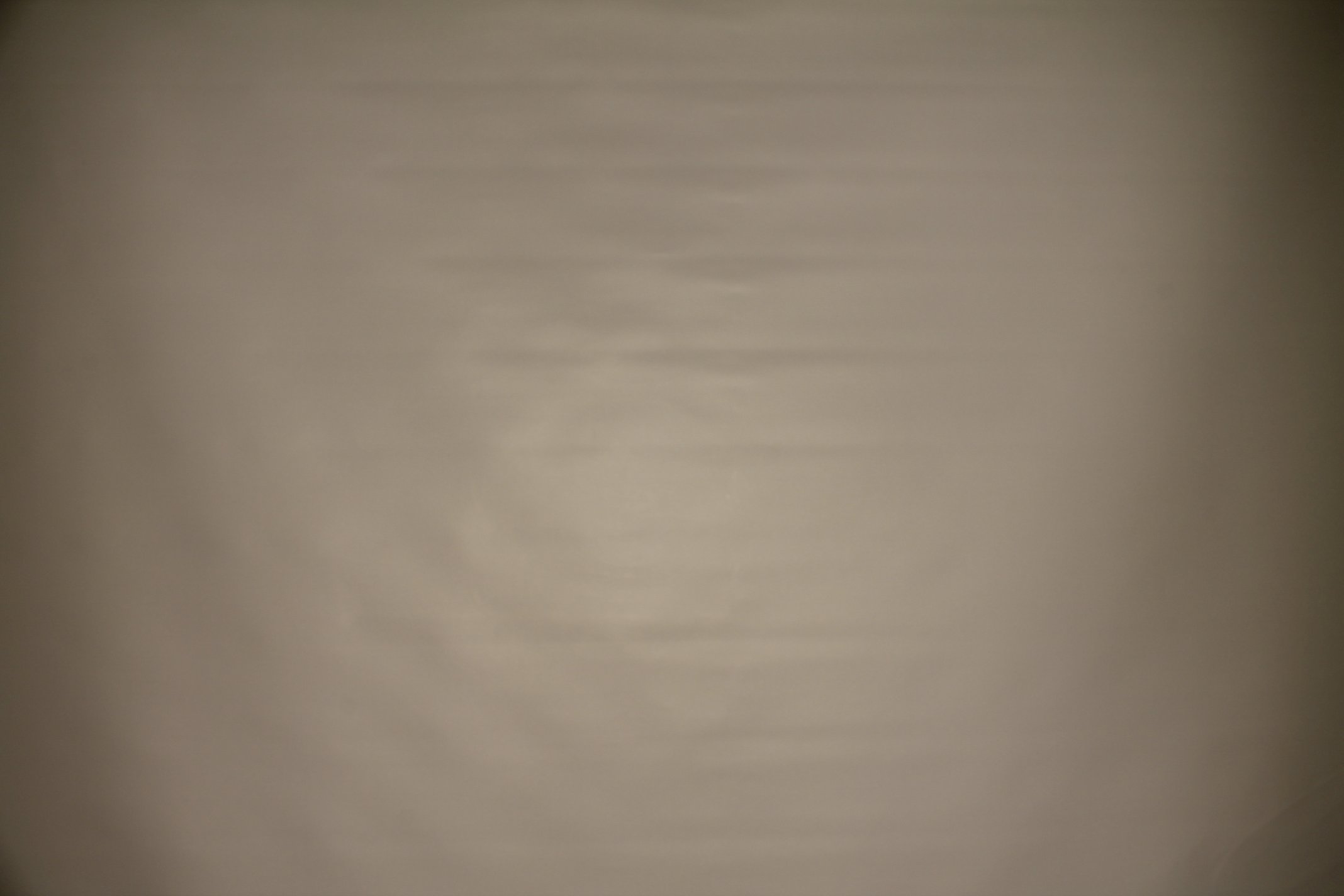

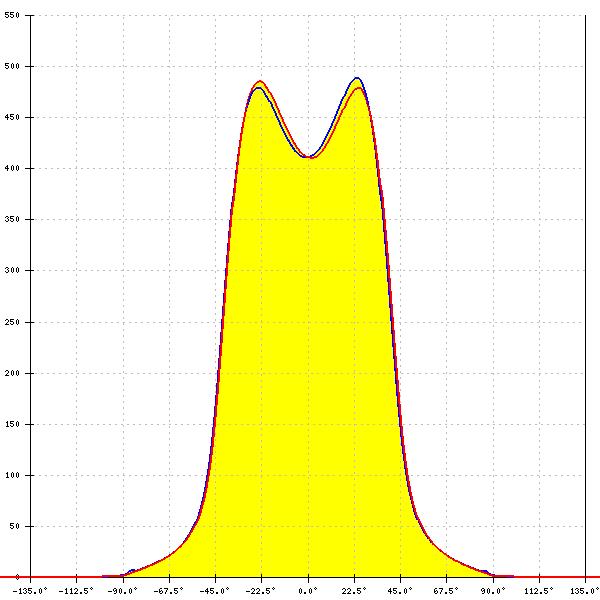

CMA1516
LES size: 9.0 mm
Required components:
FWHM:
86°
FWTM:
115°
Peak intensity:
0.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

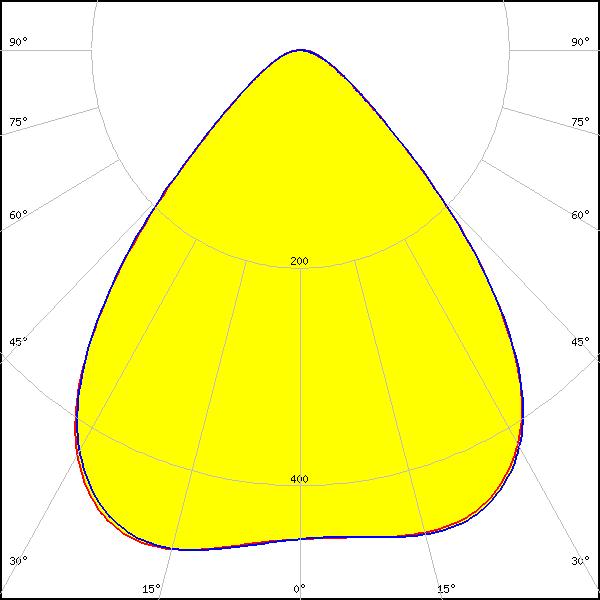

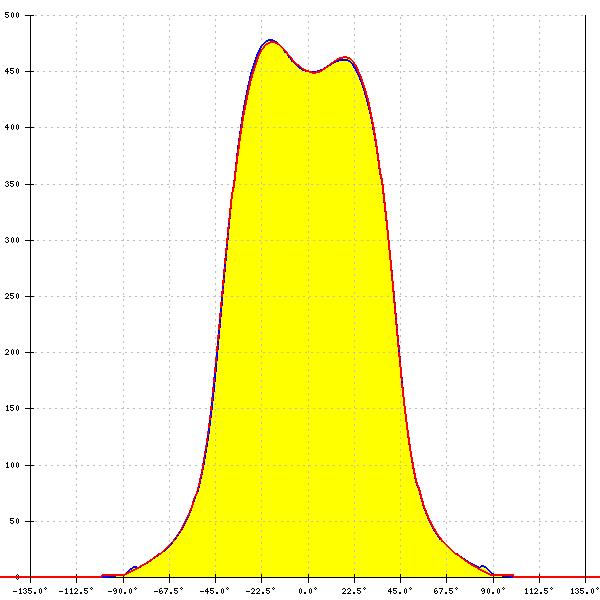

CMA1825
LES size: 12.0 mm
Required components:
FWHM:
86°
FWTM:
121°
Peak intensity:
0.490 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

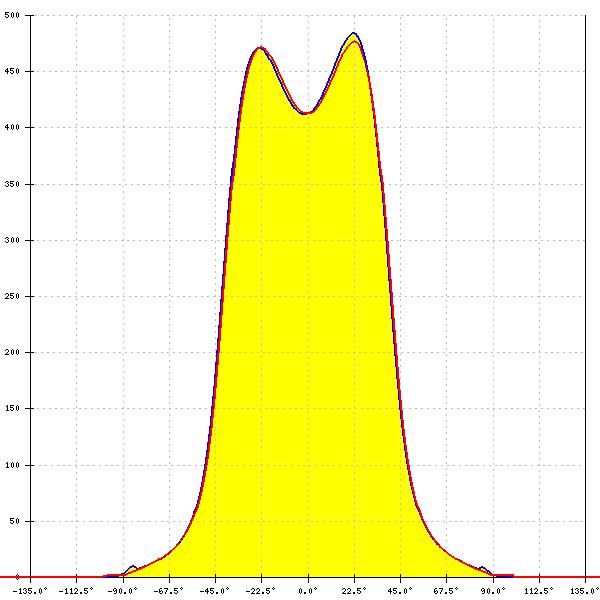

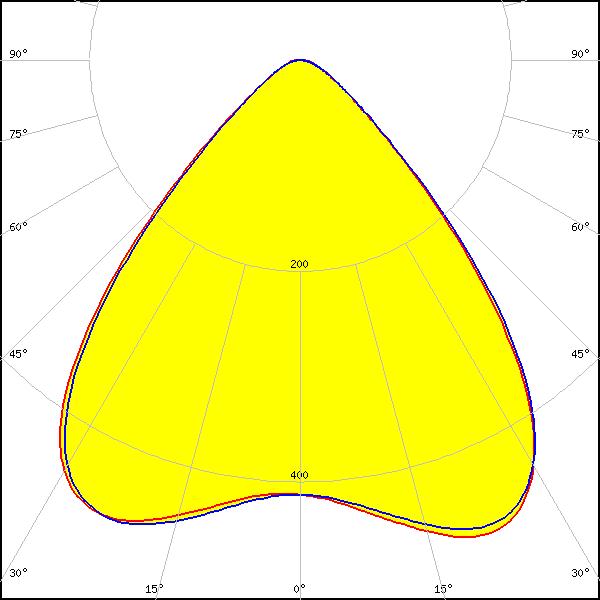

CMT14xx
LES size: 9.8 mm
Required components:
FWHM:
86°
FWTM:
117°
Peak intensity:
0.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

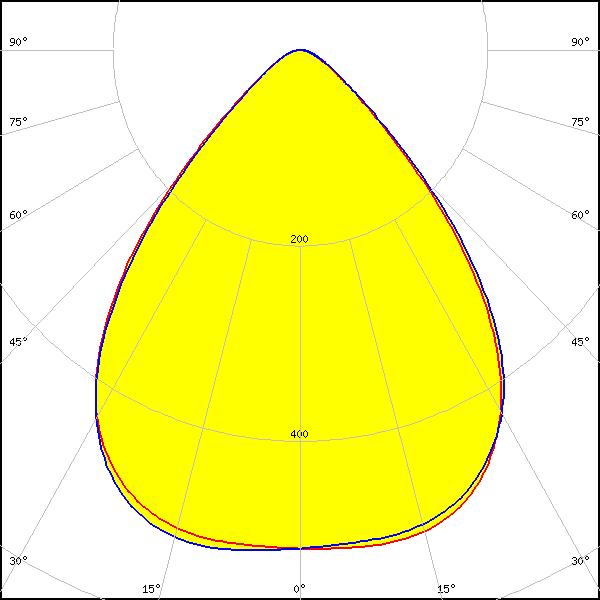

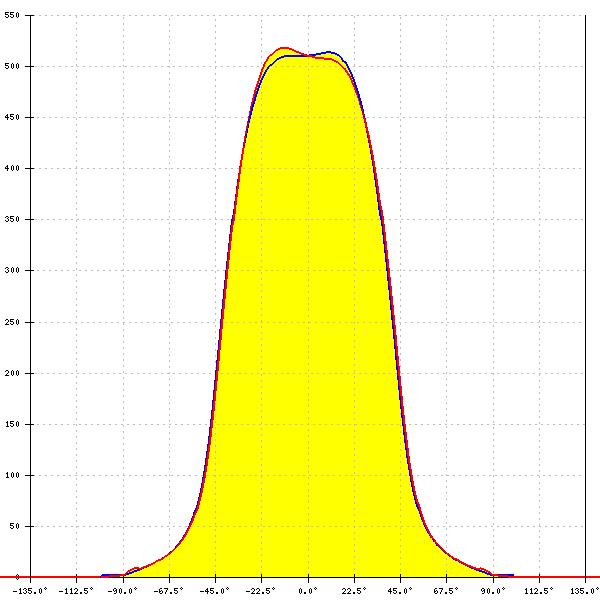

LED:
CMT19xx
LES size: 14.5 mm
Required components:
FWHM:
82°
FWTM:
114°
Peak intensity:
0.519 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

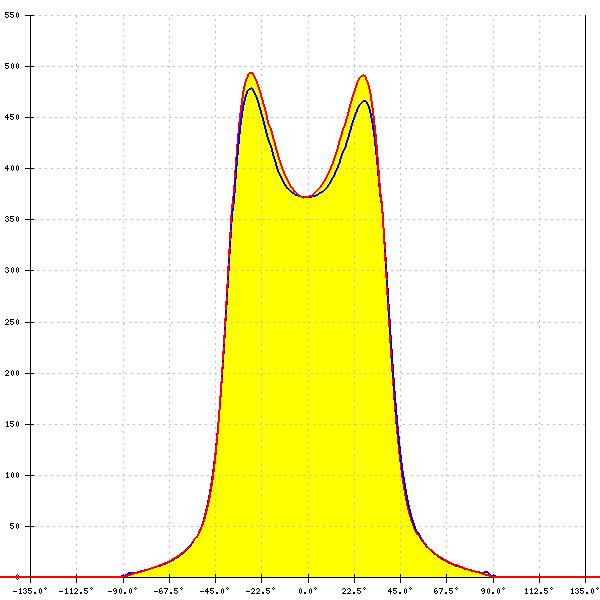

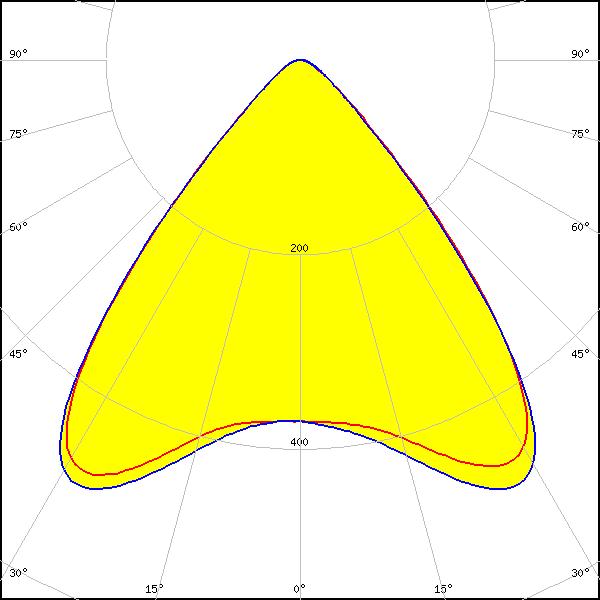

CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
84°
FWTM:
110°
Peak intensity:
0.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

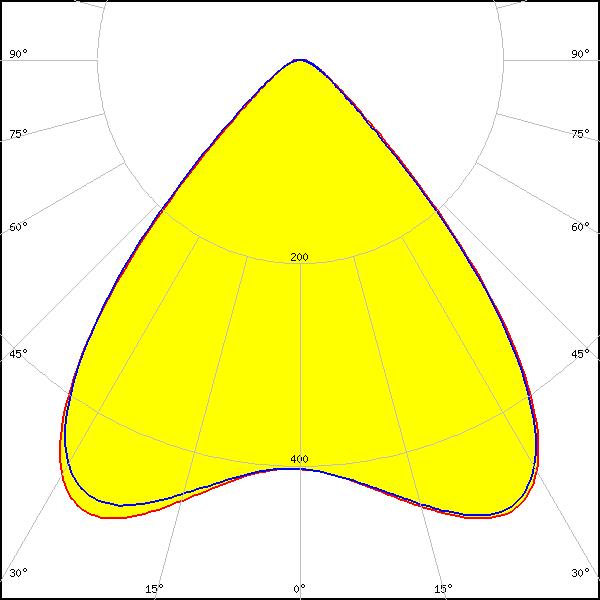

CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
85°
FWTM:
111°
Peak intensity:
0.560 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

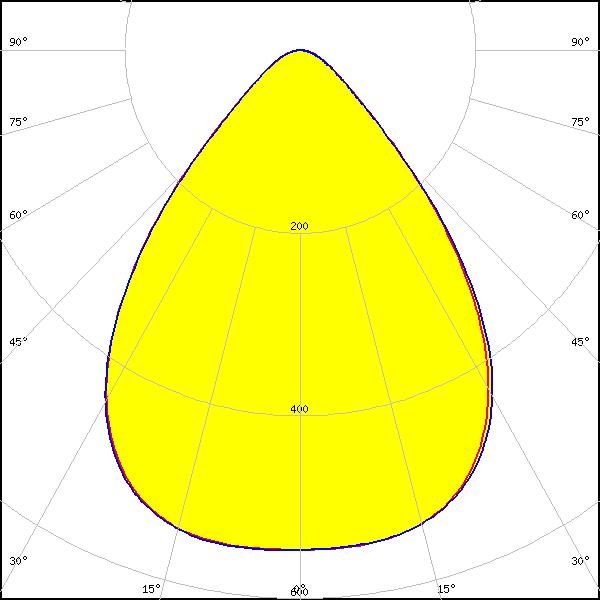

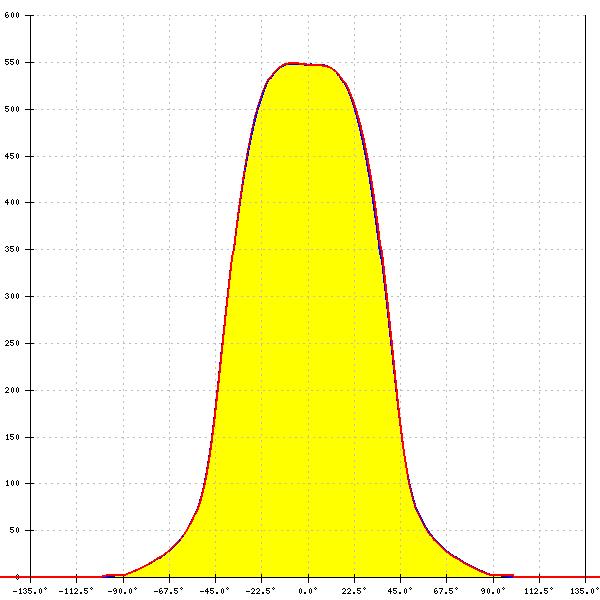

LUXEON CX Plus CoB L08 (Gen2)
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
80°
FWTM:
114°
Peak intensity:
0.549 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

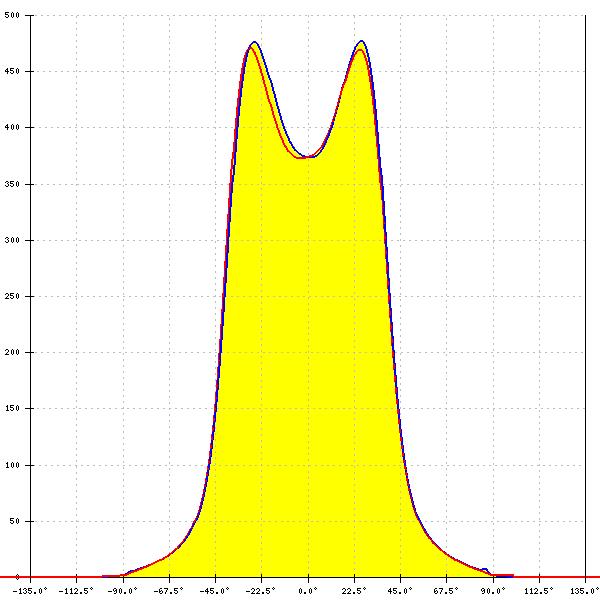

LED:

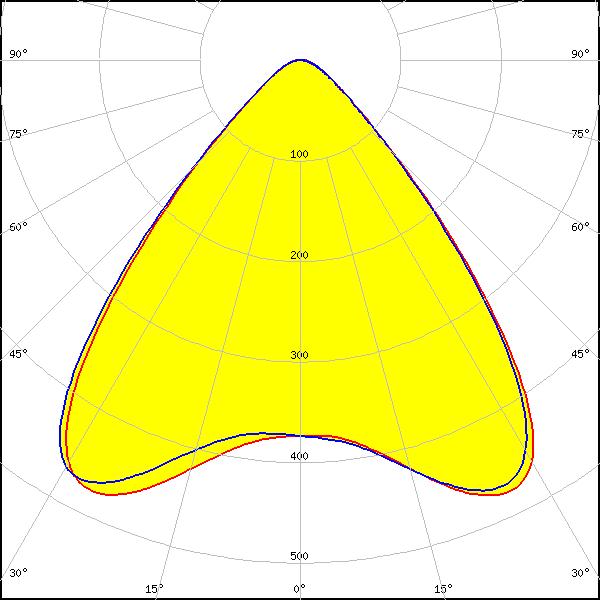

LUXEON CoB 1202HD
LES size: 6.5 mm
Required components:
FWHM:
85° + 85°
FWTM:
116° + 117°
Peak intensity:
0.580 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

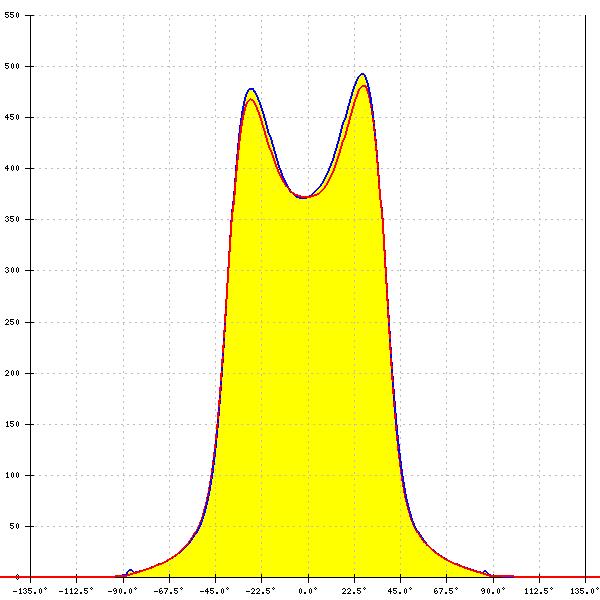

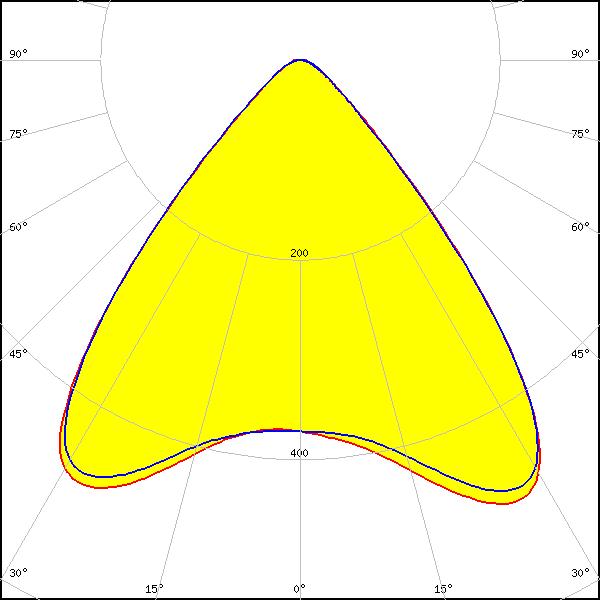

LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
84°
FWTM:
112°
Peak intensity:
0.620 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

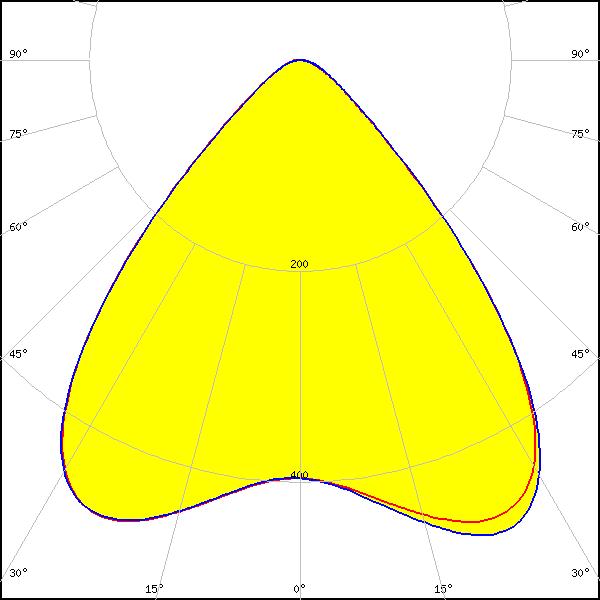

LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM:
86° + 86°
FWTM:
117° + 118°
Peak intensity:
1.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

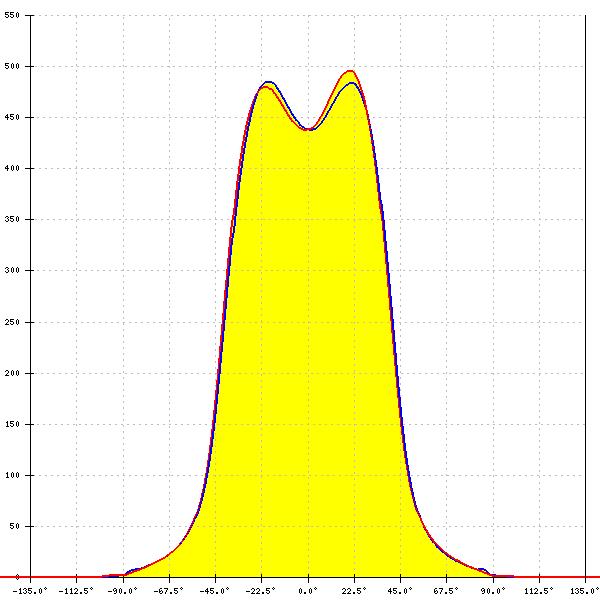

LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM:
75° + 75°
FWTM:
118° + 118°
Peak intensity:
0.510 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

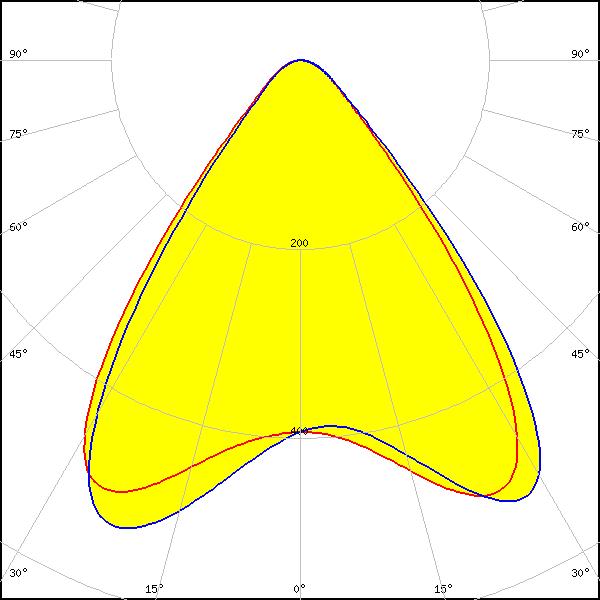

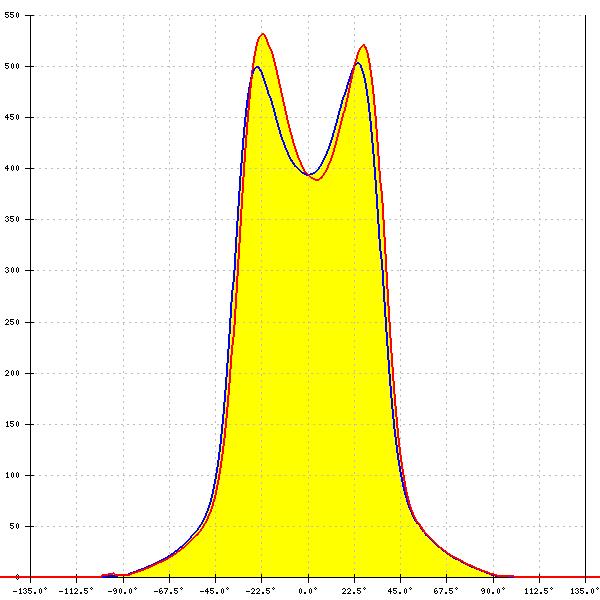

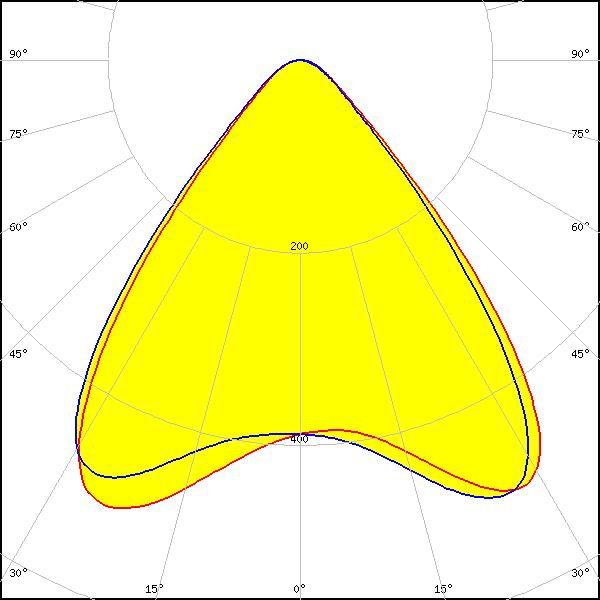

LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
75°
FWTM:
105°
Peak intensity:
0.649 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

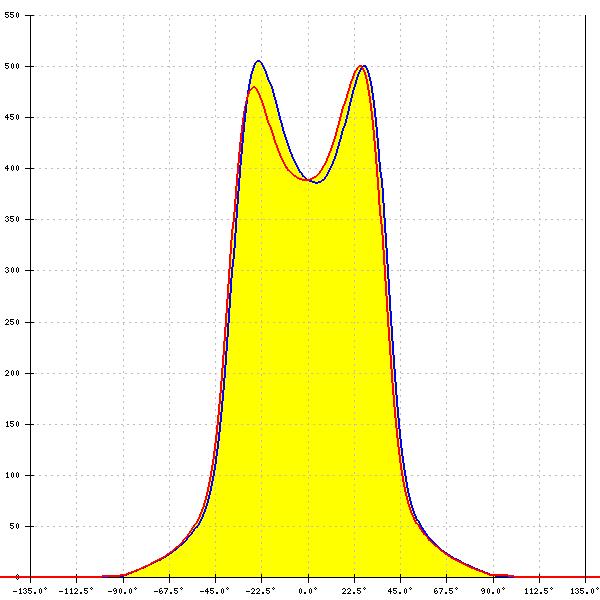

LED:
LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
79°
FWTM:
109°
Peak intensity:
0.603 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
80°
FWTM:
110°
Peak intensity:
0.548 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
80°
FWTM:
113°
Peak intensity:
0.529 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

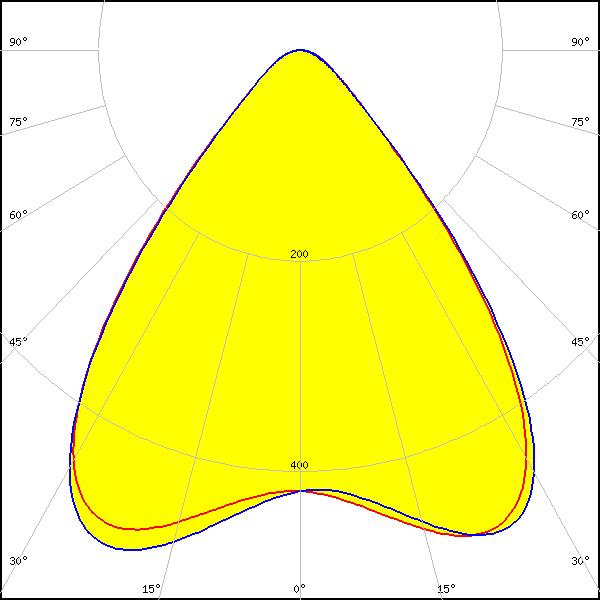

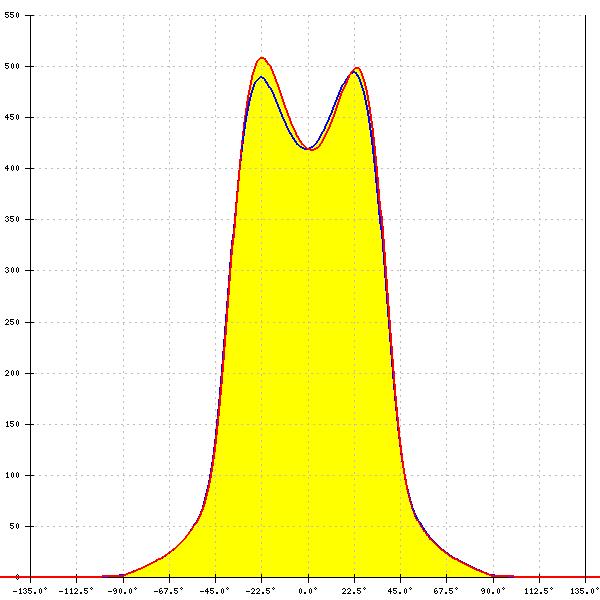

LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM:
79°
FWTM:
110°
Peak intensity:
0.554 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

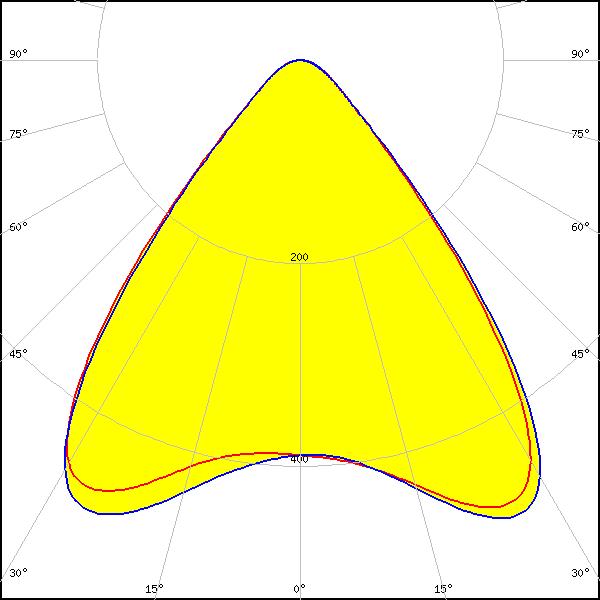

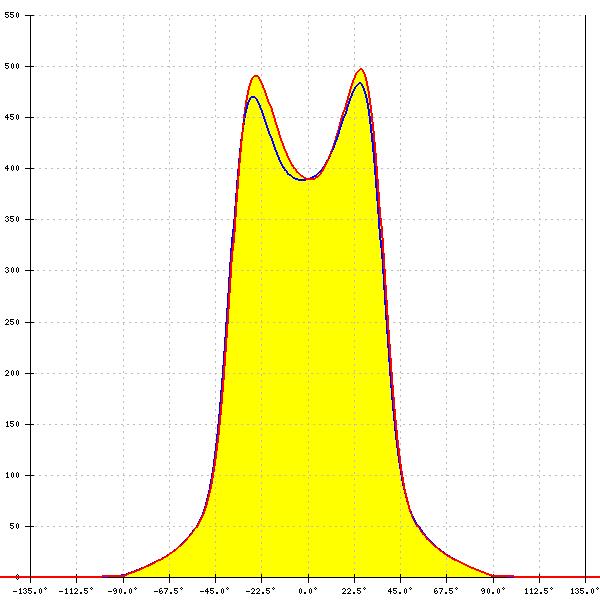

LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
78°
FWTM:
108°
Peak intensity:
0.603 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

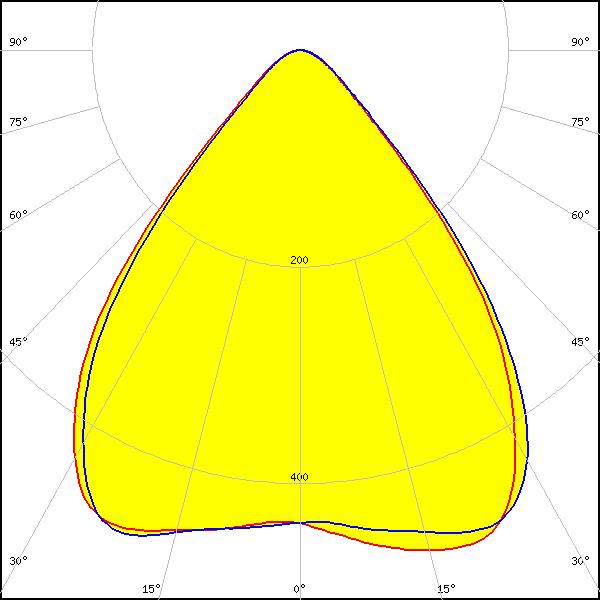

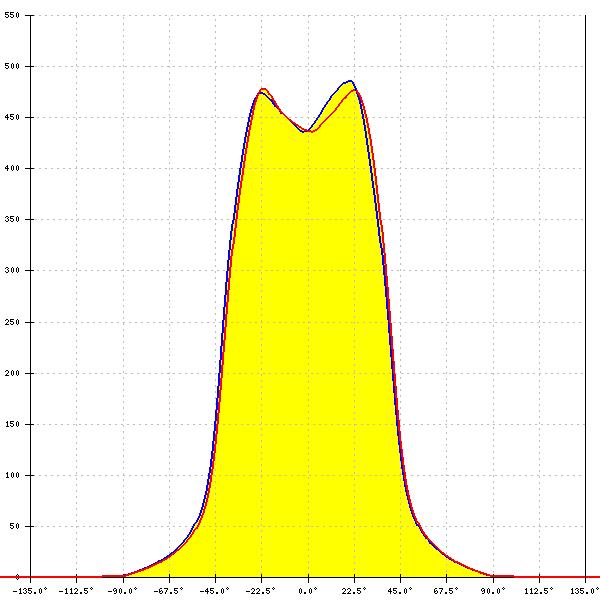

CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
FWHM:
83°
FWTM:
113°
Peak intensity:
0.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

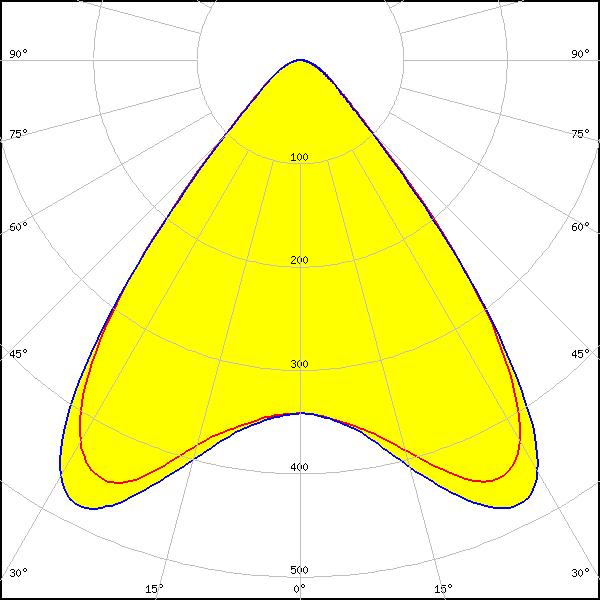

LED:

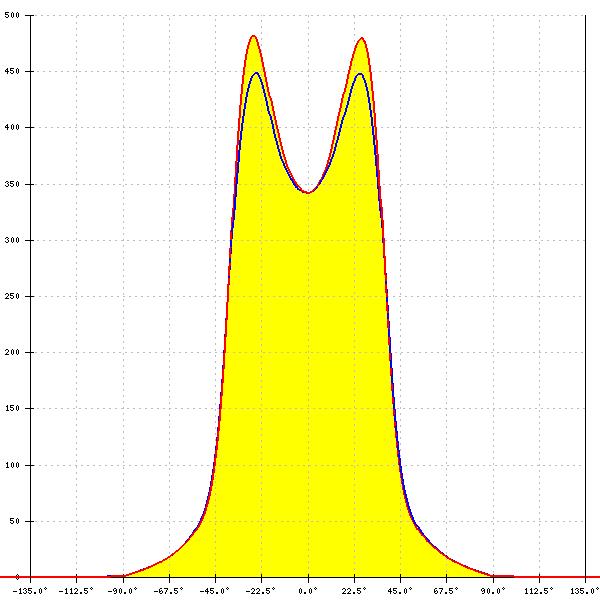

CDM-6 (Dim-To-Warm)
LES size: 6.8 mm
Required components:
FWHM:
82°
FWTM:
115°
Peak intensity:
0.620 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

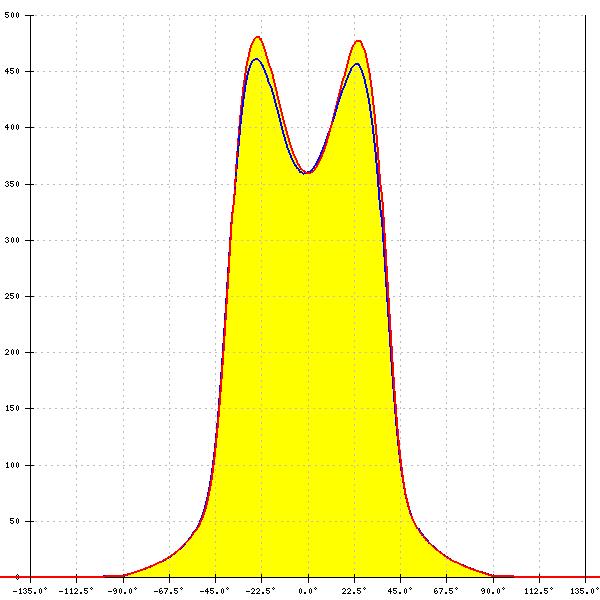

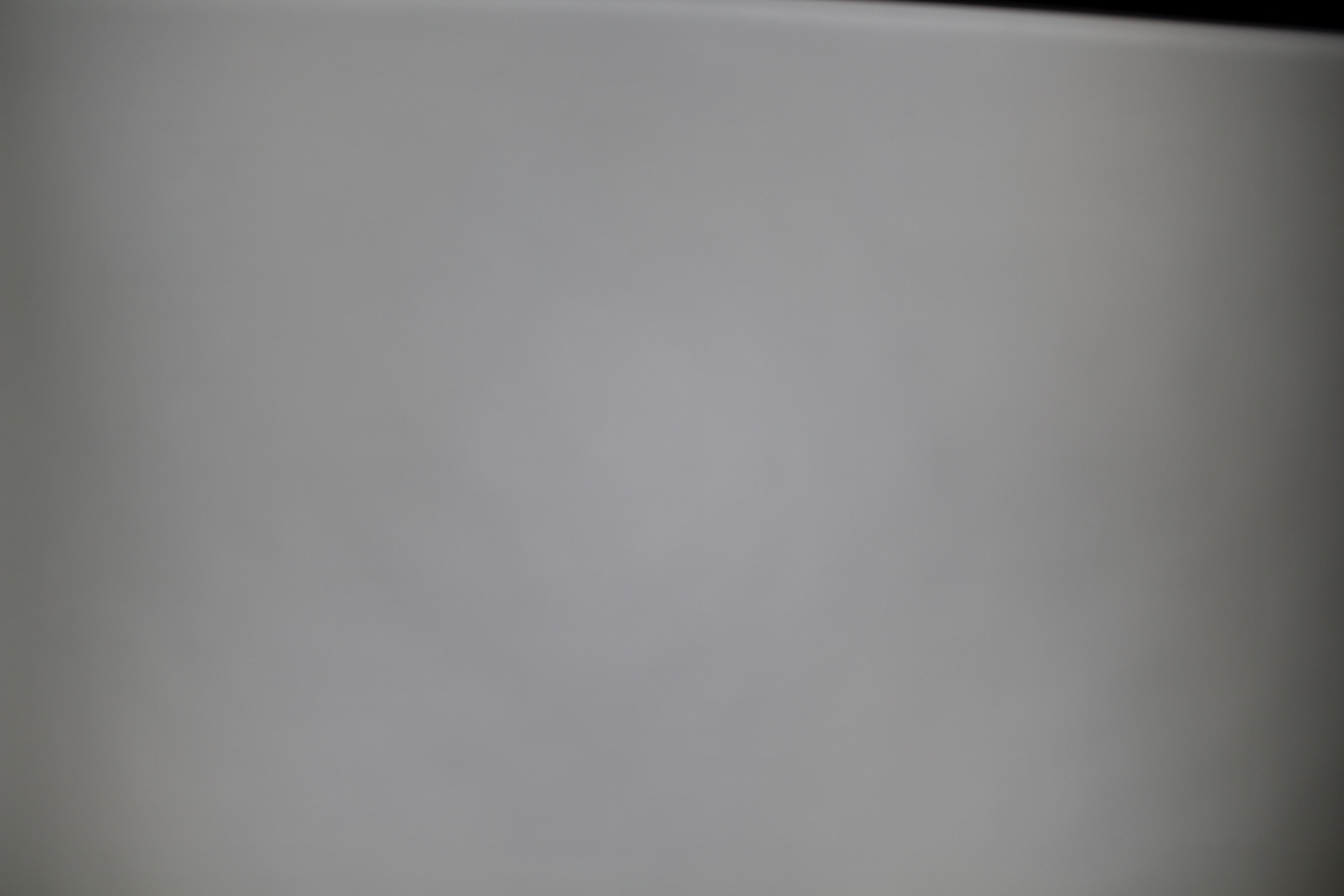

CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
83°
FWTM:
113°
Peak intensity:
0.560 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

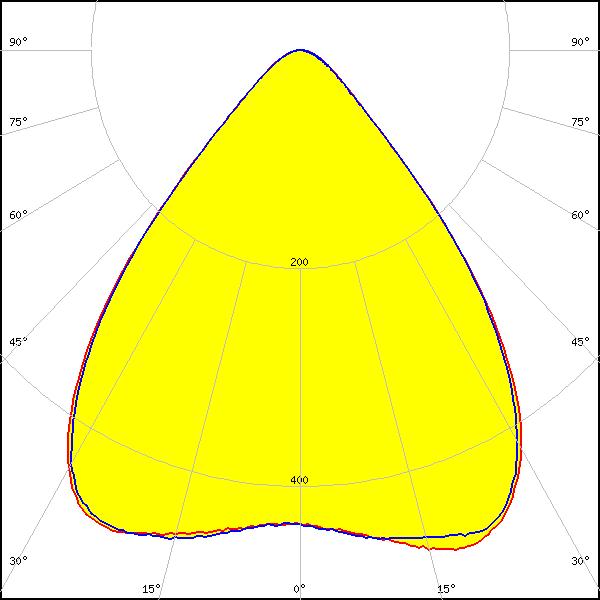

LED:

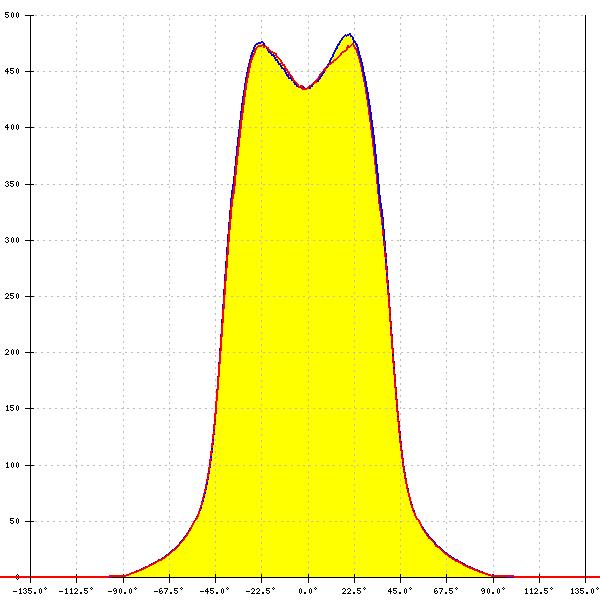

CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
FWHM:
82°
FWTM:
113°
Peak intensity:
0.490 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

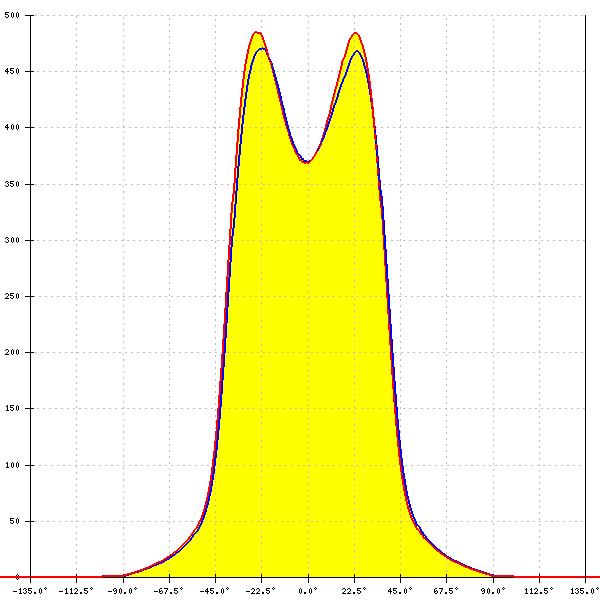

LED:

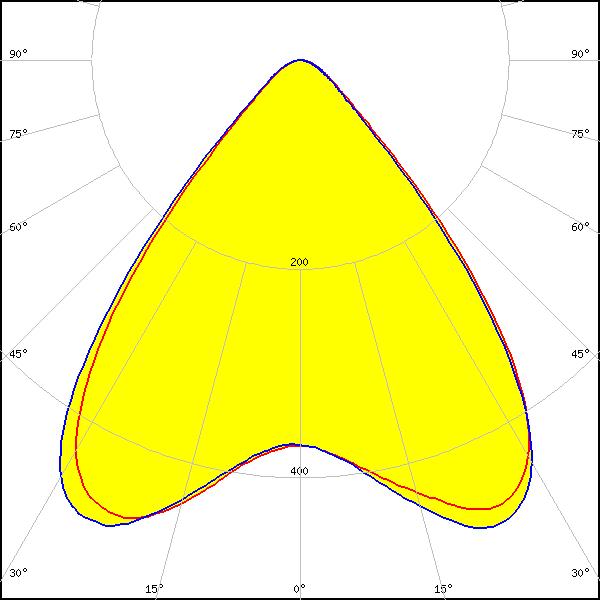

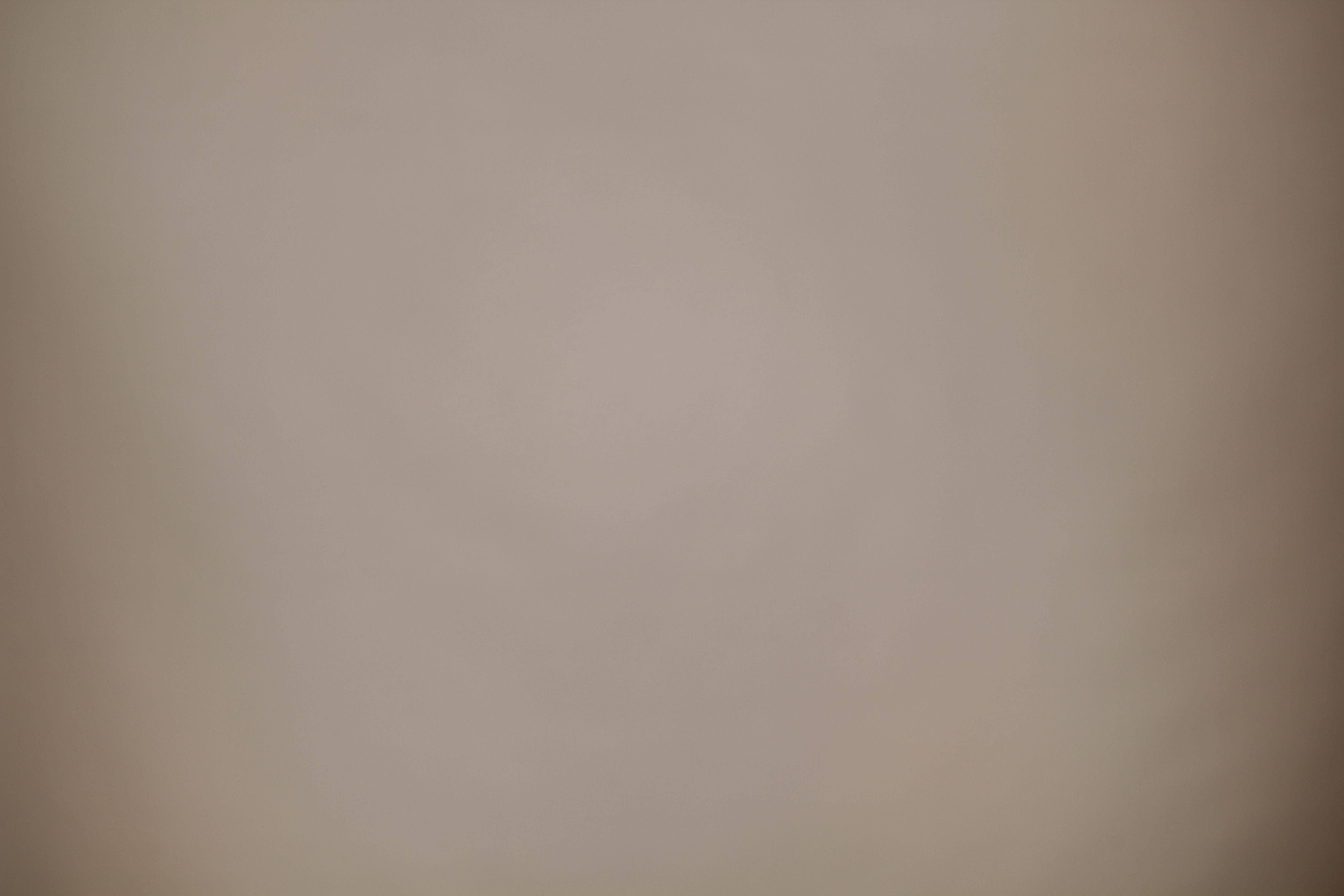

CTM-9 (Tunable White)
LES size: 9.5 mm
Required components:
FWHM:
83°
FWTM:
112°
Peak intensity:
0.560 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

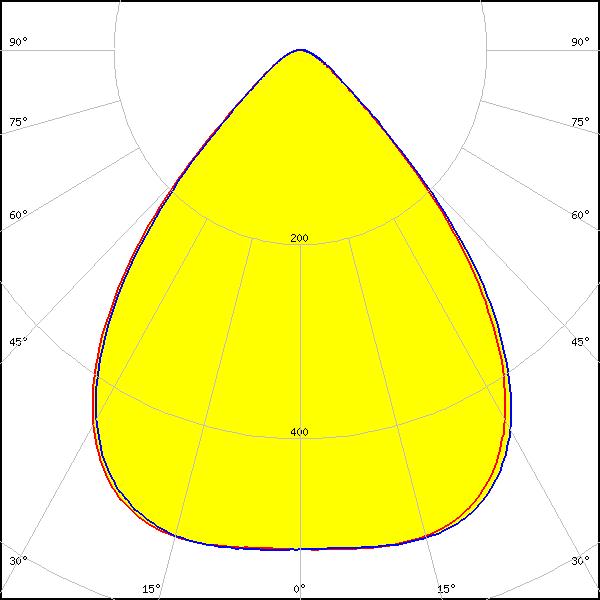

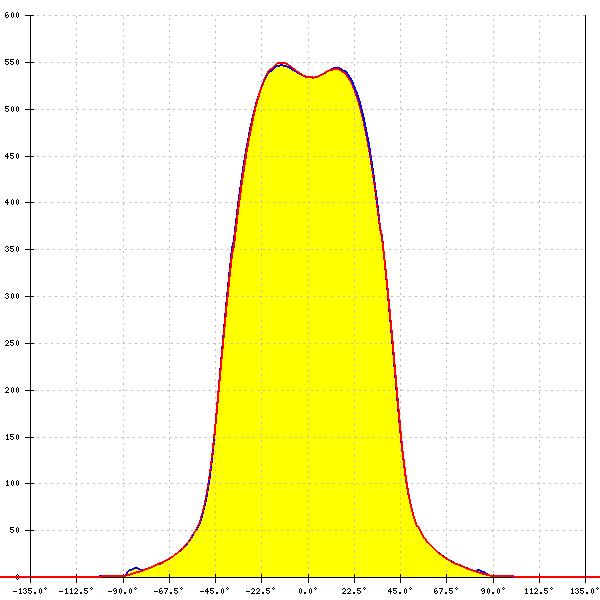

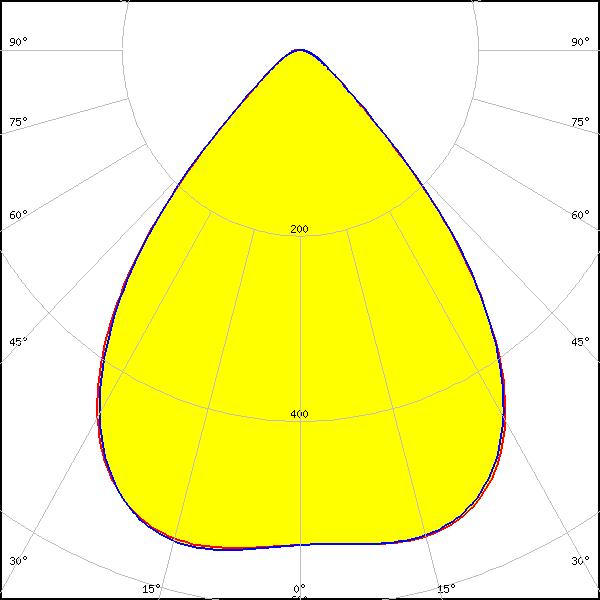

CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
81°
FWTM:
107°
Peak intensity:
0.550 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

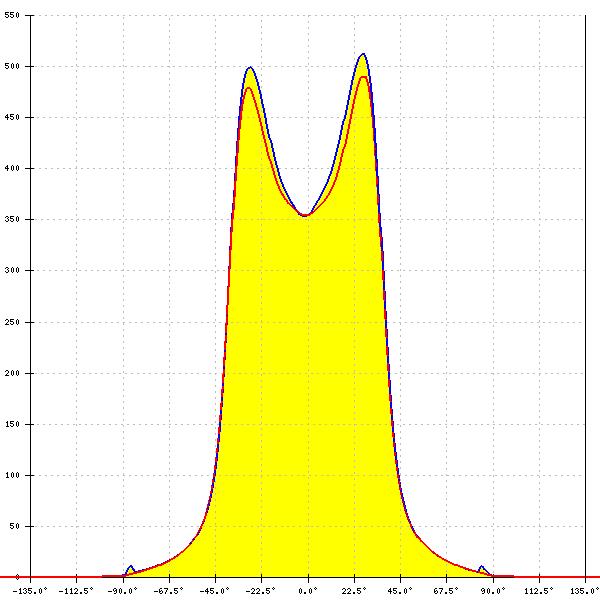

CXM-4
LES size: 4.5 mm
Required components:
FWHM:
82°
FWTM:
111°
Peak intensity:
0.682 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

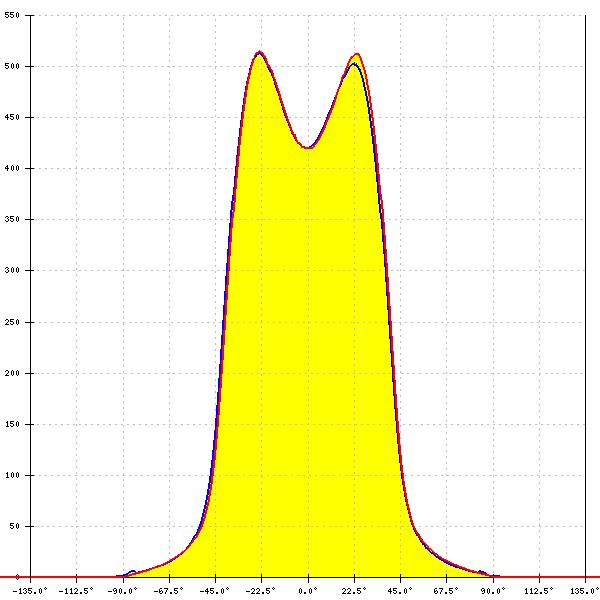

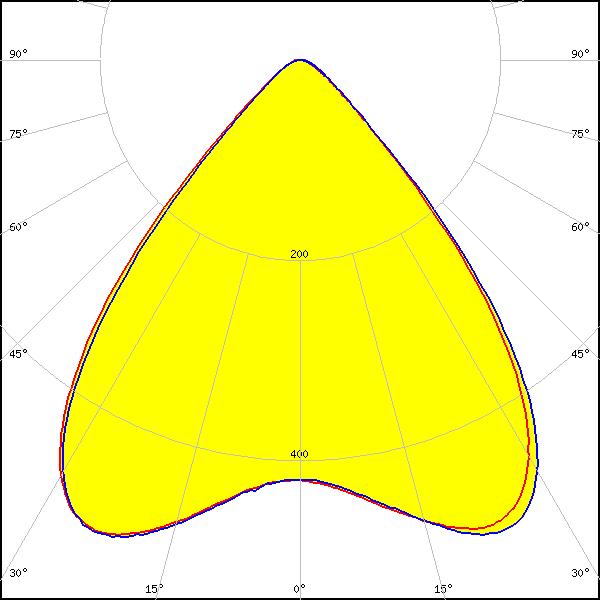

CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
83°
FWTM:
108°
Peak intensity:
0.570 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
LES size: 5.9 mm
Required components:
FWHM:
68° + 74°
FWTM:
83° + 89°
Peak intensity:
0.650 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

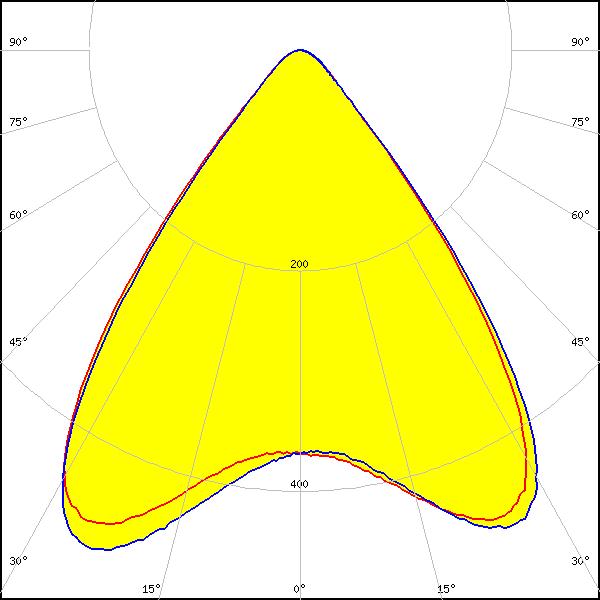

NJCWL024Z-V1MT: COB L-Type Tunable White
LES size: 7.0 mm
Required components:
FWHM:
84°
FWTM:
108°
Peak intensity:
0.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

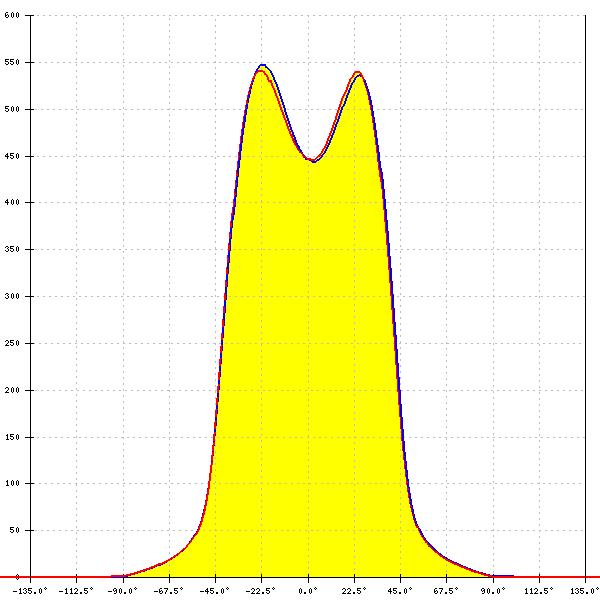

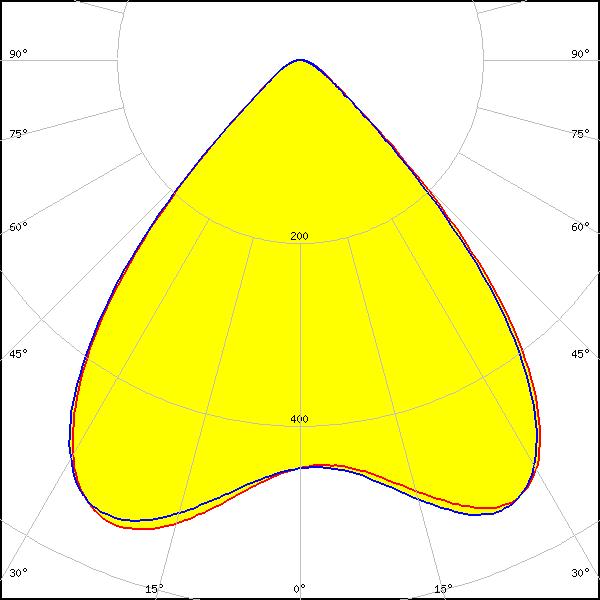

NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
84°
FWTM:
109°
Peak intensity:
0.550 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

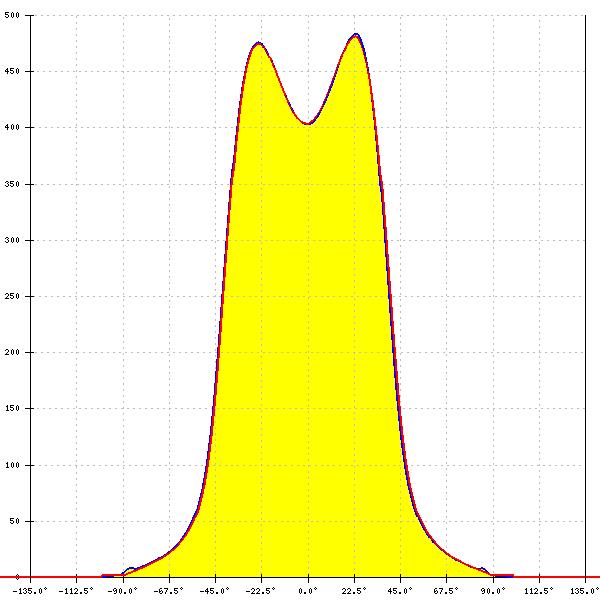

LED:

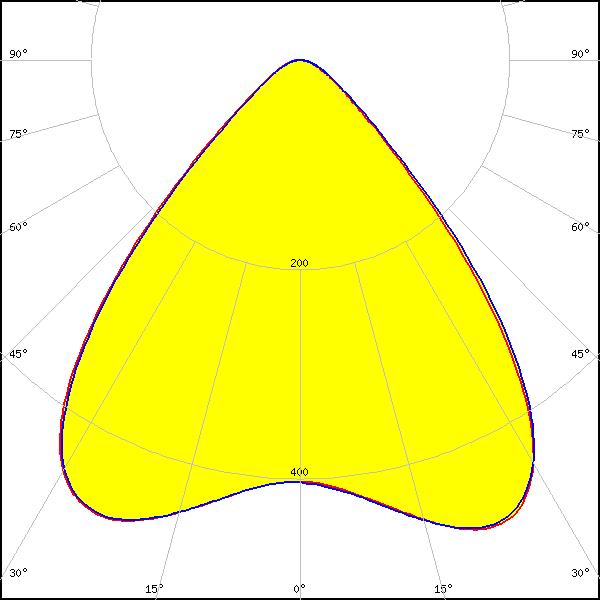

Fortimo SLM L09 CoB
LES size: 9.0 mm
Required components:
FWHM:
85°
FWTM:
116°
Peak intensity:
0.540 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

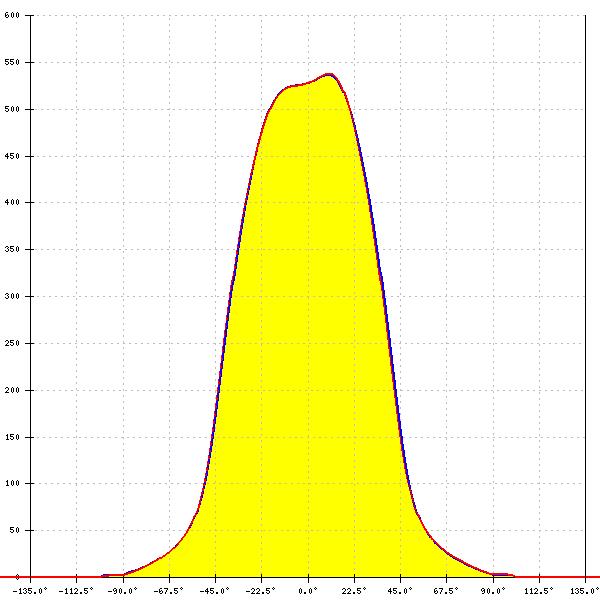

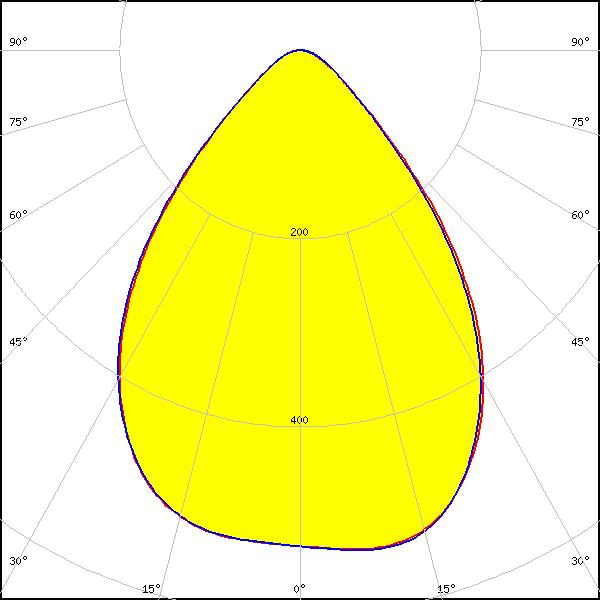

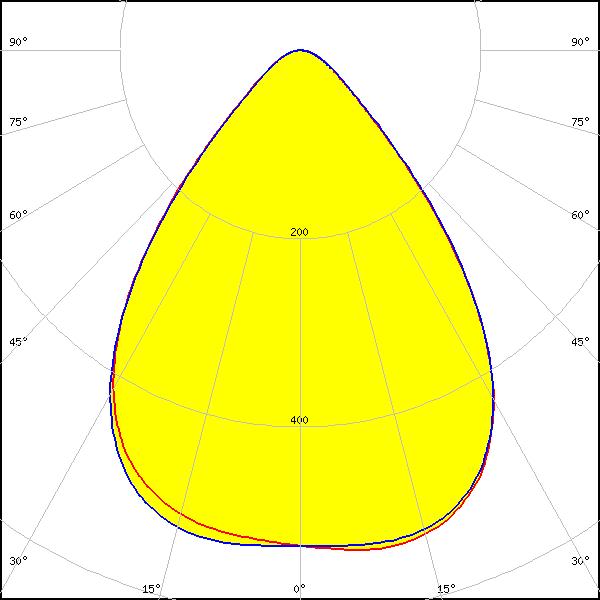

Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
78°
FWTM:
113°
Peak intensity:
0.540 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
78°
FWTM:
114°
Peak intensity:
0.540 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
FWHM:
84°
FWTM:
110°
Peak intensity:
0.560 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

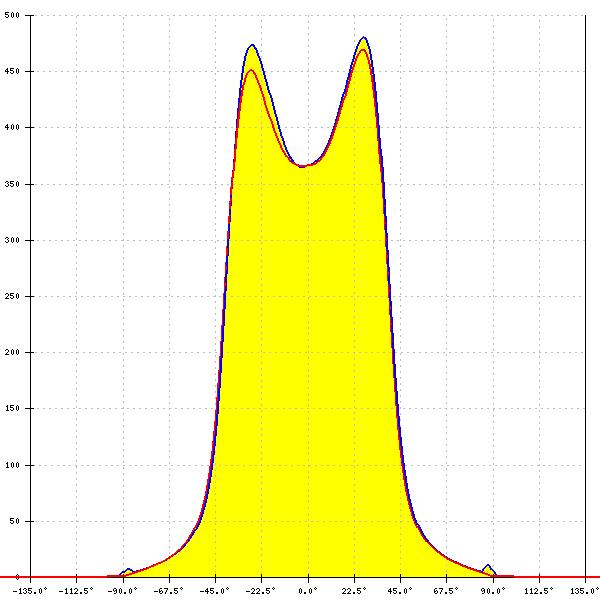

LED:

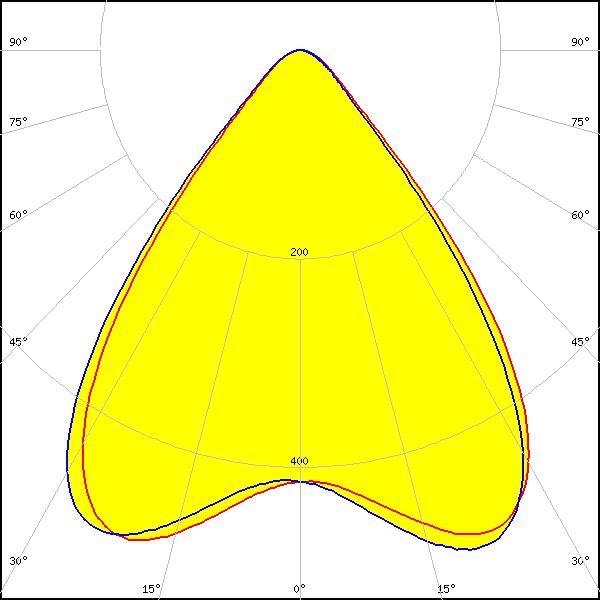

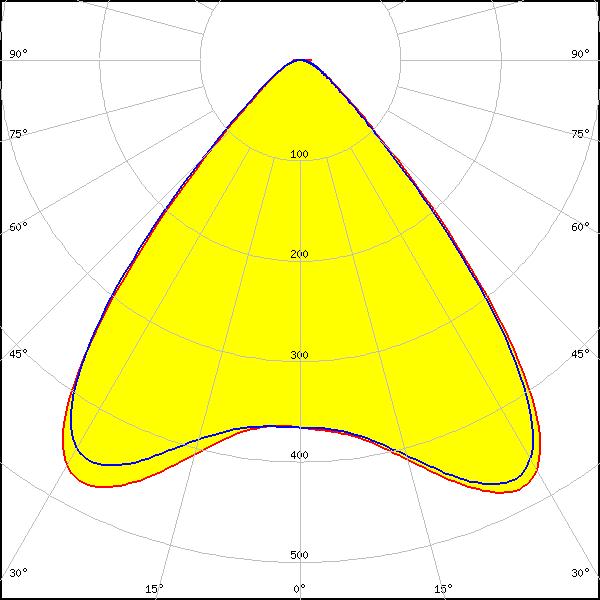

LC010C
LES size: 6.0 mm
Required components:
FWHM:
85°
FWTM:
113°
Peak intensity:
0.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

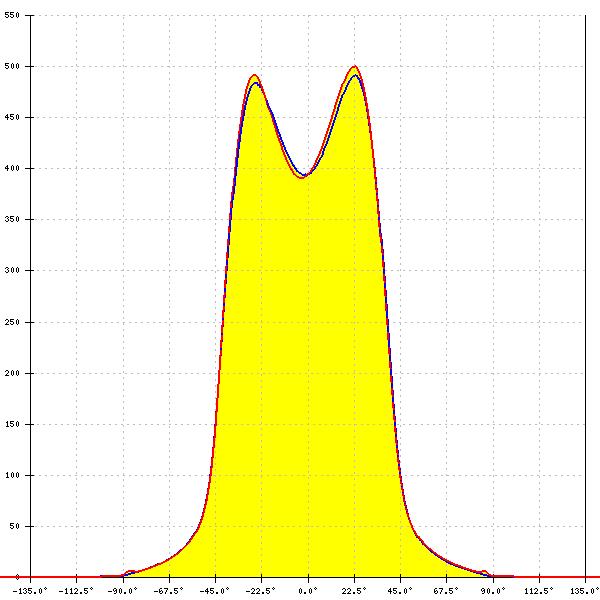

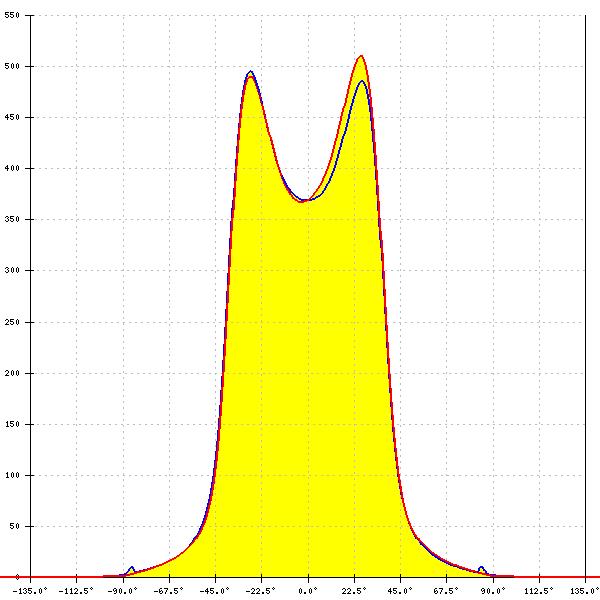

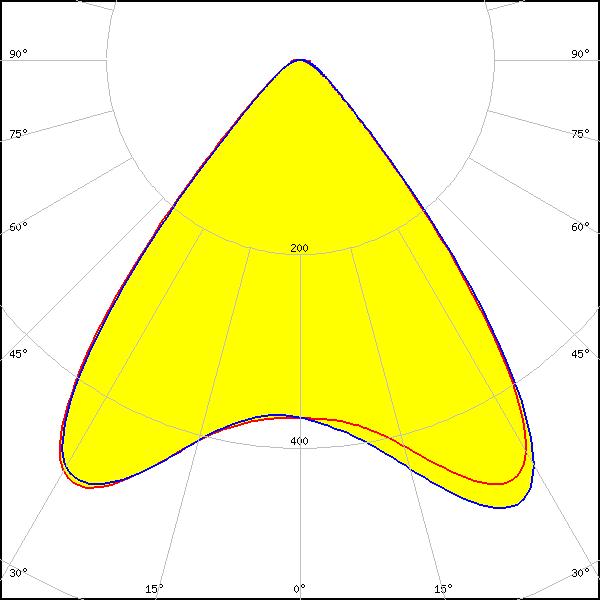

LC010C G2
LES size: 6.0 mm
Required components:
FWHM:
82°
FWTM:
109°
Peak intensity:
0.660 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

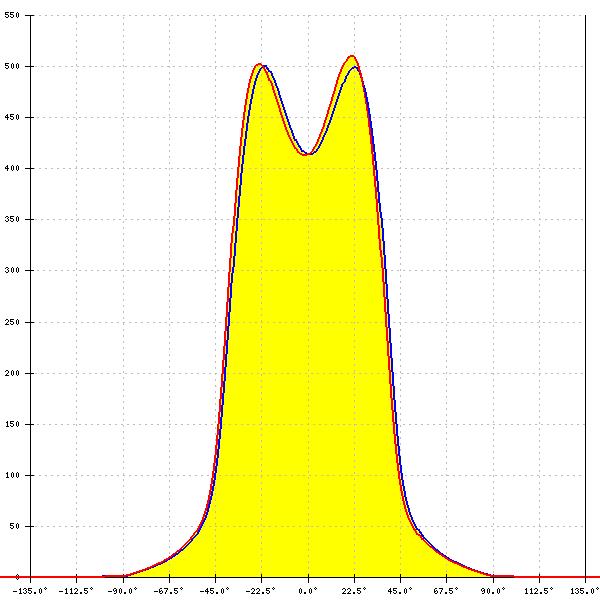

LC010T (Tunable White)
LES size: 9.8 mm
Required components:
FWHM:
78°
FWTM:
104°
Peak intensity:
0.564 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

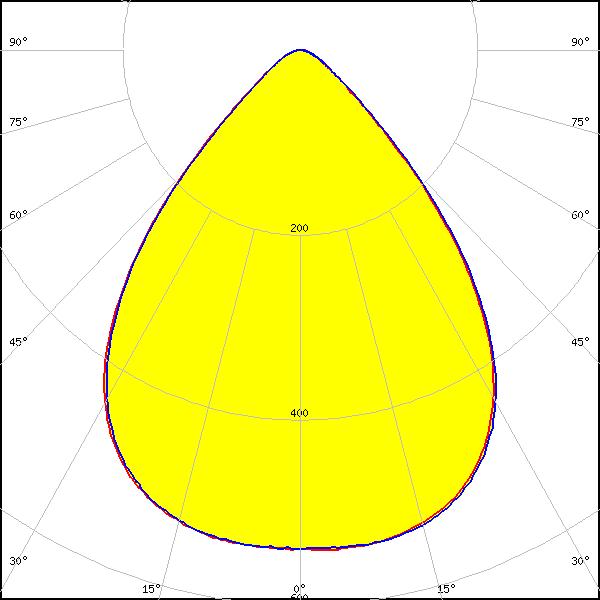

LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
81°
FWTM:
110°
Peak intensity:
0.540 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

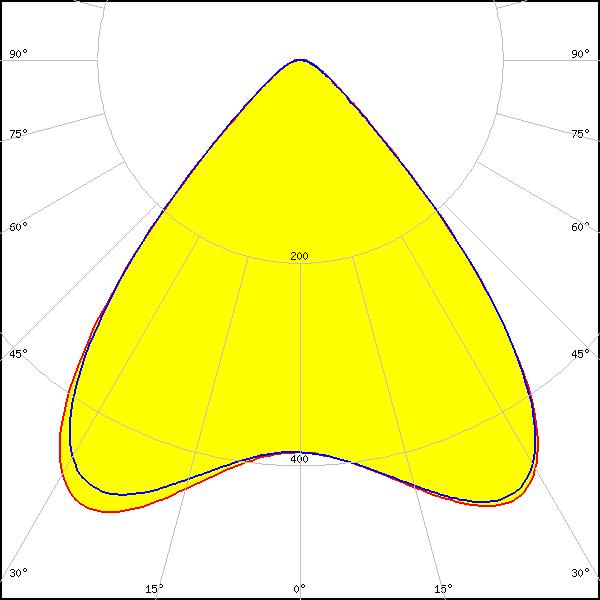

LED:

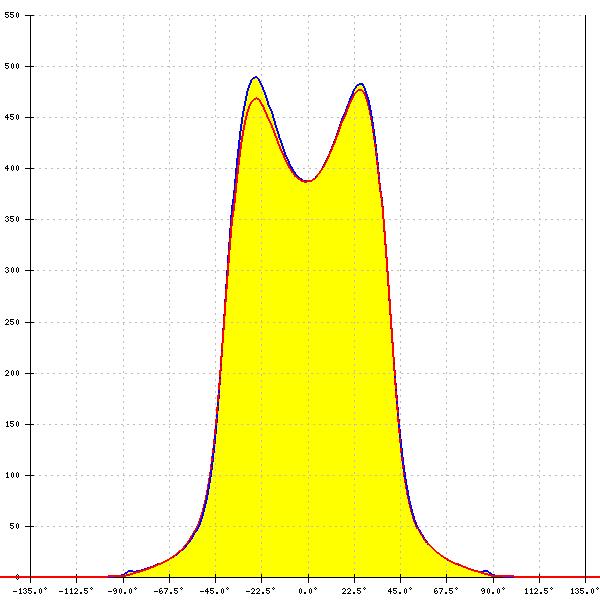

LC020C
LES size: 8.0 mm
Required components:
FWHM:
85°
FWTM:
112°
Peak intensity:
0.570 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

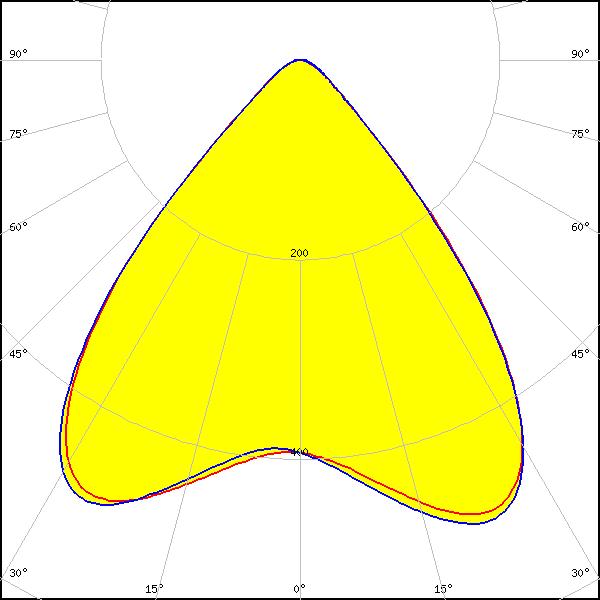

LC020C G2
LES size: 8.5 mm
Required components:
FWHM:
80°
FWTM:
105°
Peak intensity:
0.564 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

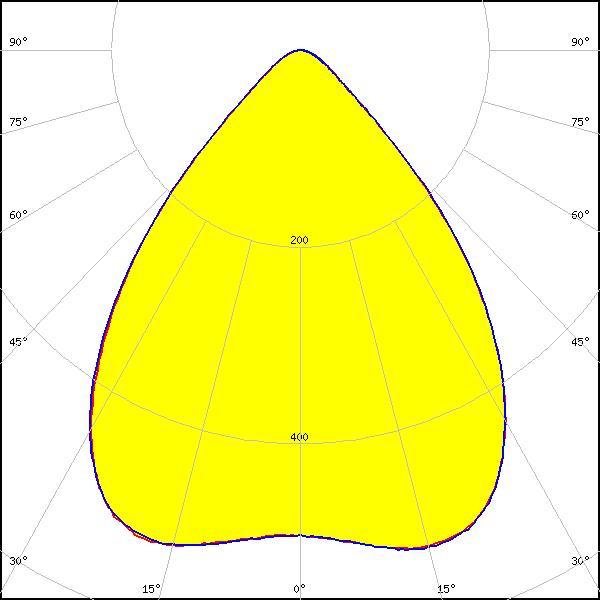

LED:

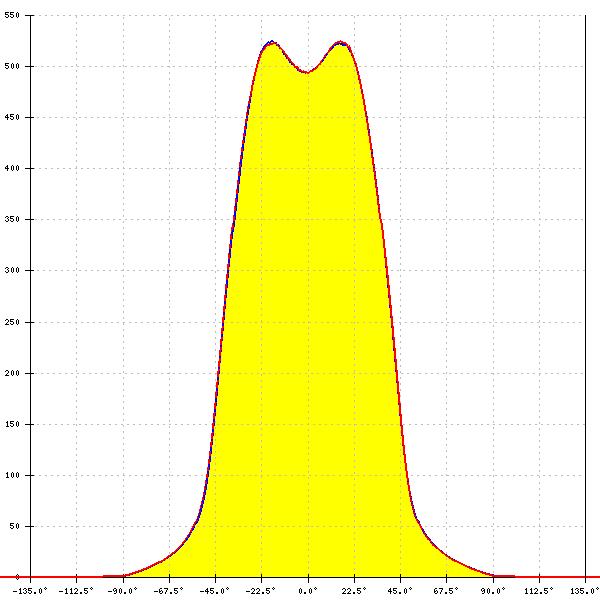

LC020T (Tunable white)
LES size: 13.0 mm
Required components:
FWHM:
81°
FWTM:
109°
Peak intensity:
0.525 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
MJT COB LES 14.5
LES size: 14.5 mm
Required components:
FWHM:
81°
FWTM:
110°
Peak intensity:
0.540 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

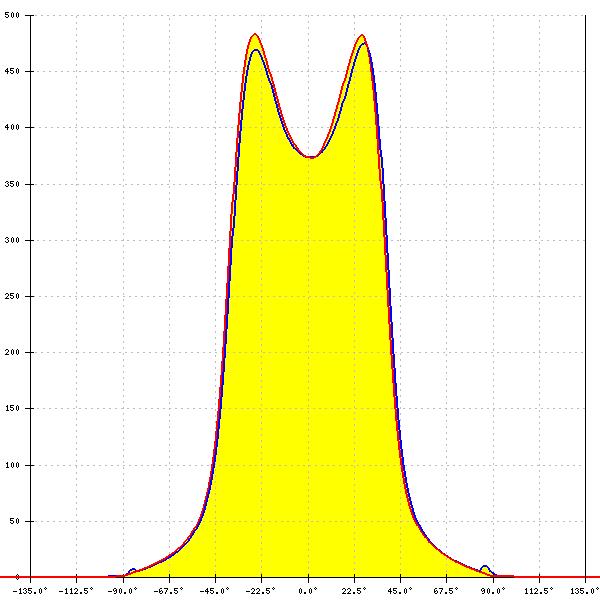

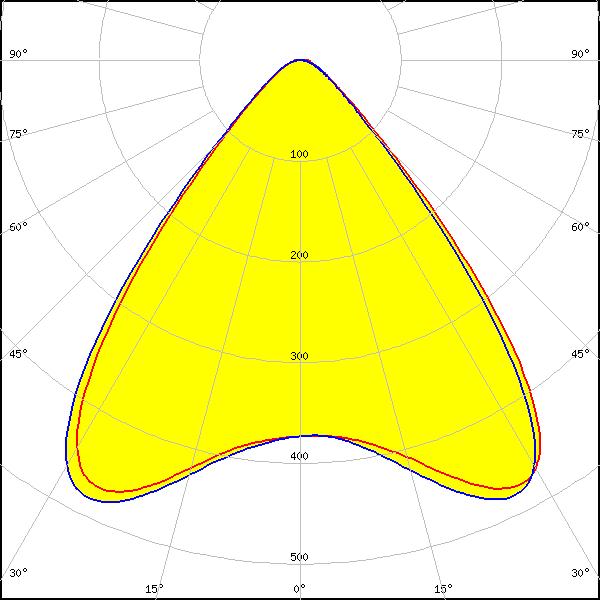

MJT COB LES 6
LES size: 6.0 mm
Required components:
FWHM:
83°
FWTM:
113°
Peak intensity:
0.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

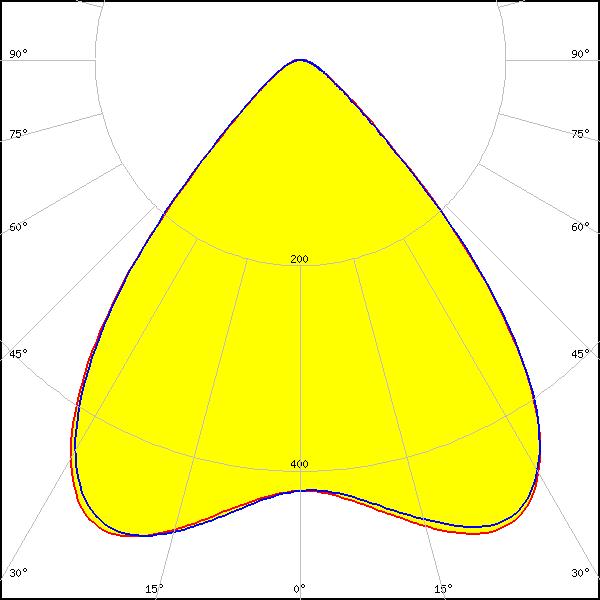

LED:

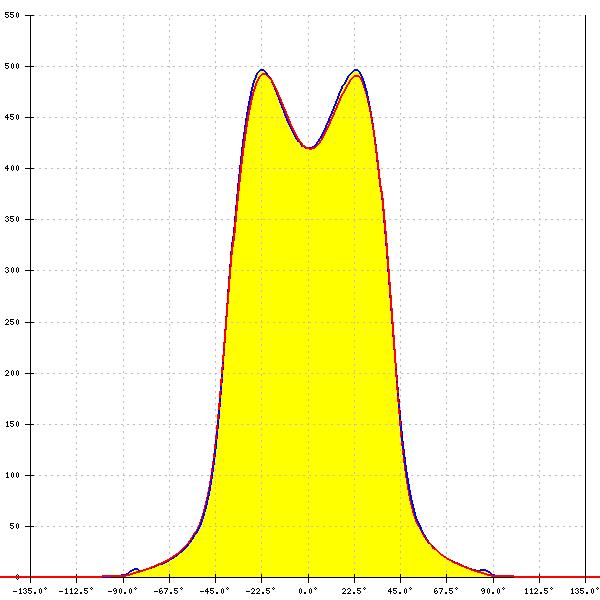

MJT COB LES 9.8
LES size: 9.8 mm
Required components:
FWHM:
84°
FWTM:
111°
Peak intensity:
0.530 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

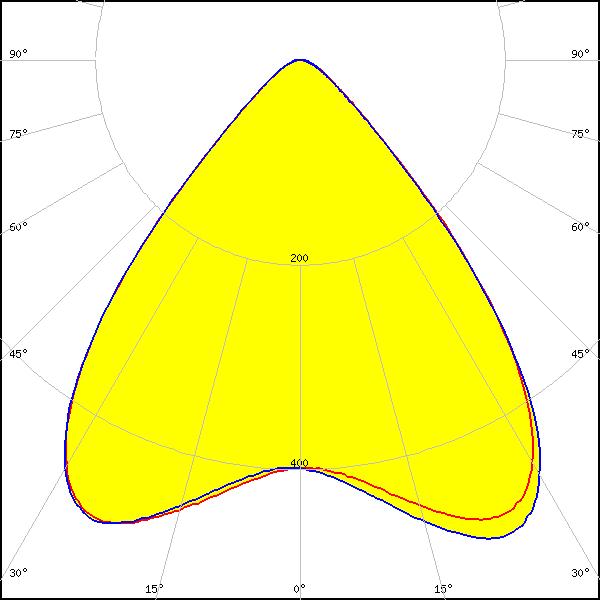

LED:

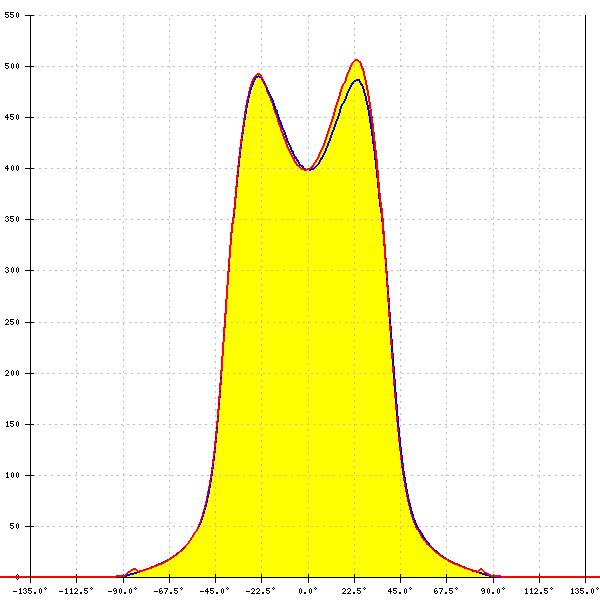

SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM:
84°
FWTM:
111°
Peak intensity:
0.570 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

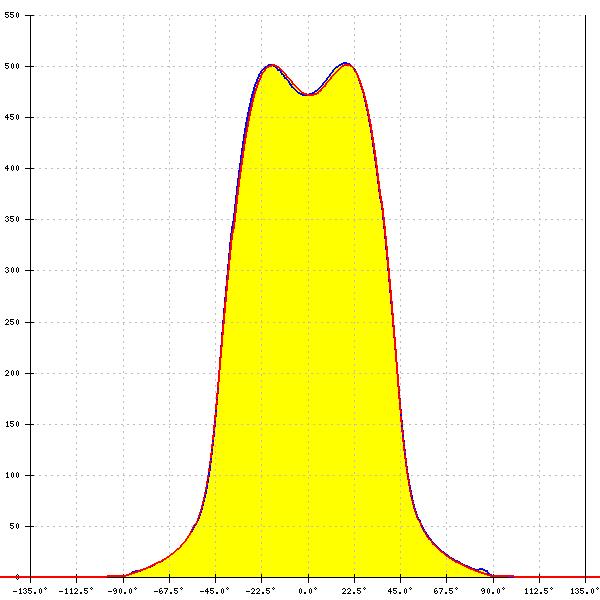

LED:
SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM:
84°
FWTM:
112°
Peak intensity:
0.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

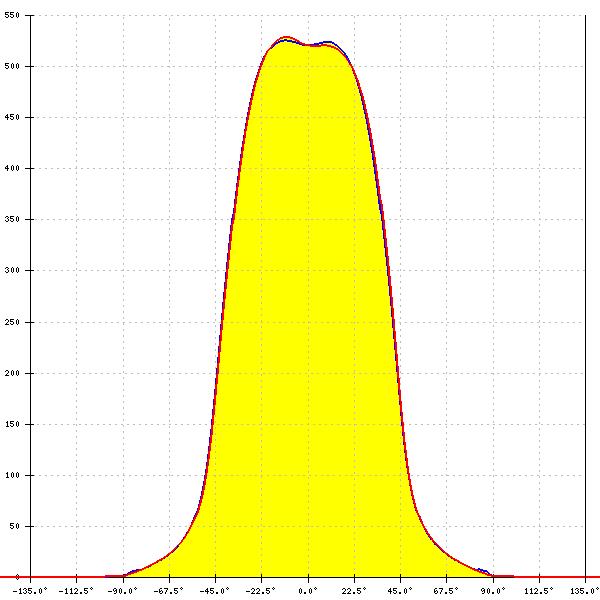

LED:

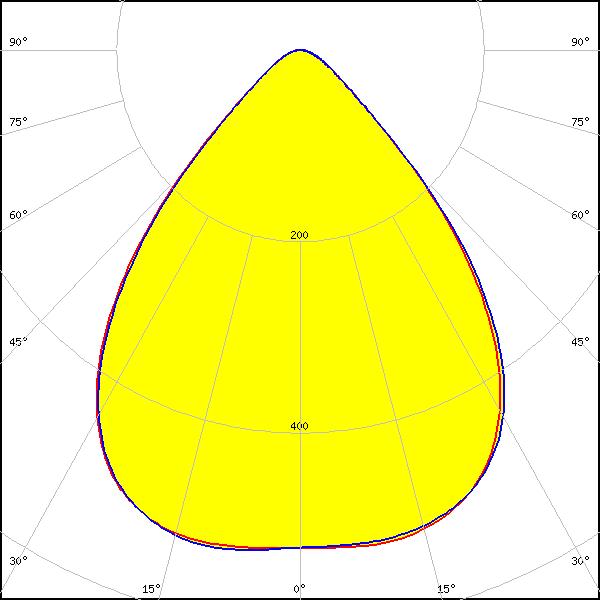

SLE G7 LES15
LES size: 15.0 mm
Required components:
FWHM:
81°
FWTM:
112°
Peak intensity:
0.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
FWHM:
82°
FWTM:
110°
Peak intensity:
0.521 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

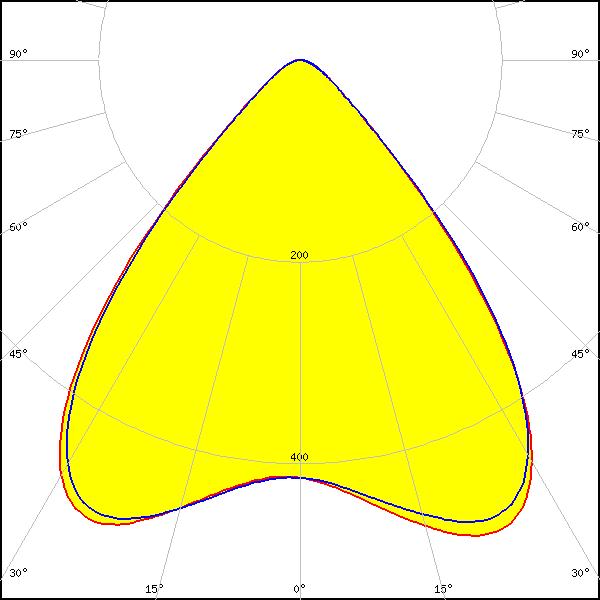

XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM:
80°
FWTM:
106°
Peak intensity:
0.559 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

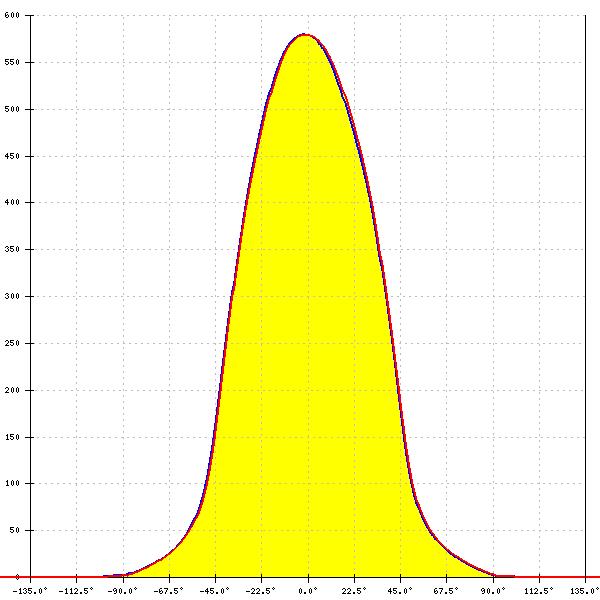

LED:

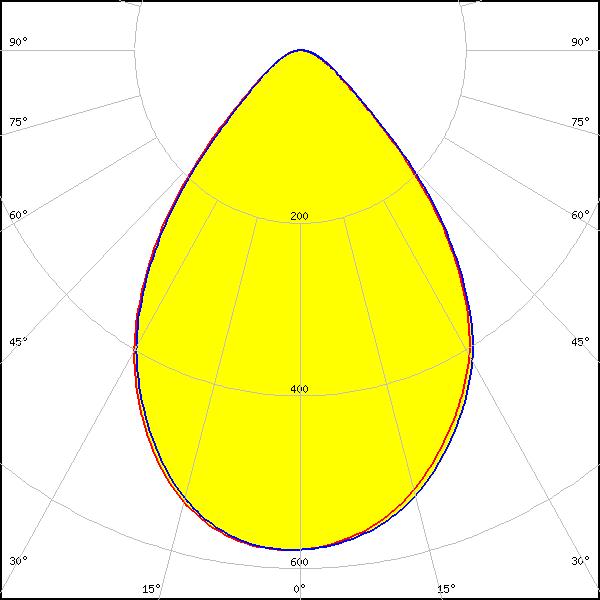

XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM:
76°
FWTM:
113°
Peak intensity:
0.580 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
