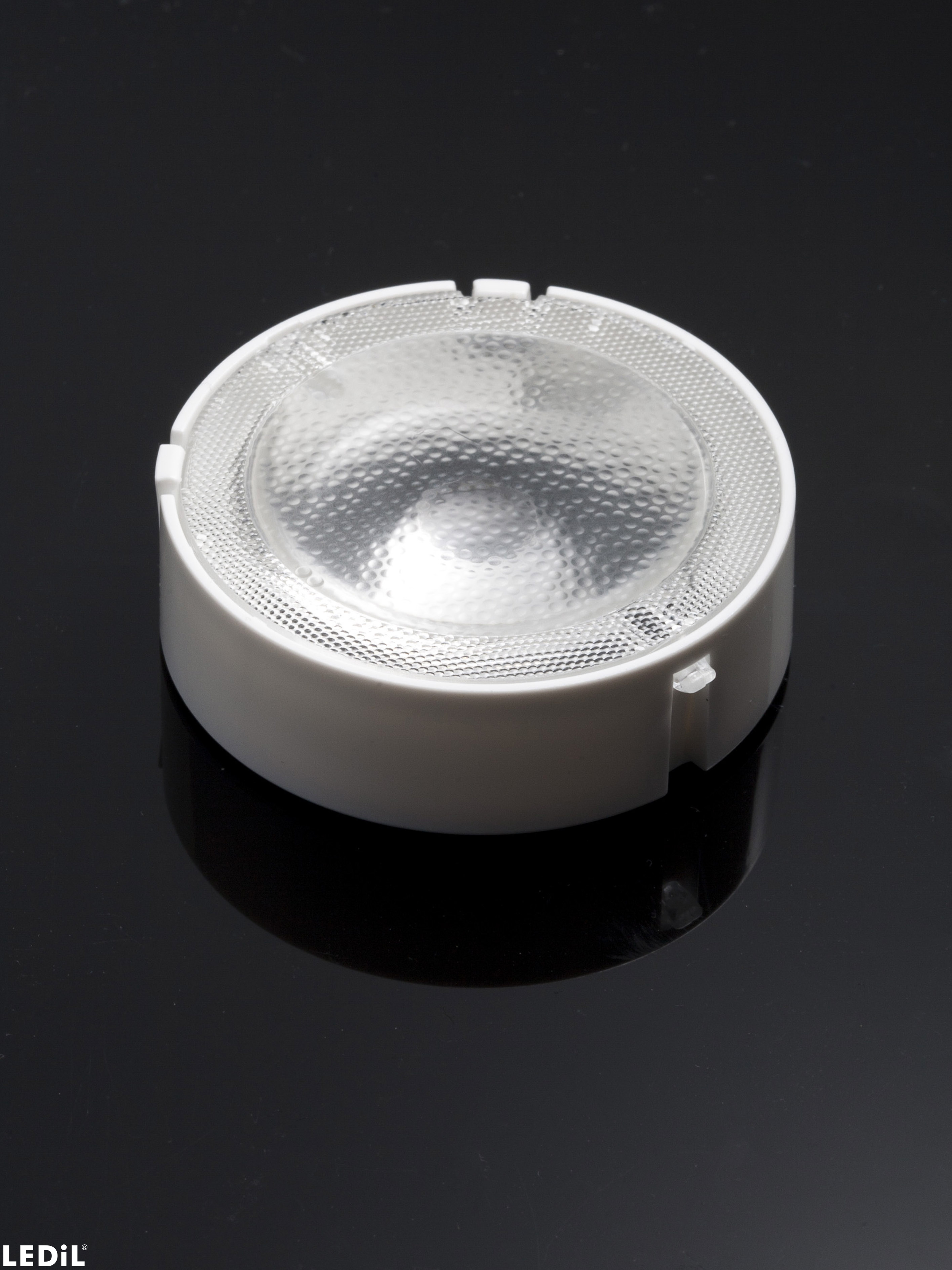

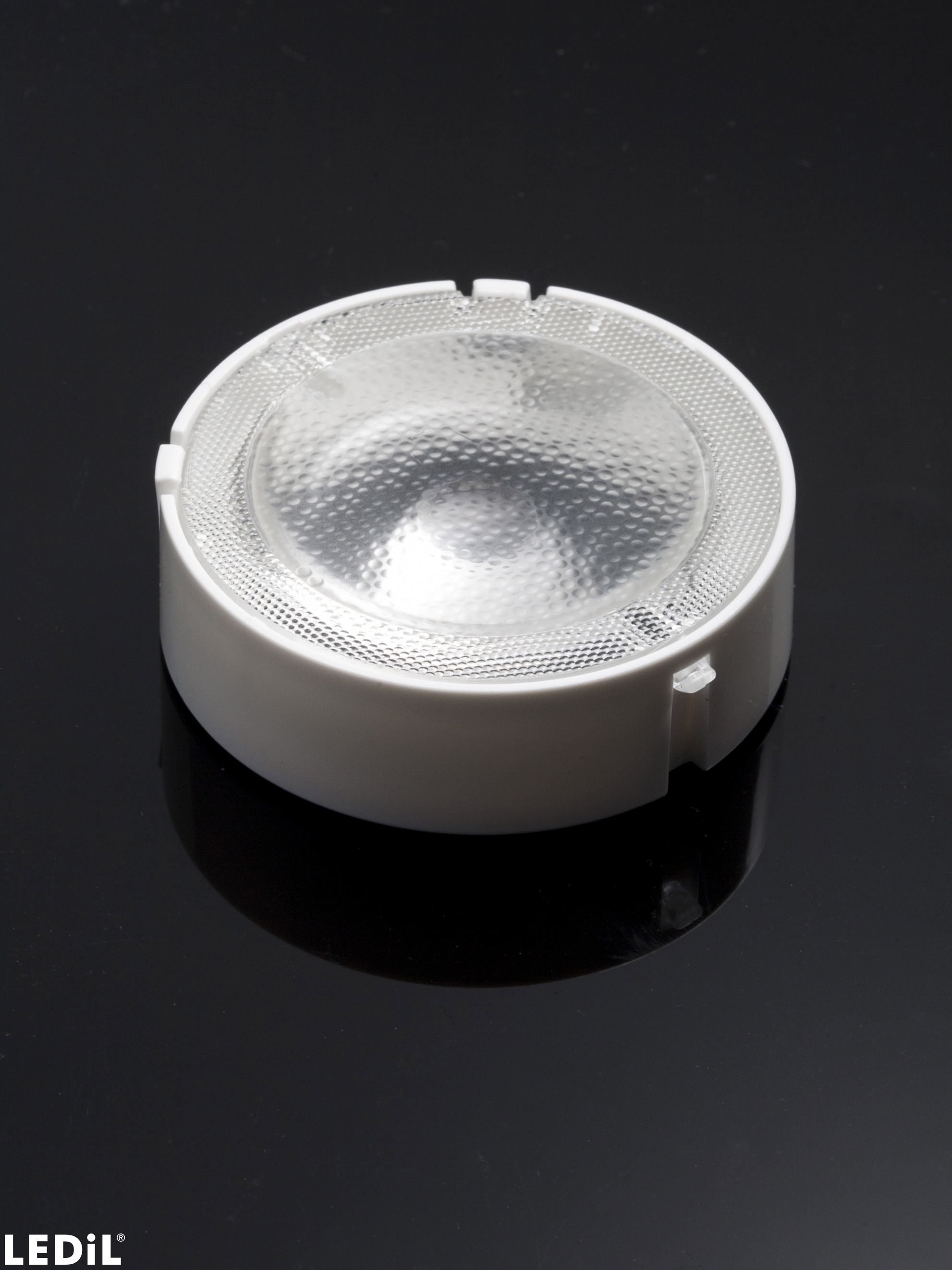

RONDA-WW-C
Print
~60° wide beam with holder C compatible with LEDiL HEKLA
This product consists of multiple parts that need to be ordered separately. See ordering information.
Materials
- Holder
- F15635_RONDA-HLD-CPC
- Request material files from Tech Support
- Single lens
- F15282_RONDA-WWPMMA
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

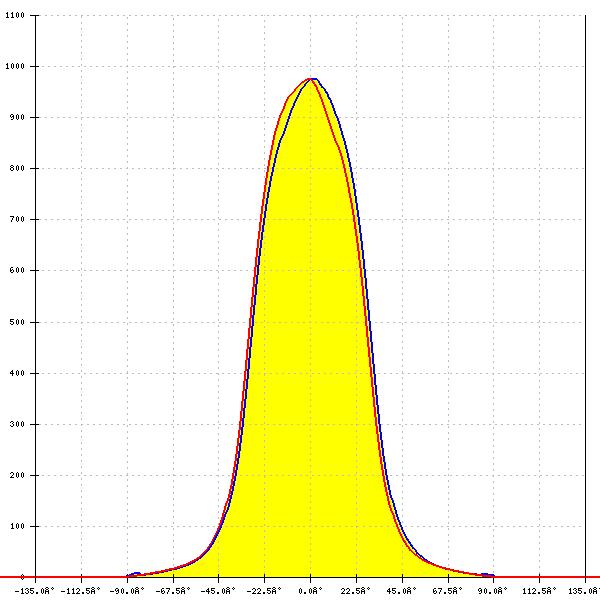

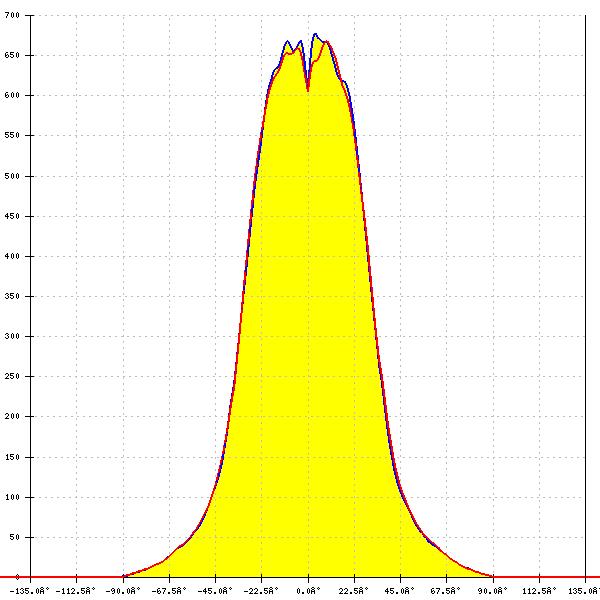

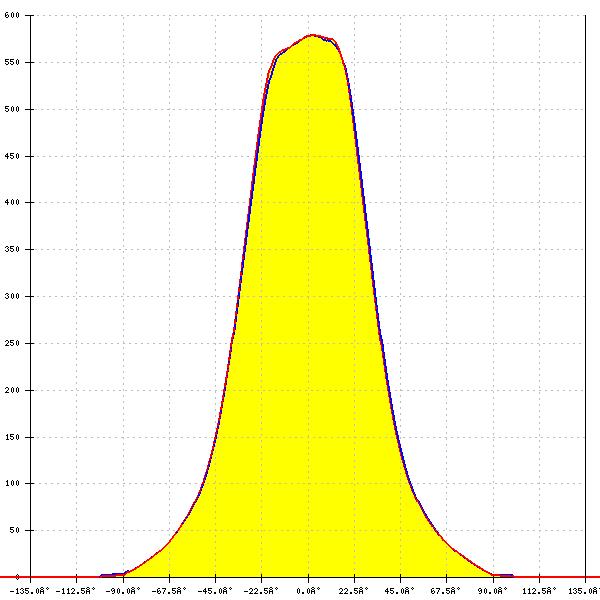

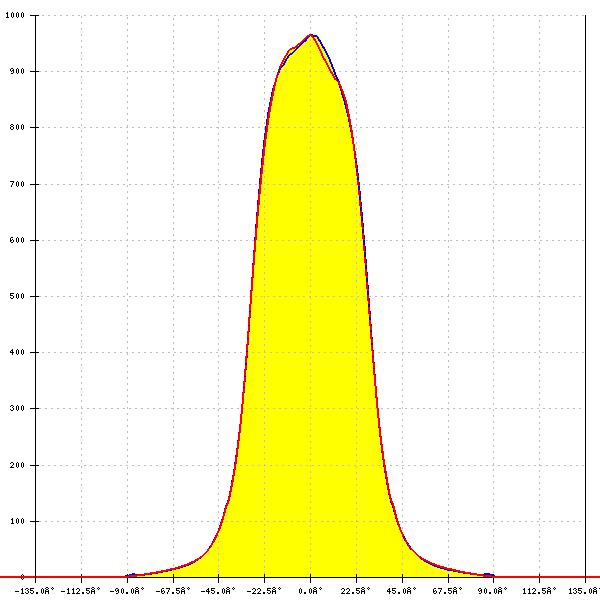

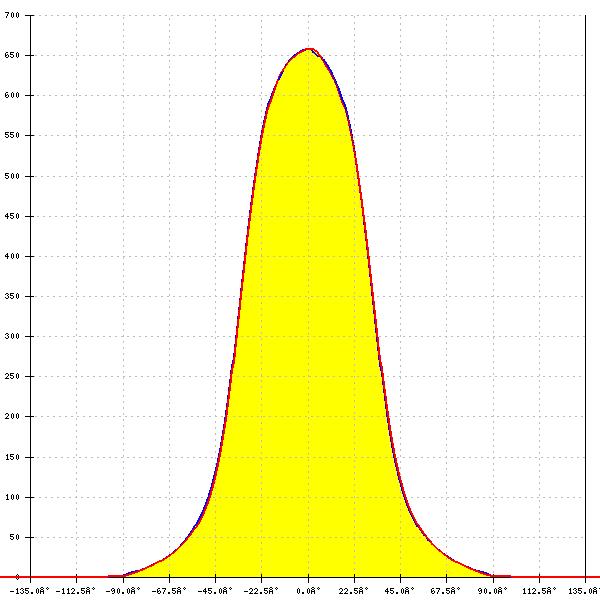

Optical results
LED:

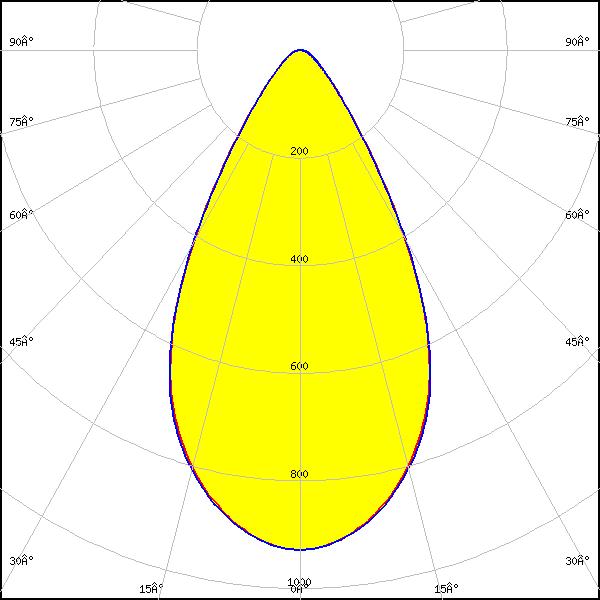

V11 HD Gen 8
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM:
57°
FWTM:
89°
Peak intensity:
0.930 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

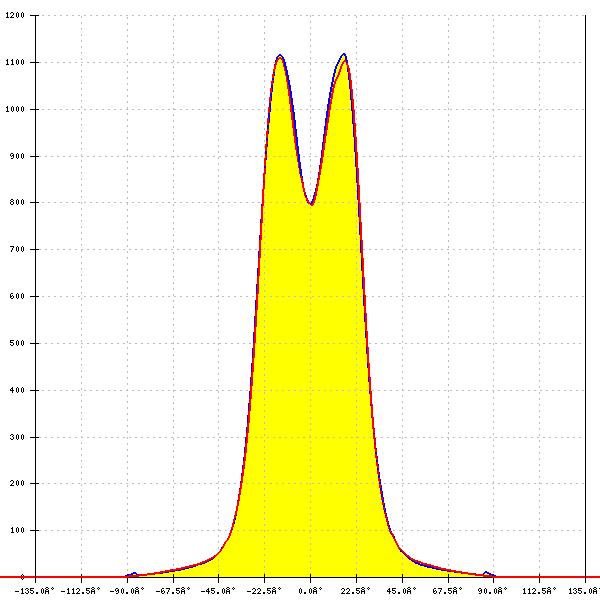

V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM:
59°
FWTM:
82°
Peak intensity:
1.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 Gen6
LES size: 6.0 mm
Required components:
FWHM:
53°
FWTM:
78°
Peak intensity:
1.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

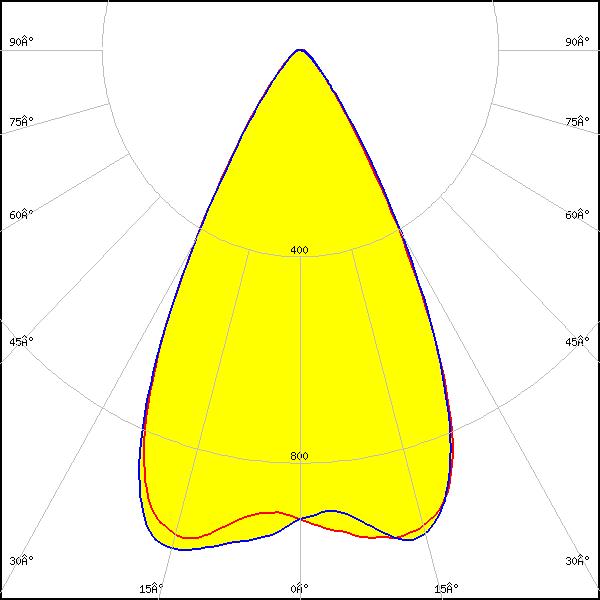

LED:

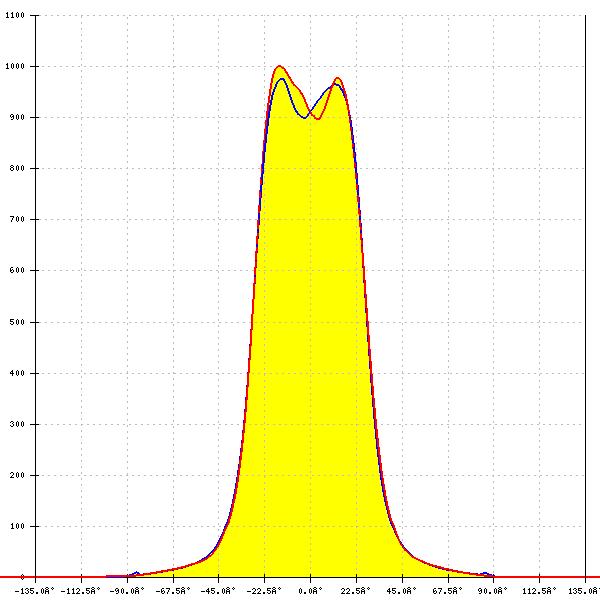

V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM:
58°
FWTM:
84°
Peak intensity:
1.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

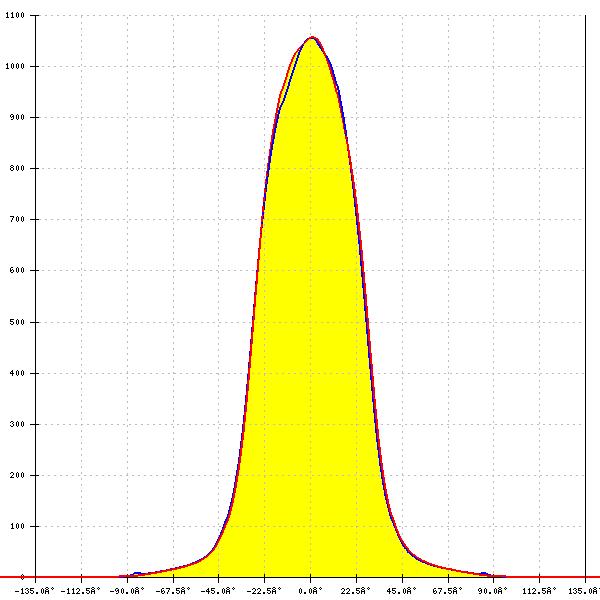

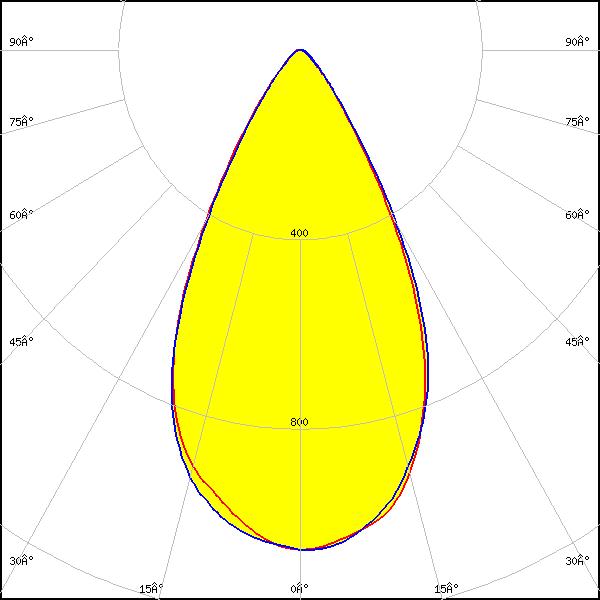

V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM:
55°
FWTM:
83°
Peak intensity:
1.060 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

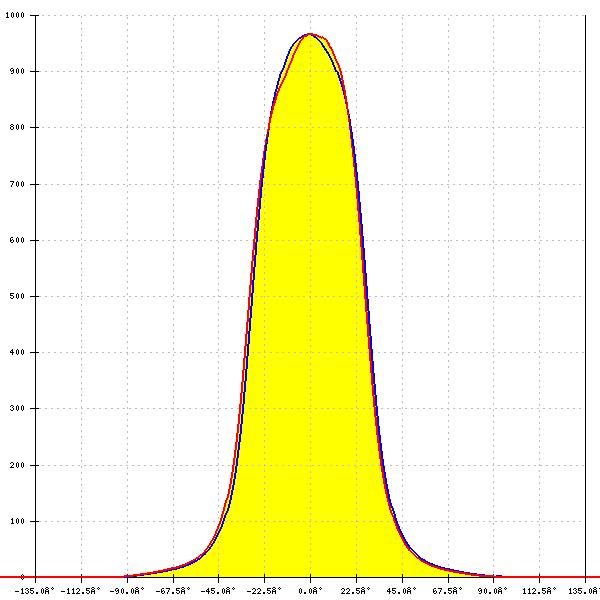

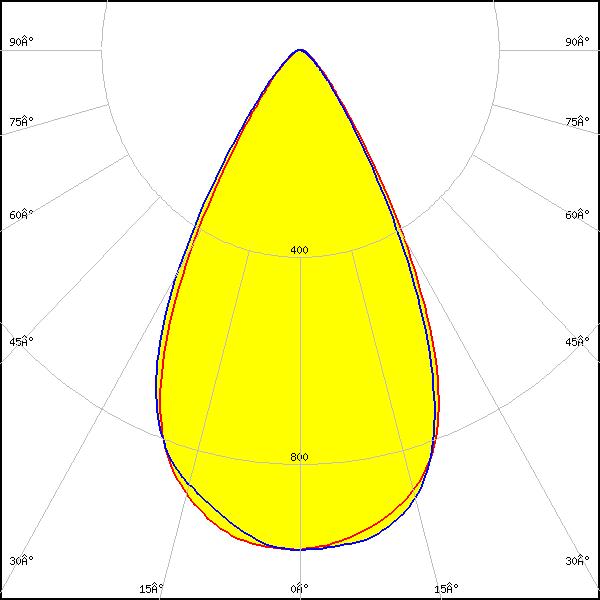

VERO10
LES size: 9.9 mm
Required components:
FWHM:
57°
FWTM:
86°
Peak intensity:
0.970 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

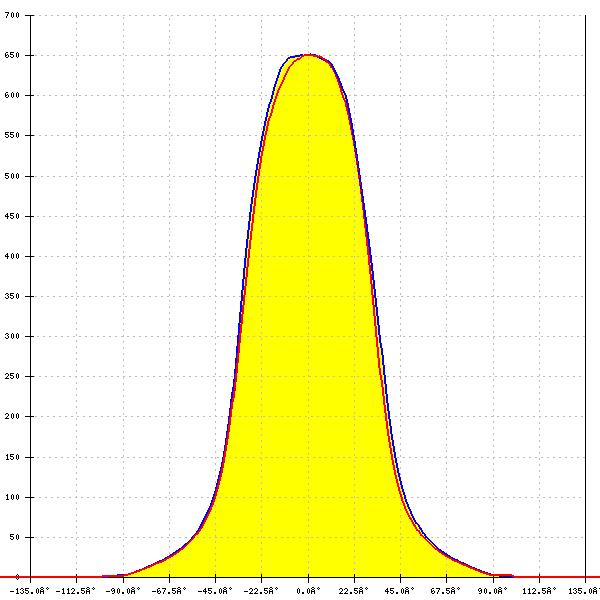

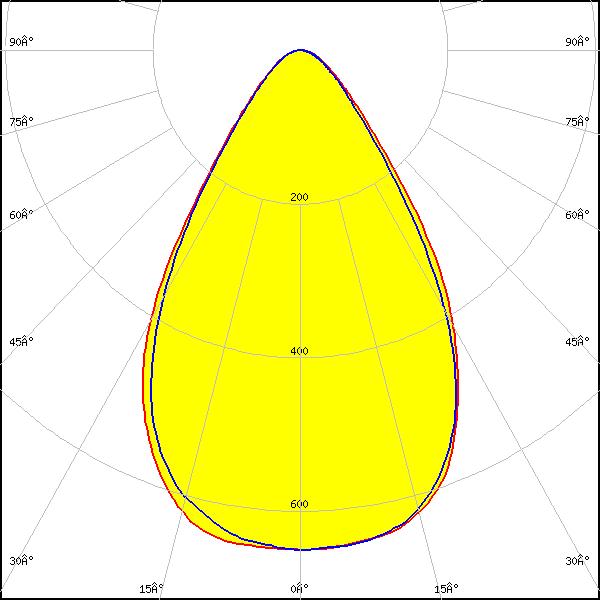

Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
FWHM:
67°
FWTM:
105°
Peak intensity:
0.653 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
Tunable White

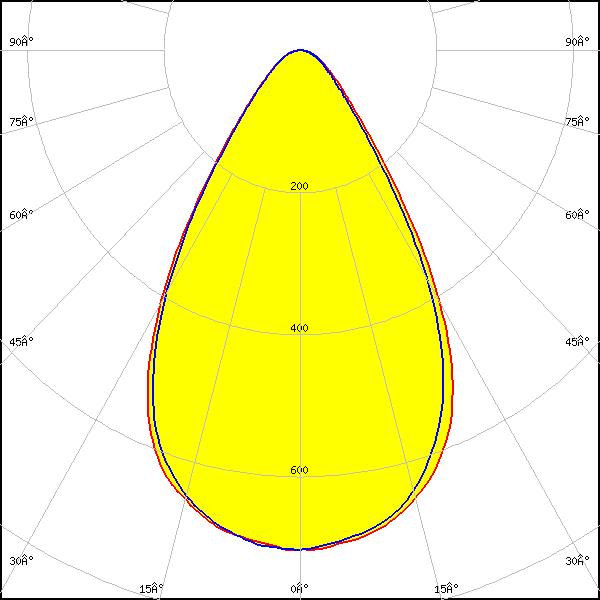

LED:

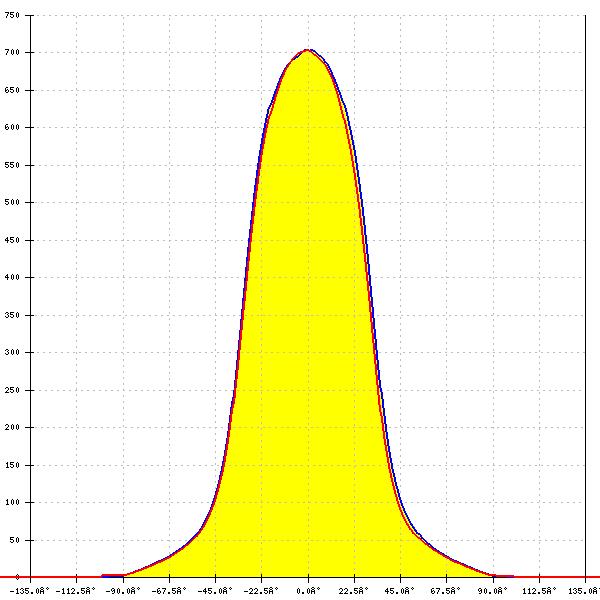

Vesta TW 13mm (25W) CSP
LES size: 14.3 mm
Required components:
FWHM:
63°
FWTM:
100°
Peak intensity:
0.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
55°
FWTM:
77°
Peak intensity:
1.045 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

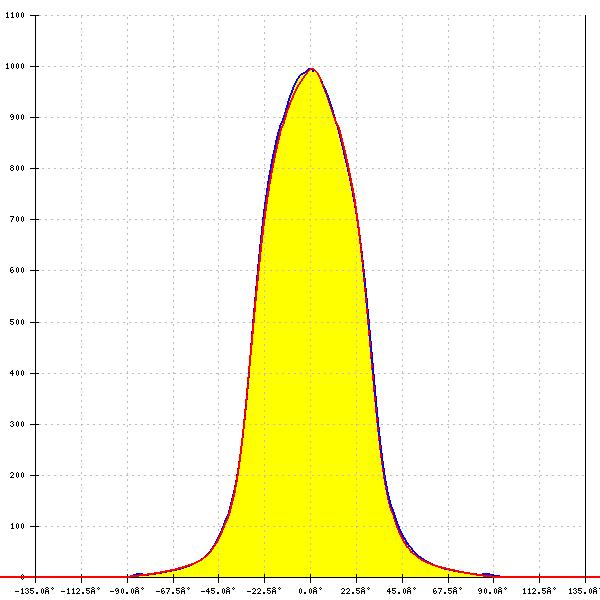

LED:

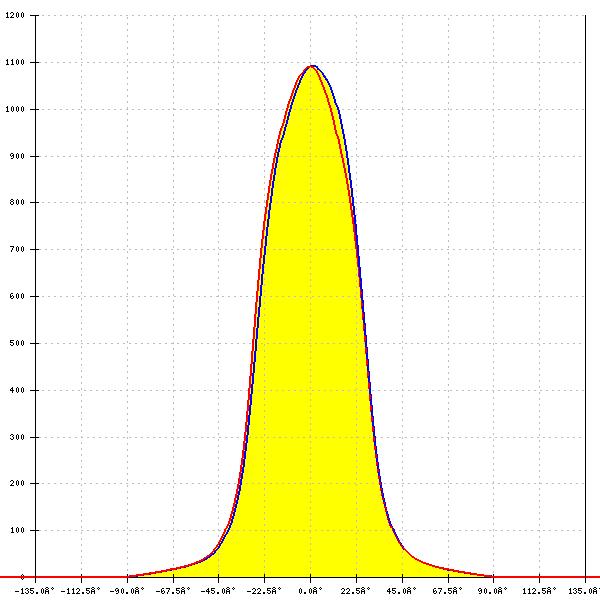

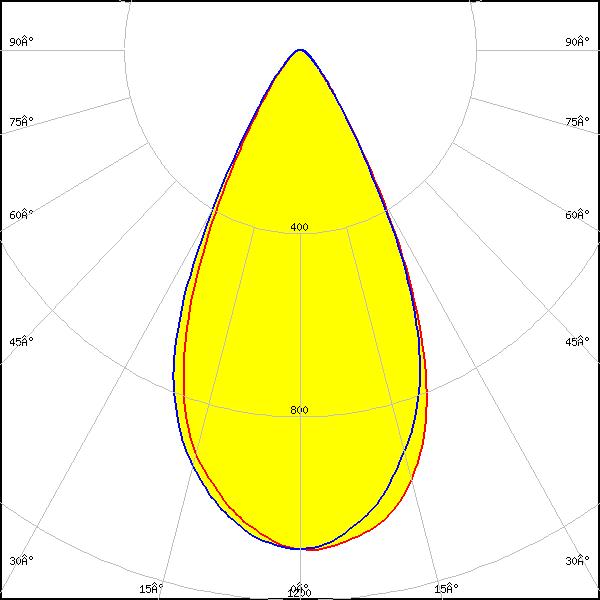

Vesta TW 9mm (12W) CSP
LES size: 9.8 mm
Required components:
FWHM:
53°
FWTM:
80°
Peak intensity:
1.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

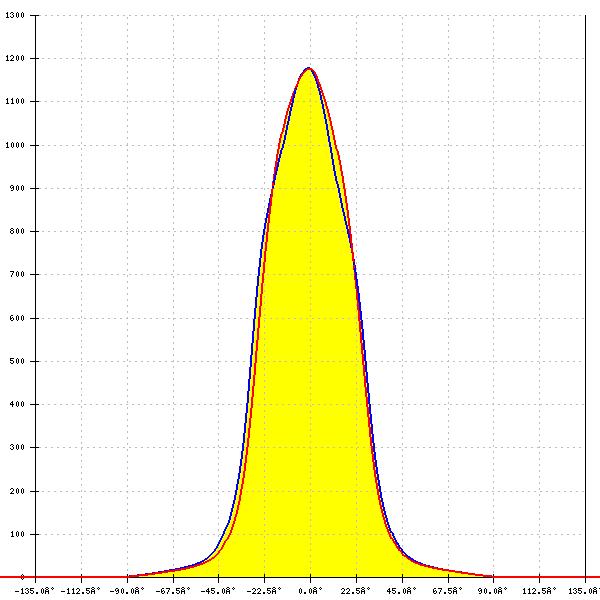

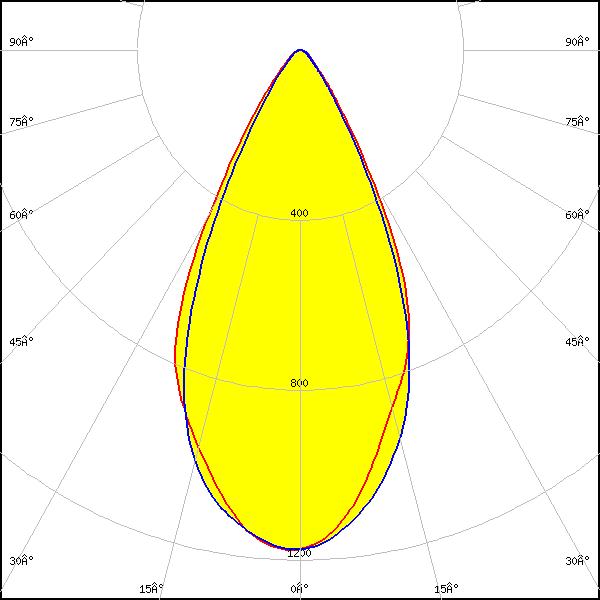

CLC020 Series (Dim-To-Warm)
LES size: 9.8 mm
Required components:
FWHM:
51°
FWTM:
78°
Peak intensity:
1.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

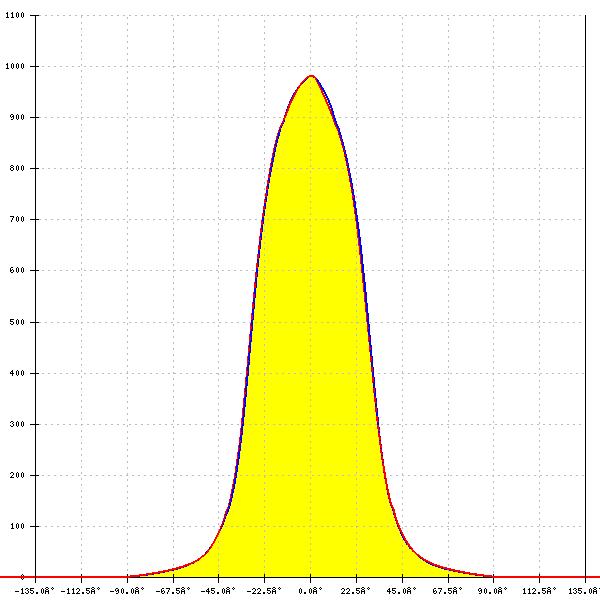

LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
57°
FWTM:
87°
Peak intensity:
0.980 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

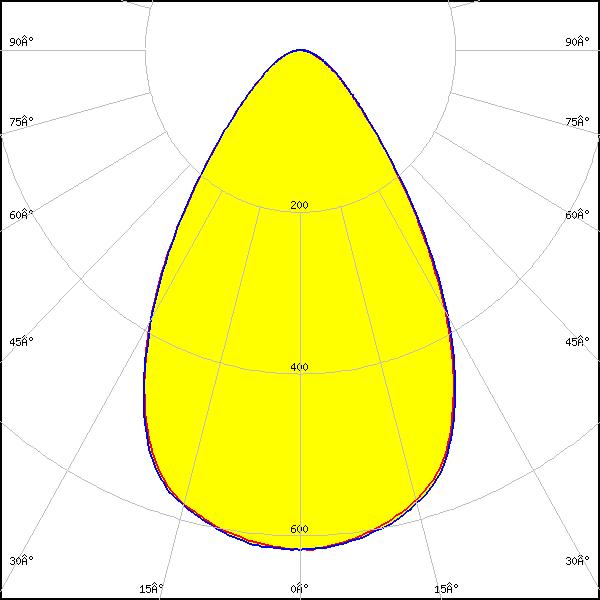

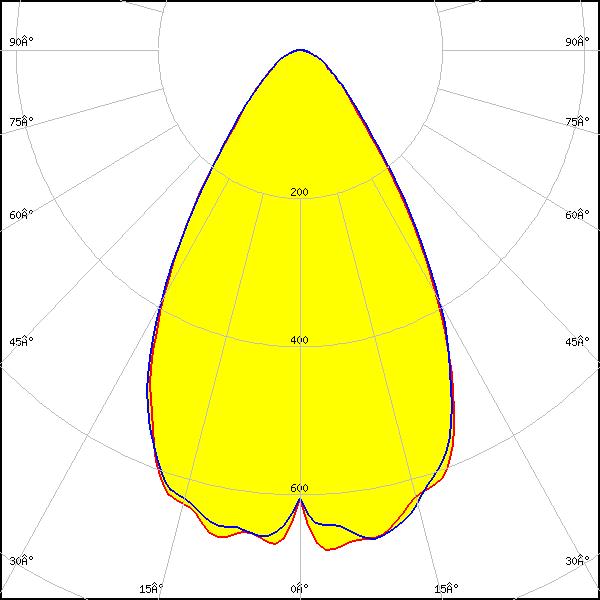

CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
63°
FWTM:
104°
Peak intensity:
0.709 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

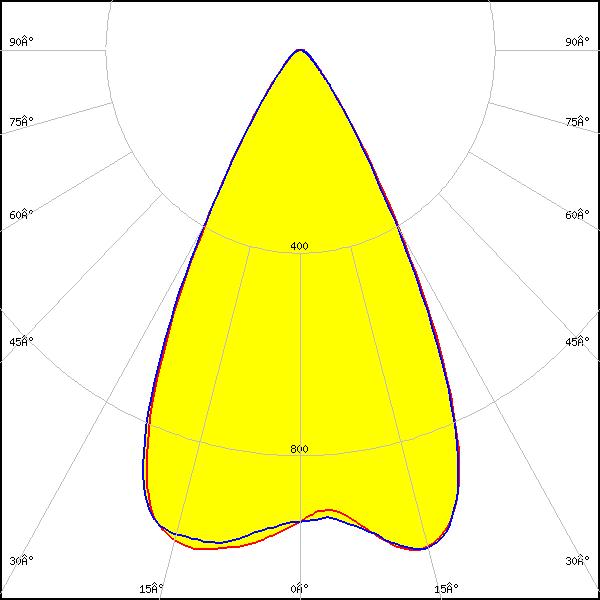

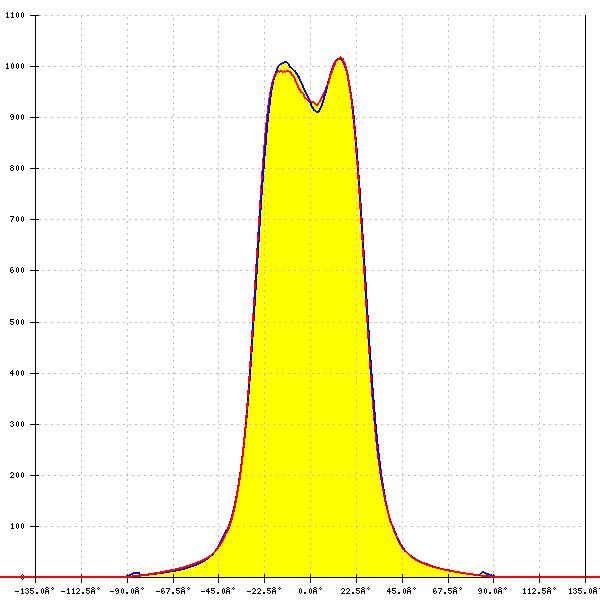

CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
57°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

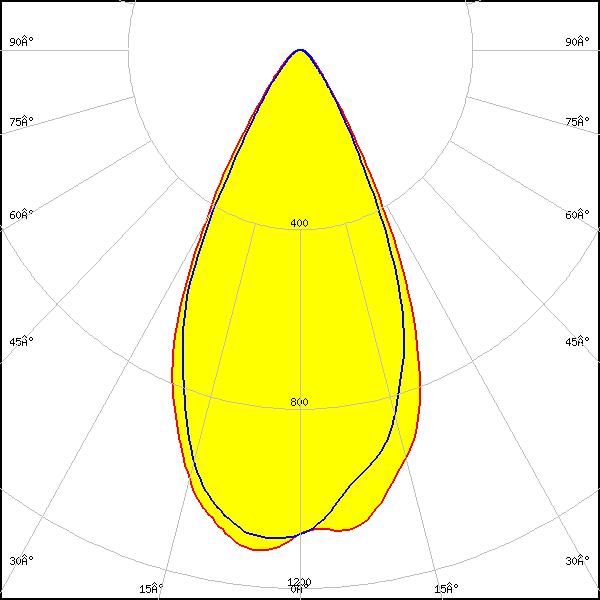

LCN-C01B (Tunable White)
LES size: 10.9 mm
Required components:
FWHM:
53°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

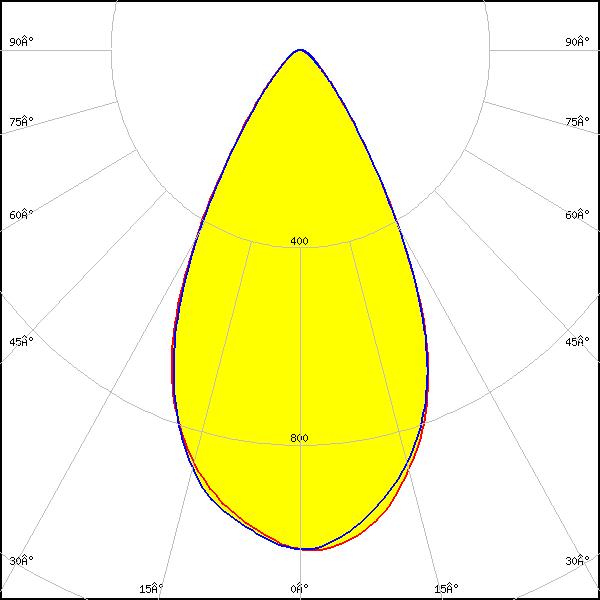

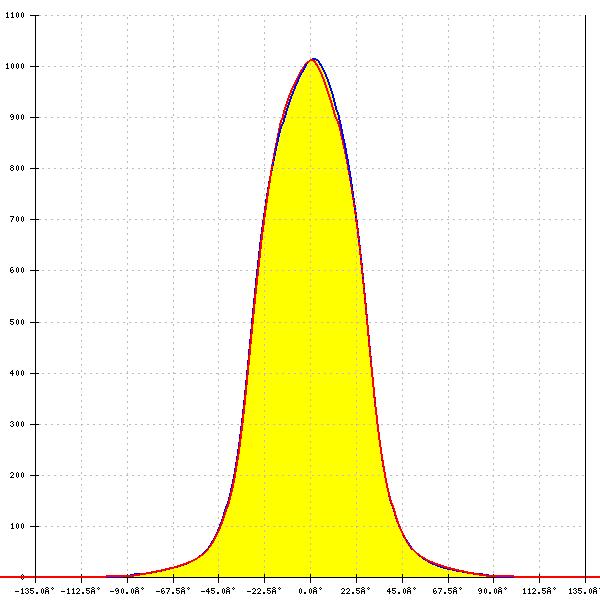

LED:
CMA1516
LES size: 9.0 mm
Required components:
FWHM:
56°
FWTM:
87°
Peak intensity:
1.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

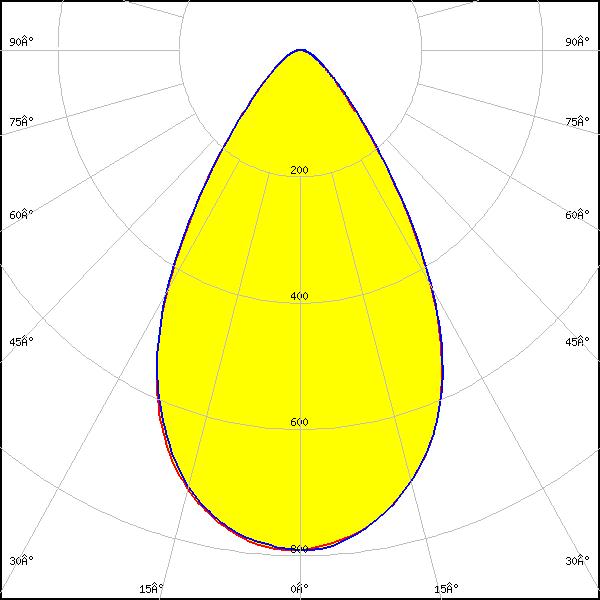

LED:

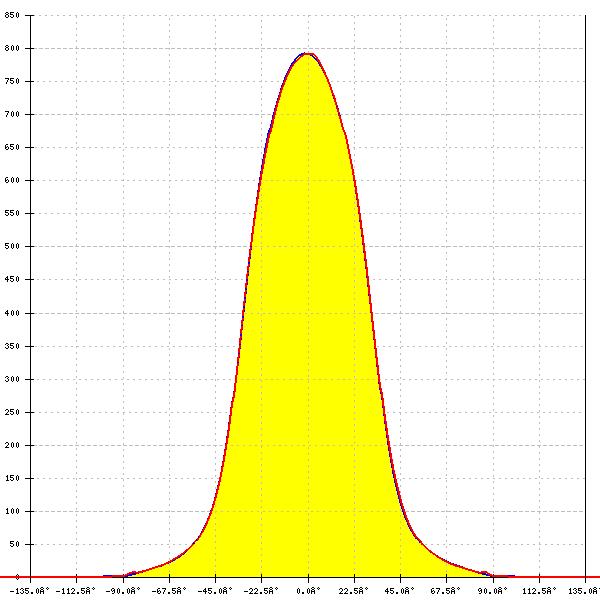

CMA1825
LES size: 12.0 mm
Required components:
FWHM:
63°
FWTM:
99°
Peak intensity:
0.790 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

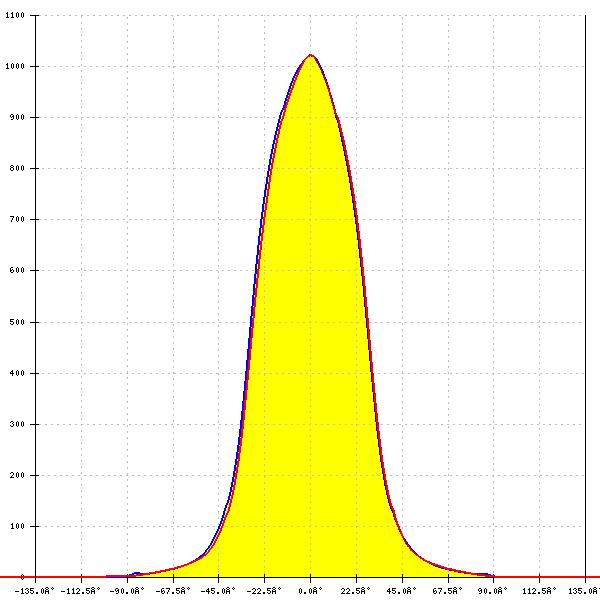

LED:

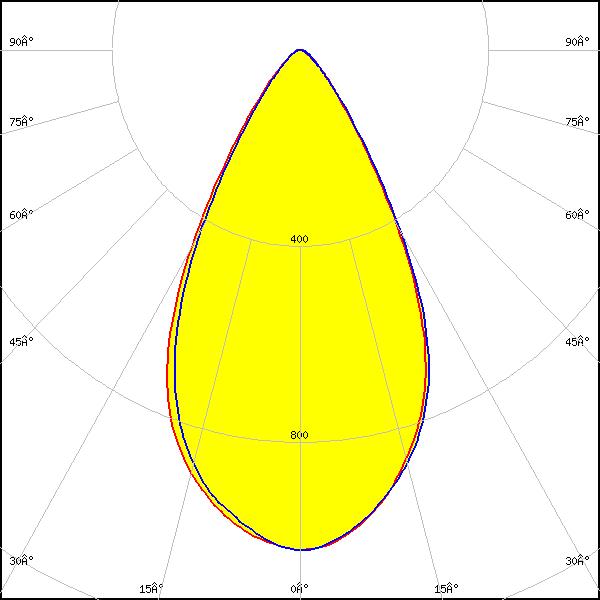

CMT14xx
LES size: 9.8 mm
Required components:
FWHM:
56°
FWTM:
86°
Peak intensity:
1.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

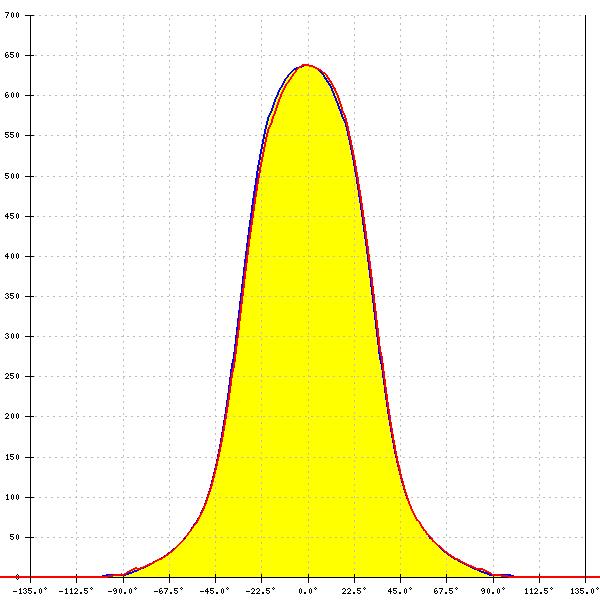

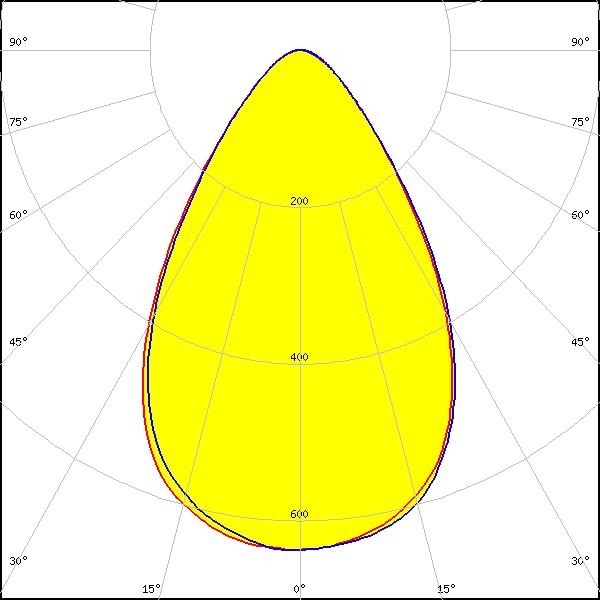

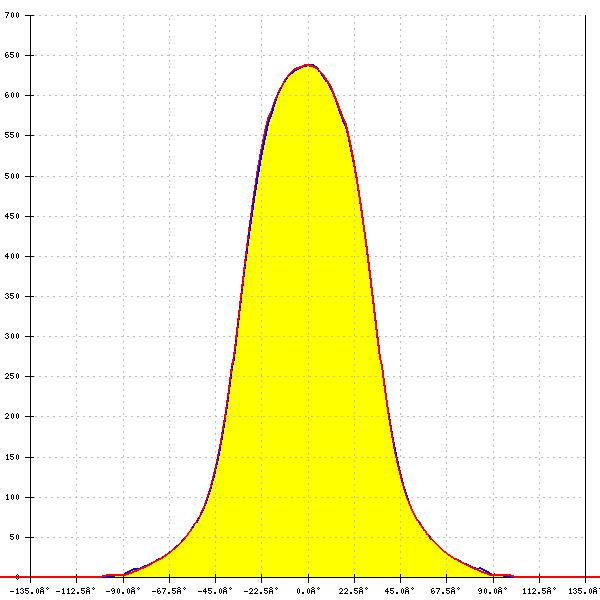

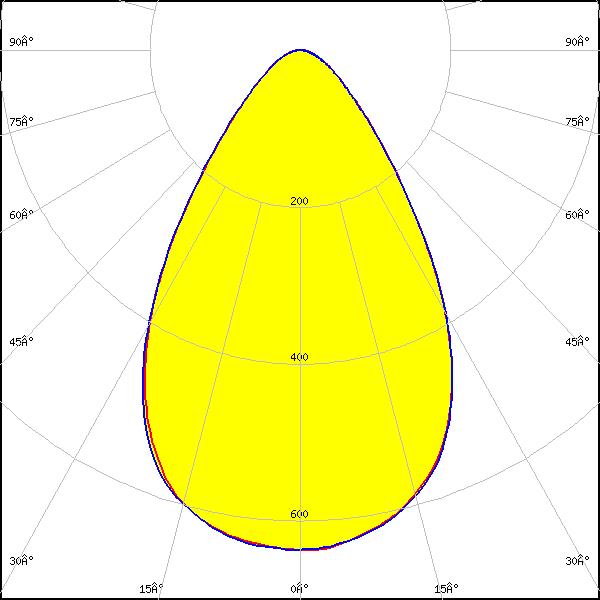

CMT19xx
LES size: 14.5 mm
Required components:
FWHM:
67°
FWTM:
110°
Peak intensity:
0.638 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

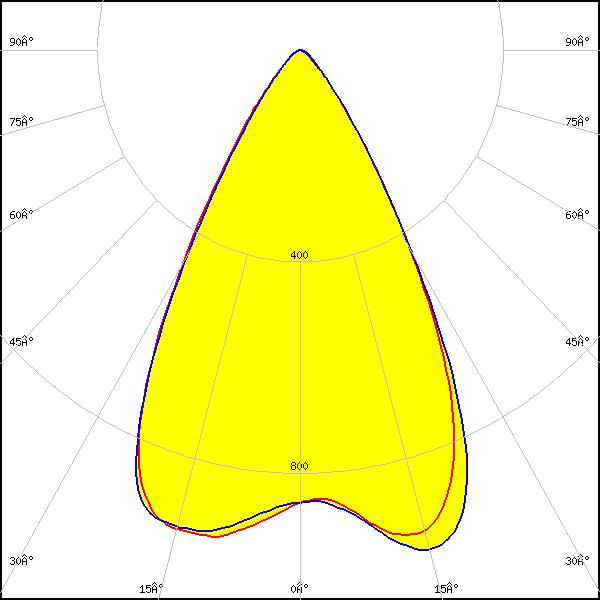

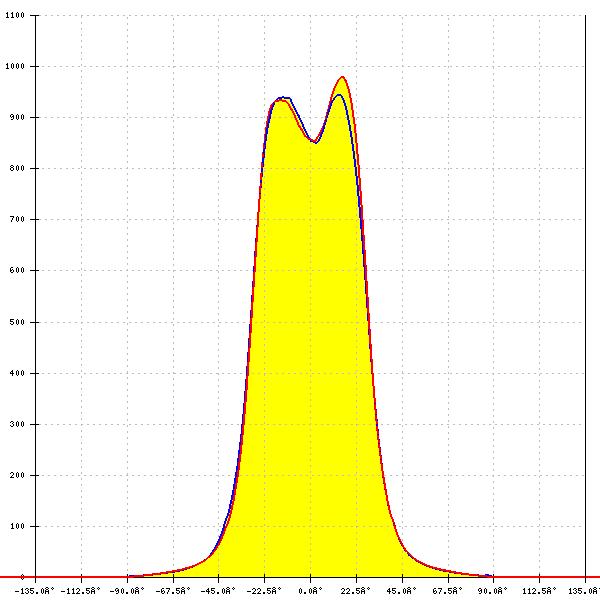

CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
60°
FWTM:
85°
Peak intensity:
0.980 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

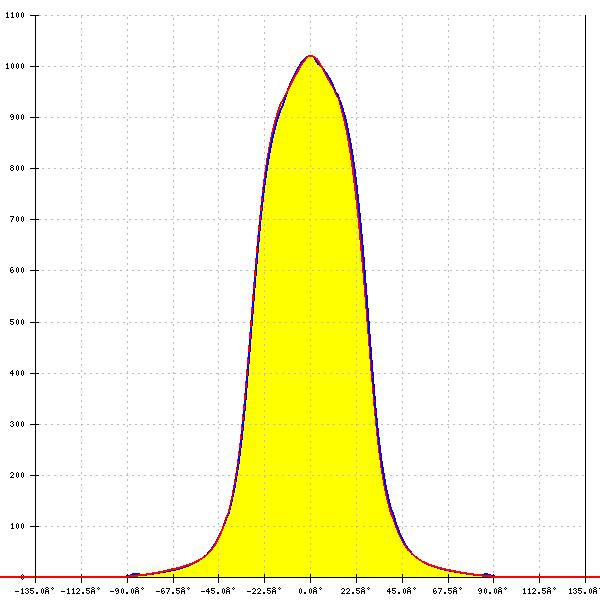

LED:

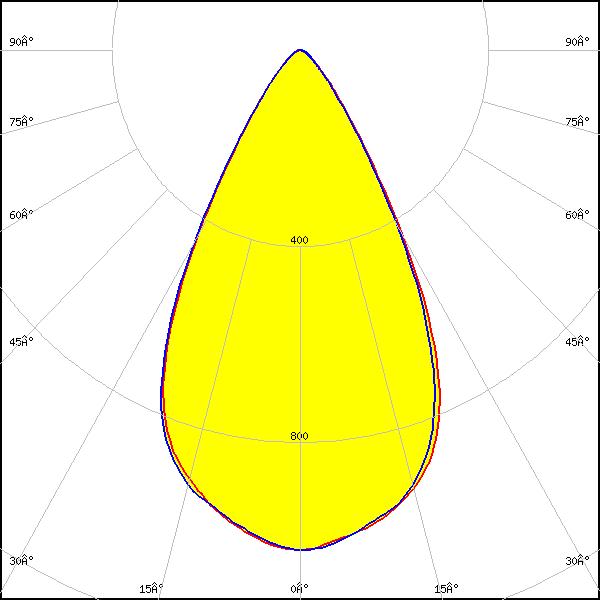

CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
57°
FWTM:
84°
Peak intensity:
1.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

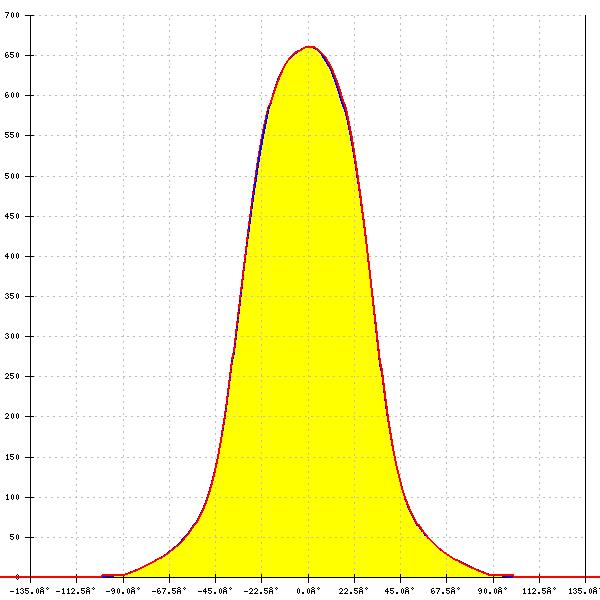

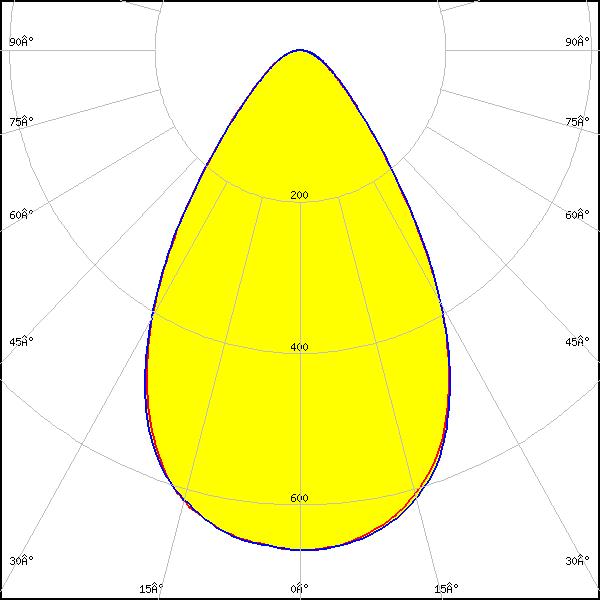

LUXEON CX Plus CoB L08 (Gen2)
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
66°
FWTM:
108°
Peak intensity:
0.660 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

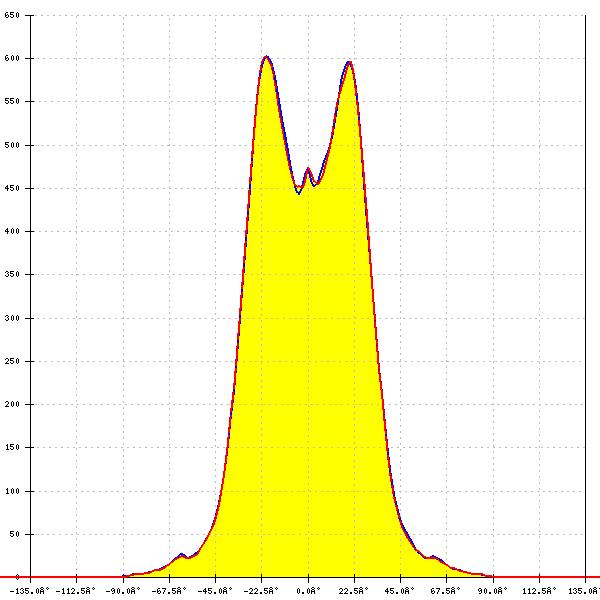

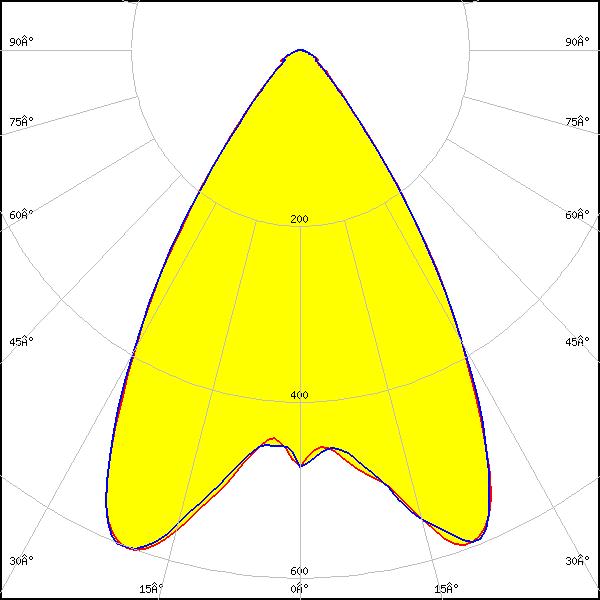

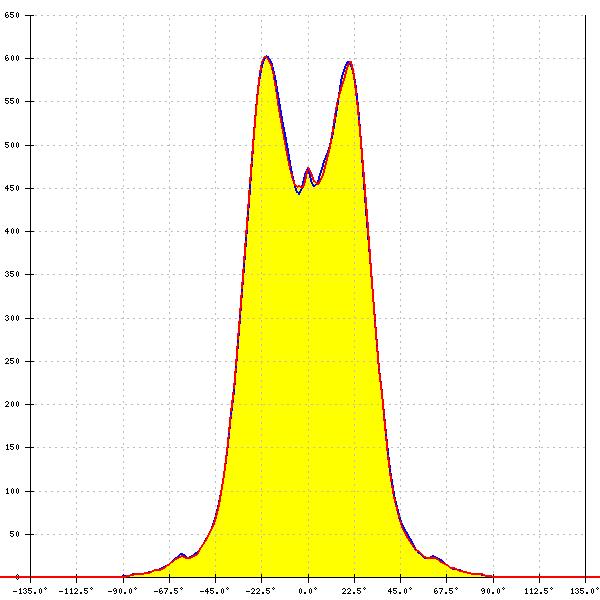

LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
66°
FWTM:
92°
Peak intensity:
0.612 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White

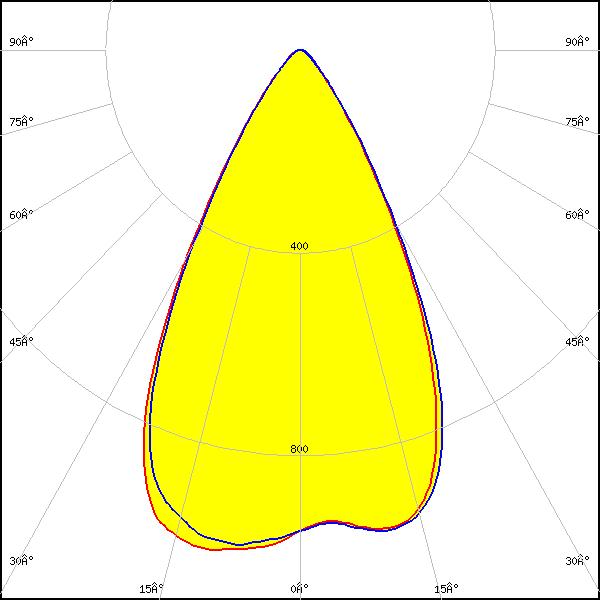

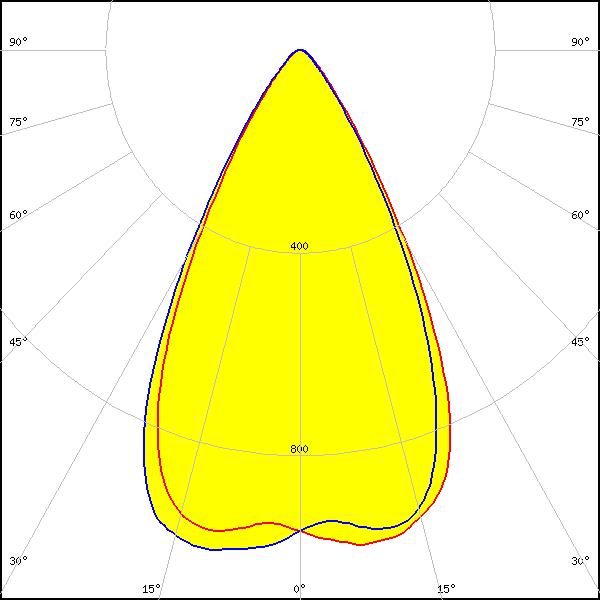

LED:

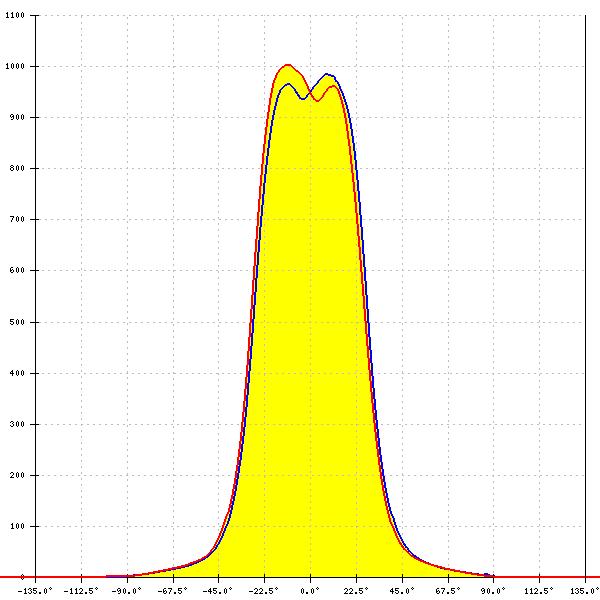

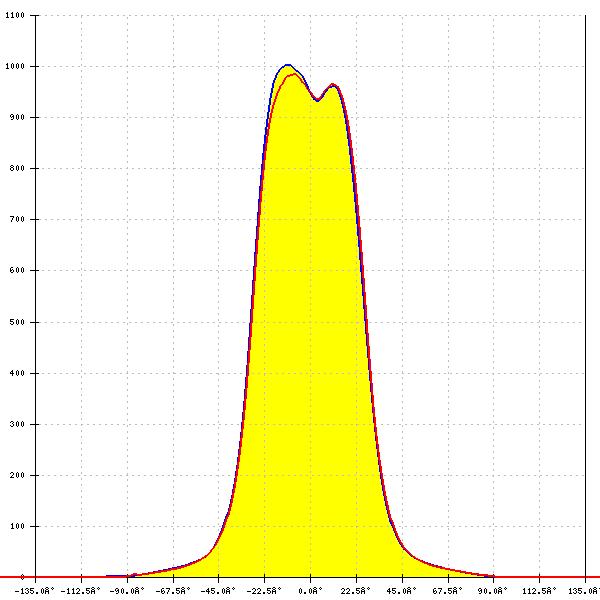

LUXEON CoB 1202HD
LES size: 6.5 mm
Required components:
FWHM:
56°
FWTM:
83°
Peak intensity:
1.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

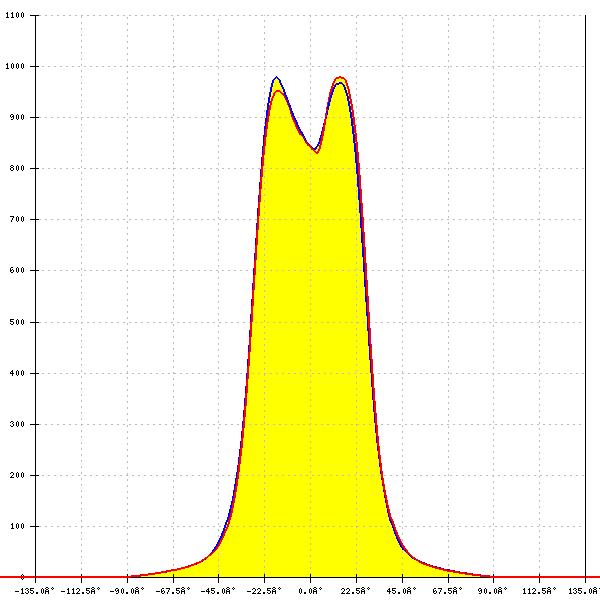

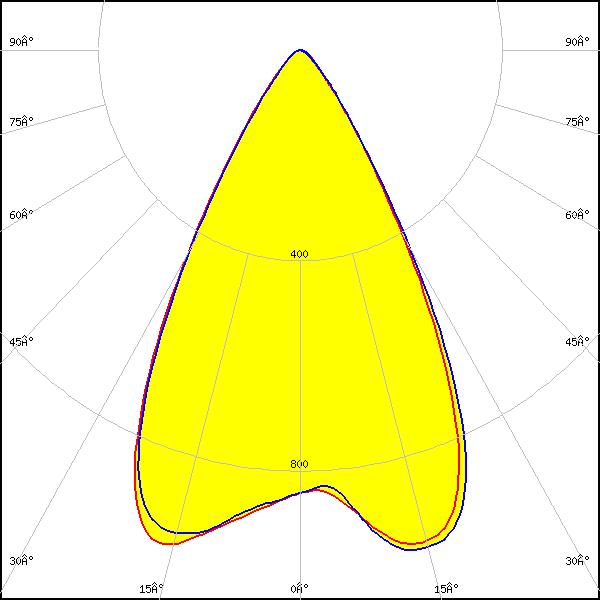

LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
60°
FWTM:
85°
Peak intensity:
0.980 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

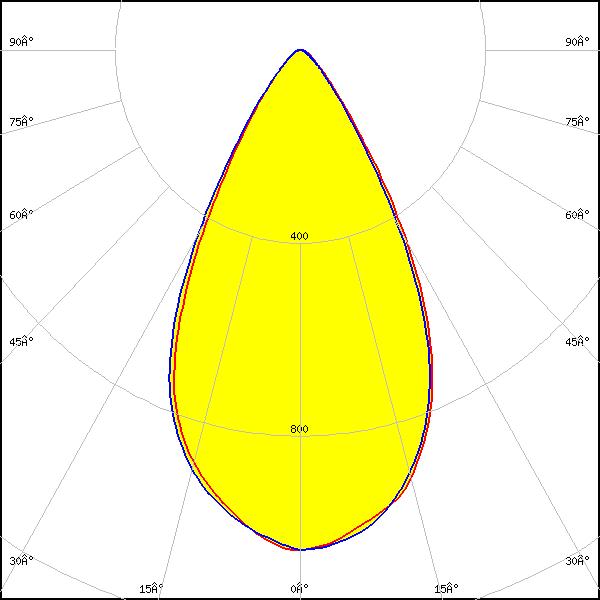

LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM:
56°
FWTM:
85°
Peak intensity:
1.030 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

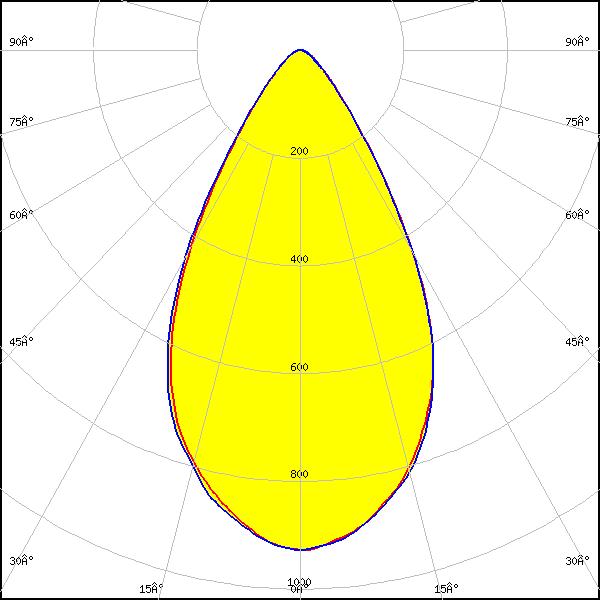

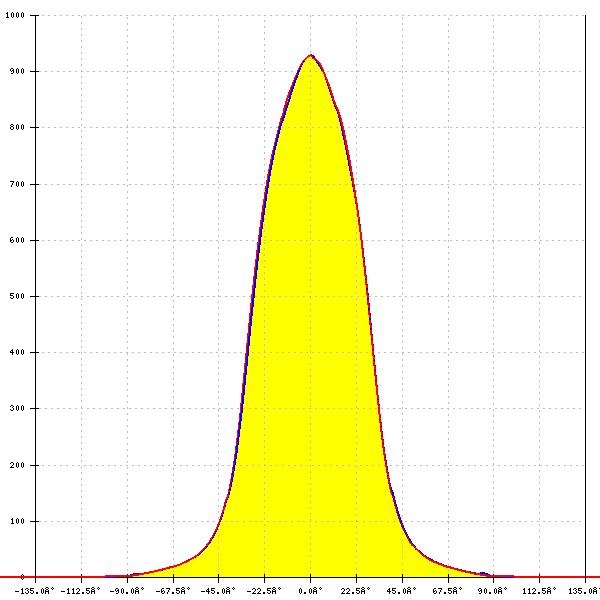

LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM:
58°
FWTM:
90°
Peak intensity:
0.930 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

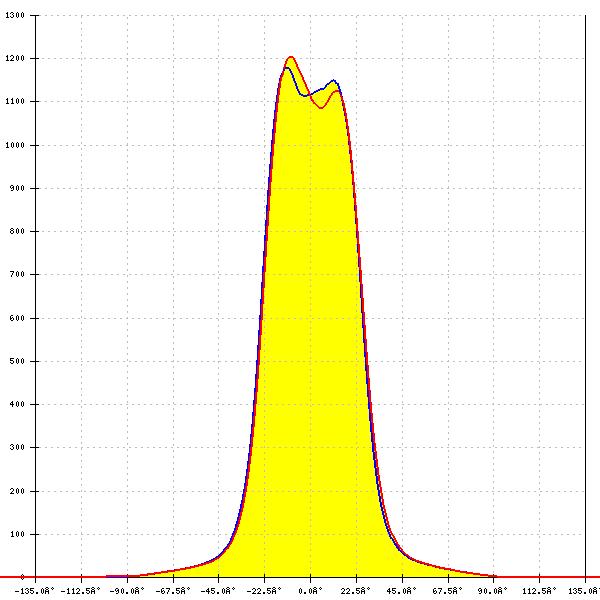

LED:

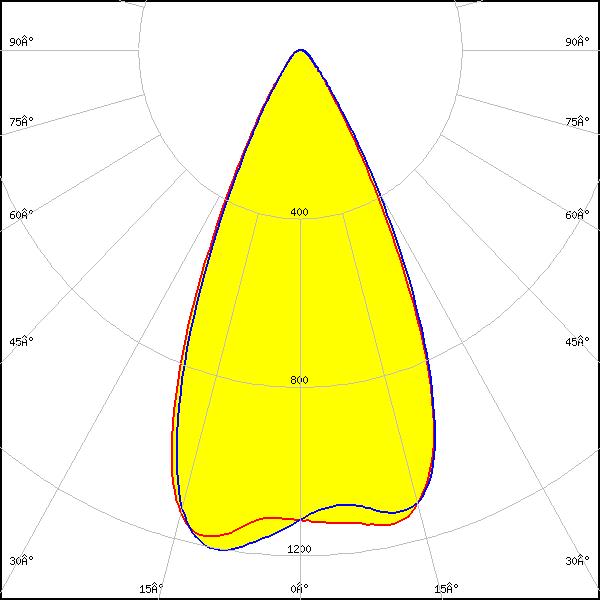

LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
51°
FWTM:
75°
Peak intensity:
1.212 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

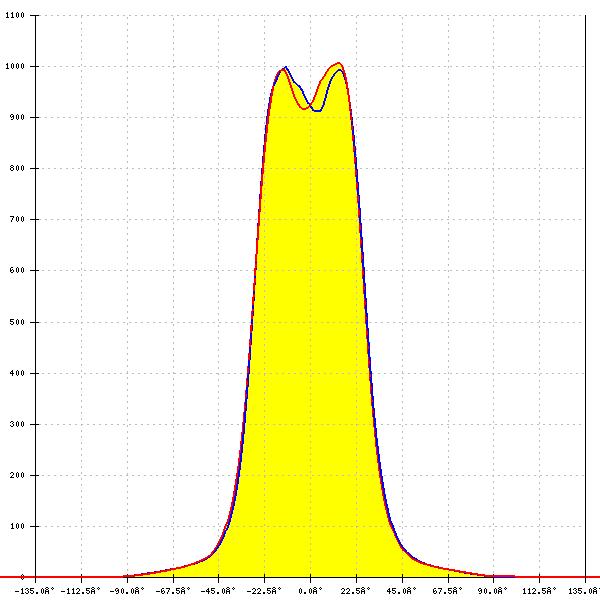

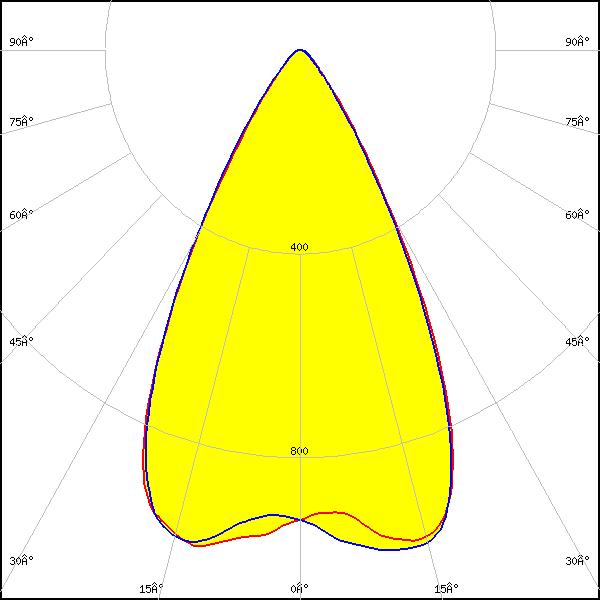

LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
57°
FWTM:
82°
Peak intensity:
1.019 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
50°
FWTM:
79°
Peak intensity:
1.214 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
58°
FWTM:
91°
Peak intensity:
0.911 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

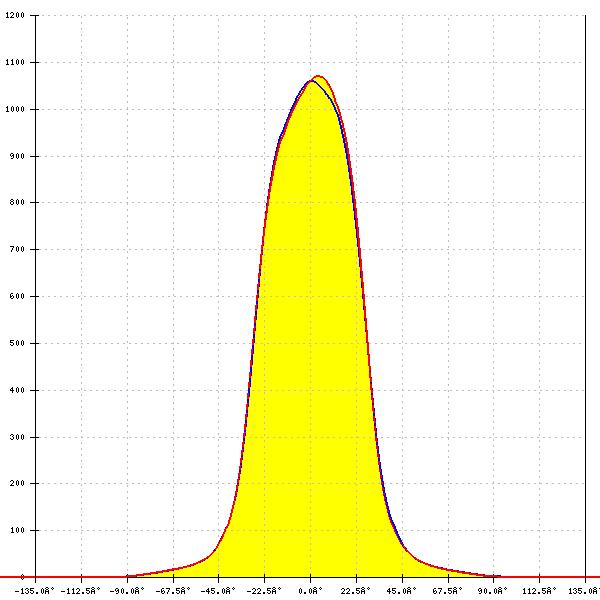

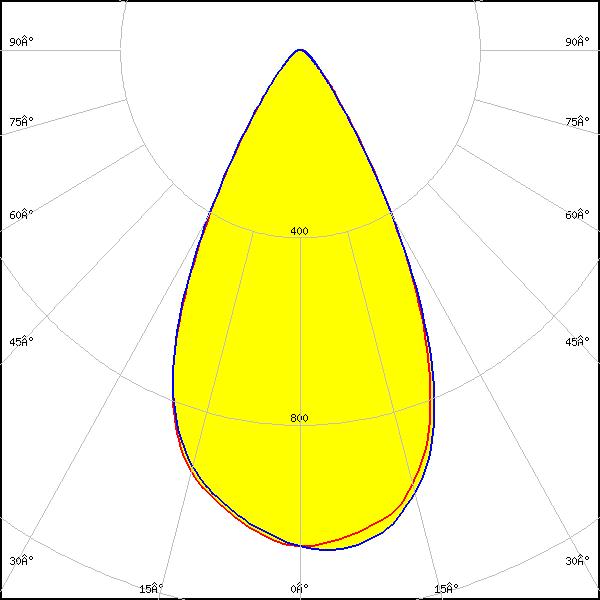

LED:
LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM:
55°
FWTM:
82°
Peak intensity:
1.069 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

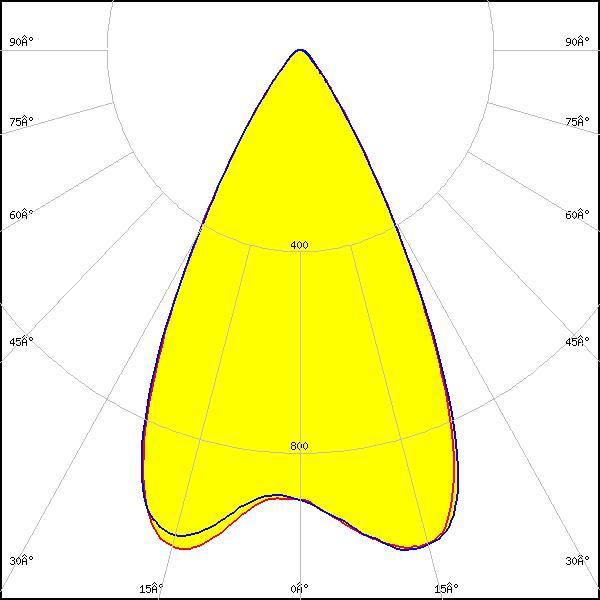

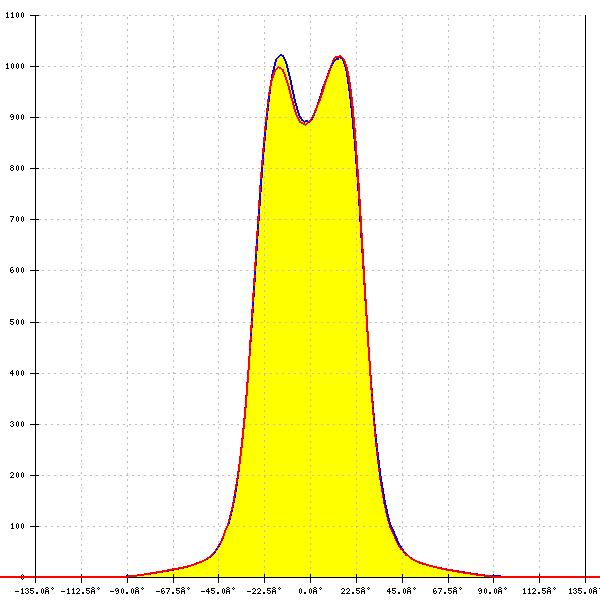

LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
56°
FWTM:
80°
Peak intensity:
1.043 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

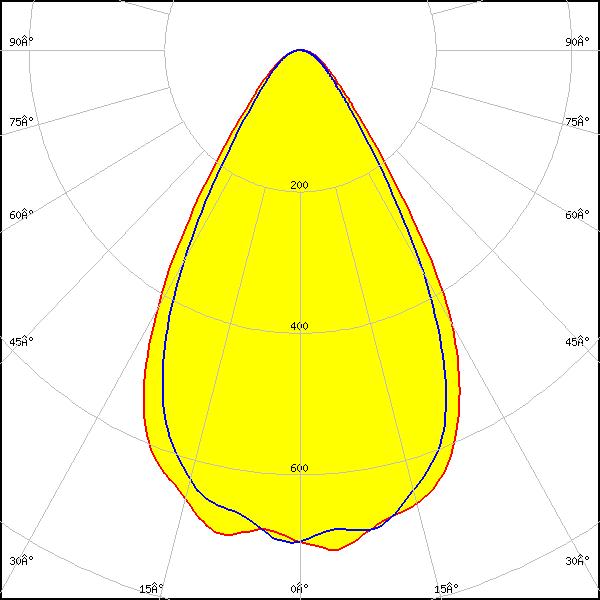

CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
FWHM:
65°
FWTM:
102°
Peak intensity:
0.700 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

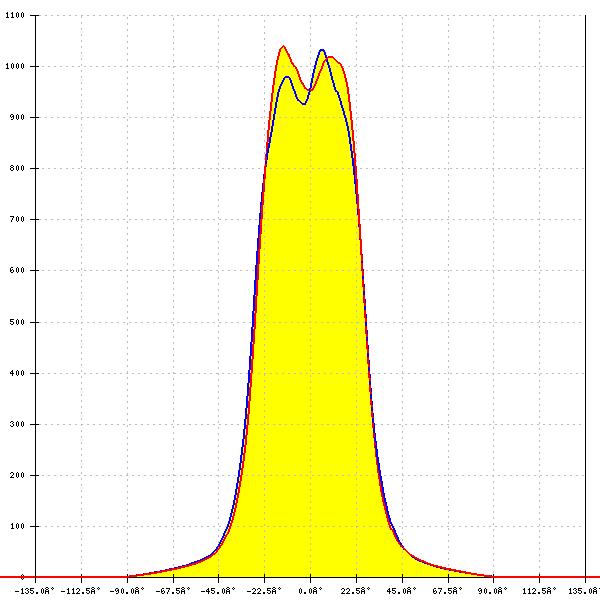

CDM-6 (Dim-To-Warm)
LES size: 6.8 mm
Required components:
FWHM:
55°
FWTM:
80°
Peak intensity:
1.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

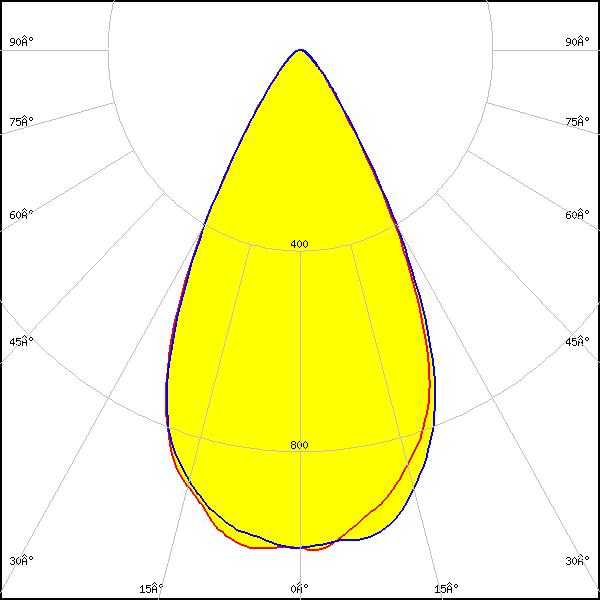

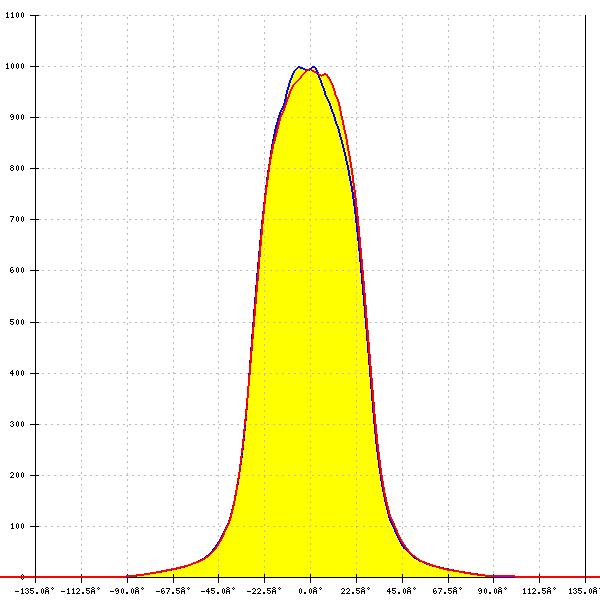

CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
55°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

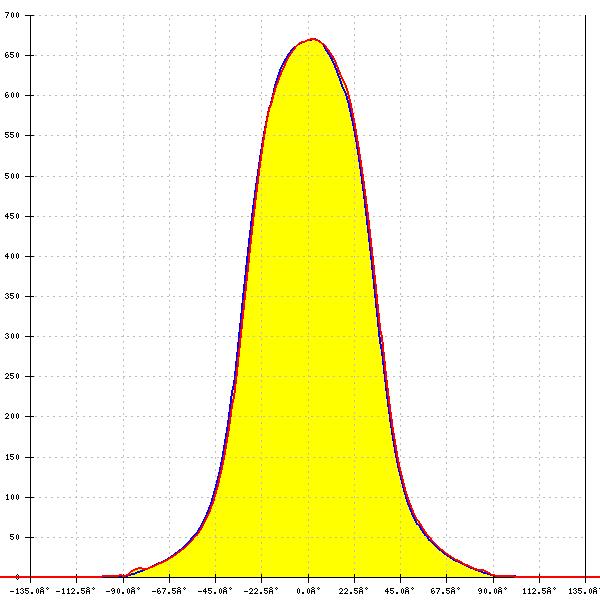

LED:

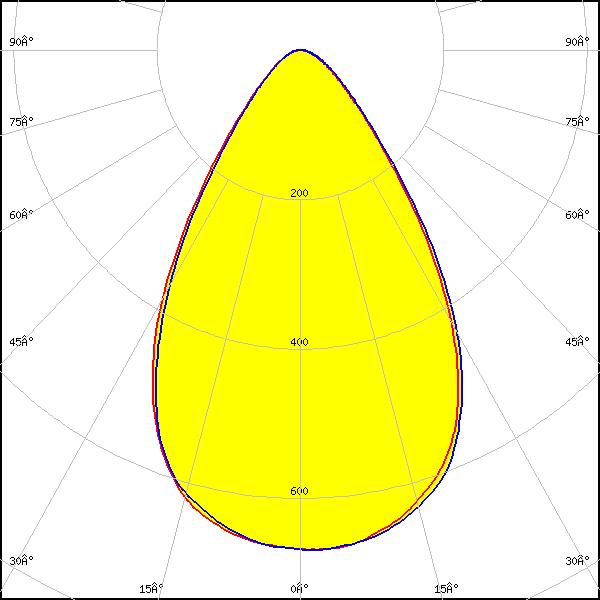

CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
66°
FWTM:
105°
Peak intensity:
0.670 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

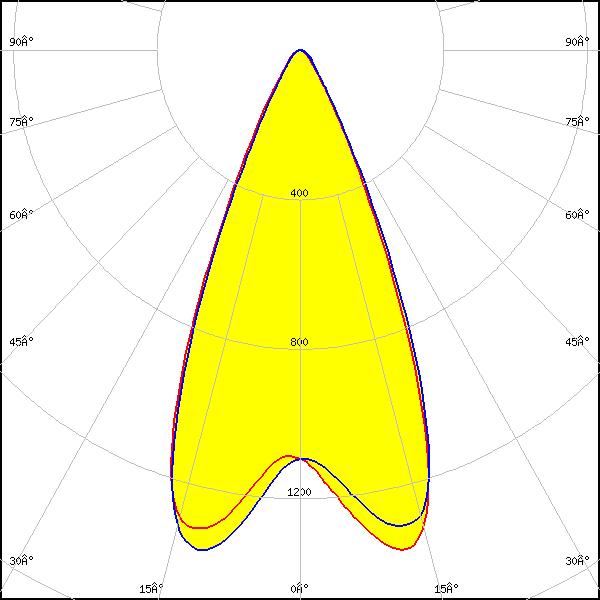

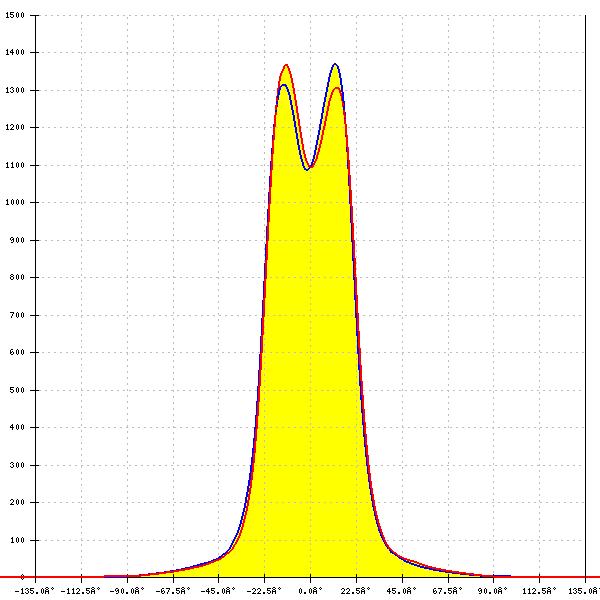

CXM-4
LES size: 4.5 mm
Required components:
FWHM:
47°
FWTM:
68°
Peak intensity:
1.374 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

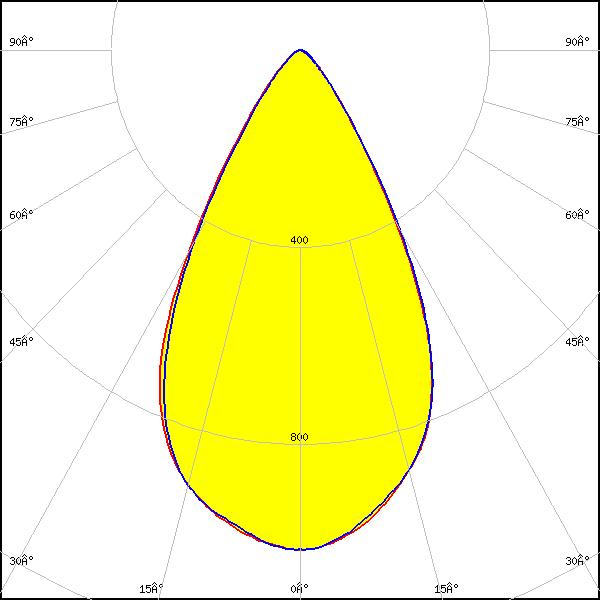

LED:

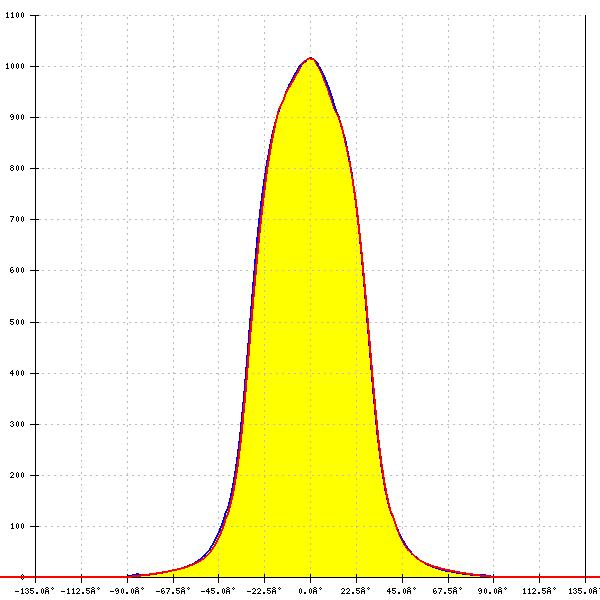

CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
57°
FWTM:
85°
Peak intensity:
1.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
LES size: 5.9 mm
Required components:
FWHM:
56°
FWTM:
76°
Peak intensity:
1.010 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

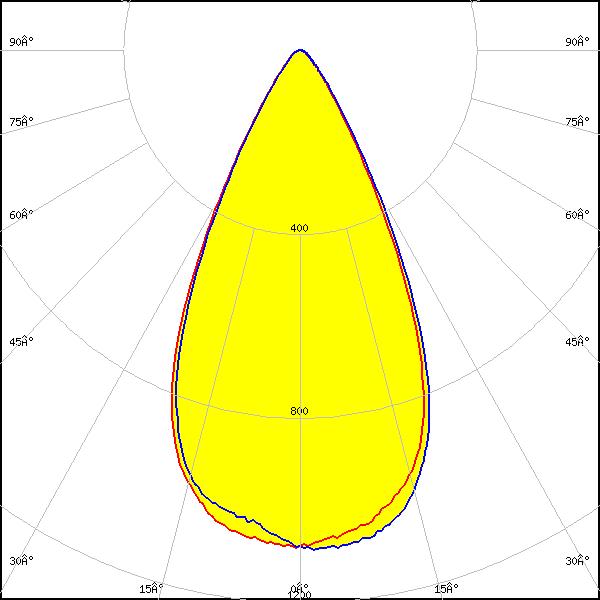

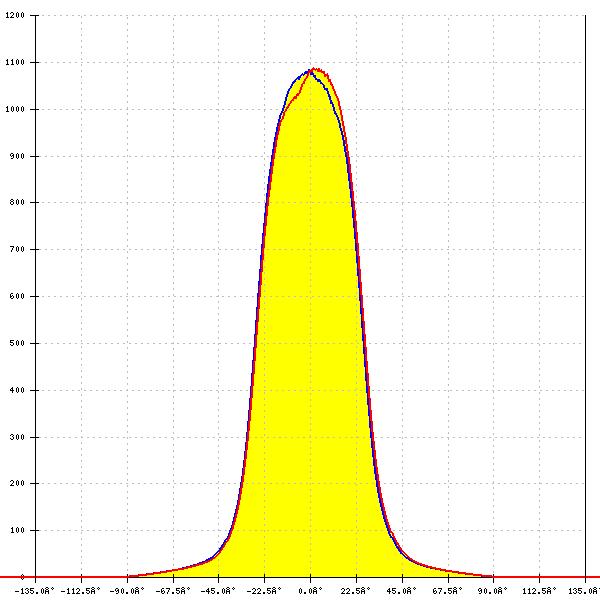

NJCWL024Z-V1MT: COB L-Type Tunable White
LES size: 7.0 mm
Required components:
FWHM:
52°
FWTM:
77°
Peak intensity:
1.100 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

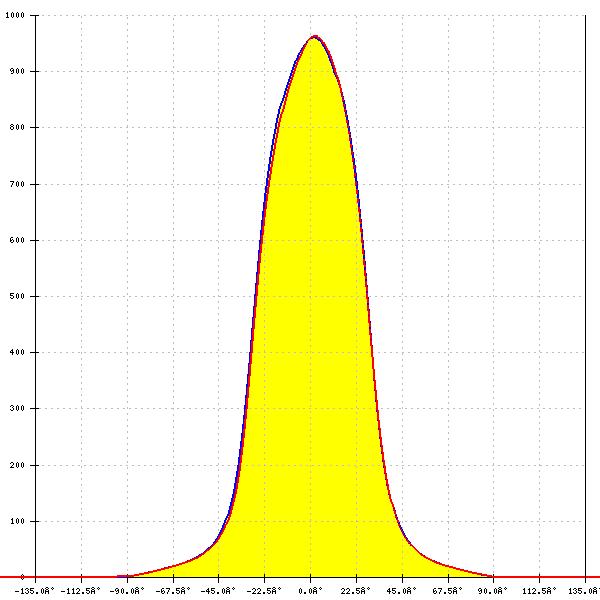

NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
56°
FWTM:
85°
Peak intensity:
0.960 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

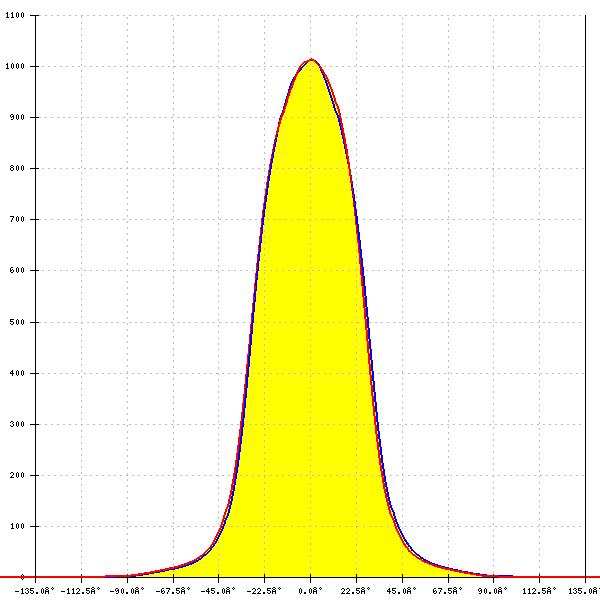

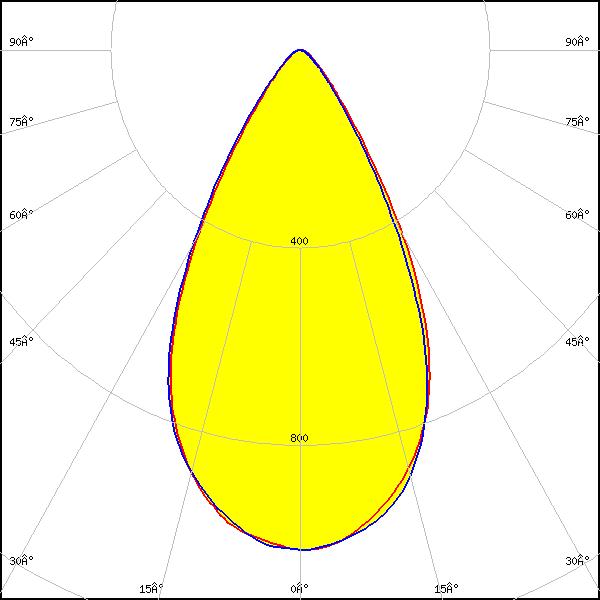

Fortimo SLM L09 CoB
LES size: 9.0 mm
Required components:
FWHM:
56°
FWTM:
85°
Peak intensity:
1.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

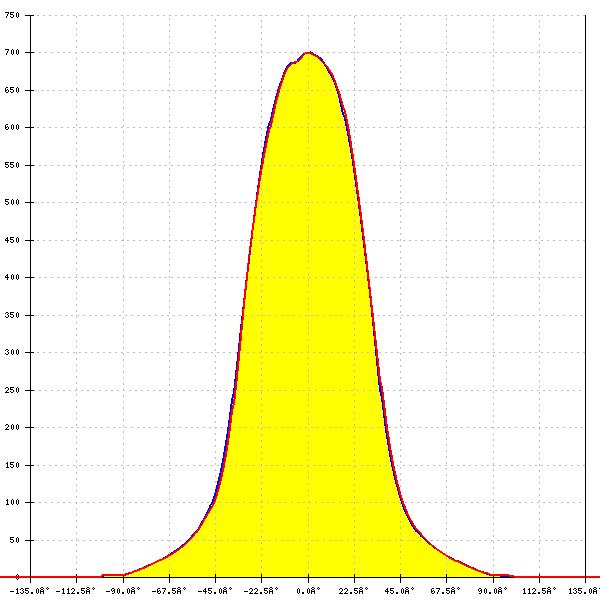

Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
63°
FWTM:
103°
Peak intensity:
0.700 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
63°
FWTM:
103°
Peak intensity:
0.700 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
FWHM:
58°
FWTM:
88°
Peak intensity:
0.980 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

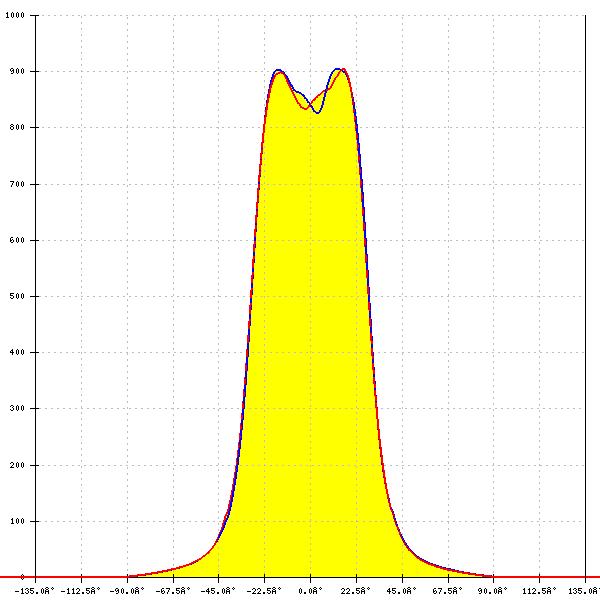

LED:
LC010C
LES size: 6.0 mm
Required components:
FWHM:
61°
FWTM:
86°
Peak intensity:
0.920 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

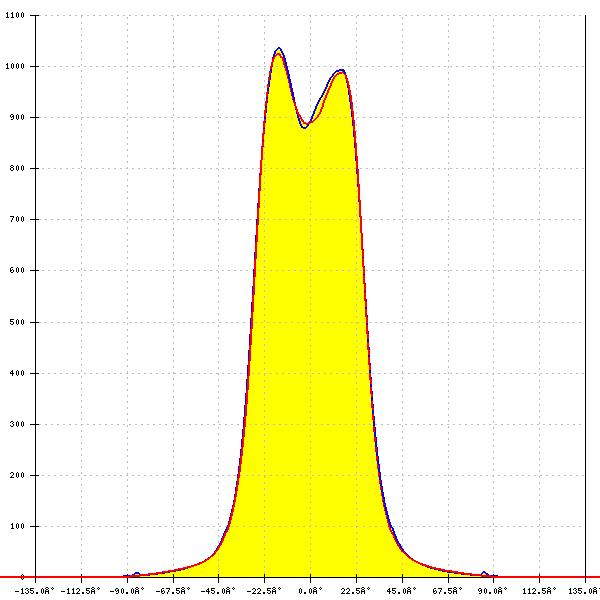

LC010C G2
LES size: 6.0 mm
Required components:
FWHM:
59°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

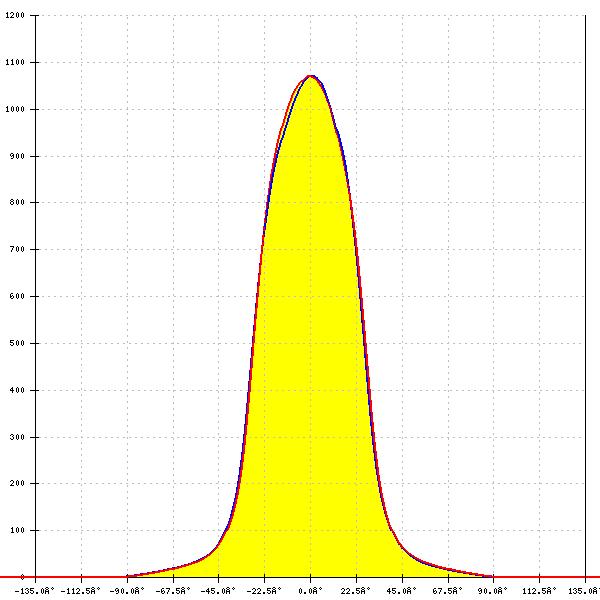

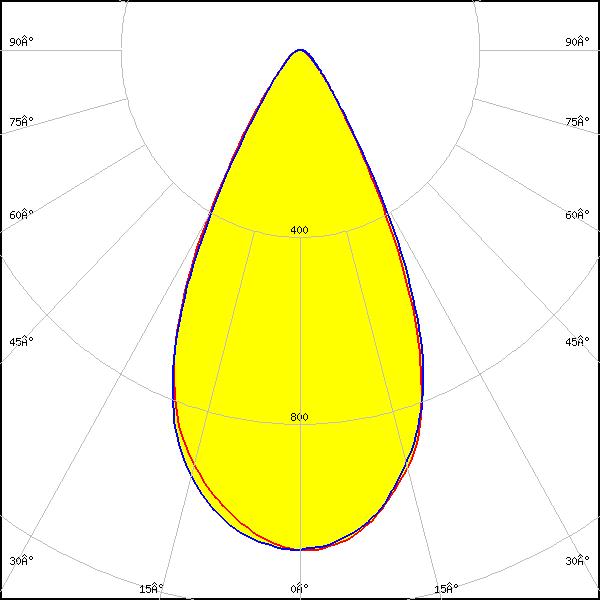

LED:
LC010T (Tunable White)
LES size: 9.8 mm
Required components:
FWHM:
54°
FWTM:
80°
Peak intensity:
1.070 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
Tunable White

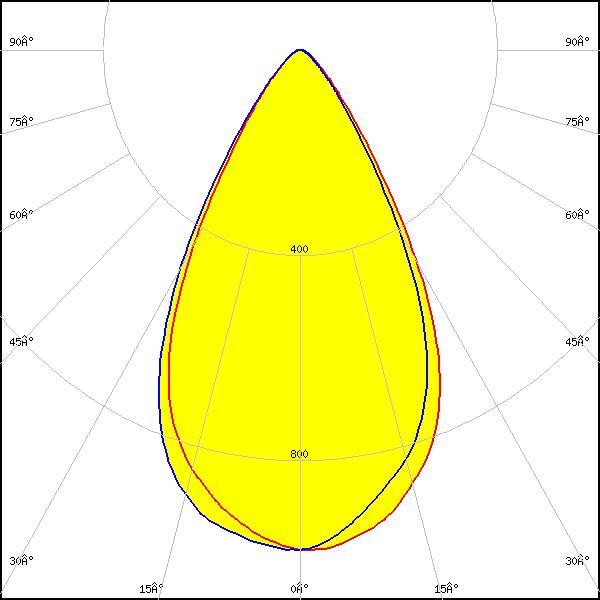

LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
67°
FWTM:
112°
Peak intensity:
0.620 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C
LES size: 8.0 mm
Required components:
FWHM:
58°
FWTM:
86°
Peak intensity:
0.960 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

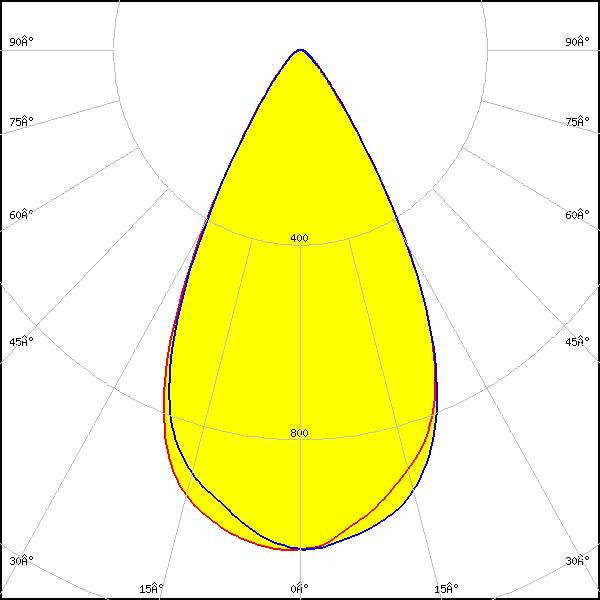

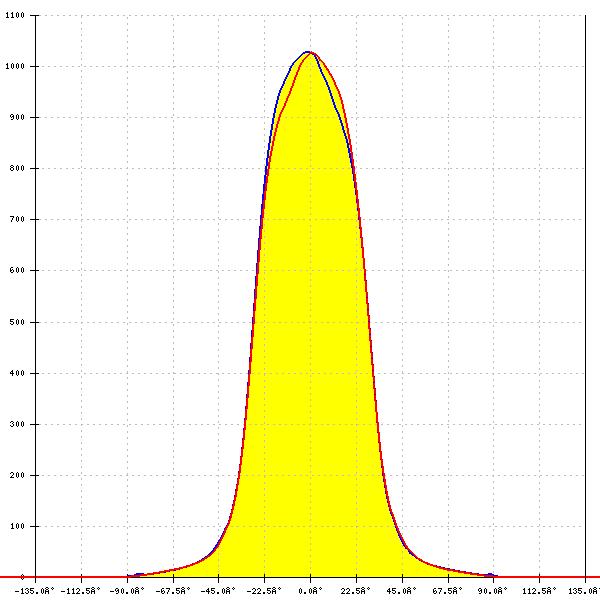

LED:
LC020C G2
LES size: 8.5 mm
Required components:
FWHM:
56°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

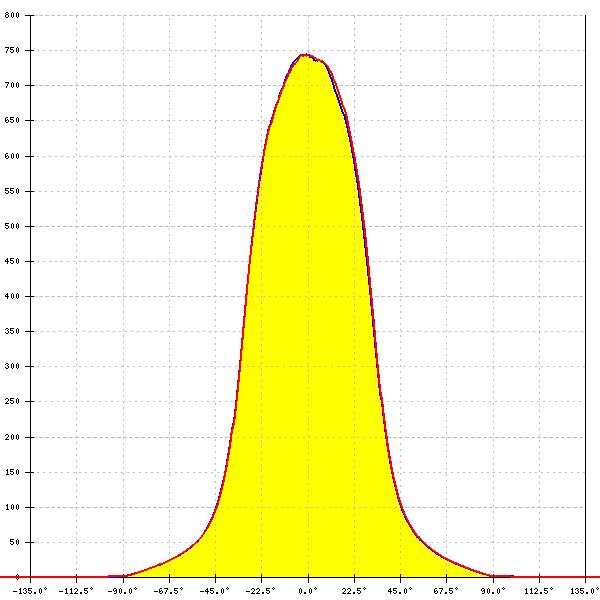

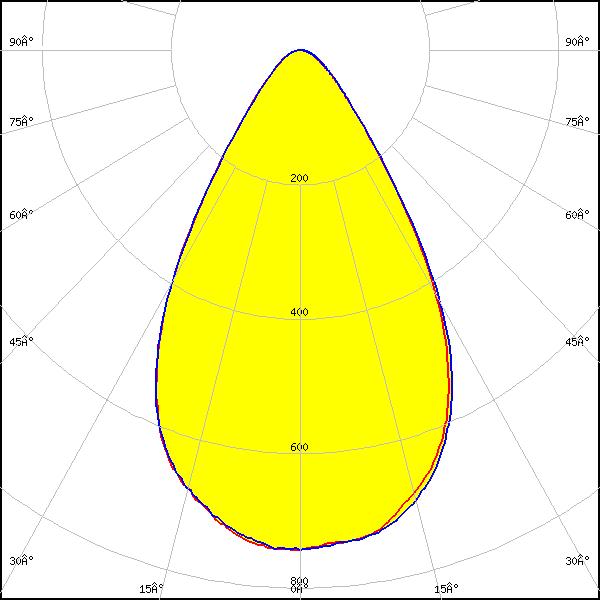

LED:
LC020T (Tunable white)
LES size: 13.0 mm
Required components:
FWHM:
63°
FWTM:
98°
Peak intensity:
0.745 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

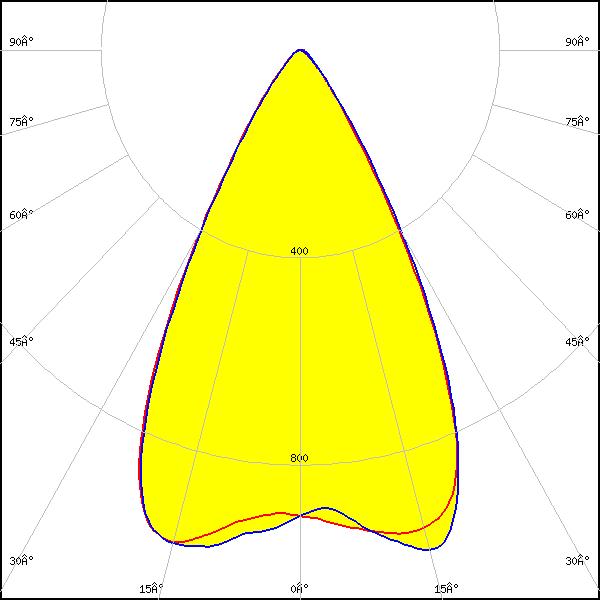

MJT COB LES 6
LES size: 6.0 mm
Required components:
FWHM:
58°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

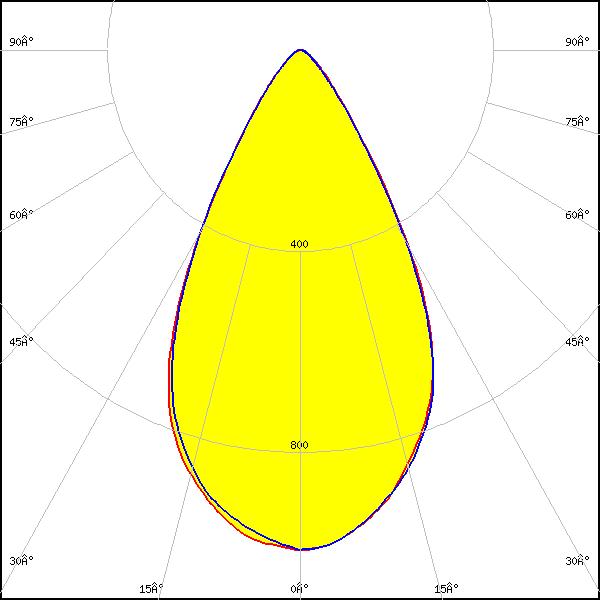

LED:
MJT COB LES 9.8
LES size: 9.8 mm
Required components:
FWHM:
57°
FWTM:
85°
Peak intensity:
1.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

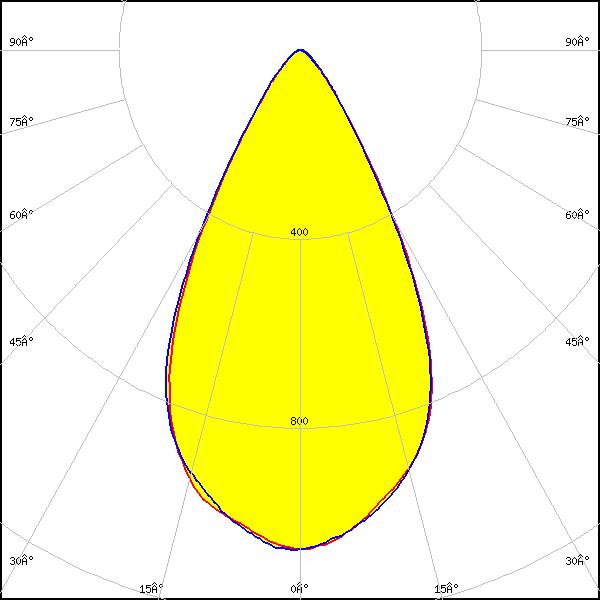

LED:
SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM:
56°
FWTM:
83°
Peak intensity:
1.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

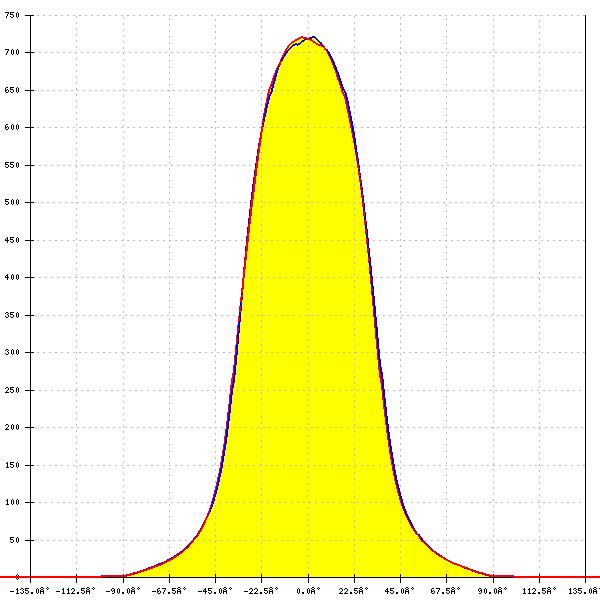

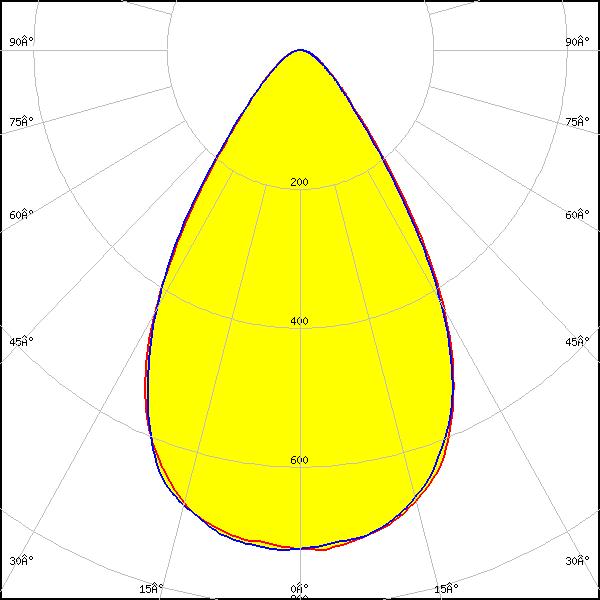

LED:
SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM:
65°
FWTM:
101°
Peak intensity:
0.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

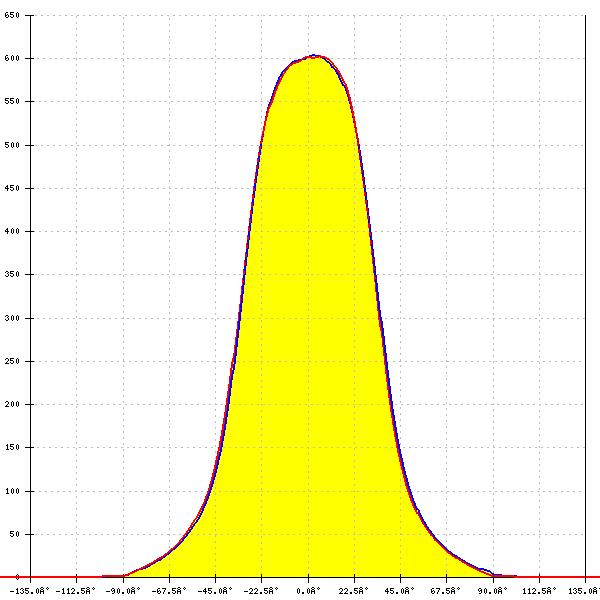

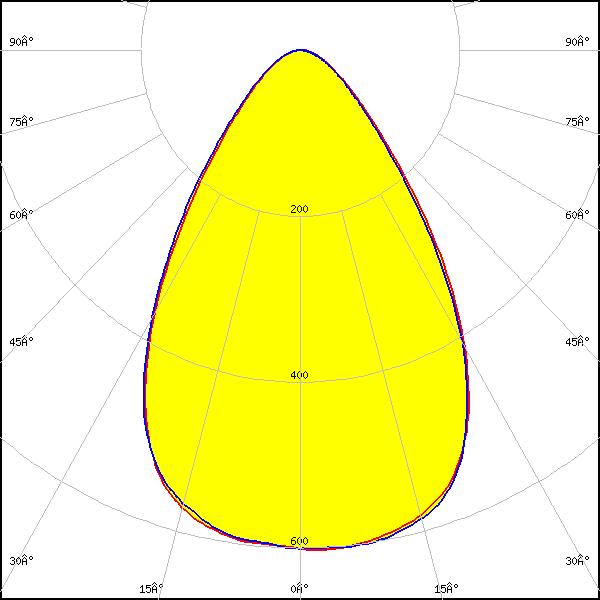

LED:
SLE G7 LES15
LES size: 15.0 mm
Required components:
FWHM:
69°
FWTM:
113°
Peak intensity:
0.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

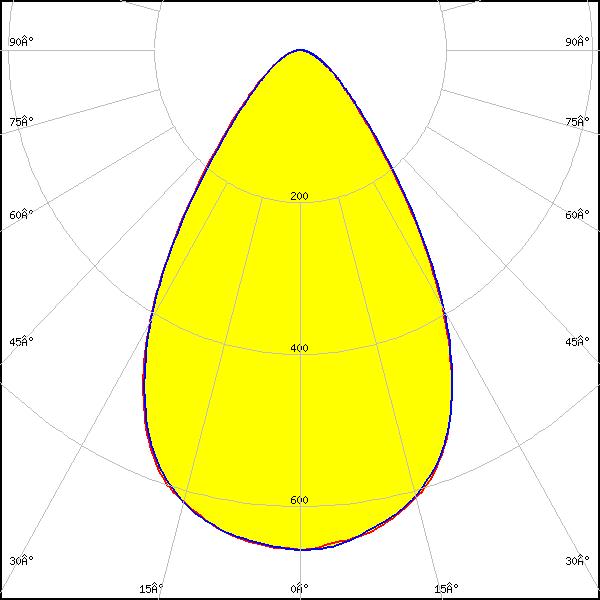

LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
FWHM:
66°
FWTM:
107°
Peak intensity:
0.658 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

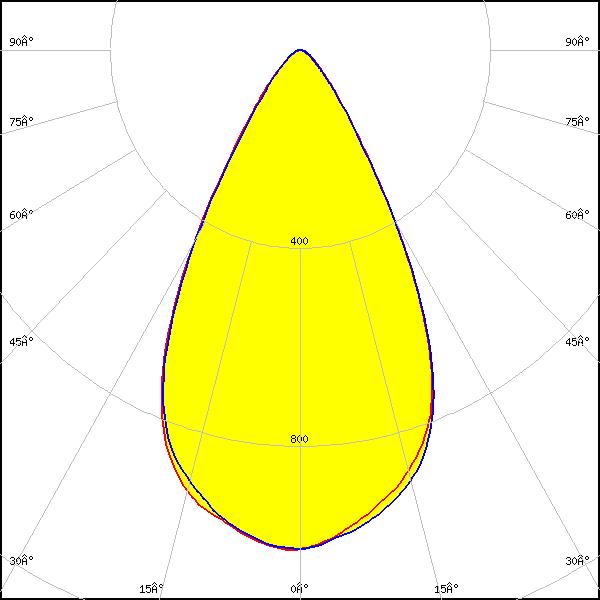

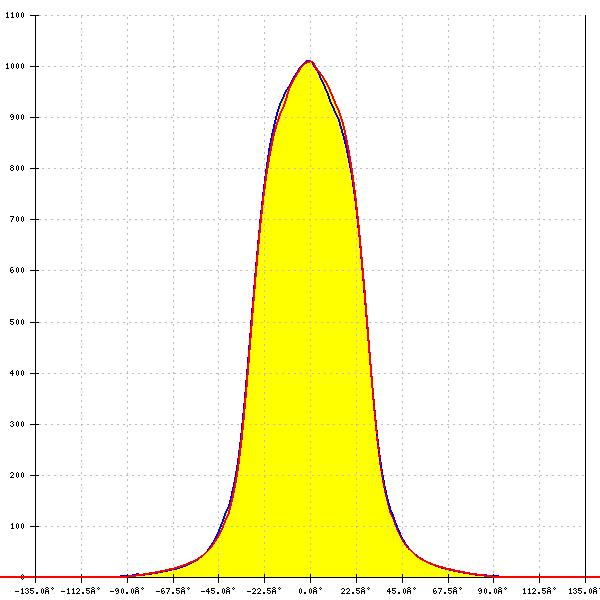

LED:
XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM:
57°
FWTM:
86°
Peak intensity:
1.011 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

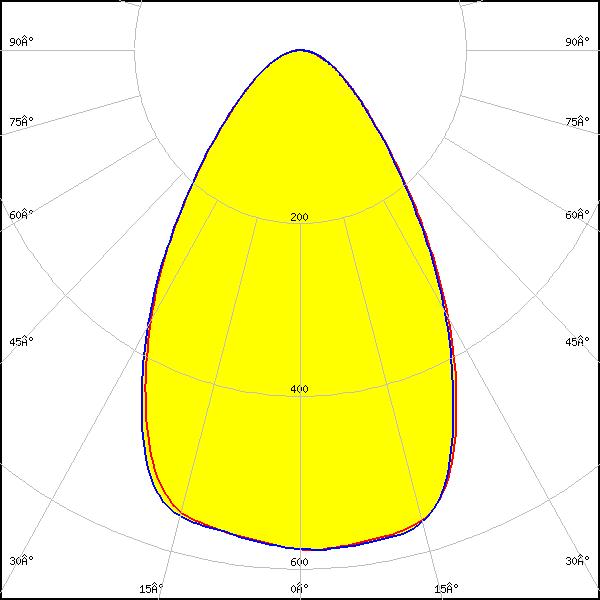

LED:
XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM:
68°
FWTM:
120°
Peak intensity:
0.580 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
