RONDA-REC-90

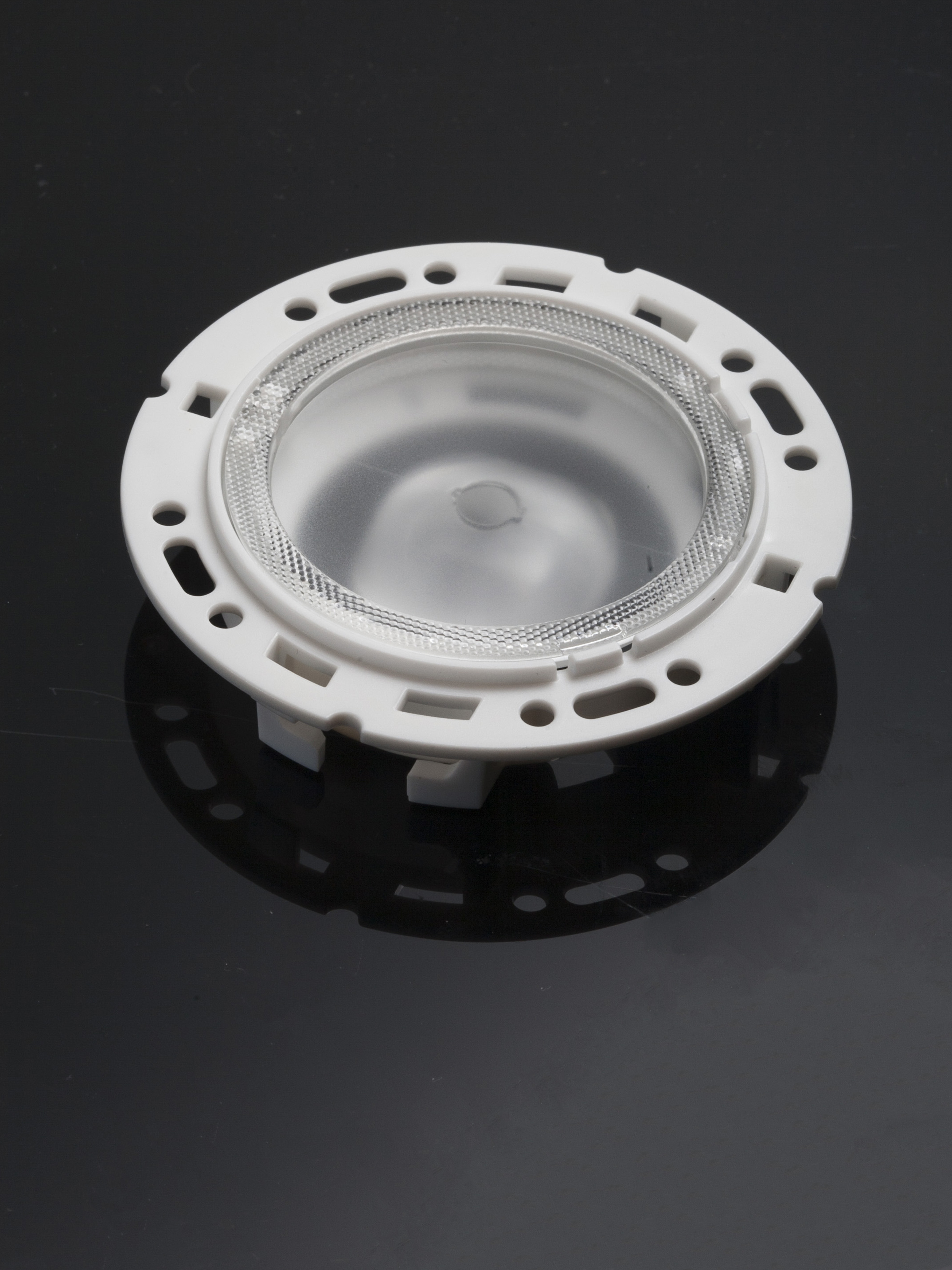

Print~80°+80° rectangular beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL
This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
-
Dimensions:70 mm
-
Height:14.60 mm
-
Fastening:socket
-
RoHS and REACH compliant:Yes
Materials
- Holder
- F15155_RONDA-HLD-APC
- Request material files from Tech Support
- Single lens
- F15788_RONDA-REC-90PMMA
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
- Quantities for one set:
- Single lens1 pcs
- Holder1 pcs
- Single lens
- F15788_RONDA-REC-90clear
- Quantity in box:420 pcs
- Box size:480 x 280 x 300 mm
- Box weight:6.50 kg
- MPQ:30 pcs
- MOQ:120 pcs
- MOQ Size:480 x 280 x 100 mm
- MOQ Weight:1.90 kg
- Holder
- F15155_RONDA-HLD-Awhite
- Quantity in box:420 pcs
- Box size:480 x 280 x 300 mm
- Box weight:4.40 kg
- MPQ:30 pcs
- MOQ:120 pcs
- MOQ Size:480 x 280 x 120 mm
- MOQ Weight:1.30 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES

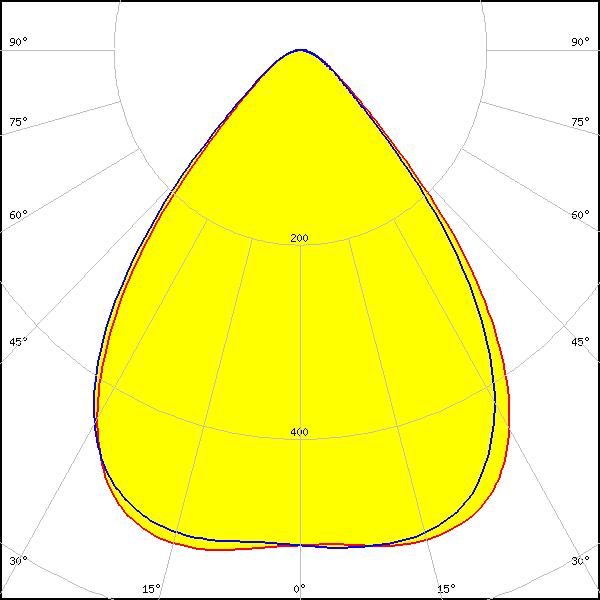

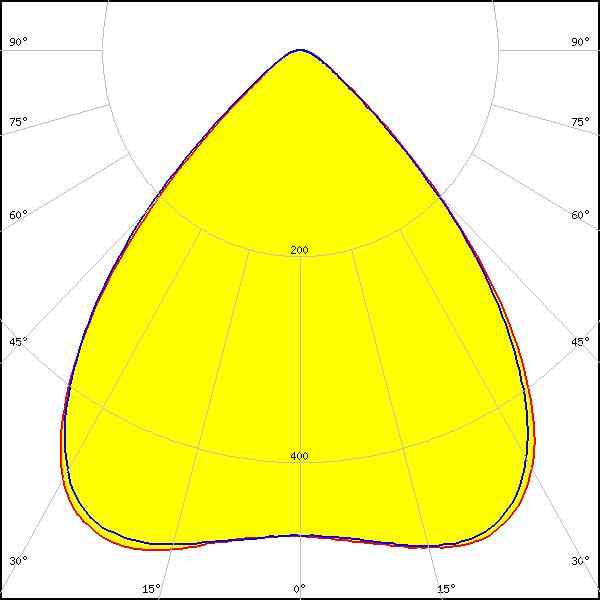

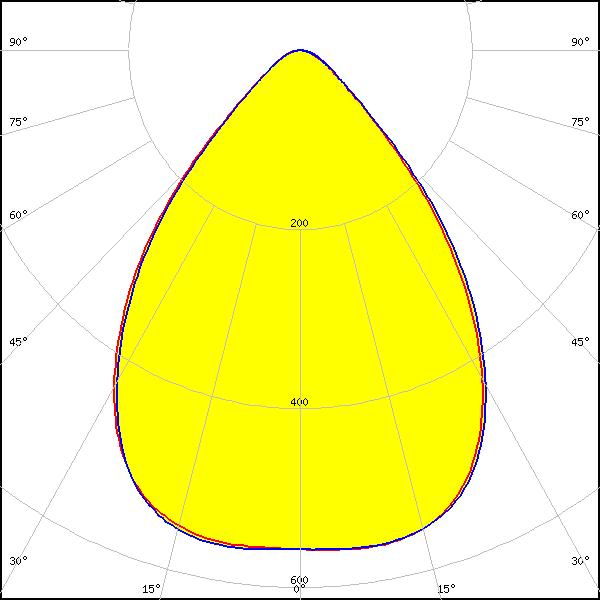

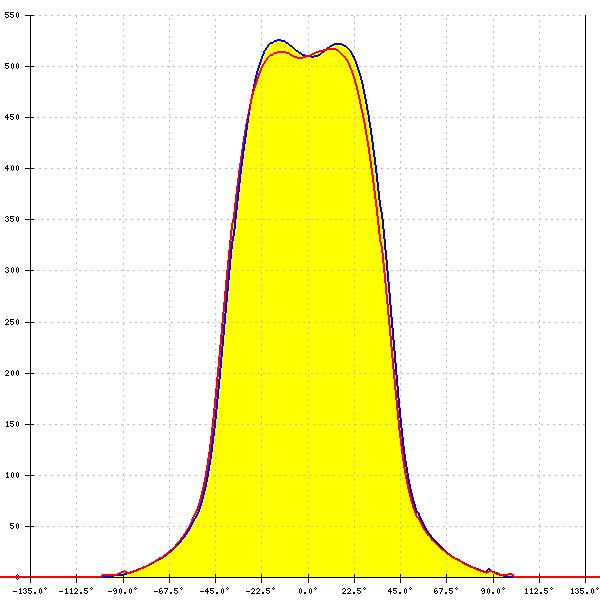

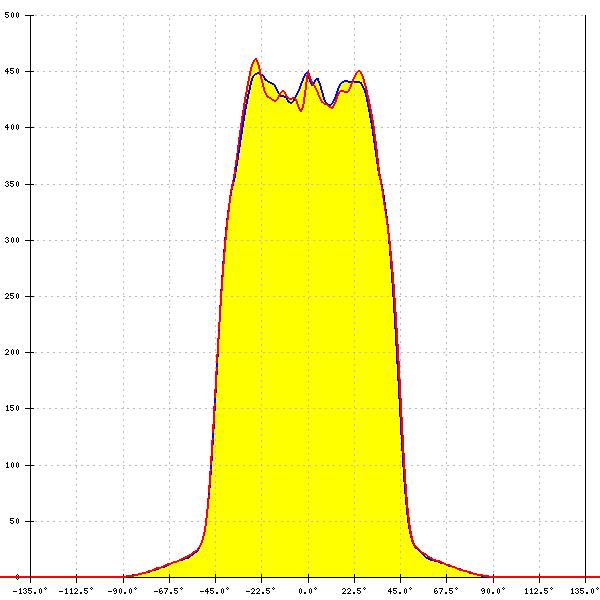

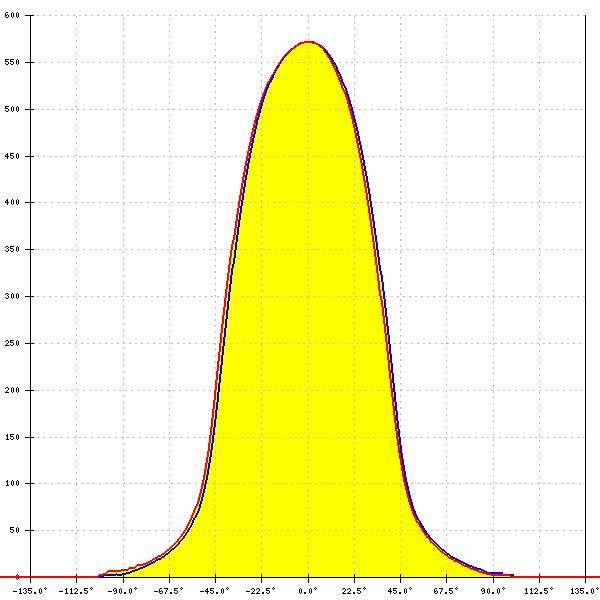

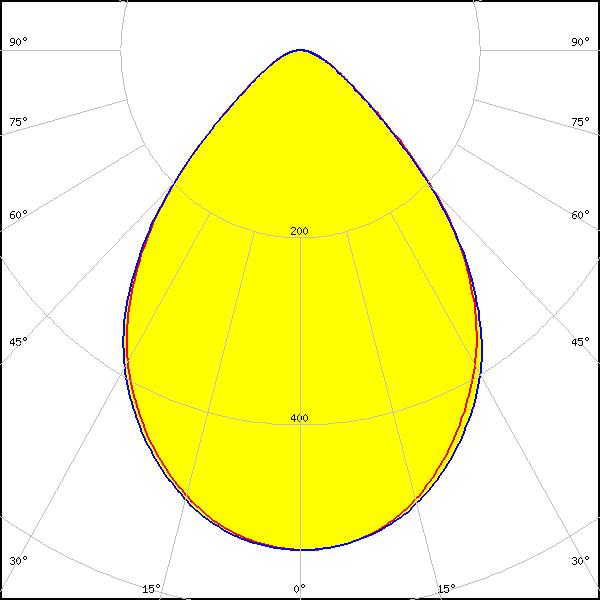

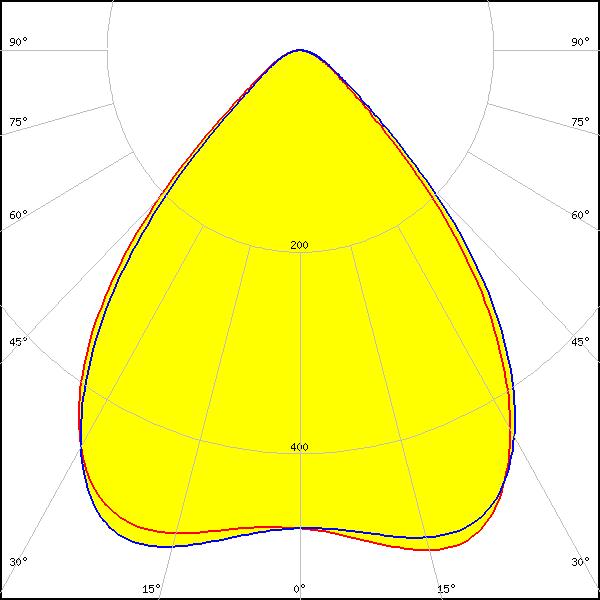

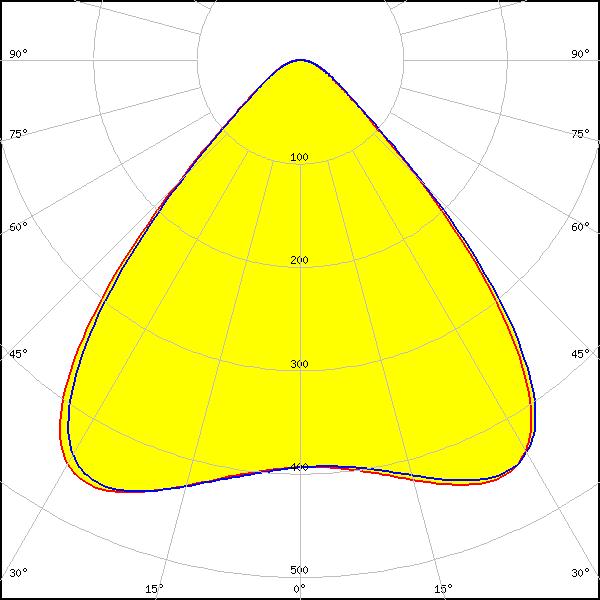

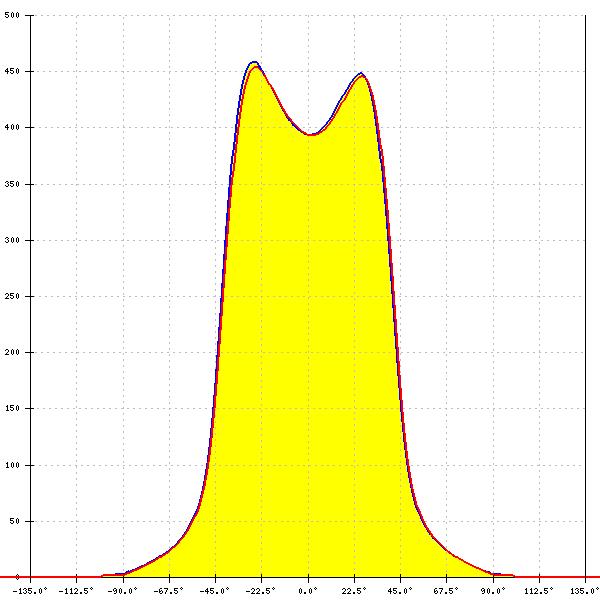

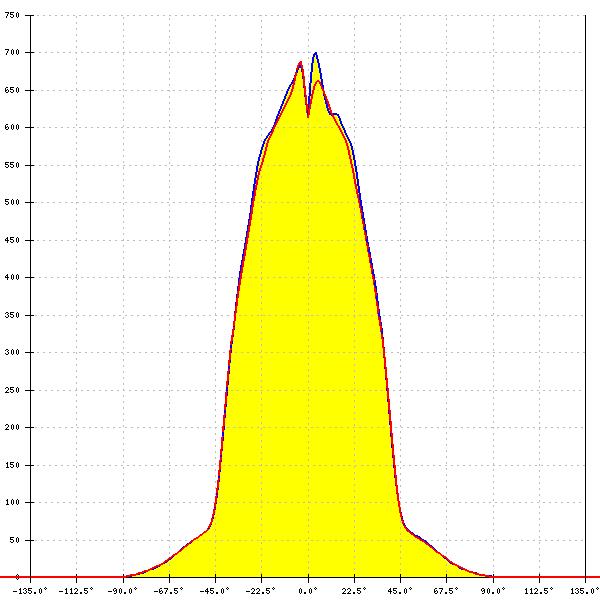

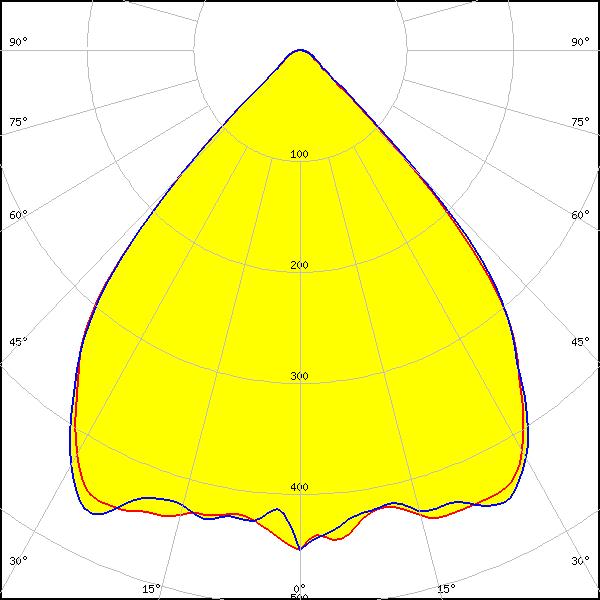

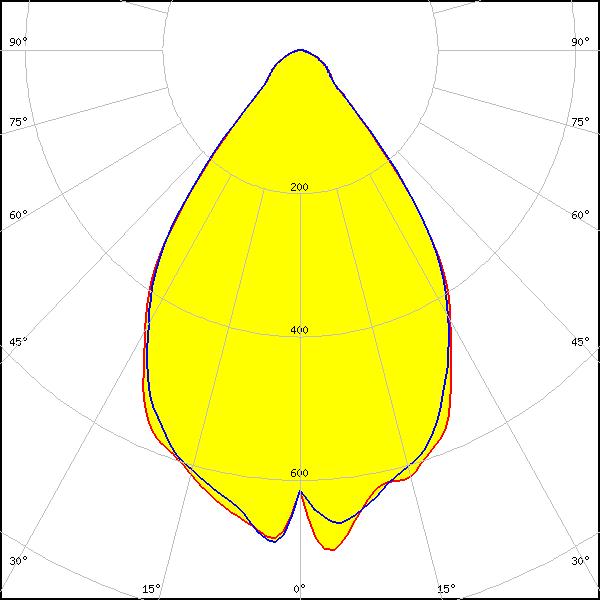

Optical results
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
70°
FWTM:
94°
Peak intensity:
0.710 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
Bender Wirth: 477 Typ L1
FWHM:
86° + 75°
FWTM:
100° + 94°
Peak intensity:
0.460 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
80°
FWTM:
112°
Peak intensity:
0.530 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

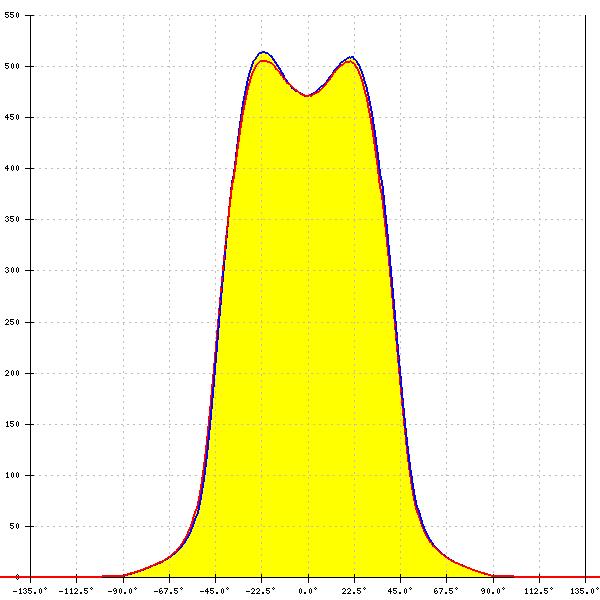

LED:
Vero SE 13
LES size: 13.4 mm
Required components:
FWHM:
87°
FWTM:
113°
Peak intensity:
0.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

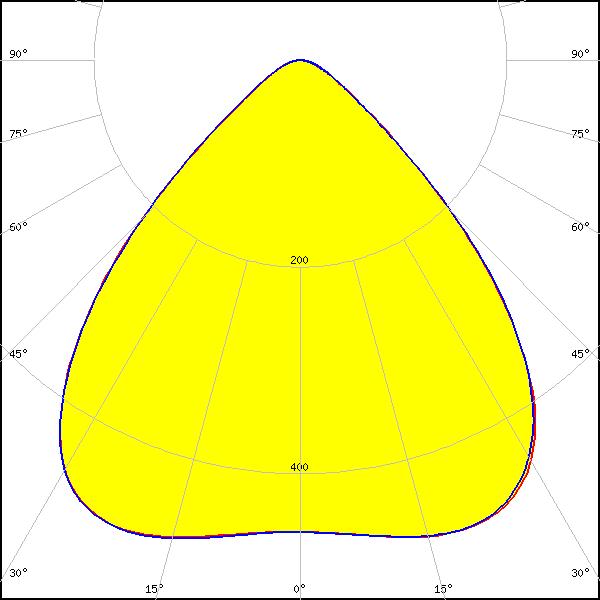

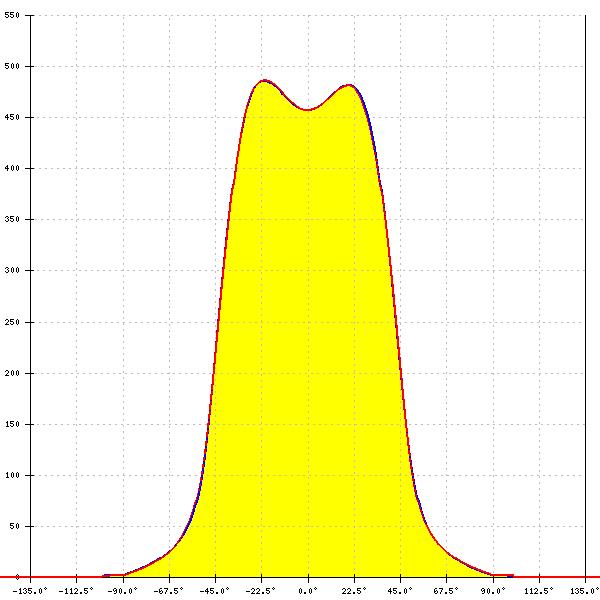

LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM:
88°
FWTM:
118°
Peak intensity:
0.490 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

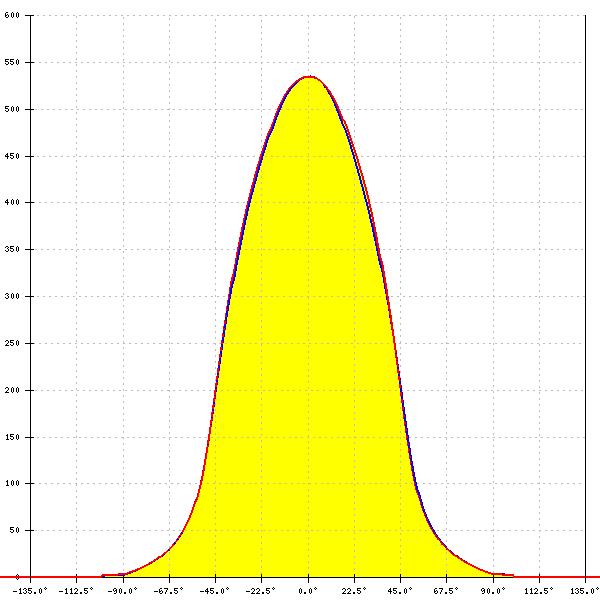

LED:
VERO18
LES size: 18.6 mm
Required components:
FWHM:
81°
FWTM:
120°
Peak intensity:
0.530 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

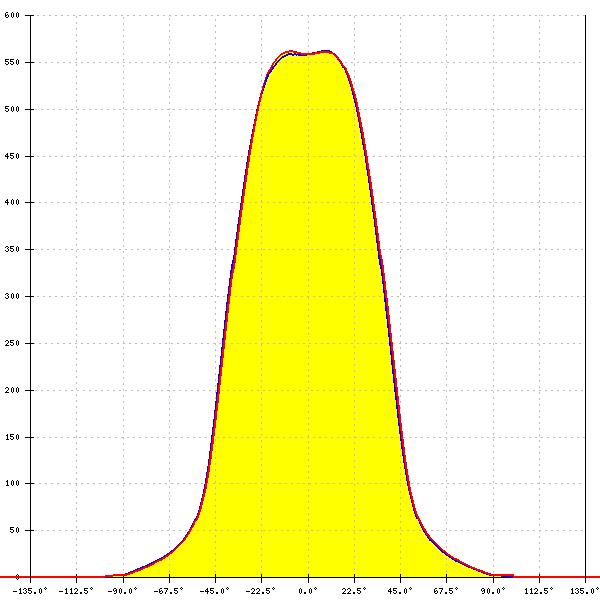

LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
78°
FWTM:
110°
Peak intensity:
0.560 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
87°
FWTM:
119°
Peak intensity:
0.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

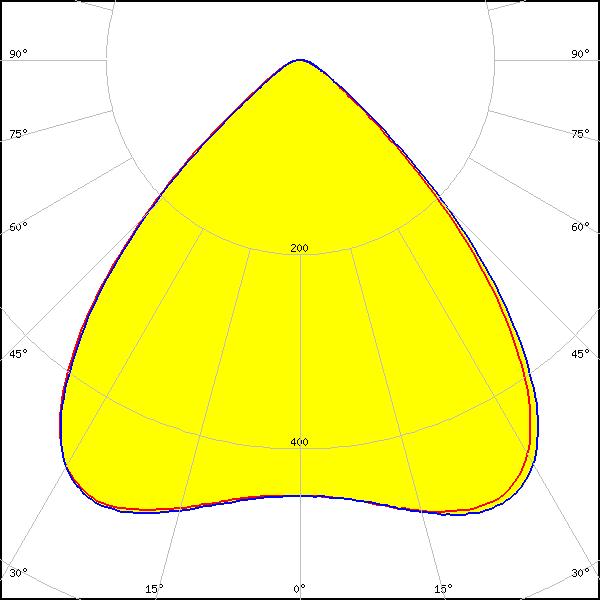

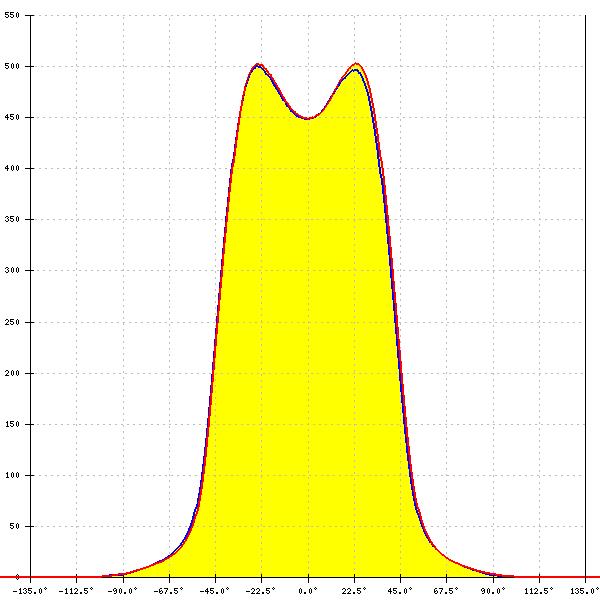

LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
89°
FWTM:
115°
Peak intensity:
0.510 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

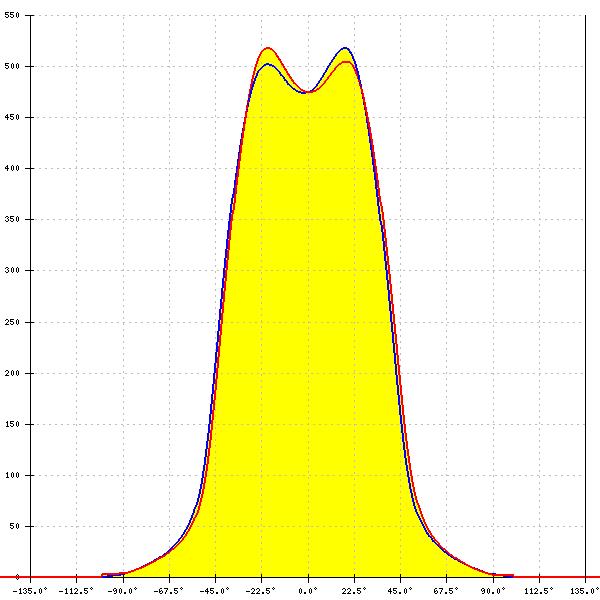

LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
TE Connectivity: 2213401-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
84°
FWTM:
115°
Peak intensity:
0.520 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1830
LES size: 14.0 mm
Required components:
FWHM:
90°
FWTM:
-
Peak intensity:
0.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core G7 L15 H1
LES size: 15.0 mm
Required components:
FWHM:
67°
FWTM:
103°
Peak intensity:
0.640 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

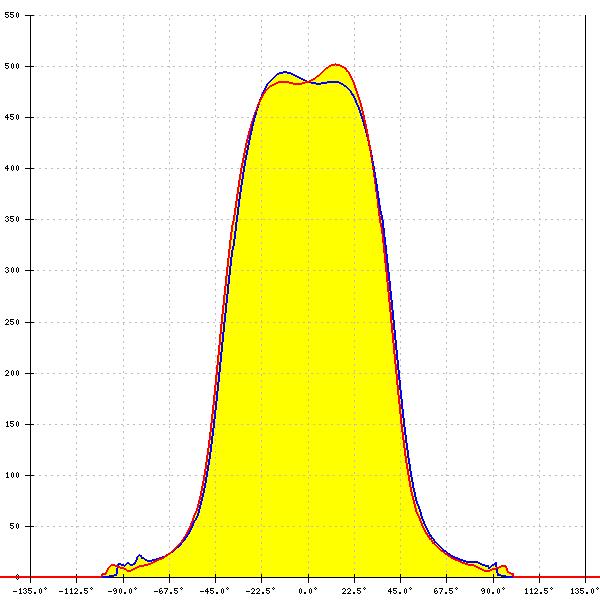

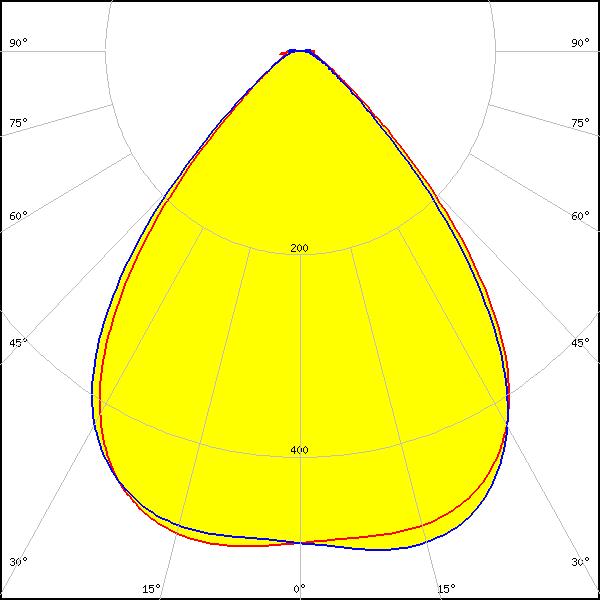

LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
82°
FWTM:
113°
Peak intensity:
0.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

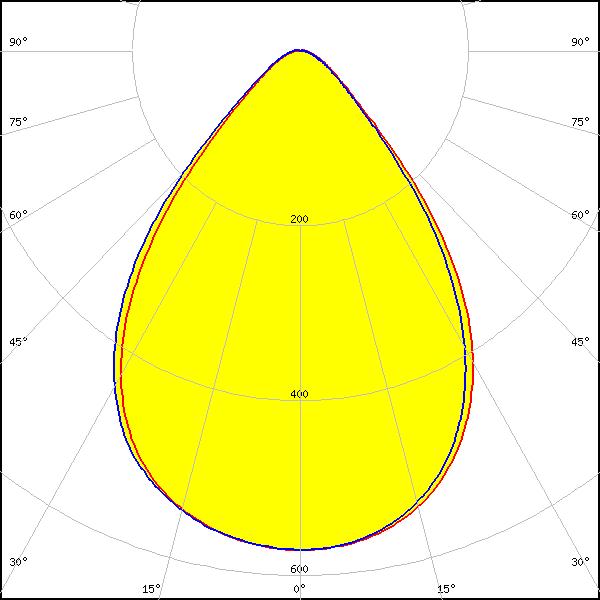

LED:
Fortimo SLM L15 + SLM holder
LES size: 15.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
77°
FWTM:
111°
Peak intensity:
0.570 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

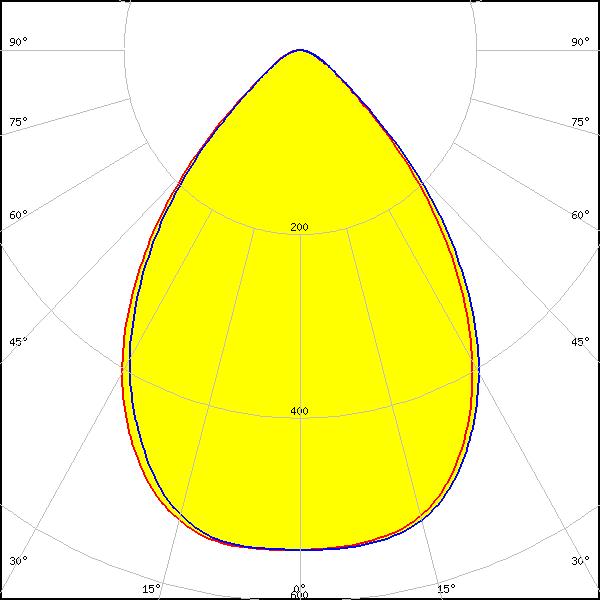

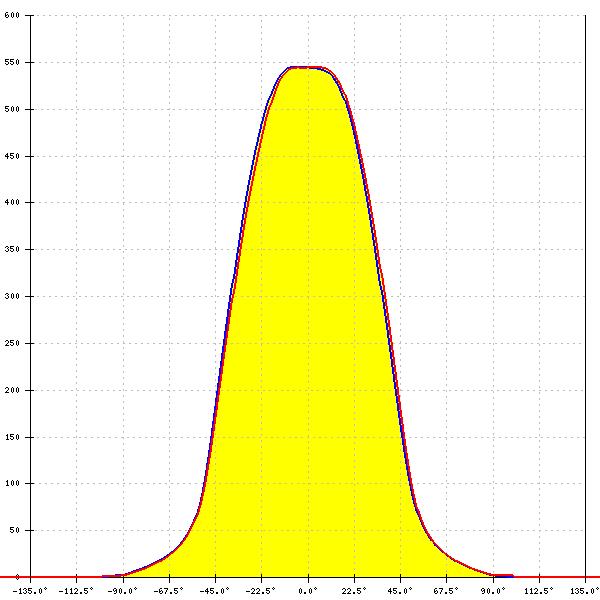

LED:
MJT COB LES 14.5
LES size: 14.5 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
78°
FWTM:
112°
Peak intensity:
0.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
