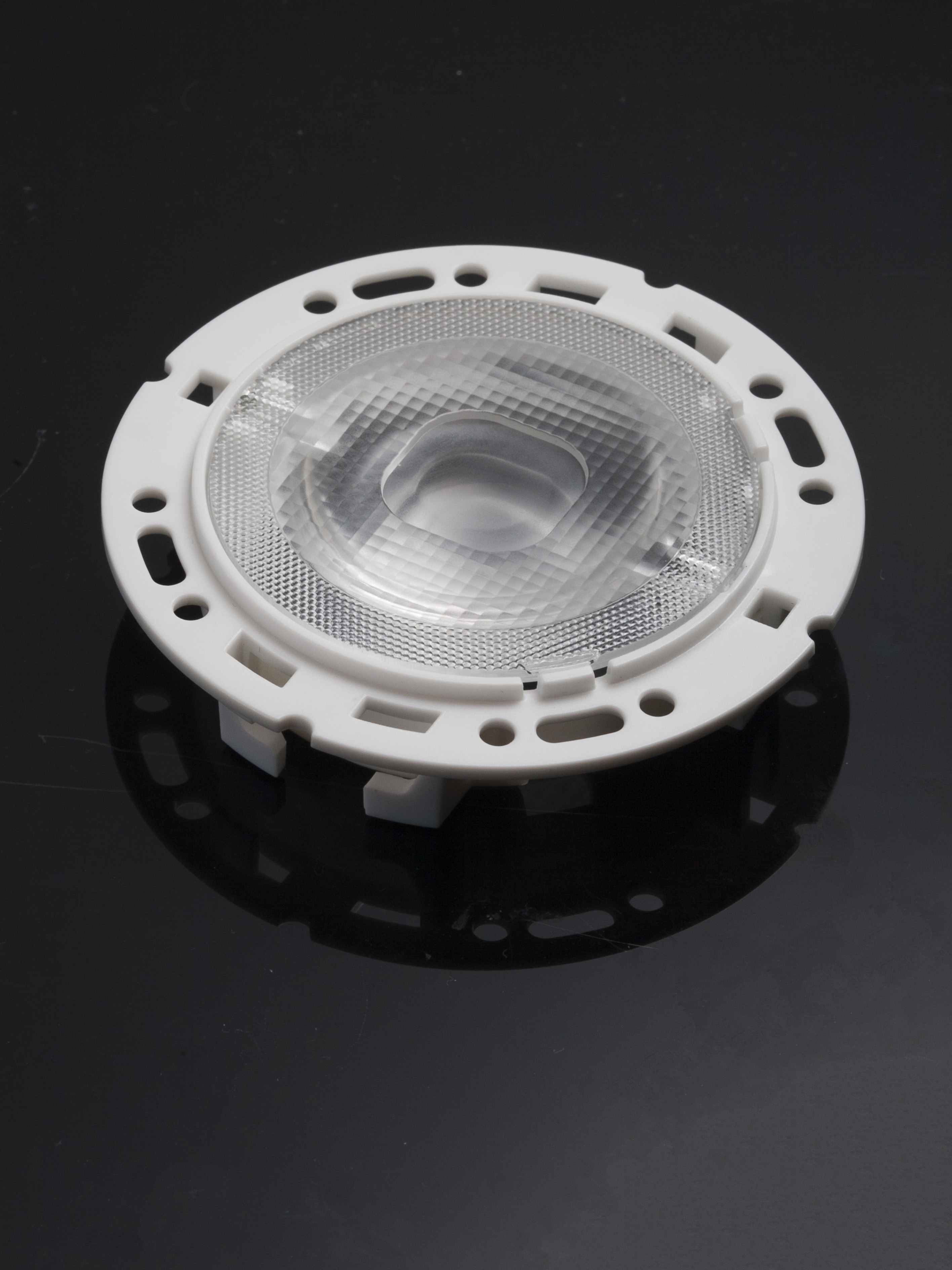

RONDA-REC-60
Print
~60° + 60° rectangular beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL
This product consists of multiple parts that need to be ordered separately. See ordering information.
Materials
- Holder
- F15155_RONDA-HLD-APC
- Request material files from Tech Support
- Single lens
- F15556_RONDA-REC-60PMMA
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

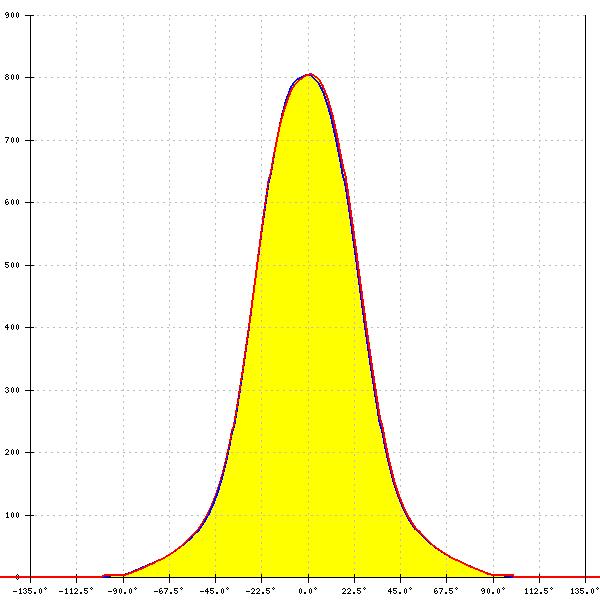

Optical results

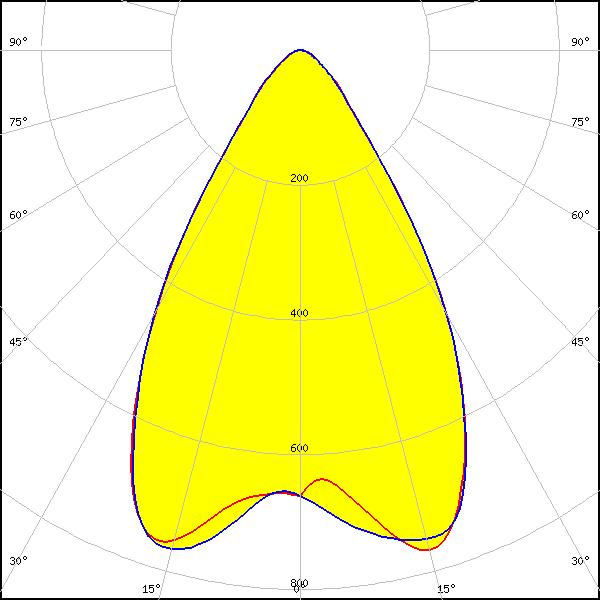

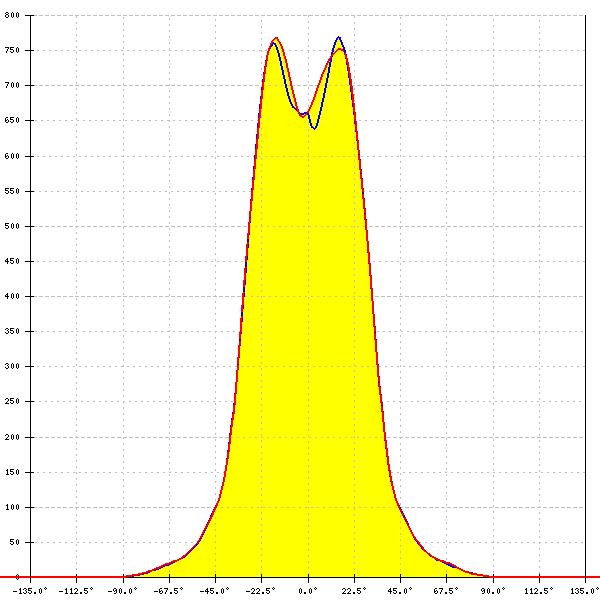

LED:
H9
LES size: 9.3 mm
Required components:
FWHM:
63°
FWTM:
-
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
H9
LES size: 9.3 mm
Required components:
FWHM:
63°
FWTM:
-
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

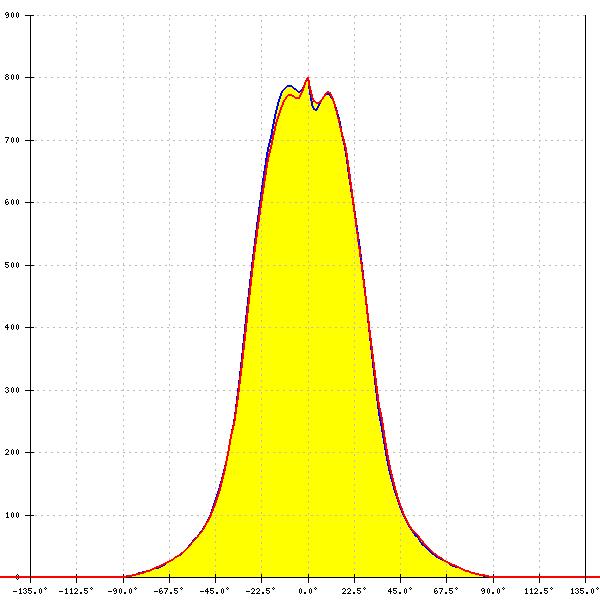

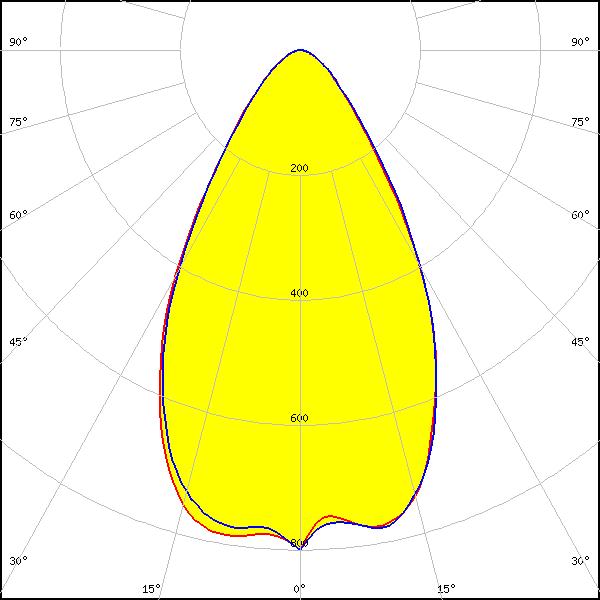

LED:
V13 Gen7
LES size: 14.0 mm
Required components:
FWHM:
60°
FWTM:
-
Peak intensity:
0.800 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

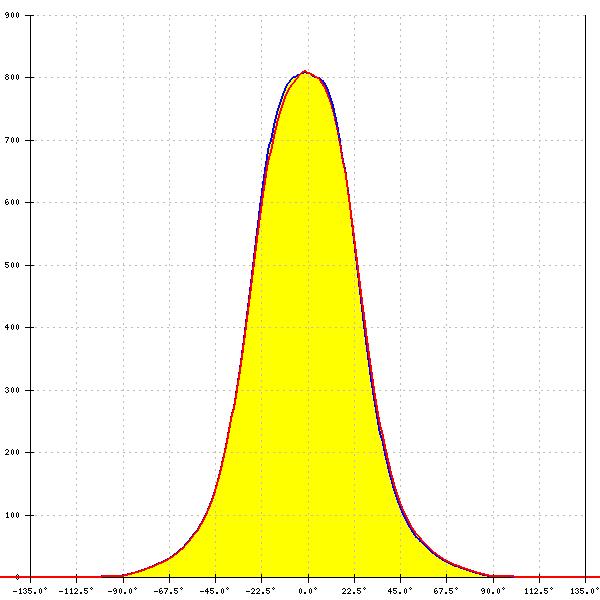

LED:

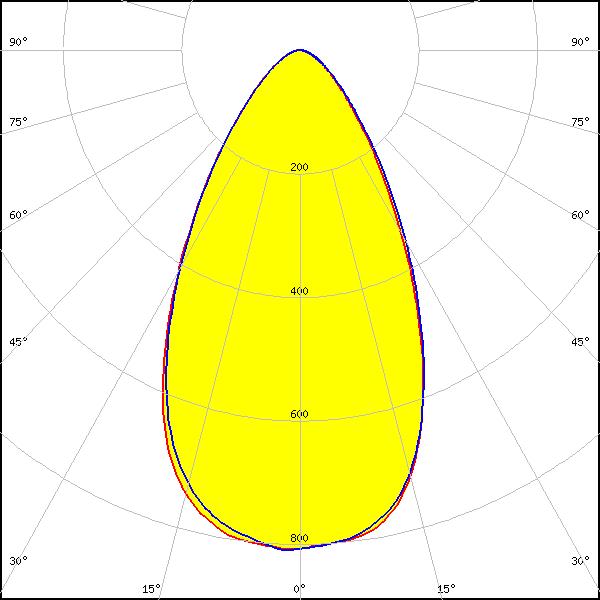

Vero SE 13
LES size: 13.4 mm
Required components:
FWHM:
58°
FWTM:
103°
Peak intensity:
0.800 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

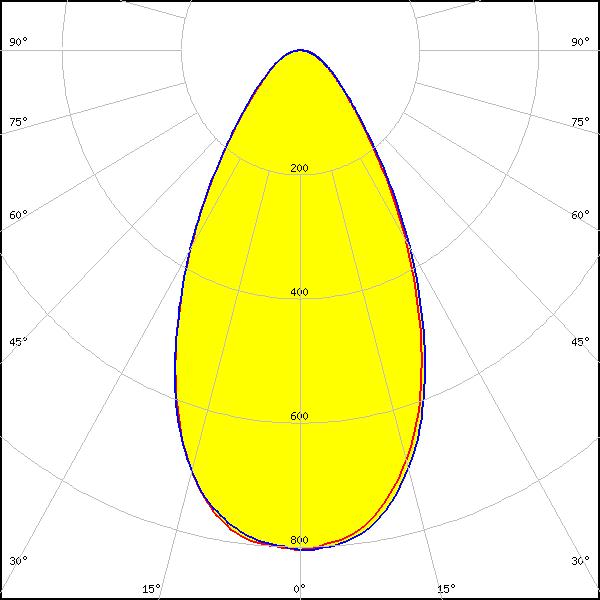

LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
57°
FWTM:
104°
Peak intensity:
0.810 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

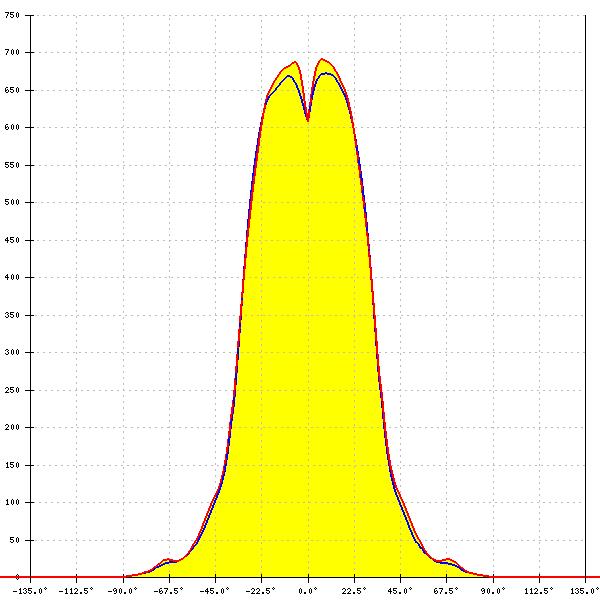

LED:

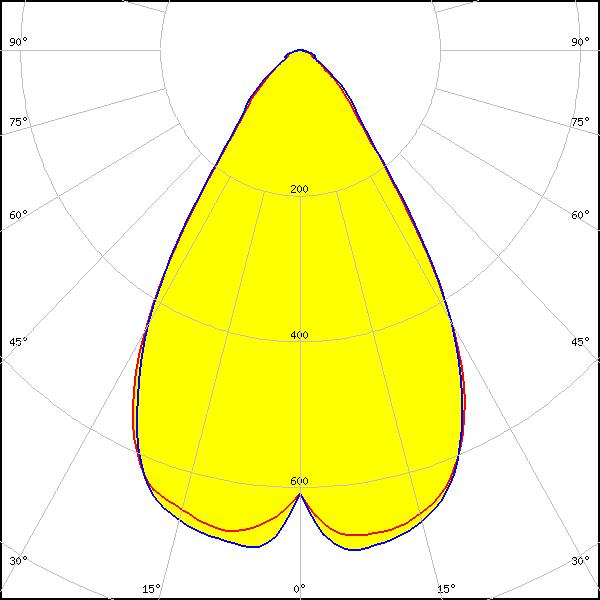

CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
65°
FWTM:
-
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

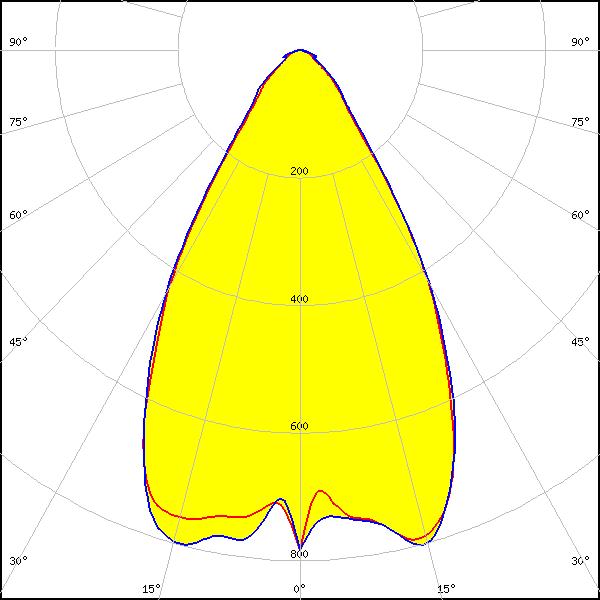

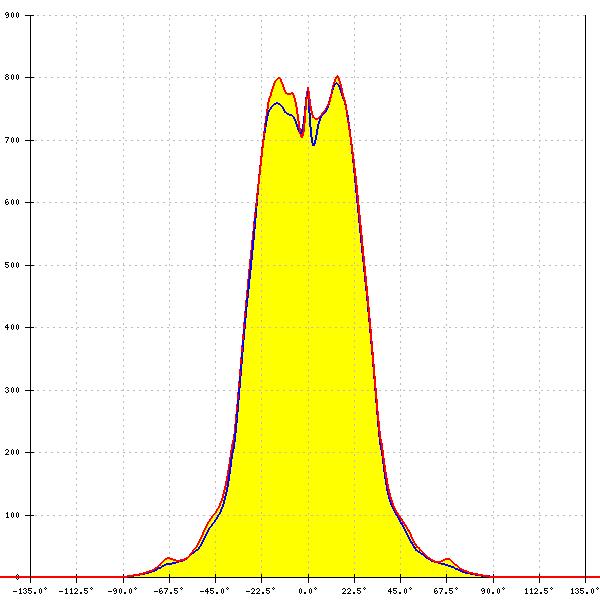

LED:
CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
61°
FWTM:
-
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

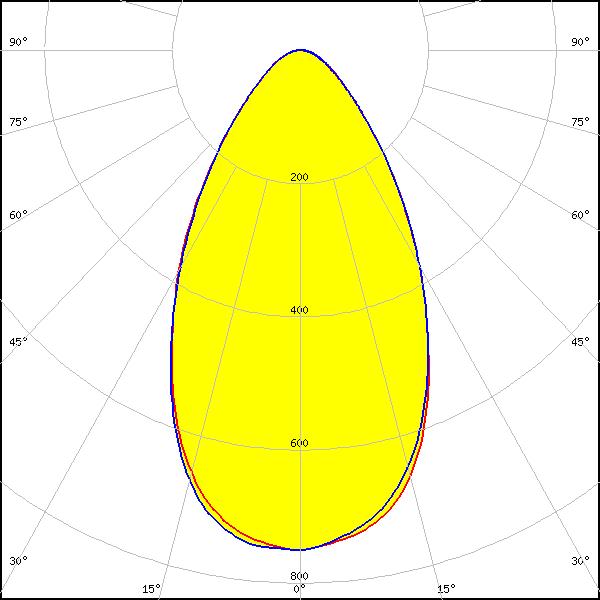

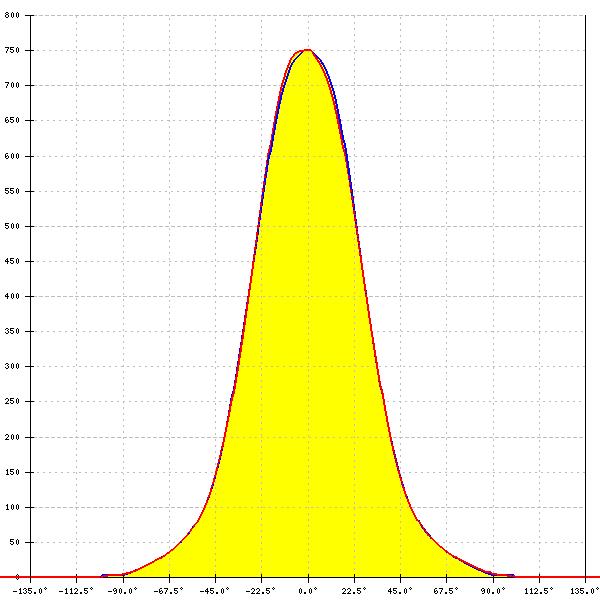

LED:
CMA1840
LES size: 14.0 mm
Required components:
FWHM:
60°
FWTM:
109°
Peak intensity:
0.750 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

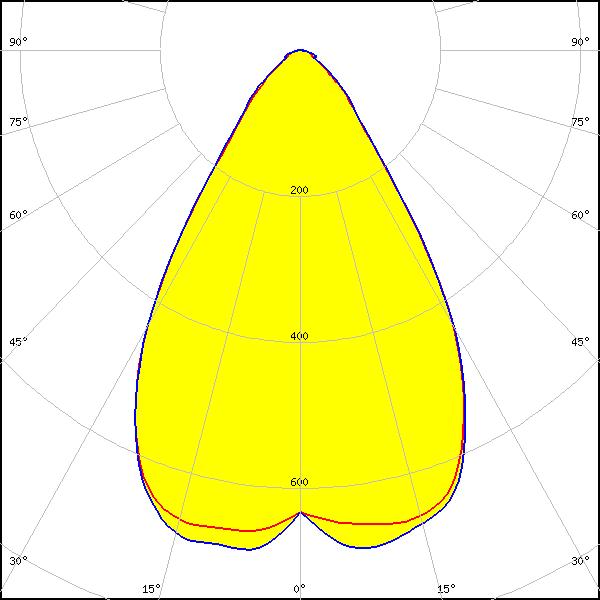

LED:

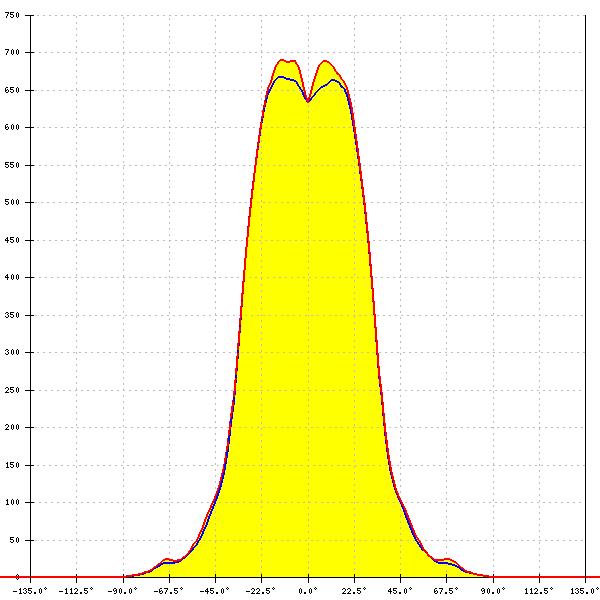

CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
65°
FWTM:
-
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

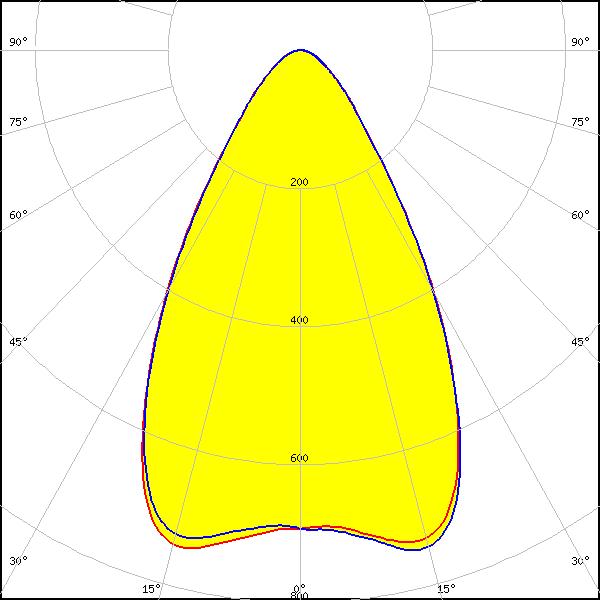

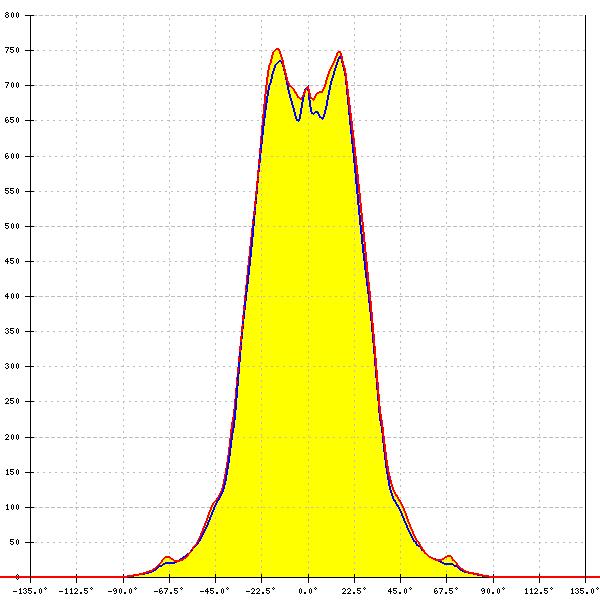

LED:

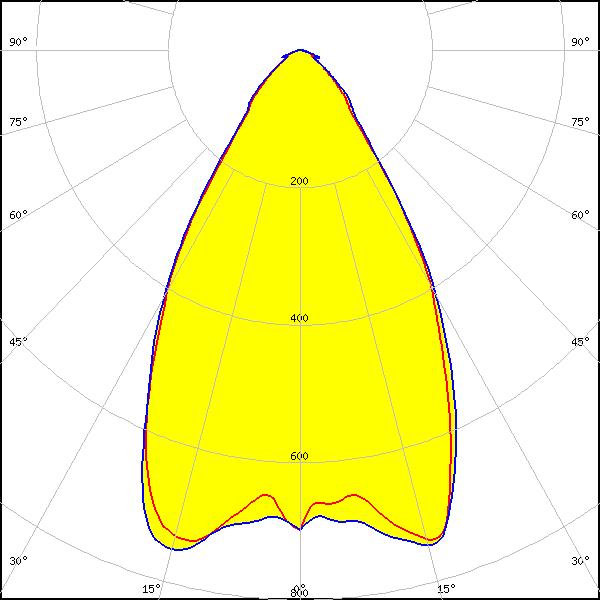

CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
62°
FWTM:
-
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

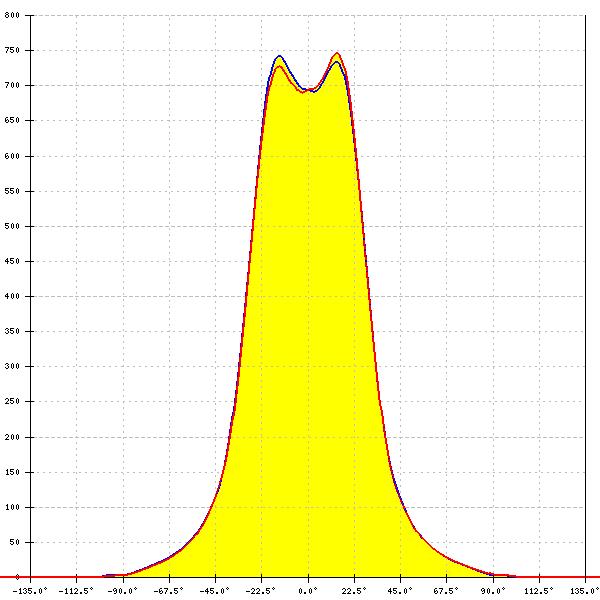

CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
63°
FWTM:
104°
Peak intensity:
0.750 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

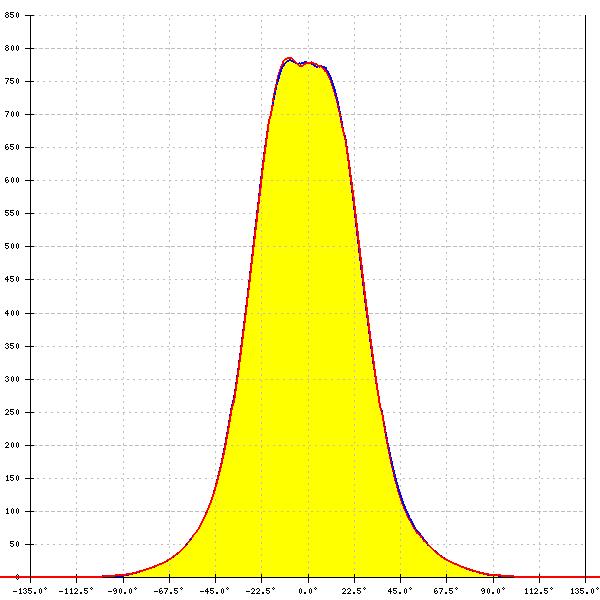

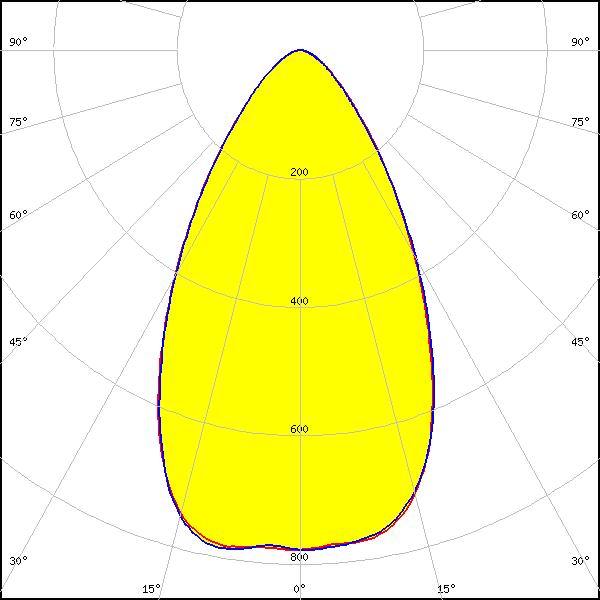

LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
60°
FWTM:
104°
Peak intensity:
0.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

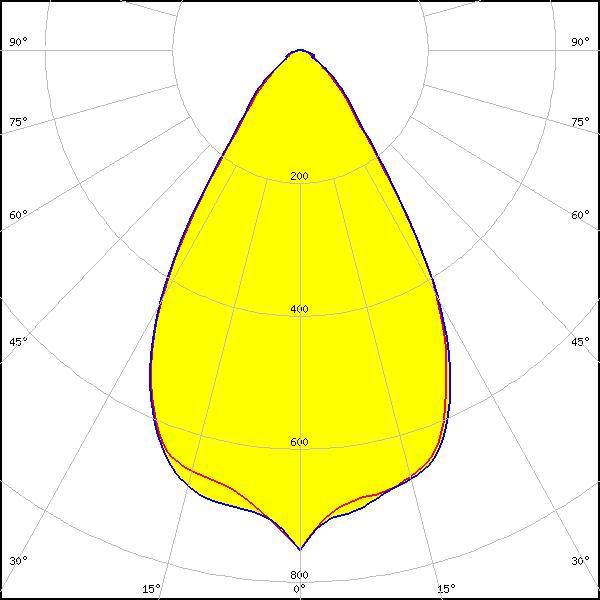

LED:

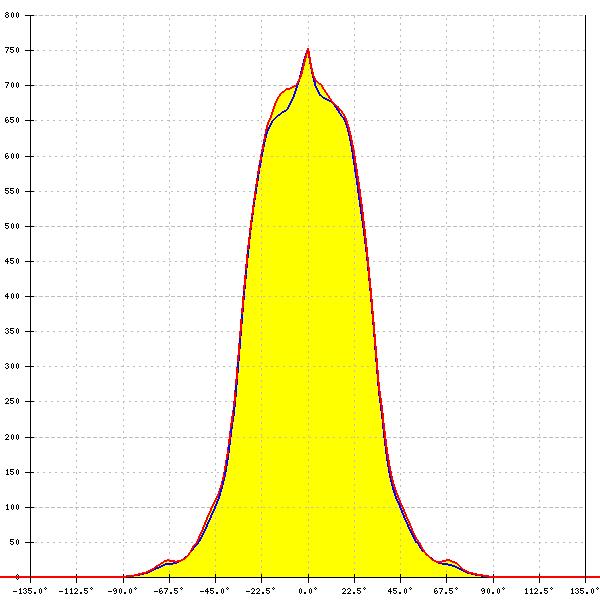

LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
61°
FWTM:
-
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

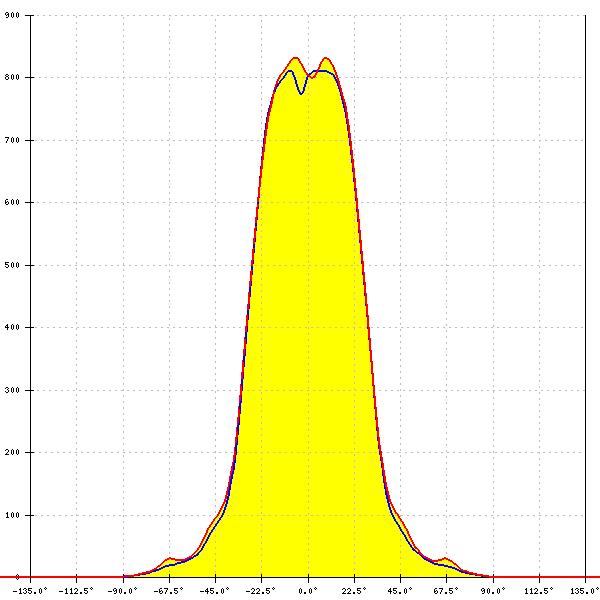

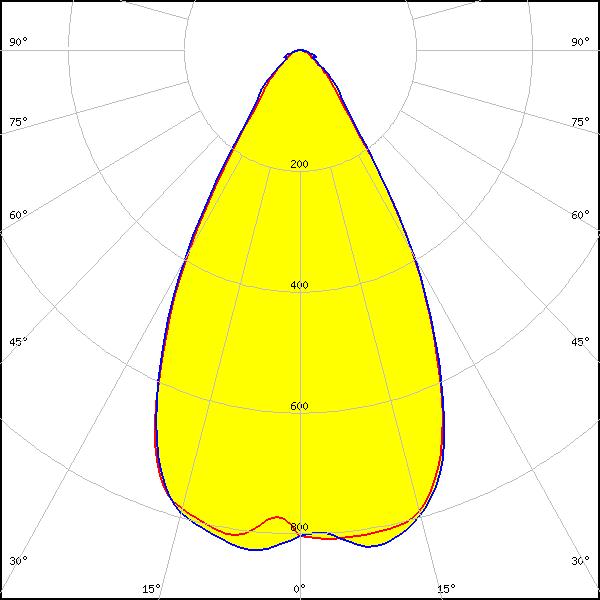

LED:
NSCxL036A
LES size: 7.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
58°
FWTM:
88°
Peak intensity:
0.830 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core G7 L15 H1
LES size: 15.0 mm
Required components:
FWHM:
55°
FWTM:
104°
Peak intensity:
0.760 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

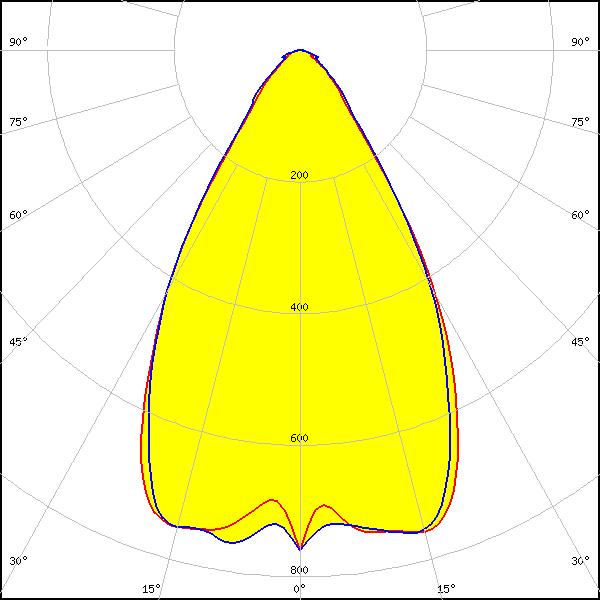

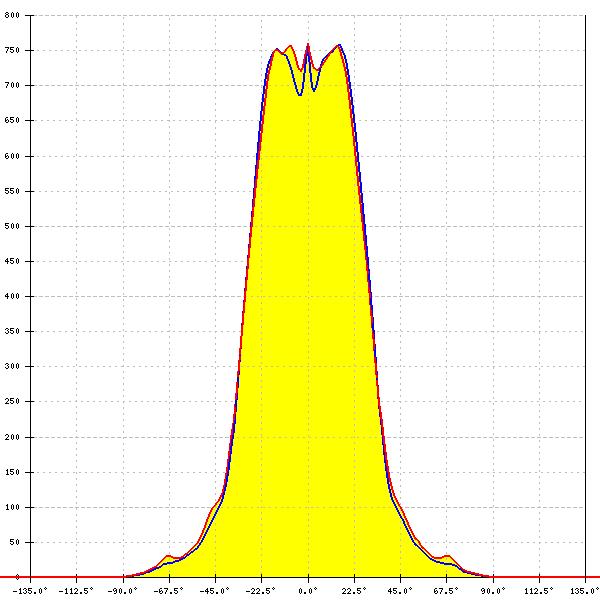

LED:
Mini Zenigata (GW6BM)
LES size: 8.6 mm
Required components:
FWHM:
60°
FWTM:
-
LEDs/each optic:
1
Light colour/type:
White
