    FN15379_STELLA-VSM

    Print

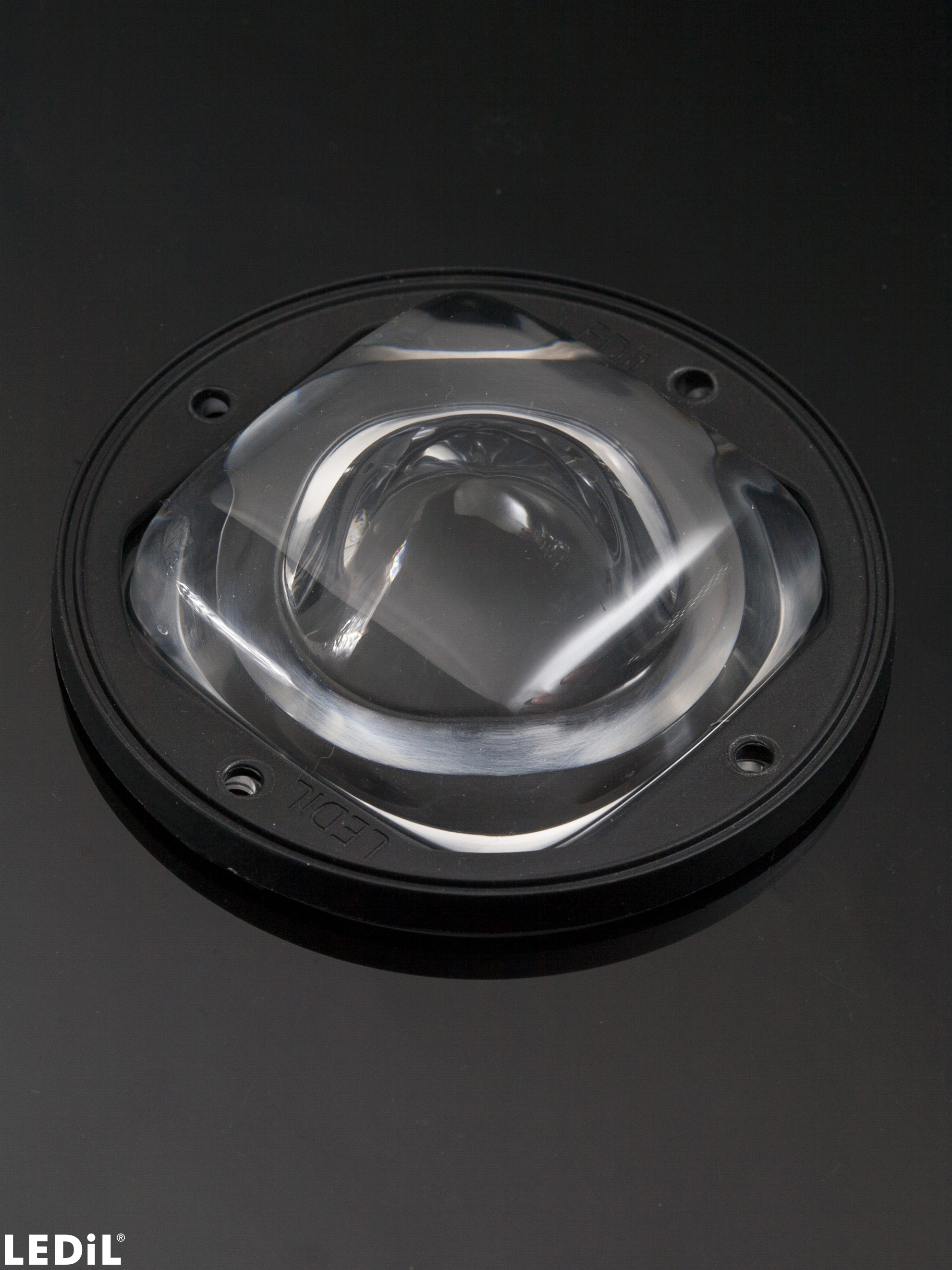

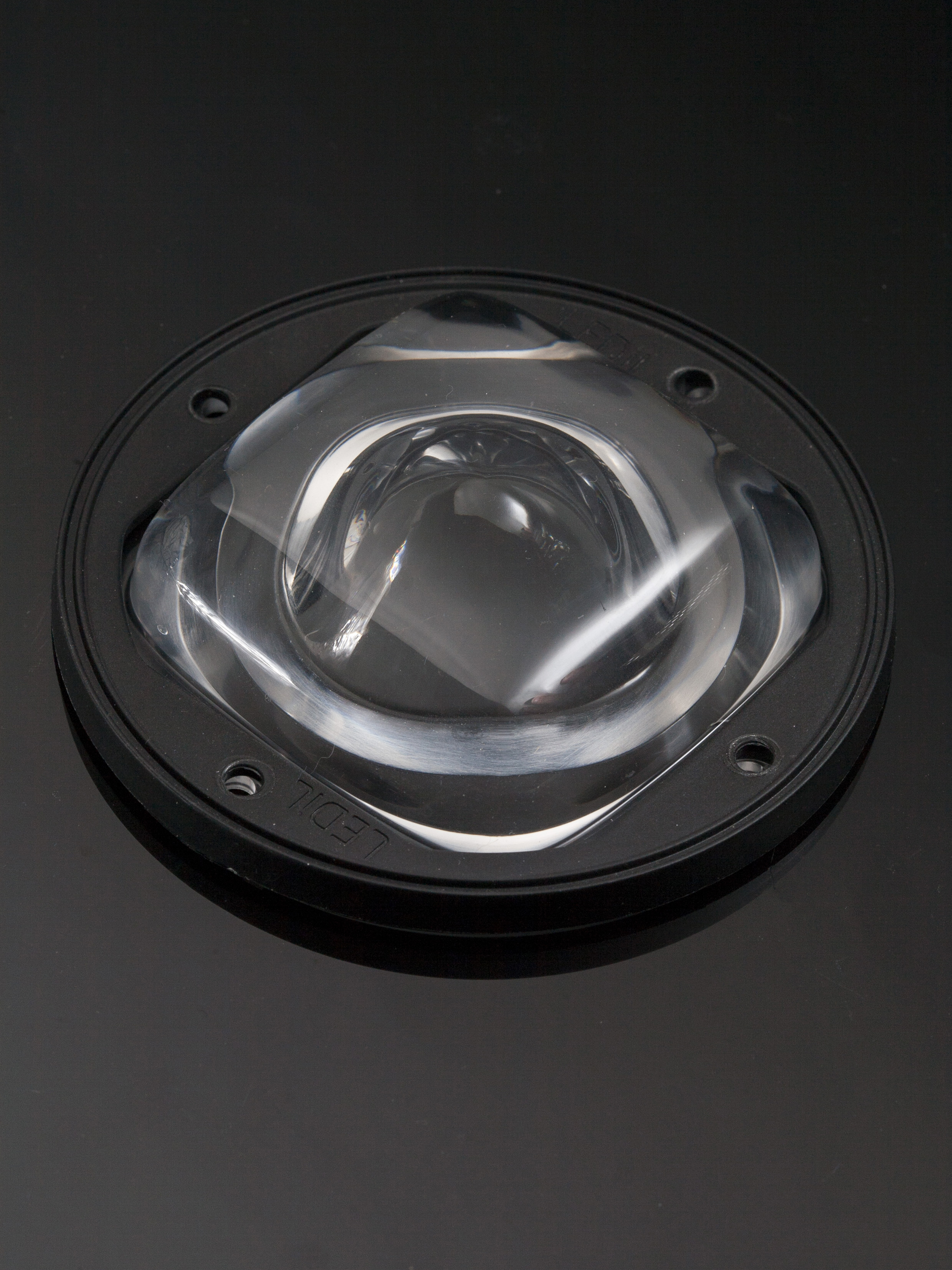

    IESNA Type V (square) for wide areas lighting such as car parks. Compatible with up to 30 mm LES size COBs. Variant with black frame.

    Specification
    • Dimensions:
      90 mm
    • Height:
      20.70 mm
    • Fastening:
      screw
    • Colour:
      black
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      135 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.2 kg
    • MPQ:
      15 pcs
    • MOQ:
      135 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      9.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FN15379_STELLA-VSM
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    LEDiL guide for street lighting optics

    Application guide

    LEDiL guide for horticultural lighting optics

    News

    PRODUCT NEWS - STELLA-VSM

    PCN

    Product change notification NR136 - Change of packaging quantities 070717

    PCN

    Product change notification NR125.a - Change of packaging quantities 050916

    Application area

    Architectural Outdoor Lighting

    Application area

    Tunnel and Transportation Lighting

    Application area

    Horticultural Lighting

    Case story

    Badia di Pomaio resort

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    Application area

    Outdoor Special Applications

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Case story

    The Luneur amusement park

    AVAILABLE LEDiL ACCESSORIES

    STELLA-CLAMP-CXA15-18

    Basepart for STELLA. Compatible with CREE CXA15xx and CXA18xx.

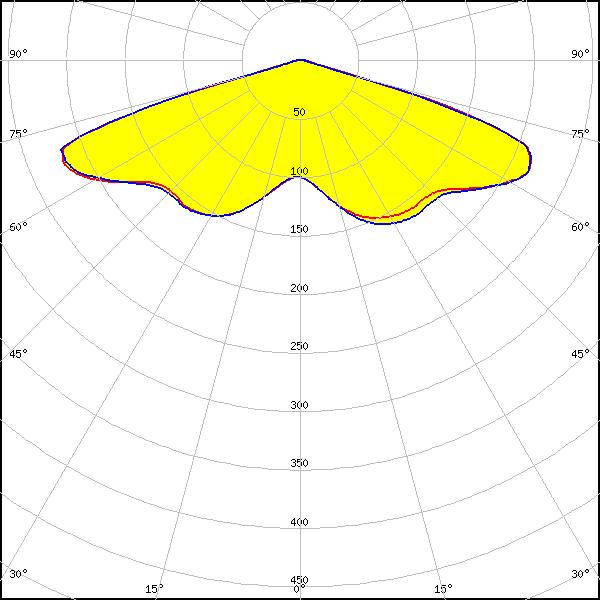

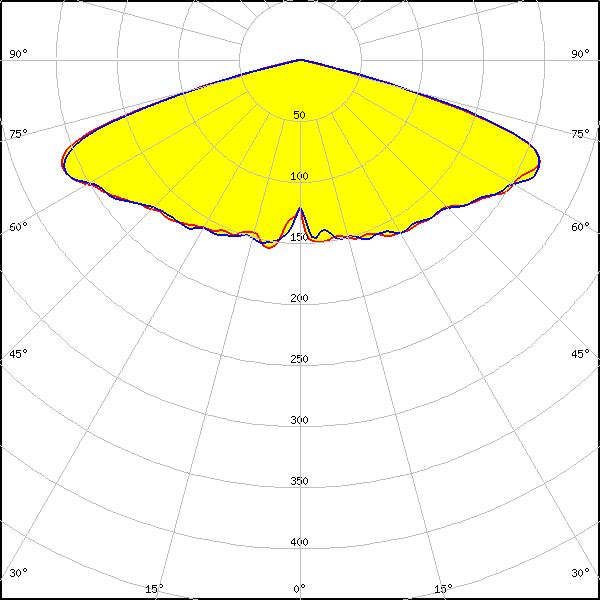

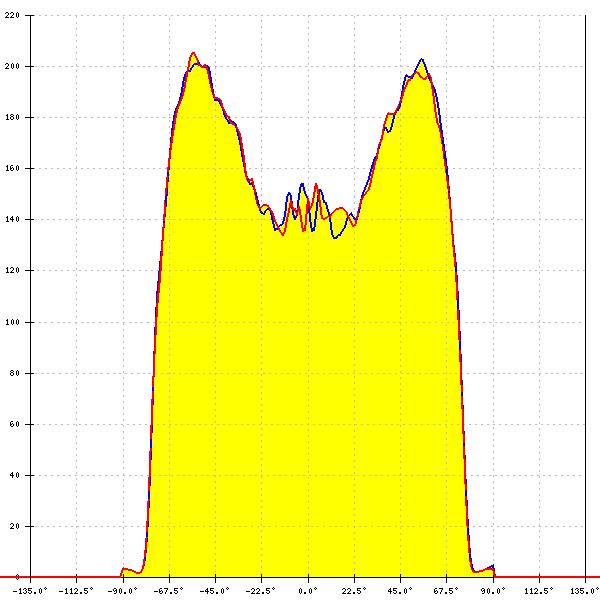

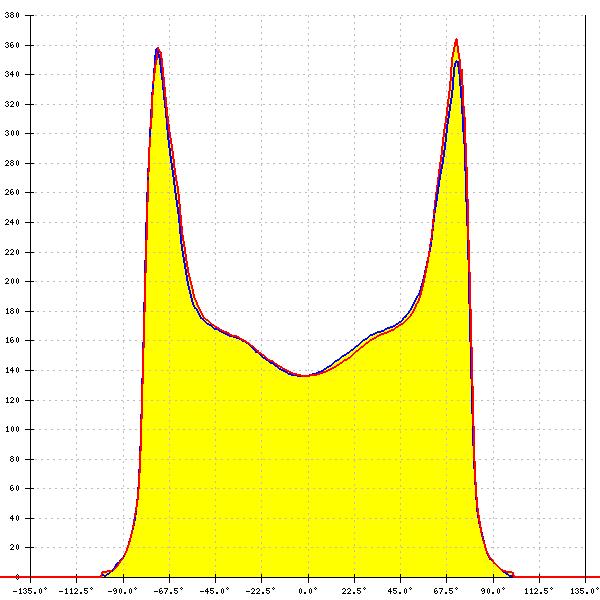

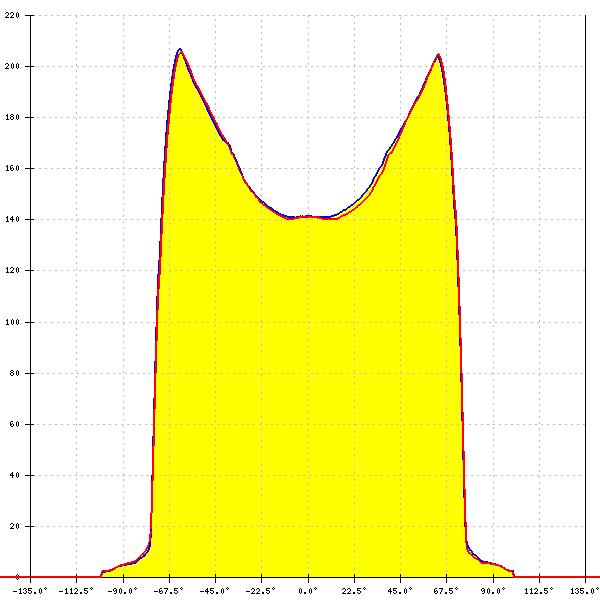

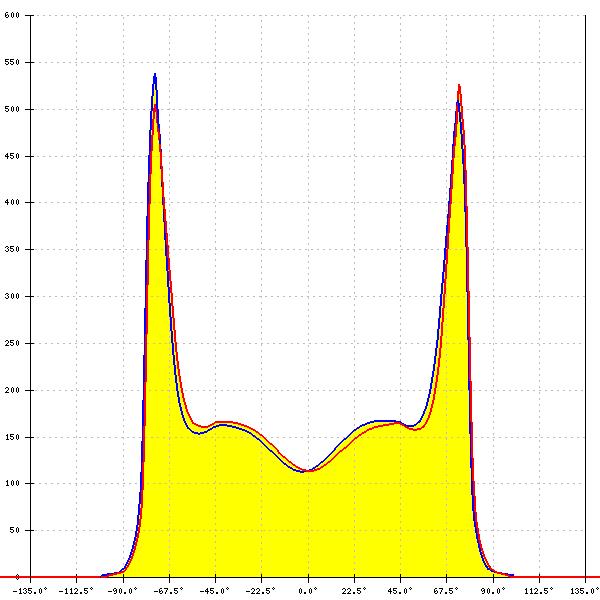

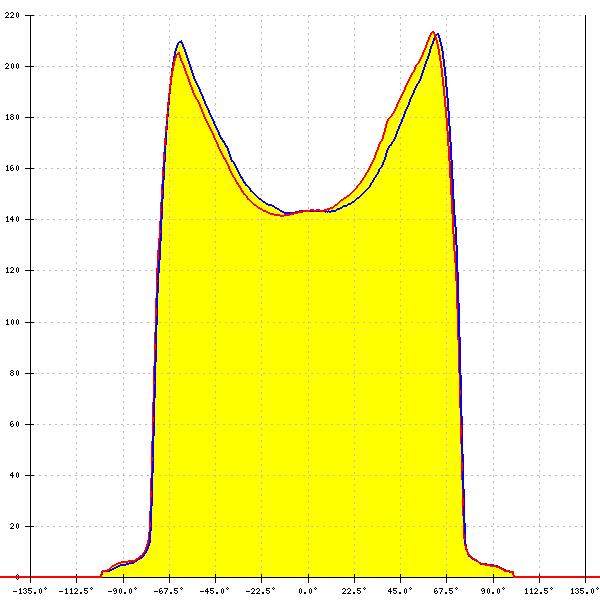

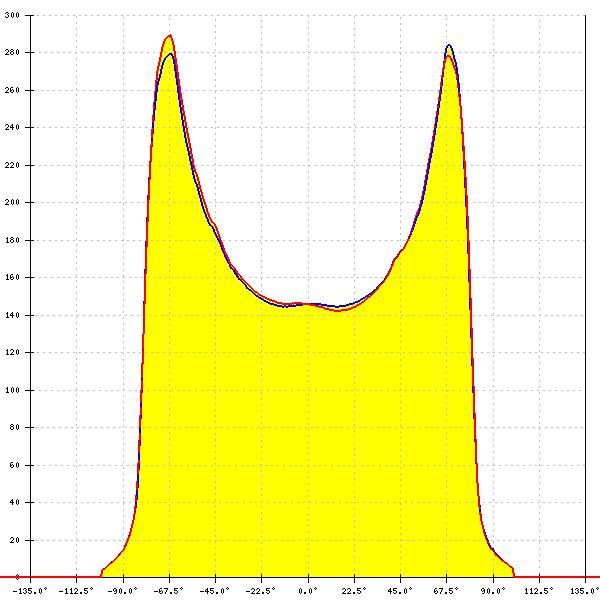

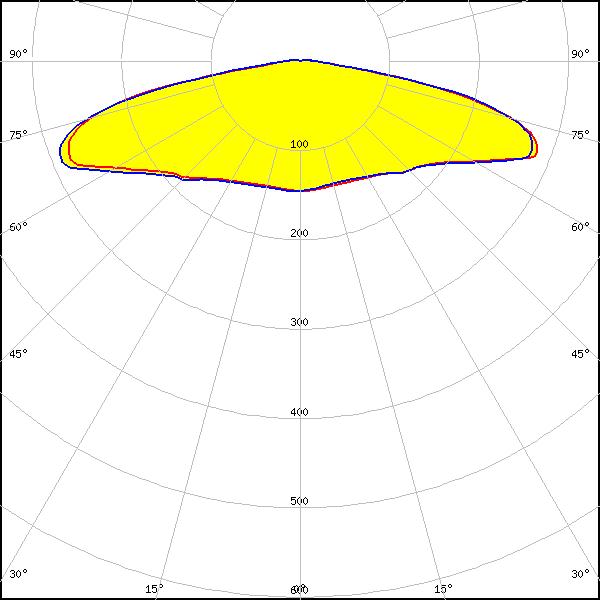

    Optical results

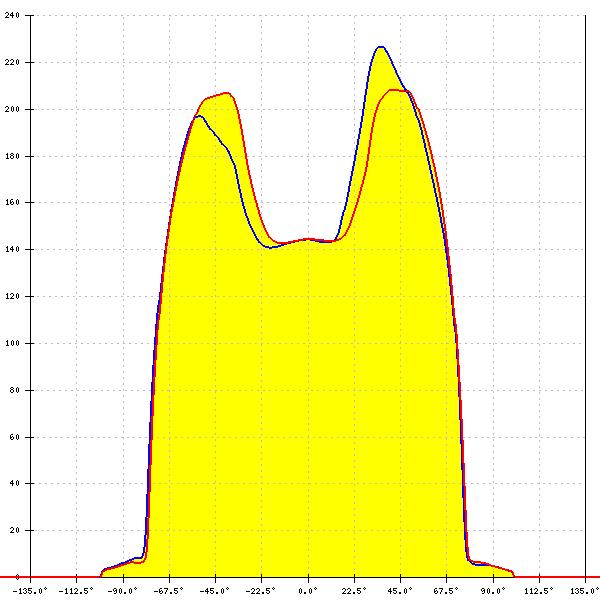

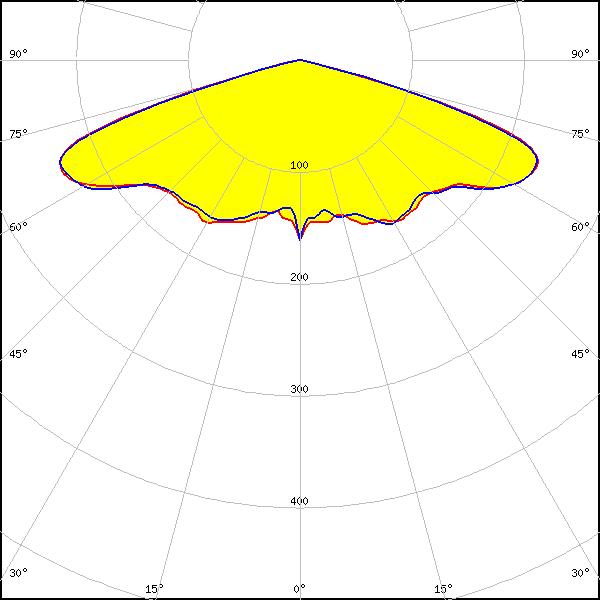

    LED: V10 Gen7
    LES size: 10.2 mm
    Required components:
    Bender Wirth: 486 Typ L1
    FWHM: asymmetric
    Peak intensity: 0.510 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

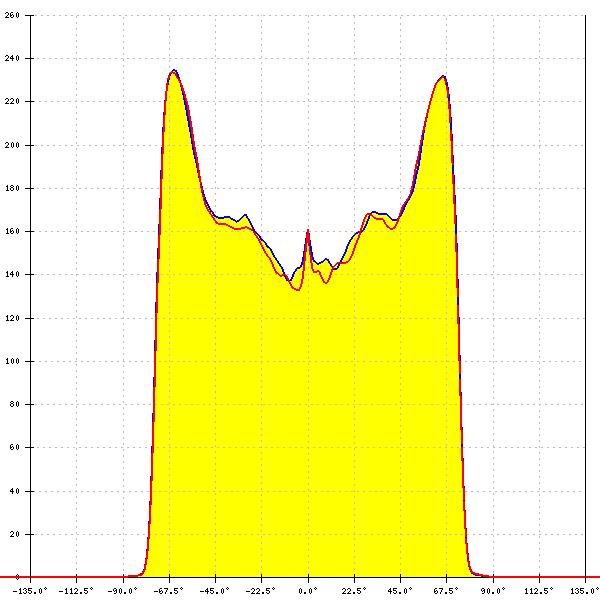

    LED: V13 Gen7
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 477 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.380 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V13 Gen7
    LES size: 14.0 mm
    FWHM: asymmetric
    Peak intensity: 0.400 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V18 Gen7
    LES size: 19.2 mm
    Required components:
    Bender Wirth: 439 Typ L3
    FWHM: asymmetric
    Peak intensity: 0.360 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

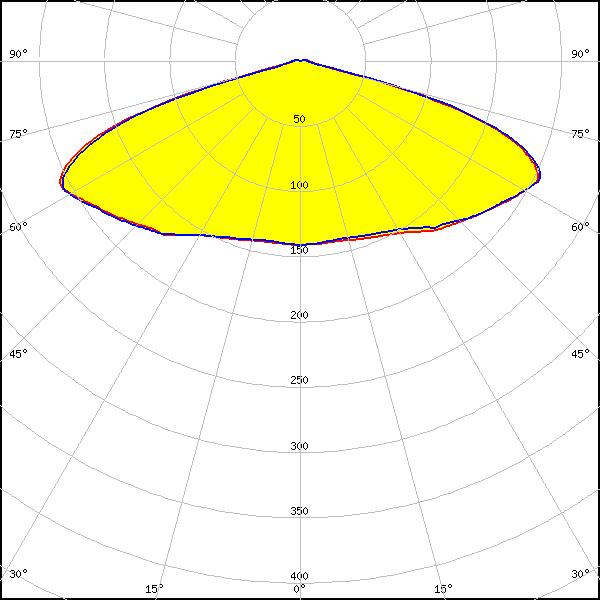

    LED: V22 Gen7
    LES size: 22.6 mm
    FWHM: asymmetric
    Peak intensity: 0.300 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

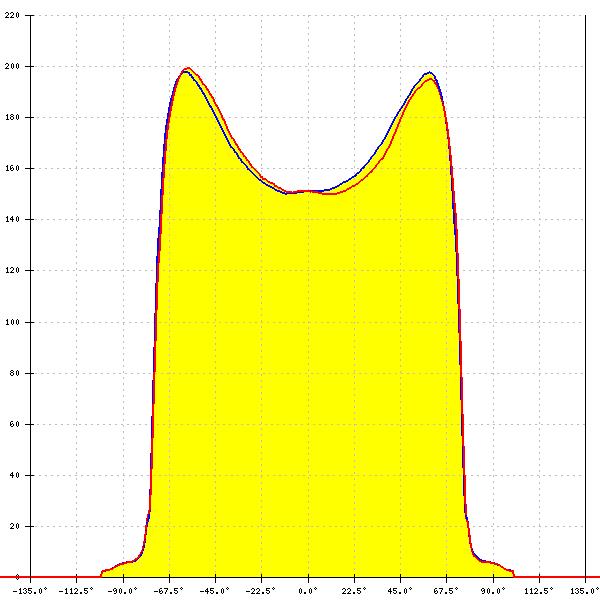

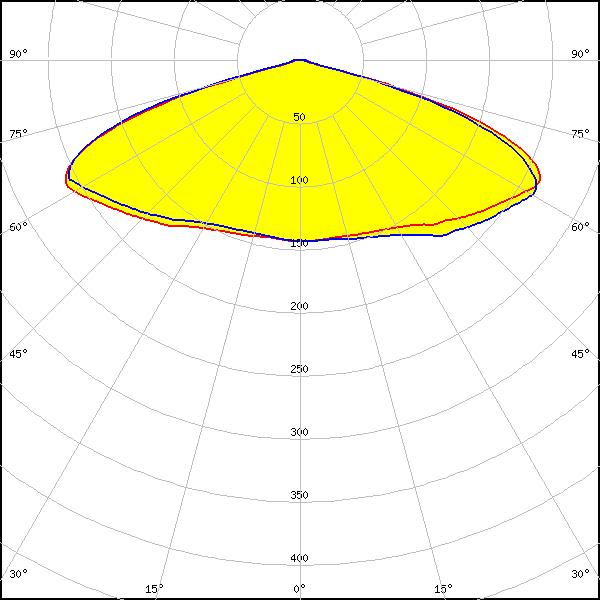

    LED: V22 Gen7
    LES size: 22.6 mm
    Required components:
    Bender Wirth: 431 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.310 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

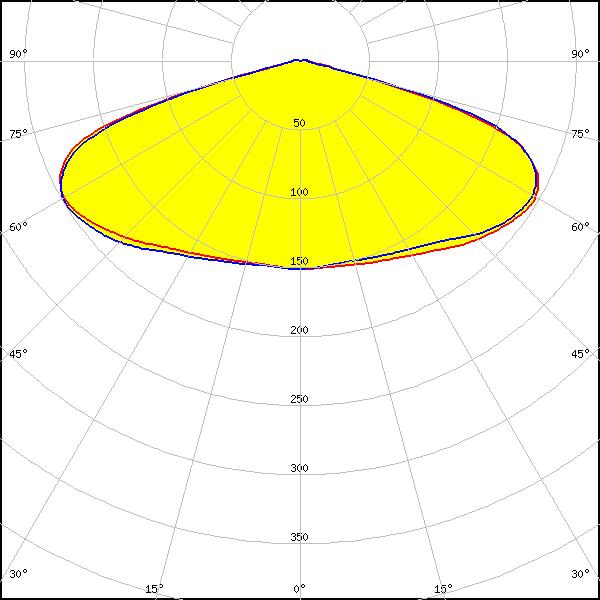

    LED: V22 Gen7
    LES size: 22.6 mm
    Required components:
    TE Connectivity: 2213480-1
    FWHM: asymmetric
    Peak intensity: 0.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

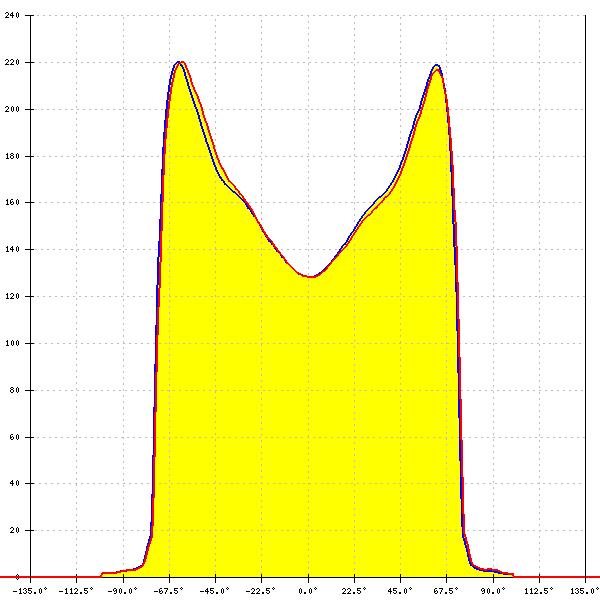

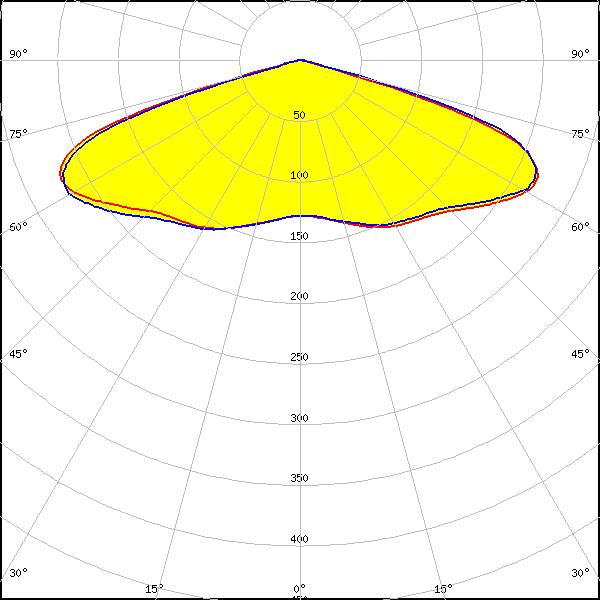

    LED: Vero SE 18
    LES size: 18.6 mm
    FWHM: asymmetric
    Peak intensity: 0.370 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

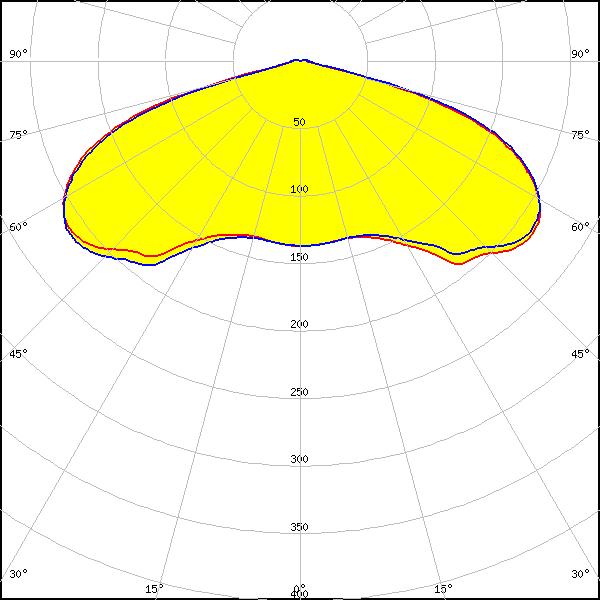

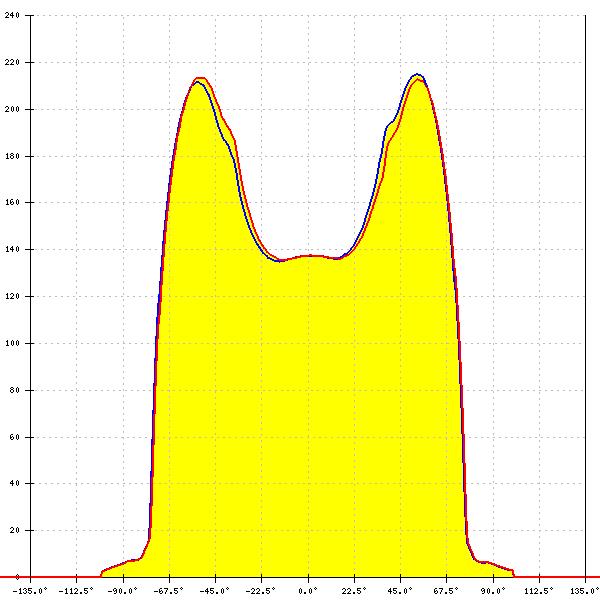

    LED: Vero SE 29
    LES size: 29.2 mm
    FWHM: asymmetric
    Peak intensity: 0.260 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

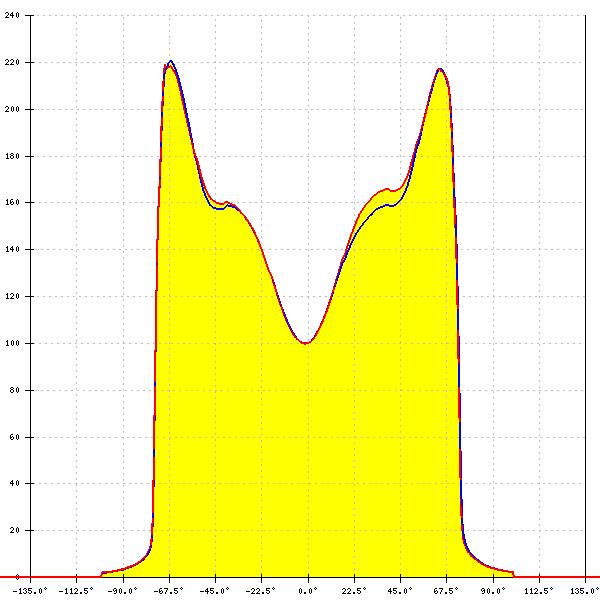

    LED: VERO13
    LES size: 13.4 mm
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

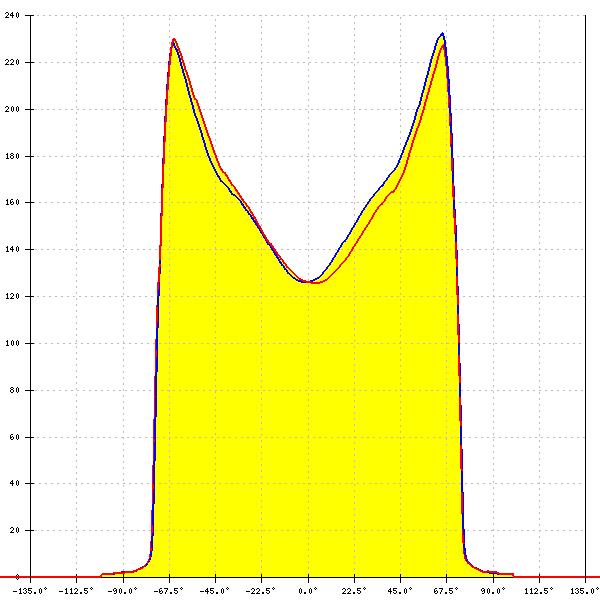

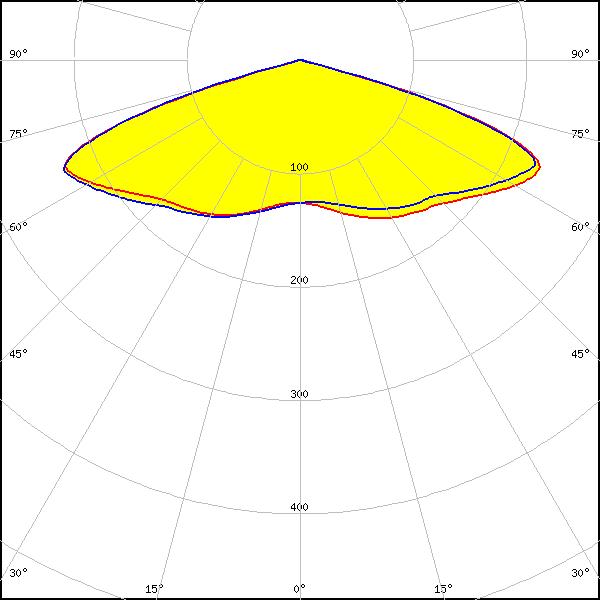

    LED: VERO18
    LES size: 18.6 mm
    FWHM: asymmetric
    Peak intensity: 0.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

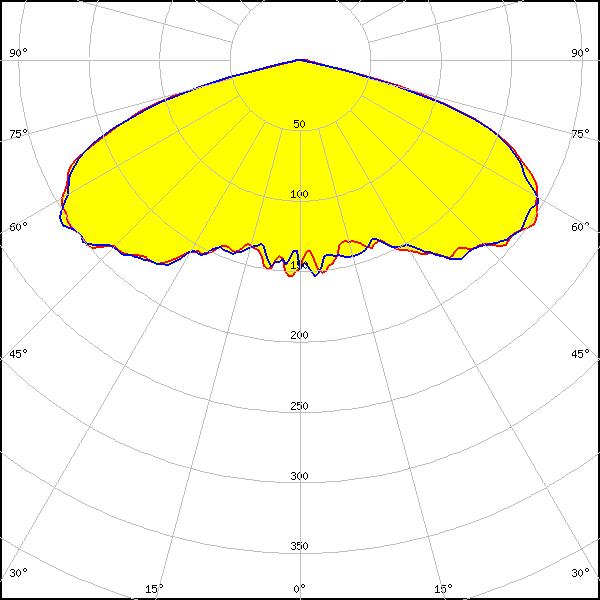

    LED: VERO29
    LES size: 29.2 mm
    LEDs/each optic: 1
    Light colour/type: White

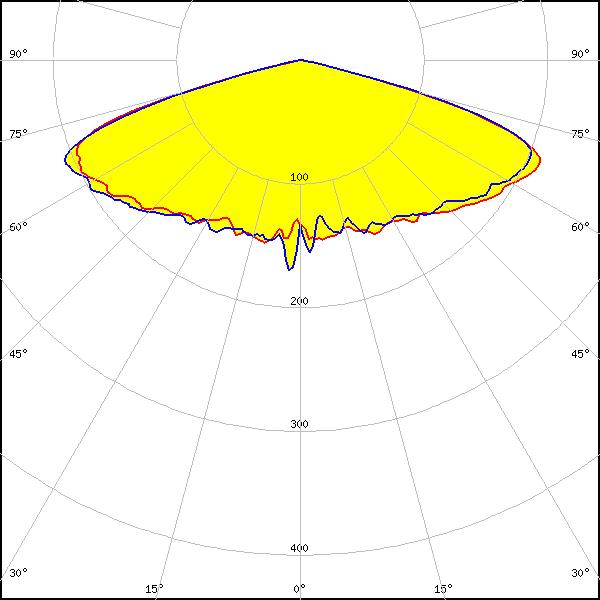

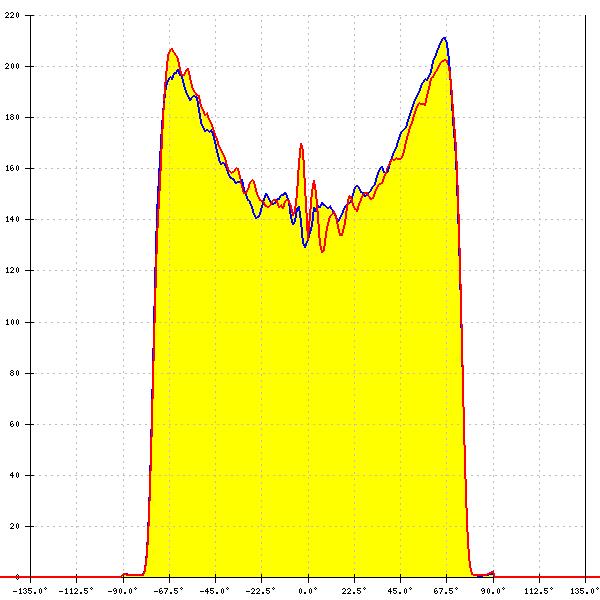

    LED: CLL04x/CLU04x
    LES size: 22.0 mm
    FWHM: asymmetric
    Peak intensity: 0.320 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL04x/CLU04x
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 431 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.330 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

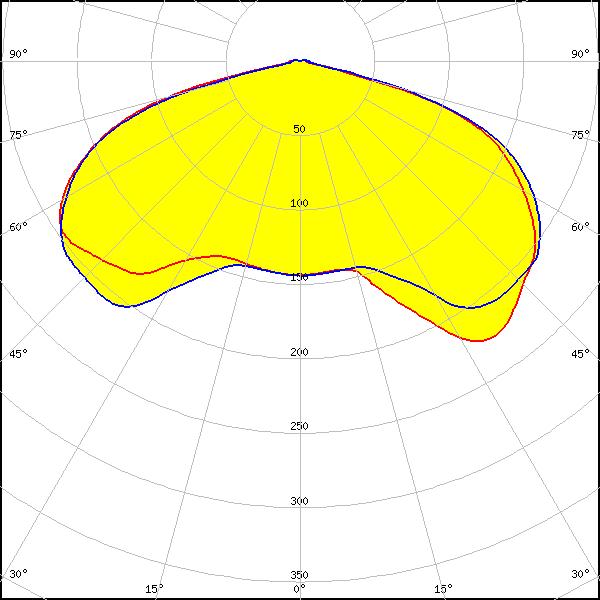

    LED: CLL05x/CLU05x
    LES size: 32.8 mm
    FWHM: asymmetric
    Peak intensity: 0.260 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

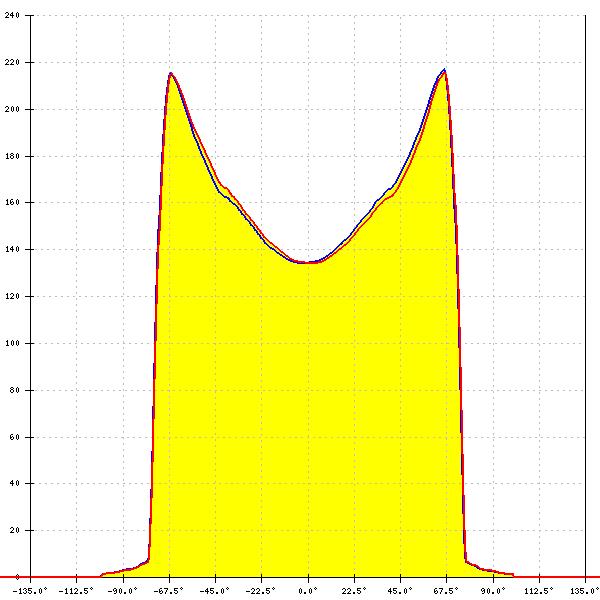

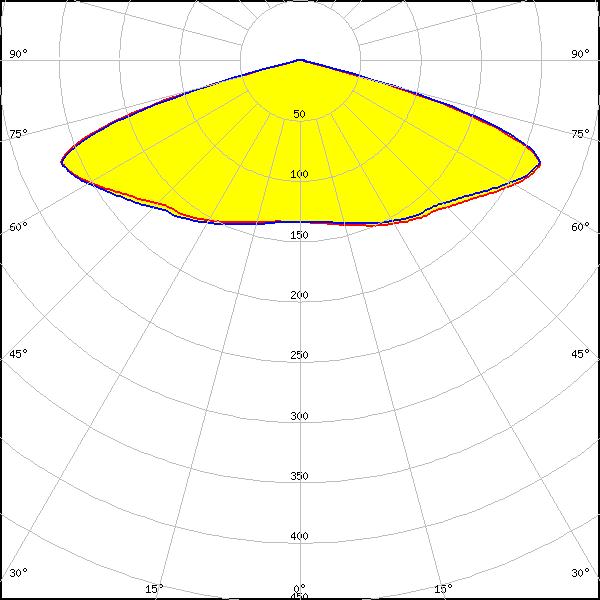

    LED: CMA2550
    LES size: 19.0 mm
    FWHM: asymmetric
    Peak intensity: 0.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

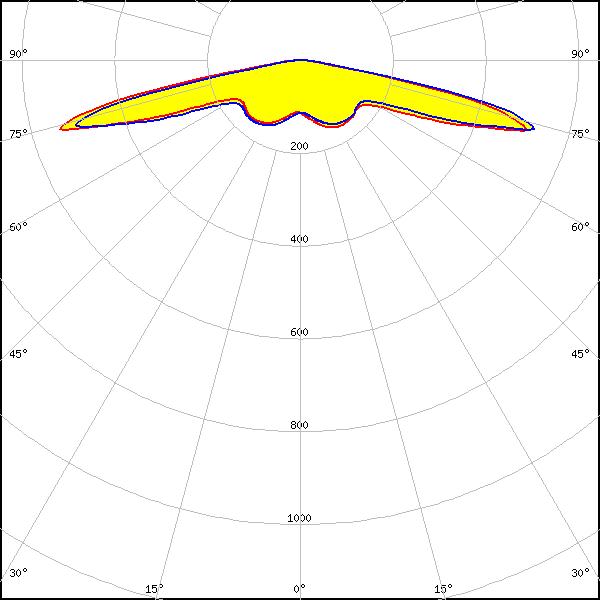

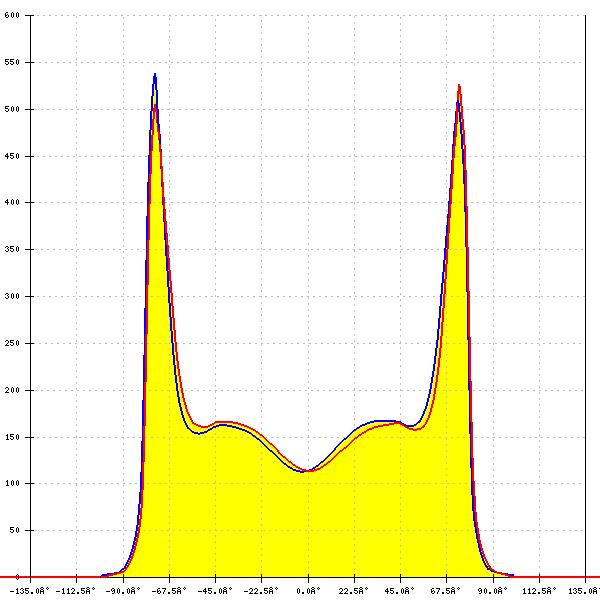

    LED: CMT19xx
    LES size: 14.5 mm
    Required components:
    Bender Wirth: 477 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.538 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

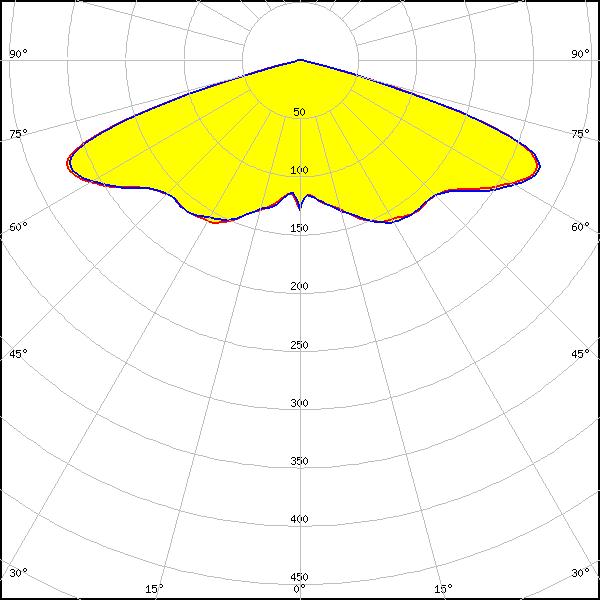

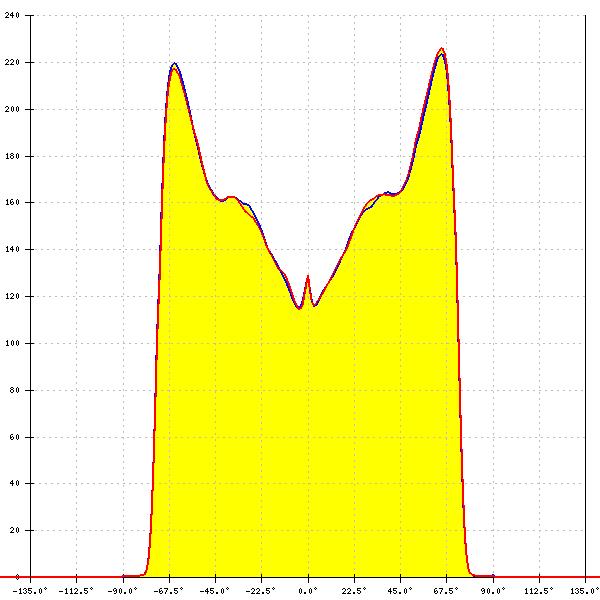

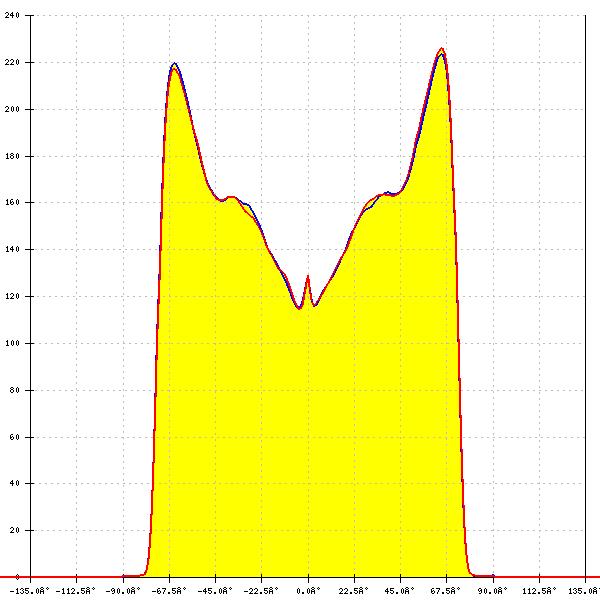

    LED: CMU15xx
    LES size: 14.5 mm
    FWHM: asymmetric
    Peak intensity: 0.396 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

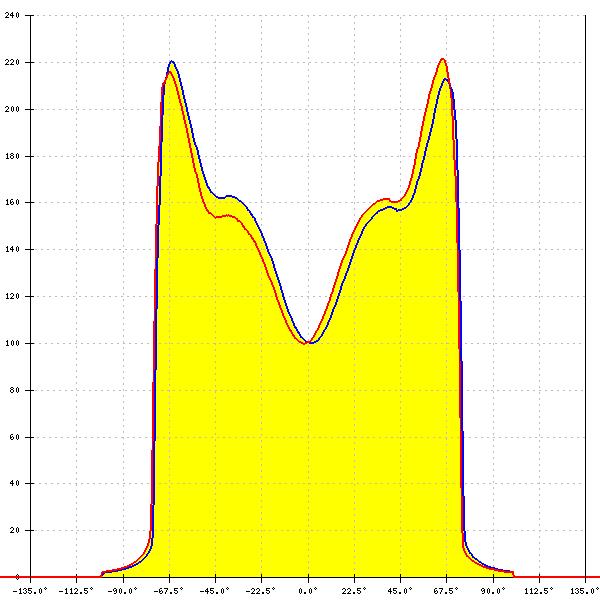

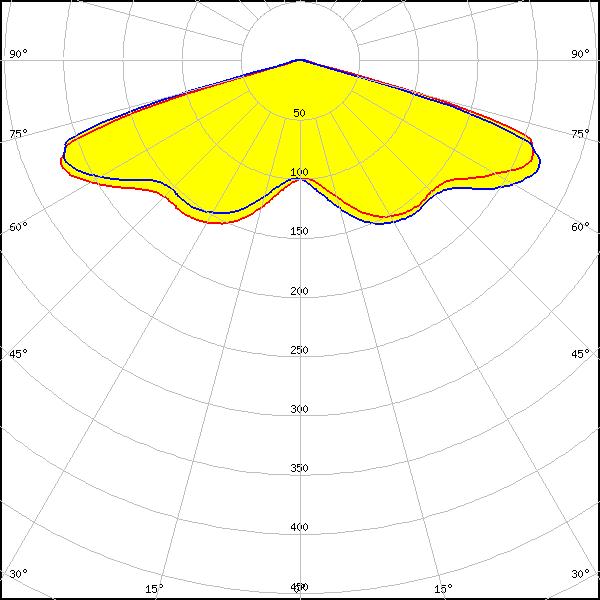

    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

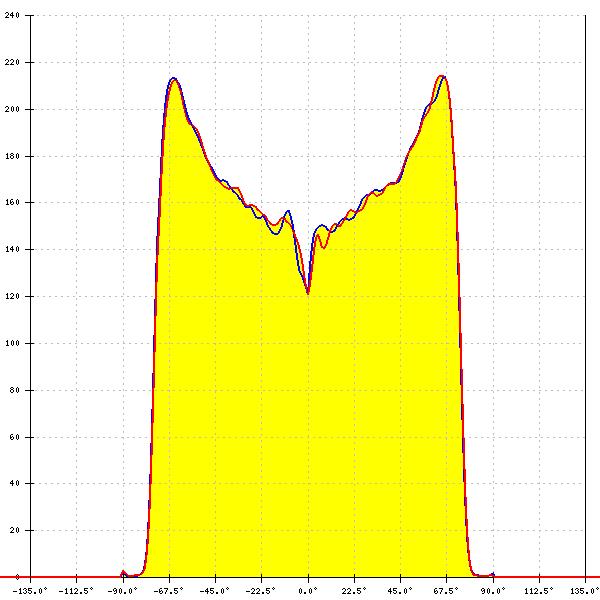

    LED: CXA/B 25xx
    LES size: 19.0 mm
    FWHM: asymmetric
    Peak intensity: 0.350 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

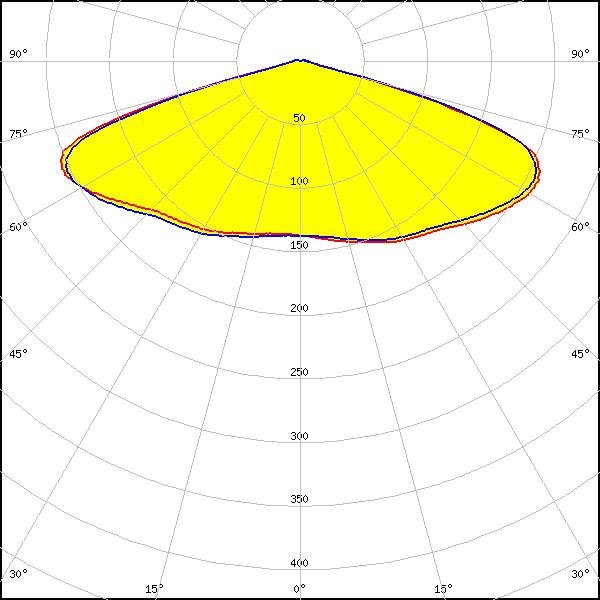

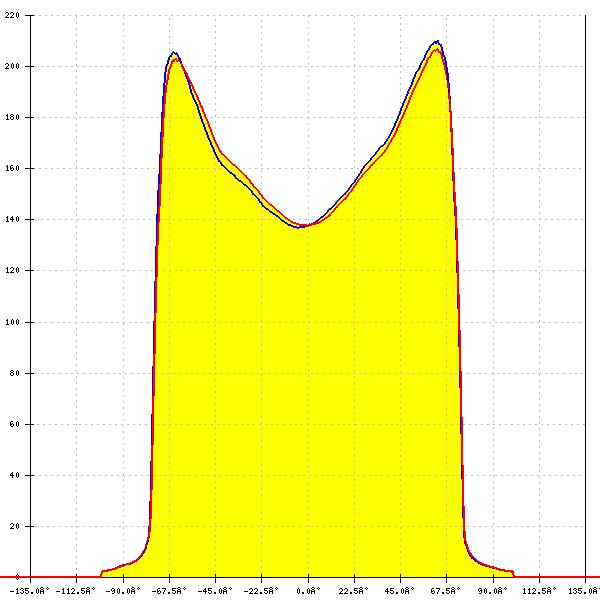

    LED: CXA/B 25xx
    LES size: 19.0 mm
    Required components:
    Bender Wirth: 439 Typ L3
    FWHM: asymmetric
    Peak intensity: 0.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 30xx
    LES size: 23.0 mm
    Required components:
    Bender Wirth: 447 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

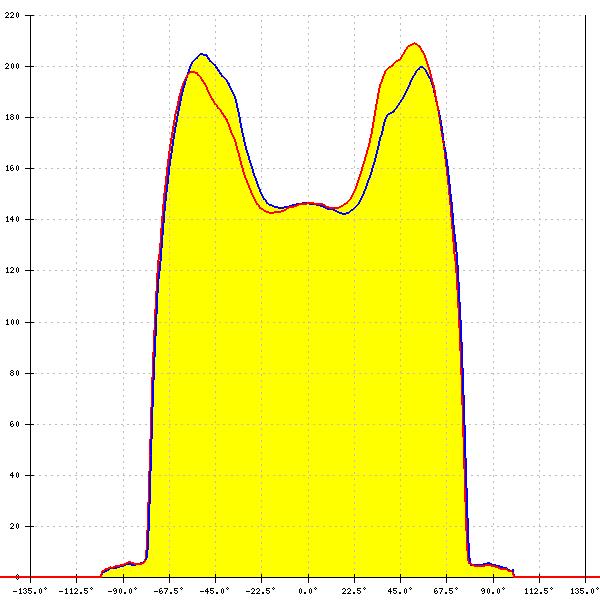

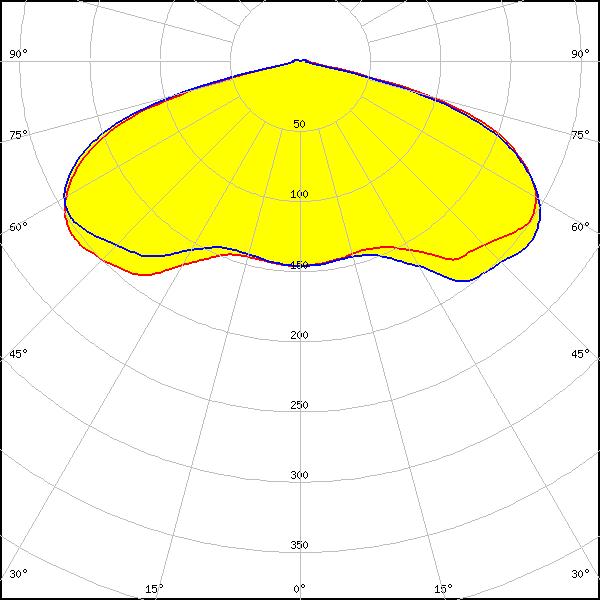

    LED: CXA/B 3590
    LES size: 30.0 mm
    FWHM: asymmetric
    Peak intensity: 0.250 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

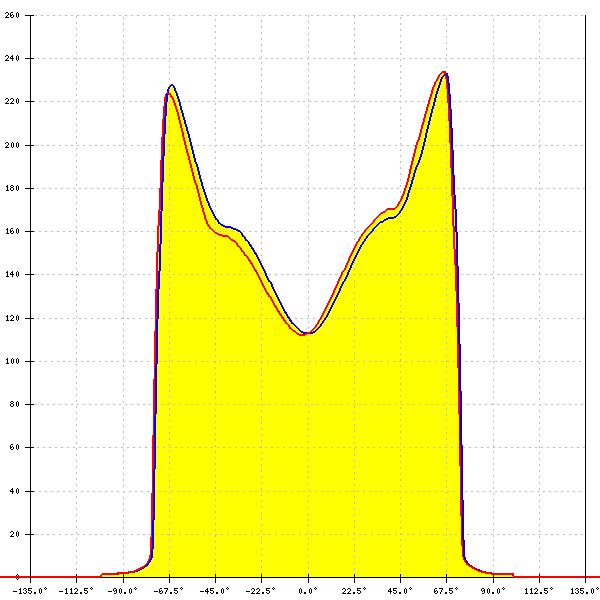

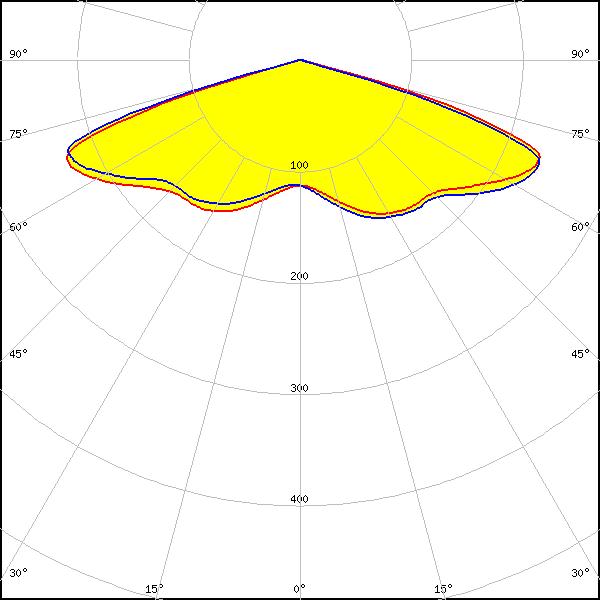

    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    FWHM: asymmetric
    Peak intensity: 0.540 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

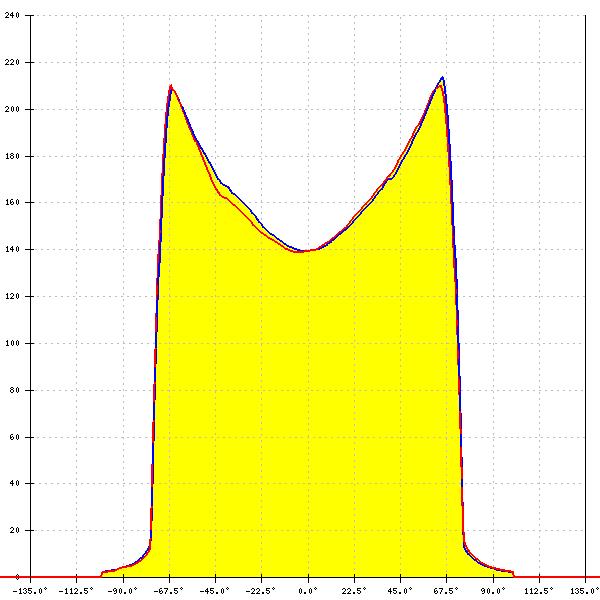

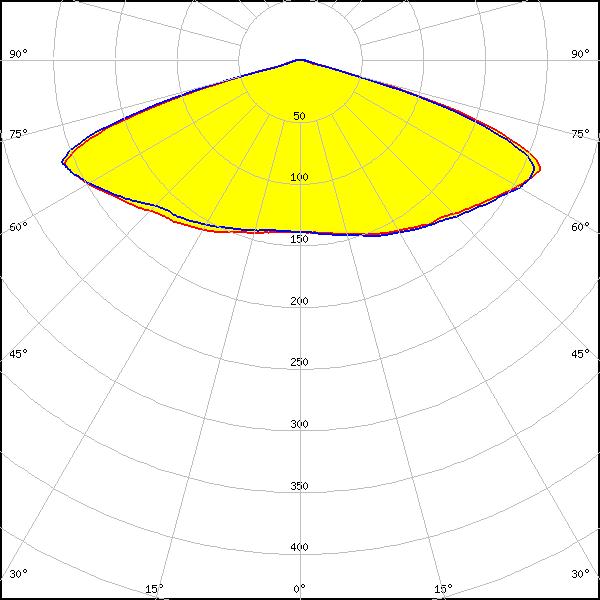

    LED: LUXEON CoB 1211
    LES size: 18.5 mm
    Required components:
    Bender Wirth: 431 Typ L3
    FWHM: asymmetric
    Peak intensity: 0.350 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1213/1216/1812
    LES size: 23.0 mm
    FWHM: asymmetric
    Peak intensity: 0.270 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

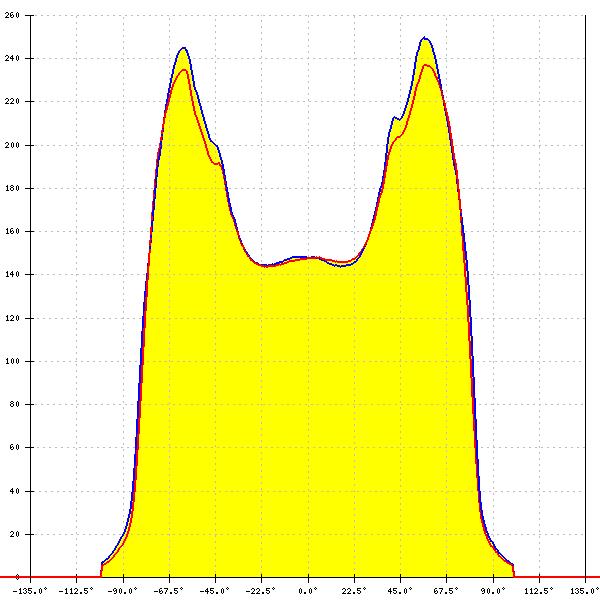

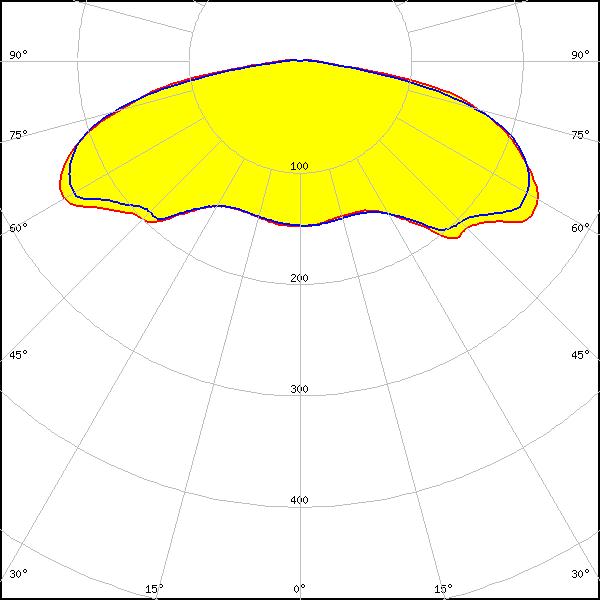

    LED: LUXEON CoB 1321
    LES size: 29.2 mm
    FWHM: asymmetric
    Peak intensity: 0.250 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

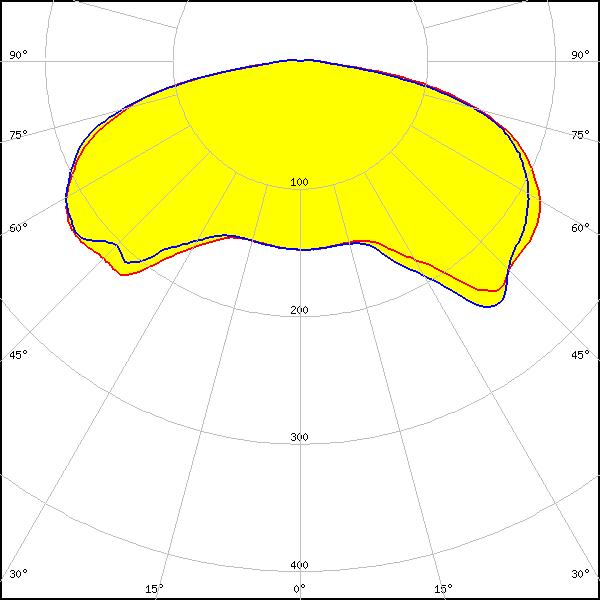

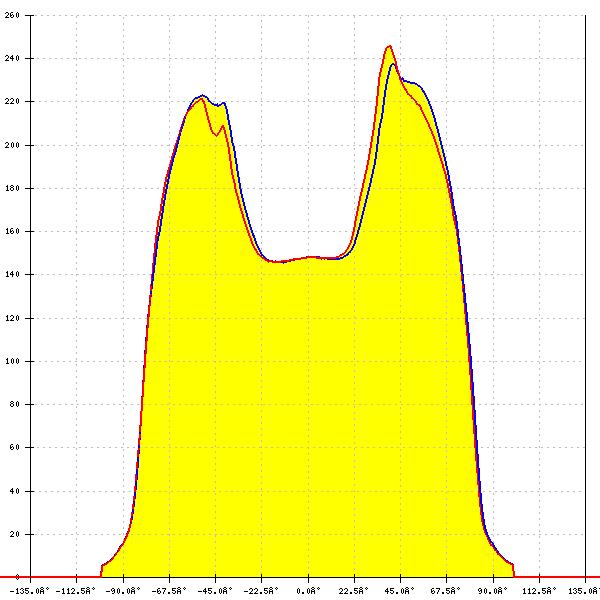

    LED: LUXEON CoB 1825
    LES size: 32.8 mm
    FWHM: asymmetric
    Peak intensity: 0.250 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-22 (28x28)
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 431 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

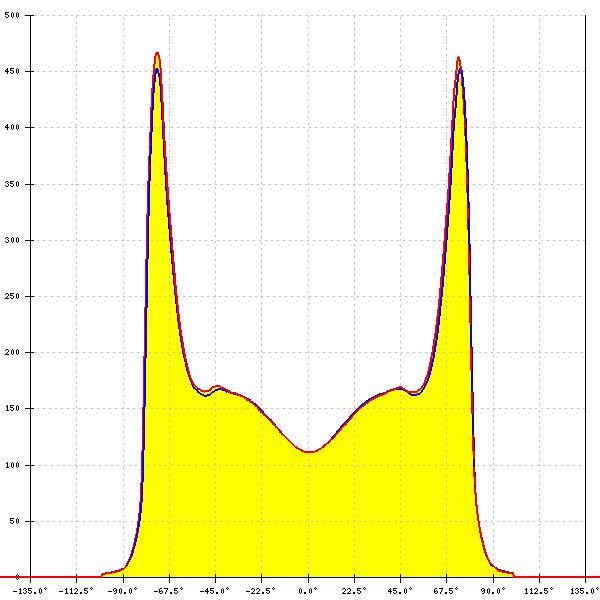

    LED: COB H-Type
    LES size: 23.0 mm
    FWHM: asymmetric
    Peak intensity: 0.290 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

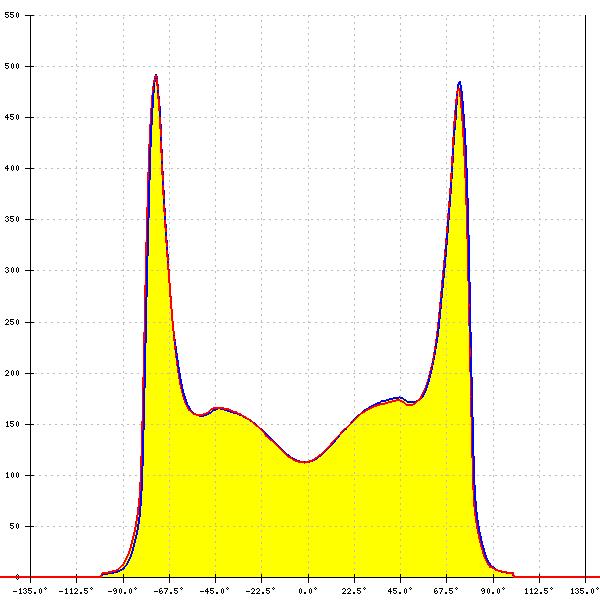

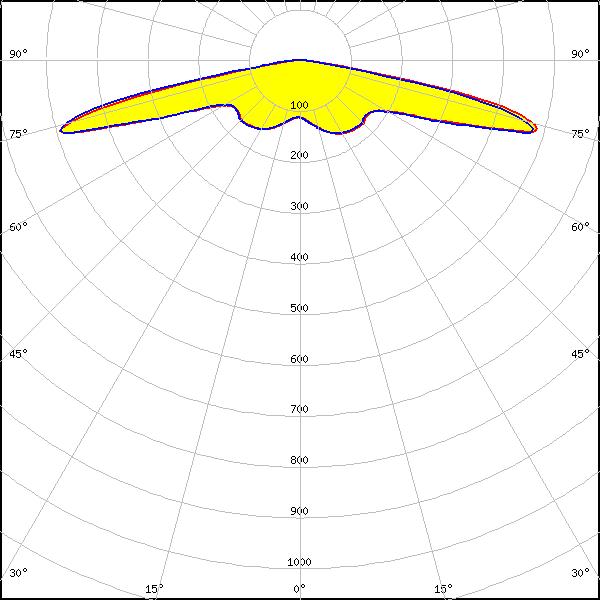

    LED: COB J-Type
    LES size: 14.6 mm
    FWHM: asymmetric
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

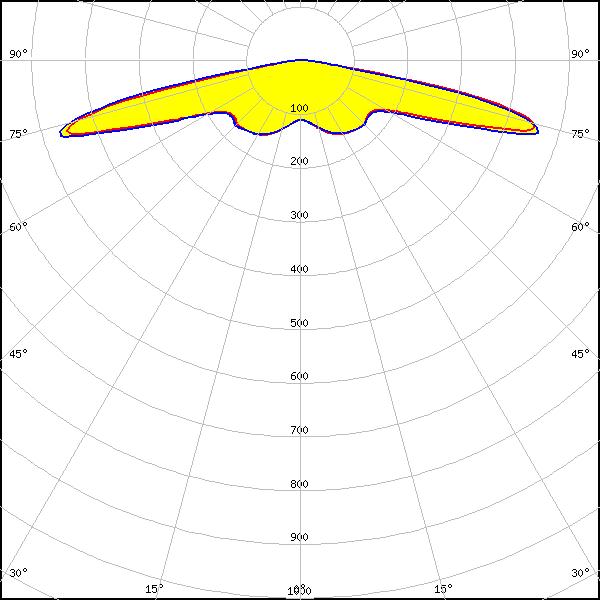

    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    FWHM: asymmetric
    Peak intensity: 0.470 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

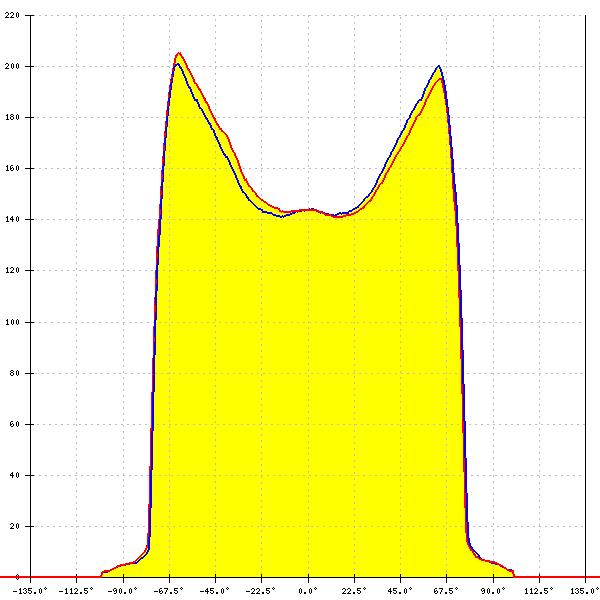

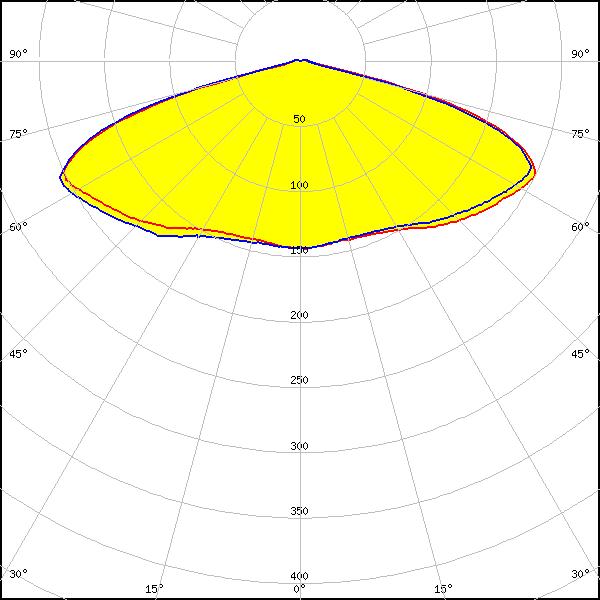

    LED: LC040D / LC060D / LC080D
    LES size: 22.0 mm
    FWHM: asymmetric
    Peak intensity: 0.300 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT COB LES 14.5
    LES size: 14.5 mm
    Required components:
    Bender Wirth: 433 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

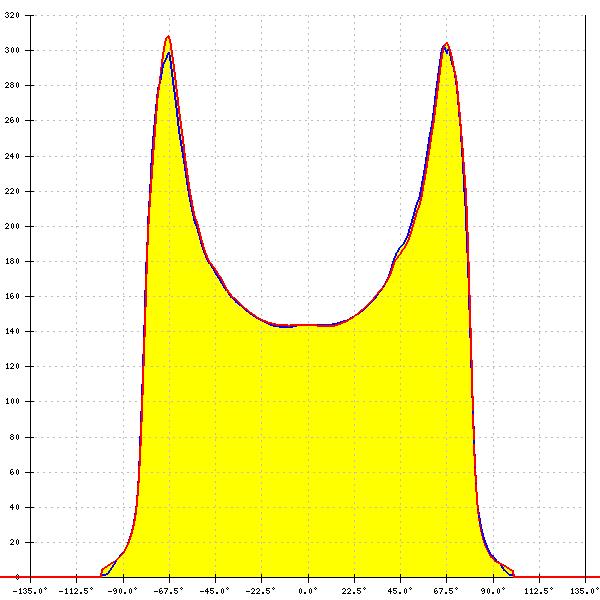

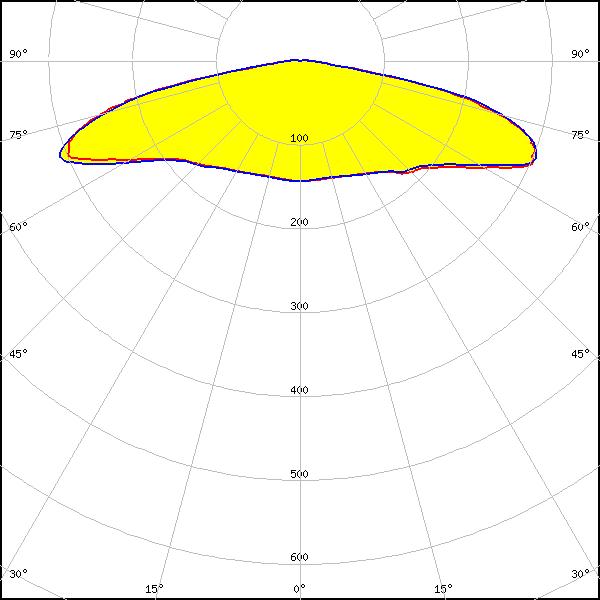

    LED: MJT COB LES 22
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 431 Typ Z1
    FWHM: asymmetric
    Peak intensity: 0.310 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

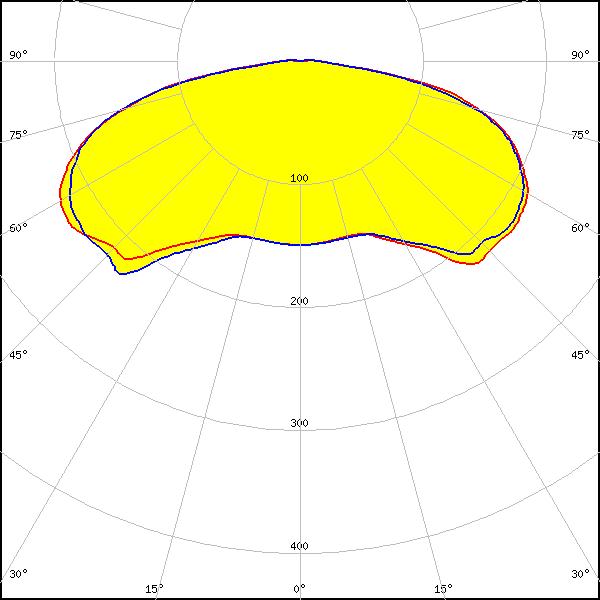

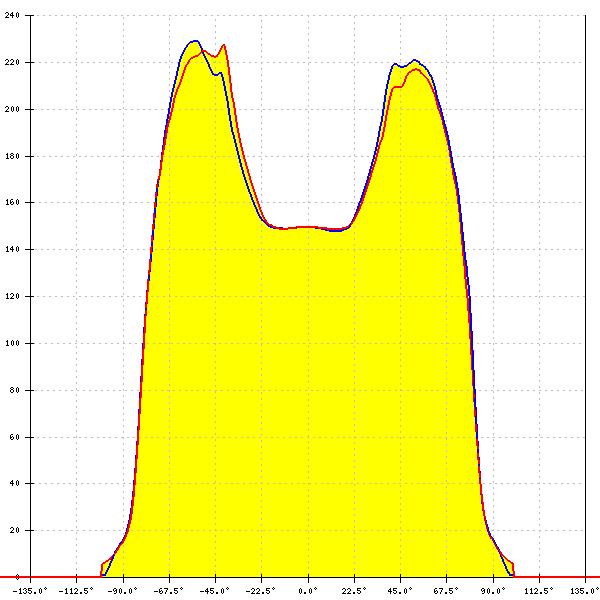

    LED: MJT COB LES 33
    LES size: 32.8 mm
    FWHM: asymmetric
    Peak intensity: 0.230 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
