    FN14074_STELLA-HB

    Print

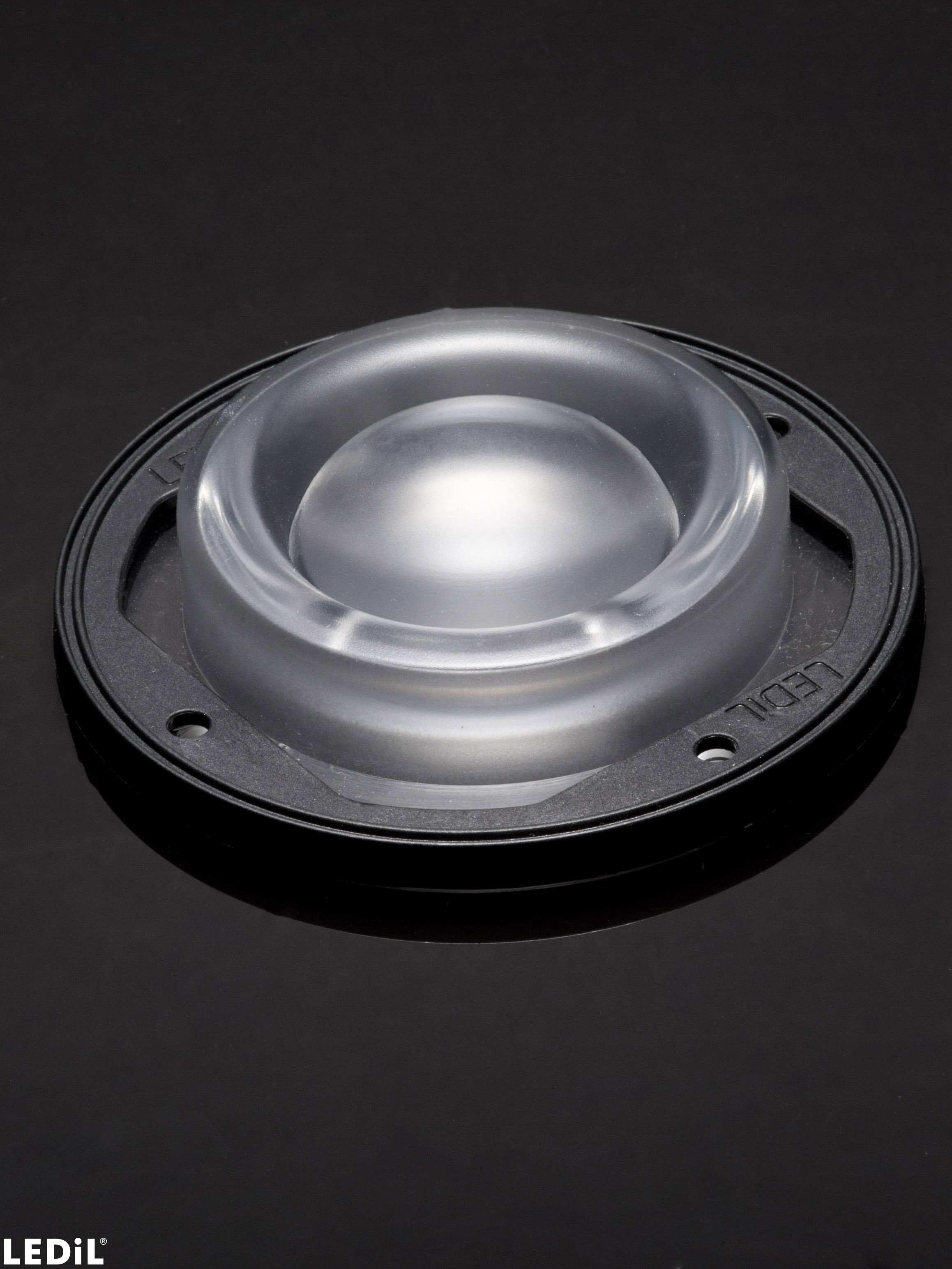

    ~75° high bay beam for warehouse and outdoor lighting. Compatible with up to 30 mm LES size. Variant with black frame. COBs.

    Specification
    • Dimensions:
      90 mm
    • Height:
      19.50 mm
    • Fastening:
      screw
    • Colour:
      black
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      135 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.9 kg
    • MPQ:
      15 pcs
    • MOQ:
      135 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      7.9 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FN14074_STELLA-HB
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Reference product

    OSEAN underwater floodlight

    Case story

    Temple in Buenos Aires

    PCN

    Product change notification NR155 - Stella-HB product notification

    PCN

    Product change notification NR136 - Change of packaging quantities 070717

    PCN

    Product change notification NR125.a - Change of packaging quantities 050916

    PCN

    Product change notification NR115.c - Change of material 280116

    PCN

    Product change notification NR112.a - Change of packaging quantities 061115

    Application example

    Warehouse lighting with STELLA-HB

    Application area

    Architectural Outdoor Lighting

    Case story

    VALHALLA Power Gym

    Case story

    Badia di Pomaio resort

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    Application area

    Outdoor Special Applications

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Case story

    The Luneur amusement park

    AVAILABLE LEDiL ACCESSORIES

    STELLA-CLAMP-CXA15-18

    Basepart for STELLA. Compatible with CREE CXA15xx and CXA18xx.

    Optical results

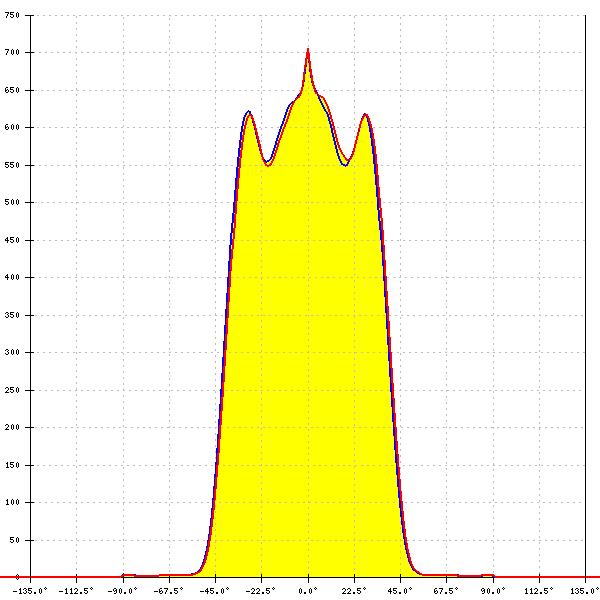

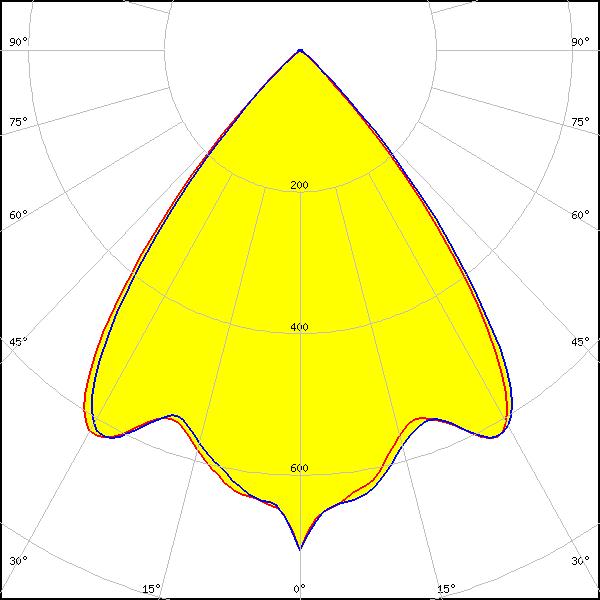

    LED: V13 Gen 8-9
    LES size: 14.8 mm
    FWHM: 78°
    FWTM: 94°
    Peak intensity: 0.706 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

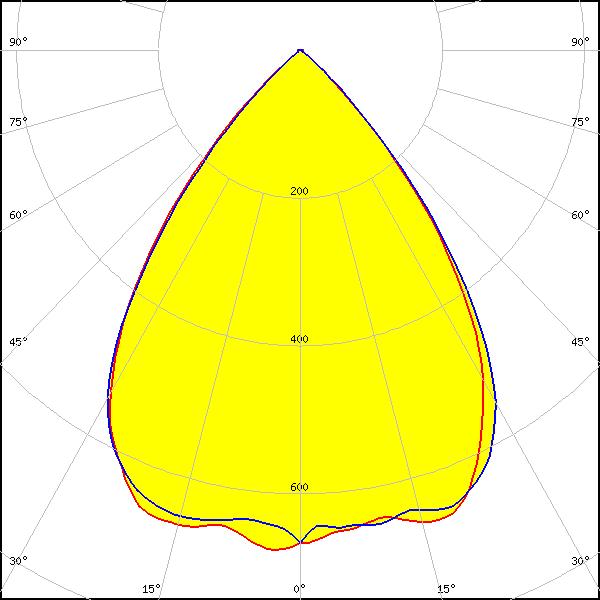

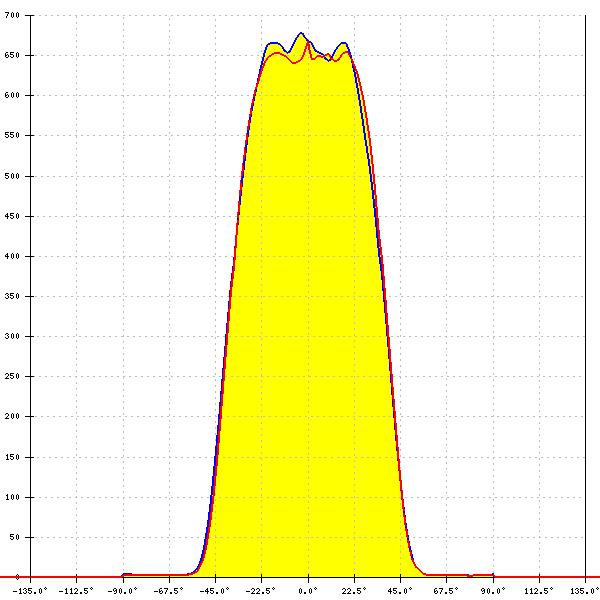

    LED: V18 Gen 8-9
    LES size: 19.6 mm
    Required components:
    Bender Wirth: 462 Typ L4
    FWHM: 76°
    FWTM: 96°
    Peak intensity: 0.680 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

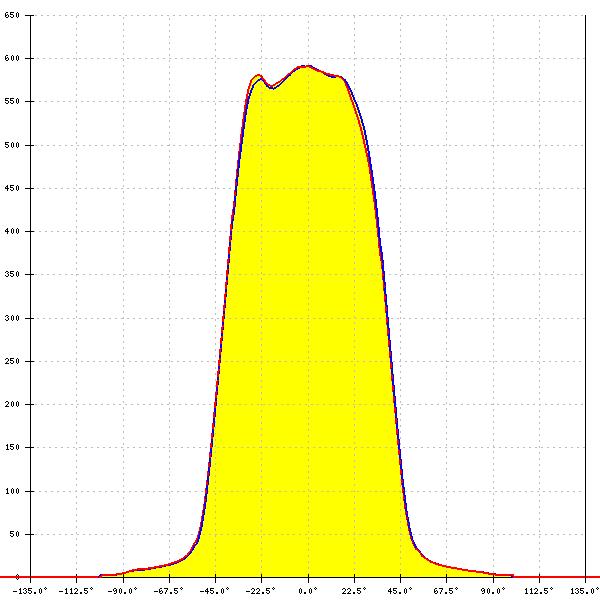

    LED: V18 Gen7
    LES size: 19.2 mm
    FWHM: 80°
    FWTM: 101°
    Peak intensity: 0.590 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

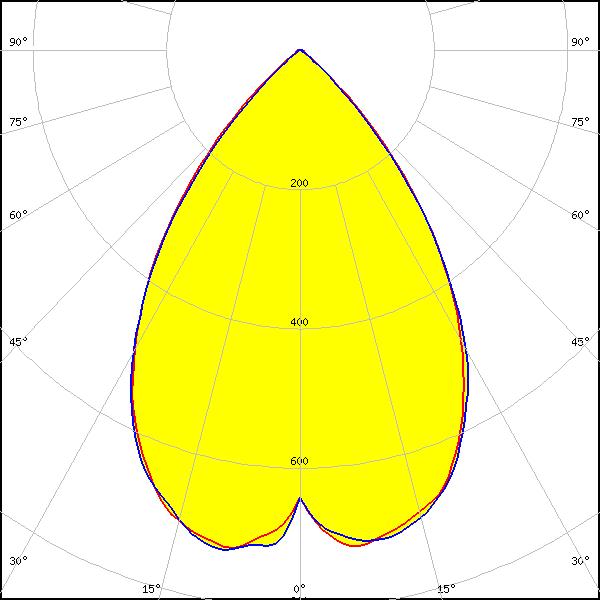

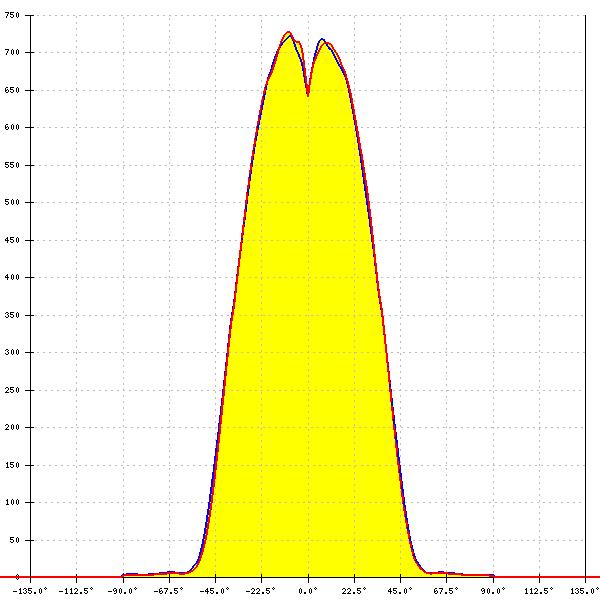

    LED: V22 Gen 8-9
    LES size: 23.3 mm
    Required components:
    Bender Wirth: 431 Typ L4
    FWHM: 72°
    FWTM: 97°
    Peak intensity: 0.730 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

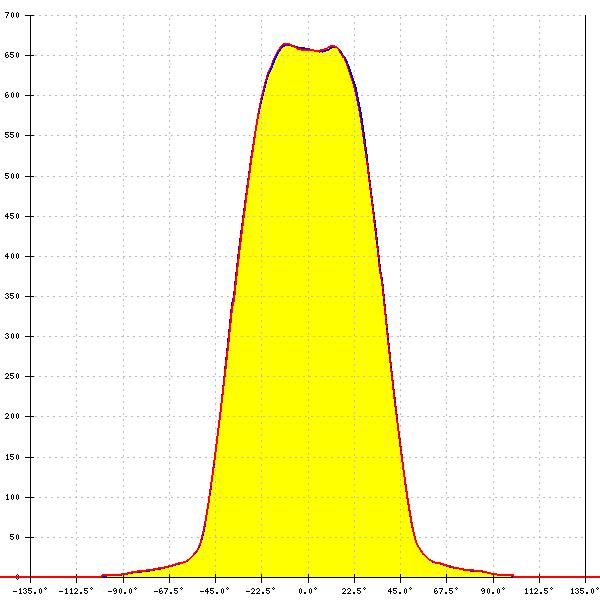

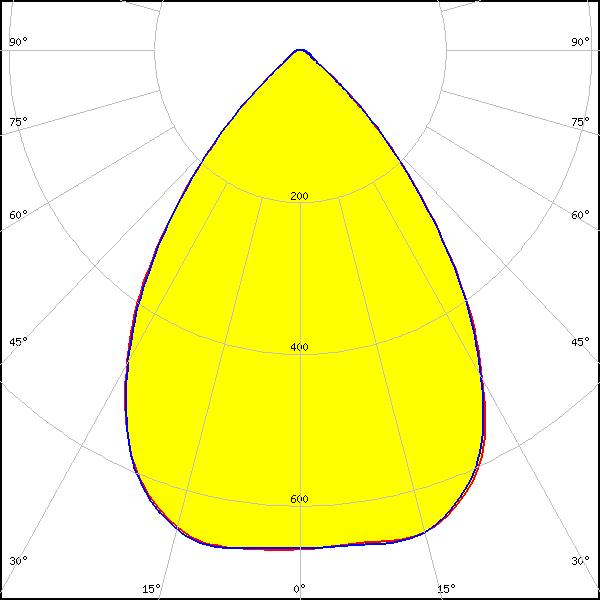

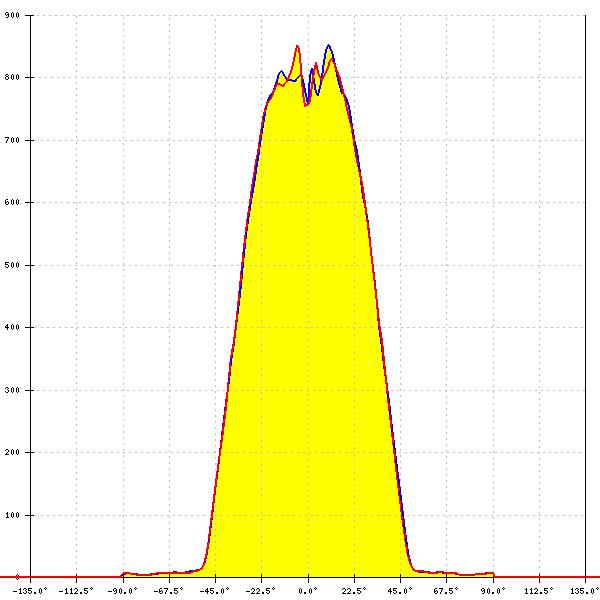

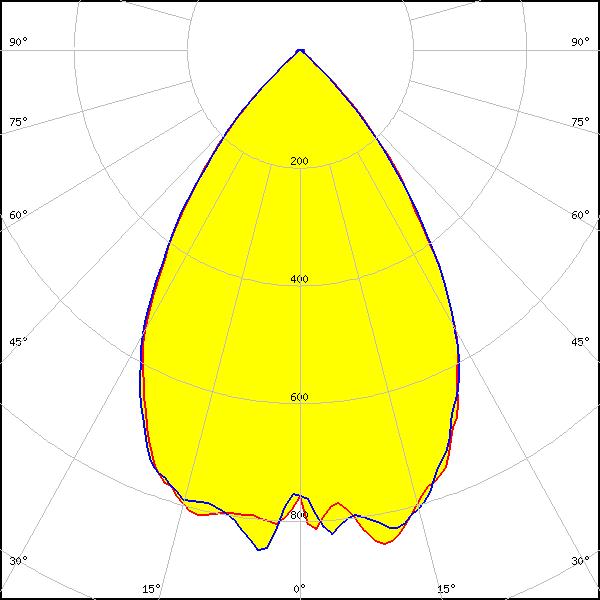

    LED: V22 Gen7
    LES size: 22.6 mm
    Required components:
    Bender Wirth: 431 Typ L4
    FWHM: 68°
    FWTM: 92°
    Peak intensity: 0.853 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V22 Gen7
    LES size: 22.6 mm
    FWHM: 75°
    FWTM: 101°
    Peak intensity: 0.660 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

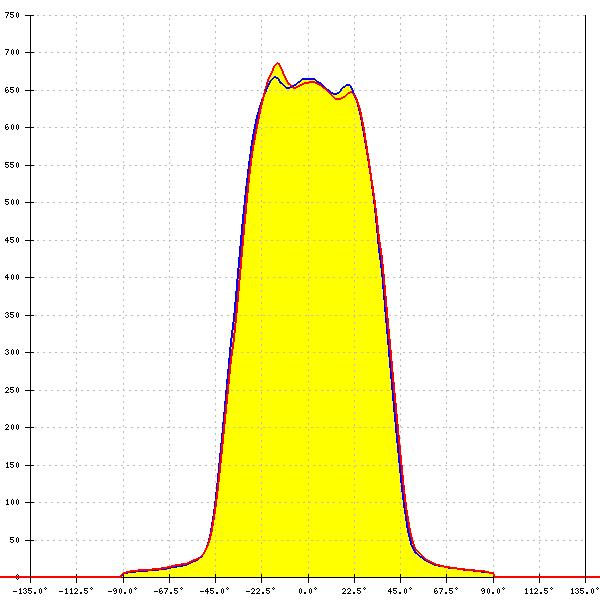

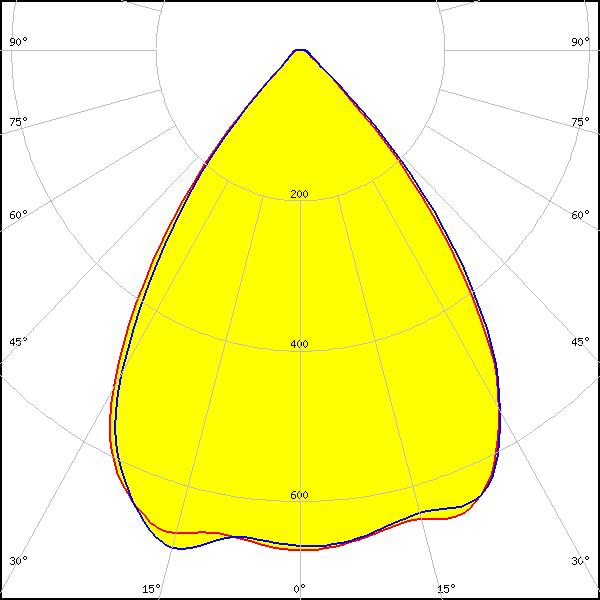

    LED: VERO18
    LES size: 18.6 mm
    FWHM: 75°
    FWTM: 96°
    Peak intensity: 0.700 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

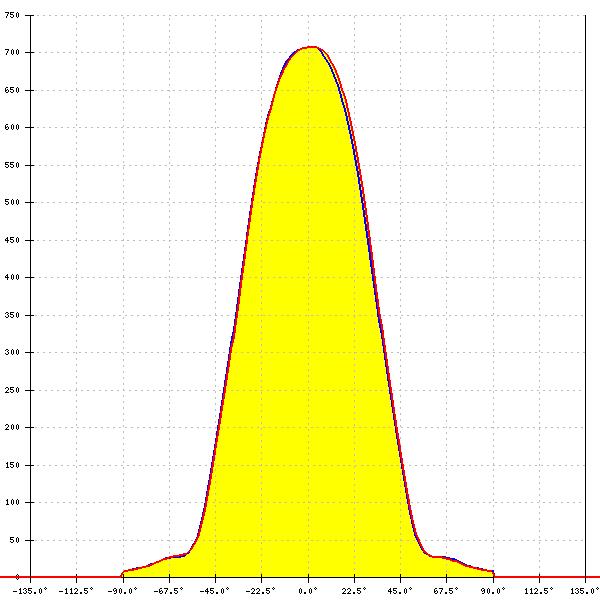

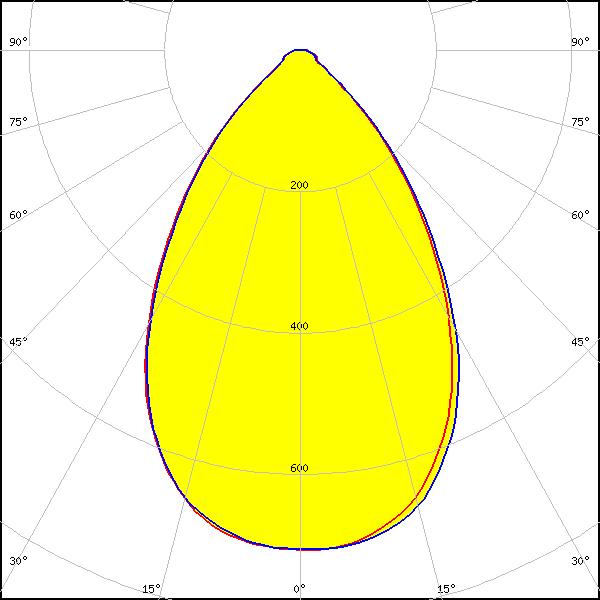

    LED: VERO29
    LES size: 29.2 mm
    FWHM: 69°
    FWTM: 104°
    Peak intensity: 0.708 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

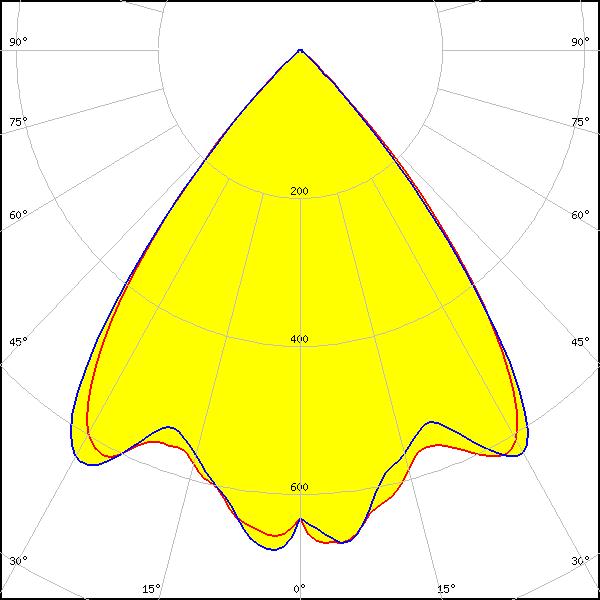

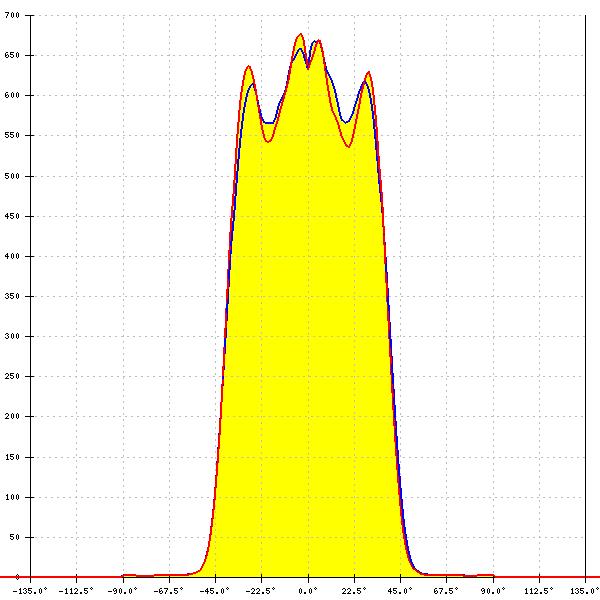

    LED: Vesta TW 13mm (18W) DP
    LES size: 14.0 mm
    FWHM: 78°
    FWTM: 93°
    Peak intensity: 0.687 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

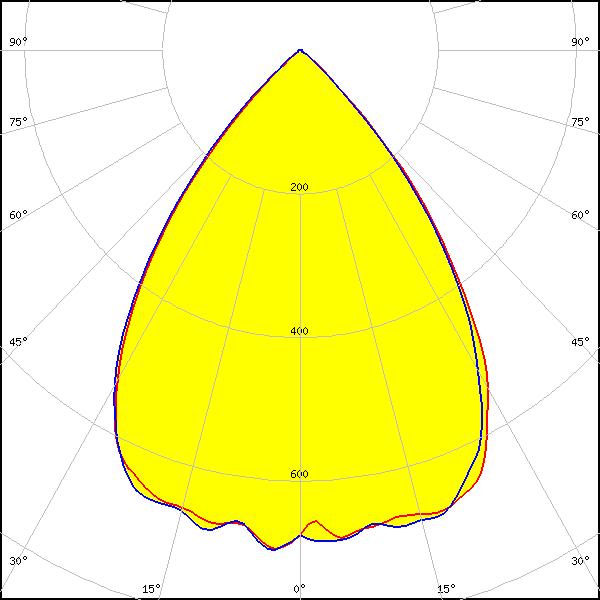

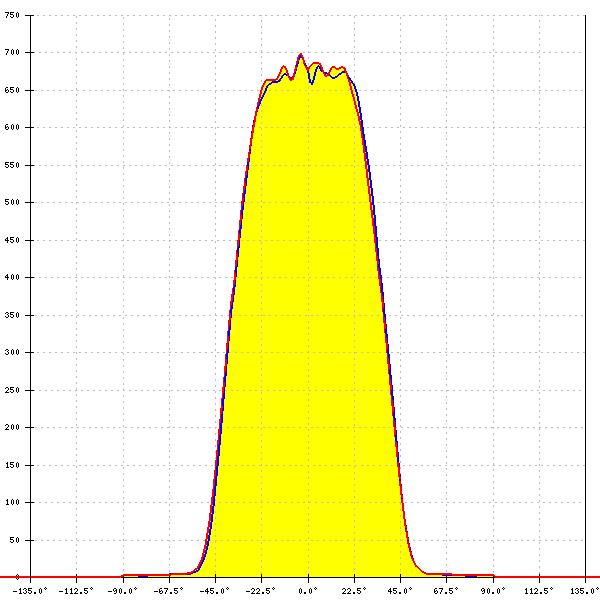

    LED: Vesta TW 18mm (31W) DP
    LES size: 19.7 mm
    FWHM: 75°
    FWTM: 96°
    Peak intensity: 0.707 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

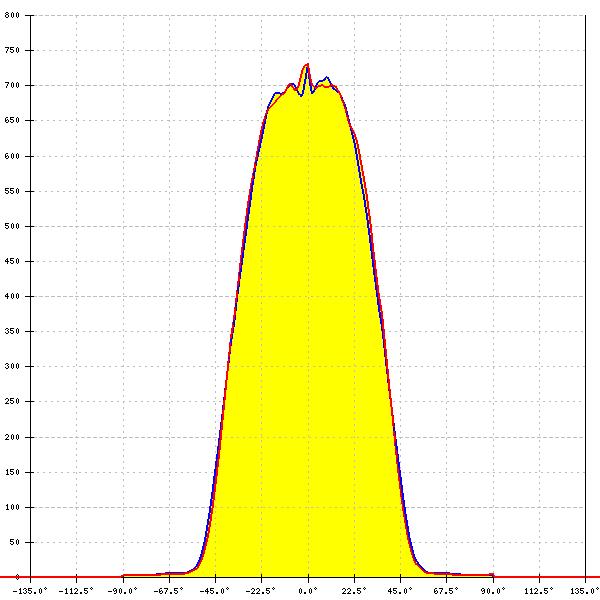

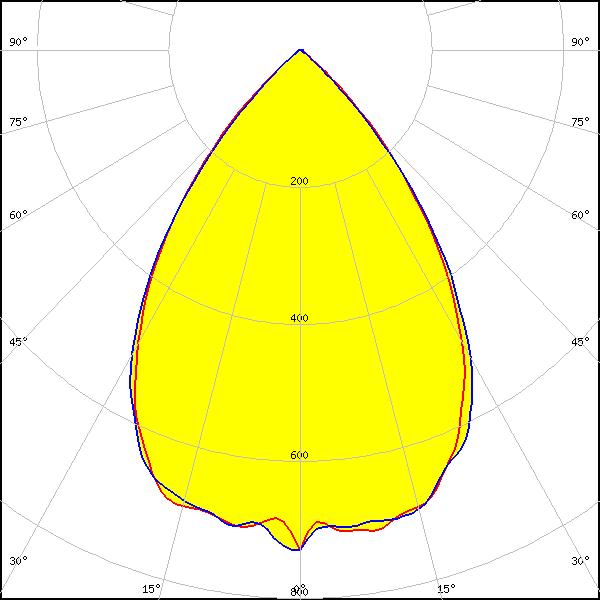

    LED: Vesta TW 22mm DP
    LES size: 23.1 mm
    FWHM: 72°
    FWTM: 97°
    Peak intensity: 0.732 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

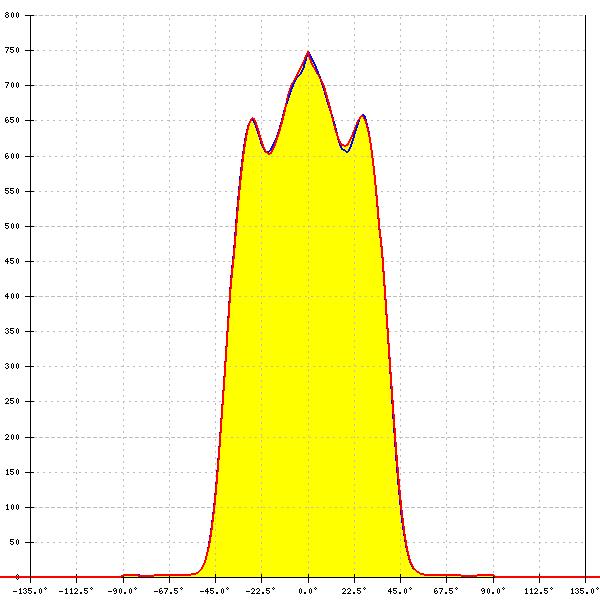

    LED: CLL03x/CLU03x
    LES size: 14.5 mm
    FWHM: 76°
    FWTM: 93°
    Peak intensity: 0.748 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

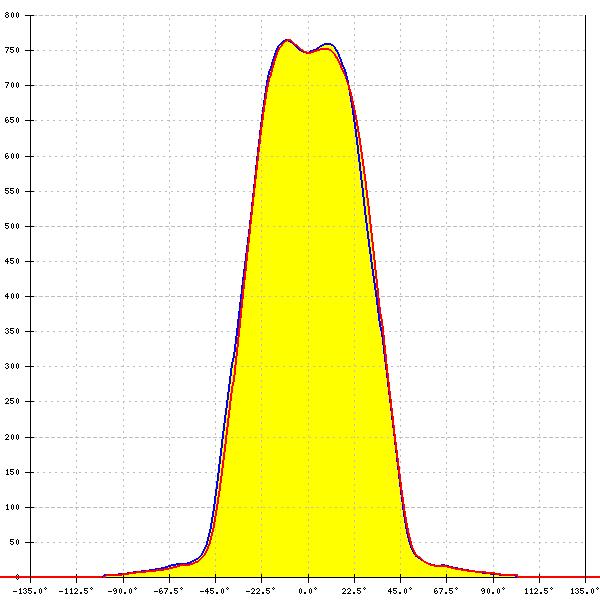

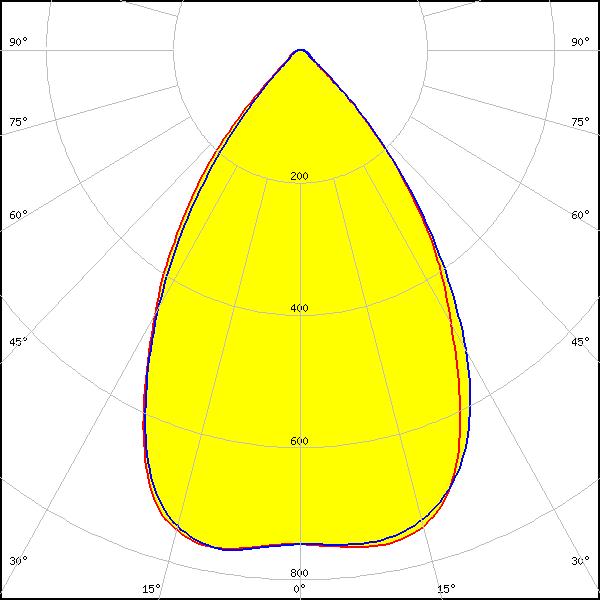

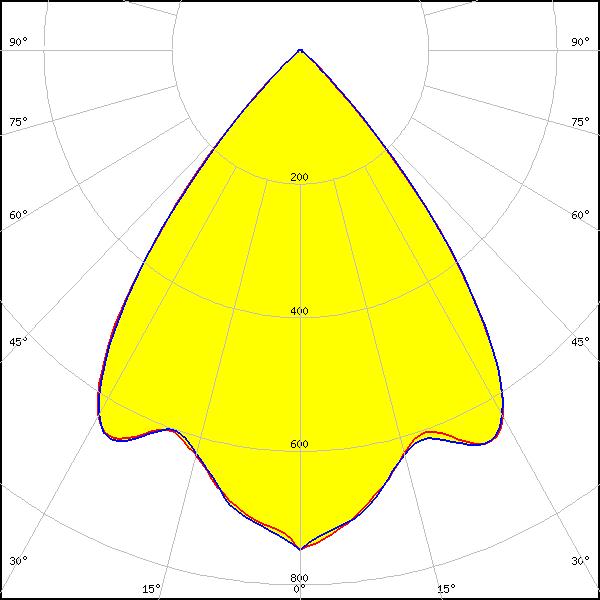

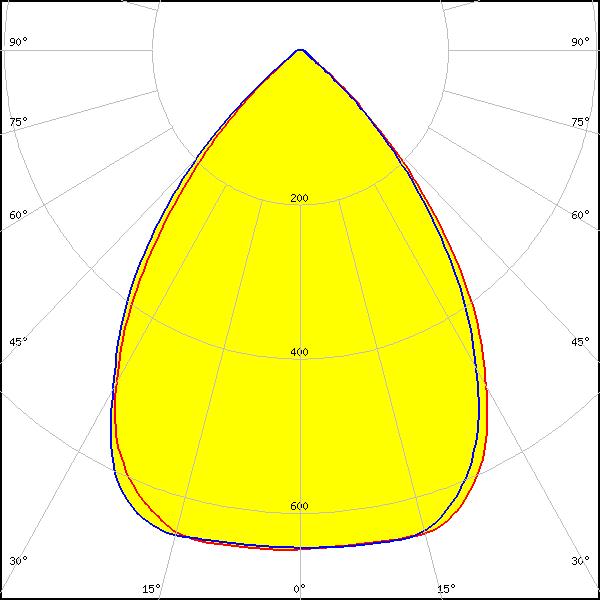

    LED: CLL04x/CLU04x
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 431 Typ L4
    FWHM: 68°
    FWTM: 94°
    Peak intensity: 0.770 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL04x/CLU04x
    LES size: 22.0 mm
    FWHM: 77°
    FWTM: 101°
    Peak intensity: 0.650 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

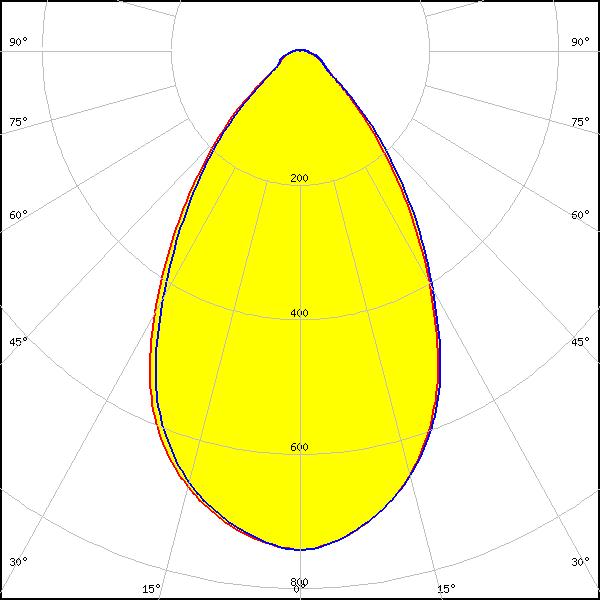

    LED: CLL05x/CLU05x
    LES size: 32.8 mm
    FWHM: 73°
    FWTM: 110°
    Peak intensity: 0.630 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

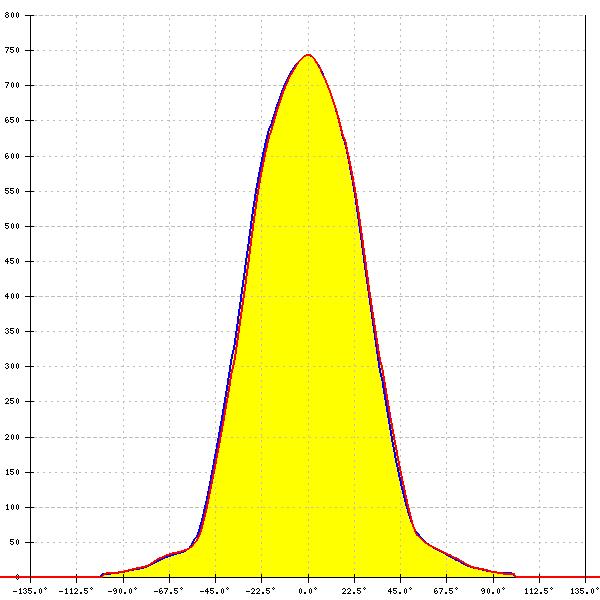

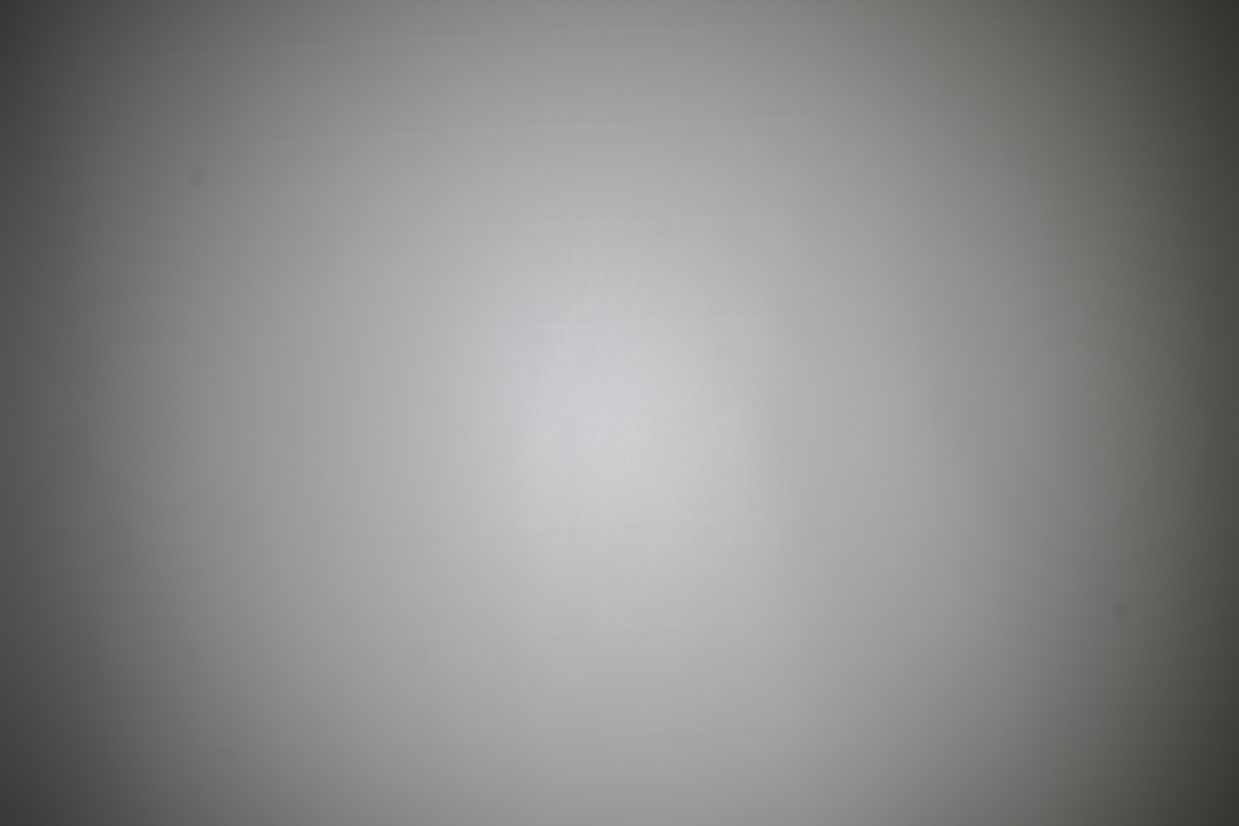

    LED: CLL05x/CLU05x
    LES size: 32.8 mm
    Required components:
    Bender Wirth: 458 Typ L4
    FWHM: 65°
    FWTM: 103°
    Peak intensity: 0.740 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

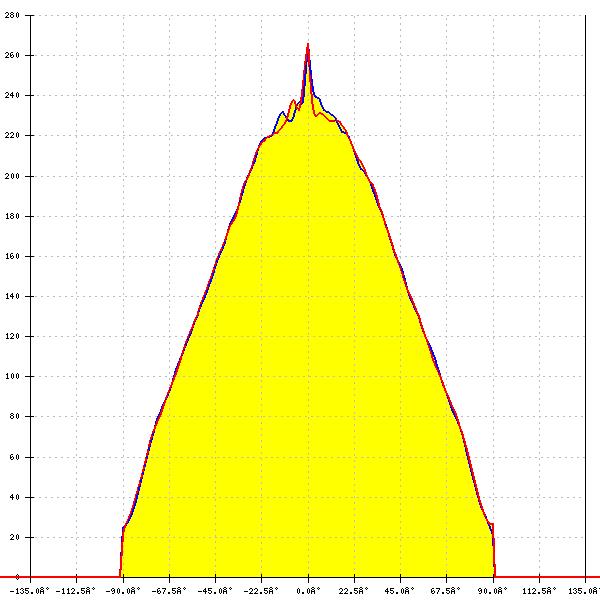

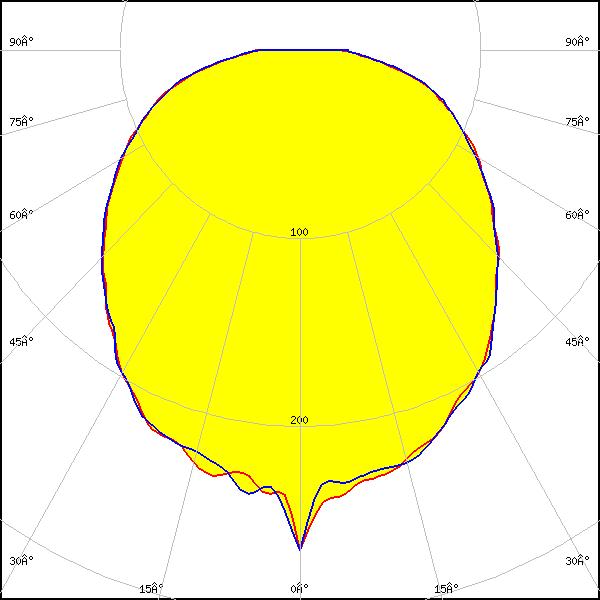

    LED: CMA1303
    LES size: 4.5 mm
    FWHM: 106°
    FWTM: 177°
    Peak intensity: 0.266 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

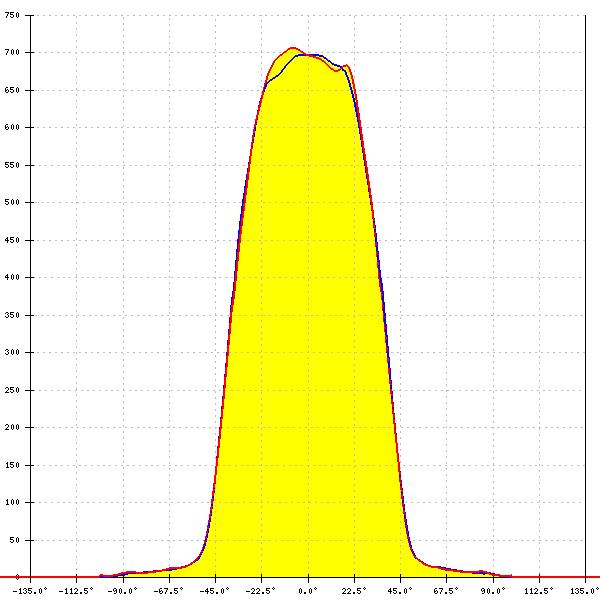

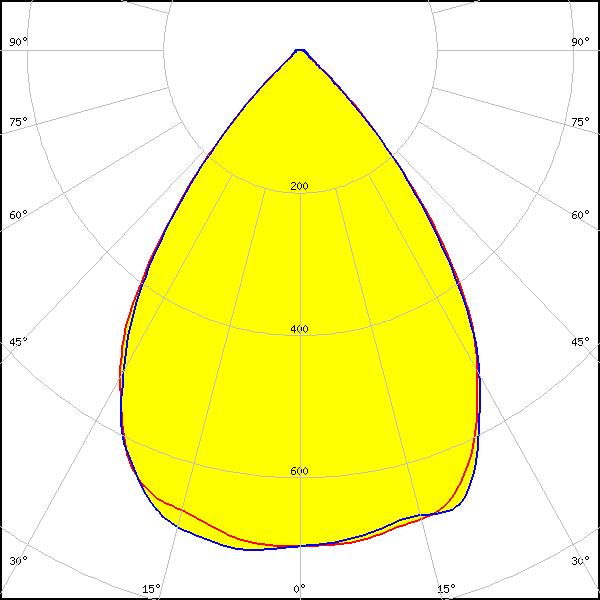

    LED: CMA2550
    LES size: 19.0 mm
    FWHM: 74°
    FWTM: 96°
    Peak intensity: 0.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

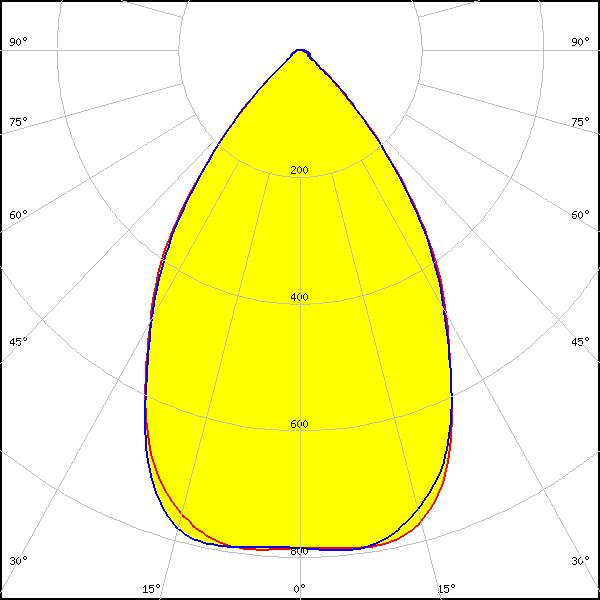

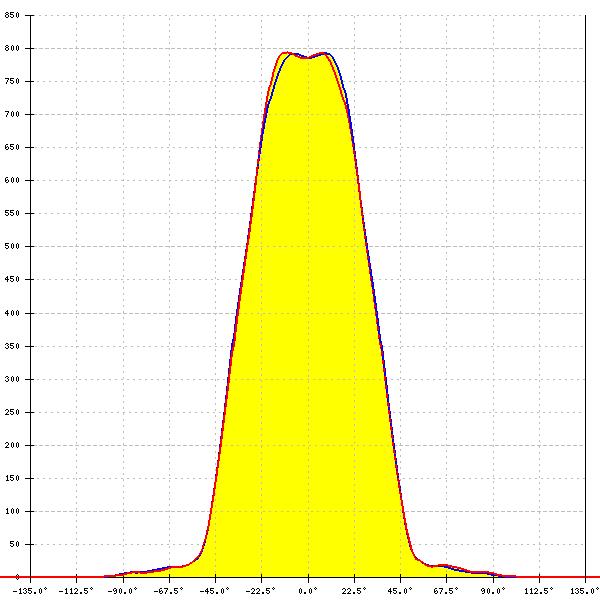

    LED: CMA3090
    LES size: 23.0 mm
    FWHM: 67°
    FWTM: 96°
    Peak intensity: 0.800 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

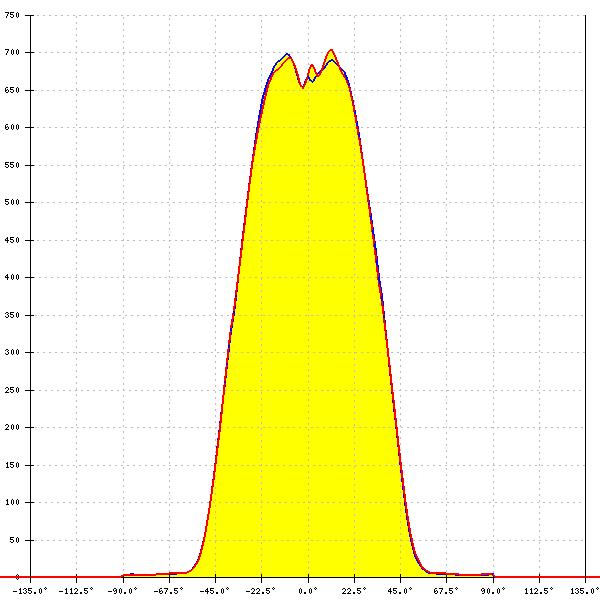

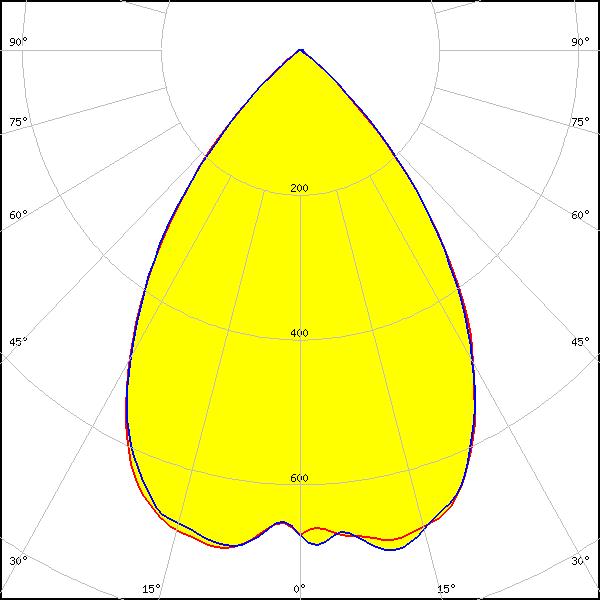

    LED: CMT28xx
    LES size: 22.0 mm
    FWHM: 73°
    FWTM: 98°
    Peak intensity: 0.708 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

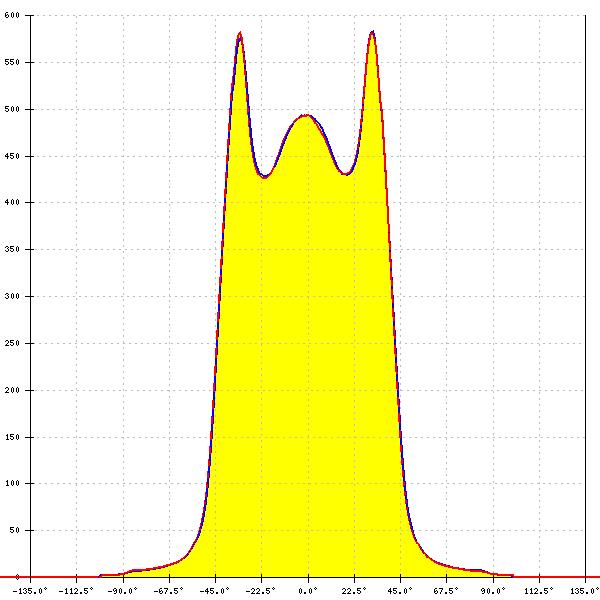

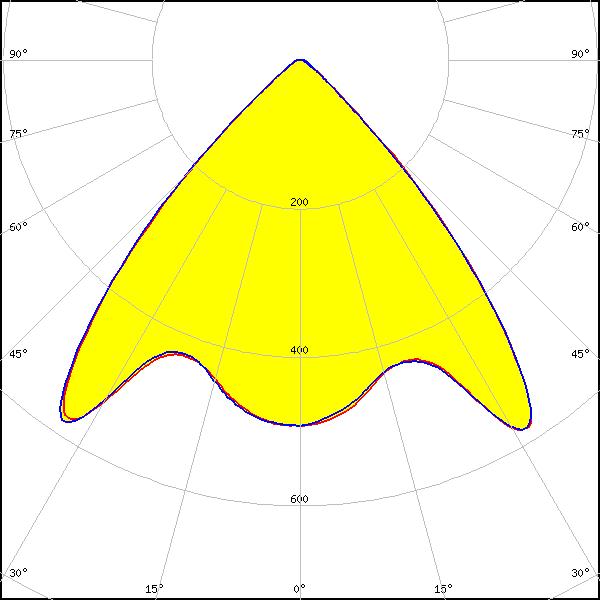

    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    FWHM: 87°
    FWTM: 104°
    Peak intensity: 0.600 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

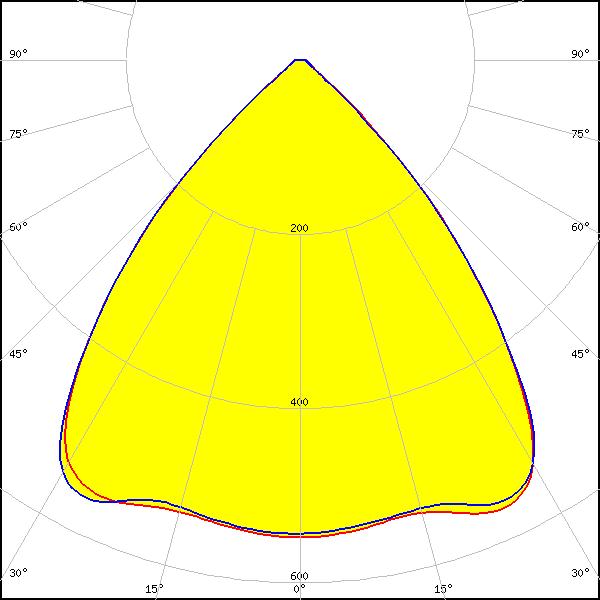

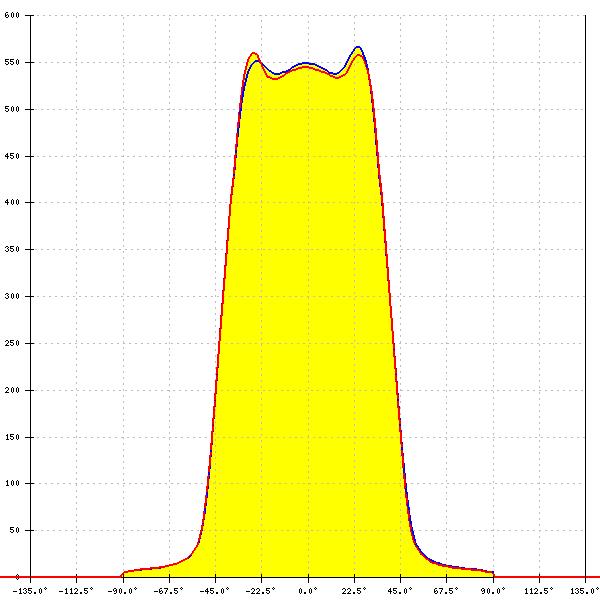

    LED: CXA/B 25xx
    LES size: 19.0 mm
    FWHM: 83°
    FWTM: 102°
    Peak intensity: 0.566 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

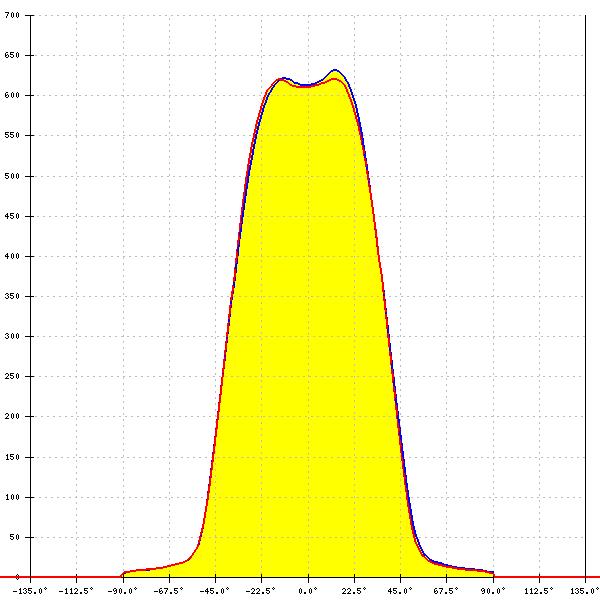

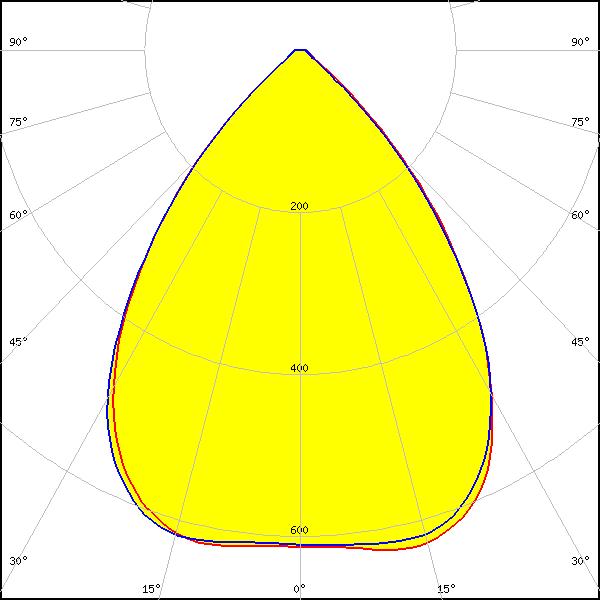

    LED: CXA/B 30xx
    LES size: 23.0 mm
    FWHM: 78°
    FWTM: 103°
    Peak intensity: 0.630 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

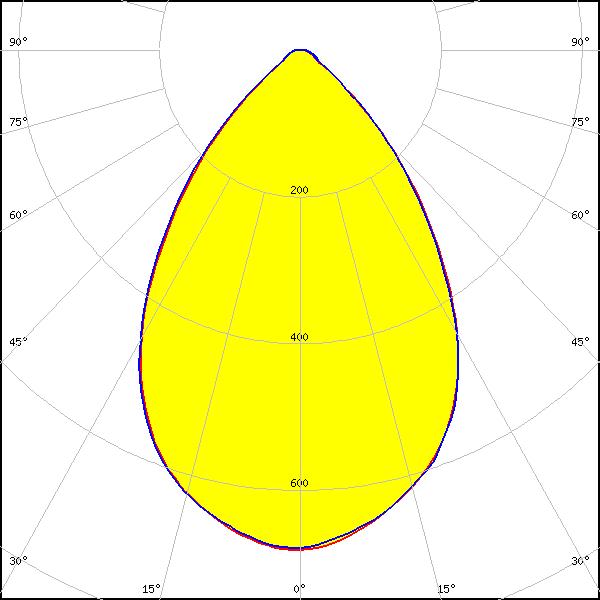

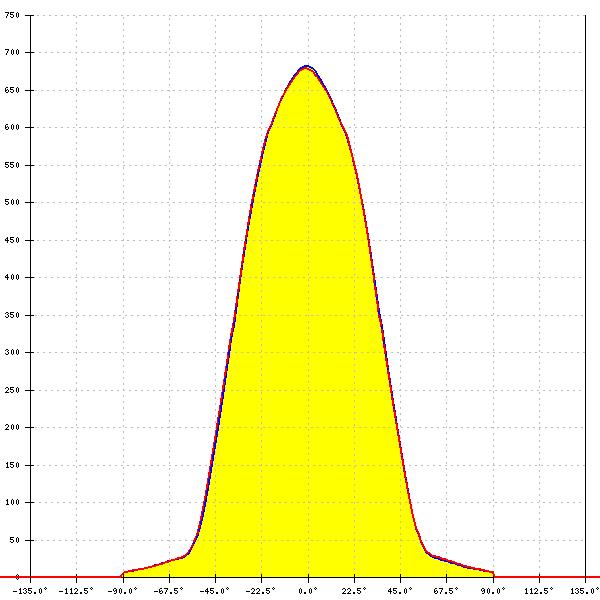

    LED: CXA/B 3590
    LES size: 30.0 mm
    FWHM: 72°
    FWTM: 106°
    Peak intensity: 0.682 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

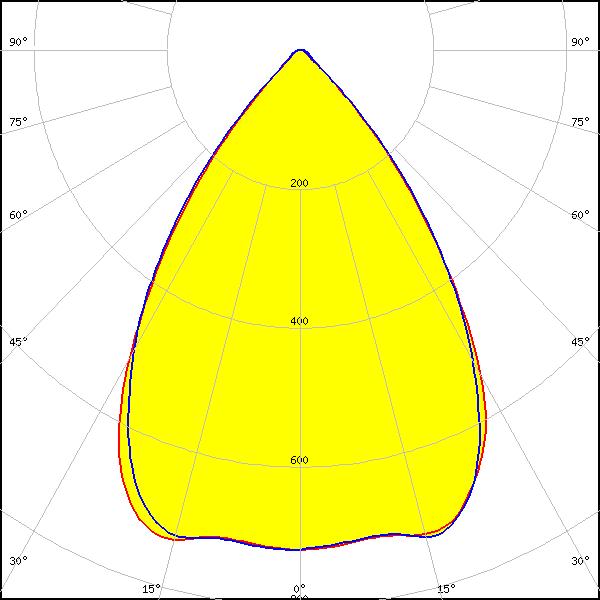

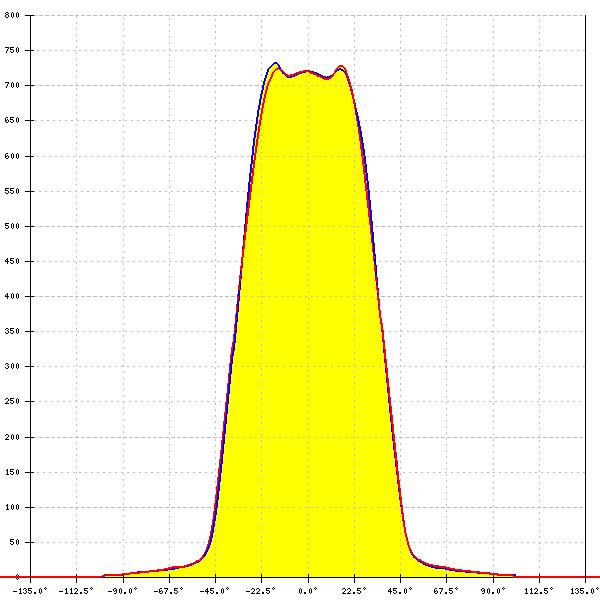

    LED: LUXEON CoB 1211
    LES size: 18.5 mm
    FWHM: 71°
    FWTM: 93°
    Peak intensity: 0.730 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

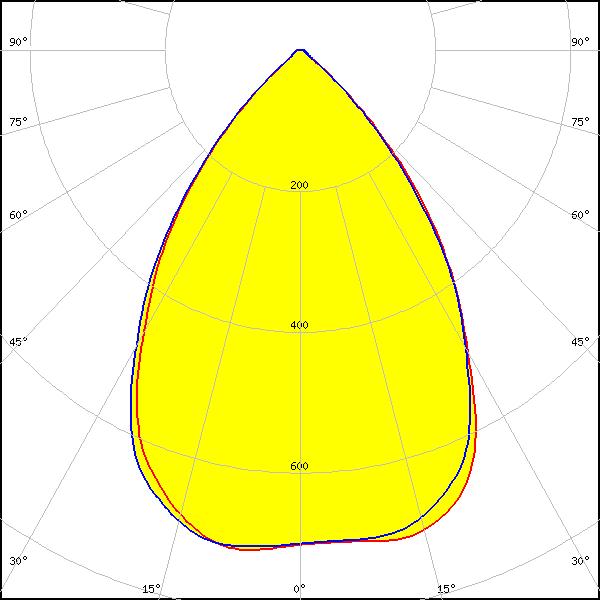

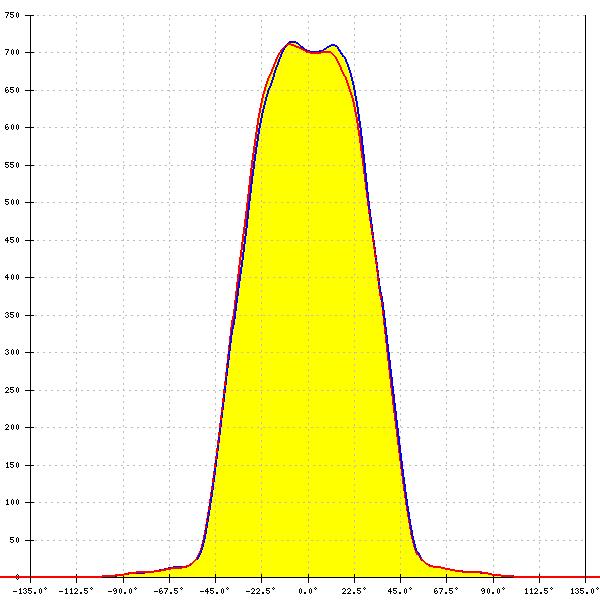

    LED: LUXEON CoB 1213/1216/1812
    LES size: 23.0 mm
    FWHM: 72°
    FWTM: 99°
    Peak intensity: 0.720 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

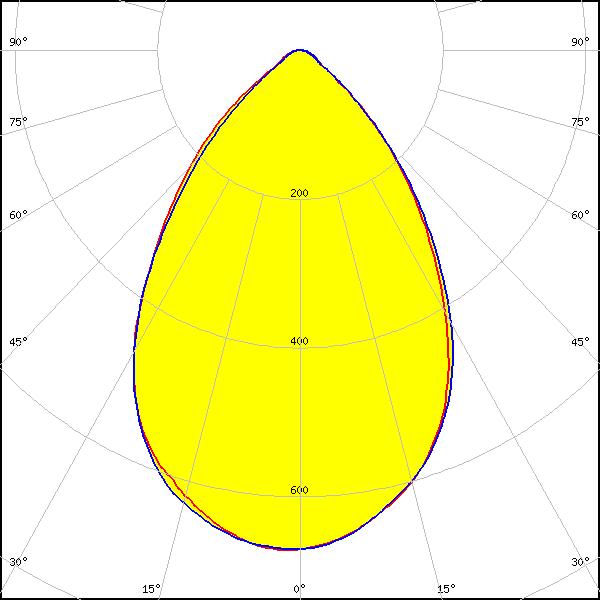

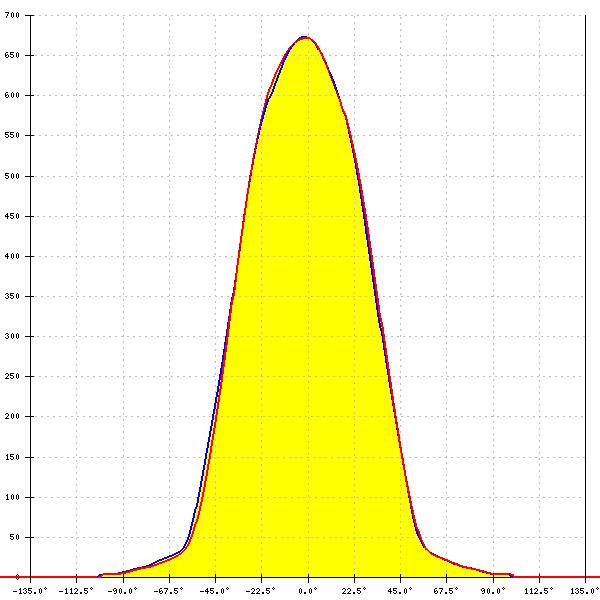

    LED: LUXEON CoB 1321
    LES size: 29.2 mm
    FWHM: 71°
    FWTM: 108°
    Peak intensity: 0.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

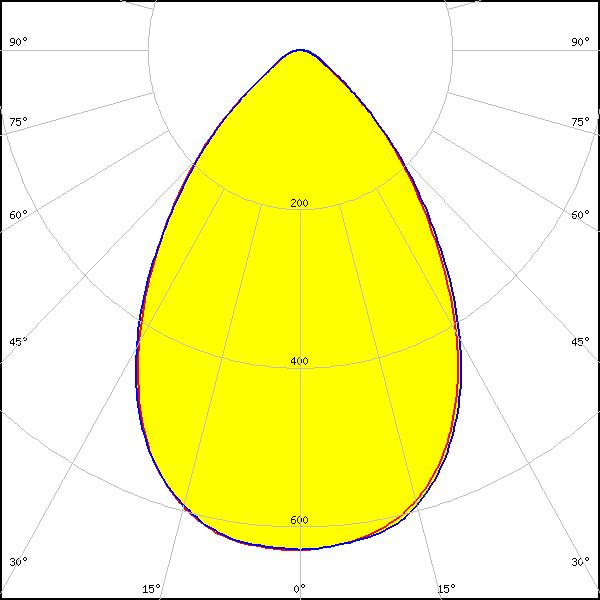

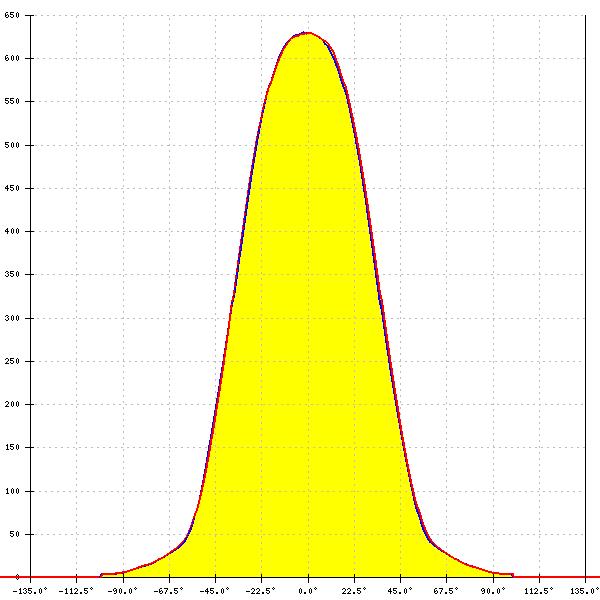

    LED: LUXEON CoB 1825
    LES size: 32.8 mm
    FWHM: 72°
    FWTM: 111°
    Peak intensity: 0.600 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

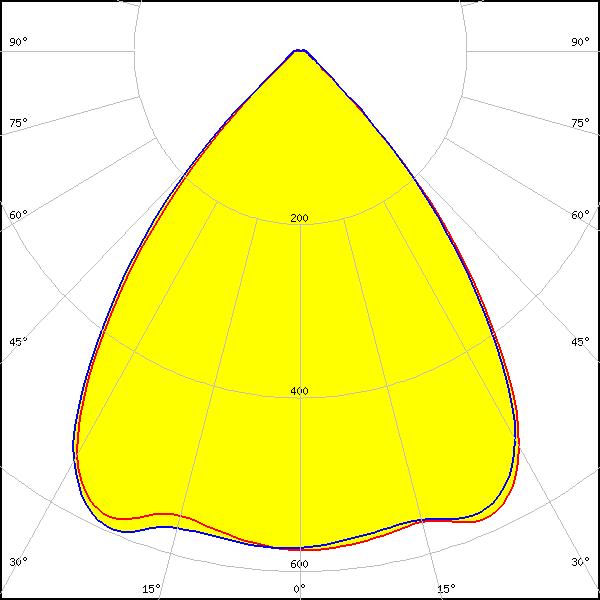

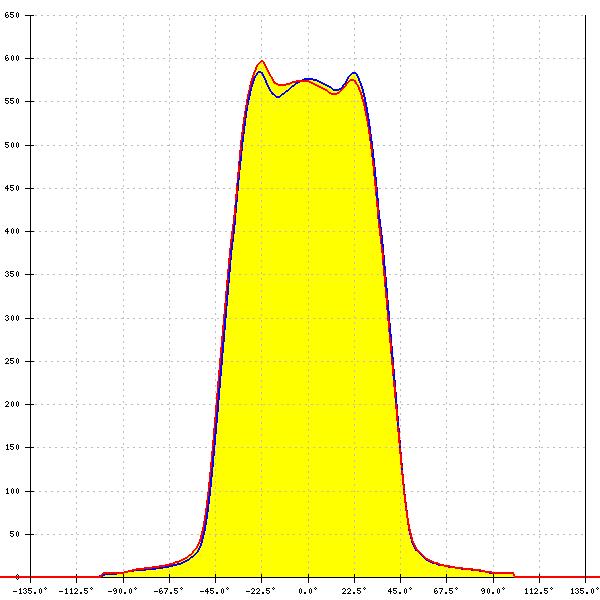

    LED: CxM-18 (21.5x21.5)
    LES size: 17.5 mm
    FWHM: 80°
    FWTM: 100°
    Peak intensity: 0.600 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-22 (28x28)
    LES size: 22.0 mm
    FWHM: 73°
    FWTM: 100°
    Peak intensity: 0.700 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

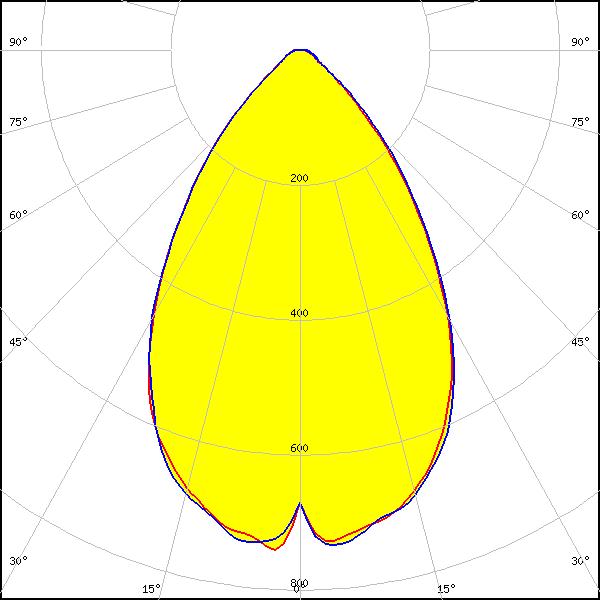

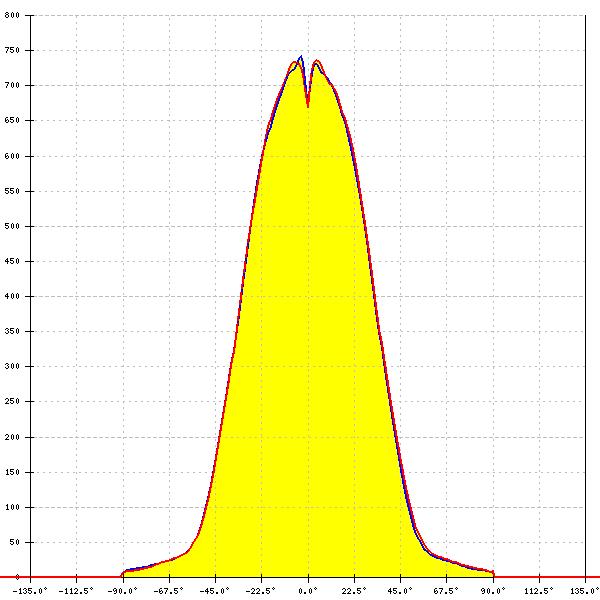

    LED: CXM-32
    LES size: 32.8 mm
    FWHM: 68°
    FWTM: 104°
    Peak intensity: 0.746 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB H-Type
    LES size: 23.0 mm
    FWHM: 74°
    FWTM: 102°
    Peak intensity: 0.670 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB J-Type
    LES size: 14.6 mm
    FWHM: 84°
    FWTM: 102°
    Peak intensity: 0.570 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

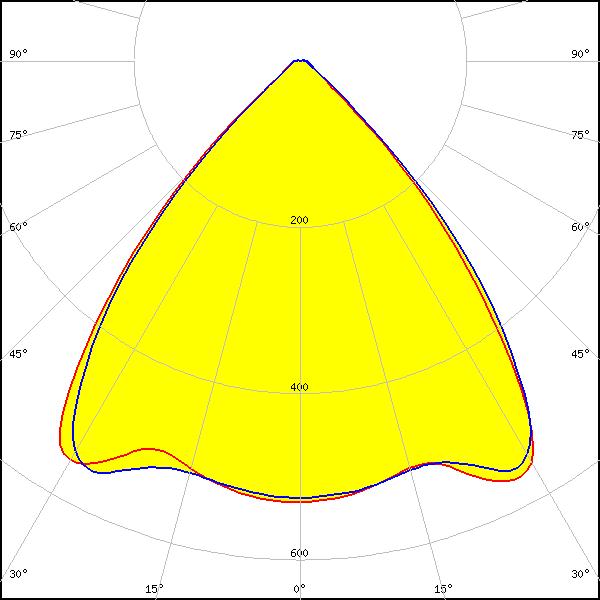

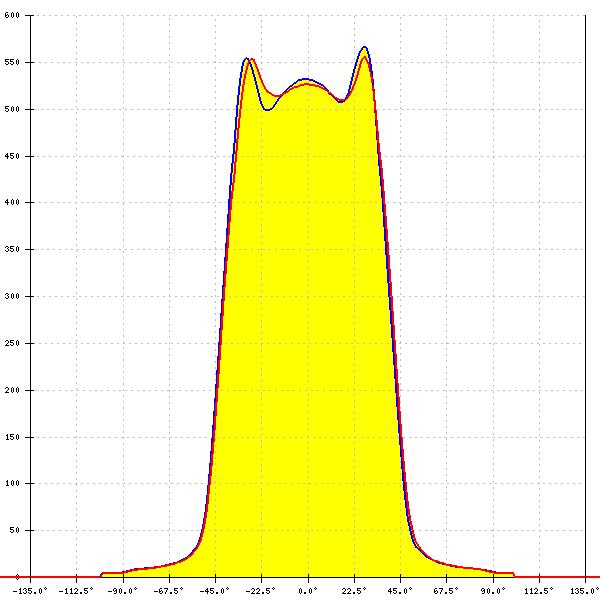

    LED: Soleriq S19
    LES size: 17.9 mm
    FWHM: 84°
    FWTM: 101°
    Peak intensity: 0.570 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

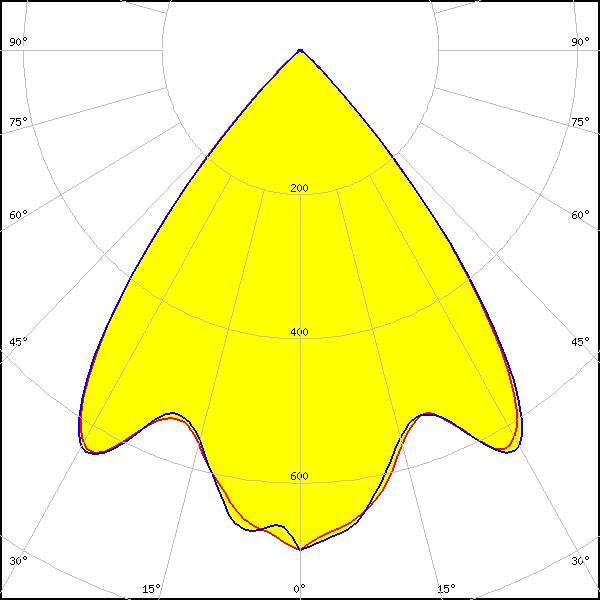

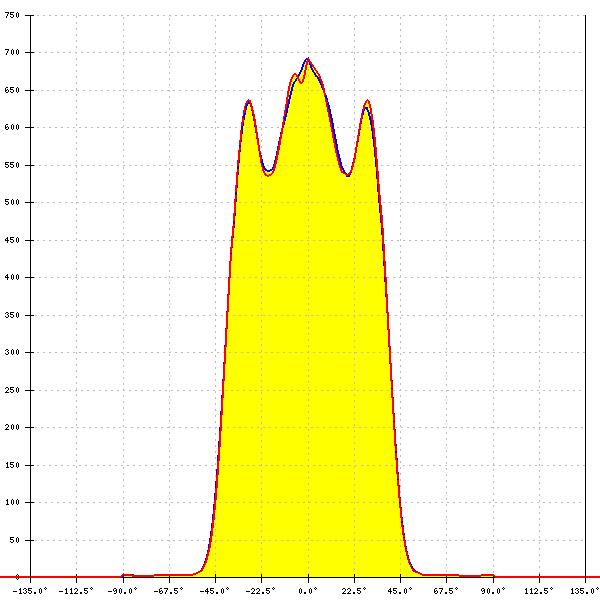

    LED: Fortimo SLM L13 CoB
    LES size: 13.0 mm
    FWHM: 78°
    FWTM: 92°
    Peak intensity: 0.700 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

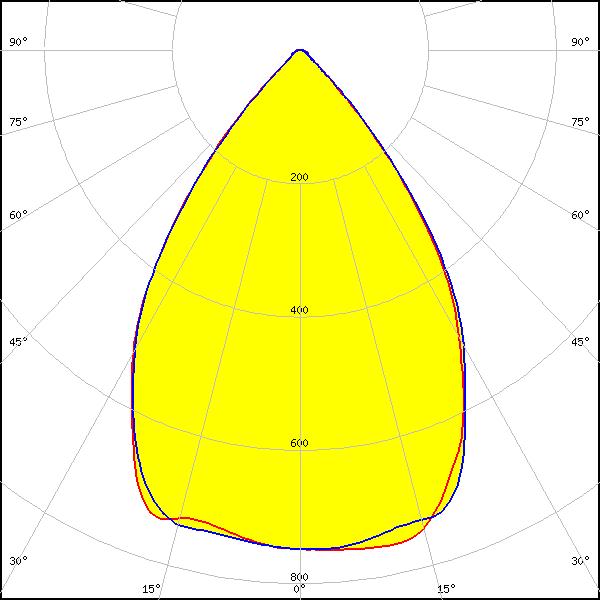

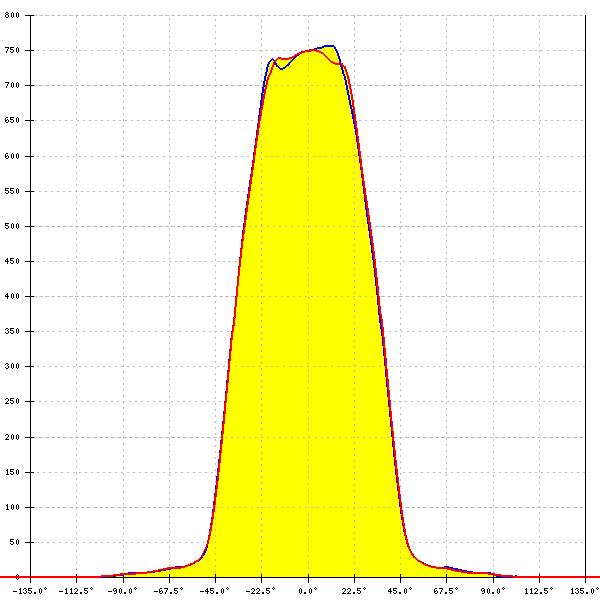

    LED: Fortimo SLM L19 CoB
    LES size: 19.0 mm
    Required components:
    Bender Wirth: 431 Typ L4
    FWHM: 71°
    FWTM: 94°
    Peak intensity: 0.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

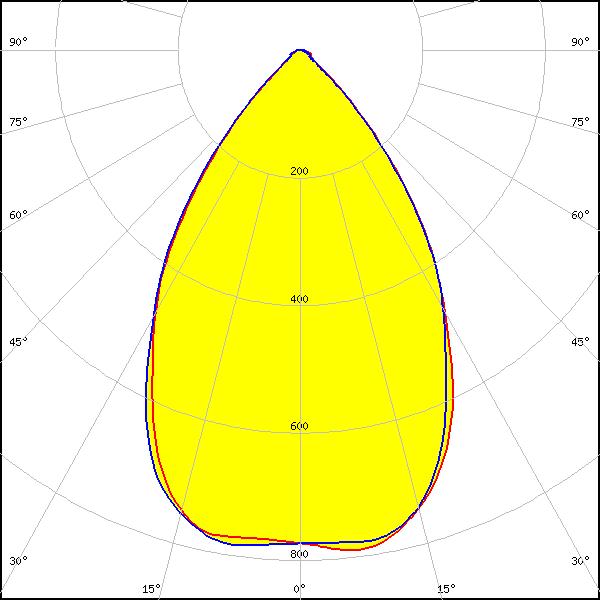

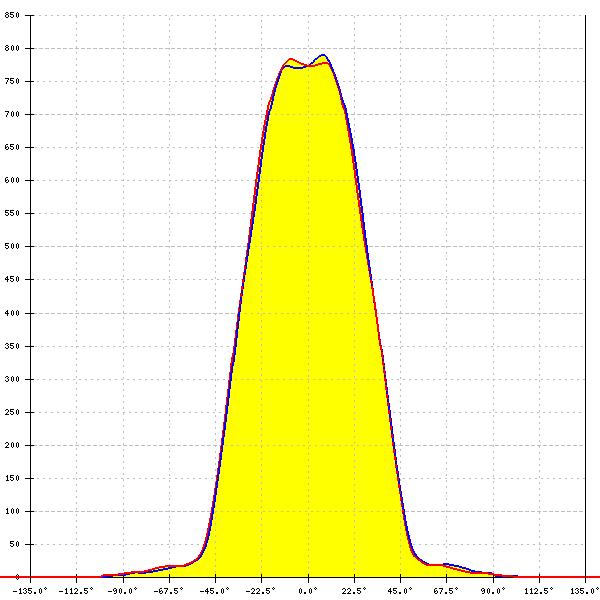

    LED: Fortimo SLM L23 CoB
    LES size: 23.0 mm
    Required components:
    Bender Wirth: 431 Typ L4
    FWHM: 67°
    FWTM: 96°
    Peak intensity: 0.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

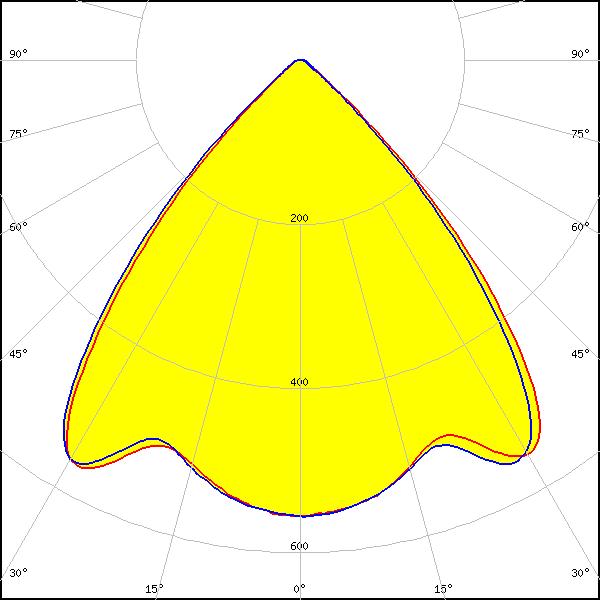

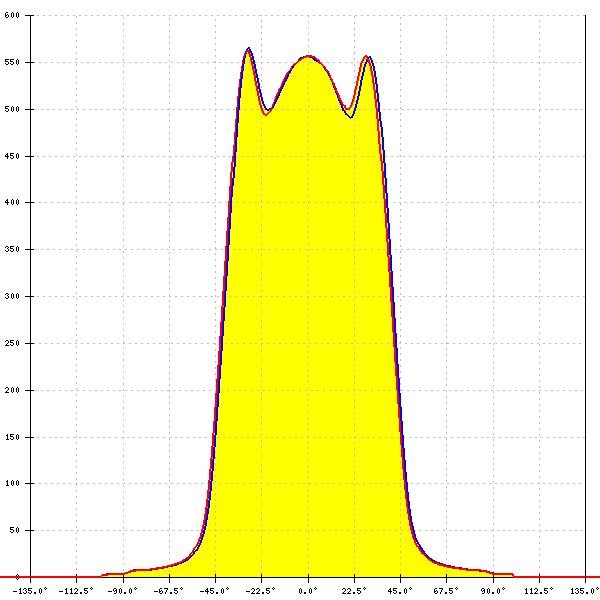

    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    FWHM: 83°
    FWTM: 101°
    Peak intensity: 0.570 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

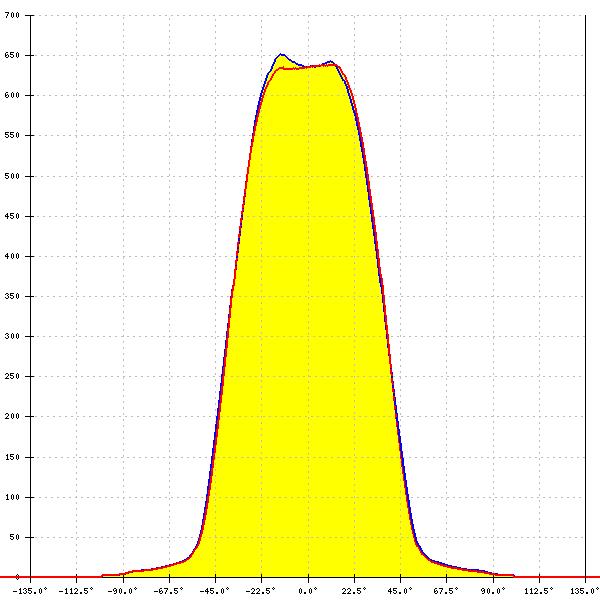

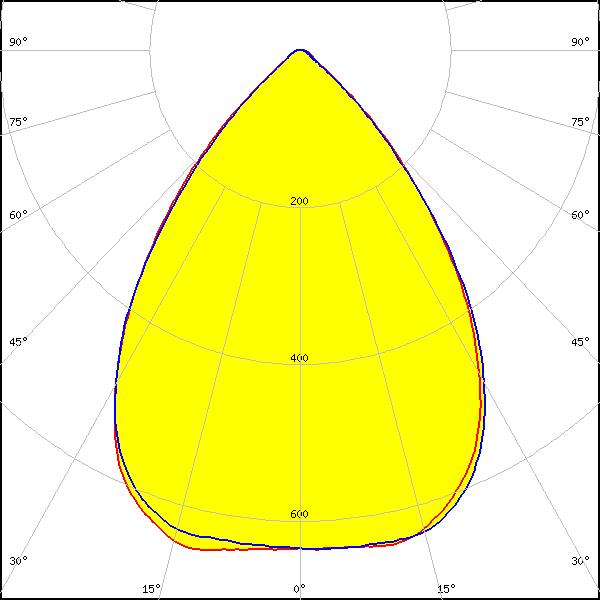

    LED: LC040D / LC060D / LC080D
    LES size: 22.0 mm
    FWHM: 77°
    FWTM: 104°
    Peak intensity: 0.630 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC040D / LC060D / LC080D
    LES size: 22.0 mm
    FWHM: 76°
    FWTM: 102°
    Peak intensity: 0.650 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

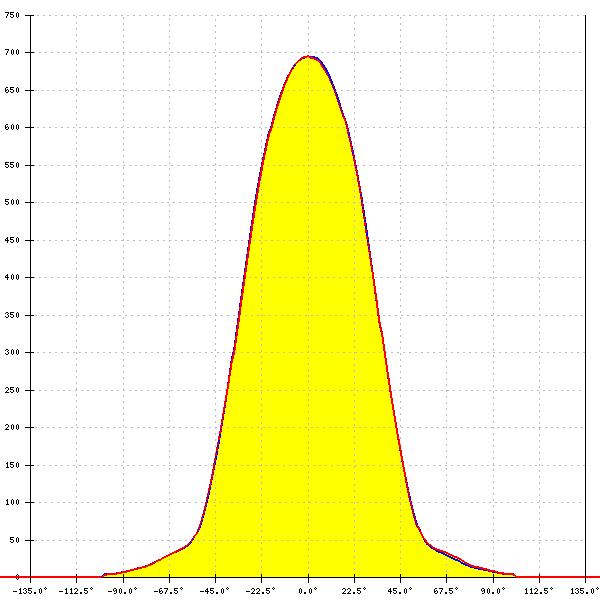

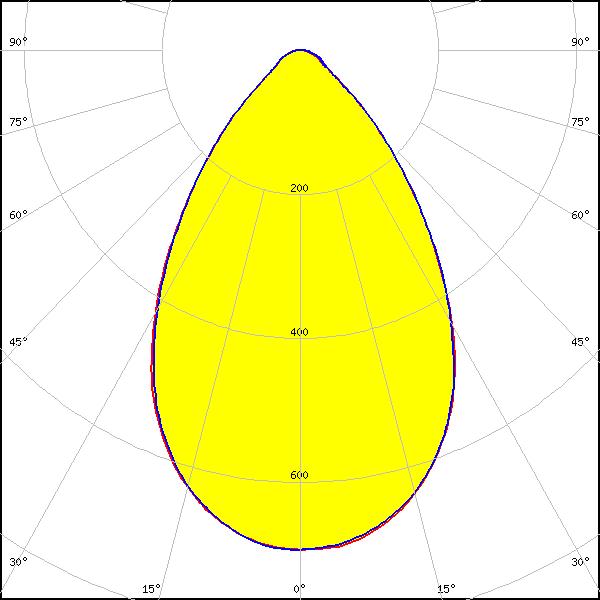

    LED: MJT COB LES 33
    LES size: 32.8 mm
    Required components:
    Bender Wirth: 458 Typ L4
    FWHM: 68°
    FWTM: 106°
    Peak intensity: 0.700 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE 13mm 3000lm xxx R ADV8
    LES size: 13.0 mm
    FWHM: 82°
    FWTM: 96°
    Peak intensity: 0.639 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

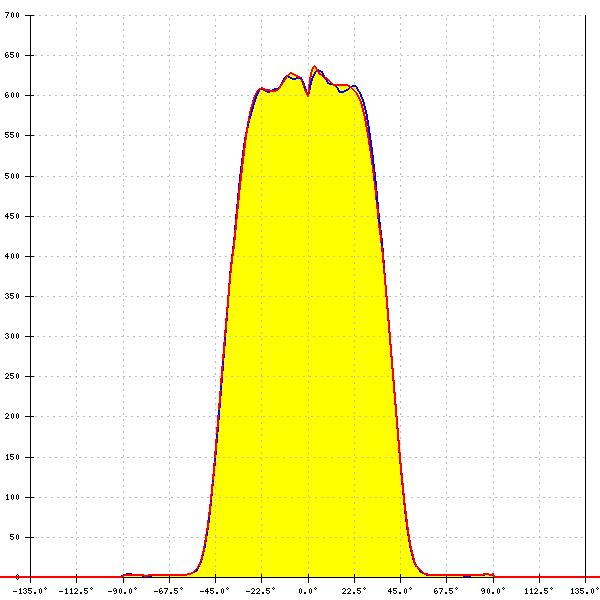

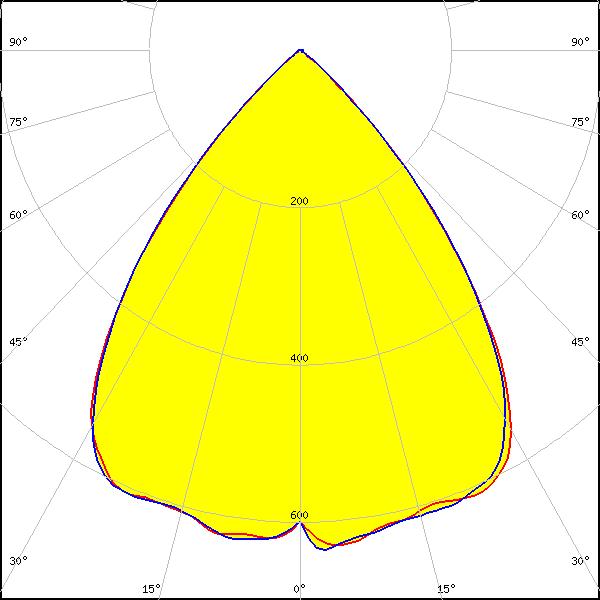

    LED: SLE 17mm 5000lm xxx R ADV8
    LES size: 16.5 mm
    Required components:
    Bender Wirth: 466 Typ L4
    FWHM: 78°
    FWTM: 98°
    Peak intensity: 0.648 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

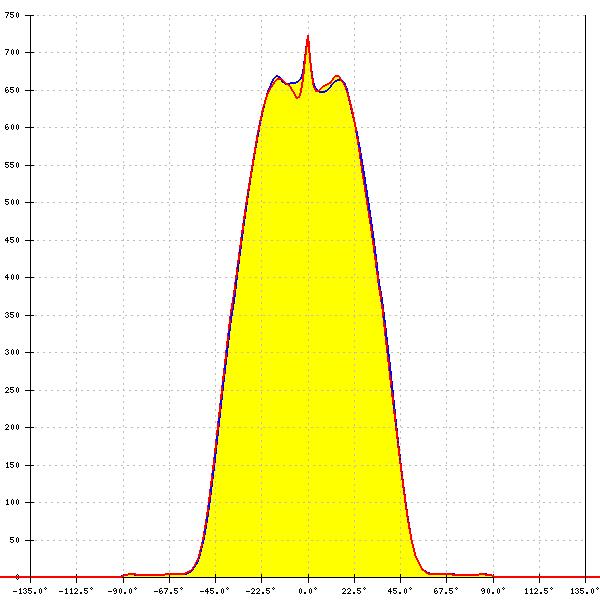

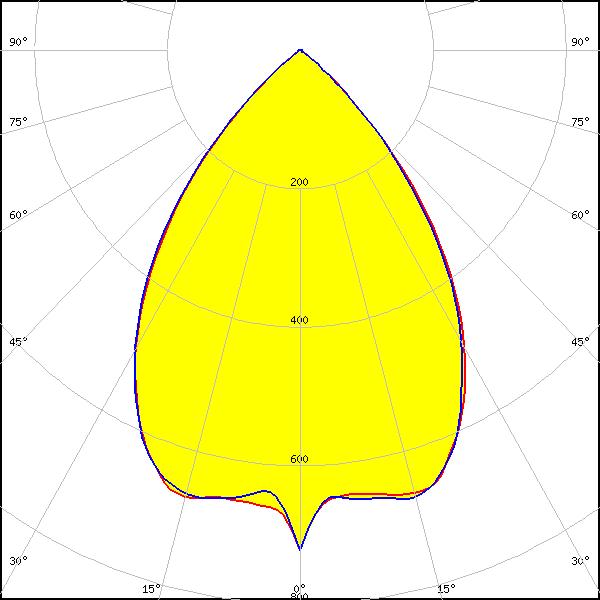

    LED: SLE 21mm 6000lm xxx R ADV8
    LES size: 20.5 mm
    Required components:
    Bender Wirth: 466 Typ L4
    FWHM: 73°
    FWTM: 99°
    Peak intensity: 0.723 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
