    FA11937_LXM-RS

    Print

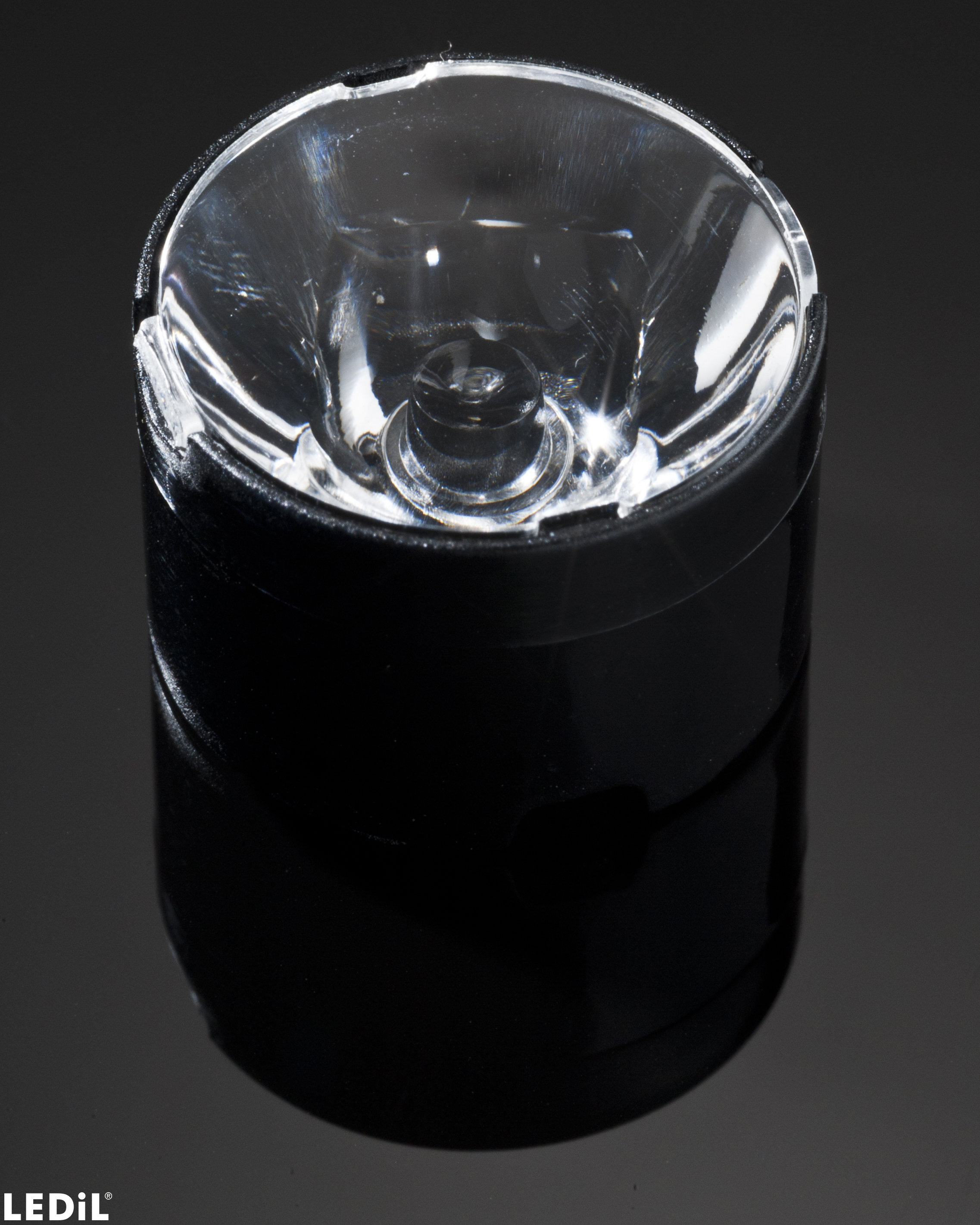

    ~9.6° spot beam optimized for CREE XM-L. 14.8 mm high assembly with installation tape.

    Specification
    • Dimensions:
      22 mm
    • Height:
      14.80 mm
    • Fastening:
      tape
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      2304 pcs
    • Box weight:
      11.7 kg
    • MPQ:
      144 pcs
    • MOQ:
      288 pcs
    • MOQ size:
      470 x 240 x 70 mm
    • MOQ weight:
      1.9 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FA11937_LXM-RS
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Case story

    Temple in Buenos Aires

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Badia di Pomaio resort

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

    Case story

    The Luneur amusement park

    Case story

    The OZ Mall

    Optical results

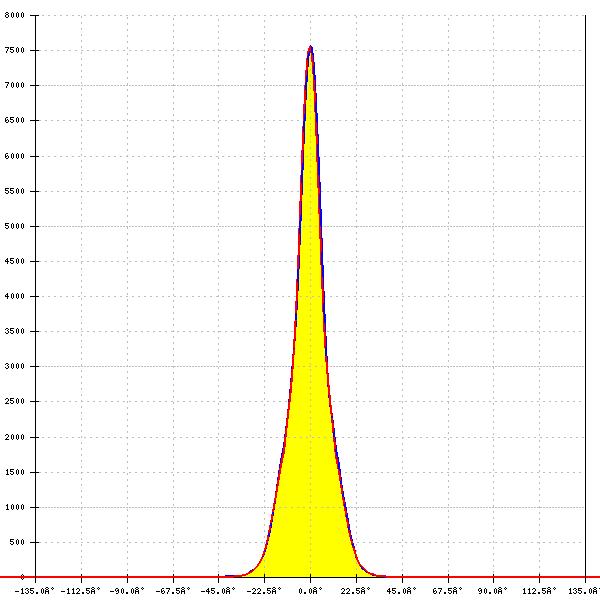

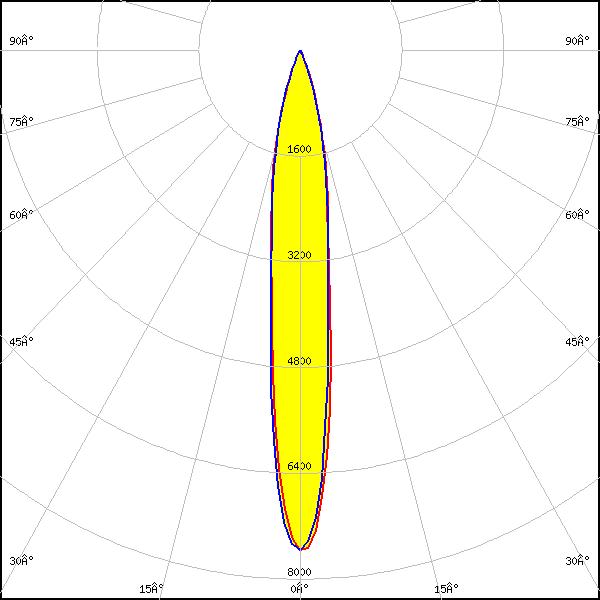

    LED: XM-L
    FWHM: 14°
    FWTM: 38°
    Peak intensity: 7.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

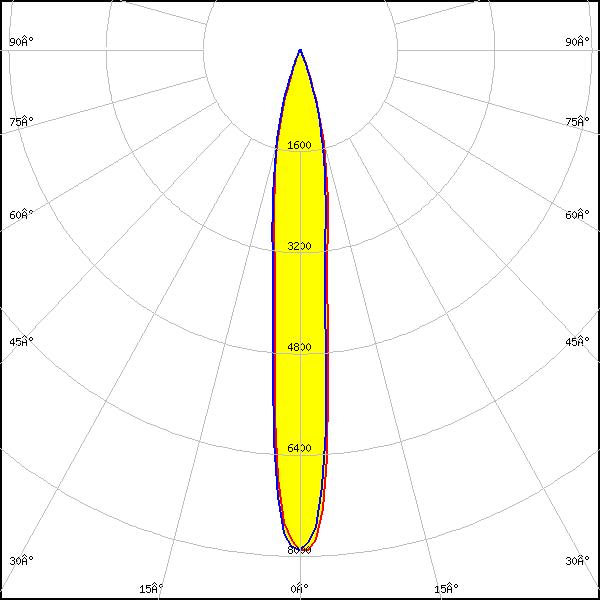

    LED: XM-L2
    FWHM: 13°
    FWTM: 37°
    Peak intensity: 7.900 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L3
    FWHM: 12°
    FWTM: 37°
    Peak intensity: 8.321 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

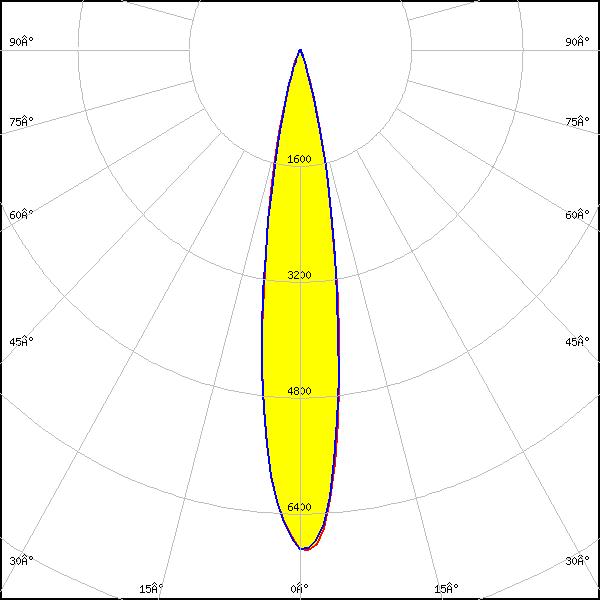

    LED: XQ-E HD
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 6.965 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White

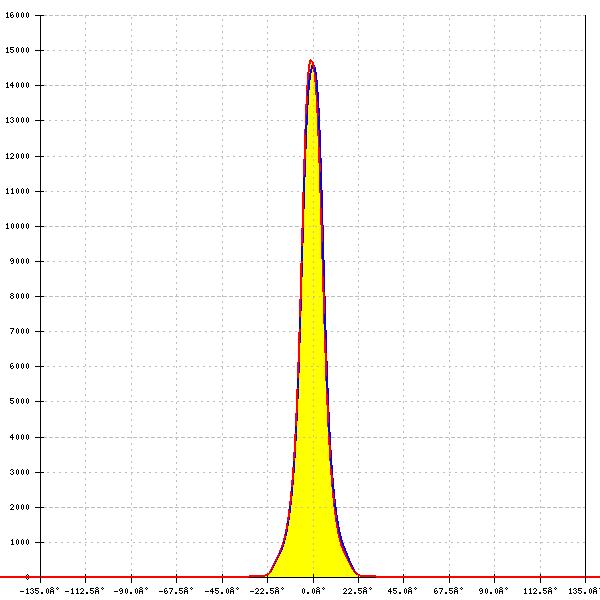

    LED: LUXEON CZ
    FWHM: 12°
    FWTM: 25°
    Peak intensity: 14.926 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Red

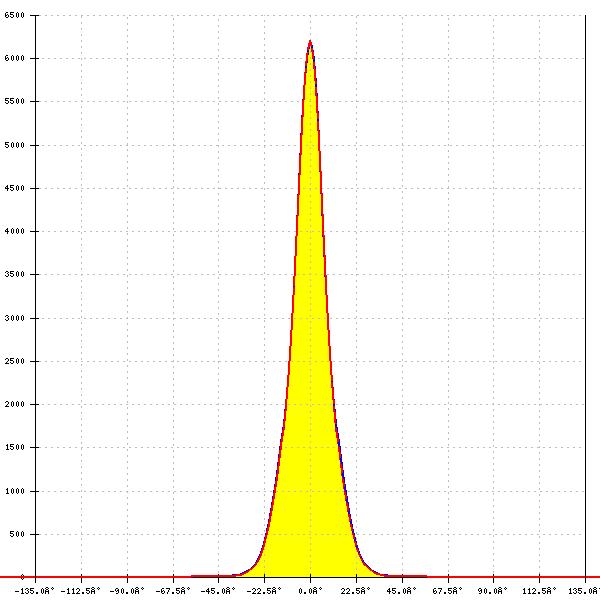

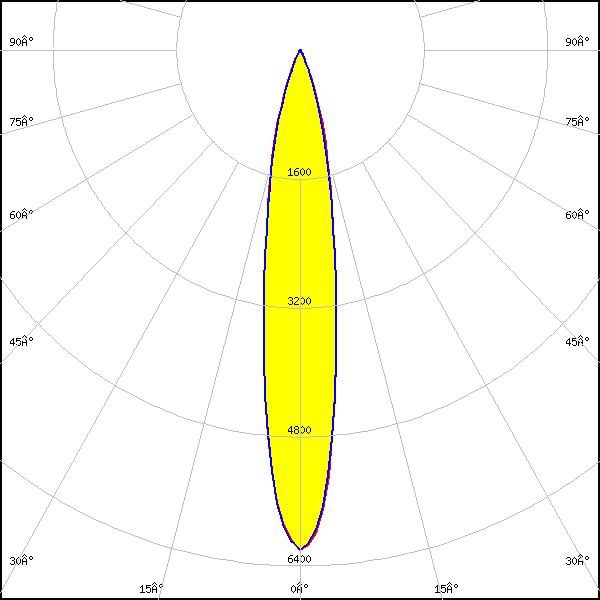

    LED: SST-70X-WCS
    FWHM: 18°
    FWTM: 40°
    Peak intensity: 6.208 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFH 4725AS
    FWHM: 8°
    FWTM: 18°
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: IR
