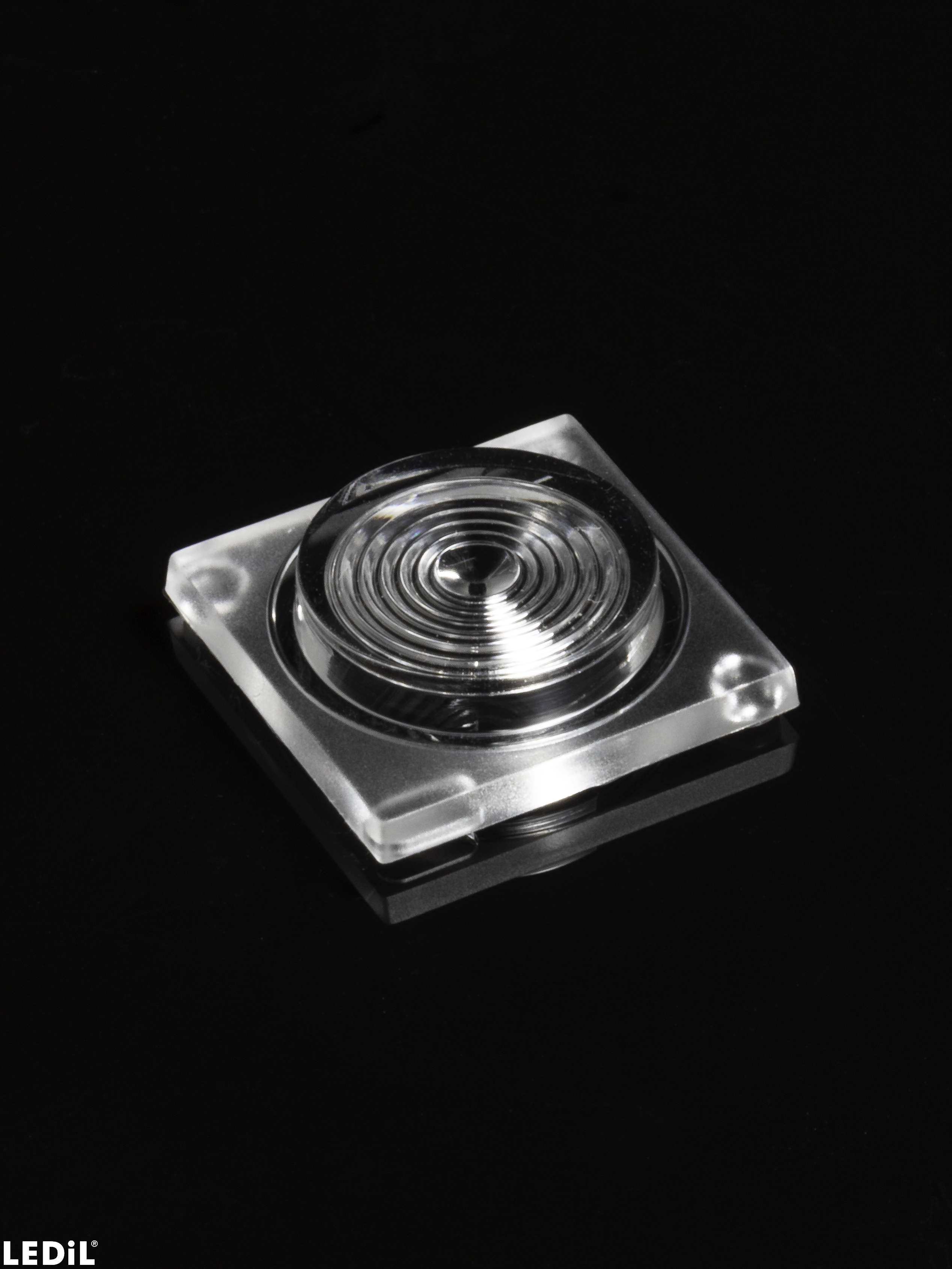

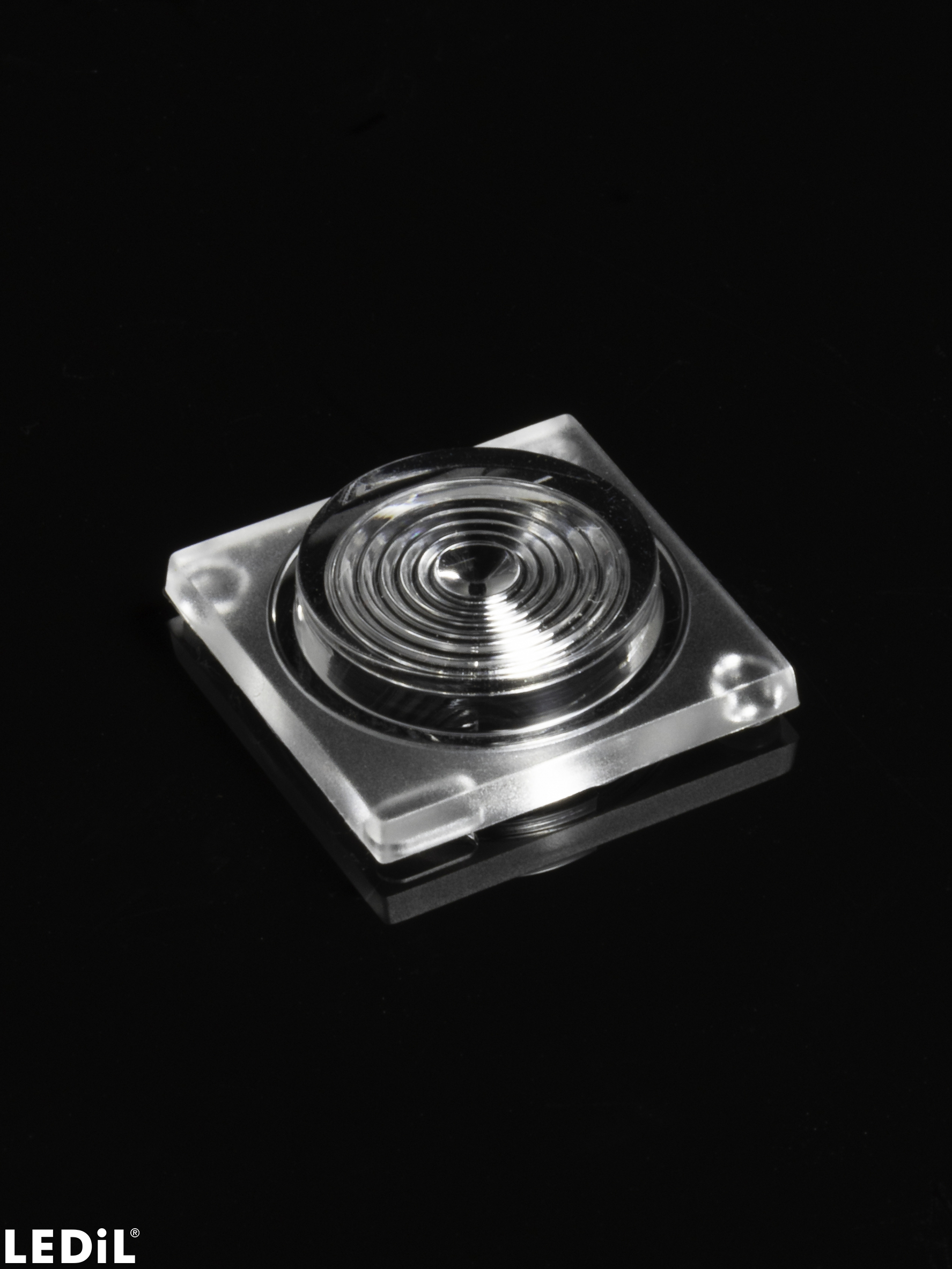

F17822_VIOLETTA-S

Print

~15° spot beam

Specification
  • Dimensions:
    22 x  22 mm
  • Height:
    6.60 mm
  • Fastening:
    pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    1620 pcs
  • Box size:
    485 x 280 x 100 mm
  • Box weight:
    3.5 kg
  • MPQ:
    135 pcs
  • MOQ:
    270 pcs
  • MOQ size:
    480 x 280 x 30 mm
  • MOQ weight:
    0.8 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F17822_VIOLETTA-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

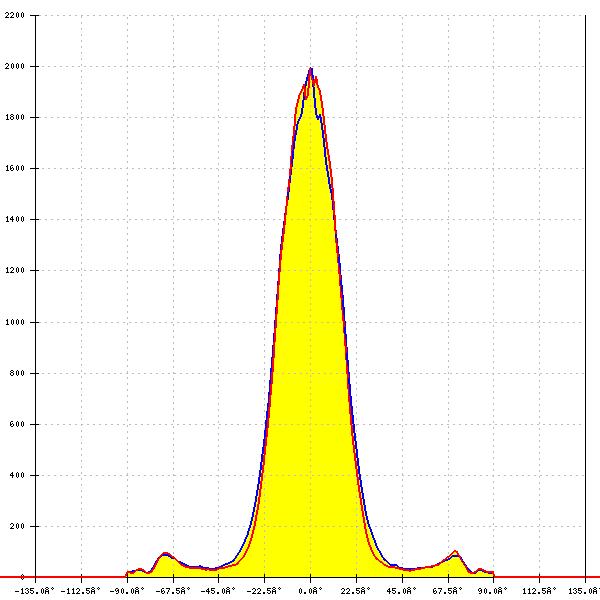

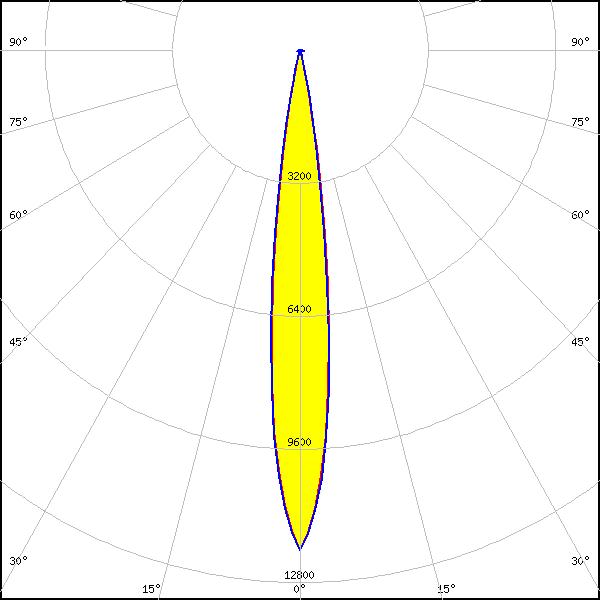

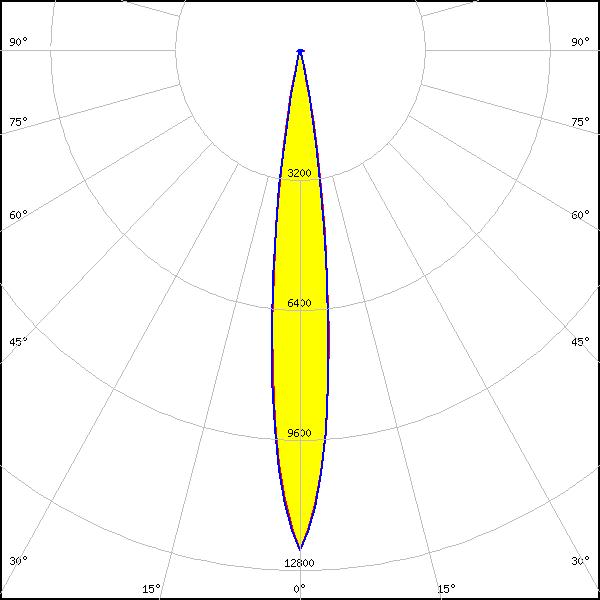

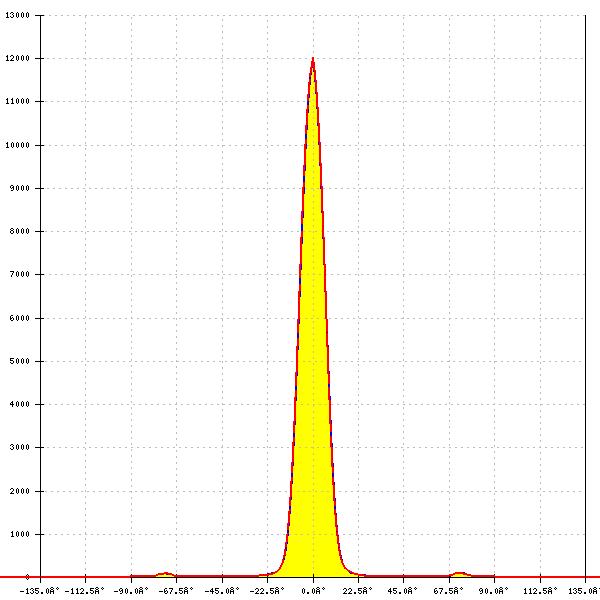

Optical results

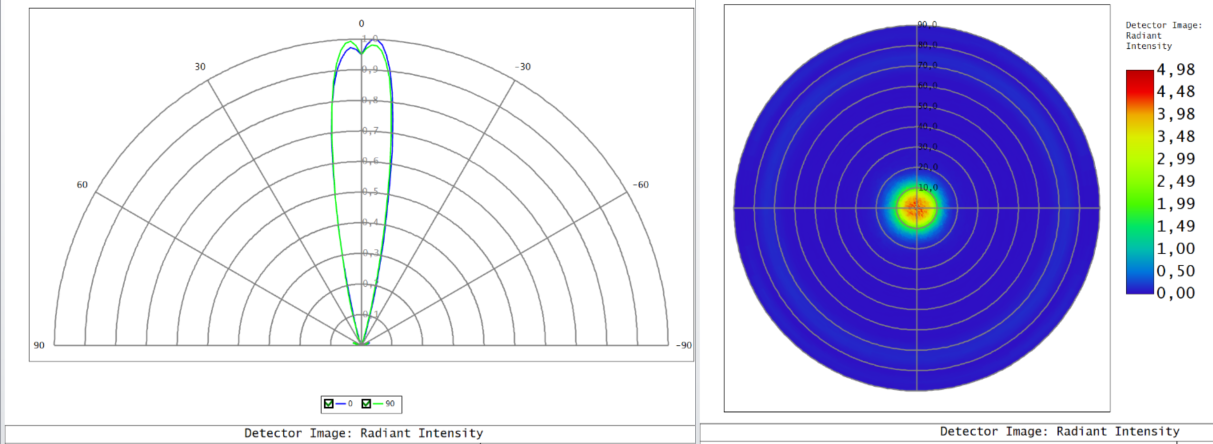

LED: Bolb UV-C 6060 SMD
FWHM: 20°
FWTM: 33°
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: Bolb UV-C 6060 SMD
FWHM: 20°
FWTM: 41°
Efficiency: 56 %
LEDs/each optic: 1
Light colour/type: UV-C

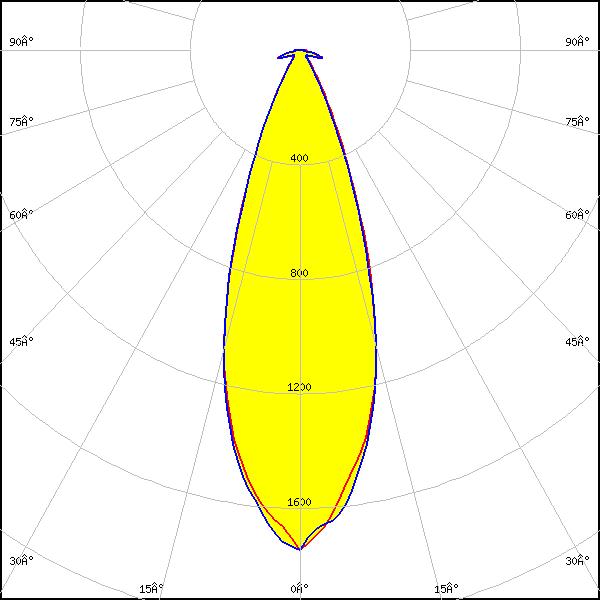

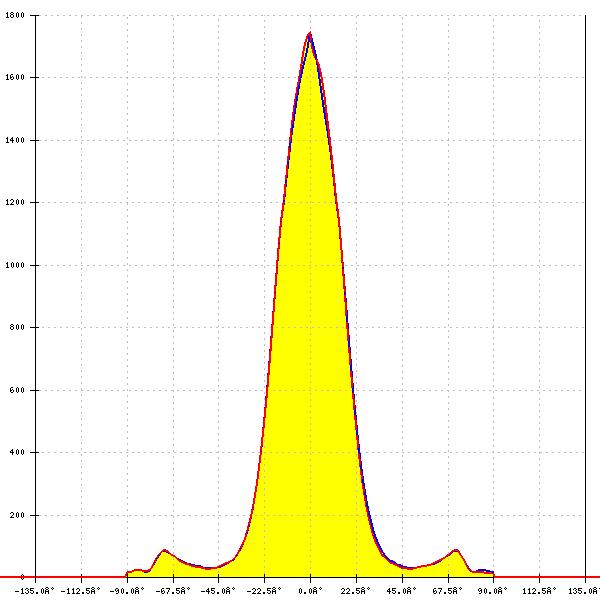

LED: Bridgelux SMD 5050
FWHM: 35°
FWTM: 60°
Peak intensity: 1.750 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CLH-N3S
FWHM: 19°
FWTM: 45°
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: KL265-50V-SM-WD
FWHM: 15°
FWTM: 32°
Efficiency: 52 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: S3535-DR100-W272-P40
FWHM: 21°
FWTM: 35°
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: UV-C

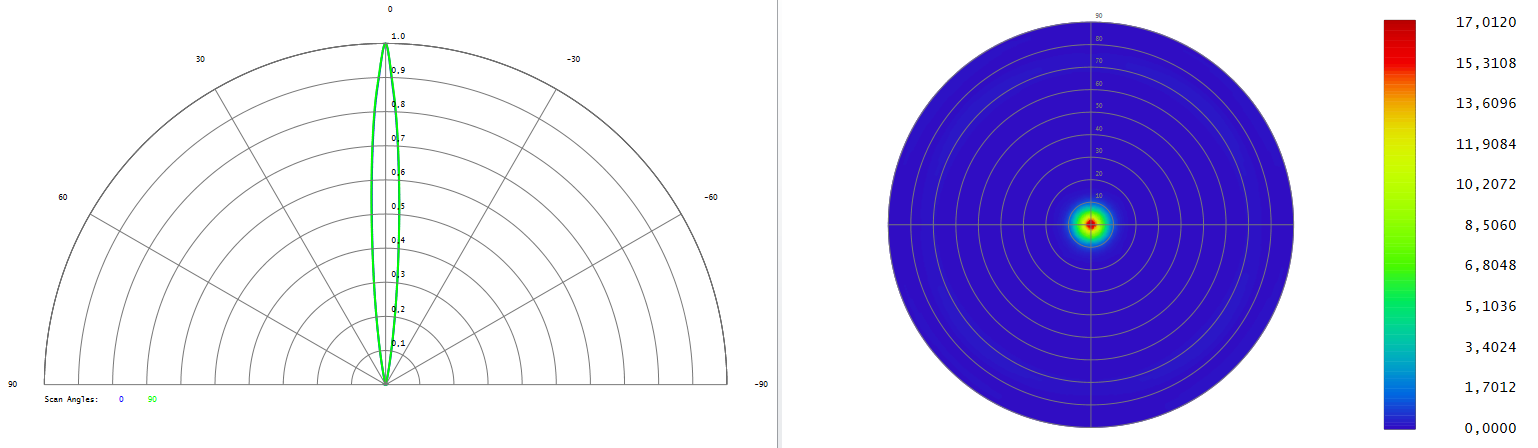

LED: XBT-1313
FWHM: 9°
FWTM: 19°
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: UV-C

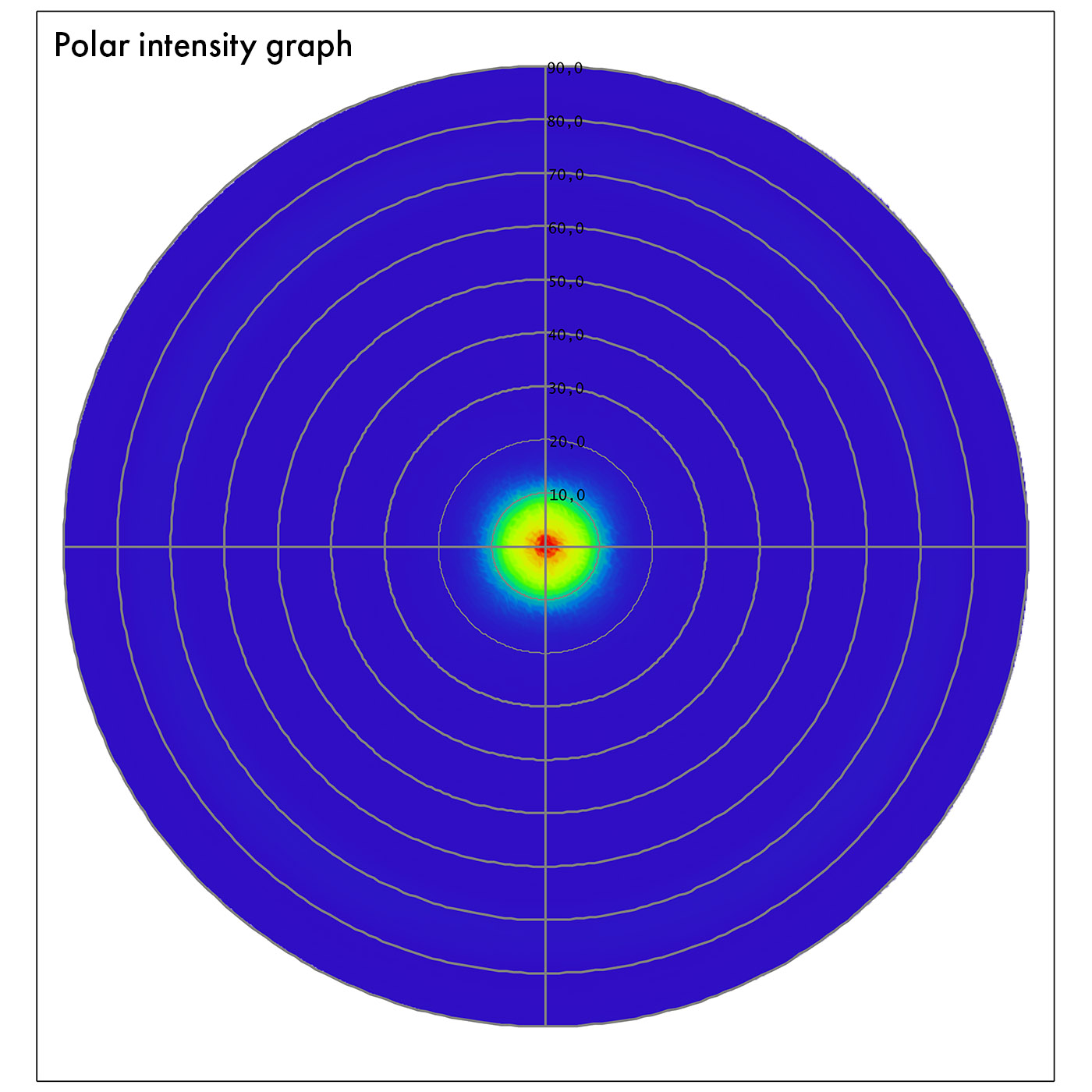

LED: XBT-3535-UV
FWHM: 16°
FWTM: 25°
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: UV-C

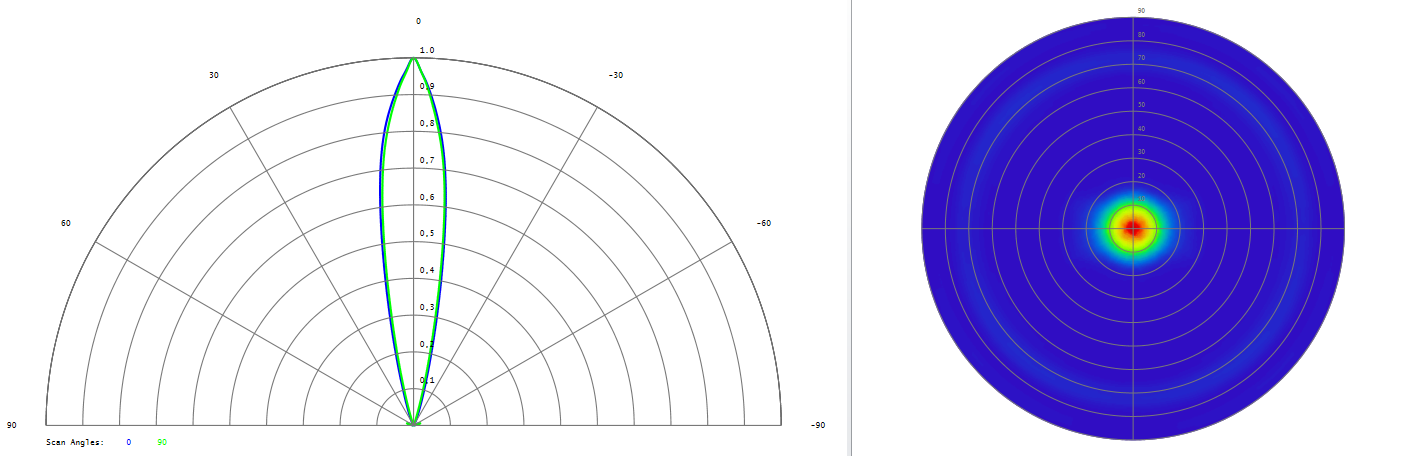

LED: XFM-5050 2 Die
FWHM: 19°
FWTM: 33°
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: XFM-5050 2 Die
FWHM: 29°
FWTM: 53°
Efficiency: 56 %
LEDs/each optic: 1
Light colour/type: UV-C

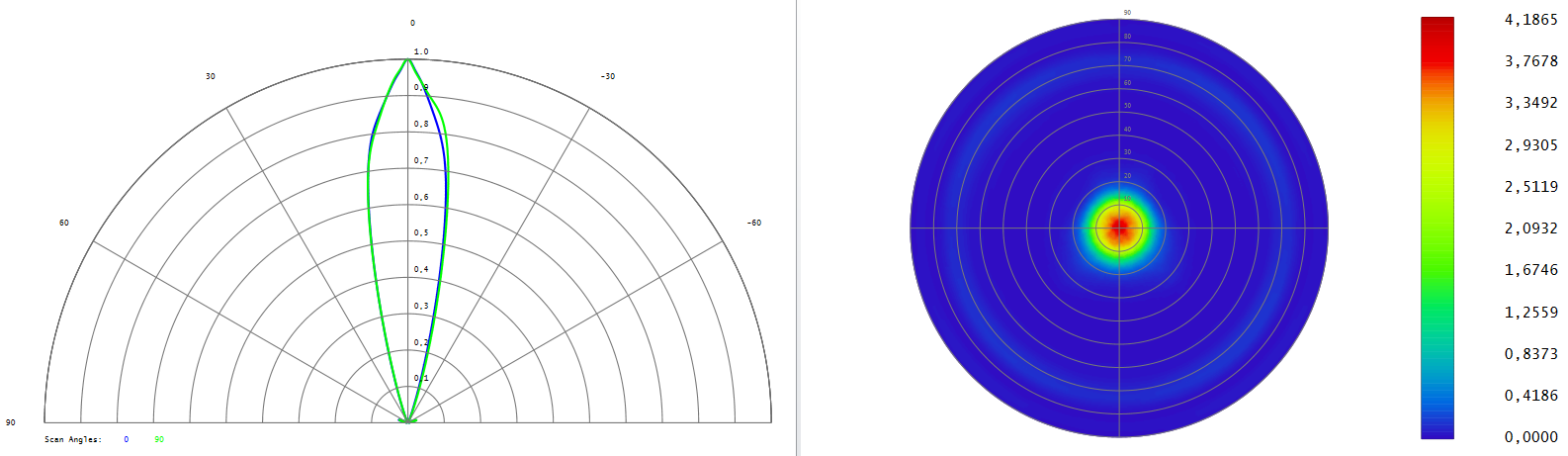

LED: XFM-5050 3 Die
FWHM: 23°
FWTM: 35°
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: XFM-5050 3 Die
FWHM: 24°
FWTM: 55°
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: UV-C

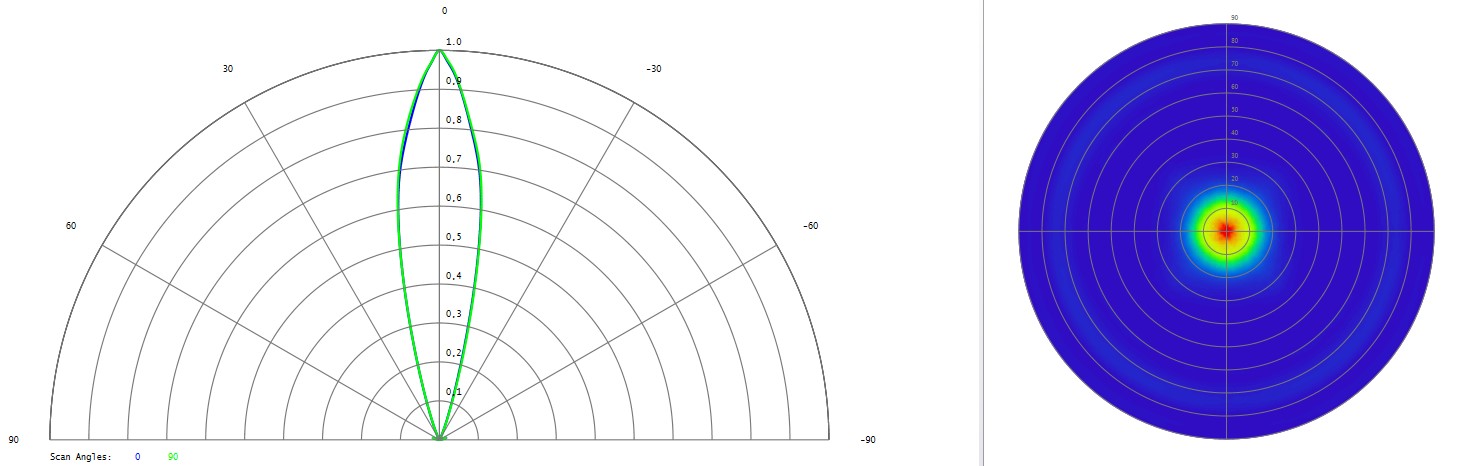

LED: XFM-5050 4 Die
FWHM: 23°
FWTM: 37°
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: UV-C

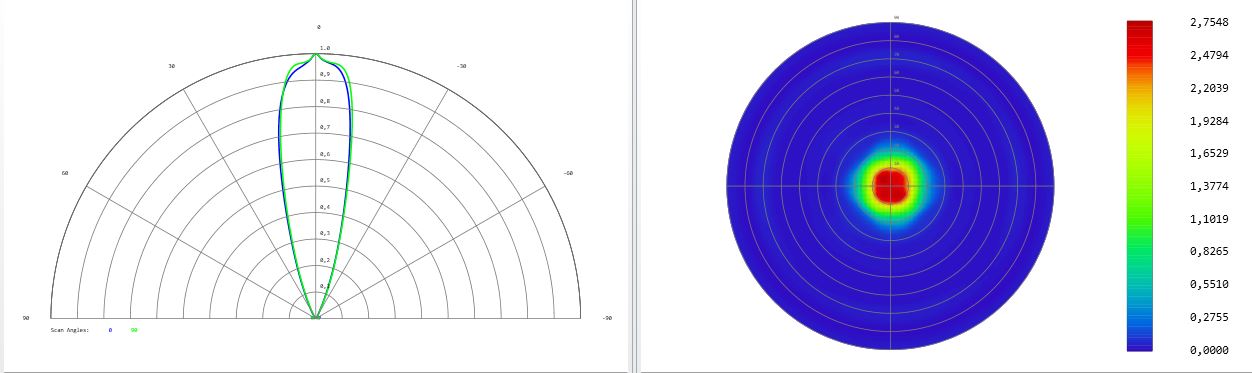

LED: XST-3535-UV
FWHM: 28°
FWTM: 47°
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: UV-C

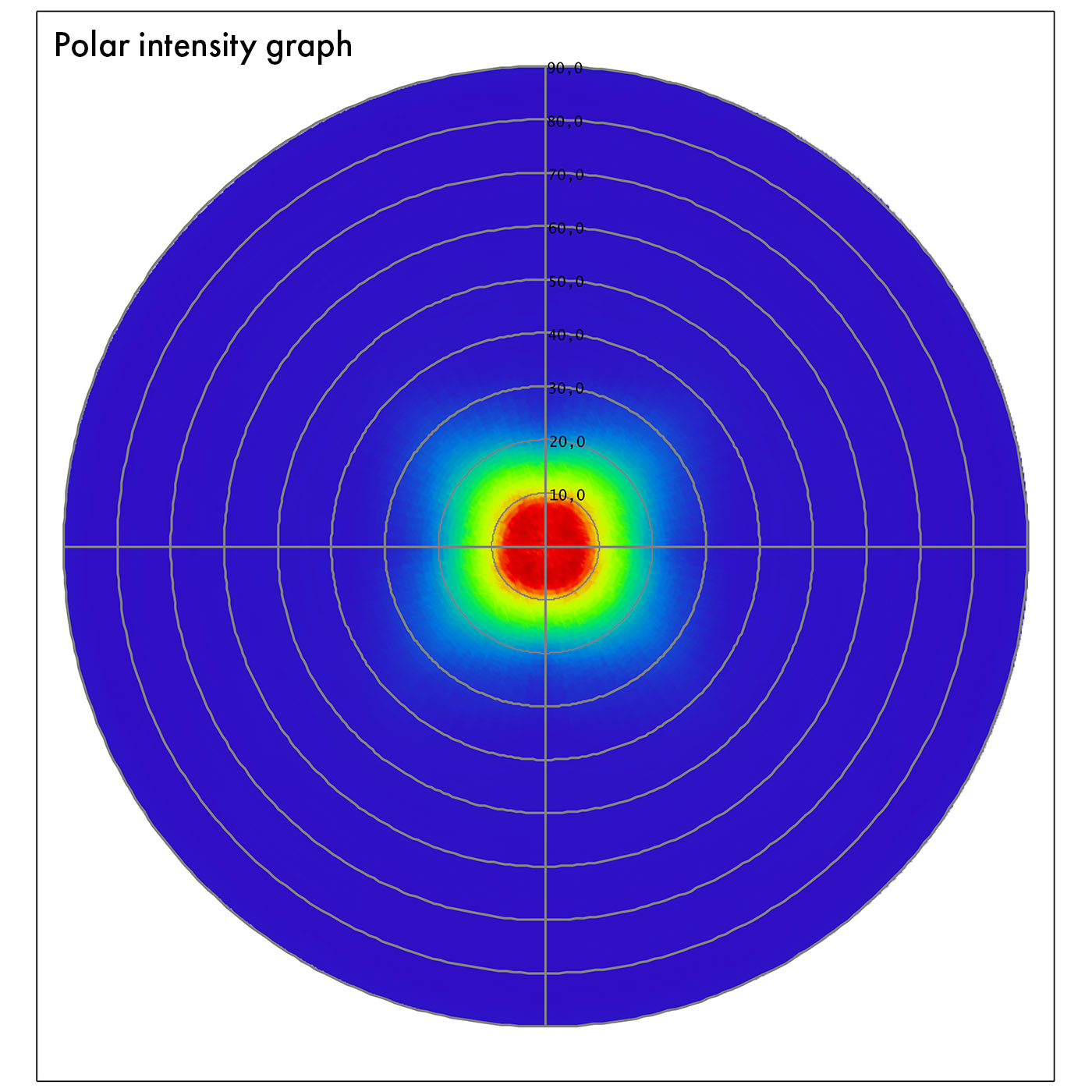

LED: NC4U334BR
FWHM: 28°
FWTM: 44°
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: UV-C

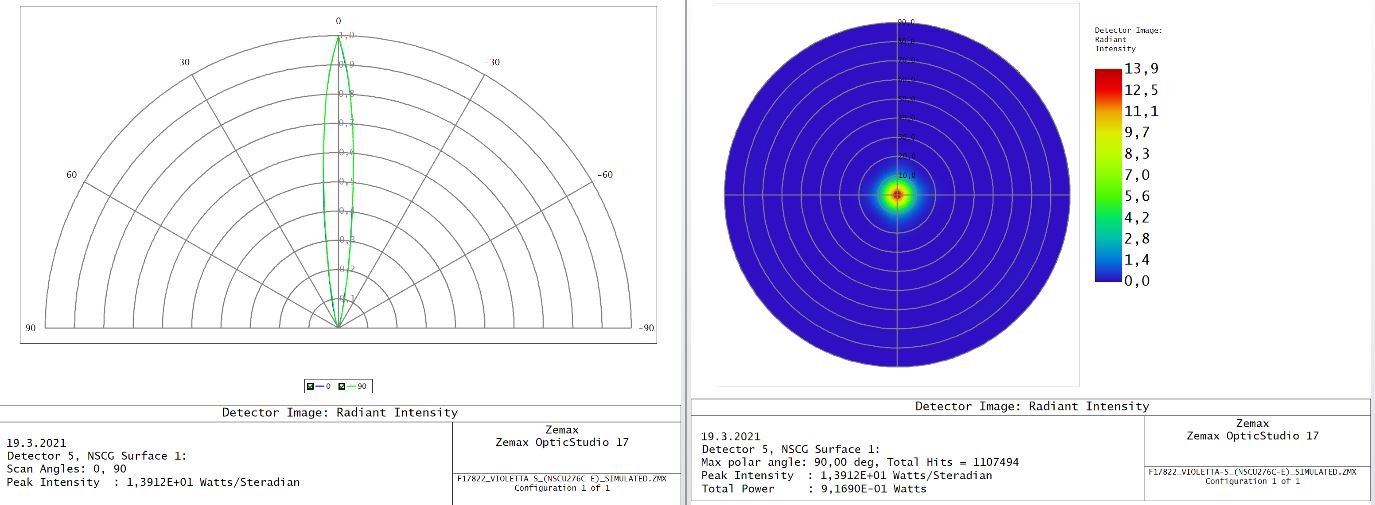

LED: NCSU276C
FWHM: 12°
FWTM: 24°
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: UV-A

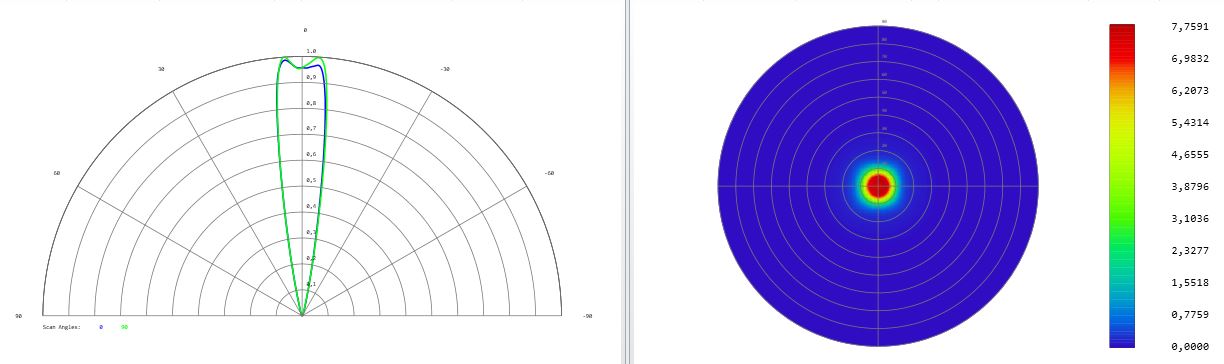

LED: NCSU334A
FWHM: 18°
FWTM: 26°
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: UV-C

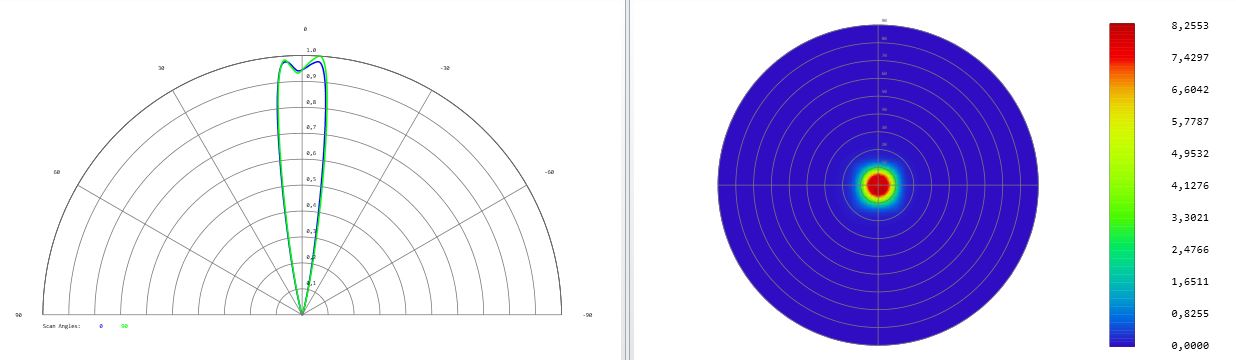

LED: NCSU334B
FWHM: 17°
FWTM: 26°
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: UV-C

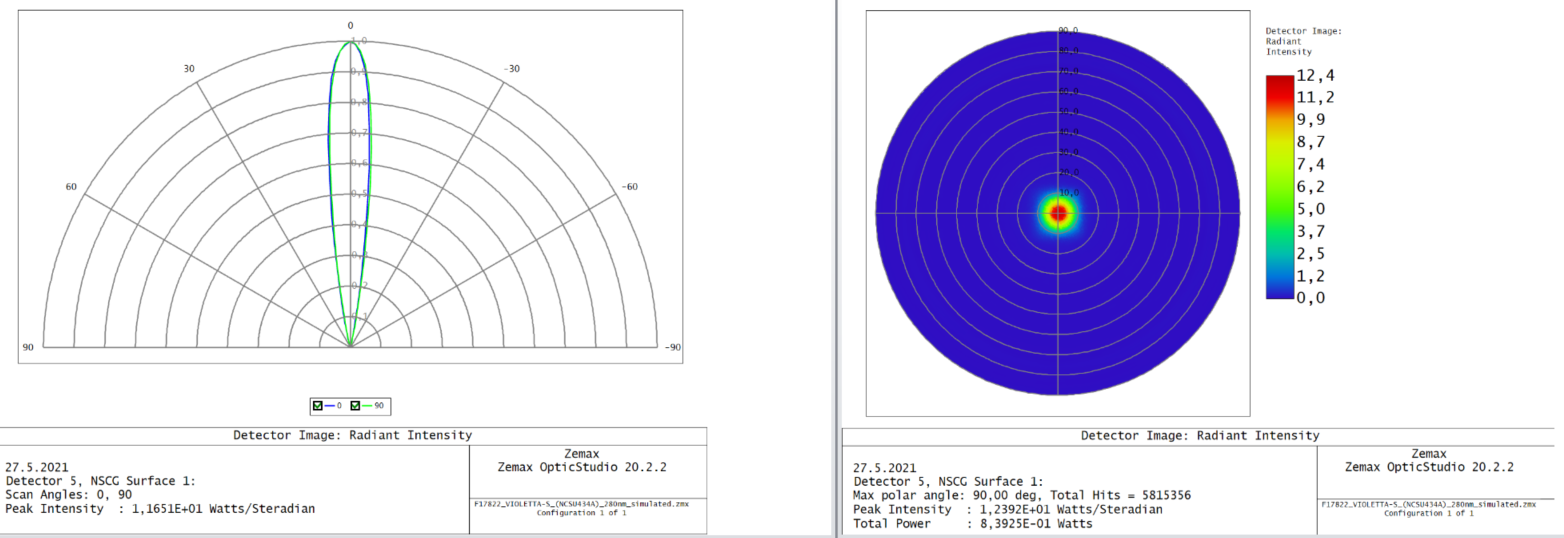

LED: NCSU434A
FWHM: 13°
FWTM: 22°
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: UV-C

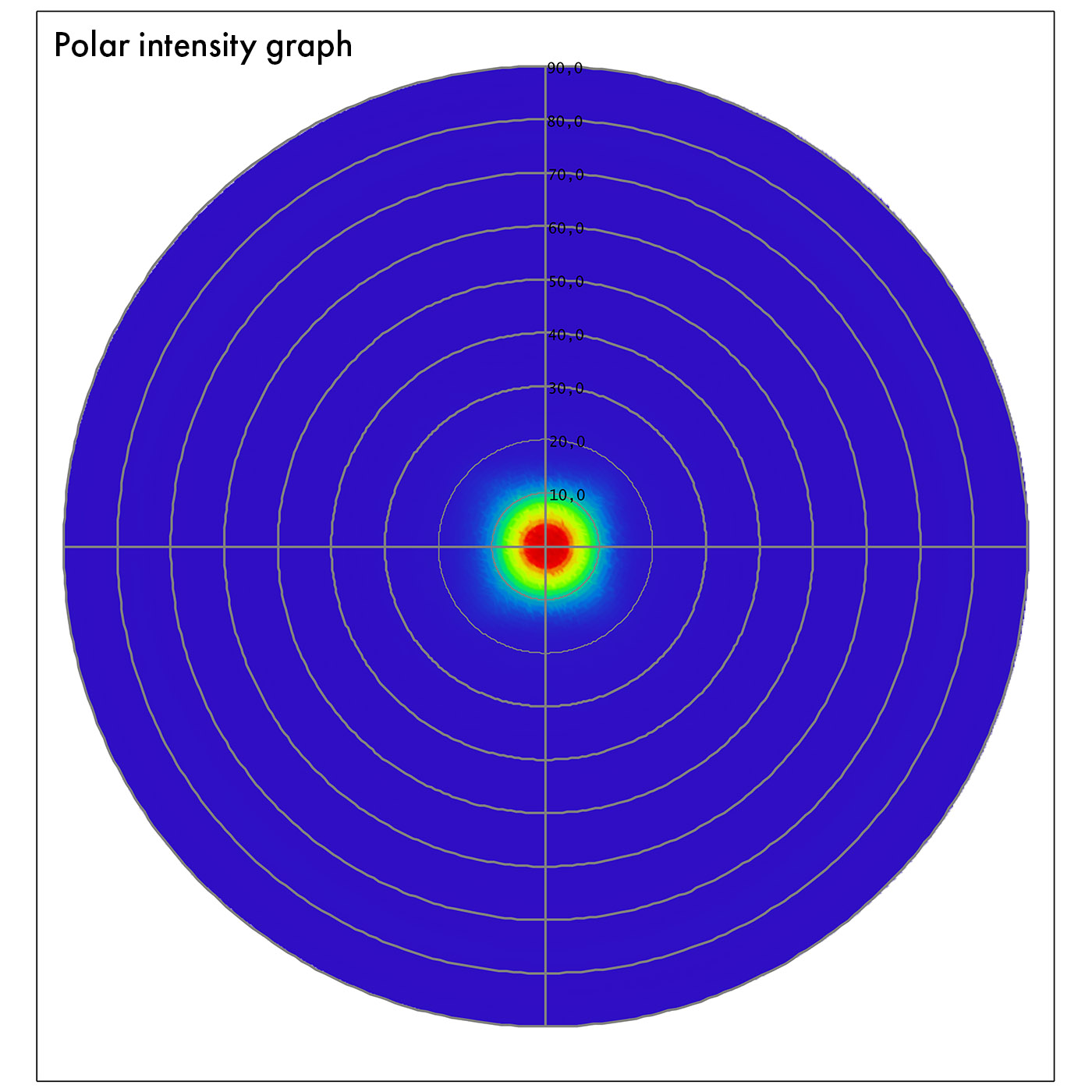

LED: NCSU434B
FWHM: 16°
FWTM: 25°
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: UV-C

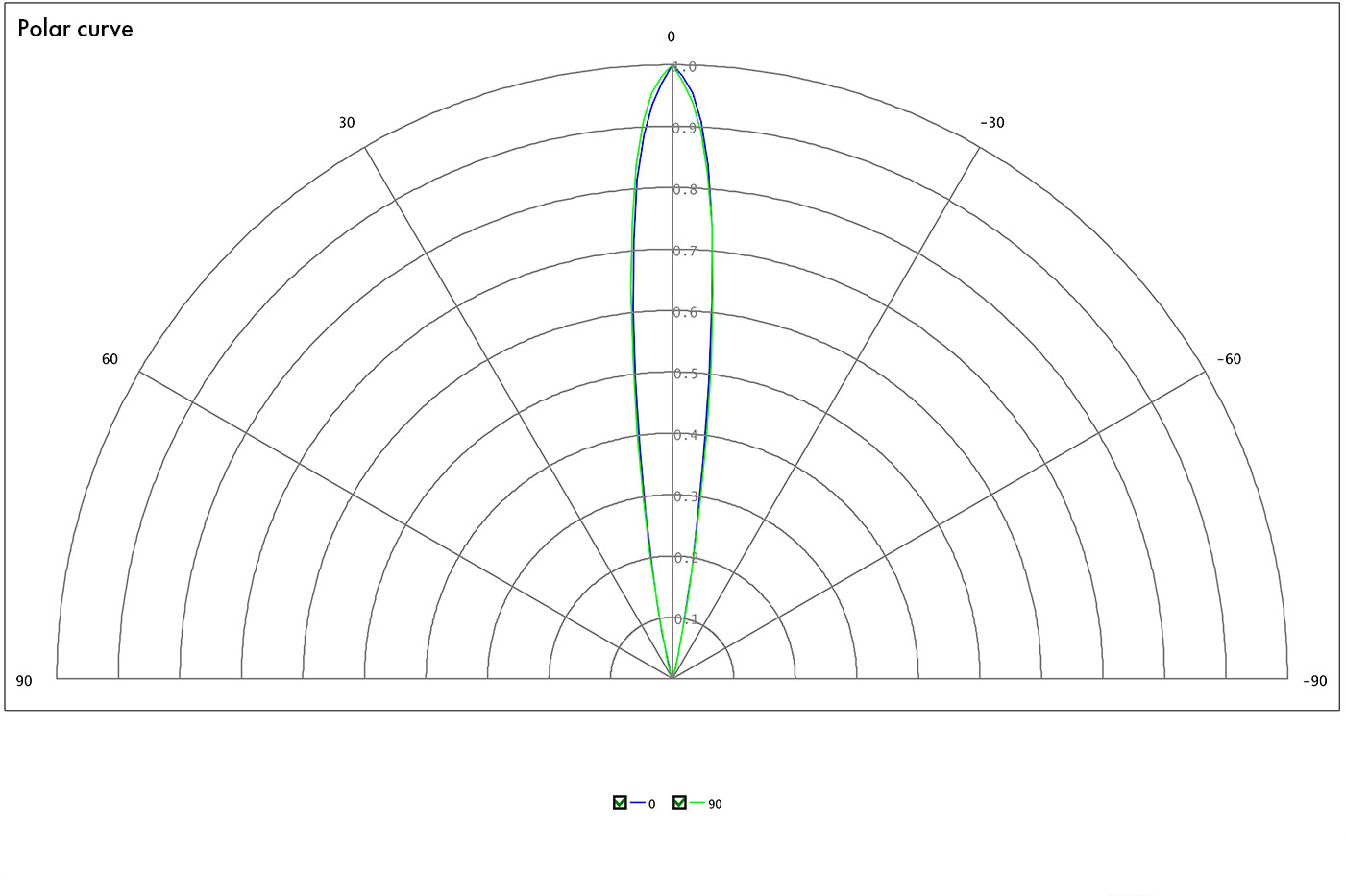

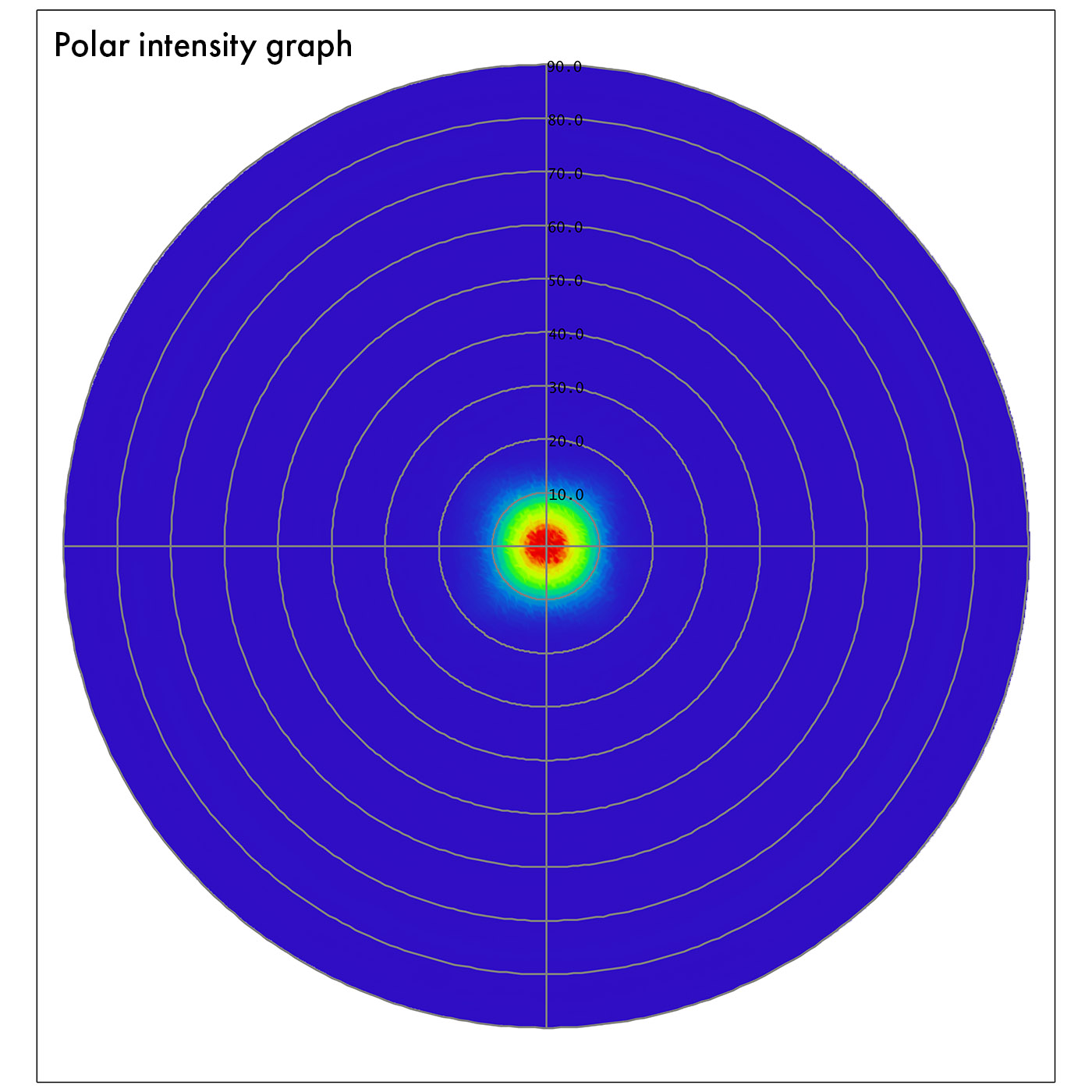

LED: NCSU434C
FWHM: 14°
FWTM: 23°
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: UV-C

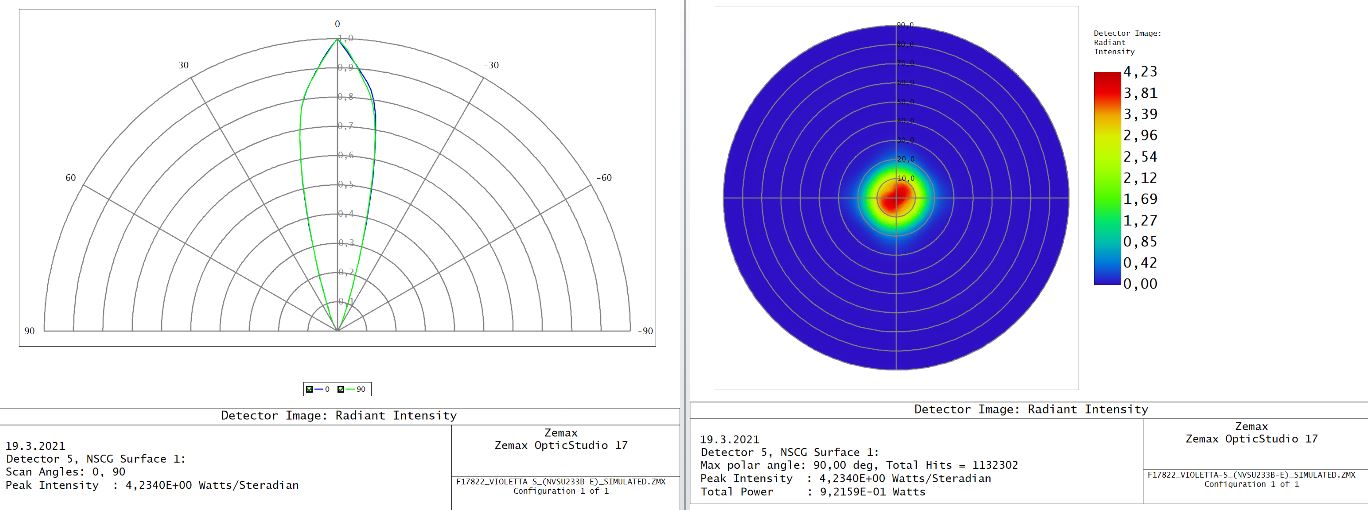

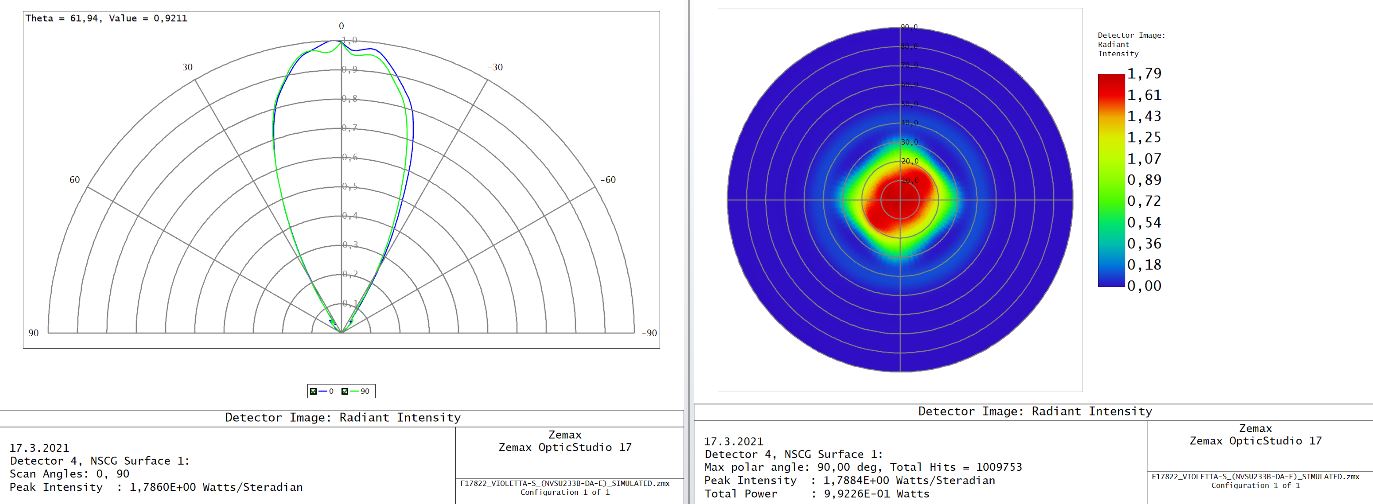

LED: NVSU233B
FWHM: 24°
FWTM: 40°
Peak intensity: 4.848 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: UV-A
LED: NVSU233B-D4
FWHM: 37°
FWTM: 74°
Peak intensity: 2.121 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: UV-A
LED: OSLON UV 3636 (SU CULBN1.VC)
FWHM: 10°
FWTM: 21°
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: UV-C

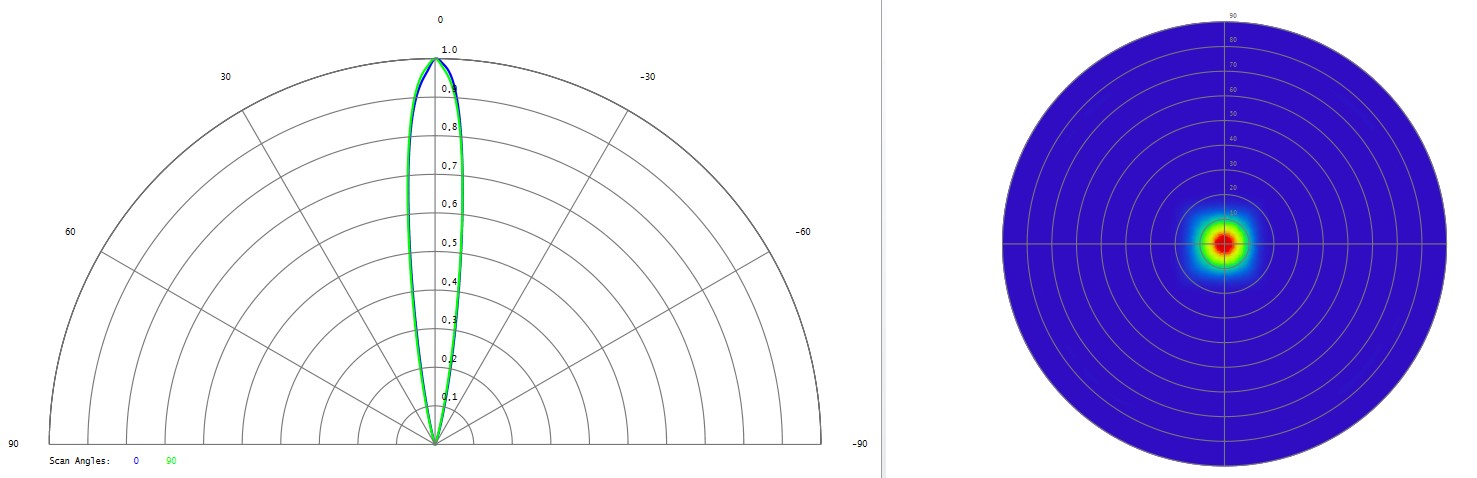

LED: OSLON UV 3636 (SU CULDN1.VC)
FWHM: 15°
FWTM: 26°
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: OSLON UV 3636 (SU CULDN1.VC)
FWHM: 16°
FWTM: 35°
Efficiency: 70 %
LEDs/each optic: 1
Light colour/type: UV-C

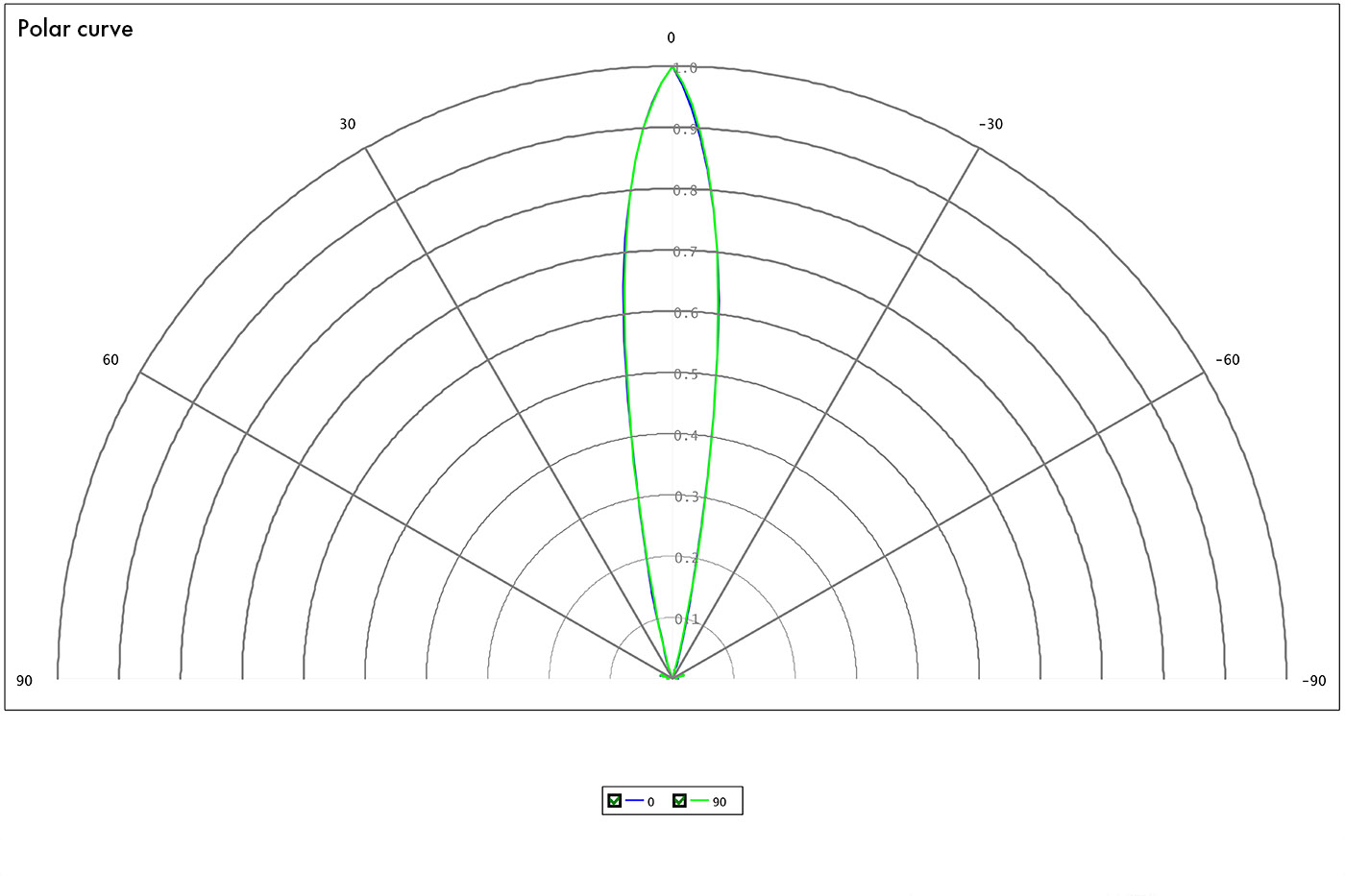

LED: OSLON UV 6060 (SU CZHEF1.VC)
FWHM: 17°
FWTM: 28°
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: OSLON UV 6060 (SU CZHEF1.VC)
FWHM: 20°
FWTM: 35°
Efficiency: 61 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: OSLON UV 6060 (SU CZHPF1.VC)
FWHM: 16°
FWTM: 27°
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: OSLON UV 6060 (SU CZHPF1.VC)
FWHM: 20°
FWTM: 41°
Efficiency: 66 %
LEDs/each optic: 1
Light colour/type: UV-C

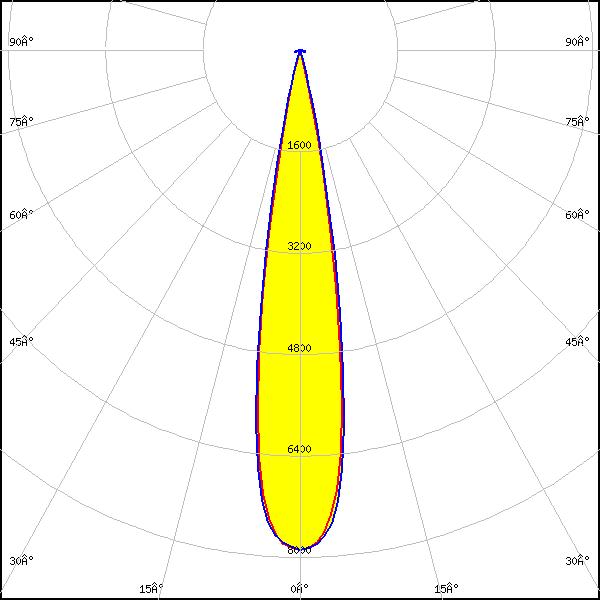

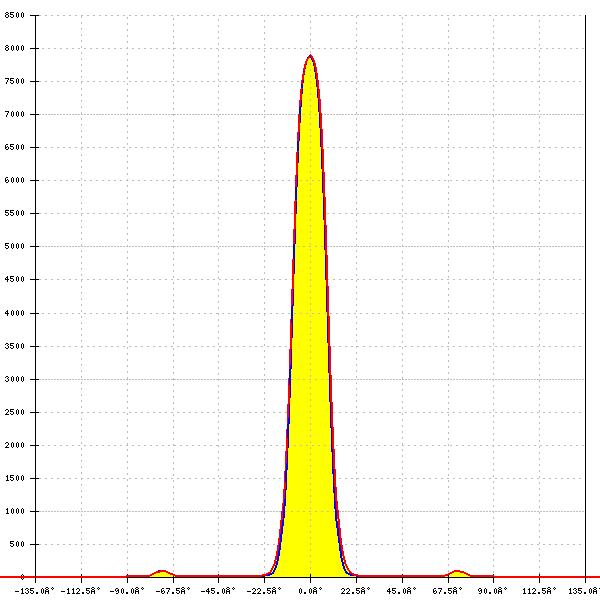

LED: OSTAR Projection Compact (KW.CSLNM1.TG)
FWHM: 18°
FWTM: 27°
Peak intensity: 7.903 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: UV351A
FWHM: 10°
FWTM: 22°
Efficiency: 64 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: UV351B
FWHM: 10°
FWTM: 24°
Efficiency: 64 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: UV352B
FWHM: 10°
FWTM: 22°
Efficiency: 63 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: UV353B
FWHM: 14°
FWTM: 31°
Efficiency: 63 %
LEDs/each optic: 1
Light colour/type: UV-C
LED: ZEUBE265 Series
FWHM: 22°
FWTM: 45°
Efficiency: 60 %
LEDs/each optic: 1
Light colour/type: UV-C
