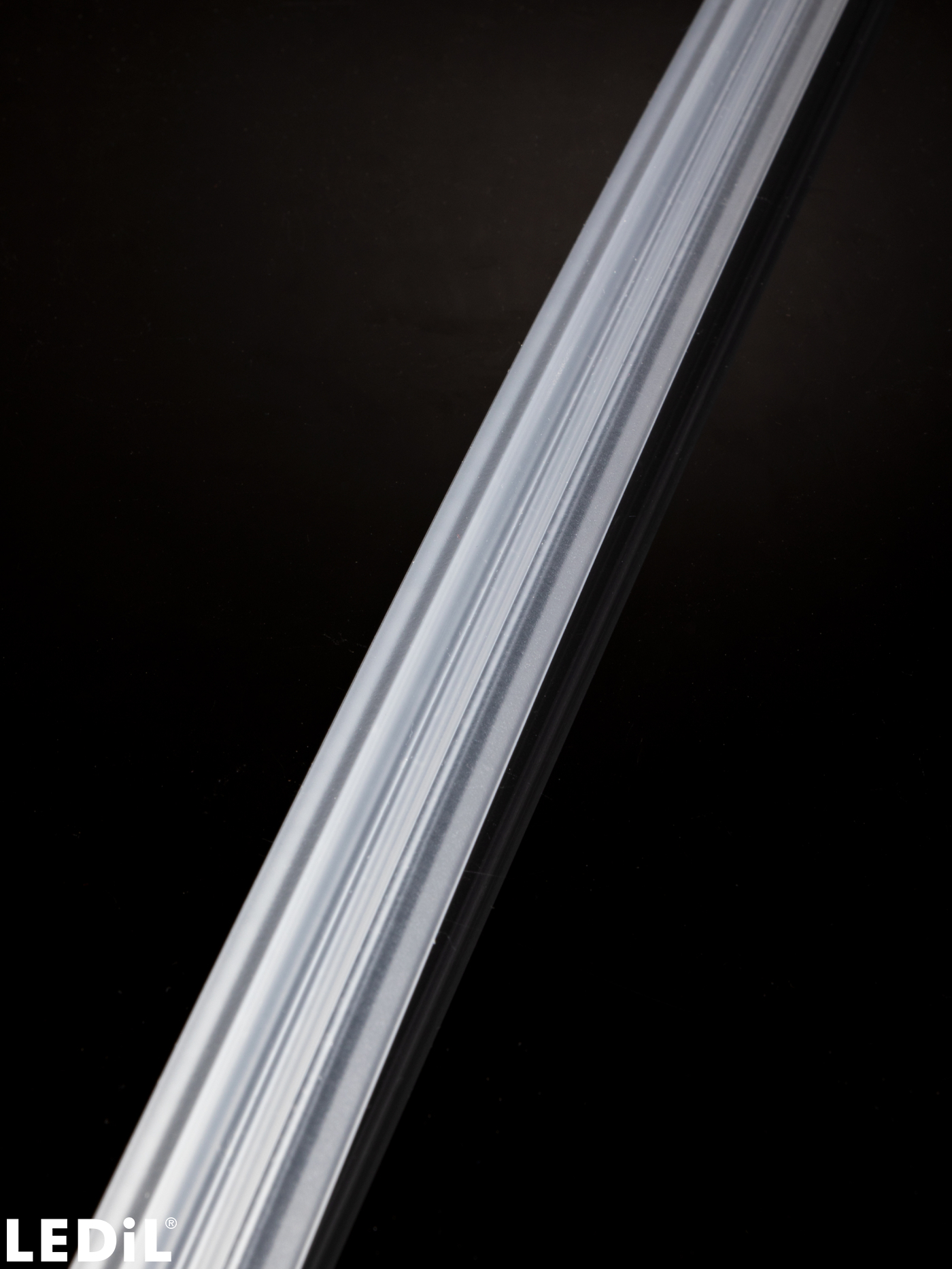

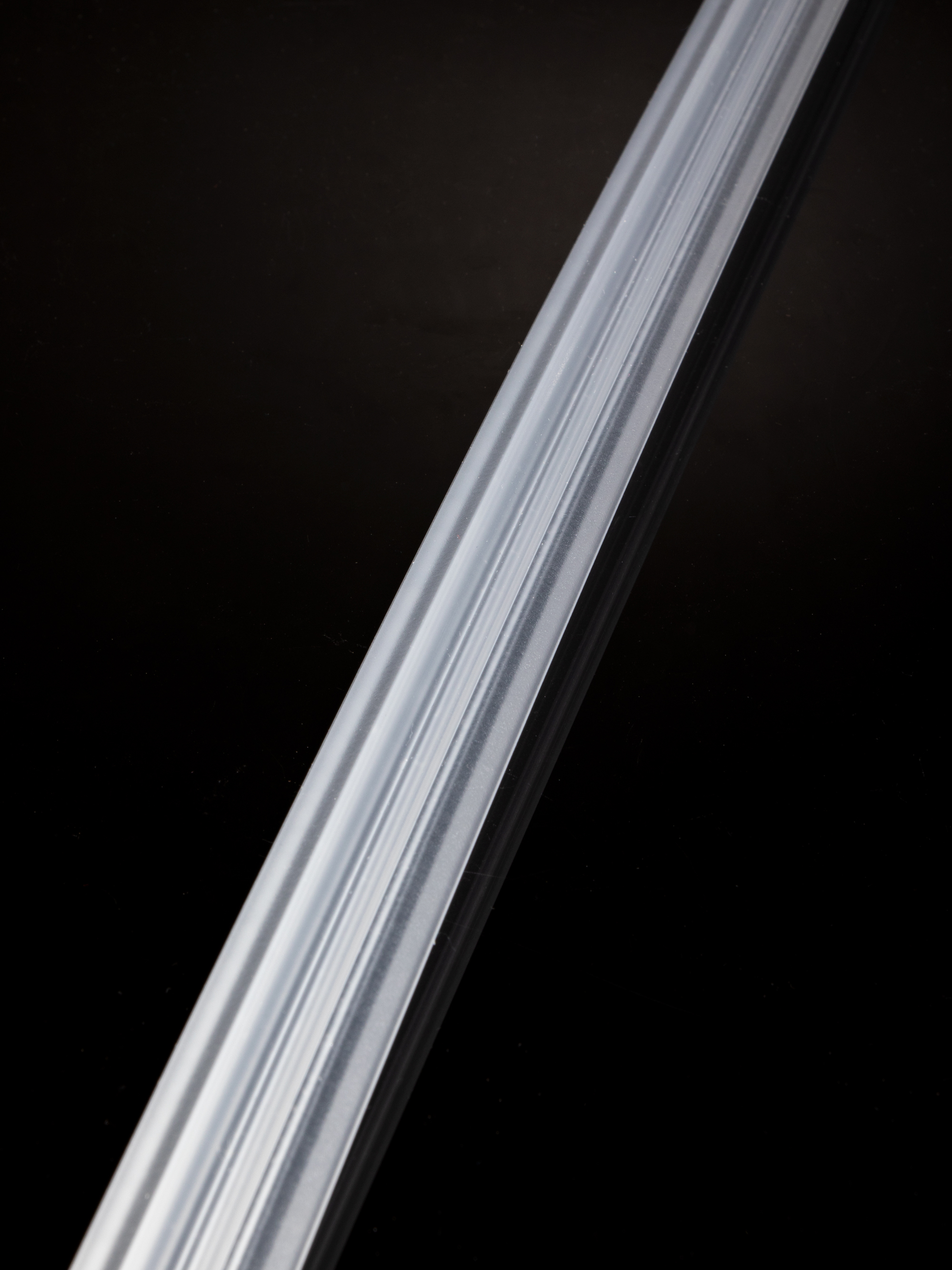

F17201_LINDA-UP2

~165° + 130° extra wide beam for uplighting

Specification

Dimensions:

25 x 1140 mm
Height:

11.40 mm
Fastening:

snaps
Colour:

milky
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

70 pcs
Box size:

1200x160x120 mm
Box weight:

9.9 kg
MPQ:

70 pcs
MOQ:

70 pcs
MOQ size:

1200x160x120 mm
MOQ weight:

9.9 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: F17201_LINDA-UP2

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting>
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

F17201_LINDA-UP2

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Other variants: F17622_LINDA-UP2-48in (North American 48 inch length)
F17665_LINDA-UP2-3m (3.01 m length) and other custom lengths available

Related Content

User and installation guide

General guide to LEDiL optics

Product video

LINDA is an industry first linear extrusion lens with accurate optical control in the longitudinal axis

Application guide

LEDiL guide for office lighting optics

PCN

Product change notification NR181 – Material change in the Linda product family

News

New Products 2020-01-24

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

LEDiL guide for retail lighting optics

News

LINDA-40 – versatile 40 mm free pitch extrusion

Case story

Badia di Pomaio resort

Article

Top 3 areas where retailers lose customers due to bad lighting

News

New Products 2019-11-07

News

Effective fashion retail lighting

Application example

Retail lighting with LINDA and ELISE (low contrast)

Article

Illuminating supermarkets with LEDiL optics

Application example

Supermarket lighting with LINDA and ALISE

News

LINDA industrial scale extrusion optic for precise retail lighting

Application area

Indoor Architectural Lighting

Application area

Industrial Lighting

Application area

Office Lighting

Optical results

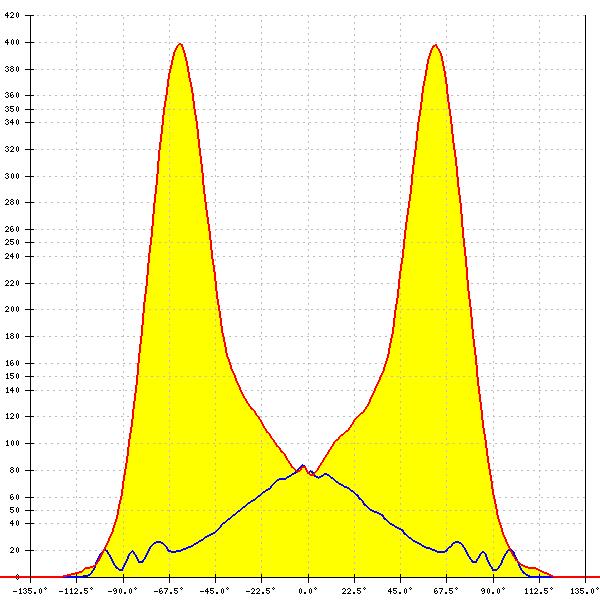

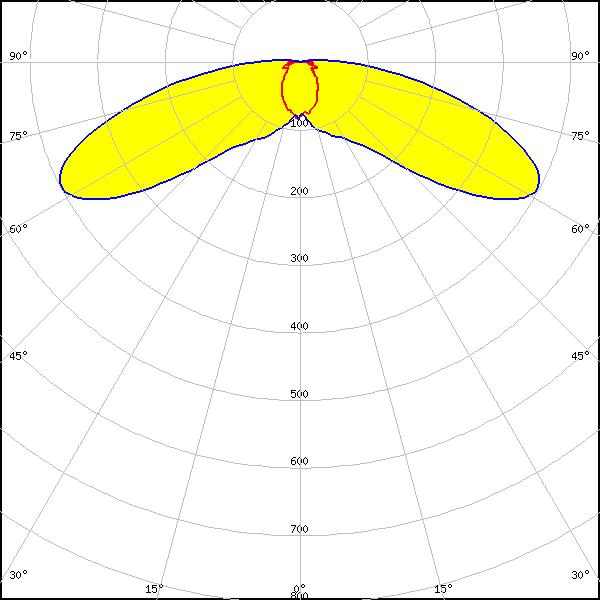

LED: Bridgelux SMD 5050

FWHM: asymmetric

Peak intensity: 0.398 cd/lm

Efficiency: 84 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

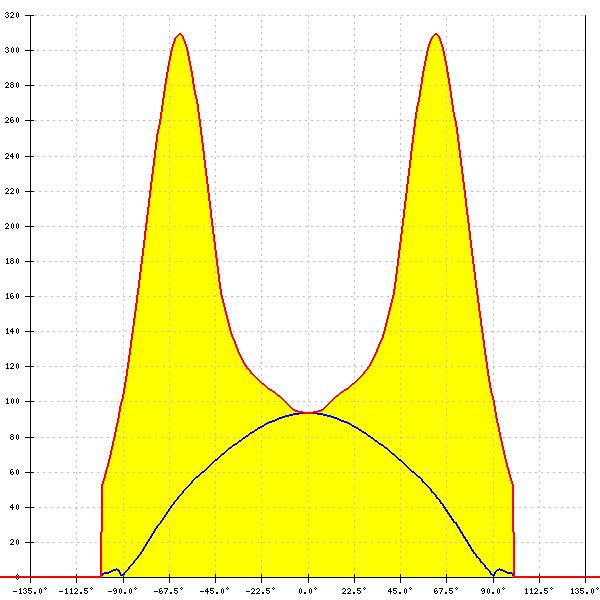

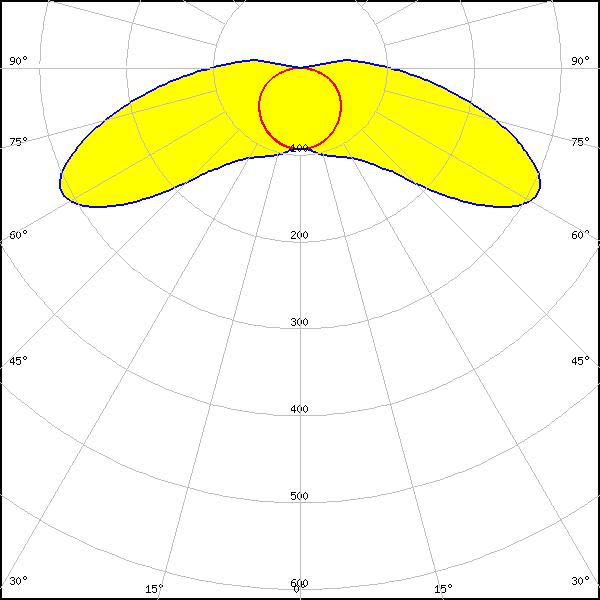

LED: CLUC11

FWHM: asymmetric

Peak intensity: 0.316 cd/lm

Efficiency: 84 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

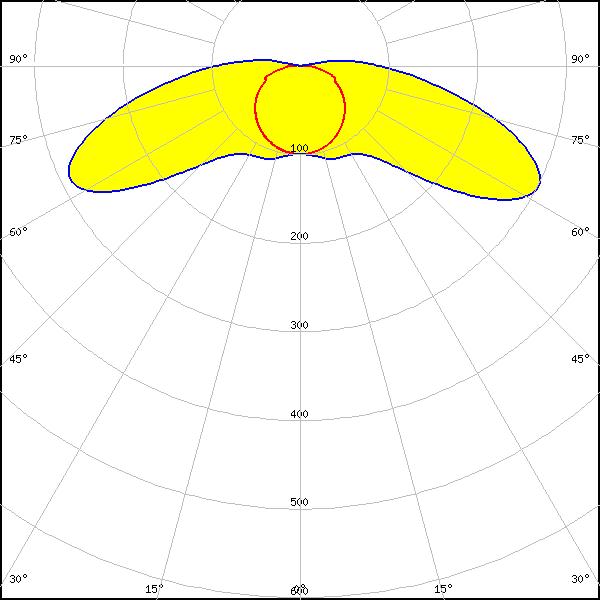

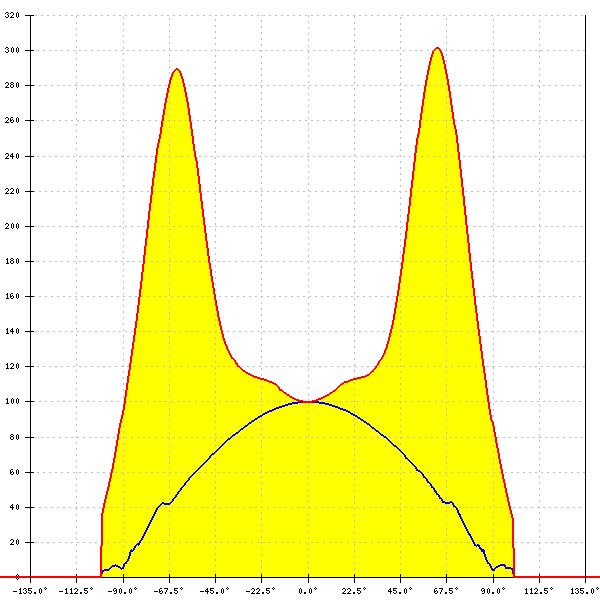

LED: XP-G3

FWHM: asymmetric

Peak intensity: 0.301 cd/lm

Efficiency: 82 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

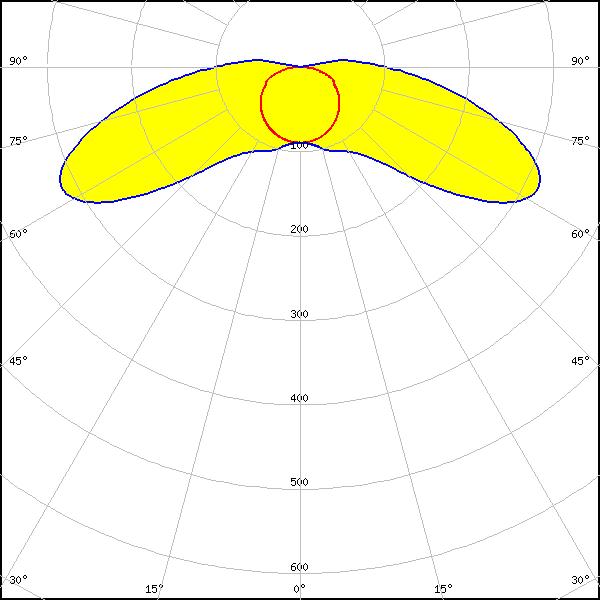

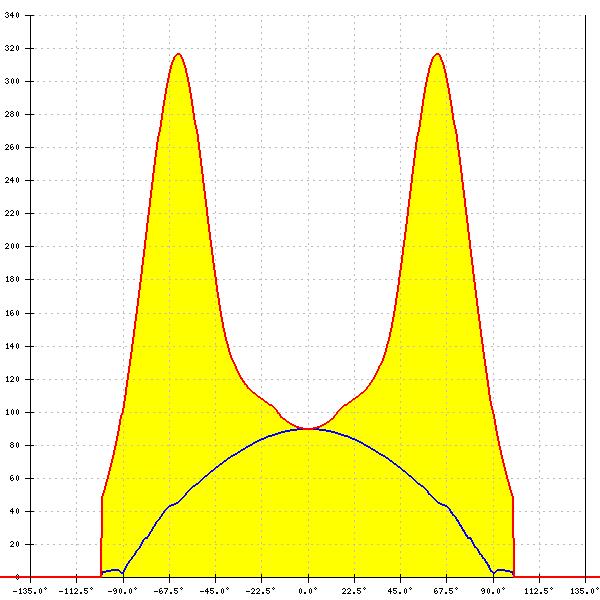

LED: LUXEON 3030 2D (Round LES)

FWHM: asymmetric

Peak intensity: 0.321 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

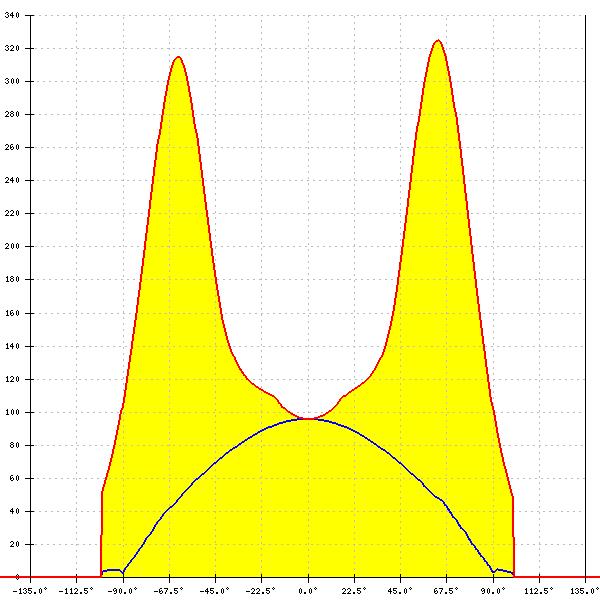

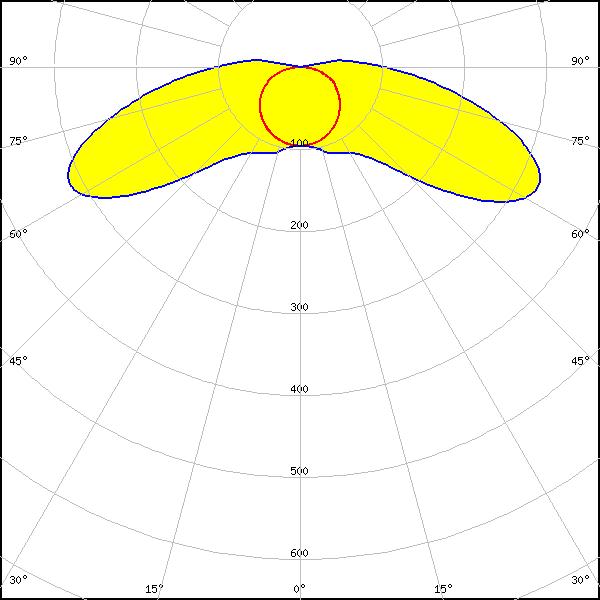

LED: NF2W757G-MT (Tunable White)

FWHM: asymmetric

Peak intensity: 0.325 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: Tunable White

Datasheet

Light distribution files

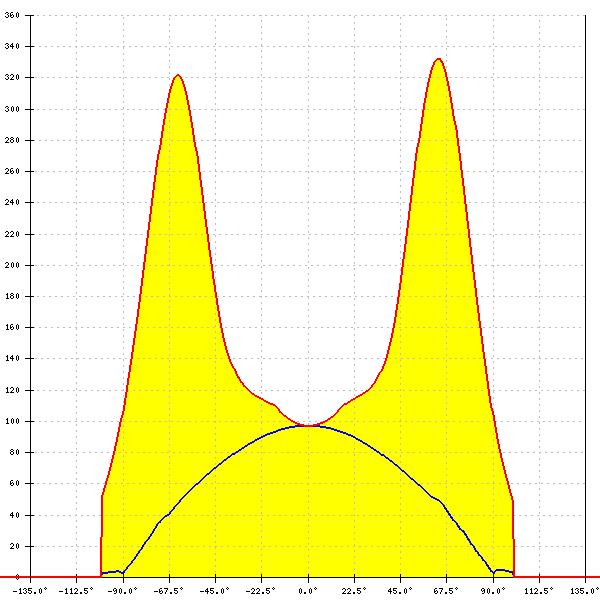

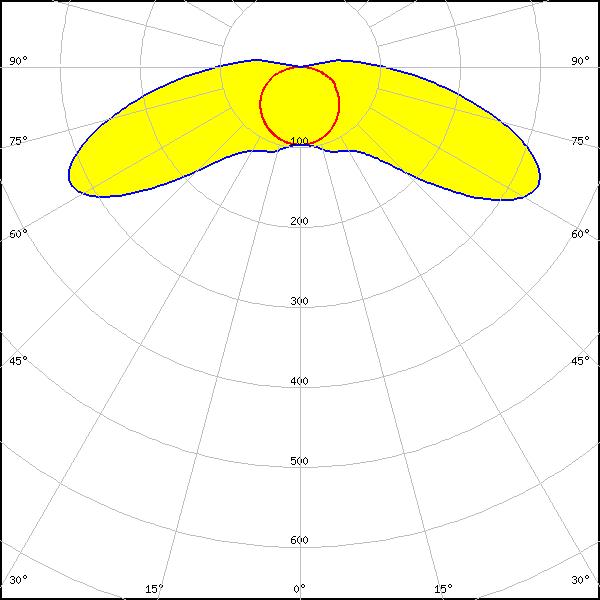

LED: NFSW757H

FWHM: asymmetric

Peak intensity: 0.332 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

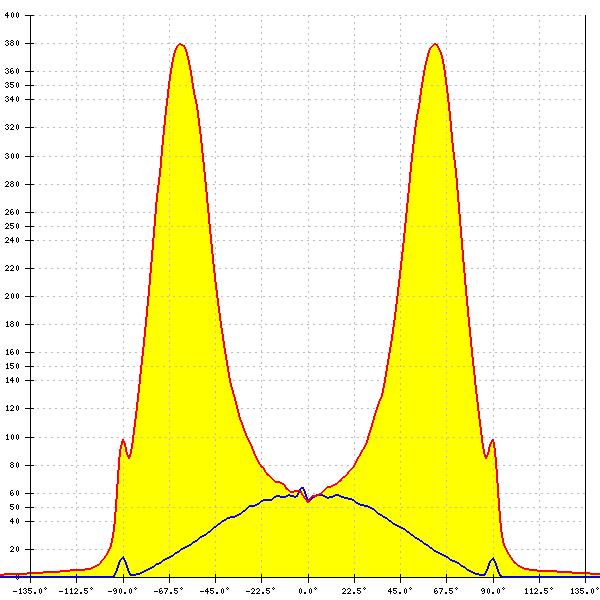

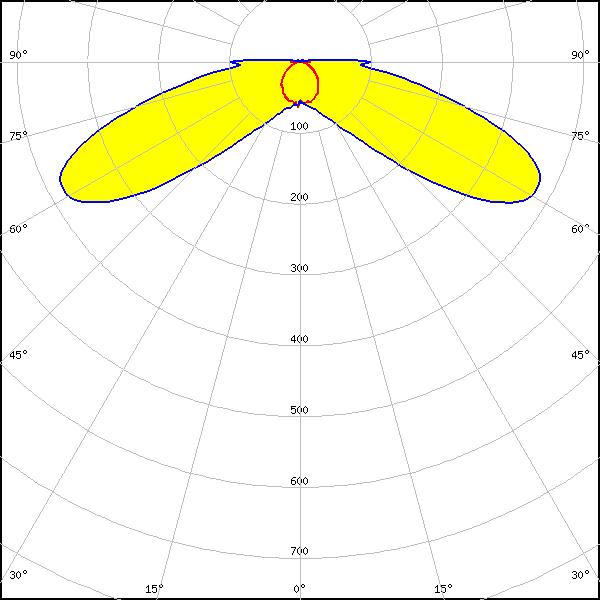

LED: NSSxT02A

FWHM: asymmetric

Peak intensity: 0.381 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

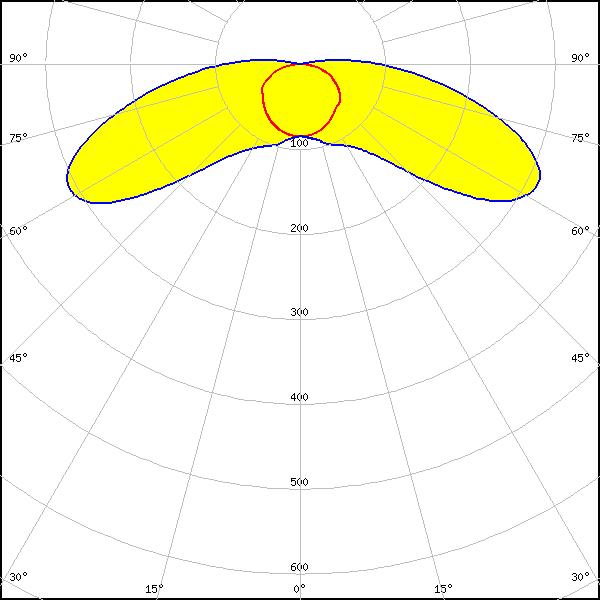

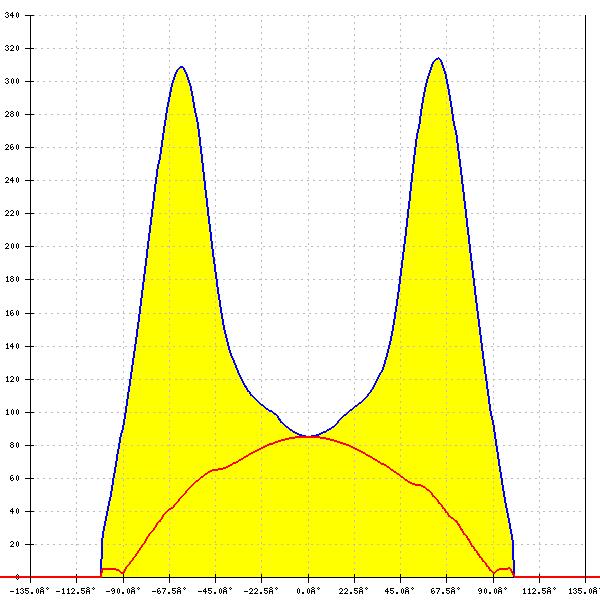

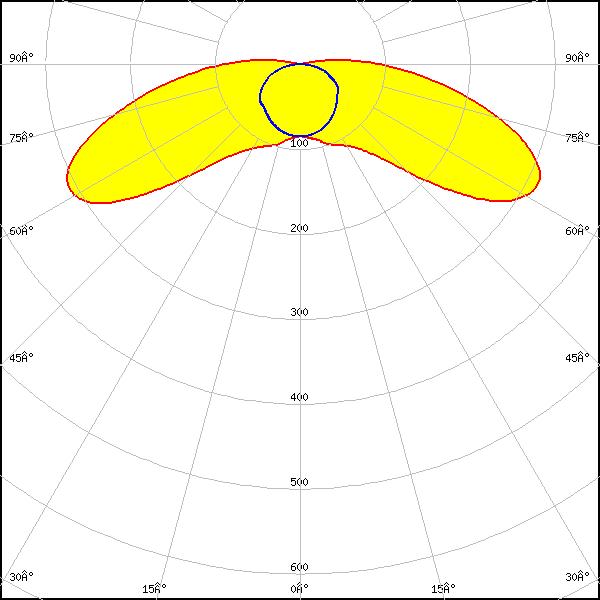

LED: PL-LIN-Z5 1100 280x20

FWHM: asymmetric

Peak intensity: 0.314 cd/lm

Efficiency: 81 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

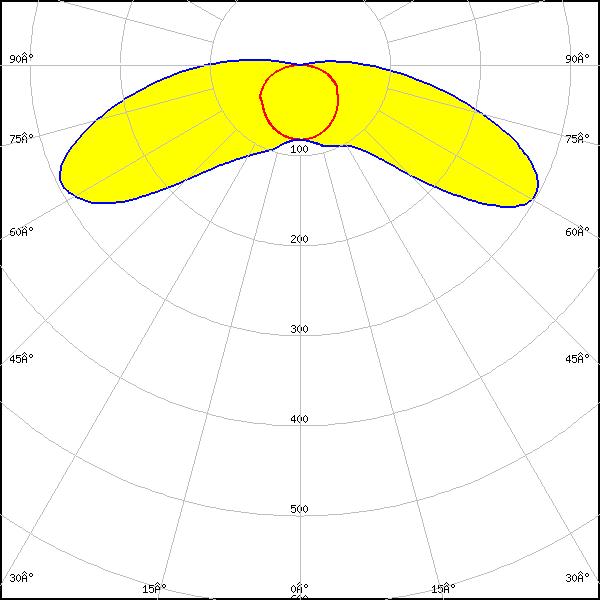

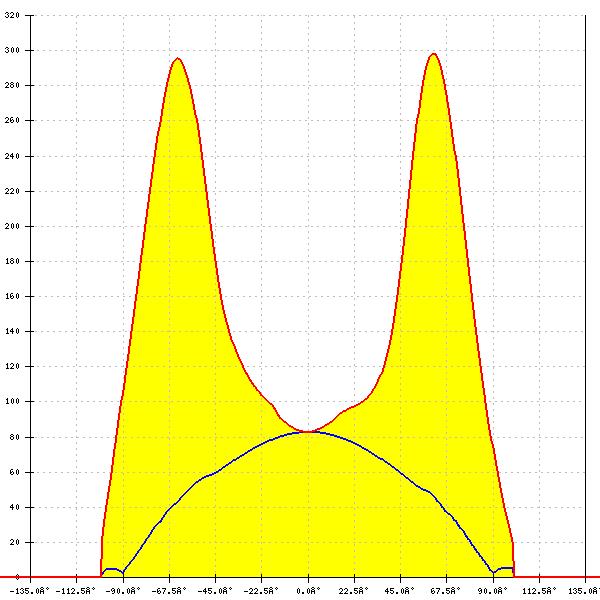

LED: PL-LIN-Z5 2000 280x20

FWHM: asymmetric

Peak intensity: 0.298 cd/lm

Efficiency: 78 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: Duris E 2835

FWHM: asymmetric

Peak intensity: 0.314 cd/lm

Efficiency: 81 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

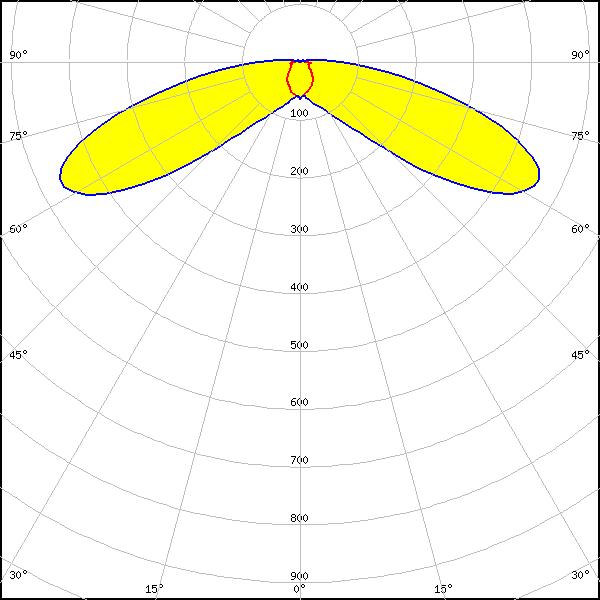

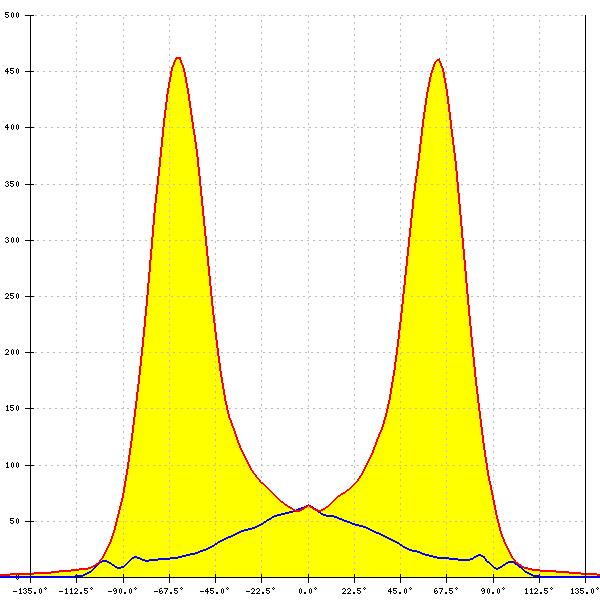

LED: LM28xB Series

FWHM: asymmetric

Peak intensity: 0.462 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

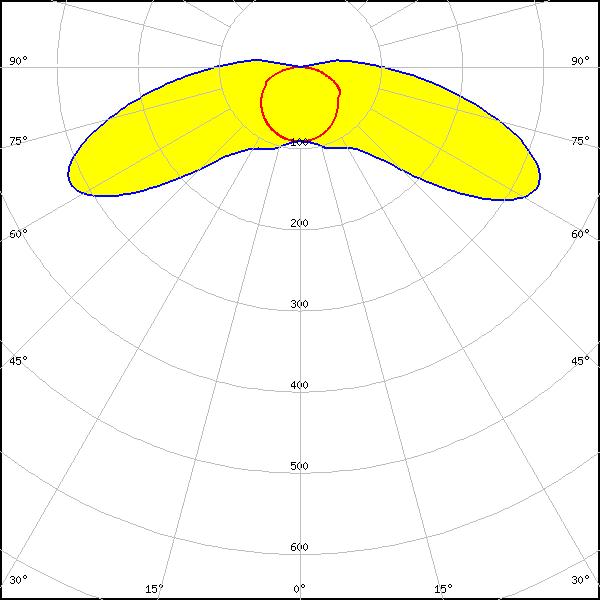

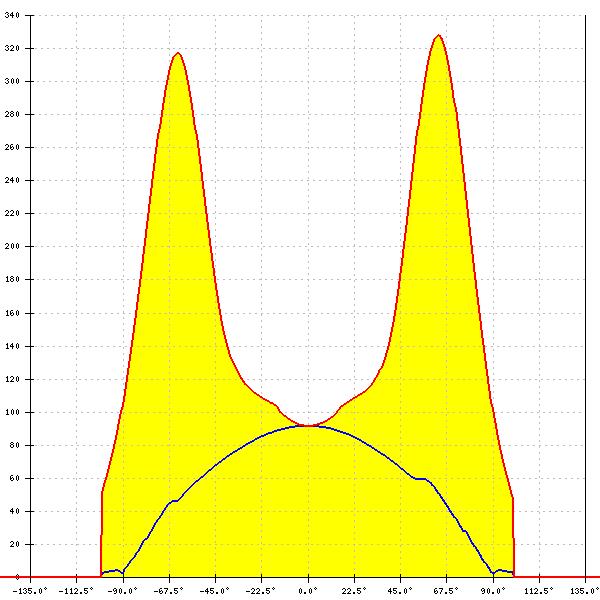

LED: LM301B

FWHM: asymmetric

Peak intensity: 0.328 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

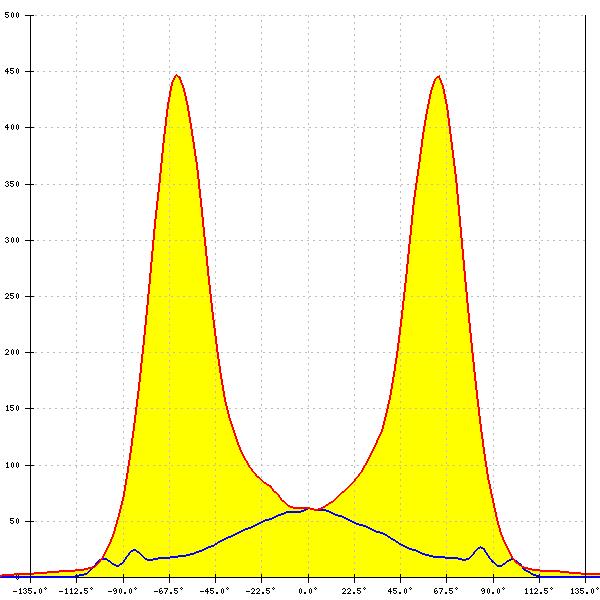

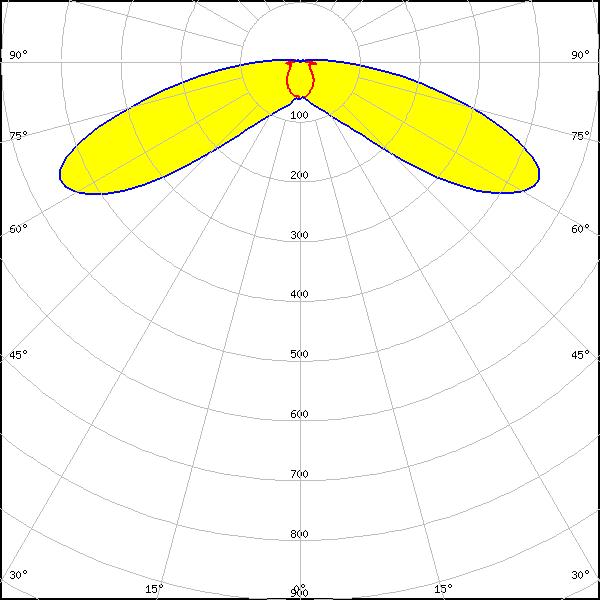

LED: LM302D

FWHM: asymmetric

Peak intensity: 0.447 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

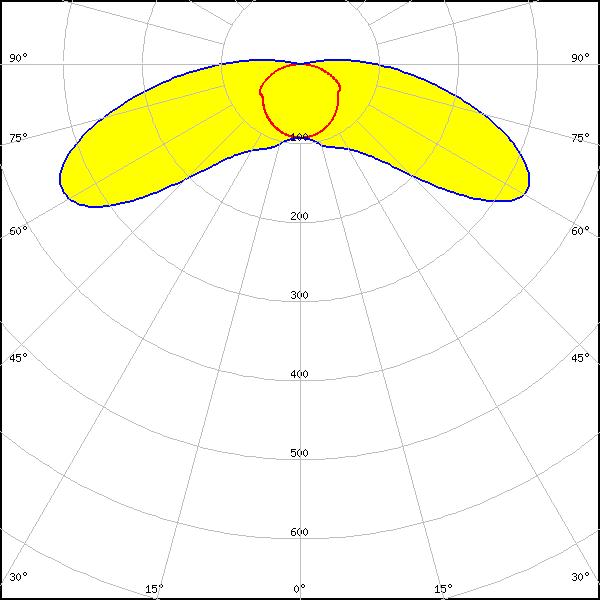

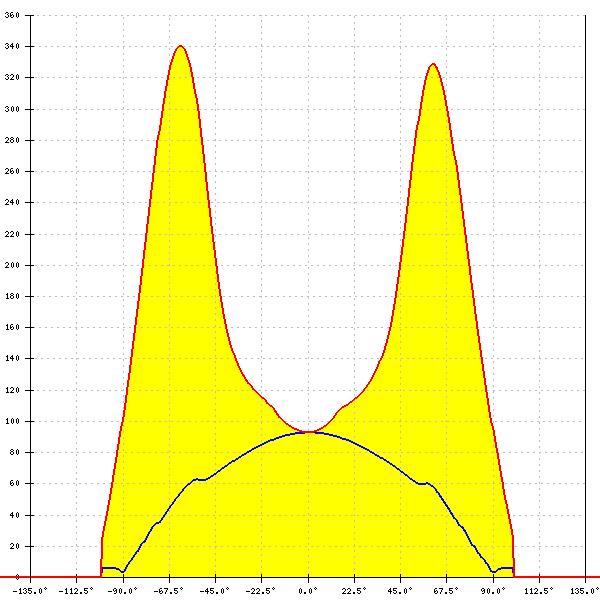

LED: LM561B Plus

FWHM: asymmetric

Peak intensity: 0.340 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

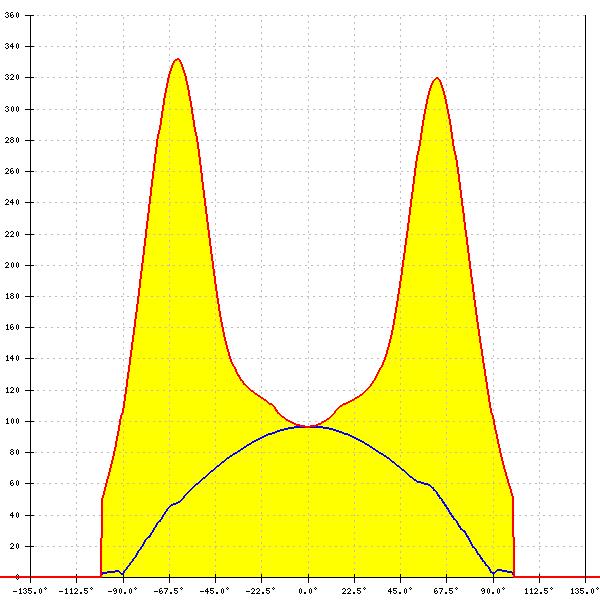

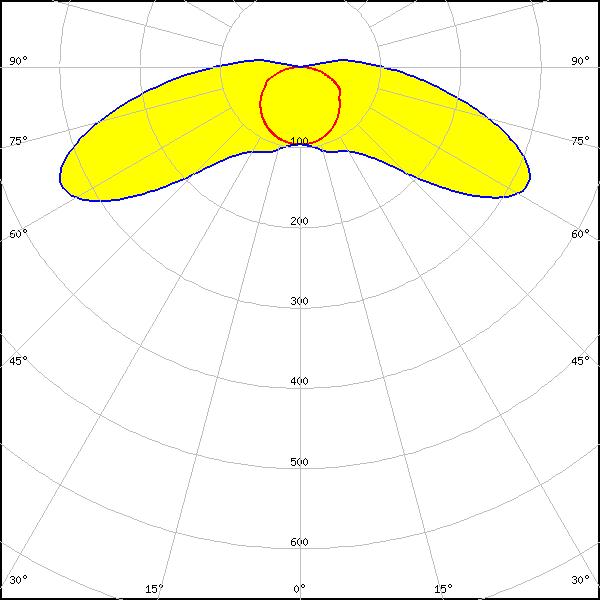

LED: SEOUL DC 3528

FWHM: asymmetric

Peak intensity: 0.332 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

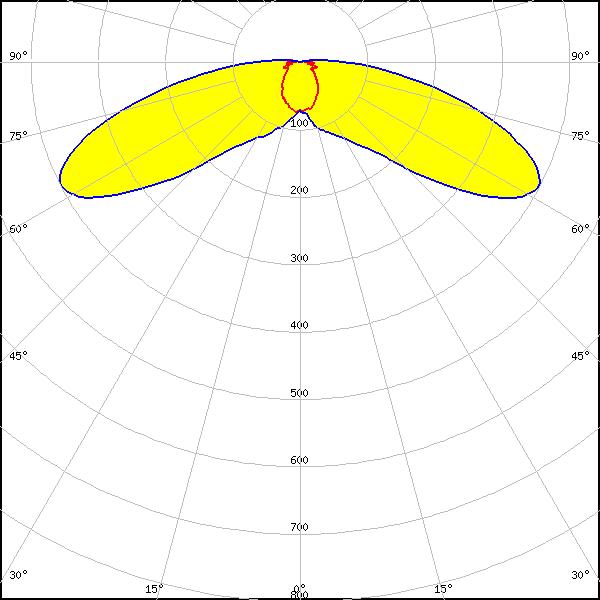

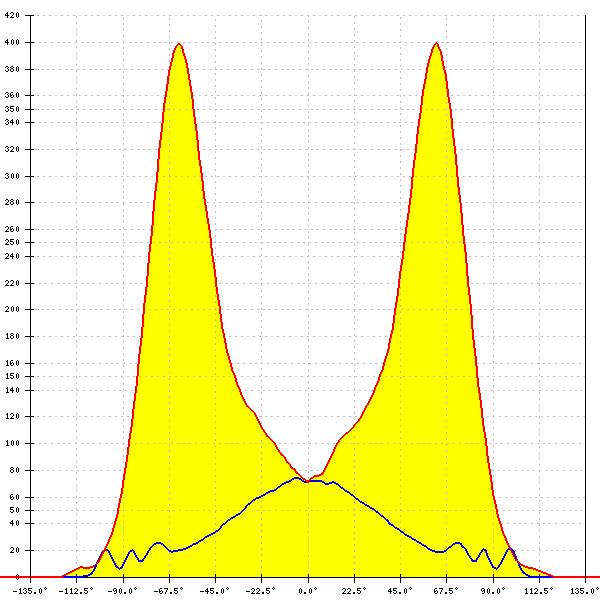

LED: SEOUL DC 5050 6V

FWHM: asymmetric

Peak intensity: 0.399 cd/lm

Efficiency: 84 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
