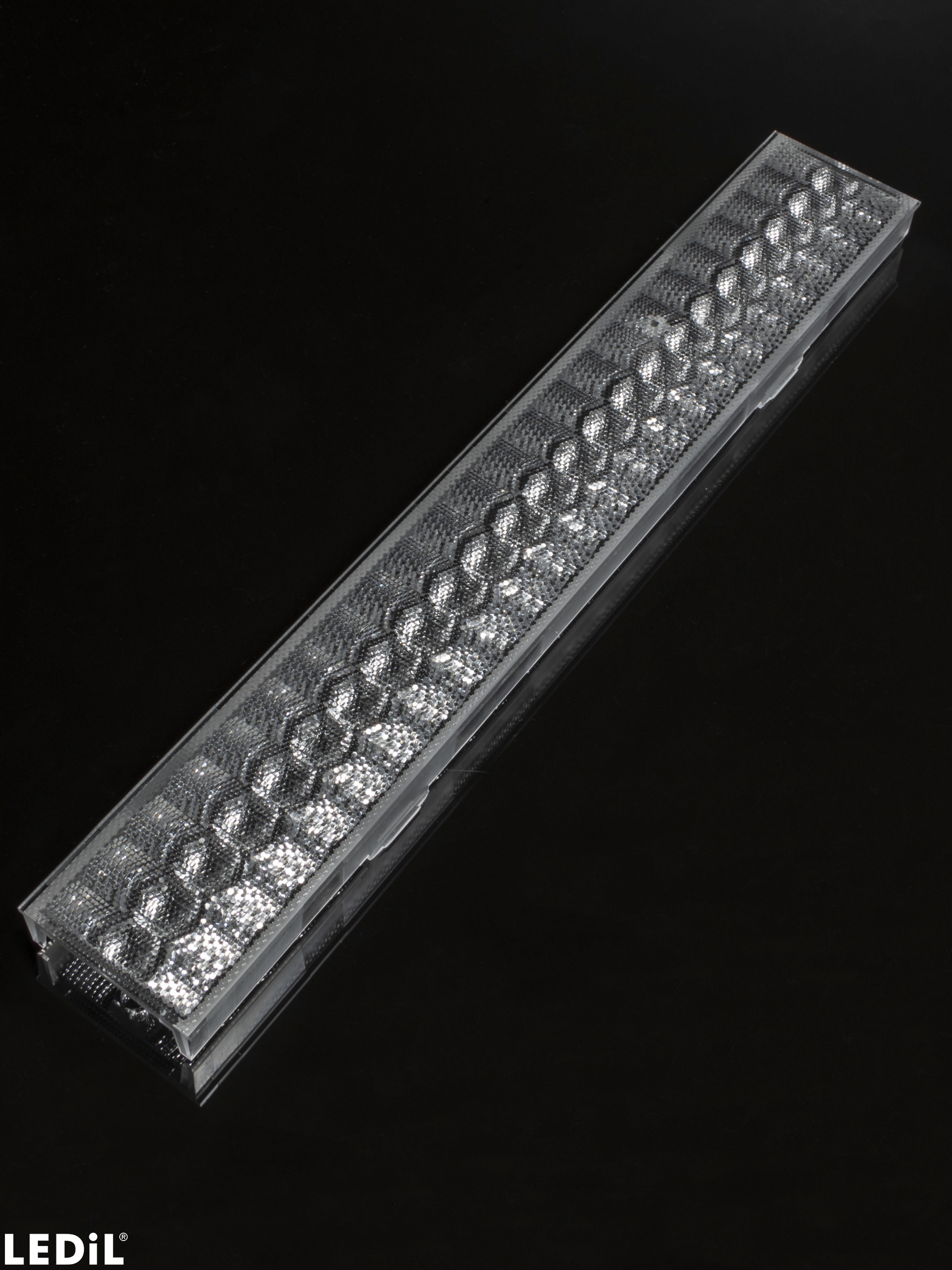

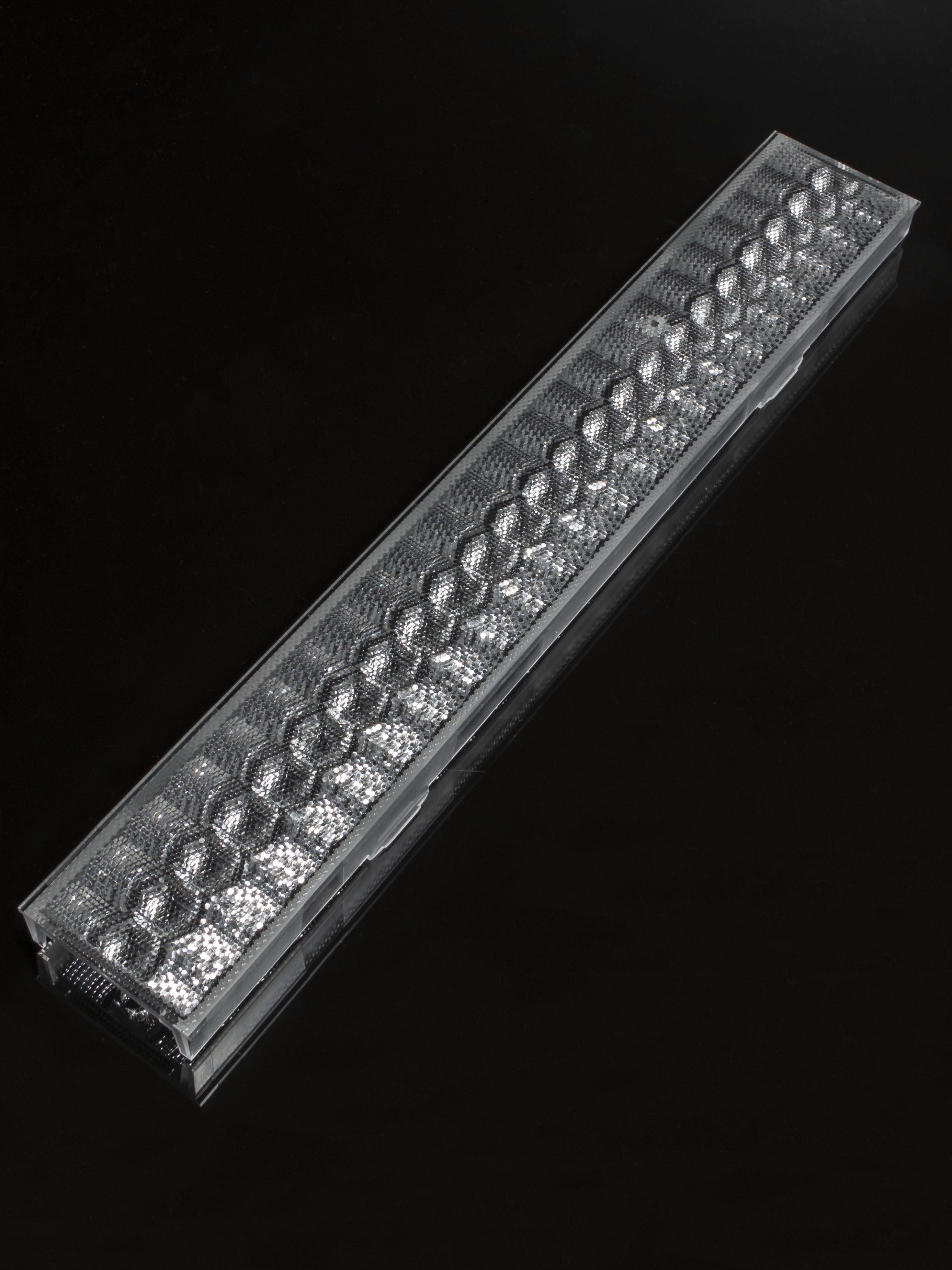

F17166_LINNEA-GC2-60
Print
~60° wide beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

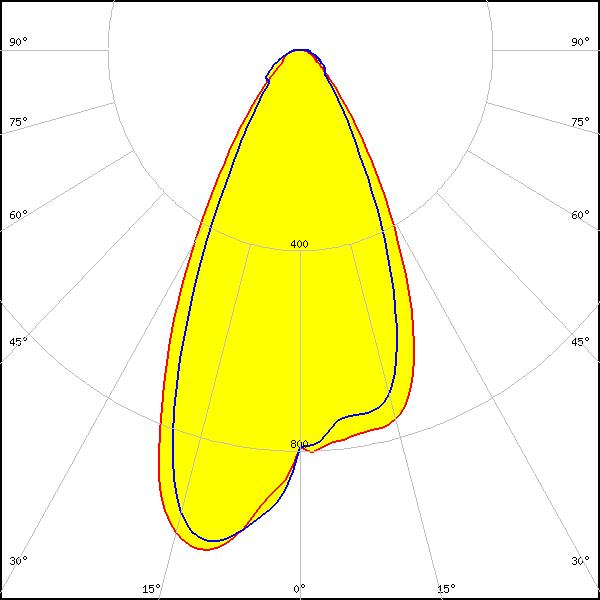

LED:

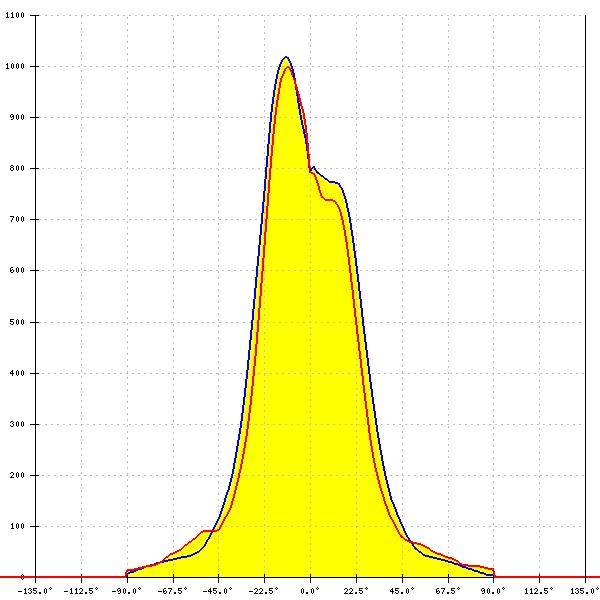

Bridgelux SMD 2835
FWHM:
54° + 48°
FWTM:
91° + 86°
Peak intensity:
1.058 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

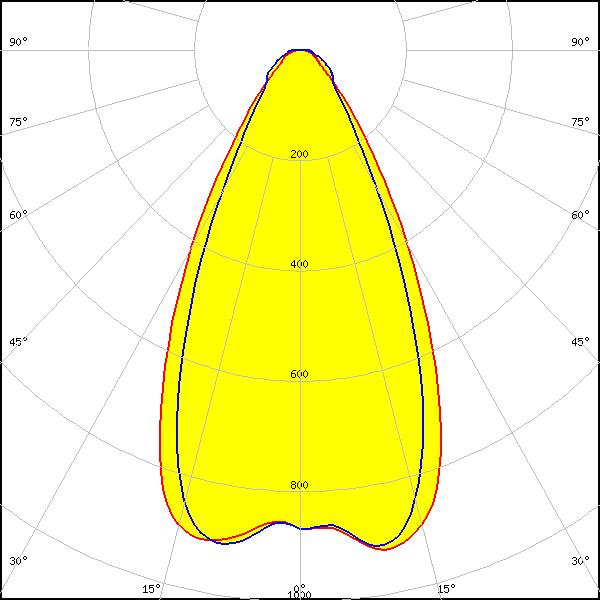

LED:

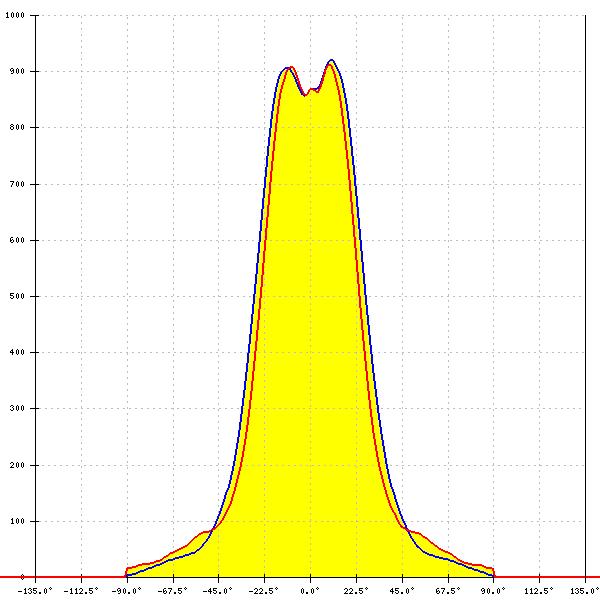

J Series 2835
FWHM:
56° + 50°
FWTM:
94° + 90°
Peak intensity:
0.921 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

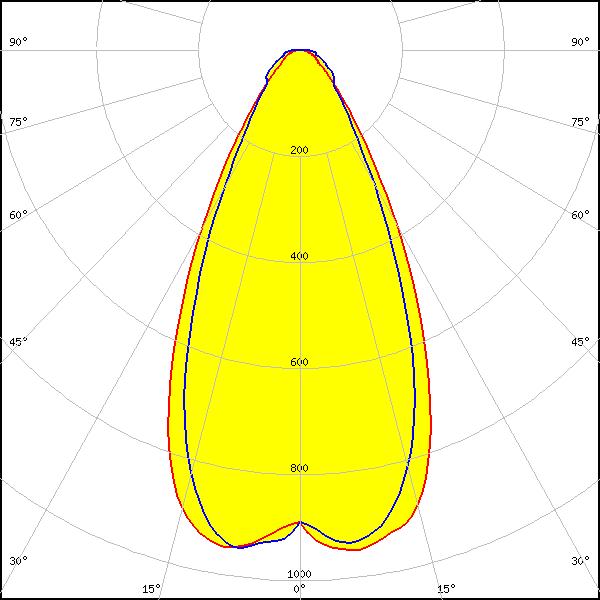

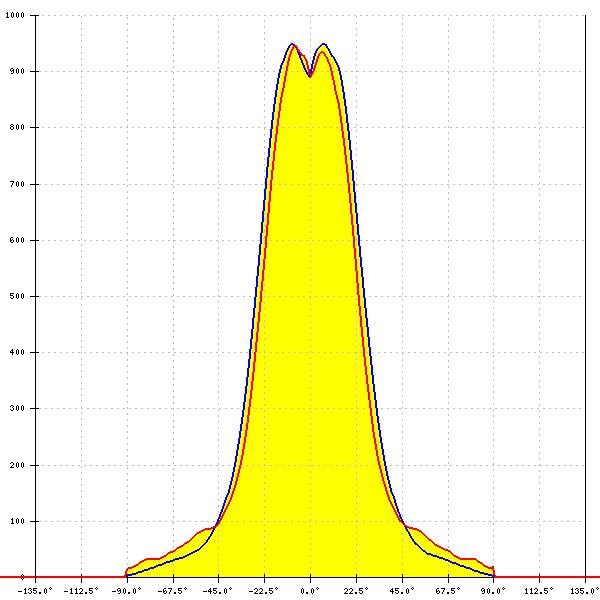

LED:
J Series 3030
FWHM:
54° + 50°
FWTM:
92° + 90°
Peak intensity:
0.960 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

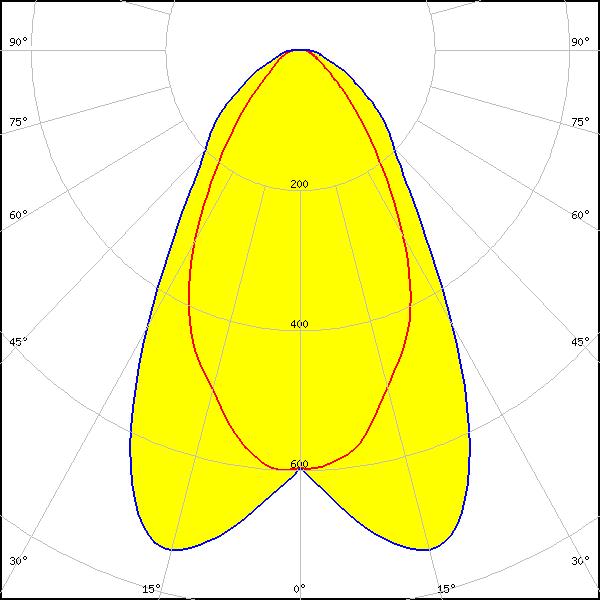

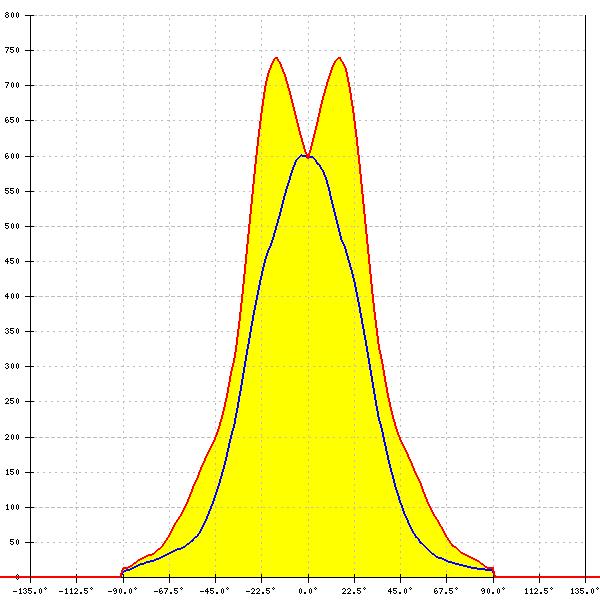

LUXEON 2835 Line
FWHM:
61° + 66°
FWTM:
106° + 130°
Peak intensity:
0.739 cd/lm
Efficiency:
89 %
LEDs/each optic:
2
Light colour/type:
White

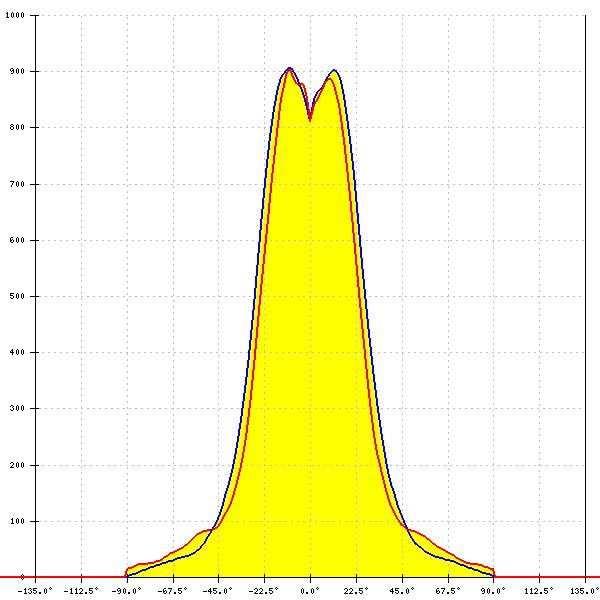

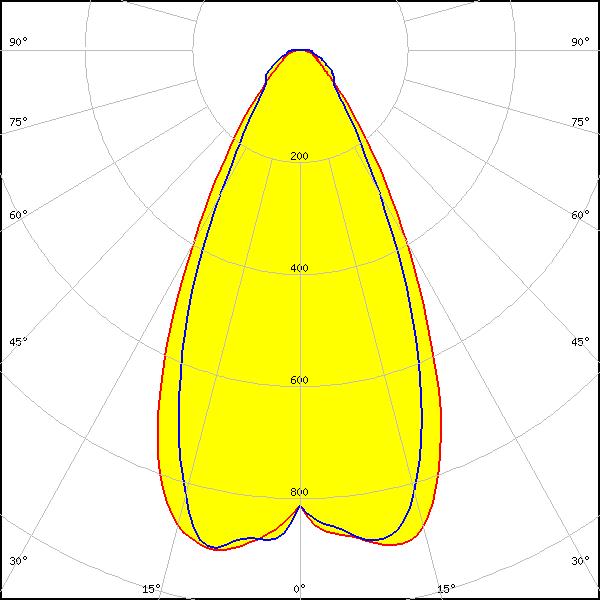

LED:
LUXEON 3030 HE Plus
FWHM:
56° + 51°
FWTM:
94° + 91°
Peak intensity:
0.917 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

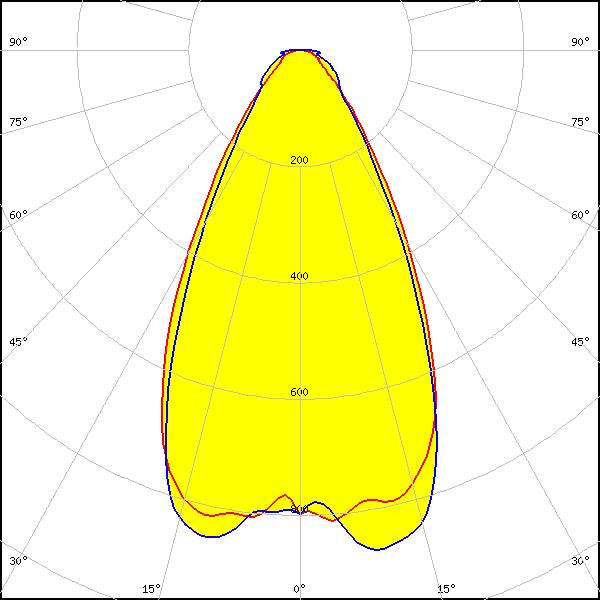

LED:

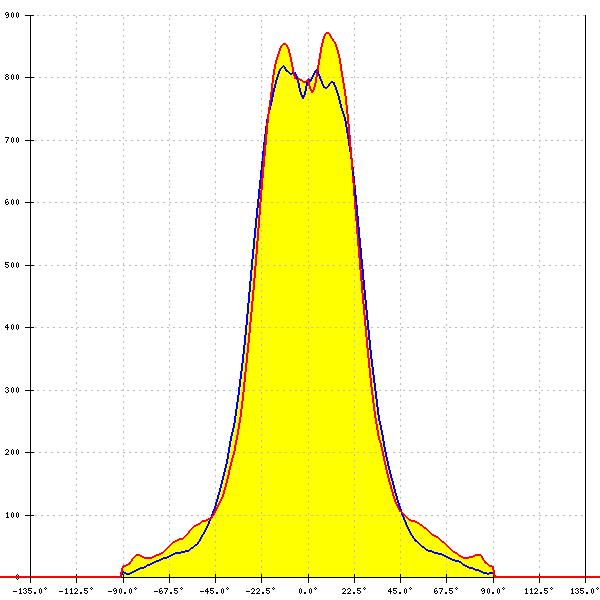

NF2W585AR-P8
FWHM:
59° + 54°
FWTM:
98° + 105°
Peak intensity:
0.885 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

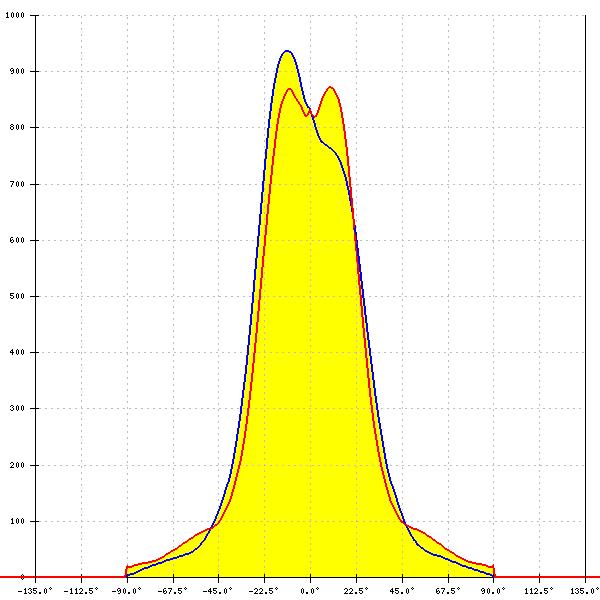

LED:

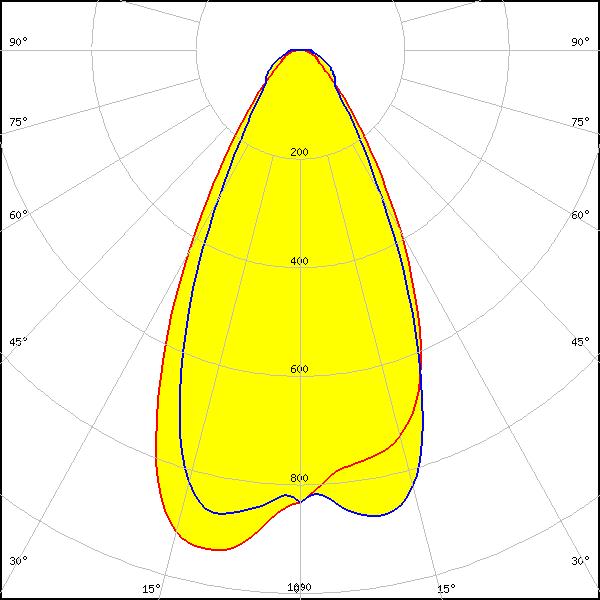

NF2W757G-MT (Tunable White)
FWHM:
56° + 52°
FWTM:
95° + 98°
Peak intensity:
0.944 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

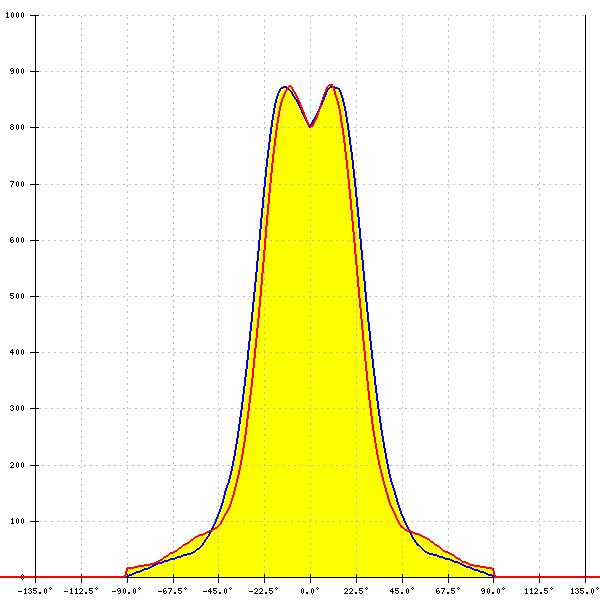

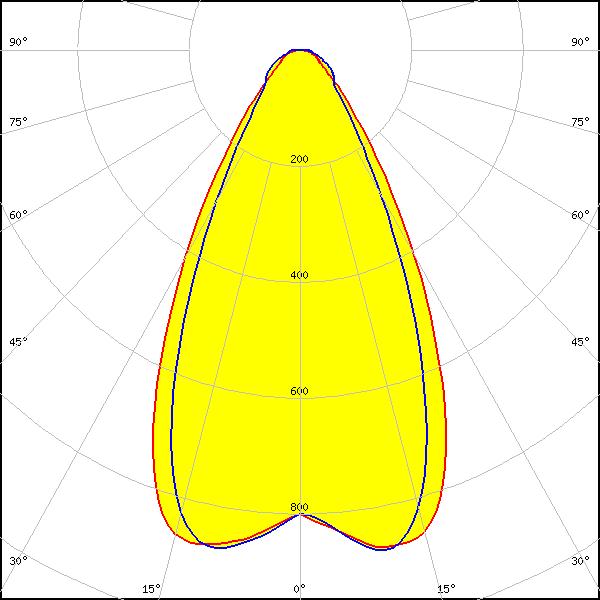

NFSW757H
FWHM:
58° + 52°
FWTM:
96° + 92°
Peak intensity:
0.882 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

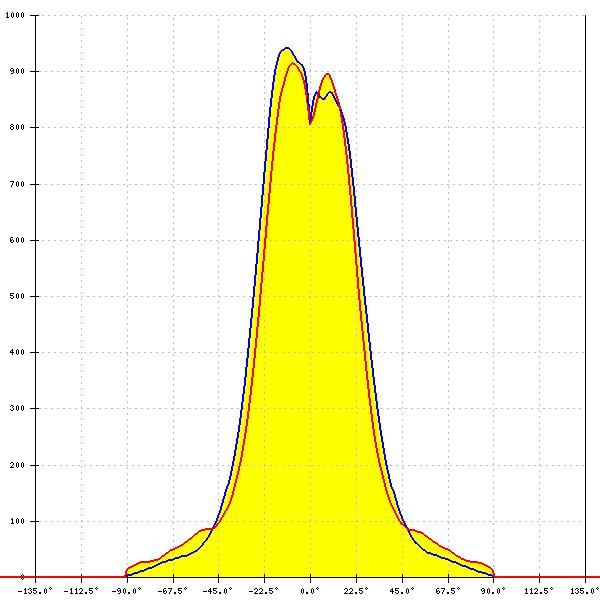

LED:

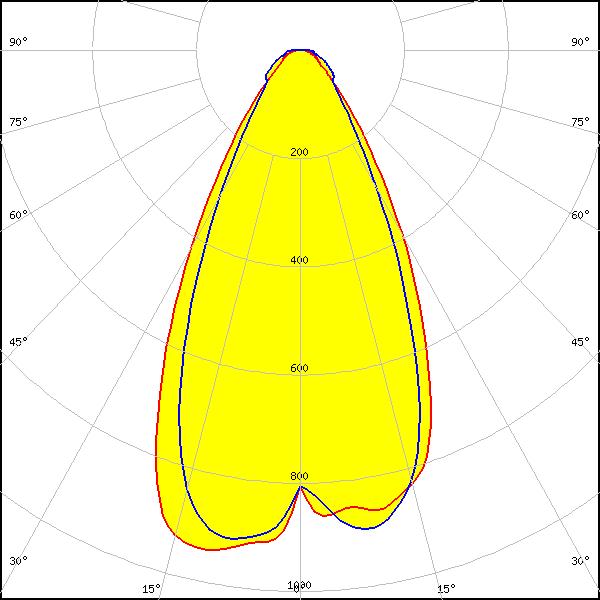

NFSx757G
FWHM:
57° + 50°
FWTM:
93° + 92°
Peak intensity:
0.945 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

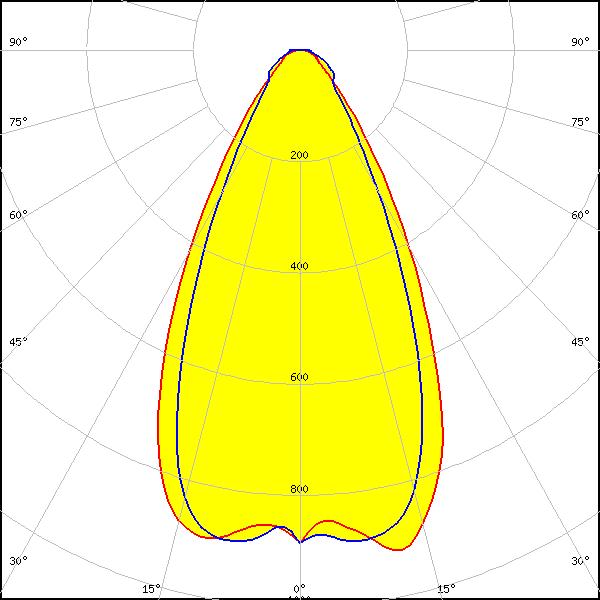

LED:

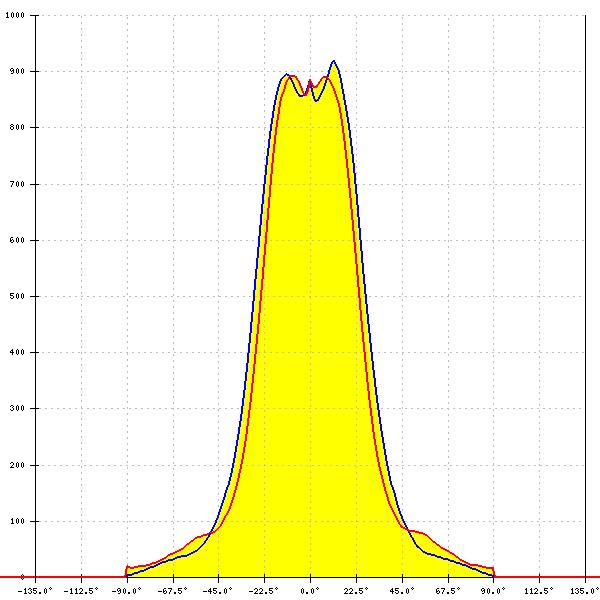

Duris E 2835
FWHM:
58° + 51°
FWTM:
94° + 89°
Peak intensity:
0.919 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

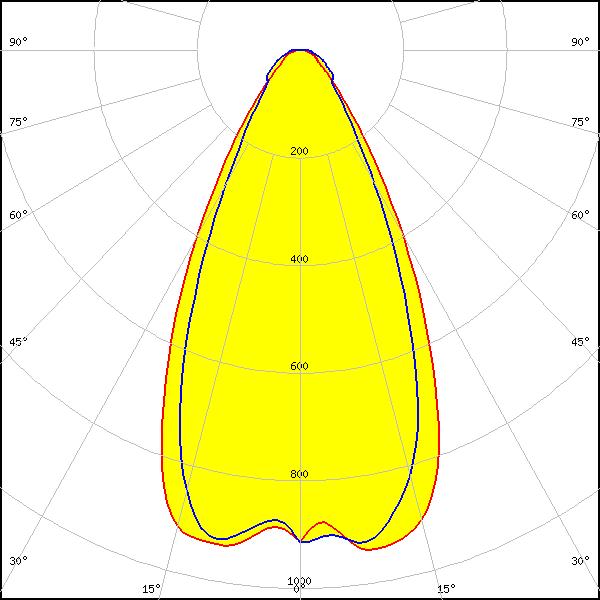

LED:

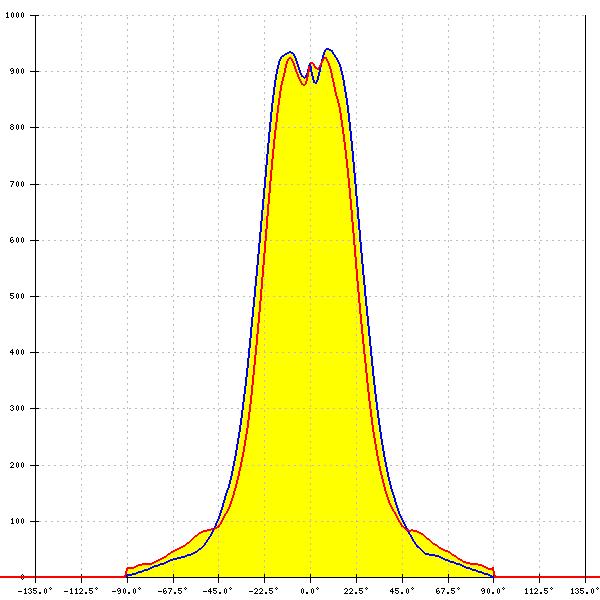

Duris S5 (2 chip)
FWHM:
56° + 50°
FWTM:
92° + 89°
Peak intensity:
0.948 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

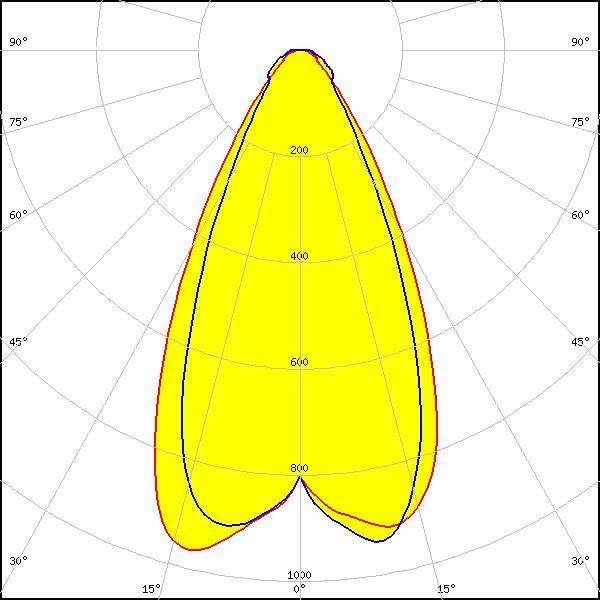

LED:
OSCONIQ C 2424
FWHM:
56° + 50°
FWTM:
92° + 87°
Peak intensity:
0.973 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SYNIOS S2222
FWHM:
56° + 50°
FWTM:
92° + 86°
Peak intensity:
0.966 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

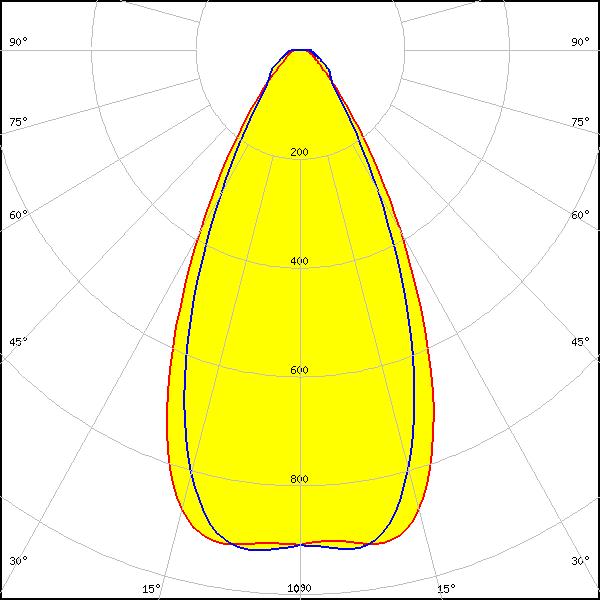

LED:
LM28xB Series
FWHM:
56° + 50°
FWTM:
92° + 90°
Peak intensity:
0.926 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

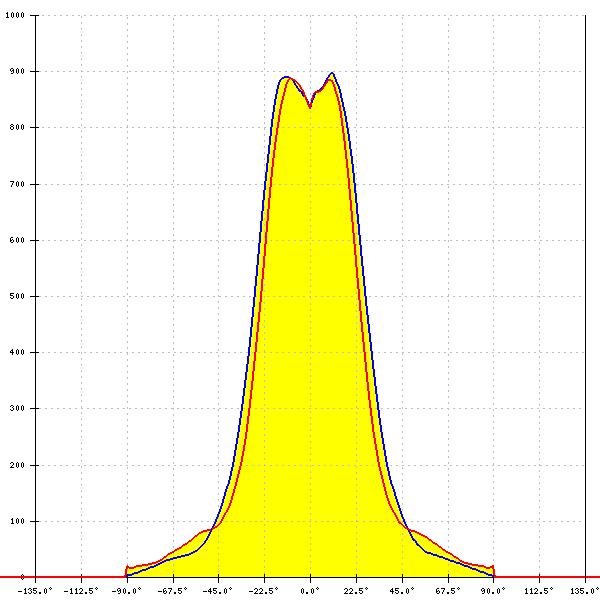

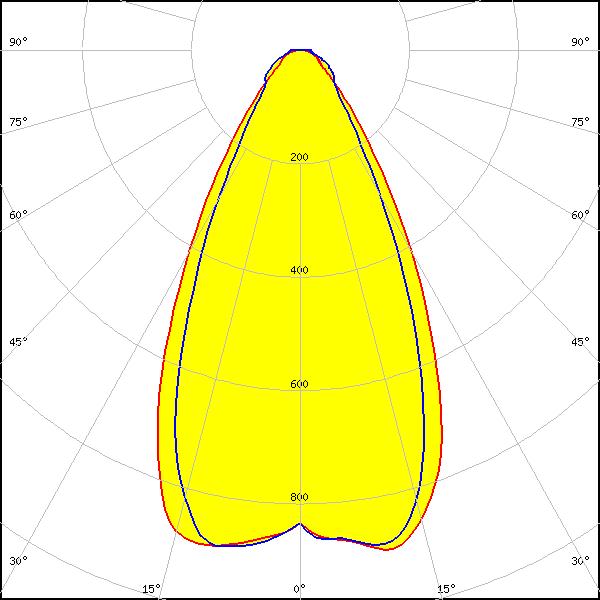

LM301B
FWHM:
58° + 52°
FWTM:
94° + 92°
Peak intensity:
0.906 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

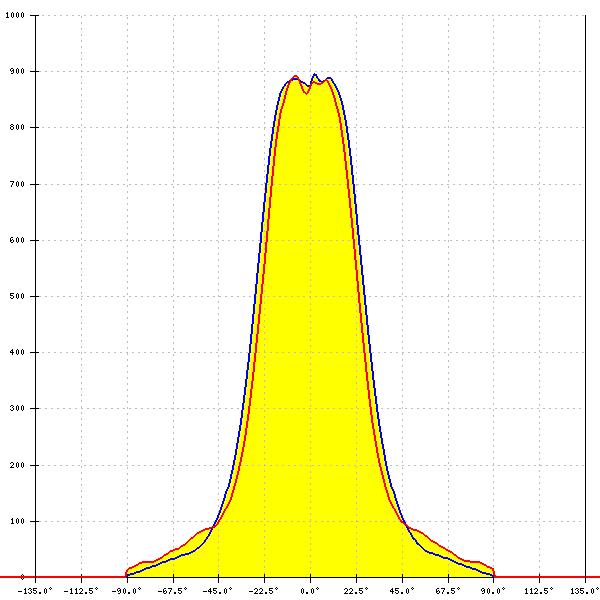

LED:

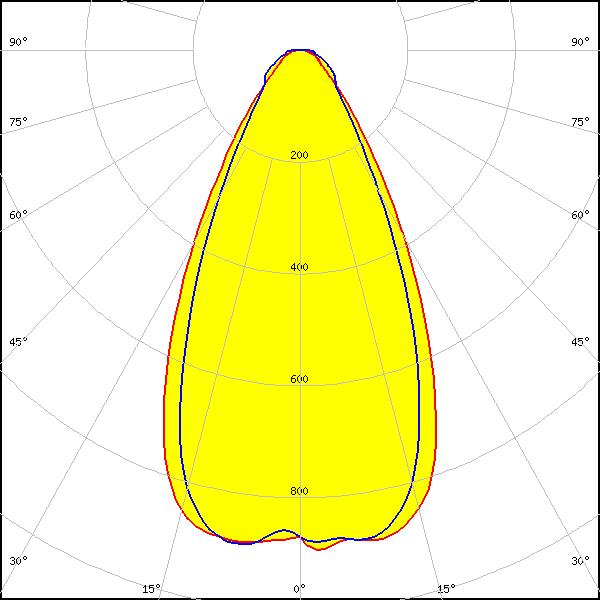

LM301D
FWHM:
56° + 50°
FWTM:
94° + 95°
Peak intensity:
0.898 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

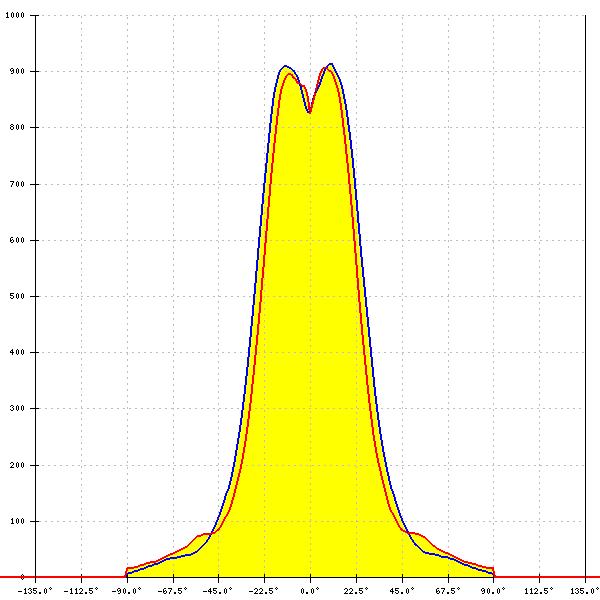

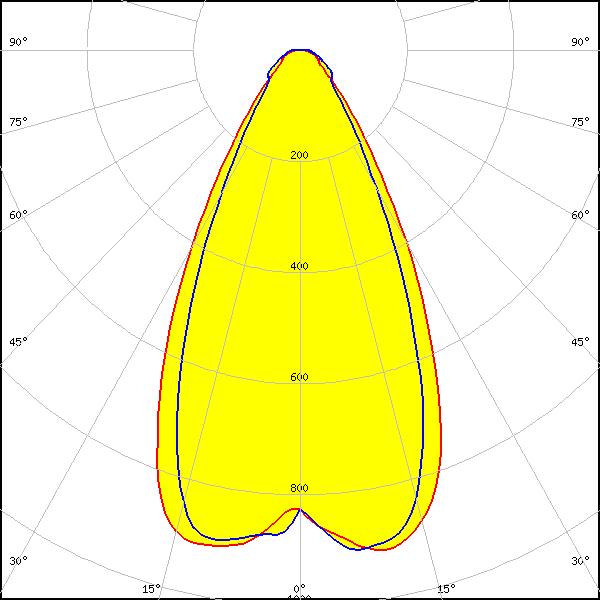

LED:
LM301Z Plus
FWHM:
56° + 50°
FWTM:
92° + 88°
Peak intensity:
0.919 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

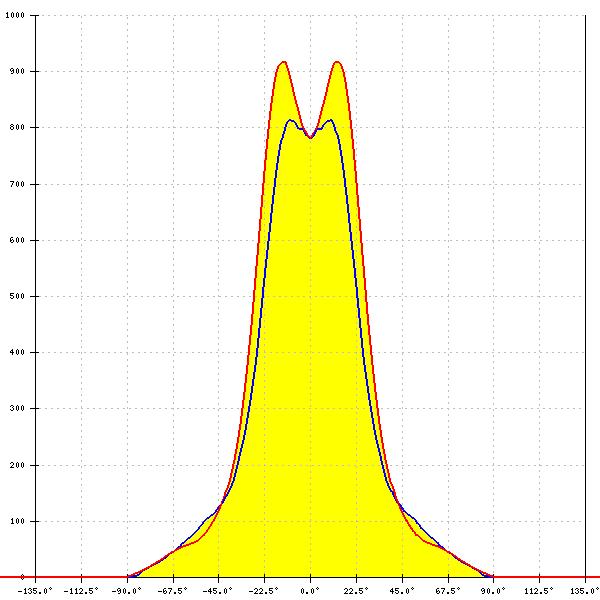

LED:

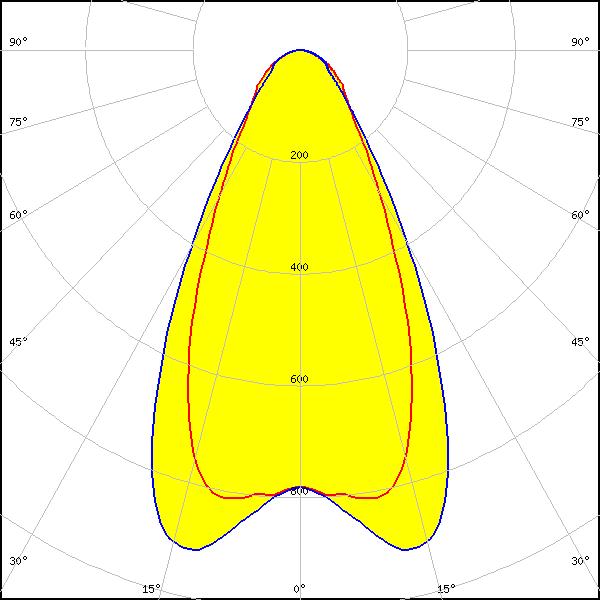

LLE 24x280mm 1250lm HV HO ADV1
FWHM:
56° + 52°
FWTM:
96° + 112°
Peak intensity:
0.956 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
