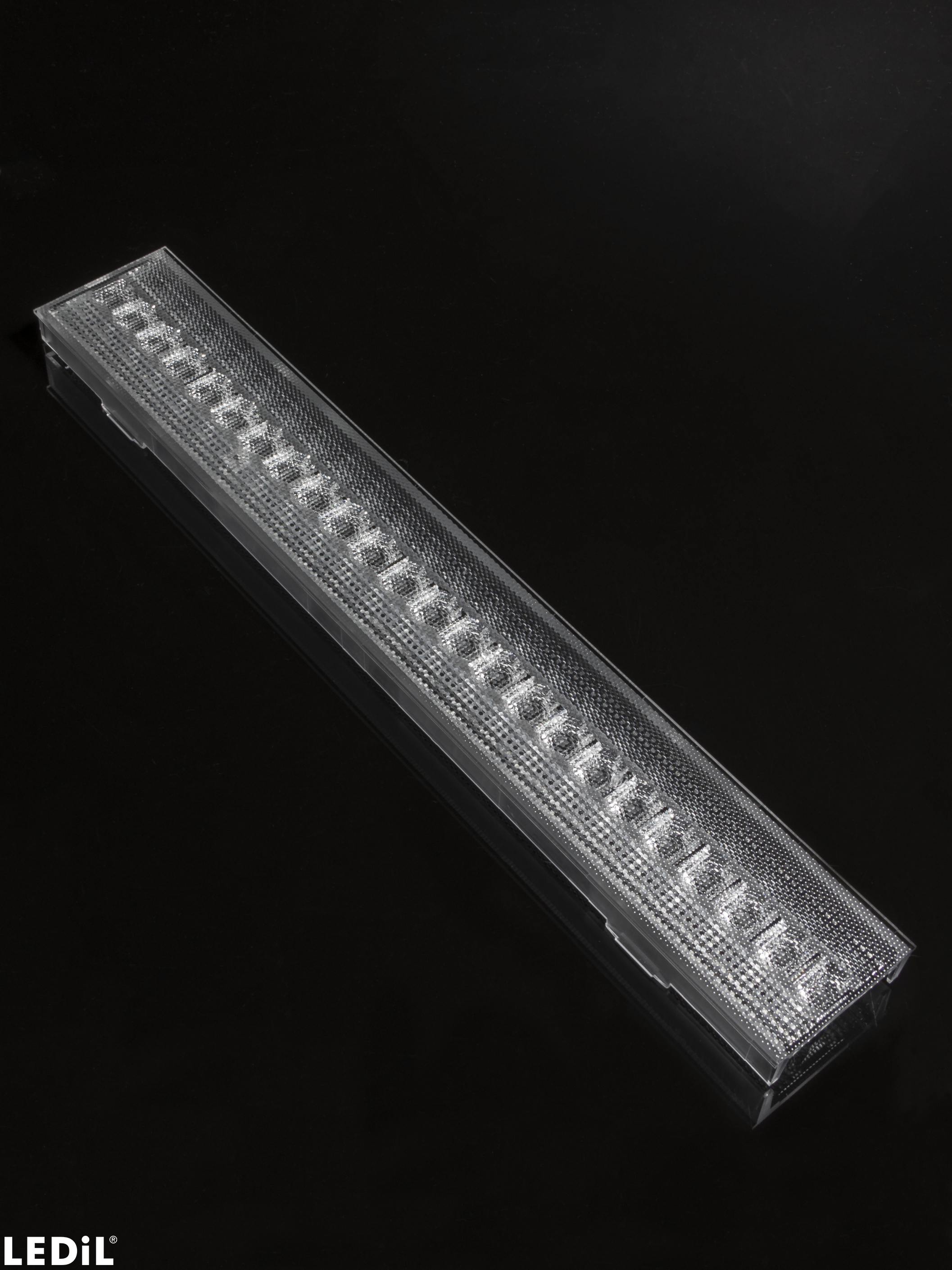

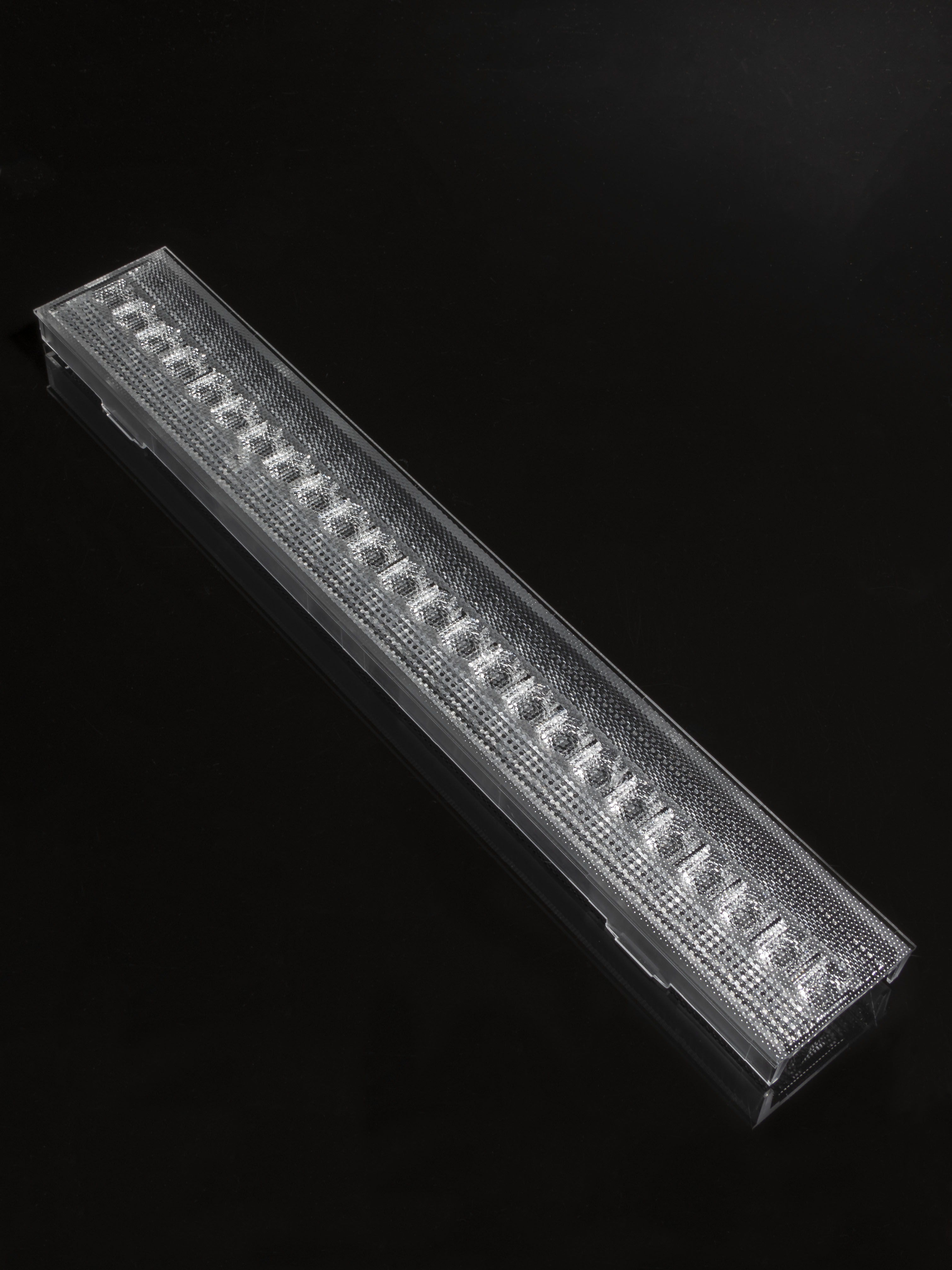

F17165_LINNEA-GC2-90
Print
~90° wide beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

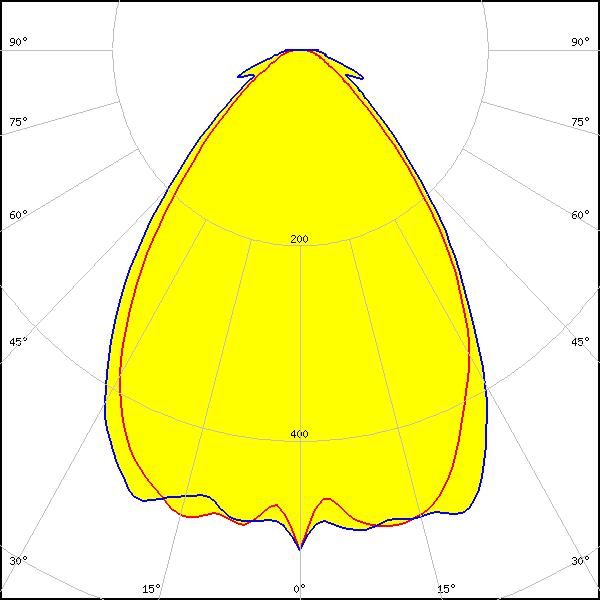

LED:
Bridgelux SMD 2835
FWHM:
77° + 80°
FWTM:
118° + 143°
Peak intensity:
0.514 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

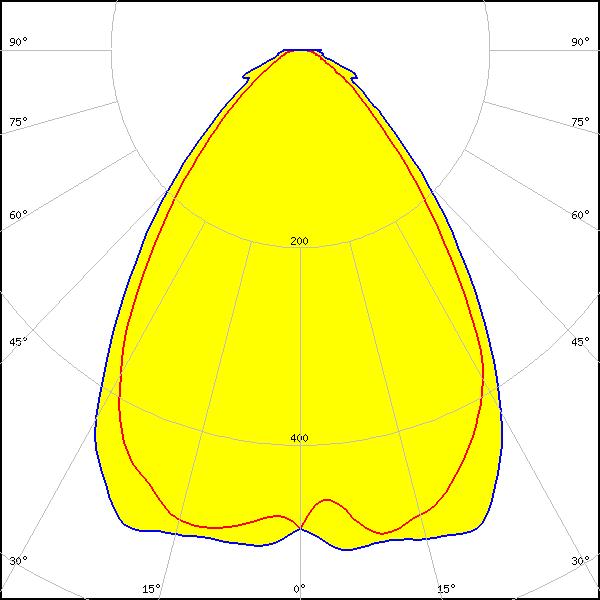

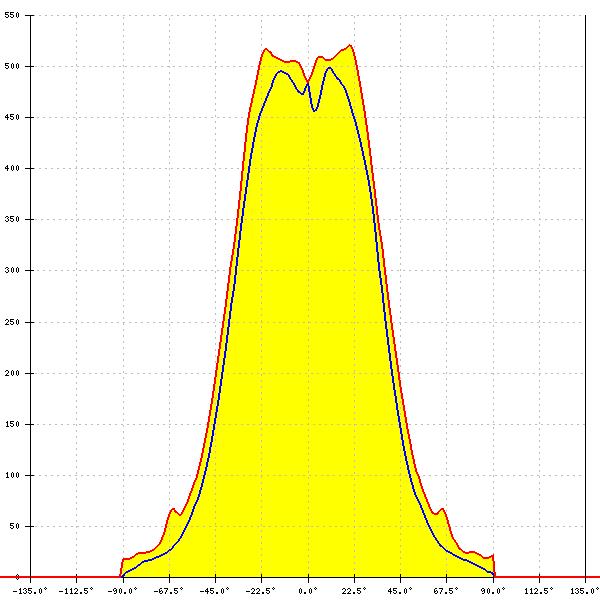

LED:
J Series 2835
FWHM:
76° + 80°
FWTM:
118° + 138°
Peak intensity:
0.520 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

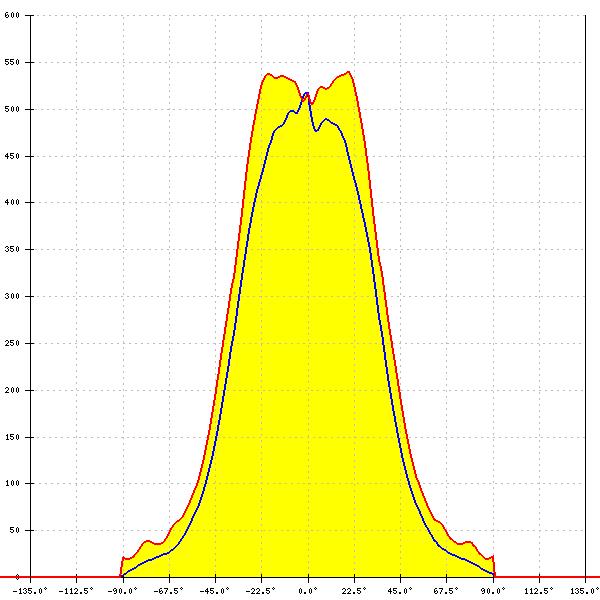

LED:

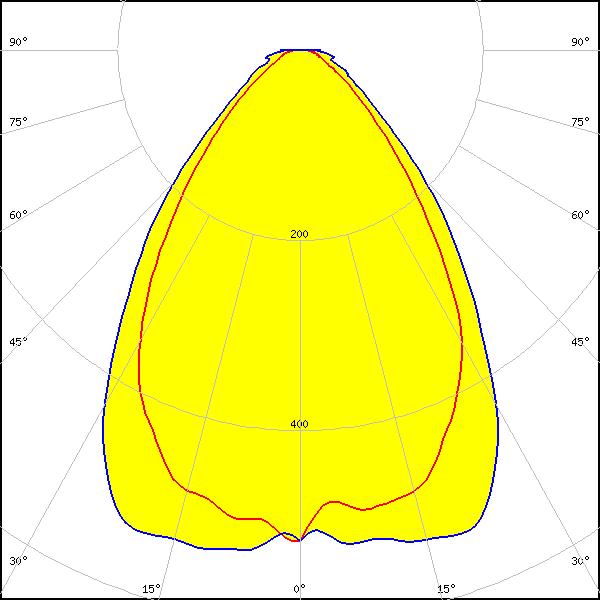

J Series 3030
FWHM:
72° + 79°
FWTM:
116° + 132°
Peak intensity:
0.541 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

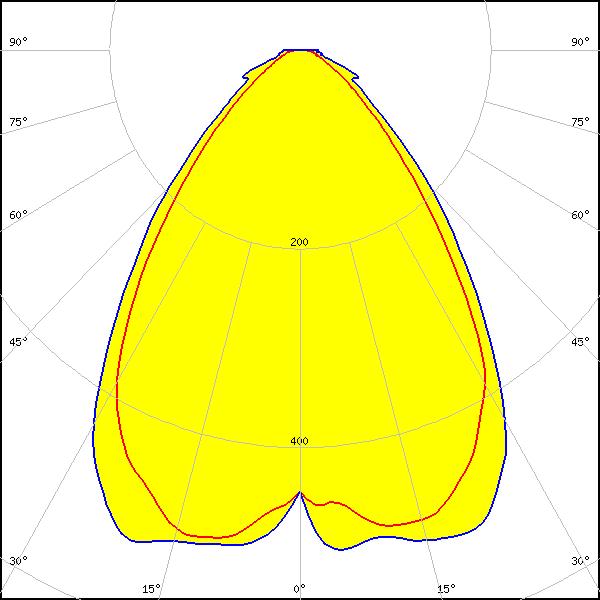

LED:

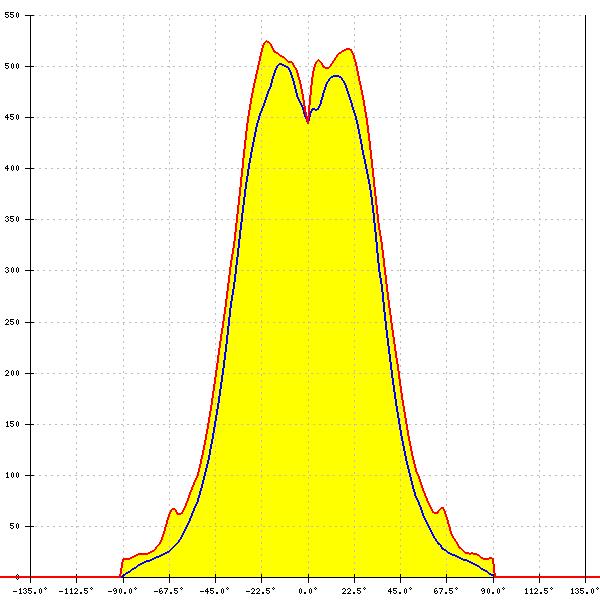

LUXEON 2835 Line
FWHM:
76° + 80°
FWTM:
117° + 138°
Peak intensity:
0.525 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

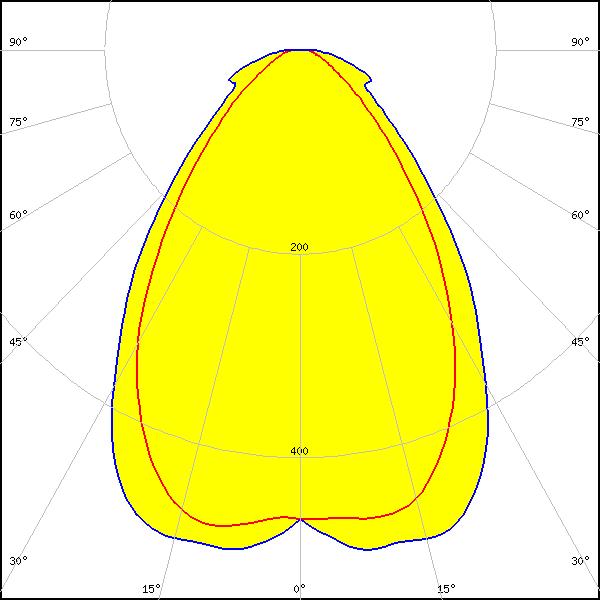

LED:

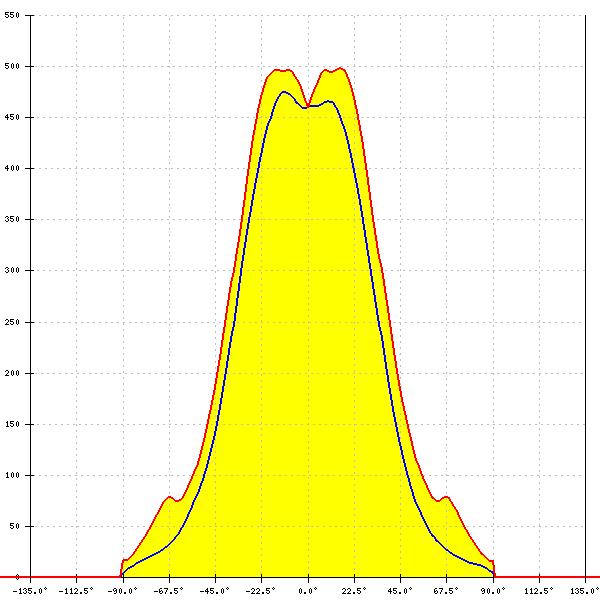

LUXEON 2835 Line
FWHM:
73° + 80°
FWTM:
120° + 152°
Peak intensity:
0.498 cd/lm
Efficiency:
87 %
LEDs/each optic:
2
Light colour/type:
White

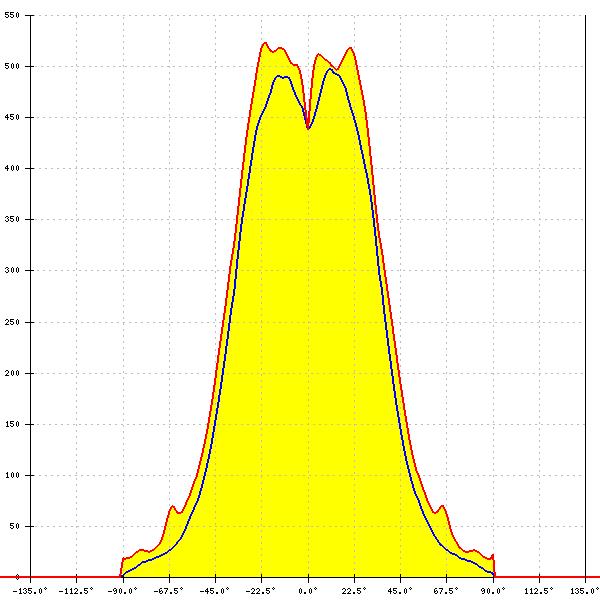

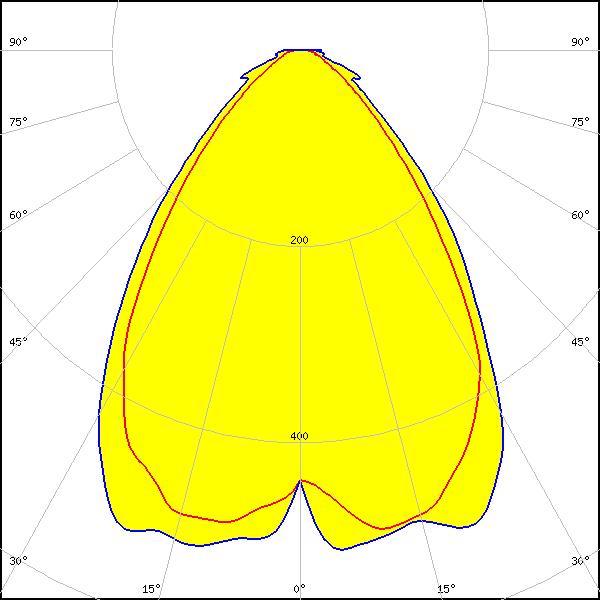

LED:
LUXEON 3030 HE Plus
FWHM:
76° + 80°
FWTM:
118° + 138°
Peak intensity:
0.523 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

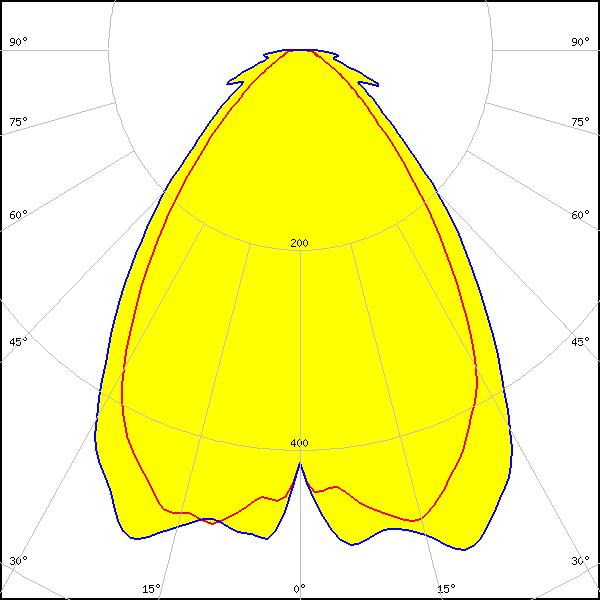

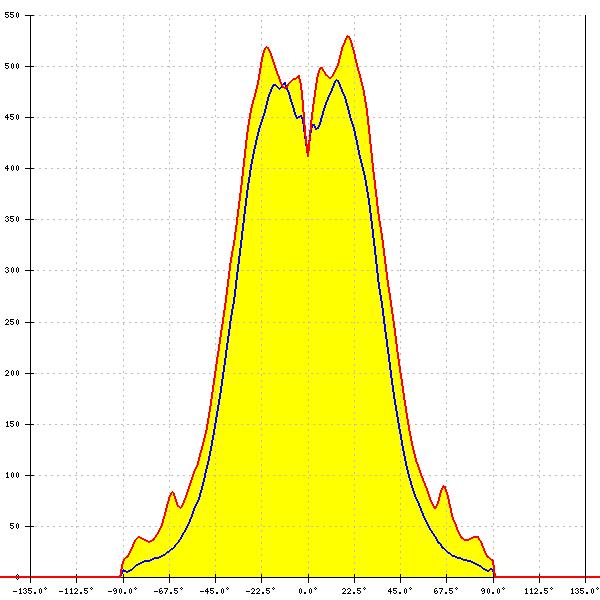

LED:
NF2W585AR-P8
FWHM:
76° + 81°
FWTM:
118° + 143°
Peak intensity:
0.529 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

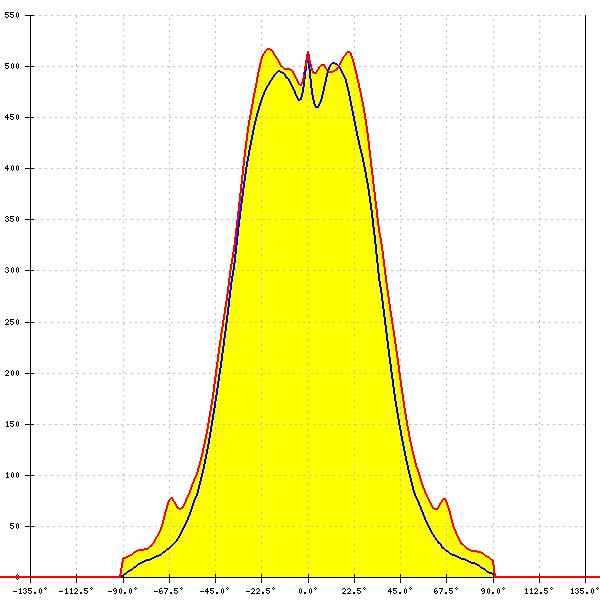

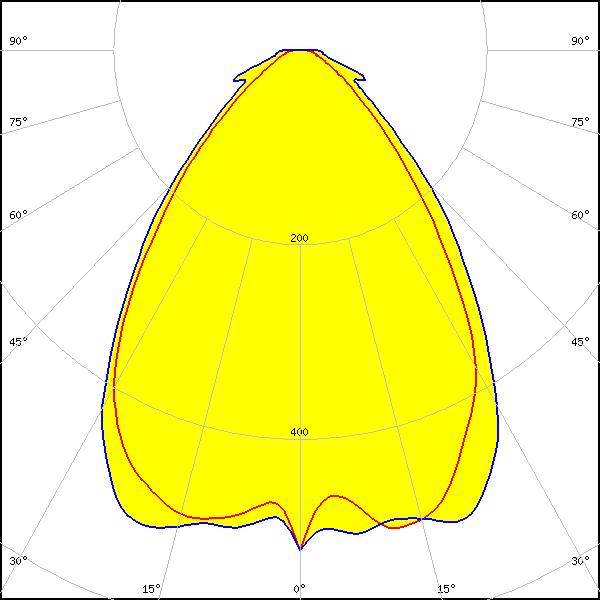

LED:
NF2W757G-MT (Tunable White)
FWHM:
76° + 80°
FWTM:
117° + 142°
Peak intensity:
0.520 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Tunable White

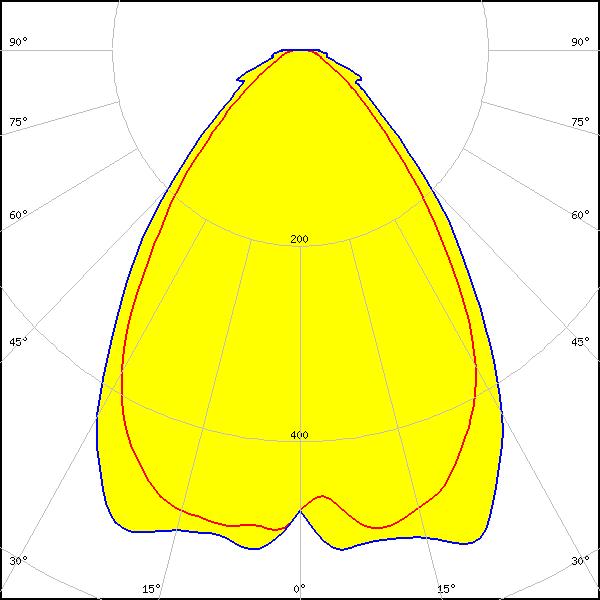

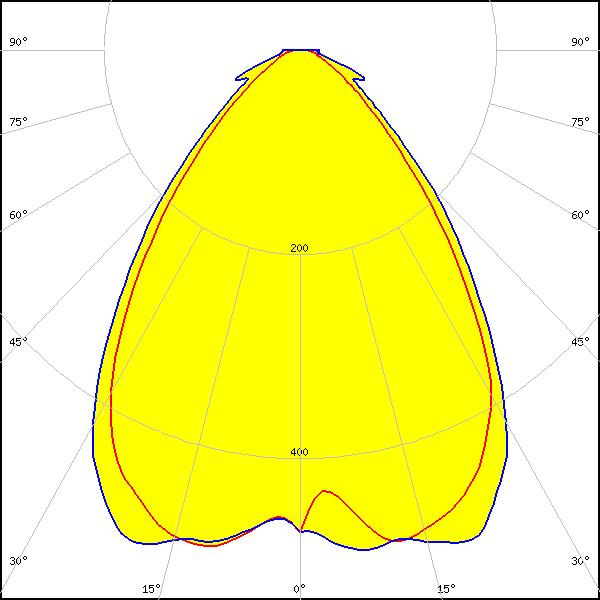

LED:

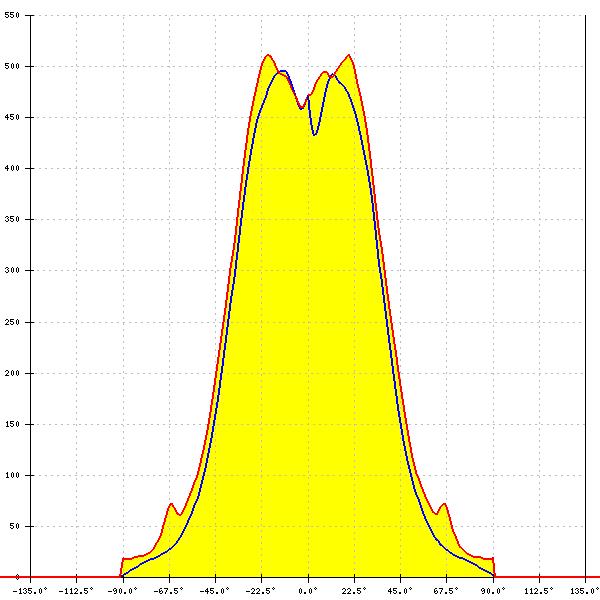

NFSW757H
FWHM:
78° + 80°
FWTM:
118° + 140°
Peak intensity:
0.512 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

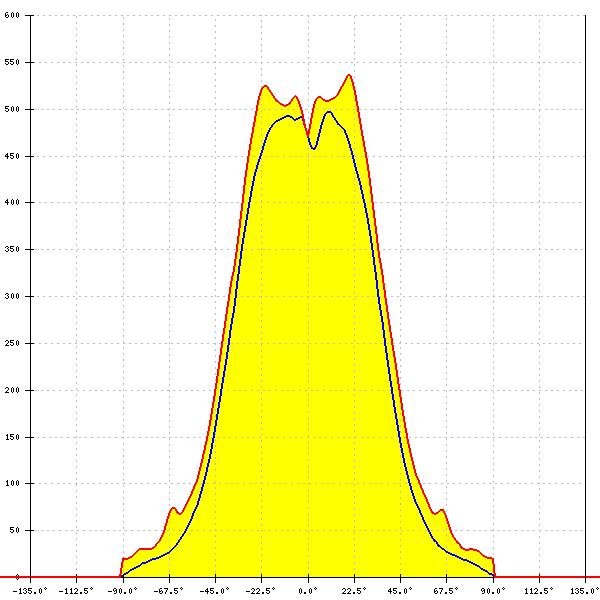

LED:
NFSx757G
FWHM:
76° + 80°
FWTM:
118° + 138°
Peak intensity:
0.536 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

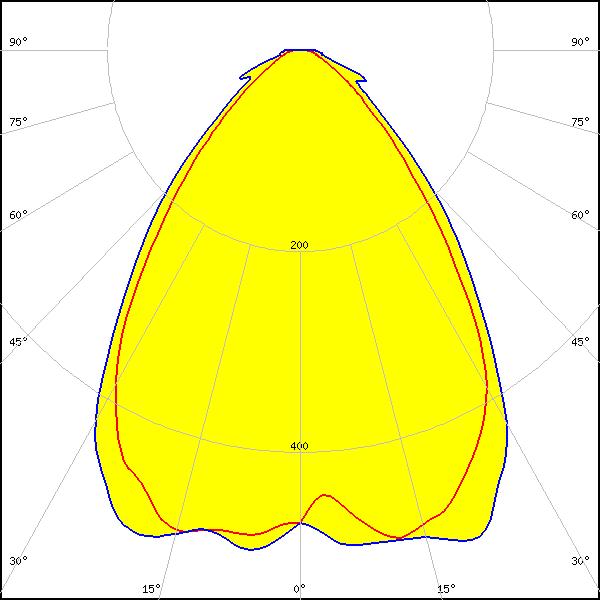

LED:

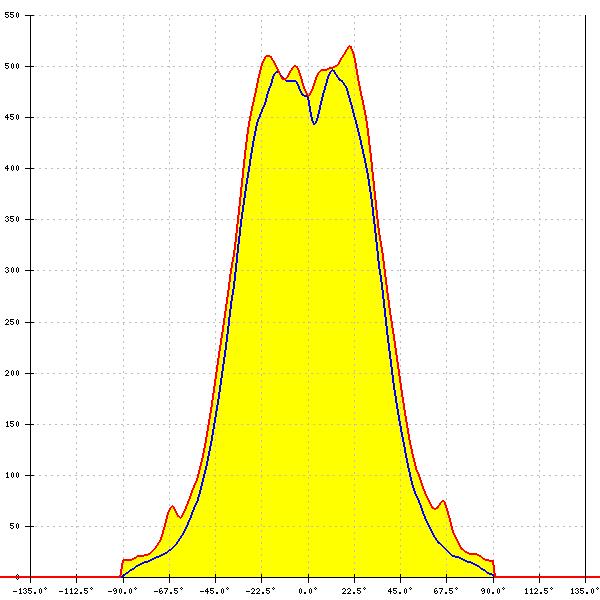

Duris E 2835
FWHM:
76° + 80°
FWTM:
118° + 139°
Peak intensity:
0.520 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

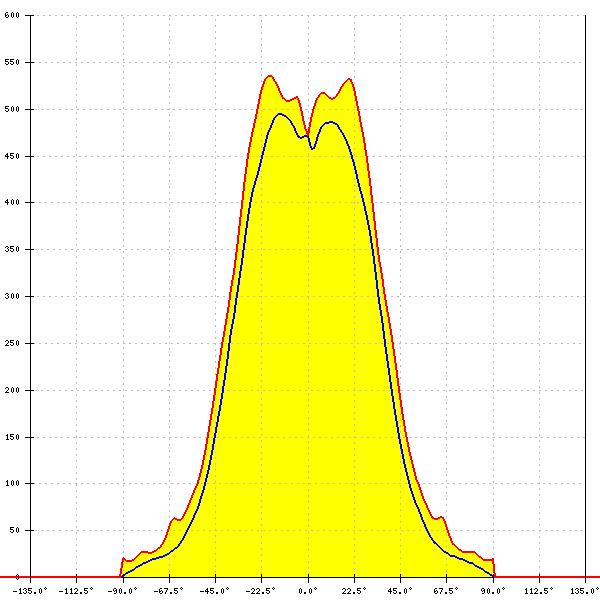

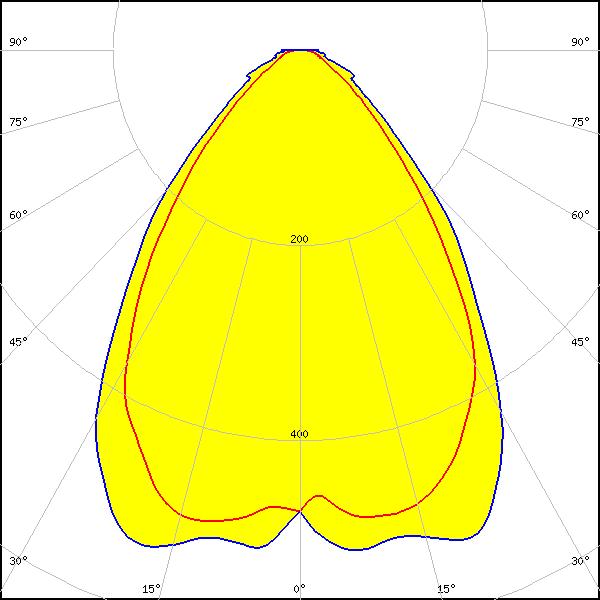

LED:
Duris S5 (2 chip)
FWHM:
76° + 80°
FWTM:
116° + 136°
Peak intensity:
0.535 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

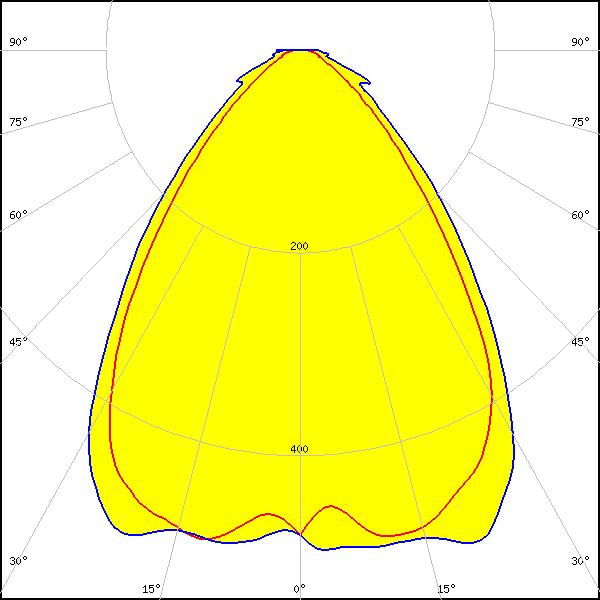

LED:

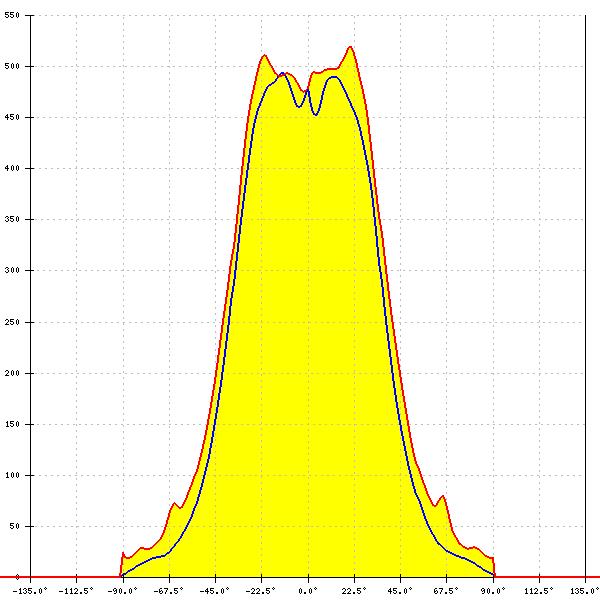

OSCONIQ C 2424
FWHM:
76° + 81°
FWTM:
118° + 139°
Peak intensity:
0.520 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SYNIOS S2222
FWHM:
76° + 80°
FWTM:
116° + 136°
Peak intensity:
0.521 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

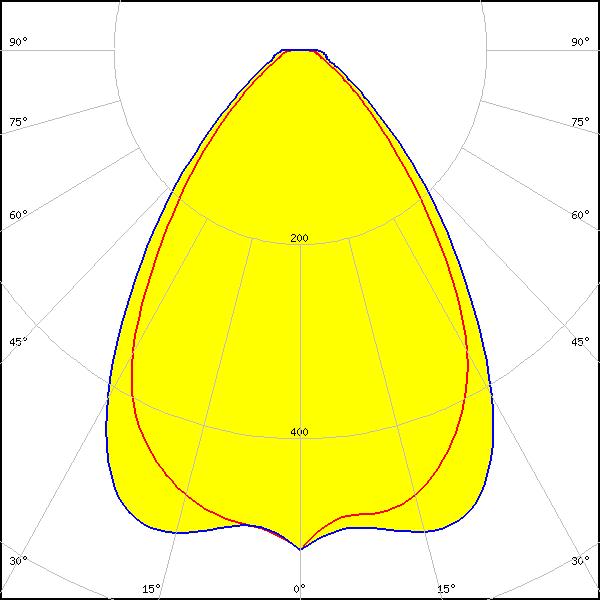

LED:

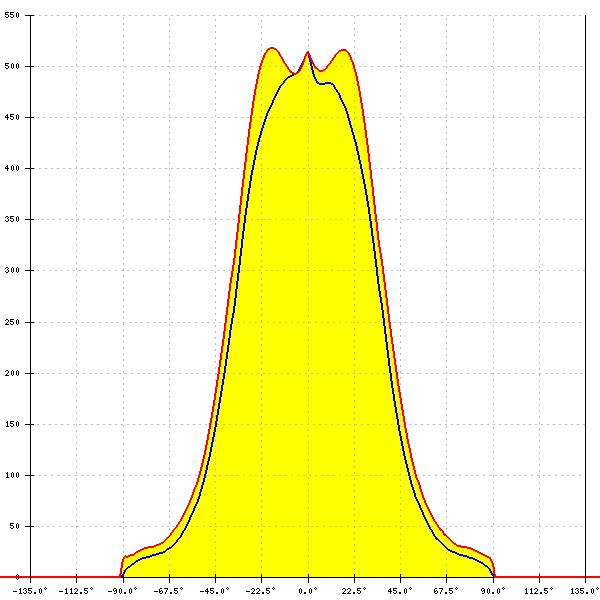

LM28xB Series
FWHM:
73° + 78°
FWTM:
117° + 126°
Peak intensity:
0.518 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

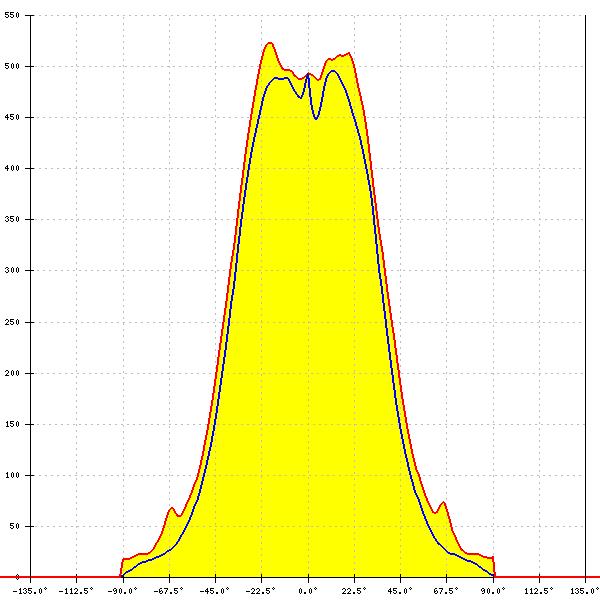

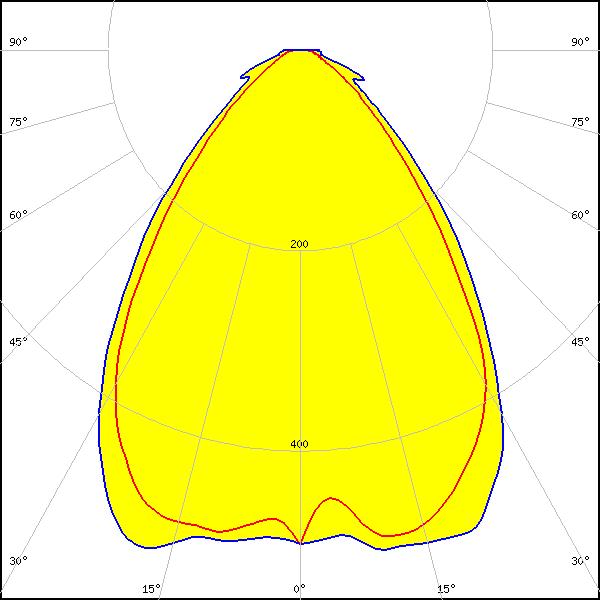

LED:
LM301B
FWHM:
76° + 80°
FWTM:
118° + 140°
Peak intensity:
0.523 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

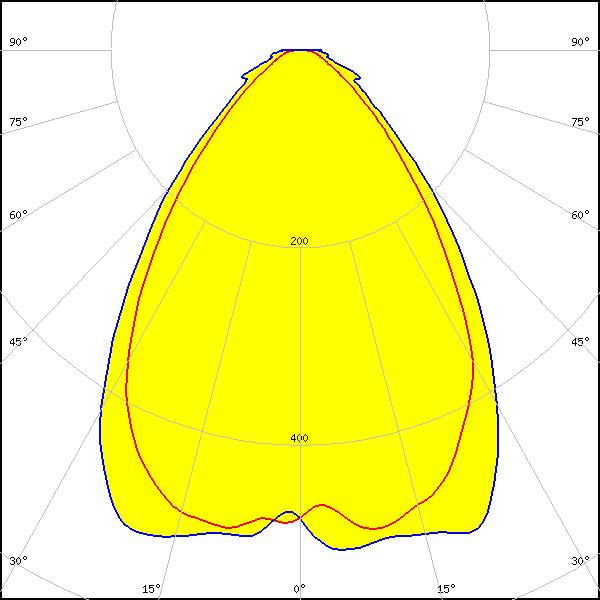

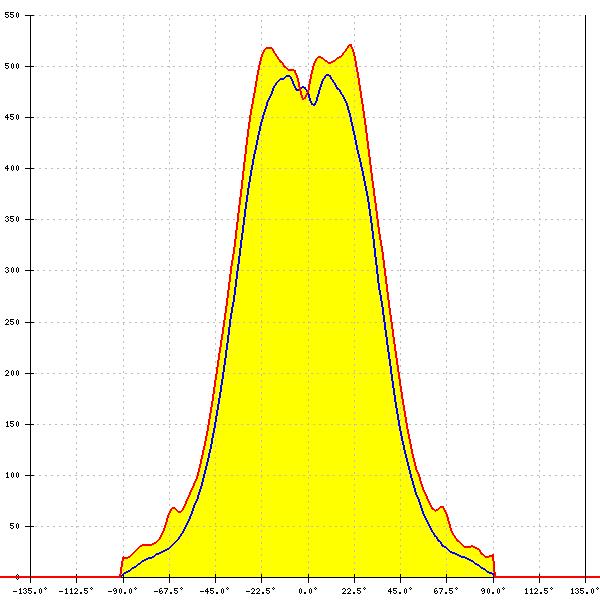

LED:
LM301D
FWHM:
76° + 80°
FWTM:
118° + 138°
Peak intensity:
0.522 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

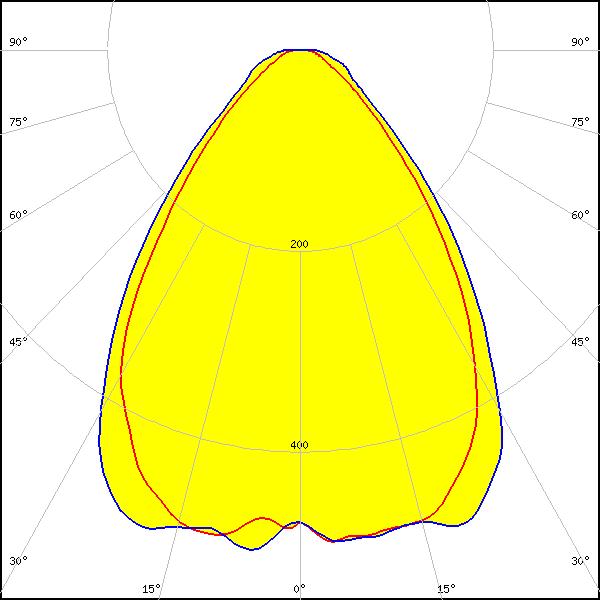

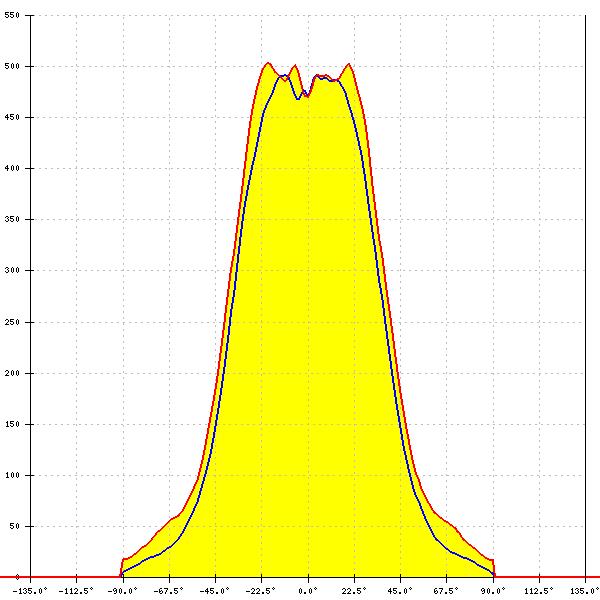

LED:
LM301Z Plus
FWHM:
76° + 80°
FWTM:
118° + 140°
Peak intensity:
0.510 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

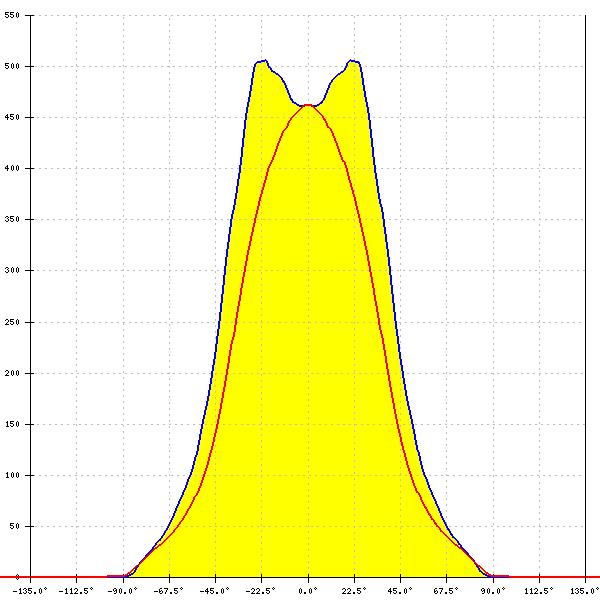

LED:

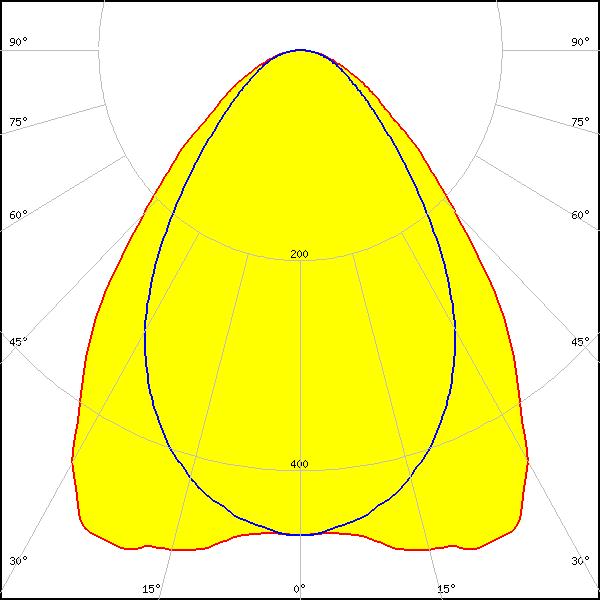

LLE 24x280mm 1250lm HV HO ADV1
FWHM:
73° + 85°
FWTM:
130° + 135°
Peak intensity:
0.513 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
