    F16858_LINDA-Z2T25

    Print

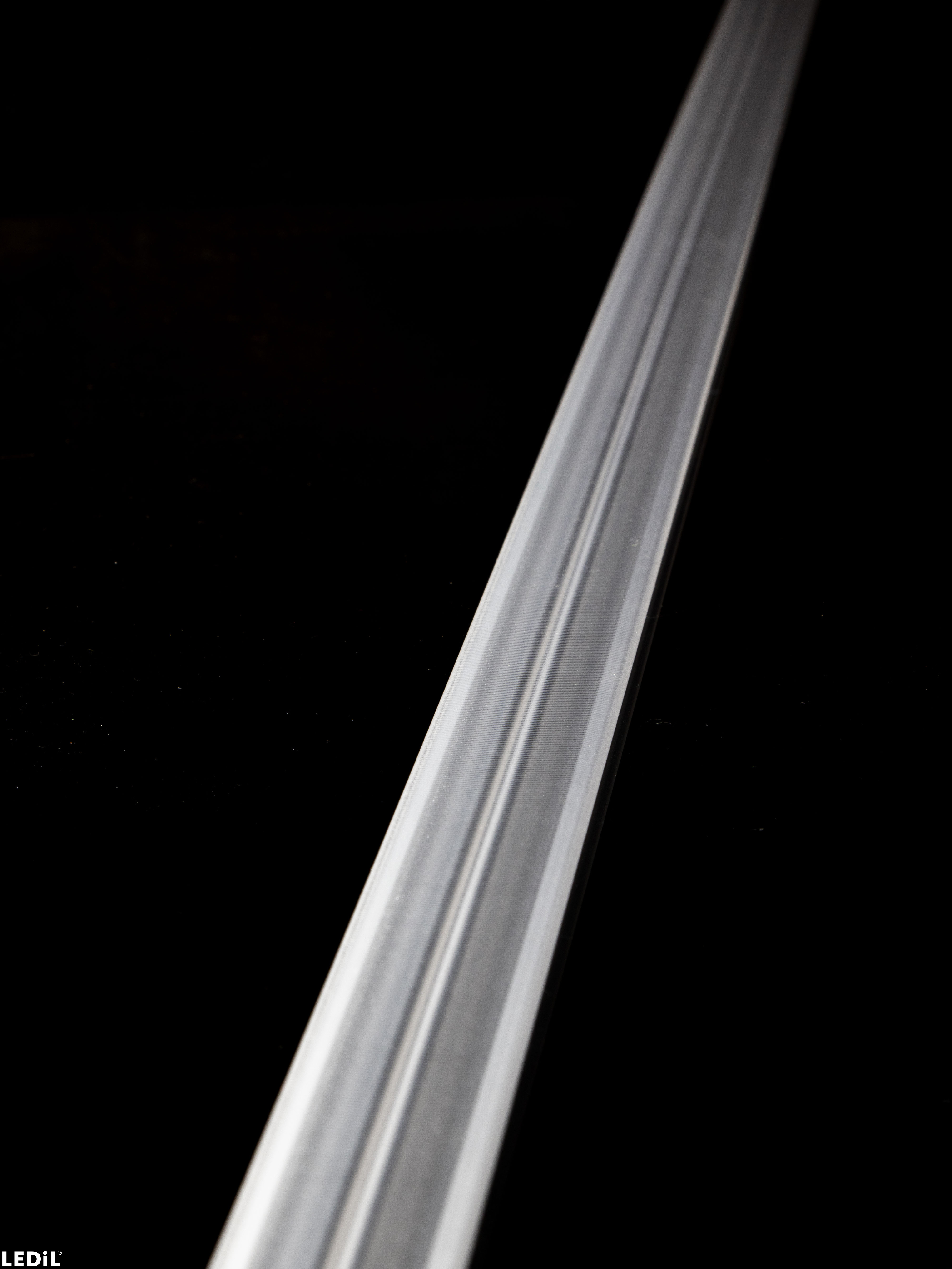

    Double asymmetric beam for aisle and shelf lighting

    Specification
    • Dimensions:
      26 x  1140 mm
    • Height:
      5.30 mm
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      150 pcs
    • Box size:
      1200x160x120 mm
    • Box weight:
      12.2 kg
    • MPQ:
      150 pcs
    • MOQ:
      150 pcs
    • MOQ size:
      1200x160x120 mm
    • MOQ weight:
      12.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F16858_LINDA-Z2T25
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Other variants: F17130_LINDA-Z2T25-48in (North American 48 inch length)
    F17318_LINDA-Z2T25-3m (3.01 m length) and other custom lengths available

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LINDA is an industry first linear extrusion lens with accurate optical control in the longitudinal axis

    PCN

    Product change notification NR181 – Material change in the Linda product family

    Application example

    Supermarket aisle lighting with FLORENCE-3R and LINDA

    Luminaire, example

    Linear luminaire with LINDA

    Application example

    Supermarket aisle lighting with LINDA-Z2T25

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    LEDiL guide for retail lighting optics

    Application guide

    LEDiL guide for office lighting optics

    News

    LINDA-40 – versatile 40 mm free pitch extrusion

    Case story

    Badia di Pomaio resort

    Article

    Top 3 areas where retailers lose customers due to bad lighting

    News

    New Products 2019-11-07

    News

    Effective fashion retail lighting

    Application example

    Retail lighting with LINDA and ELISE (low contrast)

    Article

    Illuminating supermarkets with LEDiL optics

    Application example

    Supermarket lighting with LINDA and ALISE

    News

    LINDA industrial scale extrusion optic for precise retail lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Office Lighting

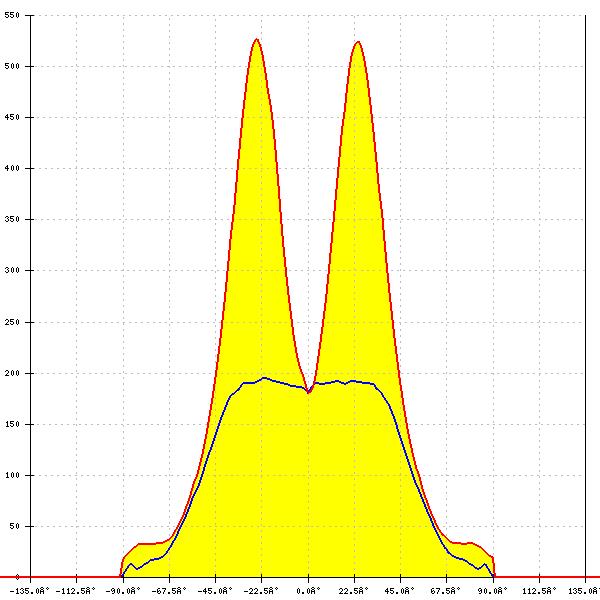

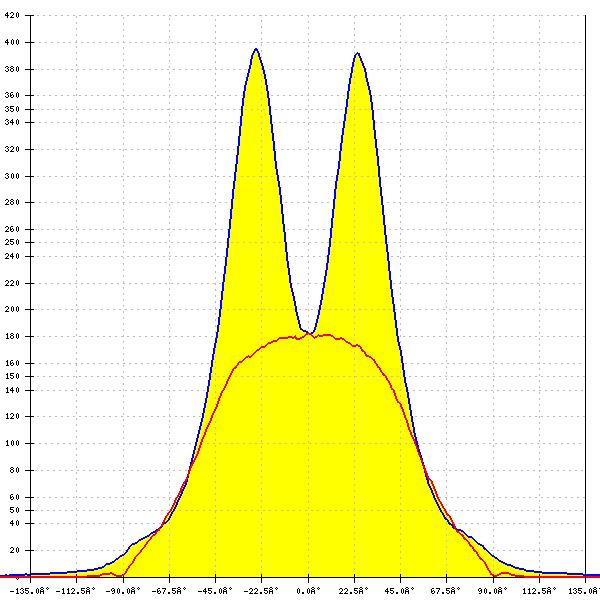

    Optical results

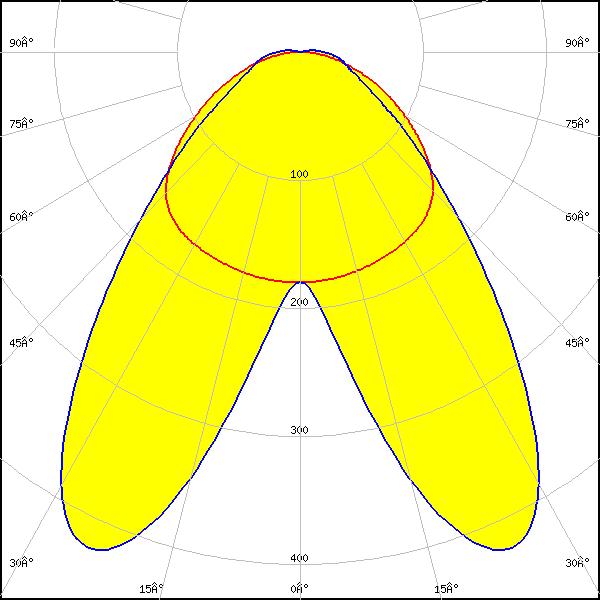

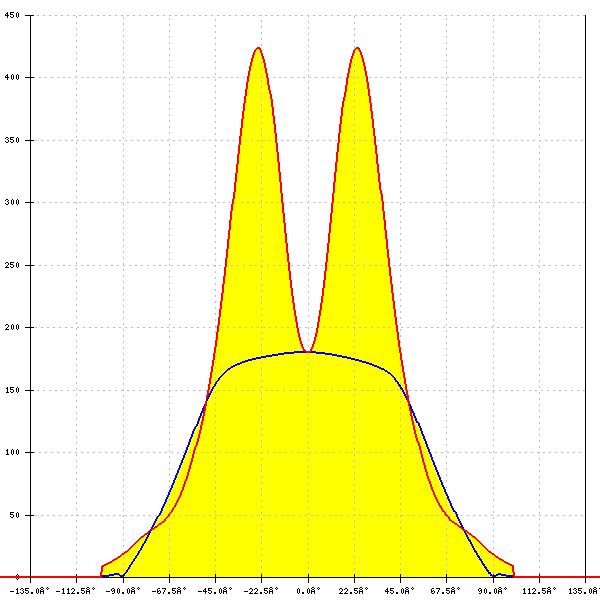

    LED: CLUC11
    FWHM: asymmetric
    Peak intensity: 0.437 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

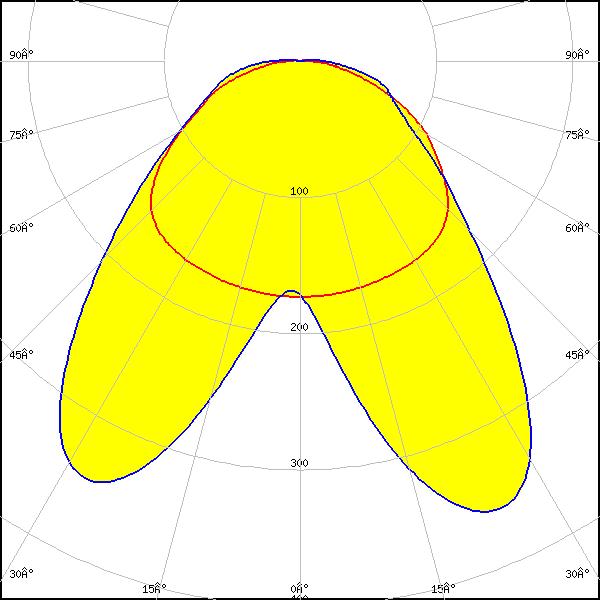

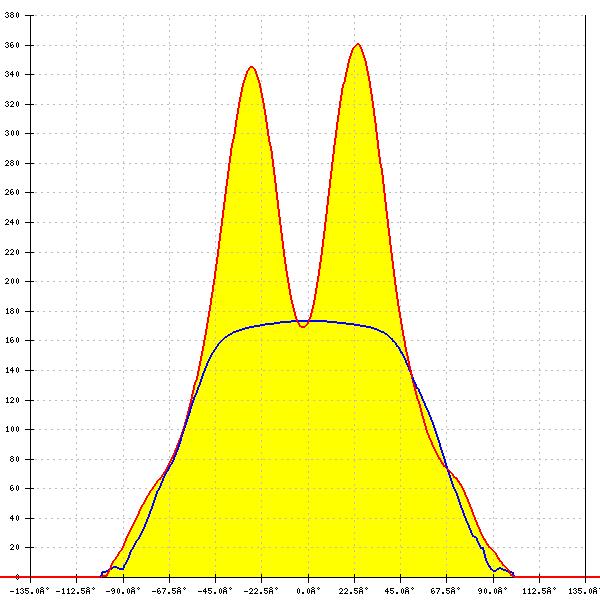

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.360 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

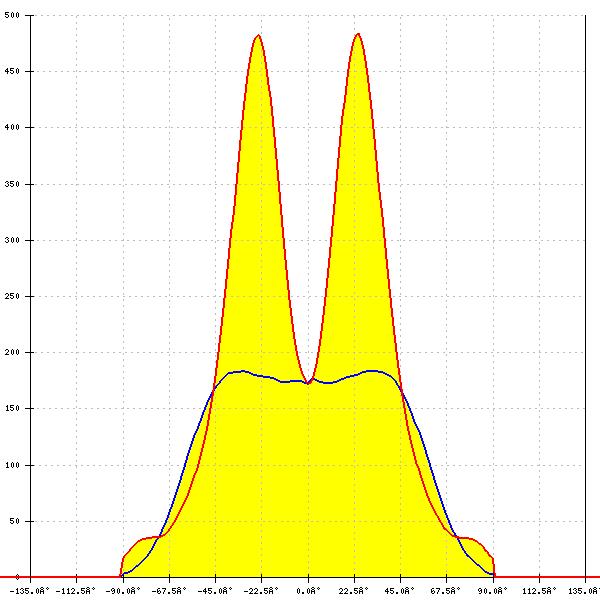

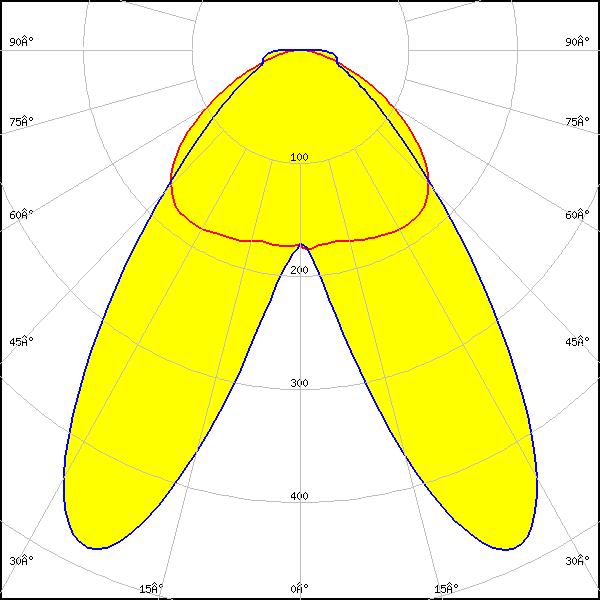

    LED: LUXEON 2835 Line
    FWHM: asymmetric
    Peak intensity: 0.484 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

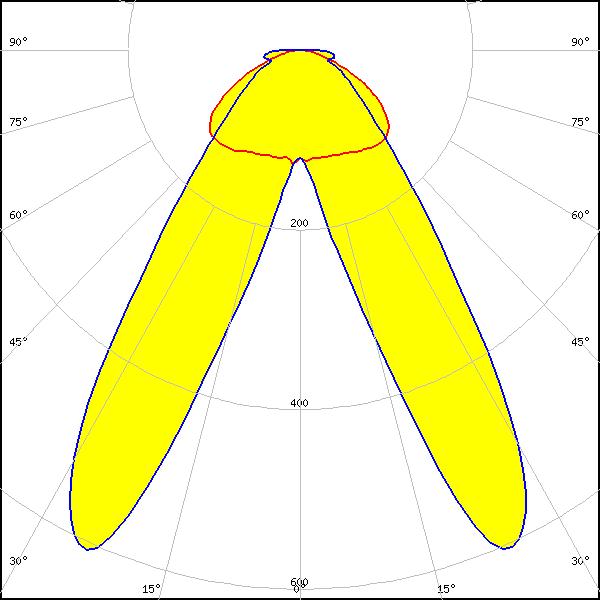

    LED: LUXEON CSP HL1
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

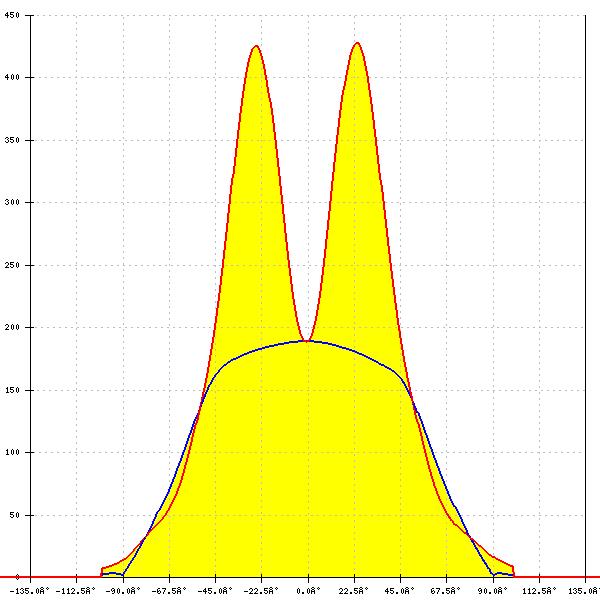

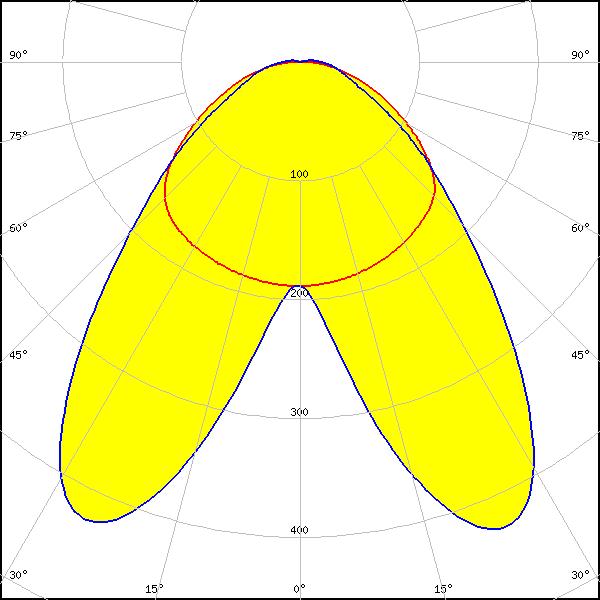

    LED: NF2W757G-MT (Tunable White)
    FWHM: asymmetric
    Peak intensity: 0.428 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

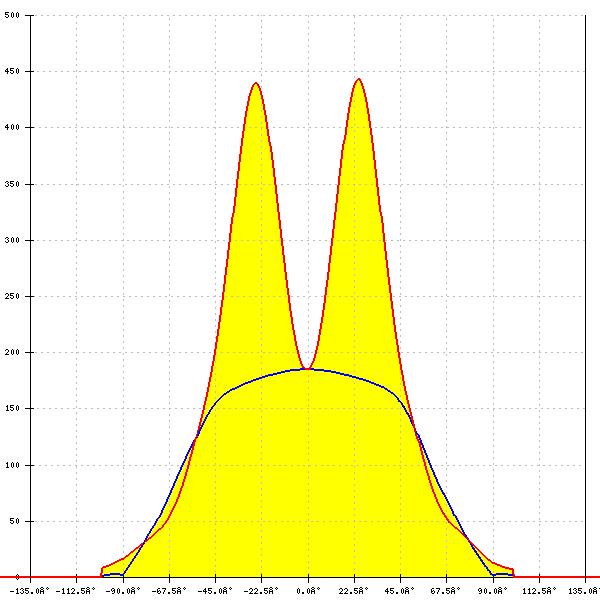

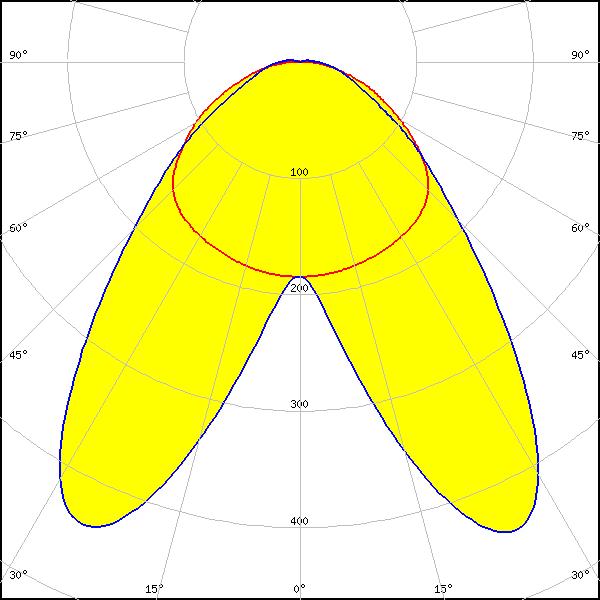

    LED: NFSW757H
    FWHM: asymmetric
    Peak intensity: 0.443 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

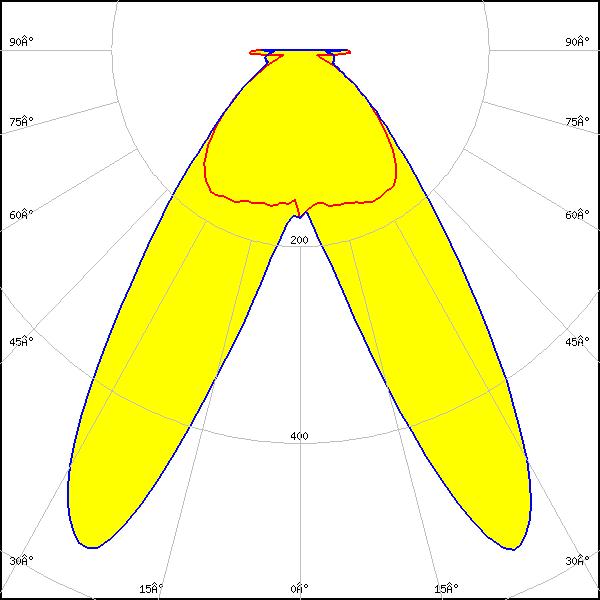

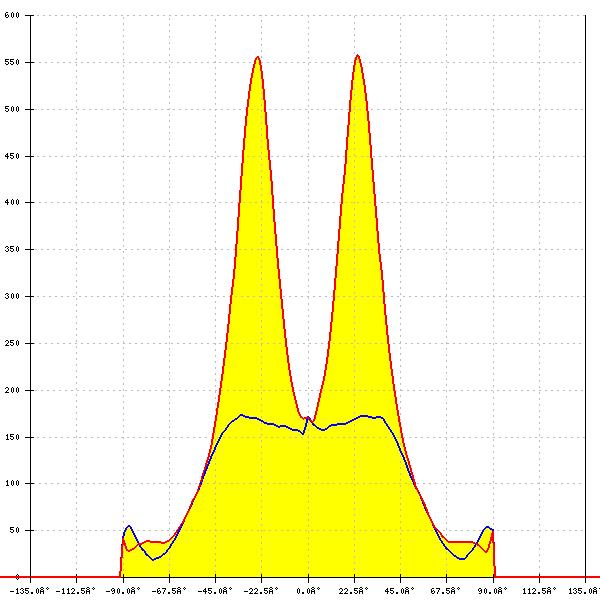

    LED: NFSWE11A
    FWHM: asymmetric
    Peak intensity: 0.557 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

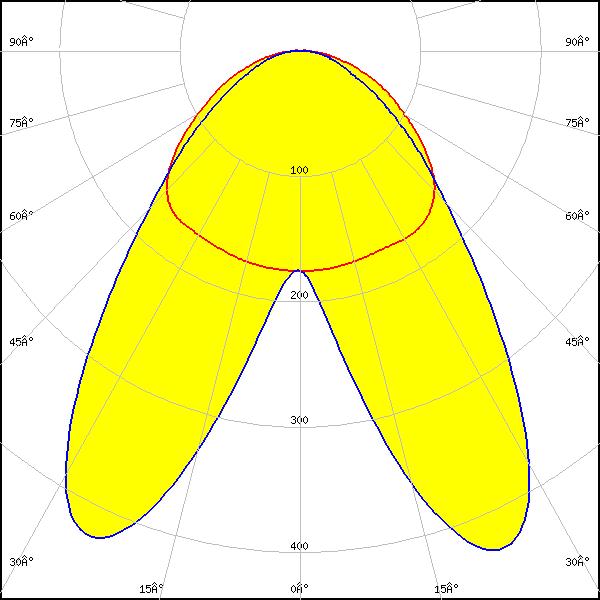

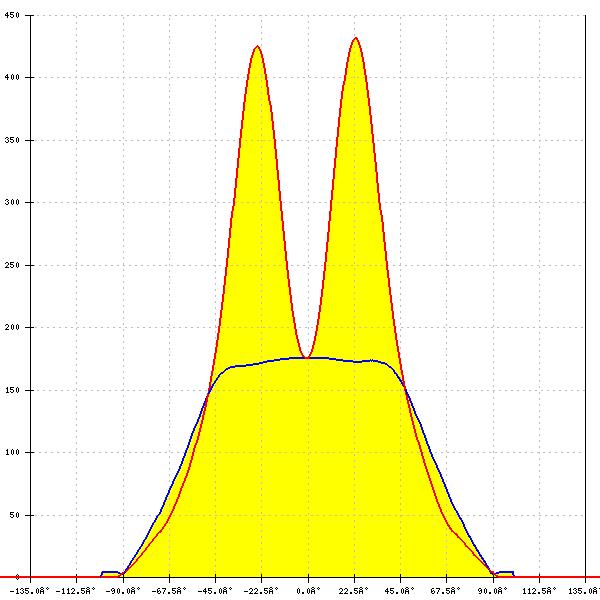

    LED: PL-LIN-Z5 1100 280x20
    FWHM: asymmetric
    Peak intensity: 0.431 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

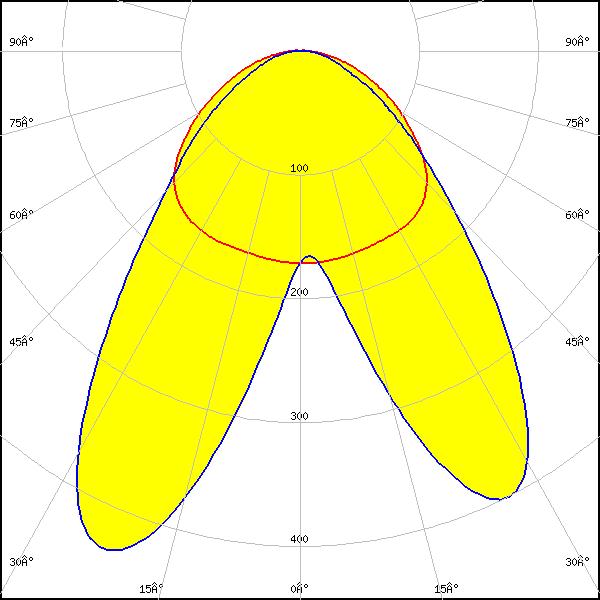

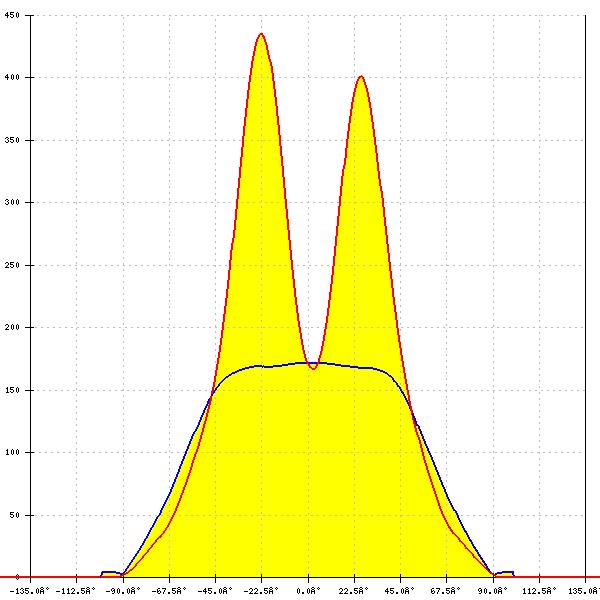

    LED: PL-LIN-Z5 2000 280x20
    FWHM: asymmetric
    Peak intensity: 0.435 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

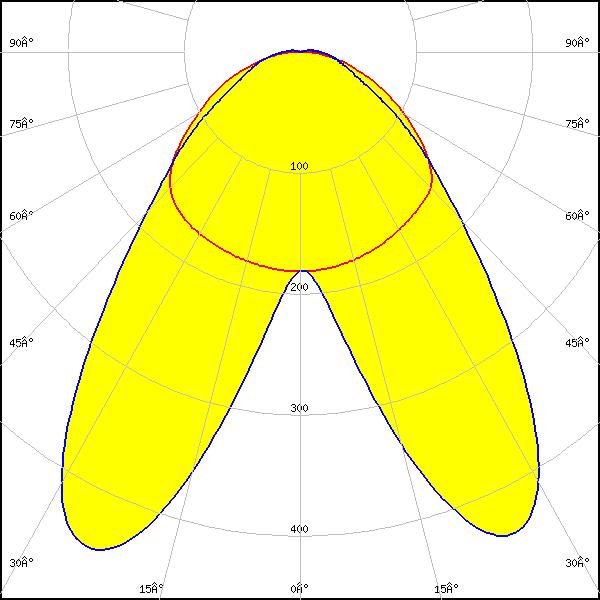

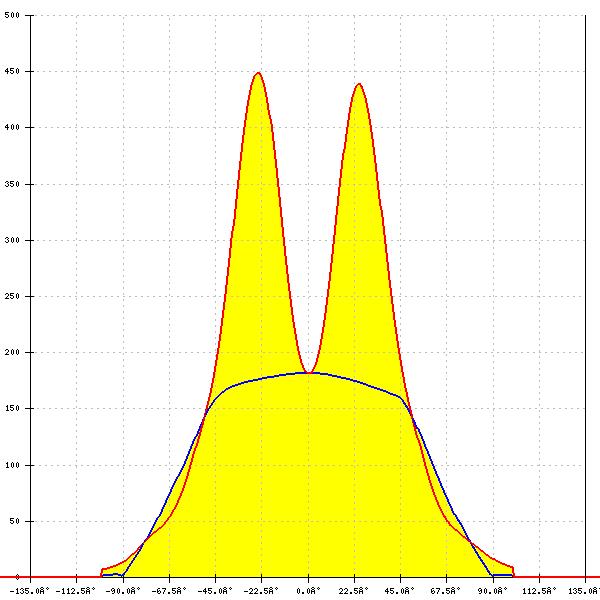

    LED: Duris E 2835
    FWHM: asymmetric
    Peak intensity: 0.435 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris E 2835
    FWHM: asymmetric
    Peak intensity: 0.431 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris E 2835
    FWHM: asymmetric
    Peak intensity: 0.449 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

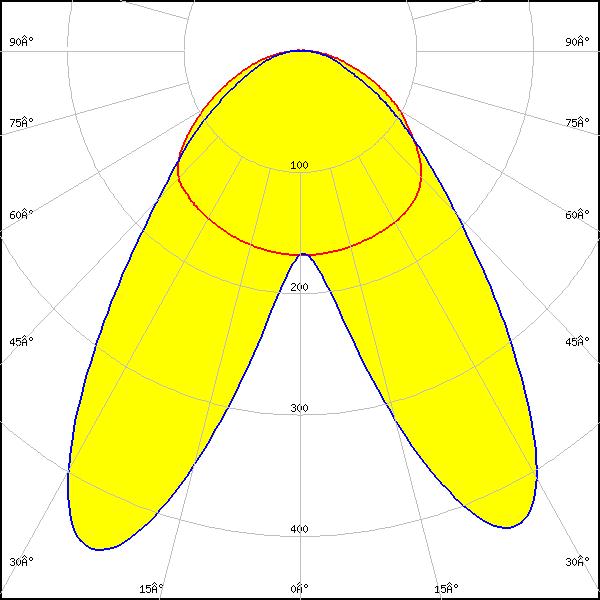

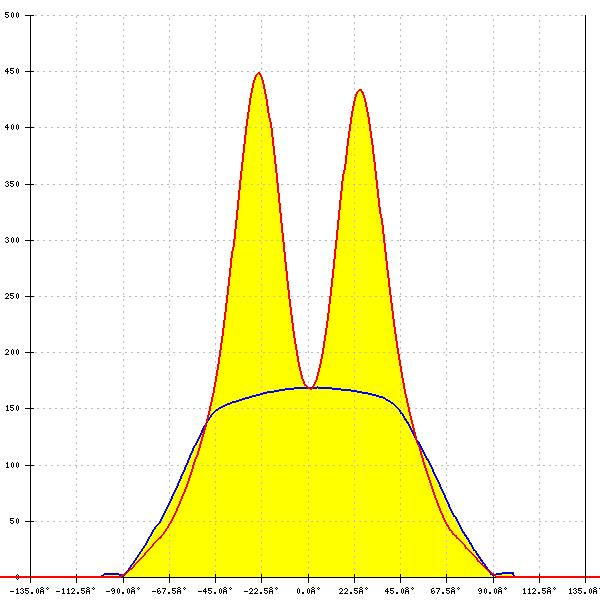

    LED: Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
    FWHM: asymmetric
    Peak intensity: 0.448 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 1100lm FC HV5 & LV5
    FWHM: asymmetric
    Peak intensity: 0.462 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

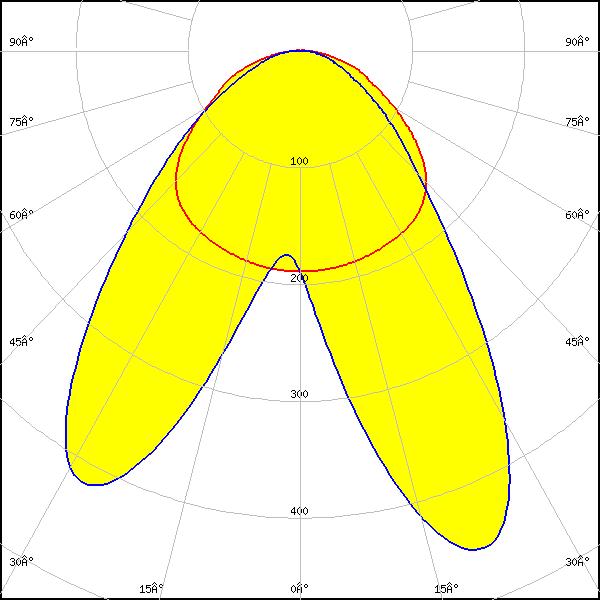

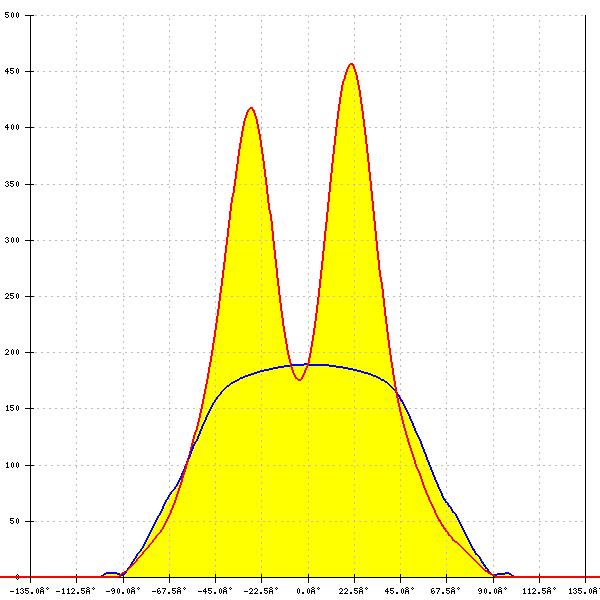

    LED: Fortimo LED Strip 1ft 650lm FC HV4 & LV4
    FWHM: asymmetric
    Peak intensity: 0.457 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Strip 1ft 650lm FC HV5 & LV5
    FWHM: asymmetric
    Peak intensity: 0.473 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

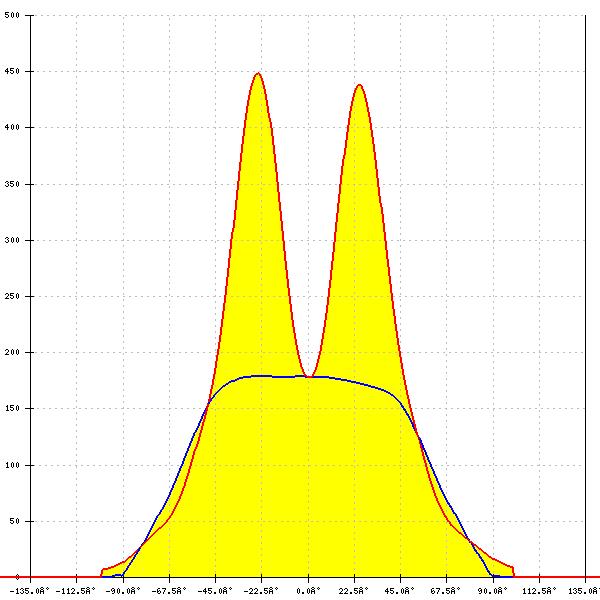

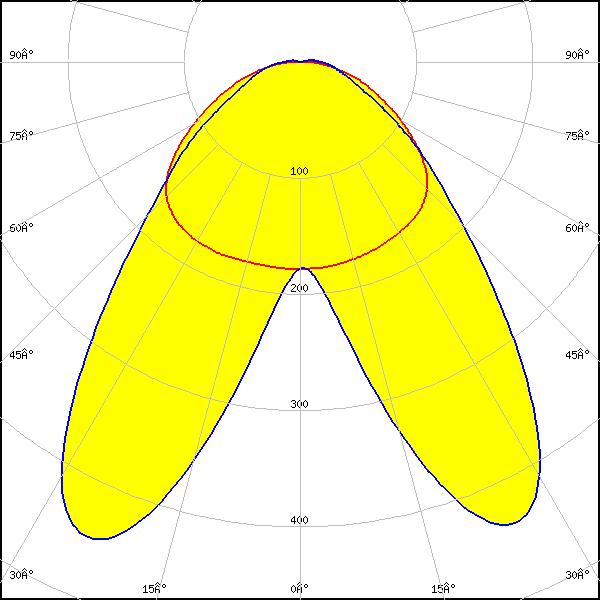

    LED: LM28xB Series
    FWHM: asymmetric
    Peak intensity: 0.450 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

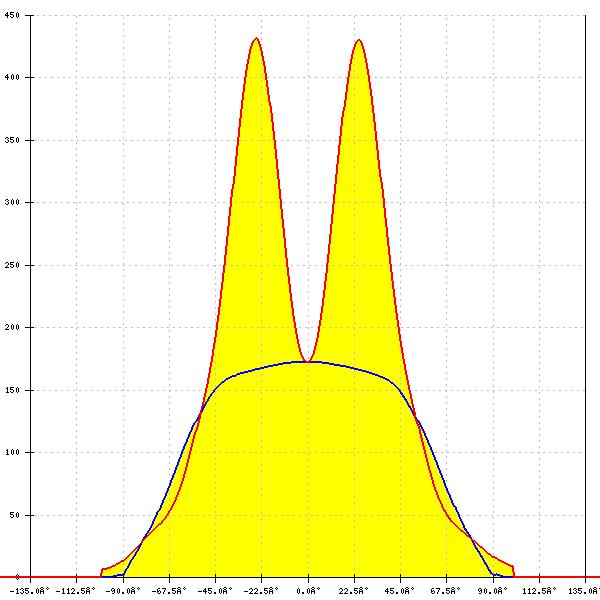

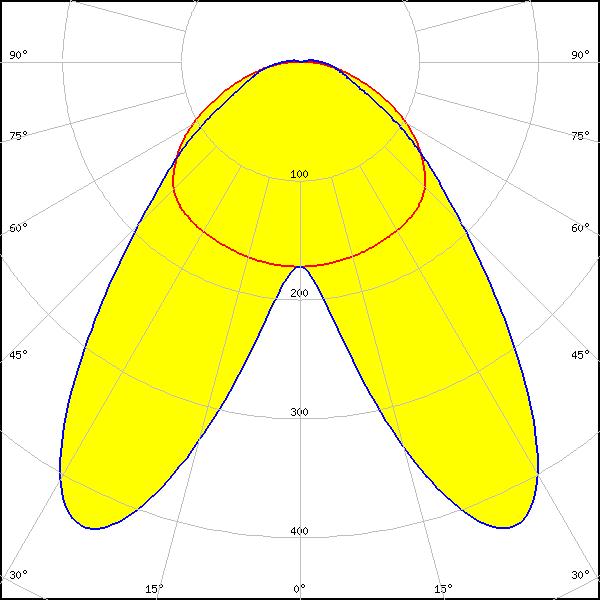

    LED: LM301B
    FWHM: asymmetric
    Peak intensity: 0.431 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM561B Plus
    LEDs/each optic: 1
    Light colour/type: White

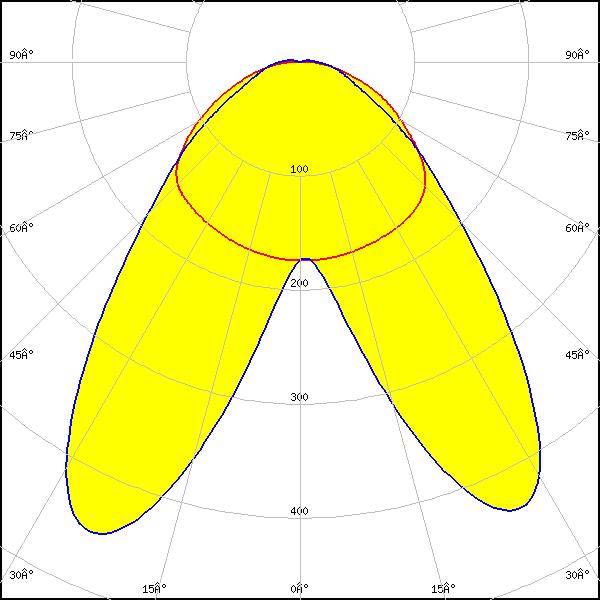

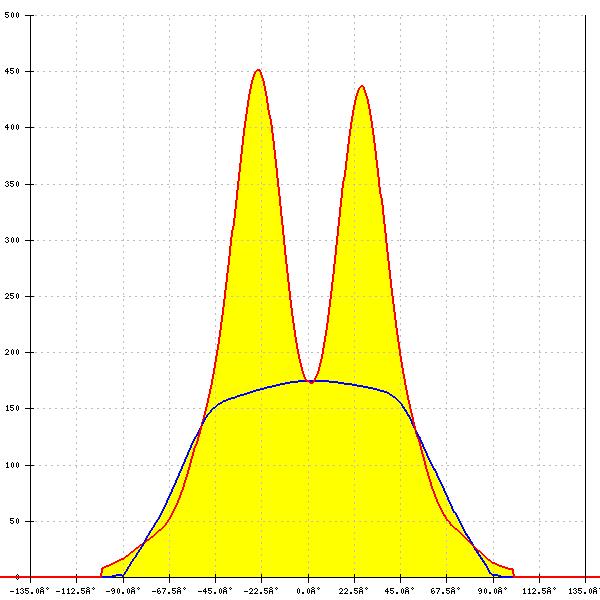

    LED: LM561C
    FWHM: asymmetric
    Peak intensity: 0.450 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

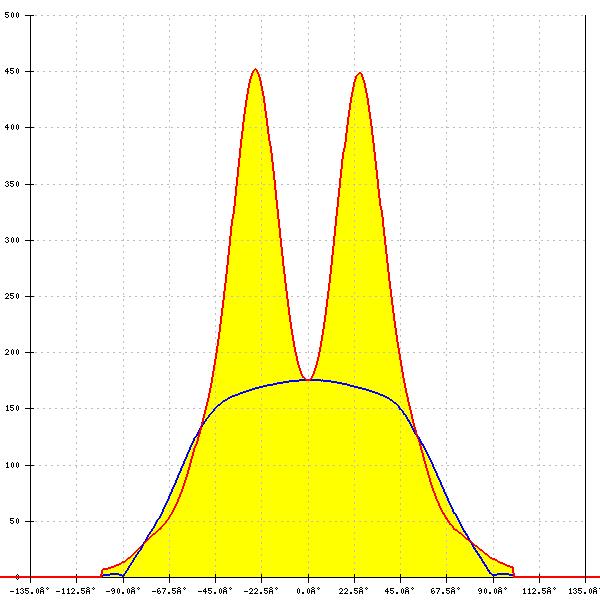

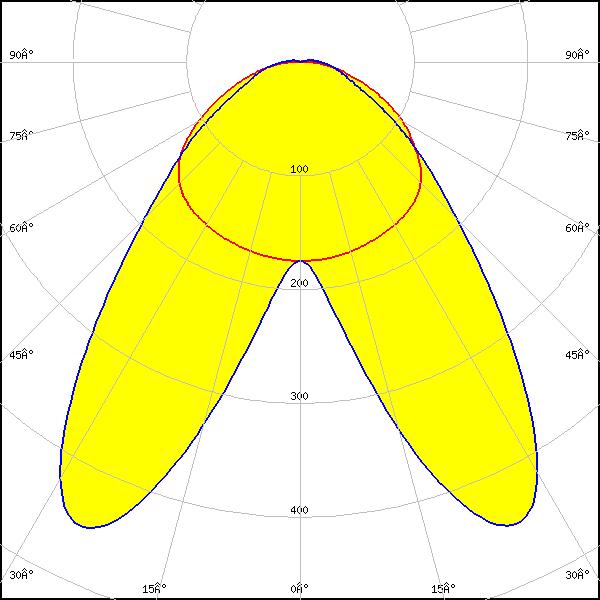

    LED: LT-S282H
    FWHM: asymmetric
    Peak intensity: 0.452 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3030
    FWHM: asymmetric
    Peak intensity: 0.527 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

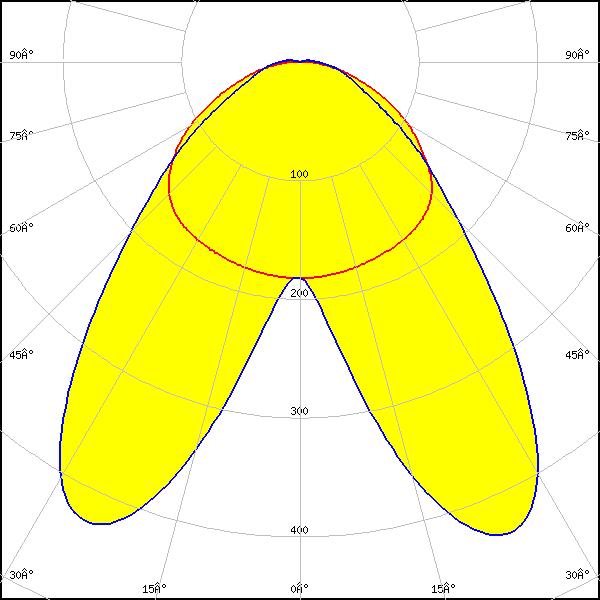

    LED: SEOUL DC 3528
    FWHM: asymmetric
    Peak intensity: 0.400 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

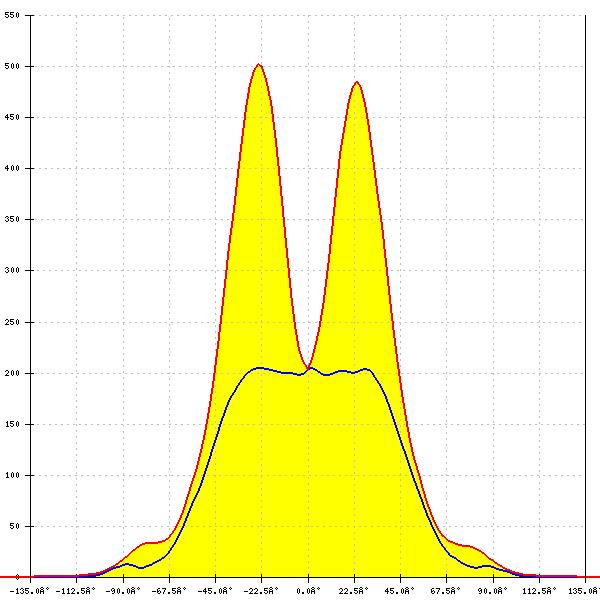

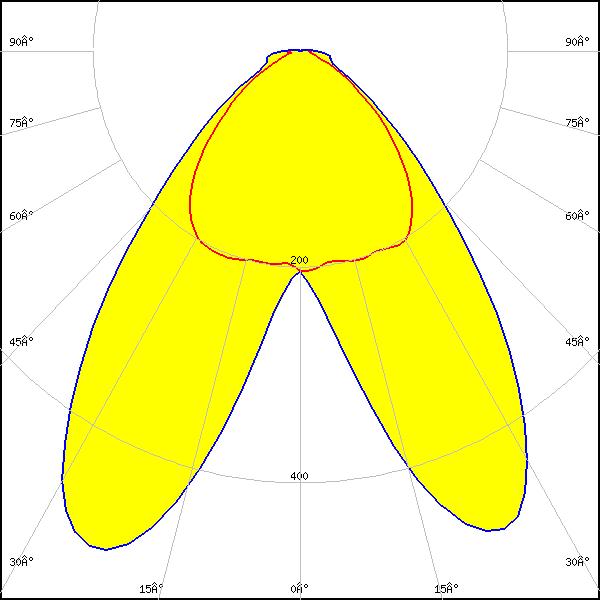

    LED: Z5M4
    FWHM: asymmetric
    Peak intensity: 0.503 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

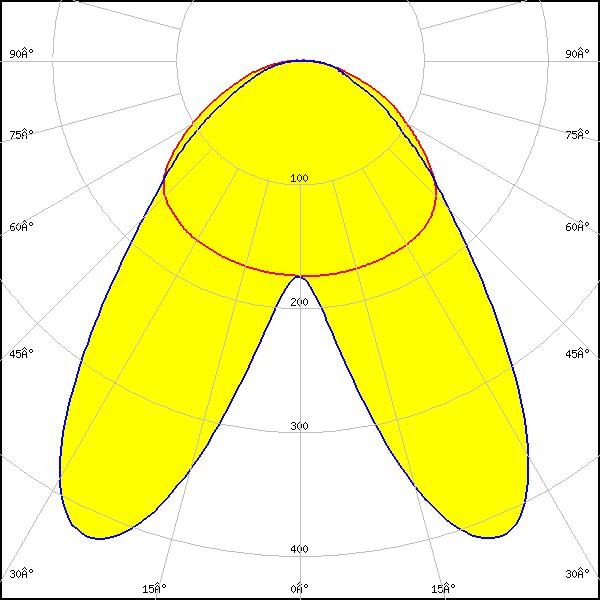

    LED: LLE 24x280mm 1250lm HV ADV5
    FWHM: asymmetric
    Peak intensity: 0.422 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

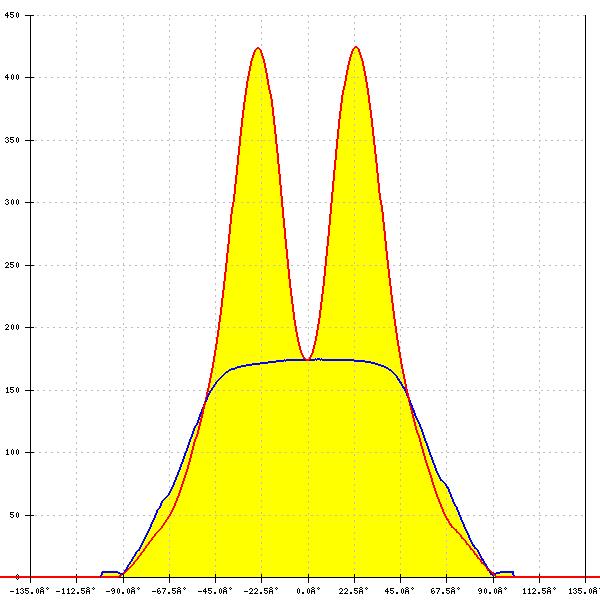

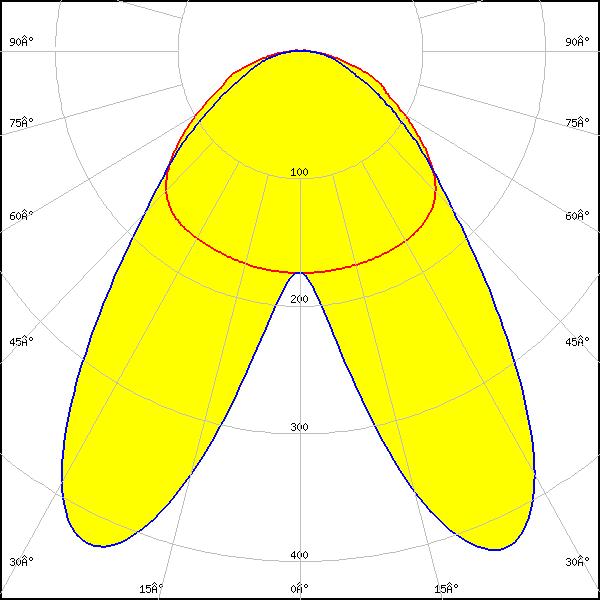

    LED: LLE 24x280mm 650lm HV ADV5
    FWHM: asymmetric
    Peak intensity: 0.425 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LLE FLEX CC 14mm 1250lm ADV1
    FWHM: asymmetric
    Peak intensity: 0.448 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
