    F16365_BARBARA-G2-W

    Print

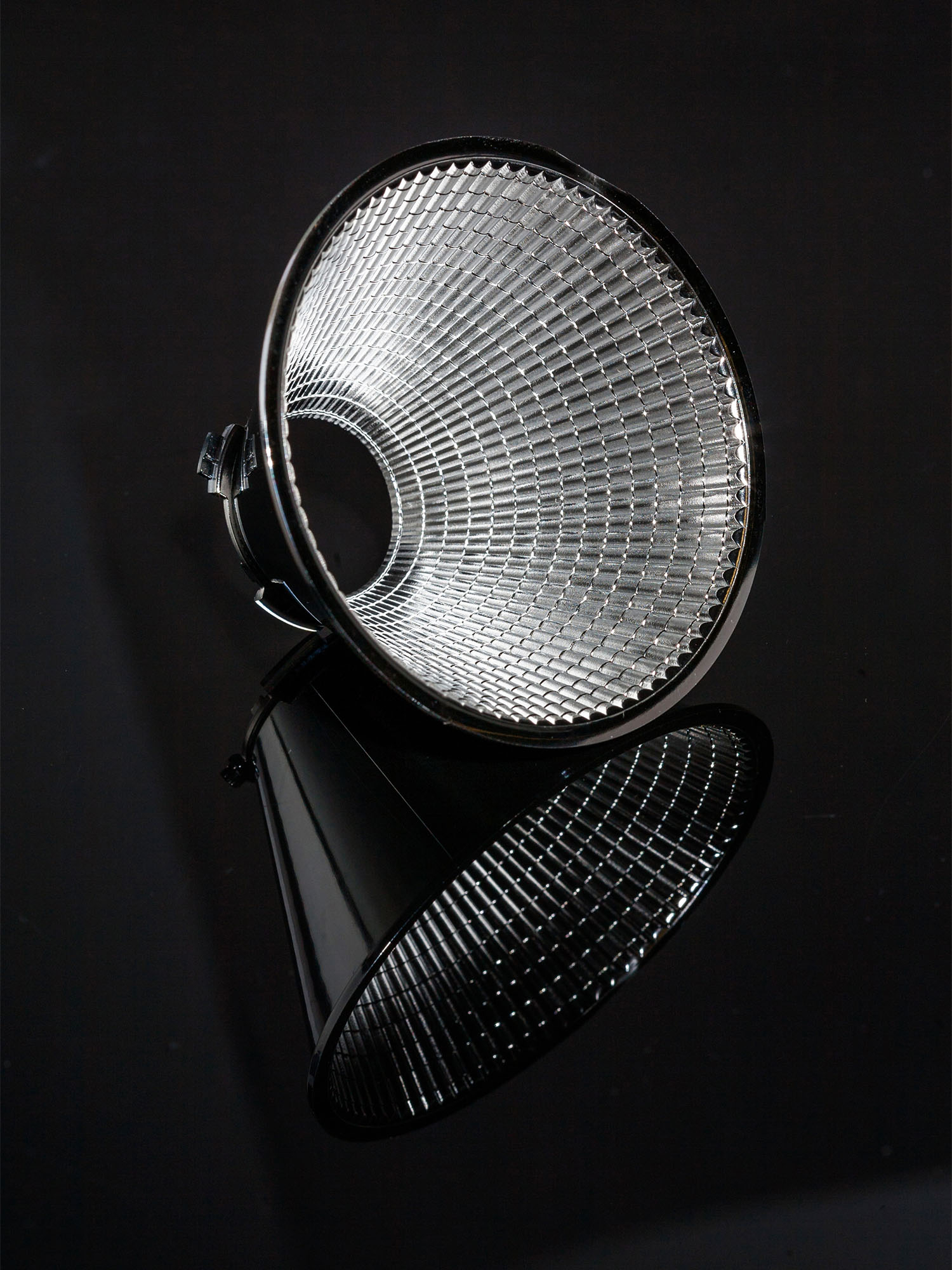

    ~40° wide beam compatible with LEDiL HEKLA

    Specification
    • Dimensions:
      70 mm
    • Height:
      41.90 mm
    • Fastening:
      socket
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      252 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      4.8 kg
    • MPQ:
      18 pcs
    • MOQ:
      90 pcs
    • MOQ size:
      480 x 280 x 140 mm
    • MOQ weight:
      1.6 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F16365_BARBARA-G2-W
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR162 - Changes in product mechanics

    Compatibility guide

    LEDiL connector and socket compatibility

    Application guide

    LEDiL guide for retail lighting optics

    Compatible product

    B+W 630 Hekla datasheet

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    Application guide

    Tunable white with BARBARA-G2 reflectors

    News

    NEW PRODUCTS - 2018-09-13

    Case story

    Platek floodlight

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    BARBARA-RZ-LENS

    Colour mixing sublens for BARBARA-PF, BARBARA-G2 and BROOKE-G2

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    XTM-ADAPTER-50-B

    ∅50 mm basepart for Xicato XTM/XIM modules compatible with HEKLA (∅30 mm) and B-type reflectors (∅50 mm) interfaces.

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    BARBARA-RZ-LENS2

    Colour mixing sublens for BARBARA-G2 and BROOKE-G2. Compatible with HEKLA-G2 connectors.

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

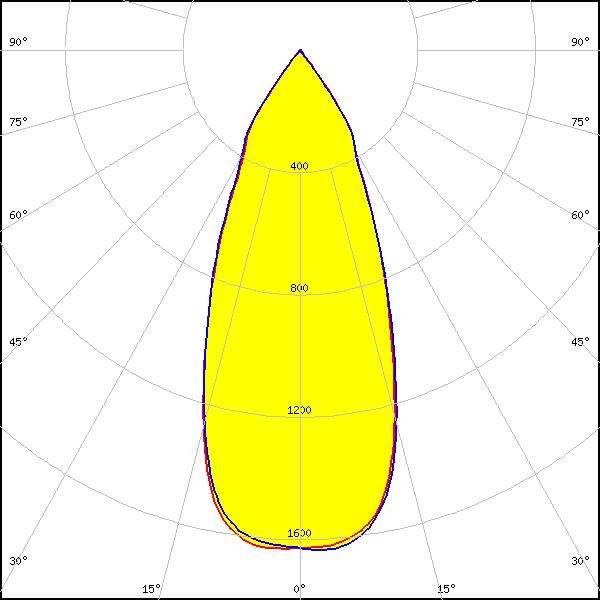

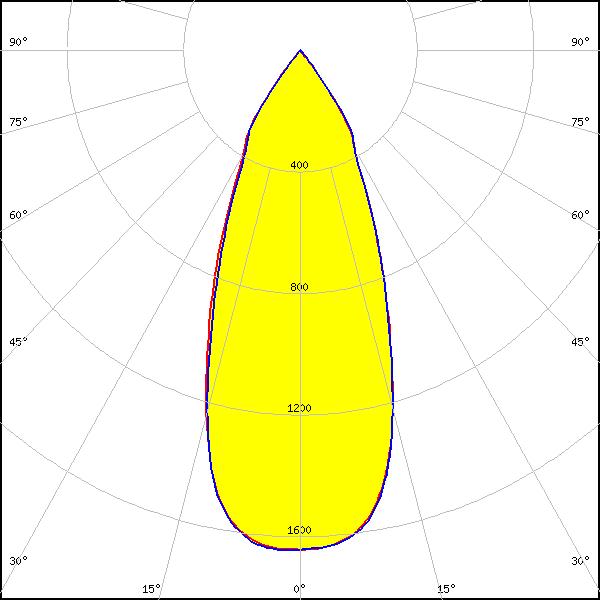

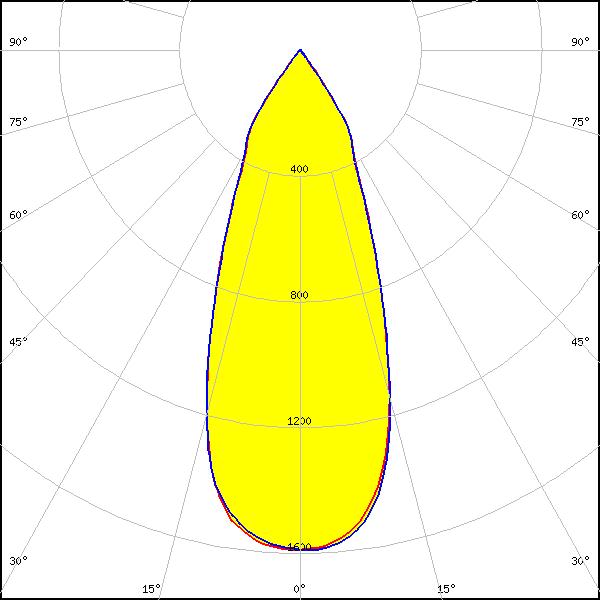

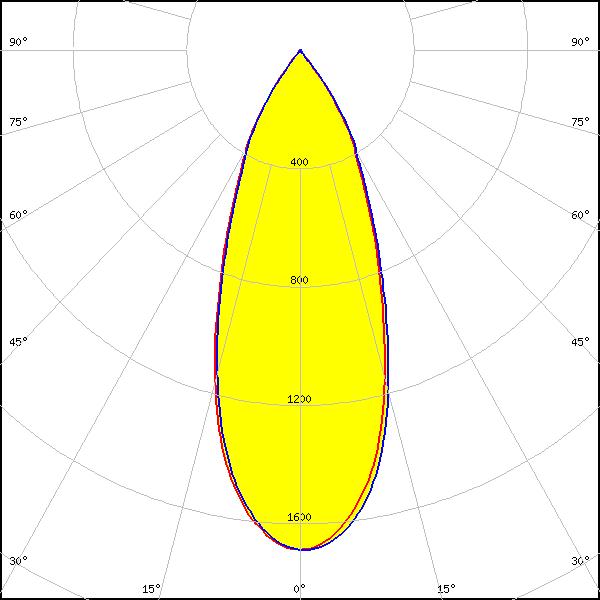

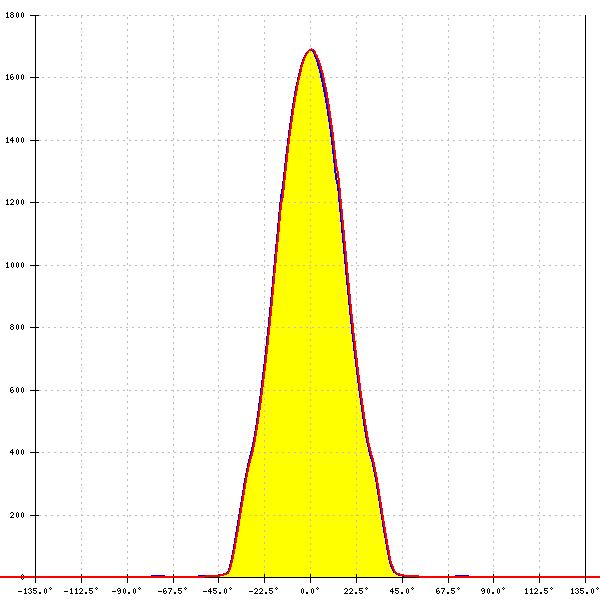

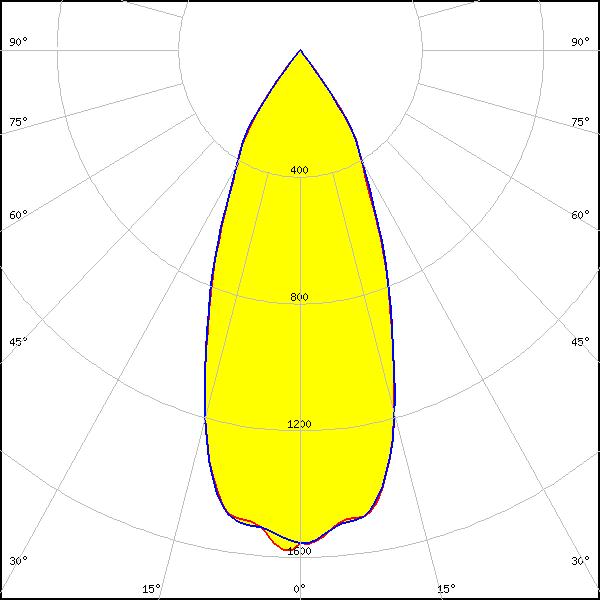

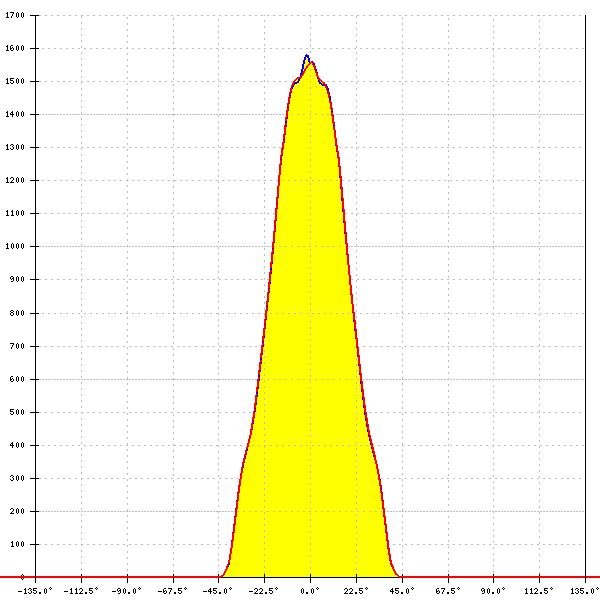

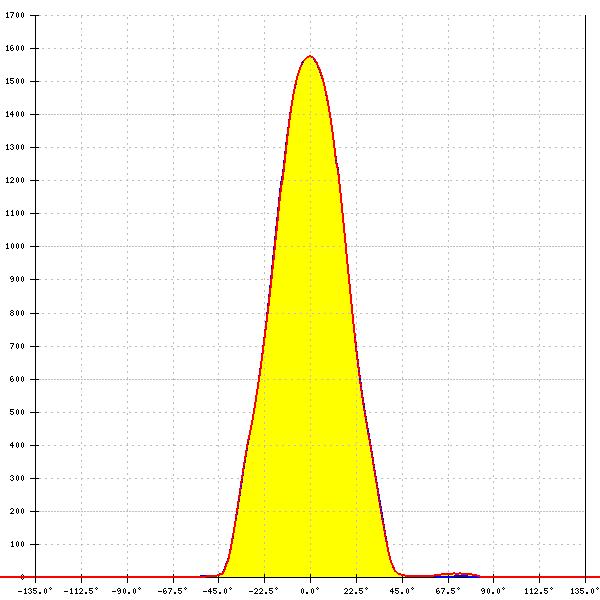

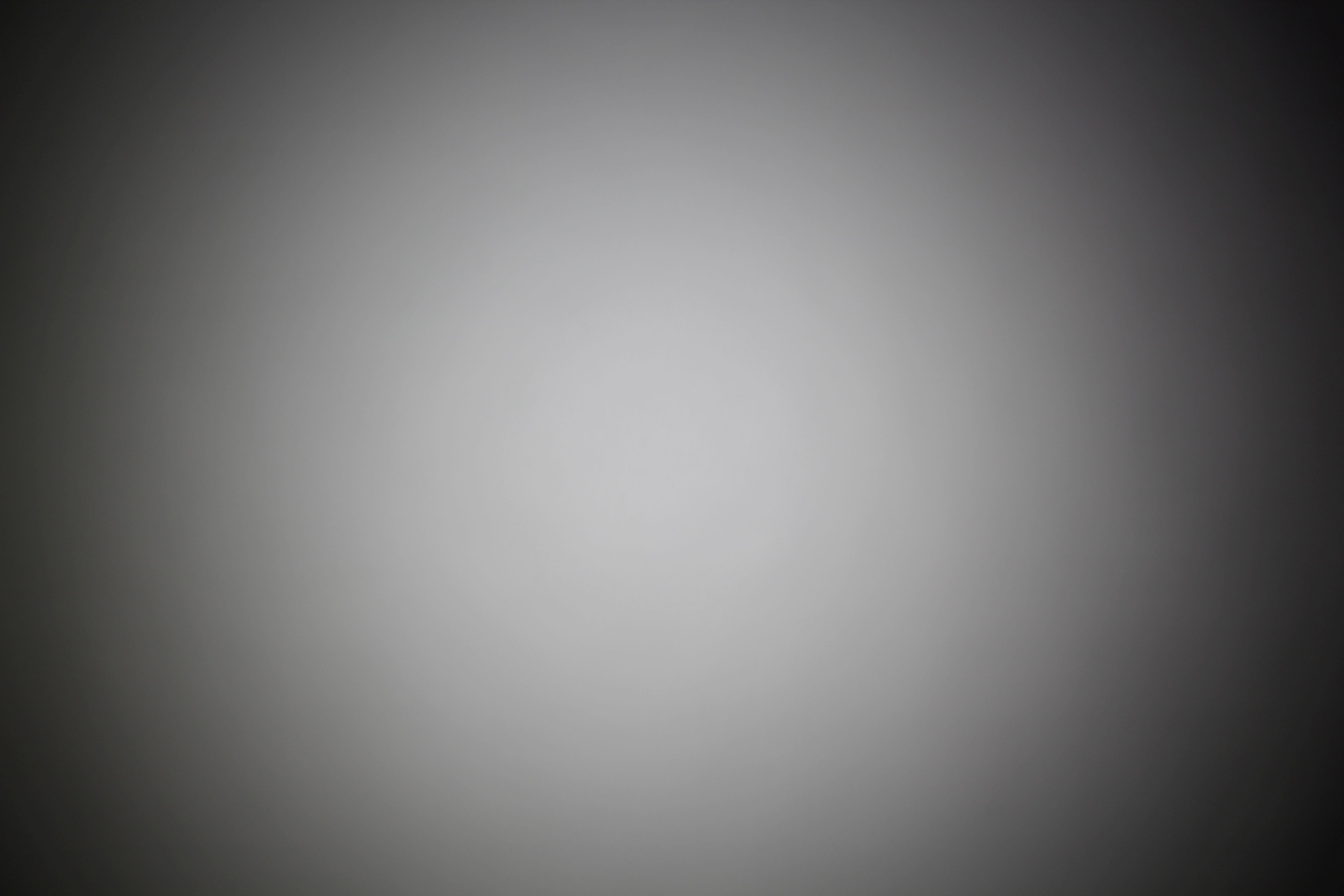

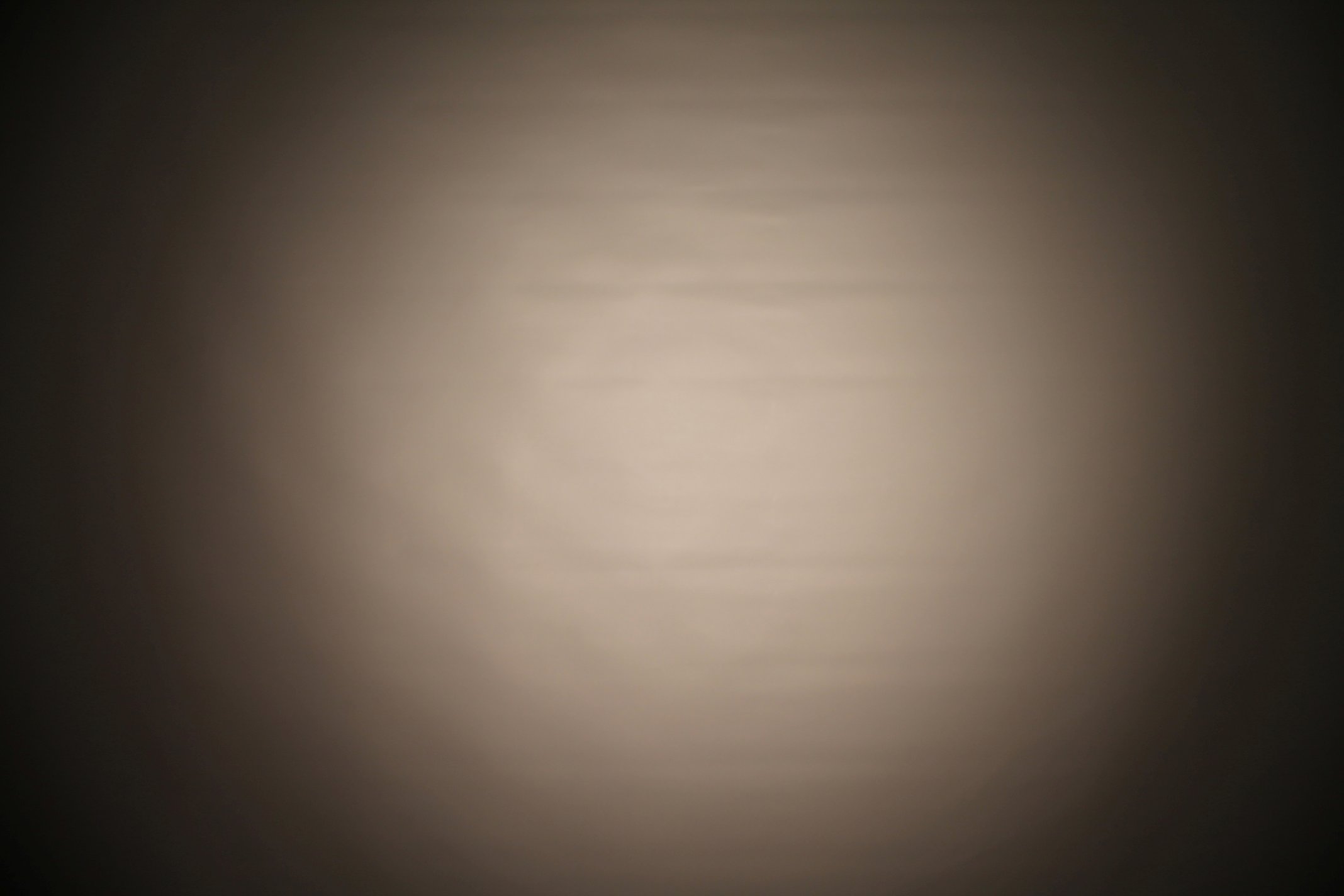

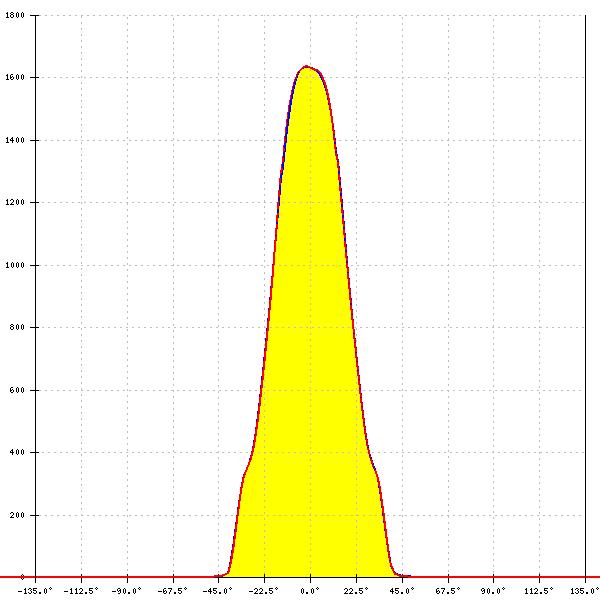

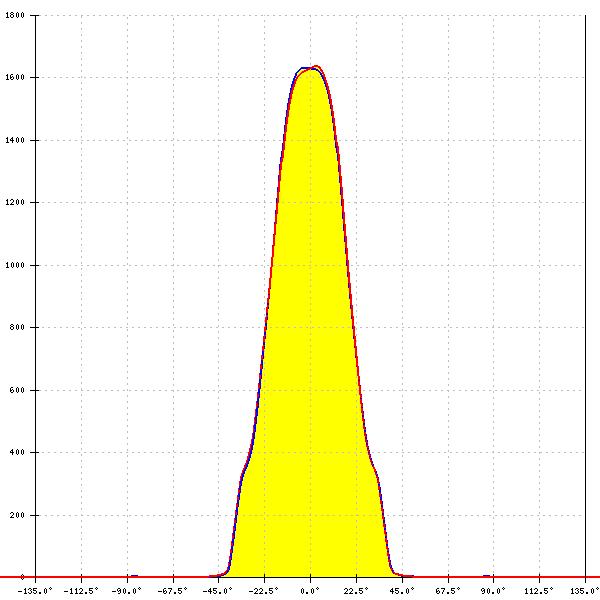

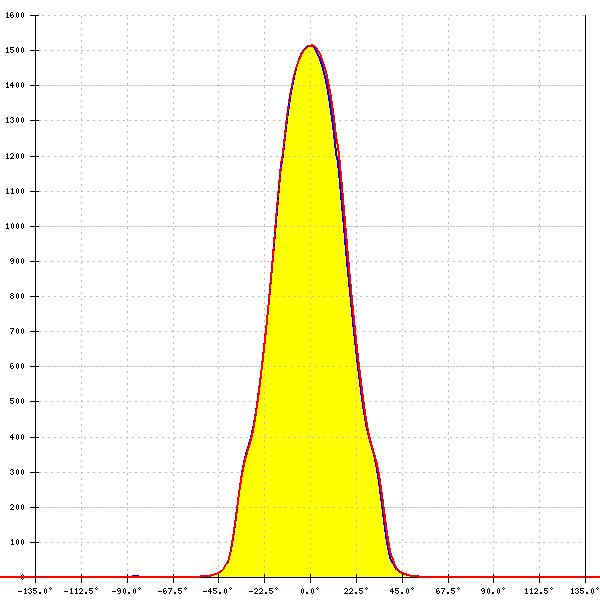

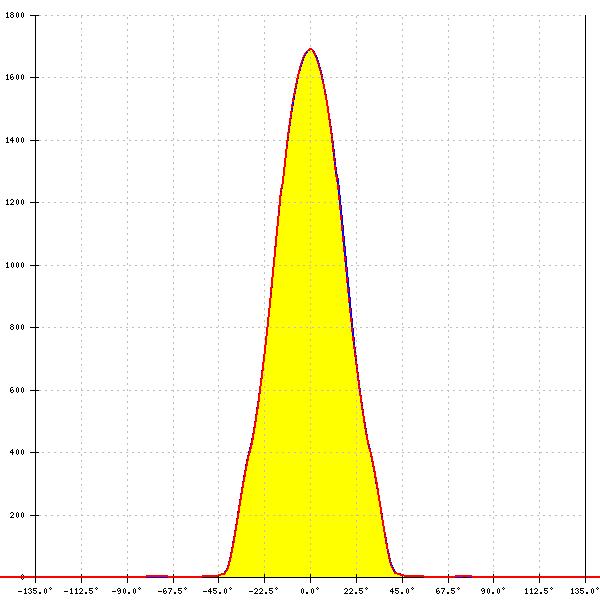

    Optical results

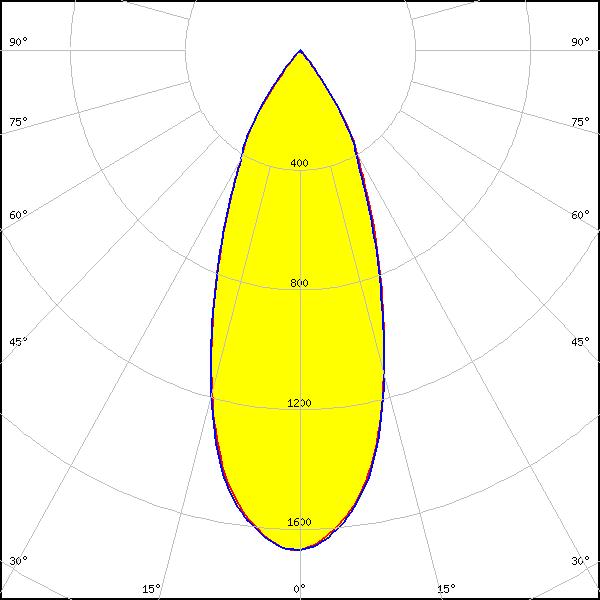

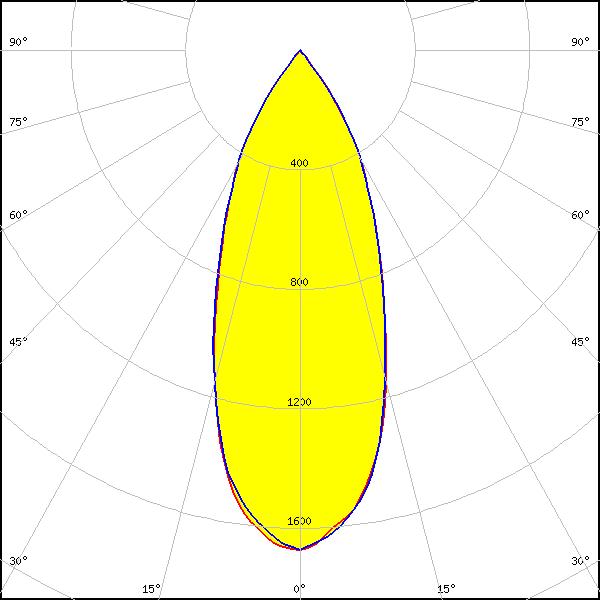

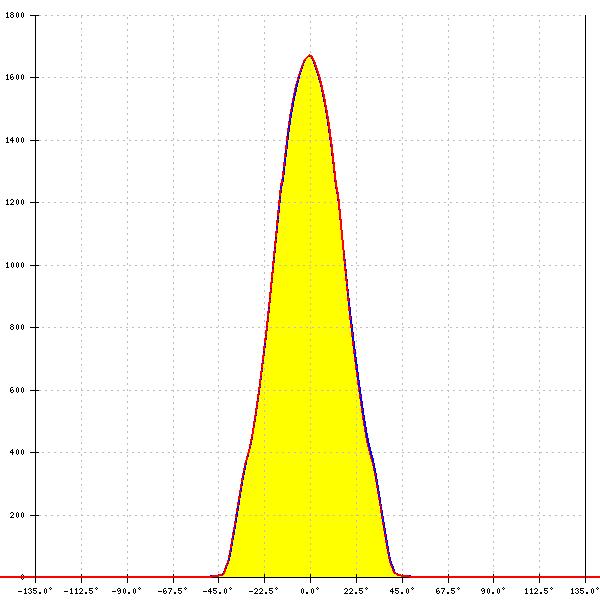

    LED: V13 Gen 8-9
    LES size: 14.8 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 40°
    FWTM: 74°
    Peak intensity: 1.684 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

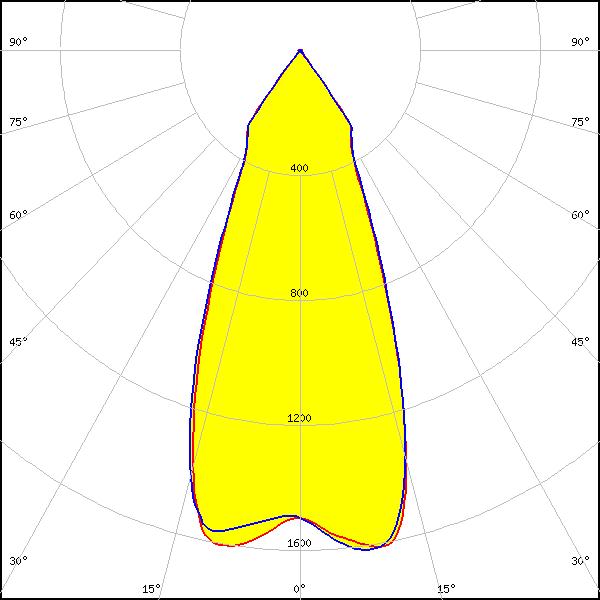

    LED: V4 HD Gen 7
    LES size: 5.2 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 43°
    FWTM: 74°
    Peak intensity: 1.630 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

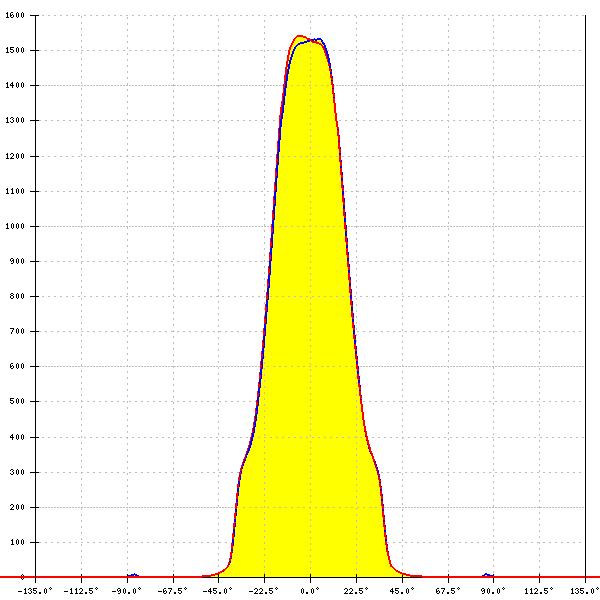

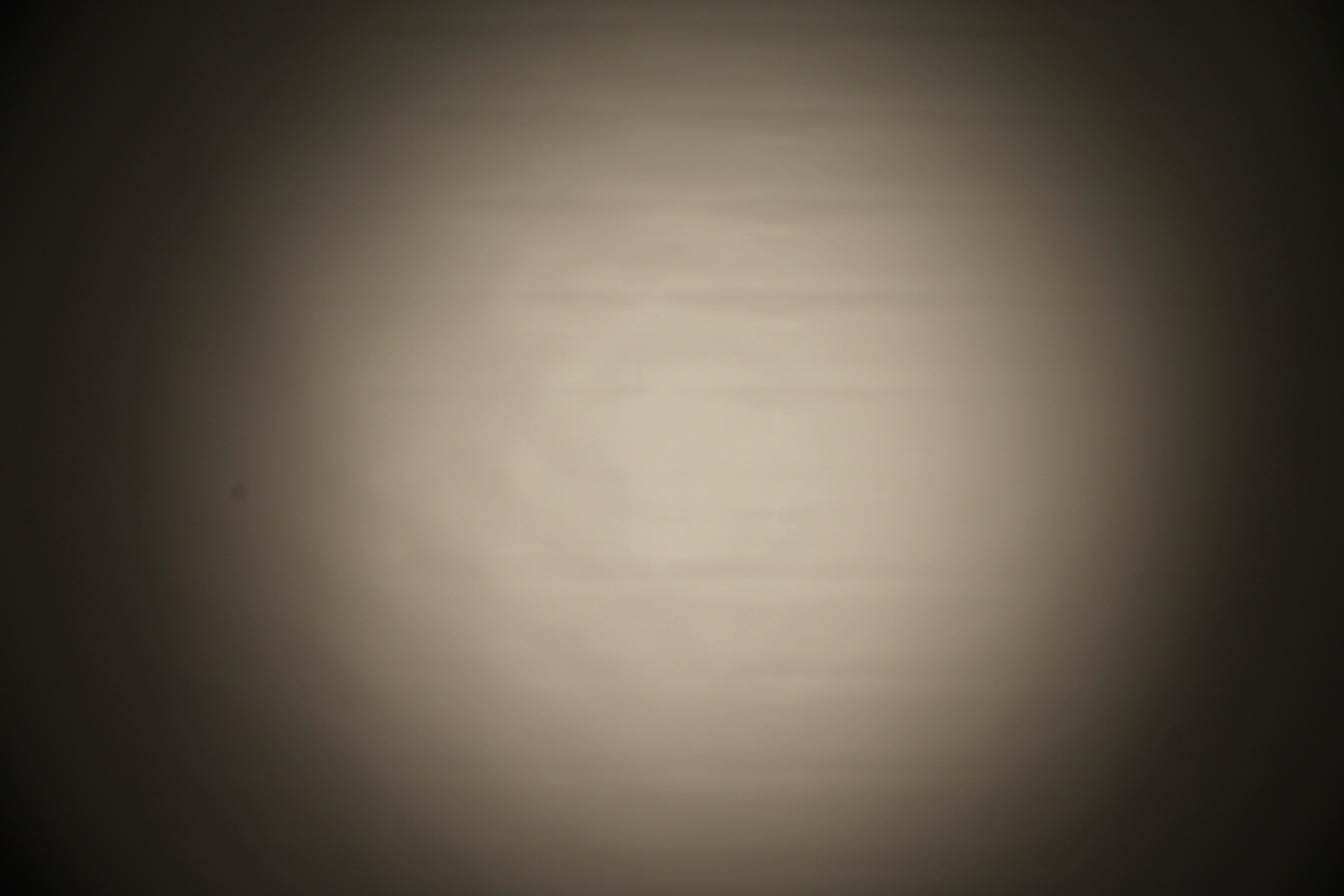

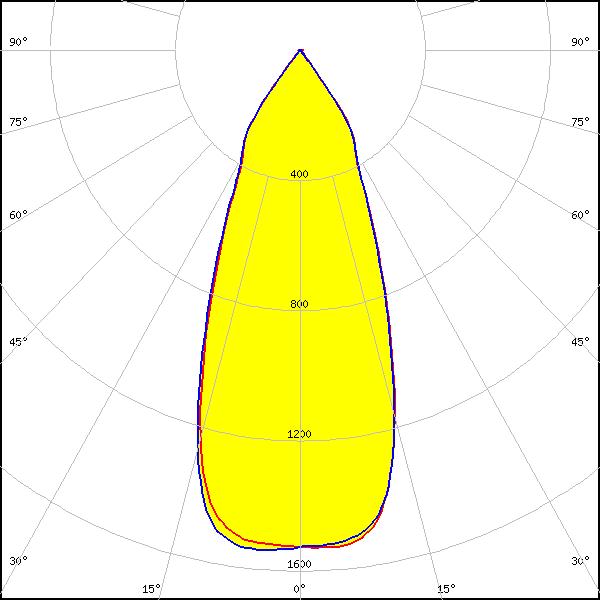

    LED: V4 HD Gen 7
    LES size: 5.2 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    C14658_BARBARA-RZ-LENS
    FWHM: 42°
    FWTM: 74°
    Peak intensity: 1.540 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

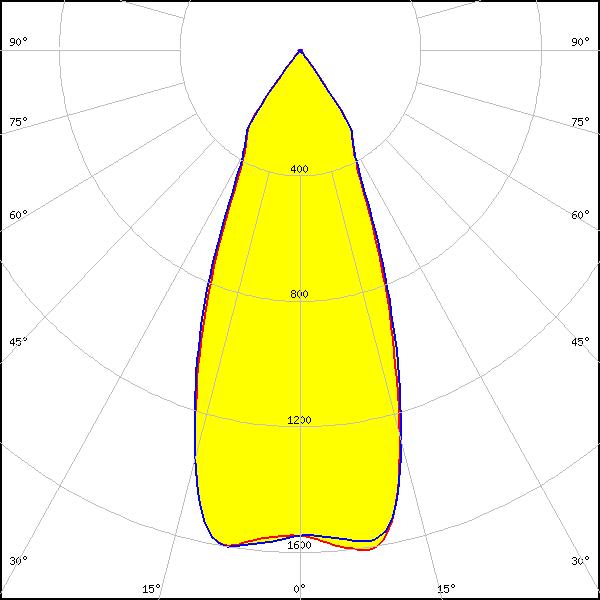

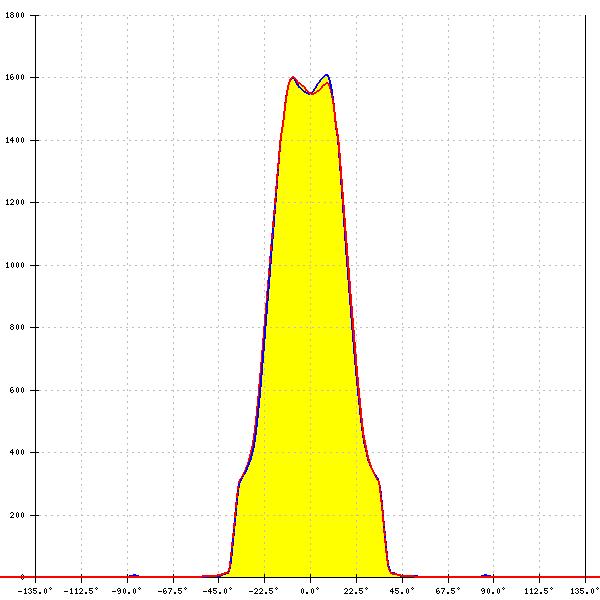

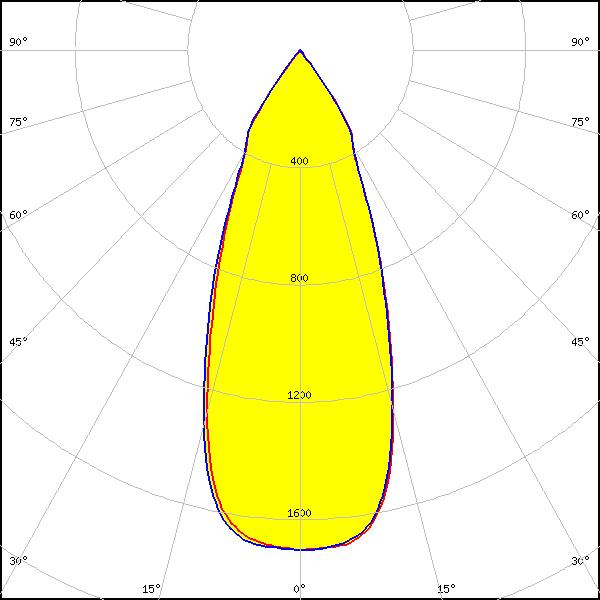

    LED: V6 HD Gen 7
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 42°
    FWTM: 74°
    Peak intensity: 1.600 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

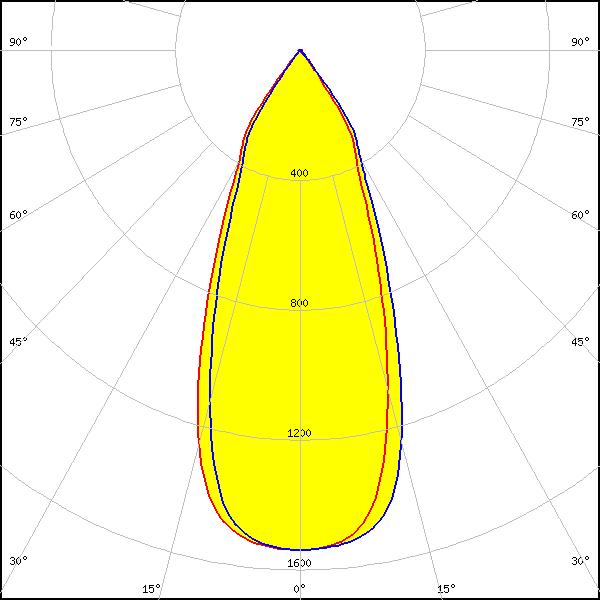

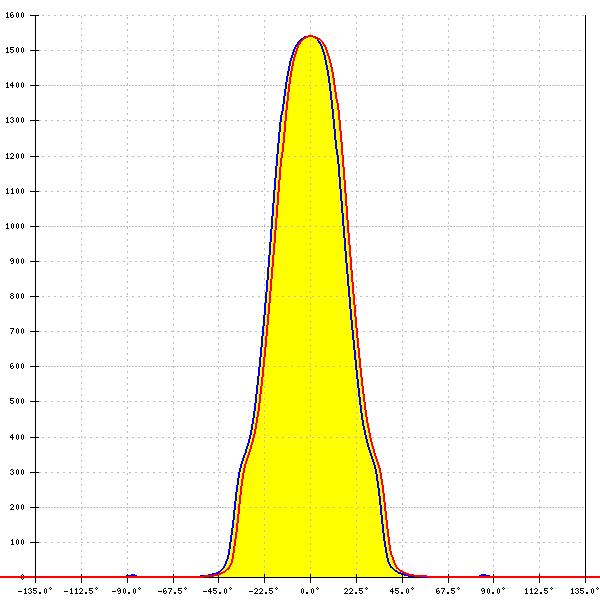

    LED: V6 HD Gen 7
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    C14658_BARBARA-RZ-LENS
    FWHM: 42°
    FWTM: 74°
    Peak intensity: 1.540 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

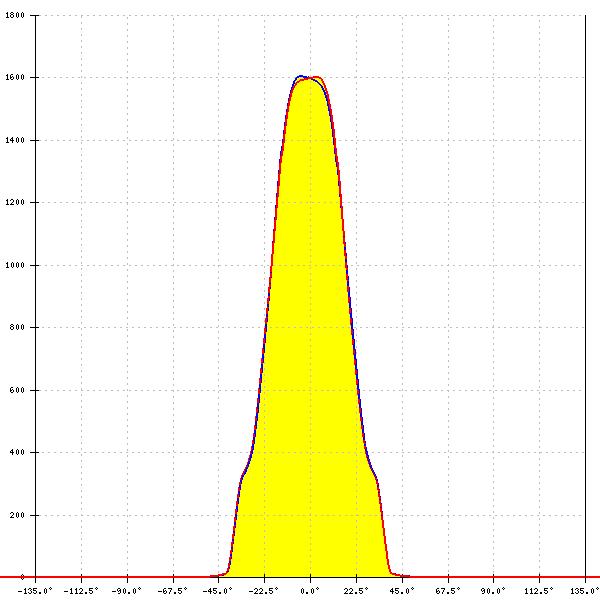

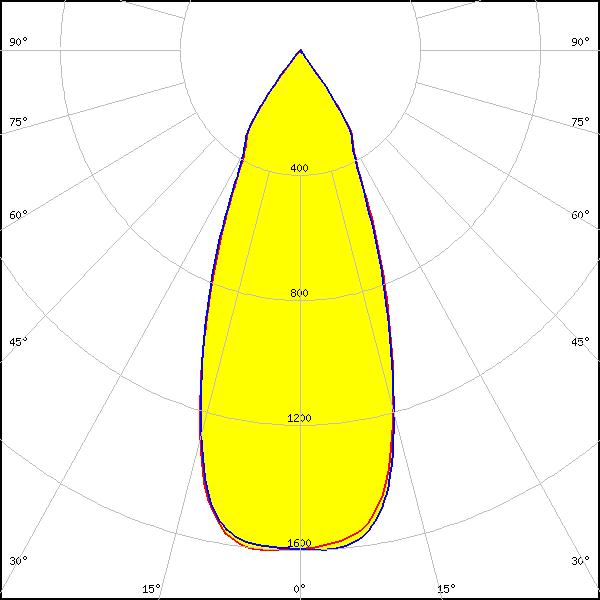

    LED: V9 HD Gen7
    LES size: 9.2 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 42°
    FWTM: 73°
    Peak intensity: 1.606 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

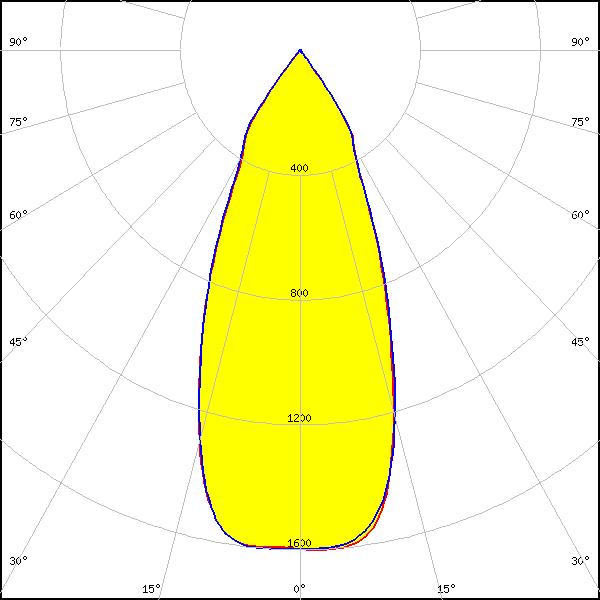

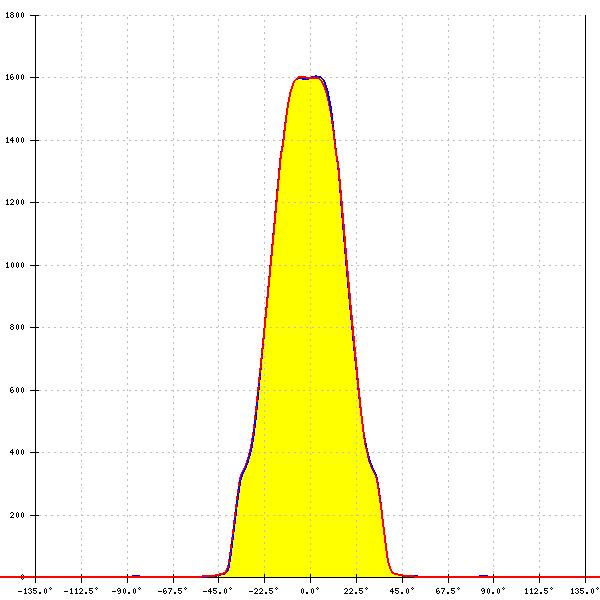

    LED: V9 HD Gen7
    LES size: 9.2 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 43°
    FWTM: 74°
    Peak intensity: 1.600 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

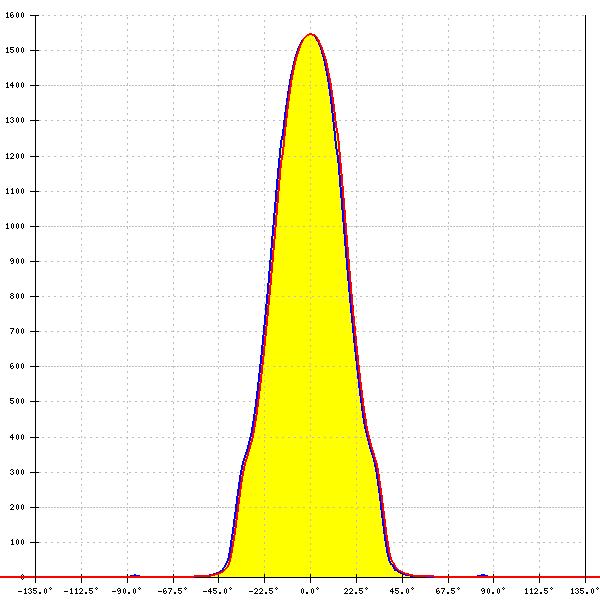

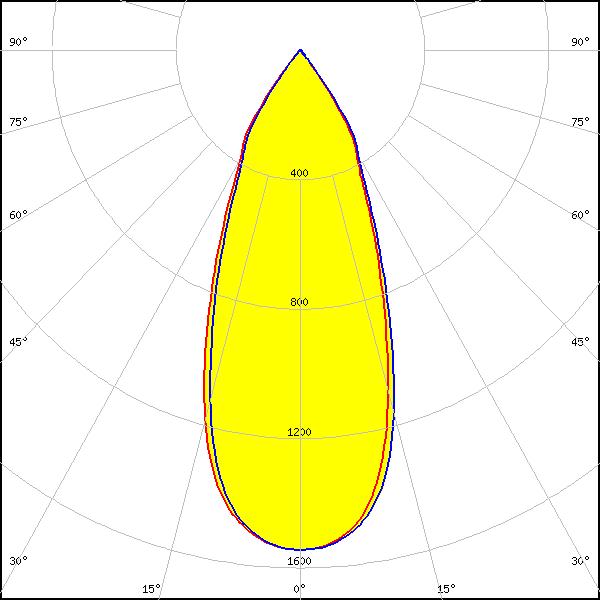

    LED: V9 HD Gen7
    LES size: 9.2 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    C14658_BARBARA-RZ-LENS
    FWHM: 41°
    FWTM: 74°
    Peak intensity: 1.550 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

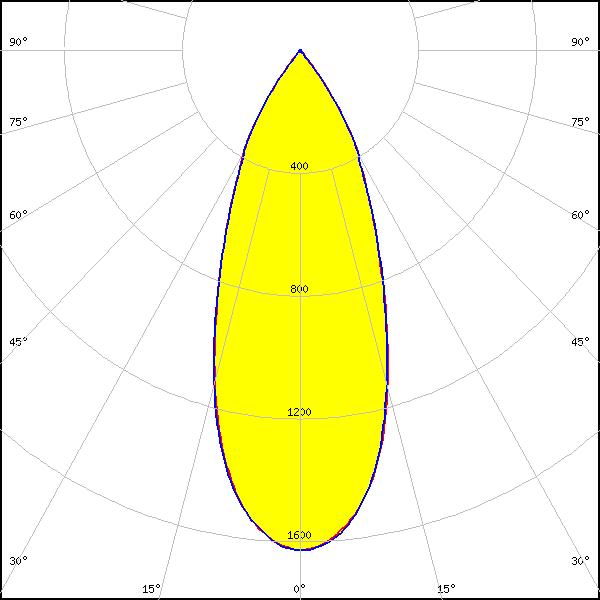

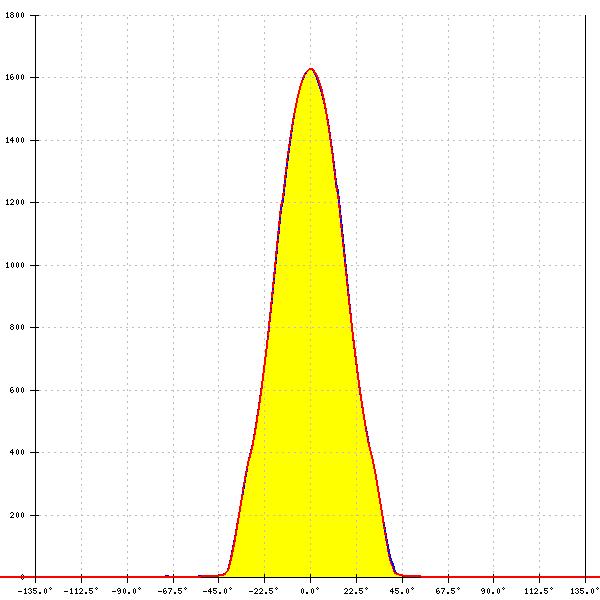

    LED: Vesta DTW 13mm (21W)
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 491 Typ L8
    FWHM: 41°
    FWTM: 73°
    Peak intensity: 1.628 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

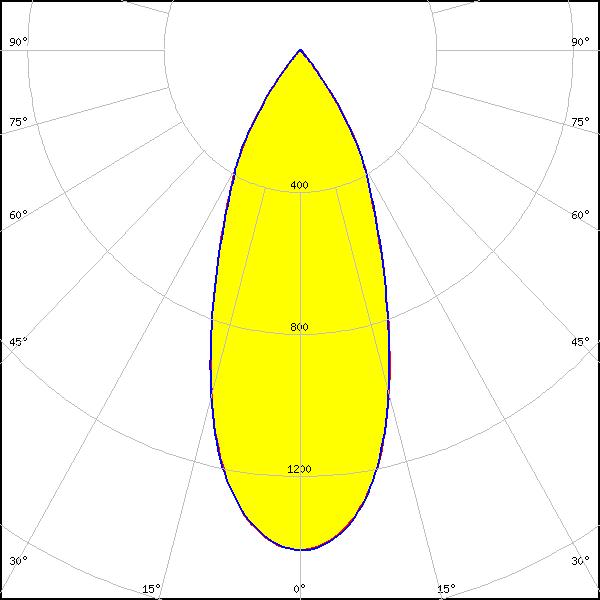

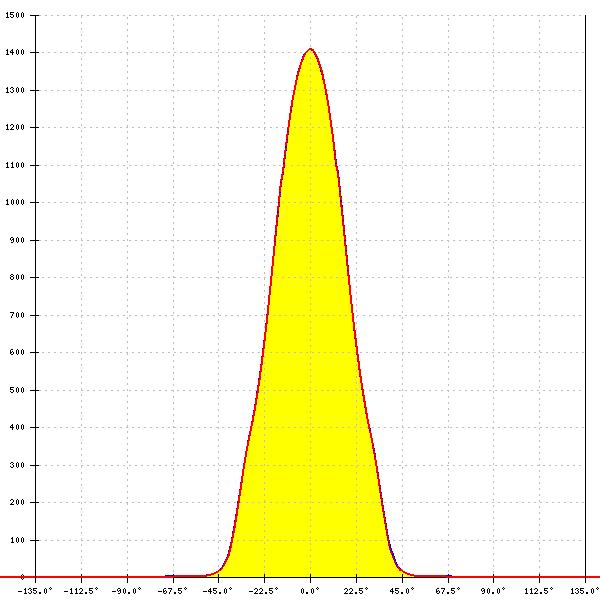

    LED: Vesta DTW 13mm (21W)
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 491 Typ L8
    C14658_BARBARA-RZ-LENS
    FWHM: 42°
    FWTM: 75°
    Peak intensity: 1.409 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

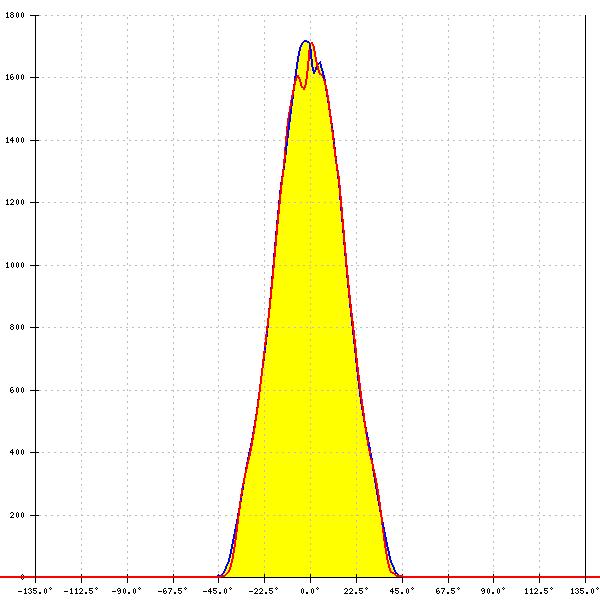

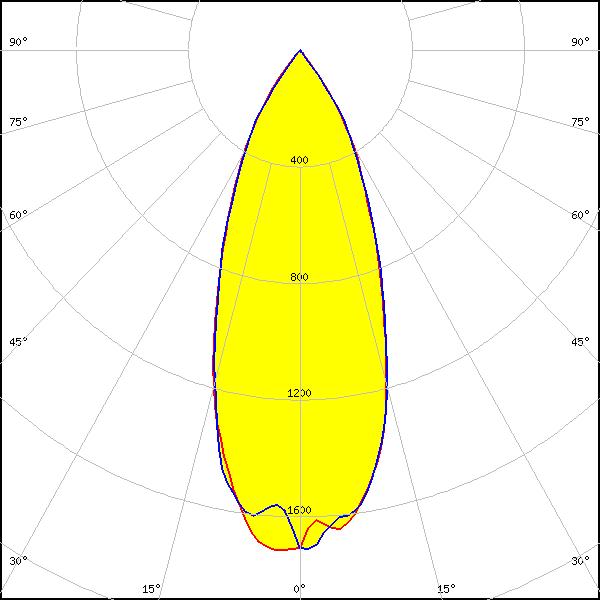

    LED: Vesta DTW 15mm (33W)
    LES size: 16.2 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 491 Typ L8
    FWHM: 40°
    FWTM: 72°
    Peak intensity: 1.745 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 6mm DP
    LES size: 6.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 504 Typ L8
    FWHM: 41°
    FWTM: 73°
    Peak intensity: 1.605 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 6mm DP
    LES size: 6.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 504 Typ L8
    C14658_BARBARA-RZ-LENS
    FWHM: 41°
    FWTM: 73°
    Peak intensity: 1.471 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

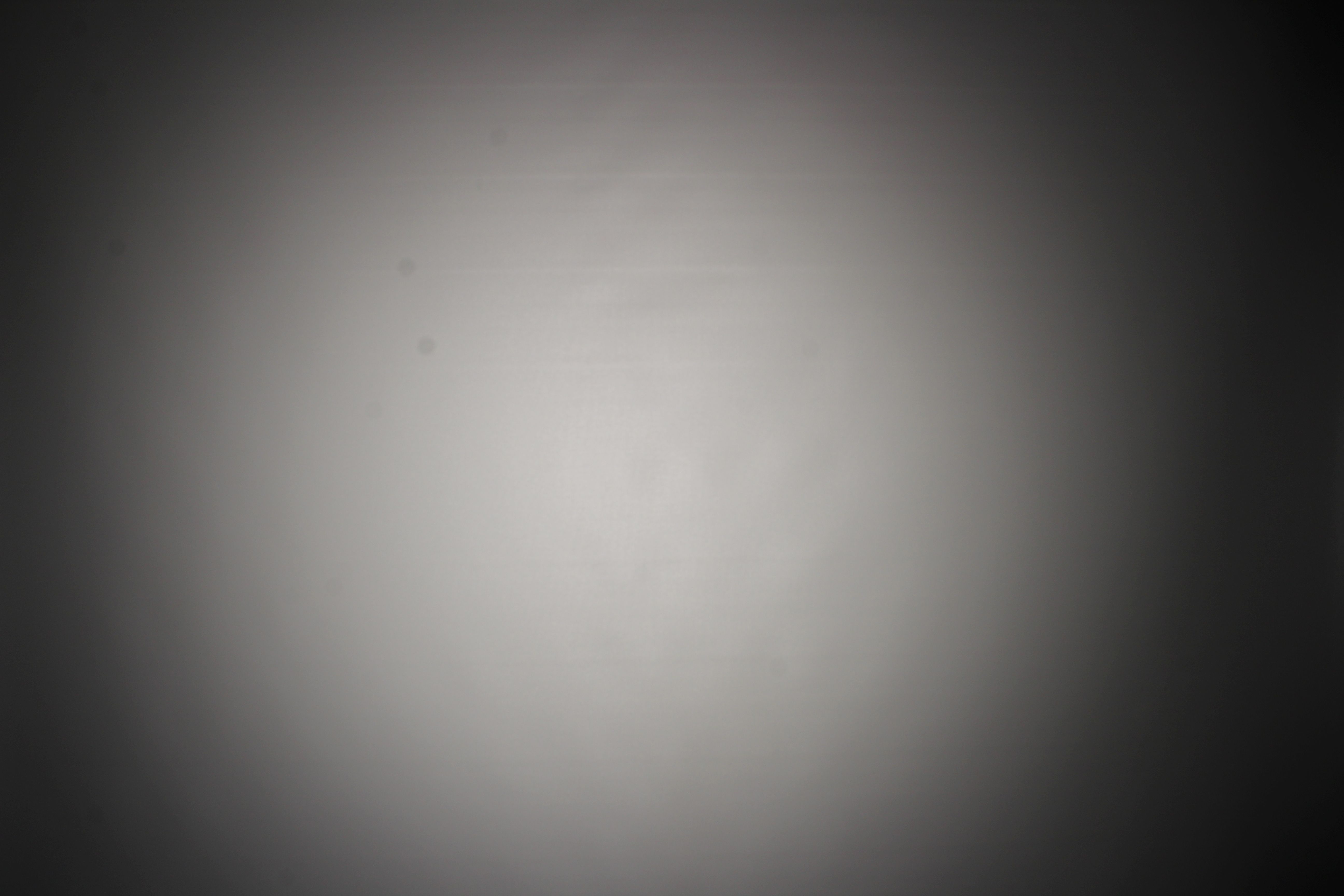

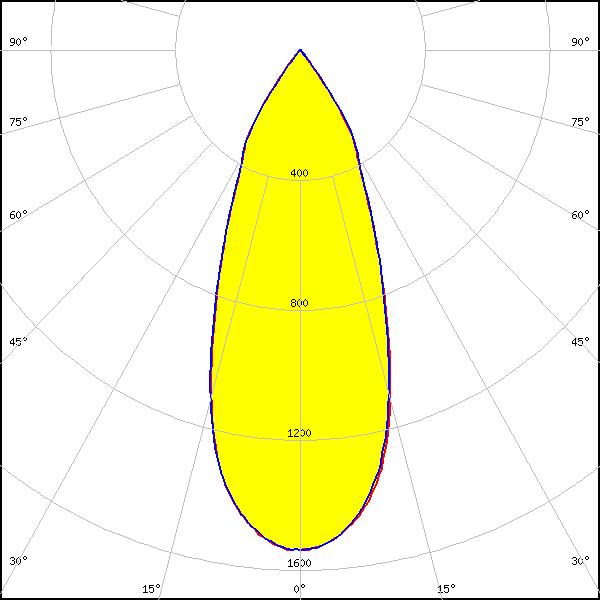

    LED: Vesta TW 9mm (12W) CSP
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    C14658_BARBARA-RZ-LENS
    FWHM: 40°
    FWTM: 73°
    Peak intensity: 1.500 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

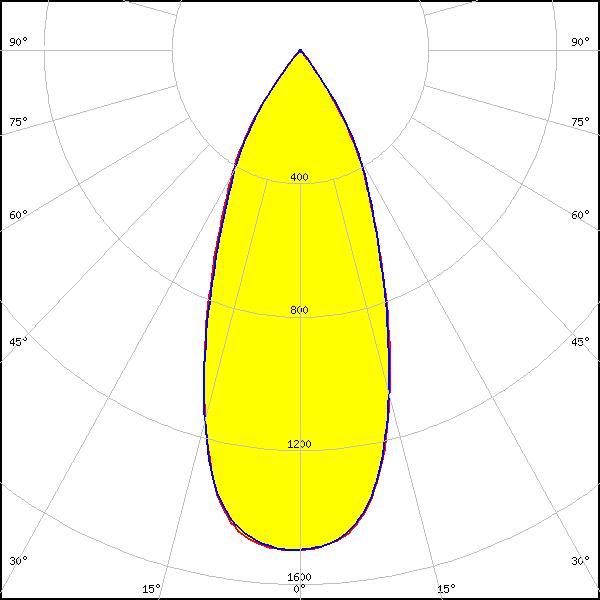

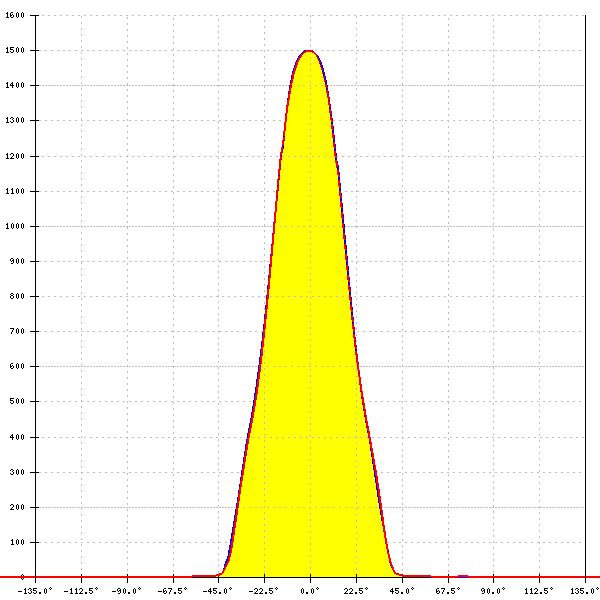

    LED: CLC030 Series (Dim-To-Warm)
    LES size: 15.2 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 436 Typ L8
    FWHM: 42°
    FWTM: 73°
    Peak intensity: 1.500 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLC030 Series (Dim-To-Warm)
    LES size: 15.2 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 436 Typ L8
    C14658_BARBARA-RZ-LENS
    FWHM: 43°
    FWTM: 75°
    Peak intensity: 1.332 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

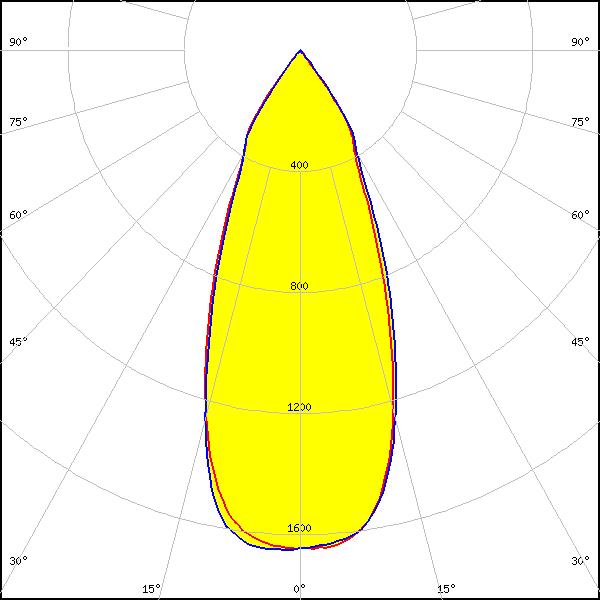

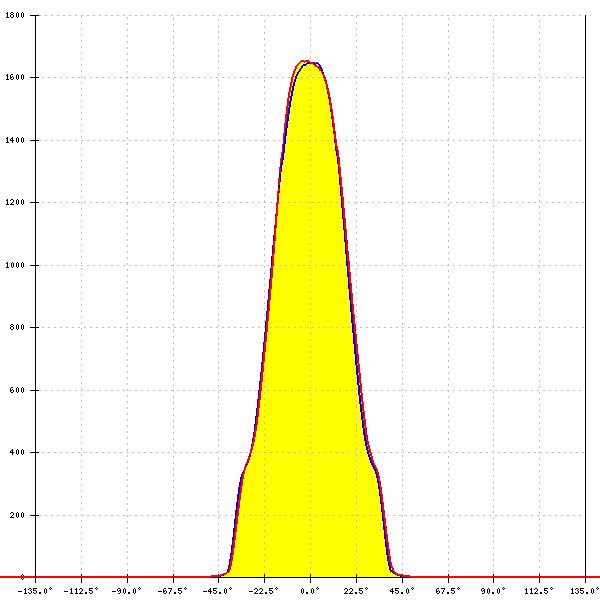

    LED: CLL02x/CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 42°
    FWTM: 74°
    Peak intensity: 1.654 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

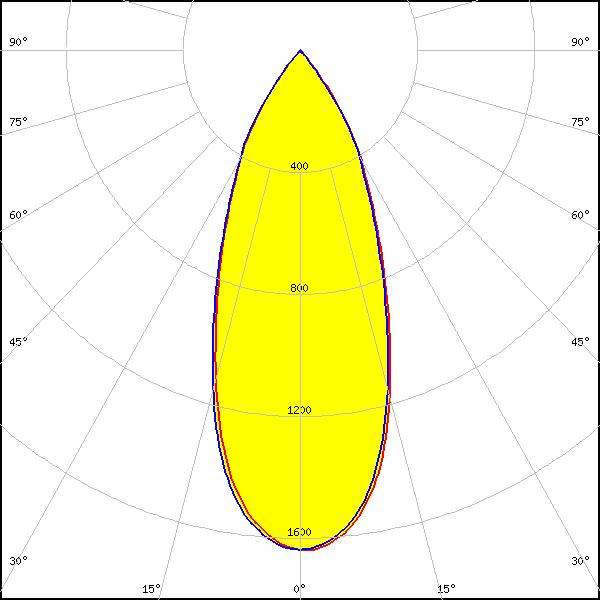

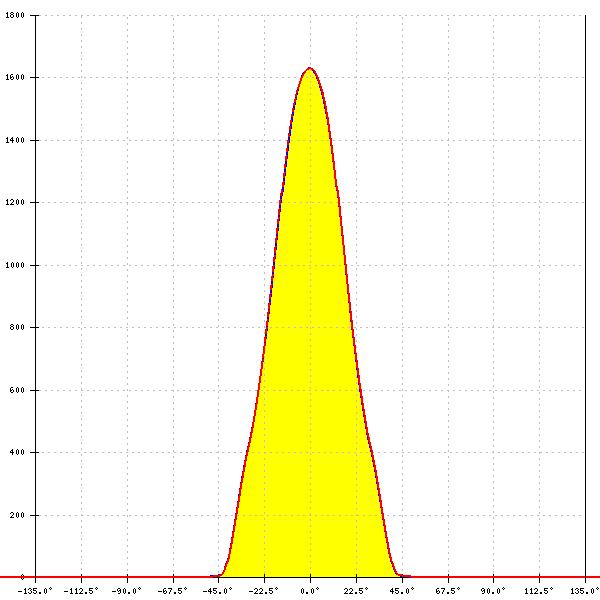

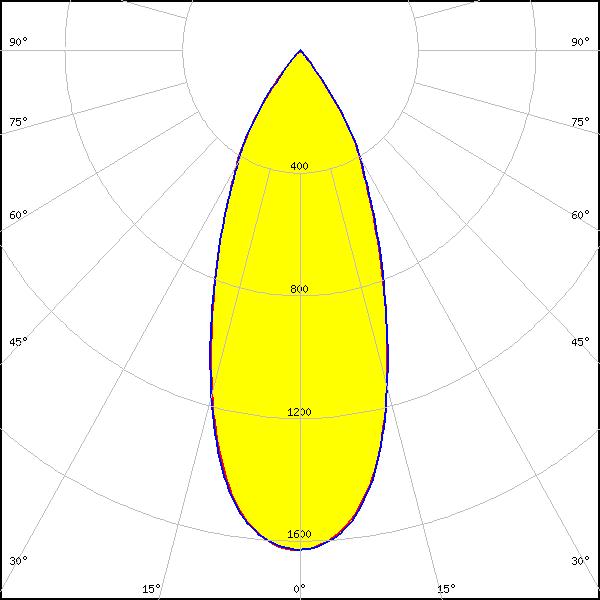

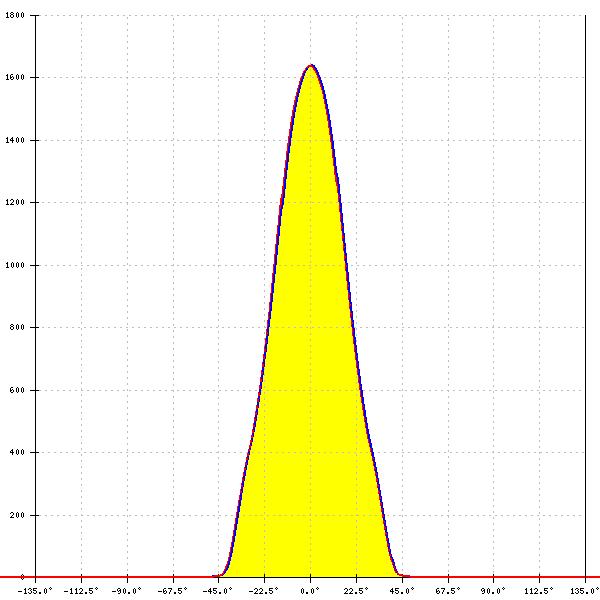

    LED: CLL03x/CLU03x
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 41°
    FWTM: 74°
    Peak intensity: 1.600 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

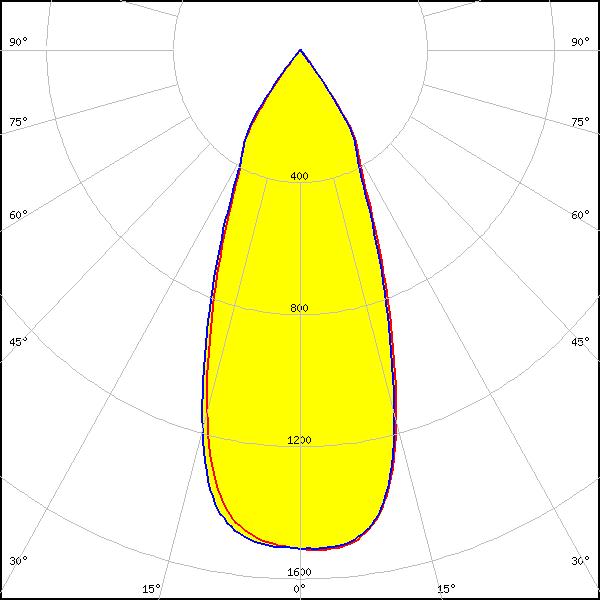

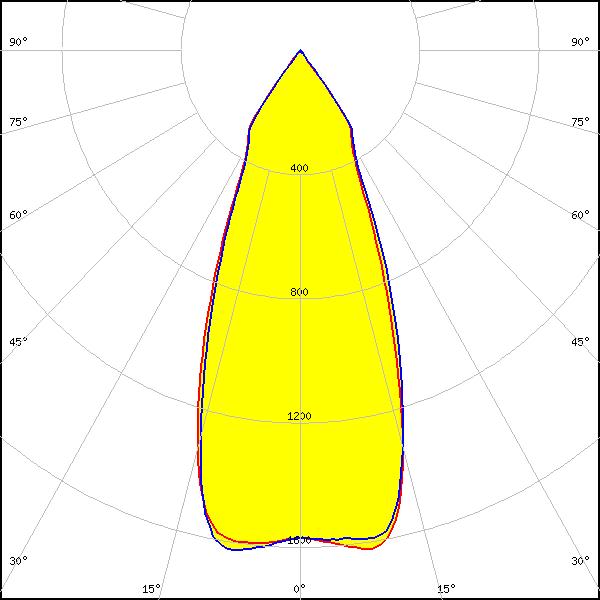

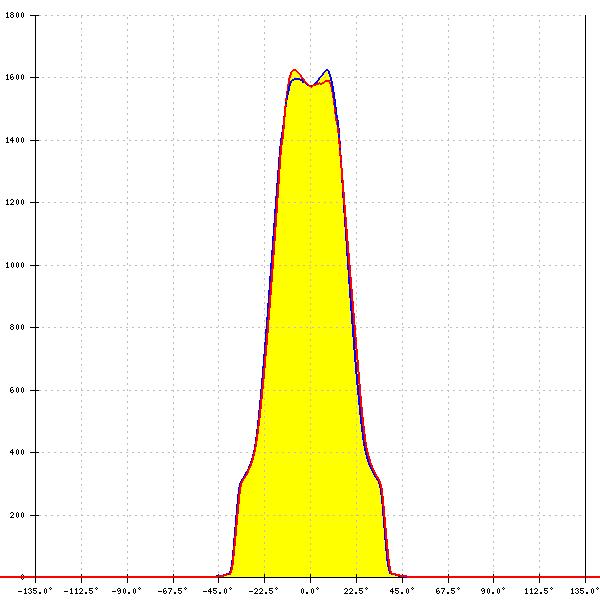

    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 42°
    FWTM: 73°
    Peak intensity: 1.600 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

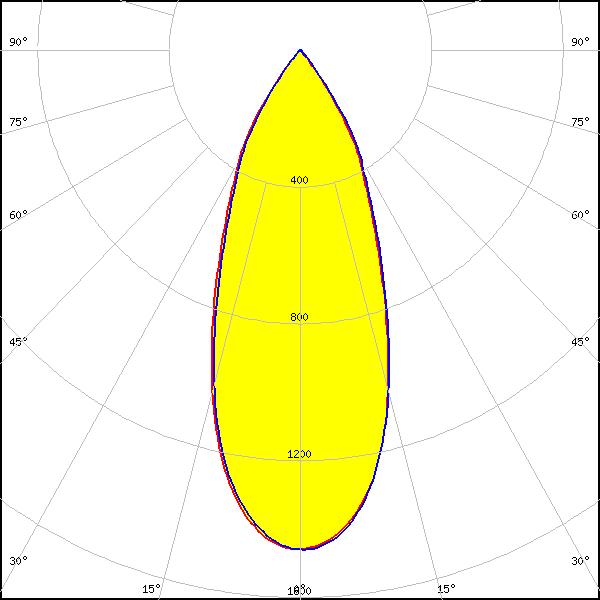

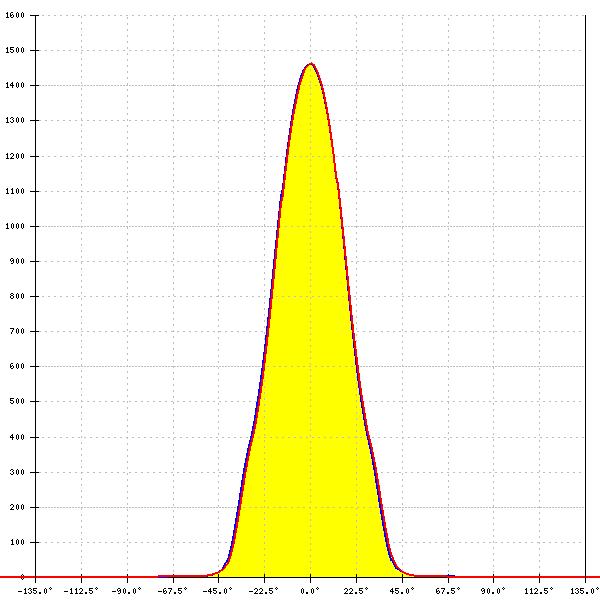

    LED: LCN-C02B (Tunable White)
    LES size: 14.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 481 Typ L8
    C14658_BARBARA-RZ-LENS
    FWHM: 41°
    FWTM: 73°
    Peak intensity: 1.462 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

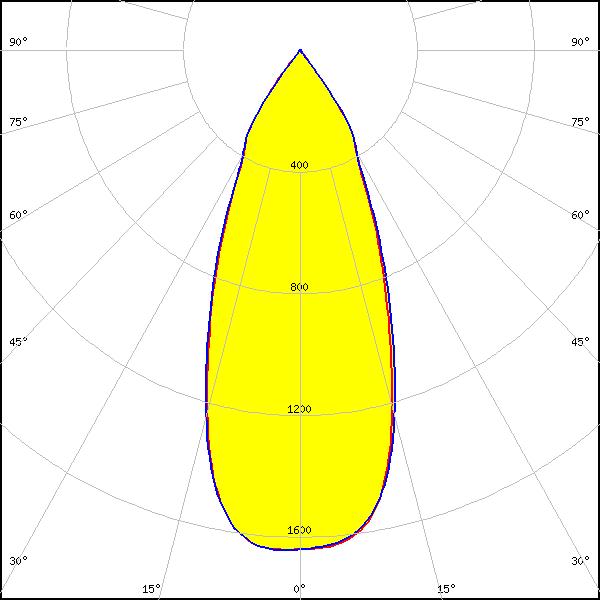

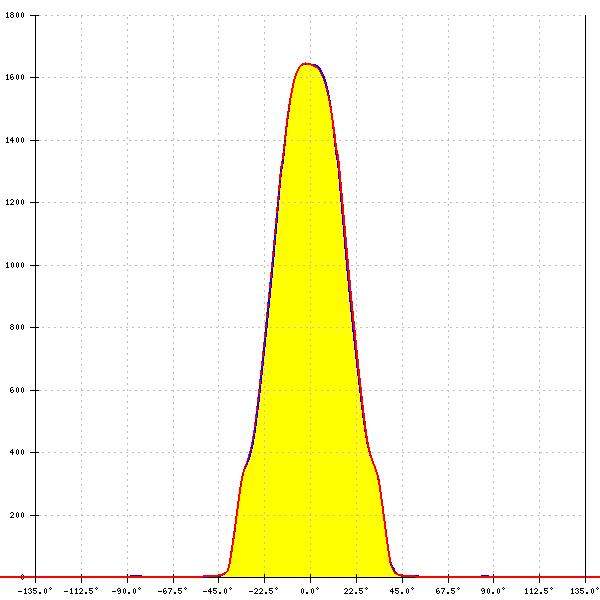

    LED: CMT14xx
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 42°
    FWTM: 74°
    Peak intensity: 1.650 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

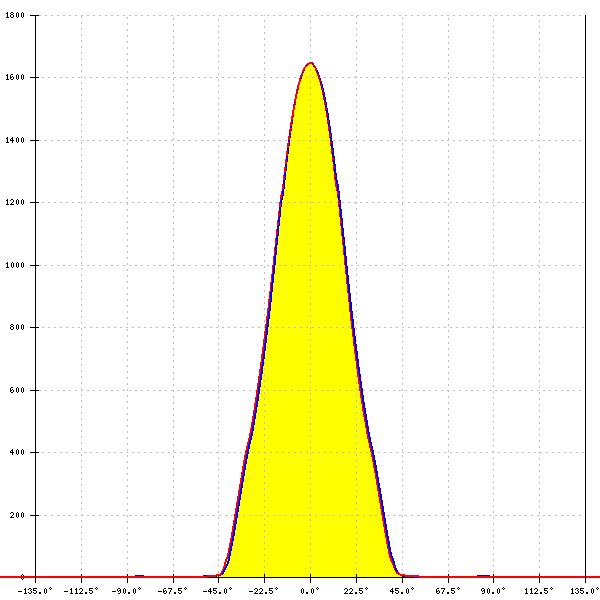

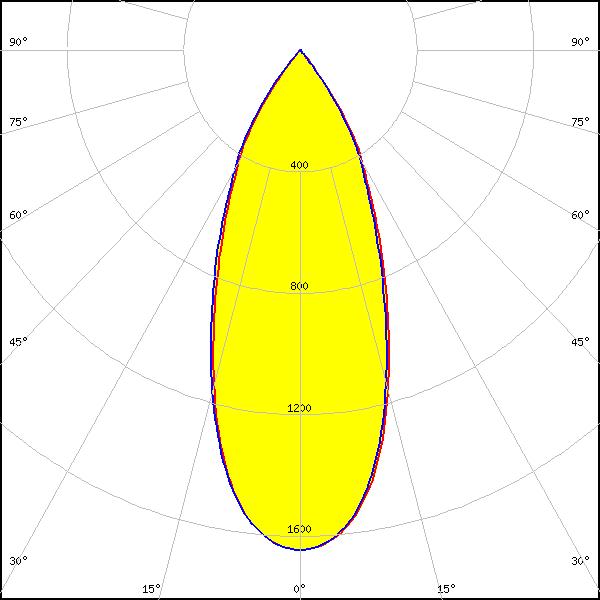

    LED: CMT19xx
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 41°
    FWTM: 74°
    Peak intensity: 1.647 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

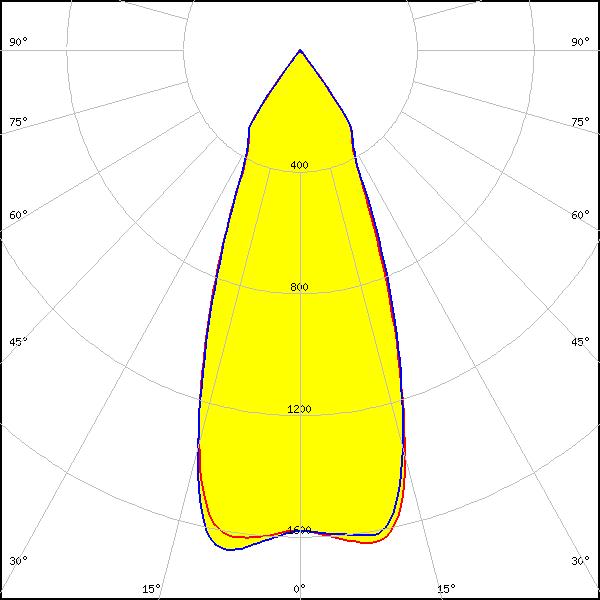

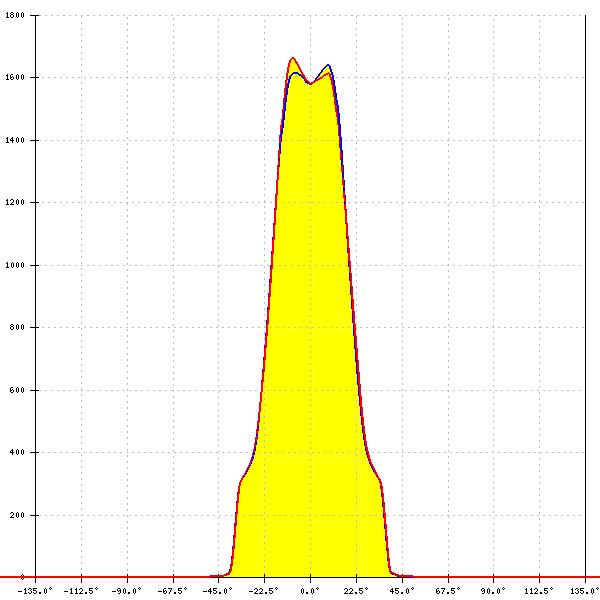

    LED: CXA/B 13xx
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 42°
    FWTM: 74°
    Peak intensity: 1.700 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

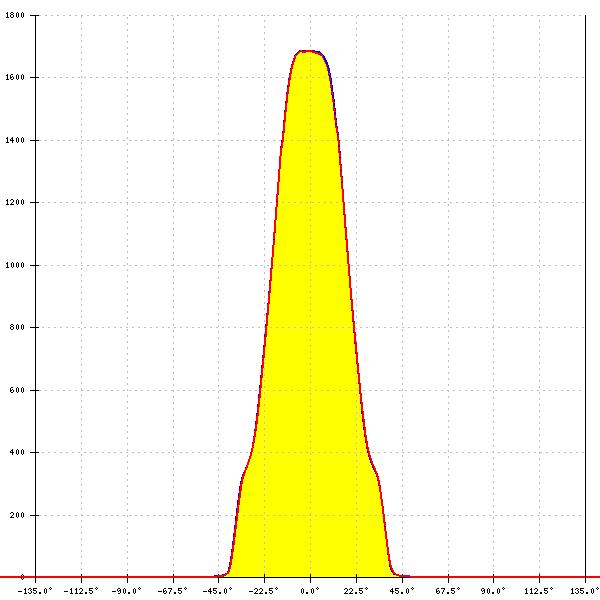

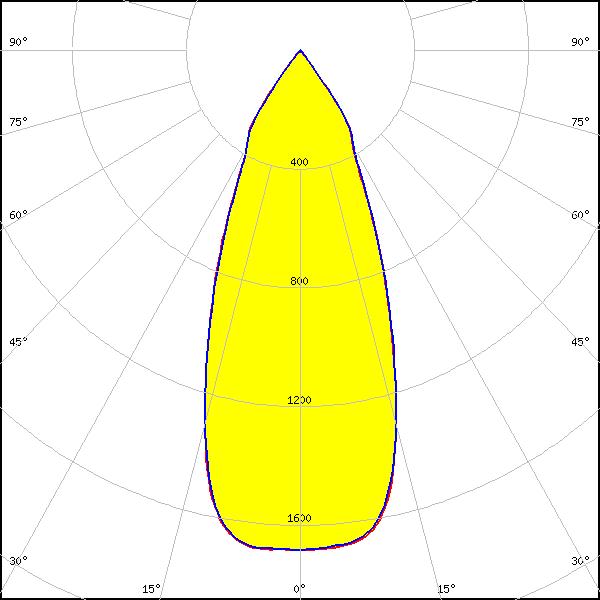

    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 42°
    FWTM: 74°
    Peak intensity: 1.700 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

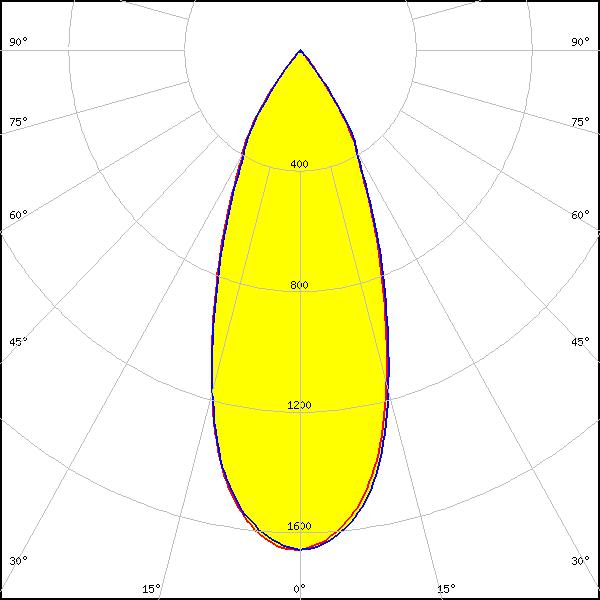

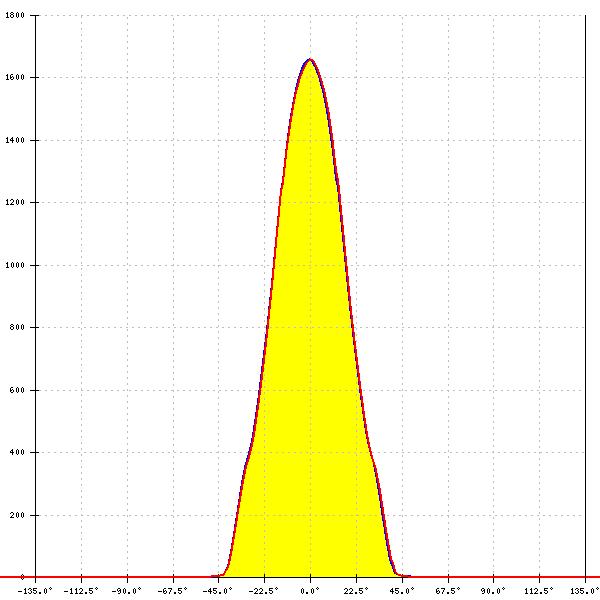

    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 41°
    FWTM: 74°
    Peak intensity: 1.700 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

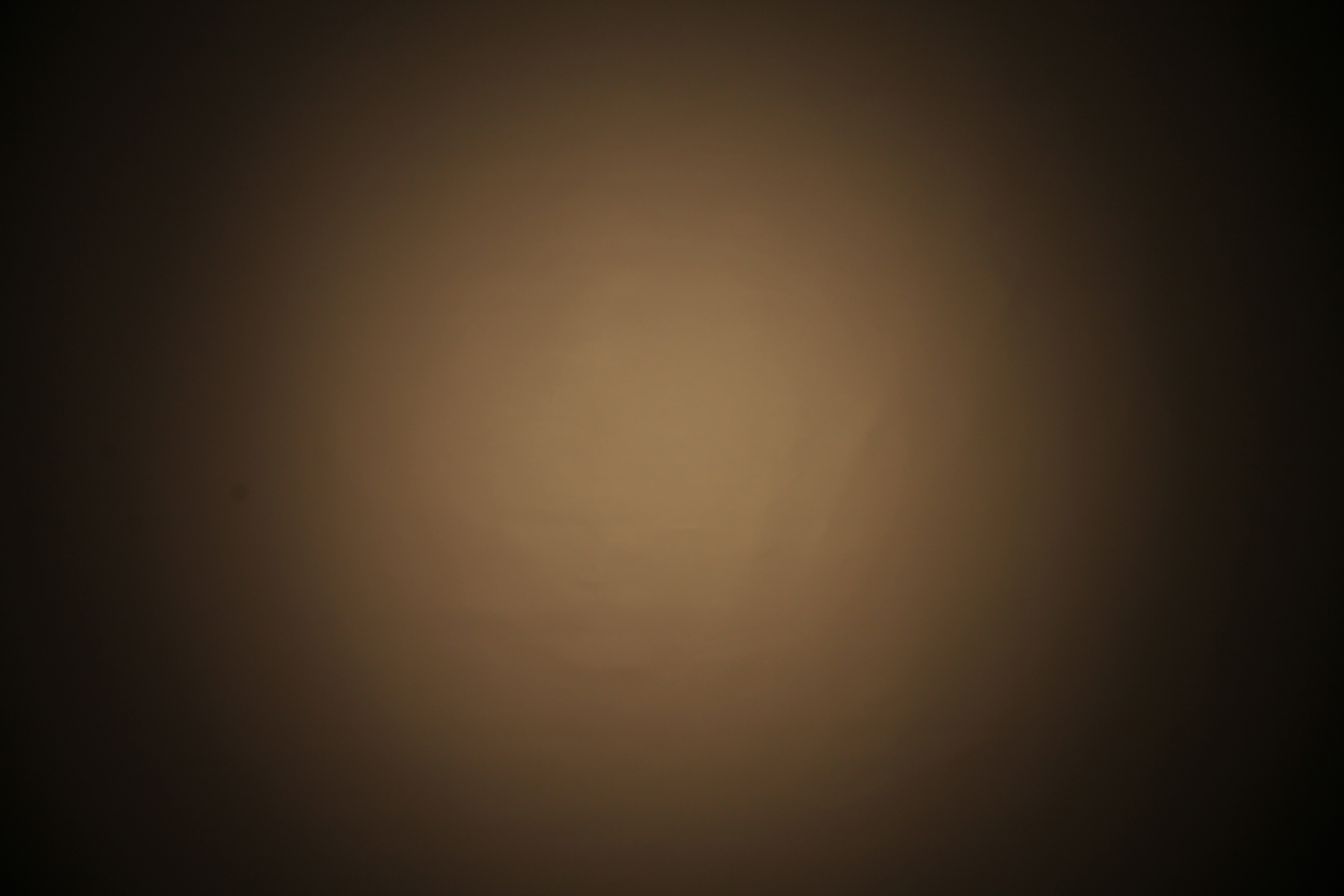

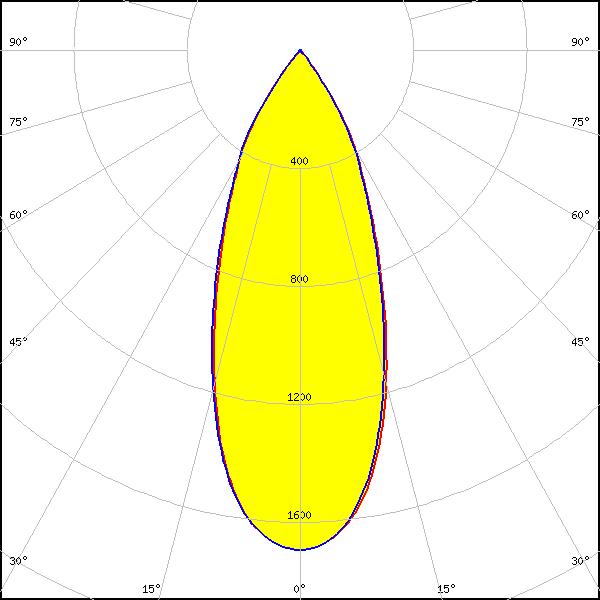

    LED: LUXEON CX Plus CoB L08 (Gen2)
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    C14658_BARBARA-RZ-LENS
    FWHM: 42°
    FWTM: 74°
    Peak intensity: 1.457 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L08 (Gen2)
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 40°
    FWTM: 73°
    Peak intensity: 1.695 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

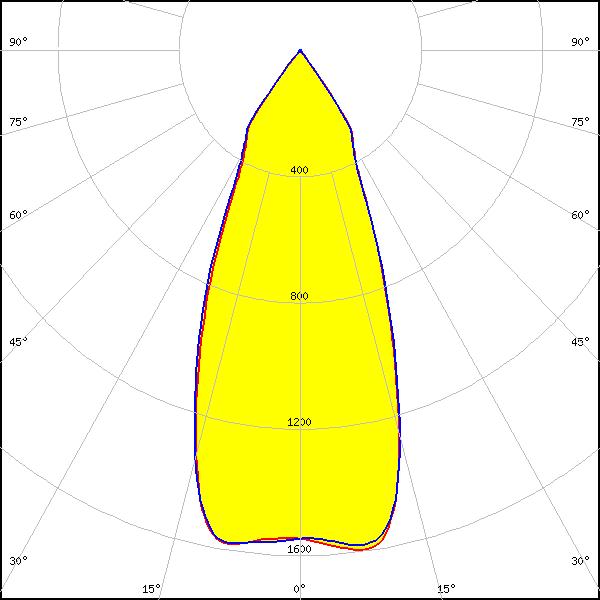

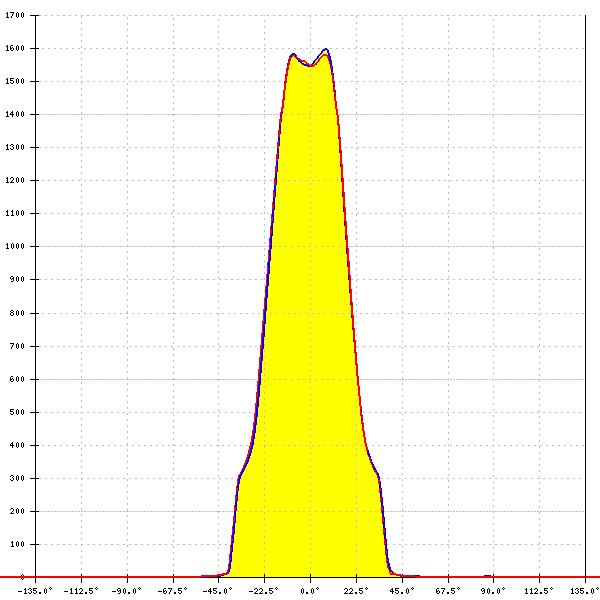

    LED: LUXEON CoB 1202HD
    LES size: 6.5 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 42°
    FWTM: 74°
    Peak intensity: 1.600 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

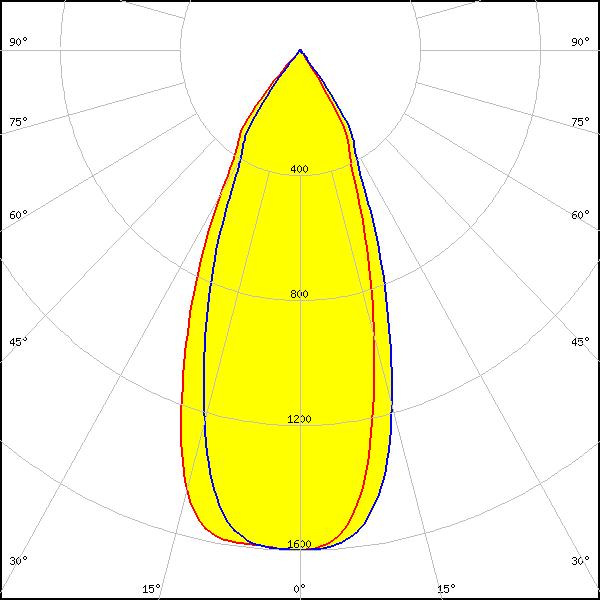

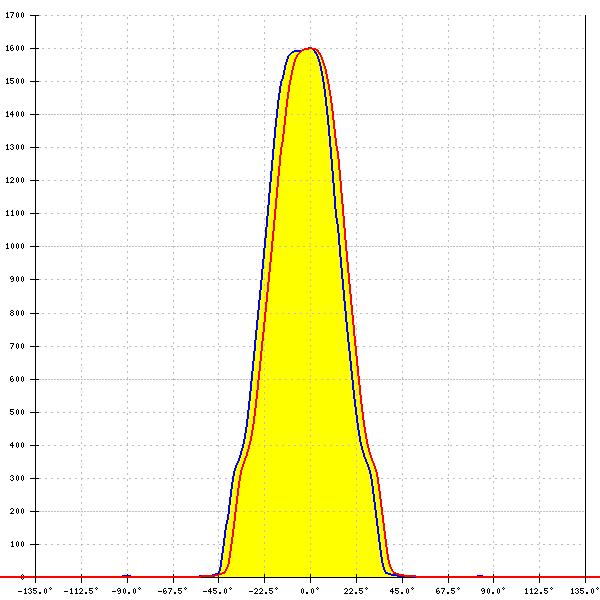

    LED: LUXEON CoB 1204HD
    LES size: 9.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 43°
    FWTM: 74°
    Peak intensity: 1.600 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

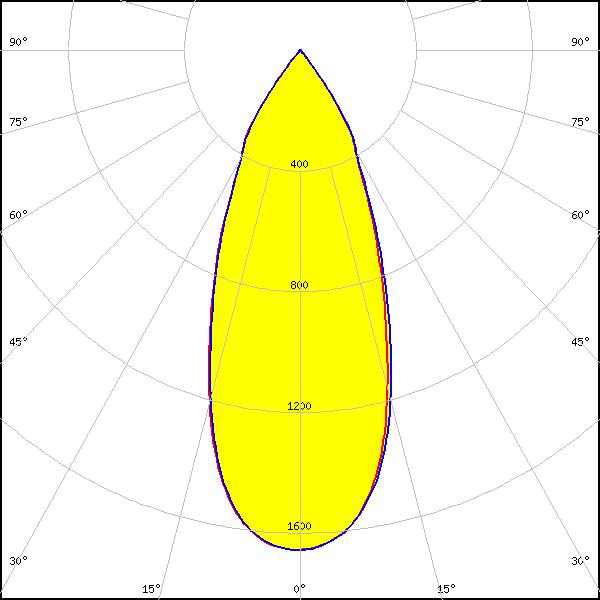

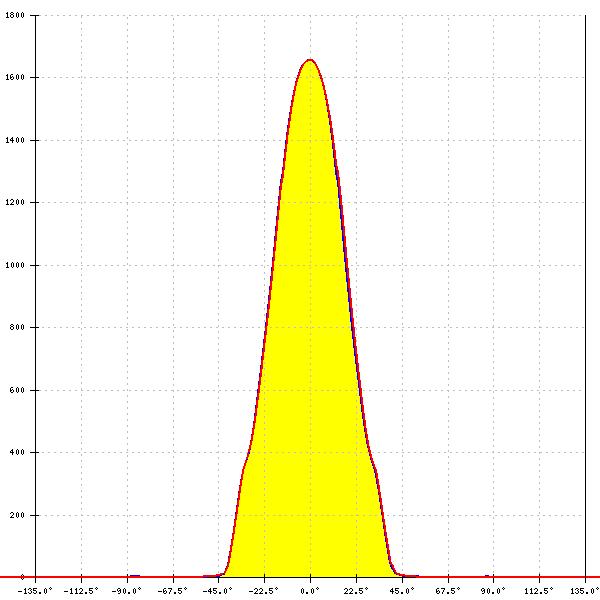

    LED: LUXEON CoB 1205HD
    LES size: 11.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 41°
    FWTM: 74°
    Peak intensity: 1.660 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

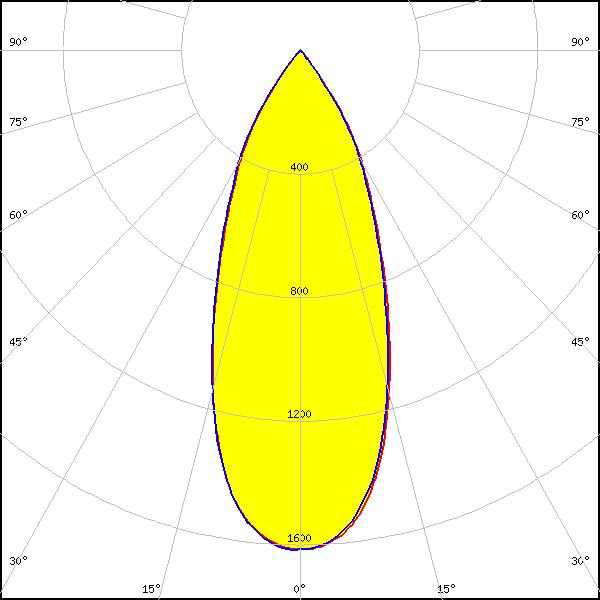

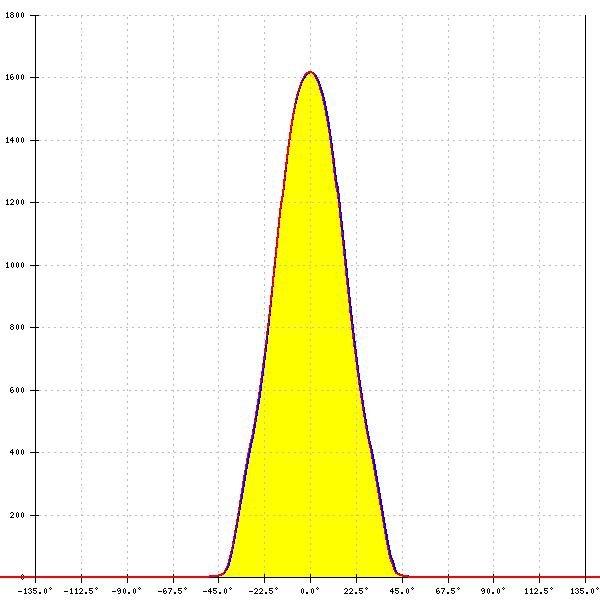

    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 41°
    FWTM: 73°
    Peak intensity: 1.618 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

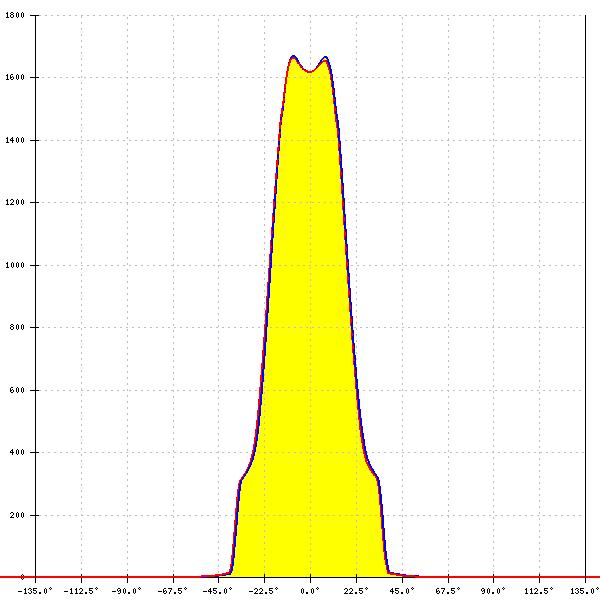

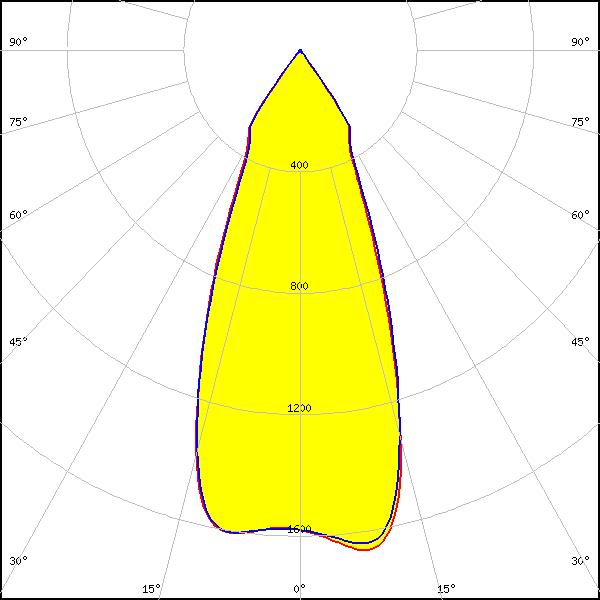

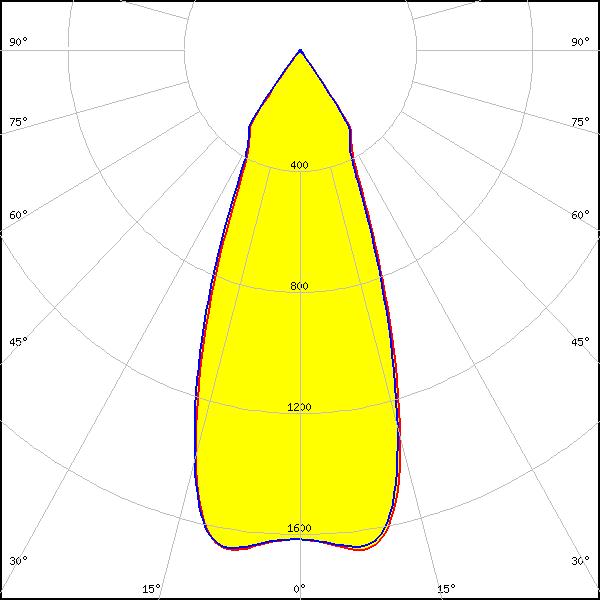

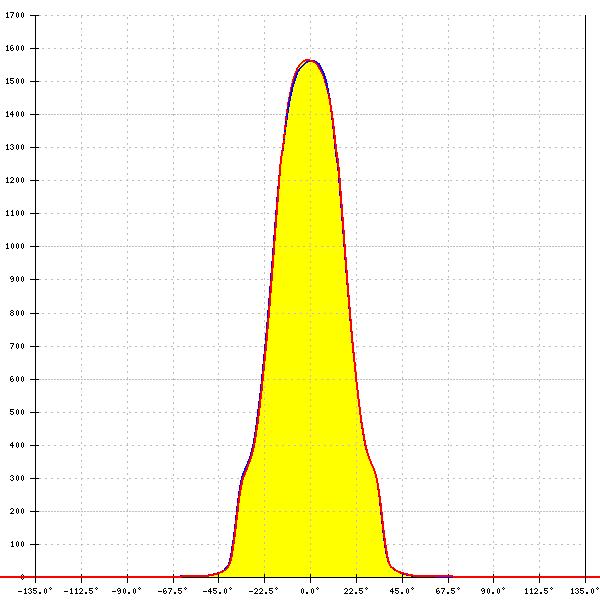

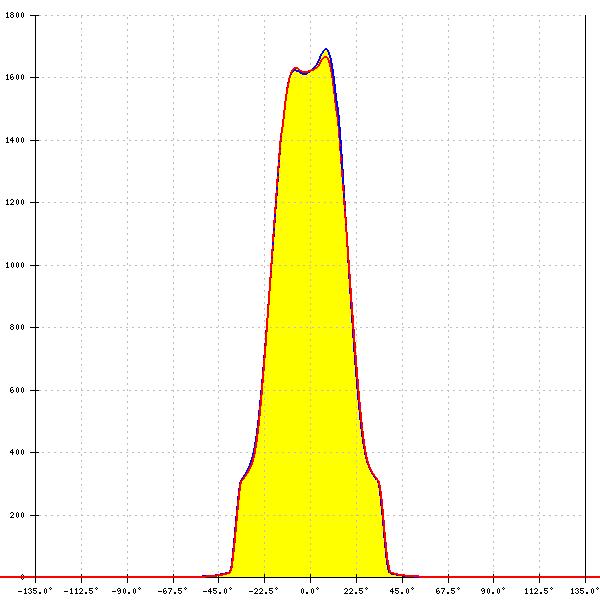

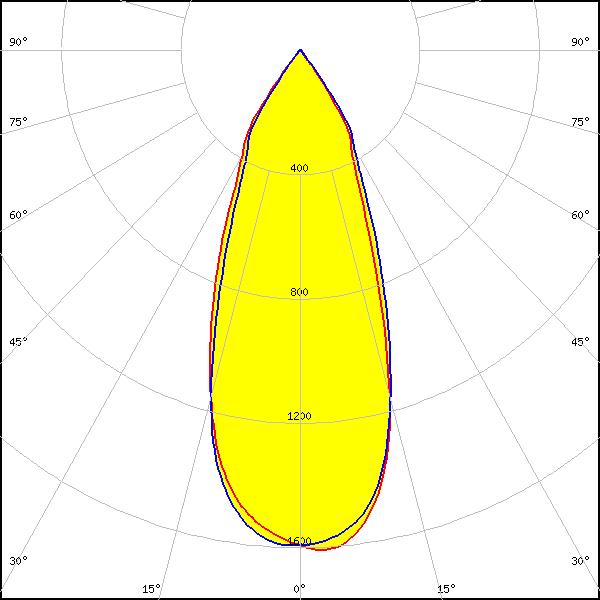

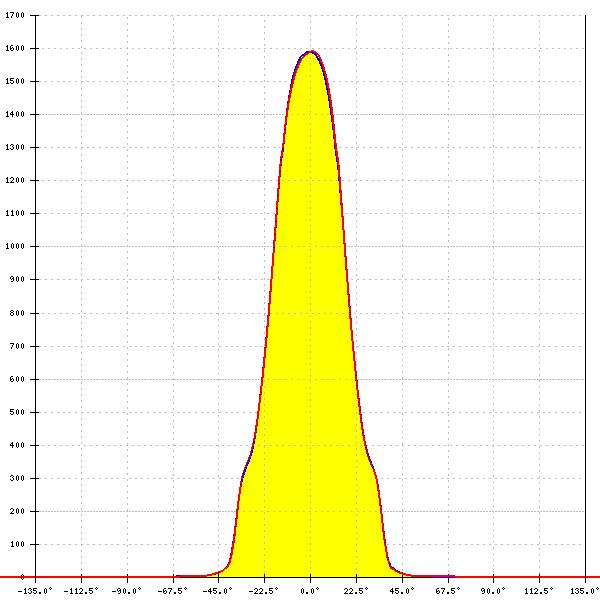

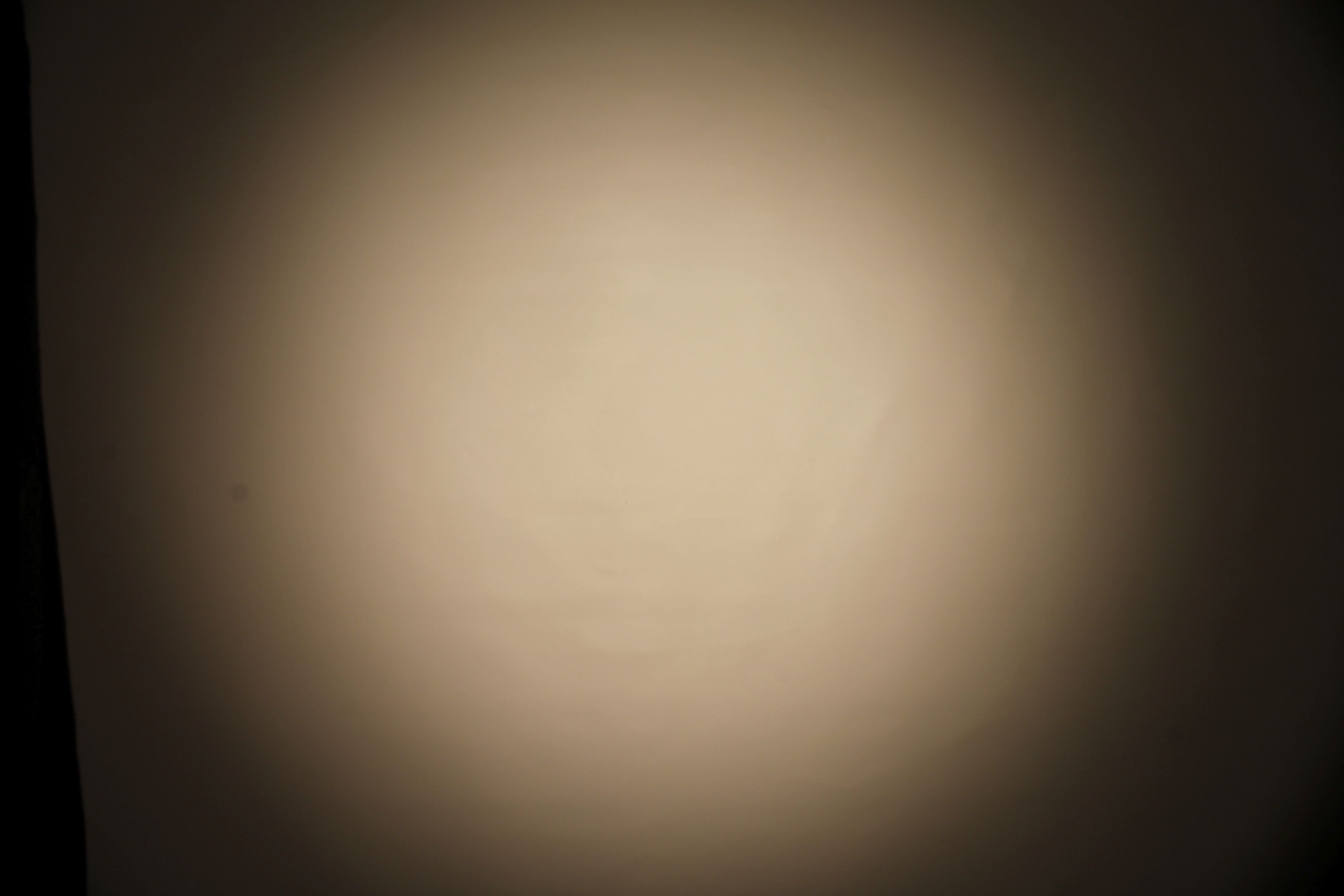

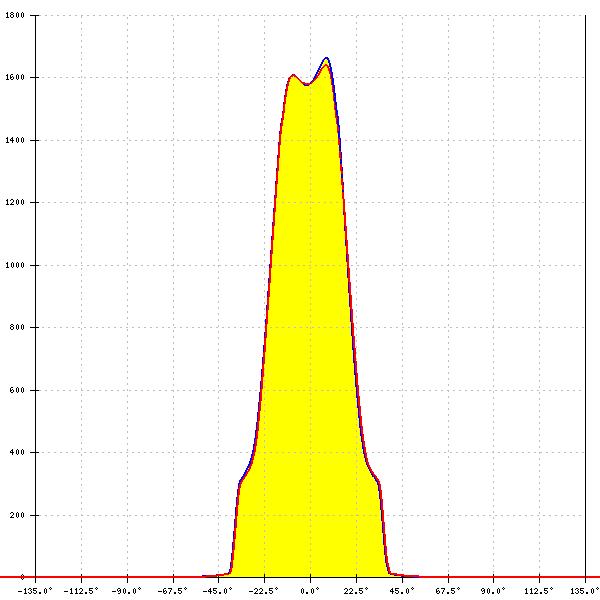

    LED: LUXEON CX Plus CoB - HD S01H4
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 42°
    FWTM: 73°
    Peak intensity: 1.663 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S01H4
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634c Hekla
    C14658_BARBARA-RZ-LENS
    FWHM: 40°
    FWTM: 73°
    Peak intensity: 1.564 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S02H6
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 42°
    FWTM: 73°
    Peak intensity: 1.690 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S02H6
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    C14658_BARBARA-RZ-LENS
    FWHM: 40°
    FWTM: 73°
    Peak intensity: 1.590 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 41°
    FWTM: 72°
    Peak intensity: 1.725 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S04H9
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634c 3Hook
    C14658_BARBARA-RZ-LENS
    FWHM: 40°
    FWTM: 72°
    Peak intensity: 1.603 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    LES size: 12.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 40°
    FWTM: 72°
    Peak intensity: 1.748 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    LES size: 12.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    C14658_BARBARA-RZ-LENS
    FWHM: 40°
    FWTM: 73°
    Peak intensity: 1.564 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

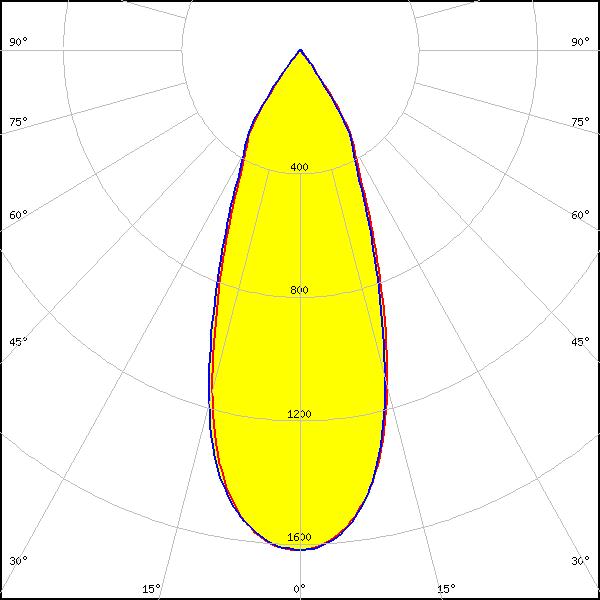

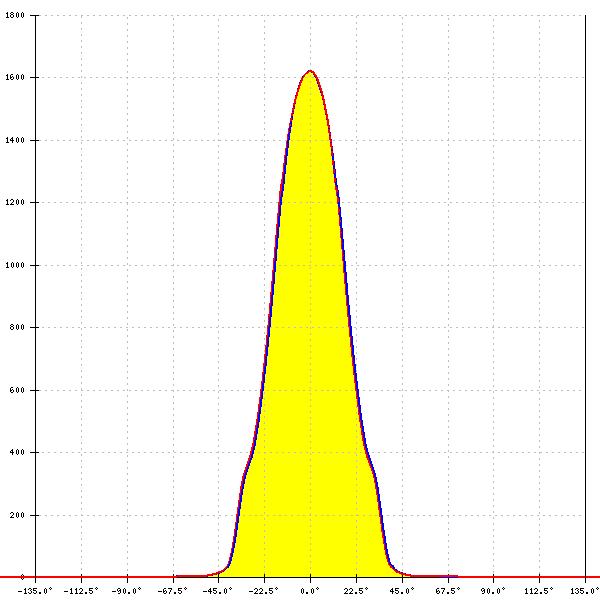

    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 641a Hekla
    C14658_BARBARA-RZ-LENS
    FWHM: 39°
    FWTM: 72°
    Peak intensity: 1.620 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

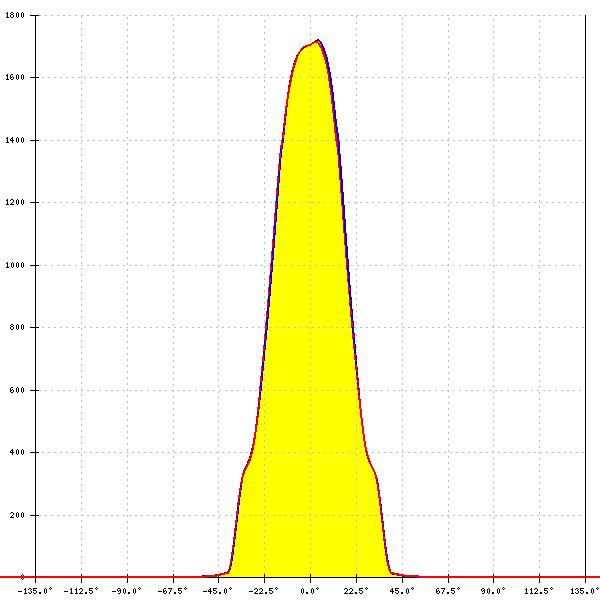

    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 641a Hekla
    FWHM: 41°
    FWTM: 73°
    Peak intensity: 1.721 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    C14658_BARBARA-RZ-LENS
    FWHM: 40°
    FWTM: 72°
    Peak intensity: 1.611 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 42°
    FWTM: 73°
    Peak intensity: 1.670 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Fusion 21-up (20x24)
    LES size: 7.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    C14658_BARBARA-RZ-LENS
    FWHM: 40°
    FWTM: 73°
    Peak intensity: 1.557 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 21
    Light colour/type: White
    LED: COB L-Type (LES 11)
    LES size: 11.5 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 42°
    FWTM: 75°
    Peak intensity: 1.570 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 9)
    LES size: 8.7 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 43°
    FWTM: 74°
    Peak intensity: 1.582 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L09 CoB
    LES size: 9.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 42°
    FWTM: 74°
    Peak intensity: 1.640 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

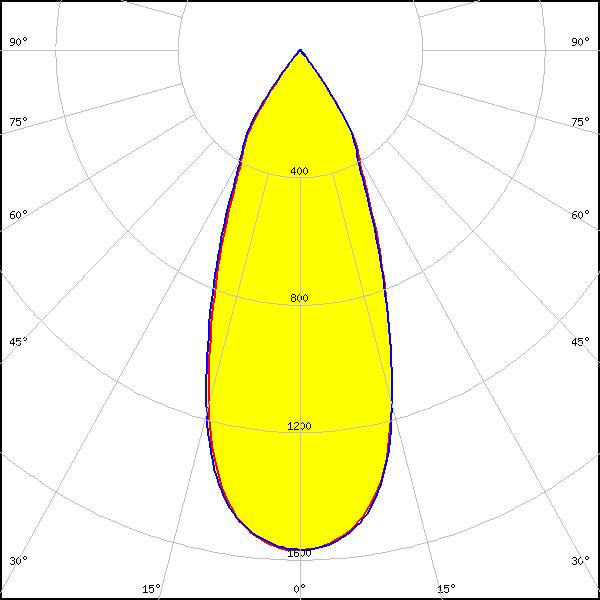

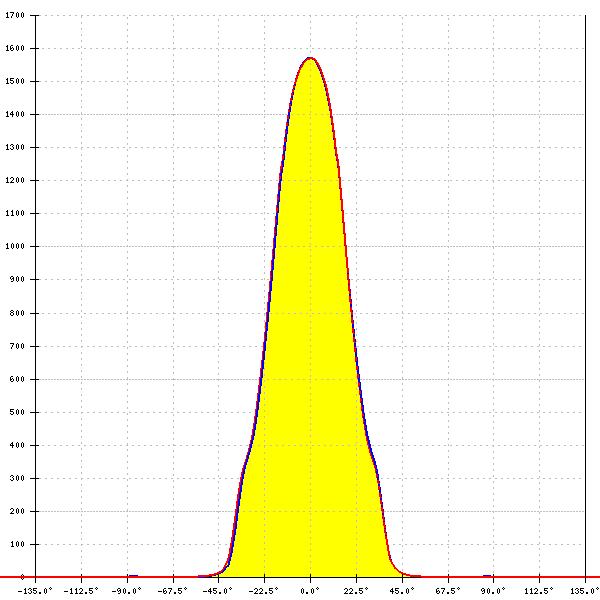

    LED: Fortimo SLM L09 CoB
    LES size: 9.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    C14658_BARBARA-RZ-LENS
    FWHM: 41°
    FWTM: 74°
    Peak intensity: 1.570 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

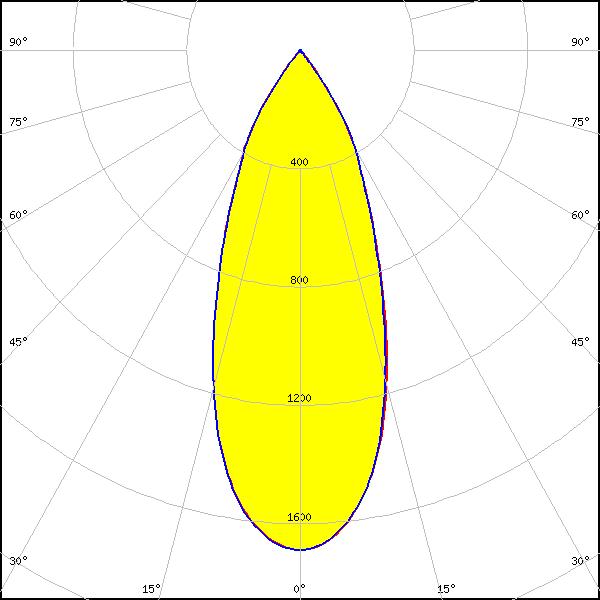

    LED: Fortimo SLM L13 CoB
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 432 Typ L8
    FWHM: 40°
    FWTM: 72°
    Peak intensity: 1.700 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L13 CoB
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 432 Typ L8
    C14658_BARBARA-RZ-LENS
    FWHM: 41°
    FWTM: 74°
    Peak intensity: 1.500 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

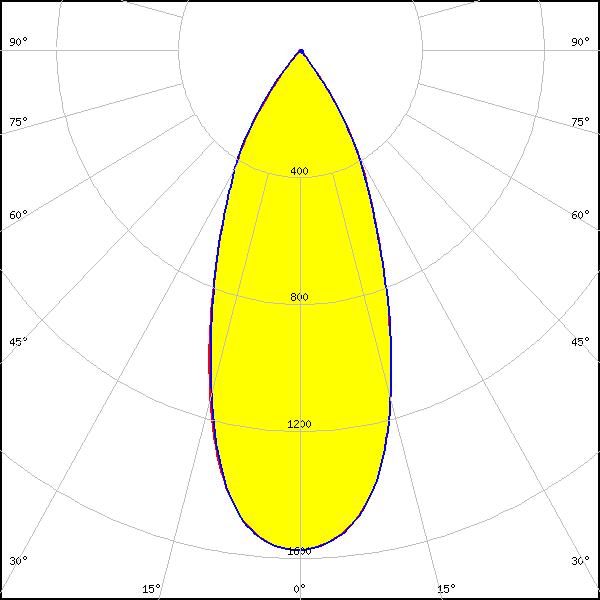

    LED: Fortimo SLM L15 CoB
    LES size: 15.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 432 Typ L8
    C14658_BARBARA-RZ-LENS
    FWHM: 43°
    FWTM: 75°
    Peak intensity: 1.400 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L15 CoB
    LES size: 15.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 432 Typ L8
    FWHM: 42°
    FWTM: 73°
    Peak intensity: 1.600 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 41°
    FWTM: 74°
    Peak intensity: 1.646 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 41°
    FWTM: 74°
    Peak intensity: 1.600 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

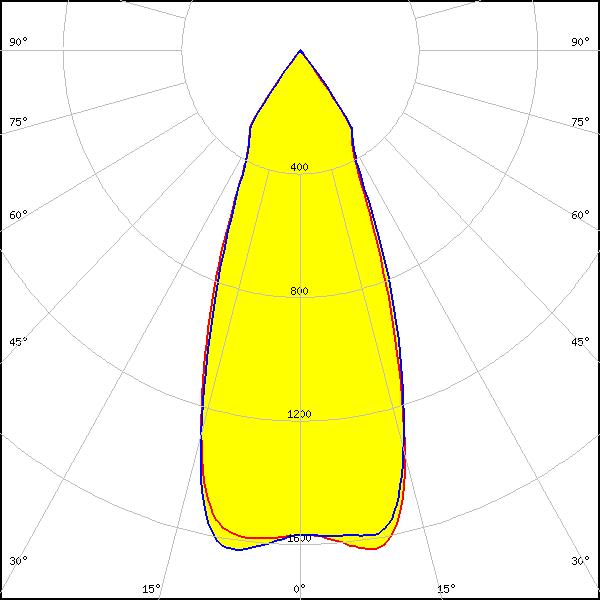

    LED: LC010C G2
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 42°
    FWTM: 73°
    Peak intensity: 1.600 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020T (Tunable white)
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 39°
    FWTM: 72°
    Peak intensity: 1.690 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

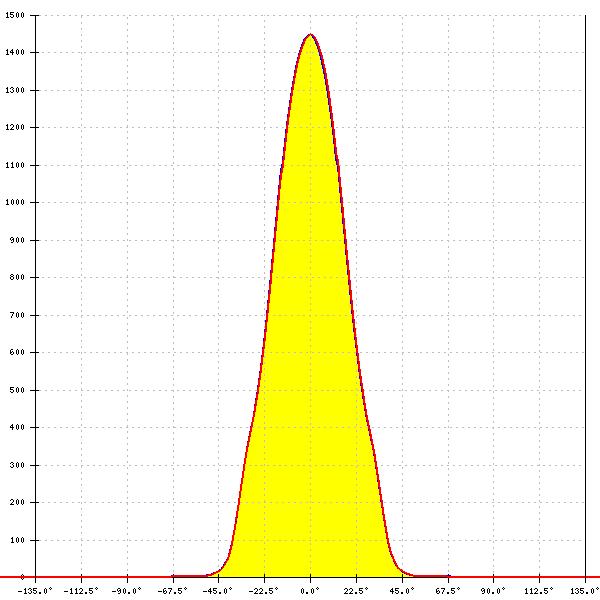

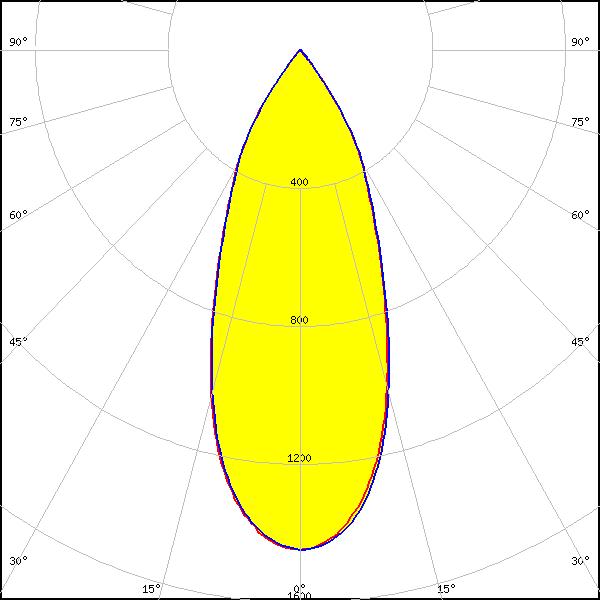

    LED: LC020T (Tunable white)
    LES size: 13.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    C14658_BARBARA-RZ-LENS
    FWHM: 41°
    FWTM: 74°
    Peak intensity: 1.449 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

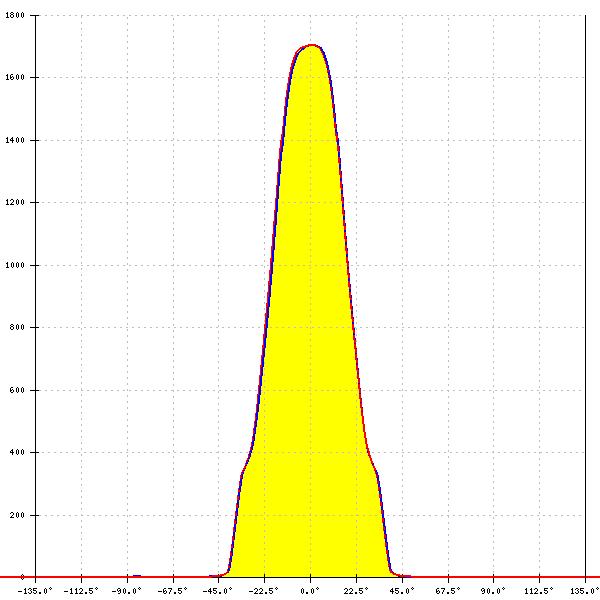

    LED: SLE G7 LES09
    LES size: 9.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 41°
    FWTM: 73°
    Peak intensity: 1.700 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

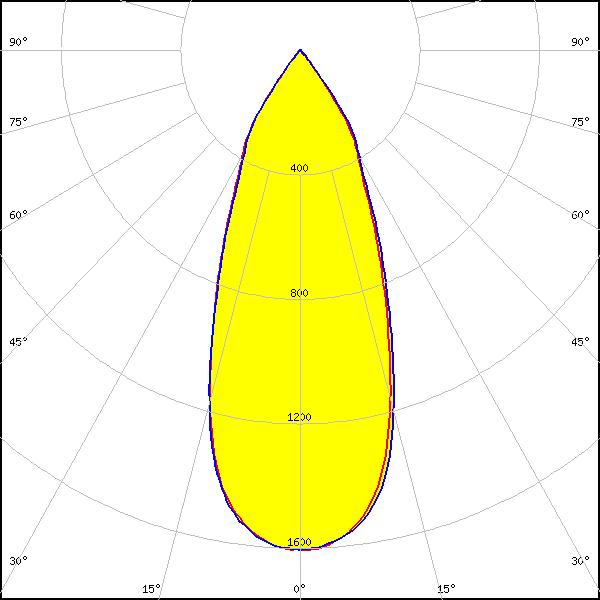

    LED: SLE G7 LES09
    LES size: 9.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    C14658_BARBARA-RZ-LENS
    FWHM: 41°
    FWTM: 73°
    Peak intensity: 1.600 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

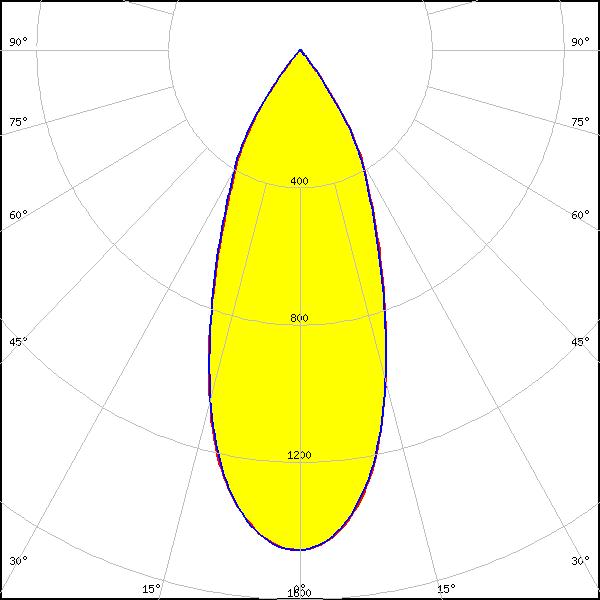

    LED: SLE G7 LES13
    LES size: 13.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 40°
    FWTM: 73°
    Peak intensity: 1.700 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

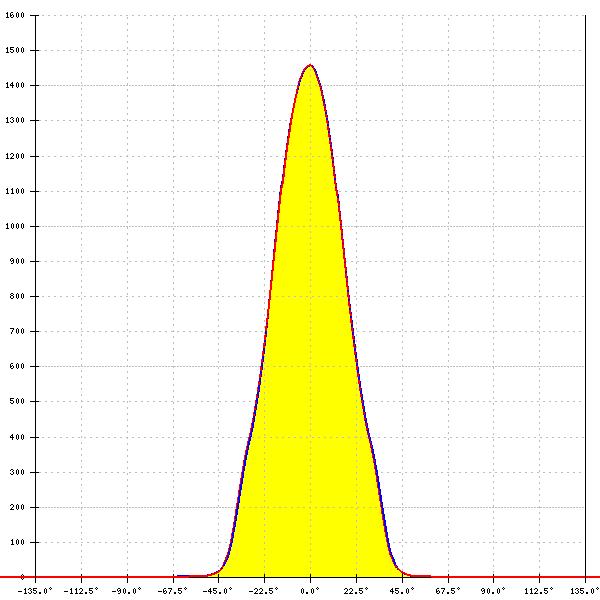

    LED: SLE G7 LES13
    LES size: 13.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    C14658_BARBARA-RZ-LENS
    FWHM: 41°
    FWTM: 74°
    Peak intensity: 1.500 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

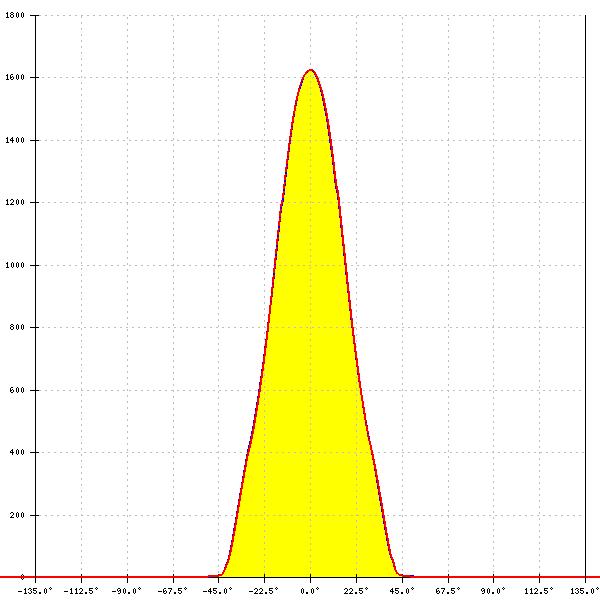

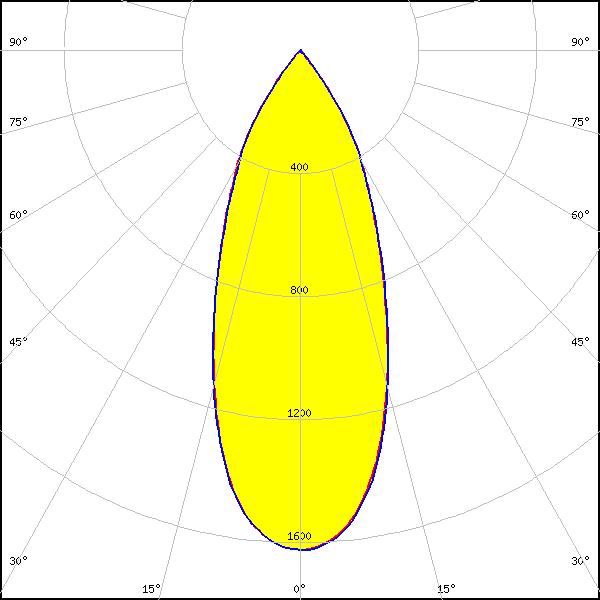

    LED: SLE G7 LES15
    LES size: 15.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 41°
    FWTM: 74°
    Peak intensity: 1.600 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XOB 14.5 mm
    LES size: 14.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 41°
    FWTM: 74°
    Peak intensity: 1.630 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

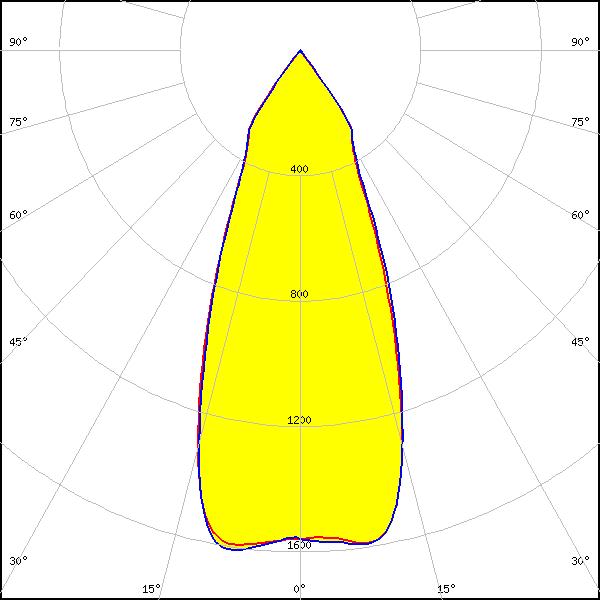

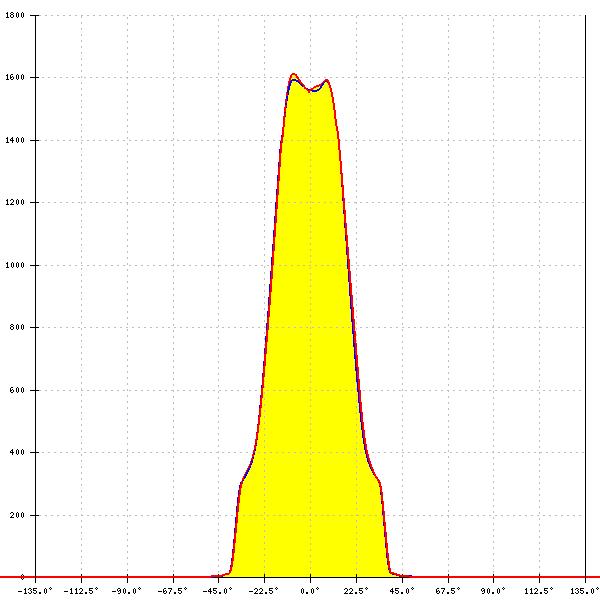

    LED: XOB 6 mm
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 42°
    FWTM: 74°
    Peak intensity: 1.612 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

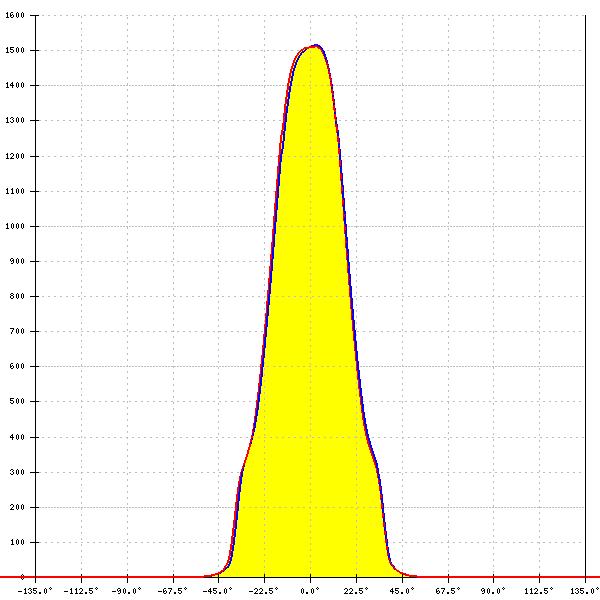

    LED: XOB 6 mm
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    C14658_BARBARA-RZ-LENS
    FWHM: 41°
    FWTM: 74°
    Peak intensity: 1.516 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

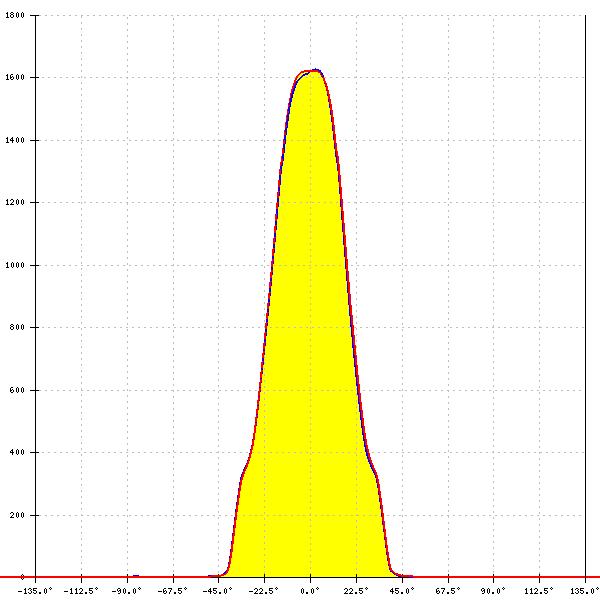

    LED: XOB 9.8 mm
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 42°
    FWTM: 74°
    Peak intensity: 1.625 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

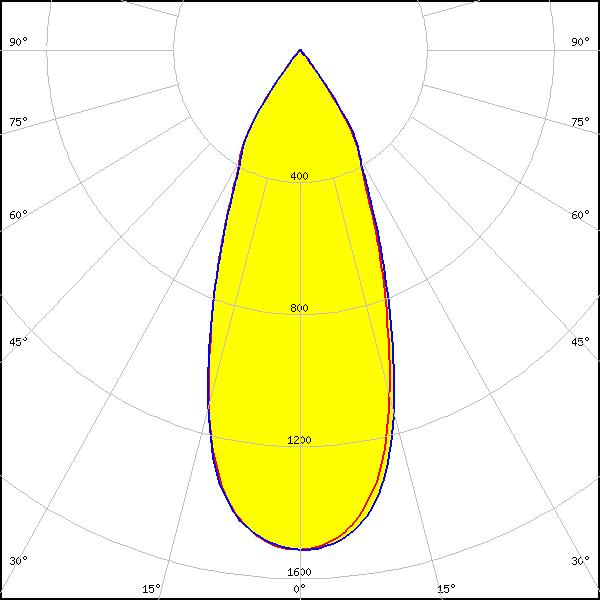

    LED: XOB 9.8 mm
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    C14658_BARBARA-RZ-LENS
    FWHM: 41°
    FWTM: 74°
    Peak intensity: 1.514 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
