    F15910_JENNY-8X1-FT65

    Print

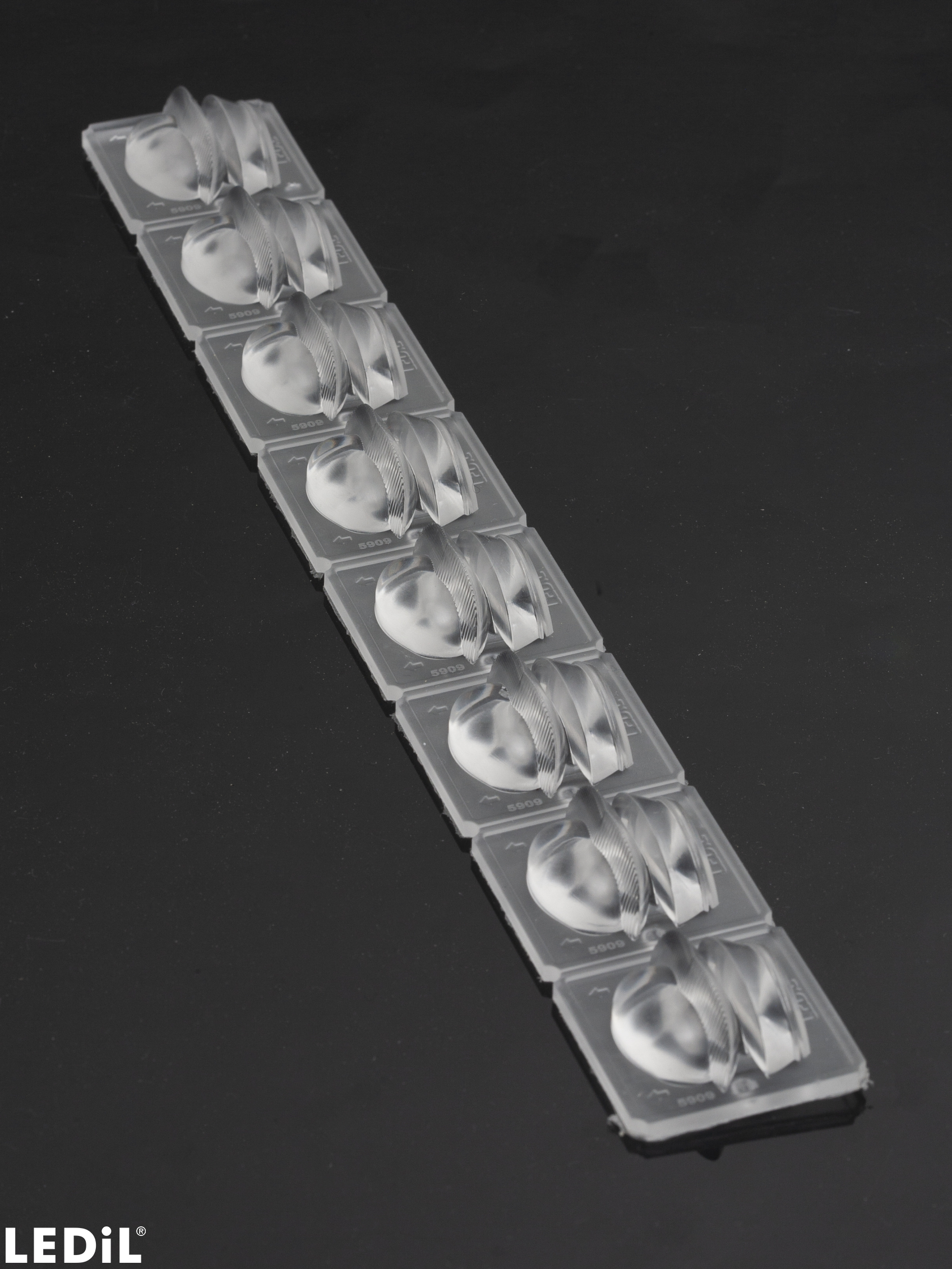

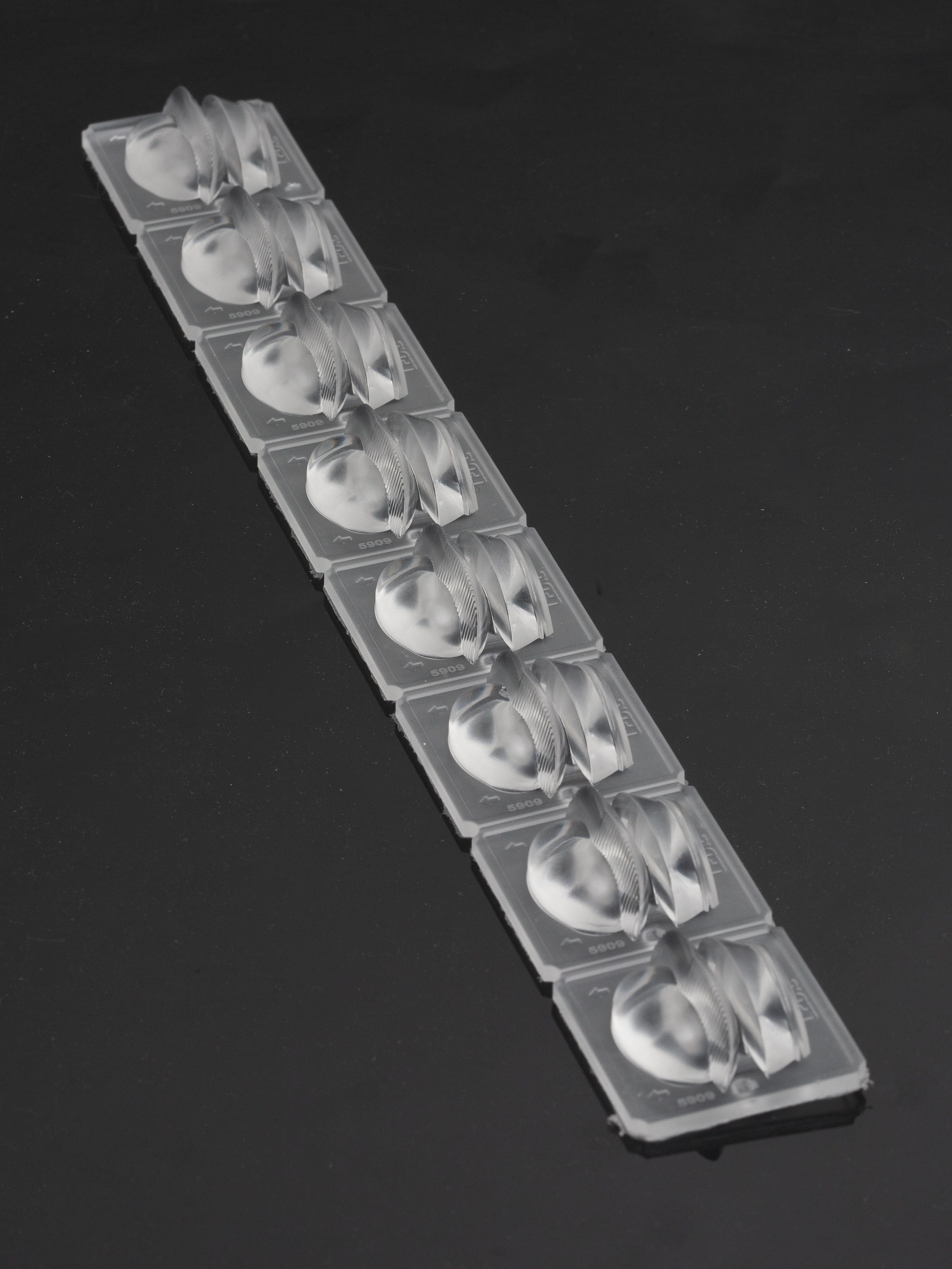

    Forward throwing beam with peak in 65°. 8X1 variant.

    Specification
    • Dimensions:
      280 x  35 mm
    • Height:
      15.35 mm
    • Fastening:
      pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      140 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      7.9 kg
    • MPQ:
      10 pcs
    • MOQ:
      20 pcs
    • MOQ size:
      380 x 300 x 50 mm
    • MOQ weight:
      1.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F15910_JENNY-8X1-FT65
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application area

    Sports outdoor lighting

    Application area

    SPORTS INDOOR LIGHTING

    Application example

    Aircraft stand area lighting with JENNY-FT65

    Application guide

    LEDiL guide for street lighting optics

    Application guide

    LEDiL guide for sports lighting optics

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    New Products - 2019-01-31

    News

    New members of the JENNY family for sports field lighting

    Application area

    Outdoor Special Applications

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    AVAILABLE LEDiL ACCESSORIES

    JENNY-HLD-A-BLK

    Black frame for JENNY optics

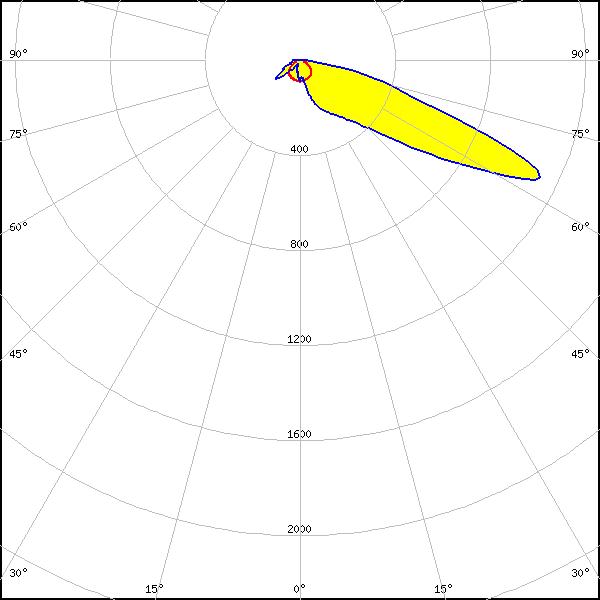

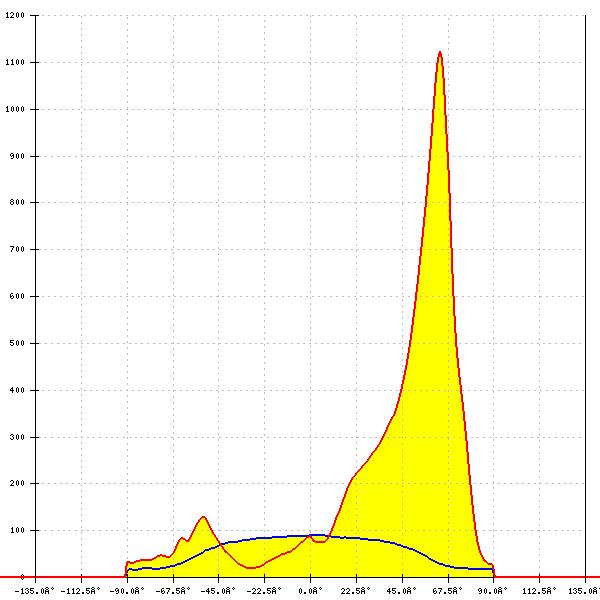

    Optical results

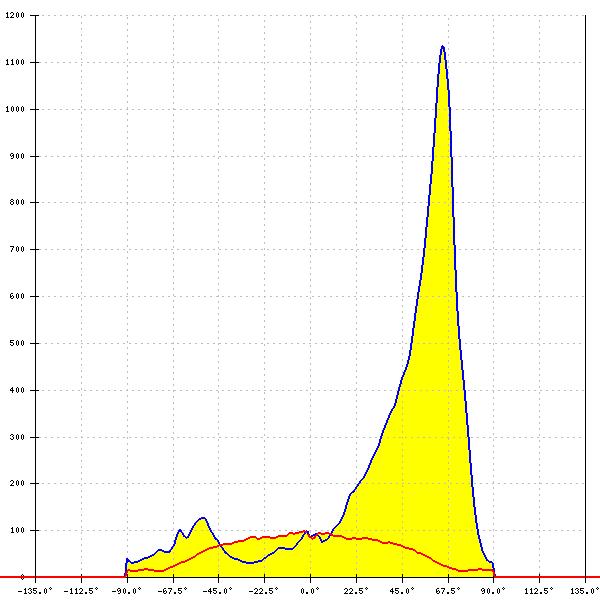

    LED: XHP50.2
    FWHM: asymmetric
    Peak intensity: 1.158 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

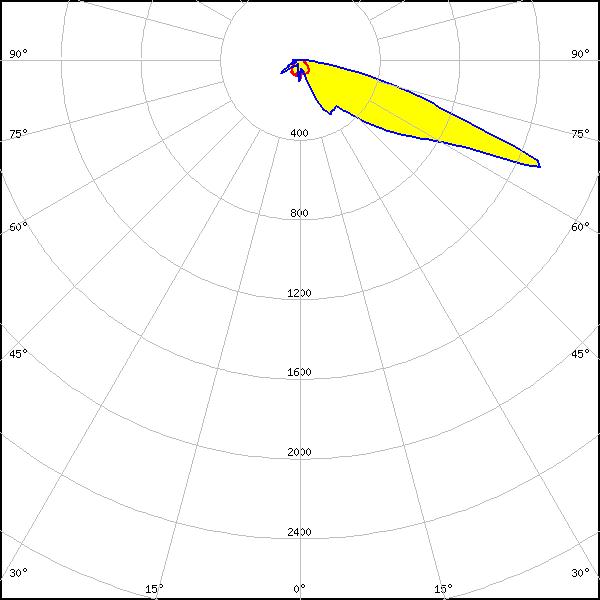

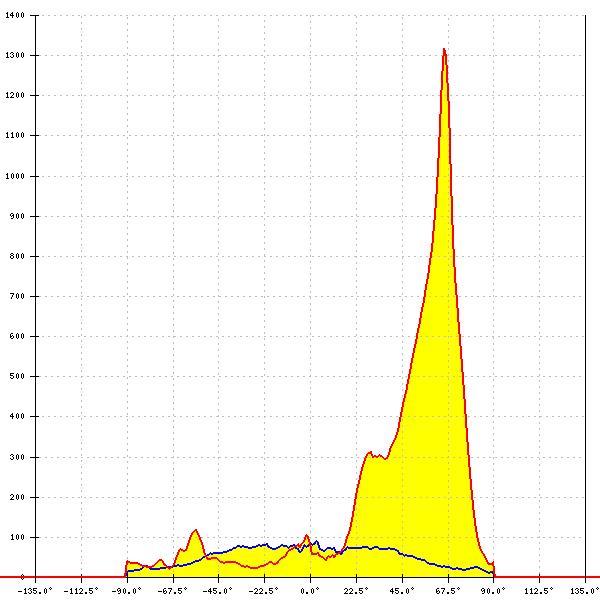

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 1.393 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

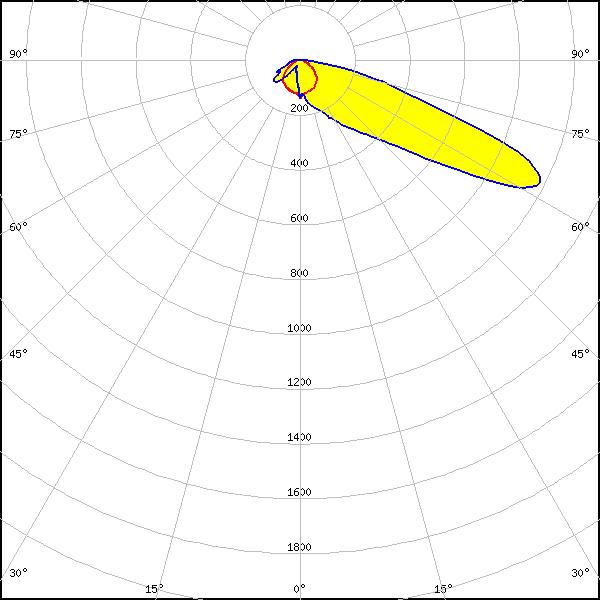

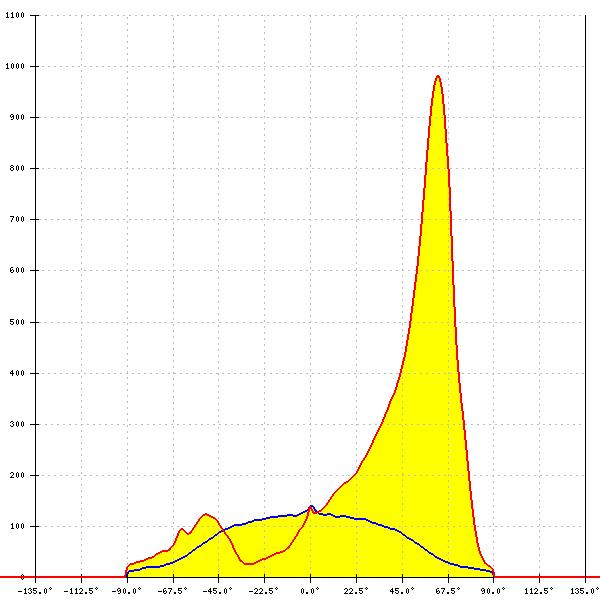

    LED: LUXEON 7070
    FWHM: asymmetric
    Peak intensity: 0.982 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON M/MX
    FWHM: asymmetric
    Peak intensity: 1.010 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

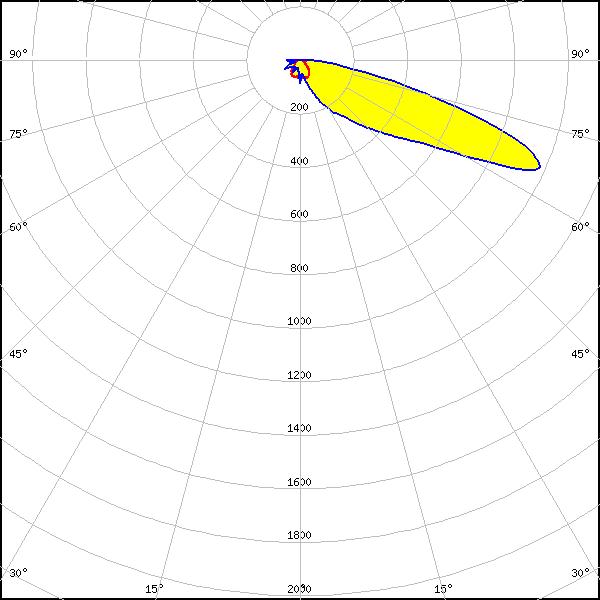

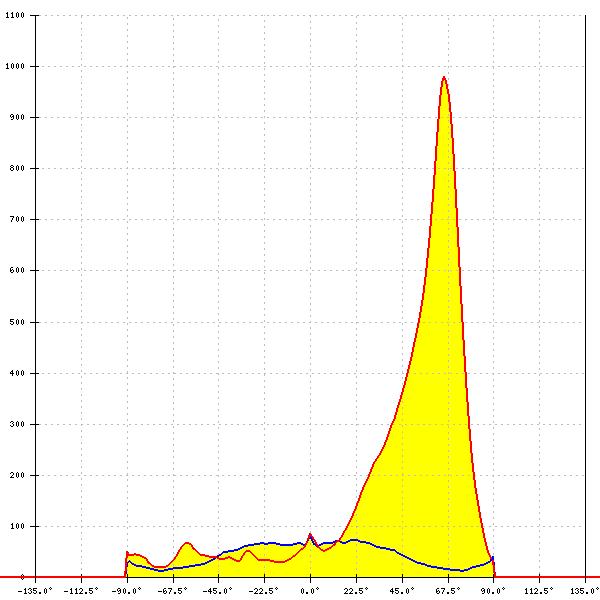

    LED: NV4x144A
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
