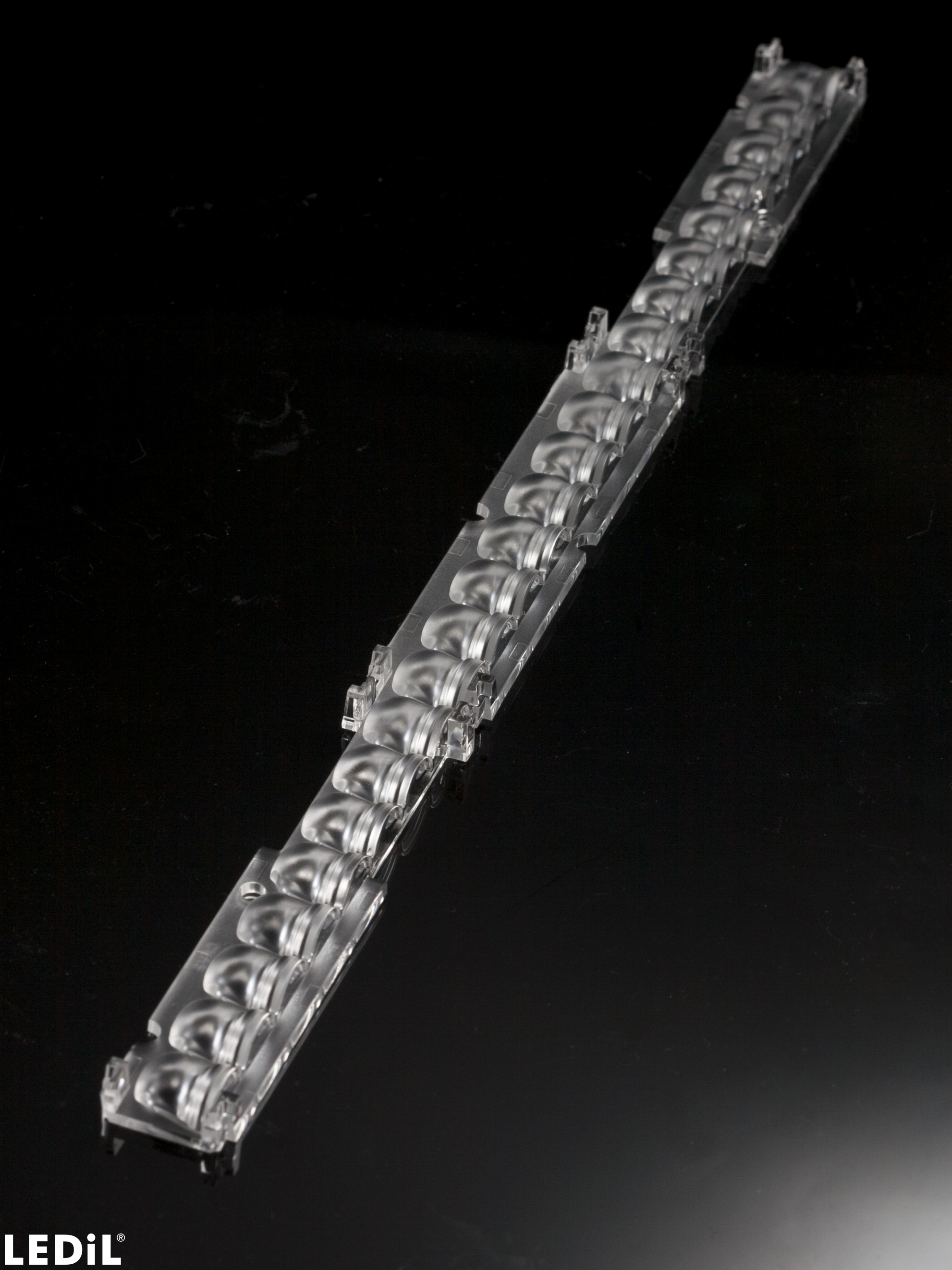

    F15685_FLORENCE-1R-GC-ZT25

    Print

    Asymmetric beam for wall-washing

    Specification
    • Dimensions:
      19 x  283 mm
    • Height:
      6.55 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      165 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      4.9 kg
    • MPQ:
      15 pcs
    • MOQ:
      45 pcs
    • MOQ size:
      400 x 300 x 100 mm
    • MOQ weight:
      1.6 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F15685_FLORENCE-1R-GC-ZT25
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    FLORENCE-1R assembly instruction

    Application example

    Supermarket lighting with FLORENCE-1R and 1R-GC

    News

    Linear lighting solutions

    News

    PRODUCT NEWS - FLORENCE-1R-GC

    Application example

    Office lighting with LINNEA-90 and FLORENCE-1R-GC-ZT25

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application guide

    LEDiL guide for retail lighting optics

    Article

    Illuminating supermarkets with LEDiL optics

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    FLORENCE-1R-CLIP-A

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 40 mm wide PCB

    FLORENCE-1R-CLIP-B

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD to extrusion profiles

    FLORENCE-1R-CLIP-C

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 24 mm wide PCB

    Optical results

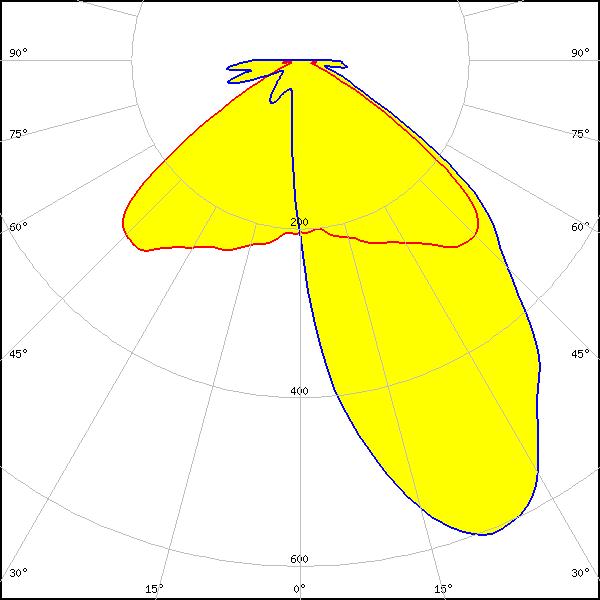

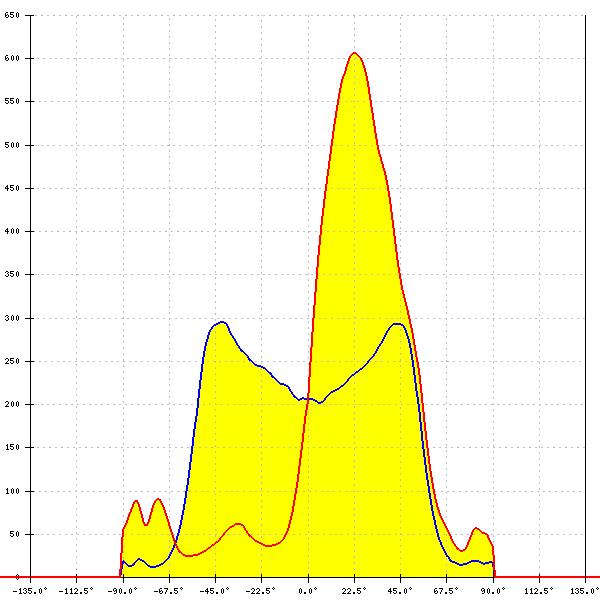

    LED: XD16
    FWHM: asymmetric
    Peak intensity: 0.670 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

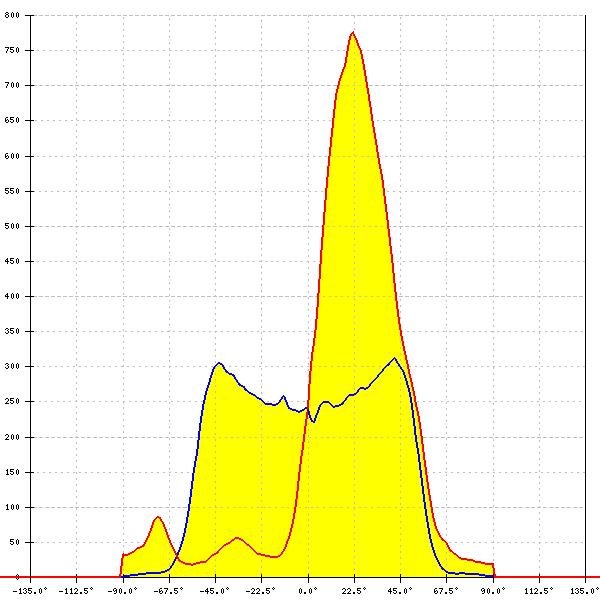

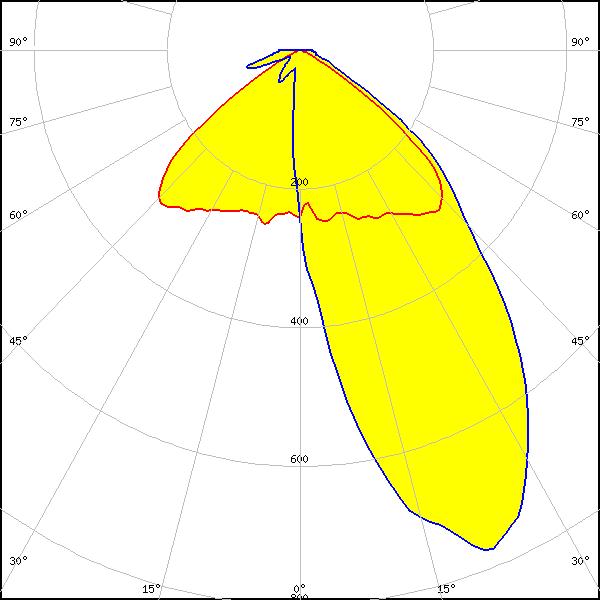

    LED: LUXEON 2835 Line
    FWHM: asymmetric
    Peak intensity: 0.780 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

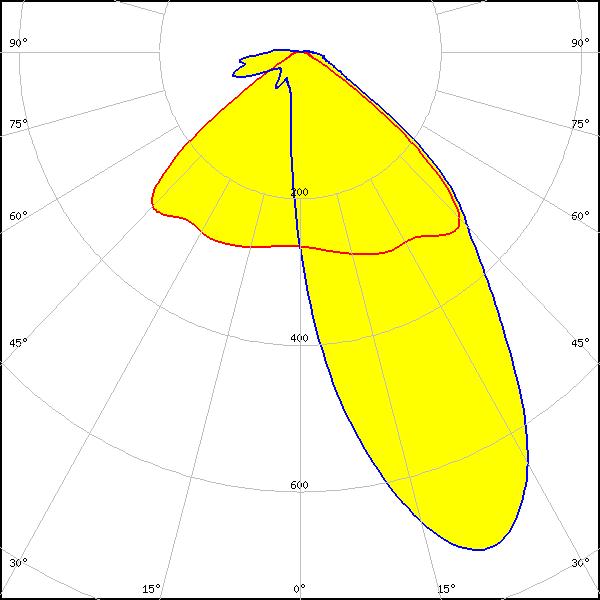

    LED: NF2x757D
    FWHM: asymmetric
    Peak intensity: 0.730 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

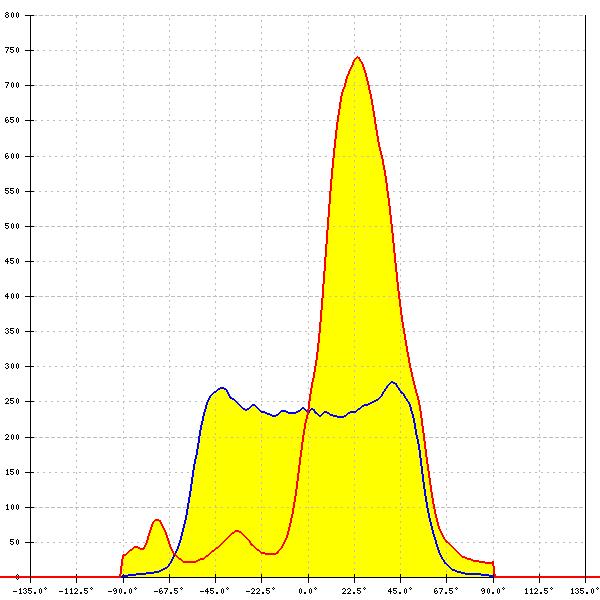

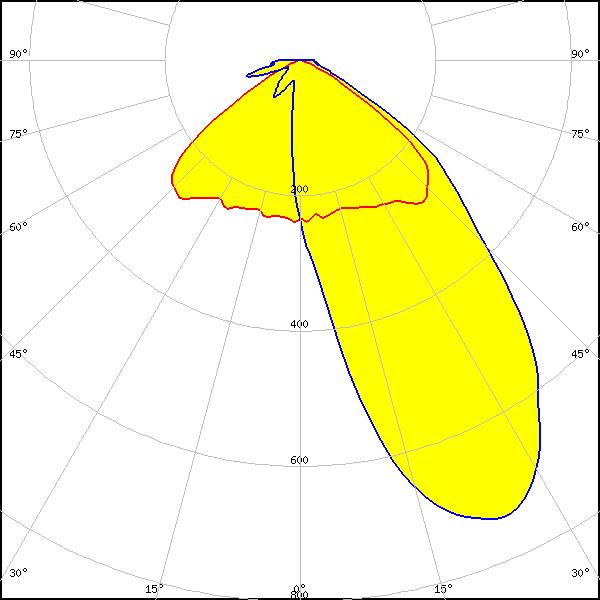

    LED: Duris E 2835
    FWHM: asymmetric
    Peak intensity: 0.750 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

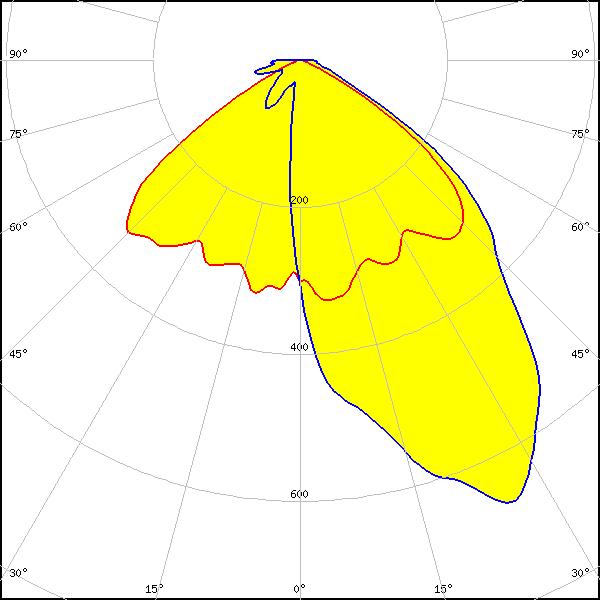

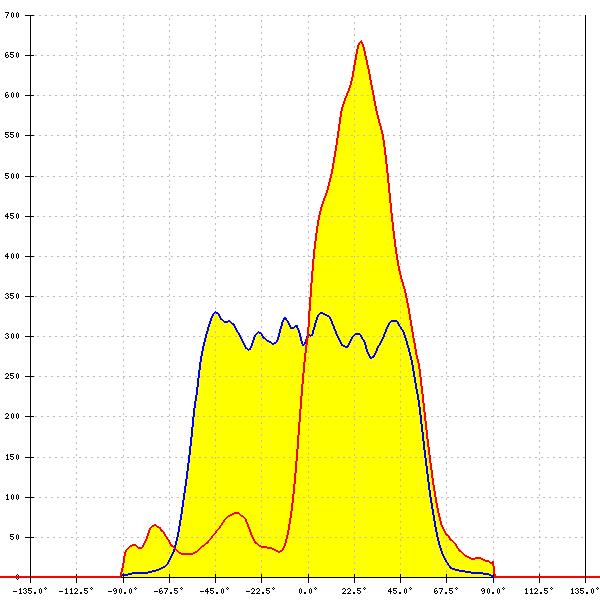

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.690 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: Red

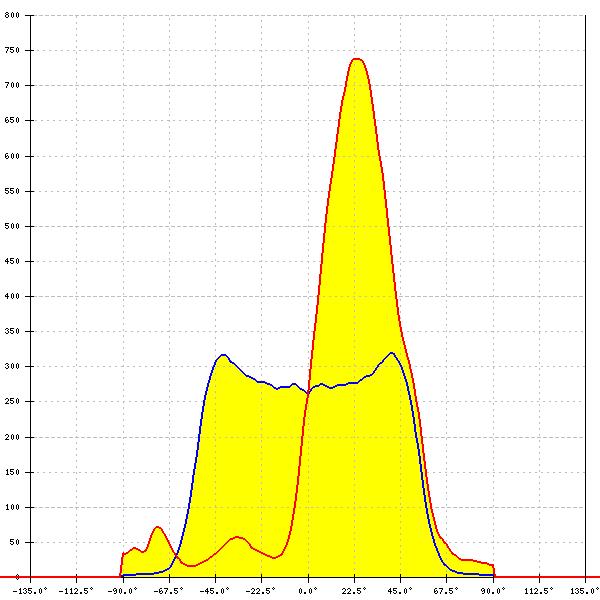

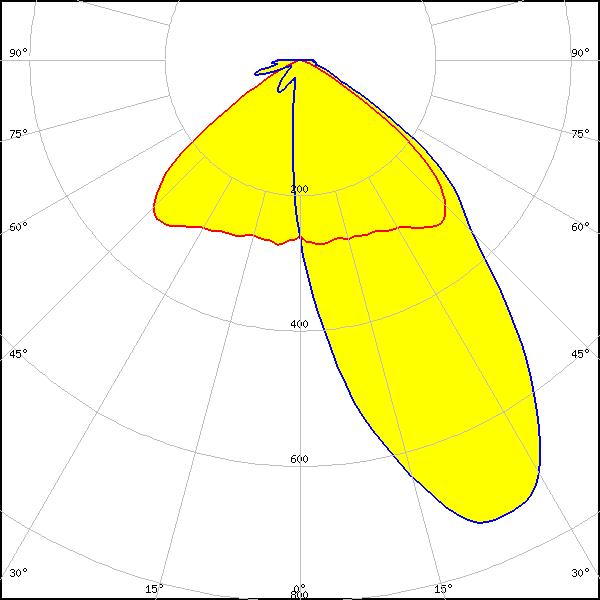

    LED: LM28xB Series
    FWHM: asymmetric
    Peak intensity: 0.739 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

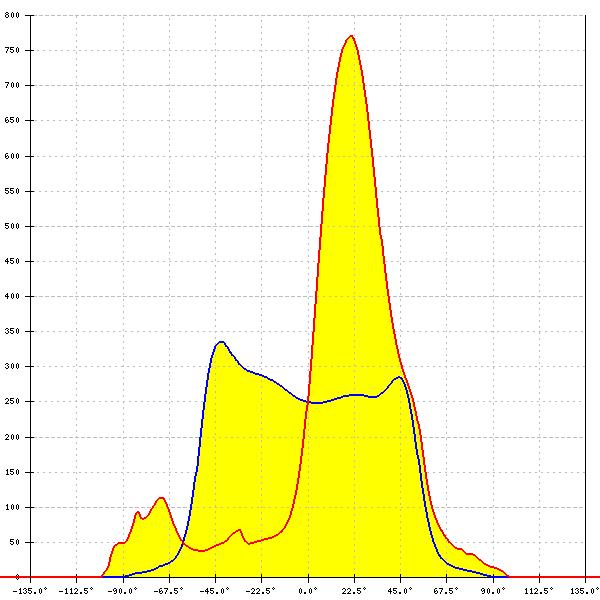

    LED: SEOUL DC 3030
    FWHM: asymmetric
    Peak intensity: 0.790 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

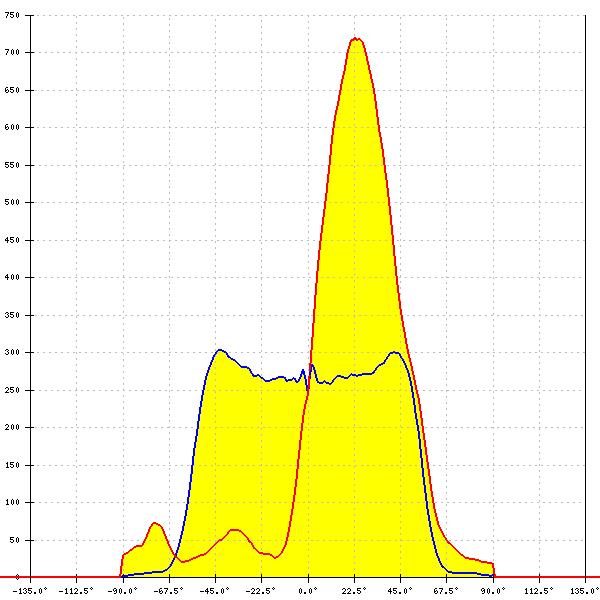

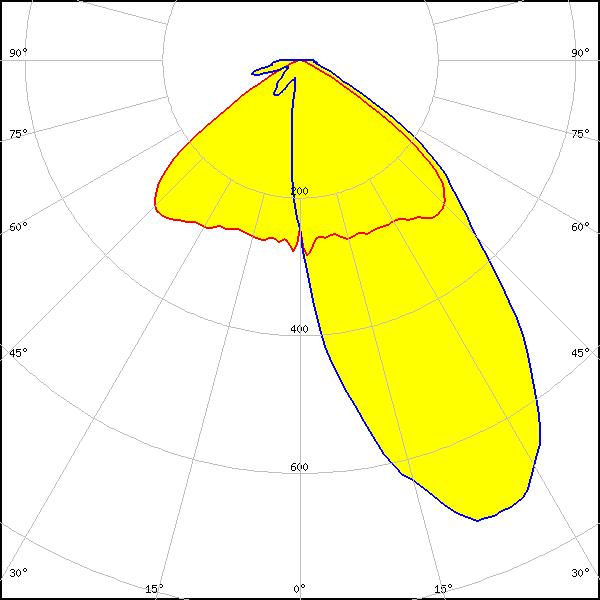

    LED: SEOUL DC 3030C
    FWHM: asymmetric
    Peak intensity: 0.731 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
