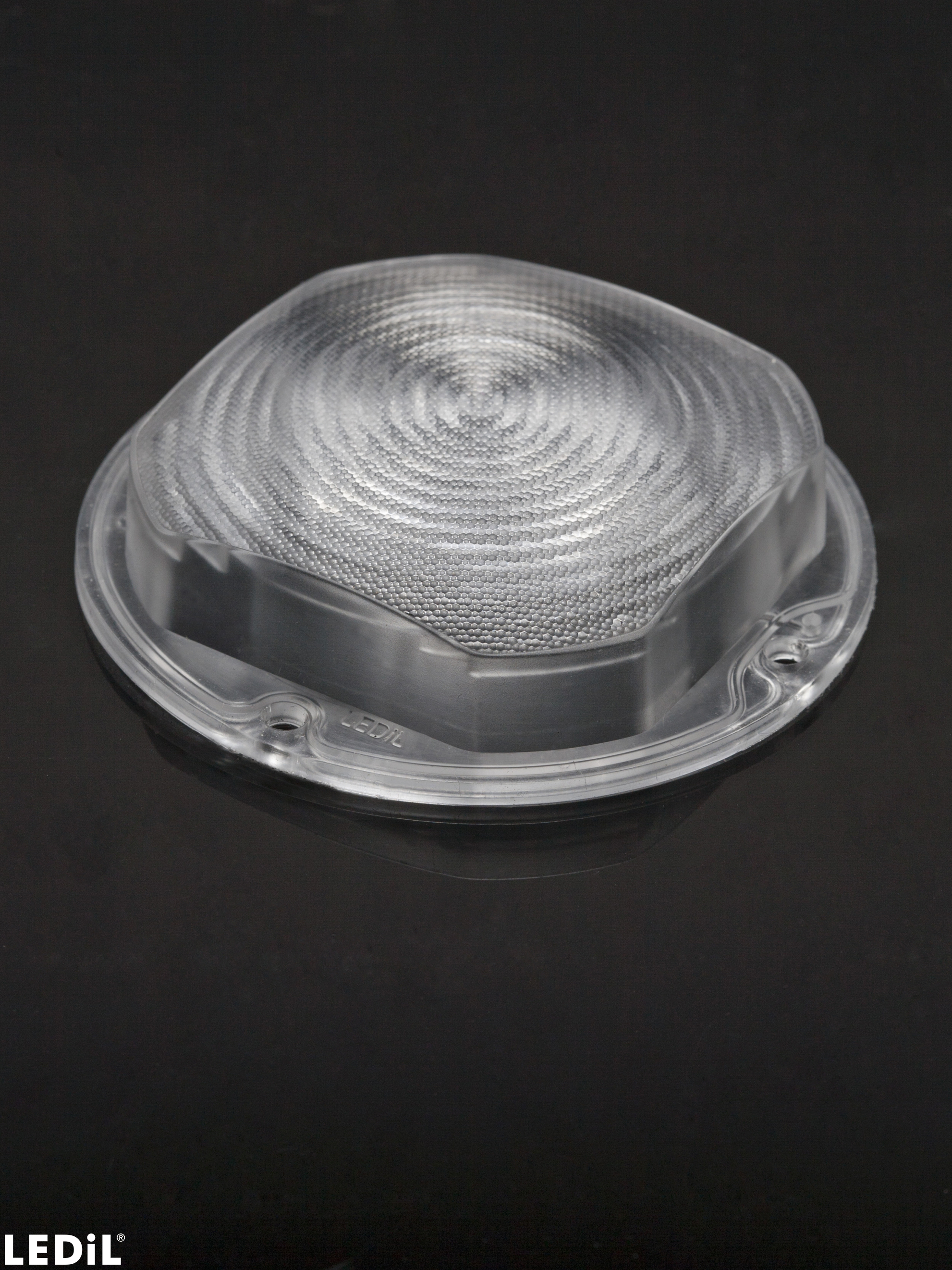

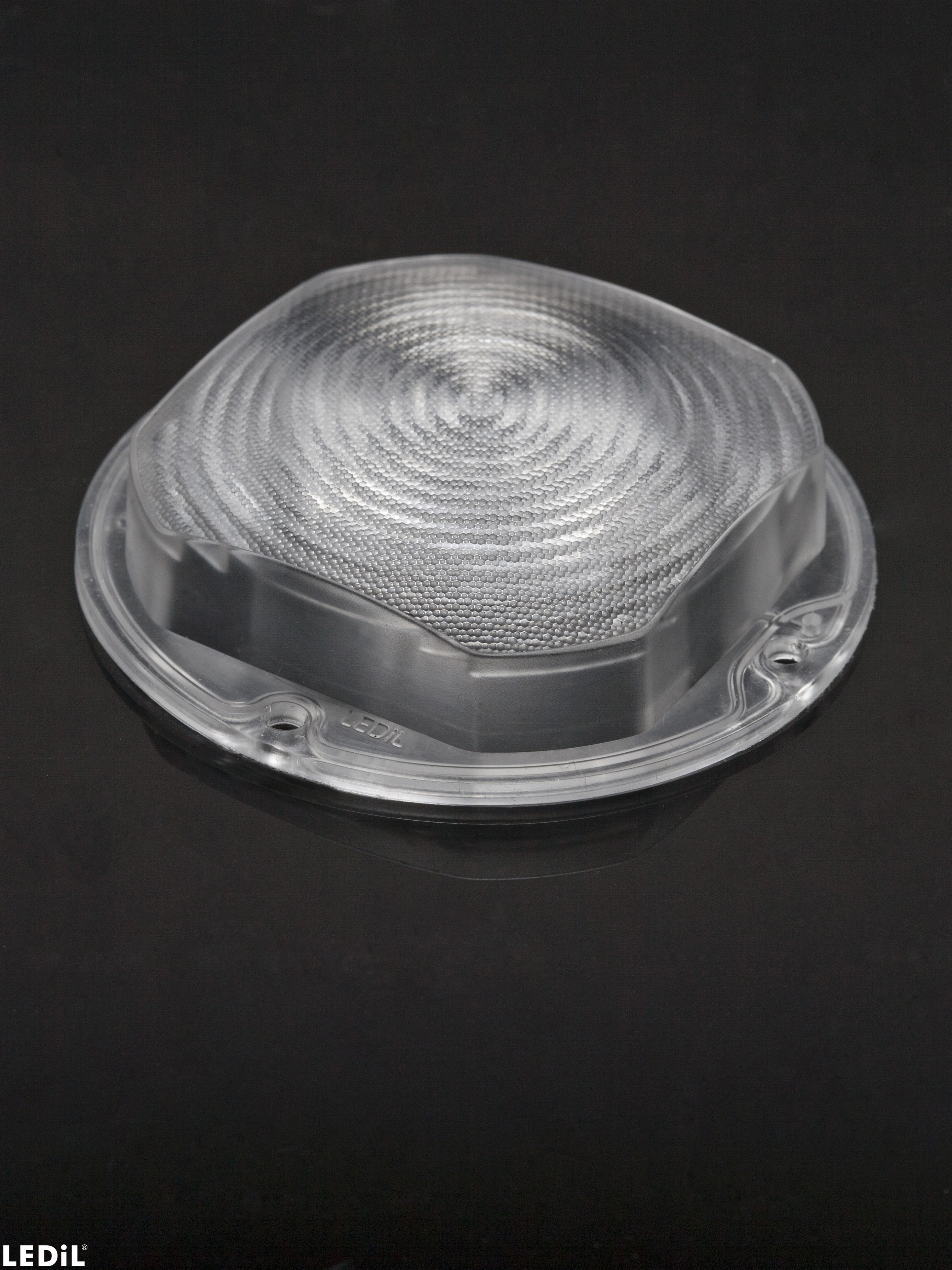

F14627_STELLA-FRESNEL
Print
~25° beam for UV-C, warehouse and outdoor lighting. Compatible with up to 30 mm LES size COBs.
Materials
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

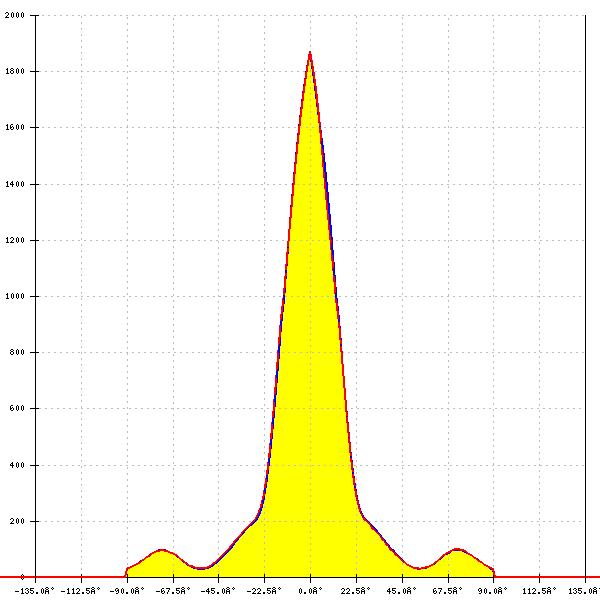

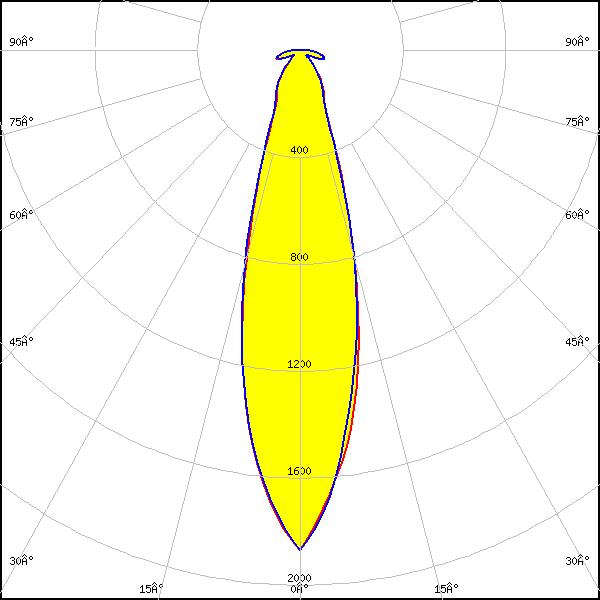

LED:
Vesta TW 18mm (31W) DP
LES size: 19.7 mm
Required components:
Bender Wirth: 483 Typ Z1
FWHM:
28°
FWTM:
59°
Peak intensity:
1.870 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

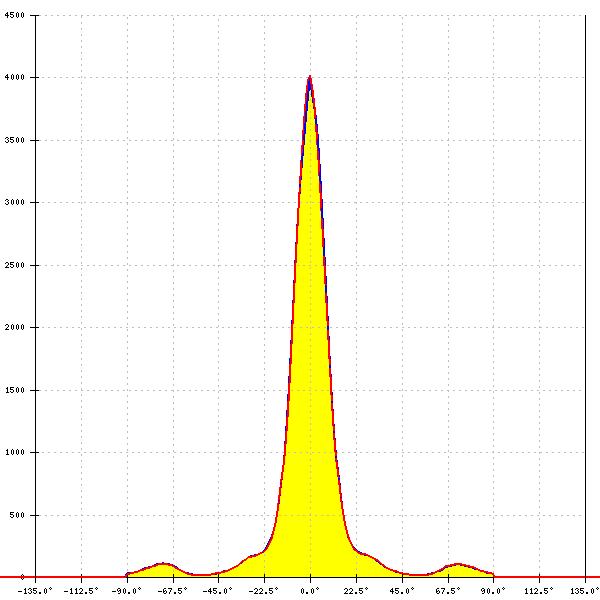

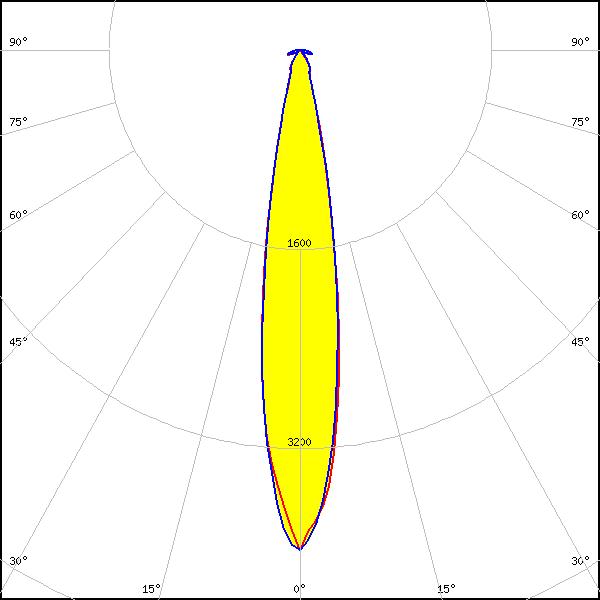

LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
FWHM:
17°
FWTM:
35°
Peak intensity:
4.020 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

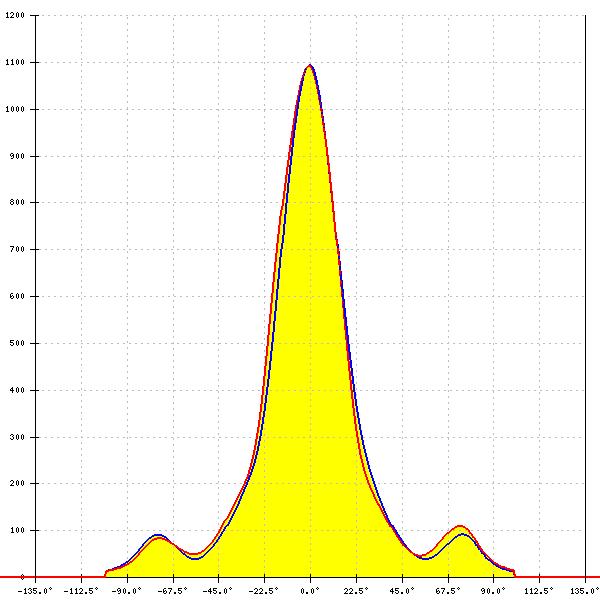

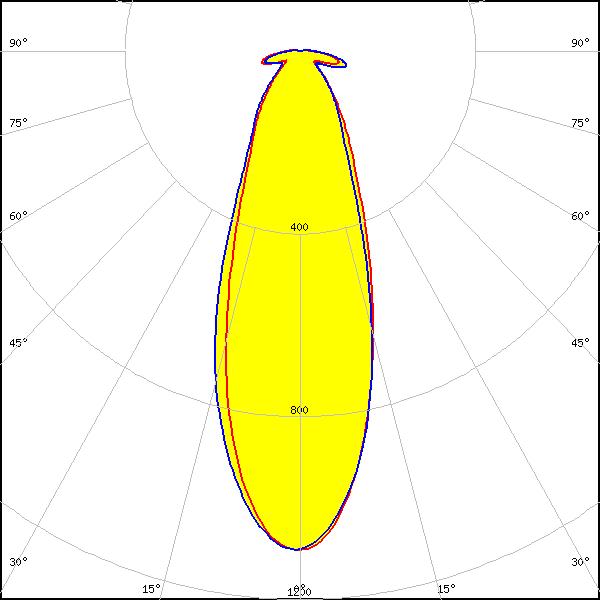

LED:
CLL04x/CLU04x
LES size: 22.0 mm
FWHM:
36°
FWTM:
99°
Peak intensity:
1.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

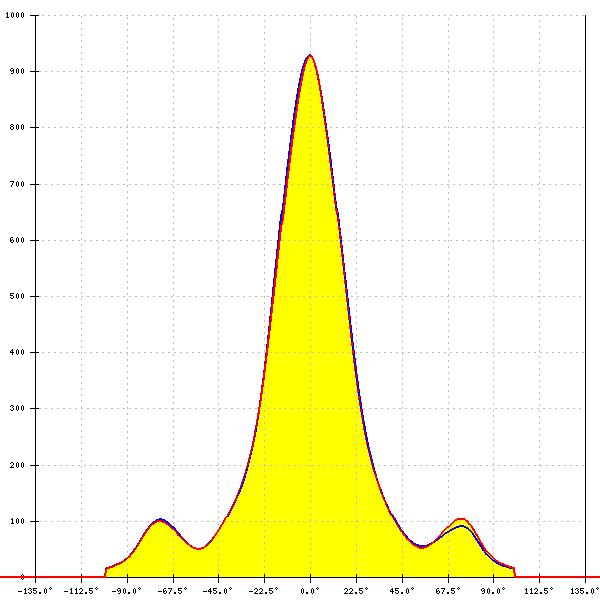

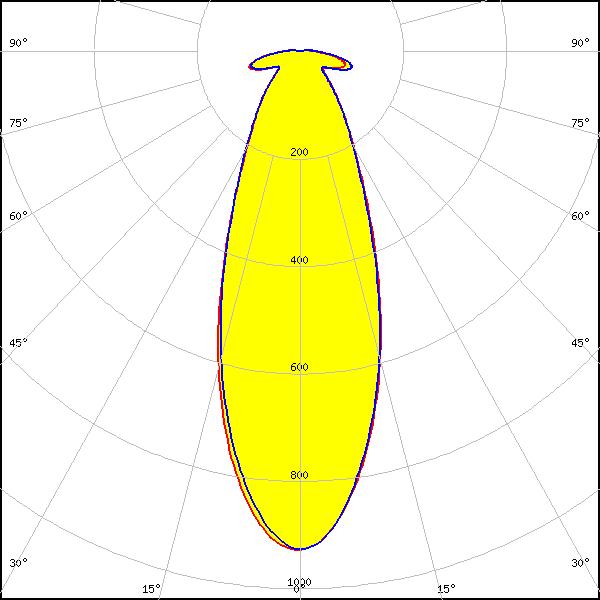

LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
FWHM:
39°
FWTM:
139°
Peak intensity:
0.930 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE 13mm 3000lm xxx R ADV8
LES size: 13.0 mm
Required components:
Bender Wirth: 433 Typ Z1
FWHM:
20°
FWTM:
38°
Peak intensity:
3.220 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE 17mm 5000lm xxx R ADV8
LES size: 16.5 mm
Required components:
Bender Wirth: 431 Typ Z1
FWHM:
26°
FWTM:
48°
Peak intensity:
2.243 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
