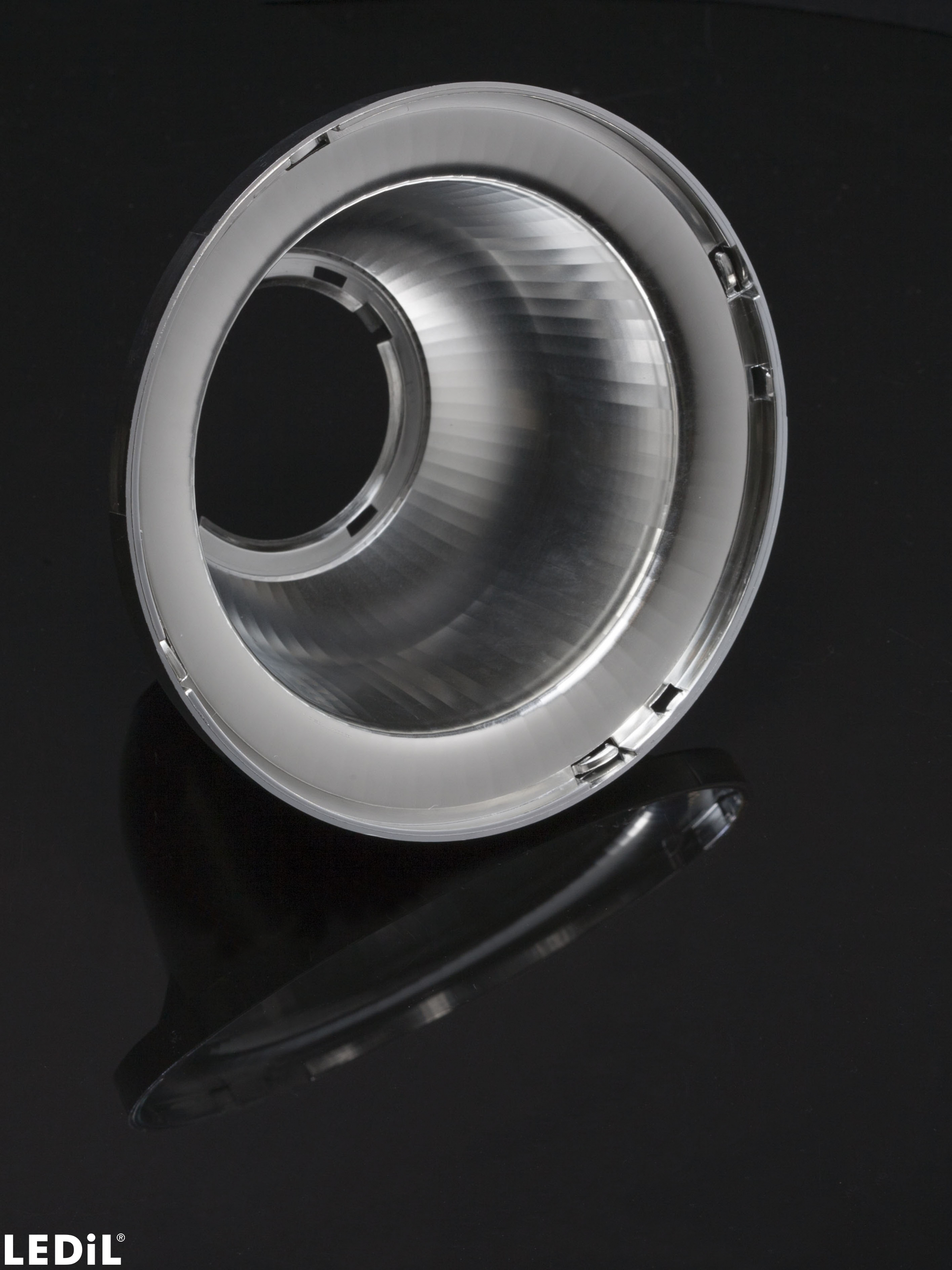

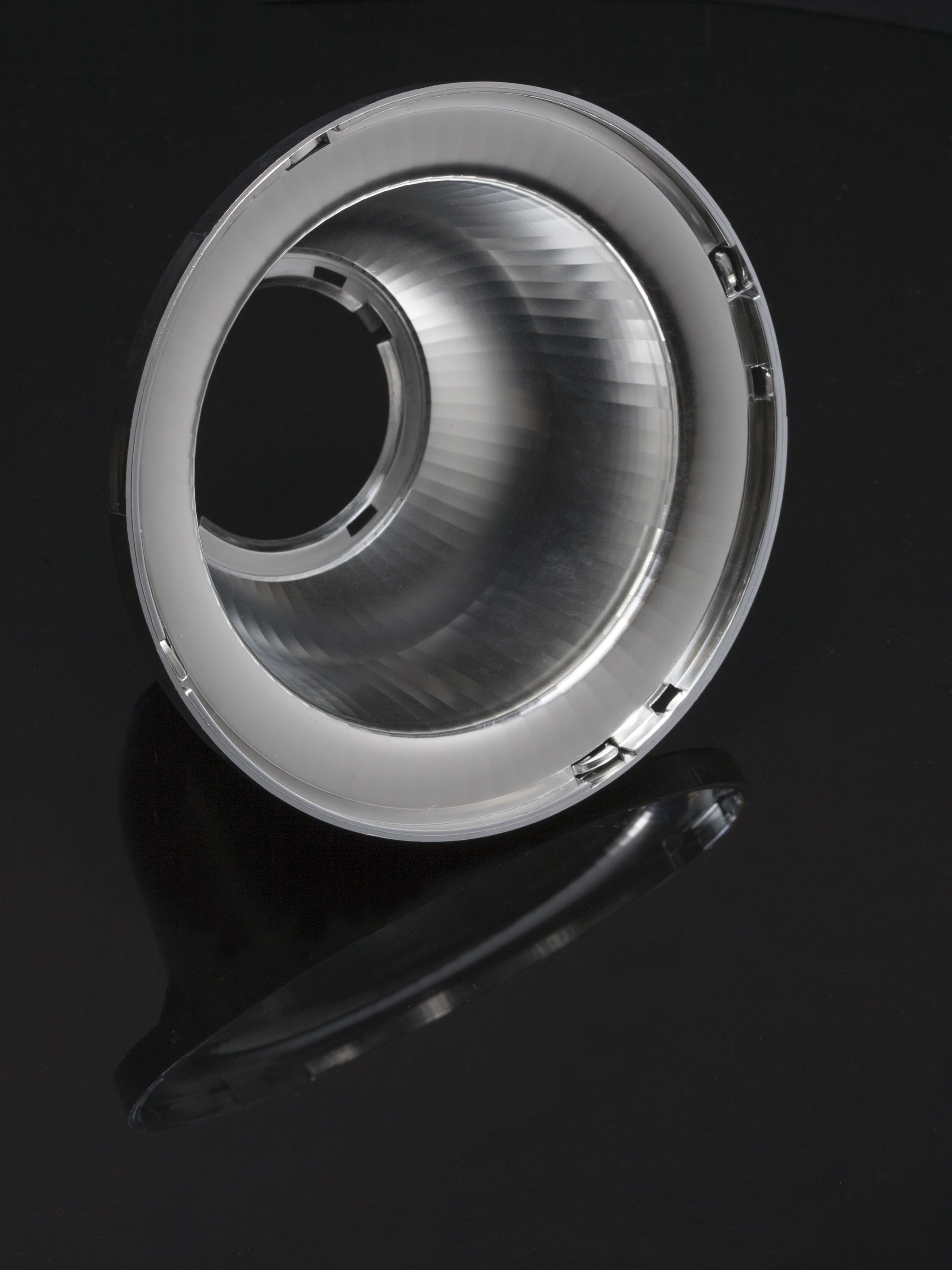

F14618_ANGELETTE-WW-B
Print
~60° wide beam compatible with BJB and B+W connectors
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:
V15 Gen6
LES size: 15.2 mm
Required components:
FWHM:
66°
FWTM:
88°
Peak intensity:
0.850 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

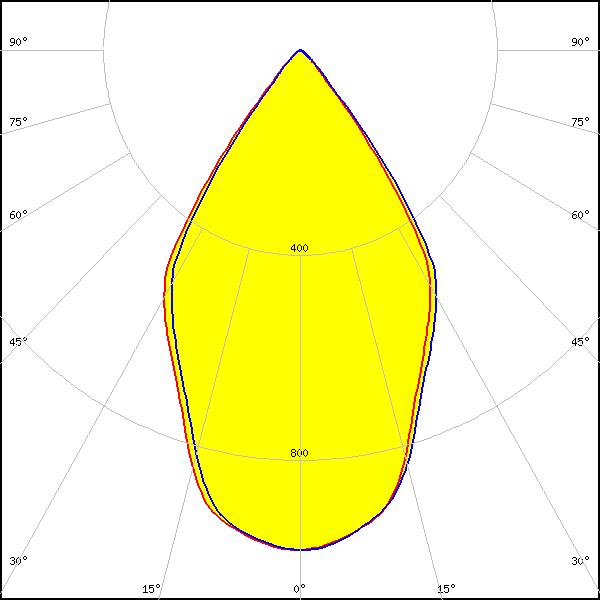

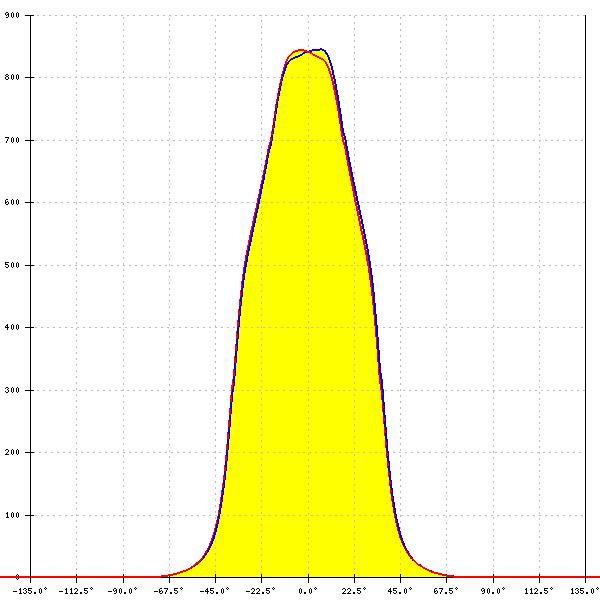

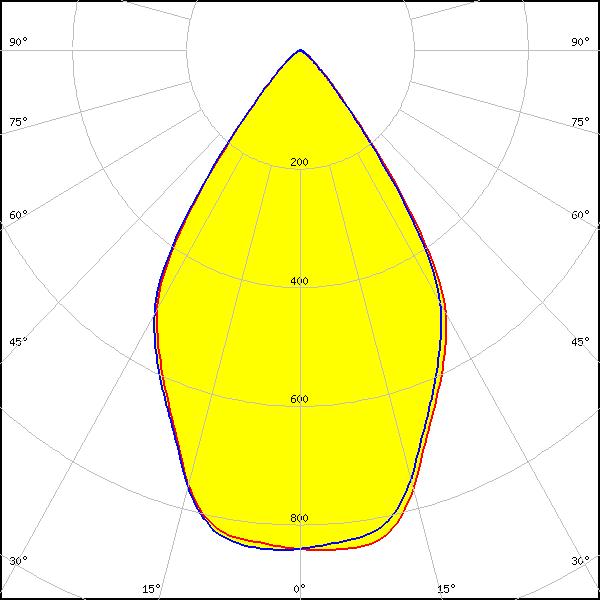

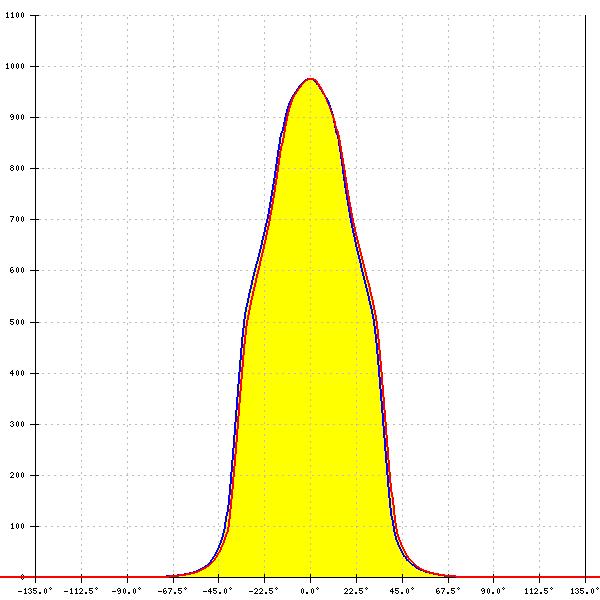

LED:
V15 Gen6
LES size: 15.2 mm
Required components:
BJB: 47.319.2224
FWHM:
65°
FWTM:
83°
Peak intensity:
0.980 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V18 Gen6
LES size: 18.6 mm
Required components:
FWHM:
65°
FWTM:
88°
Peak intensity:
0.860 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

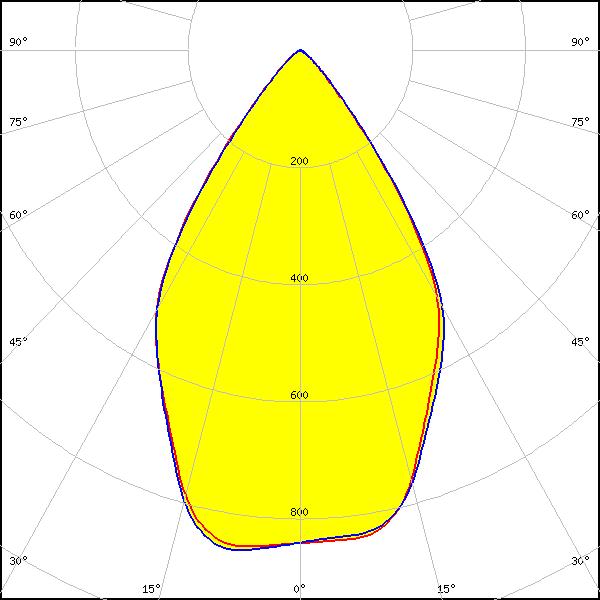

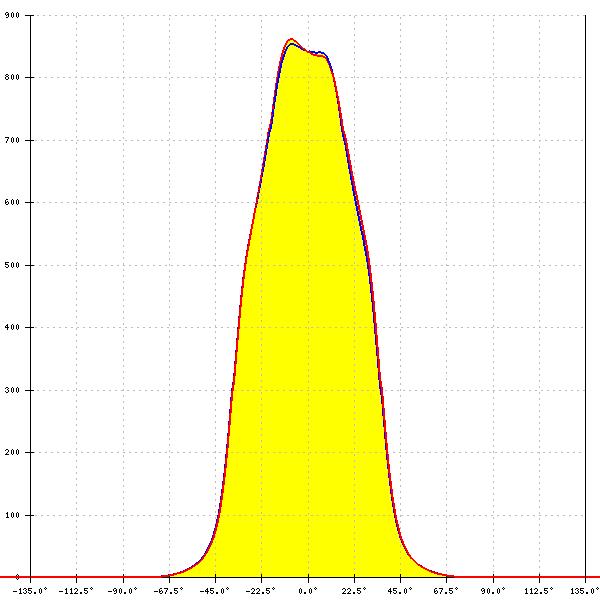

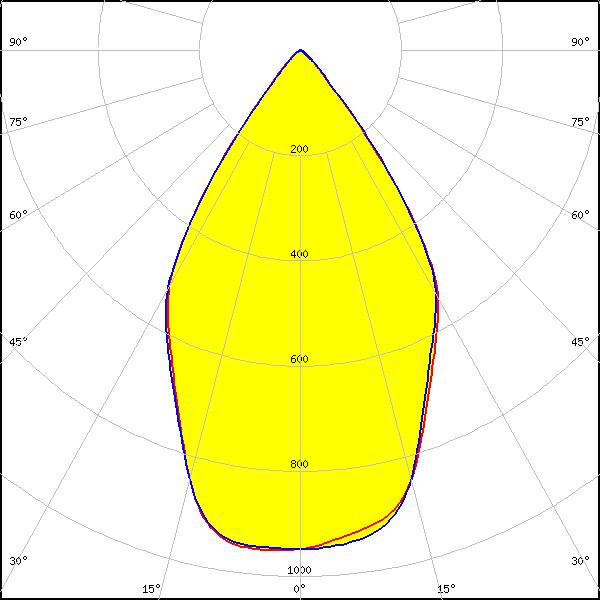

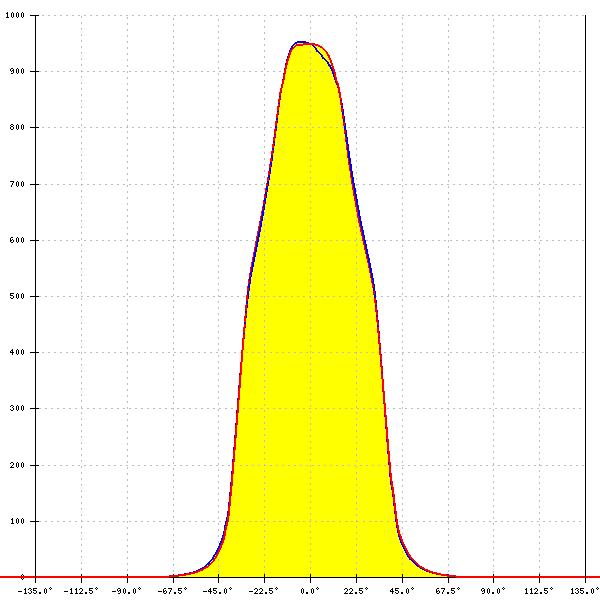

LED:
V18 Gen6
LES size: 18.6 mm
Required components:
BJB: 47.319.2274
FWHM:
64°
FWTM:
83°
Peak intensity:
0.950 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

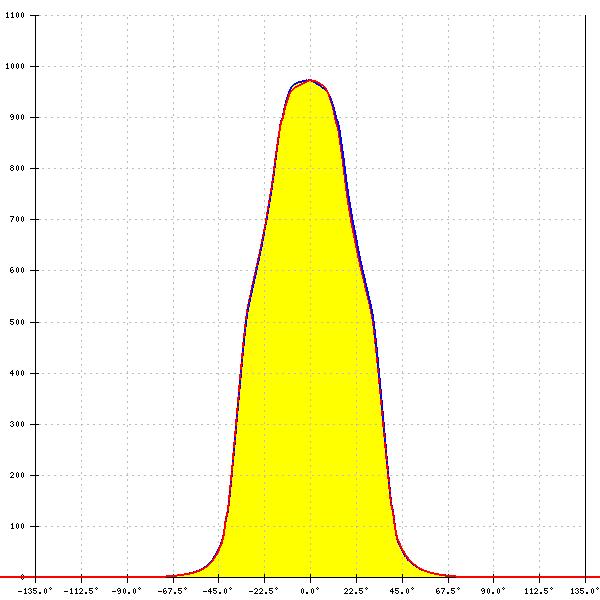

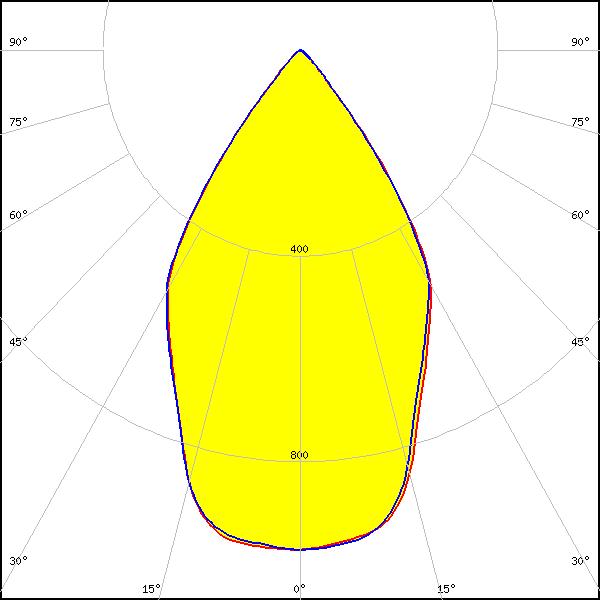

LED:
V18 Gen7
LES size: 19.2 mm
Required components:
BJB: 47.319.2350
FWHM:
64°
FWTM:
83°
Peak intensity:
0.970 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen6
LES size: 22.0 mm
Required components:
FWHM:
64°
FWTM:
88°
Peak intensity:
0.820 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

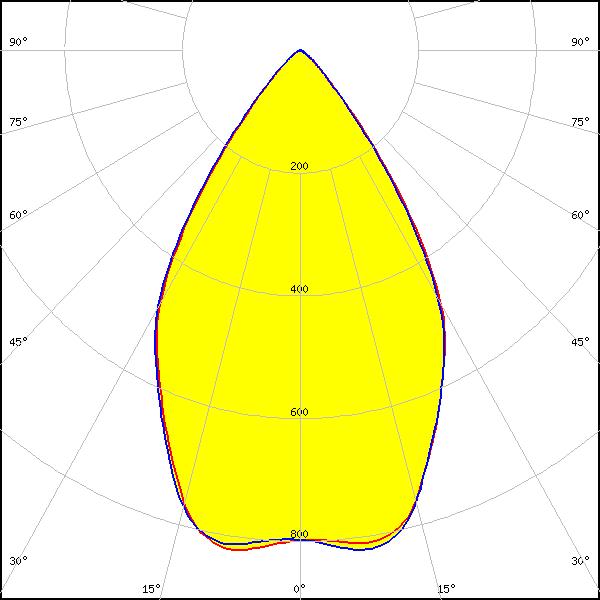

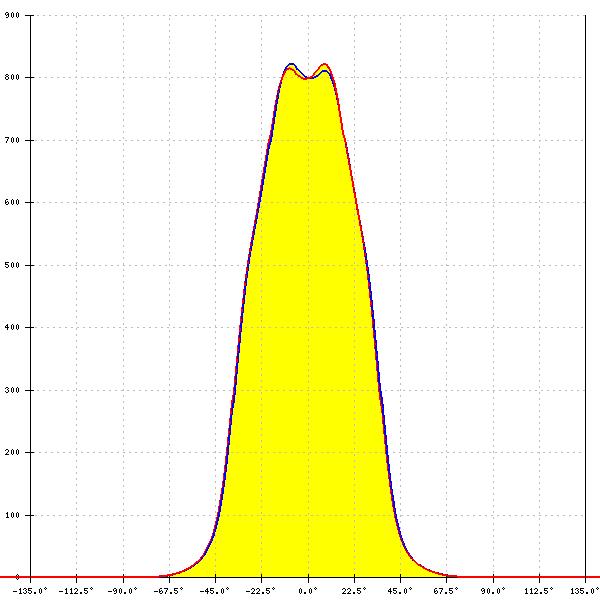

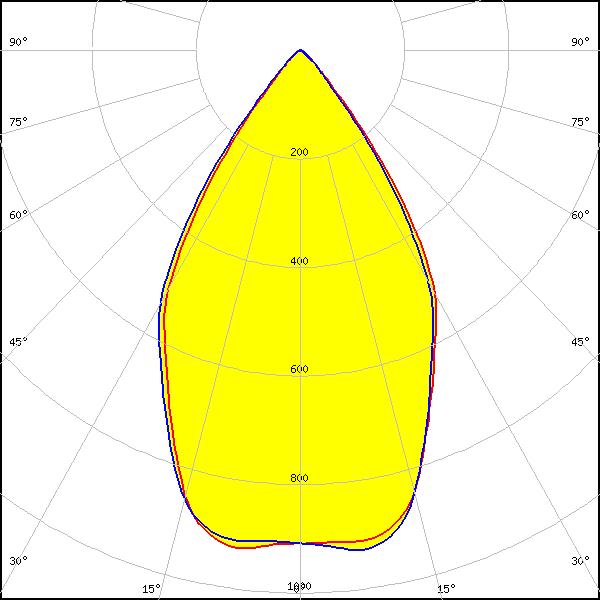

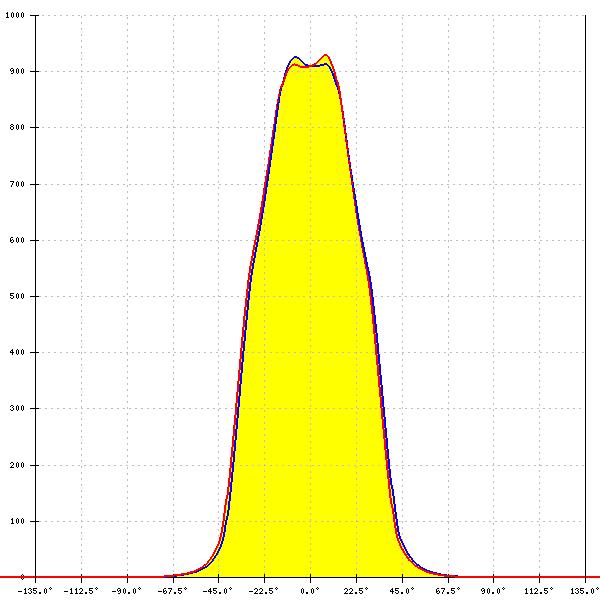

LED:
V22 Gen6
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
63°
FWTM:
84°
Peak intensity:
0.930 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

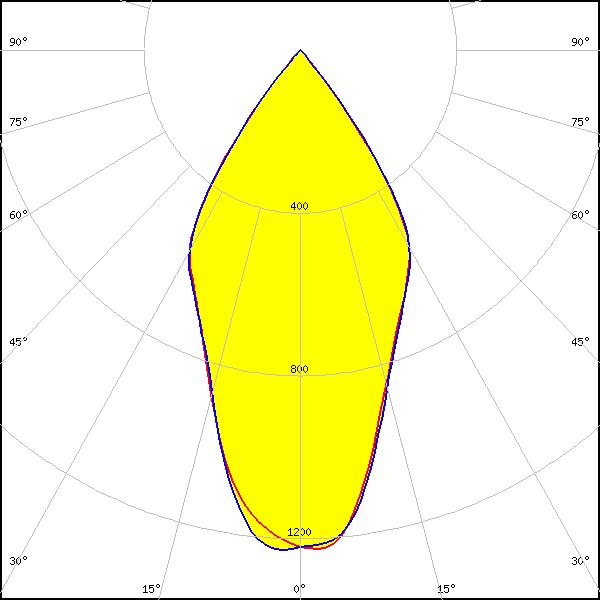

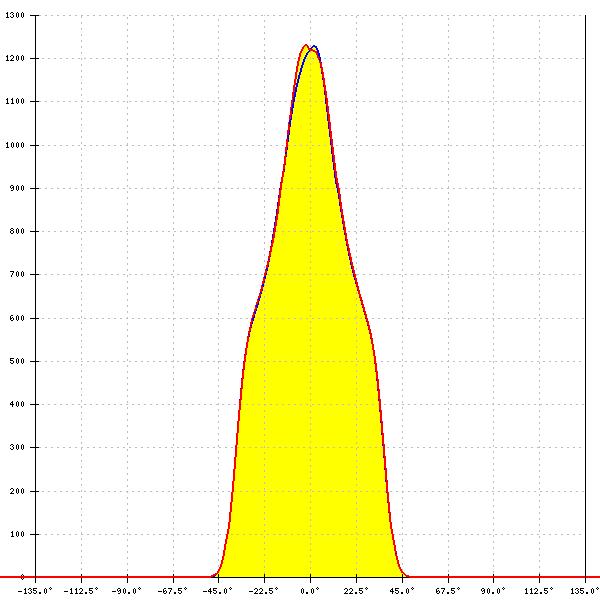

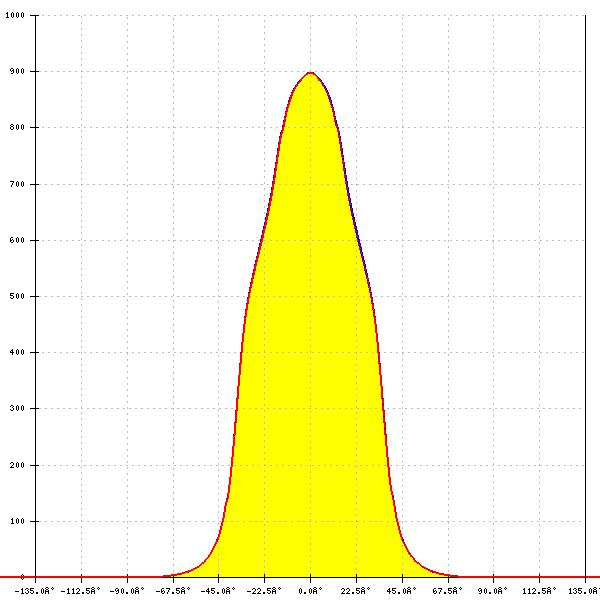

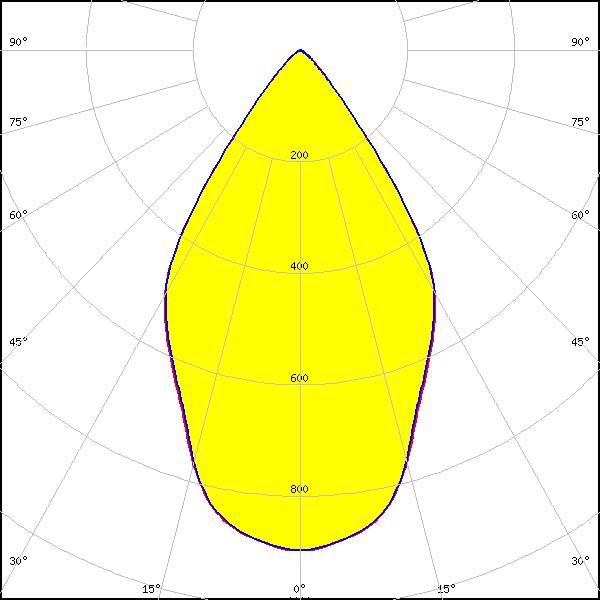

LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
54°
FWTM:
80°
Peak intensity:
1.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

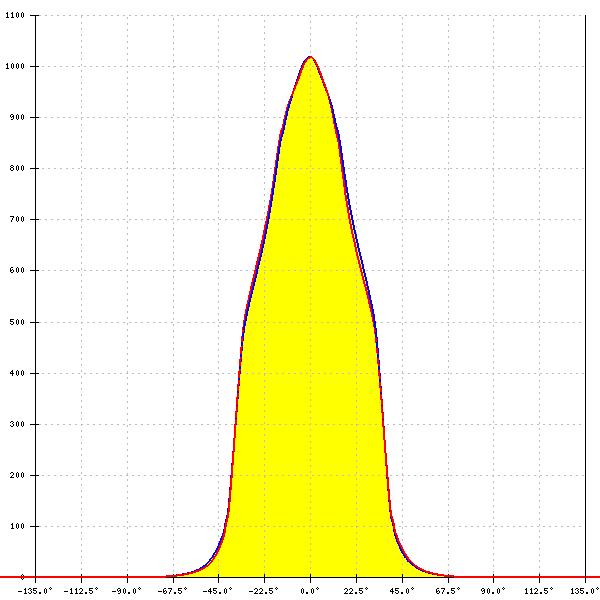

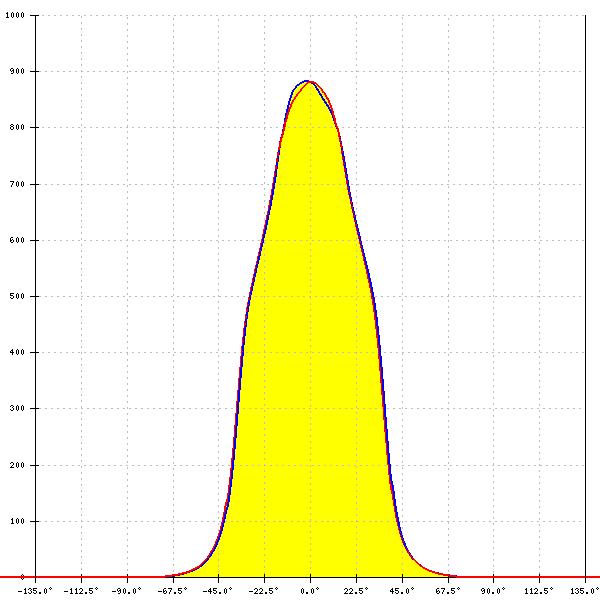

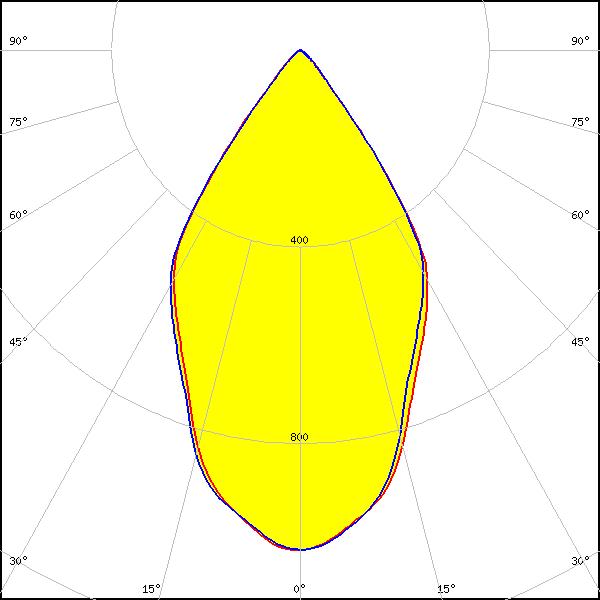

LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
63°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

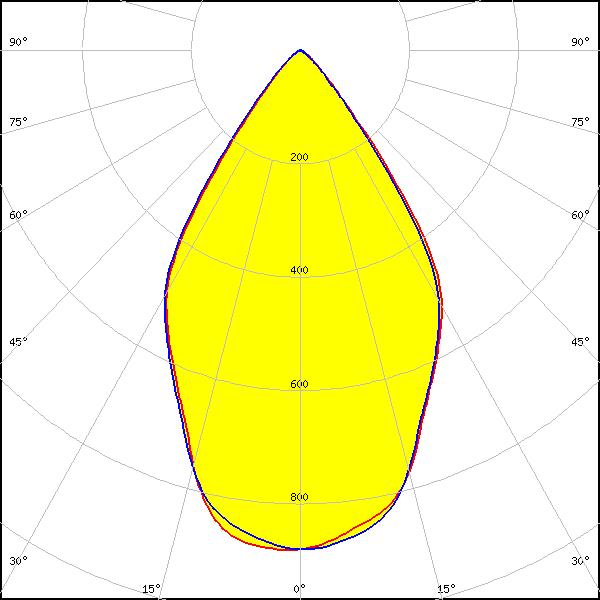

LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
65°
FWTM:
87°
Peak intensity:
0.880 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

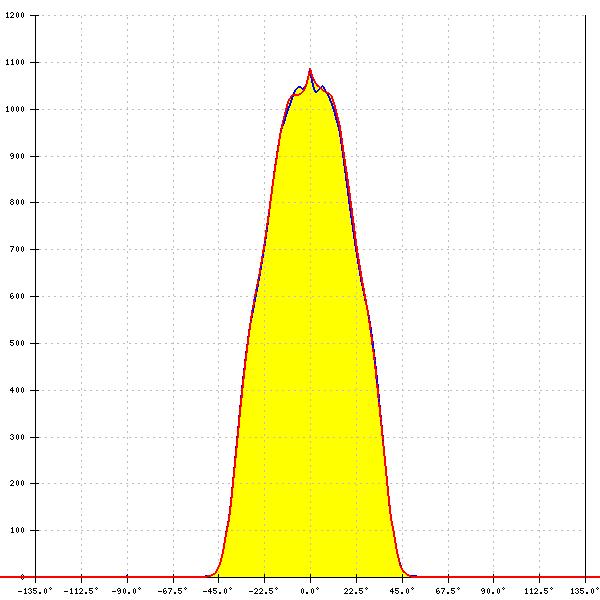

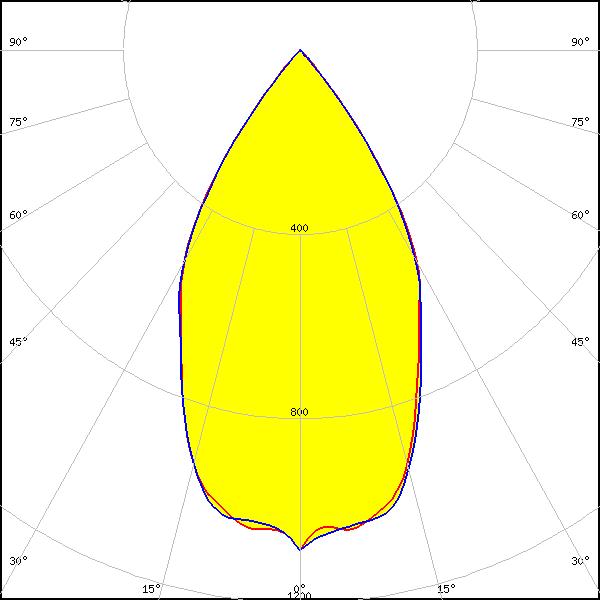

LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
58°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

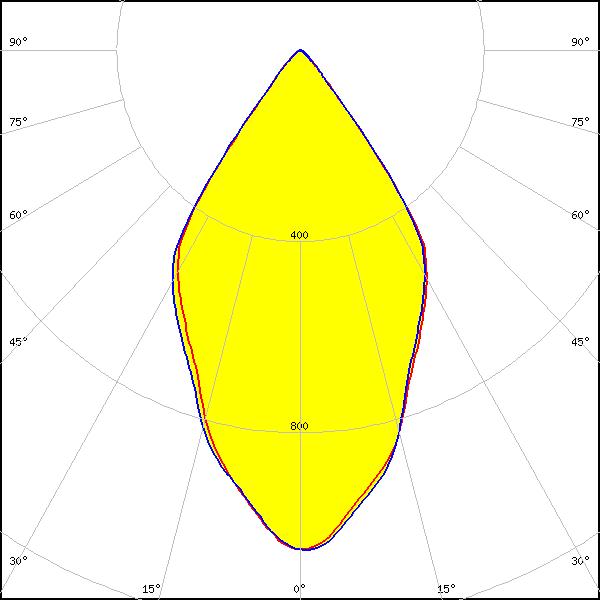

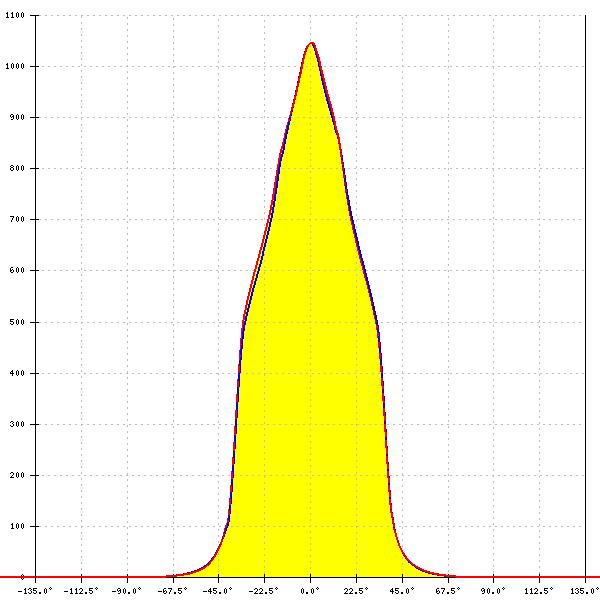

LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
A.A.G. STUCCHI: 8403/G2
FWHM:
62°
FWTM:
81°
Peak intensity:
1.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

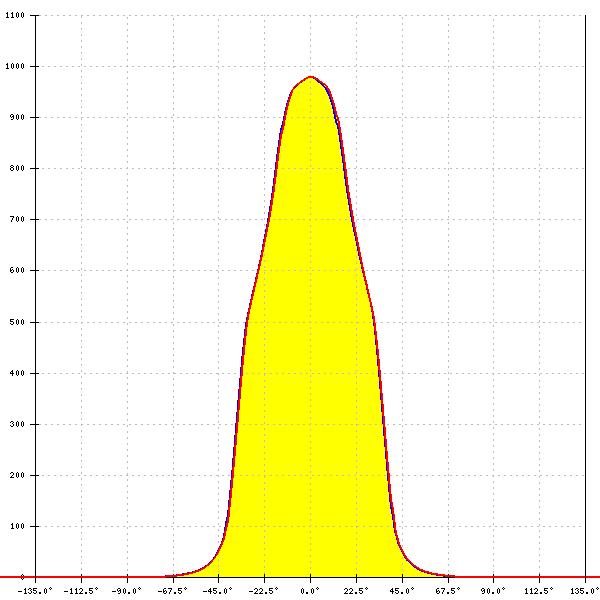

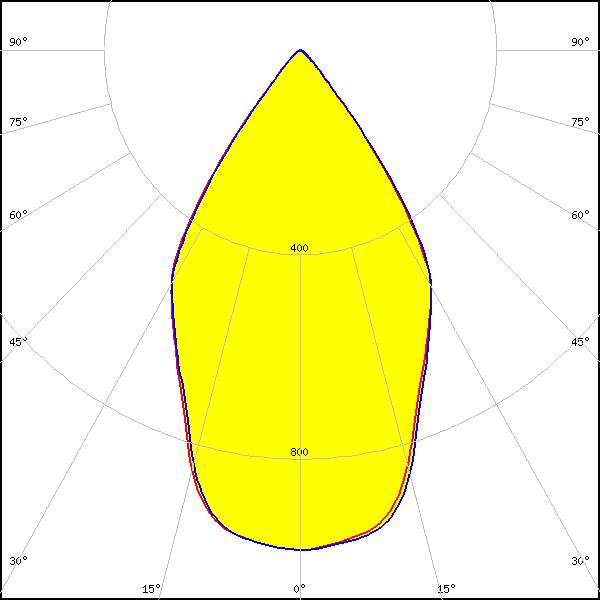

LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
A.A.G. STUCCHI: 8401-G2
FWHM:
63°
FWTM:
83°
Peak intensity:
0.980 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

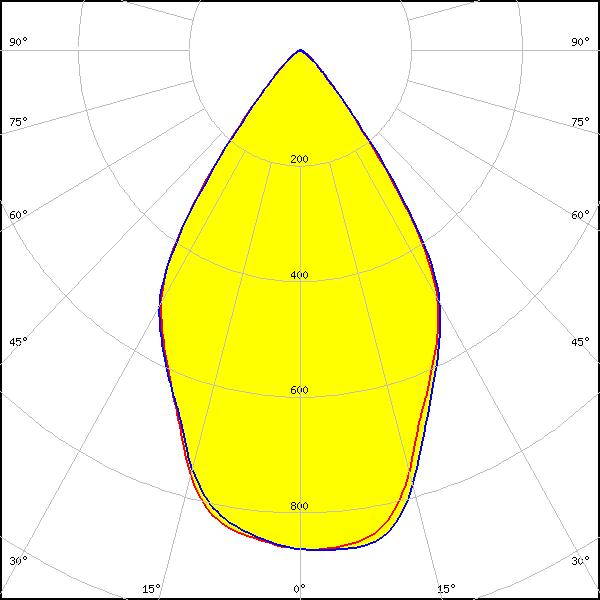

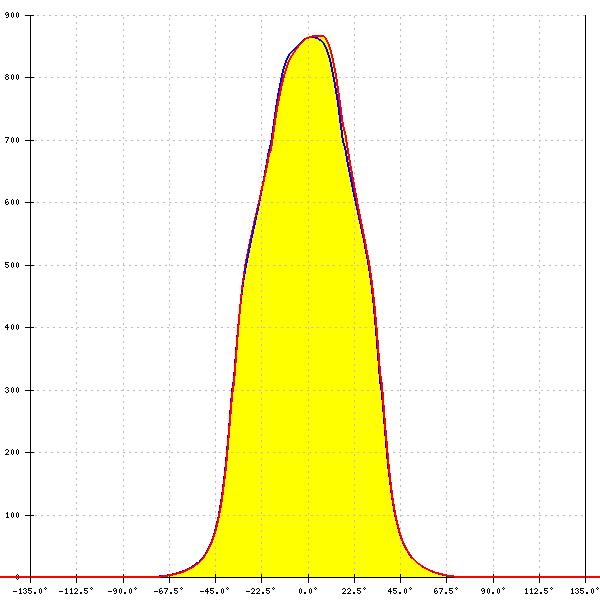

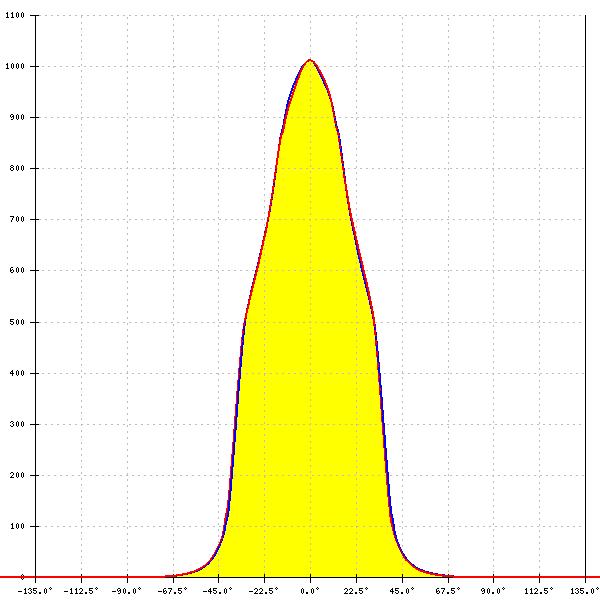

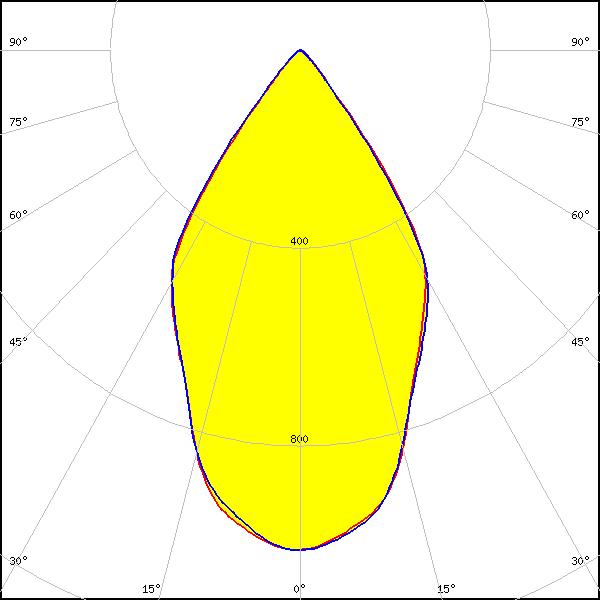

LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
63°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM:
66°
FWTM:
87°
Peak intensity:
0.870 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
63°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

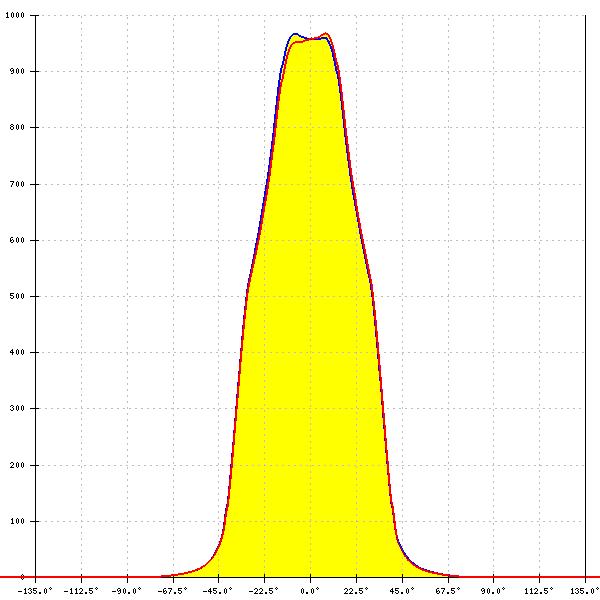

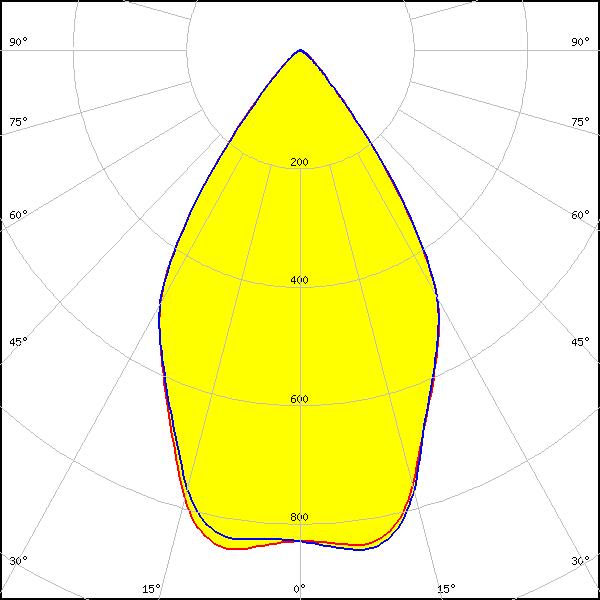

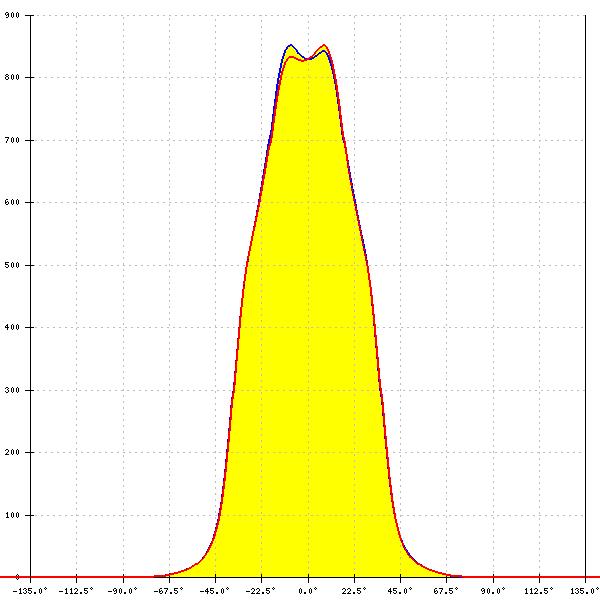

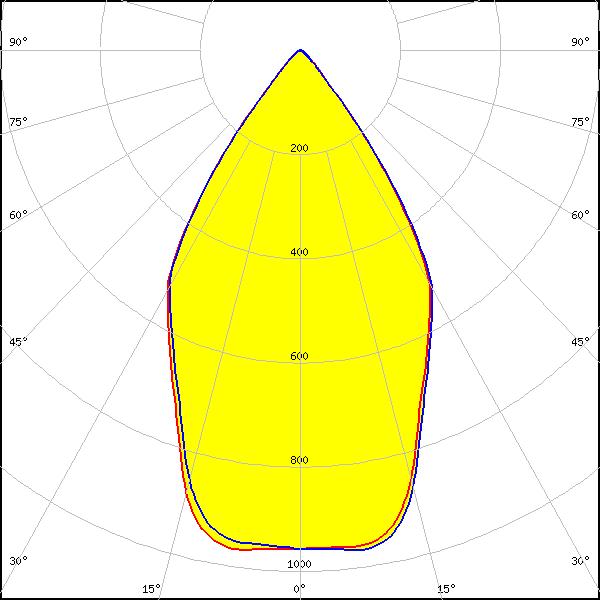

LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
BJB: 47.319.2030
FWHM:
63°
FWTM:
83°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM:
65°
FWTM:
87°
Peak intensity:
0.900 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM:
64°
FWTM:
88°
Peak intensity:
0.800 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

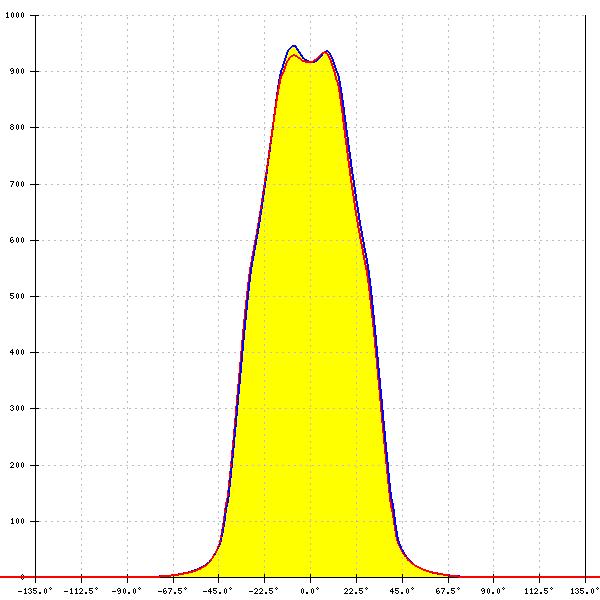

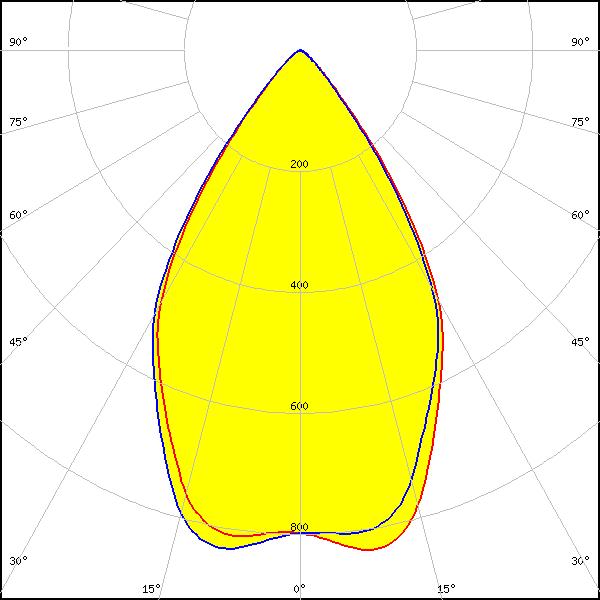

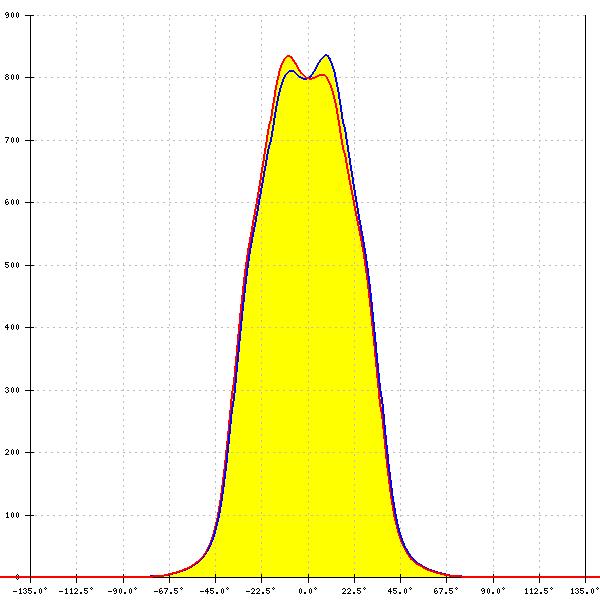

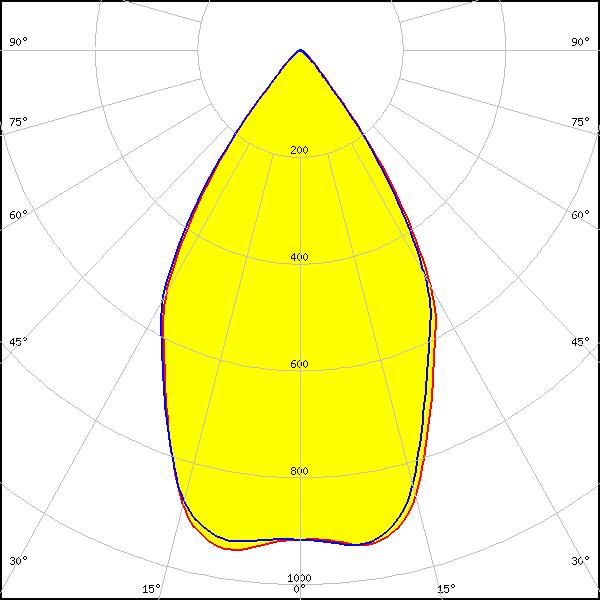

LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
BJB: 47.319.2030
FWHM:
62°
FWTM:
84°
Peak intensity:
0.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

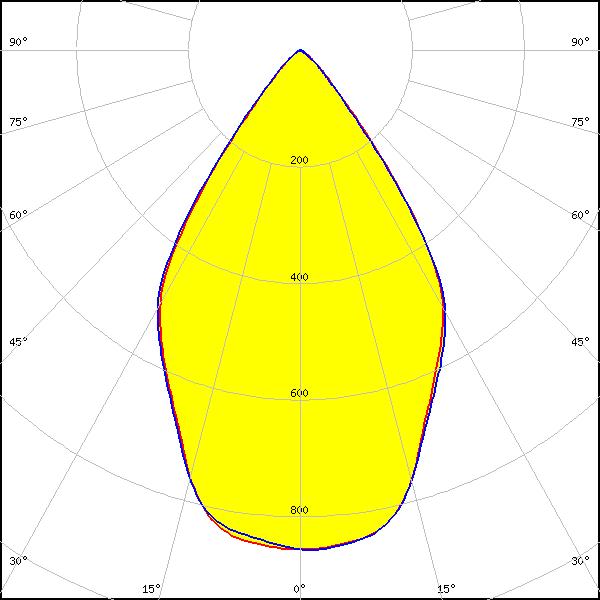

LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
65°
FWTM:
83°
Peak intensity:
0.990 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
65°
FWTM:
83°
Peak intensity:
0.990 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

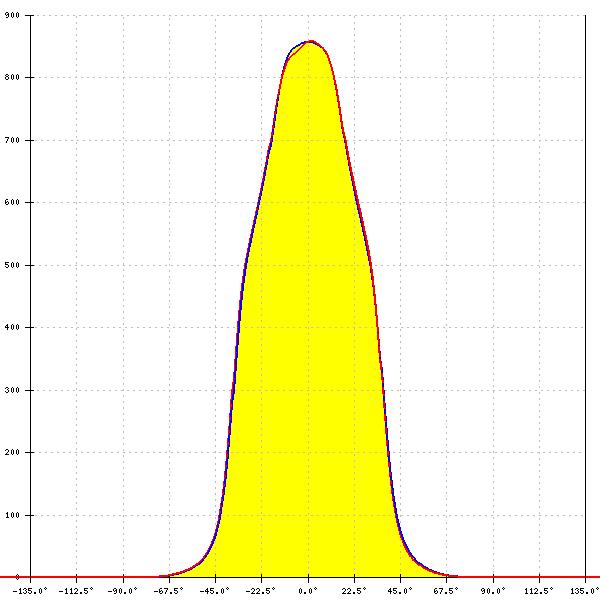

LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
66°
FWTM:
88°
Peak intensity:
0.860 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

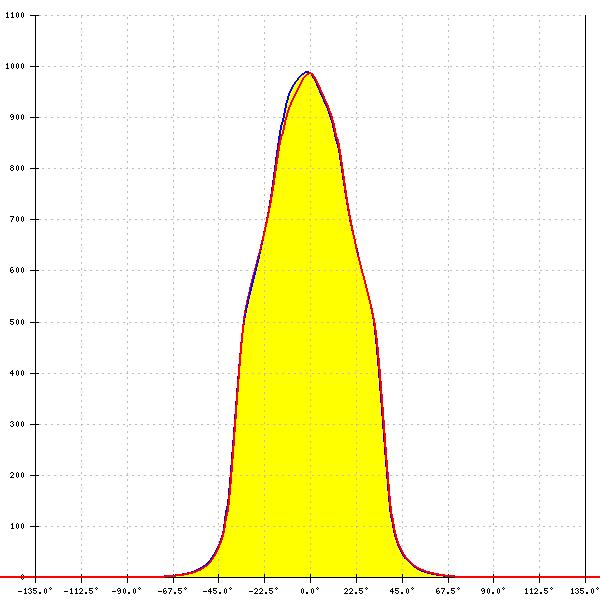

LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
66°
FWTM:
88°
Peak intensity:
0.860 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040D / LC060D / LC080D
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
60°
FWTM:
81°
Peak intensity:
1.030 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

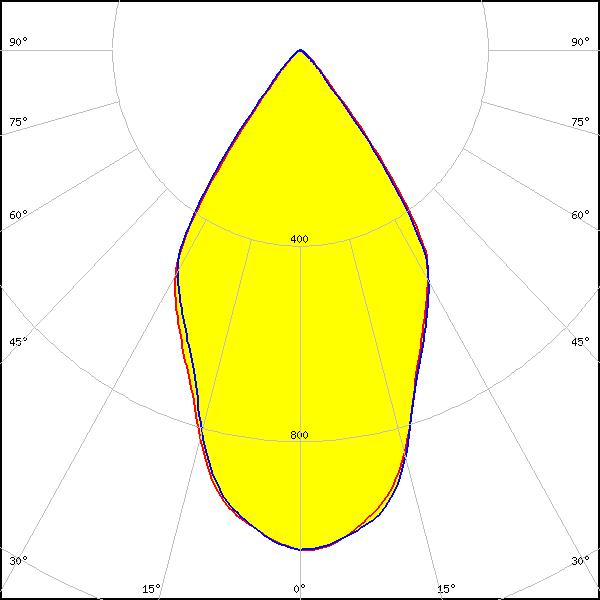

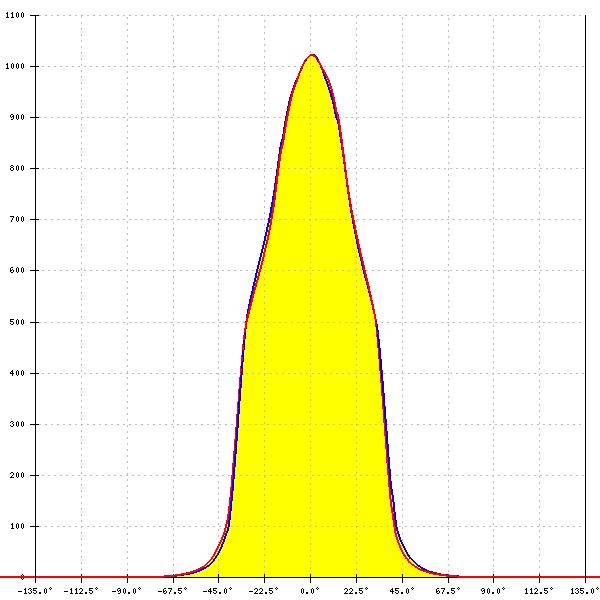

LED:
SLE G7 LES15
LES size: 15.0 mm
Required components:
BJB: 47.319.2021
FWHM:
63°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

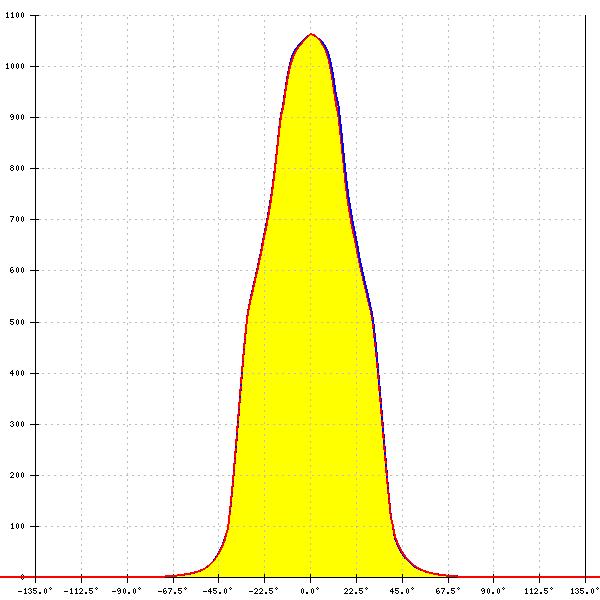

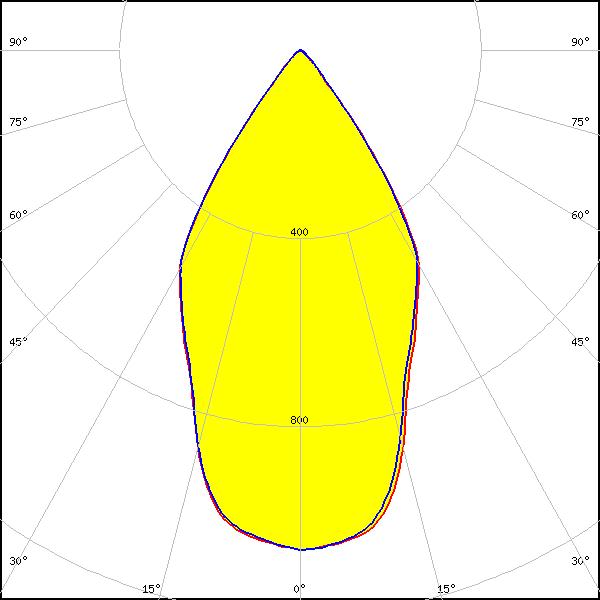

LED:
SLE G7 LES17 H
FWHM:
59°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

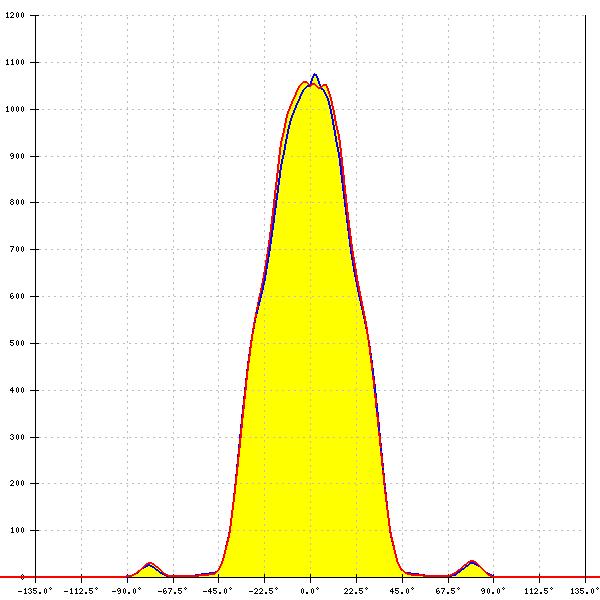

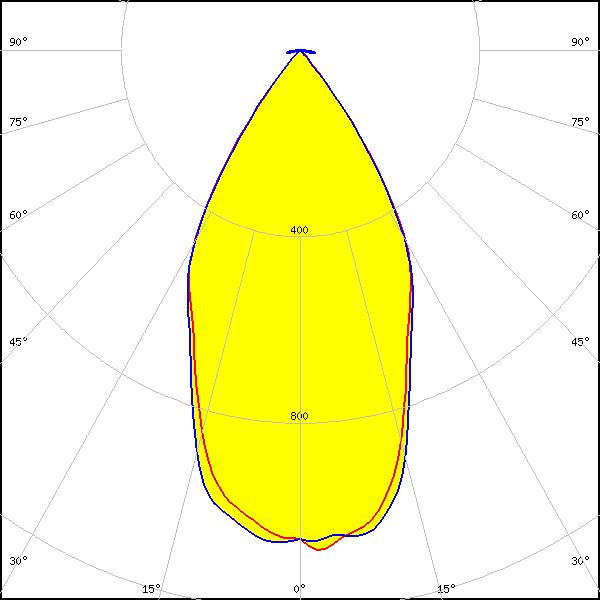

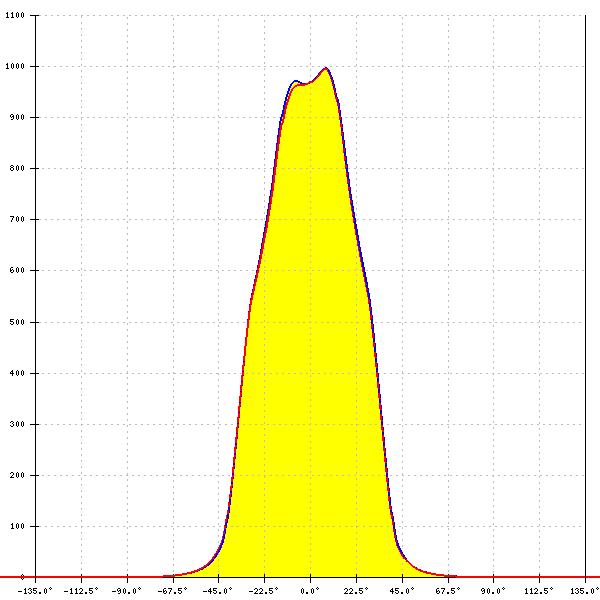

LED:
SLE G7 LES21 H
Required components:
FWHM:
56°
FWTM:
78°
Peak intensity:
1.073 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

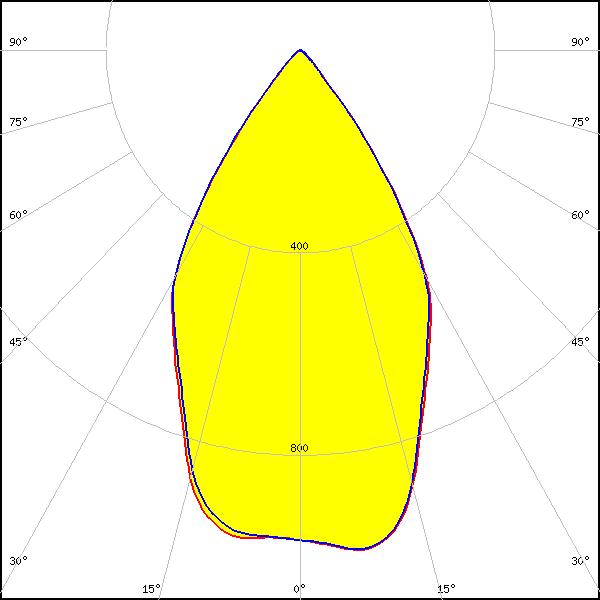

LED:
SLE G7 LES21 H
FWHM:
61°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

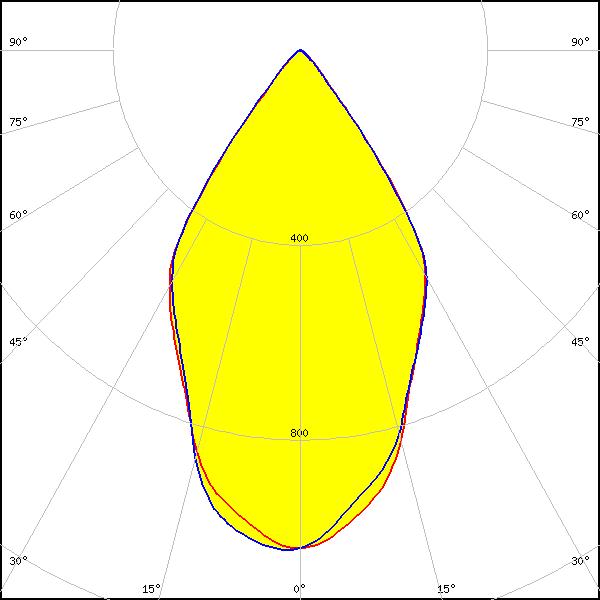

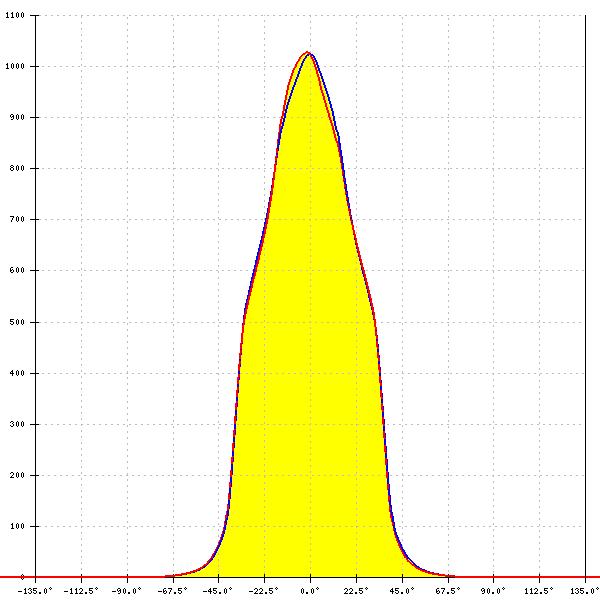

LED:

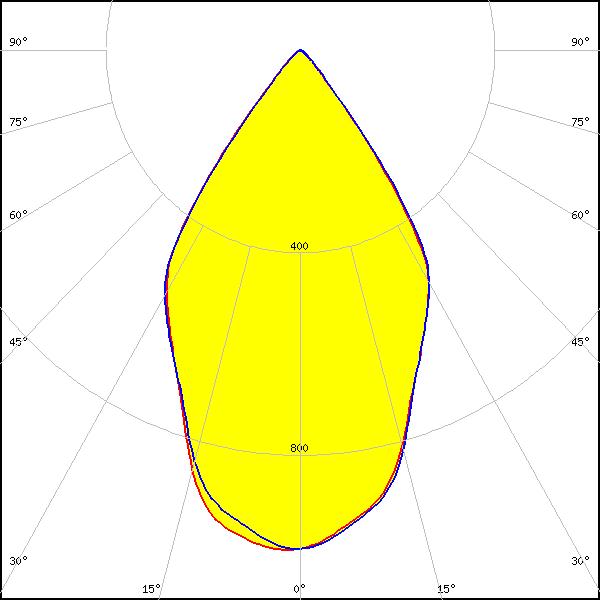

XOB 14.5 mm
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
64°
FWTM:
82°
Peak intensity:
1.027 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
