F14534_ANGELETTE-WW
Print
~60° wide beam
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

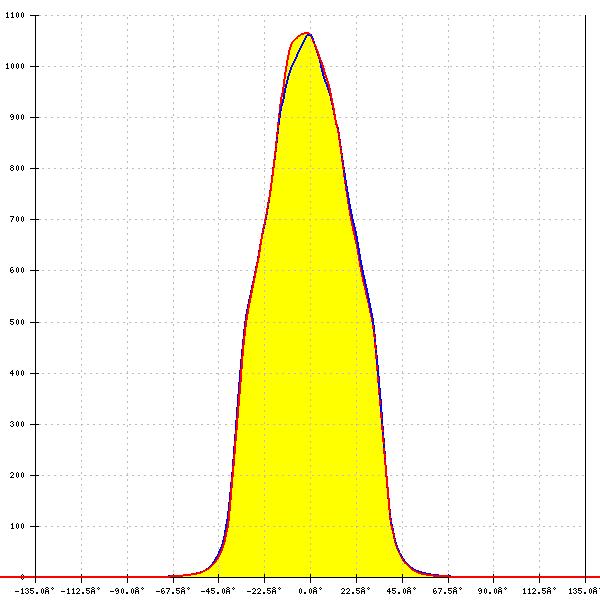

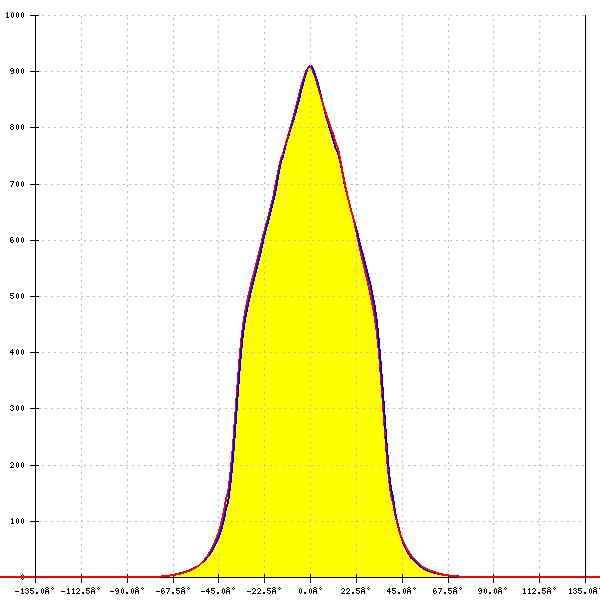

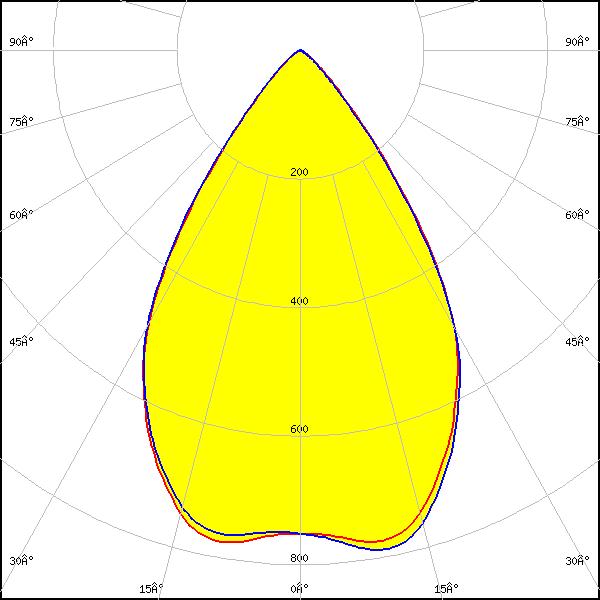

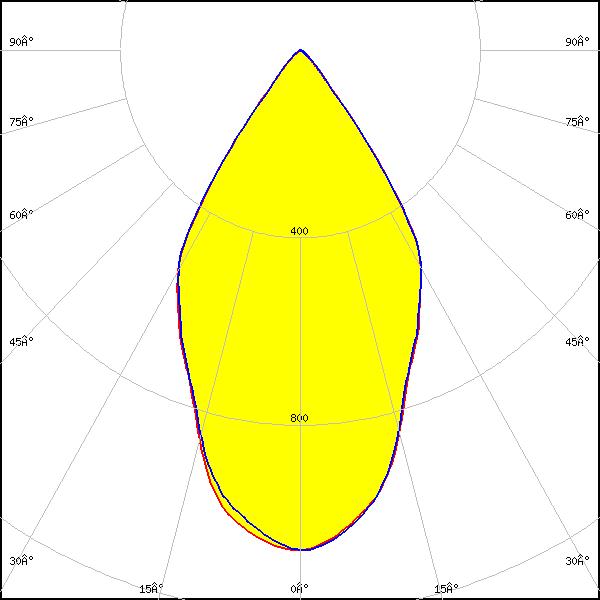

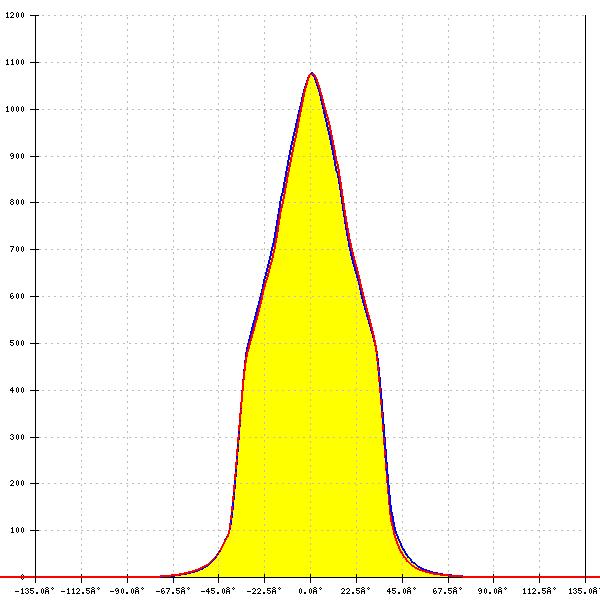

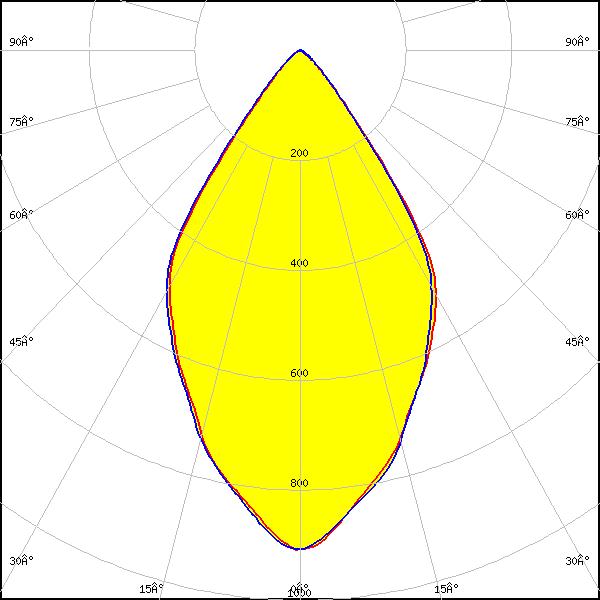

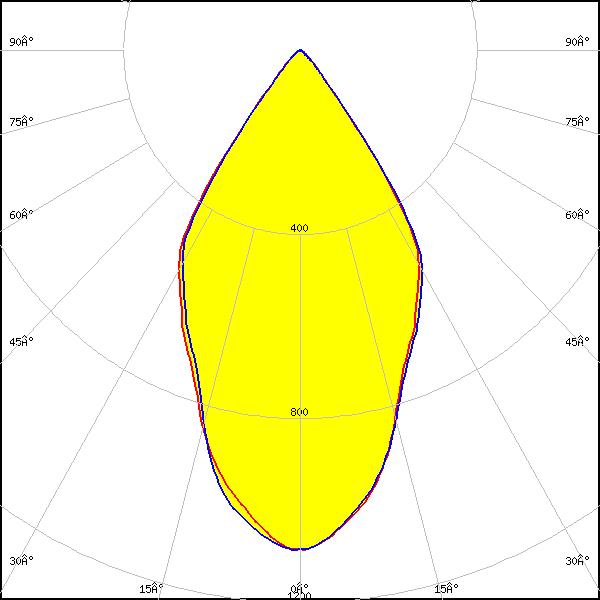

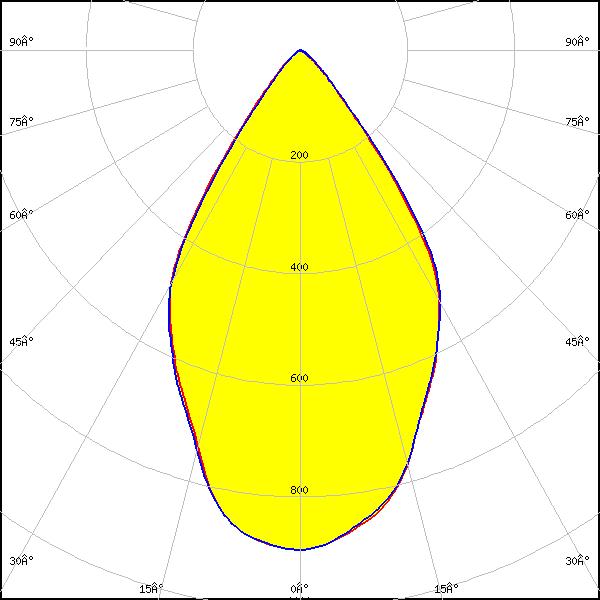

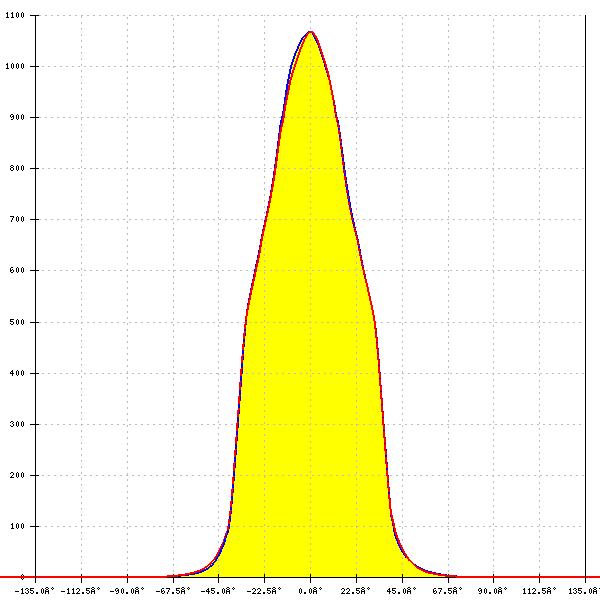

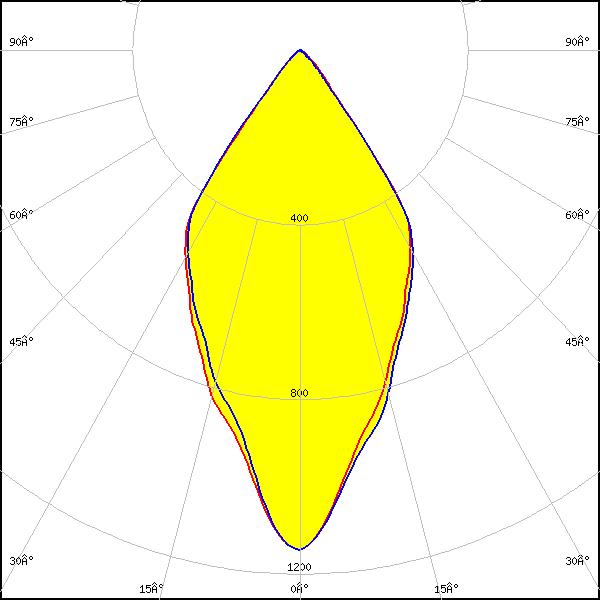

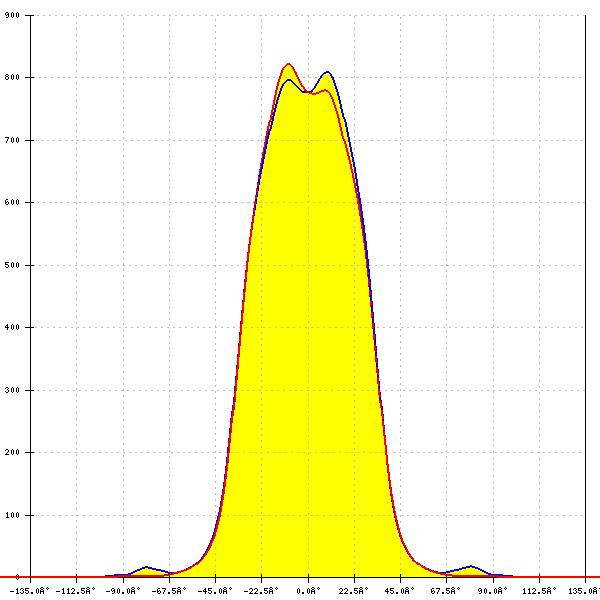

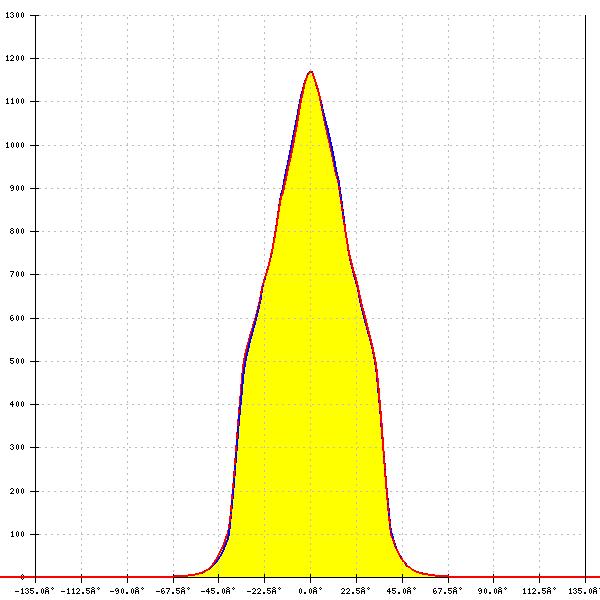

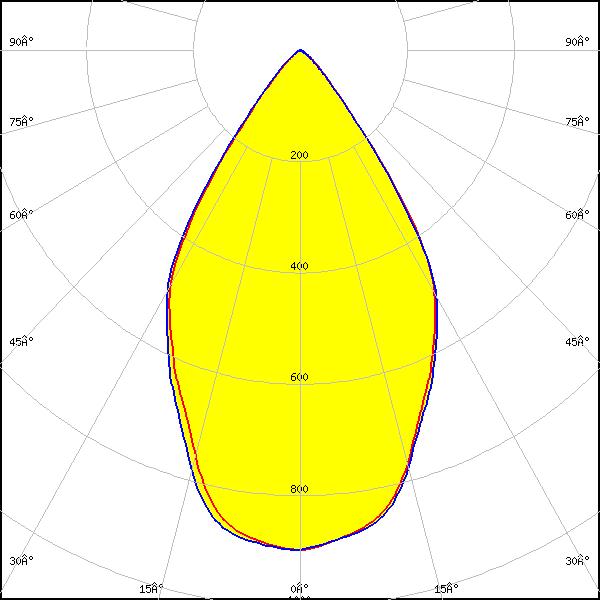

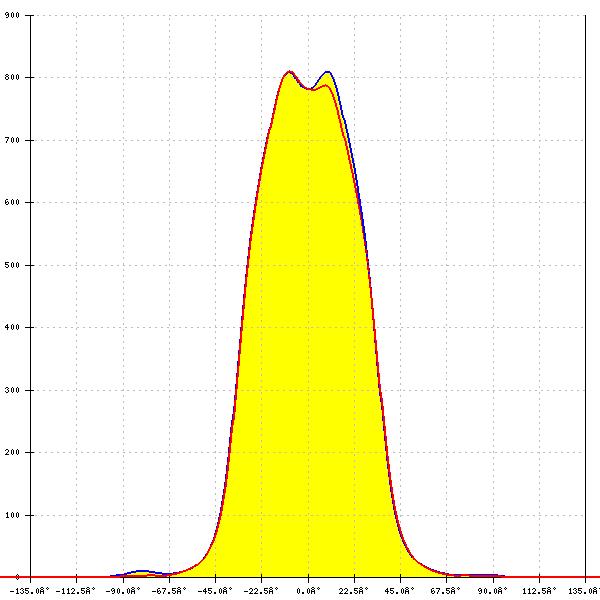

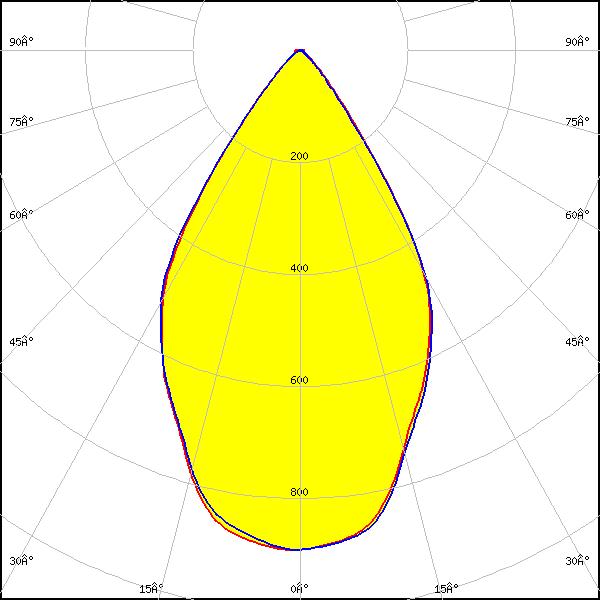

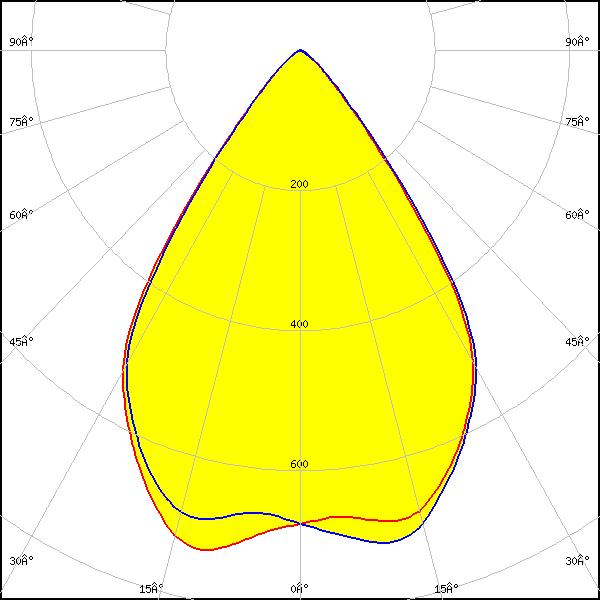

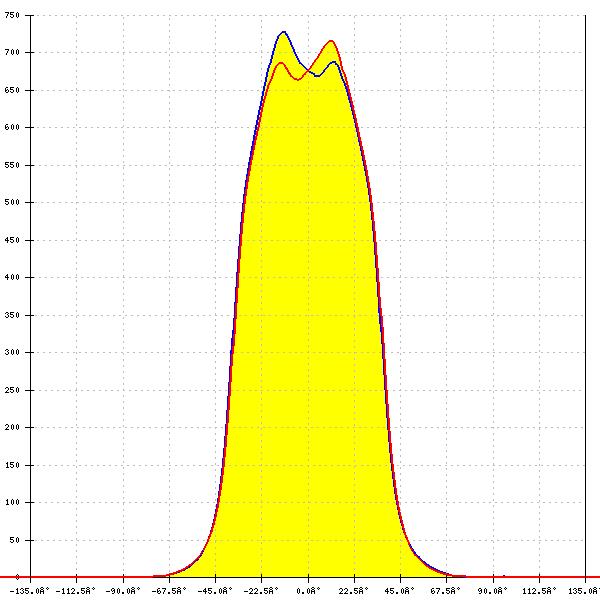

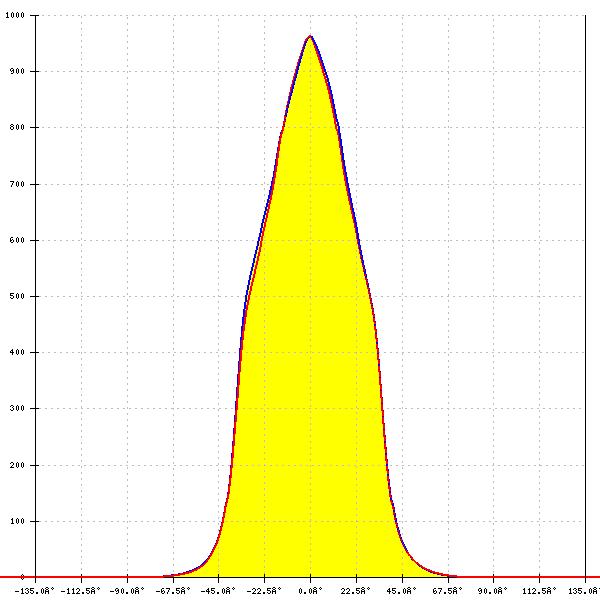

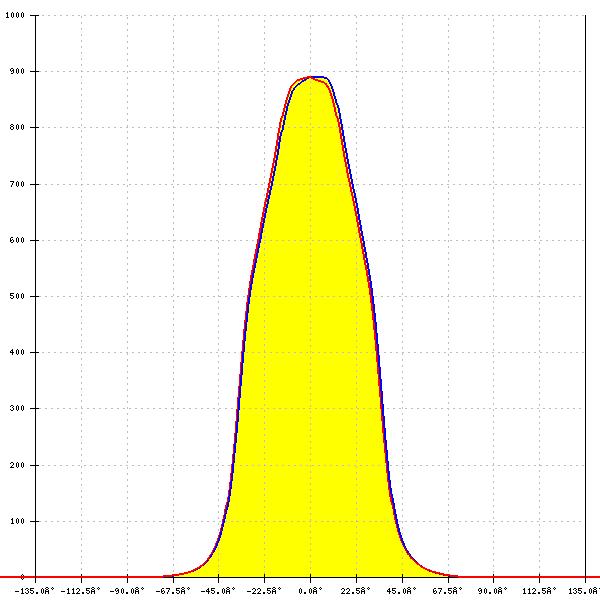

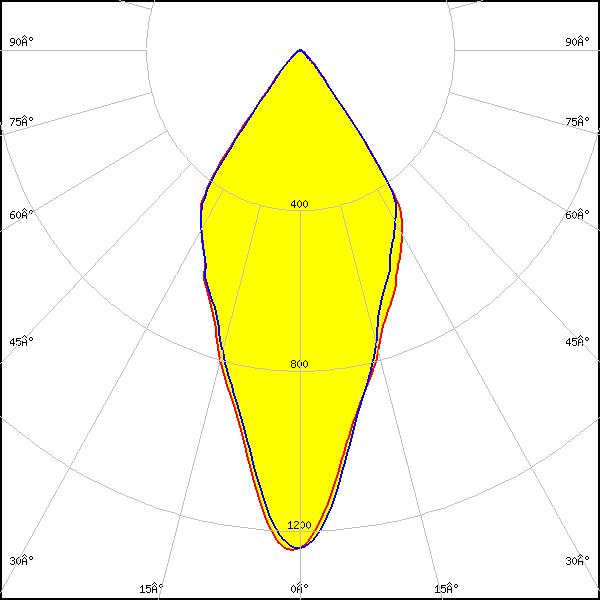

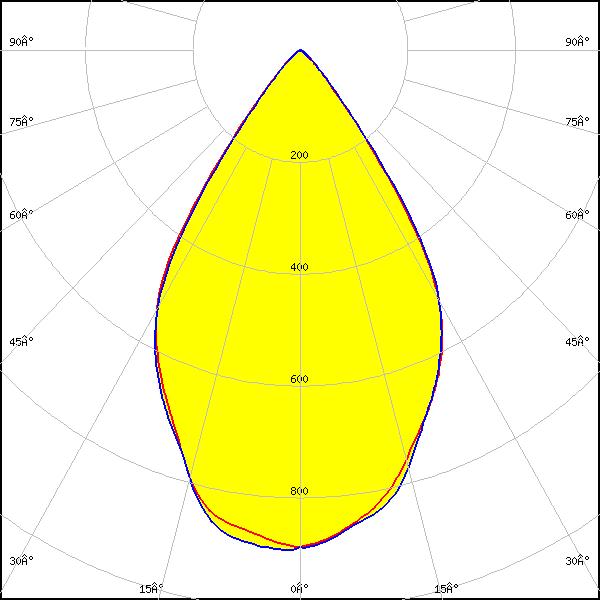

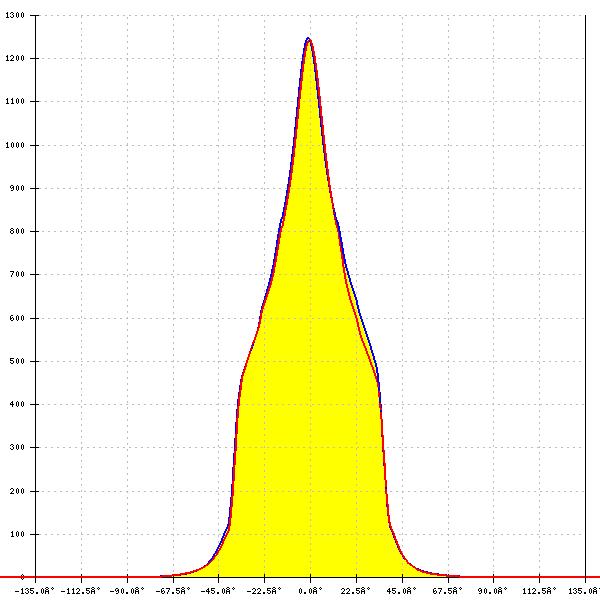

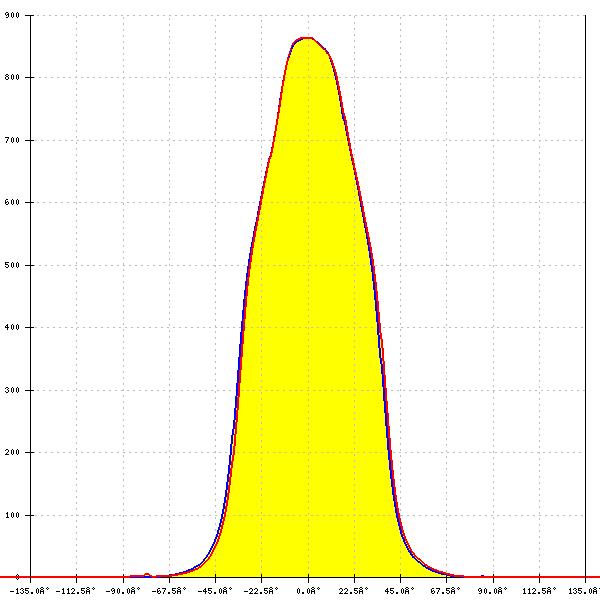

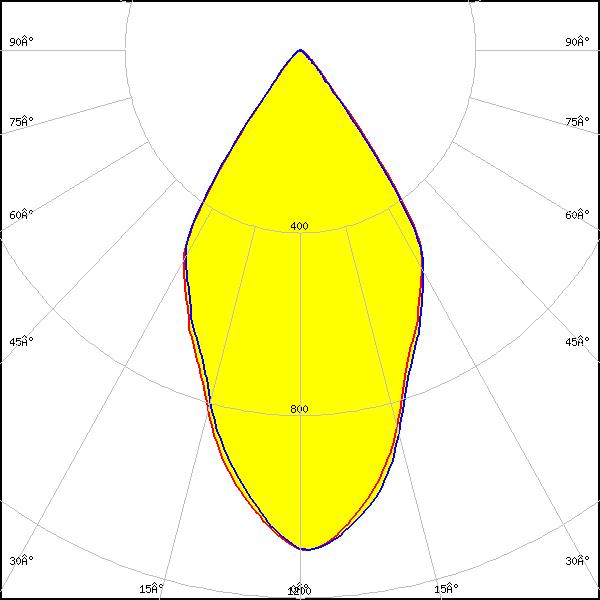

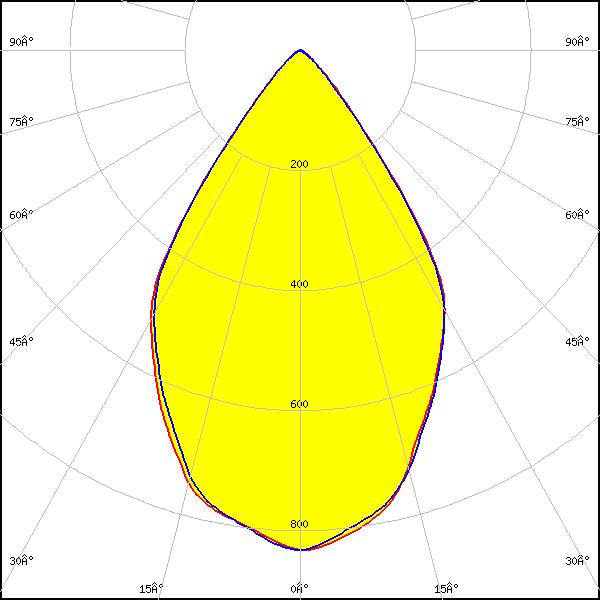

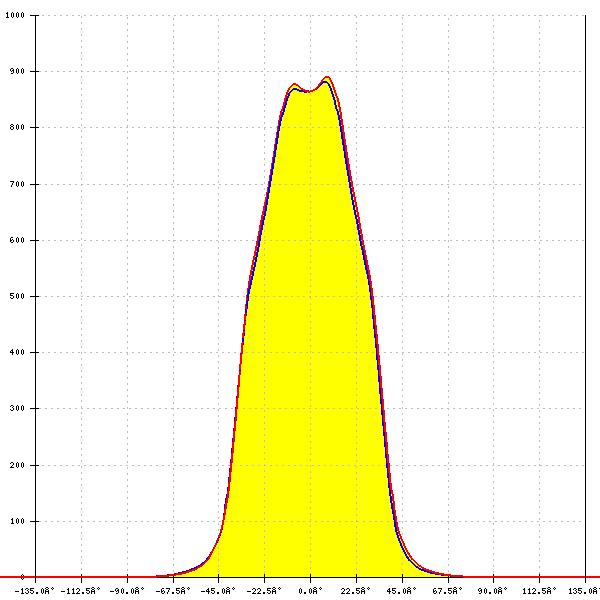

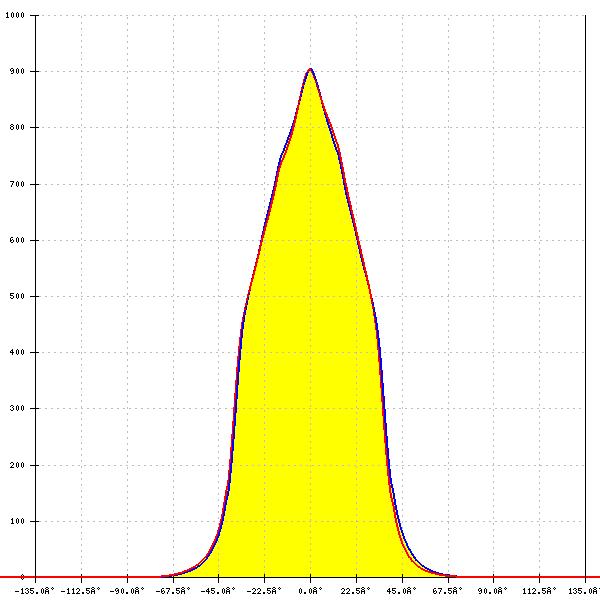

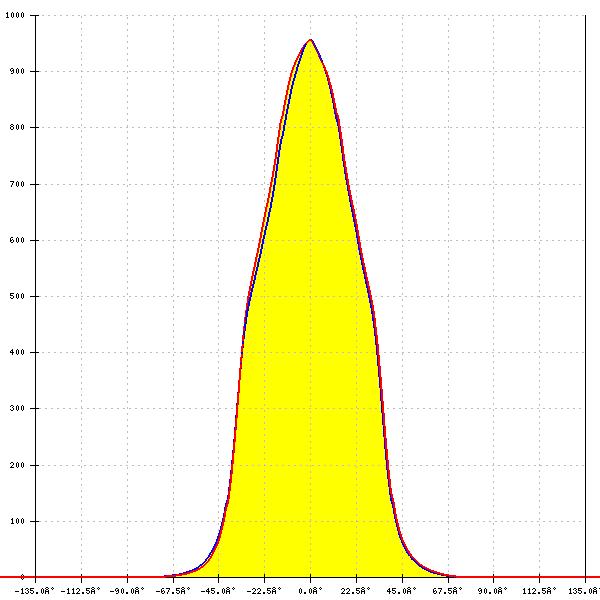

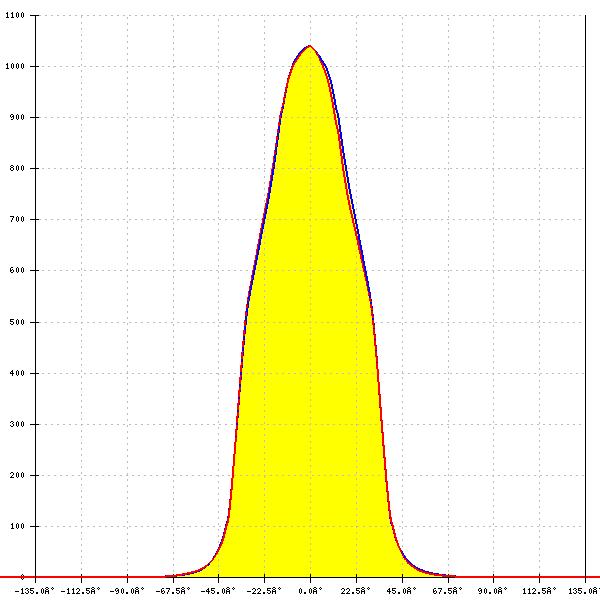

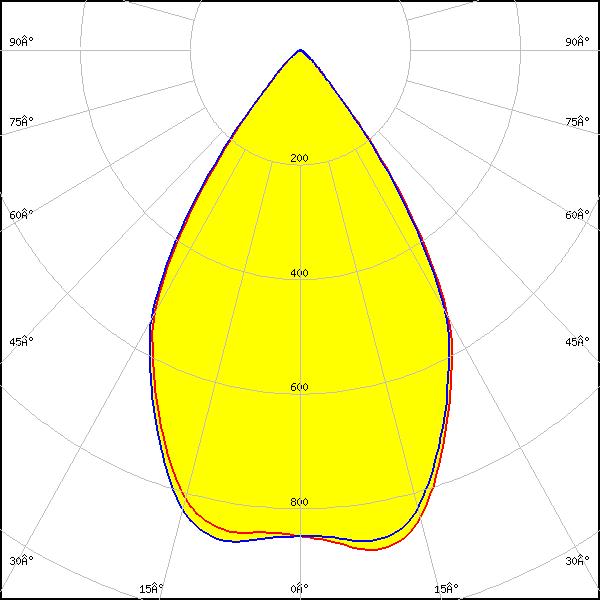

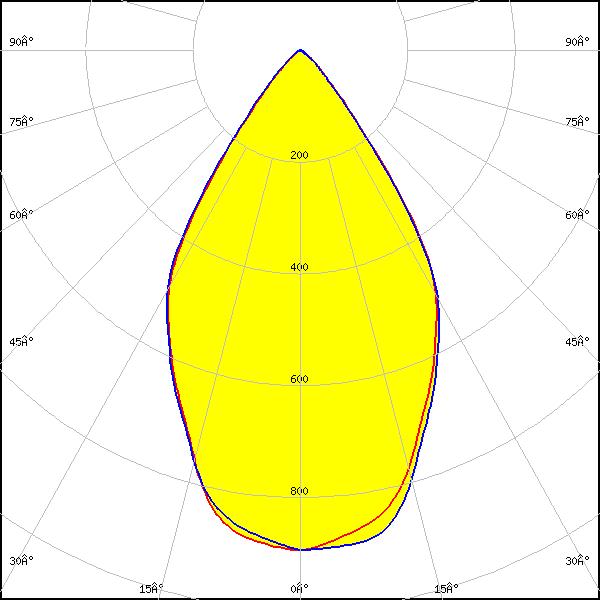

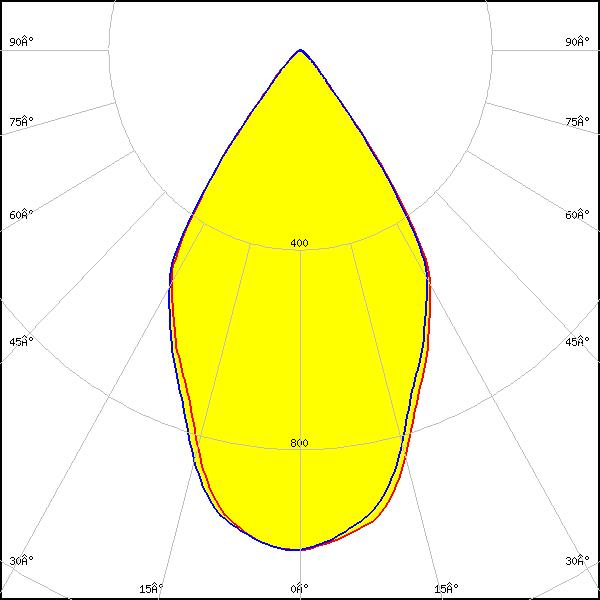

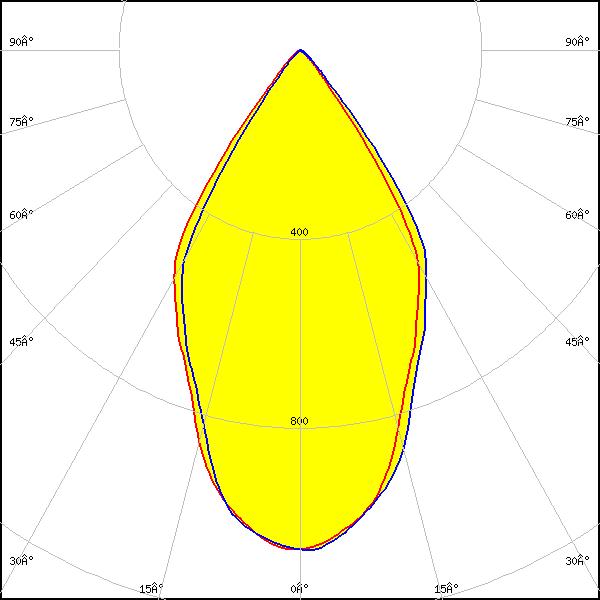

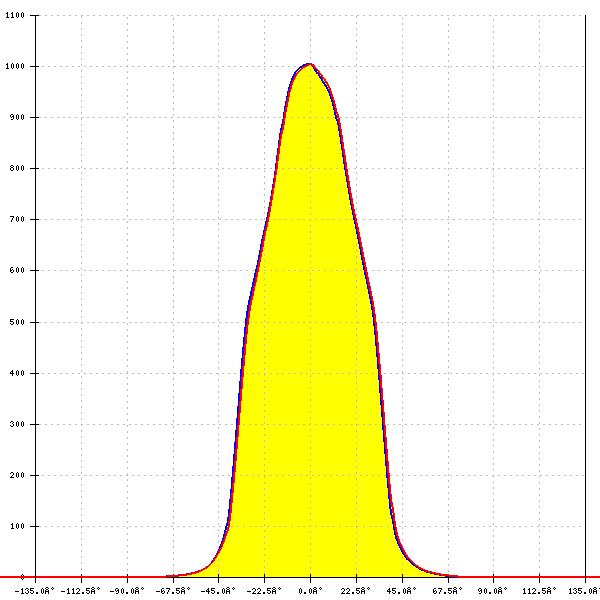

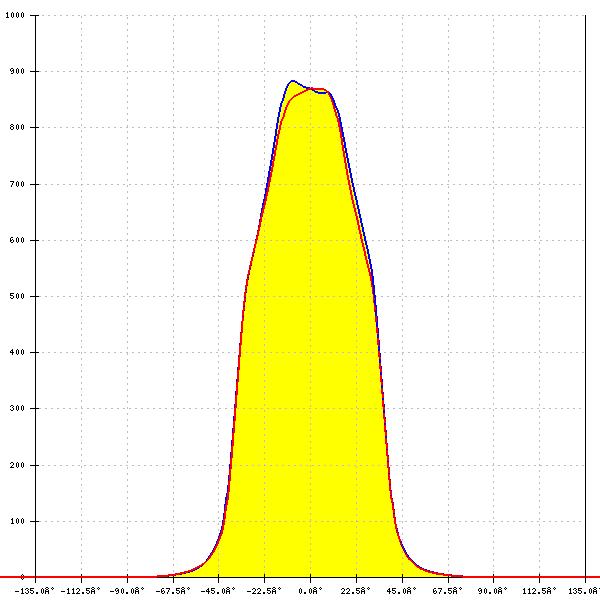

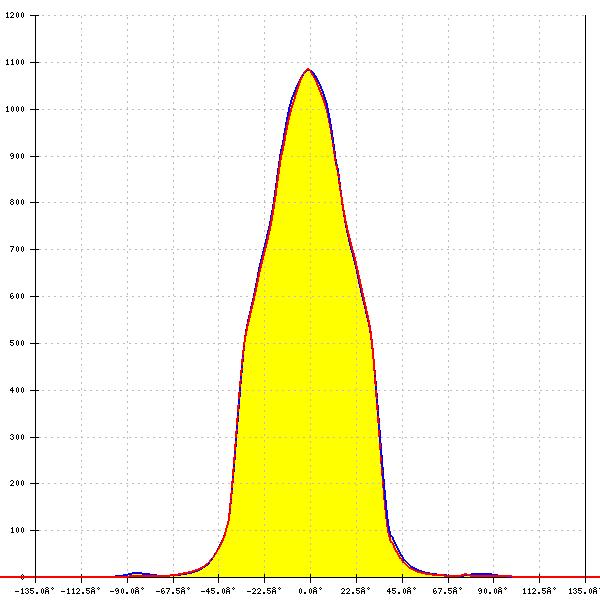

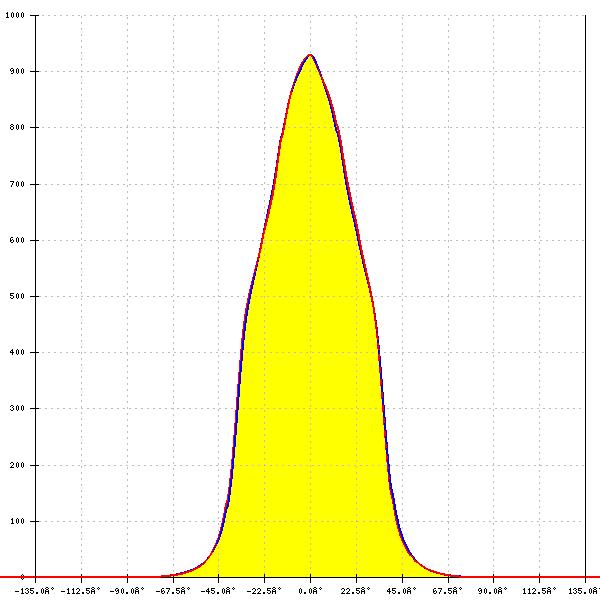

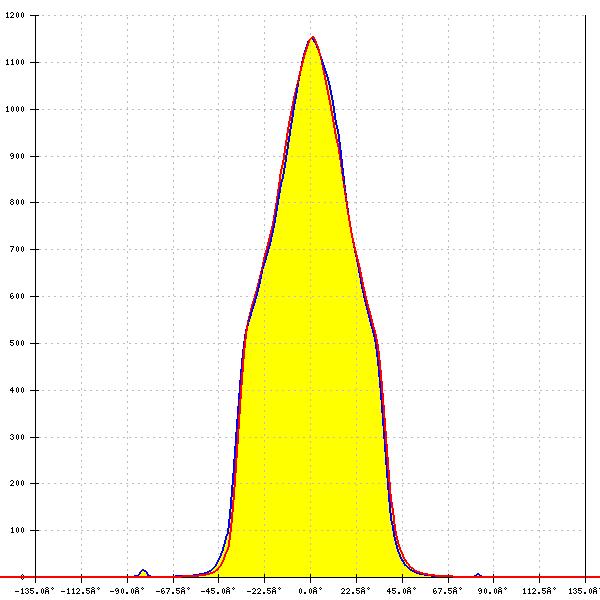

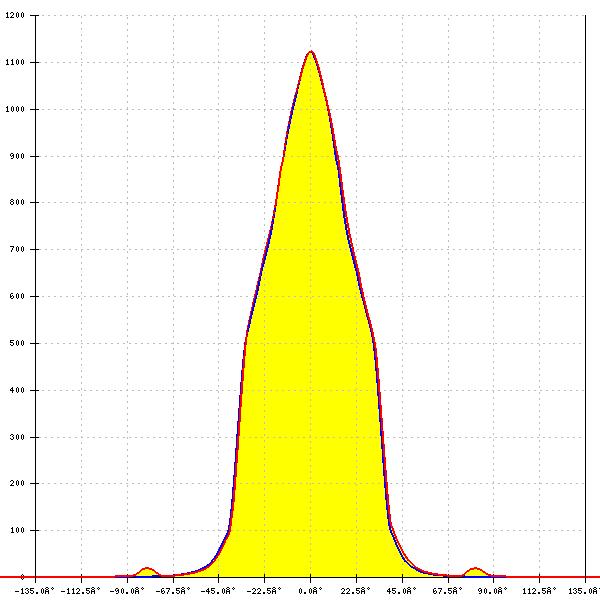

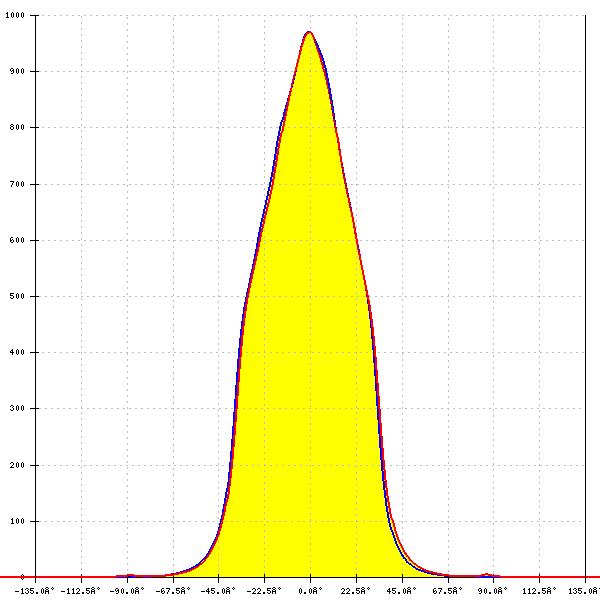

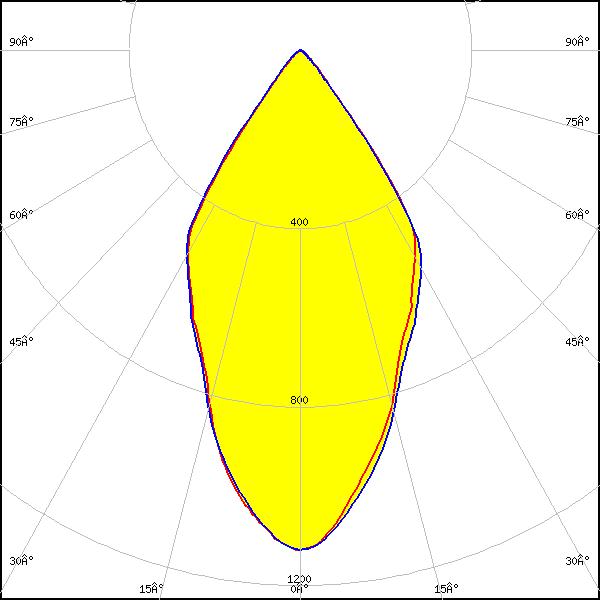

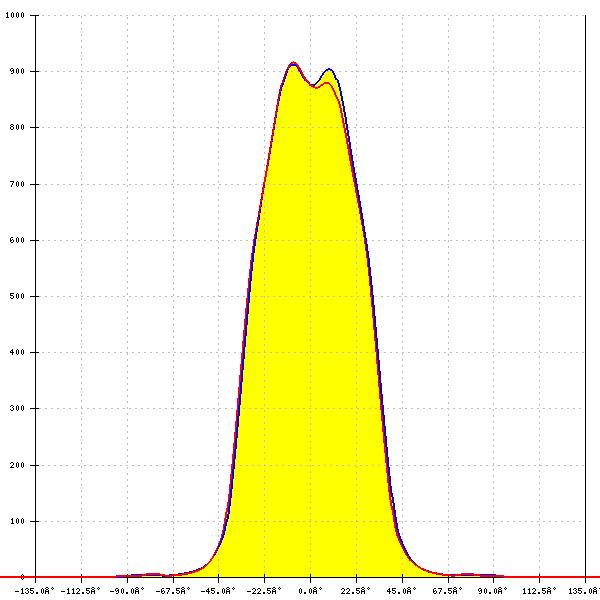

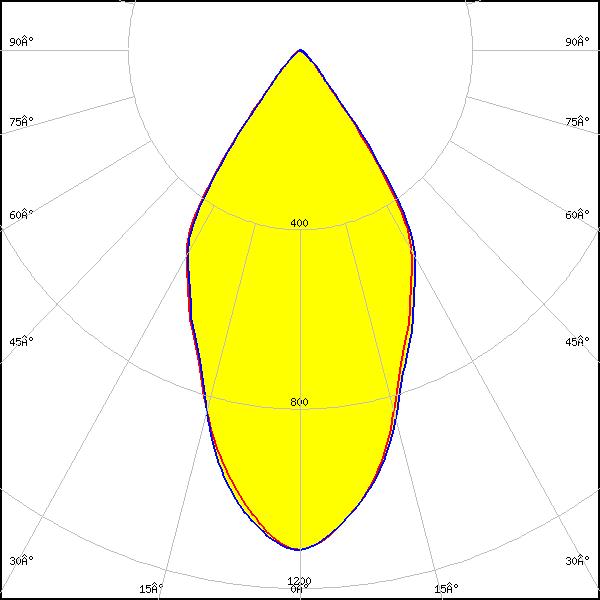

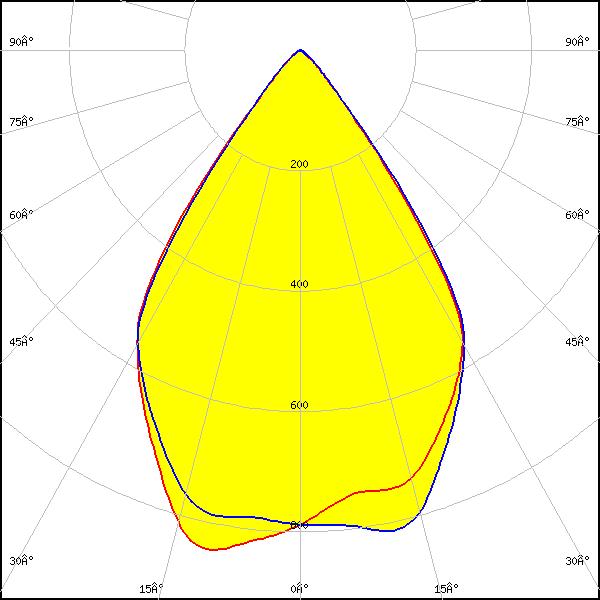

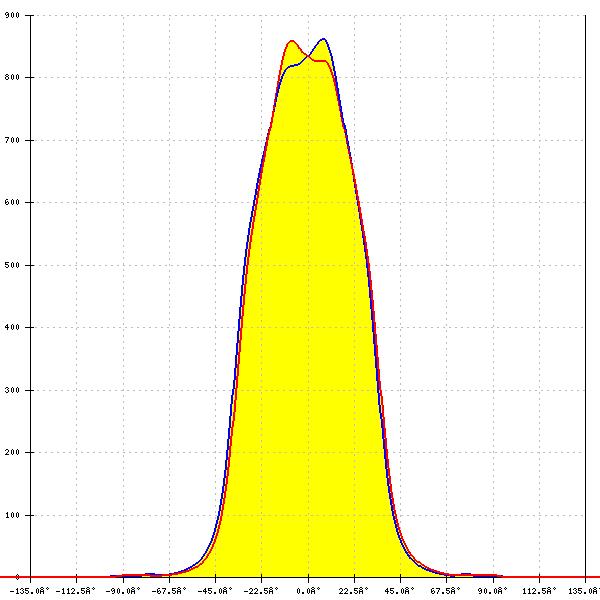

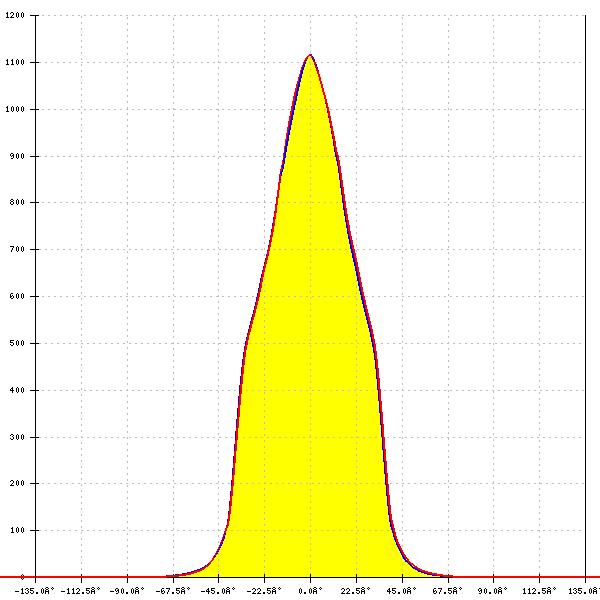

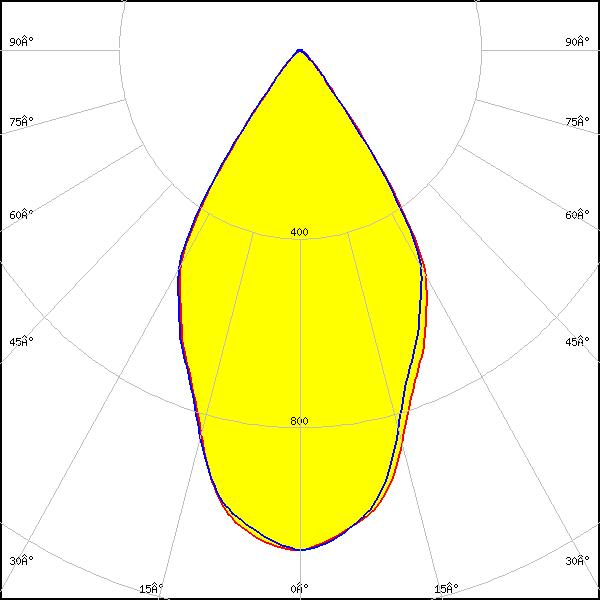

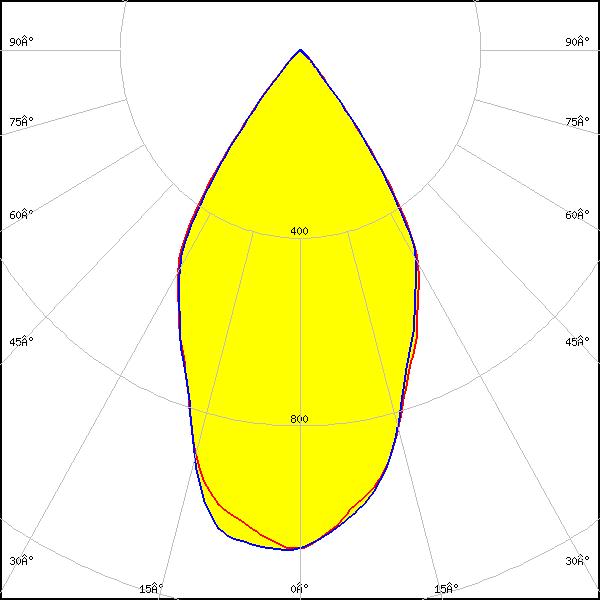

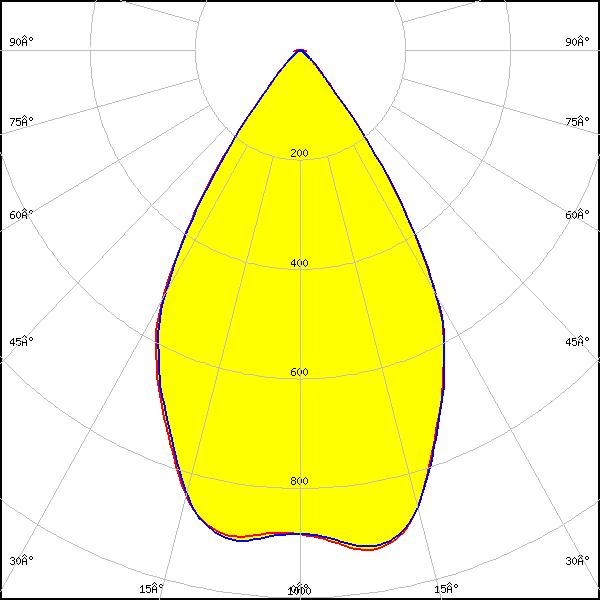

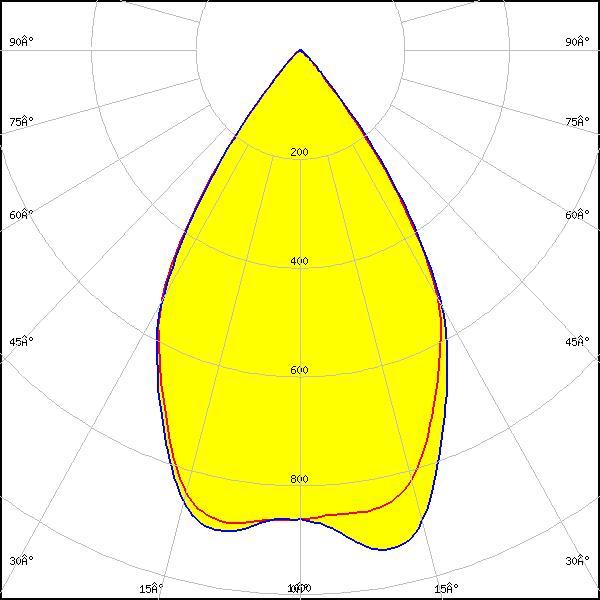

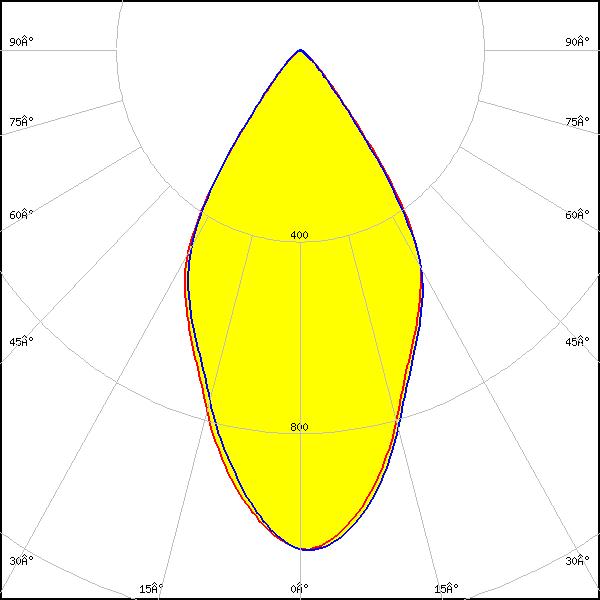

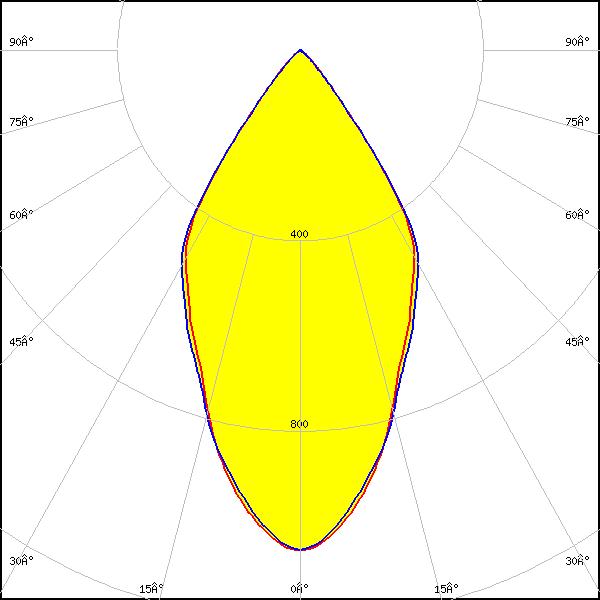

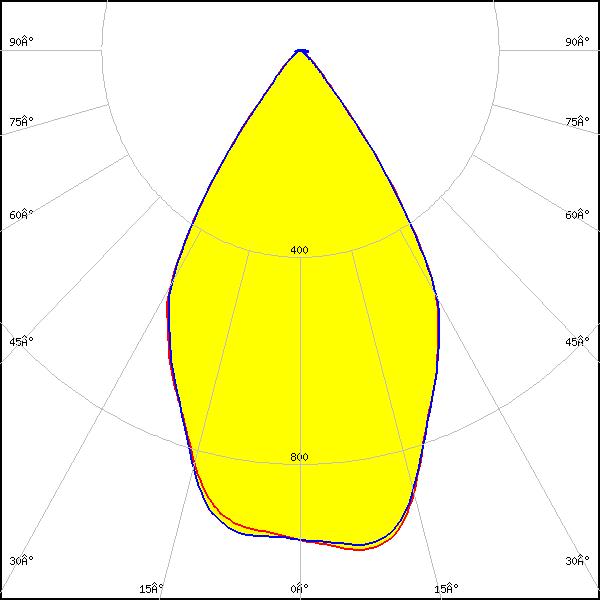

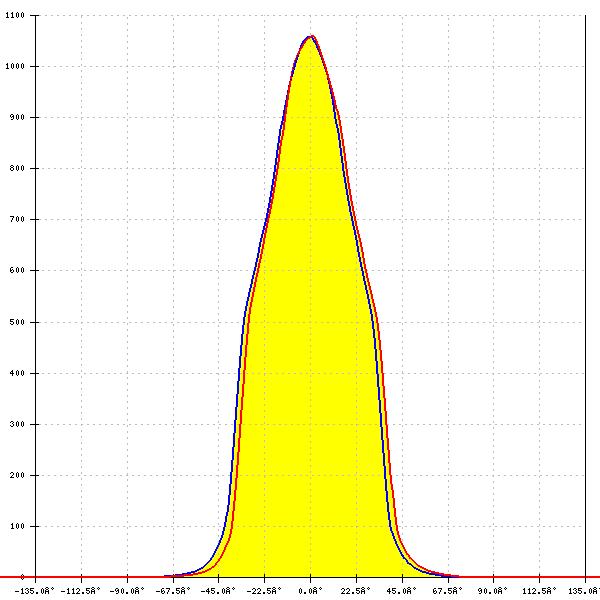

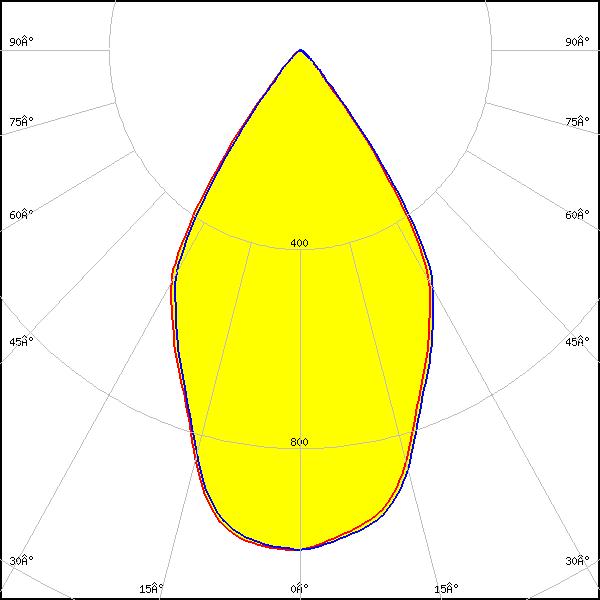

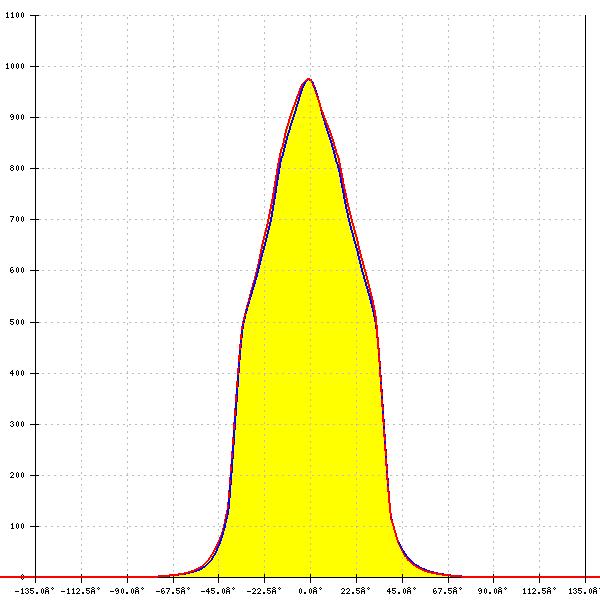

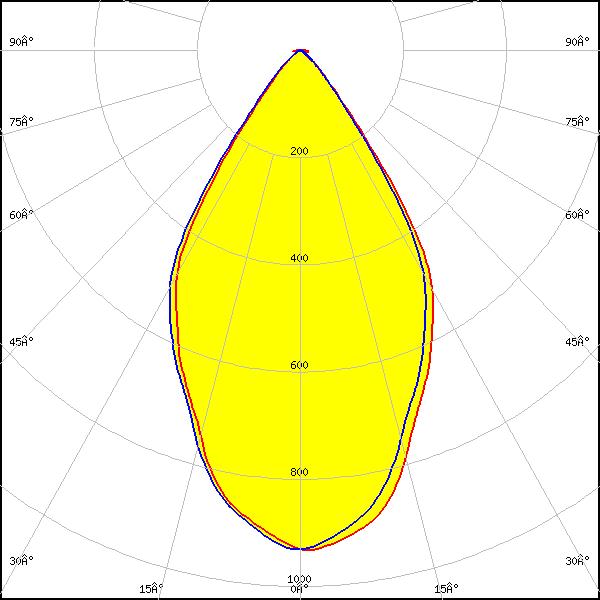

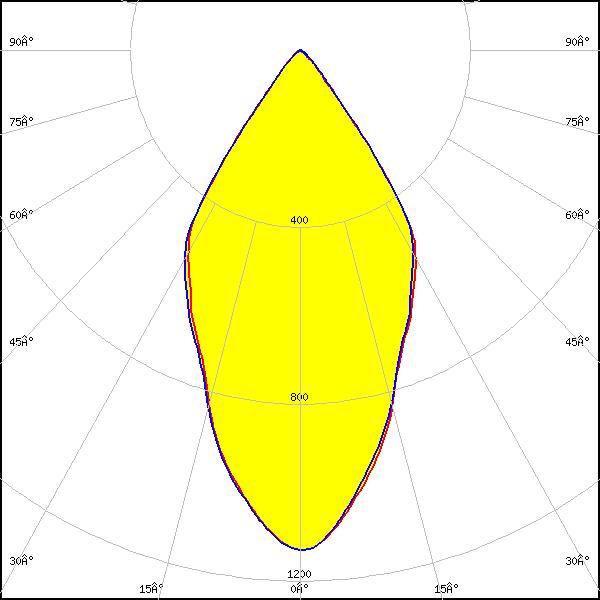

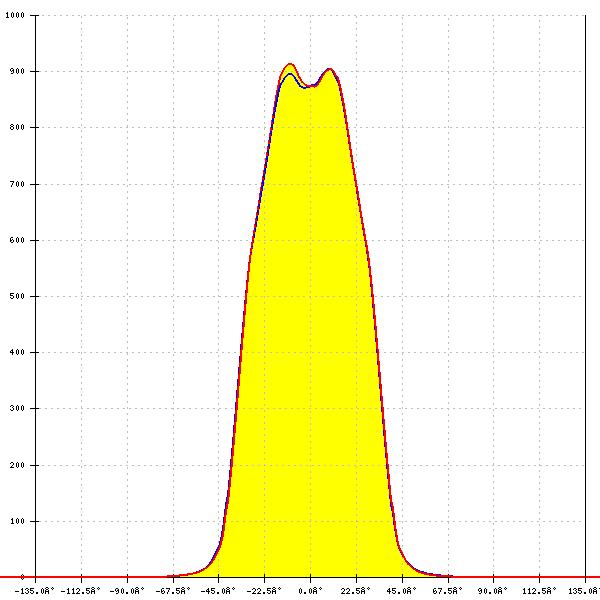

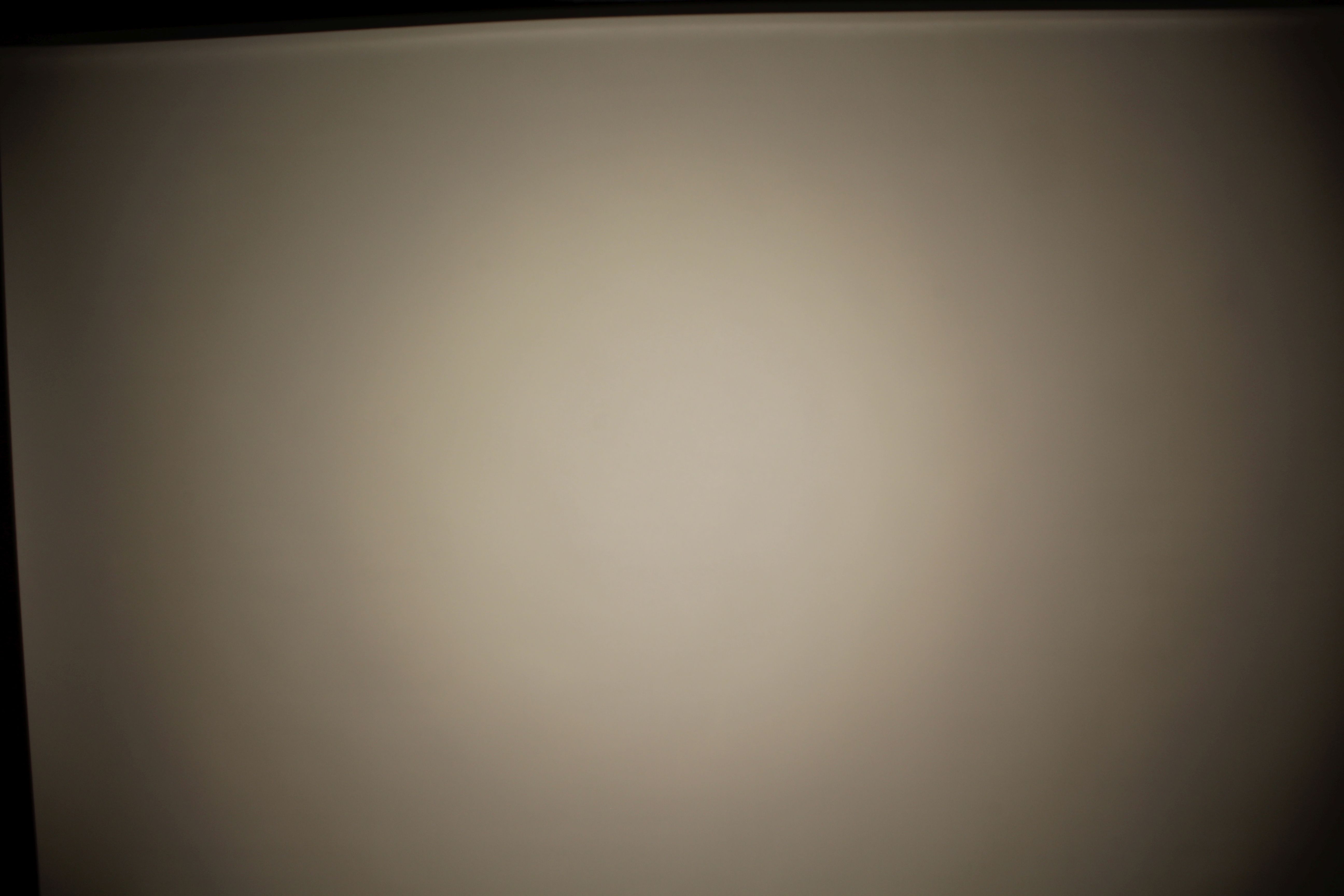

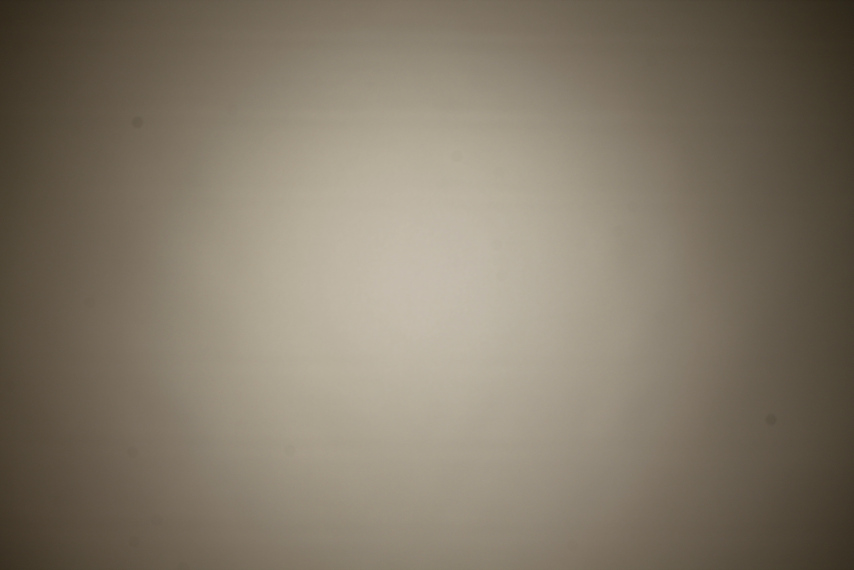

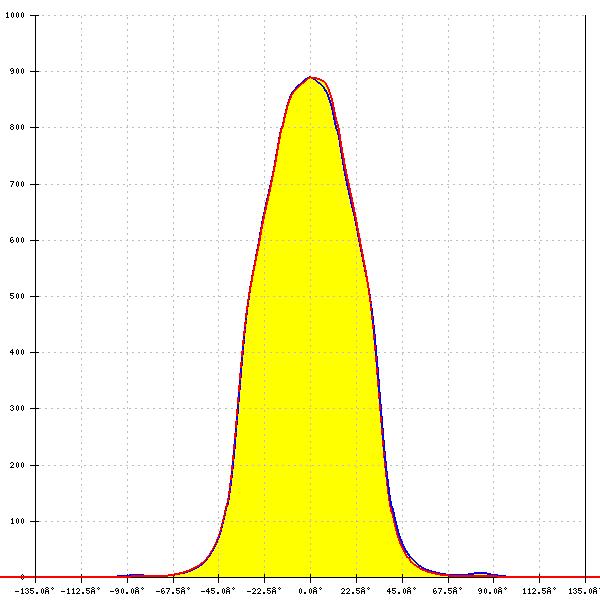

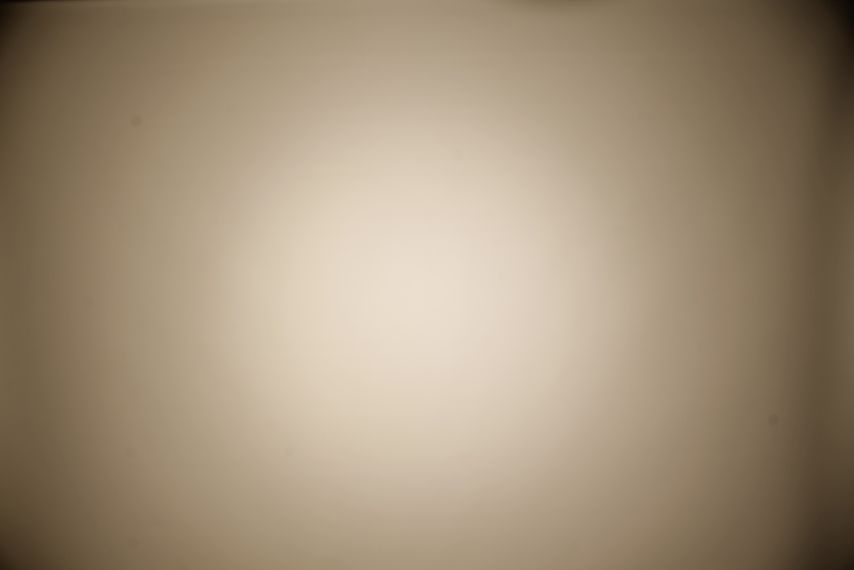

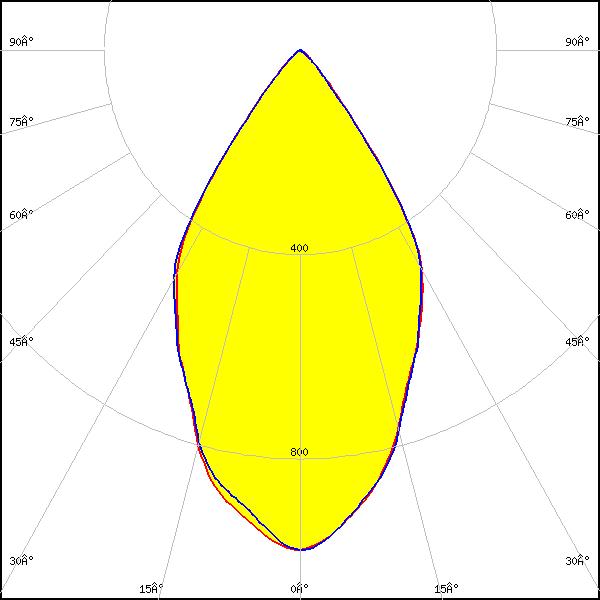

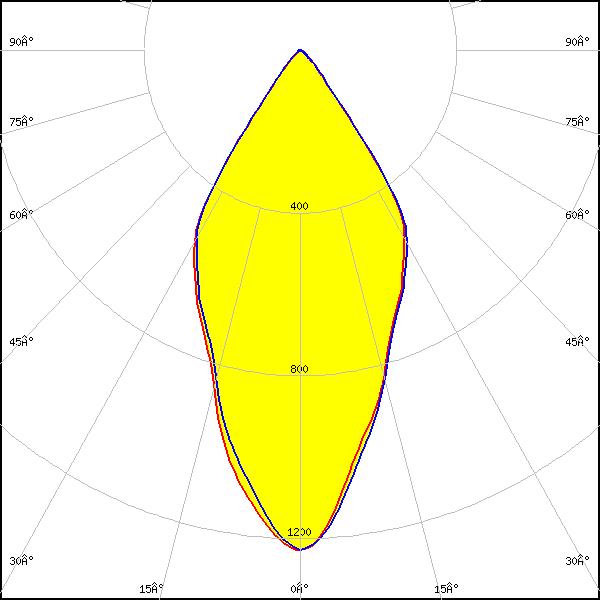

Optical results

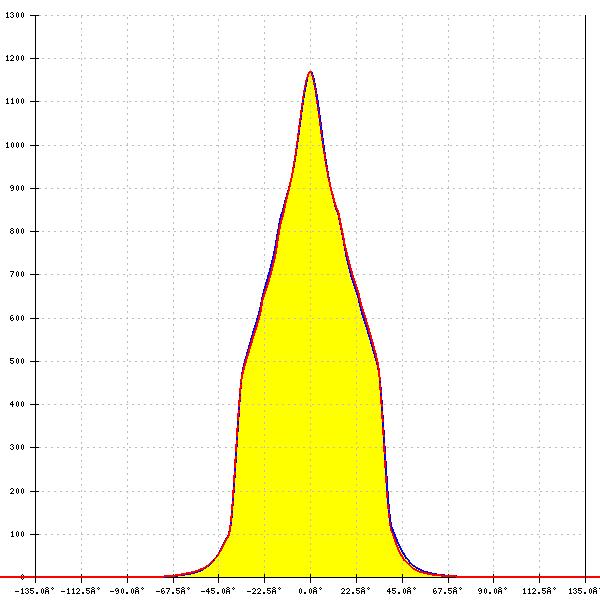

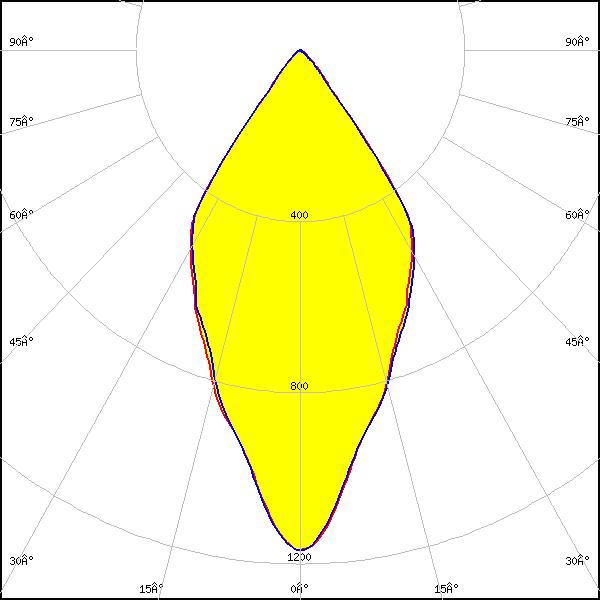

LED:
V10 Gen7
Required components:
FWHM:
54°
FWTM:
79°
Peak intensity:
1.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen7
Required components:
FWHM:
65°
FWTM:
86°
Peak intensity:
0.910 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

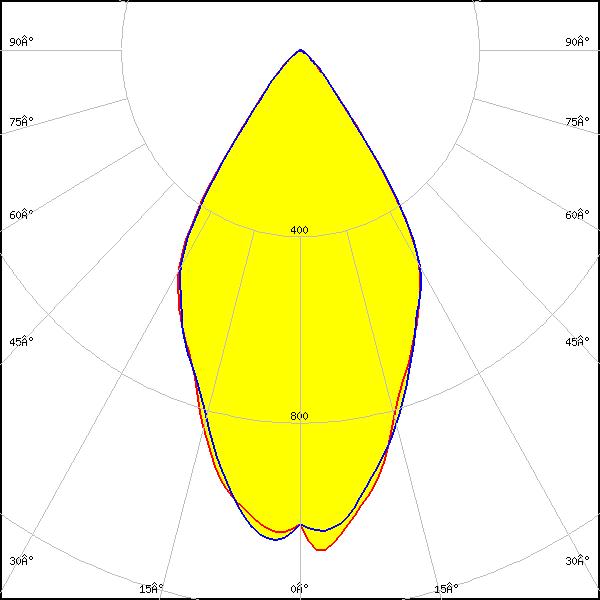

V13 Gen7
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
62°
FWTM:
84°
Peak intensity:
1.070 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
Required components:
FWHM:
51°
FWTM:
79°
Peak intensity:
1.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
60°
FWTM:
80°
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
Required components:
FWHM:
65°
FWTM:
86°
Peak intensity:
0.900 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

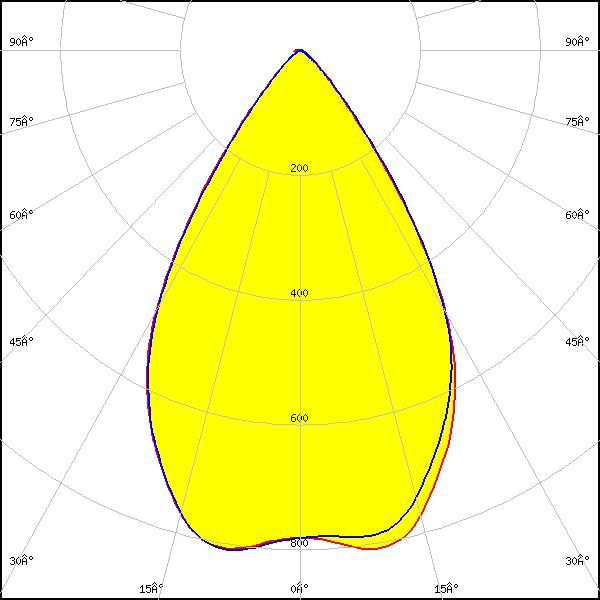

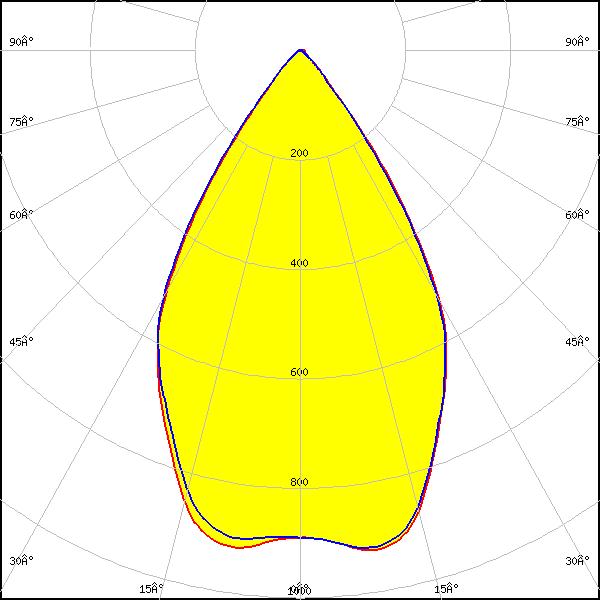

LED:
V22 Gen6
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
63°
FWTM:
83°
Peak intensity:
0.920 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen6
Required components:
FWHM:
65°
FWTM:
88°
Peak intensity:
0.810 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

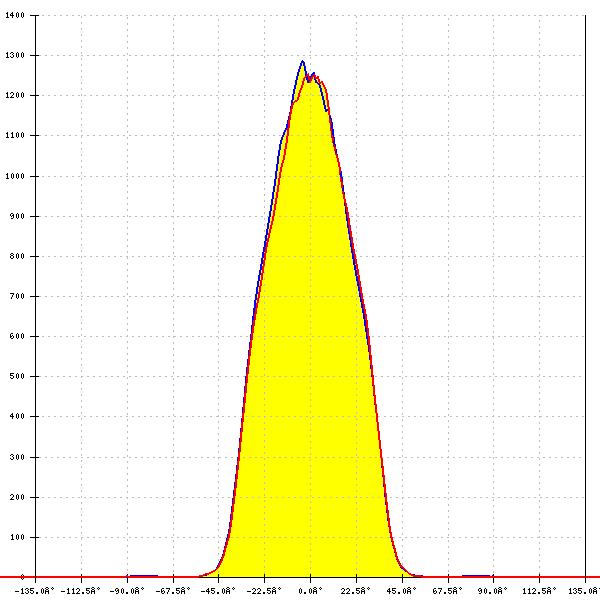

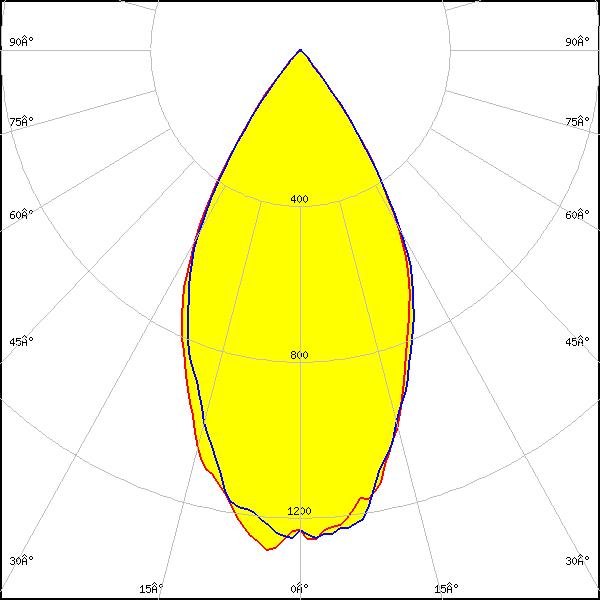

V22 Gen7
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
55°
FWTM:
78°
Peak intensity:
1.341 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

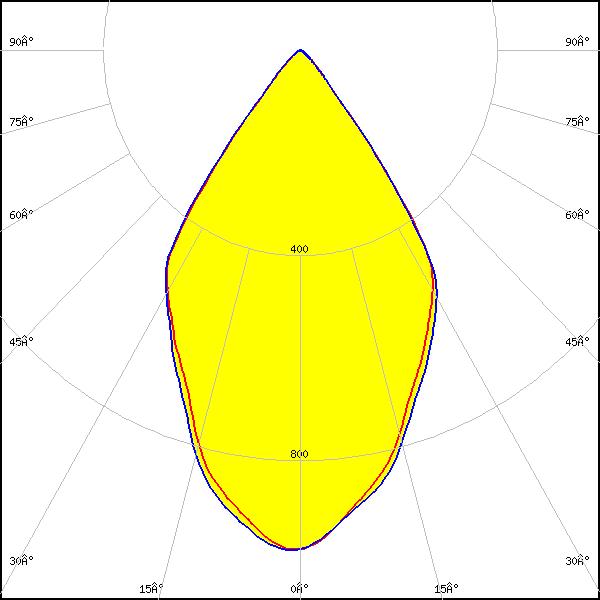

LED:
Vero SE 13
Required components:
FWHM:
66°
FWTM:
83°
Peak intensity:
0.980 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vero SE 18
Required components:
FWHM:
67°
FWTM:
85°
Peak intensity:
0.880 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
Required components:
FWHM:
60°
FWTM:
82°
Peak intensity:
1.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

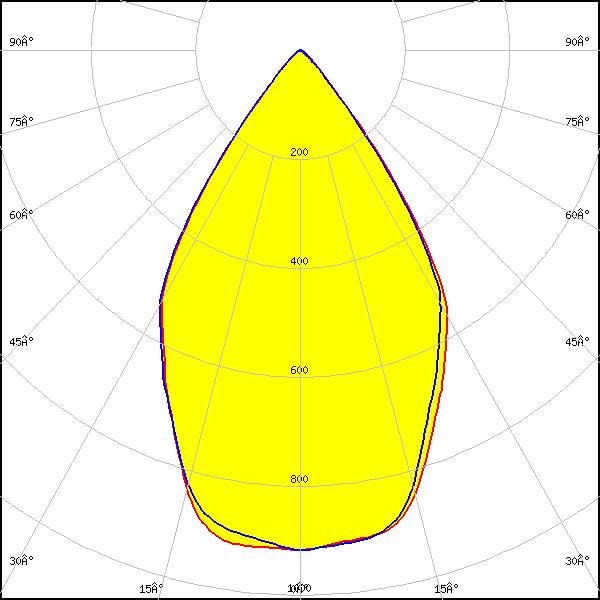

VERO18
Required components:
FWHM:
66°
FWTM:
84°
Peak intensity:
0.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

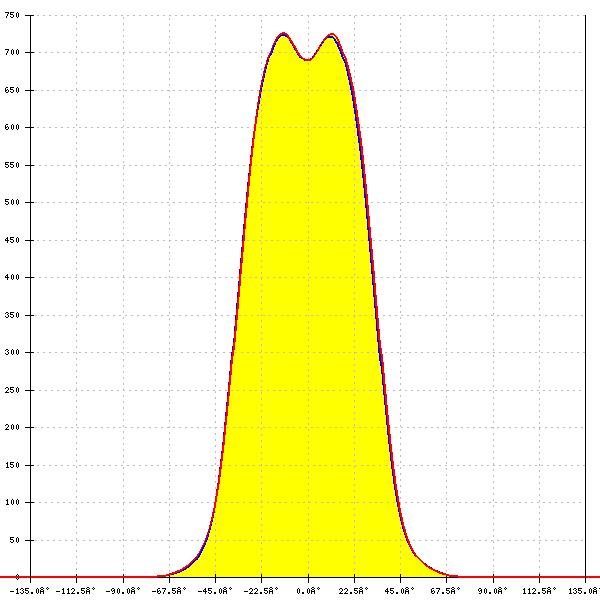

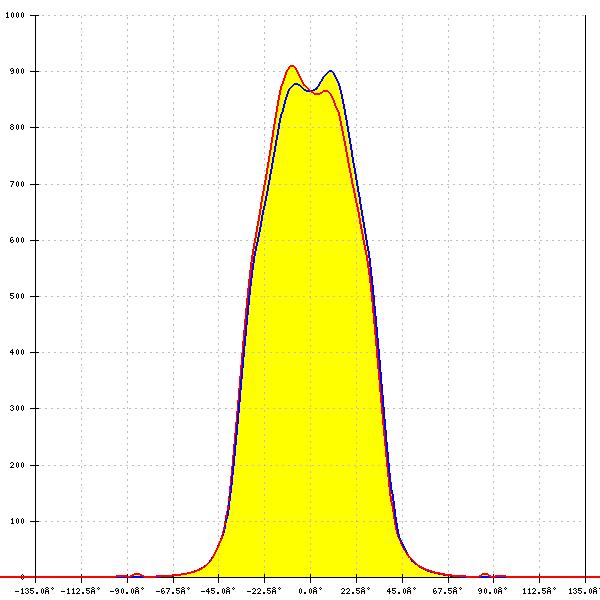

VERO29
Required components:
FWHM:
68°
FWTM:
89°
Peak intensity:
0.800 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO29
Required components:
FWHM:
69°
FWTM:
94°
Peak intensity:
0.700 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 15mm DP
Required components:
FWHM:
65°
FWTM:
82°
Peak intensity:
0.984 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 15mm DP
Required components:
FWHM:
66°
FWTM:
86°
Peak intensity:
0.836 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 18mm (31W) DP
Required components:
FWHM:
65°
FWTM:
83°
Peak intensity:
0.930 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 18mm (31W) DP
Required components:
FWHM:
66°
FWTM:
88°
Peak intensity:
0.822 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

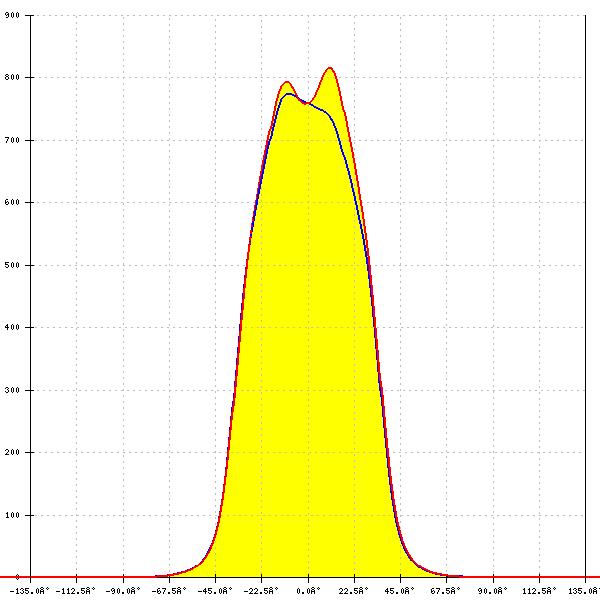

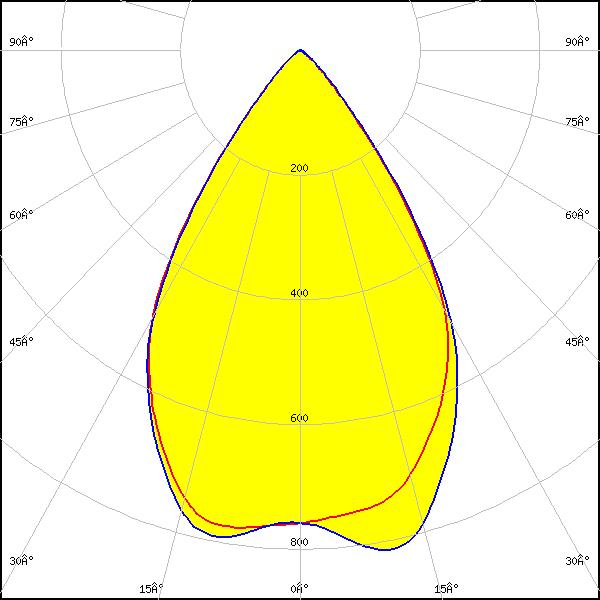

Vesta TW 22mm DP
Required components:
FWHM:
65°
FWTM:
83°
Peak intensity:
0.933 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 22mm DP
Required components:
FWHM:
66°
FWTM:
88°
Peak intensity:
0.815 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
Tunable White

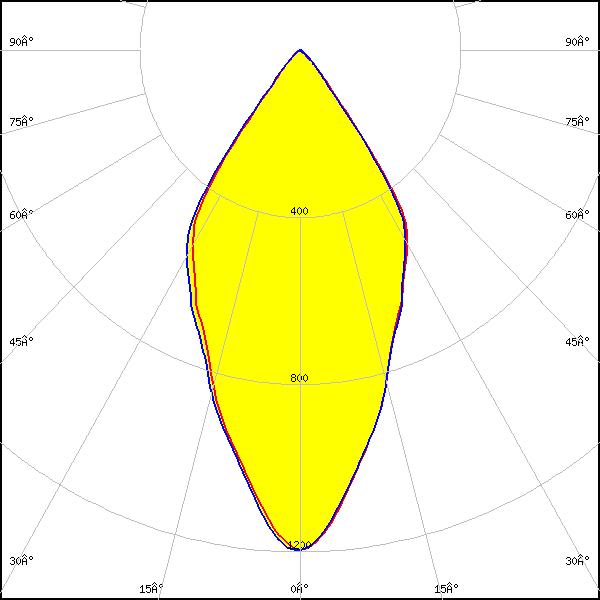

LED:
CLL03x/CLU03x
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
61°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
Required components:
FWHM:
65°
FWTM:
80°
Peak intensity:
1.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
Required components:
FWHM:
65°
FWTM:
85°
Peak intensity:
0.890 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
Required components:
FWHM:
63°
FWTM:
84°
Peak intensity:
0.930 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
Required components:
FWHM:
64°
FWTM:
86°
Peak intensity:
0.900 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

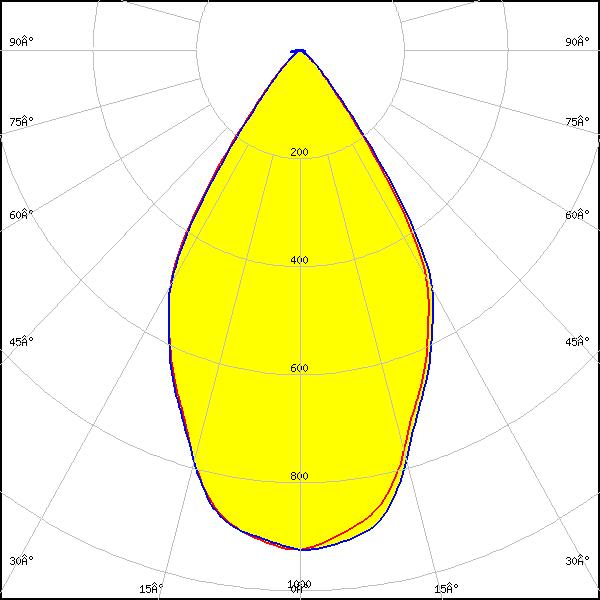

LED:
CLL03x/CLU03x
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
59°
FWTM:
80°
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
Required components:
FWHM:
65°
FWTM:
88°
Peak intensity:
0.800 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
Required components:
IDEAL: 50-2204CT
IDEAL: 50-2100LN
IDEAL: 50-2100LN
FWHM:
63°
FWTM:
83°
Peak intensity:
0.930 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

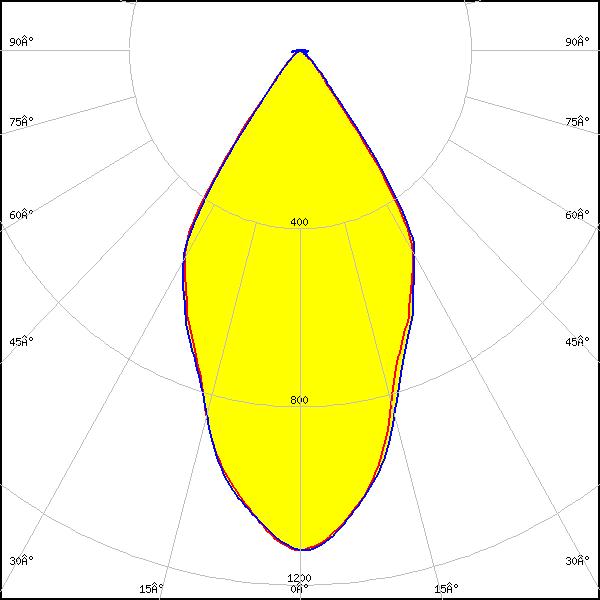

CLU730/731/733
Required components:
FWHM:
63°
FWTM:
85°
Peak intensity:
0.920 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

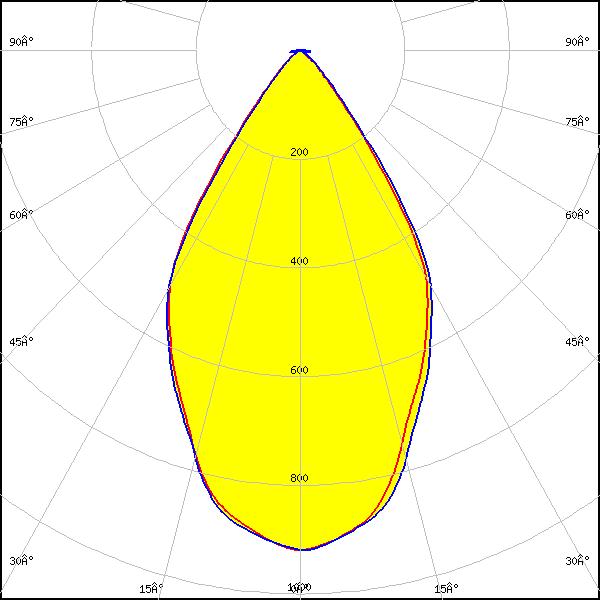

LED:
CLU730/731/733
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
57°
FWTM:
79°
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

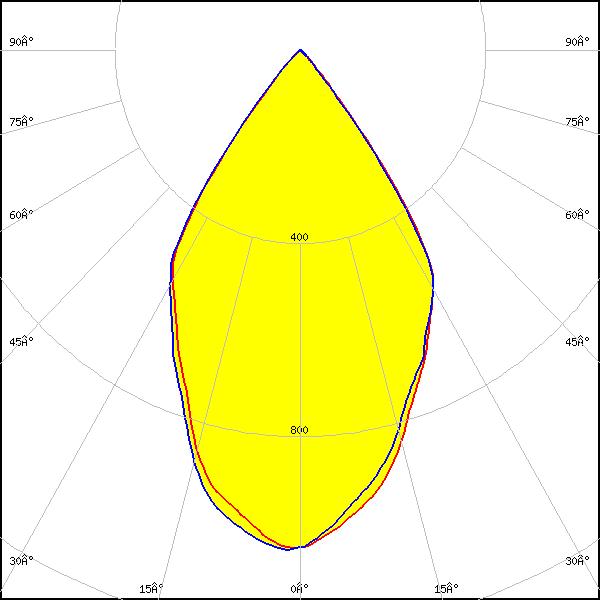

LED:
CMA1840
Required components:
FWHM:
65°
FWTM:
81°
Peak intensity:
1.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

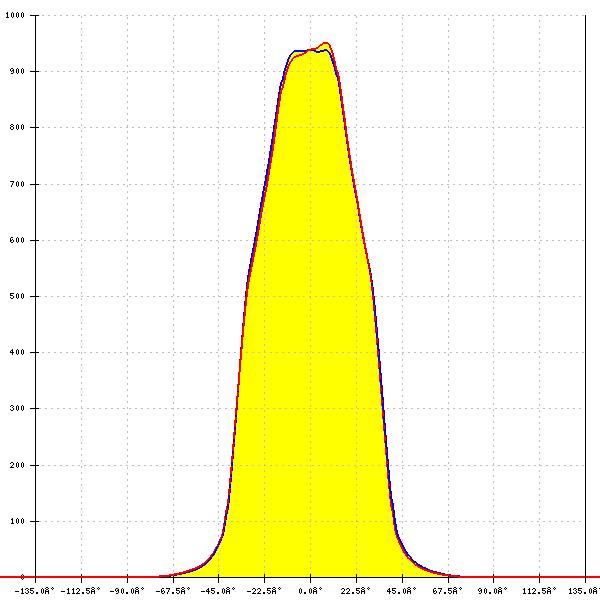

CMA2550
Required components:
FWHM:
64°
FWTM:
83°
Peak intensity:
0.950 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT14xx
Required components:
FWHM:
50°
FWTM:
79°
Peak intensity:
1.250 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

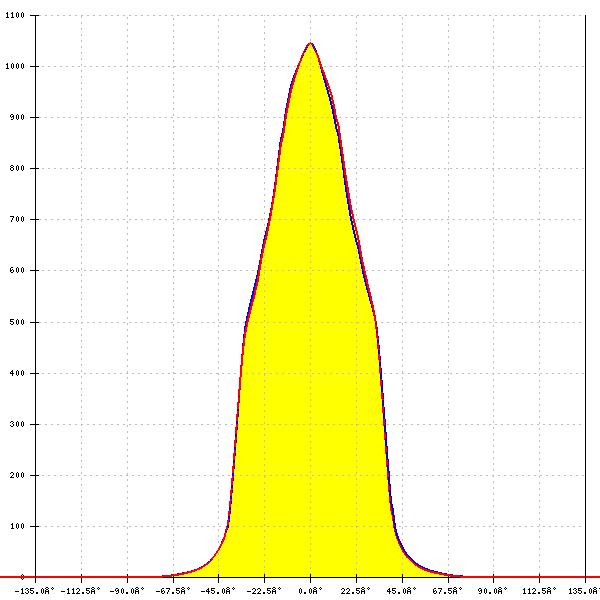

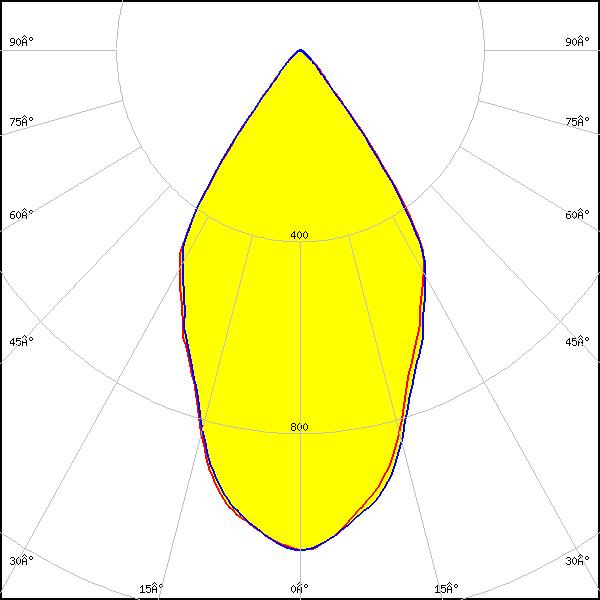

CMT19xx
Required components:
FWHM:
61°
FWTM:
82°
Peak intensity:
1.040 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT28xx
Required components:
FWHM:
65°
FWTM:
84°
Peak intensity:
0.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

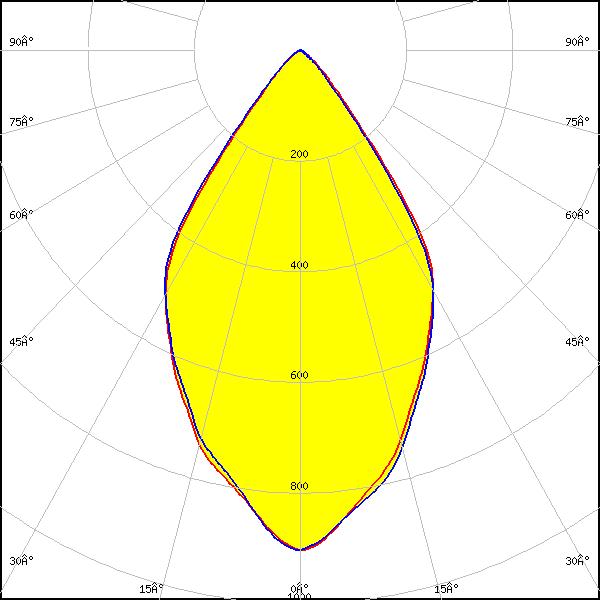

CXA/B 15xx
Required components:
FWHM:
66°
FWTM:
88°
Peak intensity:
0.900 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
Required components:
FWHM:
55°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

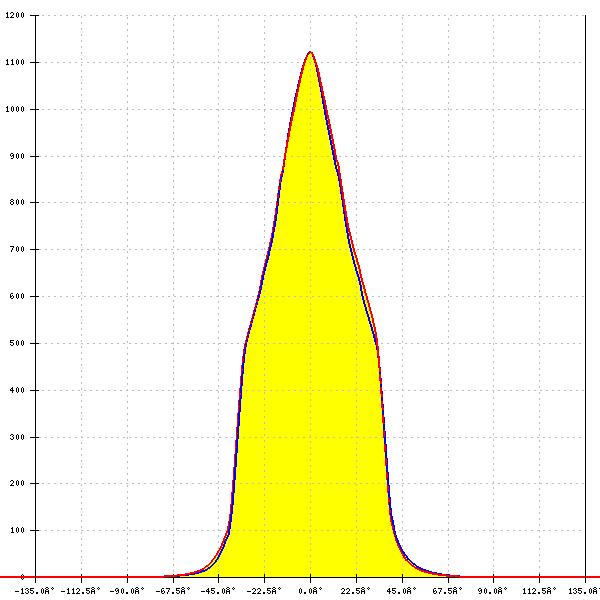

CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM:
64°
FWTM:
86°
Peak intensity:
0.930 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

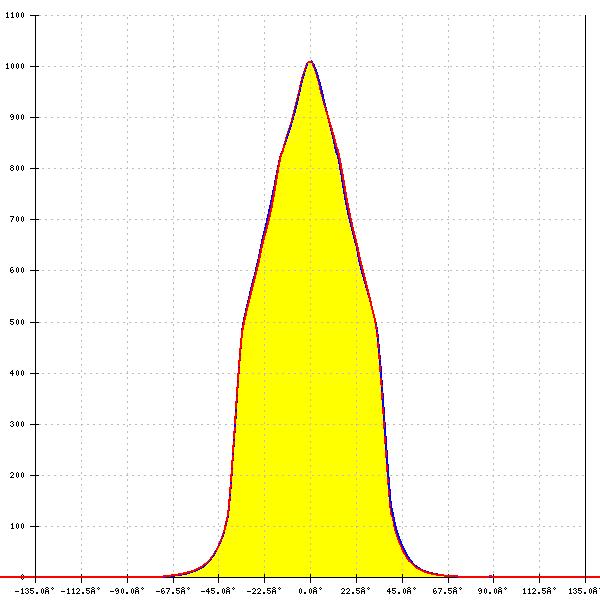

LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
TE Connectivity: 2213401-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
57°
FWTM:
80°
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM:
68°
FWTM:
89°
Peak intensity:
0.800 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM:
64°
FWTM:
83°
Peak intensity:
1.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

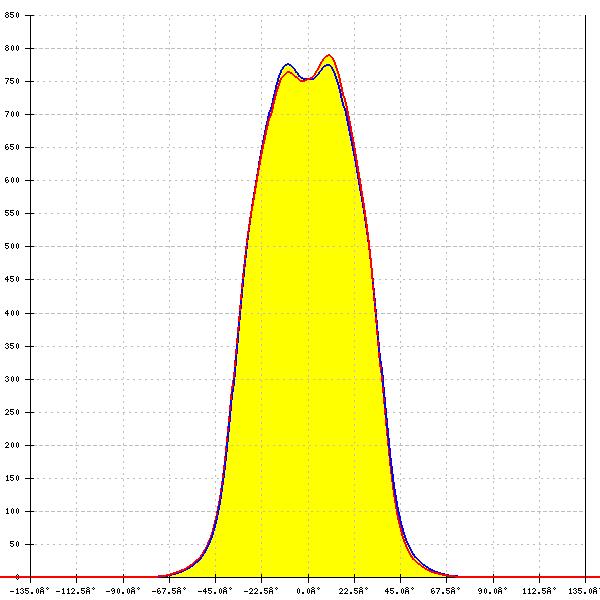

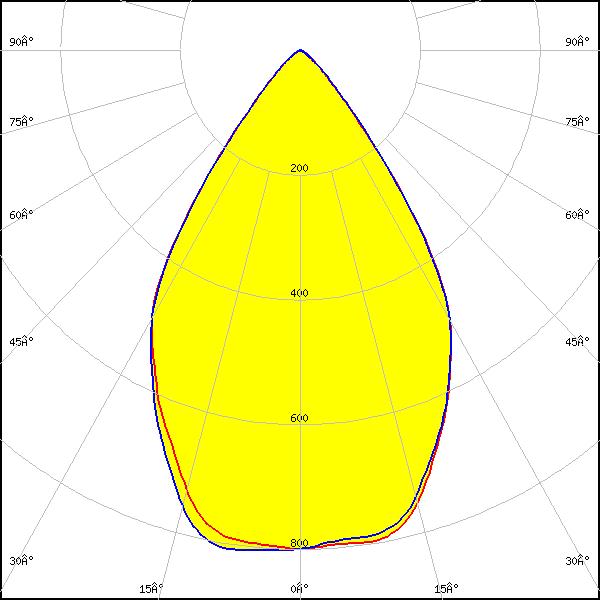

CXA/B 25xx
Required components:
FWHM:
65°
FWTM:
84°
Peak intensity:
0.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

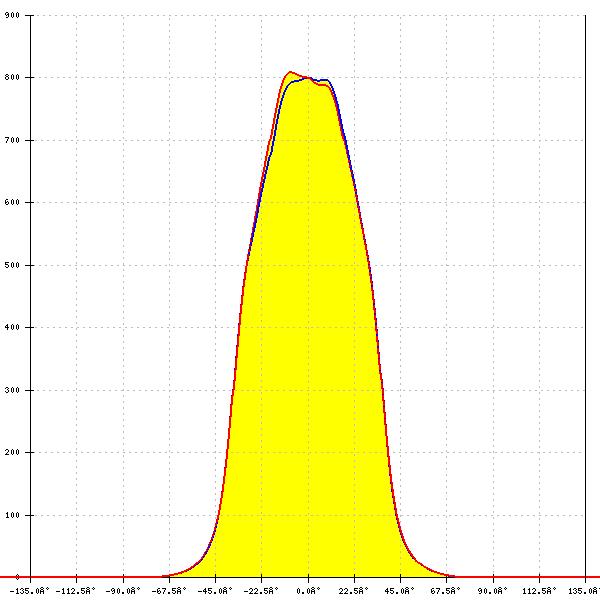

LED:
CXA/B 25xx
Required components:
FWHM:
67°
FWTM:
90°
Peak intensity:
0.800 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

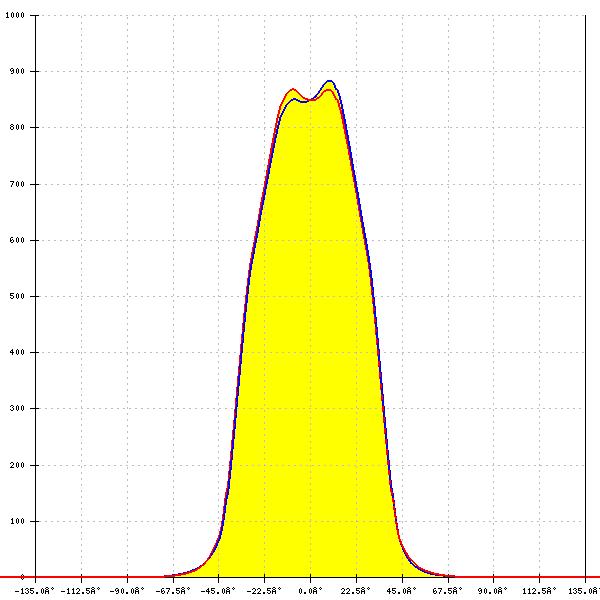

CXA/B 30xx
Required components:
FWHM:
66°
FWTM:
86°
Peak intensity:
0.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 30xx
Required components:
FWHM:
67°
FWTM:
91°
Peak intensity:
0.800 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
59°
FWTM:
80°
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
Required components:
FWHM:
58°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

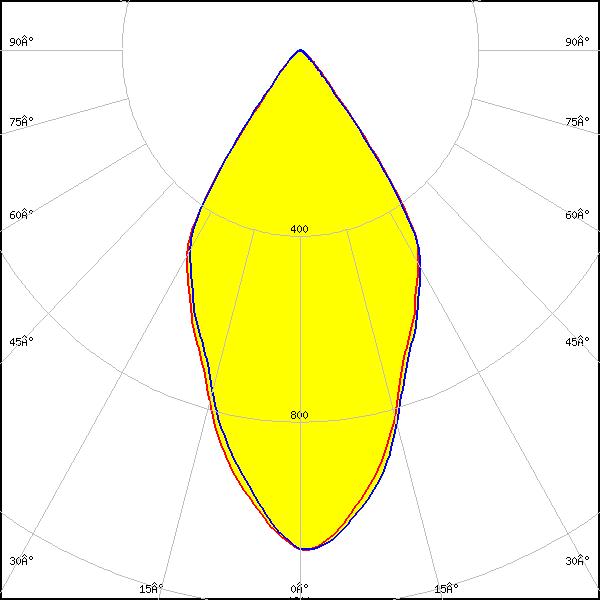

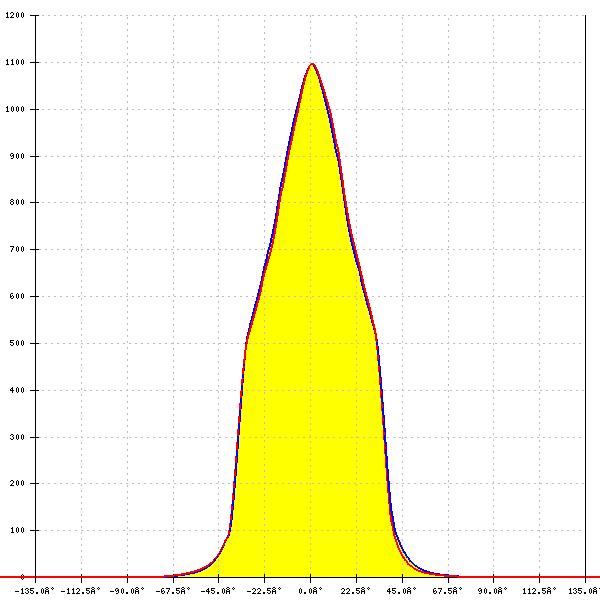

LUXEON CoB 1204/1205
Required components:
FWHM:
59°
FWTM:
83°
Peak intensity:
1.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

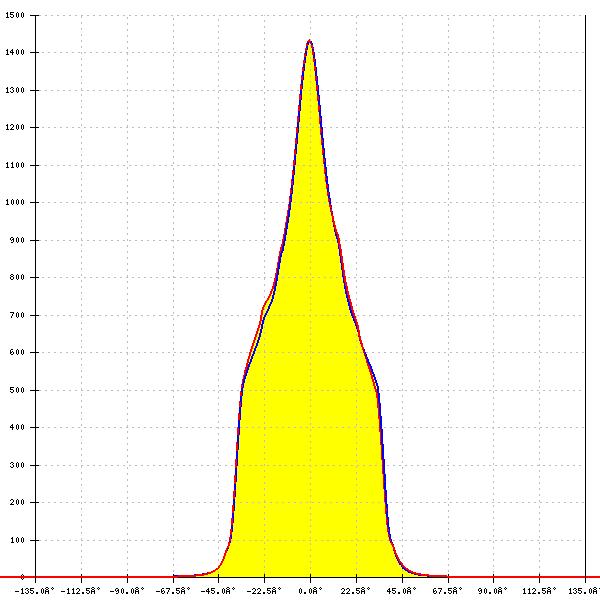

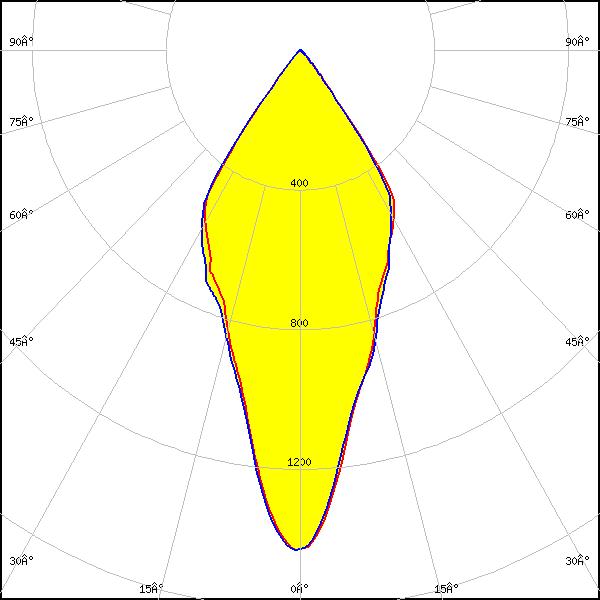

LED:
LUXEON CoB 1204HD
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
42°
FWTM:
77°
Peak intensity:
1.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

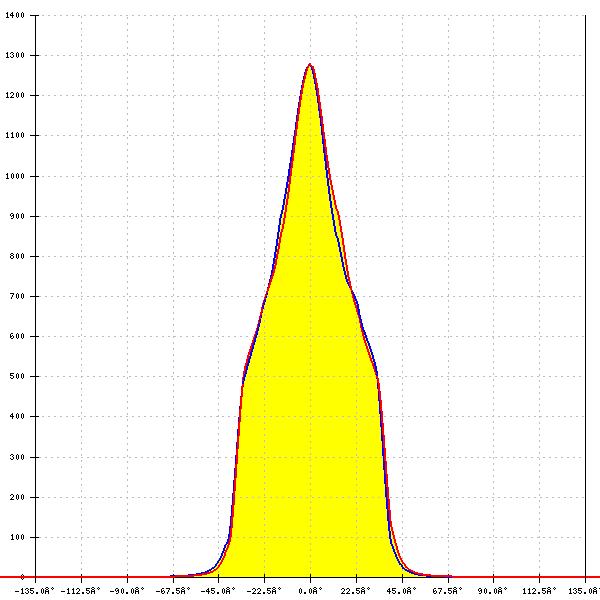

LUXEON CoB 1205HD
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
50°
FWTM:
78°
Peak intensity:
1.280 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

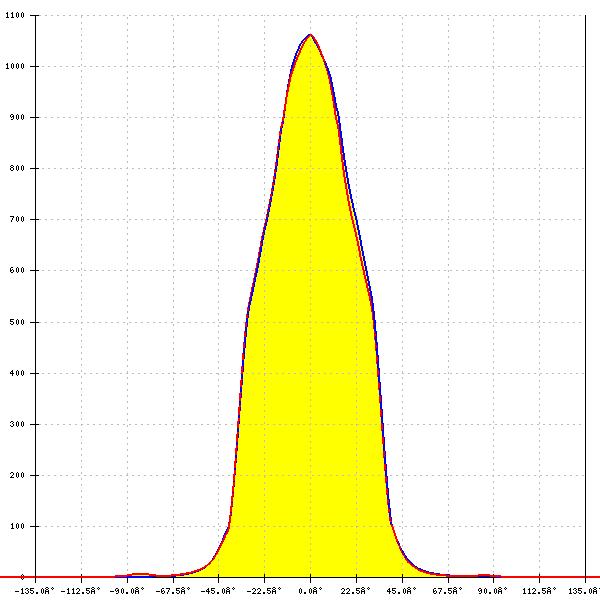

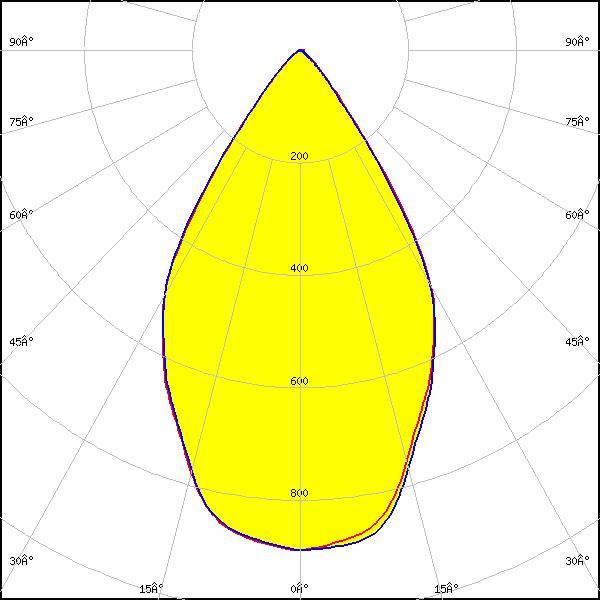

LUXEON CoB 1208
Required components:
IDEAL: 50-2100SH
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
61°
FWTM:
80°
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
61°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
63°
FWTM:
82°
Peak intensity:
0.970 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
Required components:
FWHM:
63°
FWTM:
85°
Peak intensity:
0.890 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
Required components:
FWHM:
64°
FWTM:
86°
Peak intensity:
0.890 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
Required components:
FWHM:
64°
FWTM:
87°
Peak intensity:
0.870 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
63°
FWTM:
82°
Peak intensity:
0.980 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
Required components:
FWHM:
64°
FWTM:
88°
Peak intensity:
0.820 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
63°
FWTM:
84°
Peak intensity:
0.920 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

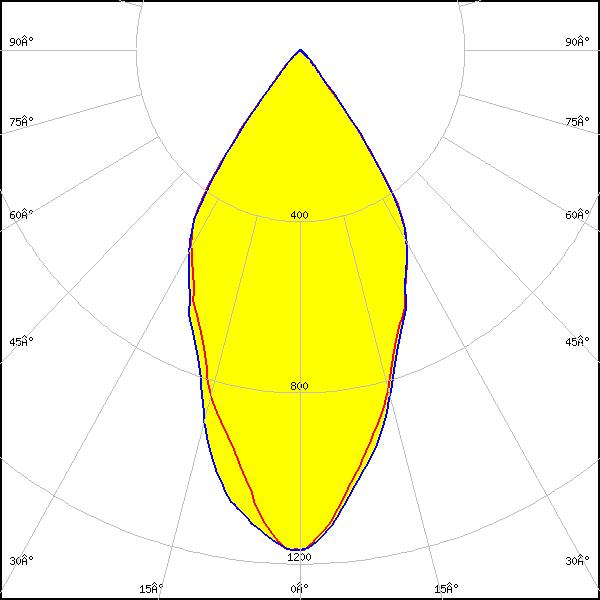

CDM-14 (Dim-To-Warm)
Required components:
FWHM:
53°
FWTM:
80°
Peak intensity:
1.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-14 (Dim-To-Warm)
Required components:
FWHM:
60°
FWTM:
84°
Peak intensity:
0.990 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-18 (Dim-To-Warm)
Required components:
FWHM:
60°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-18 (Dim-To-Warm)
Required components:
FWHM:
63°
FWTM:
84°
Peak intensity:
0.900 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-9 (Dim-To-Warm)
Required components:
FWHM:
46°
FWTM:
79°
Peak intensity:
1.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-9 (Dim-To-Warm)
Required components:
FWHM:
57°
FWTM:
85°
Peak intensity:
1.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White)
Required components:
FWHM:
55°
FWTM:
79°
Peak intensity:
1.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White)
Required components:
FWHM:
61°
FWTM:
83°
Peak intensity:
0.980 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

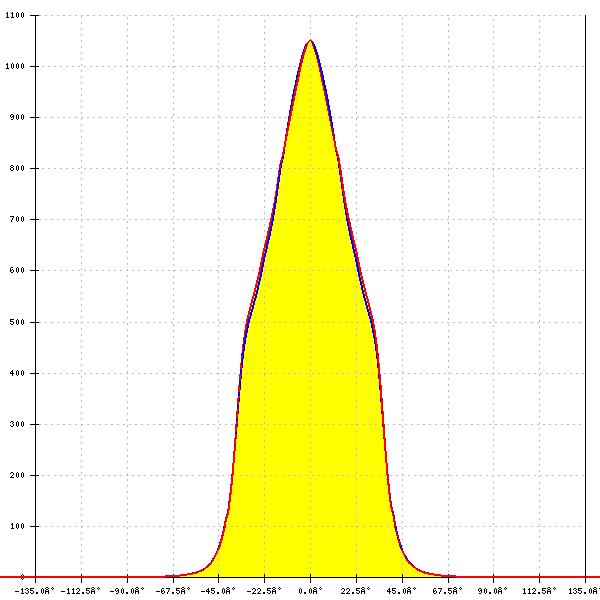

CTM-14 RGBW
Required components:
FWHM:
43°
FWTM:
78°
Peak intensity:
1.352 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
CTM-14 RGBW
Required components:
FWHM:
58°
FWTM:
83°
Peak intensity:
1.053 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
CTM-22 (Tunable White)
Required components:
FWHM:
65°
FWTM:
85°
Peak intensity:
0.890 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-22 (Tunable White)
Required components:
FWHM:
66°
FWTM:
90°
Peak intensity:
0.790 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
Required components:
FWHM:
63°
FWTM:
86°
Peak intensity:
0.890 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
Required components:
IDEAL: 50-2103NC
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
60°
FWTM:
80°
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
Required components:
FWHM:
61°
FWTM:
83°
Peak intensity:
0.970 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
Required components:
IDEAL: 50-2100NC
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
51°
FWTM:
77°
Peak intensity:
1.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
53°
FWTM:
79°
Peak intensity:
1.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
FWHM:
65°
FWTM:
87°
Peak intensity:
0.900 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
FWHM:
58°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core G7 L15 H1
Required components:
FWHM:
63°
FWTM:
80°
Peak intensity:
1.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core G7 L15 H1
Required components:
FWHM:
65°
FWTM:
84°
Peak intensity:
0.910 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core Z4 LES19
Required components:
FWHM:
64°
FWTM:
86°
Peak intensity:
0.900 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Core Z4 LES19
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
62°
FWTM:
81°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

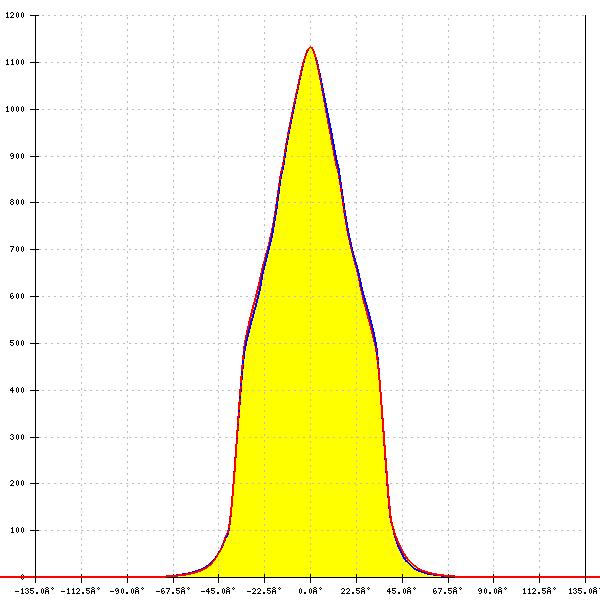

Soleriq S13 19x19
Required components:
FWHM:
62°
FWTM:
85°
Peak intensity:
0.930 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
Required components:
FWHM:
63°
FWTM:
85°
Peak intensity:
0.950 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
56°
FWTM:
79°
Peak intensity:
1.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
56°
FWTM:
80°
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

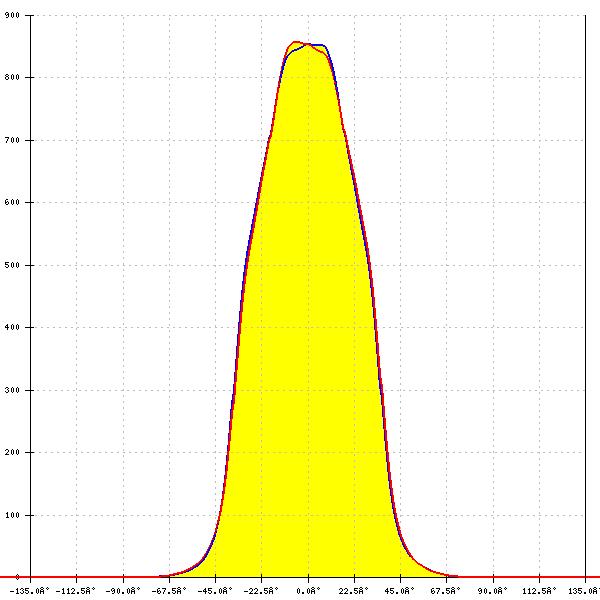

Soleriq S19
Required components:
TE Connectivity: 2213407-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
63°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
Required components:
FWHM:
65°
FWTM:
87°
Peak intensity:
0.860 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

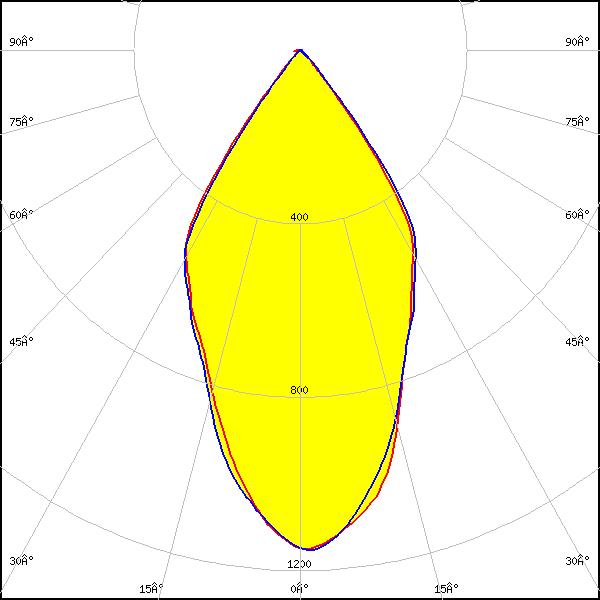

Fortimo SLM L13 CoB
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
56°
FWTM:
80°
Peak intensity:
1.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
Required components:
FWHM:
65°
FWTM:
85°
Peak intensity:
0.920 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 + SLM holder
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
62°
FWTM:
81°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 + SLM holder
Required components:
FWHM:
65°
FWTM:
87°
Peak intensity:
0.850 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

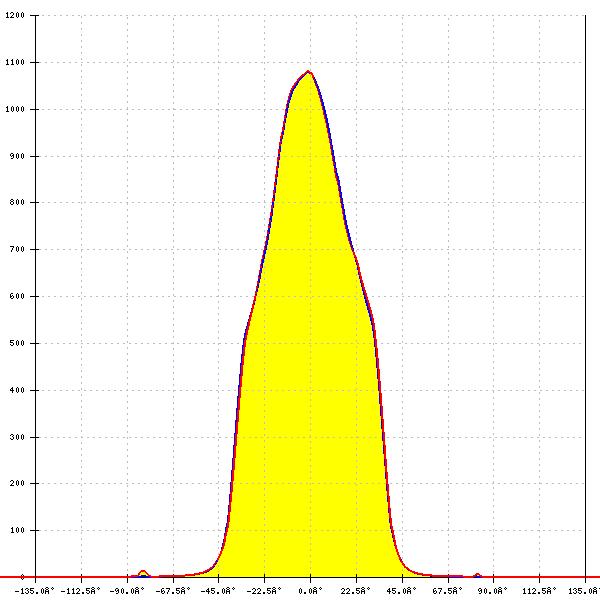

Fortimo SLM L15 CoB
Required components:
FWHM:
65°
FWTM:
85°
Peak intensity:
0.900 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 CoB
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
61°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

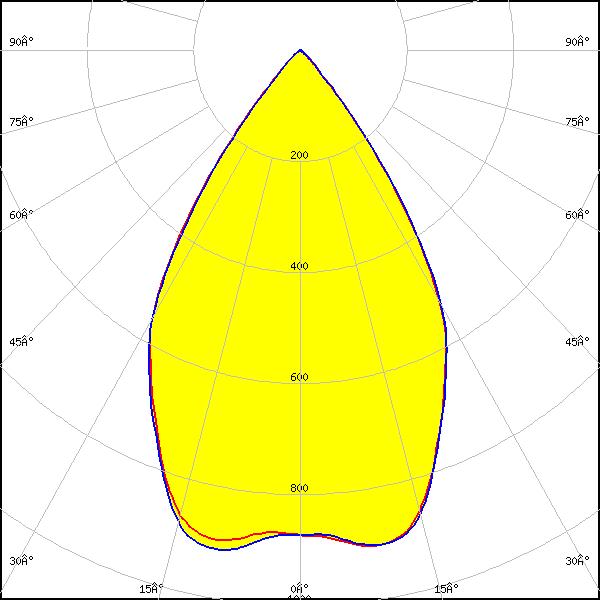

LC035T (Tunable white)
Required components:
FWHM:
65°
FWTM:
84°
Peak intensity:
0.921 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LC035T (Tunable white)
Required components:
FWHM:
66°
FWTM:
89°
Peak intensity:
0.795 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LC040C
Required components:
FWHM:
62°
FWTM:
85°
Peak intensity:
0.960 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040C
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
53°
FWTM:
79°
Peak intensity:
1.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
AC Zhaga COB
Required components:
Optosource: SEHSMJD-A
FWHM:
70°
FWTM:
87°
Peak intensity:
0.850 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
AC Zhaga COB
Required components:
FWHM:
71°
FWTM:
92°
Peak intensity:
0.740 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
64°
FWTM:
81°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 22
Required components:
FWHM:
64°
FWTM:
84°
Peak intensity:
0.910 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
WU-M-484
Required components:
FWHM:
62°
FWTM:
85°
Peak intensity:
0.960 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
WU-M-484
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM:
56°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

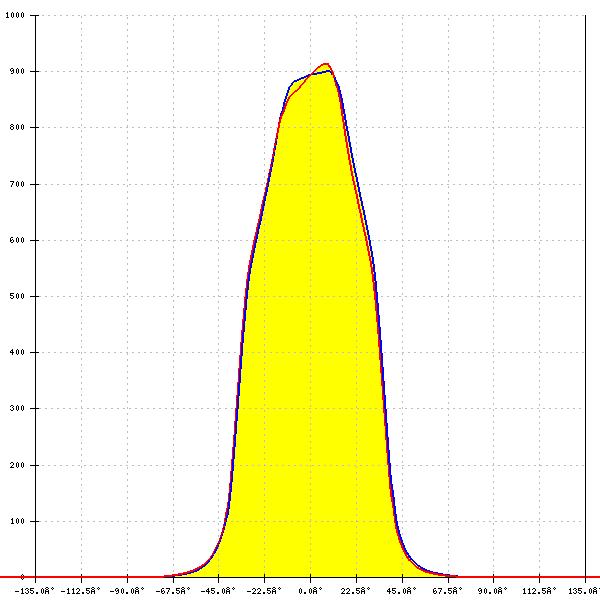

LED:
XIM - 19mm LES
Required components:
FWHM:
66°
FWTM:
84°
Peak intensity:
0.920 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
