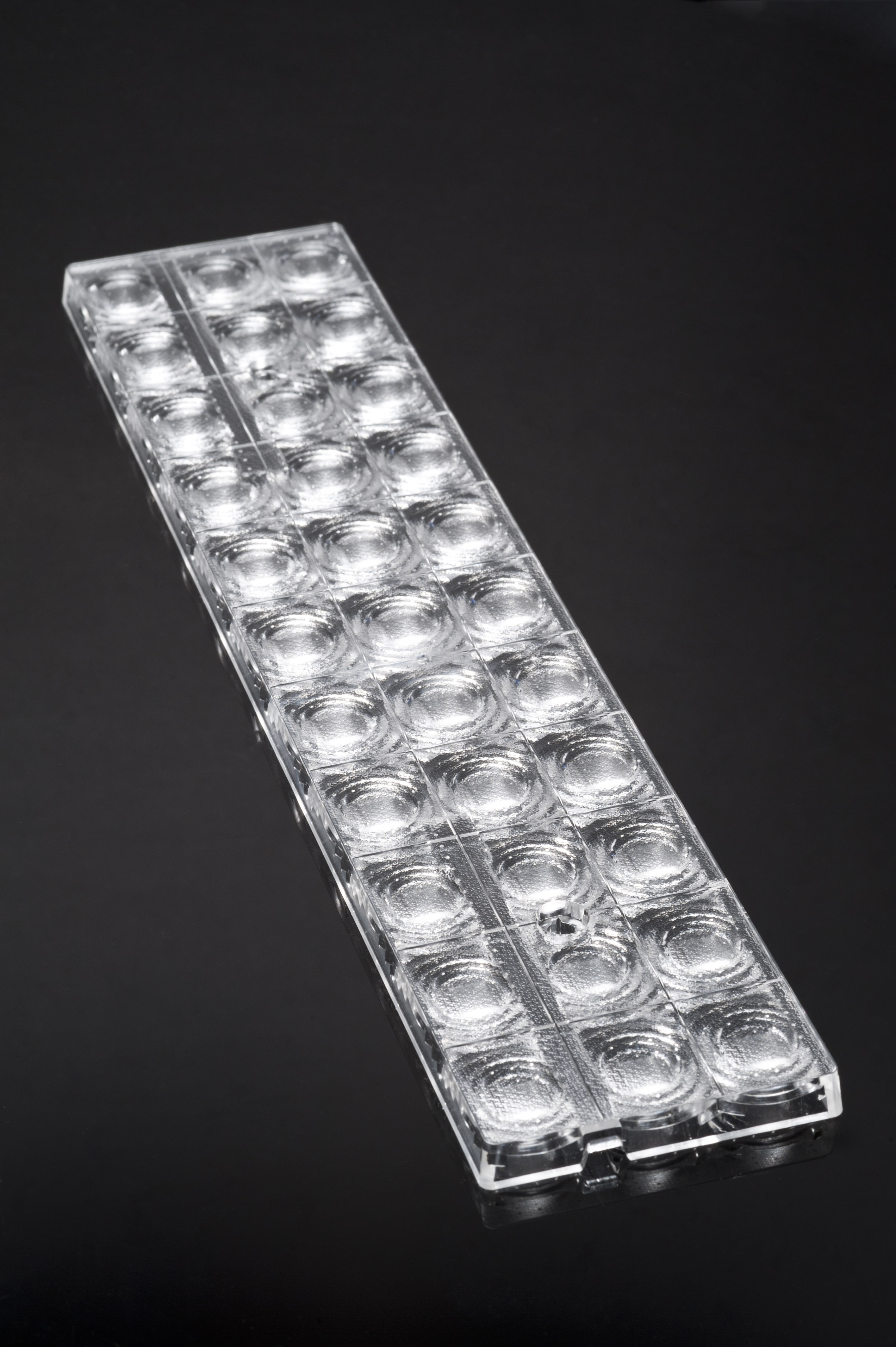

    F13853_FLORENCE-Z90

    Print

    ~90° wide beam. Ideal for retail and industrial lighting. Can be used for general office lighting with shade.

    Specification
    • Dimensions:
      61 x  286 mm
    • Height:
      8.45 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      72 pcs
    • Box size:
      398 x 298 x 140 mm
    • Box weight:
      7.8 kg
    • MPQ:
      6 pcs
    • MOQ:
      18 pcs
    • MOQ size:
      390 x 300 x 40 mm
    • MOQ weight:
      2.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F13853_FLORENCE-Z90
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    FLORENCE-3R presented by Olga Cherepenina

    Application guide

    LEDiL guide for office lighting optics

    Case story

    Sport Box shops

    Luminaire, example

    Track module luminaire with FLORENCE-3R

    Luminaire, example

    Linear luminaire with FLORENCE-3R

    Application example

    Supermarket aisle lighting with FLORENCE-3R and LINDA

    Application example

    Industrial lighting with FLORENCE-3R

    Case story

    Park lighting Brazil

    Case story

    VALHALLA Power Gym

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    PRODUCT NEWS - FLORENCE

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Office Lighting

    Application guide

    LEDiL guide for retail lighting optics

    Article

    Illuminating supermarkets with LEDiL optics

    News

    Linear lighting solutions

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    FLORENCE-PF-3R

    Press fit plug for appliances where accessing and opening the product needs to be restricted. Compatible with FLORENCE 3-row optics.

    Optical results

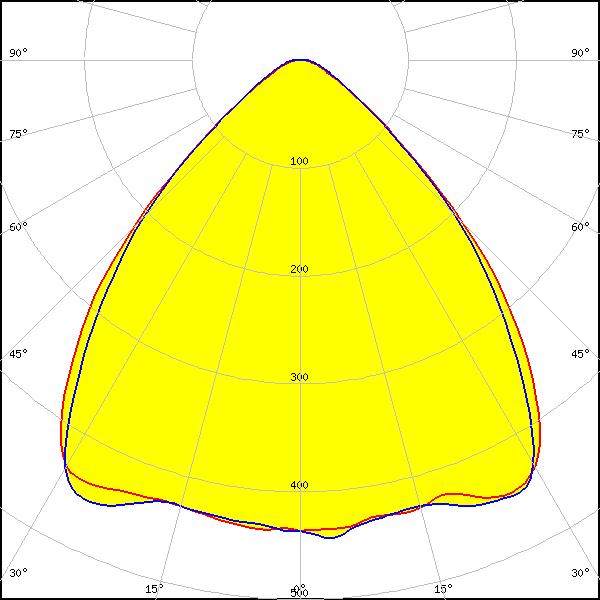

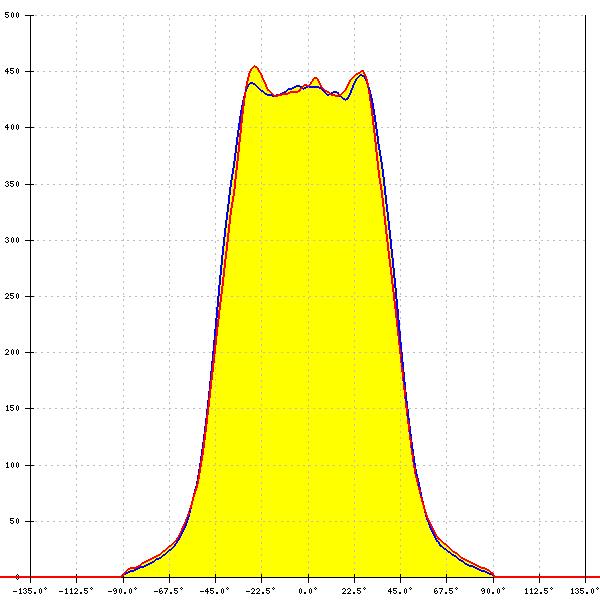

    LED: J Series 5050 Round LES
    FWHM: 88°
    FWTM: 120°
    Peak intensity: 0.454 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050C 6V E Class
    FWHM: 87°
    FWTM: 122°
    Peak intensity: 0.473 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

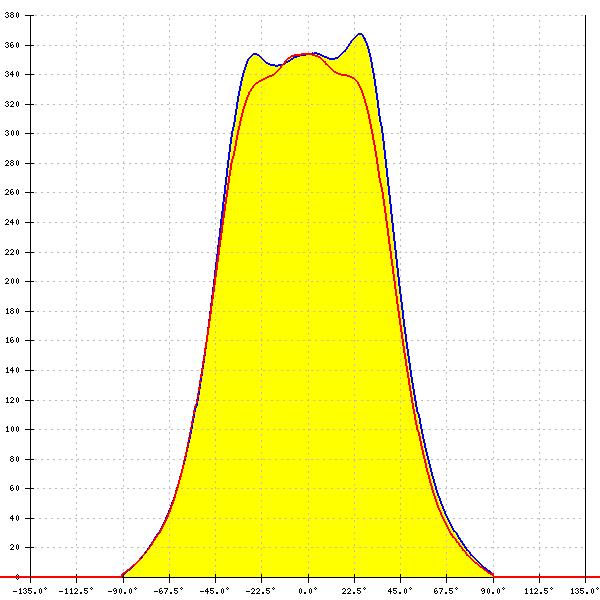

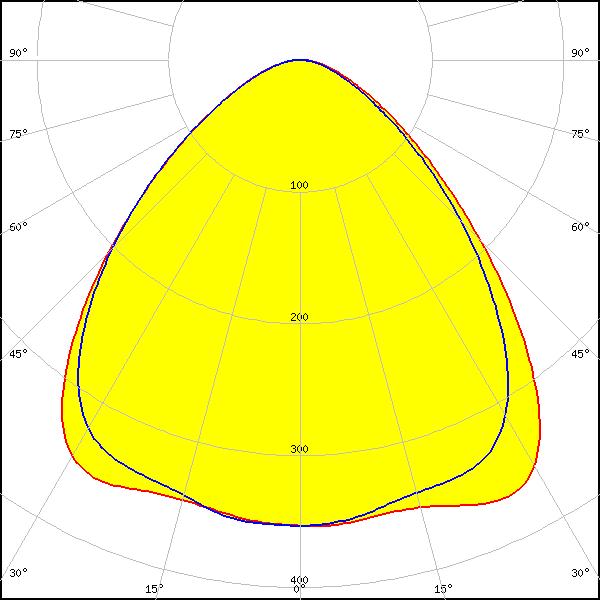

    LED: XH-B/G
    FWHM: 95°
    FWTM: 140°
    Peak intensity: 0.370 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

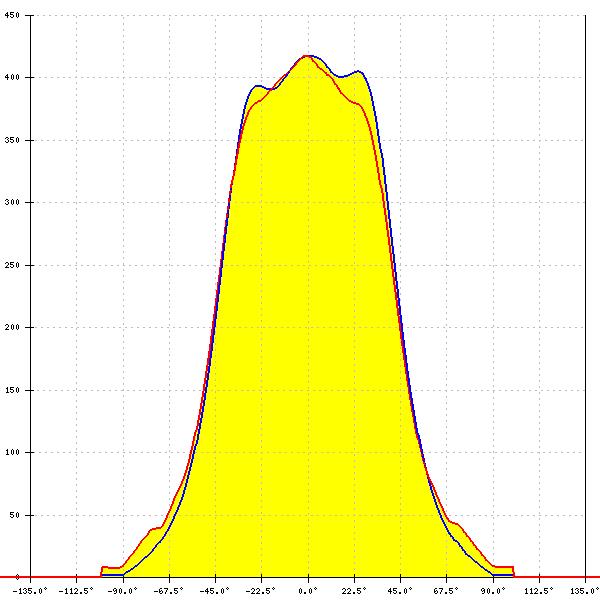

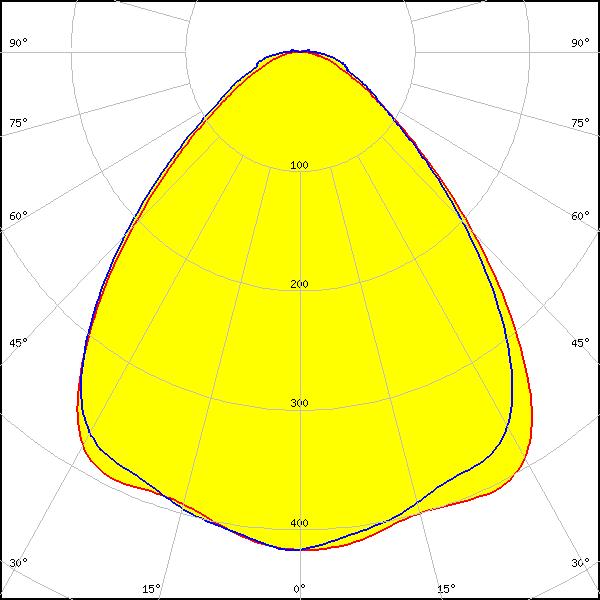

    LED: LED-Modul 280 x 55 mm 1B
    FWHM: 90°
    FWTM: 134°
    Peak intensity: 0.417 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

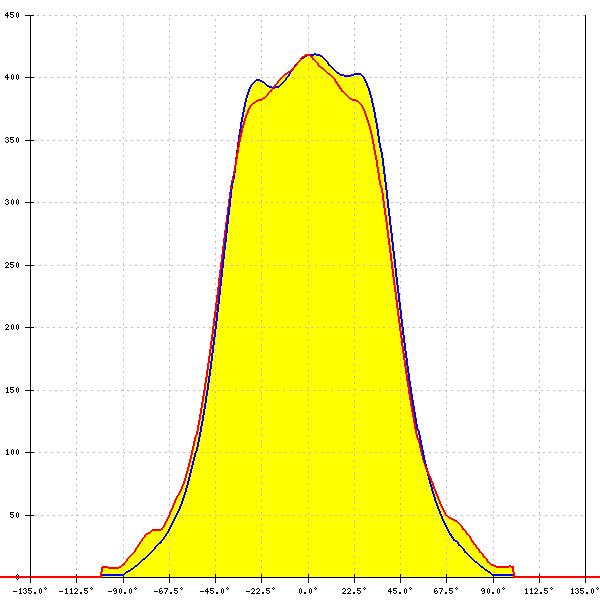

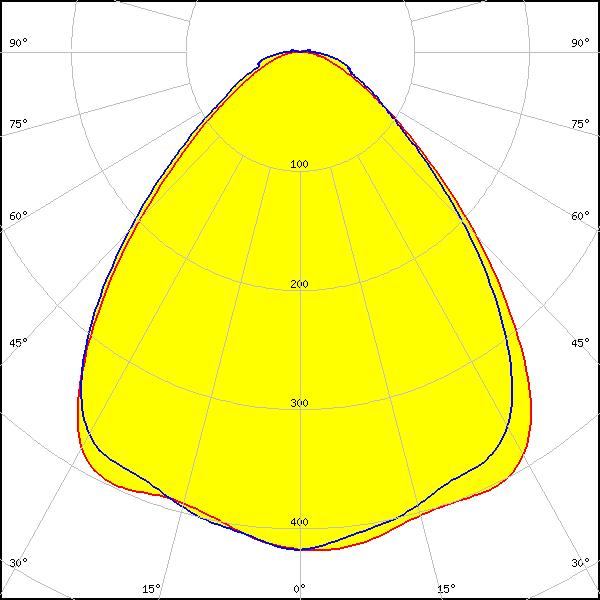

    LED: LED-Modul 280 x 55 mm 1F
    FWHM: 90°
    FWTM: 133°
    Peak intensity: 0.418 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

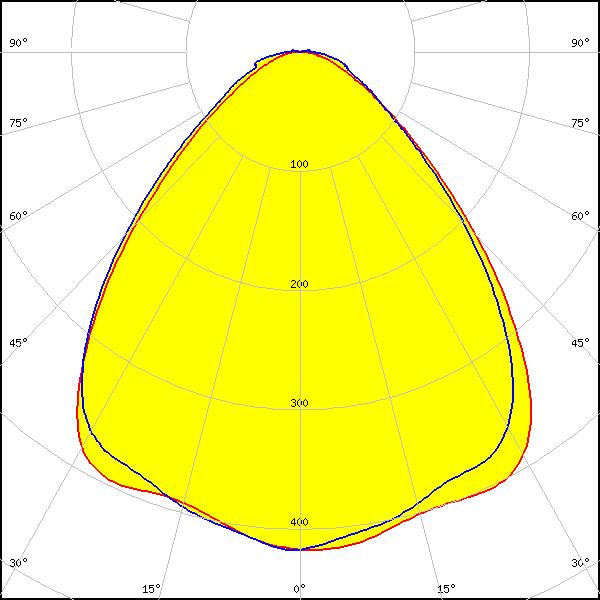

    LED: LED-Modul 280 x 55 mm 2F
    FWHM: 90°
    FWTM: 133°
    Peak intensity: 0.418 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

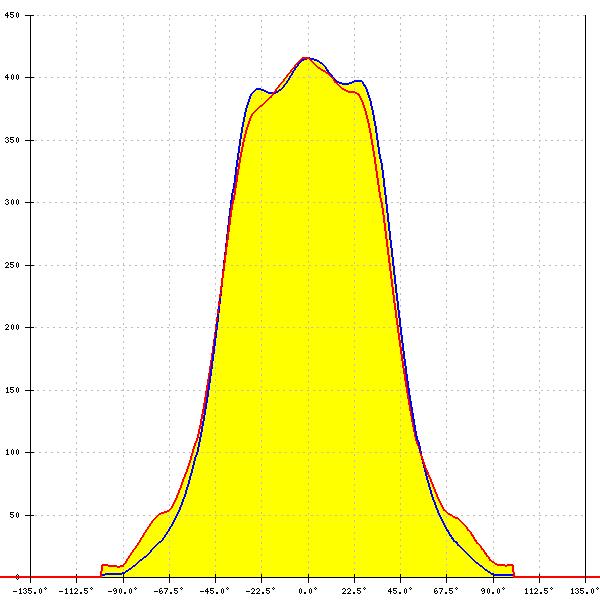

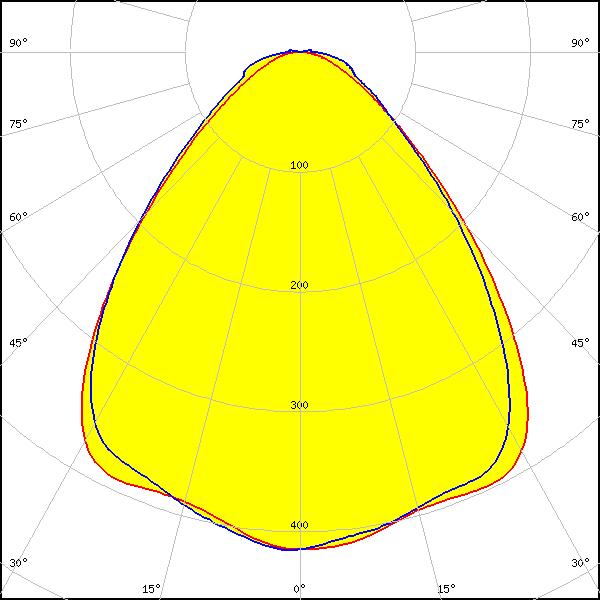

    LED: LUXEON 3030 2D (Square LES)
    FWHM: 88° + 87°
    FWTM: 133° + 153°
    Peak intensity: 0.416 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

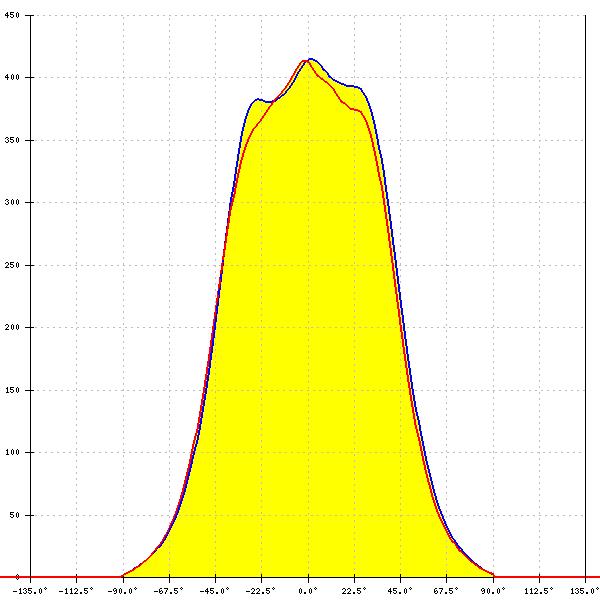

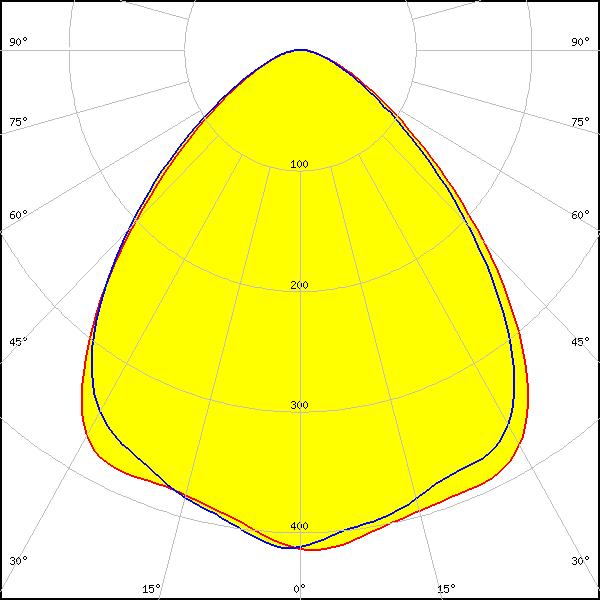

    LED: LUXEON 3535 2D
    FWHM: 92°
    FWTM: 135°
    Peak intensity: 0.410 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

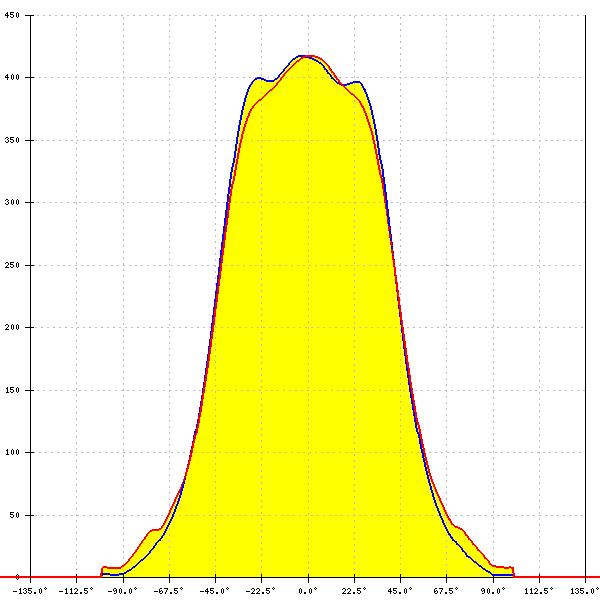

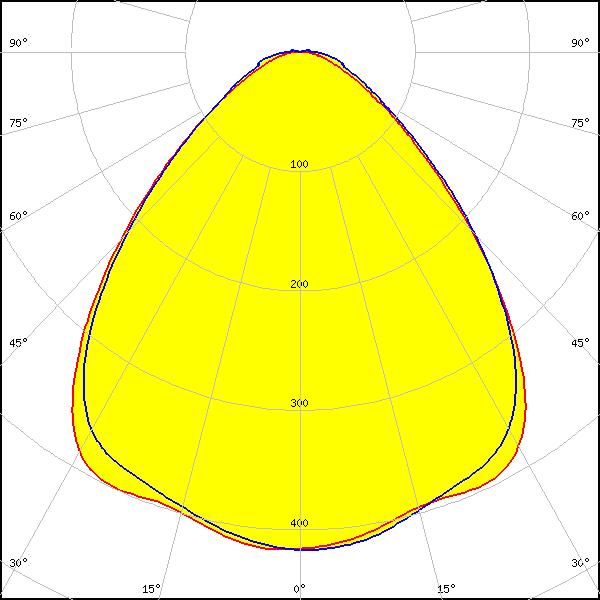

    LED: LUXEON 3535L HE
    FWHM: 92°
    FWTM: 139°
    Peak intensity: 0.420 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

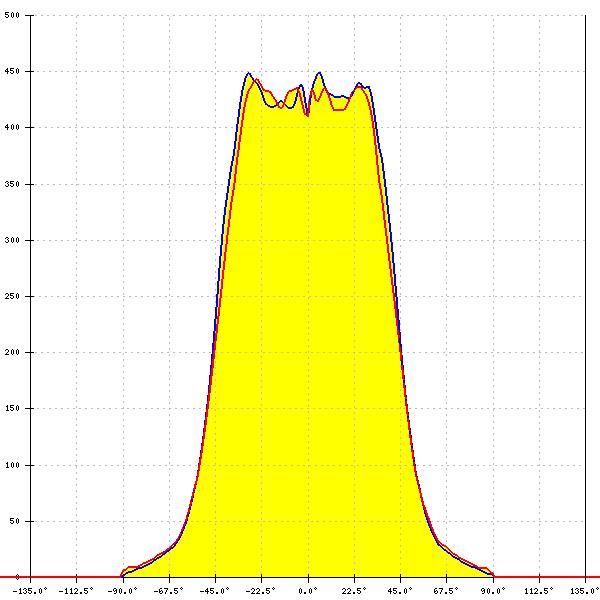

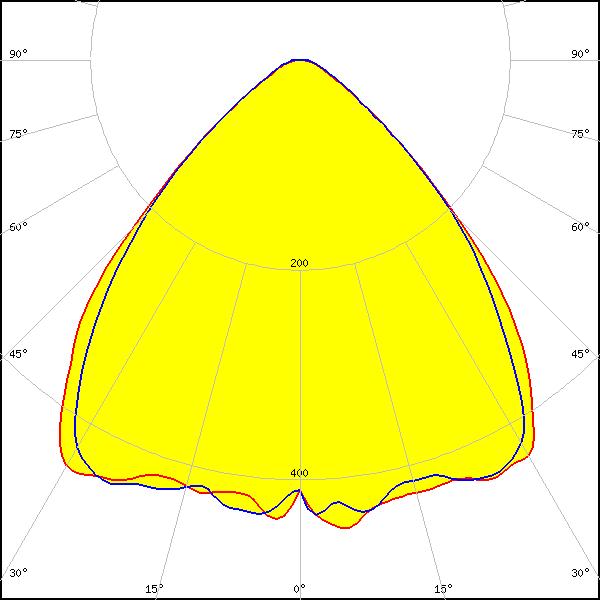

    LED: LUXEON 5050 Round LES
    FWHM: 90°
    FWTM: 120°
    Peak intensity: 0.460 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

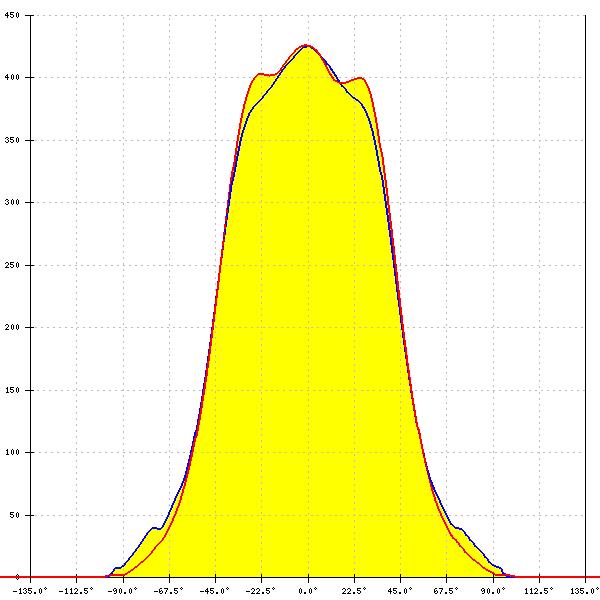

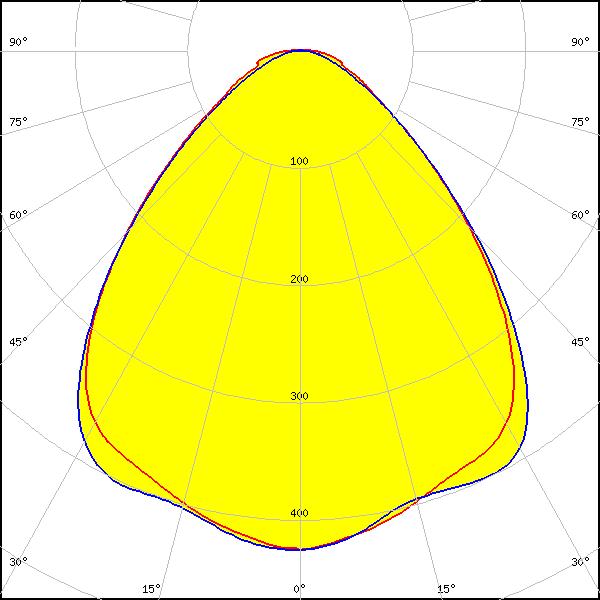

    LED: LUXEON XR-3535L (L202 - xxxx033C30001)
    FWHM: 91°
    FWTM: 134°
    Peak intensity: 0.430 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

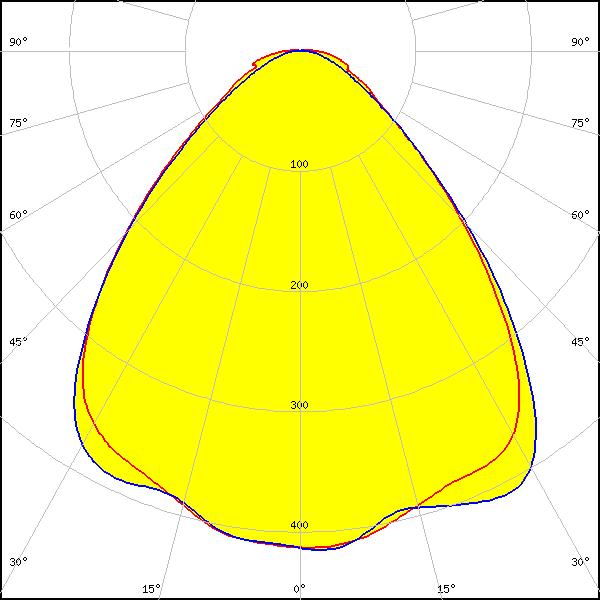

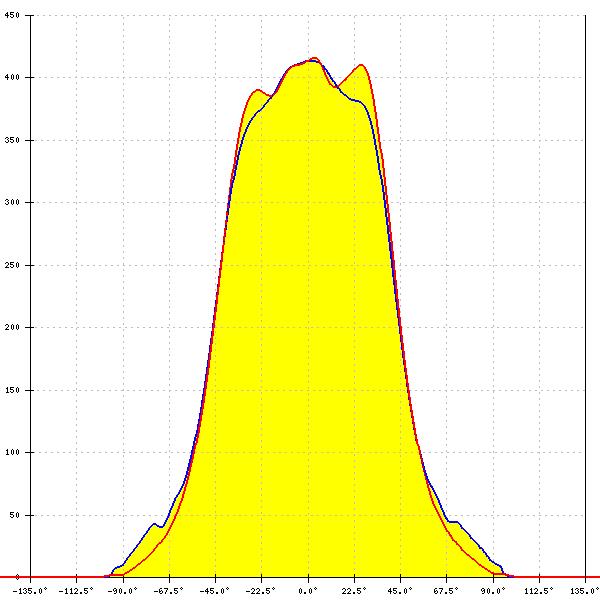

    LED: MP-2016
    FWHM: 90°
    FWTM: 140°
    Peak intensity: 0.420 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

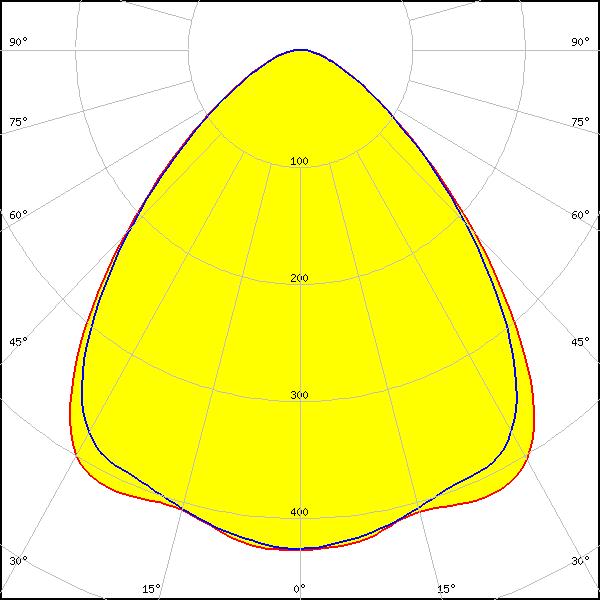

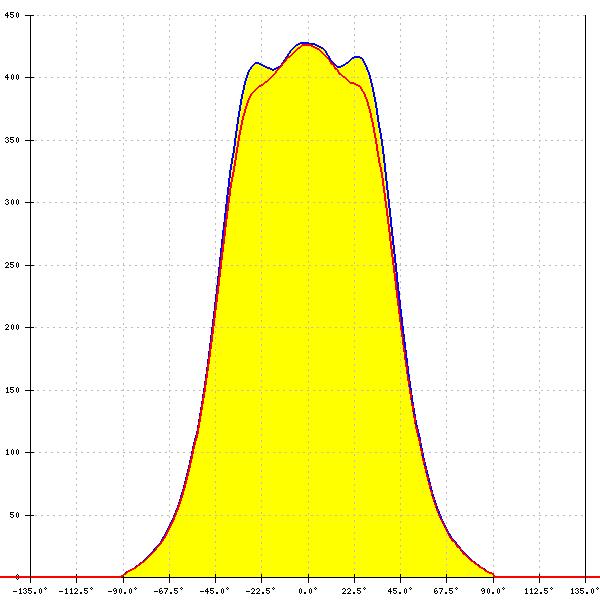

    LED: NF2x757D
    FWHM: 92°
    FWTM: 134°
    Peak intensity: 0.430 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

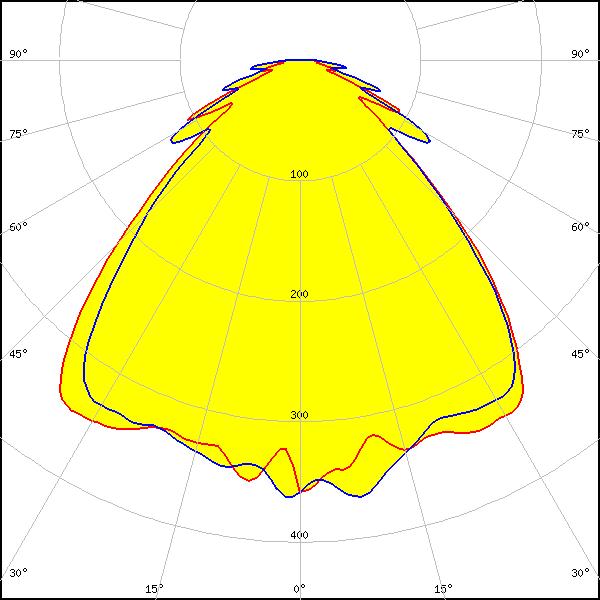

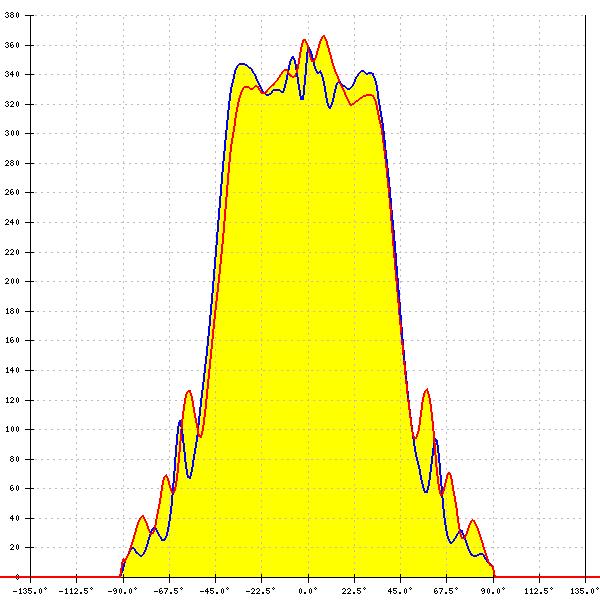

    LED: NF2x757G
    FWHM: 90°
    FWTM: 146°
    Peak intensity: 0.370 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

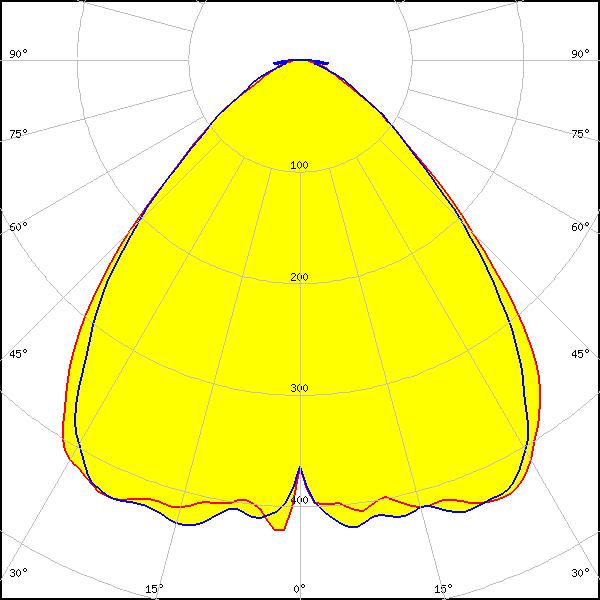

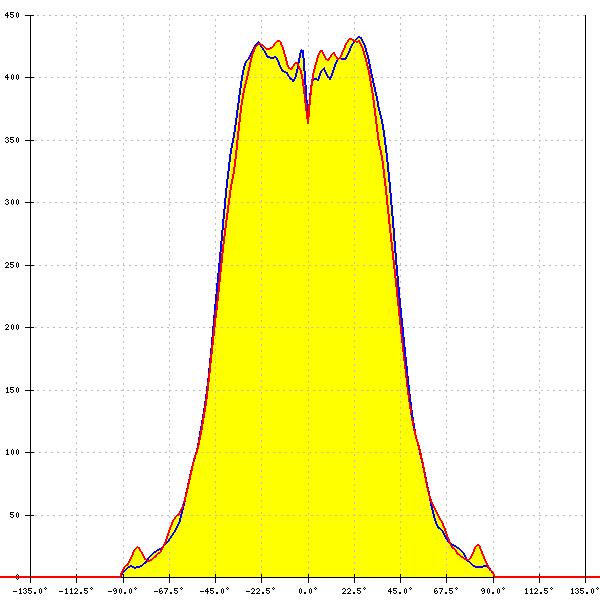

    LED: NFMW48xA
    FWHM: 89°
    FWTM: 130°
    Peak intensity: 0.440 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

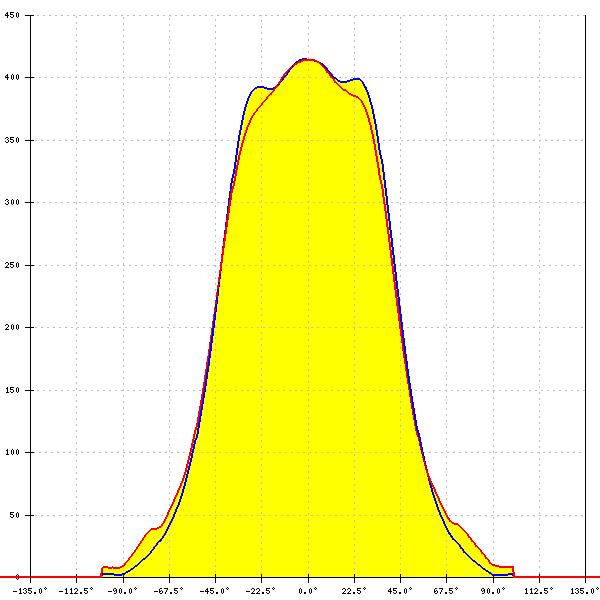

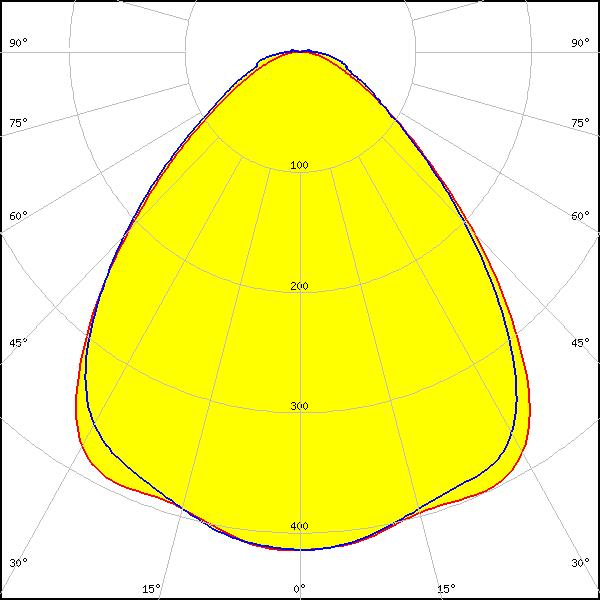

    LED: NFSW757H
    FWHM: 91° + 90°
    FWTM: 134° + 145°
    Peak intensity: 0.415 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

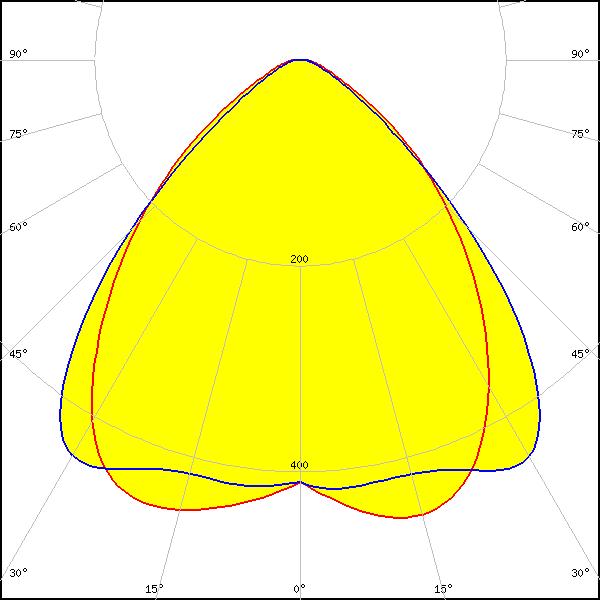

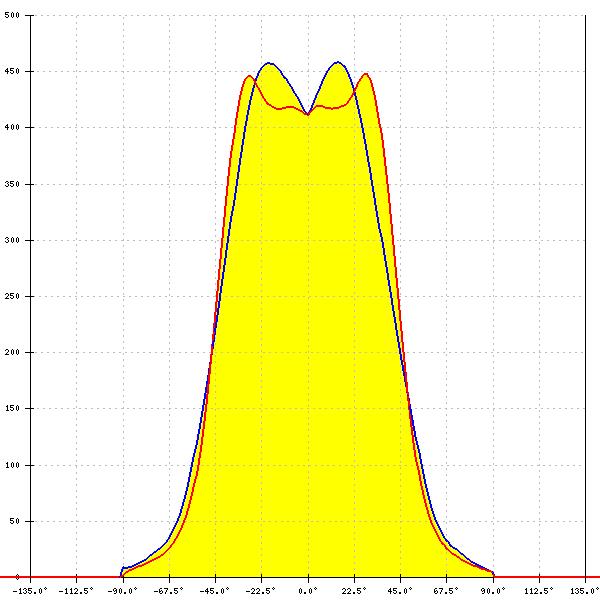

    LED: NFSx757G
    FWHM: 86° + 90°
    FWTM: 128° + 122°
    Peak intensity: 0.458 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 2
    Light colour/type: White

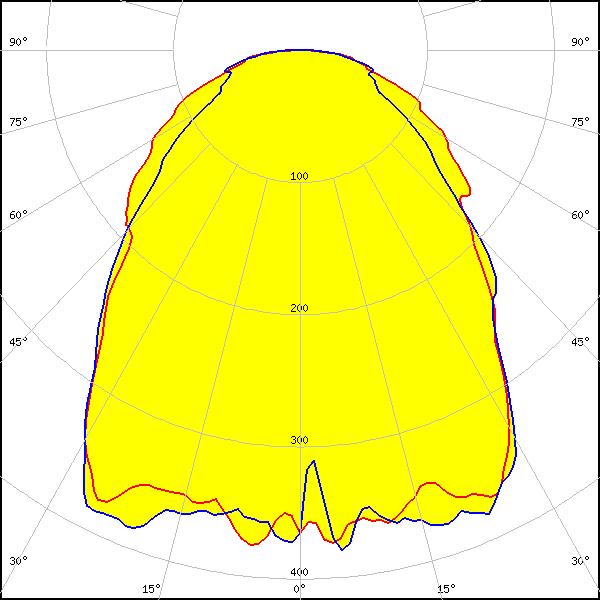

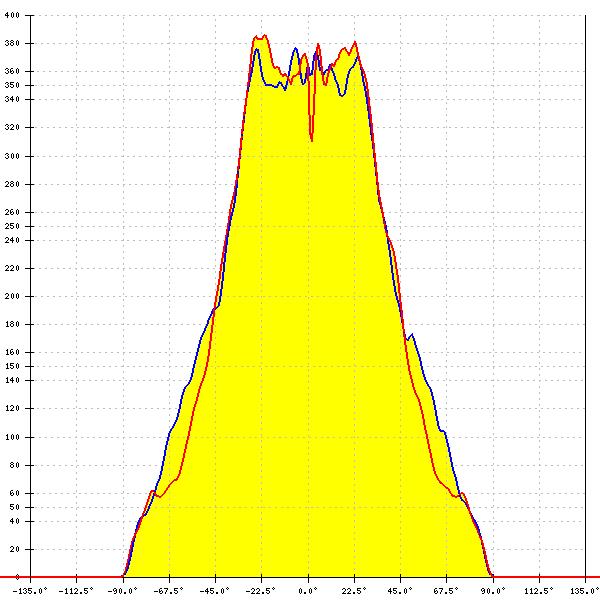

    LED: NVSxE21A
    FWHM: 90°
    FWTM: 163°
    Peak intensity: 0.390 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PL-BAR-G3 1100 280x55
    FWHM: 90°
    FWTM: 140°
    Peak intensity: 0.410 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PLG2-BAR-1100-xxx-280x55-DC
    FWHM: 92°
    FWTM: 138°
    Peak intensity: 0.420 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

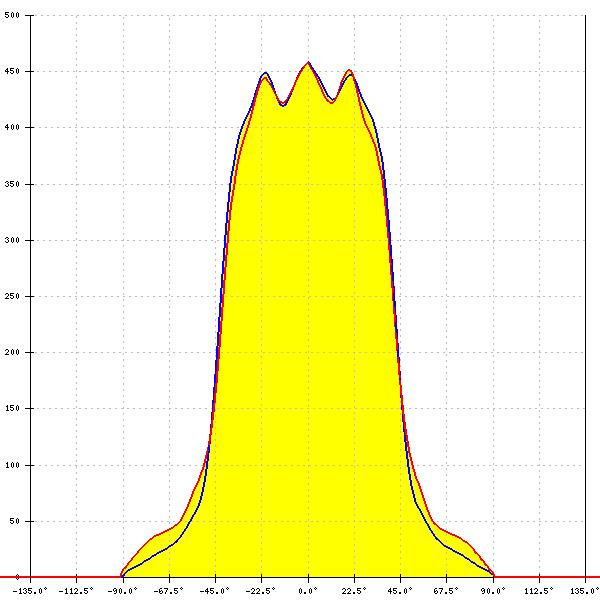

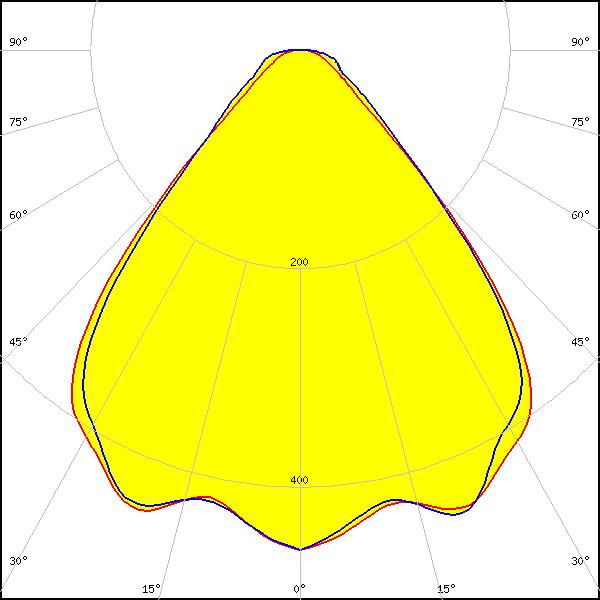

    LED: Duris E 2835
    FWHM: 85°
    FWTM: 122°
    Peak intensity: 0.460 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

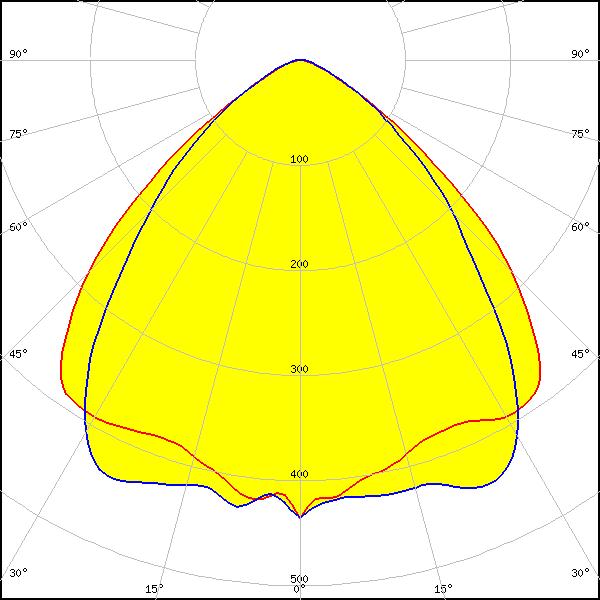

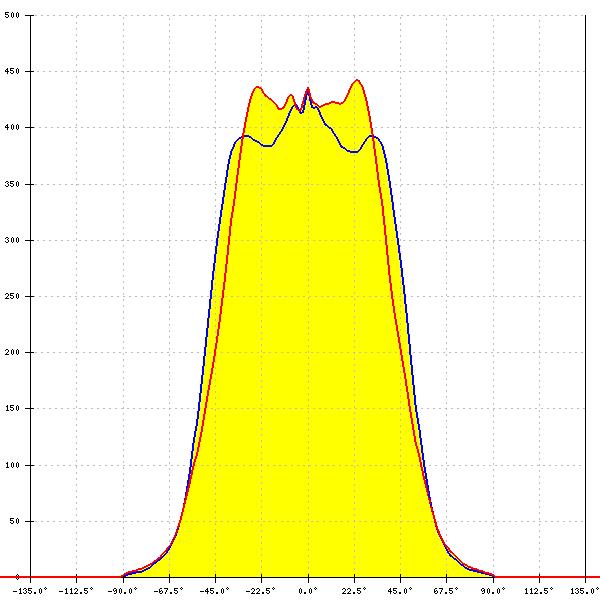

    LED: Duris E 2835
    FWHM: 86° + 87°
    FWTM: 120° + 126°
    Peak intensity: 0.400 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 2
    Light colour/type: White

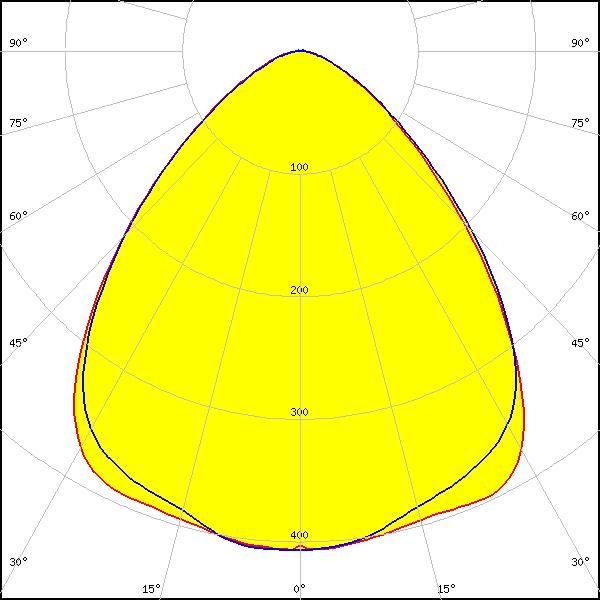

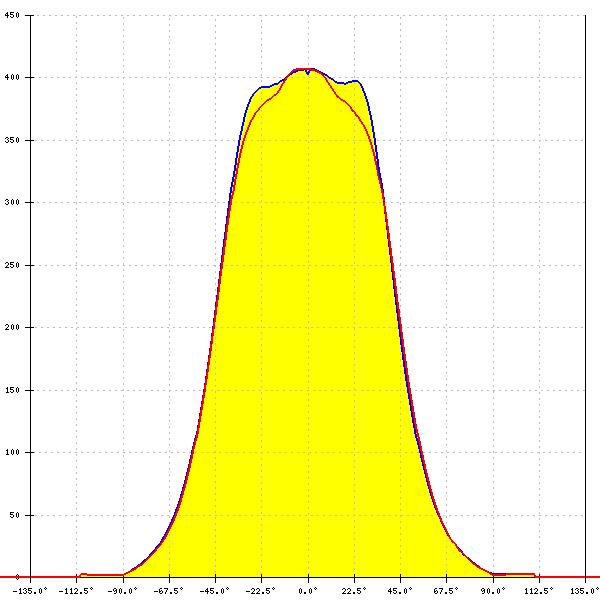

    LED: Duris E5
    FWHM: 92°
    FWTM: 135°
    Peak intensity: 0.400 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

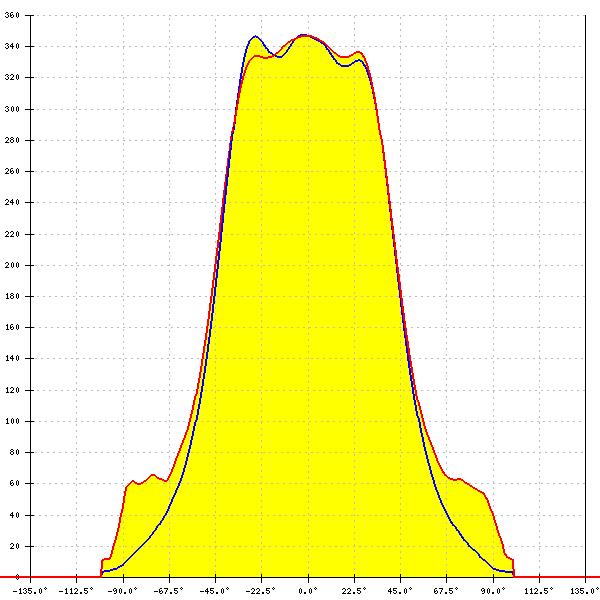

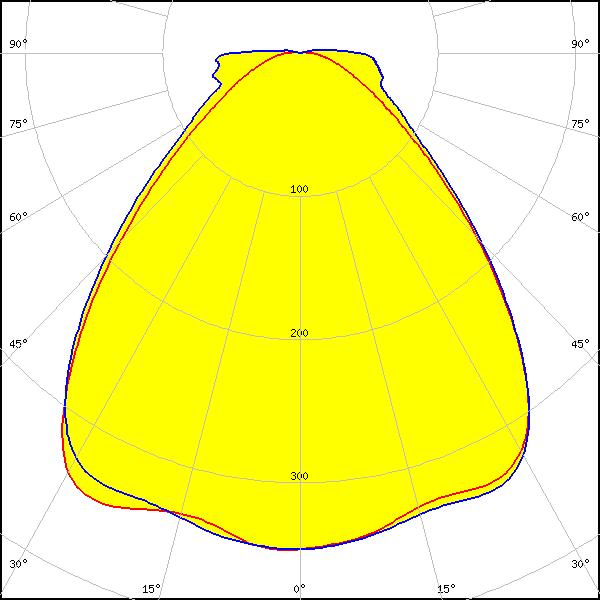

    LED: Duris S2
    FWHM: 95°
    FWTM: 165°
    Peak intensity: 0.350 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

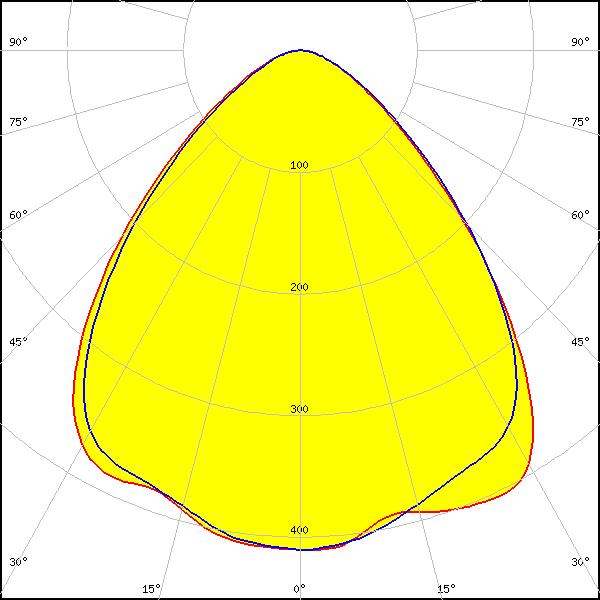

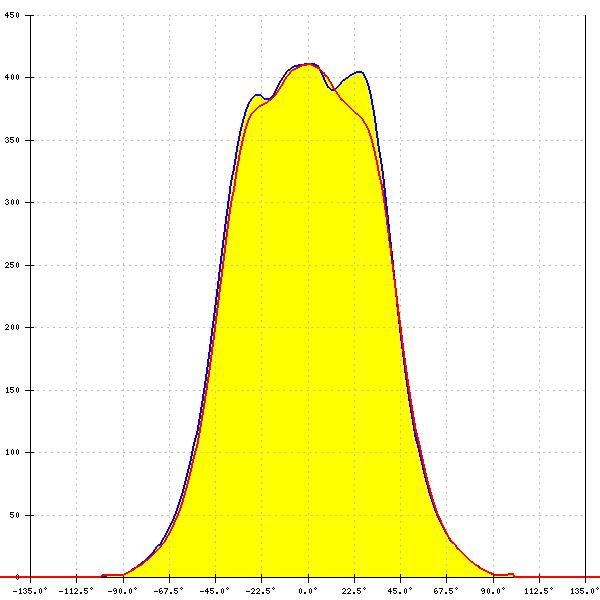

    LED: Duris S5 (Single chip)
    FWHM: 91°
    FWTM: 133°
    Peak intensity: 0.410 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

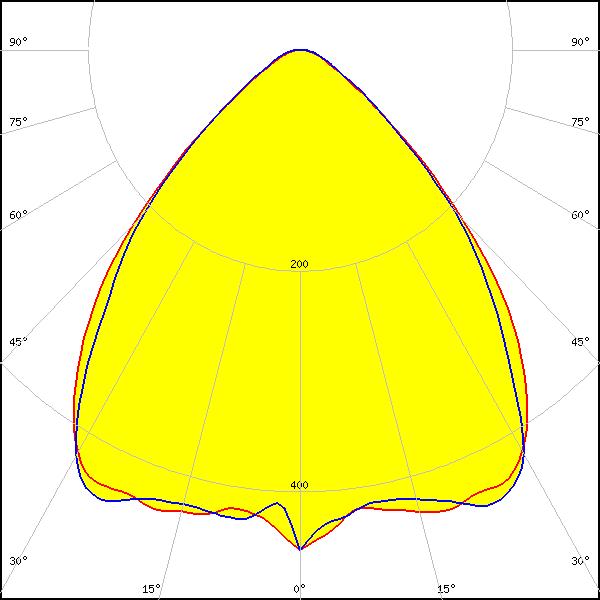

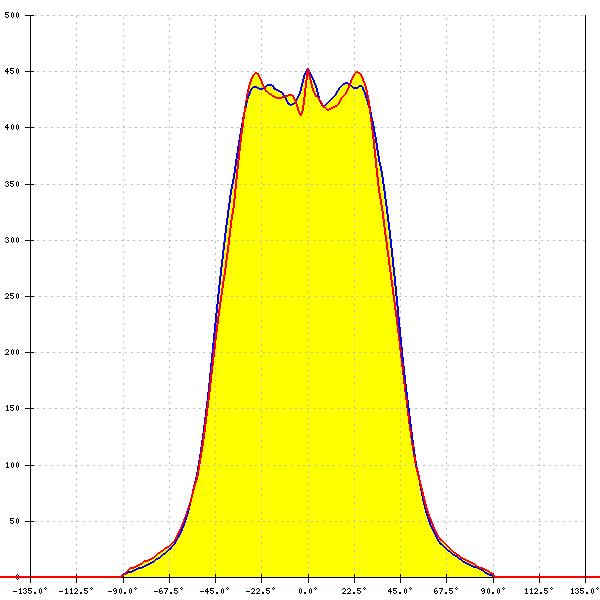

    LED: Duris S8
    FWHM: 89°
    FWTM: 121°
    Peak intensity: 0.462 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

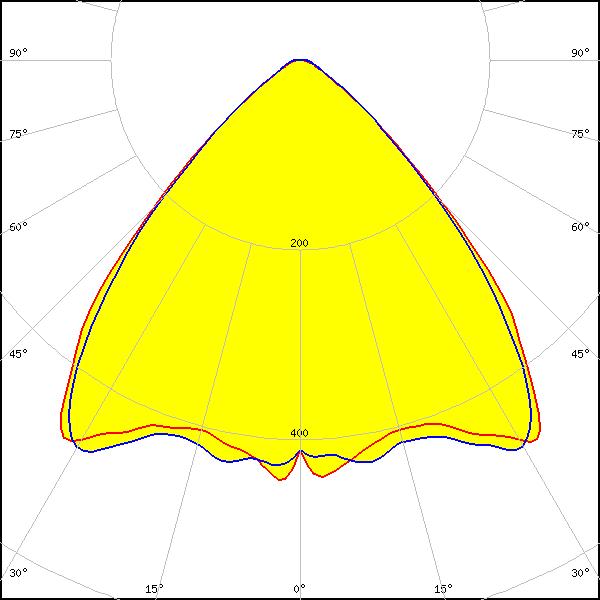

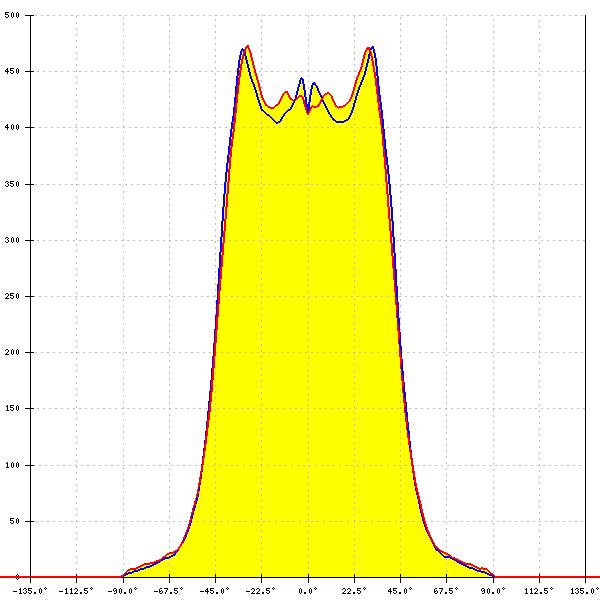

    LED: OSCONIQ C 2424
    FWHM: 88°
    FWTM: 114°
    Peak intensity: 0.473 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 2226
    FWHM: 94°
    FWTM: 140°
    Peak intensity: 0.370 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

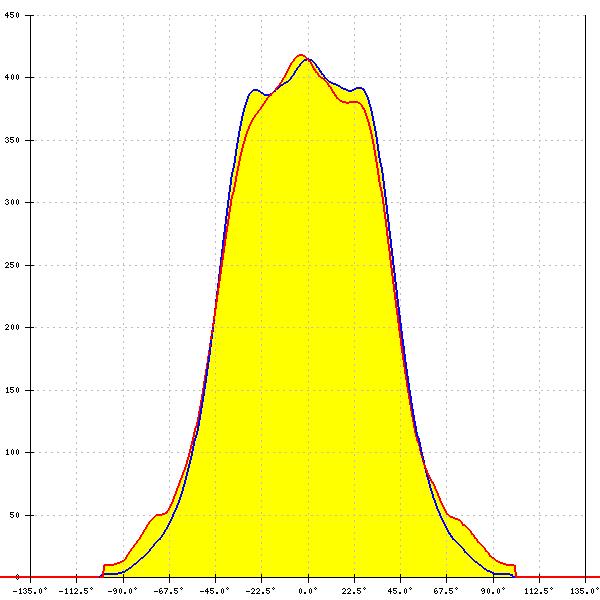

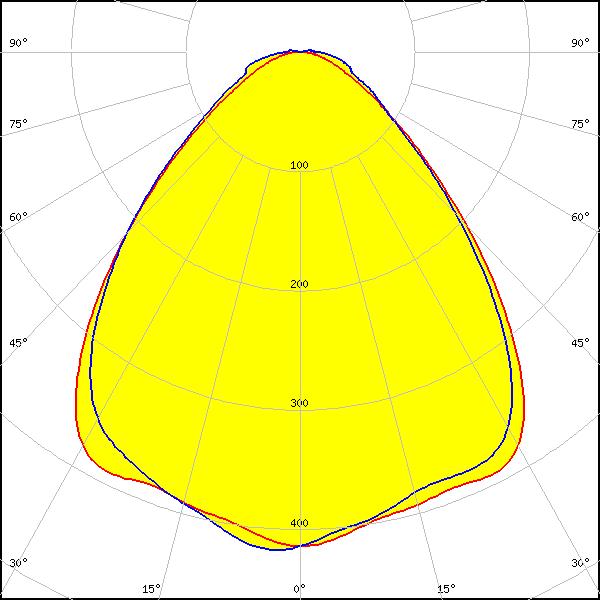

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 91°
    FWTM: 145°
    Peak intensity: 0.420 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line VO 1ft MF 3R HV5
    FWHM: 90°
    FWTM: 130°
    Peak intensity: 0.415 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line 1ft 650lm 3R HV4 & LV4
    FWHM: 90°
    FWTM: 142°
    Peak intensity: 0.410 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line 1ft HF 3R HV5
    FWHM: 90°
    FWTM: 139°
    Peak intensity: 0.411 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line 1ft LF 3R HV5 & LV5
    FWHM: 90°
    FWTM: 140°
    Peak intensity: 0.413 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line 1ft MF 3R HV5 & LV5
    FWHM: 91°
    FWTM: 138°
    Peak intensity: 0.412 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

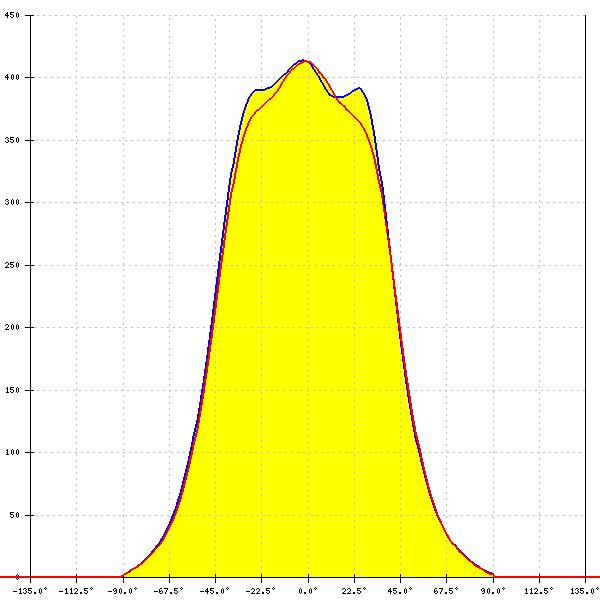

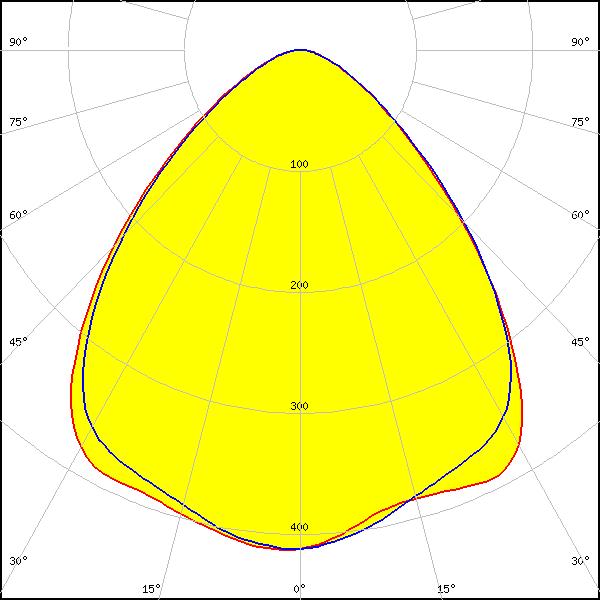

    LED: LM231 A/B
    FWHM: 91°
    FWTM: 134°
    Peak intensity: 0.414 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

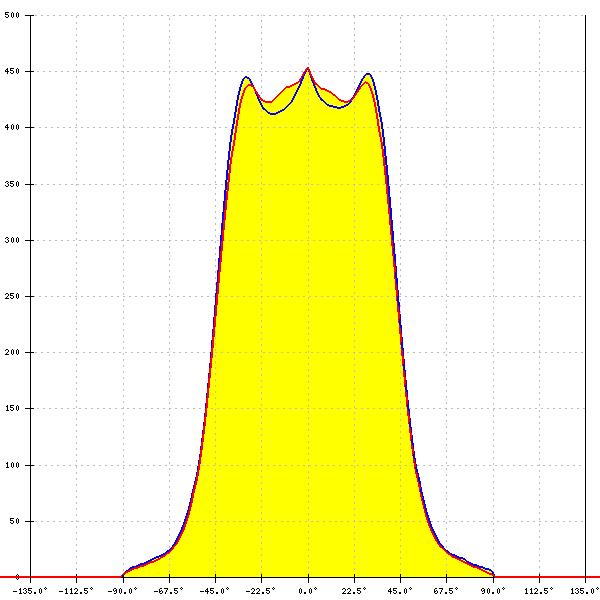

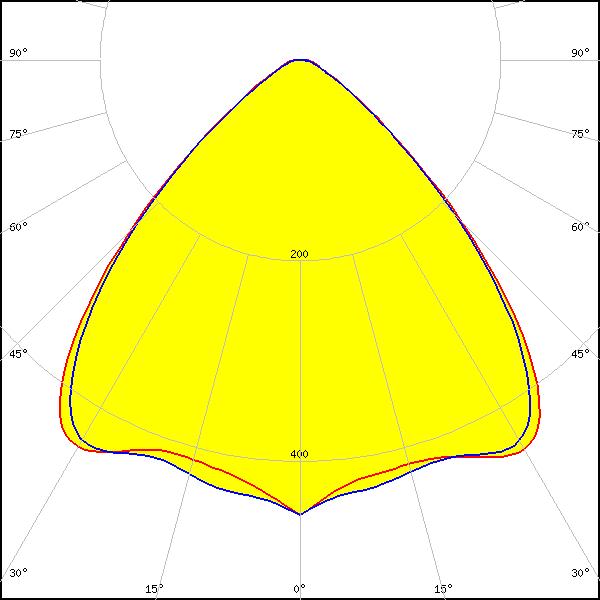

    LED: LM28xB Series
    FWHM: 90°
    FWTM: 120°
    Peak intensity: 0.450 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

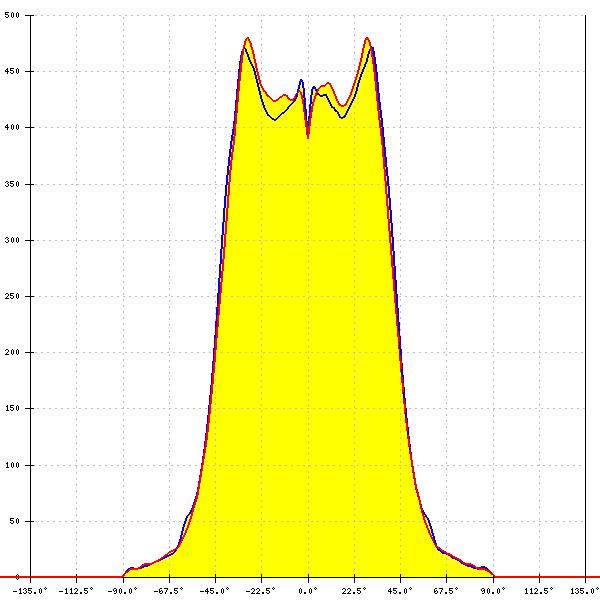

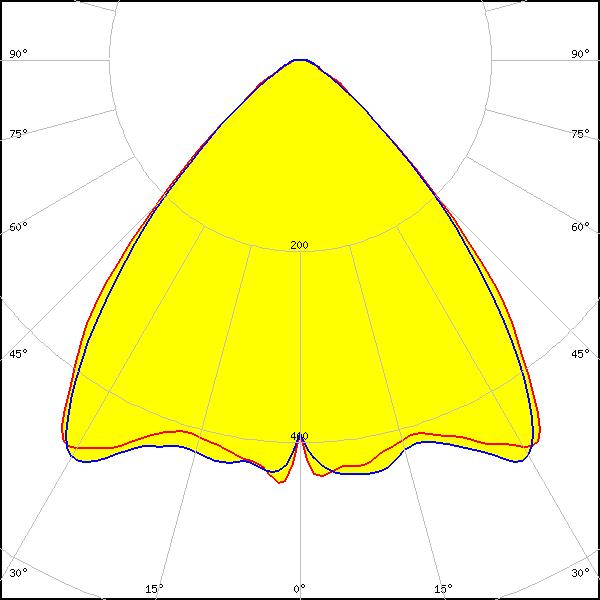

    LED: LM301B
    FWHM: 88°
    FWTM: 119°
    Peak intensity: 0.480 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

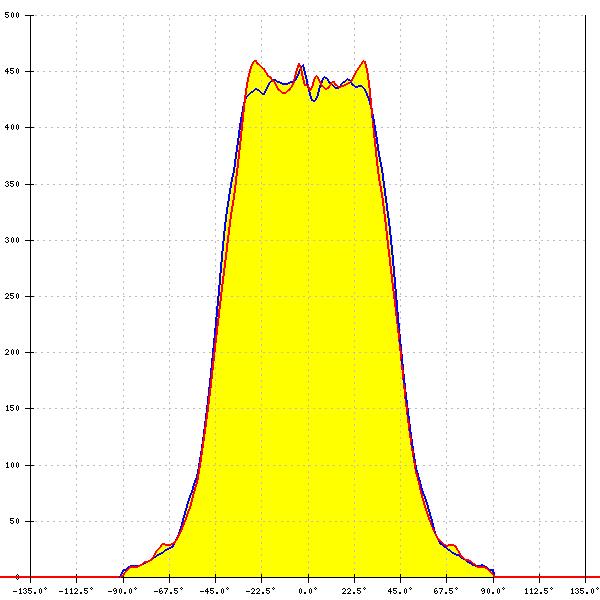

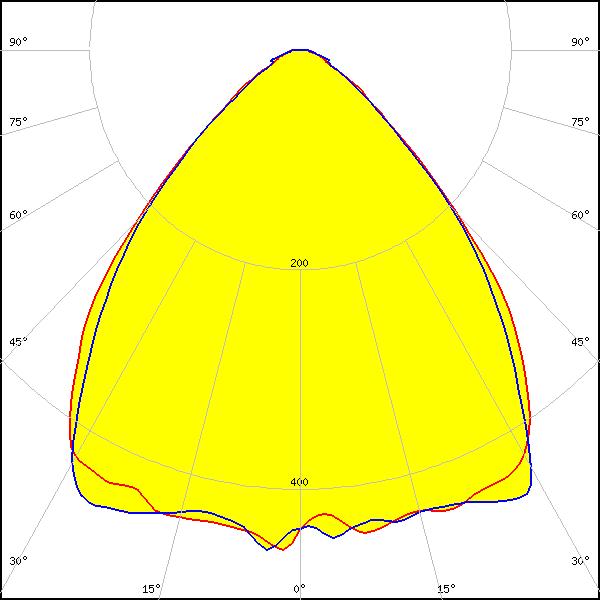

    LED: LM301B
    FWHM: 88°
    FWTM: 122°
    Peak intensity: 0.459 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: White

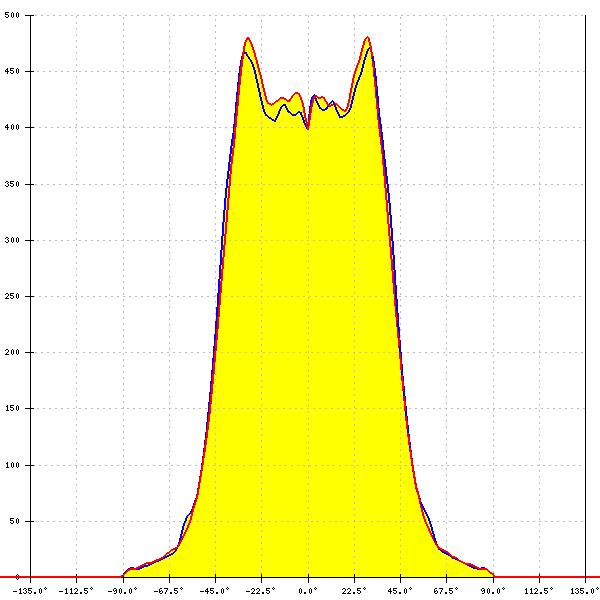

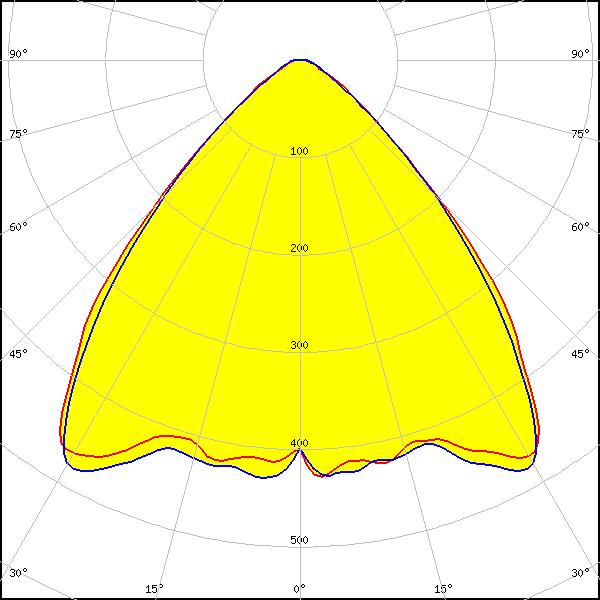

    LED: LM302Z plus
    FWHM: 87°
    FWTM: 118°
    Peak intensity: 0.481 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

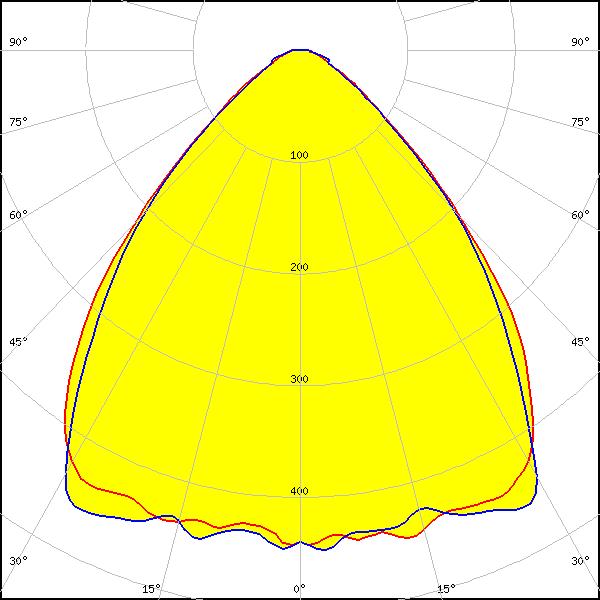

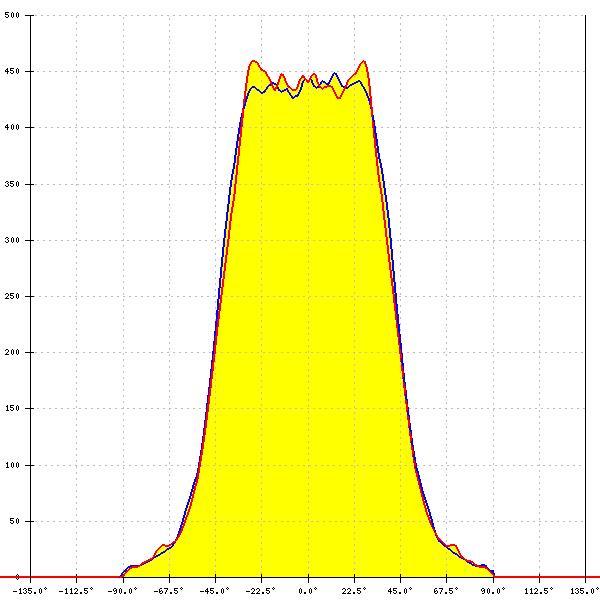

    LED: LM302Z plus
    FWHM: 87°
    FWTM: 122°
    Peak intensity: 0.459 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: White

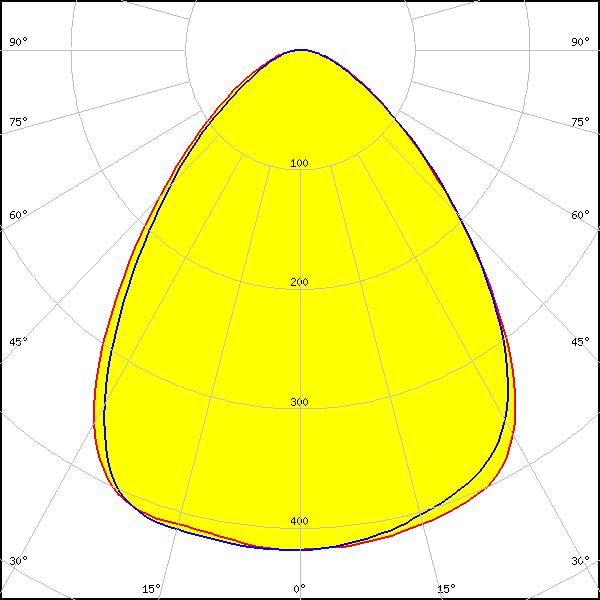

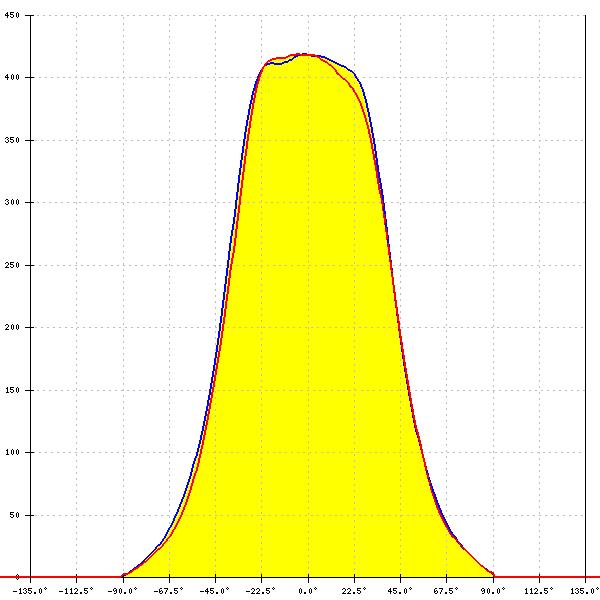

    LED: LM561B
    FWHM: 86°
    FWTM: 133°
    Peak intensity: 0.420 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

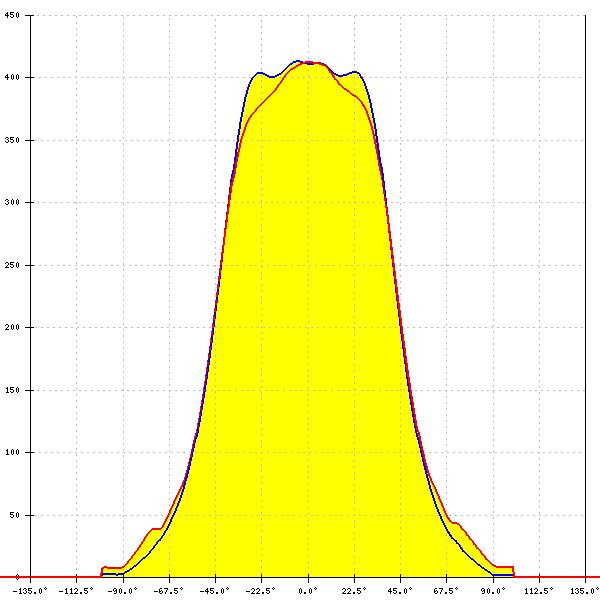

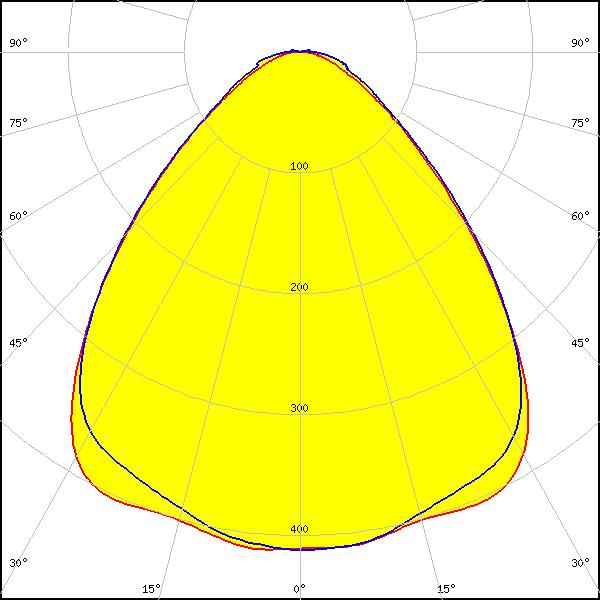

    LED: LM561B Plus
    FWHM: 92°
    FWTM: 141°
    Peak intensity: 0.410 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

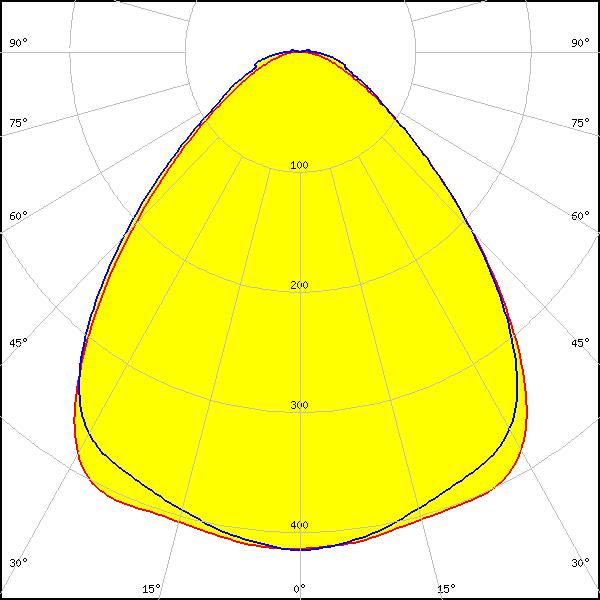

    LED: LM561C
    FWHM: 92°
    FWTM: 140°
    Peak intensity: 0.420 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

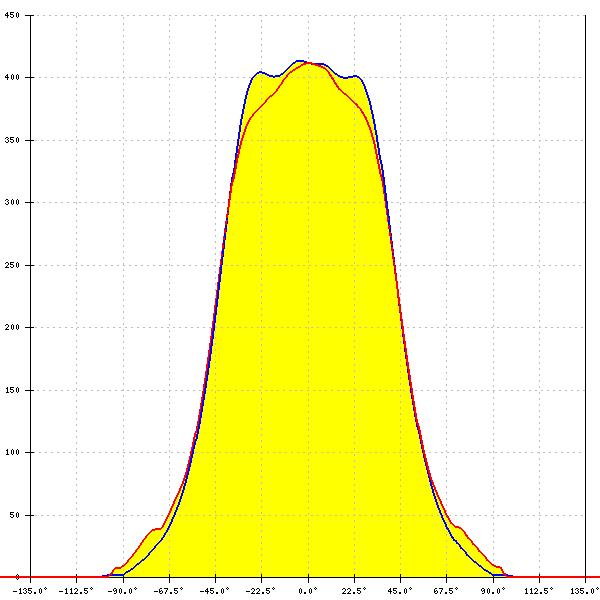

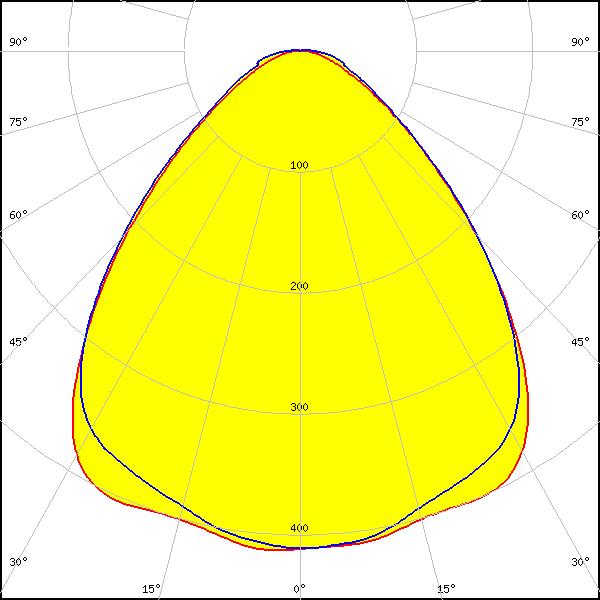

    LED: LT-R286A
    FWHM: 93°
    FWTM: 140°
    Peak intensity: 0.410 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

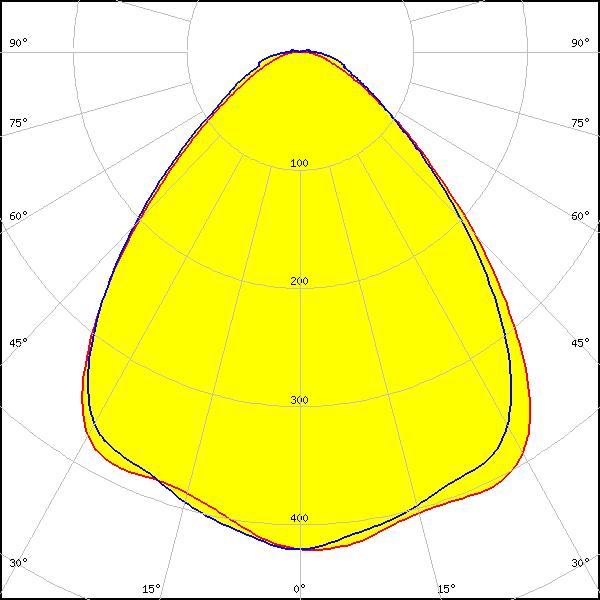

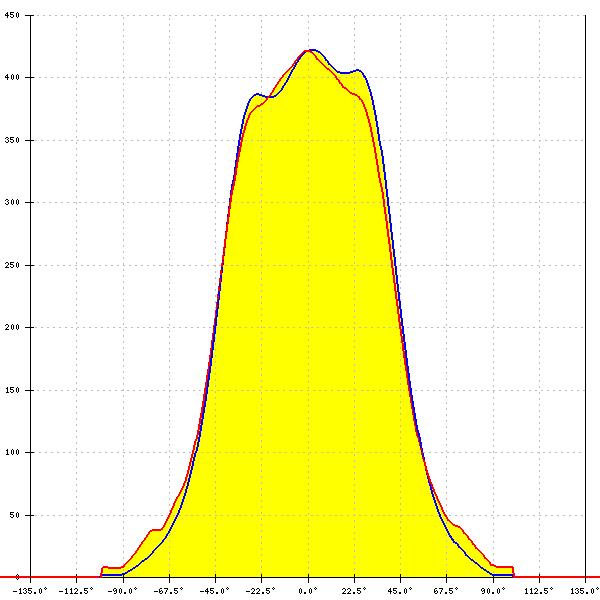

    LED: SEOUL 3030
    FWHM: 91°
    FWTM: 138°
    Peak intensity: 0.420 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

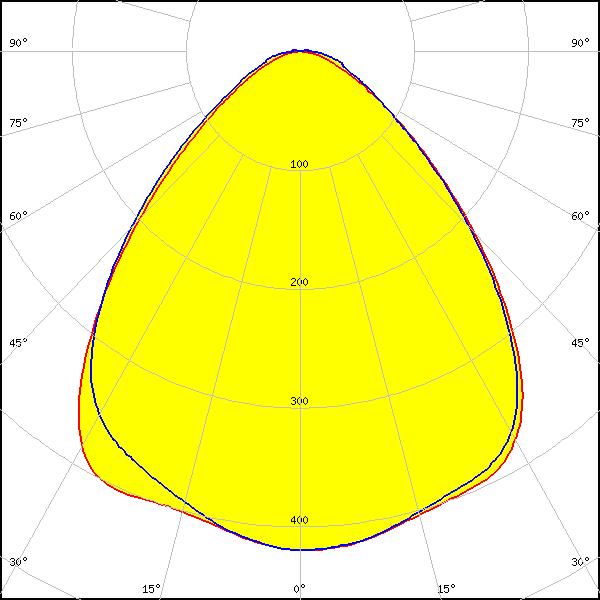

    LED: SEOUL 5630C
    FWHM: 90°
    FWTM: 136°
    Peak intensity: 0.420 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

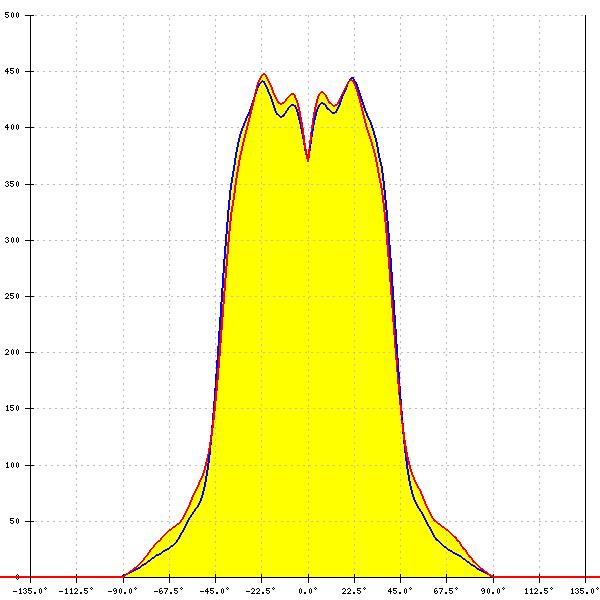

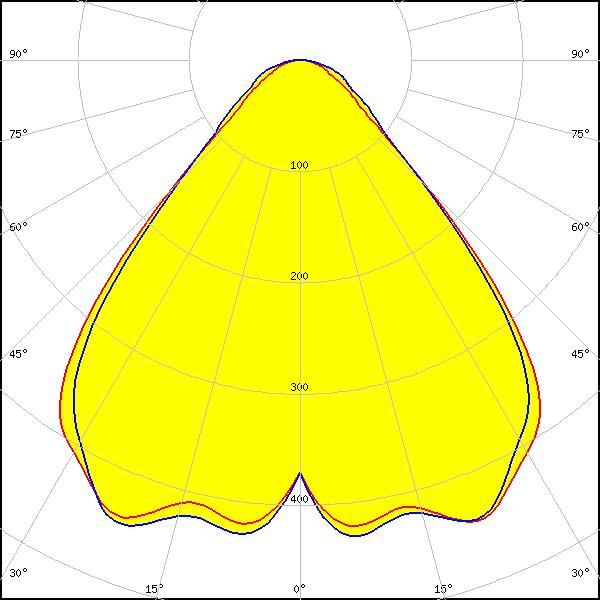

    LED: SEOUL 5630D
    FWHM: 83°
    FWTM: 127°
    Peak intensity: 0.450 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3030
    FWHM: 90°
    FWTM: 140°
    Peak intensity: 0.420 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

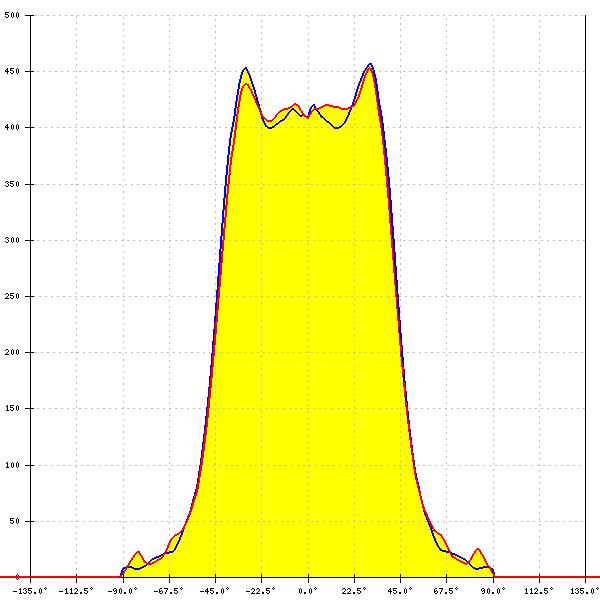

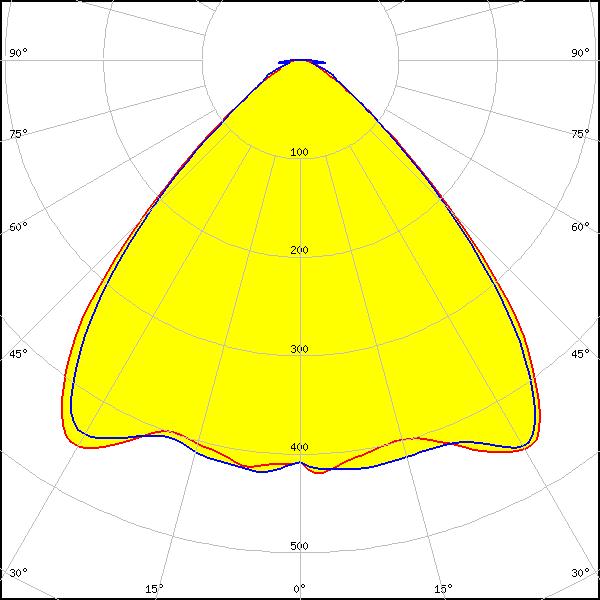

    LED: SEOUL DC 3030C
    FWHM: 89°
    FWTM: 120°
    Peak intensity: 0.457 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

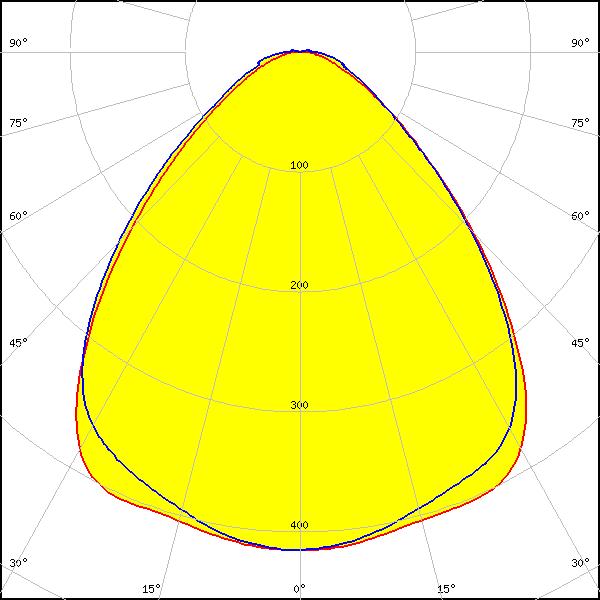

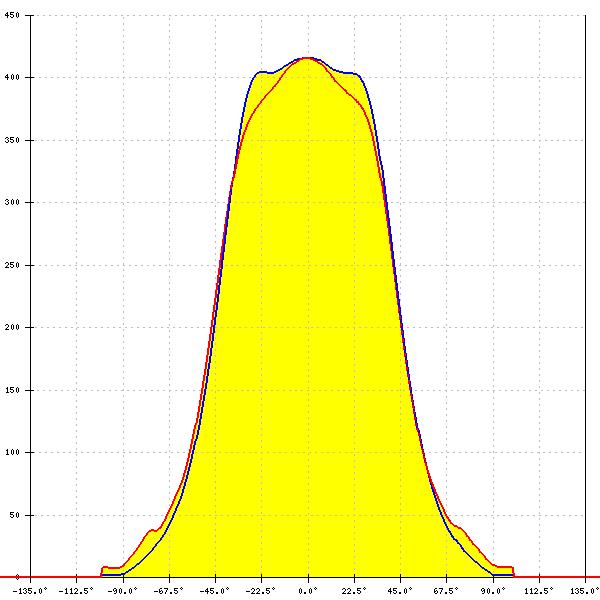

    LED: LLE G2 55x280mm 2000lm
    FWHM: 91°
    FWTM: 135°
    Peak intensity: 0.420 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
